HP General IO Connectivity User Manual

HP X.25/9000 User’s Guide

HP-UX 11i v1 and HP-UX 11i v2

Edition 7

Manufacturing Part Number: J2793-90073

E0607

Legal Notices



Confidential computer software. Valid license required from HP for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Oracle is a registered US trademark of Oracle Corporation, Redwood City, California.

UNIX is a registered trademark of The Open Group.

1. About the X.25 Product

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Application (L7), Presentation (L6), and Session (L5) Levels . . . . . . . . . . . . . . . . . . . . 18

Transport Level (L4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Packet/network Level (L3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Data link (L2) and Physical (L1) Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2. Installation

Before you Install the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Installing Multiple X.25 Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hardware Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

OS Platform and Version Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installing the X.25 Link Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3. Configuration

Configuring the X.25 Link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using SAM’s On-line Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Configuring an X.25 Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Configuring X.25 Virtual Circuits (VCs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Configuring an Internet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Verifying Level 3 Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Verifying Level 2 Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Using Maximum Window-Size Settings with Modulo-128 . . . . . . . . . . . . . . . . . . . 49

Configuring Remote System Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Configuring X.25 over LLC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Starting and Stopping Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Sample setup and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

One Lan and Two Boxes configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Configuring Two Lans, with One Box Per Lan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Troubleshooting LLC2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Configuring PAD Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Add/Modify PAD Terminal Emulation (Local to Remote). . . . . . . . . . . . . . . . . . . . . . 74

Add/Modify PAD Support Server (Remote to Local) . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Contents

Add/Modify PAD Printers Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Add/Modify UUCP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Add/Modify X.3 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Configuring the High Availability Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

X.25 Cluster Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

X.25 Commands to be Configured in High Availability Packages . . . . . . . . . . . . . . . 80

X.25 Package Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

X.25 High Availability Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Checking the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Configuring the High Availability Feature for X.25 over LLC2 . . . . . . . . . . . . . . . . . . 84

Unique MAC Address Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Local Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Configuring XOL HA for Local Failover Without ServiceGuard . . . . . . . . . . . . . . 86

Remote Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Configuring XOL HA for Remote Failover Using Service Guard (SG) . . . . . . . . . . 89

XOL Cluster Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

X.25 Commands Used in the SG Package Control Scripts: . . . . . . . . . . . . . . . . . . 91

XOL Package Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Remote Failover with Local Failover Support Using Service Guard . . . . . . . . . . . . . 94

Verifying the X.25 Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

4. OLA/R Overview and Concepts

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Important Terms and Concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Planning and Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Card Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

On-Line Addition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

On-Line Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Critical Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Failover Actions / Single Points of Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

How to On-line Replace (OLR) a J3525A or J3526A PCI Card using SAM . . . . . . . . 107

How to On-line Add (OLA) a J3525A or J3526A PCI Card using SAM . . . . . . . . . . . 111

5. Diagnostic Utilities

Using Diagnostic Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Before Using the Diagnostic Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

x25check and x25server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Example 1: Running x25check Interactively (No Parameters) . . . . . . . . . . . . . . . . 119

Example 2: Running x25check With an X.121 Address . . . . . . . . . . . . . . . . . . . . . . 121

Example 3: Running x25check With a Data Packet . . . . . . . . . . . . . . . . . . . . . . . . . 121

x25stat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Example 1: Displaying the Current Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . 122

Example 2: Displaying Global Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Example 3: Displaying Virtual Circuit Data Packet Counters . . . . . . . . . . . . . . . . 127

Example 4: Displaying Global X.25 Level 3 Statistics . . . . . . . . . . . . . . . . . . . . . . . 128

Example 5: Displaying X.25 Level 1 and 2 Statistics . . . . . . . . . . . . . . . . . . . . . . . . 128

Example 6: Displaying Virtual Circuit Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Example 7: Displaying Current IP to X.25 Address Mapping . . . . . . . . . . . . . . . . . 131

x25mibstat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

6. PAD Services

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

CCITT Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

PAD services and the HP 9000 host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Remote PAD Support (x29server) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Call Acceptance Mechanism and System Security . . . . . . . . . . . . . . . . . . . . . . . . 137

Supported Remote PAD Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Configuring Remote PAD Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Configuring pad_spt Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

pad_spt Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Launching Applications Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Remote PAD Printer Support (x29printd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Configuring Remote PAD Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Configuring the UNIX Line-printer Spooler for x29printd . . . . . . . . . . . . . . . . . . . 147

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

x29printd and lpsched Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Printer Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Verifying the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

UUCP Support (x29uucpd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Configuring UUCP PAD Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Contents

Configuring the x29hosts file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

pad_uucp Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Configuring System and Device Files for UUCP . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Local PAD Emulation (padem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Command Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Data Transfer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Configuring Local PAD Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Parameter Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

PAD Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

X.28 PAD Command Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Extended Command Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Configuring X.3 Profile Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Configuration Set Syntax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Parameter Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Modifying Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Default X.3 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

X.3 Parameter Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

7. Tracing and Logging Utilities

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

nettl. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

netfmt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Creating a Filter File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Filter File Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

strace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Examples of the strace Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Examples of strace Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

strerr. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

8. Troubleshooting

Troubleshooting Your X.25 Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Troubleshooting Flowcharts and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Flowchart 2 – Procedures and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Note 2-1 – x25stat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Note 2-2 – eisa_config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Flowchart 3 – Procedures and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Note 3-1 – Hardware Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Flowchart 4 – Procedures and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Note 4-1 – x25check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Note 4-2 – Exit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Flowchart 5 – Procedures and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Note 5-1 – ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Note 5-2 – Checking your IP over X.25 Configuration . . . . . . . . . . . . . . . . . . . . . 211

Note 5-3 – Exit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Recovering From a Power Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

For Systems With a Backup Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

For Systems With No Backup Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Reporting Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Back-to-back Configuration on the Same Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Configuration and Troubleshooting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Command Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Examples of x25init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

IP-to-X.121 Address Mapping Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

File Mapping Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

Contents

A. SUsing Non-English Subscription Forms

Subscription Form Translations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

B. X.25 Configuration Files and Examples

X.25 Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Example Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

The x25init_def File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

Contents

The x25init_smpl File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

The x3config File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

The x29hosts File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

The Network Type File (x25_networks) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

C. Diagnostic Messages

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Diagnostic Message Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Cause Code Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Packet Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

RESTART Packet Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

RESET/CLEAR Packet Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249

X.25 Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Tab les

Table 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Table 3-1. Field Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table 3-2. Field Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Table 3-3. Configure Internet Address Field Descriptions . . . . . . . . . . . . . . . . . . . . .39

Table 3-4. IP Address and Default Subnet Masks . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Table 3-5. Modify IP over X.25 Defaults Field Descriptions . . . . . . . . . . . . . . . . . . . .41

Table 3-6. Verify Level 3 Values Field Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . .42

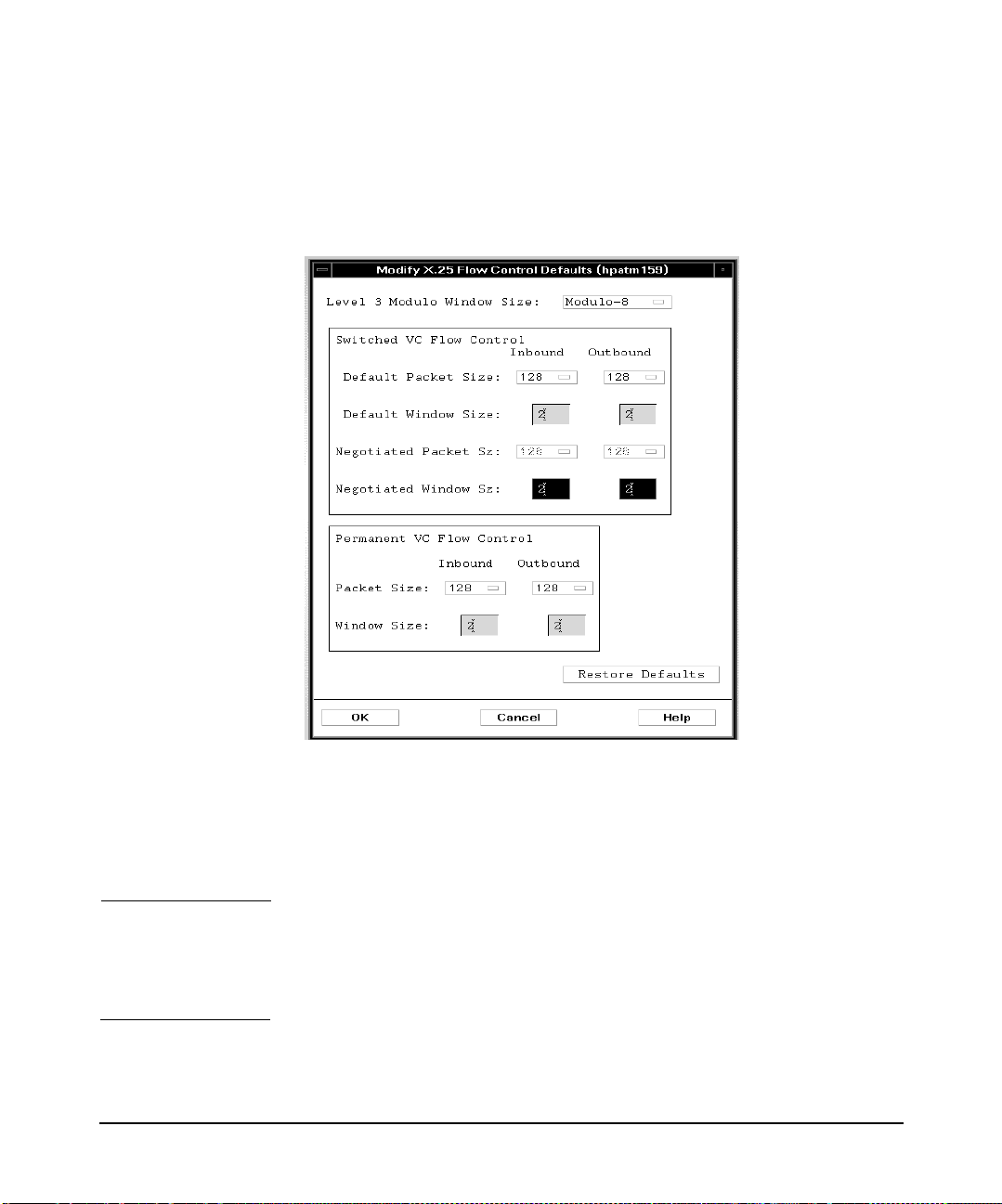

Table 3-7. Switched VC Flow Control Field Descriptions . . . . . . . . . . . . . . . . . . . . . .44

Table 3-8. Permanent VC Flow Control Field Descriptions. . . . . . . . . . . . . . . . . . . . .44

Table 3-9. Modify Throughput Class Settings Field Descriptions. . . . . . . . . . . . . . . .45

Table 3-10. Throughput Classes and Line Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Table 3-11. Verify Level 2 Values Field Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . .48

Table 3-12. Recommended Maximum Window Sizes . . . . . . . . . . . . . . . . . . . . . . . . . .50

Table 3-13. Add Internet Connectivity Field Descriptions . . . . . . . . . . . . . . . . . . . . .53

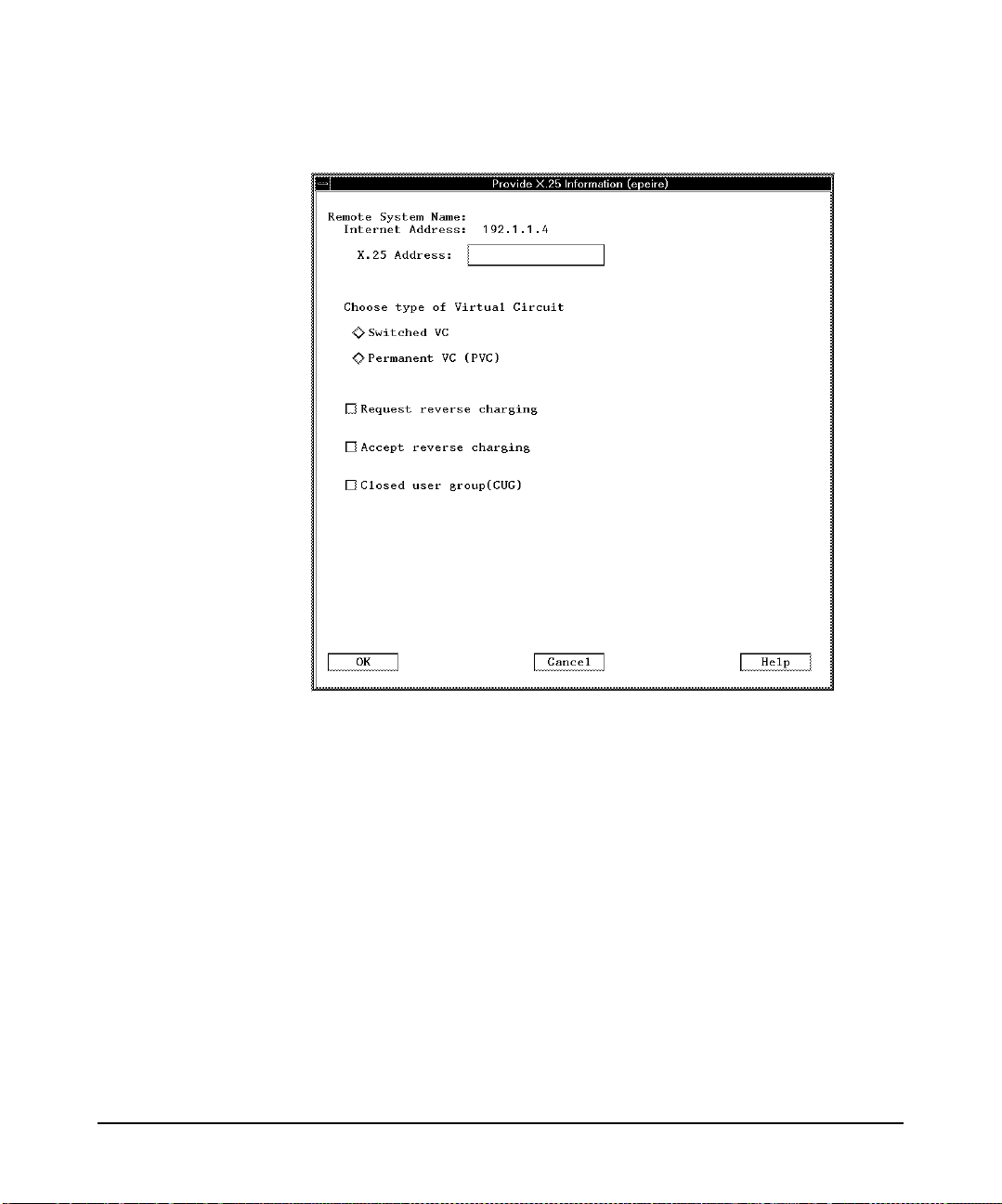

Table 3-14. Provide X.25 Information Field Descriptions . . . . . . . . . . . . . . . . . . . . . .55

Table 3-15. Patch requirements for the XOL HA feature and configurable SAP values

feature for X.25 over LLC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Table 3-16. Additional XOL specific configuration parameters. . . . . . . . . . . . . . . . . .58

Table 4-1. Terms used in this section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Table 4-2. Three Possible Critical Resource Analysis (CRA) Outcomes . . . . . . . . . .108

Table 4-3. Three Possible Critical Resource Analysis (CRA) Outcomes . . . . . . . . . .112

Table 5-1. Available Diagnostic Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Table 5-2. Level 3 State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Table 5-3. Level 2 Link State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Table 5-4. Level 1 Link State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Table 5-5. Statistics for WAN Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Table 5-6. VC State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Table 5-7. Statistics for WAN Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Table 5-8. Example Statistics for x25mibstat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Table 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

Table 6-2. X.3 Parameter Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Table 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170

Table 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Table 6-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Table 6-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172

Tables

Table 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Table 6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Table 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Table 6-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175

Table 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Table 6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Table 6-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176

Table 6-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Table 6-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Table 6-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Table 7-1. Available Tracing and Logging Utilities . . . . . . . . . . . . . . . . . . . . . . . . . .180

Table 7-2. Tracing Masks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .183

Table 7-3. Filter File Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188

Table 7-4. Filter File family Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

Table 7-5. Single-port Subnet Interface Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192

Table 7-6. Dual-port Subnet Interface Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193

Table 7-7. Output Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194

Table 7-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

Table 7-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

Table 7-10. Output Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196

Table 7-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197

Table 8-1. Troubleshooting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202

Table A-1. French TRANSPAC Subscription Form . . . . . . . . . . . . . . . . . . . . . . . . . .226

Table A-2. Using Your ITAPAC (Italian) Subscription Form. . . . . . . . . . . . . . . . . . .227

Table A-3. Using your DATEX-P (German) Subscription Form . . . . . . . . . . . . . . . .228

Table A-4. Using your IBERPAC (Spanish) Subscription Form . . . . . . . . . . . . . . . .228

Table B-1. /etc/x25 directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232

Table B-2. /etc directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232

Table B-3. /var/x25/log/x25server directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233

Table B-4. /var/x25/log directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233

Table B-5. Home directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233

Table B-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234

Table B-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237

Table B-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242

Table B-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244

Tab les

Table C-1. No Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250

Table C-2. Packet Type Invalid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250

Table C-3. Packet Not Allowed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251

Table C-4. Timer Expired. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253

Table C-5. Call Setup, Call Clearing, or Registration Problem . . . . . . . . . . . . . . . . .255

Table C-6. CATEGORY - Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

Table C-7. International Problem and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .258

Table C-8. DTE-Specific Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .259

Table C-9. OSI Network Service Problem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260

Table C-10. Higher Level Initiated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262

Tables

Figures

Figure 1-1. X.25 Link Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Figure 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Figure 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Figure 3-3. Configure Internet Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Figure 3-4. Modify IP Over X.25 Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Figure 3-5. Verify Level 3 Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Figure 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Figure 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Figure 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Figure 3-9. Add Internet Connectivity Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Figure 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Figure 3-11. One LAN, Two Boxes Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Figure 3-12. Two Lans, One Box per Lan configuration . . . . . . . . . . . . . . . . . . . . . . .69

Figure 3-13. Before the Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Figure 3-14. After the Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Figure 3-15. Before the Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Figure 3-16. After the Failover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Figure 5-1. Scope of X.25 Diagnostic Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Figure 6-1. PAD Support Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

Figure 6-2. PAD Services as a Pipe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Figure 6-3. Remote PAD Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Figure 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Figure 6-5. Remote Printer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Figure 6-6. Remote Printer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Figure 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Figure 7-1. The Scope of X.25 Tracing and Logging Utilities . . . . . . . . . . . . . . . . . .181

Figure 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192

Figure 8-1. Flowchart 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204

Figure 8-2. Flowchart 2 – Initialization Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206

Figure 8-3. Flowchart 3 – Hardware and License Check. . . . . . . . . . . . . . . . . . . . . .208

Figure 8-4. Flowchart 4 – X.25 Configuration Check. . . . . . . . . . . . . . . . . . . . . . . . .210

Figure 8-5. Flowchart 5 – IP Over X.25 Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .212

Figure 8-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216

Figures

1 About the X.25 Product

Chapter 1 15

About the X.25 Product

Introduction

The Hewlett-Packard X.25 link for HP 9000 systems provides networking link hardware and software to allow HP computer systems to communicate with other HP and non-HP computers over X.25 packet switching networks.

The X.25 link implements the CCITT X.25 Recommendations and contains the components necessary to connect an HP 9000 to a public or private packet switching network conforming to the CCITT X.25 Recommendation (1980, 1984 or 1988), or to another system in a back-to-back configuration.

The information in this manual applies to HP 9000 Series 700 and 800 systems that use single, dual, or quad-port communications hardware. Any differences are specifically noted.

NOTE In a diskless cluster, X.25 software is only supported on the server

system. It is not supported on client systems for this type of environment.

The following diagram illustrates the X.25 link architecture where:

• solid white boxes represent the product’s integral components.

• lightly shaded boxes represent the product’s protocol components.

• heavily shaded boxes represent optional components (external to the product) that can be added to the product.

Each component depends on the component(s) below it and must be installed and running in order to support higher-level components.

Chapter 116

Figure 1-1 X.25 Link Architecture

About the X.25 Product

Introduction

OSI Services

OTS/9000

OTS-to-PLP

Translator

X.25

PAD

Services

X.25

Programmatic Access

BSD-to-PLP Translator

X.25 Packet Level Protocol (PLP)

X.25 Link Access Procedure-Balanced Protocol (LAP-B)

User

Written

BSD IPC

User

Written

IP-to-PLP Interface

Internet

Services

TCP/UDP

Network

Services NS

X.25 Communications Hardware

Chapter 1 17

About the X.25 Product

Application (L7), Presentation (L6), and Session (L5) Levels

The X.25 link does not provide any components for the general support of the application and presentation levels (levels 7 and 6, respectively), although X.25/9000 PAD Services do provide some of the functionality of these levels.

User-written application programs, Internet Services/Berkeley Services (via BSD Sockets) and NS (via NetIPC Sockets), are accessed by means of TCP or UDP Transport Level (level 4) protocols.

For application level services, you can install OSI Services to run over the X.25 network (for more information, refer to OSI Services documentation). The OTS/9000 product provides access to X.25 for OSI Services. You can install application level services such as Internet/Berkeley Services and Network Services (for more information, refer to the documentation for these products).

BSD IPC (Berkeley Software Distribution InterProcess Communication) allows direct programmatic access to the X.25 packet level (level 3), or TCP/UDP at the transport level (level 4), for user-written application programs.

NetIPC sockets also provides a programmatic interface to TCP/UDP at the transport level.

Chapter 118

About the X.25 Product

Transport Level (L4)

At the transport level (level 4), the X.25 link provides TCP (based on the DARPA standard) and UDP. These Transport level protocols are used by Internet/Berkeley Services, by NS, and by user application programs that access the TCP/UDP and IP protocols.

The TCP protocol is a connection-based protocol. TCP verifies that all data is delivered without duplication to its destination. The UDP protocol, unlike TCP, has no concept of a connection. Messages are sent as a unit with source and destination information in the header.

The X.25 link provides a BSD to PLP (Packet Level Protocol) translator to allow access to PLP at level 3 for user-written application programs via BSD IPC.

The X.25 link also provides an OTS to PLP translator to allow access to PLP at level 3 for OSI Services via Xport OSI.

Chapter 1 19

About the X.25 Product

Packet/network Level (L3)

At the packet/network level (L3), X.25 link provides direct X.25 programmatic access via BSD IPC. For full details on X.25 programmatic access, refer to the X.25/9000 Programmer’s guide (customer order number: 36960-90050).

The X.25 link also provides IP access to TCP or UDP Transport protocols for programs such as Internet/Berkeley Services and NS, allowing communication over X.25 in accordance with RFC 877.

Chapter 120

About the X.25 Product

Data link (L2) and Physical (L1) Levels

At the data link level (level 2), the X.25 link provides the LAP-B (Link Access Procedure-Balanced) protocol. LAP-B is a data link protocol, specified by the 1980 CCITT X.25 recommendations, that determines frame exchange procedures.

At the physical level (level 1), the X.25 link provides support for X.21, X.21bis, and V.35 interfaces (depending on your particular communications hardware). These sets of recommendations define the standards for X.25 at the physical level and apply specifically to connections to a packet switching network. X.21bis (equivalent to V.24 and RS-232) is applicable to X.25 physical interfaces with transmission speeds up to 64 kb/s. V.35, RS-449, X.21 and RS-530 supports transmission speeds up to 2Mb/s. Other standards may also be supported as they become available.

Chapter 1 21

About the X.25 Product

Data link (L2) and Physical (L1) Levels

Chapter 122

2 Installation

Chapter 2 23

Installation

Before you Install the software

Before installing the X.25 link software, check the requirements below to make sure that all required software and hardware has been correctly installed and configured.

NOTE This product is only supported on the system that is acting as a server. It

is not supported on client systems.

Hardware Requirements

This section describes the hardware requirements of the J2793B X.25 software for HP 9000 server systems.

If you have not already done so, install the X.25 interface card as described in the hardware installation guide for your X.25 product. If you are installing multiple X.25 cards, check the requirements in “Installing Multiple X.25 Interface Cards” below.

If a modem connection is required, connect the X.25 card to the modem or the modem eliminator according either to the modem vendor’s specification sheet, or the instructions provided by the network provider.

Installing Multiple X.25 Interface Cards

When installing multiple X.25 cards,

• Always install the cards in adjacent slots in ascending slot order.

• Always install X.25 cards with the system shut down.

• Do not skip slots between X.25 cards.

Hardware Compatibility

• HP 9000 PCI bus

The High Availability feature can run on:

• PCI hardware cards, Product Numbers J3525A (2-ports) and J3526A (4-ports)

Chapter 224

Installation

Before you Install the software

OS Platform and Version Compatibility

The version of the X.25 link software you’re installing must be compatible with the version of HP-UX you’re running (for example, HP-UX version 11.00 for B.11.00.05)

• Disk space required to install: 7 Mb

• Software install with system up or down? Up

• Single-user state required or recommended? No

• Reboot? Yes

Memory

Your X.25 link supports a high number of virtual circuits operating at high baud rates. Since both X.25 and the BSD sockets API may store a certain amount of data for each socket/circuit, HP recommends that you check that your system has enough memory to handle the number of VCs you plan to use. A few guidelines to help you are provided below.

Related Parameters

• Level 3 window size (W in formulas below) as configured in the x25config file

• Level 3 packet size (P in formulas below) as configured in X.25 configuration file

• Socket buffer size (B in formulas below) used in your applications (setsockopt() system call). The default is 4 Kb.

Evaluation Formulas The following formulas can be used to evaluate X.25 memory requirements:

Memory for each VC (MVC) in bytes:

MVC = (B x 3) + (2 x (W + 1) x P)

Total Memory (TM) for X.25 in bytes:

TM = sum (MVC) + Number of cards x 5120

NOTE These figures are only for protocol and API requirements. You should

also consider the memory required by your applications.

Chapter 2 25

Installation

Before you Install the software

Shortcut Method Assuming B = P for all VCs, TM can be rounded to:

• If B < 512, TM = approx. (1,536 + (2 x W + 2) x B) x No. of VCs

• If B > or = 512, TM = approx. (2 x W + 5) x B x No. of VCs

The following table (in bytes/VC) provides a quick guide:

Tab l e 2-1

Buffer Size (B) = Packet Size (P) in bytes

128 256 512 1024 2048 4096

Window (W) size

Example 2-1 Example:

A system has two X.25 cards configured as follows:

Card 1:

Window = 2 Packet size = 1024 Socket buffer size = 4096 (default) 200 VCs are used

Card 2:

Window = 4 Packet size = 128 Socket buffer size = 4096 (default) 400 VCs are used

1 2 K 2.5 K 3.5 K 7 K 14 K 28 K

2 2.3 K 3 K 4.5 K 9 K 18 K 36 K

3 2.5 K 3.5 K 5.5 K 11 K 22 K 44 K

4 2.8 K 4 K 6.5 K 13 K 26 K 52 K

5 3 K 4.5 K 7.5 K 15 K 30 K 60 K

6 3.3 K 5 K 8.5 K 17 K 34 K 68 K

7 3.5 K 5.5 K 9.5 K 19 K 38 K 76 K

Chapter 226

TM = (4096 x 3) + (2 x 3 x 1024)) x 200 + ((4096 x 3) + (2 x 5 x 128)) x 400 + (2 x 5120)

TM = 9,123,840 (8.7 Mb)

Installation

Before you Install the software

Chapter 2 27

Installation

Software Requirements

Before installing the X.25 link product, make sure that the software listed below has been correctly installed on your system. Refer to the related publication if you need more information about any of these products. If you cannot find the software or information you need, contact your HP representative.

• HP-UX operating system version 11i or later – see HP-UX11i

Installation and Update Guide for HP Integrity Servers and HP 9000 Servers.

Chapter 228

Installation

Installing the X.25 Link Software

Follow the steps below to install the X.25 link software:

Step 1. Insert the software media (tape or disk) in the appropriate drive.

Step 2. Type: swinstall.

(See the man page on swinstall for more information on this command).

Step 3. Click on OK on the “Specify Source” window.

Step 4. Highlight J2793B in the “Software Selection” dialog, then select Mark

For Install from the Actions menu to install all file sets in the bundle.

If you want to select only certain file sets, double-click on the product name to access the file sets that you want to mark for installation (each time you double-click, you go down one level in the bundle structure).

Step 5. When you have marked the product components you want to install,

select Install (analysis) from the “Actions” menu.

Step 6. When you have successfully completed the analysis, click on OK from the

Analysis dialog to load the X.25 file sets.

The swinstall utility loads the file sets, runs the customized scripts for the file set, and builds the kernel. Estimated time for processing: 8 to 10 minutes.

If the kernel build is not successful, the swinstall program returns you to a new shell. The cause of the failure will appear at the end of the /var/adm/sw/swinstall.log file.

Chapter 2 29

Installation

Installing the X.25 Link Software

Chapter 230
