Page 1
Getting Started
HP Notebook
Page 2
© Copyright 2011 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Second Edition: May 2011
Document Part Number: 636684-002
Product notice
This guide describes features that are
common to most models. Some features
may not be available on your computer.
Software terms
By installing, copying, downloading, or
otherwise using any software product that is
pre-installed on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a refund, subject to the refund
policy of your place of purchase.
For any further information or for requesting
a full refund for the computer, please
contact your local point of sale (the seller).
Page 3
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation.
The computer and the AC adapter comply with the user-accessible surface temperature limits defined
by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
Page 4
iv Safety warning notice
Page 5
Table of contents
1 Welcome .......................................................................................................................................................... 1
Finding information ............................................................................................................................... 2
2 Getting to know your computer ..................................................................................................................... 4
Top ....................................................................................................................................................... 4
TouchPad ............................................................................................................................ 4
Lights ................................................................................................................................... 5
Buttons ................................................................................................................................. 6
Keys ..................................................................................................................................... 7
Front ..................................................................................................................................................... 8
Right side ............................................................................................................................................. 8
Left side ................................................................................................................................................ 9
Display ................................................................................................................................................ 11
Bottom ................................................................................................................................................ 12
3 Networking .................................................................................................................................................... 13
Using an Internet service provider (ISP) ............................................................................................ 14
Connecting to a wireless network ....................................................................................................... 14
Connecting to an existing WLAN ....................................................................................... 15
Setting up a new WLAN network ....................................................................................... 15
Configuring a wireless router ............................................................................ 16
Protecting your WLAN ....................................................................................... 16
4 Keyboard and pointing devices ................................................................................................................... 17
Using the keyboard ............................................................................................................................ 18
Using the action keys ......................................................................................................... 18
Using pointing devices ....................................................................................................................... 20
Setting pointing device preferences ................................................................................... 20
Using the TouchPad .......................................................................................................... 20
Turning the TouchPad off and on ...................................................................... 21
Navigating ......................................................................................................... 21
Selecting ........................................................................................................... 22
Using TouchPad gestures .................................................................................................................. 22
v
Page 6
Scrolling ............................................................................................................................. 23
Pinching/Zooming .............................................................................................................. 23
Rotating ............................................................................................................................. 24
5 Maintenance .................................................................................................................................................. 25
Inserting or removing the battery ........................................................................................................ 25
Replacing or upgrading the hard drive ............................................................................................... 27
Removing the hard drive .................................................................................................... 27
Installing a hard drive ......................................................................................................... 28
Adding or replacing memory modules ................................................................................................ 29
Updating programs and drivers .......................................................................................................... 33
Routine care ....................................................................................................................................... 33
Cleaning the display .......................................................................................................... 33
Cleaning the TouchPad and keyboard .............................................................................. 33
6 Backup and recovery .................................................................................................................................... 34
Restore ............................................................................................................................................... 35
Creating restore media ....................................................................................................................... 35
Performing a system restore .............................................................................................................. 36
Restoring using the dedicated recovery partition (select models only) .............................. 36
Restoring using the restore media ..................................................................................... 37
Changing the computer boot order .................................................................................... 38
Backing up and recovering your information ...................................................................................... 38
Using Windows Backup and Restore ................................................................................ 39
Using Windows system restore points ............................................................................... 40
When to create restore points ........................................................................... 40
Create a system restore point ........................................................................... 40
Restore to a previous date and time ................................................................. 40
7 Customer support ......................................................................................................................................... 41
Contacting customer support ............................................................................................................. 42
Labels ................................................................................................................................................. 43
8 Specifications ................................................................................................................................................ 44
Input power ......................................................................................................................................... 44
Operating environment ....................................................................................................................... 45
Index ................................................................................................................................................................... 46
vi
Page 7
1Welcome
Finding information
●
After you set up and register the computer, it is important to take the following steps:
Connect to the Internet—Set up your wired or wireless network so that you can connect to the
●
Internet. For more information, refer to
Update your antivirus software—Protect your computer from damage caused by viruses. The
●
software is pre-installed on the computer and includes a limited subscription for free updates.
For more information, refer to the HP Notebook Reference Guide. For instructions on accessing
this guide, refer to
Finding information on page 2.
Finding information on page 2.
Get to know your computer—Learn about your computer features. Refer to
●
your computer on page 4 and Keyboard and pointing devices on page 17 for additional
information.
Create recovery discs or a recovery flash drive—Recover the operating system and software
●
to factory settings in case of system instability or failure. For instructions, refer to
recovery on page 34.
Find installed software—Access a list of the software that is preinstalled on the computer.
●
Select Start > All Programs. For details about using the software included with the computer,
refer to the software manufacturer's instructions, which may be provided with the software or on
the manufacturer's Web site.
Getting to know
Backup and
1
Page 8
Finding information
The computer comes with several resources to help you perform various tasks.
Resources For information about
Quick Setup poster
Getting Started
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
HP Notebook Reference Guide
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
How to set up the computer
●
● Help to identify computer components
Computer features
●
● How to connect to a wireless network
● How to use the keyboard and pointing devices
● How to replace or upgrade the hard drive and memory
modules
● How to perform a backup and recovery
How to contact customer support
●
Computer specifications
●
Power management features
●
● How to maximize battery life
● How to use the multimedia features of the computer
● How to protect the computer
How to care for the computer
●
How to update the software
●
Help and Support
To access Help and Support, select Start > Help and
Support.
NOTE: For country- or region-specific support, go to
http://www.hp.com/support, select your country or
region, and follow the on-screen instructions.
Regulatory, Safety and Environmental Notices
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
Operating system information
●
● Software, driver, and BIOS updates
Troubleshooting tools
●
How to access technical support
●
● Regulatory and safety information
Battery disposal information
●
2 Chapter 1 Welcome
Page 9
Resources For information about
Safety & Comfort Guide
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Select Start > All Programs > HP > HP
Documentation.
– or –
Go to
http://www.hp.com/ergo.
Worldwide Telephone Numbers booklet
This booklet is provided with your computer.
HP Web site
To access this Web site, go to
support.
Limited Warranty*
To access the warranty:
http://www.hp.com/
Proper workstation setup, posture, health, and work habits
●
● Electrical and mechanical safety information
HP support telephone numbers
Support information
●
● Ordering parts and finding additional help
Software, driver, and BIOS updates
●
Accessories available for the device
●
Warranty information
Select Start > Help and Support > User Guides >
View Warranty Information.
– or –
Select Start > All Programs > HP > HP
Documentation > View Warranty Information.
– or –
Go to
http://www.hp.com/go/orderdocuments.
*You may find the expressly provided HP Limited Warranty applicable to your product located with the electronic guides on
your computer and/or on the CD/DVD provided in the box. Some countries/regions may provide a printed HP Limited
Warranty in the box. In countries/regions where the warranty is not provided in printed format, you may request a printed
copy at
http://www.hp.com/go/orderdocuments or write to:
● North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd, Boise, ID 83714, USA
● Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
●
Please include your product number, warranty period (found on your serial number label), name, and postal address.
Finding information 3
Page 10
2 Getting to know your computer
Top
●
Front
●
Right side
●
Left side
●
Display
●

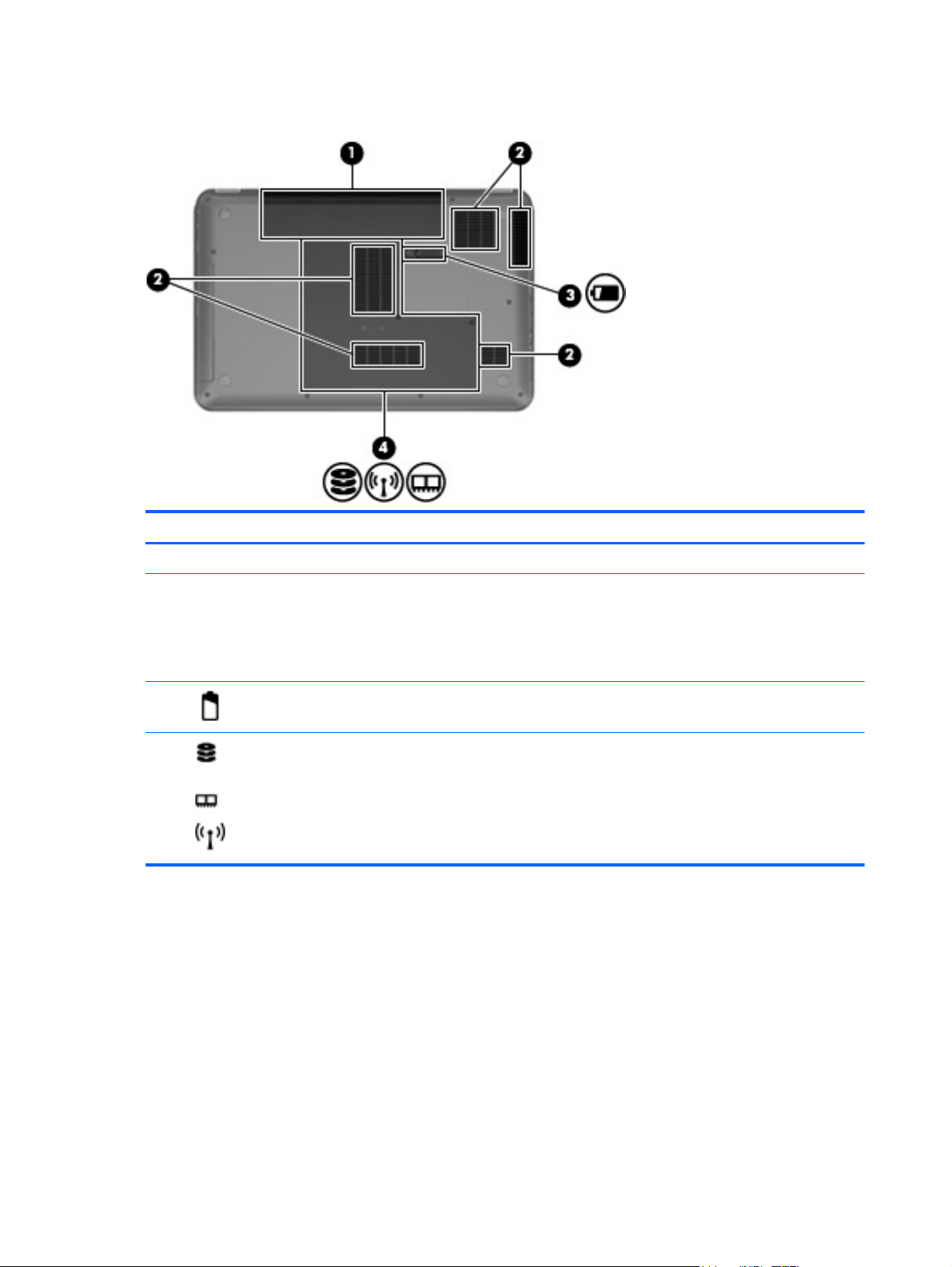

Bottom
●
Top
TouchPad
Component Description
(1)
TouchPad light ● Off: The TouchPad is on.
(2) TouchPad button Turns the TouchPad on and off. Quickly double-tap the
4 Chapter 2 Getting to know your computer
Amber: The TouchPad is off.
●
TouchPad button to turn the TouchPad on and off.
Page 11
Lights
Component Description
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) TouchPad zone Moves the pointer and selects or activates items on the
screen.
(5) Right TouchPad button Functions like the right button on an external mouse.
Component Description
(1) TouchPad light
(2) Caps lock light
(3)
(4)
Power light
Wireless light
Off: The TouchPad is on.
●
● Amber: The TouchPad is off.
White: Caps lock is on.
●
● Off: Caps lock is off.
On: The computer is on.
●
● Blinking: The computer is in Sleep state.
● Off: The computer is off or in Hibernation.
White: An integrated wireless device, such as a
●
wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.
Amber: All wireless devices are off.
●
Top 5
Page 12
Buttons
Component Description
Power button
When the computer is off, press the button to turn on
●
the computer.
● When the computer is on, press the button briefly to
initiate Sleep.
When the computer is in the Sleep state, press the
●
button briefly to exit Sleep.
When the computer is in Hibernation, press the button
●
briefly to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options,
or refer to the HP Notebook Reference Guide.
6 Chapter 2 Getting to know your computer
Page 13
Keys
Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Executes frequently used system functions when pressed
in combination with a function key, the num lk key, or the
esc key.
(3)
(4)
(5) Action keys Execute frequently used system functions.
Windows logo key Displays the Windows Start menu.
Windows applications key Displays a shortcut menu for items beneath the pointer.
Top 7
Page 14
Front
Component Description
Speakers (2) Produce sound
Right side
Component Description
(1) Optical drive Reads and writes (select models only) to an optical disc.
(2) Optical drive light Green: The optical drive is being accessed.
(3)
(4) AC adapter light
(5)
(6)
USB port Connects an optional USB device.
Blinking white: The battery is low.
●
● Solid white: The computer is connected to external
power.
Amber: The computer is charging the battery.
●
Off: The computer is not connected to external power.
●
Power connector Connects an AC adapter.
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
8 Chapter 2 Getting to know your computer
Page 15
Left side
Component Description
(1)
(2) Vents (2) Enable airflow to cool internal components.
(3)
(4)
(5)
(6)
(7)
External monitor port Connects an external VGA monitor or projector.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
RJ-45 (network) jack Connects a network cable.
HDMI port Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or audio
component.
USB ports (2) Connect optional USB devices.
Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
Audio-out (headphone) jack Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety and Environmental Notices.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
(8) Digital media slot Supports the following optional digital card formats:
MultiMedia Card (MMC)
●
Secure Digital (SD) Memory Card
●
Left side 9
Page 16
Component Description
(9)
(10)
Hard drive light
Power light
White: The hard drive is being accessed.
●
White: The computer is on.
●
● Blinking white: The computer is in Sleep mode.
10 Chapter 2 Getting to know your computer
Page 17

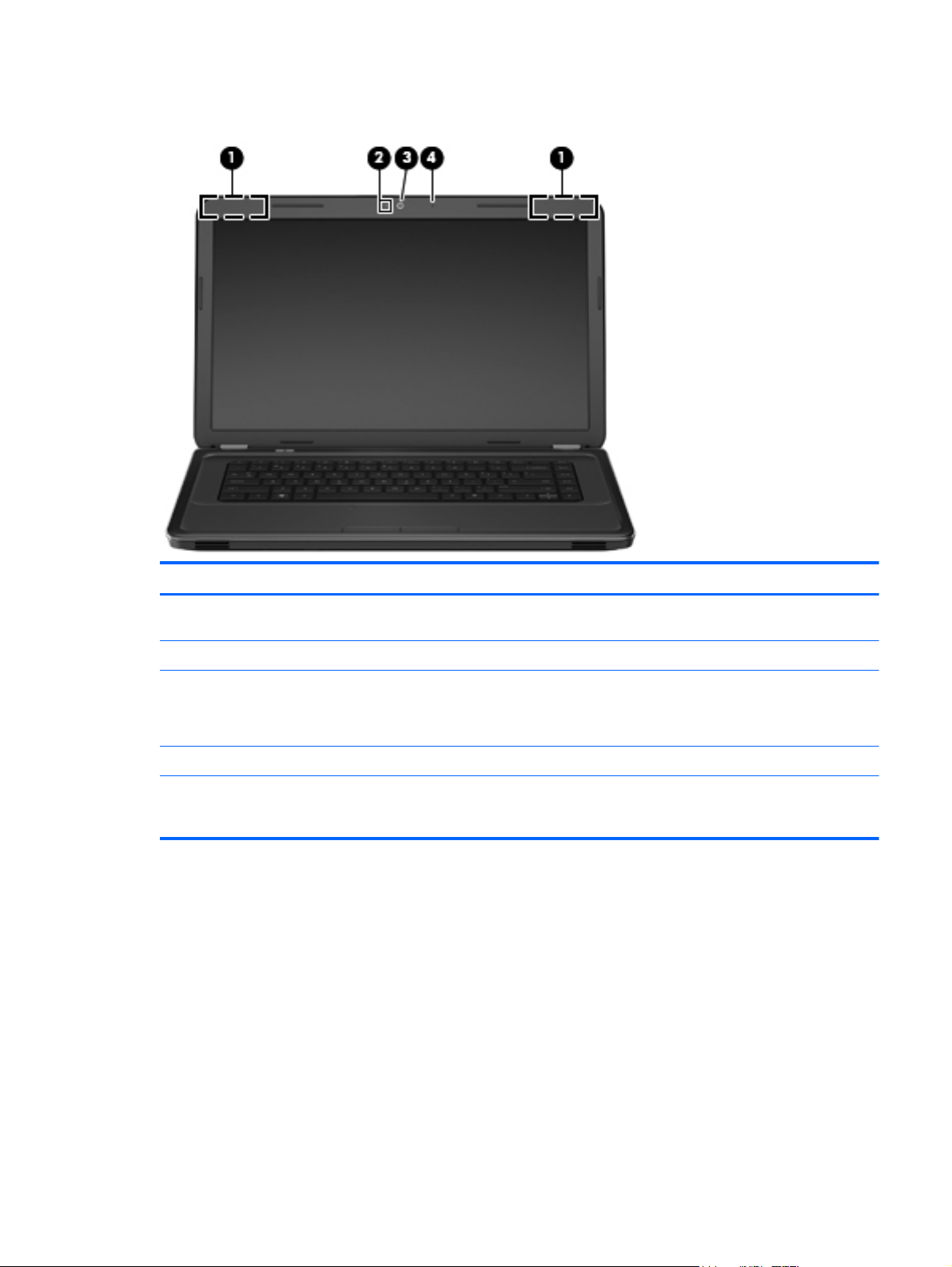

Display
Component Description
(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless
(2) Webcam light On: The webcam is in use.
(3) Webcam Records video and captures still photographs
(4) Internal microphone Records sound
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety
and Environmental Notices that applies to your country or region. These notices are located in Help and Support.
local area networks (WLANs)
To use the webcam, select Start > All Programs > Cyberlink
YouCam.
Display 11
Page 18
Bottom
Component Description
(1) Battery bay Holds the battery
(2) Vents (5) Enable airflow to cool internal components
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3)
(4)

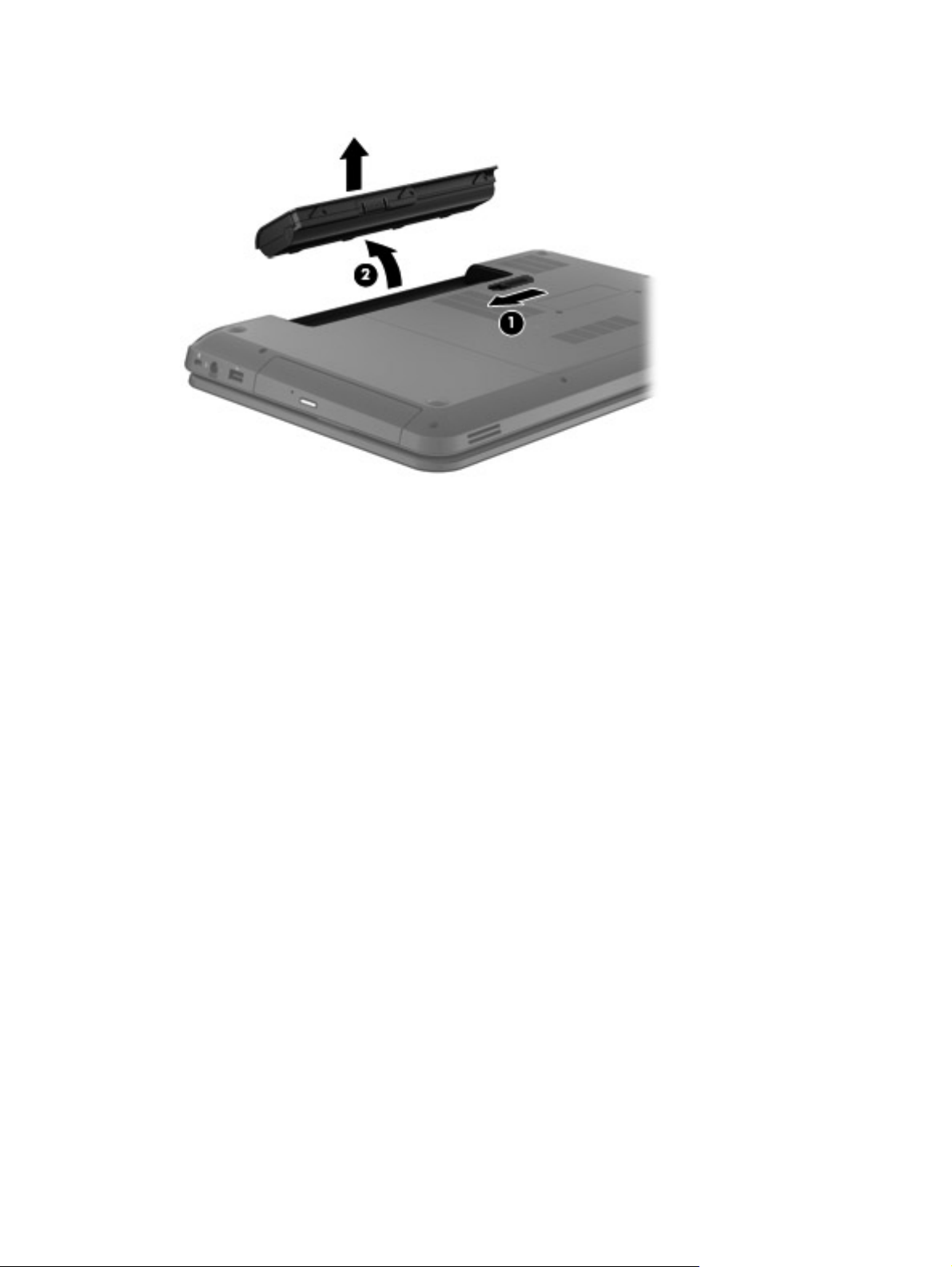

Battery release latch Releases the battery from the battery bay

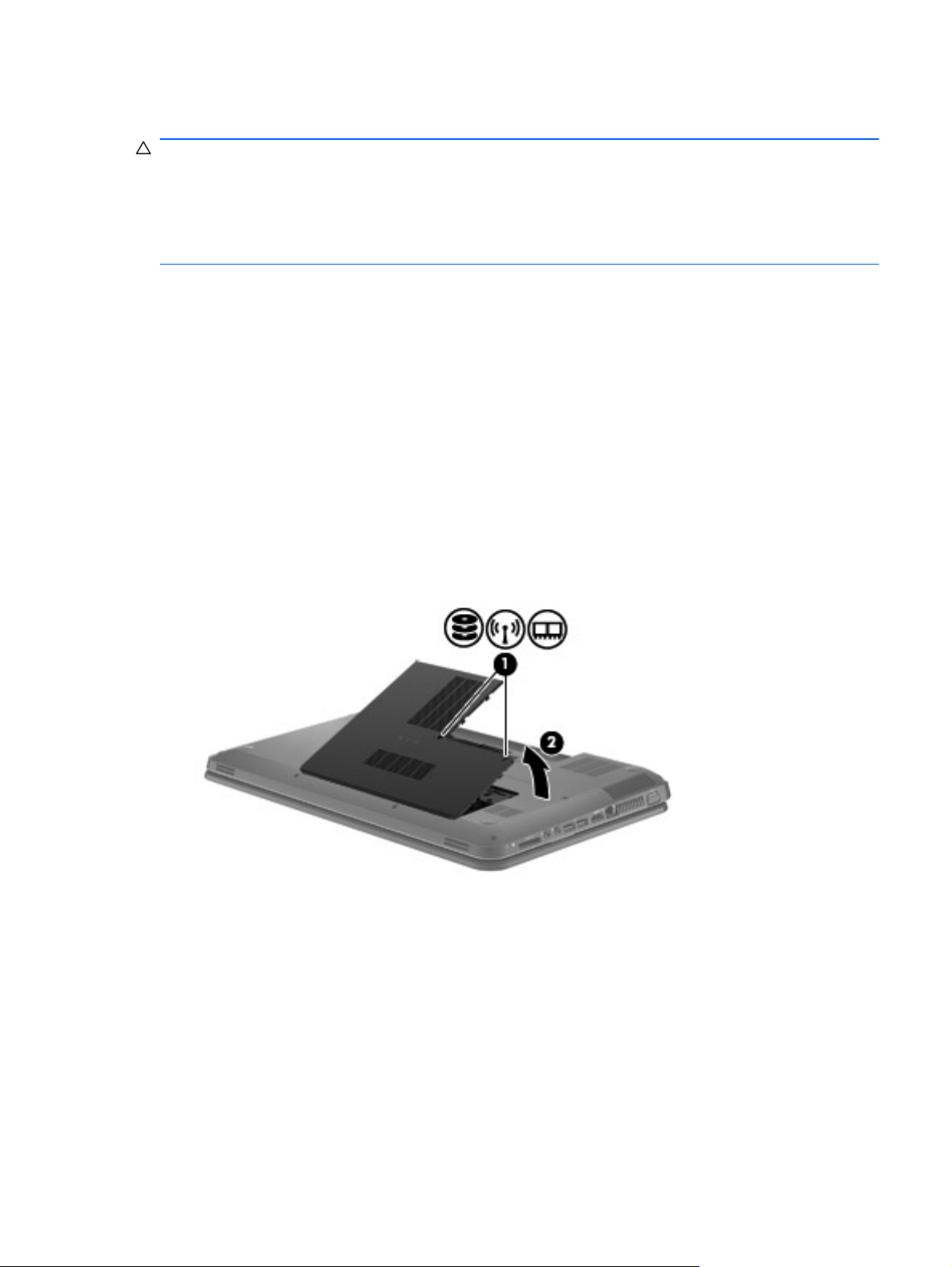

Service cover Provides access to the hard drive, wireless modules, and
memory modules
12 Chapter 2 Getting to know your computer
Page 19
3Networking
Using an Internet service provider (ISP)
●
Connecting to a wireless network
●
NOTE: Internet hardware and software features vary depending on computer model and your
location.
Your computer may support one or both of the following types of Internet access:
Wireless—For mobile Internet access, you can use a wireless connection. Refer to
●
to an existing WLAN on page 15 or Setting up a new WLAN network on page 15.
Wired—You can access the Internet by connecting to a wired network. For information on
●
connecting to a wired network, refer to the HP Notebook Reference Guide.
Connecting
13
Page 20
Using an Internet service provider (ISP)
Before you can connect to the Internet, you must establish an ISP account. Contact a local ISP to
purchase Internet service and a modem. The ISP will help set up the modem, install a network cable
to connect your wireless computer to the modem, and test the Internet service.
NOTE: Your ISP will give you a user ID and password to access the Internet. Record this
information and store it in a safe place.
The following features will help you set up a new Internet account or configure the computer to use an
existing account:
Internet Services & Offers (available in some locations)—This utility assists with signing up
●
for a new Internet account and configuring the computer to use an existing account. To access
this utility, select Start > All Programs > Online Services > Get Online.
ISP-provided icons (available in some locations)—These icons may be displayed either
●
individually on the Windows desktop or grouped in a desktop folder named Online Services. To
set up a new Internet account or configure the computer to use an existing account, double-click
an icon, and then follow the on-screen instructions.
● Windows Connect to the Internet Wizard—You can use the Windows Connect to the Internet
Wizard to connect to the Internet in any of these situations:
You already have an account with an ISP.
◦
◦ You do not have an Internet account and want to select an ISP from the list provided within
the wizard. (The list of ISP providers is not available in all regions.)
You have selected an unlisted ISP, and the ISP has provided you with information such as
◦
a specific IP address and POP3 and SMTP settings.
To access the Windows Connect to the Internet Wizard and instructions for using it, select Start >
Control Panel > Network and Internet > Network and Sharing Center > Set up a new
connection or network > Set up a new network, and then follow the on-screen instructions.
NOTE: If you are prompted within the wizard to choose between enabling or disabling Windows
Firewall, choose to enable the firewall.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
● Wireless local area network (WLAN) device
Bluetooth device
●
For more information on wireless technology and connecting to a wireless network, refer to the
HP Notebook Reference Guide and information and Web site links provided in Help and Support.
14 Chapter 3 Networking
Page 21
Connecting to an existing WLAN
1. Turn on the computer.
2. Be sure that the WLAN device is on.
3. Click the network icon in the notification area, at the far right of the taskbar.
4. Select a network to connect to.
5. Click Connect.
6. If required, enter the security key.
Setting up a new WLAN network
Required equipment:
A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from
●
an Internet service provider (ISP)
A wireless router (purchased separately) (2)
●
Your new wireless computer (3)
●
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type
of modem you have.

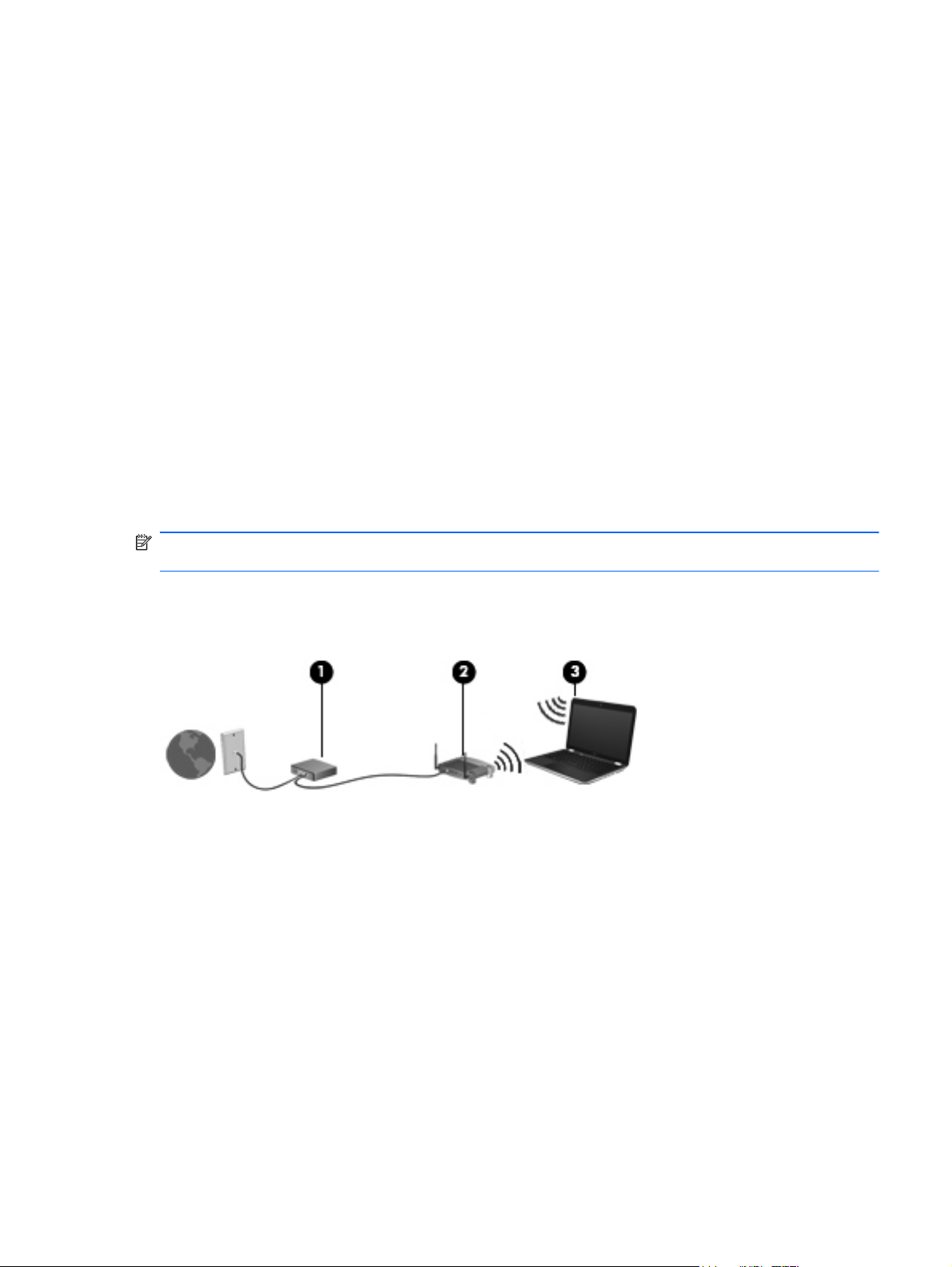

The illustration shows an example of a completed WLAN network installation that is connected to the
Internet. As your network grows, additional wireless and wired computers can be connected to the
network to access the Internet.
Connecting to a wireless network 15
Page 22
Configuring a wireless router
For help in setting up a WLAN, refer to the information provided by your router manufacturer or your
ISP.
The Windows operating system also provides tools to help you set up a new wireless network. To use
the Windows tools to set up your network, select Start > Control Panel > Network and Internet >
Network and Sharing Center > Set up a new connection or network > Set up a new network.
Then follow the on-screen instructions.
NOTE: It is recommended that you initially connect your new wireless computer to the router by
using the network cable provided with the router. When the computer successfully connects to the
Internet, you can disconnect the cable, and then access the Internet through your wireless network.
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always turn on security features to protect
your network from unauthorized access.
For information on protecting your WLAN, refer to the HP Notebook Reference Guide.
16 Chapter 3 Networking
Page 23
4 Keyboard and pointing devices
Using the keyboard
●
Using pointing devices
●

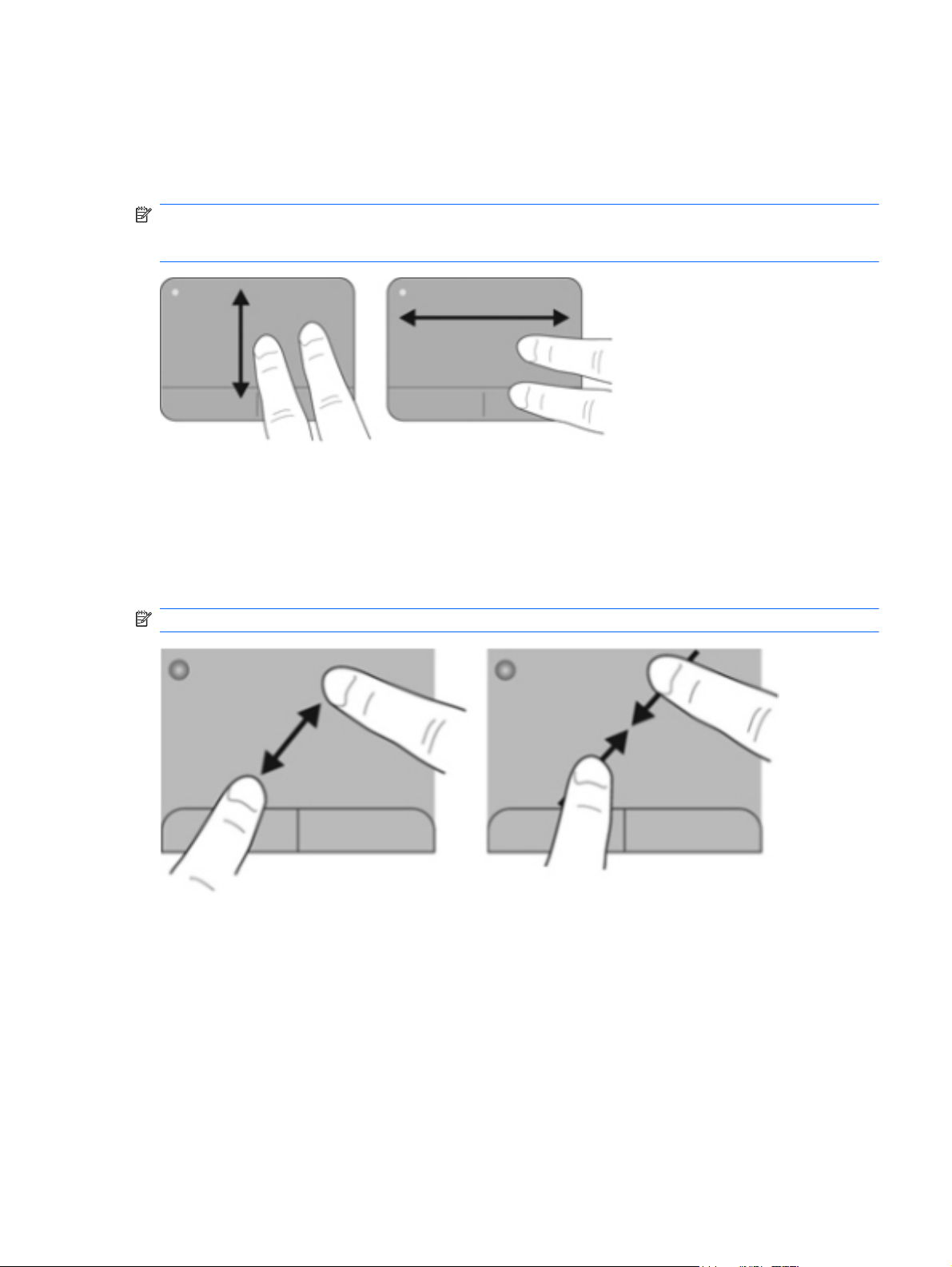

Using TouchPad gestures
●
17
Page 24
Using the keyboard

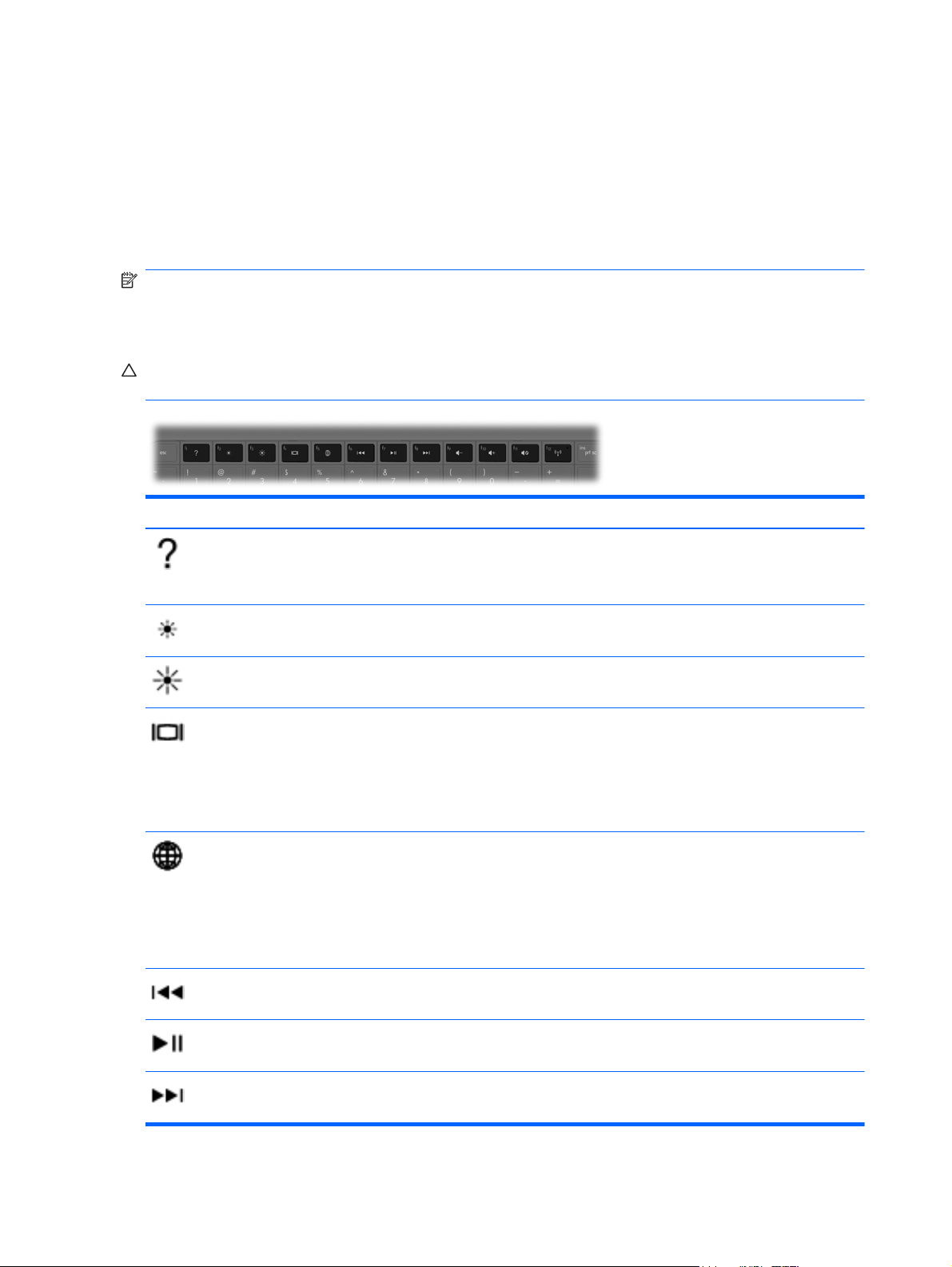

Using the action keys
Action keys are customized actions that are assigned to specific keys at the top of the keyboard. The
icons on the f1 through f12 keys represent the action key functions.
To use an action key, press and hold this key to activate the assigned function.
NOTE: The action key feature is enabled at the factory. You can disable this feature in Setup Utility
(BIOS) and revert back to standard settings by pressing the fn key and one of the function keys to
activate the assigned function. Refer to the “Setup Utility (BIOS) and System Diagnostics” chapter in
the HP Notebook Reference Guide for instructions.
CAUTION: Use extreme care when making changes in Setup Utility. Errors can prevent the
computer from operating properly.
Icon Key Description
f1 Opens Help and Support, which provides information about your Windows operating system and
f2 Decreases the screen brightness level incrementally when you hold down this key
f3 Increases the screen brightness level incrementally when you hold down this key
f4 Switches the screen image among display devices connected to the system. For example, if a
f5 ● When the computer is off or in Hibernation, launches HP QuickWeb.
f6 Plays the previous track of an audio CD or the previous section of a DVD or a BD
computer, answers to questions and tutorials, and updates to your computer
Help and Support also provides automated troubleshooting and links to support specialists
monitor is connected to the computer, pressing this key alternates the screen image from computer
display to monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information from the computer using the external VGA video
standard. The switch screen image action key can also alternate images among other devices that
are receiving video information from the computer.
When the computer is in Microsoft Windows, launches the default Web browser.
●
When the computer is in HP QuickWeb, launches the default Web browser.
●
NOTE: If your computer does not have HP QuickWeb software, the button does not perform any
action or function.
f7 Plays, pauses, or resumes an audio CD, a DVD, or a BD
f8 Plays the next track of an audio CD or the next section of a DVD or a BD
18 Chapter 4 Keyboard and pointing devices
Page 25
Icon Key Description
f9 Decreases speaker volume incrementally when you hold down this key
f10 Increases speaker volume incrementally when you hold down this key
f11 Mutes or restores speaker sound
f12 Turns the wireless feature on or off
NOTE: This action key does not establish a wireless connection. To establish a wireless
connection, a wireless network must be set up.
Using the keyboard 19
Page 26
Using pointing devices
NOTE: In addition to the pointing devices included with your computer, you can use an external
USB mouse (purchased separately) by connecting it to one of the USB ports on the computer.
Setting pointing device preferences
Use Mouse Properties in Windows® to customize settings for pointing devices, such as button
configuration, click speed, and pointer options.
To access Mouse Properties, select Start > Devices and Printers. Then right-click the device
representing your computer, and select Mouse settings.
Using the TouchPad
To move the pointer, slide two fingers across the TouchPad in the direction you want the pointer to
go. Use the left and right TouchPad buttons like the buttons on an external mouse. To scroll up and
down using the TouchPad vertical scroll zone, slide your finger up or down over the lines.
20 Chapter 4 Keyboard and pointing devices
Page 27

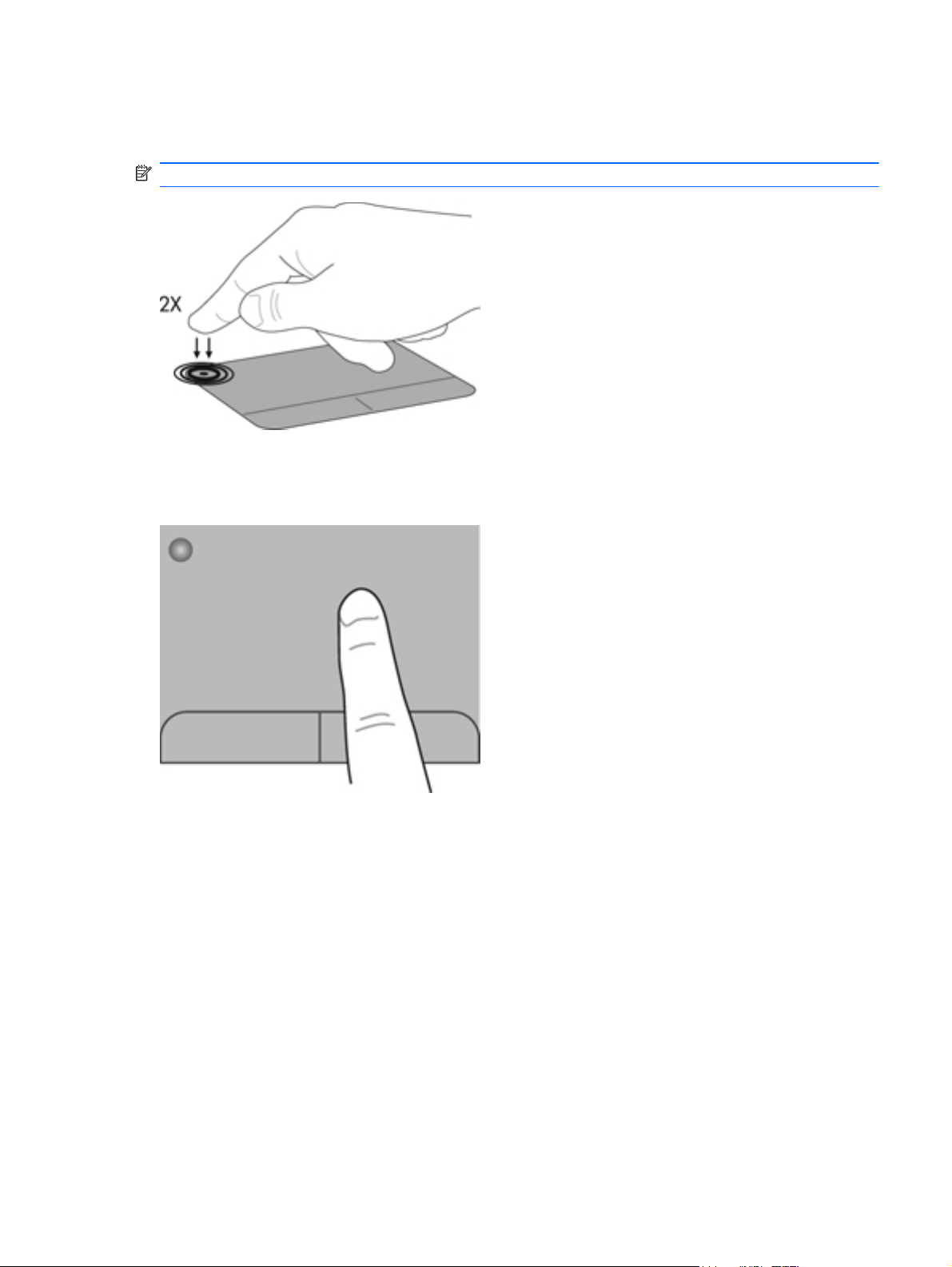

Turning the TouchPad off and on
To turn the TouchPad off and on, quickly double-tap the TouchPad button.
NOTE: The TouchPad light is off when the TouchPad is on.
Navigating
To move the pointer, slide one finger across the TouchPad in the direction you want the pointer to go.
Using pointing devices 21
Page 28
Selecting
Use the left and right TouchPad buttons like the corresponding buttons on an external mouse.
Using TouchPad gestures
The TouchPad supports a variety of gestures. To use TouchPad gestures, place two fingers on the
TouchPad at the same time.
NOTE: TouchPad gestures are not supported in all programs.
To view the demonstration of a gesture:
1. Click the Show hidden icon in the notification area, at the far right of the taskbar.
2.
Right-click the Synaptics Pointing Device icon
the taskbar, and then click TouchPad Properties.
3. Click a gesture to activate the demonstration.
To turn the gestures on and off:
1. Click the Show hidden icon in the notification area, at the far right of the taskbar.
2.
Right-click the Synaptics Pointing Device icon
the taskbar, and then click TouchPad Properties.
3. Select the check box next to the gesture that you want to turn on or off.
4. Click Apply, and then click OK.
in the notification area, at the far right of
in the notification area, at the far right of
22 Chapter 4 Keyboard and pointing devices
Page 29
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image. To scroll, place two fingers
slightly apart on the TouchPad, and then drag them across the TouchPad in an up, down, left, or right
motion.
NOTE: Scrolling speed is controlled by finger speed.
NOTE: Two-finger scrolling is enabled at the factory.
Pinching/Zooming
Pinching allows you to zoom in or out on images or text.
Zoom in by placing two fingers together on the TouchPad, and then moving them apart.
●
Zoom out by placing two fingers apart on the TouchPad, and then moving them together.
●
NOTE: Pinching/zooming is enabled at the factory.
Using TouchPad gestures 23
Page 30

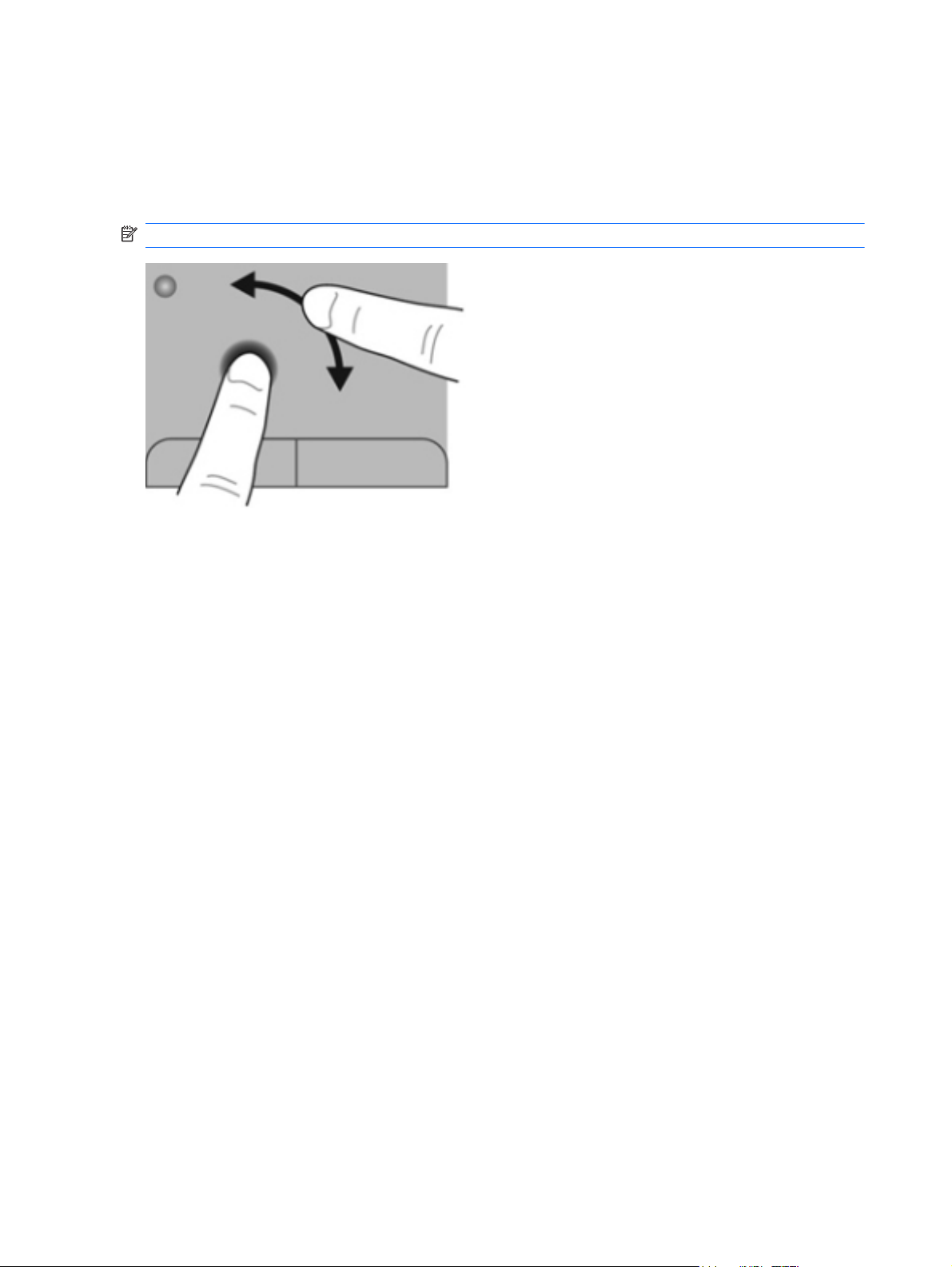

Rotating
Rotating allows you to rotate items such as photos. To rotate, anchor your left forefinger in the
TouchPad zone. Move the right forefinger around the anchored finger in a sweeping motion, moving
from 12 o’clock to 3 o’clock. To reverse the rotation, move your right forefinger from 3 o’clock to 12
o’clock.
NOTE: Rotating is disabled at the factory.
24 Chapter 4 Keyboard and pointing devices
Page 31
5 Maintenance
Inserting or removing the battery
●
Replacing or upgrading the hard drive
●
Adding or replacing memory modules
●
Updating programs and drivers
●
Routine care
●

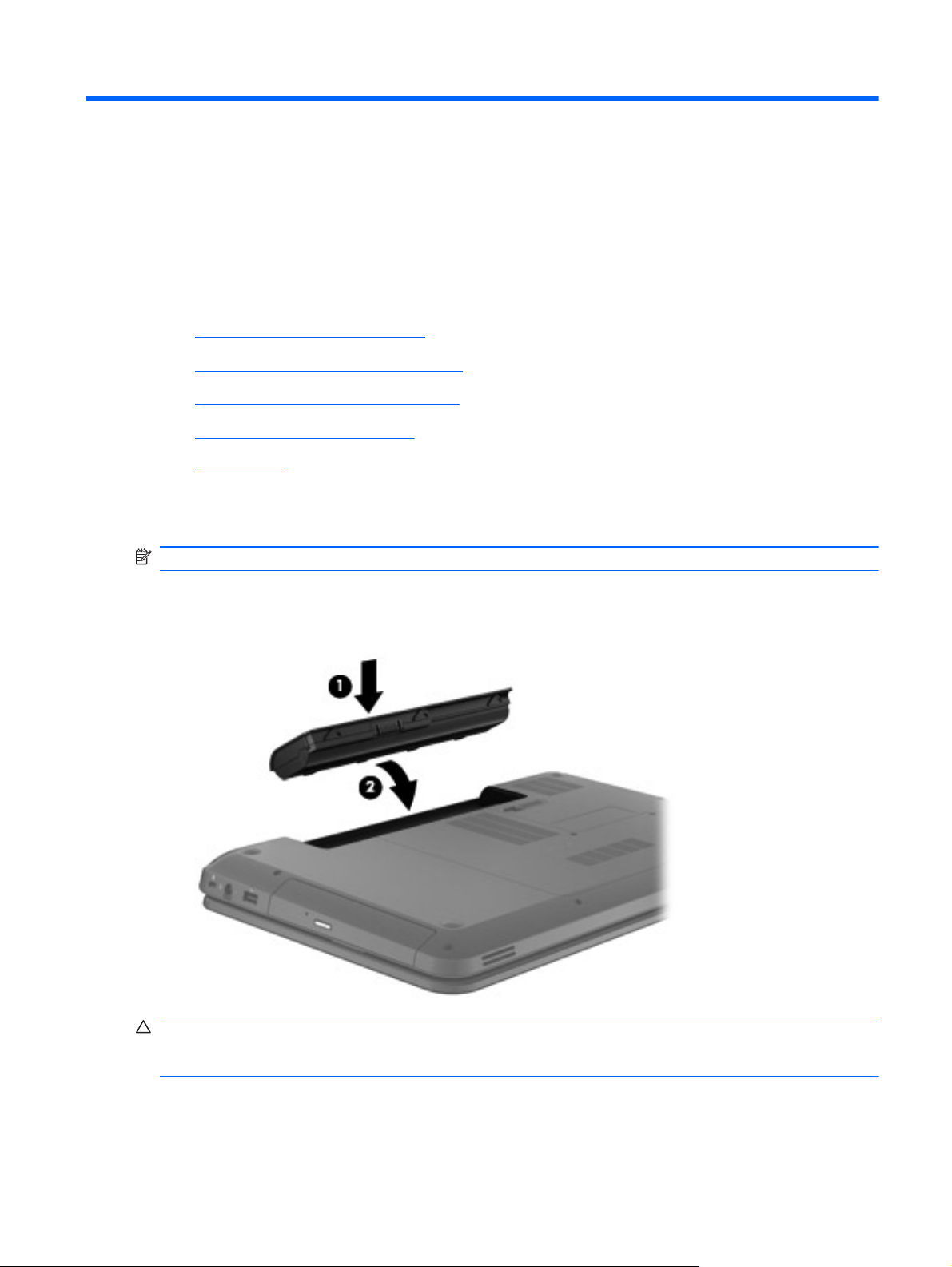

Inserting or removing the battery
NOTE: For additional information on using the battery, refer to the HP Notebook Reference Guide.
To insert the battery:
Insert the battery (1) into the battery bay (2) until it is seated.
▲
CAUTION: Removing a battery that is the sole power source for the computer can cause loss of
information. To prevent loss of information, save your work and initiate Hibernation or shut down the
computer through Windows before removing the battery.
To remove the battery, follow these steps:
1. Slide the battery release latch (1) to release the battery.
Inserting or removing the battery 25
Page 32
2. Remove the battery from the battery bay (2).
26 Chapter 5 Maintenance
Page 33
Replacing or upgrading the hard drive
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing the
power button. Then shut down the computer through the operating system.
Removing the hard drive
To remove the hard drive, follow these steps:
1. Save your work, shut down the computer, and close the display.
2. Disconnect all external devices that are connected to the computer.
3. Unplug the power cord from the AC outlet.
4. Turn the computer upside down on a flat surface.
5. Remove the battery from the computer.

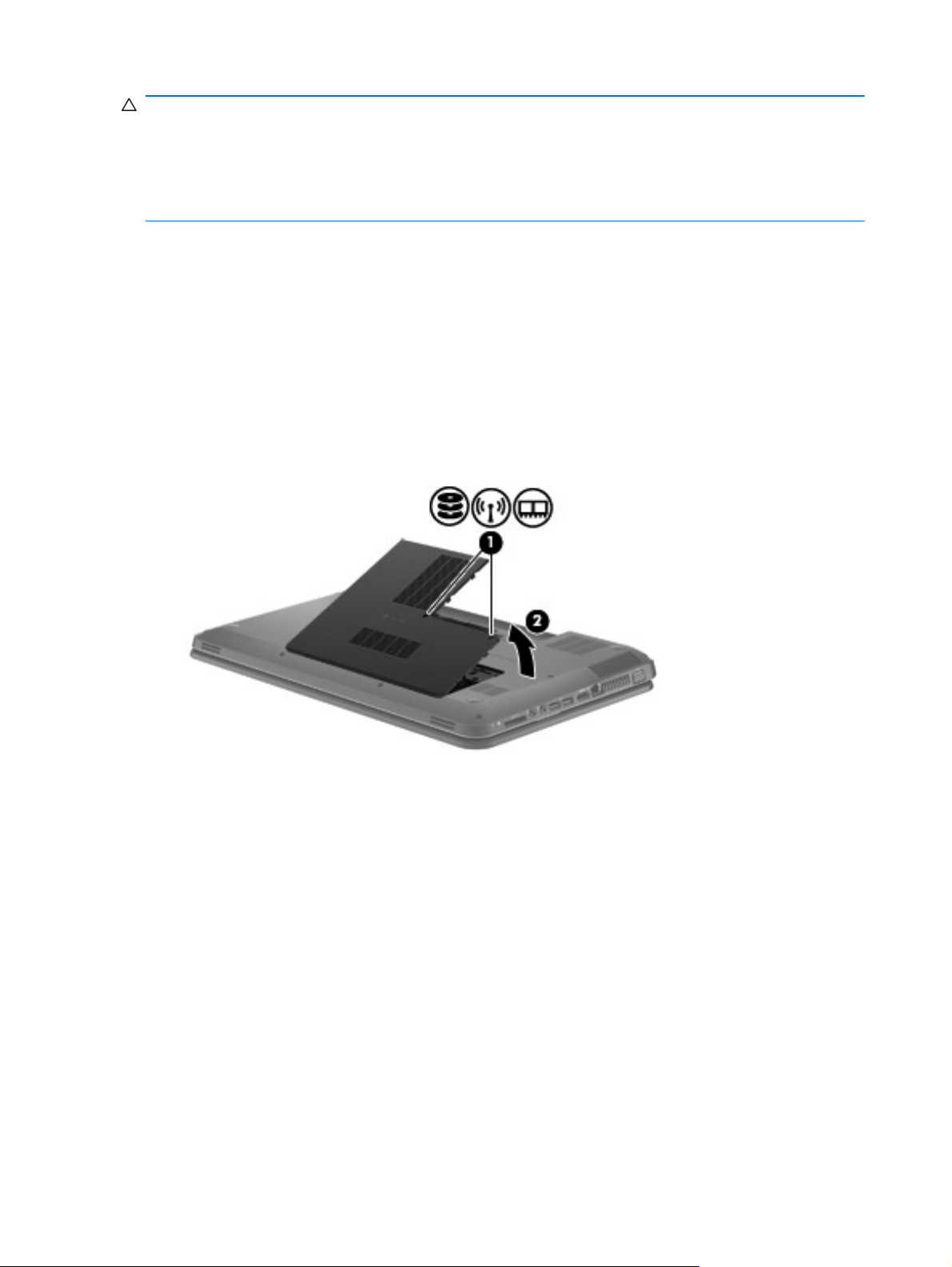

6. Loosen the service cover screws (1).
7. Lift the service cover (2) away from the computer, and then remove it.
Replacing or upgrading the hard drive 27
Page 34

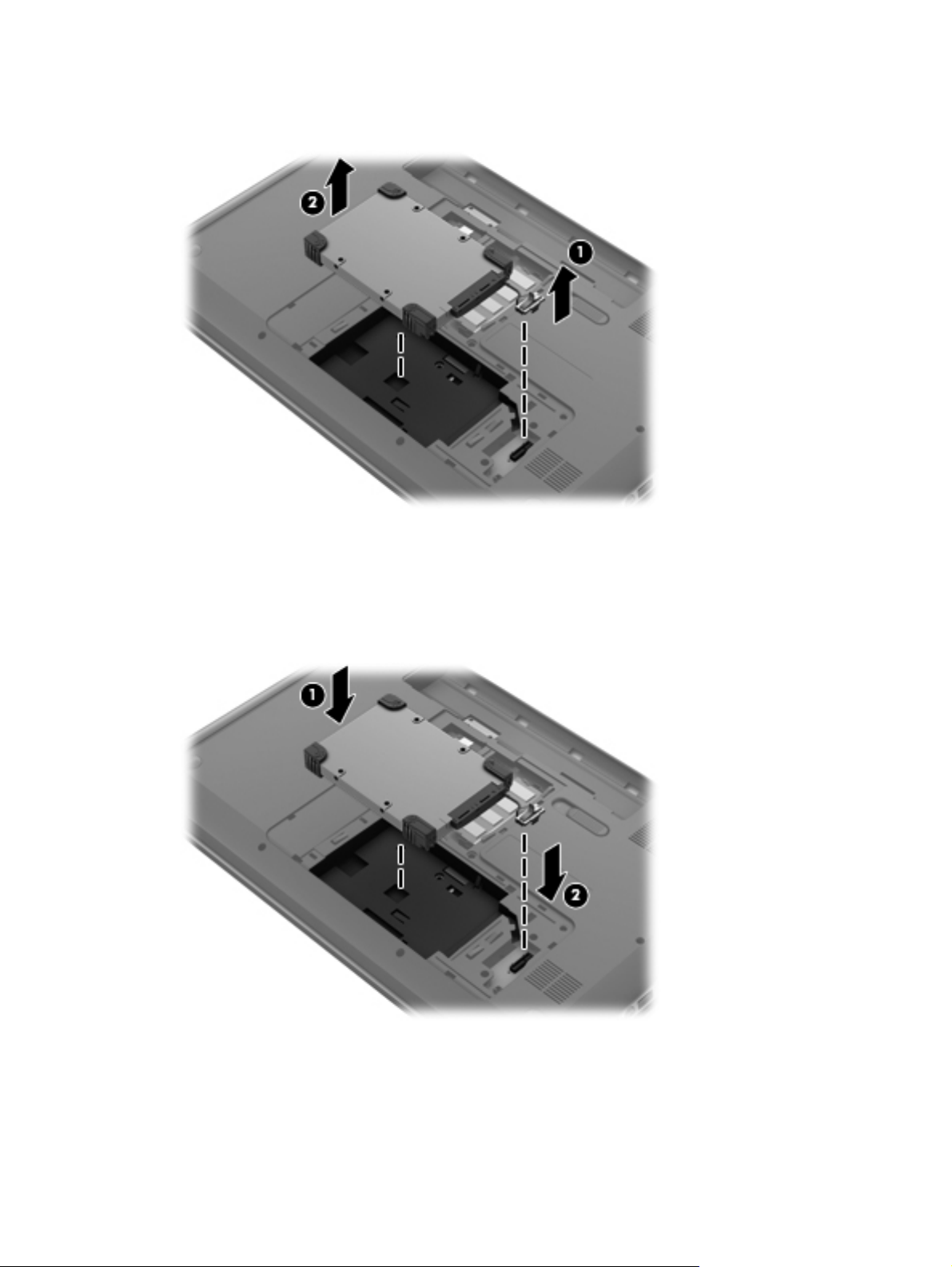

8. Disconnect the hard drive cable from the system board (1), and then lift the hard drive away from
the computer (2).
Installing a hard drive
To install a hard drive, follow these steps:
1. Insert the hard drive into the hard drive bay (1), and then connect the hard drive cable to the
system board (2).

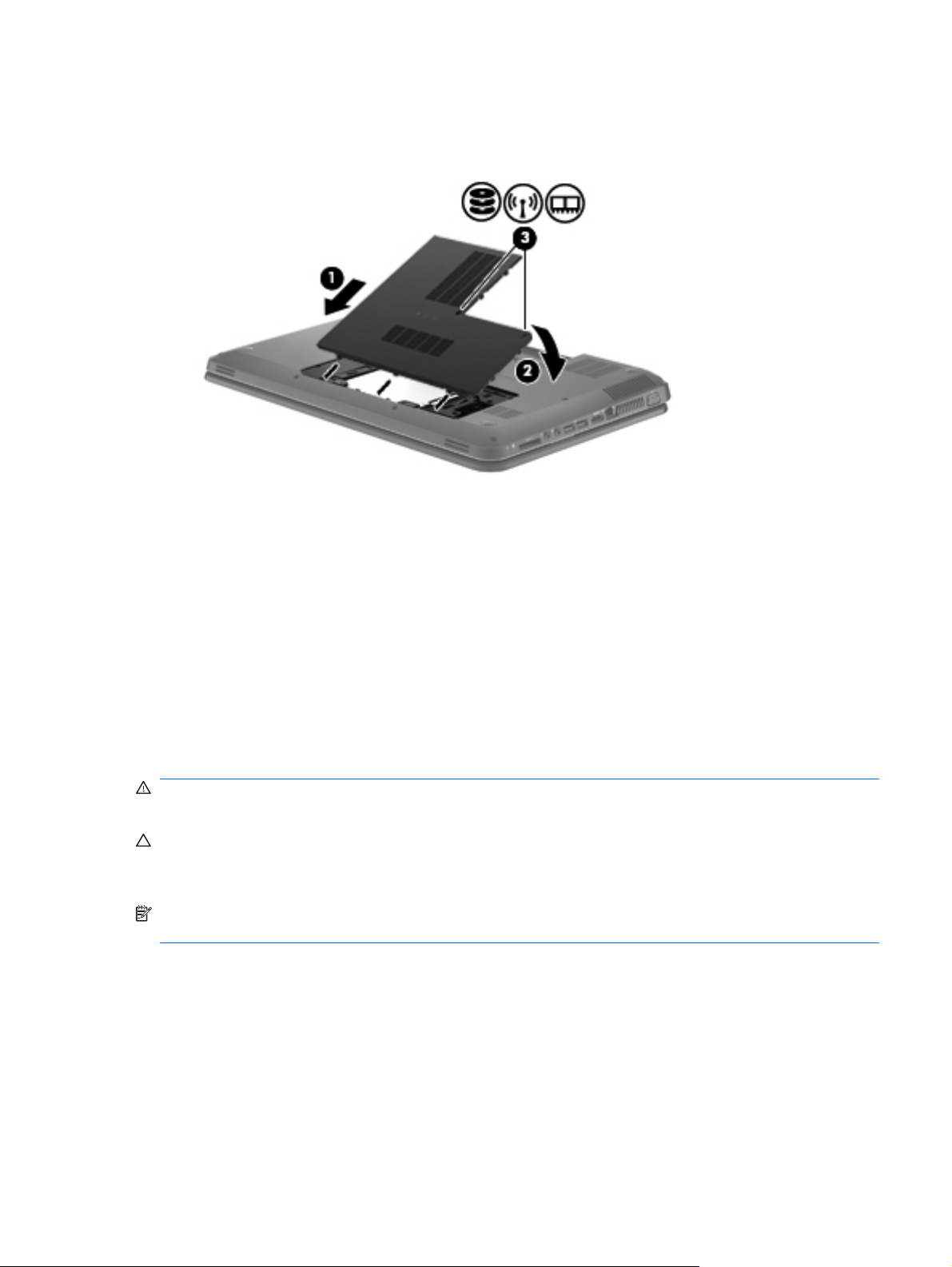

2. Align the tabs (1) on the service cover with the notches on the computer.
3. Close the service cover (2).
28 Chapter 5 Maintenance
Page 35
4. Tighten the service cover screws (3).
5. Replace the battery.
6. Turn the computer right-side up.
7. Reconnect external power to the computer.
8. Reconnect any external devices.
Adding or replacing memory modules
The computer has one memory module compartment, which is located on the bottom of the
computer. The memory capacity of the computer can be upgraded by adding a memory module to the
vacant expansion memory module slot or by upgrading the existing memory module in the primary
memory module slot.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power
cord and remove all batteries before installing a memory module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning
any procedure, ensure that you are discharged of static electricity by touching a grounded metal
object.
NOTE: To use a dual-channel configuration when adding a second memory module, be sure that
both memory modules are identical.
To add or replace a memory module, follow these steps:
Adding or replacing memory modules 29
Page 36
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before adding or replacing memory modules. Do not remove a memory
module while the computer is on, in Sleep mode, or in Hibernation mode.
If you are not sure whether the computer is off or in Hibernation mode, press the power button to turn
on the computer, and then use the operating system to shut down the computer.
1. Save your work, shut down the computer, and close the display.
2. Disconnect all external devices that are connected to the computer.
3. Unplug the power cord from the AC outlet.
4. Turn the computer upside down on a flat surface.
5. Remove the battery from the computer.
6. Loosen the service cover screws (1).
7. Lift the service cover (2) away from the computer, and then remove it.
8. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
30 Chapter 5 Maintenance
Page 37
b. Grasp the edge of the memory module (2), and then gently pull the memory module out of
the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module.
To protect a memory module after removal, place it in an electrostatic-safe container.
9. Insert a new memory module:
CAUTION: To prevent damage to the memory module, hold the memory module by the edges
only. Do not touch the components on the memory module.
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
Adding or replacing memory modules 31
Page 38

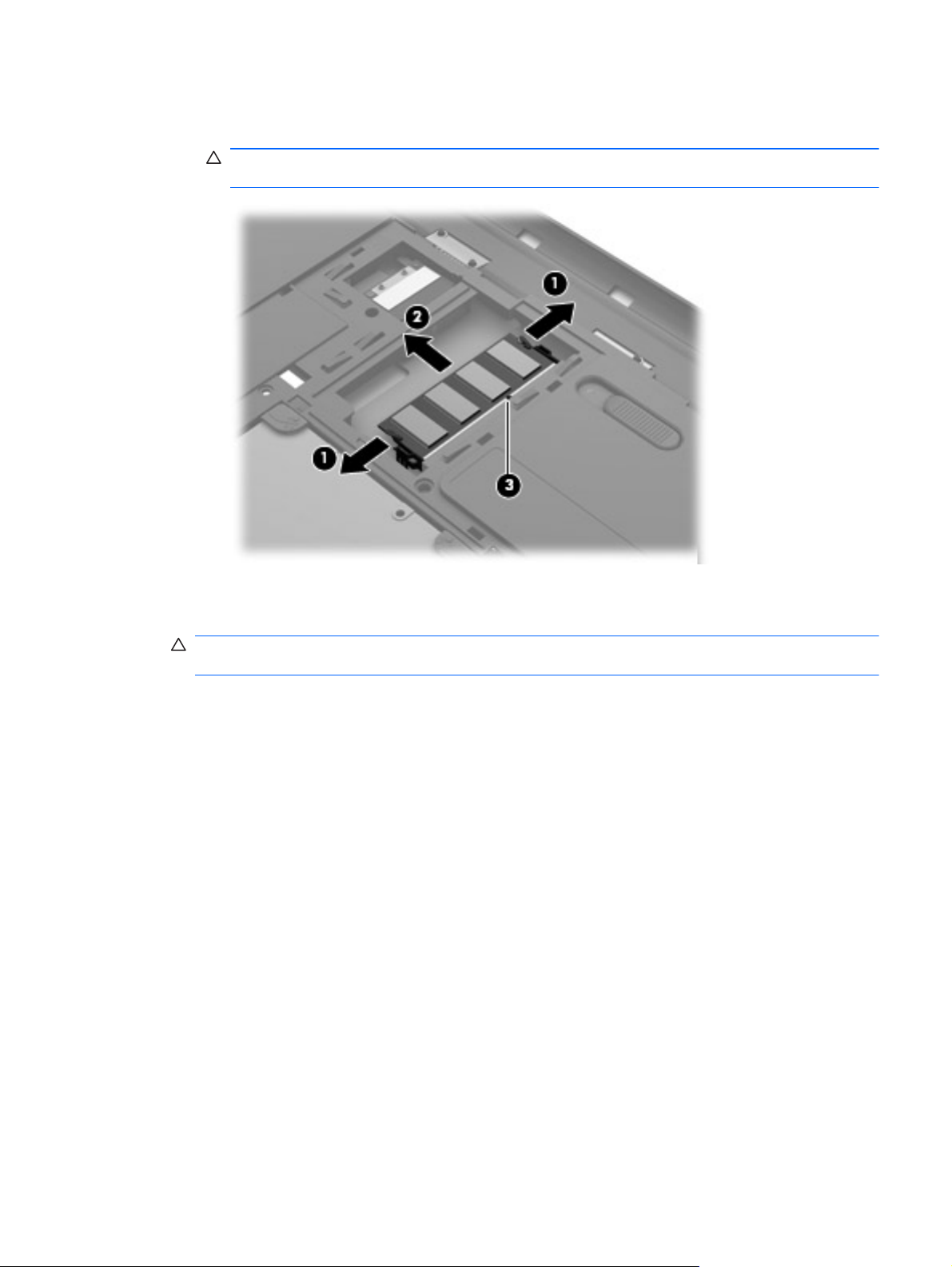

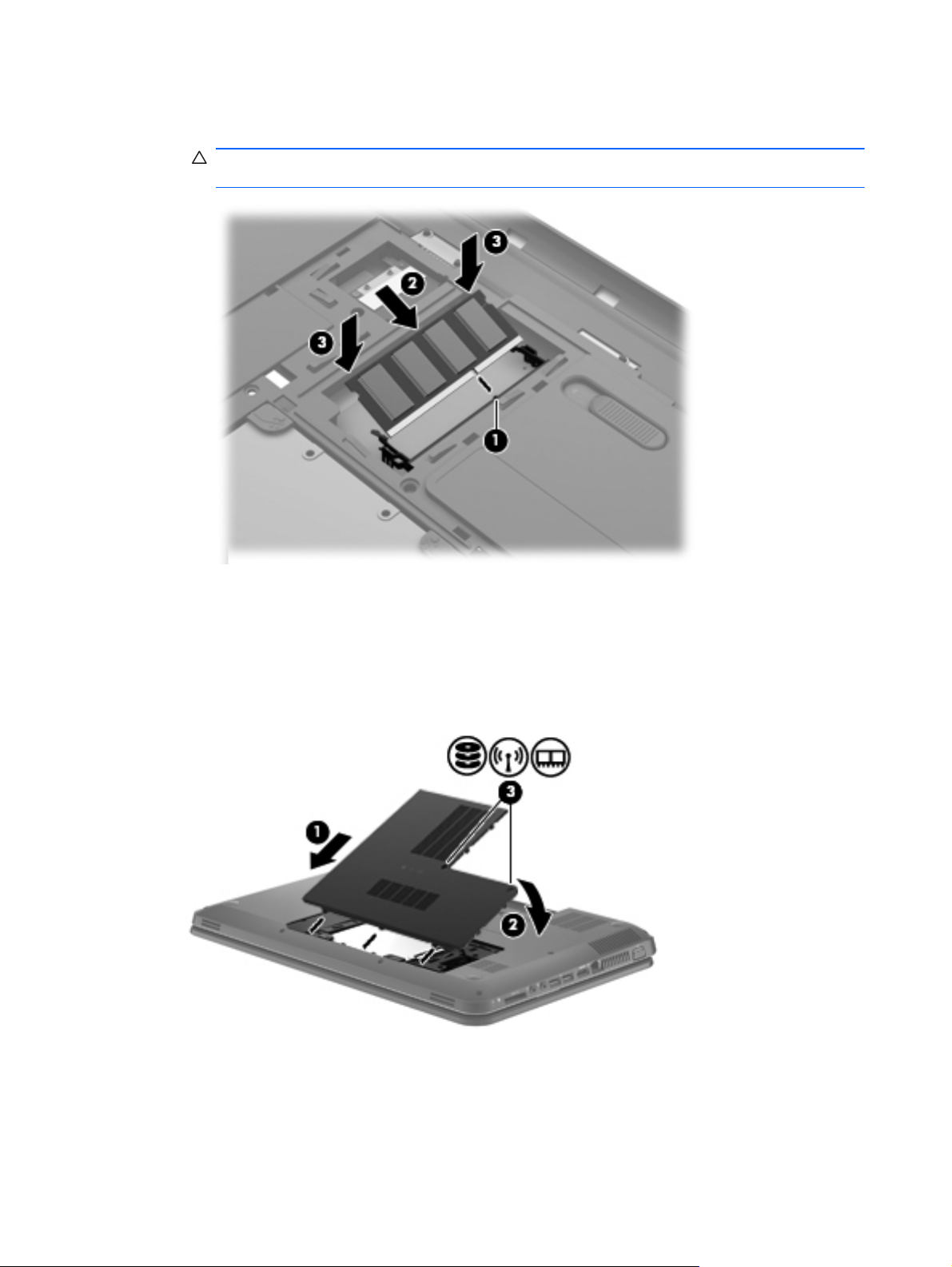

c. Gently press the memory module (3) down, applying pressure to both the left and right
edges of the memory module, until the retention clips snap into place.
CAUTION: To prevent damage to the memory module, be sure that you do not bend the
memory module.
10. Align the tabs (1) on the service cover with the notches on the computer.
11. Close the cover (2).
12. Tighten the service cover screws (3).
13. Replace the battery.
14. Turn the computer right-side up, and then reconnect external power and external devices.
15. Turn on the computer.
32 Chapter 5 Maintenance
Page 39
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis with the latest
versions. Go to
receive automatic update notifications when they become available.
http://www.hp.com/support to download the latest versions. You can also register to
Routine care
Cleaning the display
CAUTION: To prevent permanent damage to the computer, never spray water, cleaning fluids, or
chemicals on the display.
To remove smudges and lint, frequently clean the display with a soft damp, lint-free cloth. If the
screen requires additional cleaning, use premoistened antistatic wipes or an antistatic screen cleaner.
Cleaning the TouchPad and keyboard
Dirt and grease on the TouchPad can cause the pointer to jump around on the screen. To avoid this,
clean the TouchPad with a damp cloth, and wash your hands frequently when using the computer.
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.
Clean the keyboard regularly to prevent keys from sticking, and to remove dust, lint, and particles that
can become trapped beneath the keys. A can of compressed air with a straw extension can be used
to blow air around and under the keys to loosen and remove debris.
Updating programs and drivers 33
Page 40
6 Backup and recovery
Restore
●
Creating restore media
●
Performing a system restore
●
Backing up and recovering your information
●
Your computer includes tools provided by the operating system and HP to help you safeguard your
information and restore it if ever needed.
This chapter provides information on the following topics:
Creating a set of recovery discs or a recovery flash drive (HP Recovery Manager software
●
feature)
Performing a system restore (from the partition, recovery discs, or a recovery flash drive)
●
Backing up your information
●
Recovering a program or driver
●
34 Chapter 6 Backup and recovery
Page 41
Restore
In the event of hard drive failure, to restore your system to its factory image you will need a set of
recovery discs or a recovery flash drive that you can create using HP Recovery Manager. HP
recommends that you use this software to create either a set of recovery discs or a recovery flash
drive immediately after software setup.
If for some other reason you need to restore your system, this can be achieved using the HP
Recovery partition (select models only), without the need for recovery discs or a recovery flash drive.
To check for the presence of a recovery partition, click Start, right-click Computer, click Manage,
and then click Disk Management. If the recovery partition is present, a Recovery drive is listed in the
window.
CAUTION: HP Recovery Manager (partition or discs/flash drive) restores only software that was
preinstalled at the factory. Software not provided with this computer must be reinstalled manually.
NOTE: Recovery discs have been included if your computer does not have a recovery partition.
Creating restore media
HP recommends that you create either a set of recovery discs or a recovery flash drive to be sure that
you can restore your computer to its original factory state if the hard drive fails, or if for any reason
you cannot restore using the recovery partition tools. Create these discs or the flash drive after setting
up the computer for the first time.
NOTE: HP Recovery Manager allows the creation of only one set of recovery discs or one recovery
flash drive. Handle these discs or flash drive carefully and keep them in a safe place.
NOTE: If your computer does not include an integrated optical drive, you can use an optional
external optical drive (purchased separately) to create recovery discs, or you can purchase recovery
discs for your computer from the HP Web site. If you use an external optical drive, it must be
connected directly to a USB port on the computer, not to a USB port on an external device, such as a
USB hub.
Guidelines:
Purchase high-quality DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs.
●
NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE
(rewritable Blu-ray) discs, are not compatible with the HP Recovery Manager software.
The computer must be connected to AC power during this process.
●
Only one set of recovery discs or one recovery flash drive can be created per computer.
●
NOTE: If you are creating recovery discs, number each disc before inserting it into the optical
drive.
If necessary, you can exit the program before you have finished creating the recovery discs or
●
recovery flash drive. The next time you open HP Recovery Manager, you will be prompted to
continue the backup creation process.
To create a set of recovery discs or a recovery flash drive:
1. Select Start > All Programs > HP > HP Recovery Manager > HP Recovery Media Creation.
2. Follow the on-screen instructions.
Restore 35
Page 42
Performing a system restore
HP Recovery Manager software allows you to repair or restore the computer to its original factory
state. HP Recovery Manager works from recovery discs, a recovery flash drive, or from a dedicated
recovery partition (select models only) on the hard drive.
NOTE: A system restore needs to be performed if the computer hard drive has failed or if all
attempts to correct any functional computer issues fail. A system restore should be used as a final
attempt to correct computer issues.
Note the following when performing a system restore:
You can restore only the system that you have previously backed up. HP recommends that you
●
use Recovery Manager to create either a set of recovery discs or a recovery flash drive as soon
as you set up the computer.
Windows has its own built-in repair features, such as System Restore. If you have not already
●
tried these features, try them before using HP Recovery Manager.
HP Recovery Manager restores only software that was preinstalled at the factory. Software not
●
provided with this computer must be downloaded from the manufacturer's Web site or reinstalled
from the disc provided by the manufacturer.
Restoring using the dedicated recovery partition (select models only)
When using the dedicated recovery partition, there is an option to back up pictures, music and other
audio, videos and movies, recorded TV shows, documents, spreadsheets and presentations, e-mails,
Internet favorites and settings during this process.
To restore the computer from the recovery partition, follow these steps:
1. Access HP Recovery Manager in either of the following ways:
Select Start > All Programs > HP > HP Recovery Manager > HP Recovery Manager.
●
– or –
Turn on or restart the computer, and then press esc while the “Press the ESC key for
●
Startup Menu” message is displayed at the bottom of the screen. Then, press f11 while the
“F11 (System Recovery)” message is displayed on the screen.
2. Click System Recovery in the HP Recovery Manager window.
3. Follow the on-screen instructions.
36 Chapter 6 Backup and recovery
Page 43
Restoring using the restore media
1. If possible, back up all personal files.
2. Insert the first recovery disc into the optical drive on your computer or an optional external
optical drive, and then restart the computer.
– or –
Insert the recovery flash drive into a USB port on your computer, and then restart the computer.
NOTE: If the computer does not automatically restart in the HP Recovery Manager, the
computer boot order needs to be changed.
3. Press f9 at system bootup.
4. Select the optical drive or the flash drive.
5. Follow the on-screen instructions.
Performing a system restore 37
Page 44
Changing the computer boot order
To change the boot order for recovery discs:
1. Restart the computer.
2. Press esc while the computer is restarting, and then press f9 for boot options.
3. Select Internal CD/DVD ROM Drive from the boot options window.
To change the boot order for recovery flash drive:
1. Insert the flash drive into a USB port.
2. Restart the computer.
3. Press esc while the computer is restarting, and then press f9 for boot options.
4. Select the flash drive from the boot options window.
Backing up and recovering your information
It is very important to back up your files and keep any new software in a safe place. As you add new
software and data files, continue to create backups on a regular basis.
How completely you are able to recover your system depends on how recent your backup is.
NOTE: A recovery from your most recent backup needs to be performed if the computer has a virus
attack or if any major system components fail. In order to correct computer issues, a recovery should
first be attempted before a system restore is attempted.
You can back up your information to an optional external hard drive, a network drive, or discs. Back
up your system at the following times:
At regularly scheduled times
●
TIP: `Set reminders to back up your information periodically.
Before the computer is repaired or restored
●
Before you add or modify hardware or software
●
Guidelines:
Create system restore points using the Windows® System Restore feature, and periodically
●
copy them to an optical disc or an external hard drive. For more information on using system
restore points, refer to
Store personal files in the Documents library and back up this folder periodically.
●
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your
●
settings. The screen shot can be a time-saver if you have to re-enter your preferences.
Using Windows system restore points on page 40.
38 Chapter 6 Backup and recovery
Page 45
To create a screen shot:
1. Display the screen you want to save.
2. Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
3. Open a word-processing document, and then select Edit > Paste. The screen image is added to
the document.
4. Save and print the document.
Using Windows Backup and Restore
Guidelines:
Be sure that the computer is connected to AC power before you start the backup process.
●
Allow enough time to complete the backup process. Depending on file sizes, it may take over an
●
hour.
To create a backup:
1. Select Start > Control Panel > System and Security > Backup and Restore.
2. Follow the on-screen instructions to schedule and create a backup.
NOTE: Windows® includes the User Account Control feature to improve the security of the
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
Backing up and recovering your information 39
Page 46
Using Windows system restore points
A system restore point allows you to save and name a snapshot of your hard drive at a specific point
in time. You can then recover back to that point if you want to reverse subsequent changes.
NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created
since the last restore point.
You also can create additional restore points to provide increased protection for your files and
settings.
When to create restore points
Before you add or modify software or hardware
●
Periodically, whenever the computer is functioning optimally
●
NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.
Create a system restore point
1. Select Start > Control Panel > System and Security > System.
2. In the left pane, click System Protection.
3. Click the System Protection tab.
4. Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning
optimally, follow these steps:
1. Select Start > Control Panel > System and Security > System.
2. In the left pane, click System Protection.
3. Click the System Protection tab.
4. Click System Restore.
5. Follow the on-screen instructions.
40 Chapter 6 Backup and recovery
Page 47
7 Customer support
Contacting customer support
●
Labels
●
41
Page 48
Contacting customer support
If the information provided in this user guide, in the HP Notebook Reference Guide, or in Help and
Support does not address your questions, you can contact HP Customer Support at:
http://www.hp.com/go/contactHP
NOTE: For worldwide support, click Contact HP worldwide on the left side of the page, or go to
http://welcome.hp.com/country/us/en/wwcontact_us.html.
Here you can:
Chat online with an HP technician.
●
NOTE: When technical support chat is not available in a particular language, it is available in
English.
E-mail HP Customer Support.
●
Find HP Customer Support worldwide telephone numbers.
●
Locate an HP service center.
●
42 Chapter 7 Customer support
Page 49
Labels
The labels that are affixed to the computer provide information that you may need when
troubleshooting system problems or traveling internationally with the computer:
●

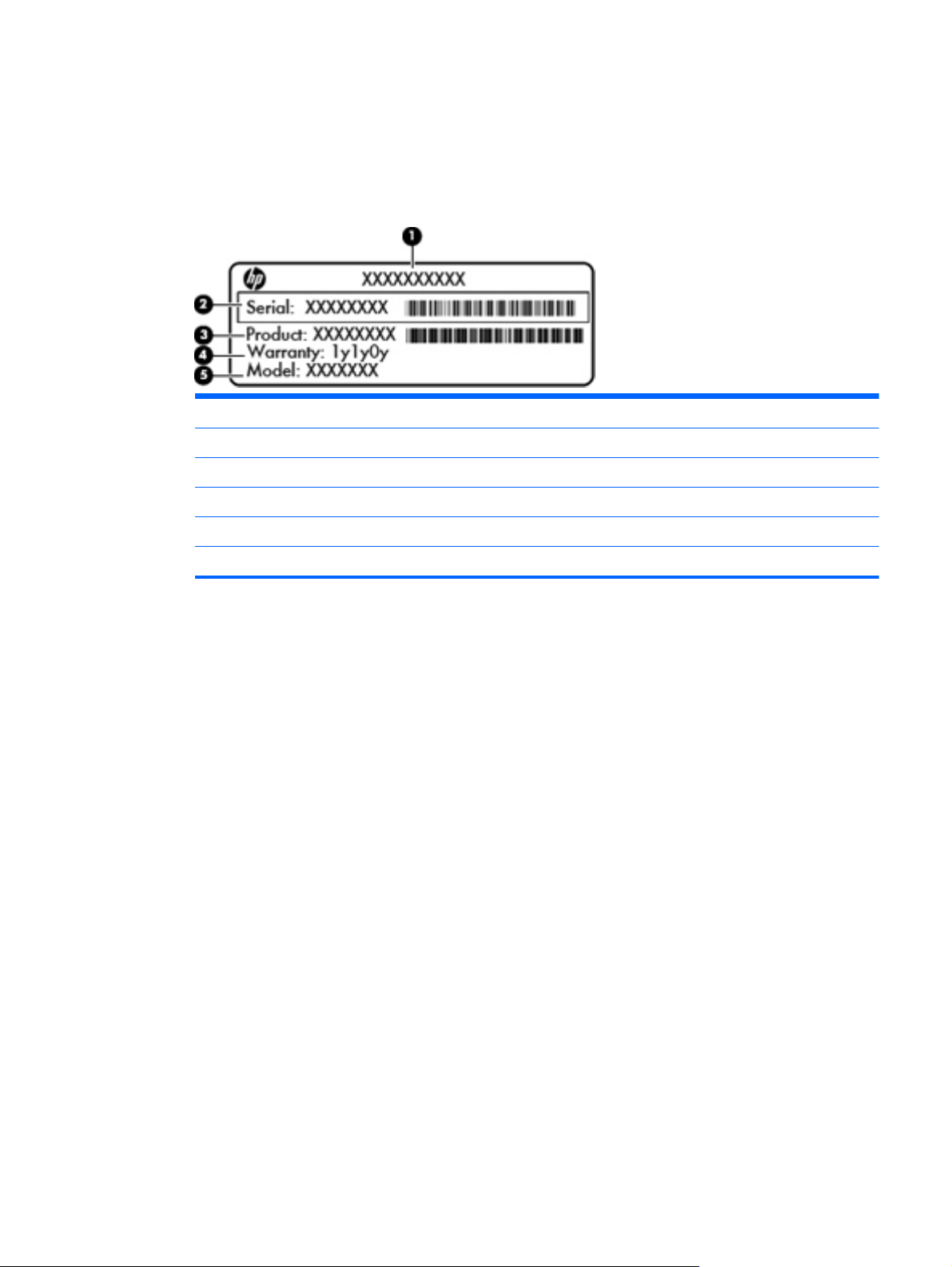

Service tag—Provides important information, including the following:
Component
(1) Product name
(2) Serial number (s/n)
(3) Part number/Product number (p/n)
(4) Warranty period
(5) Model description
Have this information available when you contact technical support. The service tag is affixed to
the inside of the battery bay.
Microsoft® Certificate of Authenticity—Contains the Windows Product Key. You may need the
●
Product Key to update or troubleshoot the operating system. The Microsoft Certificate of
Authenticity is located on the bottom of the computer.
Regulatory label—Provides regulatory information about the computer. The regulatory label is
●
affixed to the inside of the battery bay.
Wireless certification label or labels (select models only)—Provide information about optional
●
wireless devices and the approval markings of some of the countries or regions in which the
devices have been approved for use. If your computer model includes one or more wireless
devices, one or more certification labels are included with your computer. You may need this
information when traveling internationally. Wireless certification labels are affixed to the inside of
the battery bay.
Labels 43
Page 50
8 Specifications
Input power
●
Operating environment
●
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The
AC power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered
from a standalone DC power source, it should be powered only with an AC adapter or a DC power
source supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications.
Input power Rating
Operating voltage and current 18.5 V dc @ 3.5 A - 65W
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE: The computer operating voltage and current can be found on the system regulatory label
located under the service coverl.
44 Chapter 8 Specifications
Page 51
Operating environment
Factor Metric U.S.
Temperature
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
Operating environment 45
Page 52
Index
A
AC adapter light, identifying 8
action keys
adjusting volume 19
decrease screen brightness
18
description 18
increase screen brightness 18
muting speaker sound 19
switching screen image 18
wireless 19
Action keys, identifying 7
action keys, identifying 18
audio-in (microphone) jack,
identifying 9
audio-out (headphone) jack,
identifying 9
B
backing up
customized window, toolbar,
and menu bar settings 38
personal files 38
battery bay 12, 43
battery release latch 12
battery, replacing 25
Bluetooth label 43
buttons
left TouchPad 5
power 6
right TouchPad 5
C
caps lock light, identifying 5
Certificate of Authenticity label 43
components
bottom 12
buttons 6
display 11
front 8
keys 7
left side 9
lights 5
right side 8
top 4
connector, power 8
D
digital media slot, identifying
MultiMedia Card (MMC) 9
Secure Digital (SD) Memory
Card 9
display image, switching 18
E
esc key, identifying 7
external monitor port, identifying
9
F
f11 36
fn key, identifying 7
H
hard drive
installing 28
removing 27
hard drive light, identifying 10
HDMI port, identifying 9
headphone (audio-out) jack 9
Help and Support action key 18
hotkeys
Help and Support 18
HP Recovery Manager 36
I
input power 44
integrated webcam light,
identifying 11
internal microphone, identifying
11
Internet connection setup 15
ISP, using 14
J
jacks
audio-in (microphone) 9
audio-out (headphone) 9
network 9
RJ-45 (network) 9
K
keys
Action keys 7
esc 7
fn 7
Windows applications 7
Windows logo 7
L
labels
Bluetooth 43
Microsoft Certificate of
Authenticity 43
regulatory 43
serial number 43
wireless certification 43
WLAN 43
latch, battery release 12
lights
AC adapter 8
caps lock 5
hard drive 10
power light 10
webcam 11
wireless 5
46 Index
Page 53
M
memory module
inserting 31
removing 30
replacing 29
memory module compartment
cover
removing 30
replacing 32
microphone (audio-in) jack,
identifying 9
Microsoft Certificate of Authenticity
label 43
mouse, external
setting preferences 20
mute key, identifying 19
N
network jack, identifying 9
restore points 40
RJ-45 (network) jack, identifying
9
rotating TouchPad gesture 24
S
screen brightness keys 18
screen image, switching 18
scrolling TouchPad gesture 23
security cable slot
security cable slot, identifying
8
serial number 43
serial number, computer 43
service cover, identifying 12
setup of WLAN 15
supported discs 35
system recovery 36
system restore points 40
wireless network, connecting 14
wireless router, configuring 16
wireless set up 15
WLAN
connecting 15
protecting 16
WLAN antennas, identifying 11
WLAN device 43
WLAN label 43
Z
zooming TouchPad gesture 23
O
operating environment 45
operating system
Microsoft Certificate of
Authenticity label 43
Product Key 43
P
pinching TouchPad gesture 23
pointing devices, setting
preferences 20
ports
HDMI 9
USB 9
power button, identifying 6
power connector, identifying 8
power light, identifying 10
Product Key 43
product name and number,
computer 43
R
recovering from the dedicated
recovery partition 36
recovering from the recovery
discs 37
recovery discs 35
recovery, system 36
regulatory information
regulatory label 43
wireless certification labels 43
T
TouchPad
buttons 5
using 20
TouchPad gestures
pinching 23
rotating 24
scrolling 23
zooming 23
TouchPad light 4
traveling with the computer 43
U
USB port, identifying 9
using system restore 40
V
vents, identifying 9, 12
volume keys, identifying 19
W
webcam light, identifying 11
webcam, identifying 11
Windows applications key,
identifying 7
Windows logo key, identifying 7
wireless certification label 43
wireless key, identifying 19
wireless light 5
wireless network (WLAN),
equipment needed 15
Index 47
