Hp F1905, F1705, VS17, VS15, VS19 User Manual

User’s Guide

HP vs15 LCD Monitor HP vs17 LCD Monitor HP vs19 LCD Monitor HP f1705 LCD Monitor HP f1905 LCD Monitor

The information in this document is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

Hewlett-Packard Company P.O. Box 4010 Cupertino, CA 95015-4010 USA

Microsoft, and Windows are U.S. registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those permitted by copyright law.

WARNING: Text set off in this manner indicates that failure to

follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Text set off in this manner indicates additional information.

✎

User’s Guide iii

iv User’s Guide

Contents

1 Product Features

HP LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

2 Safety and Maintenance Guidelines

Important Safety Information . . . . . . . . . . . . . . . . 2–1

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 2–2

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . 2–3

Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . 2–4

Shipping the Monitor . . . . . . . . . . . . . . . . . . . . . 2–5

Removing the vs Monitor Base . . . . . . . . . . . . 2–5

Preparing the f Monitor for Shipping . . . . . . . . 2–6

3 Setting Up the Monitor

Contents

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Installing the Monitor . . . . . . . . . . . . . . . . . . . . . 3–2

Placing the vs Monitor on a Desktop . . . . . . . . 3–2

Wall Mounting the vs Monitor . . . . . . . . . . . . 3–4

Placing the f Monitor on a Desktop . . . . . . . . . 3–7

Wall Mounting the f Monitor . . . . . . . . . . . . 3–10

Assembling the f Monitor Satellite Speakers . . 3–13

Connecting the Monitor. . . . . . . . . . . . . . . . . . . 3–14

Connecting the Monitor Video Input Cable. . . 3–14

Connecting the Audio Cable . . . . . . . . . . . . 3–17

Connecting the Power Cable . . . . . . . . . . . . 3–19

User’s Guide v

4 Operating the Monitor

CD Software and Utilities . . . . . . . . . . . . . . . . . . 4–1

The Information File . . . . . . . . . . . . . . . . . . . . 4–1

The Image Color Matching File . . . . . . . . . . . . 4–2

Installing INF and ICM Files . . . . . . . . . . . . . . 4–2

Installing from the CD. . . . . . . . . . . . . . . . 4–2

Downloading from the

World Wide Web . . . . . . . . . . . . . . . . . . 4–3

Using the Auto-Adjustment Function . . . . . . . . . 4–3

Front Panel Components . . . . . . . . . . . . . . . . . . . 4–5

Using the Onscreen Display. . . . . . . . . . . . . . . . . 4–8

Adjusting Monitor Settings . . . . . . . . . . . . . . . 4–9

Main Menu. . . . . . . . . . . . . . . . . . . . . . . 4–9

Advanced Menu OSD . . . . . . . . . . . . . . 4–10

Selecting the Video Input Connectors . . . . . . . . . 4–13

Identifying Monitor Conditions . . . . . . . . . . . . . . 4–14

Adjusting Screen Quality. . . . . . . . . . . . . . . . . . 4–15

Optimizing Analog Video . . . . . . . . . . . . . . 4–15

Entering User Modes . . . . . . . . . . . . . . . . . . 4–16

Power-Saver Feature . . . . . . . . . . . . . . . . . . . . . 4–17

Contents

A Troubleshooting

Solving Common Problems . . . . . . . . . . . . . . . . . A–1

Using the World Wide Web . . . . . . . . . . . . . . . . A–3

Preparing to Call Technical Support . . . . . . . . . . . A–4

Locating the Rating Label . . . . . . . . . . . . . . . . A–4

B Technical Specifications

HP vs LCD Monitors . . . . . . . . . . . . . . . . . . . . . . B–1

HP f LCD Monitors . . . . . . . . . . . . . . . . . . . . . . . B–4

Pre-set Video Modes . . . . . . . . . . . . . . . . . . . . . . B–6

LCD Monitor Quality and Pixel Policy . . . . . . . . . . B–8

Power Cord Set Requirements . . . . . . . . . . . . . . . B–9

User’s Guide vi

C Agency Regulatory Notices

Federal Communications Commission Notice. . . . . C–1

Modifications . . . . . . . . . . . . . . . . . . . . . . . . C–2

Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2

Declaration of Conformity for Products Marked with FCC Logo,

United States Only . . . . . . . . . . . . . . . . . . . . . . . C–3

Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . C–4

Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . C–4

European Notice . . . . . . . . . . . . . . . . . . . . . . . . C–4

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . C–4

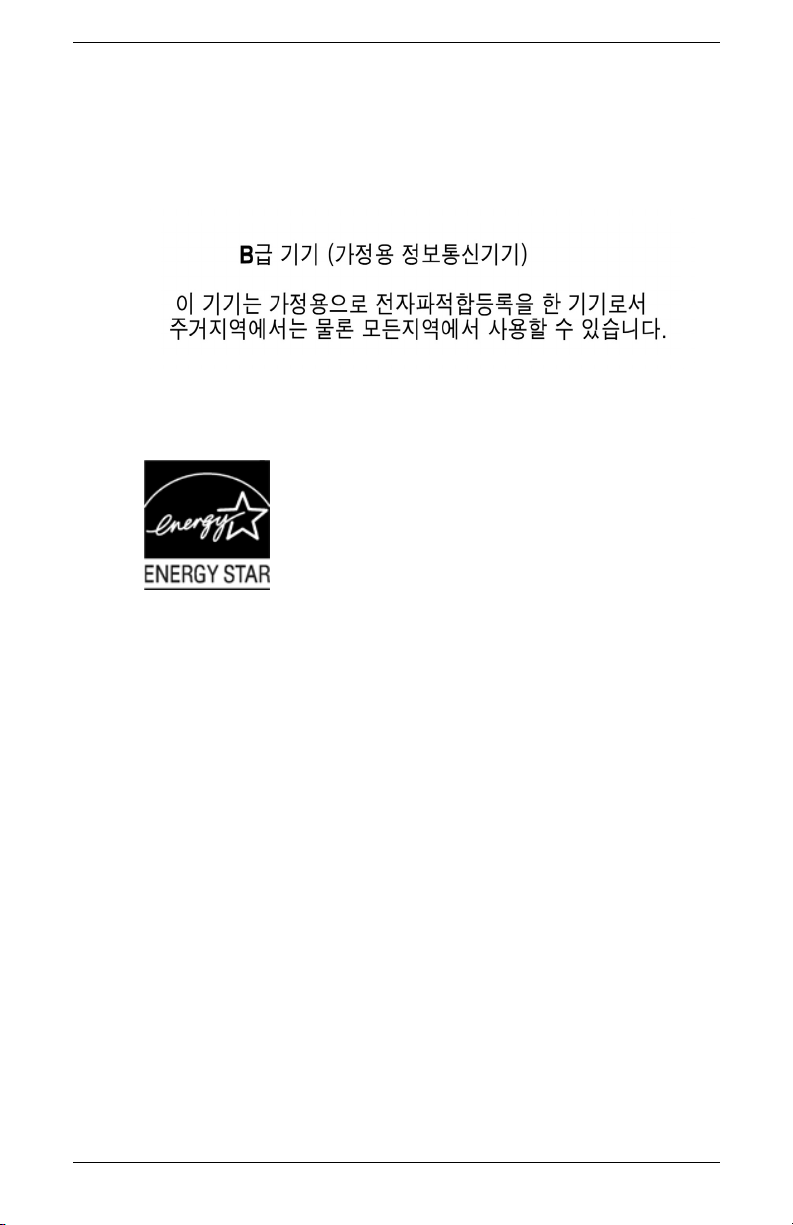

Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . C–5

EPA Energy Star Compliance . . . . . . . . . . . . . . . . C–5

HP Recycling Program. . . . . . . . . . . . . . . . . . . . . C–5

Contents

User’s Guide vii

Contents

viii User’s Guide

HP LCD Monitor

The HP LCD (liquid crystal display) Monitor has an active matrix, thin-film transistor (TFT) screen. This guide discusses five models:

❏ HP vs15 LCD Monitor, a 15-inch (38.1 cm) display

❏ HP vs17 LCD Monitor, a 17-inch (43.2 cm) display

❏ HP vs19 LCD Monitor, a 19-inch (48.3 cm) display

❏ HP f1705 LCD Monitor, a 17-inch (43.2 cm) display

❏ HP f1905 LCD Monitor, a 19-inch (48.3 cm) display

Product Features

The vs monitor with internal speakers, and the f monitor (f monitor satellite speakers not shown)

User’s Guide 1–1

Product Features

The flat-panel monitor features:

■ Large diagonal viewable area display

■ 1280 × 1024 factory-set resolution, plus full-screen support for

lower resolutions (HP vs15 LCD Monitor: 1024 x 768)

■ Video inputs supported:

❏ VGA analog signal

❏ DVI-D (select f monitor models only) digital signal

■ VGA analog signal cable (provided)

■ Fast response time providing better experience for gaming and

graphics

■ Easy to view from a sitting or standing position, or while moving from one side of the monitor to the other

■ Tilt adjustment capabilities (f monitor also has height adjustment)

■ Removable pedestal and Video Electronics Standards Association (VESA) standard mounting holes for flexible mounting solutions, including wall mounting

■ Security lock slot for a Kensington lock security cable (security cable not provided)

■ Plug and Play capability, if supported by your computer system

■ On-screen display (OSD) adjustments for ease of setup and

screen optimization (choose English, Simplified Chinese, French, German, Italian, Spanish, or Dutch)

■ Audio connections supported:

❏ vs monitors: Integrated stereo speakers with a computer

line out connector and a headphones connector on the monitor

❏ f monitors: Satellite stereo speakers with connectors for

computer line out, an HP subwoofer, and headphones

■ Integrated power supply

■ Energy Saver to reduce power consumption

1–2 User’s Guide

Product Features

■ Compliance with the following regulated specifications:

❏ EPA Energy Star

❏ European Union CE Directives

❏ Swedish MPR II 1990

■ CD with:

❏ Information (INF) file

❏ Image Color Matching (ICM) file

❏ Auto-adjustment pattern software

❏ Safety information ❏ The User’s Guide

❏ Adobe

Acrobat® Reader

User’s Guide 1–3

Product Features

1–4 User’s Guide

Safety and Maintenance

Guidelines

Important Safety Information

A power cord is included with your monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with your monitor, see “Power Cord Set Requirements” in Appendix B.

WARNING: To reduce the risk of electric shock or damage to your

equipment, do not disable the power cord grounding feature. The grounding plug is an important safety feature. Connect the equipment to a grounded (earthed) power outlet.

WARNING: For your safety, be sure that the grounded power outlet

you plug the power cord into is easily accessible to the operator and located as close to the equipment as possible. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

CAUTION: To protect your monitor, as well as your computer,

connect all power cords for your computer and its peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power strip with surge protection or uninterruptible power supply (UPS).

Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a damage replacement policy so you can replace your equipment if surge protection fails.

User’s Guide 2–1

Safety and Maintenance Guidelines

Safety Precautions

■ Use only a power source and connection appropriate for this monitor, as indicated on the label/back plate of the monitor.

■ Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (Amps or A) for each device.

■ Install your monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

■ Do not allow anything to rest on the power cord. Do not walk on the cord.

2–2 User’s Guide

Safety and Maintenance Guidelines

Maintenance Guidelines

To enhance the performance and extend the life of your monitor:

■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating properly or has been dropped or damaged, contact your HP authorized dealer, reseller, or service provider.

■ Adjust only those controls that are described in the operating instructions.

■ Turn your monitor off when not in use. You can substantially increase the life expectancy of your monitor by using a screen saver program and turning off the monitor when not in use.

■ Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.

■ Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.

CAUTION: Do not use benzene, thinner, ammonia, or any other

volatile substances to clean the monitor screen or cabinet. These chemicals may damage the monitor. Do not use liquid cleaners or aerosol cleaners. Never use water to clean an LCD screen.

■ Unplug your monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

■ Do not drop your monitor or place it on an unstable surface.

■ When removing the monitor base or stand, you must lay the

monitor face down on a soft area to prevent it from getting scratched, defaced, or broken.

User’s Guide 2–3

Safety and Maintenance Guidelines

Cleaning the Monitor

The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow these steps:

1. Turn off the computer and the monitor.

2. Unplug your monitor from the wall outlet before cleaning.

CAUTION: Do not use benzene, thinner, ammonia, or any volatile

substances to clean the monitor screen or cabinet. These chemicals may damage the monitor. Do not use liquid cleaners or aerosol cleaners. Never use water to clean an LCD screen.

3. Wipe the screen with a dry, soft, clean cloth.

❏ If the screen requires additional cleaning, use an antistatic

screen cleaner.

4. Dust the monitor housing. Use a damp cloth to clean the cabinet.

❏ If the cabinet requires additional cleaning, use a clean

cloth dampened with isopropyl alcohol.

5. Plug in the monitor.

6. Turn on the monitor and the computer.

2–4 User’s Guide

Safety and Maintenance Guidelines

Shipping the Monitor

Keep the original packing box in a storage area. You may need it later if you move or ship your monitor.

■ When you ship the vs monitor, remove the base from the pedestal.

■ When you ship the f monitor, prepare it for shipping by folding it into position.

Removing the vs Monitor Base

Read the following warning and caution statements before beginning the procedure.

WARNING: Do not remove the base from the pedestal while

the monitor is standing in the upright position. Attempting to remove the base from the pedestal while the monitor is upright may injure the user.

WARNING: Before disassembling the monitor, turn off the monitor

power, and disconnect all power, video, and audio cables. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

CAUTION: The screen is fragile. Placing the monitor screen down

on a flat, soft area prevents scratches, defacing, or breakage.

To remove the vs monitor base from the pedestal:

1. Disconnect the power, video, and audio cables from the monitor.

2. Set the monitor screen down on a flat, soft, protected surface so that the base is just over the edge of the surface.

User’s Guide 2–5

Safety and Maintenance Guidelines

3. Holding the panel in place, pinch inside the base 1, as shown in the following illustration, and then pull the base off the pedestal 2.

Removing the base from the vs monitor pedestal

4. Pack the base with the monitor panel.

Preparing the f Monitor for Shipping

Read the following warning statement before beginning the procedure.

WARNING: Before folding the monitor, turn off the monitor power,

and disconnect all power, video, and audio cables. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

2–6 User’s Guide

Safety and Maintenance Guidelines

To prepare the f monitor for shipping:

1. Disconnect the power, video, and audio cables from the monitor.

2. Push down on the top edge of the monitor to flatten the hinge 1, as shown in the following illustration, and then push down the top 2 to close the monitor completely 3.

Folding the f monitor for shipping

User’s Guide 2–7

Safety and Maintenance Guidelines

2–8 User’s Guide

Setting Up the Monitor

Before You Begin

1. Unpack the monitor. Make sure all contents are included. Store the boxes.

2. Turn off the computer, and other attached devices.

3. Determine the video cable or cables that you will connect from the computer video card outputs to the VGA and DVI-D (select f monitors only) inputs on the monitor. The vs monitor supports only VGA. For the f monitor, you can connect one or both cables.

❏ VGA cable:

Standard VGA 15-pin cable (provided).

❏ DVI-D cable:

For digital operation, use a DVI-D-to-DVI-D video cable (not provided). The DVI-D connector on the f monitor is for digital-to-digital connection only. Your computer must have a DVI-compatible graphics card installed for use with this cable.

4. Determine whether the monitor will be desktop-mounted or wall-mounted.

❏ See “Installing the Monitor”.

5. Prepare a flat area to use when assembling the monitor. You may need a flat, soft, protected area for placing the monitor screen-down while preparing it for wall mounting.

6. You need a Phillips-head screwdriver for preparing the monitor for wall-mounting. You may need a straight-slot screwdriver to secure some cables.

User’s Guide 3–1

Setting Up the Monitor

Installing the Monitor

You can install the monitor on a desktop or wall mount. Place the monitor in a convenient, well-ventilated location near your computer.

If the monitor will be installed on a:

■ Desktop or table, see “Placing the Monitor on a Desktop” for your monitor type.

■ Wall, swing arm, or other mounting fixture, see “Wall Mounting the Monitor” for your monitor type.

Instructions are specific for each type of monitor; refer to the section for your type of monitor.

Connect the monitor after you have installed it. See “Connecting the Monitor”.

Placing the vs Monitor on a Desktop

Before you place the vs monitor on a desktop or table, you must attach the monitor base.

To place the vs monitor on a desktop or table:

1. Set the monitor base on a flat surface with the closed portion toward you.

3–2 User’s Guide

Setting Up the Monitor

2. Pick up the panel with the back toward you and lower the pedestal onto the base, as shown in the following illustration, until the base locks.

Inserting the vs monitor onto the base

3. Stand the monitor in the upright position on a desktop or table.

User’s Guide 3–3

Setting Up the Monitor

4. Tilt the monitor for proper viewing. Do not tilt the monitor beyond its easily adjustable position.

5º

30º

Adjusting the vs monitor tilt

Wall Mounting the vs Monitor

Before you mount the monitor on a wall, a swing arm, or other mounting fixture, you must remove the monitor base and the pedestal. You will need a Phillips-head screwdriver. Read the following warning and caution statements before beginning the procedure.

WARNING: Ensure that the monitor is lying flat, with the screen

down. Attempting to remove the base or pedestal from the monitor while it is upright may result in injury to the user.

CAUTION: Before disassembling the monitor, turn off the monitor

power, and disconnect all power, video, and audio cables.

To install the vs monitor on a wall, a swing arm, or other mounting fixture:

1. Remove the vs monitor base. Refer to “Removing the vs Monitor Base” in the previous chapter. Keep the monitor panel screen down on the flat, soft area.

3–4 User’s Guide

+ 54 hidden pages
