About This Guide

This guide provides information on monitor features, setting up the monitor, using the software and
technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm

or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to

equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

TIP: Text set off in this manner provides helpful hints.

This product incorporates HDMI technology.

iii

iv About This Guide

Table of contents

1 Getting Started ............................................................................................................................................. 1

Important safety information ............................................................................................................................... 1

Product features and components ........................................................................................................................ 1

Features ............................................................................................................................................... 1

Rear and side components .................................................................................................................. 3

Front bezel controls ............................................................................................................................ 4

Remote control features ..................................................................................................................... 5

Setting up the monitor .......................................................................................................................................... 5

Use caution when setting up the monitor .......................................................................................... 5

Attaching the monitor stand ............................................................................................................... 6

Connecting the cables ......................................................................................................................... 7

Connecting USB devices .................................................................................................................... 10

Adjusting the monitor ....................................................................................................................... 11

Turning on the monitor ..................................................................................................................... 11

Mounting the monitor ....................................................................................................................... 12

Removing the monitor stand .......................................................................................... 12

Attaching the VESA mounting bracket ........................................................................... 13

2 Using the monitor ........................................................................................................................................ 14

Software and utilities .......................................................................................................................................... 14

The Information file .......................................................................................................................... 14

The Image Color Matching file .......................................................................................................... 14

Installing the .INF and .ICM files .......................................................................................................................... 14

Installing from the optical disc ......................................................................................................... 14

Downloading from the Internet ........................................................................................................ 15

Using My Display software .................................................................................................................................. 15

Installing the software ...................................................................................................................... 15

Using the software ............................................................................................................................ 15

Downloading the software ............................................................................................................... 16

Using the On-Screen Display (OSD) menu ........................................................................................................... 16

Using Auto-Sleep Mode ....................................................................................................................................... 17

3 Support and troubleshooting ....................................................................................................................... 18

Solving common problems .................................................................................................................................. 18

Button lockouts ................................................................................................................................................... 19

Product support ................................................................................................................................................... 19

v

Preparing to call technical support ..................................................................................................................... 19

Locating the rating label ..................................................................................................................................... 20

Replacing the remote control battery ................................................................................................................. 20

4 Maintaining the monitor .............................................................................................................................. 22

Maintenance guidelines ....................................................................................................................................... 22

Cleaning the monitor ......................................................................................................................... 22

Shipping the monitor ........................................................................................................................ 22

Appendix A Technical specifications ................................................................................................................ 23

Preset display resolutions ................................................................................................................................... 24

Entering user modes ......................................................................................................................... 25

Power adapter ..................................................................................................................................................... 25

Energy saver feature ........................................................................................................................................... 25

Appendix B Accessibility ................................................................................................................................. 26

Supported assistive technologies ....................................................................................................................... 26

Contacting support .............................................................................................................................................. 26

vi

1 Getting Started

Important safety information

A power cord is included with the monitor. If another cord is used, use only a power source and connection
appropriate for this monitor. For information on the correct power cord set to use with the monitor, refer to

Product Notices provided on your optical disc, if one is included, or in your documentation kit.

the

WARNING! To reduce the risk of electric shock or damage to the equipment:

• Plug the power cord into an AC outlet that is easily accessible at all times.

• Disconnect power from the computer by unplugging the power cord from the AC outlet.

• If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin
outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The
grounding pin is an important safety feature.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical
outlet, grasp the cord by the plug.

To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.

CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for the

computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection
device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge
protection; the power strips must be specifically labeled as having this ability. Use a power strip whose
manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection
fails.

Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.

WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks,

speakers, chests, or carts may fall over and cause personal injury.

Care should be taken to route all cords and cables connected to the LCD monitor so that they cannot be
pulled, grabbed, or tripped over.

NOTE: This product is suitable for entertainment purposes. Consider placing the display in a controlled

luminous environment to avoid interference from surrounding light and bright surfaces that may cause
disturbing reflections from the screen.

Product features and components

Features

The light-emitting diode (LED) backlit monitor has an active matrix, AMVA+ panel. The monitor features
include:

Important safety information 1

●

81.28 cm (32-inch) diagonal viewable area display with 2560 x 1440 QHD resolution, plus full-screen
support for lower resolutions

●

Tilt capability and easy viewing from sitting or standing position, or while moving from one side of the
monitor to the other

●

AMVA+ technology providing wide viewing angles with colors that maintain their integrity

●

HDMI (High-Definition Multimedia Interface) video input

●

MHL (Mobile High-Definition Link) video input

●

DisplayPort video input

●

Plug and play capability if supported by your operating system

●

On-Screen Display (OSD) adjustments in 10 languages for easy setup and screen optimization

●

My Display software for adjusting monitor settings through Windows

●

HDCP (High-bandwidth Digital Content Protection) used on digital inputs

●

Software and documentation disc that includes monitor drivers and product documentation

●

Remote control

●

VESA mounting bracket for attaching the display to a wall mount device or swing arm

●

USB 2.0 hub with one upstream port and two downstream ports

●

Audio integrated speakers and headphone jack for optimized sound quality

NOTE: For safety and regulatory information, refer to the Product Notices provided on your media disc, if

one is included, or in your documentation kit. To locate updates to the user guide for your product, go to

http://www.hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-

screen instructions.

2 Chapter 1 Getting Started

Rear and side components

Component Function

1 Menu button Press to open the OSD menu, select a menu item from the OSD, or close the

2 Plus button If the OSD menu is on, press to navigate forward through the OSD menu and

OSD menu.

increase adjustment levels.

If the OSD menu is inactive, press to open the audio menu.

3 Minus button If the OSD menu is on, press to navigate backward through the OSD menu

and decrease adjustment levels.

If the OSD menu is inactive, press to advance to the next active input port
(HDMI, MHL/HDMI, DisplayPort).

4 Subwoofers (2) Provide bass to the speaker system.

5 Headphone jack Connects the headphone cable (not included) to the monitor.

6 DC Power connector Connects the DC power adapter to the monitor.

7 USB 2.0 Upstream Connects the USB hub cable from the source device to the monitor.

8 USB 2.0 Downstream Connects optional USB devices to the monitor.

9 USB 2.0 Downstream with

Charging

10 Audio In Connects the audio cable from the source device to the monitor.

11 DisplayPort Connects the DisplayPort cable from the source device to the monitor.

12 HDMI Connects the HDMI cable from the source device to the monitor.

13 MHL/HDMI Connects the HDMI or MHL cable from the source device to the monitor.

NOTE: The USB 2.0 Downstream with Charging port also provides current to charge a device such as a smart

phone or tablet. You can make the charging current available even when the monitor power button is switched off
by changing the settings in the OSD. Open the OSD and select Power Control > USB Power > On.

Connects optional USB devices to the monitor.

Product features and components 3

Front bezel controls

Control Function

1 Speakers (2) Provide premium audio sound.

2 Mute LED The LED is lit when the volume is muted, and off when the

volume is not muted.

3 Volume/Mute Rotate the dial control to adjust the volume.

Press the dial upward to mute and unmute the audio.

4 Power Turns the monitor on or off.

5 Power LED System on = white

System off = off

Sleep mode = amber

Sleep timer mode = blinking amber

6 IR Receiver Receives information from the remote control.

4 Chapter 1 Getting Started

Remote control features

The remote control can be used to turn the monitor on or off, open and make adjustments to the OSD, adjust
the volume, and mute or unmute the speakers.

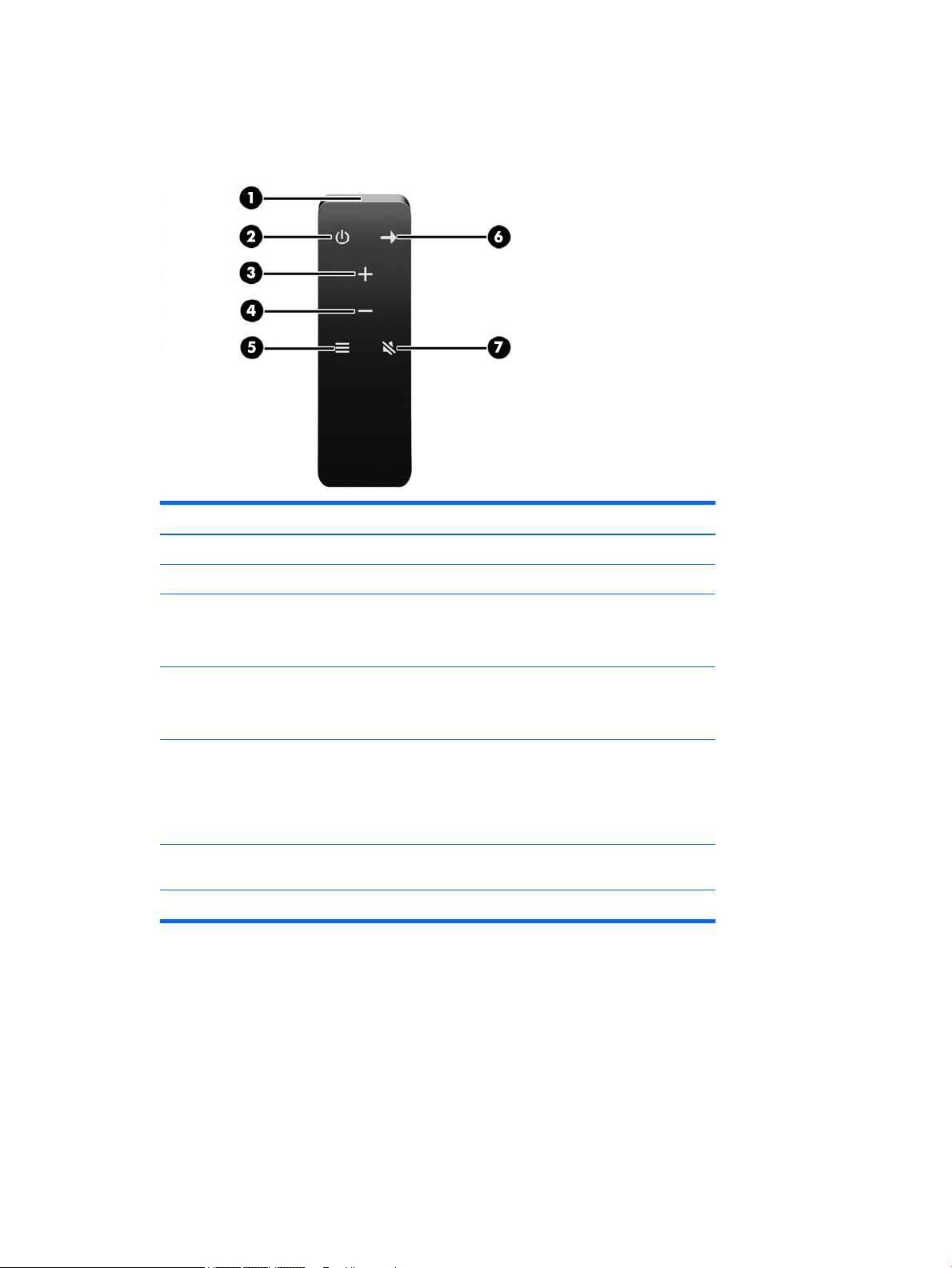

Button Function

1 IR Transmitter Sends information from the remote control to the monitor.

2 Power Turns the monitor on or off.

3 Plus If the OSD menu is on, press to navigate forward through the OSD menu

and increase adjustment levels.

If the OSD menu is inactive, press to increase the speaker volume.

4 Minus If the OSD menu is on, press to navigate backward through the OSD menu

and decrease adjustment levels.

If the OSD menu is inactive, press to decrease the speaker volume.

5 Menu Press to open the OSD menu, select a menu item from the OSD, or close the

OSD menu.

NOTE: When using the remote control to open the OSD menu, the menu

will appear in Large mode. You can return the menu to Normal mode by
pressing one of the menu buttons on the side of the display head.

6 Input Source Press to advance to the next active input port (HDMI, MHL/HDMI,

DisplayPort).

7 Mute Press to mute or unmute the audio.

Setting up the monitor

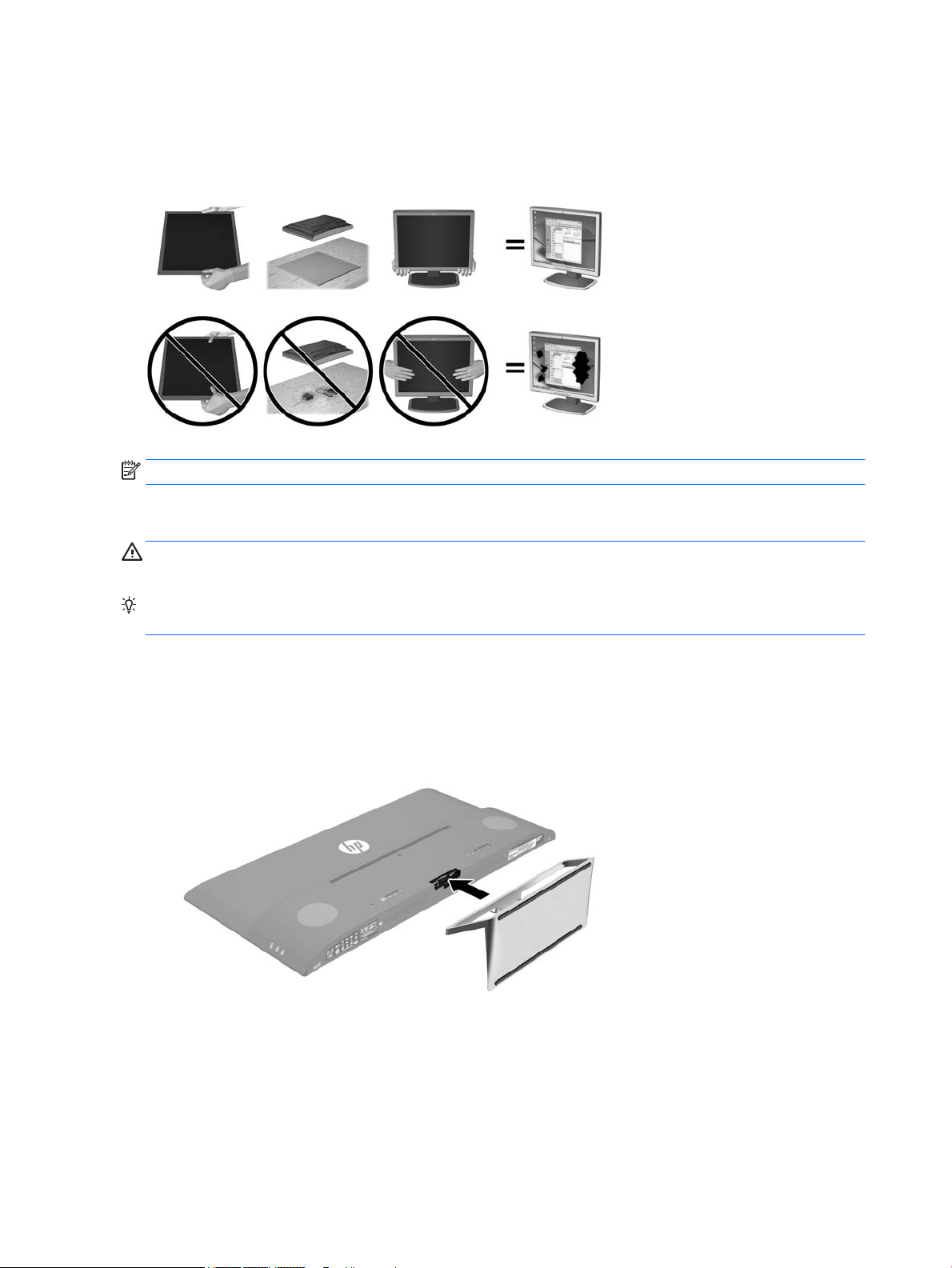

Use caution when setting up the monitor

To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the panel may
cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover
to its normal condition.

Setting up the monitor 5

If installing a stand, lay the monitor face down on a flat surface covered with a protective sheet foam or non­abrasive cloth. This prevents the screen from getting scratched, defaced or broken as well as damage to the
front panel buttons.

NOTE: Your monitor may look different from the monitor in this illustration.

Attaching the monitor stand

CAUTION: The screen is fragile. Avoid touching or applying pressure to the screen; doing so can cause

damage.

TIP: Consider the placement of the display, because the bezel might cause interfering reflections from

surrounding light and bright surfaces.

1. Lift the monitor from its box and place it face down on a flat surface covered by a clean, dry cloth.

2. Attach the stand to the monitor by inserting the bracket at the top of the stand into the slot on the back

of the display head until the bracket clicks securely in place.

6 Chapter 1 Getting Started

Connecting the cables

NOTE: The monitor ships with select cables. Not all cables shown in this section are included with the

monitor.

1. Place the monitor in a convenient, well-ventilated location near the computer.

2. Connect a video cable.

NOTE: The monitor will automatically determine which inputs have valid video signals. The inputs can

be selected by pressing the Minus button on the side panel or through the On-Screen Display (OSD) by
pressing the Menu button and selecting Input Control.

●

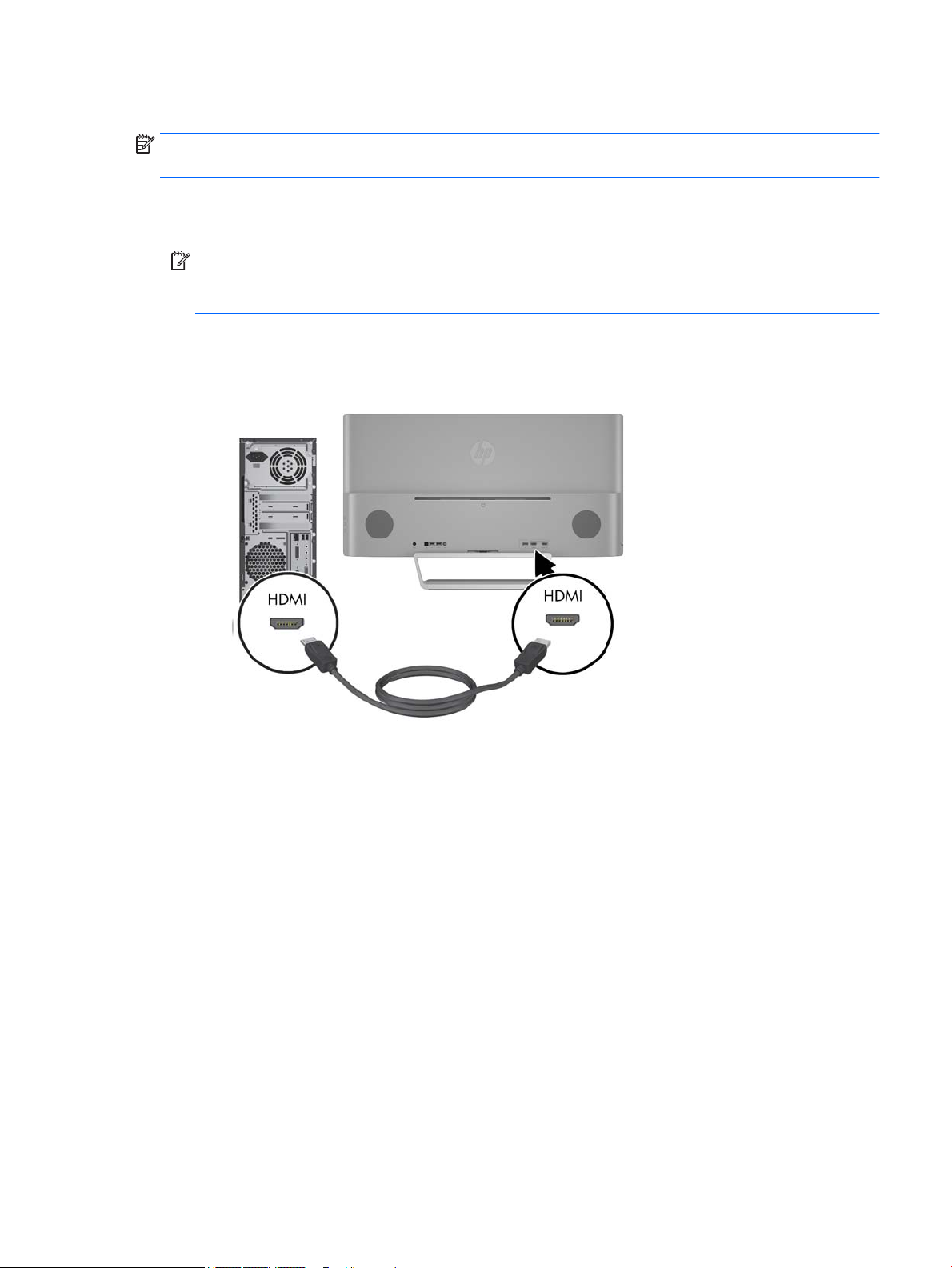

Connect an HDMI cable to the HDMI connector on the back of the monitor and the other end to the
source device.

Setting up the monitor 7

●

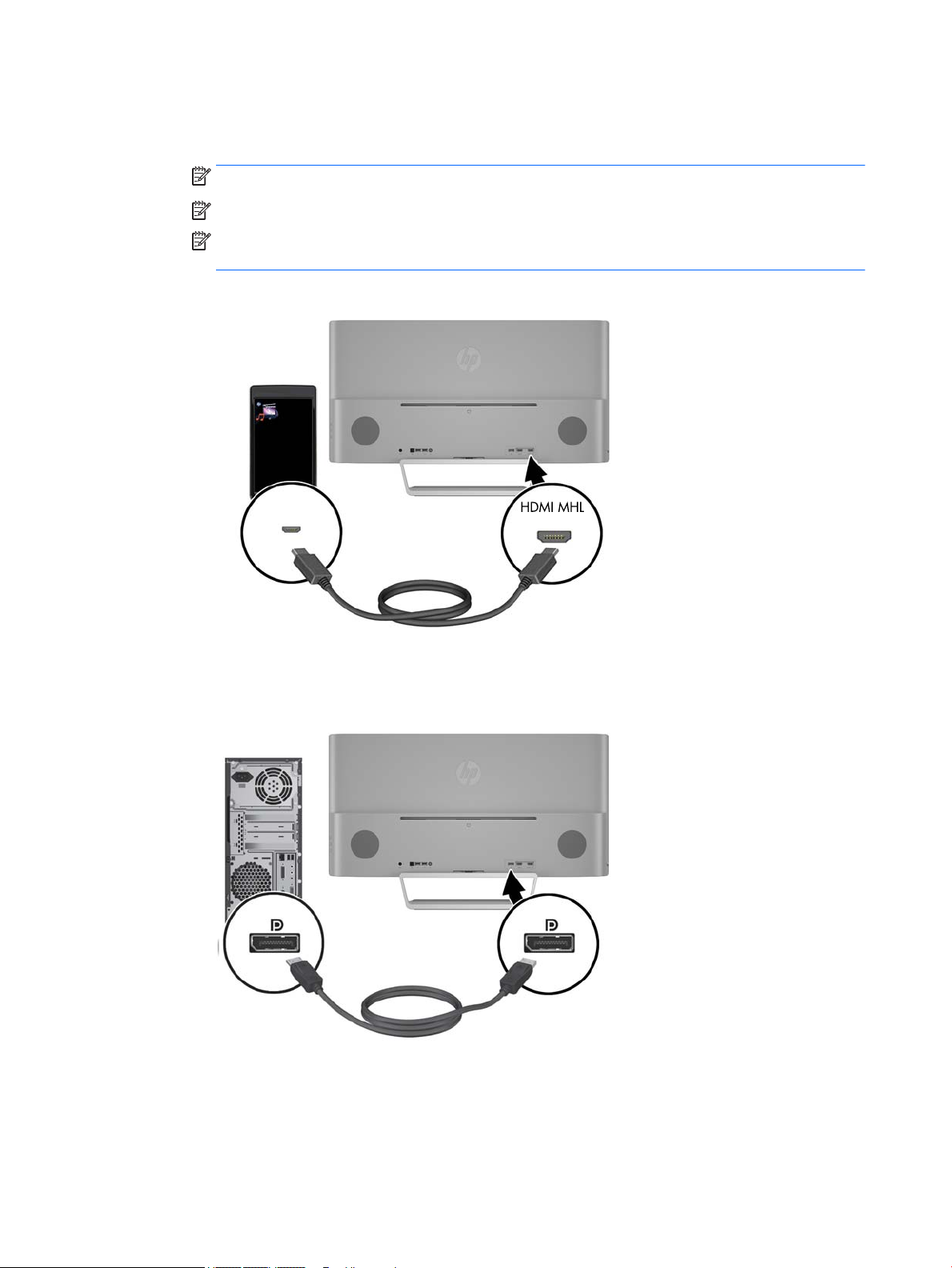

Connect an MHL cable to the MHL/HDMI connector on the rear of the monitor and to the micro USB
connector on an MHL-enabled source device, such as a smart phone or tablet, to stream content
from the mobile device to your monitor screen.

NOTE: The MHL video is limited to the mobile device output resolution.

NOTE: The MHL connector also charges your MHL mobile device while connected and streaming.

NOTE: You can also connect an HDMI cable between the MHL/HDMI port on the monitor and an

HDMI source device.

●

Connect a DisplayPort cable to the DisplayPort connector on the rear of the monitor and the other
end to the DisplayPort connector on the source device.

8 Chapter 1 Getting Started

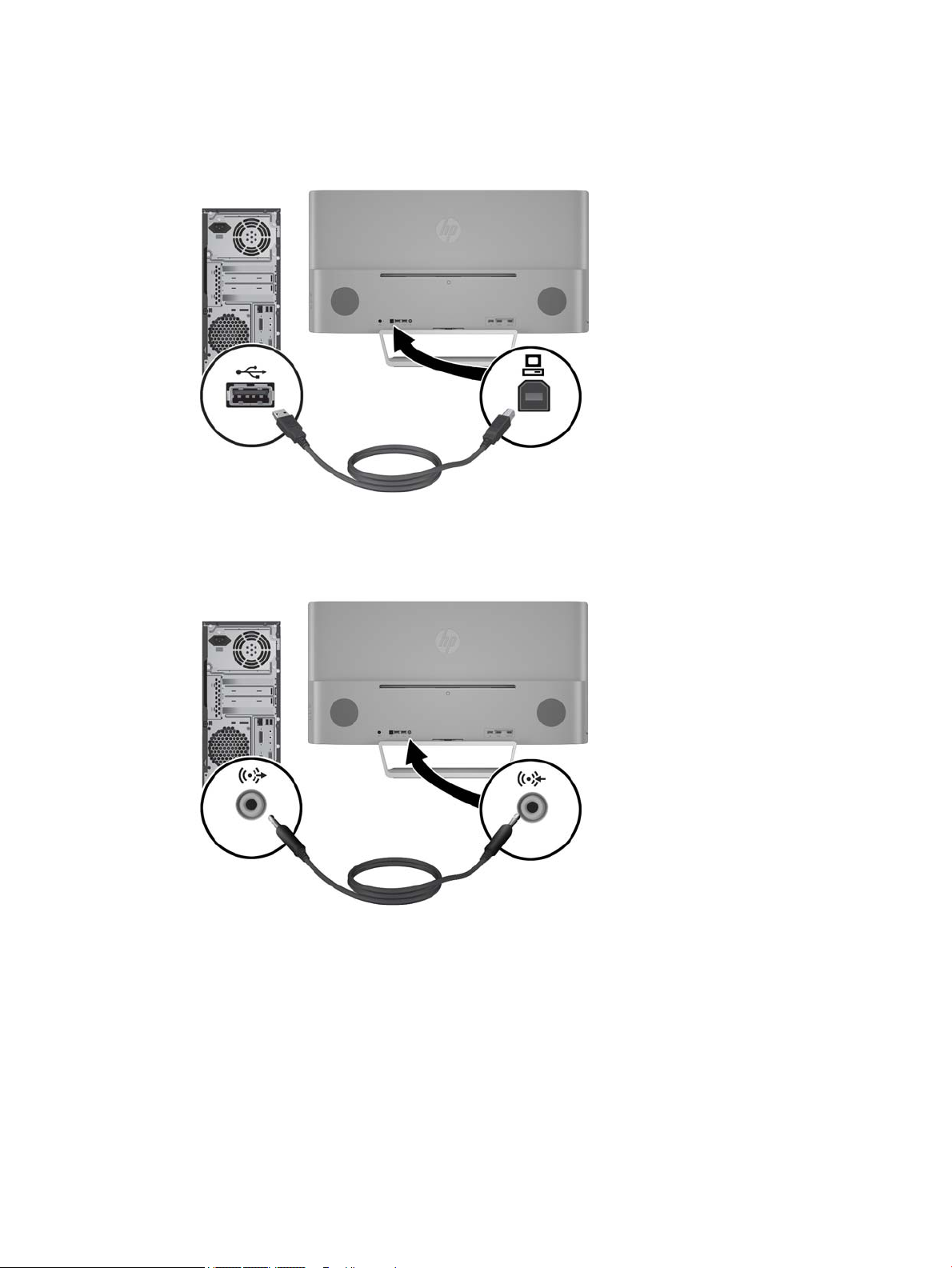

3. Connect a USB upstream cable to the USB upstream connector on the rear of the monitor and the other

end to a USB downstream connector on the source device.

4. Connect an audio cable to the Audio In connector on the rear of the monitor and the other end to the

Audio Out connector on the source device.

Setting up the monitor 9

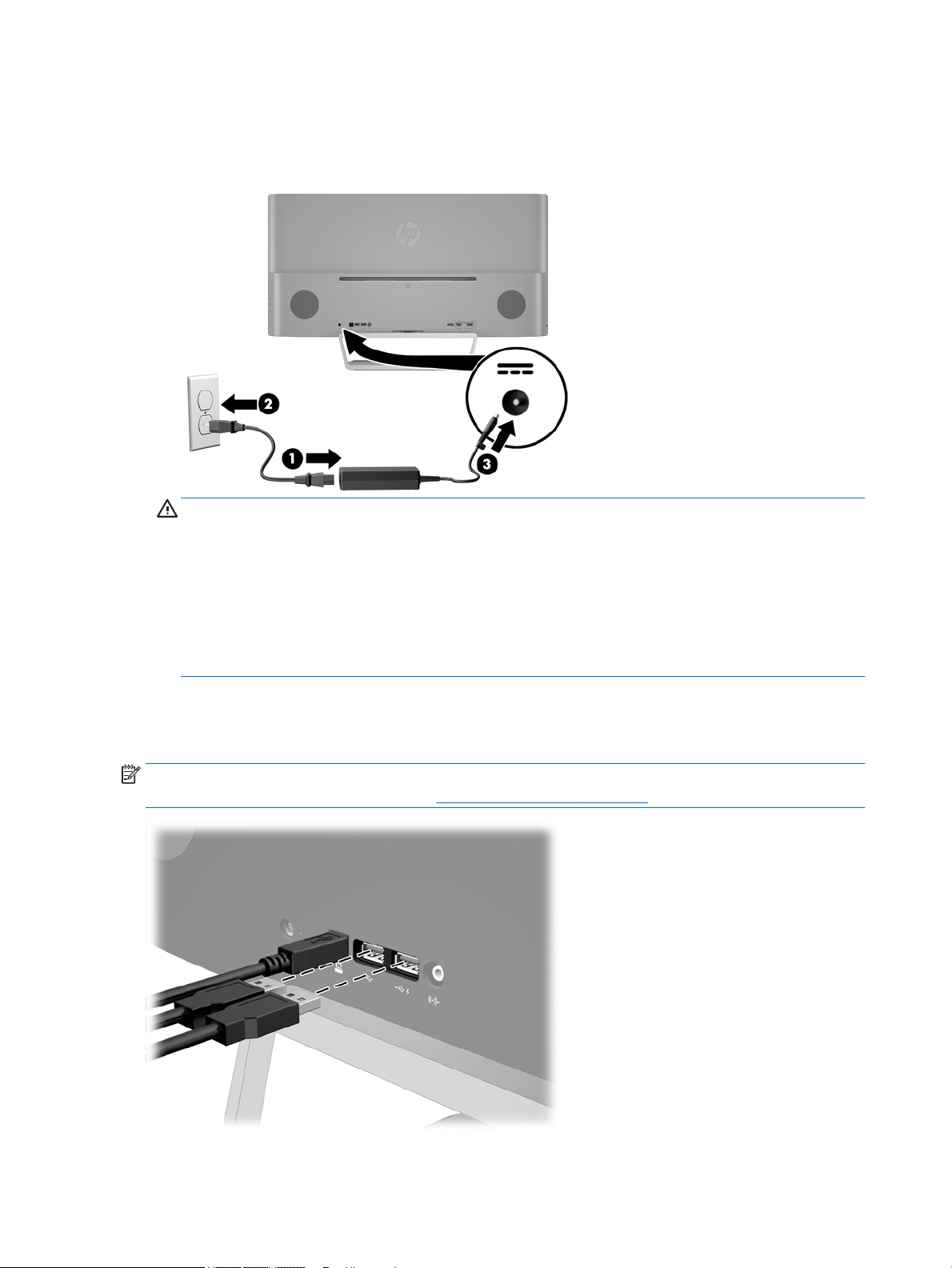

5. Connect one end of the power cord to the power supply (1) and the other end to a grounded electrical

outlet (2), and then connect the round end of the power supply cord to the monitor (3).

WARNING! To reduce the risk of electric shock or damage to the equipment:

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.

Connecting USB devices

There is one USB upstream port and two USB downstream ports on the rear of the monitor.

NOTE: You must connect the USB upstream cable from the source computer to the monitor to enable the

USB ports on the monitor. Refer to Step 4 in Connecting the cables on page 7.

10 Chapter 1 Getting Started

Adjusting the monitor

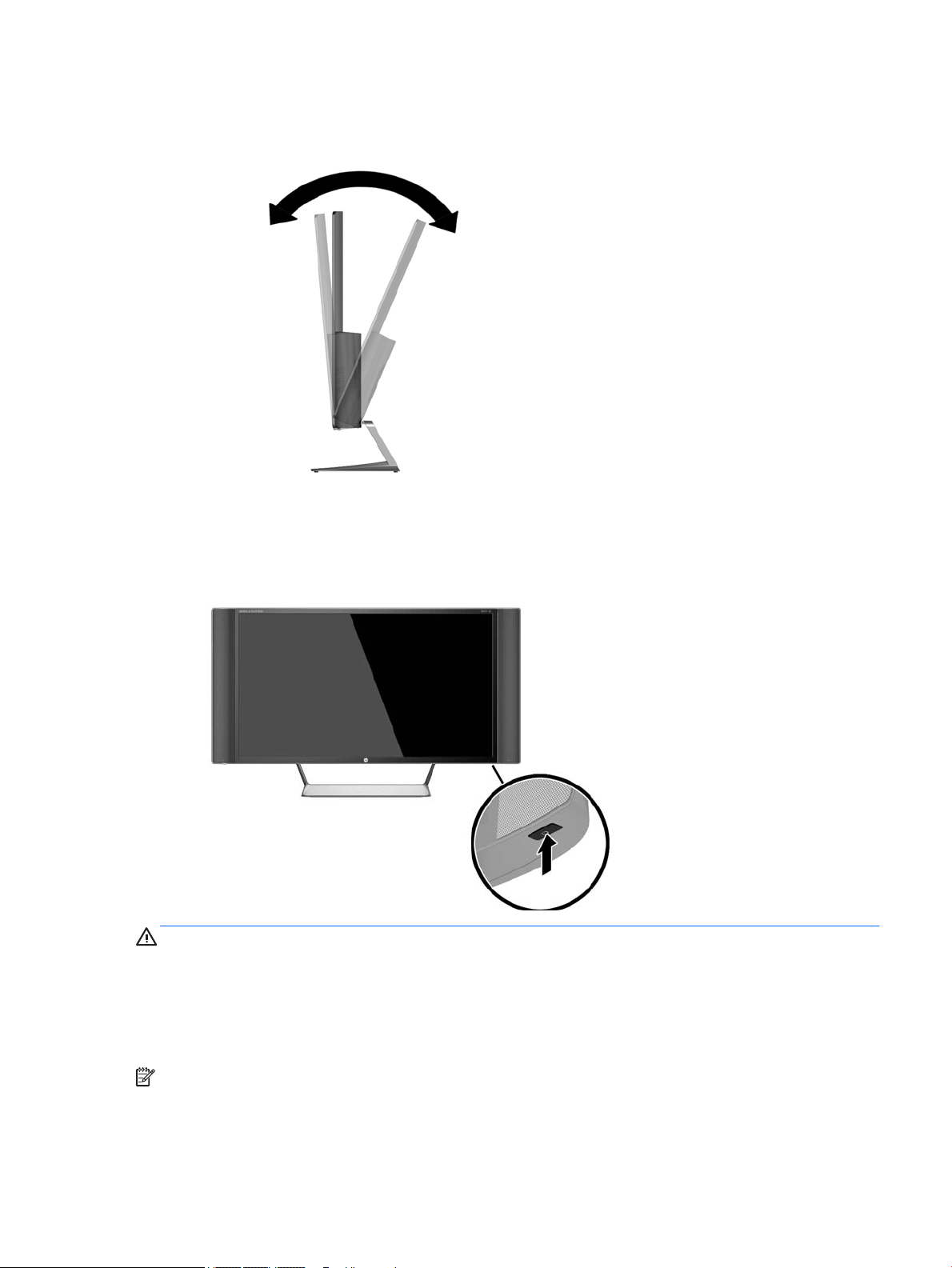

Tilt the monitor panel forward or backward to set it to a comfortable eye level.

Turning on the monitor

1. Press the power button on the source device to turn it on.

2. Press the power button on the front of the monitor to turn it on.

CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a

prolonged period of time.* To avoid burn-in image damage on the monitor screen, you should always
activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time.
Image retention is a condition that may occur on all LCD screens. Monitors with a “burned-in image” are not
covered under the HP warranty.

* A prolonged period of time is 12 consecutive hours of non-use.

NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be enabled. To

disable this feature, press and hold the monitor power button for 10 seconds.

Setting up the monitor 11

NOTE: You can disable the power LED in the OSD menu. Press the Menu button on the front of the monitor,

and then select Power Control > Power LED > Off.

When the monitor is powered on, a Monitor Status message is displayed for five seconds. The message
shows which input is the current active signal, the status of the auto-switch source setting (On or Off; factory
default is On), the current preset display resolution, and the recommended preset display resolution.

The monitor automatically scans the signal inputs for an active input and uses that input for the display.

Mounting the monitor

The monitor panel can be attached to a wall, swing arm, or other mounting fixture.

NOTE: This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.

CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach a third-

party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are required. Longer
screws must not be used because they may damage the monitor. It is important to verify that the
manufacturer’s mounting solution is compliant with the VESA standard and is rated to support the weight of
the monitor display panel. For best performance, it is important to use the power and video cables provided
with the monitor.

Removing the monitor stand

You can remove the monitor panel from the stand to install the panel on a wall, a swing arm, or other
mounting fixture.

CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and all cables are

disconnected.

1. Disconnect and remove all cables from the monitor.

2. Lay the monitor face down on a flat surface covered by a clean, dry cloth.

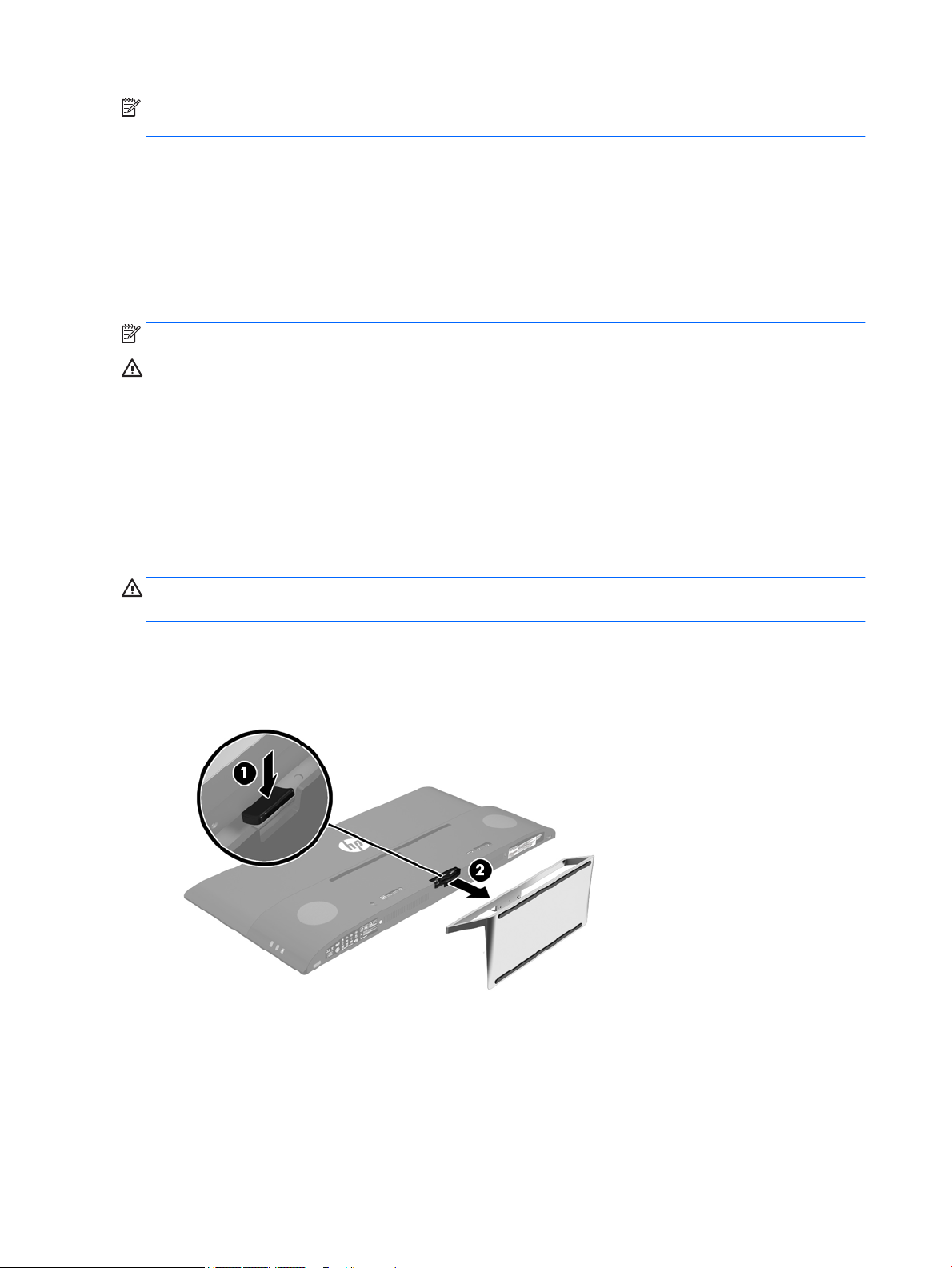

3. Press down on the release latch (1) and slide the stand out of the slot on the display head (2).

12 Chapter 1 Getting Started

Attaching the VESA mounting bracket

A VESA mounting bracket is included with the monitor for use when attaching the monitor panel to a wall,
swing arm, or other mounting fixture.

1. Remove the monitor stand. Refer to Removing the monitor stand on page 12.

2. Remove the screw from the center of the rear of the display head.

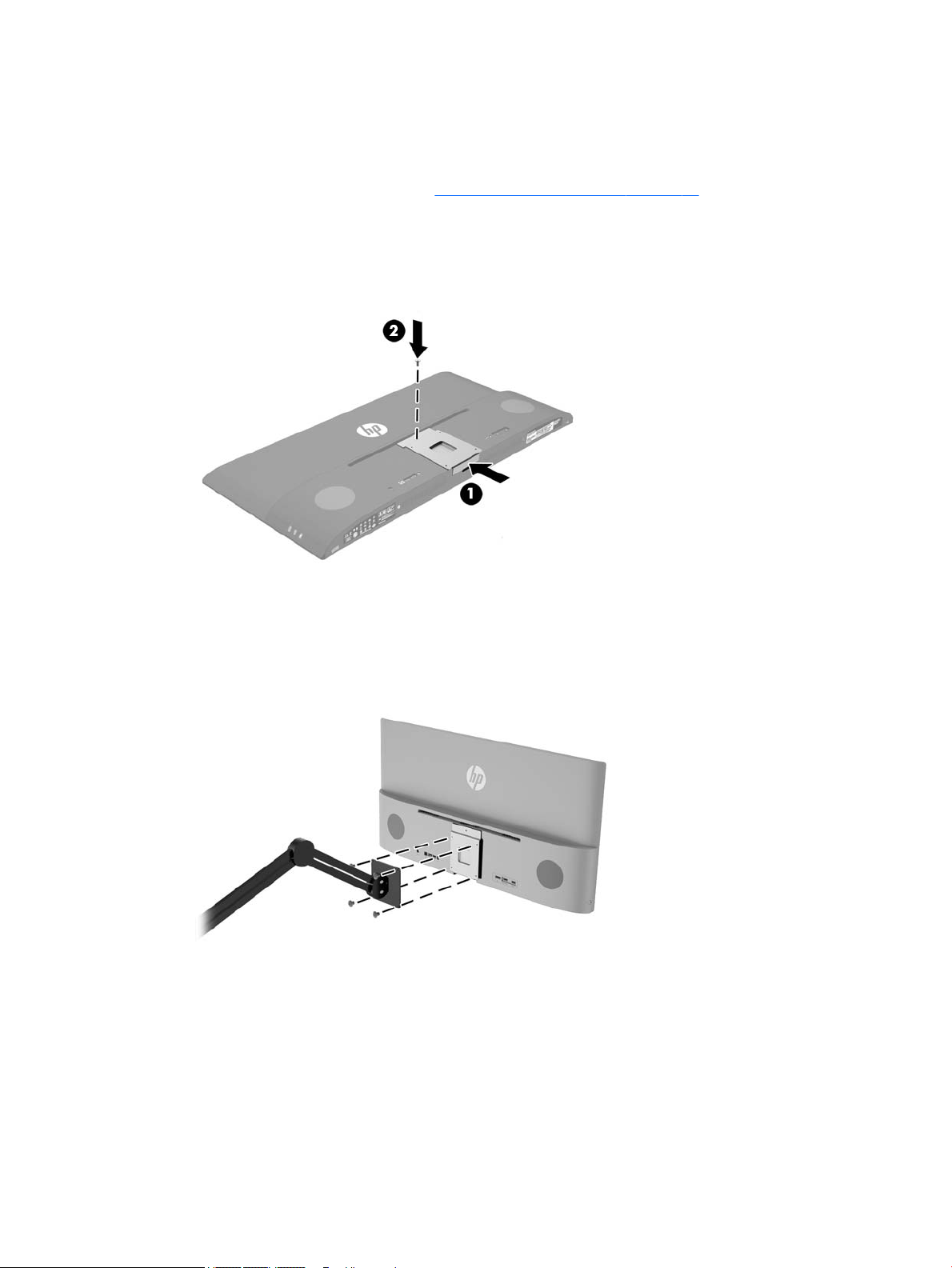

3. Insert the tab at the bottom of the VESA bracket into the slot on the back of the display head until the

bracket clicks in place (1), and then secure the top of the bracket with the screw that was installed in the
center of the display head (2).

4. To attach the monitor to a swing arm or other mounting device, insert four mounting screws through

the holes on the mounting device and into the screw holes on the VESA bracket that was installed on the
rear of the monitor.

Setting up the monitor 13

2 Using the monitor

Software and utilities

The optical disc that comes with the monitor contains files you can install on the computer:

●

an .INF (Information) file

●

ICM (Image Color Matching) files (one for each calibrated color space)

●

My Display software

The Information file

The .INF file defines monitor resources used by Windows® operating systems to ensure monitor compatibility
with the computer’s graphics adapter.

This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without
installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s graphic card is VESA
DDC2–compliant and that the monitor connects directly to the graphics card. Plug and Play does not work
through separate BNC type connectors or through distribution buffers/boxes.

The Image Color Matching file

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color
matching from monitor screen to printer, or from scanner to monitor screen. This file is activated from within
graphics programs that support this feature.

NOTE: The ICM color profile is written in accordance with the International Color Consortium (ICC) Profile

Format specification.

Installing the .INF and .ICM files

After you determine that you need to update, you can install the .INF and .ICM files from the optical disc or
download them.

Installing from the optical disc

To install the .INF and .ICM files on the computer from the optical disc:

1. Insert the optical disc in the computer optical drive. The optical disc menu is displayed.

2. View the HP Monitor Software Information file.

3. Select Install Monitor Driver Software.

4. Follow the on-screen instructions.

5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the optical disc

in the event of an installation error. Refer to the HP Monitor Software Information file on the optical disc.

14 Chapter 2 Using the monitor

Downloading from the Internet

To download the latest version of .INF and .ICM files from the HP monitors support Web site:

1. Go to http://www.hp.com/support and select the appropriate country and language.

2. Select Drivers & Downloads, type your monitor model in the Find by product search field, and click Go.

3. If necessary, select your monitor from the list.

4. Select your operating system, and then click Next.

5. Click Driver - Display/Monitor to open the list of drivers.

6. Click on the driver.

7. Click the System Requirements tab, and then verify that your system meets the program minimum

requirements.

8. Click Download and follow the on-screen instructions to download the software.

Using My Display software

The optical disc provided with the monitor includes My Display software. Use My Display software to choose
preferences for optimum viewing. You can select settings for gaming, movies, photo editing, or just working
on documents and spreadsheets. You can also easily adjust settings such as brightness, color, and contrast
using My Display software.

Installing the software

To install the software:

1. Insert the optical disc in your computer optical drive. The optical disc menu is displayed.

2. Select the language.

NOTE: This choice selects the language you will see while installing the software. The language of the

software itself will be determined by the operating system language.

3. Click Install My Display Software.

4. Follow the on-screen instructions.

5. Restart the computer.

Using the software

To open the My Display software:

1. Click the HP My Display icon on the taskbar.

Or

Click Windows Start on the taskbar.

2. Click All Programs.

3. Click HP My Display.

4. Select HP My Display.

For additional information, refer to the on-screen Help within the software.

Using My Display software 15

Downloading the software

If you prefer to download the My Display software, follow the instructions below.

1. Go to http://www.hp.com/support and select the appropriate country and language.

2. Select Drivers & Downloads, type your monitor model in the Find by product search field, and click Go.

3. If necessary, select your monitor from the list.

4. Select your operating system, and then click Next.

5. Click Utility - Tools to open the list of utilities and tools.

6. Click HP My Display.

7. Click the System Requirements tab, and then verify that your system meets the program minimum

requirements.

8. Click Download and follow the on-screen instructions to download My Display.

Using the On-Screen Display (OSD) menu

Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. You can
access and make adjustments in the OSD using the buttons on the right side of the display or the buttons on
the remote control.

To access the OSD and make adjustments, do the following:

1. If the monitor is not already on, press the Power button to turn on the monitor.

2. To access the OSD menu, press the Menu button on the right side of the monitor or on the remote

control.

3. To navigate through the OSD menu, press the + (Plus) button on the monitor’s side panel or on the

remote control to scroll up, or the – (Minus) button to scroll down.

4. To select an item from the OSD menu, use the + or – buttons to scroll to and highlight your selection,

then press the Menu button to select that function.

5. Adjust the item using the + or – buttons to adjust the scale.

6. After adjusting the function, select Save and Return, or Cancel if you don’t want to save the setting,

then select Exit from the Main menu.

Main Menu Description

Brightness Adjusts the brightness level of the screen. The factory default range is 90.

Contrast Adjusts the contrast level of the screen. The factory default range is 80.

Input Control Selects the video input signal.

Color Control Selects and adjusts the screen color.

Image Control Adjusts the screen image.

Power Control Adjusts the power settings.

OSD Control Adjusts the on-screen display (OSD) controls.

Management Adjusts the audio settings and returns all OSD menu settings to the factory default settings.

Language Selects the language in which the OSD menu is displayed. The factory default is English.

16 Chapter 2 Using the monitor

Main Menu Description

Information Selects and displays important information about the monitor.

Exit Exits the OSD menu screen.

Using Auto-Sleep Mode

The display supports an OSD (On-Screen Display) option called Auto-Sleep Mode that allows you to enable or
disable a reduced power state for the display. When Auto-Sleep Mode is enabled (enabled by default), the
monitor will enter a reduced power state when the host PC signals low power mode (absence of either
horizontal or vertical sync signal).

Upon entering this reduced power state sleep mode, the monitor screen is blanked, the backlight is turned
off and the power LED indicator turns amber. The monitor draws less than 0.5W of power when in this
reduced power mode. The monitor will wake from the sleep mode when the host PC sends an active signal to
the monitor (for example, if you activate the mouse or keyboard).

You can disable the Auto-Sleep Mode in the OSD. Press the Menu button on the side panel to open the OSD. In
the OSD select Power Control > Auto-Sleep Mode > Off.

Using Auto-Sleep Mode 17

3 Support and troubleshooting

Solving common problems

The following table lists possible problems, the possible cause of each problem, and the recommended
solutions.

Problem Possible Cause Solution

Screen is blank or video is
flashing.

Video card compatibility. Open the OSD menu and select the Input Control menu. Set

Image appears blurred,
indistinct, or too dark.

No speaker volume or low
speaker volume.

Power cord is disconnected. Connect the power cord.

Power button is turned off. Press the front panel power button.

NOTE: If pressing the power button has no effect, press and

hold the power button for 10 seconds to disable the power
button lockout feature.

Video cable is improperly connected. Connect the video cable properly. Refer to Connecting the

cables on page 7 for more information.

System is in sleep mode. Press any key on the keyboard or move the mouse to

inactivate the screen blanking utility.

Auto-Switch Input to Off and manually select the input.

Brightness is too low. Open the OSD menu and select Brightness to adjust the

brightness scale as needed.

Volume control is turned down. Adjust the volume control on the bottom left of the front

panel.

Volume is muted. Press up on the volume control to unmute the volume.

Volume is turned down in the OSD, Open the OSD and select Management > Audio and adjust the

volume scale.

Headphones are plugged in. Unplug the headphones. The speakers are disabled when the

headphones are plugged in.

Check Video Cable is
displayed on screen.

Input Signal Out of Range is
displayed on screen.

The monitor is off but it did
not seem to enter into a low­power sleep mode.

OSD Lockout is displayed. The monitor's OSD Lockout function

Power Button Lockout is

displayed.

Monitor video cable is disconnected. Connect the appropriate video signal cable between the

Video resolution and/or refresh rate
are set higher than what the monitor
supports.

The monitor's power saving control is
disabled.

is enabled.

The monitor's Power Button Lockout
function is enabled.

18 Chapter 3 Support and troubleshooting

computer and monitor. Be sure that the computer power is
off while connecting the video cable.

Change the settings to a supported setting (see Preset

display resolutions on page 24).

Open the OSD menu and select Power Control > Auto-Sleep

Mode and set auto-sleep to On.

Press and hold the Menu button on the side panel for 10
seconds to disable the OSD Lockout function.

Press and hold the power button for 10 seconds to unlock the
power button function.

Button lockouts

Holding down the power button or Menu button for ten seconds will lock out the functionality of the buttons.
You can restore the functionality by holding the buttons down again for ten seconds. This functionality is
only available when the display is powered on, displaying an active signal, and the OSD is not active.

Product support

For additional information on using your monitor, go to http://www.hp.com/support. Select your country or
region, select Troubleshooting, and then enter your model in the search window and click the Go button.

NOTE: The monitor user guide, reference material, and drivers are available at http://www.hp.com/

support.

If the information provided in the guide does not address your questions, you can contact support. For U.S.
support, go to http://www.hp.com/go/contactHP. For worldwide support, go to http://welcome.hp.com/

country/us/en/wwcontact_us.html.

Here you can:

●

Chat online with an HP technician

NOTE: When support chat is not available in a particular language, it is available in English.

●

Find support telephone numbers

●

Locate an HP service center

Preparing to call technical support

If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical
support. Have the following information available when you call:

●

Monitor model number

●

Monitor serial number

●

Purchase date on invoice

●

Conditions under which the problem occurred

●

Error messages received

●

Hardware configuration

●

Name and version of the hardware and software you are using

Button lockouts 19

Locating the rating label

The rating label on the monitor provides the product number and serial number. You may need these
numbers when contacting HP about the monitor model. The rating label is located on the bottom of the
display head.

Replacing the remote control battery

The remote control uses a CR2032 button cell lithium battery.

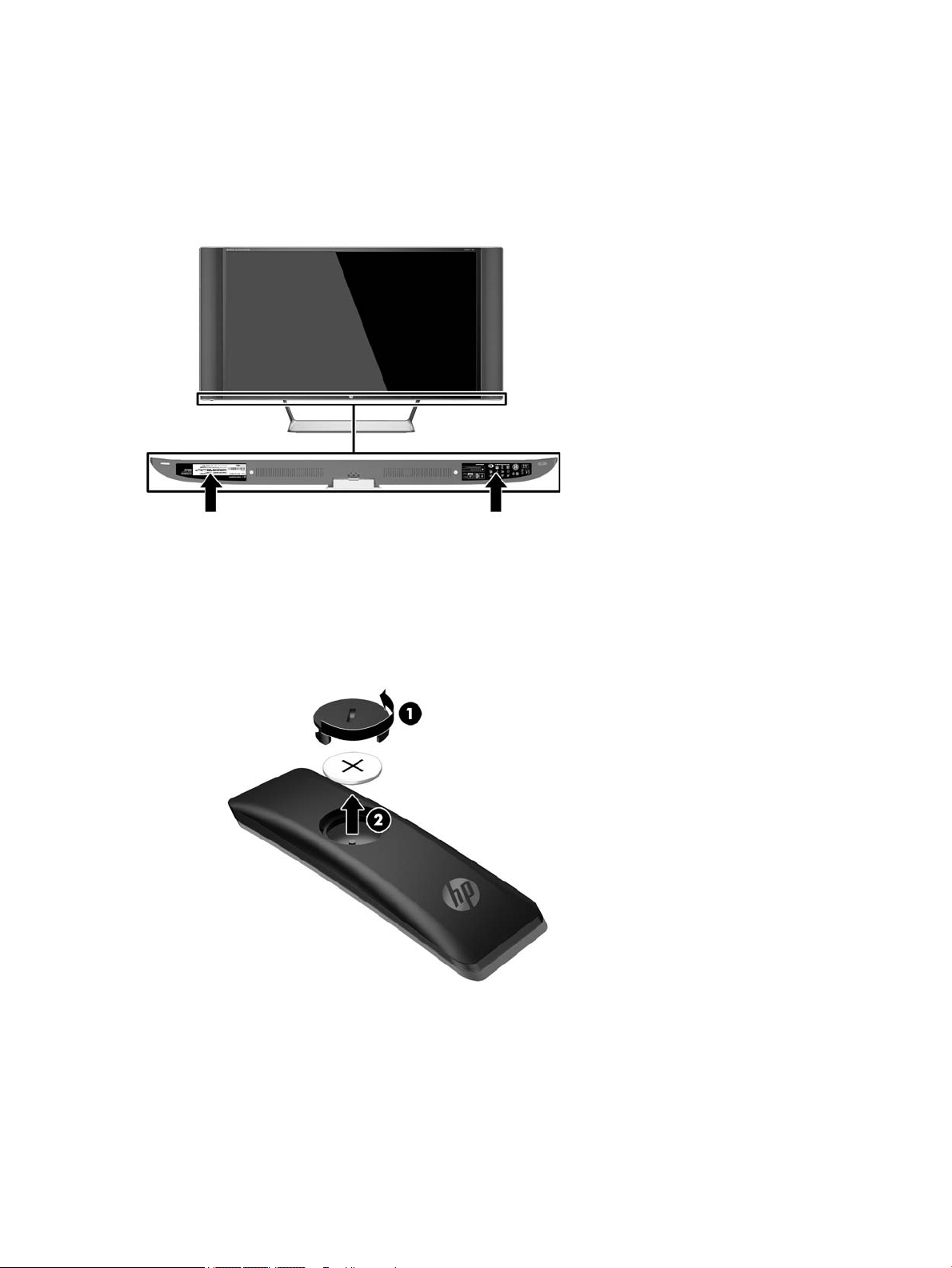

1. Rotate the battery cover counter-clockwise and lift it off the remote control (1), and then lift the battery

out of the compartment (2).

20 Chapter 3 Support and troubleshooting

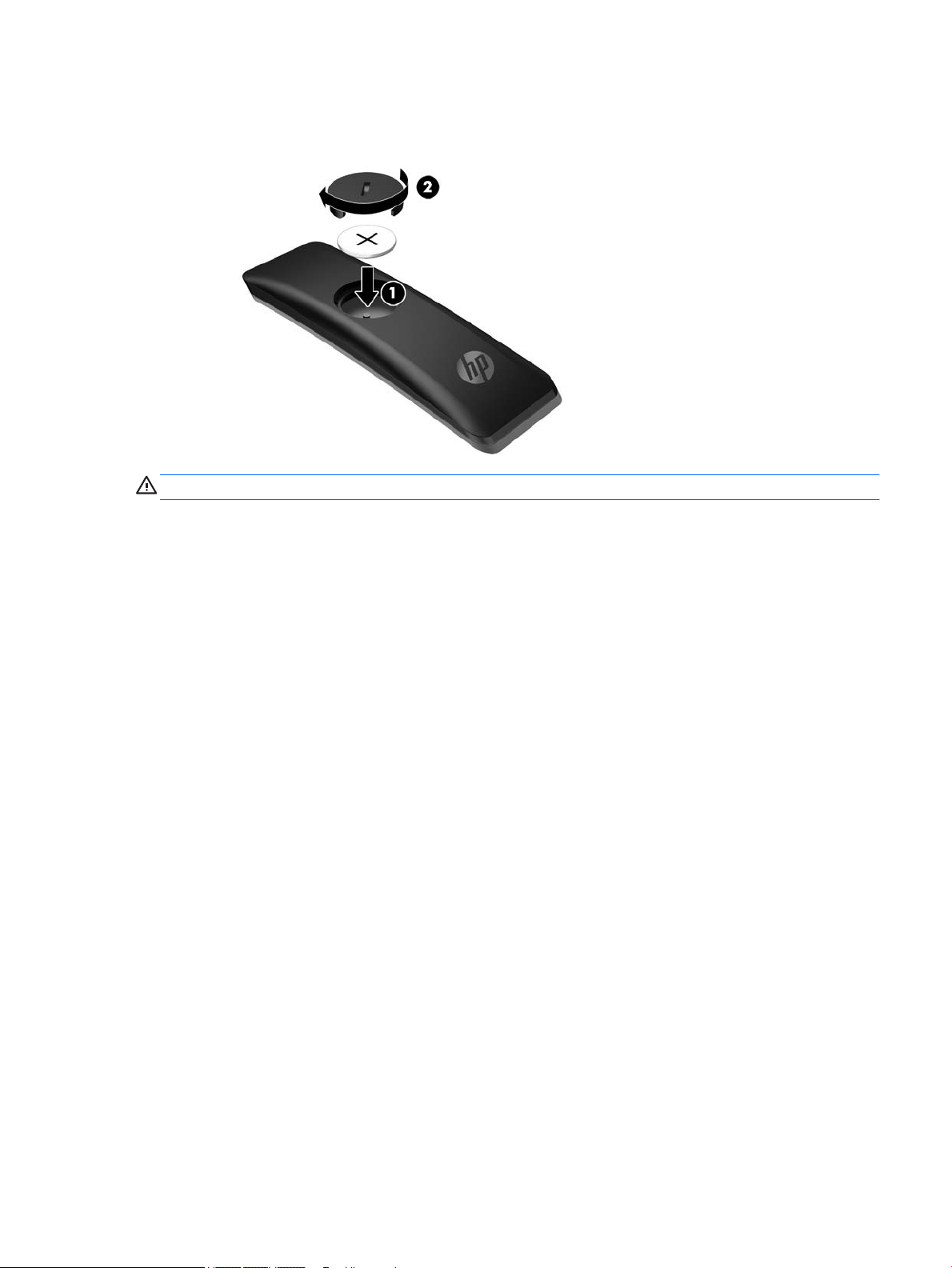

2. Install the new battery in the battery compartment with the positive side facing up (1), and then replace

the battery cover (2).

CAUTION: See the Product Notices document provided on the optical disc for proper battery disposal.

Replacing the remote control battery 21

4 Maintaining the monitor

Maintenance guidelines

To enhance the performance and extend the life of the monitor:

●

Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls
that are covered in the operating instructions. If the monitor is not operating properly or has been
dropped or damaged, contact an authorized HP dealer, reseller, or service provider.

●

Use only a power source and connection appropriate for this monitor, as indicated on the label/back
plate of the monitor.

●

Be sure the total ampere rating of the products connected to the outlet does not exceed the current
rating of the electrical outlet, and the total ampere rating of the products connected to the cord does
not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A)
for each device.

●

Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug
firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

●

Turn the monitor off when not in use. You can substantially increase the life expectancy of the monitor
by using a screen saver program and turning off the monitor when not in use.

NOTE: Monitors with a “burned-in image” are not covered under the HP warranty.

●

Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or
covered. Never push objects of any kind into cabinet slots or other openings.

●

Do not drop the monitor or place it on an unstable surface.

●

Do not allow anything to rest on the power cord. Do not walk on the cord.

●

Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.

●

When removing the monitor stand, you must lay the monitor face down on a soft area to prevent it from
getting scratched, defaced, or broken.

Cleaning the monitor

1. Turn off the monitor and unplug the power cord from the back of the unit.

2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.

3. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.

CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface. Never

spray the cleaner directly on the screen surface. It may run behind the bezel and damage the electronics.

CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene, thinner, or any

volatile substance to clean the monitor screen or cabinet. These chemicals may damage the monitor.

Shipping the monitor

Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.

22 Chapter 4 Maintaining the monitor

A Technical specifications

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers;

actual performance may vary either higher or lower.

For the latest specifications or additional specifications on this product, go to http://www.hp.com/go/

quickspecs/ and search for your specific display model to find the model-specific QuickSpecs.

Display

Type

Viewable image size 81.28 cm diagonal 32 inch diagonal

Tilt -5° to 23°

Weight

Without stand

With stand

Dimensions (including stand)

Height

Depth

Width

Maximum graphic resolution 2560 x 1440 (60 Hz)

Optimum graphic resolution 2560 x 1440 (60 Hz)

Text mode 720 x 400

Dot pitch 0.27675 mm

Pixels per inch 91.8 PPI

81.28 cm wide screen

AMVA+

9.0 kg

10.7 kg

52.2 cm

17.894 cm

86.164 cm

32 inches wide screen

19.8 lbs

23.54 lbs

20.551 in

7.049 in

33.923 in

Horizontal frequency 24 kHz to 90 kHz

Vertical refresh rate 50 Hz to 60 Hz

Environmental requirements temperature

Operating temperature

Storage temperature

Relative humidity 20% to 70%

Power source 100 VAC to 240 VAC 50/60 Hz

Altitude:

Operating

Storage

Measured power consumption:

5°C to 35°C

-20°C to 60°C

0 m to 5000 m

0 m to 12 192 m

41°F to 95°F

-4°F to 140°F

0 to 16,400 ft

0 to 40,000 ft

23

Full power

Typical settings

Sleep

Off

97 W

50 W

<0.5 W

<0.5 W

Input terminal One HDMI connector, one MHL/HDMI

Preset display resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This
monitor automatically recognizes these preset modes and they will appear properly sized and centered on
the screen.

Preset Pixel format Horz freq (kHz) Vert freq (Hz)

1 640 × 480 31.469 59.94

2 720 x 400 31.469 70.087

3 800 × 600 37.879 60.317

4 1024 × 768 48.363 60.004

5 1280 × 720 45 60

6 1280 × 800 49.702 59.81

7 1280 × 1024 63.981 60.02

8 1440 × 900 55.935 59.887

connector, one DisplayPort connector

9 1600 × 900 60 60

10 1680 × 1050 65.29 59.954

11 1920 × 1080 67.5 60

12 1920 × 1200 74.038 59.95

13 1600 × 1200 75 60

14 1920 × 1200 74.556 59.885

15 2560 × 1440 88.787 59.951

Preset Timing name Pixel format Horz freq (kHz) Vert freq (Hz)

1 480p 720 × 480 31.469 60

2 576p 720 × 576 31.25 50

3 720p50 1280 × 720 37.5 50

4 720p60 1280 × 720 45 60

5 1080p60 1920 x 1080 67.5 60

24 Appendix A Technical specifications

6 1080p50 1920 x 1080 56.25 50

7 1080p30 1920 x 1080 33.7 30

Entering user modes

The video controller signal may occasionally call for a mode that is not preset if:

●

You are not using a standard graphics adapter.

●

You are not using a preset mode.

If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display.
Your changes can be made to any or all of these modes and saved in memory. The monitor automatically
stores the new setting, and then recognizes the new mode just as it does a preset mode. In addition to the
factory preset modes, there are at least 10 user modes that can be entered and stored.

Power adapter

Manufacturer Model number Power supply rating

Delta Electronic, Inc. TPC-DA52 19.5Vdc / 7.69A

Energy saver feature

The monitor supports a reduced power state. The reduced power state will be entered into if the monitor
detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon detecting the
absence of these signals, the monitor screen is blanked, the backlight is turned off, and the power light turns
amber. When the monitor is in the reduced power state, the monitor will utilize <0.5 watts of power. There is
a brief warm-up period before the monitor will return to its normal operating state.

Refer to the computer manual for instructions on setting the energy saver mode (sometimes called power
management feature).

NOTE: The above power saver feature only works when connected to computers that have energy saver

modes.

By selecting the settings in the monitor's Sleep Timer utility, you can also program the monitor to enter into
the reduced power state at a predetermined time. When the monitor's Sleep Timer utility causes the monitor
to enter the reduced power state, the power light blinks amber.

Power adapter 25

B Accessibility

HP designs, produces, and markets products and services that can be used by everyone, including people
with disabilities, either on a stand-alone basis or with appropriate assistive devices.

Supported assistive technologies

HP products support a wide variety of operating system assistive technologies and can be configured to work
with additional assistive technologies. Use the Search feature on your source device that is connected to the
monitor to locate more information about assistive features.

NOTE: For additional information about a particular assistive technology product, contact customer

support for that product.

Contacting support

We are constantly refining the accessibility of our products and services and welcome feedback from users. If
you have an issue with a product or would like to tell us about accessibility features that have helped you,
please contact us at [phone], Monday through Friday, 6 a.m. to 9 p.m. Mountain Time. If you are deaf
or hard-of-hearing and use TRS/VRS/WebCapTel, contact us if you require technical support or have
accessibility questions by calling [phone], Monday through Friday, 6 a.m. to 9 p.m. Mountain Time.

26 Appendix B Accessibility
