HP Envy 23 IPS User Guide
HP ENVY 23 IPS Monitor
User Guide
© 2013, Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (September 2013)
Document part number: 734538–001
About This Guide
This guide provides information on monitor features, setting up the monitor, using the software and
technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
iii
iv About This Guide
Table of contents
1 Product Features ............................................................................................................................................ 1
2 Setting Up the Monitor ................................................................................................................................... 2
Attaching the Monitor Base .................................................................................................................. 2
Rear and Side Components ................................................................................................................. 4

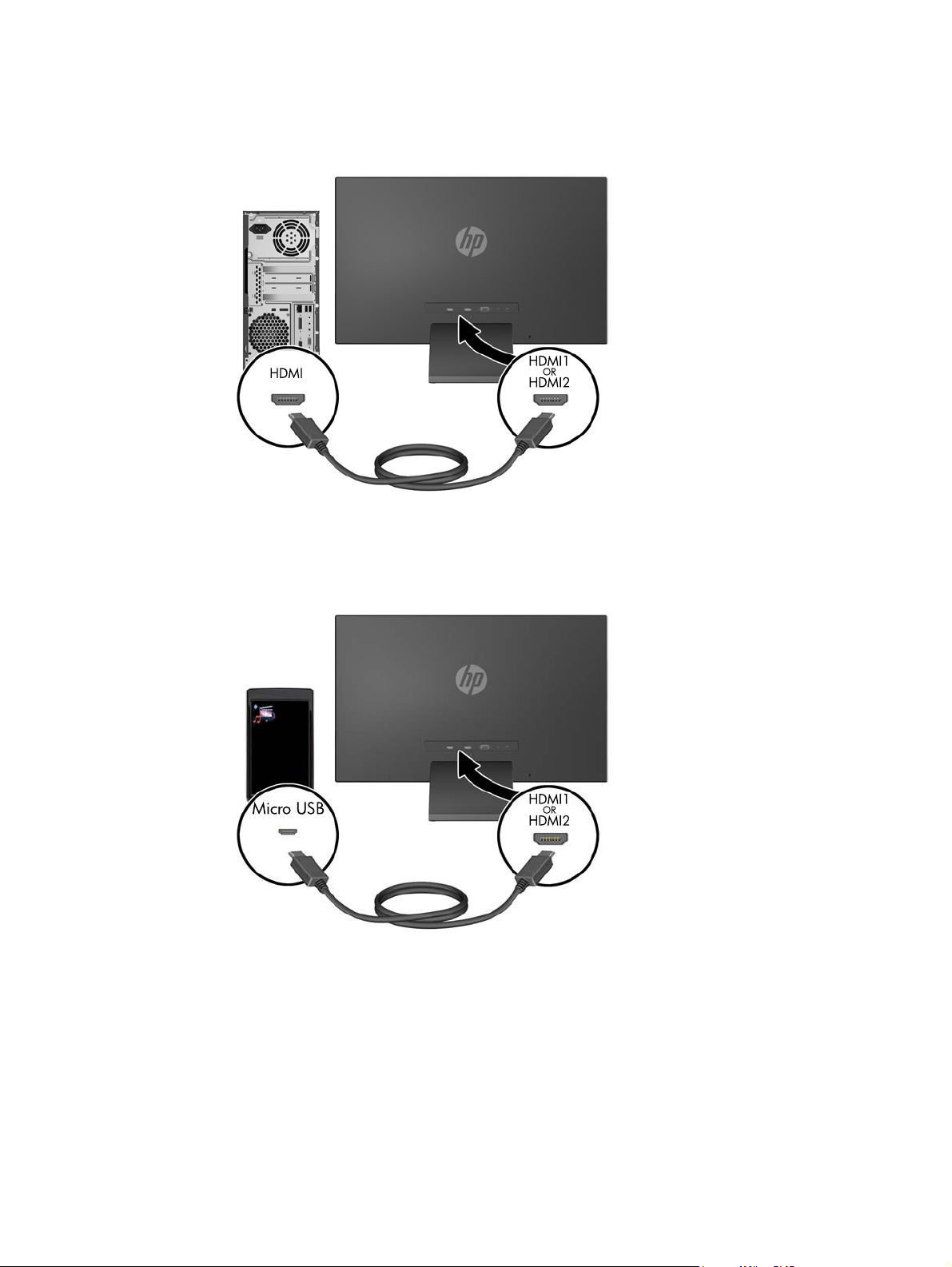

Connecting the Cables ......................................................................................................................... 5
Front Panel Controls ............................................................................................................................ 8
Adjusting the Monitor ............................................................................................................................ 8
Turning on the Monitor ......................................................................................................................... 9
HP Watermark and Image Retention Policy ......................................................................................... 9
Locating the Rating Label ................................................................................................................... 10
Installing a Cable Lock ....................................................................................................................... 11
3 Using My Display Software .......................................................................................................................... 12
Installing the Software ........................................................................................................................ 12
Using the Software ............................................................................................................................. 12
Downloading the Software ................................................................................................................. 13
4 Finding More Information ............................................................................................................................. 14
Reference Guides .............................................................................................................................. 14
Product Support ................................................................................................................................. 14
Appendix A Technical Specifications ............................................................................................................ 15
Recognizing Preset Display Resolutions ............................................................................................ 17
Power Adapter ................................................................................................................... 17
Entering User Modes .......................................................................................................................... 18
Energy Saver Feature ........................................................................................................................ 18
v
vi
1 Product Features
The light-emitting diode (LED) backlit monitor has an active matrix, In-Plane Switching (IPS) panel.
The monitor features include:
58.4 cm (23-inch) diagonal viewable area display with 1920 x 1080 resolution, plus full-screen
●
support for lower resolutions; includes custom scaling for maximum image size while preserving
original aspect ratio
Tilt capability and easy viewing from sitting or standing position, or while moving from one side
●
of the monitor to the other
● IPS technology provides wide viewing angles with colors that maintain their integrity
Video signal input to support analog VGA
●
Video signal input to support high-definition multimedia interface (HDMI)
●
Plug and play capability if supported by your operating system
●
Security slot provision on rear of monitor for optional cable lock
●
● On-Screen Display (OSD) adjustments in 10 languages for easy setup and screen optimization
● My Display software for adjusting monitor settings through Windows
High-bandwidth digital content protection (HDCP) on HDMI
●
Software and documentation disc that includes monitor drivers and product documentation
●
Energy saver feature to meet requirements for reduced power consumption
●
Safety guidelines, certifications, and regulatory notices for this product are available in the HP
●
LCD Monitors Reference Guide on the disc included with this monitor.
Beats Audio for optimized sound quality
●
Dynamic Contrast
●
1
2 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Attaching the Monitor Base
CAUTION: The screen is fragile. Avoid touching or applying pressure to the screen; doing so can
cause damage.
TIP: Consider the placement of the display, because the bezel might cause interfering reflections
from surrounding light and bright surfaces.
1. Lift the monitor from its box and place it face down on a flat surface.
2. Attach the base to the stand (1) and turn the screw (2) until it is finger tight to secure the base to
the stand.
2 Chapter 2 Setting Up the Monitor
