HP E9Q82A8 User manual
HP DreamColor Z24x Display
User Guide
© 2014 Hewlett-Packard Development
Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition: May 2014
Document Part Number: 751586-001
About This Guide
This guide provides information on monitor features, setting up the monitor, and technical
specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
iii
iv About This Guide
Table of contents
1 Product Features ............................................................................................................................................ 1
Z24x Display ......................................................................................................................................... 1
2 Safety and Maintenance Guidelines .............................................................................................................. 3
Important Safety Information ................................................................................................................ 3
Maintenance Guidelines ....................................................................................................................... 4
Cleaning the Monitor ............................................................................................................ 4
Shipping the Monitor ............................................................................................................ 4
3 Setting Up the Monitor ................................................................................................................................... 5
Use Caution When Setting Up the Monitor .......................................................................................... 5
Installing the Stand ............................................................................................................................... 6
Rear Components ................................................................................................................................ 7
Connecting the Cables ......................................................................................................................... 8
Front Panel Controls .......................................................................................................................... 13
Adjusting the Monitor .......................................................................................................................... 14
Turning on the Monitor ....................................................................................................................... 17
HP Watermark and Image Retention Policy ....................................................................................... 18
Connecting USB Devices ................................................................................................................... 18
Removing the Monitor Stand .............................................................................................................. 19
Mounting the Monitor .......................................................................................................................... 20
Mounting the Monitor Using the Quick Release 2 Mounting Bracket ................................ 20
Mounting the Monitor Without Using the Quick Release 2 Mounting Bracket ................... 23
Locating the Serial Number and Product Number .............................................................................. 24
Locating the Information Card ............................................................................................................ 24
Installing a Cable Lock ....................................................................................................................... 25
4 Operating the Monitor .................................................................................................................................. 26
Software and Utilities .......................................................................................................................... 26
The Information File ........................................................................................................... 26
The Image Color Matching File .......................................................................................... 26
v
Installing the .INF and .ICM Files ....................................................................................................... 27
Installing from the Disc ...................................................................................................... 27
Downloading from the Internet ........................................................................................... 27
Using Picture-in-Picture (PIP) and Picture-beside-Picture (PBP) ...................................................... 27
DisplayPort Multistreaming ................................................................................................................. 28
Changing the Bezel Button Functions ................................................................................................ 29
Adjusting the Bezel Button LEDs ....................................................................................................... 29
Using Auto-Sleep Mode ..................................................................................................................... 29
Using the On-Screen Display Menu ................................................................................................... 30
Color Management ............................................................................................................................. 36
Color Presets ..................................................................................................................... 36
Color Calibration — Factory .............................................................................................. 36
Color Calibration — User ................................................................................................... 36
Auto EDID Update ............................................................................................................. 37
Appendix A Technical Specifications ............................................................................................................ 38
Z24x Model ......................................................................................................................................... 38
Recognizing Preset Display Resolutions ............................................................................................ 39
Appendix B Support and Troubleshooting ................................................................................................... 40
Solving Common Problems ................................................................................................................ 40
Product Support ................................................................................................................................. 41
Preparing to Call Technical Support ................................................................................................... 41
Appendix C Agency Regulatory Notices ....................................................................................................... 43
Federal Communications Commission Notice ................................................................................... 43
Modifications ...................................................................................................................... 43
Cables ................................................................................................................................ 43
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 43
Canadian Notice ................................................................................................................................. 44
Avis Canadien .................................................................................................................................... 44
European Union Regulatory Notice .................................................................................................... 44
German Ergonomics Notice ............................................................................................................... 45
Japanese Notice ................................................................................................................................. 45
Korean Notice ..................................................................................................................................... 45
Power Cord Set Requirements ........................................................................................................... 45
Japanese Power Cord Requirements ................................................................................ 45
Product Environmental Notices .......................................................................................................... 46
ENERGY STAR® Qualification .......................................................................................... 46
Materials Disposal ............................................................................................................. 46
vi
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 47
HP Recycling Program ...................................................................................................... 47
Chemical Substances ........................................................................................................ 47
Restriction of Hazardous Substances (RoHS) ................................................................... 47
Turkey EEE Regulation ..................................................................................................... 48
Ukraine Restriction of Hazardous Substances .................................................................. 48
Appendix D LCD Monitor Quality and Pixel Policy ....................................................................................... 49
vii
viii
1 Product Features
Z24x Display
The LCD (liquid crystal display) monitor has an active matrix, In-Plane Switching (IPS) panel. The
monitor features include:
61.0 cm (24-inch) diagonal viewable area display with 1920 x 1200 resolution, plus full-screen
●
support for lower resolutions: includes custom scaling for maximum image size while preserving
original aspect ratio
Wide color gamut to provide 100% coverage of both AdobeRGB and sRGB color spaces
●
● Ability to accurately remap the color gamut of the monitor (within the supported color gamut of
the panel) to enable the selection of the color space and very accurately set the RGB primaries
for consistent and repeatable colors
Very high color and luminance stability (with typical use)
●
Calibrated color space factory presets for AdobeRGB, BT. 709, and sRGB so the monitor is
●
ready to use for color critical applications with minimal setup
Re-calibrateable color presets that allow you to re-calibrate to a standard or custom color space
●
by specifying the color primaries, white point, gamma, and luminance (requires the separately
purchased HP DreamColor Calibration Solution kit)
● Option to return to Factory Calibration settings or User Calibration settings to easily restore the
monitor to the factory or user settings
User calibration that requires the DreamColor calibration solution kit (sold separately)
●
● User adjustable color settings for customers who do not have calibration equipment
● Four reconfigurable front bezel Function buttons to quickly select the most commonly used
operations
● Wide viewing angle to allow viewing from a sitting or standing position, or moving from side-to-
side
Adjustable tilt, height, swivel, and pivot capabilities
●
● Removable stand for flexible monitor panel mounting solutions
● HP Quick Release 2 to quickly install the monitor on the stand with a simple click and remove it
with the convenient sliding tab release
● Optional thin client mounting bracket that attaches to the rear of the stand (purchased
separately)
Z24x Display 1
Easy access pull-out information card with the information needed when contacting HP support
●
Video signal inputs to support DisplayPort digital (cable provided), DVI digital (cable provided),
●
and HDMI digital (cable not provided)
DisplayPort output connector for DisplayPort multistreaming
●
Analog audio output for headphones or an optional HP speaker bar
●
USB 3.0 hub with one upstream port (cable provided) that connects to the computer and four
●
downstream ports that connect to USB devices
Plug and play capability if supported by your operating system
●
Privacy filter slots to insert filters (purchased separately) to block side screen viewing
●
Security slot provision on rear of monitor for optional cable lock
●
Cable management feature for placement of cables and cords
●
On-Screen Display (OSD) adjustments in several languages for easy setup and screen
●
optimization
PIP functionality to enable the DisplayPort, DVI, and HDMI inputs to be viewed in a small
●
secondary window or side-by-side on the main window
HDCP (High-Bandwidth Digital Content Protection) copy protection on all digital inputs
●
Software and documentation disc that includes monitor drivers, product documentation, and
●
Windows-based calibration software
2 Chapter 1 Product Features
2 Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Plug the power cord into an AC outlet that is easily accessible at all times.
• Disconnect power from the computer by unplugging the power cord from the AC outlet.
• If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed)
3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter.
The grounding pin is an important safety feature.
Power Cord Set Requirements on page 45.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located on the Web at
ergo.
CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for
the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge
protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips
provide surge protection; the power strips must be specifically labeled as having this ability. Use a
power strip whose manufacturer offers a Damage Replacement Policy so you can replace the
equipment, if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.
WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks,
speakers, chests, or carts may fall over and cause personal injury.
Care should be taken to route all cords and cables connected to the LCD monitor so that they can not
be pulled, grabbed, or tripped over.
http://www.hp.com/
Important Safety Information 3
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
●
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
Use only a power source and connection appropriate for this monitor, as indicated on the label/
●
back plate of the monitor.
Be sure the total ampere rating of the products connected to the outlet does not exceed the
●
current rating of the electrical outlet, and the total ampere rating of the products connected to the
cord does not exceed the rating of the cord. Look on the power label to determine the ampere
rating (AMPS or A) for each device.
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
●
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
●
monitor by using a screen saver program and turning off the monitor when not in use.
NOTE: Monitors with a “burned-in image” are not covered under the HP warranty.
Slots and openings in the cabinet are provided for ventilation. These openings must not be
●
blocked or covered. Never push objects of any kind into cabinet slots or other openings.
Do not drop the monitor or place it on an unstable surface.
●
Do not allow anything to rest on the power cord. Do not walk on the cord.
●
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
●
When removing the monitor stand, you must lay the monitor face down on a soft area to prevent
●
it from getting scratched, defaced, or broken.
Cleaning the Monitor
1. Turn off the monitor and unplug the power cord from the back of the unit.
2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
3. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.
CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen
surface. Never spray the cleaner directly on the screen surface. It may run behind the bezel and
damage the electronics.
CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene,
thinner, or any volatile substance to clean the monitor screen or cabinet. These chemicals may
damage the monitor.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the
monitor.
4 Chapter 2 Safety and Maintenance Guidelines
3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
NOTE: Be sure the master power switch, located on the rear panel of the monitor, is in the off
position. The master power switch turns off all power to the monitor.
Use Caution When Setting Up the Monitor
To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the panel
may cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will
not recover to its normal condition.
If installing a base, lay the monitor face down on a flat surface covered with a protective sheet foam
or non-abrasive cloth. This prevents the screen from getting scratched, defaced or broken as well as
damage to the front panel buttons.
NOTE: Your monitor may look different from the monitor in this illustration.
Use Caution When Setting Up the Monitor 5
Installing the Stand
CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-
uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its
normal condition.

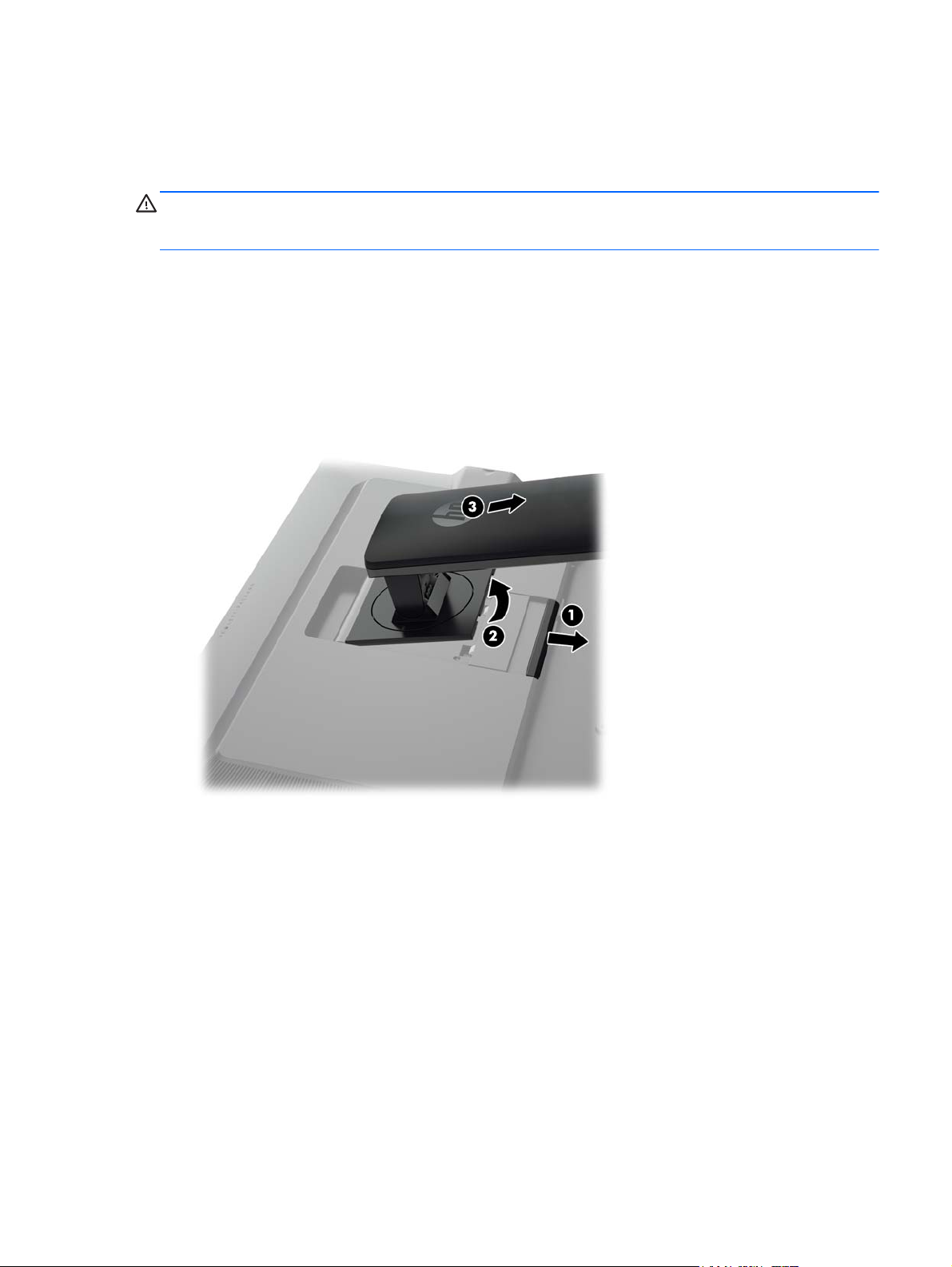

The display uses the HP Quick Release 2 for easy moving of the monitor. To mount the panel onto
the stand:
1. Lay the monitor panel face down on a flat surface covered by a clean, dry cloth.
2. Slide the top of the mounting plate (1) on the stand under the upper lip of the recess in the back
of the panel.
3. Lower the bottom of the stand's mounting plate (2) into the recess until it snaps into place.
4. The HP Quick Release 2 latch (3) pops up when the stand is locked in place.
NOTE: If you are mounting the monitor to a mounting fixture instead of the stand refer to Mounting
the Monitor on page 20.
6 Chapter 3 Setting Up the Monitor
Rear Components
Component Function
1
2
3
4
5
6
7
8
9
10
USB 3.0 Downstream
Connectors (side panel)
Master Power Switch Turns off all power to the monitor.
AC Power Connector Connects the AC power cord to the monitor.
DisplayPort IN Connects the DisplayPort cable to the monitor.
DVI-D Connects the DVI-D cable to the monitor.
HDMI Connects an HDMI cable to the monitor.
DisplayPort OUT Connects a second monitor.
Audio Out Connects headphones or optional HP Speaker Bar to the
USB 3.0 Upstream
Connector
USB 3.0 Downstream
Connectors
Connects optional USB devices to the monitor.
NOTE: Putting the switch in the Off position will yield the
lowest power state for the monitor when not in use.
monitor.
Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub.
Connects optional USB devices to the monitor.
Rear Components 7
Connecting the Cables
1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Before connecting the cables, route the cables through the cable routing hole in the center of the
stand.
8 Chapter 3 Setting Up the Monitor
3. Depending on your configuration, connect either the DisplayPort, DVI, or HDMI video cable
between the PC and the monitor.
NOTE: The video mode is determined by the video cable used. The monitor will automatically
determine which inputs have valid video signals. The inputs can be selected through the OnScreen Display (OSD) feature by pressing one of the five front bezel buttons to activate the
buttons, and then press the bottom Open Menu button to open the OSD. In the OSD select
Video Input and choose the desired input source.
For DisplayPort digital operation, connect the DisplayPort signal cable to the DisplayPort IN
●
connector on the rear of the monitor and the other end to the DisplayPort connector on the
computer (cable provided).
NOTE: You must connect the DisplayPort cable to the DisplayPort IN connector, not the
DisplayPort OUT connector. The monitor will not function if you connect the cable between
the DisplayPort OUT connector and the computer.
Connecting the Cables 9
For DVI digital operation, connect the DVI-D signal cable to the DVI connector on the rear
●
of the monitor and the other end to the DVI connector on the computer (cable provided).
For HDMI digital operation, connect the HDMI signal cable to the HDMI connector on the
●
rear of the monitor and the other end to the HDMI connector on the computer (cable not
provided).
10 Chapter 3 Setting Up the Monitor
Loading...
