HP e60165 Datasheet

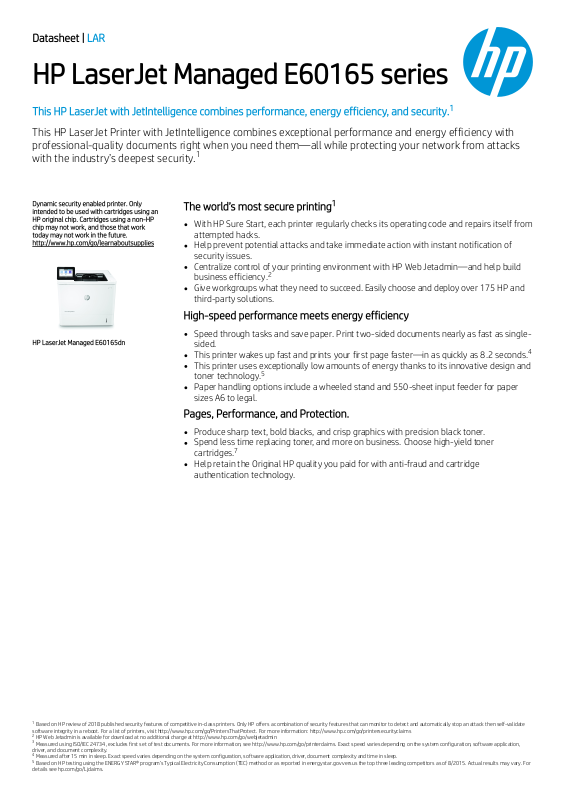

Page 1

Datasheet | LAR

HP LaserJet Managed E60165 series

This HP LaserJet with JetIntelligence combines performance, energy efficiency, and security.

This HP LaserJet Printer with JetIntelligence combines exceptional performance and energy efficiency with professional-quality documents right when you need them—all while protecting your network from attacks with the industry’s deepest security.

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future. http://www.hp.com/go/learnaboutsupplies

The world’s most secure printing

With HP Sure Start, each printer regularly checks its operating code and repairs itself from attempted hacks. Help prevent potential attacks and take immediate action with instant notification of security issues. Centralize control of your printing environment with HP Web Jetadmin—and help build business efficiency.

Give workgroups what they need to succeed. Easily choose and deploy over 175 HP and third-party solutions.

High-speed performance meets energy efficiency

HP LaserJet Managed E60165dn

Speed through tasks and save paper. Print two-sided documents nearly as fast as singlesided. This printer wakes up fast and prints your first page faster—in as quickly as 8.2 seconds. This printer uses exceptionally low amounts of energy thanks to its innovative design and toner technology.

Paper handling options include a wheeled stand and 550-sheet input feeder for paper sizes A6 to legal.

Pages, Performance, and Protection.

Produce sharp text, bold blacks, and crisp graphics with precision black toner. Spend less time replacing toner, and more on business. Choose high-yield toner cartridges. Help retain the Original HP quality you paid for with anti-fraud and cartridge authentication technology.

software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims

HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin

Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application,

driver, and document complexity.

Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.

Based on HP testing using the ENERGY STAR® program’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov versus the top three leading competitors as of 8/2015. Actual results may vary. For

details see hp.com/go/Ljclaims.

Page 2

Data sheet | HP LaserJet Managed E60165 series

Product walkaround

1. Hardware Integration Pocket

2. 10.9 cm color graphics display with touchscreen

3. Easy-access USB port

4. 100-sheet multipurpose tray 1 supports media sizes up to 216 x 356 mm

5. Automatic two-sided printing

6. Rear door (for jam access)

7. 550-sheet input tray 2 supports media sizes up to up to 216 x 356 mm

8. 500-sheet output bin

9. Cartridge door release button (access to toner cartridge)

10. Host USB port

11. Gigabit Ethernet network port

12. Hi-Speed USB 2.0 printing port

13. Slot for cable-type security lock

Series at a glance

Model HP LaserJet Managed E60165dn

Product number 3GY10A

Print speeds (A4) Up to 62 pages per minute (ppm)

Control panel 10.9 cm color graphics display with touchscreen

100-sheet multipurpose tray 1, 550-sheet tray 2 √

Optional paper-handling accessories See Paper-handling accessories table below for details

Managed Cartridge yield Black: ~50,000 pages

Wireless direct /NFC touch-to-print /BLE Optional

Wireless networking Optional

6 7 8

HP High-Performance Secure Hard Disk Optional

Recommended Monthly Page Volume (RMPV) 5,000 to 40,000 pages

Solutions deployed through the Hardware Integration Pocket (HIP) may require additional purchase.

An administrator must enable the easy-access USB port before use.

Measured using ISO/IEC 24734; excludes first set of test documents. For more information, see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and

document complexity.

The HP LaserJet Managed E60165dn comes standard with the 100-sheet multipurpose tray and 550-sheet tray 2. It can add up to four additional optional 550-sheet paper feeders and the optional 2,100-sheet paper

feeder. All optional accessories support media sizes up to 216 x 356 mm.

Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see hp.com/go/learnaboutsupplies. HP Managed

Cartridges are not included in printer purchase; purchase separately.

Wireless direct printing can be added by purchasing the optional HP Jetdirect 3000w NFC/wireless direct accessory (J8030A). If selected, you cannot also select the HP Jetdirect 2900nw Print Server (J8031A) or HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A). Mobile device needs to be connected directly to the signal of a wireless direct supported MFP or printer prior to printing. Depending on mobile device, an app or driver may also be required. For details, see hp.com/go/mobileprinting.

Touch-to-print can be added by purchasing the optional HP Jetdirect 3000w NFC/Wireless Direct Accessory. Mobile device must support Near Field Communication (NFC)-enabled printing. For more information, see hp.com/go/businessmobileprinting.

Bluetooth® Low Energy is optional on the HP LaserJet Managed E60165dn with the addition of the HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A). If selected, you cannot also select the HP Jetdirect 2900nw Print Server (J8031A) or the HP Jetdirect 3000w NFC/Wireless Accessory (J8030A). Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license.

Wireless networking can be added with the selection of the optional HP Jetdirect 2900nw Print Server (J8031A). If selected, you cannot also select the HP Jetdirect 3000w NFC/Wireless Accessory (J8030A) or HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A). Wireless performance is dependent on physical environment and distance from access point, and may be limited during active VPN connections.

Recommended Monthly Page Volume: HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement

intervals and device life over an extended warranty period.

Page 3

Data sheet | HP LaserJet Managed E60165 series

HP Services

Downtime can have serious consequences, so HP provides support beyond the standard warranty. You benefit from reduced risk, maximized uptime, predictable service delivery and no unbudgeted repair costs. HP Care Pack Services provide a comprehensive suite of protection services designed to keep HP hardware and software up and running so employees can stay productive.

For carepack availability visit: hp.com/go/cpc:

Top features

Only HP Enterprise printers repair themselves from attacks in real time while offering outstanding manageability. Automatically monitor threats, detect intrusions, and validate operating software while centrally managing your fleet with ease.

With speeds up to 65 pages per minute, fast first page out, and a variety of paper-handling options, you get confidence that your employees can speed through their tasks without interruption.

Help protect your printer using Original HP Toner cartridges with JetIntelligence.

Accessories

LOH17A HP LaserJet 550-Sheet Paper feeder

LOH18A HP LaserJet 2100-Sheet Paper feeder

LOH19A HP LaserJet Printer Stand

LOH20A HP LaserJet Stapler/Stacker/ Mailbox

LOH21A HP Envelope Feeder

L0H22A HP Extension Tray Cover

B5L28A HP Internal USB Ports

B5L29A HP Secure High Performance Hard Disk Drive

J8031A HP Jetdirect 2900nw Print Server

G6W84A HP 1 GB 90-Pin DDR3 DIMM

2MU47A Accessibility Assistant

J8030A HP Jetdirect 3000w NFC/Wireless Accessory

3JN69A HP JetDirect 3100w BLE/NFC/Wireless Accessory

2NR12A HP Removable Hard Drive Enclosure

X3D03A HP USB Universal Card Reader

Y7C05A HP HIP2 Keystroke Reader

4QL32A HP Legic Reader

Supplies

HP Black Managed LaserJet Toner (50,000 yield) W9004MC. This printer uses newer generation HP cartridges identifiable by a

“P” at the end of the cartridge lot number.More at www.hp.com/go/learnaboutsupplies

Services

U9NH5E - HP 3 years Next Business Day w/DMR LaserJet Enterprise E6006x MNGD SVC

U9NH6E - HP 4 years Next Business Day w/DMR LaserJet Enterprise E6006x MNGD SVC

U9NH7E - HP 5 years Next Business Day w/DMR LaserJet Enterprise E6006x MNGD SVC

Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims

HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin

Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.

2 3

4 5

Page 4

Data sheet | HP LaserJet Managed E60165 series

HP LaserJet Managed E60165 series

Model HP LaserJet Managed E60165dn Product number 3GY10A AIO functions Print Print Print speed ,

A4: Up to 61 ppm Black; Color; 2-sided: Up to 50 ipm Black; Color; First page out: As fast as 5.1 sec Black; Print speed (Landscape, A5): Up to 100 ppm Black

Print resolution

Black (best) Up to 1200 x 1200 dpi; Black (normal) FastRes 1200; Black (fine lines) Up to 1200 x 1200 dpi

Print technology Laser;

Print resolution technology: FastRes 1200; 1200 x 1200 dpi Print cartridges number 1 (black) Standard print languages HP PCL 6, HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™ Printer smart software

features

Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB

Printer management

HP Printer Assistant; HP Device Toolbox; HP Web JetAdmin Software; HP JetAdvantage Security Manager; HP SNMP Proxy Agent; HP WS Pro Proxy Agent; Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration Utility - Driver DeploymentUtilit y - ManagedPrinting Administrator)

HP Sure Supply No

Standard connectivity 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket

Network capabilities

Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional).

Wireless capability

Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi

Direct functionality available with HP Jetdirect3100w BLE/NFC /WirelessAccessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect2900nw Print Server J8031A Mobile printing capability Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; ROAM capable for easy printing Memory Standard: 512 MB; Maximum: 1.5 GB, MAX memory, when Accessory DIMM is installed Processor speed 1.2 GHz / Storage: 4 GB eMMC / Hard disk: Optional, 500 GB minimum encrypted hard disk drive Duty cycle (monthly) A4:Up to 420,000 pages; Recommended monthly page volume : 5000 to 40,000 Paper handling Input 100-sheet multipurpose feeder, 550-sheet input feeder; Up to 650 sheets Standard Output Standard: 500 sheet output bin; Up to 500 sheets Standard; Transparencies: 200 Duplex Options Automatic (standard) Envelope feeder Yes, 75 Standard paper trays 2 Media types Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, colored, rough, heavy rough), mono transparency, labels, letterhead, envelope, heavy envelope Media weight Tray 1: 60 to 199 g/m²; Tray 2: 60 to 120 g/m²; Automatic Duplexer: 60 to 120 g/m²

Media sizes

Tray 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, envelopes (B5, C5, C6, DL), Postcard (JIS single and double); Tray 2: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, Postcard

(JIS single and double); Optional550-sheet tray: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, Postcard (JIS single and double); Optional 2100-sheet tray: A4; Optional 75-envelopefeeder: B5, C5, C6, DL;

Automatic Duplexer: A4, A5, RA4, B5 (JIS), Oficio (216 x 340 mm), 16K

Media Sizes Custom

Tray 1: 76 x 127 to 216 x 356 mm; Tray 2: 99 x 148 to 216 x 356 mm; Optional 550-sheet tray: 99 x 148 to 216 x 356 mm; Optional 2100-sheet tray: custom sizes not supported; Optional 75-envelope feeder: 90 x 148 to 178 x 254

mm Dimensions (w x d x h) 431 x 466 x 380 mm; Maximum: 431 x 1040 x 453 mm Weight 21.55 kg What's in the box HP LaserJet Managed E60165dn Printer; HP Original LaserJet Toner Cartridge (~11,000 pages); Documentation (Hardware Install Guide); Power cord; Fixed-Size Cassette Guides Replacement cartridges HP Black Managed LaserJet Toner (50,000 yield) W9004MC. This printer uses newer generation HP cartridges identifiable by a “P” at the end of the cartridge lot number.More at www.hp.com/go/learnaboutsupplies

Warranty features

One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to hp.com/support to learn about HP award winning service and support options in your region. (wty

code 4G) Energy efficiency

compliance

EPEAT® Silver; CECP; ENERGY STAR® qualified

Control panel 4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button Display 4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button Software included No software solutions are included in the Box, only on http://hp.com, http://123.hp.com

Fonts and typefaces

105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono WorldType); 2 Internal Windows Vista 8 Fonts (Calibri, Cambria);

Additional font solutions availablevia third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at http://www.hp.com/go/laserjetfonts

Compatible operating systems

Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High

Sierra v10.13, Apple® macOS Mojave v10.14, DiscretePCL6 Printer Driver, For moreinformation on the supported operating systems go to http://support.hp.com, Enteryour product name and search, Click on User Guides and enter

your product name and search forUser Guide, Search for your (Product Name) - User Guide, Search for the SupportedOperating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more informationon

the supported operating systems see www.hp.com/go/upd

Compatible network operating systems

Windows Server 2008 R2 64-bit, Windows Server 2008 R2 64-bit (SP1), Windows Server 2012 64-bit, Windows Server 2012 R2 64-bit, Windows Server 2016 64-bit, Failover Cluster 2008 R2, Failover Cluster 2012 R2, Terminal server

2008 R2, Remote Desktop server2012 R2, Citrix Ser ver6.5, Citrix XenApp & XenDesktop 7.6, Novell iPrint server,Citrix Ready Kit Certification - Up to Citrix Server 7.18 for more information see http://citrixready.citrix.com, Linux- For

more information see http://developers.hp.com/hp-linux-imaging-and-printing,Unix- For more information see http://hp.com/go/unixmodelscripts, UPD PCL6 / PS Printer Drivers, Supported for CompatibleNetwork Operating systems

please see http://hp.com/go/upd Minimum system

requirements

PC:2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com;

Mac: 2 GB available hard drivespace, Internet connection or USB port, OS hardware requirements see apple.com

Power

Power supply type: Built-in 115V or 220V Power Supply; Power supply required: Input voltage: 100 V to 127 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 12 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 - 60 Hz nominal

(+/- 3 Hz), 6 A;

Power consumption : 720 watts (printing), 15.4 watts (ready), 0.6 watts (sleep), < 0.1 watts (Auto Off/Manual On), < 0.1 watts (Manual Off); Typical electricity consumption (TEC) number: 2.425 kWh/Week (Blue Angel);

0.877 kWh/Week (Energy Star 3.0);

Best technical electricity consumption (TEC): 2.425 kWh/week

Acoustics Acoustic power emissions: 7.2 B(A)

Operating environment

Operating temperature range: 10 to 32.5°C ; Recommended operating temperature: 10 to 32.5°C ; Storage temperature range: -20 to 40°C ; Operating humidity range: 10 to 80% RH ; Recommended operating humidity range: 30 to

70% RH

Security management

Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; optional HP and 3rd party advanced authentication solutions (e.g.; badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key; and

Kerberos authentication; Supports WJA-10IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS);SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; EncryptedPDF & Email (uses FIPS 140

validated cryptographic libraries fromMicrosoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; hardwareintegration pocket for security solutions; Intrusion Detection with Red

Balloon Security Technology - Constant in-device monitoring for attacks; SureStartSecure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loadsonly known good code (DLLs, EXEs, ...); Security management:

Compatible with HP JetAdvantageSecurity Manager, Device Security Syslog Messagesprocessed and accessable in ArcSight and Splunk SIEMs

11 12

9 10

5 6 4

Connectivity

Page 5

Data sheet | HP LaserJet Managed E60165 series

EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country. Standard cartridges included; yields 11,000 black pages. Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see

http://www.hp.com/go/learnaboutsupplies.

With print cartridges Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on

measurement of 115 V device.

Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of

115 V device.

Based on the BA TEC method with the following possible exceptions: 1 minute or less sleep delay setting, Wi-Fi disabled. Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies. To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Customer can purchase the HP Jetdirect 3100w BLE/NFC/Wireless

accessory or the RadBeacon USB.

Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate

deployment of printers and MFPs to satisfy the demands of connected individuals or groups.

HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended

warranty period.

Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and

document complexity.

Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.

To learn more, visit hp.com

DOC-M

© Copyright 2019-2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Windows is a registered trademark of Microsoft Corporation. AirPrint, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

4AA7-5265ENL, January 2020, R1
