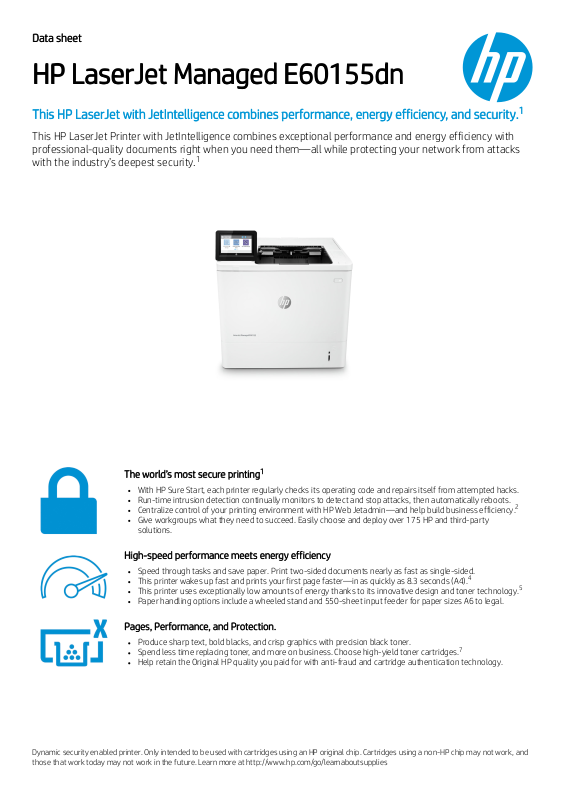

Page 1
Data sheetData sheet
HP LaserJet Managed E60155dnHP LaserJet Managed E60155dn
This HP LaserJet with JetIntelligence combines performance, energy efficiency, and security.This HP LaserJet with JetIntelligence combines performance, energy efficiency, and security.
This HP LaserJet Printer with JetIntelligence combines exceptional performance and energy efficiency with
professional-quality documents right when you need them—all while protecting your network from attacks
with the industry’s deepest security.
The world’s most secure printingThe world’s most secure printing
With HP Sure Start, each printer regularly checks its operating code and repairs itself from attempted hacks.
Run-time intrusion detection continually monitors to detect and stop attacks, then automatically reboots.
Centralize control of your printing environment with HP Web Jetadmin—and help build business efficiency.
Give workgroups what they need to succeed. Easily choose and deploy over 175 HP and third-party
solutions.
High-speed performance meets energy efficiencyHigh-speed performance meets energy efficiency
Speed through tasks and save paper. Print two-sided documents nearly as fast as single-sided.
This printer wakes up fast and prints your first page faster—in as quickly as 8.3 seconds (A4).
This printer uses exceptionally low amounts of energy thanks to its innovative design and toner technology.
Paper handling options include a wheeled stand and 550-sheet input feeder for paper sizes A6 to legal.
Pages, Performance, and Protection.Pages, Performance, and Protection.
Produce sharp text, bold blacks, and crisp graphics with precision black toner.
Spend less time replacing toner, and more on business. Choose high-yield toner cartridges.
Help retain the Original HP quality you paid for with anti-fraud and cartridge authentication technology.
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and
those that work today may not work in the future. Learn more at http://www.hp.com/go/learnaboutsupplies
11
1
11
2
4
5
7
Page 2
Data sheet | HP LaserJet Managed E60155dn
TProduct Walkaround
Hardware Integration Pocket1
10.9 cm colour graphics
display with touchscreen
Easy-access USB port2
100-sheet multipurpose tray 1
supports media sizes up to
Automatic two-sided printing
Rear door (access to paper
216 x 356 mm
path)
500-sheet output bin
Cartridge door release button
(access to toner cartridge)
Host USB port
550-sheet input tray 2
supports media sizes up to
up to 216 x 356 mm
Front view
HP LaserJet Managed E60155dn
At a glance
Model (product number) E60155dn (3GY09A)
Print speeds (A4)3 Up to 52 pages per minute (ppm)
Control panel 10.9 cm colour graphics display with touchscreen
100-sheet multipurpose tray 1, 550-sheet tray 2
Optional paper-handling accessories4 See Paper-handling accessories table below for details
Managed Cartridge yield5 Black: ~50,000 pages
Wireless direct6/NFC touch-to-print7/BLE8 Optional
Wireless networking9 Optional
HP High-Performance Secure Hard Disk Optional
Recommended Monthly Page Volume (RMPV)10 5,000 to 30,000 pages
Gigabit Ethernet
network port
Hi-Speed USB 2.0
printing port
Slot for cable-type
security lock
Rear I/O panel close up
1
Solutions deployed through the Hardware Integration Pocket (HIP) may require additional purchase.
2
An administrator must enable the easy-access USB port before use.
3
Measured using ISO/IEC 24734; excludes first set of test documents. For more information, see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
4
The HP LaserJet Managed E60155dn comes standard with the 100-sheet multipurpose tray and 550-sheet tray 2. It can add up to four additional optional 550‑sheet paper feeders and the optional 2,100-sheet paper feeder. All optional
accessories support media sizes up to 216 x 356 mm.
5
Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see hp.com/go/learnaboutsupplies. HP Managed Cartridges are not
included in printer purchase; purchase separately.
6
Wireless direct printing can be added by purchasing the optional HP Jetdirect 3000w NFC/wireless direct accessory (J8030A). If selected, you cannot also select the HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A) or HP Jetdirect
2900nw Print Server (J8031A). Mobile device needs to be connected directly to the signal of a wireless direct supported MFP or printer prior to printing. Depending on mobile device, an app or driver may also be required. For details, see
hp.com/go/mobileprinting.
7
Touch-to-print can be added by purchasing the optional HP Jetdirect 3000w NFC/Wireless Direct Accessory. Mobile device must support Near Field Communication (NFC)-enabled printing. For more information, see
hp.com/go/businessmobileprinting.
8
Bluetooth® Low Energy is optional on the HP LaserJet Managed E60155dn with the addition of the HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A). If selected, you cannot also select the HP Jetdirect 2900nw Print Server
(J8031A) or the HP Jetdirect 3000w NFC/Wireless Accessory (J8030A). Bluetooth is a trademark owned by its proprietor and used by HP Inc. under licence.
9
Wireless networking can be added with the selection of the optional HP Jetdirect 2900nw Print Server (J8031A). If selected, you cannot also select the HP Jetdirect 3100w BLE/NFC/Wireless Accessory (3JN69A) or HP Jetdirect 3000w
NFC/Wireless Accessory (J8030A). Wireless performance is dependent on physical environment and distance from access point, and may be limited during active VPN connections.
10
Recommended Monthly Page Volume: HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life
over an extended warranty period.
Page 3
Data sheet | HP LaserJet Managed E60155dn
Technical specificationsTechnical specifications
Product nameProduct name HP LaserJet Managed E60155dn
Product numberProduct number 3GY09A
FunctionsFunctions Print
PrintPrint
Duplex printing Automatic (standard)
Print speed
Black (A4, normal)Black (A4, normal) Up to 52 ppm; Black (A4, duplex)Black (A4, duplex): Up to 50 ipm; Black (letter, normal)Black (letter, normal): Up to 55 ppm; Black (letter, duplex)Black (letter, duplex): Up to 53 ipm
First page out
Black (A4, ready)Black (A4, ready): As fast as 5.1 sec; Black (A4, sleep)Black (A4, sleep): As fast as 8.3 sec
Print technology Laser
Print resolution
Black (best)Black (best): Up to 1200 x 1200 dpi; Black (normal)Black (normal): FastRes 1200
Print resolution technology FastRes 1200; 1200 x 1200 dpi
Print cartridges number 1 (black)
Standard print languages HP PCL 6, HP PCL 5 (HP PCL 5 driver available from the Web only), HP postscript level 3 emulation, native PDF printing (v 1.7), Apple AirPrint™
Printer management
HP Printer Assistant, HP Device Toolbox, HP Web JetAdmin Software, HP JetAdvantage Security Manager, HP SNMP Proxy Agent, HP WS Pro Proxy Agent, Printer Administrator Resource Kit for
HP Universal Print Driver (Driver Configuration Utility - Driver Deployment Utility - Managed Printing Administrator)
ConnectivityConnectivity
Standard connectivity 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket
Mobile printing capability Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; ROAM capable for easy printing
Wireless capability
Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A,
Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP
Jetdirect 2900nw Print Server J8031A
Network capabilities
Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard);
802.11a/b/g/n wireless networking (optional).
MemoryMemory StandardStandard: 512 MB; MaximumMaximum: 1.5 GB MAX memory, when Accessory DIMM is installed
Hard diskHard disk Optional, 500 GB minimum encrypted hard disk drive
Processor speedProcessor speed 1.2 GHz
Paper handlingPaper handling
Duty cycle (monthly)
Duty cycle (monthly, A4)Duty cycle (monthly, A4): Up to 375,000 pages; Recommended monthly page volumeRecommended monthly page volume: 5,000 to 30,000
Input capacity
100-sheet multipurpose feeder, 550-sheet input feeder; Optional 550-sheet paper feeder, optional 75 sheet envelope feeder, optional high-capacity 2100 sheet paper feeder and stand,
Optional pedestal
Output capacity 500 sheet output bin
Number of paper trays
StandardStandard: 2; MaximumMaximum: Up to 6
Media types Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, colored, rough, heavy rough), mono transparency, labels, letterhead, envelope, heavy envelope
Media weight Tray 1: 60 to 199 g/m²; Tray 2: 60 to 120 g/m²
Media size
Custom (metric)Custom (metric): Tray 1: 76 x 127 to 216 x 356 mm; Tray 2: 99 x 148 to 216 x 356 mm; Optional 550-sheet tray: 99 x 148 to 216 x 356 mm; Optional 2100-sheet tray: custom sizes not
supported; Optional 75-envelope feeder: 90 x 148 to 178 x 254 mm;
Supported (metric)Supported (metric): Tray 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, envelopes (B5, C5,
C6, DL), Postcard (JIS single and double); Tray 2: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, Postcard (JIS single and double); Optional 550-sheet tray: A4, A5, A6,
RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, Postcard (JIS single and double); Optional 2100-sheet tray: A4; Optional 75-envelope feeder: B5, C5, C6, DL; Automatic Duplexer:
A4, A5, RA4, B5 (JIS), Oficio (216 x 340 mm), 16K
Printer dimensions (W x D x H)Printer dimensions (W x D x H) 431 x 466 x 380 mm
Printer weightPrinter weight 21.55 kg
Software includedSoftware included No software solutions are included in the Box, only on http://hp.com, http://123.hp.com
What's in the boxWhat's in the box HP Color LaserJet Printer; HP Original LaserJet Toner Cartridge (toner cartridge installed); Documentation (Hardware Install Guide); Power cord; Fixed-Size Cassette Guides
WarrantyWarranty
One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to hp.com/support to learn about HP award winning
service and support options in your region. (wty code 4G)
SystemsSystems
Compatible operating systems
Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple®
macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to
http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name), User Guide, Search for
the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see www.hp.com/go/upd
Minimum system requirements
WindowsWindows: 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com; MacMac: 2 GB available hard drive space,
Internet connection or USB port, OS hardware requirements see apple.com
Security managementSecurity management
Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; optional HP and 3rd party advanced authentication solutions (e.g.; badge readers); Network:
IPsec/firewall with Certificate; Pre-Shared Key; and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMP v3; HTTPS;
Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted
Credentials; Device: Security lock slot; USB port disablement; hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device
monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs, EXEs, ...); Security management: Compatible
with HP JetAdvantage Security Manager, Device Security Syslog Messages processed and accessable in Arcsight and Splunk SIEMs
Fonts and typefacesFonts and typefaces
105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono WorldTy pe); 2 Internal
Windows Vista 8 Fonts (Calibri, Cambria); Additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at
http://www.hp.com/go/laserjetfonts
Control panelControl panel 4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button
DisplayDisplay 4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button
PowerPower
RequirementsRequirements: Input voltage: 100 V to 127 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 12 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 6 A;
ConsumptionConsumption: 710 watts (printing), 12.3 watts (ready), 0.52 watts (sleep), < 0.1 watts (Auto Off/Manual On), < 0.1 watts (Manual Off); Typical Electricity Consumption (TEC)Typical Electricity Consumption (TEC) : ES: 2.131
kWh/week; BA: 1.971 kWh/week;
Power supply typePower supply type: Built-in 115V or 220V Power Supply
Operating environmentOperating environment
Operating temperature rangeOperating temperature range: 10 to 32.5°C; Recommended operating temperature rangeRecommended operating temperature range: 15 to 27°C
Operating humidity rangeOperating humidity range: 10 to 80% RH; Recommended operating humidity rangeRecommended operating humidity range: 30 to 70% RH
AcousticsAcoustics Acoustic power emissionsAcoustic power emissions: 7.0 B(A); Acoustic power emissions (ready)Acoustic power emissions (ready): 3.5 B(A); Acoustic pressure emissionsAcoustic pressure emissions: 55 dB(A); Acoustic pressure emissions bystander (ready)Acoustic pressure emissions bystander (ready): Inaudible
Safety approvals andSafety approvals and
requirementsrequirements
IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2007 / IEC 60825-1:2007 (Class 1 Laser Product); EN
62479:2010 / IEC 62479:2010; Low Voltage Directive 2006/95/EC with CE Mark Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-107 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007. Other safety approvals
as required by individual countries
Supported network protocolsSupported network protocols
Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print,
Google Cloud Print; DISCOVERY: SLP, Bonjour, Web Services Discovery; IP CONFIG: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via
DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, FTP FW Download, Syslog; Security: SNMPv3, SSL Cert Management, Firewall, ACL, 802.1x
14
15
9
3
2
13
4 5
Page 4
Data sheet | HP LaserJet Managed E60155dn
Ordering informationOrdering information
AccessoriesAccessories
NumberNumber DescriptionDescription
3JN69A HP Jetdirect 3100w BLE/NFC/Wireless Accessory
4QL32A HP Legic Secure USB Reader
B5L28A HP Internal USB Ports
B5L29A HP High-Performance Secure Hard Disk
G6W84A HP 1 GB 90-pin DDR3 DIMM
J8031A HP Jetdirect 2900nw Print Server
L0H17A HP LaserJet 550-sheet Paper Tray
L0H18A HP LaserJet 2100 Sheet Paper Tray
L0H19A HP LaserJet Printer Stand
L0H20A HP LaserJet Stapler/Stacker/Mailbox
L0H21A HP LaserJet Envelope Feeder
L0H22A HP LaserJet Extension Tray Cover
X3D03A HP Universal USB Proximity Card Reader
Y7C05A HP HIP2 Keystroke Reader
HP Care PacksHP Care Packs
NumberNumber DescriptionDescription
U9MX5E HP 3 year Next Business Day w/DMR Service for LaserJet E6005x E6015x Managed
U9MX6E HP 4 year Next Business Day w/DMR Service for LaserJet E6005x E6015x Managed
U9MX7E HP 5 year Next Business Day w/DMR Service for LaserJet E6005x E6015x Managed
Protect your investment with HP Care Pack. Let HP certified engineers resolve your technical issues. For
more details on HP Care Pack, go to hp.com/go/cpc
HP Inc. officesHP Inc. offices
Australia (613) 8833 5000 hp.com.au
China (010) 6564 3888 hp.com.cn
Hong Kong (852) 3077 2688 hp.com.hk
India (80) 2612 9000 hp.com/in
Indonesia (62-21) 5799 1088 hp.com/id
Korea (02) 2199 0114 hp.co.kr
Malaysia (603) 2332 3333 hp.com.my
New Zealand (09) 918 9555 hp.co.nz
Philippines (632) 888 5900 hp.com/ph
Singapore (65) 6275 3888 hp.com.sg
Taiwan (02) 3789 9900 hp.com.tw
Thailand (662) 353 9500 hp.com/th
Vietnam (848) 3823 4151 hp.com/vn
For the following countries, please fax your queries to (65) 6275 6707 Bangladesh, Bhutan, Brunei,
Cambodia, Maldives, Nepal, Pakistan, Sri Lanka
Supported paperSupported paper
Contact HP via phone: Asia: 65 6253 8500
SolutionsSolutions
For more solutions information, please visit hp.com/go/gsc
OOrriiggiinnaall HHPP iinnkk ccaarrttrriiddggeess aanndd mmaaiinntteennaannccee ssuupppplliieess
NNuummbbeerr DDeessccrriippttiioonn
W9004MC HP Black Managed LaserJet Toner Cartridge (Up to 50,000 pages)
L0H24A HP LaserJet 110V Maintenance Kit
L0H25A HP LaserJet 220V Maintenance Kit
This printer uses newer generation HP cartridges identifiable by a “P” at the end of the cartridge lot
number.More at www.hp.com/go/learnaboutsupplies
Page 5
FootnotesFootnotes
Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a
reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims
HP Web Jetadmin is available for download at no additional charge at hp.com/go/webjetadmin.
Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document
complexity.
Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.
Based on HP testing using the ENERGY STAR® program’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov versus the top three leading competitors as of 8/2015. Actual results may vary. For details see
hp.com/go/Ljclaims.
HP 37X High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately.
Technical specifications disclaimersTechnical specifications disclaimers
EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
Standard cartridges included; yields 11000 black pages. Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see
http://www.hp.com/go/learnaboutsupplies.
With print cartridges
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of
115V device.
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V
device.
Based on the BA TEC method with the following possible exceptions: 1 minute or less sleep delay setting, Wi-Fi disabled.
Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Customer can purchase the HP Jetdirect 3100w BLE/NFC/Wireless accessory or
the RadBeacon USB.
Acoustic values are subject to change. For current information see http://www.hp.com/support. Configuration tested: base model, simplex printing, A4 paper at an average of 51 ppm.
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate
deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty
period.
Solution software available on 123.hp.com
Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document
complexity.
Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
1
2
3
4
5
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TToo lleeaarrnn mmoorree,, vviissiitt hhpp..ccoomm
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and
the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group.
Published in APJ 4AA7-4192EEP, May 2019
DOC-M
Loading...
