Maintenance and Service Guide
HP Compaq Pro 6305 Microtower Business PC
HP Compaq Pro 6305 Small Form Factor
Business PC
© Copyright 2012 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (October 2012)
Document Part Number: 706894-001
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
iii
Table of contents
1 Product Features ............................................................................................................................................ 1
Standard Configuration Features ......................................................................................................... 1
Microtower (MT) Front Panel Components .......................................................................................... 2
Small Form Factor (SFF) Front Panel Components ............................................................................. 3
Microtower (MT) Rear Panel Components ........................................................................................... 4
Small Form Factor (SFF) Rear Panel Components ............................................................................. 5
Serial Number Location ........................................................................................................................ 6
2 Installing and Customizing the Software ...................................................................................................... 7
Installing the Windows operating system ............................................................................................. 7
Downloading Windows 7 updates ........................................................................................................ 8
Installing or upgrading device drivers ................................................................................................... 8
Customizing the monitor display .......................................................................................................... 8
3 Computer Setup (F10) Utility ......................................................................................................................... 9
Computer Setup (F10) Utilities ............................................................................................................. 9
Using Computer Setup (F10) Utilities ................................................................................ 10
Computer Setup—File ....................................................................................................... 11
Computer Setup—Storage ................................................................................................ 12
Computer Setup—Security ................................................................................................ 15
Computer Setup—Power ................................................................................................... 18
Computer Setup—Advanced ............................................................................................. 19
Recovering the Configuration Settings ............................................................................................... 21
4 Illustrated parts catalog ............................................................................................................................... 22
Microtower (MT) chassis spare parts ................................................................................................. 22
Computer major components ............................................................................................ 22
Cables ................................................................................................................................ 24
Misc parts .......................................................................................................................... 25
Drives ................................................................................................................................. 27
Misc boards ....................................................................................................................... 27
v
Sequential part number listing ........................................................................................... 28
Small Form Factor (SFF) chassis spare parts .................................................................................... 31
Computer major components ............................................................................................ 31
Cables ................................................................................................................................ 33
Misc parts .......................................................................................................................... 34
Drives ................................................................................................................................. 36
Misc boards ....................................................................................................................... 36
Sequential part number listing ........................................................................................... 37
5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation .................................................... 40
Electrostatic Discharge Information .................................................................................................... 40
Generating Static ............................................................................................................... 40
Preventing Electrostatic Damage to Equipment ................................................................ 41
Personal Grounding Methods and Equipment ................................................................... 41
Grounding the Work Area .................................................................................................. 42
Recommended Materials and Equipment .......................................................................... 42
Operating Guidelines .......................................................................................................................... 43
Routine Care ...................................................................................................................................... 43
General Cleaning Safety Precautions ................................................................................ 43
Cleaning the Computer Case ............................................................................................ 43
Cleaning the Keyboard ...................................................................................................... 44
Cleaning the Monitor .......................................................................................................... 44
Cleaning the Mouse ........................................................................................................... 45
Service Considerations ...................................................................................................................... 45
Power Supply Fan ............................................................................................................. 45
Tools and Software Requirements .................................................................................... 45
Screws ............................................................................................................................... 45
Cables and Connectors ..................................................................................................... 46
Hard Drives ........................................................................................................................ 46
Lithium Coin Cell Battery ................................................................................................... 46
SATA Hard Drives .............................................................................................................................. 47
SATA Hard Drive Cables .................................................................................................................... 47
SATA Data Cable .............................................................................................................. 47
SMART ATA Drives ............................................................................................................................ 47
Cable Management ............................................................................................................................ 47
Hard Drive Capacities ........................................................................................................................ 48
6 Removal and Replacement Procedures Microtower (MT) Chassis .......................................................... 49
Preparation for Disassembly .............................................................................................................. 49
Computer Access Panel ..................................................................................................................... 50
Front Bezel ......................................................................................................................................... 51
vi
Front Bezel Security ........................................................................................................................... 52
Bezel Blanks ....................................................................................................................................... 54
Memory .............................................................................................................................................. 55
DIMMs ............................................................................................................................... 55
DDR3-SDRAM DIMMs ...................................................................................................... 55
Populating DIMM Sockets ................................................................................................. 56
Installing DIMMs ................................................................................................................ 56
Expansion Cards ................................................................................................................................ 58
System Board Connections ................................................................................................................ 62
Drives ................................................................................................................................................. 63
Drive Positions ................................................................................................................... 65
Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay ................................................. 66
Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay .................................................... 67
Removing a Hard Drive from a Drive Bay .......................................................................... 70
Installing a Hard Drive into an Internal Drive Bay .............................................................. 71
Removing and Replacing a Removable 3.5-inch SATA Hard Drive .................................. 73
Front Fan Assembly ........................................................................................................................... 78
Front I/O Assembly ............................................................................................................................. 80
Power Switch/LED Assembly ............................................................................................................. 81
Heat sink ............................................................................................................................................ 82
Processor ........................................................................................................................................... 84
Speaker .............................................................................................................................................. 85
Rear Chassis Fan ............................................................................................................................... 86
Power Supply ..................................................................................................................................... 88
System Board ..................................................................................................................................... 90
7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis ............................................ 92
Preparation for Disassembly .............................................................................................................. 92
Access Panel ...................................................................................................................................... 93
Front Bezel ......................................................................................................................................... 94
Front Bezel Security ........................................................................................................................... 95
Bezel Blanks ....................................................................................................................................... 97
Memory .............................................................................................................................................. 98
DIMMs ............................................................................................................................... 98
DDR3-SDRAM DIMMs ...................................................................................................... 98
Populating DIMM Sockets ................................................................................................. 98
Installing DIMMs ................................................................................................................ 99
Expansion Card ................................................................................................................................ 101
System Board Connections .............................................................................................................. 105
Drives ............................................................................................................................................... 106
Drive Positions ................................................................................................................. 107
vii
Installing and Removing Drives ....................................................................................... 107
Removing a 5.25-inch Drive from a Drive Bay ................................................ 108
Installing a 5.25-inch Drive into a Drive Bay ................................................... 109
Removing a 3.5-inch Drive from a Drive Bay .................................................. 111
Installing a 3.5-inch Drive into a Drive Bay ..................................................... 113
Removing and Replacing the Primary 3.5-inch Internal Hard Drive ................ 115
Removing and Replacing a Removable 3.5-inch SATA Hard Drive ............... 117
Fan duct ........................................................................................................................................... 122
Front Fan Assembly ......................................................................................................................... 123
Hood Sensor .................................................................................................................................... 125
Front I/O, Power Switch Assembly ................................................................................................... 126

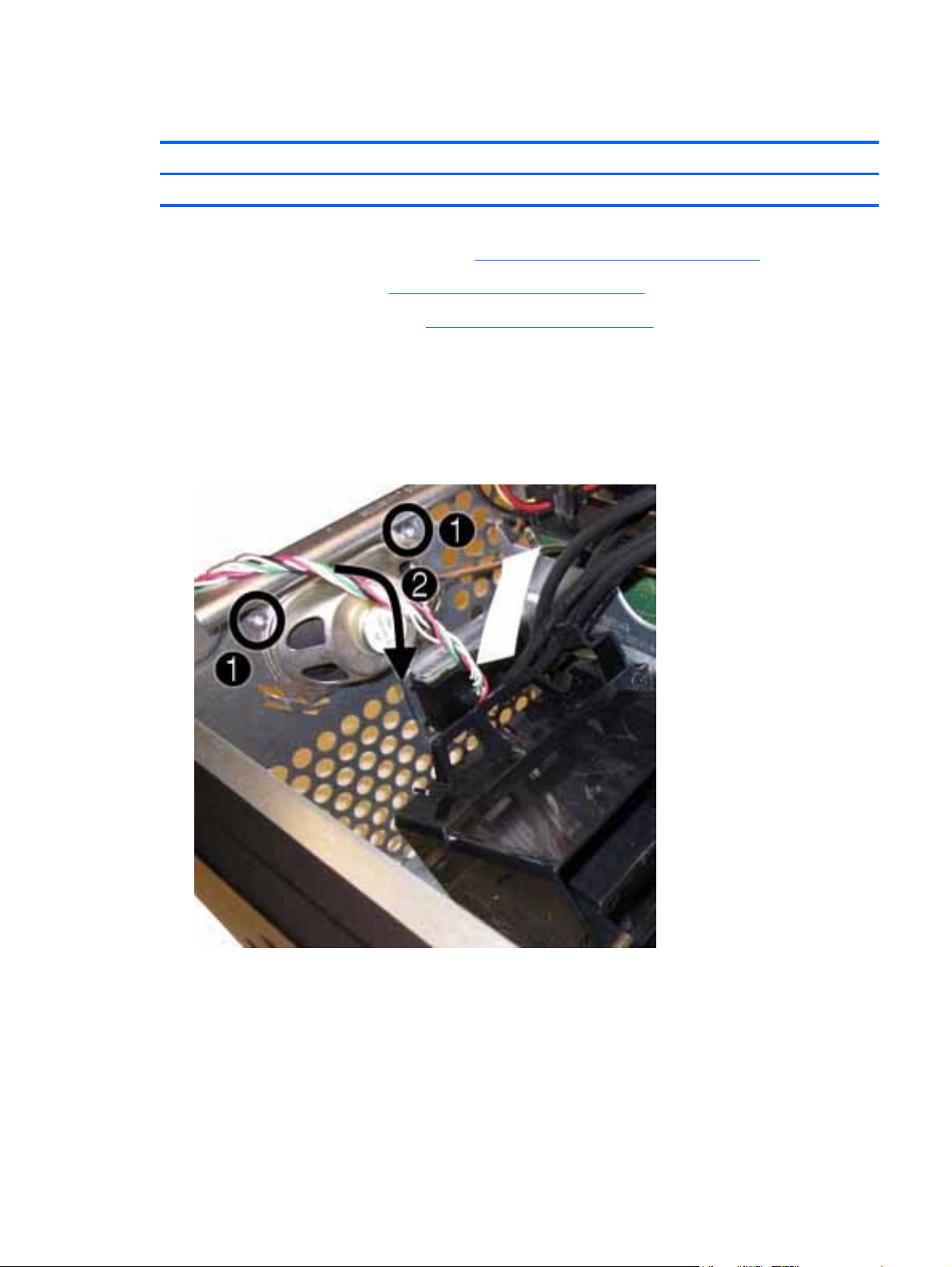

Speaker ............................................................................................................................................ 128
Heat sink .......................................................................................................................................... 129

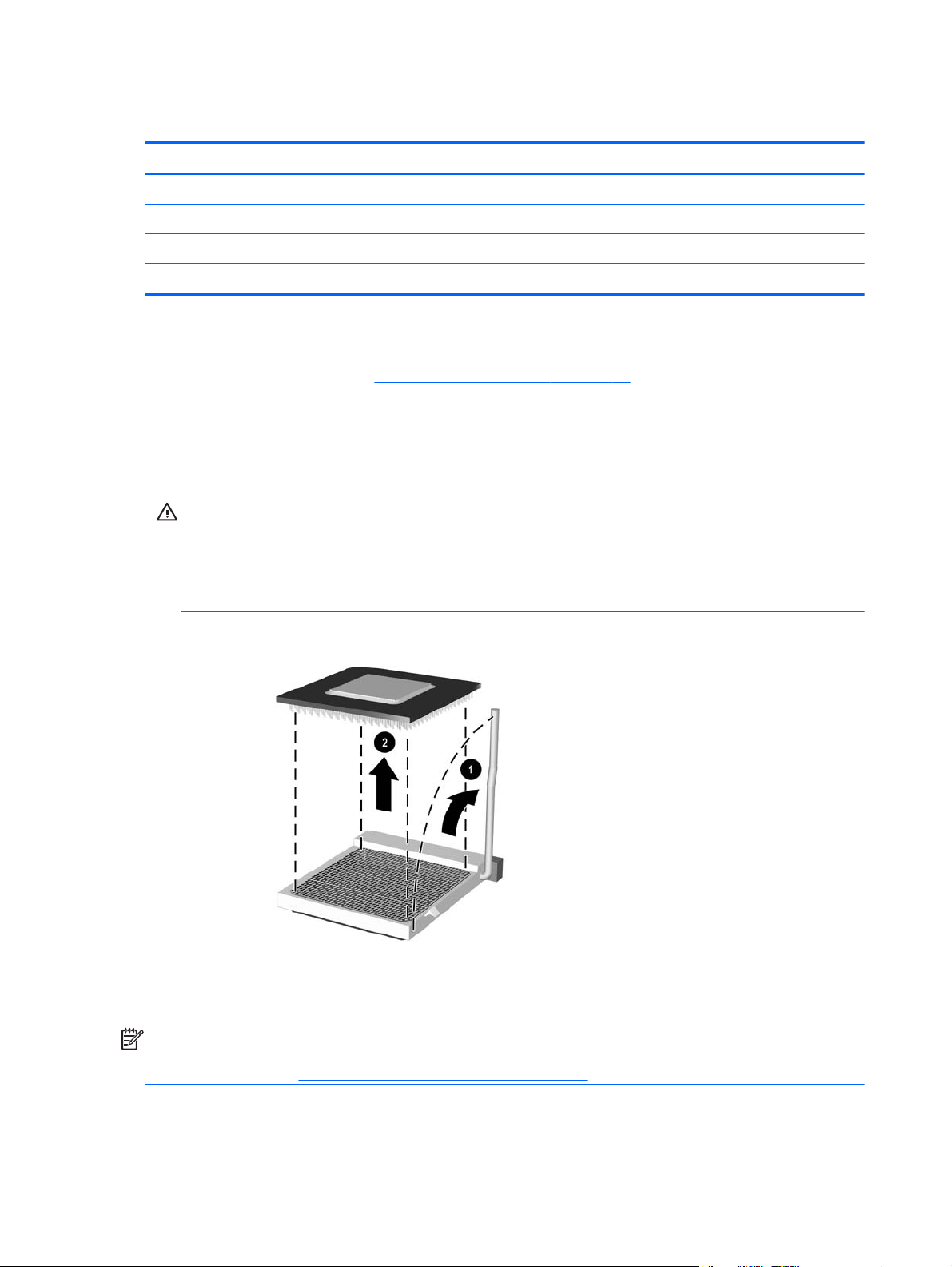

Processor ......................................................................................................................................... 131
Power Supply ................................................................................................................................... 132
System Board ................................................................................................................................... 134
Using the Small Form Factor Computer in a Tower Orientation ...................................................... 136
8 Troubleshooting Without Diagnostics ...................................................................................................... 137
Safety and Comfort .......................................................................................................................... 137
Before You Call for Technical Support ............................................................................................. 137
Helpful Hints ..................................................................................................................................... 138
Solving General Problems ................................................................................................................ 140
Solving Power Problems .................................................................................................................. 144
Solving Hard Drive Problems ........................................................................................................... 145
Solving Media Card Reader Problems ............................................................................................. 148
Solving Display Problems ................................................................................................................. 150
Solving Audio Problems ................................................................................................................... 154
Solving Printer Problems .................................................................................................................. 156
Solving Keyboard and Mouse Problems .......................................................................................... 157
Solving Hardware Installation Problems ........................................................................................... 159
Solving Network Problems ............................................................................................................... 161
Solving Memory Problems ............................................................................................................... 163
Solving Processor Problems ............................................................................................................ 165
Solving CD-ROM and DVD Problems .............................................................................................. 165
Solving USB Flash Drive Problems .................................................................................................. 168
Solving Front Panel Component Problems ...................................................................................... 169
Solving Internet Access Problems .................................................................................................... 169
Solving Software Problems .............................................................................................................. 171
Contacting Customer Support .......................................................................................................... 172
viii
9 POST Error Messages ................................................................................................................................ 173
POST Numeric Codes and Text Messages ..................................................................................... 174
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes .............................................. 182
10 Password Security and Resetting CMOS ............................................................................................... 186
Resetting the Password Jumper ...................................................................................................... 187
Clearing and Resetting the CMOS ................................................................................................... 188
11 Restoring and recovering in Windows 7 ................................................................................................ 190
System Restore ................................................................................................................................ 190
System Recovery ............................................................................................................................. 191
System Recovery when Windows is responding ............................................................. 191
System Recovery when Windows is not responding ....................................................... 192
System recovery using recovery media ........................................................................... 192
Creating recovery media ................................................................................. 193
Using recovery media ..................................................................................... 193
Appendix A Battery Replacement ................................................................................................................ 195
Appendix B Power Cord Set Requirements ................................................................................................ 198
General Requirements ..................................................................................................................... 198
Japanese Power Cord Requirements .............................................................................................. 198
Country-Specific Requirements ........................................................................................................ 199
Appendix C Specifications ............................................................................................................................ 200
MT Specifications ............................................................................................................................. 200
SFF Specifications ........................................................................................................................... 202
Index ................................................................................................................................................................. 203
ix
1 Product Features
Standard Configuration Features
Features may vary depending on the model. For a complete listing of the hardware and software
installed in the computer, run the diagnostic utility (included on some computer models only).
Figure 1-1 Microtower Configuration
Figure 1-2 Small Form Factor Configuration
Standard Configuration Features 1
NOTE: The Small Form Factor computer can also be used in a tower orientation. For more
information, see
Using the Small Form Factor Computer in a Tower Orientation on page 136 in this
guide.
Microtower (MT) Front Panel Components
Drive configuration may vary by model. Some models have a bezel blank covering one or more drive
bays.
Table 1-1 Front Panel Components
1 5.25-inch Optical Drives 5 3.5-inch Media Card Reader (optional)
2 Hard Drive Activity Light 6 Dual-State Power Button
3 Microphone/Headphone Connector 7 Power On Light
4 USB (Universal Serial Bus) 2.0 Ports 8 Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the
connector at any time in the Realtek HD Audio Manager.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with
the computer and it is displaying a diagnostic code.
2 Chapter 1 Product Features
Small Form Factor (SFF) Front Panel Components
Drive configuration may vary by model. Some models have a bezel blank covering one or more drive
bays.
Figure 1-3 Front Panel Components
Table 1-2 Front Panel Components
1 5.25-inch Optical Drive 5 Microphone/Headphone Connector
2 Dual-State Power Button 6 3.5-inch Media Card Reader (optional)
3 Power On Light 7 Hard Drive Activity Light
4 USB (Universal Serial Bus) Ports 8 Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the
connector at any time in the Realtek HD Audio Manager.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with
the computer and it is displaying a diagnostic code.
Small Form Factor (SFF) Front Panel Components 3
Microtower (MT) Rear Panel Components
Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1 Power Cord Connector 6 Line-Out Connector for powered audio
2
3
4
5
11
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time in the Realtek
HD Audio Manager.
For AMD/ATI graphic cards installed in one of the system board slots, the video connectors on the graphics card
and the integrated graphics on the system board may be used at the same time. However, for other non-AMD/ATI
graphics cards, the video connectors will only be functional on the graphics card.
If inserting a wireless receiver, use a USB 2.0 port that is separated from USB 3.0 devices.
Line-In Audio Connector (blue) 7 PS/2 Keyboard Connector (purple)
PS/2 Mouse Connector (green) 8 VGA Monitor Connector
Serial Connector 9 DisplayPort Monitor Connector
RJ-45 Network Connector 10 USB 3.0 ports (blue)
devices (green)
USB 2.0 ports (black)
4 Chapter 1 Product Features
Small Form Factor (SFF) Rear Panel Components
Figure 1-5 Rear Panel Components
Table 1-4 Rear Panel Components
1 RJ-45 Network Connector 7 DisplayPort Monitor Connector
2
3
4 Power Cord Connector 10
5
6
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time in the Realtek
HD Audio Manager.
For AMD/ATI graphic cards installed in one of the system board slots, the video connectors on the graphics card
and the integrated graphics on the system board may be used at the same time. However, for other non-AMD/ATI
graphics cards, the video connectors will only be functional on the graphics card.
If inserting a wireless receiver, use a USB 2.0 port that is separated from USB 3.0 devices.
Serial Connector 8 VGA Monitor Connector
PS/2 Mouse Connector (green) 9 PS/2 Keyboard Connector (purple)
Line-Out Connector for powered audio
devices (green)
USB 2.0 ports (black) 11 Line-In Audio Connector (blue)
USB 3.0 ports (blue)
Small Form Factor (SFF) Rear Panel Components 5
Serial Number Location
Each computer has a unique serial number and a product ID number that are located on the top
cover of the computer. Keep these numbers available for use when contacting customer service for
assistance.
Figure 1-6 Microtower Serial Number and Product ID Location
Figure 1-7 Small Form Factor Serial Number and Product ID Location
6 Chapter 1 Product Features
2 Installing and Customizing the
Software
If your computer was not shipped with a Windows® operating system, some portions of this
documentation do not apply. Additional information is available in online help after you install the
operating system.
NOTE: If the computer was shipped with Windows 7 loaded, you will be prompted to register the
computer with HP Total Care before installing the operating system. You will see a brief movie
followed by an online registration form. Fill out the form, click the Begin button, and follow the
instructions on the screen.
CAUTION: Do not add optional hardware or third-party devices to the computer until the operating
system is successfully installed. Doing so may cause errors and prevent the operating system from
installing properly.
NOTE: Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor
to permit the required airflow.
Installing the Windows operating system
The first time you turn on the computer, the operating system is installed automatically. This process
takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to complete the
installation.
CAUTION: After the automatic installation has begun, DO NOT TURN OFF THE COMPUTER
UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the installation process may
damage the software that runs the computer or prevent its proper installation.
NOTE: If the computer shipped with more than one operating system language on the hard drive,
the installation process could take up to 60 minutes.
Installing the Windows operating system 7
Downloading Windows 7 updates
Microsoft may release updates to the operating system. To help keep the computer running optimally,
HP recommends checking for the latest updates during the initial installation and periodically
throughout the life of the computer.
1. To set up your Internet connection, click Start > Internet Explorer and follow the instructions on
the screen.
2. After an Internet connection has been established, click the Start > All Programs > Windows
Update.
3. Run Windows Update monthly thereafter.
Installing or upgrading device drivers
When installing optional hardware devices after the operating system installation is complete, you
must also install the drivers for each of the devices.
In Windows 7, if prompted for the i386 directory, replace the path specification with C:\i386, or use
the Browse button in the dialog box to locate the i386 folder. This action points the operating system
to the appropriate drivers.
Obtain the latest support software, including support software for the operating system, from
http://www.hp.com/support. Select your country and language, select Download drivers and
software (and firmware), enter the model number of the computer, and press Enter.
Customizing the monitor display
If you wish, you can select or change the monitor refresh rates, screen resolution, color settings, font
sizes, and power management settings.
For more information, refer to the online documentation provided with the graphics controller utility or
the documentation that came with your monitor.
Right-click on the Windows desktop, then click Personalize to change display settings.
8 Chapter 2 Installing and Customizing the Software
3 Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
Change factory default settings.
●
Set the system date and time.
●
● Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash
●
media devices.
Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run
●
during a Full Boot. You can set the system to:
always Quick Boot (default);
❑
periodically Full Boot (from every 1 to 30 days); or
❑
always Full Boot.
❑
● Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test
(POST) messages. Post Messages Disabled suppresses most POST messages, such as
memory count, product name, and other non-error text messages. If a POST error occurs, the
error is displayed regardless of the mode selected. To manually switch to Post Messages
Enabled during POST, press any key (except F1 through F12).
Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
●
restarted.
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during
●
power-on.
Establish a setup password that controls access to the Computer Setup (F10) Utility and the
●
settings described in this section.
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or
●
embedded NIC, so that they cannot be used until they are unsecured.
Enable or disable removable media boot ability.
●
Computer Setup (F10) Utilities 9
Solve system configuration errors detected but not automatically fixed during the Power-On Self-
●
Test (POST).
Replicate the system setup by saving system configuration information on a USB device and
●
restoring it on one or more computers.
Execute self-tests on a specified ATA hard drive (when supported by drive).
●
Enable or disable DriveLock security (when supported by drive).
●
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1. Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2. Press either Esc or F10 while the “Press the ESC key for Startup Menu” message is displayed at
the bottom of the screen.
Pressing Esc displays a menu that allows you to access different options available at startup.
NOTE: If you do not press Esc or F10 at the appropriate time, you must restart the computer
and again press Esc or F10 when the monitor light turns green to access the utility.
3. If you pressed Esc, press F10 to enter Computer Setup.
4. A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
5. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the Computer Setup
Utilities menu, press Esc.
6. To apply and save changes, select File > Save Changes and Exit.
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To reset to factory settings or previously saved default settings (some models), select
●
Apply Defaults and Exit. This option will restore the original factory system defaults.
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
Table 3-1 Computer Setup (F10) Utility
Heading Table
File
Storage
Security
Computer Setup—File on page 11
Computer Setup—Storage on page 12
Computer Setup—Security on page 15
Power
Advanced
10 Chapter 3 Computer Setup (F10) Utility
Computer Setup—Power on page 18
Computer Setup—Advanced on page 19
Computer Setup—File
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-2 Computer Setup—File
Option Description
System Information Lists:
About Displays copyright notice.
Product name
●
SKU number (some models)
●
● Processor type/speed/stepping
● Cache size (L1/L2/L3) (dual core processors have this listed twice)
Installed memory size/speed, number of channels (single or dual) (if applicable)
●
Integrated MAC address for embedded, enabled NIC (if applicable)
●
● System BIOS (includes family name and version)
Chassis serial number
●
Asset tracking number
●
Set Time and Date Allows you to set system time and date.
Flash System ROM Allows you to update the system ROM with a BIOS image file located on removable media or
Replicated Setup Save to Removable Storage Device
Default Setup Save Current Settings as Default
Apply Defaults and
Exit
Ignore Changes
and Exit
Save Changes and
Exit
optical disc.
Saves system configuration, including CMOS, to a formatted USB flash media device.
Restore from Removable Storage Device
Restores system configuration from a USB flash media device.
Saves the current system configuration settings as the default.
Restore Factory Settings as Default
Restores the factory system configuration settings as the default.
Applies the currently selected default settings and clears any established passwords.
Exits Computer Setup without applying or saving any changes.
Saves changes to system configuration or default settings and exits Computer Setup.
Computer Setup (F10) Utilities 11
Computer Setup—Storage
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-3 Computer Setup—Storage
Option Description
Device Configuration Lists all installed BIOS-controlled storage devices.
When a device is selected, detailed information and options are displayed. The following options
may be presented:
Hard Disk: Size, model, firmware version, serial number, connector color, SMART.
●
Translation mode (ATA disks only)
Lets you select the translation mode to be used for the device. This enables the BIOS to
access disks partitioned and formatted on other systems and may be necessary for users of
older versions of UNIX (e.g., SCO UNIX version 3.2). Options are Automatic, Bit-Shift,
LBA Assisted, User, and Off.
Available only when the drive translation mode is set to User, allows you to specify the
parameters (logical cylinders, heads, and sectors per track) used by the BIOS to translate
disk I/O requests (from the operating system or an application) into terms the hard drive can
accept. Logical cylinders may not exceed 1024. The number of heads may not exceed 256.
The number of sectors per track may not exceed 63.
CAUTION: Ordinarily, the translation mode selected automatically by the BIOS should not
be changed. If the selected translation mode is not compatible with the translation mode that
was active when the disk was partitioned and formatted, the data on the disk will be
inaccessible.
CD-ROM: Model, firmware version, serial number, connector color (not included for USB CD-
●
ROM).
NOTE: Displays for USB diskette drives.
Default Values (ATA disks only)
●
See Translation Mode above for details.
SATA Defaults
12 Chapter 3 Computer Setup (F10) Utility
Table 3-3 Computer Setup—Storage (continued)
Storage Options SATA Emulation
Allows you to choose how the SATA controller and devices are accessed by the operating
system. There are three supported options: IDE, RAID, and AHCI (default).
Legacy IDE - This is the most backwards-compatible setting of the three options. Operating
systems usually do not require additional driver support in IDE mode.
IDE Mode- Allows software to communicate with the SATA controller like a traditional PATA
controller using natively assigned PCI resources. The difference between it and Legacy Mode IDE
is that legacy mode uses the legacy resources for PATA controllers (IRQs 14 and 15, I/Os
1F0h-1F7h, 3F6h, 170h-177h, etc.).
RAID Mode - Allows DOS and boot access to RAID volumes. Use this mode with the RAID device
driver loaded in the operating system to take advantage of RAID features.
AHCI Mode (default option) - Allows operating systems with AHCI device drivers loaded to take
advantage of more advanced features of the SATA controller.
NOTE: The RAID/AHCI device driver must be installed prior to attempting to boot from a RAID/
AHCI volume. If you attempt to boot from a RAID/AHCI volume without the required device driver
installed, the system will crash (blue screen). RAID volumes may become corrupted if they are
booted to after disabling RAID.
eSATA Port (some models)
Allows you to set a SATA port as an eSATA port for use with an external drive. Default is enabled.
This setting affects only the port with the black connector, labeled as eSATA on the system board.
This port should have the eSATA back panel connector attached to use eSATA drives. For more
information, see the eSATA white paper at
Max eSATA Speed (some models; default is Auto)
Allows you to choose Auto, 1.5 Gbps, or 3.0 Gpbs as the maximum eSATA speed. By default, the
speed is limited to 1.5 Gbps for maximum reliability.
CAUTION: Consult your eSATA drive and cable manufacturer before enabling 3.0 Gpbs speed.
Some drive and cable combinations may not run reliably at 3.0 Gpbs.
Removable Media Boot
Enables/disables ability to boot the system from removable media. Default is enabled.
www.hp.com.
Computer Setup (F10) Utilities 13
Table 3-3 Computer Setup—Storage (continued)
DPS Self-Test Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection
Boot Order Allows you to:
System (DPS) self-tests.
NOTE: This selection will only appear when at least one drive capable of performing the DPS
self-tests is attached to the system.
EFI Boot Sources: Specify the order in which EFI boot sources (such as a internal hard
●
drive, USB hard drive, USB optical drive, or internal optical drive) are checked for a bootable
operating system image. Each device on the list may be individually excluded from or
included for consideration as a bootable operating system source.
EFI boot sources always have precedence over legacy boot sources.
● Legacy Boot Sources:Specify the order in which legacy boot sources (such as a network
interface card, internal hard drive, USB optical drive, or internal optical drive) are checked for
a bootable operating system image. Each device on the list may be individually excluded
from or included for consideration as a bootable operating system source.
Specify the order of attached hard drives. The first hard drive in the order will have priority in
the boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: You can use F5 to disable individual boot items, as well as disable EFI boot and/or
legacy boot.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the
computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping
the boot menu) when the monitor light turns green. After POST is completed, a list of bootable
devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter.
The computer then boots from the selected non-default device for this one time.
14 Chapter 3 Computer Setup (F10) Utility
Computer Setup—Security
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-4 Computer Setup—Security
Option Description
Setup Password Allows you to set and enable a setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup options, flash the
ROM, and make changes to certain plug and play settings under Windows.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
Power-On Password Allows you to set and enable a power-on password. The power-on password prompt appears
after a power cycle. If the user does not enter the correct power-on password, the unit will not
boot.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
Password Options
(This selection appears
only if a power-on
password or setup
password is set.)
Smart Cover (some
models)
Device Security Allows you to set Device Available/Device Hidden (default is Device Available) for:
Allows you to enable/disable:
● Lock Legacy Resources (appears if a setup password is set). Default is enabled.
Setup Browse Mode (appears if a setup password is set) (allows viewing, but not changing,
●
the F10 Setup Options without entering setup password). Default is enabled.
Password prompt on F9, F11, & F12 (allows access to menus without entering setup
●
password). Default is enabled.
Network Server Mode (appears if a power-on password is set). Default is disabled.
●
Allows you to:
Lock/unlock the Cover Lock.
●
Set the Cover Removal Sensor to Disable/Notify User/Setup Password.
●
NOTE: Notify User alerts the user that the sensor has detected that the cover has been
removed. Setup Password requires that the setup password be entered to boot the computer if
the sensor detects that the cover has been removed.
● Embedded security device (some models)
System audio
●
Network controller
●
NOTE: You must disable AMT before trying to hide the network controller.
SATA0
●
SATA1
●
● SATA2
SATA3
●
USB Security Allows you to enable or disable groups of USB ports (front, rear, and accessory). Default is
enabled.
Computer Setup (F10) Utilities 15
Table 3-4 Computer Setup—Security (continued)
Slot Security Allows you to disable any PCI or PCI Express slot. Default is enabled.
Network Service Boot Enables/disables the computer’s ability to boot from an operating system installed on a network
System IDs Allows you to set:
Master Boot Record
Security
server. (Feature available on NIC models only; the network controller must be either a PCI
expansion card or embedded on the system board.) Default is enabled.
● Asset tag (18-byte identifier), a property identification number assigned by the company to
the computer.
Ownership tag (80-byte identifier) displayed during POST.
●
Universal Unique Identifier (UUID) number. The UUID can only be updated if the current
●
chassis serial number is invalid. (These ID numbers are normally set in the factory and are
used to uniquely identify the system.)
Keyboard locale setting for System ID entry.
●
Allows you to enable or disable the Master Boot Record (MBR) security. Default is disabled.
The MBR contains information needed to successfully boot from a disk and to access the data
stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes
to the MBR, such as those caused by some viruses or by the incorrect use of certain disk utilities.
It also allows you to recover the "last known good" MBR, should changes to the MBR be detected
when the system is restarted.
When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the
current bootable disk while in MS-DOS or Windows Safe Mode.
Save Master Boot Record – This option will appear if Master Boot Record Security is
●
enabled. It allows you to save a copy of the Master Boot Record into non-volatile storage.
Restore Master Boot Record – This option will appear on the next boot once the Master Boot
●
Record has been saved. It allows you to restore the saved copy back to the hard drive’s
Master Boot Record.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the
BIOS cannot prevent changes that may occur while the operating system is running.
16 Chapter 3 Computer Setup (F10) Utility
Table 3-4 Computer Setup—Security (continued)
System Security
(some models: these
options are hardware
dependent)
Data Execution Prevention (some models) (enable/disable) Helps prevent operating system
security breaches. Default is enabled.
SVM CPU Virtualization (some models) (enable/disable) Controls the virtualization features of the
processor. Changing this setting requires turning the computer off and then back on. Default is
enabled.
Embedded Security Device Support (some models) (enable/disable) Permits activation and
deactivation of the Embedded Security Device. Changing this setting requires turning the
computer off and then back on. Default is disabled.
NOTE: To configure the Embedded Security Device, a Setup password must be set.
Reset to Factory Settings (some models) (Do not reset/Reset) Resetting to factory defaults
●
will erase all security keys. Changing this setting requires turning the computer off and then
back on.
CAUTION: The embedded security device is a critical component of many security
schemes. Erasing the security keys will prevent access to data protected by the Embedded
Security Device. Choosing Reset to Factory Settings may result in significant data loss.
Power-on authentication support (some models) (enable/disable) Controls the power-on
●
password authentication scheme that utilizes the Embedded Security Device. Changing this
setting requires turning the computer off and then back on.
Reset authentication credentials (some models) (Do not reset/Reset) Selecting Reset
●
disables the power-on authentication support and clears the authentication information from
the Embedded Security Device. Changing this setting requires turning the computer off and
then back on
OS management of Embedded Security Device (some models) (enable/disable) This option
allows the user to limit operating system control of the Embedded Security Device. Changing this
setting requires turning the computer off and then back on. This option allows the user to limit OS
control of the Embedded Security Device. Default is disabled.
Reset of Embedded Security Device through OS (some models) (enable/disable) This option
●
allows the user to limit the operating system ability to request a Reset to Factory Settings of
the Embedded Security Device. Changing this setting requires turning the computer off and
then back on.
NOTE: To enable this option, a Setup password must be set.
DriveLock Security Allows you to assign or modify a master or user password for hard drives. When this feature is
enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither
is successfully entered, the hard drive will remain inaccessible until one of the passwords is
successfully provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
Computer Setup (F10) Utilities 17
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-5 Computer Setup—Power
Option Description
OS Power
Management
Hardware Power
Management
Thermal Fan idle mode—This bar graph controls the minimum permitted fan speed.
● Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce
processor voltage and frequency when the current software load does not require the full
capabilities of the processor. Default is enabled.
● Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the
processors power consumption when the processor is idle. Default is extended.
Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a
●
visual indication of what sleep state the system is in. Each sleep state has a unique blink
pattern. Default is disabled.
S0 (On) = Solid green LED.
◦
◦ S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(green LED) — repeated cycles of 3 blinks and a pause.
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
◦
(green LED) — repeated cycles of 4 blinks and a pause.
◦ S5 (Soft Off) = LED is off.
NOTE: If this feature is disabled, S4 and S5 both have the LED off. S1 (no longer
supported) and S3 use 1 blink per second.
SATA Power Management – Enables or disables SATA bus and/or device power management.
Default is enabled.
S5 Maximum Power Savings—Turns off power to all nonessential hardware when system is off to
meet EUP Lot 6 requirement of less than 0.5 Watt power usage. Default is disabled.
NOTE: This setting only changes the minimum fan speed. The fans are still automatically
controlled.
18 Chapter 3 Computer Setup (F10) Utility
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 3-6 Computer Setup—Advanced (for advanced users)
Option Heading
Power-On Options Allows you to set:
● POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days).
QuickBoot (default) = Do not clear memory or perform a memory test.
◦
FullBoot = Memory test (count) on cold boot. Clears memory on all boots.
◦
◦ Clear Memory = No memory count on cold boot. Clears memory on all boots.
FullBoot Every x Days = Memory count on 1st cold boot on or after the xth day. No
◦
more memory counts until 1st cold boot on or after x days. Clears memory on all boots.
POST messages (enable/disable). Default is disabled.
●
Press the ESC key for Startup Menu (Enable/Disable). Default is enabled.
●
Option ROM Prompt (enable/disable). Enabling this feature will cause the system to display
●
a message before loading option ROMs. Default is enabled.
● After Power Loss (off/on/previous state). Default is Power off. Setting this option to:
Off—causes the computer to remain powered off when power is restored.
◦
On—causes the computer to power on automatically as soon as power is restored.
◦
◦ Previous state—causes the computer to power on automatically as soon as power is
restored, if it was on when power was lost.
NOTE: If you turn off power to the computer using the switch on a power strip, you will not be
able to use the suspend/sleep feature or the Remote Management features.
POST Delay (in seconds). Enabling this feature will add a user-specified delay to the POST
●
process. This delay is sometimes needed for hard disks on some PCI cards that spin up very
slowly, so slowly that they are not ready to boot by the time POST is finished. The POST
delay also gives you more time to select F10 to enter Computer (F10) Setup. Default is
None.
Bypass F1 Prompt on Configuration Changes (Enable/Disable). Allows you to set the
●
computer not to confirm when changes were made. Default is disabled.
Remote Wakeup Boot Source (remote server/local hard drive). Default is Local hard drive.
●
Factory Recovery Boot Support (Enable/Disable). Provides the ability for the BIOS to redirect
●
the boot to the recovery partition on the user hard drive, if present. Some versions of the
recovery software honor the F11 key press even when this feature is disabled by the BIOS.
Default is disabled.
Execute Memory Test
(some models)
BIOS Power-On Allows you to set the computer to turn on automatically at a time you specify.
Restarts the computer and executes the POST memory test.
Onboard Devices Allows you to set resources for or disable Legacy devices.
Select the Legacy device's IRQ, DMA, and I/O Range. The settings may not take effect for all
operating systems. To hide a device from the operating system, see Security > Device Security.
Computer Setup (F10) Utilities 19
Table 3-6 Computer Setup—Advanced (for advanced users) (continued)
Bus Options On some models, allows you to enable or disable:
● PCI SERR# Generation. Default is enabled.
● PCI VGA Palette Snooping, which sets the VGA palette snooping bit in PCI configuration
space; only needed when more than one graphics controller is installed. Default is disabled.
Device Options Allows you to set:
Monitor Tracking (enable/disable). Allows ROM to save monitor asset information. Default is
●
disabled.
Printer mode (Bi-Directional, EPP + ECP, Output Only). Default is EPP+ECP.
●
Num Lock State at Power-On (off/on). Default is off.
●
Integrated Video (enable/disable). Use this option to disable the integrated video controller
●
when another video controller is present in the system. Default is enabled.
● Integrated Video (Automatic UMA/Selectable UMA Size). Allows you to automatically or
manually set UMA video size. Default is automatic.
NOTE: If you choose Selectable UMA Size, a new menu item displays to allow you to
select the UMA Frame Buffer Size. Default value is 256 MB.
Internal Speaker (some models) (does not affect external speakers). Default is enabled.
●
NIC PXE Option ROM Download (PXE, iSCSI, disabled). The BIOS contains an embedded
●
NIC option ROM to allow the unit to boot through the network to a PXE server. This is
typically used to download a corporate image to a hard drive. The NIC option ROM takes up
memory space below 1MB commonly referred to as DOS Compatibility Hole (DCH) space.
This space is limited. This F10 option will allow users to disable the downloading of this
embedded NIC option ROM thus giving more DCH space for additional PCI cards which may
need option ROM space. Default is enabled.
NetClone Option ROM Download (enable/disable) (some models). This BIOS contains an
●
embedded NetClone option. Use this option to enable or disable the NetClone BIOS. Default
is disabled.
SATA RAID Option ROM Download (enable/disable). The BIOS contains an embedded
●
SATA RAID option ROM for RAID support. This can be temporarily disabled to save DCH
space. Note that with the option ROM disabled, users will be unable to boot to hard drives in
the system while running in RAID mode. Default is disabled.
Multi-Processor (enable/disable). Use this option to disable multi-processor support under
●
the OS. Default is enabled.
20 Chapter 3 Computer Setup (F10) Utility
Table 3-6 Computer Setup—Advanced (for advanced users) (continued)
PCI VGA
Configuration
ASF Configuration ASF (Alert Standard Format) is an industry standards-based technology that allows IT
Displayed only if there is an add-in video card in the system. Allows you to specify which VGA
controller will be the “boot” or primary VGA controller.
NOTE: In order to see this entry, you must enable Integrated Video (Advanced > Device
Options) and Save Changes and Exit.
administrators to manage PCs regardless of operating system state. ASF performs completely out
of band and only relies on the operating system to configure the solution.
Allows you to set:
ASF Support (enable/disable). Allows you to enable or disable ASF. Default is enabled.
●
ASF BIOS Mode (On/Alert Only/Off). Allows you set ASF BIOS mode to on, off, or only send
●
alerts. Default is On.
ASF Watchdog Timer (enable/disable). A timer started at system startup and cleared at the
●
end of POST. If the timer is not cleared within the specified amount of time, the hardware
sends an alert to the Management Console indicating the system has hung.
If enabled, this setting allows you to set the watchdog timer. Default is enabled.
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command
with the Computer Setup (F10) Utility before Restore is needed.
NOTE: It is recommended that you save any modified computer configuration settings to a USB
flash media device and save the device for possible future use.
To restore the configuration, insert the USB flash media device with the saved configuration and
perform the Restore from Removable Media command with the Computer Setup (F10) Utility.
Recovering the Configuration Settings 21
4 Illustrated parts catalog
Microtower (MT) chassis spare parts
Computer major components
22 Chapter 4 Illustrated parts catalog
Item Description Spare part number
(1) Front bezel
For use in all countries and regions except China 689377-001
5.25-inch bezel blank (optical drive; not illustrated) 570838-001
3.5-inch bezel blank (not illustrated) 583653-001
(2) Access panel 646825-001
(3) Power supply
320W, 90% efficient 613764-001
320W, standard 613765-001
(4) System board (includes replacement thermal material)
For use in Windows 7 models 703596-001
For use in NetClone models 710096-001
* Memory modules (PC3-12800, 1600-MHz)
8-GB 689375-001
4-GB 671613-001
2-GB 671612-001
* Processors (include replacement thermal material)
AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D 703598-001
AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D 703601-001
AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D 703600-001
AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D 703599-001
* not illustrated
Microtower (MT) chassis spare parts 23
Cables
Item Description Spare part number
(1) Front I/O assembly 646827-001
(2) SATA optical drive power cable 646834-001
(3) SATA hard drive power cable 646833-001
(4) Power switch/LED assembly 646828-001
(5) SATA cable, 18 inch, 1 straight end, 1 angled end (labeled; not illustrated) 646830-001
(6) SATA cable, 17.7 inch, 2 straight ends 639959-001
* DMS-59 to dual VGA cable 463023-001
* Adapter, DisplayPort to VGA 603250-001
* Adapter, DisplayPort to DVI 662723-001
* Adapter, DVI-I to VGA 202997-001
24 Chapter 4 Illustrated parts catalog
Item Description Spare part number
* Adapter, DVI-D to VGA 657401-001
* DMS-59 to dual DVI cable 463024-001
* Adapter, DisplayPort to HDMI 617450-001
* DisplayPort cable 487562-001
* SATA power extension cable 633756-001
* not illustrated
Misc parts
Item Description Spare part number
(1) Heat sink (includes replacement thermal material) 645326-001
(2) Fan with guard 585884-001
(3) Hood sensor 638816-001
(4) Speaker 645330-001
(5) Solenoid lock 641498-001
(6) Printer port, PCI card 638817-001
Microtower (MT) chassis spare parts 25
Item Description Spare part number
(7) Clamp lock, includes universal cable (plate not included) 508987-001
* Rear chassis fan 643908-001
* Fan duct assembly 646824-001
* Serial port, PCI card 638815-001
* 2.5-in drive adapter 586721-001
* Hard drive conversion bracket 397117-001
* Grommet, hard drive isolation, blue 450712-001
* Card reader, 22-in-1 636166-001
* USB powered speakers 636917-001
698877-001
* Mouse
PS2, optical, jack black (non-ECO) 609250-001
USB, optical, jack black 537749-001
Washable 619580-001
Wireless 674317-001
Wireless (not for use in APJ region) 608150-001
USB, laser (non-ECO) 570580-001
* eSATA port assembly, PCI card 645558-001
* Antenna for use with WLAN card 583345-001
* HP Business Digital Headset 642738-001
* External USB Webcam 609252-001
* Foot 336445-001
* Keyboards
PS/2 537745-xx1
USB 537746-xx1
Wireless 674314-xx1
Washable 613125-xx1
Smart card 631411-xx1
* not illustrated
26 Chapter 4 Illustrated parts catalog
Drives
Description Spare part number
Hard drives
1-TB, 7200-rpm 636930-001
500-GB, 7200-rpm 636929-001
500 GB, 7200 rpm, 2.5-inch, self-encrypting (SED) 696442-001
320-GB, 7200-rpm, 2.5-inch 634824-001
250-GB, 7200-rpm 636927-001
256-GB Solid-state Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001
180 GB Solid State Drive (SSD), SATA 6.0 696622-001
160-GB Solid-state Drive (SSD), SATA 3.0 646809-001
128-GB Solid-state Drive (SSD), SATA 2.0 665961-001
120-GB Solid-state Drive (SSD), SATA 2.0 661841-001
Optical drives
Blu-ray BD-Writer XL Drive 682219-001
16X SATA DVD±RW drive 660408-001
16X SATA DVD-ROM drive 581599-001
Grommet, hard drive isolation, blue 450712-001
Misc boards
Description Spare part number
GeForce GT630 PCIe x16 graphics card, 2 GB 684591-001
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China) 702646-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB 682411-001
AMD Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
HP FireWire / IEEE 1394a PCIe x1 Card 637591-001
HP WLAN 802.11 g/n 1x2 PCIe NIC 538048-001
690418-001
HP USB 3.0 SuperSpeed PCIe x1 card 663213-001
HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001) 663214-001
Microtower (MT) chassis spare parts 27
Sequential part number listing
Spare part
number
202997-001 Adapter, DVI-I to VGA
336445-001 Feet
397117-001 Hard drive conversion bracket
450712-001 Grommet, hard drive isolation, blue
463023-001 DMS-59 to dual VGA cable
463024-001 DMS-59 to dual VGA DVI
487562-001 DisplayPort cable
508987-001 Clamp lock, includes universal cable (plate not included)
537745-xx1 PS/2 basic keyboard
537746-xx1 USB basic keyboard
537749-001 Mouse, USB, optical, jack black
538048-001 HP WLAN 802.11b/g/n card
570580-001 Mouse, USB, laser (non-ECO)
570838-001 Bezel blank, optical drive, 5.25-inch
581599-001 16X SATA DVD-ROM drive
Description
583345-001 Antenna for use with 538048-001
583653-001 Bezel blank, 3.5-inch
585884-001 Chassis fan with guard
586721-001 2.5-in drive adapter
608150-001 Mouse, wireless (not for use in APJ region)
609250-001 Mouse, PS2, optical, jack black (non-ECO)
609252-001 External USB webcam
613125-xx1 Washable keyboard
613764-001 320W, 90% efficient
613765-001 320W, standard
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
631411-xx4 Smart card keyboard
603250-001 Adapter, DisplayPort to VGA
632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB
633756-001 SATA power extension cable
634824-001 320-GB, 7200-rpm hard drive, 2.5 inch, SED
28 Chapter 4 Illustrated parts catalog
Spare part
number
636166-001 Card reader, 22-in-1
636917-001 USB powered speakers
643908-001 Chassis fan
636927-001 250-GB, 7200-rpm hard drive
636929-001 500-GB, 7200-rpm hard drive
636930-001 1-TB, 7200-rpm hard drive
637591-001 HP FireWire / IEEE 1394a PCIe x1 card
637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB
638815-001 Serial port PCI card
638816-001 Hood sensor
638817-001 Printer port, PCI card
639959-001 SATA cable, 17.7 inch, 2 straight ends
641498-001 Solenoid lock
642738-001 HP Business Digital Headset
645326-001 Heat sink (includes replacement thermal material)
Description
645330-001 Speaker
645558-001 eSATA port assembly, PCI card
646809-001 160-GB Solid-state drive, SATA 3.0
646824-001 Fan duct assembly
646825-001 Access panel
646827-001 Front I/O assembly
646828-001 Power switch/LED with holder
646830-001 SATA cable, 18 inch, 1 straight end, 1 angled end
646833-001 Hard drive power cable
646834-001 Optical drive power cable
657401-001 Adapter, DVI-D to VGA
660408-001 DVD±RW drive
661841-001 120-GB Solid-state drive, SATA 2.0
662723-001 Adapter, DisplayPort to DVI
663213-001 HP USB 3.0 SuperSpeed PCIe x1 card
663214-001 HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)
665961-001 128-GB Solid-state drive, SATA 2.0
671612-001 Memory module, 2-GB, PC3 12800, CL11)
671613-001 Memory module, 4-GB, PC3 10600, 1333-MH
Microtower (MT) chassis spare parts 29
Spare part
number
674314-xx1 Keyboard, wireless
674317-001 Mouse, wireless
680020-001 256-GB Solid-state drive, self-encrypting (SED), SATA 6.0
680653-001 nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
682219-001 Blu-ray BD-Writer XL Drive
682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB
684591-001 GeForce GT630 PCIe x16 graphics card, 2 GB
689375-001 Memory module, 8-GB, PC3 12800, CL11
689377-001 Front bezel
690418-001 16X SATA DVD±RW drive
696442-001 500-GB hard drive, 7200-rpm, 2.5-inch, SED
696622-001 180-GB Solid-state drive, SATA 6.0
697246-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB
698877-001 USB powered speakers
702646-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)
Description
702648-001 nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China)
703596-001 System board for use in Windows 7 models (includes replacement thermal material)
703598-001 AMD A10-5800B, 3.8 GHz processor , 4-MB L2 cache (100-W), HD 7660D
703599-001 AMD A4-5300B processor, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D
703600-001 AMD A6-5400B, 3.6 GHz processor, 4-MB L2 cache (65-W), HD 7540D
703601-001 AMD A8-5500B, 3.2 GHz processor , 4-MB L2 cache (65-W), HD 7560D
710096-001 System board for use in NetClone models (includes replacement thermal material)
30 Chapter 4 Illustrated parts catalog
Small Form Factor (SFF) chassis spare parts
Computer major components
Item Description Spare part number
(1) Front bezel 687950-001
Bezel blank (optical drive; not illustrated) 570838-001
Bezel blank (card reader; not illustrated) 583653-001
(2) Power supply
240W, 90% efficient 613762-001
240W, standard 613763-001
(3) System board (includes replacement thermal material)
For use in Windows 7 models 703596-001
For use in NetClone models 710096-001
(4) Access panel 646815-001
* Memory modules (PC3-12800, 1600-MHz)
8-GB 689375-001
Small Form Factor (SFF) chassis spare parts 31
Item Description Spare part number
4-GB 671613-001
2-GB 671612-001
* Processors (include replacement thermal material)
AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D 703598-001
AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D 703601-001
AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D 703600-001
AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D 703599-001
* not illustrated
32 Chapter 4 Illustrated parts catalog
Cables
Item Description Spare part number
(1) Front I/O and power switch assembly 636926-001
(2) SATA cable, 19.5 inch, 2 straight ends 638813-001
(3) SATA drive power cable 636923-001
* SATA cable, 25.2 inch, 1 straight end, 1 angled end (not illustrated) 638814-001
* DMS-59 to dual VGA cable 463023-001
* DMS-59 to dual DVI cable 463024-001
* Adapter, DisplayPort to VGA 603250-001
* Adapter, DisplayPort to DVI 662723-001
* Adapter, DVI-I to VGA 202997-001
* Adapter, DVI-D to VGA 657401-001
* Adapter, DisplayPort to HDMI 617450-001
* DisplayPort cable 487562-001
* SATA power extension cable 633756-001
* not illustrated
Small Form Factor (SFF) chassis spare parts 33
Misc parts
Item Description Spare part number
(1) Chassis fan 645327-001
(2) Fan duct (not illustrated) 636921-001
(3) Heat sink (includes replacement thermal material) 645326-001
(4) Speaker 636925-001
(5) Solenoid lock 641471-001
(6) Printer port, PCI card 638817-001
(7) Hood sensor 638816-001
34 Chapter 4 Illustrated parts catalog
Item Description Spare part number
(8) Clamp lock, includes universal cable (plate not included) 508987-001
* Rubber feet 583654-001
* Chassis stand 688952-001
* Serial port, PCI card (not illustrated) 638815-001
* 2.5-in drive adapter (not illustrated) 586721-001
* Hard drive conversion bracket 397117-001
* Grommet, hard drive isolation, blue (not illustrated) 450712-001
* Card reader, 22-in-1 (not illustrated) 636166-001
* USB powered speakers (not illustrated) 636917-001
698877-001
* Mouse (not illustrated)
USB, optical, jack black 537749-001
Washable 619580-001
Wireless 674317-001
Wireless (not for use in APJ region) 608150-001
USB, laser (non-ECO) 570580-001
PS2, optical, jack black (non-ECO) 609250-001
* eSATA port assembly, PCI card (not illustrated) 645558-001
* Antenna for use with 538048-001 (not illustrated) 583345-001
* HP Business Digital Headset (not illustrated) 642738-001
* External USB webcam (not illustrated) 609252-001
* Keyboard (not illustrated)
PS/2 537745-xx1
USB 537746-xx1
USB, mini 674314-xx1
Washable 613125-xx1
Smart card 631411-xx1
* not illustrated
Small Form Factor (SFF) chassis spare parts 35
Drives
Description Spare part number
Hard drive
1-TB, 7200-rpm 636930-001
500-GB, 7200-rpm, 2.5-inch, SED 696442-001
500-GB, 7200-rpm 636929-001
320-GB, 7200-rpm, 2.5-inch 634824-001
250-GB, 7200-rpm 636927-001
256-GB Solid-state Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001
180-GB Solid-state Drive (SSD), SATA 6.0 696622-001
160-GB Solid-state Drive (SSD), SATA 3.0 646809-001
128-GB Solid-state Drive (SSD), SATA 2.0 665961-001
120-GB Solid-state Drive (SSD), SATA 2.0 661841-001
Optical drive
Blu-ray BD-Writer XL Drive 682219-001
16X SATA DVD±RW drive 660408-001
16X SATA DVD-ROM drive 581599-001
Grommet, hard drive isolation, blue 450712-001
Misc boards
Description Spare part number
GeForce GT630 PCIe x16 graphics card, 2 GB 684591-001
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China) 702646-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB 682411-001
AMD Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
HP FireWire / IEEE 1394a PCIe x1 Card 637591-001
HP WLAN 802.11 g/n 1x2 PCIe NIC 538048-001
690418-001
HP USB 3.0 SuperSpeed PCIe x1 card 663213-001
HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001) 663214-001
36 Chapter 4 Illustrated parts catalog
Sequential part number listing
Spare part
number
202997-001 Adapter, DVI-I to VGA
397117-001 Hard drive conversion bracket
450712-001 Grommet, hard drive isolation, blue
463023-001 DMS-59 to dual VGA cable
463024-001 DMS-59 to dual DVI cable
487562-001 DisplayPort cable
508987-001 Clamp lock, includes universal cable (plate not included)
537745-xx1 PS/2 basic keyboard
537746-xx1 USB basic keyboard
537749-001 Mouse, USB, optical, jack black
538048-001 HP WLAN 802.11b/g/n card
570580-001 Mouse, USB, laser (non-ECO)
570838-001 Bezel blank, optical drive, 5.25-inch
581599-001 DVD-ROM drive
583345-001 Antenna for use with 538048-001
Description
583653-001 Bezel blank, 3.5-inch
583654-001 Rubber foot
586721-001 Drive adapter, 2.5-inch
688952-001 Chassis stand
608150-001 Mouse, wireless (not for use in APJ region)
609250-001 Mouse, PS2, optical, jack black (non-ECO)
609252-001 External USB webcam
613125-xx1 Washable keyboard
613762-001 320W, 90% efficient
613763-001 320W, standard
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
631411-xx4 Smart card keyboard
603250-001 Adapter, DisplayPort to VGA
632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB
633756-001 SATA power extension cable
634824-001 320-GB, 7200-rpm hard drive, 2.5 inch, SED
Small Form Factor (SFF) chassis spare parts 37
Spare part
number
636166-001 Card reader, 22-in-1
636917-001 USB powered speakers
636921-001 Fan duct
636923-001 SATA power cable
636925-001 Speaker
636926-001 Front I/O cable and power switch assembly
636927-001 250-GB, 7200-rpm hard drive
636929-001 500-GB, 7200-rpm hard drive
636930-001 1-TB, 7200-rpm hard drive
637591-001 HP FireWire / IEEE 1394a PCIe x1 card
637995-001 AMD Radeon HD6350 PCIe x16 graphics card, 512 MB
638813-001 SATA cable, 19.5 inch, 2 straight ends
638814-001 SATA cable, 25.2 inch, 1 straight end, 1 angled end
638815-001 Serial port PCI card
638816-001 Hood sensor
Description
638817-001 Printer port, PCI card
641471-001 Solenoid lock
642738-001 HP Business Digital Headset
645326-001 Heat sink
645327-001 Chassis fan
645558-001 eSATA port assembly, PCI card
646809-001 160-GB Solid-state drive, SATA3.0
646815-001 Access panel
657401-001 Adapter, DVI-D to VGA
660408-001 16X SATA DVD±RW drive
661841-001 120-GB Solid-state drive, SATA 2.0
662723-001 Adapter, DisplayPort to DVI
665961-001 128-GB Solid-state drive, SATA 2.0
671612-001 Memory module, 2-GB, PC3 12800, CL11)
671613-001 Memory module, 4-GB, PC3 10600, 1333-MH
674314-xx1 Keyboard, wireless
674317-001 Mouse, wireless
680020-001 256-GB Solid-state drive, self-encrypting (SED), SATA 6.0
680653-001 nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB
38 Chapter 4 Illustrated parts catalog
Spare part
number
682219-001 Blu-ray BD-Writer XL Drive
682411-001 AMD Radeon HD7450 PCIe x16 graphics card, 1 GB
687950-001 Front bezel
689375-001 Memory module, 8-GB, PC3 12800, CL11
690418-001 16X SATA DVD±RW drive
696422-001 500-GB hard drive, 7200-rpm, 2.5-inch, SED
696622-001 180-GB Solid-state drive, SATA 2.0
698877-001 USB powered speakers
703596-001 System board for use in Windows 7 models (includes replacement thermal material)
703598-001 AMD A10-5800B processor, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D
703599-001 AMD A4-5300B processor, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D
703600-001 AMD A6-5400B processor, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D
703601-001 AMD A8-5500B processor, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D
710096-001 System board for use in NetClone models (includes replacement thermal material)
Description
Small Form Factor (SFF) chassis spare parts 39
5 Routine Care, SATA Drive Guidelines,
and Disassembly Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to
the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
●
Relative Humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl floor
Motions of bench worker
Removing DIPs from plastic tube
7,500 V
3,000 V
400 V
400 V
15,000 V
5,000 V
800 V
700 V
35,000 V
12,000 V
6,000 V
2,000 V
40 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Removing DIPs from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs from Styrofoam
Removing bubble pack from PCB
Packing PCBs in foam-lined box
These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
3,500 V
7,000 V
5,000 V
NOTE: 700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following packaging and grounding precautions are necessary to prevent
damage to electric components and accessories.
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
●
boxes.
Protect all electrostatic parts and assemblies with conductive or approved containers or
●
packaging.
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
5,000 V
20,000 V
11,000 V
14,500 V
26,500 V
21,000 V
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
●
conductive foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
● Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
●
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on
both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
1,500
7,500
Metallized laminate
15,000
Electrostatic Discharge Information 41
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
● Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
● Use static-dissipative mats, foot straps, or air ionizers to give added protection.
● Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
● Turn off power and input signals before inserting and removing connectors or test equipment.
● Use fixtures made of static-safe materials when fixtures must directly contact dissipative
surfaces.
● Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
●
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
●
42 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and
●
cold.
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all
●
vented sides of the computer and above the monitor to permit the required airflow.
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
●
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
●
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they
●
are subject to each other’s re-circulated or preheated air.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
●
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software,
●
including sleep states.
Routine Care
General Cleaning Safety Precautions
1. Never use solvents or flammable solutions to clean the computer.
2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3. Always unplug the computer when cleaning with liquids or damp cloths.
4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5. Disconnect the keyboard before cleaning it.
6. Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 43 before cleaning the
computer.
Operating Guidelines 43
To clean the computer case, follow the procedures described below:
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with
●
a cloth or swab dampened with clear water.
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
●
evaporate quickly and not leave a residue.
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the
●
vents and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 43 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in
Computer Case on page 43.
When cleaning debris from under the keys, review all rules in
on page 43 before following these procedures:
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from
under the keys.
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be
●
used as too much air pressure can dislodge lubricants applied under the wide keys.
If you remove a key, use a specially designed key puller to prevent damage to the keys. This
●
tool is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these
keys are improperly removed or installed, the keyboard may not function properly.
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
●
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
Cleaning the
General Cleaning Safety Precautions
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
●
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
To clean the monitor body follow the procedures in
●
44 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Cleaning the Computer Case on page 43.
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
● Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
● To clean the mouse body, follow the procedures in
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is
off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Tools and Software Requirements
To service the computer, you need the following:
Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Cleaning the Computer Case on page 43.
Screws
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
●
HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamper-
●
resistant bits (Smart Cover FailSafe Key, PN 166527-002)
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
Service Considerations 45
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid
bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot
be caught or snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
● If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
●
protective packaging until they are actually mounted in the CPU.
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
●
while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a
●
drive, avoid touching the connector. For more information about preventing electrostatic
damage, refer to
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
●
fields such as monitors or speakers.
Electrostatic Discharge Information on page 40
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this
guide for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose
in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the
battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, their authorized partners, or their agents.
46 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable 7/7
Number of pins in power cable 15
Maximum data cable length 39.37 in (100 cm)
Data interface voltage differential 400-700 mV
Drive voltages 3.3 V, 5 V, 12 V
Jumpers for configuring drive N/A
Data transfer rate 3.0 Gb/s
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA
1.5 Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and
never bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
SMART ATA Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Cable Management
Always follow good cable management practices when working inside the computer.
Keep cables away from major heat sources like the heat sink.
●
● Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when
●
the parts are moved.
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
●
wires.
SATA Hard Drives 47
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
●
down into the chassis. Always position the cables to lay properly by themselves.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may
be properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the
operating system may differ from that marked on the hard drive or listed in the computer specification.
Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by
Microsoft are bytes to the base 2.
Drive/Partition Capacity Limits
Maximum Size
File System Controller Type Operating System Partition Drive
FAT 32 ATA Windows 7 32 GB 2 TB
NTFS ATA Windows 7 2 TB 2 TB
48 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
6 Removal and Replacement Procedures
Microtower (MT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
Preparation for Disassembly
See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 40 for initial safety
procedures.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Close any open software applications.
3. Exit the operating system.
4. Remove any compact disc or media card from the computer.
5. Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6. Disconnect the power cord from the electrical outlet and then from the computer.
7. Disconnect all peripheral device cables from the computer.
8. As applicable, lay the computer down on its side to achieve a safe working position.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the
wrong screw in an application may damage the unit.
Preparation for Disassembly 49
Computer Access Panel
Description Spare part number
Access panel 646825-001
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (
2. Loosen the two captive thumbscrews (1) that secure the access panel to the computer chassis.
3. Use the handle located between the thumbscrews to lift the access panel off the unit (2).
NOTE: You may want to lay the computer on its side to install internal parts. Be sure the side
with the access panel is facing up.
Figure 6-1 Removing the Computer Access Panel
Preparation for Disassembly on page 49)
50 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Front Bezel
Description Spare part number
Front bezel 689377-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Figure 6-2 Removing the Front Bezel
Computer Access Panel on page 50)
Front Bezel 51
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as compact discs or USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, then turn off any external devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. You must disconnect the power cord
to avoid damage to the internal components of the computer.
5. Remove the access panel and front bezel.
6. Remove the security screw from the inside of the front bezel.
Figure 6-3 Retrieving the Front Bezel Security Screw
7. Replace the front bezel.
52 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
8. Install the screw through the interior of the front of the chassis into the front bezel. The screw
hole is located toward the middle of the right edge of the chassis between the hard drive bay and
speaker.
Figure 6-4 Installing the Front Bezel Security Screw
9. Replace the access panel.
10. Reconnect the power cord and turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
Front Bezel Security 53
Bezel Blanks
Description Spare part number
3.5-inch bezel blank 583653-001
5.25-inch bezel blank, optical drive 570838-001
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch drive bays that need to
be removed before installing a drive. To remove a bezel blank:
1. Remove the access panel (
2. Remove the front bezel (
3. To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it
(2).
Figure 6-5 Removing a Bezel Blank
Computer Access Panel on page 50)
Front Bezel on page 51)
54 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Memory
Description Spare part number
8-GB, PC3-12800 689375-001
4-GB, PC3-12800 671613-001
2-GB, PC3-12800 671612-001
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 16-GB of memory configured in a
high-performing dual channel mode.
DDR3-SDRAM DIMMs
CAUTION: This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The
processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system
board, it can cause the physical damage to the DIMM or invoke system malfunction.
For proper system operation, the DDR3-SDRAM DIMMs must be:
industry-standard 240-pin
●
unbuffered non-ECC PC3-PC14800 DDR3-1866 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
●
The DDR3-SDRAM DIMMs must also:
support CAS latency 13 DDR3 1866 MHz (13-13-13 timing)
●
contain the mandatory JEDEC SPD information
●
In addition, the computer supports:
512-Mbit, 1-Gbit, 2-Gbit, 4-Gbit, and 8-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
●
supported
NOTE: The system will not operate properly if you install unsupported DIMMs.
Memory 55
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory
channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
NOTE: Single channel and unbalanced dual channel memory configurations will result in inferior
graphics performance.
The system will operate in single channel mode if the DIMM sockets are populated in one
●
channel only.
The system will operate in a higher-performing dual channel mode if the total memory capacity
●
of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.
The technology and device width can vary between the channels. For example, if Channel A is
populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system
will operate in dual channel mode.
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is
●
not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB
DIMMs, Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel
B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as
dual channel and 1-GB will run as single channel.
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
●
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
Electrostatic Discharge Information on page 40.
Computer Access Panel on page 50)
56 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
3. Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).
Figure 6-6 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B. Refer to
on page 56 for more information.
4. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
5. Repeat steps 3 and 4 to install any additional modules.
6. Replace the computer access panel.
7. Reconnect the power cord and turn on the computer.
8. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
Populating DIMM Sockets
Memory 57
Expansion Cards
Description Spare part number
GeForce GT630 PCIe x16 graphics card, 2 GB 684591-001
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB 680653-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF505 PCIe x16 graphics card, 512 MB (for use only in China) 702648-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China) 702646-001
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB 682411-001
AMD Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
HP FireWire / IEEE 1394a PCIe x1 Card 637591-001
HP WLAN 802.11 g/n 1x2 PCIe NIC 538048-001
HP USB 3.0 SuperSpeed PCIe x1 card 663213-001
HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001) 663214-001
The computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16
expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot.
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.
To remove, replace, or add an expansion card:
1. Prepare the computer for disassembly (
2. Remove the access panel (
Computer Access Panel on page 50)
Preparation for Disassembly on page 49)
3. Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
58 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
4. Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on
the latch and rotating the latch to the open position.
Figure 6-7 Opening the Expansion Slot Retainer
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate
expansion slot cover on the back of the chassis. Pull the slot cover straight up then away
from the inside of the chassis.
Figure 6-8 Removing an Expansion Slot Cover
Expansion Cards 59
b. If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end,
and carefully rock it back and forth until the connectors pull free from the socket. Pull the
expansion card straight up from the socket then away from the inside of the chassis to
release it from the chassis frame. Be sure not to scrape the card against the other
components.
Figure 6-9 Removing a Standard PCI Expansion Card
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Pull the expansion card straight up from the socket
then away from the inside of the chassis to release it from the chassis frame. Be sure not to
scrape the card against the other components.
Figure 6-10 Removing a PCI Express x16 Expansion Card
6. Store the removed card in anti-static packaging.
60 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
7. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
8. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the
expansion socket on the system board.
Figure 6-11 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
9. Rotate the slot cover retention latch back in place to secure the expansion card.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Replace the computer access panel.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the access panel was removed.
14. Reconfigure the computer, if necessary.
Expansion Cards 61
System Board Connections
Refer to the following illustrations and tables to identify the system board connectors for your model.
Figure 6-12 System Board Connections
Table 6-1 System Board Connections
No. System Board Connector System Board Label Color Component
1 DIMM4 (Channel A) DIMM4 white Memory Module
2 DIMM3 (Channel A) DIMM3 black Memory Module
3 DIMM2 (Channel B) DIMM2 white Memory Module
4 DIMM1 (Channel B) DIMM1 black Memory Module
5 eSATA ESATA black eSATA Adapter Cable, or 2nd
Optical Drive
6 SATA 2.0 SATA2 white 1st Optical Drive
7 Power SATAS_PWR2 black SATA Hard Drives
8 Power SATAS_PWR1 black SATA Optical Drives
9 SATA 3.0 SATA1 light blue 2nd Hard Drive, or 2nd Optical Drive
if an ESATA Adapter Cable exists
10 SATA 3.0 SATA0 dark blue 1st Hard Drive
11 Serial Port COMB black Serial Port
12 Parallel Port PAR black Parallel Port
13 USB MEDIA2 black Second Media Card Reader
14 Hood Lock HLCK black USB Device, such as a Media Card
15 Hood Sensor HSENSE white Hood Sensor
Reader
16 USB MEDIA black USB Device, such as a Media Card
17 PCI Express x1 X1PCIEXP1 black Expansion Card
Reader
62 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Table 6-1 System Board Connections (continued)
No. System Board Connector System Board Label Color Component
Drives
18 PCI Express x16 downshifted
to a x4
19 PCI Express x16 X16PCIEXP black Expansion Card
20 PCI PCI1 white Expansion Card
Description Spare part number
DVD±RW drive 660408-001
DVD-ROM drive 581599-001
Blu-ray BD-Writer XL Drive 682219-001
1 TB, 7200 rpm SATA hard drive 636930-001
500 GB, 7200 rpm, 2.5 inch, SED, SATA hard drive 696422-001
500 GB, 7200 rpm SATA hard drive 636929-001
320 GB, 7200 rpm SATA hard drive, 2.5-inch 634824-001
250 GB, 7200 rpm SATA hard drive 636927-001
X4PCIEXP white Expansion Card
690418-001
256 GB Solid State Drive (SSD), self-encrypting (SED), SATA 6.0 680020-001
180 GB Solid State Drive (SSD), SATA 6.0 696622-001
160 GB Solid State Drive (SSD), SATA 3.0 646809-001
128 GB Solid State Drive (SSD), SATA 2.0 665961-001
120 GB Solid State Drive (SSD), SATA 2.0 661841-001
When installing drives, follow these guidelines:
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
●
connector on the system board labeled SATA0. If you are adding a second hard drive, connect it
to the light blue connector on the system board labeled SATA1.
Connect the first SATA optical drive to the white SATA connector on the system board labeled
●
SATA2. If you are adding a second optical drive connect it to the black SATA connector on the
system board labeled ESATA. If the ESATA connector is already populated, connect the second
optical drive to the light blue connector on the system board labeled SATA1.
Connect an optional eSATA adapter cable to the black SATA connector on the system board
●
labeled ESATA.
Connect a media card reader USB cable to the USB connector on the system board labeled
●
MEDIA.
Drives 63
The power cable for the SATA optical drives is a two-headed cable this is plugged into the
●
system board with the first connector routed to the top 5.25-inch bay and the second connector
routed to the bottom 5.25-inch bay.
The power cable for the SATA hard drives is a two-headed cable this is plugged into the system
●
board with the first connector routed to the bottom 3.5-inch bay and the second connector routed
to the top 3.5-inch bay.
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
●
in place. HP has provided extra guide screws for the drive bays (four 6-32 isolation mounting
guide screws and eight M3 metric guide screws), installed on the side of the drive bays. The
6-32 isolation mounting screws are required for a secondary hard drive. All other drives (except
the primary hard drive) use M3 metric screws. The HP-supplied metric screws are black and the
HP-supplied isolation mounting screws are silver and blue. If you are replacing the primary hard
drive, you must remove the four silver and blue 6-32 isolation mounting guide screws from the
old hard drive and install them in the new hard drive.
Figure 6-13 Extra Guide Screw Locations
No. Guide Screw Device
1 Black M3 Metric Screws All Drives (except hard drives)
2 Silver and Blue 6-32 Isolation Mounting Screws Secondary Hard Drive
64 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
Drive Positions
Figure 6-14 Drive Positions
Table 6-2 Drive Positions
1 Two 5.25-inch drive bays for optional drives (optical drives shown)
2 One 3.5-inch drive bay for optional drive (media card reader shown)
3 Secondary 3.5-inch internal hard drive bay for optional hard drive
4 Primary 3.5-inch internal hard drive bay
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Drives 65
Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
3. Remove the front bezel (
4. Disconnect the drive cables, as indicated in the following illustrations.
CAUTION: When removing the cables, pull the tab or connector instead of the cable itself to
avoid damaging the cable.
a. If you are removing an optical drive, disconnect the power cable (1) and data cable (2) from
the back of the drive.
Figure 6-15 Disconnecting the Optical Drive Cables
Computer Access Panel on page 50)
Front Bezel on page 51)
b. If you are removing a media card reader, disconnect the USB cable from the system board.
Figure 6-16 Disconnecting the Media Card Reader USB Cable
66 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
5. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
Figure 6-17 Removing the Drives
Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
3. Remove the front bezel (
4. If you are installing a drive in a bay covered by a bezel blank, remove the bezel blank. See
Blanks on page 54 for more information.
Computer Access Panel on page 50)
Front Bezel on page 51)
Bezel
Drives 67
5. Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided
eight extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3
metric guide screws are black. Refer to
Drives on page 63 for an illustration of the extra M3
metric guide screws location.
NOTE: When replacing the drive, transfer the four M3 metric guide screws from the old drive to
the new one.
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
Figure 6-18 Installing Guide Screws (Optical Drive Shown)
6. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
Figure 6-19 Sliding the Drives into the Drive Cage
68 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
7. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the
back of the drive.
NOTE: The power cable for the optical drives is a two-headed cable that is routed from
the system board to the rear of the optical drive bays.
Figure 6-20 Connecting the Optical Drive Cables
b. If your are installing a media card reader, connect the USB cable to the USB system board
connector labeled MEDIA.
Figure 6-21 Connecting the Media Card Reader USB Cable
Drives 69
8. If installing a new drive, connect the opposite end of the data cable to the appropriate system
board connector.
NOTE: If you are installing a new SATA optical drive, connect the data cable for the first optical
drive to the white SATA connector on the system board labeled SATA2. Connect the data cable
for a second optical drive to the black SATA connector on the system board labeled ESATA. If
the ESATA connector is already populated, connect the second optical drive to the light blue
connector labeled SATA1.
Refer to
connectors.
9. Replace the front bezel and computer access panel.
10. Reconnect the power cord and any external devices, then turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
System Board Connections on page 62 for an illustration of the system board drive
Removing a Hard Drive from a Drive Bay
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
3. Disconnect the power cable and data cable from the back of the hard drive.
4. Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of
the bay (2).
Figure 6-22 Removing a Hard Drive
Computer Access Panel on page 50)
5. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
70 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Installing a Hard Drive into an Internal Drive Bay
NOTE: The system does not support Parallel ATA (PATA) hard drives.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49)
2. Remove the access panel (
3. Install guide screws on the sides of the drive. If you are installing a 2.5-inch drive, you must
install the drive in an adapter bracket.
NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are
installed on the exterior of the hard drive bays. The HP-supplied isolation mounting guide screws
are silver and blue. Refer to
mounting guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
If you are installing a 3.5-inch hard drive, install four isolation mounting guide screws (two
●
on each side of the drive).
Figure 6-23 Installing Isolation Mounting Guide Screws in a 3.5-inch Drive
If you are installing a 2.5-inch hard drive:
●
Computer Access Panel on page 50)
Drives on page 63 for an illustration of the extra 6-32 isolation
Slide the drive into the bay adapter bracket, ensuring the connector on the drive is fully
◦
inserted into the connector on the adapter bracket.
Figure 6-24 Sliding the 2.5-inch Drive in the Adapter Bracket
Drives 71
Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket
◦
screws through the sides of the bracket into the drive.
Figure 6-25 Securing the Drive in the Adapter Bracket
Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket
◦
(two on each side of the bracket).
Figure 6-26 Installing Isolation Mounting Guide Screws in the Adapter Bracket
72 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
4. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place. The bottom bay is for the primary hard drive. The upper bay is for an
optional secondary hard drive.
Figure 6-27 Sliding a Hard Drive into the Drive Bay
5. Connect the power cable and data cable to the back of the hard drive.
NOTE: The power cable for the hard drives is a two-headed cable that is routed from the
system board to the rear of the hard drive bays.
6. If installing a new drive, connect the opposite end of the data cable to the appropriate system
board connector.
NOTE: If your system has only one SATA hard drive, you must connect the hard drive data
cable to the dark blue connector labeled SATA0 to avoid any hard drive performance problems.
If you are adding a second hard drive, connect the data cable to the light blue connector labeled
SATA1.
7. Route the power and data cables in their cable retainers.
8. Replace the computer access panel.
9. Reconnect the power cord and any external devices, then turn on the computer.
10. Lock any security devices that were disengaged when the access panel was removed.
Removing and Replacing a Removable 3.5-inch SATA Hard Drive
Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch internal
drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive
bay. To remove and replace a drive in the carrier:
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive.
1. Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.
Drives 73
2. Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).
Figure 6-28 Removing the Carrier Cover
3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
Figure 6-29 Removing the Thermal Sensor
74 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
4. Remove the four screws from the bottom of the hard drive carrier.
Figure 6-30 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 6-31 Removing the Hard Drive
Drives 75
6. Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA
connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all
the way into the connector on the carrier's circuit board.
Figure 6-32 Replacing the Hard Drive
7. Replace the four screws in the bottom of the carrier to hold the drive securely in place.
Figure 6-33 Replacing the Security Screws
76 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
8. Place the thermal sensor on top of the hard drive in a position that does not cover the label (1)
and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Figure 6-34 Replacing the Thermal Sensor
9. Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the
cover in place (2).
Figure 6-35 Replacing the Carrier Cover
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE: The carrier must be locked for power to be supplied to the hard drive.
Drives 77
Front Fan Assembly
Description Spare part number
Front fan assembly 585884-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the cables from the clip on the top of the fan assembly.
Figure 6-36 Removing the cables from atop the front fan assembly
Computer Access Panel on page 50).
4. Unplug the fan cable from the system board connector labeled CHFAN.
78 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
5. Press the lever that secures the assembly to the chassis (1), pivot the assembly forward toward
the front of the computer (2), and then lift the assembly straight up and out of the computer (3).
Figure 6-37 Removing the front fan assembly
To reinstall the front fan, reverse the removal procedure.
Front Fan Assembly 79
Front I/O Assembly
Description Spare part number
Front I/O assembly 646827-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the computer access panel (
3. Remove the front bezel (
4. Remove the front fan (
5. Disconnect the three front I/O cables (yellow, green, and blue) from the system board
connectors (FRONT USB, FRONT USB2, and FRONT AUD).
6. Remove the Torx T15 screw that secures the assembly to the chassis.
Figure 6-38 Removing the front I/O assembly screw
7. Rotate the left side of the assembly to the right .
Figure 6-39 Removing the front I/O assembly
Front Bezel on page 51).
Front Fan Assembly on page 78).
Computer Access Panel on page 50).
8. Pull the assembly away from the computer while threading the wires through the hole in the front
of the chassis.
To reinstall the assembly, reverse the removal procedure.
80 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Power Switch/LED Assembly
Description Spare part number
Power switch/LED assembly 646828-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the front bezel (
4. Remove the front fan (
5. Disconnect the cable from the system board connector labeled PB/LED.
6. With the computer on its side, press on the tabs on the bottom of the assembly (1) to disengage
the assembly from the chassis, and then rotate the bottom of the assembly upward (2) to
remove it from the chassis.
Figure 6-40 Removing the power switch/LED
Computer Access Panel on page 50).
Front Bezel on page 51).
Front Fan Assembly on page 78).
7. Pull the assembly away from the chassis while threading the cable through the hole in front of
the chassis.
Power Switch/LED Assembly 81
Heat sink
Description Spare part number
Heat sink 645326-001
CAUTION: The bond between the heat sink and the processor may be very tight.
If the computer will power on, before removing the heat sink, turn on the computer until it warms the
heat sink. Warming the heat sink lessens the bond between the heat sink and the processor, thereby
making separating them easier.
Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you
cannot warm the heat sink prior to removal. Inadvertently removing the processor can damage the
pins.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the computer access panel (
3. Remove the front fan (
4. Loosen the four silver captive Torx T15 screws that secure the heat sink to the system board.
CAUTION: Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even
the downward forces on the processor. The pins on the socket are very fragile and any damage
to them may require replacing the system board.
Front Fan Assembly on page 78).
Computer Access Panel on page 50).
82 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
5. Lift the heat sink from atop the processor.
When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink on the processor. This is especially important as the pins on the socket
are very fragile and any damage to them may require replacing the system board.
Heat sink 83
Processor
Description Spare part number
AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D 703598-001
AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D 703601-001
AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D 703600-001
AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D 703599-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the heat sink (
Computer Access Panel on page 50).
Heat sink on page 82).
4. Rotate the locking lever to its full open position (1).
5. Carefully lift the processor from the socket (2).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.
Reverse the removal procedure to install a new processor.
NOTE: After installing a new processor onto the system board, update the system ROM to ensure
that the latest version of the BIOS is being used on the computer. The latest system BIOS can be
found on the Web at:
http://h18000.www1.hp.com/support/files.
84 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
Speaker
Description Spare part number
Speaker 645330-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the front fan assembly (
4. Disconnect the speaker wire from the system board connector labeled SPKR.
5. From the inside of the chassis, remove the two silver Torx T15 screws (1) that secure the
speaker to the chassis.
6. Rotate the top of the speaker downward (2), and then remove it from the chassis.
Figure 6-41 Removing the speaker
Computer Access Panel on page 50).
Front Fan Assembly on page 78).
To replace the speaker, reverse the removal procedures.
Speaker 85
Rear Chassis Fan
Description Spare part number
Rear chassis fan 643908-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the four silver Phillips screws that secure the fan to the chassis.
Figure 6-42 Rear fan screws
Computer Access Panel on page 50).
4. Disconnect the fan control cable (1) from the system board connector labeled CHFAN2.
86 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
5. Lift the fan out of the chassis (2).
Figure 6-43 Removing the rear fan
To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the
unit.
Rear Chassis Fan 87
Power Supply
Description Spare part number
Power supply, 320W, 90% efficient 613764-001
Power supply, 320W 613765-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Disconnect the power cables from the white system board connector labeled PWR and the white
system board connector labeled PWRCMD.
4. Remove the power cables from the clip on the base pan.
5. Remove the four silver Torx T15 screws that connect the power supply to the chassis.
Figure 6-44 Power supply screws
Computer Access Panel on page 50).
6. Press the tab (1) on the base pan in front of the power supply that holds it in place.
88 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
7. Slide the power supply toward the front of the computer (2), rotate toward the fan so the power
supply clears the lip on the top of the chassis, and then lift the power supply out of the chassis
(3).
Figure 6-45 Removing the power supply
To install the power supply, reverse the removal procedure.
Power Supply 89
System Board
Description Spare part number
System board for use in Windows 7 models (includes thermal material) 703596-001
System board for use in NetClone models (includes replacement thermal material) 710096-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 49).
2. Remove the access panel (
3. Remove the front fan assembly (
4. When replacing the system board, make sure the following components are removed from the
defective system board and installed on the replacement system board:
Memory modules (
●
Expansion cards (
●
Heat sink (
●
Processor (
●
5. Disconnect all cables connected to the system board, noting their location for reinstallation.
6. Remove the eight Torx T15 screws that secure the system board to the chassis.
Figure 6-46 System board screws
Heat sink on page 82).
Processor on page 84)
Computer Access Panel on page 50).
Front Fan Assembly on page 78).
Memory on page 55)
Expansion Cards on page 58)
90 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
7. Slide the system board toward the front of the computer to disengage the I/O panel, lift the rear
of the system board up at an angle, and then lift the system board out of the computer.
Figure 6-47 System board screws
When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the
chassis, and then align the board with the chassis screw holes.
NOTE: When replacing the system board, you must change the chassis serial number in the BIOS.
System Board 91
7 Removal and Replacement Procedures
Small Form Factor (SFF) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
Preparation for Disassembly
See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 40 for initial safety
procedures.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Close any open software applications.
3. Exit the operating system.
4. Remove any compact disc or media card from the computer.
5. Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6. Disconnect the power cord from the electrical outlet and then from the computer.
7. Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using
the wrong screw in an application may damage the unit.
92 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
