HP DV5 Schematics

THIS DRAWING AND SPECIFICATIONS, HEREIN, ARE THE PROPERTY OF INVENTEC
CORPORATION AND SHALL NOT BE REPODUCED, COPIED, OR USED IN WHOLE OR
IN PART AS THE BASIS FOR THE MANUFACTURE OR SALE OF ITEMS WITHOUT
WRITTEN PERMISSION, INVENTEC CORPORATION 2009 ALL RIGHT RESERVED

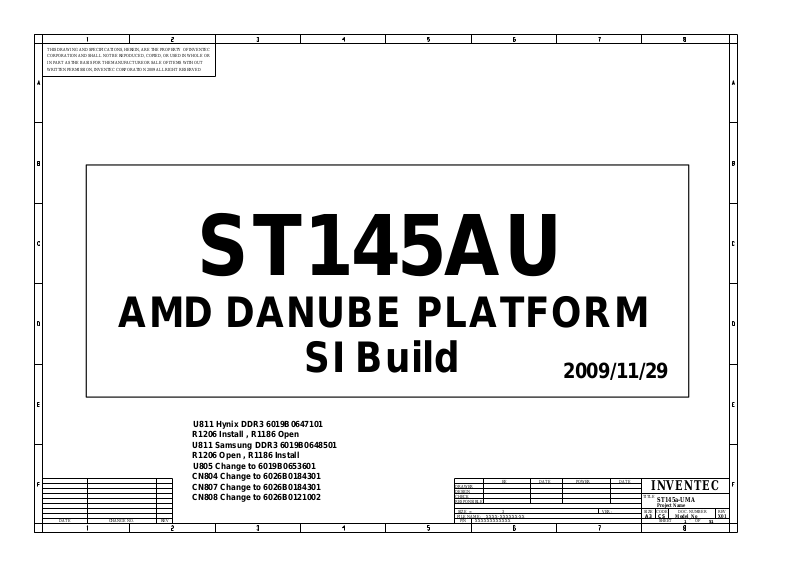

ST145AU

DATE

AMD DANUBE PLATFORM

CHANGE NO.

REV

SI Build

U811 Hynix DDR3 6019B0647101

R1206 Install , R1186 Open

U811 Samsung DDR3 6019B0648501

R1206 Open , R1186 Install

U805 Change to 6019B0653601
CN804 Change to 6026B0184301
CN807 Change to 6026B0184301
CN808 Change to 6026B0121002

DRAWER
DESIGN
CHECK
RESPONSIBLE

SIZE =
FILE NAME :

P/N

EE POWER

3

XXXX-XXXXXX-XX

XXXXXXXXXXXX

2009/11/29

DATE

VER : DOC. NUMBER REV

DATE

INVENTEC

TITLE

ST145a-UMA

Project Name

SIZE

CODE

A3

CS

SHEET

1 51

X01Model_No

OF

Index Of Content

PAGE

PAGE

01- Project Name 24- RS880M-4
02- Index

03- Block Diagram
04- Power Procedure
05- NOTE

06- DC & BATTERY CHARGER
07- BATTERY CONN
08- +V5A & +V3A & +V2.5S
09- +V1.2A & +VCC_NB
10- +VCC_CORE & +VCC_CORE_NB
11- +V1.1S & +V1.1A & +V1.05S
12- NOTE
13- +V1.5 & +V1.8S
14- POWER (SLEEP)
15- CLK GEN-RTM880N
16- CPU-1

17- CPU-2
18- CPU-3
19- CPU-4
20- FAN & THERMAL IC
21- RS880M-1
22- RS880M-2
23- RS880M-3

25- DDR3 DIMM0
26- DDR3 DIMM1

27- DDR3 SIDE-PORT
28- SB820M-1

29- SB820M-2
30- SB820M-3
31- SB820M-4
32- SB820M-5
33- CRT
34- NOTE
35- LCM
36- HDMI
37- KBC
38- Keyboard CONN & Indicate LED
39- Card reader

40- SATA HDD & SATA ODD CONN
41- Touch screen & FingerPrint CONN
42- ESATA CONN & USB Board CONN
43- LAN
44- RJ45 CONN
45- AUDIO CODEC & SPEAKER CONN
46- HP JACK & MIC JACK
47- NOTE
48- WLAN & BLUETOOTH
49- WWAN

PAGE

50- NOTE
51- USB BOARD & BUTTON BOARD

52- HDD Board & ODD Board

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

Index

DOC. NUMBERSIZE

CODE

A3

Model_No X01

CS

SHEET

REV

OF

512

Inventec Confidential

PCB STACK UP
LAYER 1 : TOP

LAYER 2 : GND
LAYER 3 : IN1
LAYER 4 : IN2

LAYER 5 : VCC
LAYER 6 : BOT

FINGER PRINT

TOUCH SCREEN

MAIN BATT

P.07

System Charger &

DC/DC System power

USB_6

CLK GEN

REA-RTM880N-796

WEB CAM

P.42

USB_7

P.42

P.06

USB_4

P.36

USB_8

MINI CARD

CONN

(WWAN)

SIMCARD

CONN

P.50

P.16

P.50

Speaker

DMIC

Thermal Sensor

USB_3

USB2 CONN

(DB)

CARD READER

P.47

P.36

USB_1

AU6433

5 in 1

Conn

P.40

P.40

AUDIO CODEC

IDT 92HD80B1

HP JACK

HDMI

LCM

VGA

USB1 CONN

P.50

P.47

P.20

P.37

P.36

P.35

USB_2

(DB)

P.50

USB_2

BLUE TOOTH

P.47

MIC JACK

P.47

TMDS

LVDS

CRT

USB2.0

P.49

638 P(PGA) 45W/35W

Side-port

Memory

128MB

SB820M

HDA

AMD

Champlain

S1G4 Processor

35mm X 35mm

Transport 3

P.16~19

Hyper

P.21~24

AMD

RS880M

A12

21mm X 21mm, 528pin BGA

DDR3

P.26

A-link X 4

P.29~33

AMD

21mm X 21mm, 528pin BGA

A12

4.5W (Ext)

4.3W (Int)

Keyboard

P.39

DDR3

DDR3

PCI_EXPRESS

REALTEK

GIGA RTL8111DL-VB-GR

SATA
SMBus

Accelerometer

LPC

KBC

ITE 8502E-KX

TouchPad

SYSTEM

P.39

CHANGE by

X1

LAN

RJ45

P.38

SPI

BIOS

channel A

channel B

PCIE_0

P.44

DDR III _SODIMM0

DDR III _SODIMM1

P.43

HDD

P.40

P.38

ALAN W 29-Nov-2009

Half MINI CARD

SATA_0

P.40

P.27

P.28

X1

PCIE_1 USB_8

CONN

(WLAN)

SATA_1

ODD

P.40

TITLE

SIZE

P.48

SATA_2

USB_0

ESATA

P.42

INVENTEC

ST145a-UMA

Block Diagram

DOC. NUMBER

CODE

A3

Model_No X01

CS

SHEET

OF

REV

513

Adapter

(65W)

ADP_PRES

CHGCTRL_3

Selector

(Discrete)

Charger

(BQ24721C)

+VBDC

+VBADC

+VBATR

CHGCTRL_3

I_ADP

BATT_CLK
BATT_DATA

ADP_IP

ACOK

Main Battery

ALWAYS_EN

+V5A

+V1.2A_PG

VRM_PWRGD

VCC_NB_PG

RESUME_PWEN

5V/3.3V

(TPS51125)

+V1.1A

(TPS51117)

NB POWER
I/O POWER

(TPS51117)

DDR POWER

(Max17000ETG)

I = 0.02A

I = 0.05A

I = 8.6A

I = 9.593A

I = 7.42A

+V1.1A

+V0.75S

I = 1A

APL5610C

VRM_PWRGD

+VCC_NB

I = 9A

+V1.5

+V5AL

+V3AL

+V5A

+V3A

I = 7.6A

AM3402N

+V1.1S

CORE_PWEN#

AM3402N

AM3402N

CPU_VDDR

RT8015AP

+V1.8S

RT8015AP

I = 6.8A

+V1.5S

+V5S

CORE_PWEN#

I = 2.53A

+V3S

CPU_VDDR

I = 1.5A

+V1.8S

I = 1.3A

I = 1.23A

I = 2.6A

+V2.5S

(APL5315)

+V2.5S

I = 0.25A

+VDD_CORE

VGA POWER

(TPS51511)

VGAVCC_EN

VPCIE_SW

POW_SW1

SVC
SVD

CPU_PWEN

VRM_PWRGD

AMD Griff
MAX17480

+VDD_CORE

+VDD_CORE

+VDDNB_CORE

I = 38A

I = 4A

CHANGE by

INVENTEC

TITLE

ST145a-UMA

Power Procedure

DOC. NUMBER

CODE

SIZE

A3

CS

10-Aug-2009ALAN W

SHEET

4 51

REV

X01Model_No

OF

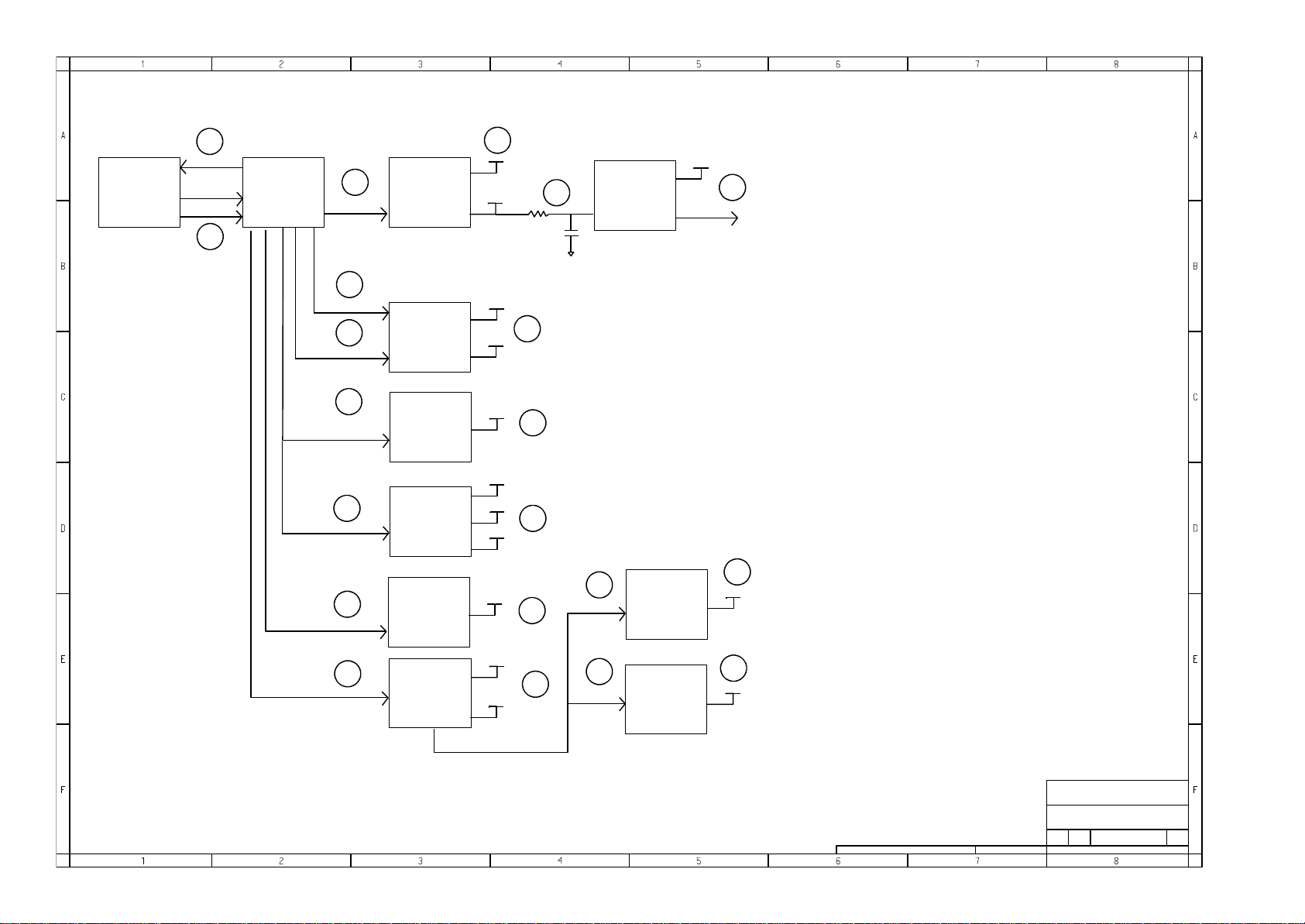

SB800

3

SB_PWRBTN#

SLP_S3#

SLP_S5#

4

KBC

ITE8502E

1

ALWAYS_PW_EN

5

CORE_PWEN

5

RESUME_PWEN

TPS51125

MAX 17000E

2

+V3A

+V5A

+V1.5

+V0.75S

+V1.1A

2

TPS51117

3

V1.1A_PG

6

5

CORE_PWEN#

5

CORE_PWEN#

7

CORE_PWEN_D#

7

CPU_PWEN

RT8015A

MOSFET

SWITCH

RT8015A

MAX 17480G

+V1.8S

+V5S

+V3.3S

+V1.5S

CPU_VDDR

VDD_CORE

VDDNB_CORE

6

6

10

9

VRM_PWRGD

8

TPS51117

9

8

VRM_PWRGD

MOSFET

VCC_NB

10

+V1.1S

SWITCH

INVENTEC

TITLE

ST145a-UMA

Power Sequence

CODE

CHANGE by

ALAN W 13-Aug-2009

SIZE

A3

CS

SHEET

DOC. NUMBER

Model_No X01

REV

OF

515

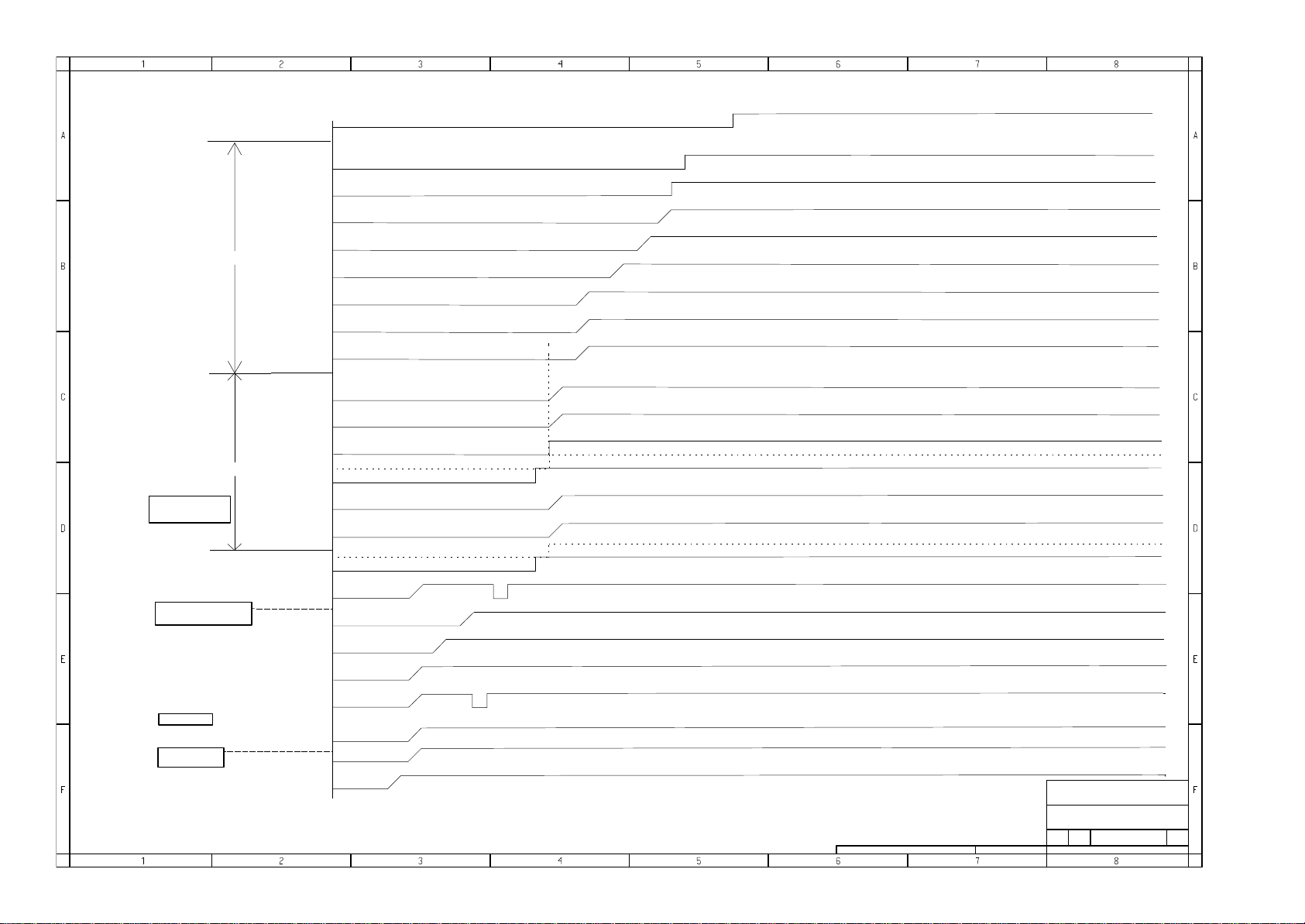

POWER ON SEQUENCW REQUIRED.
SB820M

1. +V3.3A RAMP BEFORE +V1.1A

2. +V3.3S RAMP BEFORE +V1.8S

3. +V1.8S RAMP BEFORE +V1.1S

4. +V3.3S RAMP BEFORE +V1.1S

5. VDDIO_33_S RAMPING DOWN TIME <= 300uS

6. 50uS <= ALL POWER RAILS EXPECT VDDIO_33_S <= 40mS

7. 100uS <= VDDIO_33_S <= 40mS

RS880M

1. 0 <(+V3.3S) - (+V1.8S) < 2.1

2. +V1.8S RAMP BEFORE +V1.1S

3. +V1.1S RAMP BEFORE VCC_NB

SB_PWRGD

ALL_PWGD_IN

VCC_NB_PG

VCC_NB

10mS

GROUP B

GROUP A

CPU MEM CTL &
DDR3_SODIMM PWRS

CPU_THM/SB/SB_SCL1/2
SB_KB/SPI/LPC ROM PWRS

KBC IS READY

KBC IS POWERED
BY +V3AL

+V1.1S/+VLDT

VRM_PWRGD

CPU_VDDR

VDD_CORE

VDDNB_CORE

+V2.5S

(CPU_VDDA_2.5_RUN)

+V1.8S

+V3S/+V5S/+V1.5S
CORE_PWEN
SLP_S3#

M_VREF/+0.75S

+V1.5

(CPU_VDDIO_SUS)

RESUME_PWEN
SLP_S5#

SB_PWRBTN#

RSMRST#

DUAL RAILS

ALWAYS_PW_EN

EC_PWRBTN#

AC_OK

(AC_IN DETECT)

+V3AL/+V5AL

5ms

POWER BUTTON PRESSED

+VIN/+19V

CHANGE by

ALAN W 17-Aug-2009

INVENTEC

TITLE

ST145a-UMA

CPU_VDDR & +V1.1A & +V1.1S

CODE

SIZE

A3

DOC. NUMBER

Model_No X01

CS

SHEET

REV

OF

516

1

R849
100K_1%

2

1

R847

26.7K_1%

2

+VADP

7-

PWR-E

1

R848
200K_1%

2

1

R845

24.3K_1%

2

DGND

1

R846

26.7K_1%

2

DGND

SINGA_2WA1554_107111_7P

DGND
PWR-A
PWR-A
PWR-A

1

R841
1K_1%

2

1

R842

13.7K_1%

2

DGND

Q815

FDMC8884

CN802

G1

AC IN_90W_5A

G

1

1

2

2

3

3

4

4

5

5

6

6

7

7

37-

CHANGE by

G2

G

ADP_ID

12

C851

1
2

0.1uF_25V

2200pF_50V_OPEN

RF

8D765

Q809

G

FDMC8884

S

4

123

L803

PWR-B

1 2

PCMB103T_8R2MS

8765

1

D

G

PWR-B

4 1

DGND

1
2

R899

2

0402_OPEN

S

12

23

C847

56pF_50v

RF

C817

C905

0402_OPEN

4.7uF_25v

1

R850
10K_5%

2

C846

1

0.0015uF_50V

2

CELLSEL#=0,Vcharger=12.6V
CELLSEL#=1,Vcharger=16.8V

ALAN W 27-Jul-2009

AMBER

AC_LED

CN539 Pin6

WHITE

9 cell_2.8AHr_93W_8.78A

+VBATR

9-,10-,11-,12-,13-,35-,47-

PWR-A

C857

C855

C852

1

1

2

2

4.7uF_25v

4.7uF_25v

DGND

PWR-E

1
2

Icharger=3A

1
2

4.7uF_25v

1
2

C860

4.7uF_25v

C1411

C853

12

33pF_50V_OPEN

1 2

3 4

C901

1
2

CHARGE_GND

C1412

12

1
2

C814

0.1uF_16V

33pF_50V_OPEN

RF

R852

0.01_1%

C900

0.1uF_16v

2

1

C899

1
2

PWR-A

0.1uF_25V

0.1uF_25V

CHARGE_GND

INVENTEC

TITLE

ST145a-UMA

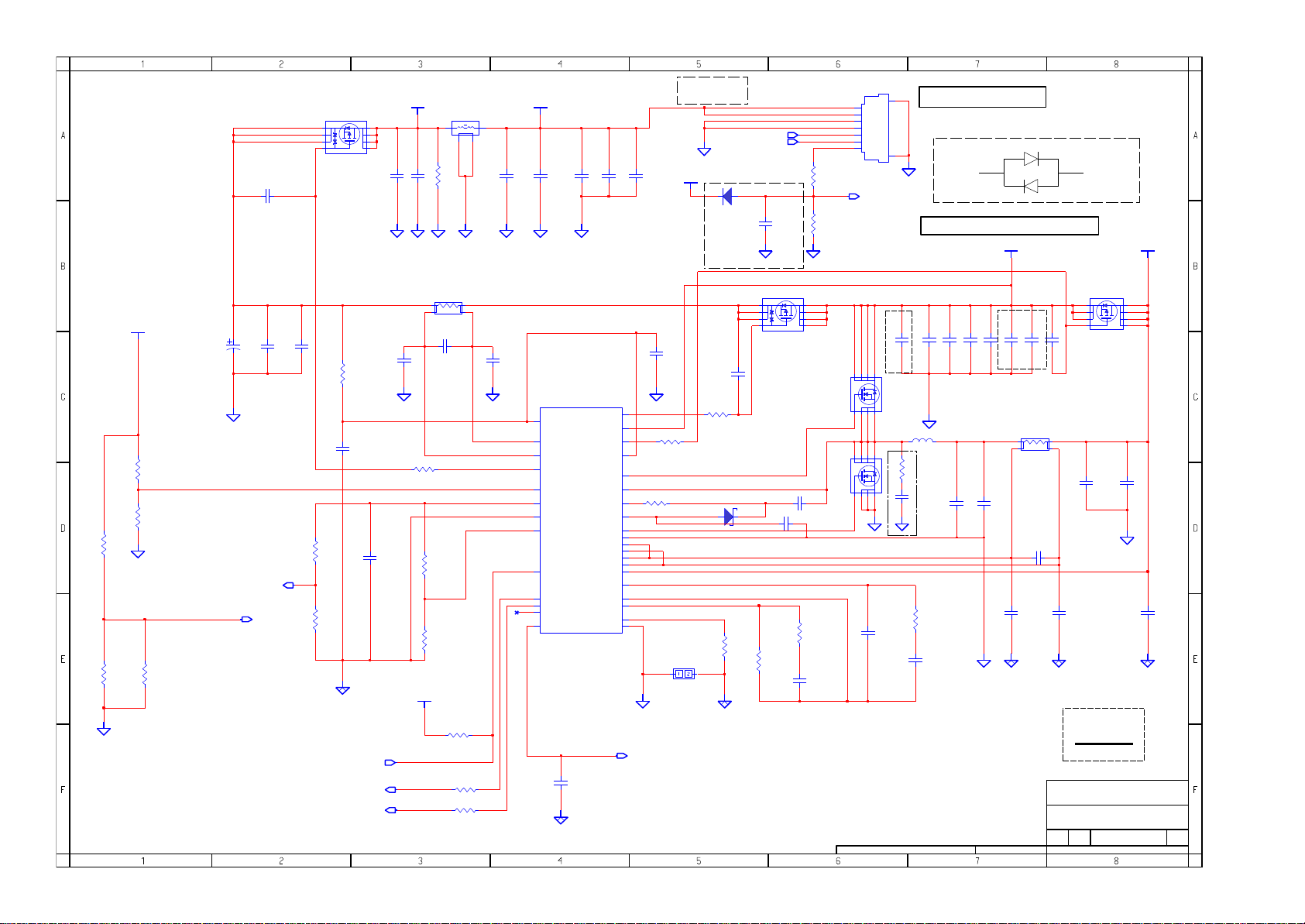

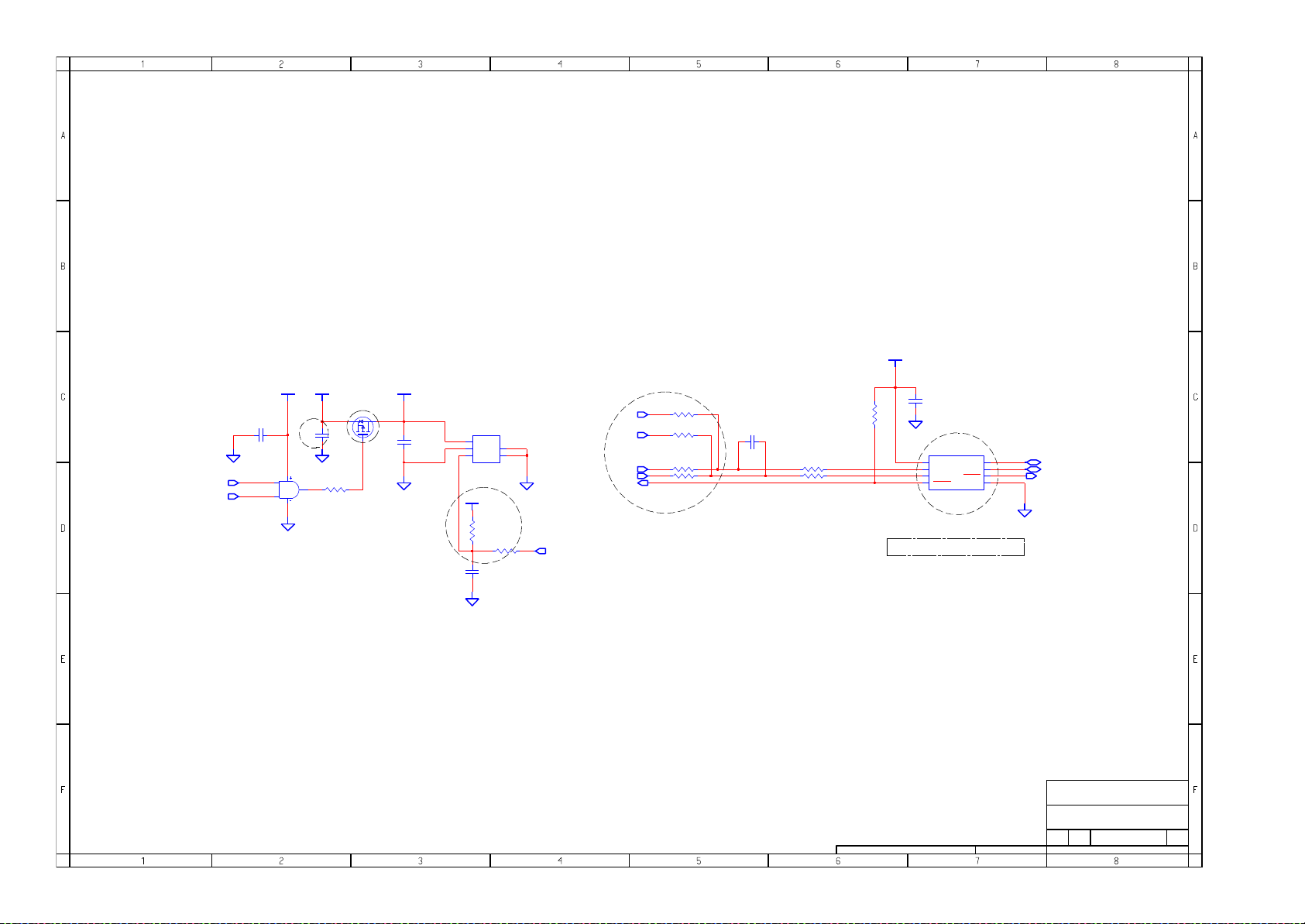

DC & BATTERY CHARGER

CODE

SIZE

A3

CS

Note:

SHEET

CHG_LED#
CN539 Pin5

Q801

1

D

S

2
3

G

AM7331P

1

C816

2

C859

4.7uF_25v

4.7uF_25v

DGND

C898

0.1uF_25V

high power trace

DOC. NUMBER

Model_No

+VBDC

8
7
6
54

1
2

PWR-A

CHARGE_GND

OF

8-

PWR-E

1
2

REV

X01

517

AC IN

+V3AL

7-,8-,9-,29-,37-

PWR-B

1SS355W

D800

21

PWR-A

AMBER#

WHITE#

1
2

38­38-

C843

0.0015uF_50V

DGND

PWR-E

C842

0603_OPEN

PWR-A

1 2

ANALOG_AM7333P_POWER33_8P

Q808

S

D

1

8

2

7
3
4

PWR-E
6
5

G

DGND

C838

10pF_50v

1
2

DGND

+VADP

7-

1
2

0.1uF_25V

C836

DGND

L802

NFM60R30T222

1 2

3

4

1

R837
15K_5%

2

DGND

+VADPTR

1
2

C837

10pF_50v

+VADPTR

1
2

DGNDDGND

PWR-E

C839

0.1uF_25V

C811

1uF_25v

1
2

1
2

DGND

C834

C835

0.1uF_25V

0.1uF_25V

1
2

prevent KBC latchup

D804

1 3

1
2

1

R896
33K_5%

2

Q800

D

S

8

1

7

2

6

3

5

4

G

ANALOG_AM7333P_POWER33_8P

PWR-B

C904

0.1uF_16v

2

1

1 2

C903

1uF_25v

1

R843
18K_5%

2

1

R844
200K_5%

2

1

C845

2

100pF_50v

R840

1 2
3 4

0.01_1%

1

C841

1
2

0.1uF_25V

C840

1
2

0.1uF_25V

37-

PWR-A

1

R892
47K_5%

PWR-A

2

1

R890
100K_5%

2

1

R889
20_5%

2

C896

1
2

0.47uF_25V

0.1uF_25V

DGND

C895

1

1uF_10v

2

C848

1
2

R897

1 2

1K_5%

PWR-A

PWR-A

1 2

C849

0.1uF_16v

1

R891
100K_1%

2

1

R895
100K_1%

2

PWR-A

1
2

DGND

PWR-E

C850

0.1uF_25V

PWR-A

PWR-A

U802

12

VCC

3

ACN

4

ACP

6

BYPASS#

5

ACDET

11

VREF5

10

AGND

15

TS

1

CHGEN#

14

SCL

13

SDA

25

ALARM#

17

IOUT

TI_BQ24721C_QFN_32P

ACDRV#

BATDRV#

PVCC

HIDRV

BTST

REGN

LODRV

PGND
SYNP
SYNN

ISYNSET

C844

2

33uF_25v

DGND

ADP_PRES

37-

PWR-APWR-A

AC_OK

PWR-E

1
2

C902

0.1uF_25V

DGND

PWR-A

2

23

SYS

SRP
SRN
BAT

EAO

EAI

FBO

TML

1 2

24

32

30

29

PH

R898

1 2

PWR-A

31

0_5%

PWR-A

28

27

DGND

26
22
21
20
19
18

7

8
9

16
33

R904

1K_5%

PWR-A

PWR-A
PWR-A

PWR-A

DGND

PWR-A

C812

0.1uF_16V

1 2

1K_5%

PWR-A

BAT54_30V_0.2A

PWR-A

PWR-A

R901

PAD5001

CHARGE_GND

BATT_CLK

BATT_DAT

CHG_EN#

PWR-A

PWR-B

37-

8-,37-

8-,37-

+V3AL

7-,8-,9-,29-,37-

SMBUS

SMBUS

R851

1 2

200K_5%

R894

1 2

10_5%

R893

1 2

10_5%

PWR-A

PWR-A

PWR-A

CHARGE_GND

1
2

PWR-A

C897

0.1uF_10V

37-

POWERPAD1x1m

CHARGE_GND

I_ADP

9cell_2.8AHr_93W_8.78A

BATT_DAT
BATT_CLK

BATT_ID

BATT_A_IN#

7-,37­7-,37­37­37-

7-,8-,9-,29-,37-

+V3AL

1

3

PWR-B

2

CHENMKO_BAV99

DGND

PWR-B

DGND

+V3AL

1
2

C813

7-,8-,9-,29-,37-

1

R1400
100K_5%

2

100pF_50V

0402_OPEN

12

C854

DGND

C856

12

100pF_50V

DGND

R807
R805
R803

R801

C858

12

100pF_50V

100_5%

1 2

100_5%

2

1

1 2

100_5%

1 2

100_5%

PHP_PESD5V0S1BB_SOD523_2P

+V3AL

7-,8-,9-,29-,37- 7-,8-,9-,29-,37-

PWR-B

2009/10/14

1

2

D900

R802

2.2K_5%

7-,8-,9-,29-,37-

+V3AL

1

3

PWR-B

2

CHENMKO_BAV99

DGND

1

R806

2.2K_5%

2

7-,8-,9-,29-,37-

+V3AL

D801

CHENMKO_BAV99

DGND

7-,8-,9-,29-,37-

+V3AL

D802

PWR-B

1

3

D803

2

1

3

2

CHENMKO_BAV99

DGND

+V3AL

PWR-B

1

R804
100K_5%

2

PWR-A

PWR-A

12

12

D901

PHP_PESD5V0S1BB_SOD523_2P

DGND

12

D902

D903

PHP_PESD5V0S1BB_SOD523_2P

PHP_PESD5V0S1BB_SOD523_2P

2009/11/26

12

C815

0.1uF_25V

DGND

+VBDC

7-

FOX_BP02083_B69B5_7H_8P

D904

1
2

DGND

CN800

1
2
3
4
5
6
7
8

1
2
3
4
5

G1

G

6

G2

G

7
8

DGND

INVENTEC

TITLE

ST145a-UMA

BATTERY CONN

CODE

SIZE DOC. NUMBER REV

A3

CS

27-Jul-2009ALAN W

SHEET OFCHANGE by

8 51

X01Model_No

Typ@9.6A

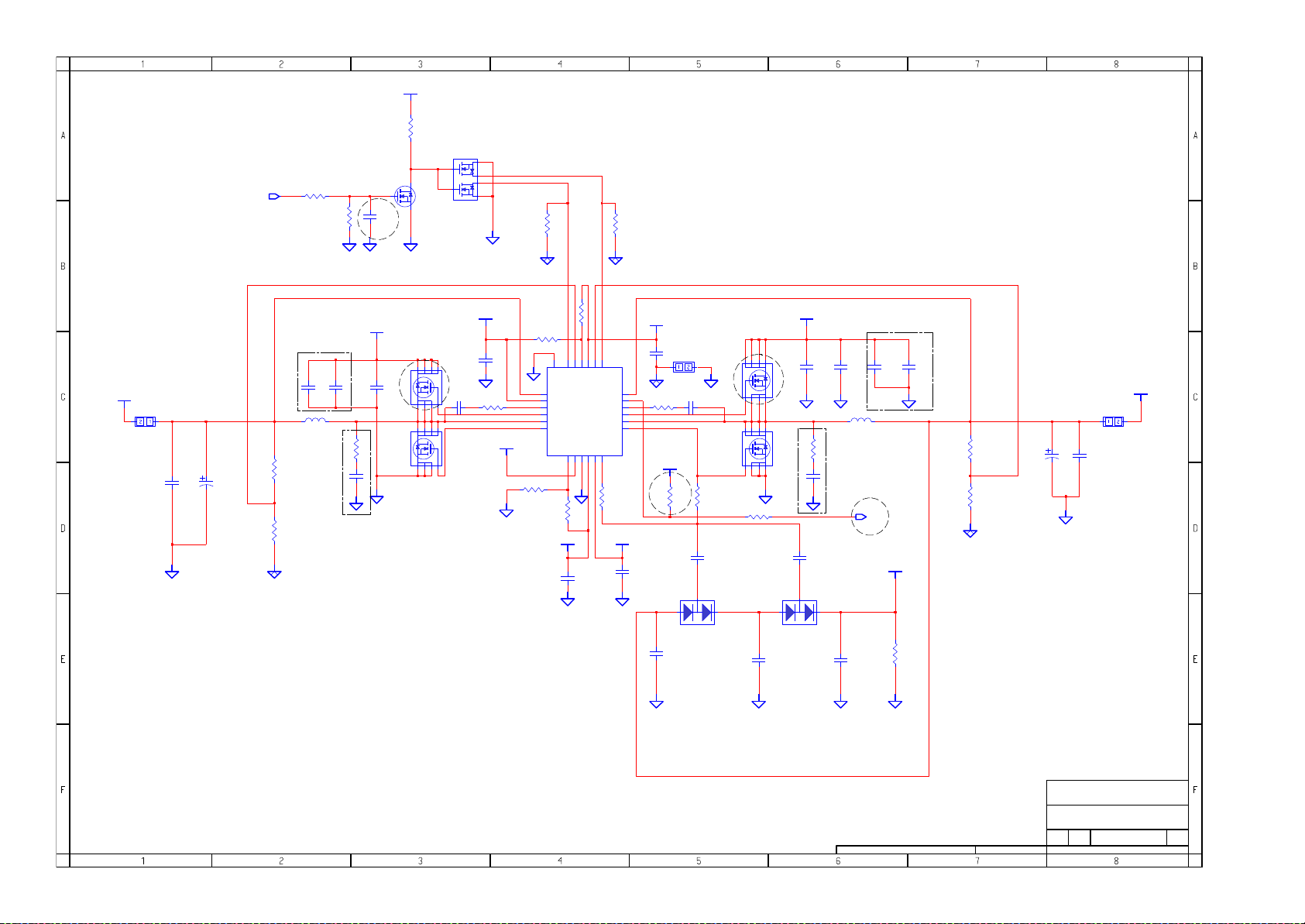

+V3A OCP = 6.2A

Vout=(R1266/R1267+1)*2

+V3A

11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

PAD804

POWERPAD_2_0610

C1333

10uF_6.3V

1
2

ALWAYS_PW_EN

1

C1359

DGND

330uF_6.3V

2

R1262

1 2

37-

0_5%

7-,9-,10-,11-,12-,13-,35-,47-

12

RF

L851

1 2

CYNTEC_PCMC063_3R3

1

R1266

6.8K_1%

2

1

R1267
10K_1%

2

PWR-A

51125GND

1

R1261

10K_5%

2

DGND

C1374

C1375

12

2200pF_50V_OPEN

SSM3K7002FU

C1327

12

2009/11/07

+VBATR

1
2

C1380

0.1uF_25V_OPEN

4.7uF_25v

PWR-C

1

SI7716ADN_T1_GE3

R1321

2

0402_OPEN

12

C1400

0402_OPEN

RF

R1305
100K_5%

Q840

1

0.1uF_16V

DGND

8/14

AON7410

+V5AL

PWR-A

9-

1

2

3

D

G

S

2

Typ@0.05A

D

Q850

S

D

Q851

PWR-A

DGND

8 7 6 5

2 3

8 7 6 5

DGND

G

41

G

41S2 3

U825

1

S1

2

G1

6

D1

3

D2

5

G2

4

S2

2N7002DW

10uF_6.3V

0.1uF_16V

DGND

+V3AL

7-,8-,9-,29-,37-

C1358

1

DGND

2

C1357

R1311

1 2

PWR-C

0_5%

12

RICH_RT8205EGQW_WQFN_24P

2VREF

9-

7-,9-,10-,11-,12-,13-,35-,47-

R1268

95.3K_1%

0402_OPEN

PWR-C

PWR-C

PWR-C

R1309

1 2

330K_5%

4.7uF_25v

PWR-A

51125GND

R1308

1 2

DGND

8
9

11
12

R1310
1M_5%

C1356

1

2

GND

VOUT2
VREG3

UGATE2
PHASE2

PWR-A

1

R1263

90.9K_1%

2

PWR-APWR-A

51125GND

R1306

0_5%

1

1

ENTRIP1

VOUT1

BOOT1BOOT2

NC

18

1

R1301
0402_OPEN

2

+V5AL+VBATR

1
2

2VREF

9-

C1328

1

PWR-A

2

51125GND

247
23

R1304

1 2

22

PWR-C

2110

0_5%

20
19

PWR-C

2009/11/07

+V3AL

Typ@0.02A

9-

C1355

10uF_6.3V

DGND

CHENMKO_BAV99

0.22uF_6.3v

POWERPAD1x1m

PAD5002

C1354

PWR-C

1 2

7-,8-,9-,29-,37-

1

R1510

2

100K_5%

1
2

2

0.1uF_16V

1

R1303
0_5%

2

C1352

0.1uF_16V

3

CHENMKO_BAV99

1

8/14

G

PWR-C

G

1 2

2

3

4

25

6

2

FB15FB2

REF

TONSEL

ENTRIP2

PGOOD

U826

UGATE1
PHASE1
LGATE1LGATE2

SKIPSEL

GND

VIN

VREG5

EN

14

15

16

17

13

DGND

1

2

1

DGND

2

D826

C1350

1
2

0.1uF_25V

DGND DGND DGND DGND

4

4

R1302
0_5%

1
2

8D765

Q848

AON7410

S

123

8

765

D

Q849

SI7716ADN_T1_GE3

S

123

DGND

2

C1349

0.1uF_25V

+VBATR

7-,9-,10-,11-,12-,13-,35-,47-

C1379

1
2

4.7uF_25v

DGND

PWR-C

12

0402_OPEN

12

0402_OPEN

DGNDDGND

C1353

1
2

0.1uF_16V

3

1

D825

R1338

C1378

4.7uF_25v

DGND

L850

1 2

10-

C1377

12

0.1uF_25V_OPEN

RF

+V1.1A_EN

1
2

CYNTEC_PCMC063_3R3

C1399

RF

2009/11/07

+V15A

C1351

1
2

1uF_25V

12

14-,40-

1

R1299

5.1M_5%

2

C1376

2200pF_50V_OPEN

DGND

PWR-A

51125GND

1

R1265

15.4K_1%

2

1

R1264
10K_1%

2

10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

1

C1373

2

330uF_6.3V

DGND

Typ@8.6A

+V5A OCP = 6.8A

Vout=(R1265/R1264+1)*2

+V5A

PAD806

PWR-E

C1398

1
2

10uF_6.3V

POWERPAD_2_0610

INVENTEC

TITLE

ST145a-UMA

+V3.3A & +V5A & +V2.5S

CODE

DOC. NUMBERSIZE

Model_No X01

A3

CS

CHANGE by OF

ALAN W 27-Jul-2009

SHEET

REV

519

2009/11/07

+V1.1A_EN

RSMRST#

9-

31-,37-

R1298

0_5%

1 2

R1293

0_5%

1 2

C1326

0402_OPEN

1

1

2

2

DGND

+V1.2S_GND

V1.1A_PG

C1348

1uF_6.3v

U824

1
2
3
4
5
6
7

PWR-A

TI_TPS51117_QFN_14P

R1296

1 2

10_5%

R1297

1 2

180K_5%

EN_PSV
TON
VOUT
V5FILT
VFB
PGOOD
GND

PAD5003

POWERPAD1x1m

PWR-E

VBST
DRVH

V5DRV

DRVL

PGND

+V5A

9-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

765

8

8/14

D

Q839

G

C1325

R1260

0.1uF_16V

0_5%

1 2

14
13
12

LL

11

TRIP

10
9
8
15

TML

1

DGND

2

C1324

1uF_6.3v

1 2

PWR-A

+V1.2S_GND

1

R1259

2

10.7K_1%

Q838

SI7716ADN_T1_GE3

AON7410

4 1S23

8765

D

G

4 1S23

DGND

+VBATR

1

C1320

2

4.7uF_25v

4.7uF_25v
L845

1 2

PCMC063T_2R2MN

12

R1203

0402_OPEN

12

330uF_2.5V

C1300

0402_OPEN

DGND

RF

7-,9-,11-,12-,13-,35-,47-

C1323

1
2

DGND

C1301

12

0.1uF_25V_OPEN

RF

1

DGND

R1295

5.11K_1%

2

1

2

+V1.2S_GND

0402_OPEN

R1294
10K_1%

1

2

+V1.1A OCP = 9A

Vout=(R1295/R1294)*0.75

2200pF_50V_OPEN

DGND

PAD803

POWERPAD_2_0610

C1347

1
2

+V1.1A

14-,32-

Typ@ 7.42A

C1321

C1322

12

12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

U815

ANPEC_APL5315_12BI_TRL_SOT23_5P

3

VIN4VOUT

DEFAULT_NET_TYPE

R1066

1 2

10K_5%

2009/09/28

C1501

0.1uF_16V

51

SET

SHDN

GND

2

DGND

12

C1066

10uF_6.3v

1
2

Typ@0.25A

Vout=(R1002/R1062)*0.8

+V2.5S

18-

1

R1002
22K_1%

2

1

R1062
10K_1%

2

DGND

1
2

C1061

10uF_6.3v

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

+V1.2A & VCC_NB

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEET OF

REV

5110

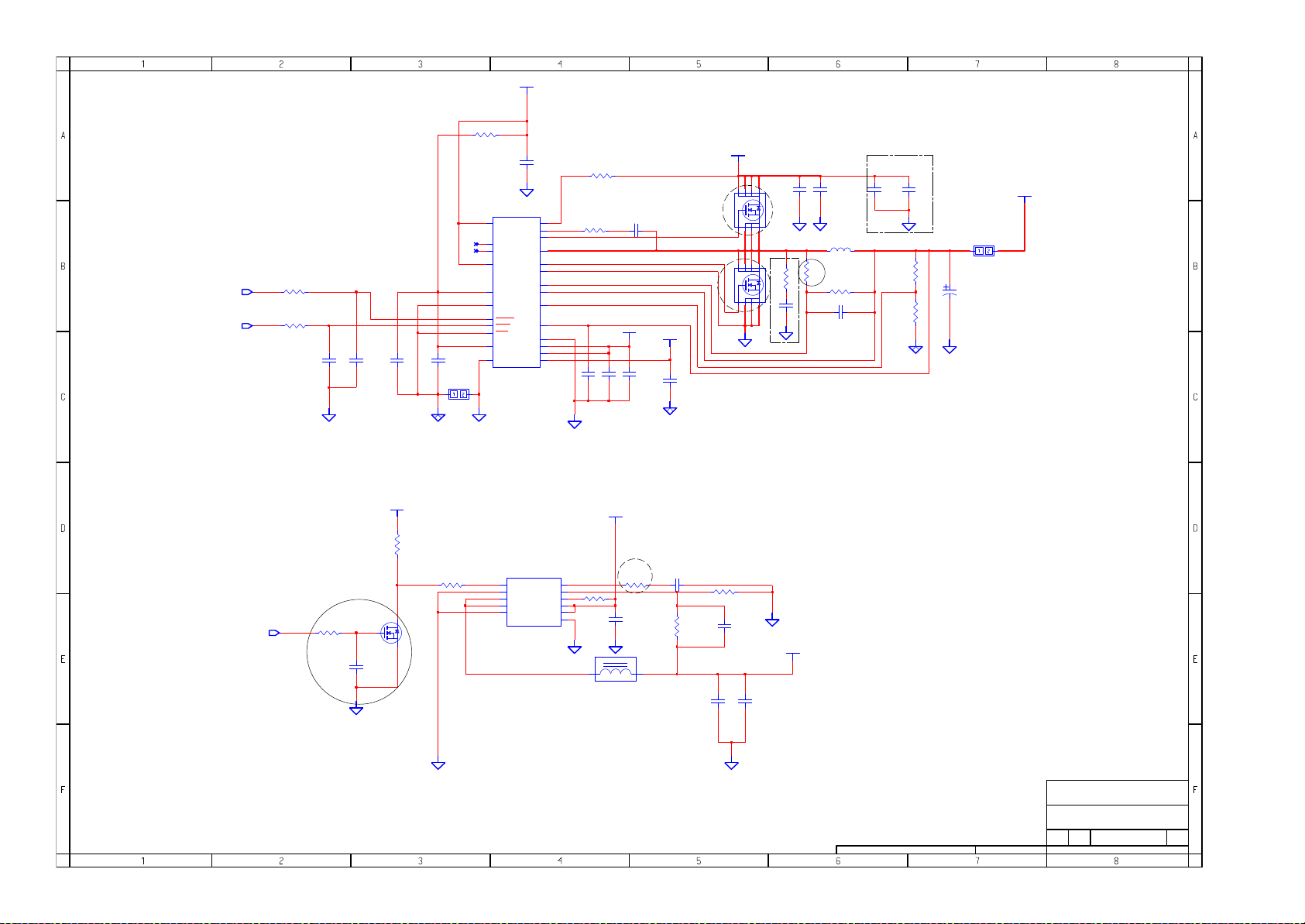

CORE_PWEN

RESUME_PWEN

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

11-,37-

37-,38-

R853

1 2

0_5%

R900

1 2

0_5%

C906

0.1uF_10V_OPEN

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

C1502

1

1

2

2

DGND

0.1uF_10V_OPEN

DGND

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

PWR-A

R854

1 2

10_5%

1
2

U801

1

OVP

PWR-A

2

PGOOD1

3

PGOOD2

PWR-A

19

VDD

PGND1

23

VCC

21

AGND

4

STDBY

24

SHDN

22

SKIP

PGND2

10

REFIN

VTTS

25

GND

MAX_MAX17000ETG+_TQFN_24P

VTTR

PAD5004

DGND

1uF_6.3v

C907

1
2

DEFAULT_NET_TYPE

3300pF_50v

C864

1
2

POWERPAD1x1m

17000GND

NOTE: DDR3 REGULATOR

C908

DGND

TON
BST

CSH
CSL

VTTI

VTT

DH

LX

DL

FB

2.2uF_6.3v

14
17
15

16

18
20

13
12

11

9

7
8
5
6

10uF_6.3v

C865

PWR-A

DGND

R858

1 2

150K_5%

R857

0_5%

1 2

PWR-A

1

DGND

2

10uF_6.3v

1
2

C863

DGND

C867

0.1uF_16V

2

+V0.75S

PWR-A

26-,27-

1
2

C861

10uF_6.3v

Typ@9A

+VBATR

7-,9-,10-,12-,13-,35-,47-

1

8/14

Q817

G

PWR-D

M_VREF

PWR-A

1
2

PWR-A

17000GND

26-,27-

C862

AON7410

Q816

FDMS7670

0.33uF_10V

8/14

4 1S23

765

G

DGND

4

1

DGND

DGND

2

2

12

R902

12

C909

DGND

C868
C869

4.7uF_25v

4.7uF_25v

L805

1 2

PCMC063T_1R0MN

1

2009/09/09

R925

3K_1%

2

R926

1 2

1K_1%

C866

1 2

0.22uF_16v

D

8

D

0402_OPEN

S

123

0402_OPEN

RF

1

8765

C871

12

0.1uF_25V_OPEN

RF

PWR-D

R855

5.36K_1%

R856
10K_1%

12

DGND

PWR-A

17000GND

C870

2200pF_50V_OPEN

1

2

1

PWR-A

2

+V1.5 OCP = 10.2A

Vout=(R855/R856+1)*1

12-,14-,18-,19-,26-,27-,32-,33-

+V1.5

PAD801

POWERPAD_2_0610

1

C929

2

330uF_2V_15mR_Pana_-35%

DGND

PWR-D

CORE_PWEN

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

R1501

1 2

11-,37-

10K_5%

C1500

0.1uF_10V

SSM3K7002FU

1
2

DGND

+V5A

1M_5%

Q856

D

1

G

S

2009/09/09

3

2

12

R1500

R1083

750K_1%

1

DGND

DEFAULT_NET_TYPE

RICH_RT8015APQW_WDFN_10P

1

SHDN-RT

2

2

GND

3

LX

U816

4

LX

5

PGND

9-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

COMP

FB

VDD
PVDD
PVDD

GND

DGND

+V3A

PWR-D

2009/09/18

R1081

10K_5%

1 2

R1080

10_5%

L828

1 2

C1150

1
2

2.2uF_6.3v

DGND

10
9
8
7
6
11

1 2

LTF5022T_2R2N3R2_LC

C1151

1000pF_50V

2

1

1

2

C1153

22uF_6.3V

DGND

R1082
309K_1%

1 2

1
2

1
2

R1079

240K_1%
C1152
0402_OPEN

1

C1154

DGND

2

18-,21-,23-,24-,31-

+V1.8S

PWR-D

Typ@1.3A

Vout=(R1082/R1079+1)*0.8

22uF_6.3V

CHANGE by SHEET

INVENTEC

TITLE

ST145a-UMA

DDR3 POWER

SIZE REV

27-Jul-2009ALAN W

A3

DOC. NUMBERCODE

CS

11 51

X01Model_No

OF

SVC

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

C824

1
2

0.1uF_10V

10-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

MAX17480

VRM_PWRGD

VRD_PROCHOT#

R819

4.7K_5%

13­18-

Typ@4A

VDDNB_CORE

18-,19-

PWR-D

C918

1

1

2

C919

47uF_6.3V
47uF_6.3V
47uF_6.3V

1

2

2

4700pF_50V

C917

SVD

0

0

1

1

0

1

1

CPU_PWRGD_SVID_REG

+V5A

+V3S

1

2

1

2

R918

1 2

0_5%

PWR-A

1

C888

2

VDD_CORE

1.1V

1.0V0

0.9V

0.8V

C831

2.2uF_6.3V

MAX17480

CPU_SVC_R
CPU_SVD_R

CPU_PWEN

DEFAULT_NET_TYPE

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

1

R825
100K_5%

2

MAX17480

L804

1 2

PCMC063T_1R0MN

R882
511_1%

PWR-A

1 2

C889

0.22uF_16V
C890

R919
10_5%

1000pF_50V

R920

1 2

5.1K_5%

1
2

R874

143K_1%

1

1

R872

100K_1%

1 2

R826

100K_5%

1

2

PWR-A

1
2

2

2

18­18-

18-

1 2

13-,37-

R869

100_1%

PWR-E

1

R870
2_5%

2

C884

1
2

2200pF_50V

1

R827

13K_1%

2

C887

10uF_6.3V

1

2

0.1uF_16V

PAD800

POWERPAD1x1m

MAX_MAX17480GTL+_TQFN_40P

U800

39

OSC

12

40

TIME

R871

45.3K_1%

1

ILIM12

13

VDDIO

12

SVC

11

SVD

19

R873
0_5%

CPU-I

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

2

C886

C885

1 2

PWR-A

PWR-A

PGD_IN

8

SHDN

38

OPTION

20

PWRGD

30

VRHOT

31

THRM

2

ILIM3

3

IN3

4

IN3

5

LX3

6

LX3

7

BST3

9

OUT3

10

AGDN

DEFAULT_NET_TYPE

1 2

1

0.1uF_10V

R823

1 2

10_5%

32

25

27

BST1

VCC

VDD

29

DH1

28

LX1

26

DL1

33

CSP1

34

CSN1

18

CSP2

17

CSN2

23

BST2

21

DH2

22

LX2

24

DL2

36

FBAC1

35

FBDC1

37

GNDS1

15

FBAC2

16

FBDC2

14

GNDS2

PGND

41

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

R822

1 2

10_5%

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

R824

0.1uF_16V

0_5%

1

2

0_5%

2

C830

2200pF_50V

R821

3.01K_1%

1

1

C826

2200pF_50V

2

8/13

1

R820

3.01K_1%

PWR-A

18-

MAX17480

VDD1_FB#

C810

1

2

R800

1

12

2

VDD_CORE

12-,19-

2

1

R816

0402_OPEN

0.0047uF_50v

2
1

C823

+V5A

1
2

PWR-E

C828

4.7uF_6.3V

C827

R830

1

3.01K_1%

1

R817

51_5%

2

2

VDD1_FB

2

3.01K_1%

1

2

R828

1

100_1%

2

C832

0.0047uF_50v

18-

0.1uF_16V

1

R829

2

2

PWR-A

1

MAX17480

R832

1

100_1%

1

C833

0.0047uF_50v

2

2

MAX17480

1

2

R831

2

R833
51_5%

VDD_CORE

51_5%

18-

VDD0_FB

18-

VDD0_FB#

(Should routed in 5/5/5 pair and need to
have 10mil clearance to other traces.)

C808

12

RF

2200pF_50V_OPEN

12-,19-

PWR-E

1

7-,9-,10-,11-,12-,13-,35-,47-

12

4G1

C809

0.1uF_25V_OPEN

G

4

G

4

8D765

Q802

FDMS8692

S

23

123

765

123

C803

1
2

4.7uF_25v

8D765

Q805

S

FDMS8692

8

D

Q804

FDMS7660

S

C8061

C807

1

2

2

4.7uF_25v

4.7uF_25v

4.7uF_25v

0402_OPEN

12

0402_OPEN

+VBATR

7-,9-,10-,11-,12-,13-,35-,47-

C802

1
2

4.7uF_25v

8765

D

G

Q803

FDMS7660

4 1S23

(Should routed in 5/5/5 pair and need to
have 10mil clearance to other traces.)

1
2

12

R813

C822

RF

1
2

0402_OPEN

0402_OPEN

+VBATR

C805

100uF_25V

C804

4.7uF_25v

12

R812

12

C819

RF

1

2

C818

12

1

R811

1.5K_5%

2

C820

1
2

330pF_50V

PWR-A

C821

1

PWR-A

2

330pF_50V

1

2

C801

0.1uF_25V_OPEN

R818

1.5K_5%

12

1

R814

2.4K_1%

2

C800

2200pF_50V_OPEN

RF

ETQP4LR45XFC

1

R810

2.4K_1%

2

R809

1

4.02K_1%

C825

C829

0.22uF_10v

1 2

R815

R868

1 2

1 2

4.02K_1%

10K_1%_THER_NTC

L801

1 2

ETQP4LR45XFC

C880

330uF_2V_6mR_OPEN

Typ@38A

L800

1 2

R808

2

1 2

10K_1%_THER_NTC

1 2

0.22uF_10v

VDD_CORE

12-,19-

1

1

2

2

330uF_2V_6mR

VDD_CORE

12-,19-

1

C883

2

330uF_2V_6mR

C881

1

C882

2

330uF_2V_6mR

MAX17480

CHANGE by

INVENTEC

TITLE

ST145a-UMA

+VCC_CORE & +VCC_CORE_NB

CS

SHEET

DOC. NUMBERCODE

12 51

SIZE

27-Jul-2009ALAN W

A3

REV

X01Model_No

OF

VRM_PWRGD

DEFAULT_NET_TYPE

VCC_NB_PG

+VBATR

8/14

7-,9-,10-,11-,12-,35-,47-

G

S

123

4

8D765

G

S

123

4

8D765

8/14

4.7uF_25v

Q832

AON7410

C1197

1
2

L830

PCMC063T_1R0MN

12

R1109

0402_OPEN

12

C1176

0402_OPEN

RF

R1104 CHANGE TO 13.3K

1

C1198

4.7uF_25v

2

12

C1199

330uF_2.5V

VCC_NBSTRP_DATA

0

1.25

1 0.95

12

RF

R1104

10K_1%

1

2

R1102

23.2K_1%

C1174

12

0.1uF_25V_OPEN

1

2

1

PWR-A

2

+VCC_NB_GND

VCC_NB OCP = 10A

MAX 10A

C1175

2200pF_50V_OPEN

Typ@7.6A

VCC_NB

24-,47-

PAD802

POWERPAD_2_0610

Vout={R1104/[(R1100+R1099+R1101)//R1102]}*0.75

PWR-A

1

R1101
226K_1%

PWR-A

2

PWR-A

C1169

1
2

4700pF_25V

R1100

1 2

5.1K_1%

1 2

16.2K_1%

C1170

1
2

0.0015uF_50V

R1099

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

R1105

1 2

2009/09/28

R1068

47K_5%

12-

14-

2

1 2

8/17

C1128

0.1uF_10V

R1106

0_5%

1

DEFAULT_NET_TYPE

1
2

1
2

+VCC_NB_GND

C1171

1uF_6.3v

10_5%
R1067

1 2

180K_5%

1
2
3
4
5
6
7

EN_PSV
TON
VOUT

V5FILT

VFB
PGOOD
GND

U819

VBST

DRVH

V5DRV

DRVL
PGND

LL

TRIP

TML

TI_TPS51117_QFN_14P

PAD5005

POWERPAD1x1m

C1172

R1108
0_5%

0.1uF_16V

1
2

C1173

1uF_6.3v

PWR-A

+VCC_NB_GND

12

12

Q830

FDMS7670

1

R1107

2

3.92K_1%

14
13
12
11
10
9
8
15

RS880M

Power State
UVD Moe - High
UVD Mode - Low
Performance Mode

Battery Mode

High Performance Variant

RS880M

Power State
UVD Moe - High
UVD Mode - Low
Performance Mode

Battery Mode

23-

1

R1098

10K_5%

2

Enging Clock

500 MHz
380 MHz

500 MHz - 200MHz

200MHz

Enging Clock

380 MHz

200MHz

STRP_DATA

Northbridge
Core Voltage

1.1 V

0.95 V

1.1 V

0.95 V

Northbridge
Core Voltage

1.25 V590 MHz 550 MHz / 400 MHz

0.95 V

1.25 V590 MHz - 200MHz

0.95 V

STRP_DATA

0

UVD Clocks
550 MHz / 400 MHz
400 MHz / 300 MHz

n / a

n / a

UVD Clocks

400 MHz / 300 MHz

n / a

n / a

VCC_NB

1.1

0.951

+V5A

CPU_PWEN

12-,37-

R1504

1 2

10K_5%

C1601

1000pF_50V

2009/09/28

2

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

12

R1503

1M_5%

Q857

3

D

1

G

S

2

SSM3K7002FU

1

R1060

750K_1%

1 2

DEFAULT_NET_TYPE

U814

RICH_RT8015APQW_WDFN_10P

PWR-C

1
2
3
4
5

SHDN-RT
GND
LX
LX
PGND

COMP

PVDD
PVDD

10
9

FB

8

VDD

PWR-D

7
6
11

GND

L824

1

LTF5022T_2R2N3R2_LC

PWR-A

1

R1063

10_5%

C1127

2.2uF_6.3V

8/17

VDDR_0.9_EN

2

+V3A

9-,11-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

PWR-D

C1126

R1064

1000pF_50V

10K_5%

1 2

1 2

SSM3K7002FU

1
2

29-

C1051

22uF_6.3V

2009/09/28

PWR-A

Q827

3

PWR-A

D

G

1

S

1

R1061

2

31.6K_1%

12

2

R998

20.5K_1%

C1052

1

1

22uF_6.3V

2

2

2

R1065

1 2

100K_1%

1
2

Typ@1.5A

C1124

Vout=(R1061/R1065)*0.8

0402_OPEN

+V1.05S

CPU_VDDR

18-,19-

0.9_EN
0
1

CPU_VDDR

1.05

0.9

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

CODE

SIZE

A3

DOC. NUMBER

Model_No X01

CS

SHEET

REV

OF

5113

CORE_PWEN#

CORE_PWEN#

9-,11-,13-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

12

C1381
2200pF_50V

PWR-D

2009/11/29

34-

+V3A

Q843

6
5

2

1

R1323

1 2

0_5%

DEFAULT_NET_TYPE

+V5A

9-,10-,11-,12-,13-,35-,36-,37-,38-,42-,47-

Q847

6
5

2

1 3

R1320

1 2

0_5%

D

G

AO6402AL

D

G

AO6402AL

S

V3_EN

S

V5_EN

+V15A

9-,14-,40-

PWR-A

12

R1322

750K_5%

+V15A_RC

Q852

SSM3K7002FU

14-,37-

V35_EN

L

H

H

L

D

1

G

S

+V3S & +V5S

3V & 5V

0V

3

2

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

Typ@2.72A

PWR-D

4

470 OHM

1

R1325

470_5%

2

3

D

G

Q853

S

2

+V5S

20-,34-,35-,36-,38-,40-,41-,45-,47-

1

C1382

10uF_6.3V

2

NA

SSM3K7002FU

3

1

Typ@2.6A

4

1

C1372

10uF_10V

2

PWR-E

470 OHM

1

R1300

470_5%

NA

2

3

D

1

G

Q842

SSM3K7002FU

S

2

CORE_PWEN#

14-,37-

Q818

SSM3K7002FU

G

1

+V15A

D

S

9-,14-,40-

PWR-A

12

R903
1M_5%

3

2

9-,14-,40-

12

+V15A

+V1.5

PWR-A

12

R1204

11-,12-,18-,19-,26-,27-,32-,33-

PWR-D

Q820

6

D

5
2

1 3

AO6402AL

V1.5_EN

C910
3300pF_50V

2009/11/12

+V1.1A

1M_5%

4

S

G

10-,32-

PWR-D

Q835

8

D

7
6

5

G

SI7716ADN_T1_GE3

S

+V1.5S

G

1

1
2
3
4

18-,24-,25-,45-,47-,48-

PWR-C

470 OHM

1

R905
470_5%

2

3

D

Q819

SSM3K7002FU

S

2

Typ@6.8A

+V1.1S

Typ@1.23A

1

C911
10uF_6.3V

2

NA

15-,18-,19-,21-,22-,23-,24-,32-,47-

1

C1260
10uF_6.3V

2

V1.1A_PG

VCC_NB_PG

SYS_RST#

Q837

SSM3K7002FU

CORE_PWEN_D#

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

10-

13-

31-

R1147

R1146

R1179

1

1 2

1 2

2

100_5%

100_5%

100_5%_OPEN

+V3S

1 2

PWR-D

R1149

10K_5%

1

C1258
1000pF_50V

2

37-

ALL_PWGD_IN

37-

DEFAULT_NET_TYPE

3

D

G

1

12

C1302

S

2200pF_50V

2

470 OHM

1

R1181
470_5%

NA

2

3

D

1

G

Q836

SSM3K7002FU

S

2

INVENTEC

TITLE

ST145a-UMA

+V5S & +V3.3S & +V1.5S & +V1.2S

CODE

CHANGE by

ALAN W 27-Jul-2009

SIZE

A3

DOC. NUMBER

Model_No X01

CS

SHEET

REV

OF

5114

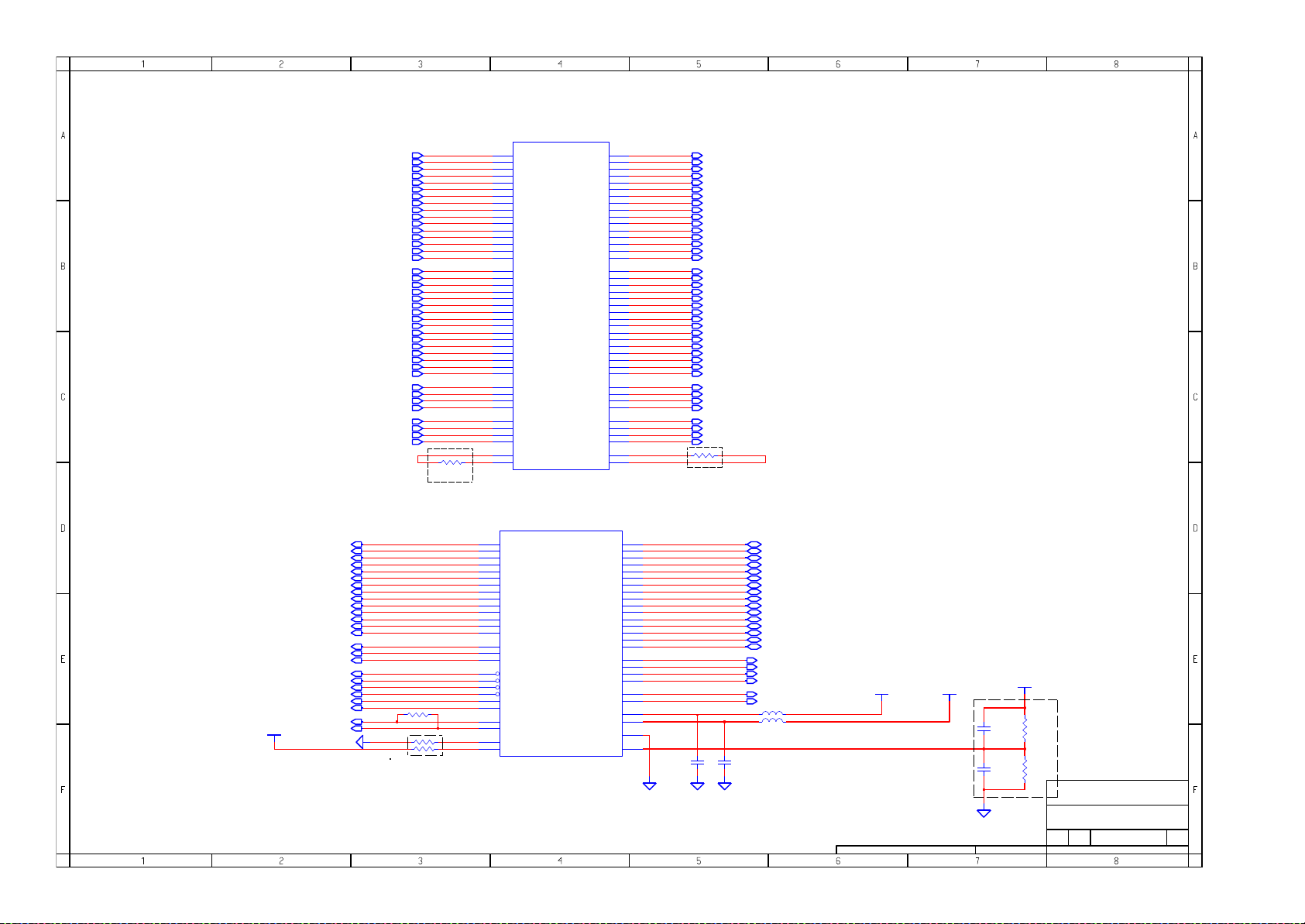

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

300mA

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V1.1S

14-,18-,19-,21-,22-,23-,24-,32-,47-

L832

200mA

BLM11A121S_OPEN

CLK_VDD

15-

EXT_PCIE_LAN_R_CLKREQ#

EXT_PCIE_WLAN_R_CLKREQ#

2009/09/28

X803

C1219

2009/09/18

C1218

1 2

33pF_50V

30PPM

1 2

33pF_50V

14.318MHz

12

15-

CLKGEN_X1

12

R1156

1M_5%_OPEN

N.C

15-

CLKGEN_X2

Place close to CLKGEN within 500mils

+V3S

BLM11P600S_OPEN

12

CLKGEN_X1
CLKGEN_X2

SB_3S_SMCLK

SB_3S_SMDATA

L831

2

1

1
2

22uF_6.3V

+V3S

L833

BLM11A121S_OPEN

1

1

2

2

C1227

0.1uF_10V

0.1uF_10V

Place Decoupling Cap close to each
VDD pin as possible

15­15-

26-,27-,31-,40­26-,27-,31-,40-

R1130 10K_5%

R1161

43-

R1132

48-

DEFAULT_NET_TYPE

CLK_VDD

15-

Place Decoupling Cap close to each
VDD pin as possible

1

1

2

C1200

12

C1263

R1133
R1160
R1136
R1135
R1159

2

0.1uF_10V

1
2

0.1uF_10V

1 2

1 2

1 2

1 2
1 2
1 2
1 2
1 2

C1201

C1221

0.1uF_10V

Place Decoupling Cap close to each
VDD pin as possible

1
2

C1223

0.1uF_10V

C1202

475_1%

475_1%

10K_5%
10K_5%
10K_5%
10K_5%
10K_5%

CLK_VDD

1

1
2

2

C1204

C1261

0.1uF_10V

0.1uF_10V

PWR-B

12

C1222

47pF_50V

12

C1225

47pF_50V

EXT_PCIE_LAN_CLKREQ#

EXT_PCIE_WLAN_CLKREQ#

15-

12

12

C1203

C1220

47pF_50V

47pF_50V

12

12

C1262

47pF_50V

C1226

47pF_50V

SMBus Address is "D2H"

REA_RTM880N_796_VB_GRT_QFN_64P

U821

4

VDDDOT

16

VDDSRC

26

VDDATIG

35

VDDSB

40

VDD_SATA

48

VDDCPU

55

VDDHTT

56

VDDREF

63

VDD48

11

VDDSRC_IO

17

VDDSRC_IO

25

VDDATIG_IO

34

VDDSB_IO

47

VDDCPU_IO

1

GND48

7

GNDDOT

10

GNDSRC

18

GNDSRC

24

GNDATIG

33

GNDSB

43

GNDSATA

46

GNDCPU

52

GNDHTT

60

GNDREF

61

X1

62

X2

2

SMBCLK

3

SMBDAT

51

PD#

23

CLKREQ0#

38

CLKREQ4#

39

CLKREQ3#

44

CLKREQ2#

45

CLKREQ1#

REF0-SEL_HTT66

REF1-SEL_SATA

CPUK8_0T

CPUK8_0C

ATIG0T

ATIG0C

ATIG1T

ATIG1C

SB_SRC0T
SB_SRC0C
SB_SRC1T
SB_SRC1C

SRC0T

SRC0C

SRC1T

SRC1C

SRC2T

SRC2C

SRC3T

SRC3C

SRC4T

SRC4C

SRC7T-27M_SS

SRC7C-27M
SRC6T-SATAT
SRC6C-SATAC

HTT0T-66M
HTT0C-66M

48MHz_0

REF2-SEL_27

TGND

65

50
49

30
29
28
27

37
36
32
31

22
21
20
19
15
14
13
12
9
8
6
5
42
41

54
53

64

59
58
57

CPU_CLKP
CPU_CLKN

CLK_NBGFX_REFP
CLK_NBGFX_REFN

NBLINK_CLKP
NBLINK_CLKN

RS805

LAN_CLKP

RS811

LAN_CLKN
WLAN_CLKP
WLAN_CLKN

RS808

HT_REFCLKP
HT_REFCLKN

CLK_NB_R_CLK

SEL_SATA

R1155

EXT CLK

RS8070_5%_OPEN

3
4

RS802

4

EXT CLK

4

EXT CLK

4

3
4

EXT CLK

EXT CLK

0_5%_OPEN

RS801

4

CLK_48M

SEL_HTT66

33_5%_OPEN

158_1%

2
1

0_5%_OPEN

23
1

1
23

0_5%_OPEN

0_5%_OPEN

23
1

2
1

23
1

8.2K_5%_OPEN

R1154

1 2

12

CLK-HCLK-A

CLK-HCLK-A

0_5%_OPEN

EXT CLK

1 2

R1158

1 2

R1180

EXT CLK

07/17 Change

R1153

R1157

8.2K_5%_OPEN

1

R1131
261_1%_OPEN

2

CLK-ATIG-A
CLK-ATIG-A

CLK_VDD

R1151

8.2K_5%_OPEN

1 2

12

R1152

8.2K_5%_OPEN

CHANGE by

18-,29-

18-,29-

23­23-

29-

29­23-,29­23-,29-

29-,43­29-,43­29-,48­29-,48-

23-,29­23-,29-

22_5%_OPEN

22_5%_OPEN

15-

1 2

1

R1129

90.9_1%

2

CPU_R_CLKP

CPU_R_CLKN

CLK_R_NBGFX_REFP
CLK_R_NBGFX_REFN

SBSRC_CLKP
SBSRC_CLKN
NBLINK_R_CLKP
NBLINK_R_CLKN

PCIE_R_LAN_CLKP
PCIE_R_LAN_CLKN
PCIE_R_WLAN_CLKP
PCIE_R_WLAN_CLKN

HT_R_REFCLKP
HT_R_REFCLKN

C1224

4.7pF_50V_OPEN

1 2

R1150

8.2K_5%_OPEN

1 2

C1217

12

12pF_50V_OPEN

12

CPU-200MHz

GFX_REF-100MHz

ALINK-100MHz
PCIE & ALINK-100MHz

LAN-100MHz
WLAN-100MHz

HTREF-100MHz

31-

CLK_SB48

29-,39-

CLK_CR48

Pin54/53 : 66MHz 3.3V single ended HTT clock

1

SEL_HTT66

0*

Pin54/53 : 100MHz diff HTT clock

1*

SEL_SATA

SEL_27

1
2

Pin42/41 : 100MHz No_SSC-Diff SATA clock

0

Pin42/41 : 100MHz SRC clock

1

Pin6/5 : 27MHz / 27_SSC MHz

0*

Pin6/5 : 100MHz SRC clock

23-

CLK_NB_OSC

C1216

12pF_50V_OPEN

27-Jul-2009ALAN W

SB48-48MHz
5 IN 1-48MHz

NB_REF-14.318MHz

INVENTEC

TITLE

ST145a-UMA

CLK GEN

SIZE

CODE

CS

SHEET

DOC. NUMBER

15 51

A3

REV

X01Model_No

OF

L0_CLKIN1H
L0_CLKIN1L
L0_CLKIN0H
L0_CLKIN0L

L0_CTLIN1H

L0_CTLIN1L

L0_CTLIN0H

L0_CTLIN0L

L0_CADIN15H
L0_CADIN15L
L0_CADIN14H
L0_CADIN14L
L0_CADIN13H
L0_CADIN13L
L0_CADIN12H
L0_CADIN12L
L0_CADIN11H
L0_CADIN11L
L0_CADIN10H
L0_CADIN10L

L0_CADIN9H
L0_CADIN9L
L0_CADIN8H
L0_CADIN8L

L0_CADIN7H
L0_CADIN7L
L0_CADIN6H
L0_CADIN6L
L0_CADIN5H
L0_CADIN5L
L0_CADIN4H
L0_CADIN4L
L0_CADIN3H
L0_CADIN3L
L0_CADIN2H
L0_CADIN2L
L0_CADIN1H
L0_CADIN1L
L0_CADIN0H
L0_CADIN0L

CN810-1

21­21­21­21-

21­21­21­21-

21­21­21­21­21­21­21­21­21­21­21­21­21­21­21­21-

21­21­21­21­21­21­21-

21­21­21­21­21­21­21­21-

J5

L0_CLKIN_H1

K5

L0_CLKIN_L1

J3

L0_CLKIN_H0

J2

L0_CLKIN_L0

P3

L0_CTLIN_H1

P4

L0_CTLIN_L1

N1

L0_CTLIN_H0

P1

L0_CTLIN_L0

N5

L0_CADIN_H15

P5

L0_CADIN_L15

M3

L0_CADIN_H14

M4

L0_CADIN_L14

L5

L0_CADIN_H13

M5

L0_CADIN_L13

K3

L0_CADIN_H12

K4

L0_CADIN_L12

H3

L0_CADIN_H11

H4

L0_CADIN_L11

G5

L0_CADIN_H10

H5

L0_CADIN_L10

F3

L0_CADIN_H9

F4

L0_CADIN_L9

E5

L0_CADIN_H8

F5

L0_CADIN_L8

N3

L0_CADIN_H7

N2

L0_CADIN_L7

L1

L0_CADIN_H6

M1

L0_CADIN_L6

L3

L0_CADIN_H5

L2

L0_CADIN_L5

J1

L0_CADIN_H4

K1

L0_CADIN_L4

G1

L0_CADIN_H3

H1

L0_CADIN_L3

G3

L0_CADIN_H2

G2

L0_CADIN_L2

E1

L0_CADIN_H1

F1

L0_CADIN_L1

E3

L0_CADIN_H0

E2

L0_CADIN_L0

L0_CADOUT_H15

L0_CADOUT_L15

L0_CADOUT_H14

L0_CADOUT_L14

L0_CADOUT_H13

L0_CADOUT_L13

L0_CADOUT_H12

L0_CADOUT_L12

L0_CADOUT_H11

L0_CADOUT_L11

L0_CADOUT_H10

L0_CADOUT_L10

HYPERTRANSPORT

L0_CLKOUT_H1

L0_CLKOUT_L1

L0_CLKOUT_H0

L0_CLKOUT_L0

L0_CTLOUT_H1
L0_CTLOUT_L1
L0_CTLOUT_H0
L0_CTLOUT_L0

L0_CADOUT_H9

L0_CADOUT_L9

L0_CADOUT_H8

L0_CADOUT_L8

L0_CADOUT_H7

L0_CADOUT_L7

L0_CADOUT_H6

L0_CADOUT_L6

L0_CADOUT_H5

L0_CADOUT_L5

L0_CADOUT_H4

L0_CADOUT_L4

L0_CADOUT_H3

L0_CADOUT_L3

L0_CADOUT_H2

L0_CADOUT_L2

L0_CADOUT_H1

L0_CADOUT_L1

L0_CADOUT_H0

L0_CADOUT_L0

Y4
Y3
Y1
W1

T5
R5
R2
R3

T4
T3
V5
U5
V4
V3
Y5
W5
AB5
AA5
AB4
AB3
AD5
AC5
AD4
AD3

T1
R1
U2
U3
V1
U1
W2
W3
AA2
AA3
AB1
AA1
AC2
AC3
AD1
AC1

21-

L0_CLKOUT1H

21-

L0_CLKOUT1L

21-

L0_CLKOUT0H

21-

L0_CLKOUT0L

21-

L0_CTLOUT1H

21-

L0_CTLOUT1L

21-

L0_CTLOUT0H

21-

L0_CTLOUT0L

21-

L0_CADOUT15H

21-

L0_CADOUT15L

21-

L0_CADOUT14H

21-

L0_CADOUT14L

21-

L0_CADOUT13H

21-

L0_CADOUT13L

21-

L0_CADOUT12H

21-

L0_CADOUT12L

21-

L0_CADOUT11H

21-

L0_CADOUT11L

21-

L0_CADOUT10H

21-

L0_CADOUT10L

21-

L0_CADOUT9H

21-

L0_CADOUT9L

21-

L0_CADOUT8H

21-

L0_CADOUT8L

21-

L0_CADOUT7H

21-

L0_CADOUT7L

21-

L0_CADOUT6H

21-

L0_CADOUT6L

21-

L0_CADOUT5H

21-

L0_CADOUT5L

21-

L0_CADOUT4H

21-21-

L0_CADOUT4L

21-

L0_CADOUT3H

21-

L0_CADOUT3L

21-

L0_CADOUT2H

21-

L0_CADOUT2L

21-

L0_CADOUT1H

21-

L0_CADOUT1L

21-

L0_CADOUT0H

21-

L0_CADOUT0L

FOX_PZ63823_284S_41F_TEMP_638P

A1

AF1

S1

Top View

A26

Layout: Add stitching caps if crossing plane split.

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

CPU-1

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEET

REV

OF

5116

MA_CLK_DDR2

MA_CLK_DDR1
MA_CLK_DDR1#
MA_CLK_DDR2#

MA_CS1#
MA_CS0#

MA_ODT1
MA_ODT0

MA_CAS#

MA_WE#

MA_RAS#

MA_BA2
MA_BA1
MA_BA0

MA_CKE1
MA_CKE0

MA_A(15:0)

MA_DQS(7)

MA_DQS#(7)

MA_DQS(6)

MA_DQS#(6)

MA_DQS(5)

MA_DQS#(5)

MA_DQS(4)

MA_DQS#(4)

MA_DQS(3)

MA_DQS#(3)

MA_DQS(2)

MA_DQS#(2)

MA_DQS(1)

MA_DQS#(1)

MA_DQS(0)

MA_DQS#(0)

MA_DM(7:0)

26­26­26­26-

26­26-

26­26-

26­26­26-

26­26­26-

26­26­26-

26­26­26­26­26­26­26­26­26­26­26­26­26­26­26­26­26-

MA_A(15)
MA_A(14)
MA_A(13)
MA_A(12)
MA_A(11)
MA_A(10)
MA_A(9)
MA_A(8)
MA_A(7)
MA_A(6)
MA_A(5)
MA_A(4)
MA_A(3)
MA_A(2)
MA_A(1)
MA_A(0)

MA_DQS(7)
MA_DQS#(7)
MA_DQS(6)
MA_DQS#(6)
MA_DQS(5)
MA_DQS#(5)
MA_DQS(4)
MA_DQS#(4)
MA_DQS(3)
MA_DQS#(3)
MA_DQS(2)
MA_DQS#(2)
MA_DQS(1)
MA_DQS#(1)
MA_DQS(0)
MA_DQS#(0)

MA_DM(7)
MA_DM(6)
MA_DM(5)
MA_DM(4)
MA_DM(3)
MA_DM(2)
MA_DM(1)
MA_DM(0)

CN810-2

P19

MA_CLK_H3

N19

MA_CLK_H0

N20

MA_CLK_L0

P20

MA_CLK_L3

Y16

MA_CLK_H2

AA16

MA_CLK_L2

E16

MA_CLK_H1

F16

MA_CLK_L1

V20

MA1_CS_L1

U20

MA1_CS_L0

U19

MA0_CS_L1

T20

MA0_CS_L0

V22

MA0_ODT1

T19

MA0_ODT0

V19

MA1_ODT1

U21

MA1_ODT0

T22

MA_CAS_L

T24

MA_WE_L

R19

MA_RAS_L

J21

MA_BANK2

R23

MA_BANK1

R20

MA_BANK0

J20

MA_CKE1

J22

MA_CKE0

K19

MA_ADD15

K24

MA_ADD14

V24

MA_ADD13

K20

MA_ADD12

L22

MA_ADD11

R21

MA_ADD10

K22

MA_ADD9

L19

MA_ADD8

L21

MA_ADD7

M24

MA_ADD6

L20

MA_ADD5

M22

MA_ADD4

M19

MA_ADD3

N22

MA_ADD2

M20

MA_ADD1

N21

MA_ADD0

W12

MA_DQS_H7

W13

MA_DQS_L7

Y15

MA_DQS_H6

W15

MA_DQS_L6

AB19

MA_DQS_H5

AB20

MA_DQS_L5

AD23

MA_DQS_H4

AC23

MA_DQS_L4

G22

MA_DQS_H3

G21

MA_DQS_L3

C22

MA_DQS_H2

C21

MA_DQS_L2

G16

MA_DQS_H1

G15

MA_DQS_L1

G13

MA_DQS_H0

H13

MA_DQS_L0

Y13

MA_DM7

AB16

MA_DM6

Y19

MA_DM5

AC24

MA_DM4

F24

MA_DM3

E19

MA_DM2

C15

MA_DM1

E12

MA_DM0

FOX_PZ63823_284S_41F_TEMP_638P

MA_DATA63
MA_DATA62
MA_DATA61
MA_DATA60
MA_DATA59
MA_DATA58
MA_DATA57
MA_DATA56
MA_DATA55
MA_DATA54

MA_DATA53
MA_DATA52
MA_DATA51
MA_DATA50
MA_DATA49
MA_DATA48
MA_DATA47
MA_DATA46
MA_DATA45
MA_DATA44
MA_DATA43
MA_DATA42
MA_DATA41
MA_DATA40
MA_DATA39
MA_DATA38
MA_DATA37
MA_DATA36
MA_DATA35
MA_DATA34
MA_DATA33
MA_DATA32

MEMORY INTERFACE

MA_DATA31
MA_DATA30
MA_DATA29
MA_DATA28
MA_DATA27
MA_DATA26
MA_DATA25
MA_DATA24
MA_DATA23
MA_DATA22
MA_DATA21
MA_DATA20
MA_DATA19
MA_DATA18
MA_DATA17
MA_DATA16
MA_DATA15
MA_DATA14
MA_DATA13
MA_DATA12
MA_DATA11
MA_DATA10

MA_DATA9
MA_DATA8
MA_DATA7
MA_DATA6
MA_DATA5
MA_DATA4
MA_DATA3
MA_DATA2
MA_DATA1
MA_DATA0

AA12
AB12
AA14
AB14
W11
Y12
AD13
AB13
AD15
AB15

AB17
Y17
Y14
W14
W16
AD17
Y18
AD19
AD21
AB21
AB18
AA18
AA20
Y20
AA22
Y22
W21
W22
AA21
AB22
AB24
Y24
H22
H20
E22
E21
J19
H24
F22
F20
C23
B22
F18
E18
E20
D22
C19
G18
G17
C17
F14
E14
H17
E17
E15
H15
E13
C13
H12
H11
G14
H14
F12
G12

MA_DATA(63)
MA_DATA(62)
MA_DATA(61)
MA_DATA(60)
MA_DATA(59)
MA_DATA(58)
MA_DATA(57)
MA_DATA(56)
MA_DATA(55)
MA_DATA(54)

MA_DATA(53)
MA_DATA(52)
MA_DATA(51)
MA_DATA(50)
MA_DATA(49)
MA_DATA(48)
MA_DATA(47)
MA_DATA(46)
MA_DATA(45)
MA_DATA(44)
MA_DATA(43)
MA_DATA(42)
MA_DATA(41)
MA_DATA(40)
MA_DATA(39)
MA_DATA(38)
MA_DATA(37)
MA_DATA(36)
MA_DATA(35)
MA_DATA(34)
MA_DATA(33)
MA_DATA(32)
MA_DATA(31)
MA_DATA(30)
MA_DATA(29)
MA_DATA(28)
MA_DATA(27)
MA_DATA(26)
MA_DATA(25)
MA_DATA(24)
MA_DATA(23)
MA_DATA(22)
MA_DATA(21)
MA_DATA(20)
MA_DATA(19)
MA_DATA(18)
MA_DATA(17)
MA_DATA(16)
MA_DATA(15)
MA_DATA(14)
MA_DATA(13)
MA_DATA(12)
MA_DATA(11)
MA_DATA(10)

MA_DATA(9)
MA_DATA(8)
MA_DATA(7)
MA_DATA(6)
MA_DATA(5)
MA_DATA(4)
MA_DATA(3)
MA_DATA(2)
MA_DATA(1)
MA_DATA(0)

26-

MA_DATA(63:0)

MB_CLK_DDR2

MB_CLK_DDR1
MB_CLK_DDR1#
MB_CLK_DDR2#

MB_CS1#
MB_CS0#

MB_ODT1
MB_ODT0

MB_CAS#

MB_WE#

MB_RAS#

MB_BA2
MB_BA1
MB_BA0

MB_CKE1
MB_CKE0

MB_A(15:0)

MB_DQS(7)

MB_DQS#(7)

MB_DQS(6)

MB_DQS#(6)

MB_DQS(5)

MB_DQS#(5)

MB_DQS(4)

MB_DQS#(4)

MB_DQS(3)

MB_DQS#(3)

MB_DQS(2)

MB_DQS#(2)

MB_DQS(1)

MB_DQS#(1)

MB_DQS(0)

MB_DQS#(0)

MB_DM(7:0)

27­27­27­27-

27­27-

27­27-

27­27­27-

27­27­27-

27­27­27-

27­27­27­27­27­27­27­27­27­27­27­27­27­27­27­27­27-

MB_A(15)
MB_A(14)
MB_A(13)
MB_A(12)
MB_A(11)
MB_A(10)

MB_A(9)
MB_A(8)
MB_A(7)
MB_A(6)
MB_A(5)
MB_A(4)
MB_A(3)
MB_A(2)
MB_A(1)
MB_A(0)

MB_DQS(7)
MB_DQS#(7)
MB_DQS(6)
MB_DQS#(6)
MB_DQS(5)
MB_DQS#(5)
MB_DQS(4)
MB_DQS#(4)
MB_DQS(3)
MB_DQS#(3)
MB_DQS(2)
MB_DQS#(2)
MB_DQS(1)
MB_DQS#(1)
MB_DQS(0)
MB_DQS#(0)

MB_DM(7)
MB_DM(6)
MB_DM(5)
MB_DM(4)
MB_DM(3)
MB_DM(2)
MB_DM(1)
MB_DM(0)

CN810-3

R26

MB_CLK_H3

P22

MB_CLK_H0

R22

MB_CLK_L0

R25

MB_CLK_L3

AF18

MB_CLK_H2

AF17

MB_CLK_L2

A17

MB_CLK_H1

A18

MB_CLK_L1

U22

MB1_CS_L0

W25

MB0_CS_L1

V26

MB0_CS_L0

W23

MB0_ODT1

W26

MB0_ODT0

Y26

MB1_ODT0

U24

MB_CAS_L

U23

MB_WE_L

U25

MB_RAS_L

J26

MB_BANK2

U26

MB_BANK1

R24

MB_BANK0

H26

MB_CKE1

J25

MB_CKE0

J24

MB_ADD15

J23

MB_ADD14

W24

MB_ADD13

L25

MB_ADD12

L26

MB_ADD11

T26

MB_ADD10

K26

MB_ADD9

M26

MB_ADD8

L24

MB_ADD7

N25

MB_ADD6

L23

MB_ADD5

N26

MB_ADD4

N23

MB_ADD3

P26

MB_ADD2

N24

MB_ADD1

P24

MB_ADD0

AF12

MB_DQS_H7

AE12

MB_DQS_L7

AE16

MB_DQS_H6

AD16

MB_DQS_L6

AF21

MB_DQS_H5

AF22

MB_DQS_L5

AC25

MB_DQS_H4

AC26

MB_DQS_L4

F26

MB_DQS_H3

E26

MB_DQS_L3

A24

MB_DQS_H2

A23

MA_DQS_L2

D16

MB_DQS_H1

C16

MA_DQS_L1

C12

MB_DQS_H0

B12

MA_DQS_L0

AD12

MB_DM7

AC16

MB_DM6

AE22

MB_DM5

AB26

MB_DM4

E25

MB_DM3

A22

MB_DM2

B16

MB_DM1

A12

MB_DM0

FOX_PZ63823_284S_41F_TEMP_638P

MB_DATA63
MB_DATA62
MB_DATA61
MB_DATA60
MB_DATA59
MB_DATA58
MB_DATA57
MB_DATA56
MB_DATA55
MB_DATA54

MB_DATA53
MB_DATA52
MB_DATA51
MB_DATA50
MB_DATA49
MB_DATA48
MB_DATA47
MB_DATA46
MB_DATA45
MB_DATA44
MB_DATA43
MB_DATA42
MB_DATA41
MB_DATA40
MB_DATA39
MB_DATA38
MB_DATA37
MB_DATA36
MB_DATA35
MB_DATA34
MB_DATA33
MB_DATA32
MB_DATA31

MEMORY INTERFACE

MB_DATA30
MB_DATA29
MB_DATA28
MB_DATA27
MB_DATA26
MB_DATA25
MB_DATA24
MB_DATA23
MB_DATA22
MB_DATA21
MB_DATA20
MB_DATA19
MB_DATA18
MB_DATA17
MB_DATA16
MB_DATA15
MB_DATA14
MB_DATA13
MB_DATA12
MB_DATA11
MB_DATA10

MB_DATA9
MB_DATA8
MB_DATA7
MB_DATA6
MB_DATA5
MB_DATA4
MB_DATA3
MB_DATA2
MB_DATA1
MB_DATA0

AD11
AF11
AF14
AE14
Y11
AB11
AC12
AF13
AF15
AF16

AC18
AF19
AD14
AC14
AE18
AD18
AD20
AC20
AF23
AF24
AF20
AE20
AD22
AC22
AE25
AD26
AA25
AA26
AE24
AD24
AA23
AA24
G24
G23
D26
C26
G26
G25
E24
E23
C24
B24
C20
B20
C25
D24
A21
D20
D18
C18
D14
C14
A20
A19
A16
A15
A13
D12
E11
G11
B14
A14
A11
C11

MB_DATA(63)
MB_DATA(62)
MB_DATA(61)
MB_DATA(60)
MB_DATA(59)
MB_DATA(58)
MB_DATA(57)
MB_DATA(56)
MB_DATA(55)
MB_DATA(54)

MB_DATA(53)
MB_DATA(52)
MB_DATA(51)
MB_DATA(50)
MB_DATA(49)
MB_DATA(48)
MB_DATA(47)
MB_DATA(46)
MB_DATA(45)
MB_DATA(44)
MB_DATA(43)
MB_DATA(42)
MB_DATA(41)
MB_DATA(40)
MB_DATA(39)
MB_DATA(38)
MB_DATA(37)
MB_DATA(36)
MB_DATA(35)
MB_DATA(34)
MB_DATA(33)
MB_DATA(32)
MB_DATA(31)
MB_DATA(30)
MB_DATA(29)
MB_DATA(28)
MB_DATA(27)
MB_DATA(26)
MB_DATA(25)
MB_DATA(24)
MB_DATA(23)
MB_DATA(22)
MB_DATA(21)
MB_DATA(20)
MB_DATA(19)
MB_DATA(18)
MB_DATA(17)
MB_DATA(16)
MB_DATA(15)
MB_DATA(14)
MB_DATA(13)
MB_DATA(12)
MB_DATA(11)
MB_DATA(10)

MB_DATA(9)
MB_DATA(8)
MB_DATA(7)
MB_DATA(6)
MB_DATA(5)
MB_DATA(4)
MB_DATA(3)
MB_DATA(2)
MB_DATA(1)
MB_DATA(0)

27-

MB_DATA(63:0)

INVENTEC

TITLE

ST145a-UMA

CPU-2

CODESIZE

A3

CHANGE by SHEET

16-Sep-2009ALAN W

CS

DOC. NUMBER

OF

17 51

REV

X01Model_No

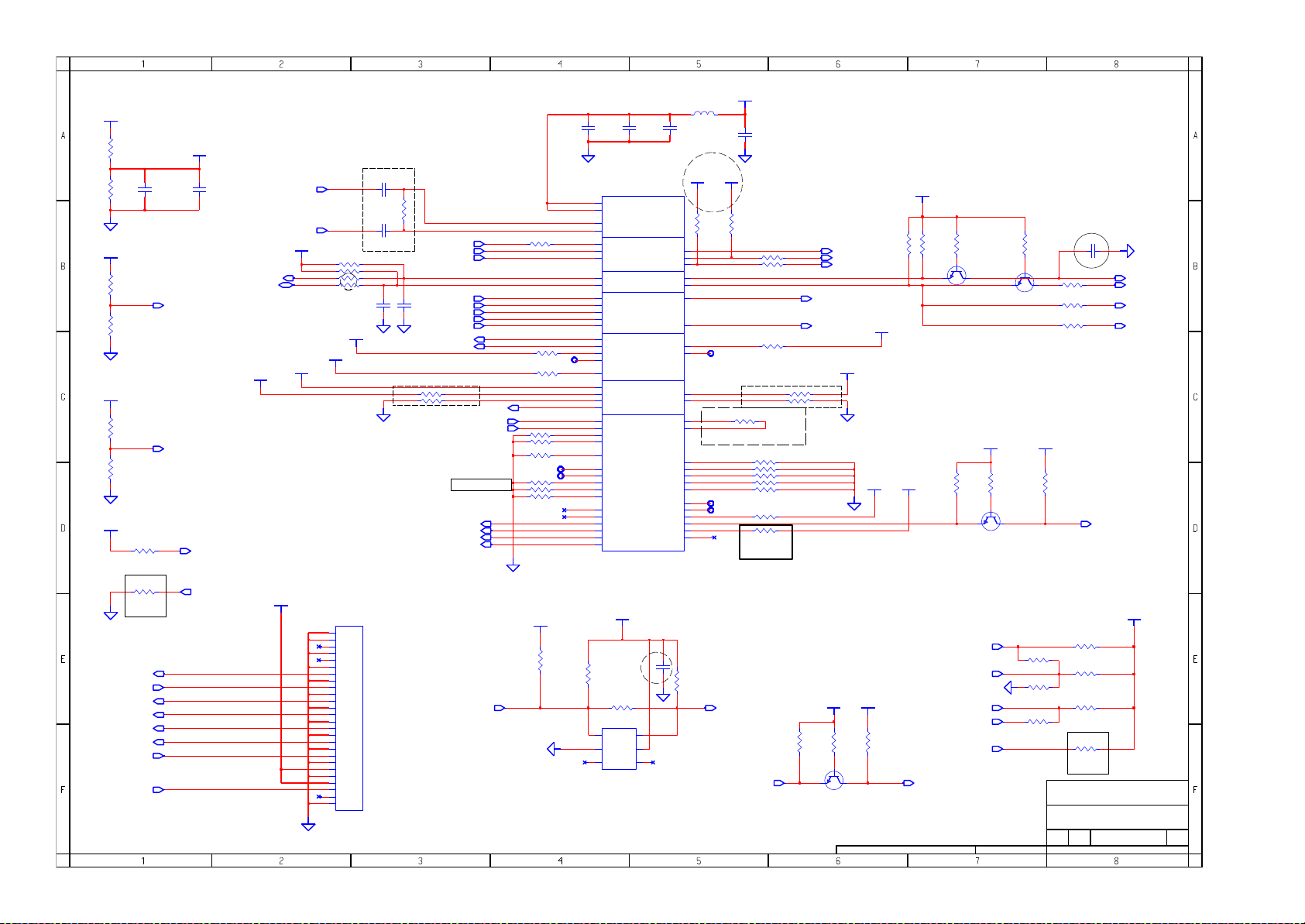

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

1

R929
1K_1%

2

1

R930
1K_1%

2

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

12

R1000

510_5%

12

R999

0402_OPEN

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

12

R1001

0402_OPEN

12

R1003

510_5%

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

PWR-D

1
2

18-

18-

R971

1

300_5%

C943

0.01uF_16V

TEST25_H

TEST25_L

2

18-

CPU_MVREF

18-

1

C944

2

1000pF_50V

CPU_DBREQ#

SMBUS
SMBUS

11-,12-,14-,18-,19-,26-,27-,32-,33-

SCLK3

SDATA3

+V1.5

Keep trace to resistor less than 600mils from CPU pin
and trace to AC caps less than 1250mils.

C1064

CPU_R_CLKP

CPU_R_CLKN

11-,12-,14-,18-,19-,26-,27-,32-,33-

PWR-D

CPU_MVREF

15-,29-

15-,29-

+V1.5

1 2

R916 1K_5%

1 2
1 2

R917 0_5%_OPEN

31-

1 2

31-

8/18

VDDNB_CORE

CPU_VDDR

13-,19-

18-

1 2

3900pF_16V

R1004
169_1%

C1065

1 2

3900pF_16V

1K_5%R914

0_5%_OPENR915

C914

1
2

100pF_50V_OPEN
100pF_50V_OPEN

12-,19-

PWR-D

1

2

LDT_PG

LDTSTOP#

LDT_RST#

C915

CPU_TDI

1

CPU_TRST#

CPU_TCK

2

CPU_TMS

CPU_DBREQ#

VDD0_FB

VDD0_FB#

1 2

R907 39.2_1%

1

R906 39.2_1%

Keep trace to resistors less
than 1" from CPU pin.

2

R975
R974 270_5%_OPEN
R908

H_THERMDC
H_THERMDA

VDD1_FB

VDD1_FB#

CLK_CPUBCLK_C
CLK_CPUBCLK#_C

18-,29­18-,29­18-

CPU_SIC
CPU_SID

18­18­18­18­18-

12­12-

MEMHOT#
TEST25_H

TEST25_L

R950 1K_5%

1K_5%R949

300 OHM N.C

270_5%_OPEN

1K_5%

20­20­12­12-

R1007 0_5%

1 2

1 2

1K_5%

R954

100_5%

1 2

R931

18-

18­18-

1 2
1

2

R976

1 2

0_5%

12

1

2

1 2

THM

THM THM
THM

THM

CPU_VDDA

C1059

1

3300pF_50V

CN810-4

F8

VDDA

F9

VDDA

A9

CLKIN_H

A8

CLKIN_L

A7

PWROK
LDTSTOP_L

B7

RESET_L

AF4

SIC

AF5

SID

AF9

TDI

AD9

TRST_L

AC9

TCK

AA9

TMS

E10

DBREQ_L

F6

VDD_FB_H

E6

VDD_FB_L

H6

VDDNB_FB_H

G6

VDDNB_FB_L

VDDR_SENSE

Y10

VTT_SENSE

W17

M_VREF

AE10

M_ZN

AF10

M_ZP

AA8

MEMHOT_L

E9

TEST25_H

E8

TEST25_L

G9

TEST19

H10

TEST18

C2

TEST9

D7

TEST17

E7

TEST16

F7

TEST15

C7

TEST14

AC8

TEST12

C3

TEST7

AA6

TEST6

W7

THERMDC

W8

THERMDA

Y6

VDD1_FB_H

AB6

VDD1_FB_L

C1058

0.22uF_6.3V

2

11-,12-,14-,18-,19-,26-,27-,32-,33-

MISC

LDTREQ_L

THERMTRIP_L

PROCHOT_L

VDDIO_FB_H
VDDIO_FB_L

TEST29_H
TEST29_L

TEST28_H
TEST28_L

ALERT_L

1
2

PWRGD

TP815

TP816
TP817

THM

FOX_PZ63823_284S_41F_TEMP_638P

1
2

DBRDY

HTREF1
HTREF0

TEST24

TEST23

TEST22

TEST21

TEST20

TEST27

TEST10

TEST8

C1125

4.7uF_6.3V

SVC
SVD

TDO

L817

1 2

BLM11P600S

2009/09/29

14-,18-,24-,25-,45-,47-,48-

+V1.5

1

2

C6F10

CPU_SVC

A6

CPU_SVD

A4

AF6
AC7

AE9

G10

W9
Y9

P6
R6

C9
C8

AE7
AD7
AE8
AB8
AF7

J7
H8
AF8
AE6
K8
C4

+V2.5S

10-

250mA

12

C1063
180pF_50V

+V1.5S

1

R1015

R1014

1K_5%

1K_5%

2

1
1 2

R1016 0_5%

THERMTRIP#

CPU_PROCHOT#_VDDIO

R932

1

TP801

200_5%

CPU_HTREF1

CPU_HTREF0

R973

1 2

44.2_1%

44.2_1%

80.6_1%

Route as 80ohm, diff

1
1 2

1

TP804
TP805

1 2

CPU_ALERT

1 2

R117 300OHM

2

2

NA

2

2

0_5%R1013

2

18-

18-

R912
R913
R910
R933
R911

R909
R952

18-,29-

12­12-

CPU_TDO

CPU_DBRDY

R953

12

R951

1

1K_5%
1K_5%_OPEN
1K_5%1 2
1K_5%
1K_5%1 2

1K_5%

0402_OPEN

LDT_REQ#
CPU_SVC_R
CPU_SVD_R

+V1.1S

300_5%

11-,12-,14-,18-,19-,26-,27-,32-,33-

+V1.5

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

Keep trace to resistors less
than 1" from CPU pin.

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

+V1.5

1

1

R878

2

2

+V1.1S

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

PWR-D

11-,12-,14-,18-,19-,26-,27-,32-,33-

1

R877

R876

10K_5%

1K_5%

2

1

B

11-,12-,14-,18-,19-,26-,27-,32-,33-

PWR-D

1

R834
1K_5%

2

MMBT3904_OPEN

Q814

MMBT3904

3CE2

+V1.5

Q813

1

10K_5%

2

1

B

1

R1700

C6016

2

1

B

10K_5%

C32E

Q864
MMBT3904

R879

1 2

0_5%
R880

1 2

0_5%
R881

1 2

0_5%

1 2

0.01uF_16V

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

R875

3CE2

12

R883

4.7K_5%_OPEN

20-

11/05

31-,37-

CPUTHERMTRIP#

12-

VRD_PROCHOT#

30-

SB_PROCHOT#

29-

CPU_PROCHOT#

CPU_Q_ALERT#

R972

1

2

CPU_DBRDY

0402_OPEN

R160 300OHM

CPU_DBREQ#

CPU_DBRDY

CPU_TCK
CPU_TMS

CPU_TDI

CPU_TRST#

CPU_TDO

LDT_RST#

18-

N.C

18-

18-

18-

18-

18-

18-

18-

18-

HDT Header

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

CN817

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

SAMTEC_ASP_68200_26P_OPEN

+V1.5S

14-,18-,24-,25-,45-,47-,48-

12

R1092

300_5%

0402_OPEN

LDTSTOP# NB_LDTSTOP#

18-,29-

CO-LAYOUT FOR R1573 & U860

INSTALL R1573 AND R1574, REMOVE R1092 IF CPU CAN TOLERANCE 1.8

+V1.8S

11-,21-,23-,24-,31-

2009/11/19

12

R1574

0_5%_OPEN
U860

1

1A61Y

2

GND

3

2A42Y

NXP_74LVC2G07GW_SC88A_6P

R1573

1 2

VCC

0.1uF_10V

C1168

5

1

12

2

R1096

2.2K_5%

23-

1K_5%_OPEN

R1095

11-,12-,14-,18-,19-,26-,27-,32-,33-

12

18-

MMBT3904_OPEN

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

+V1.5 +V3A

PWR-D

1

1

R1097

R1094

10K_5%

10K_5%_OPEN

2

2

1

B

26-,29-,31-

3CE2

Q829

CHANGE by

LDT_PG

CPU_PWRGD_SVID_REG

CPU_LDT_RST#

LDT_RST#

LDT_REQ#

CPU_MEMHOT#MEMHOT#

14-,18-,24-,25-,45-,47-,48-

+V1.5S

300_5%

R1008

1 2

R1005

1 2

0_5%_OPEN

0_5%R1006

1 2

0_5%

R1010

1 2

R1009

1 2

R1012

1 2

R1011

1 2

0402_OPEN

R201 300OHM

N.C

2.2K_5%_OPEN

300_5%

18-,29-

12-

29-

18-

18-,29-

INVENTEC

TITLE

ST145a-UMA

CPU-3

SIZE

27-Jul-2009ALAN W

A3

CODE

CS

SHEET

DOC. NUMBER

18 51

REV

X01Model_No

OF

VDD_CORE

12-,19-

8/14

C989

1

22uF_6.3V

2

VDD_CORE

12-,19-

C951

C996

1

1

0.22uF_6.3V

0.22uF_6.3V

2

2

Place under socket on bottom side.

VDDNB_CORE

12-,18-,19-

C988

C990

1

1

22uF_6.3V

22uF_6.3V

2

2

+V1.1S +V1.1S

1.5A

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

CN810-6

D4

VLDT_A

D3

AD10

VLDT_A

D2

VLDT_A

D1

VLDT_A

D10

VTT

C10

VTT

B10

VDDR

VTT
VTT

W10

VTT

H25

VDDIO

J17

VDDIO

K18

VDDIO

K21

VDDIO

K23

VDDIO

K25

VDDIO

L17

VDDIO

M18

VDDIO

M21

VDDIO

M23

VDDIO

M25

VDDIO

N17

VDDIO

P18

VDDIO

P21

VDDIO

P23

VDDIO

P25

VDDIO

R17

VDDIO

T18

VDDIO

T21

VDDIO

T23

VDDIO

T25

VDDIO

U17

VDDIO

V18

VDDIO

V21

VDDIO

V23

VDDIO

V25

VDDIO

Y25

VDDIO

CPU_VDDR

+V1.5

PWR-D

PWR-C

13-,18-,19-

FOX_PZ63823_284S_41F_TEMP_638P

VLDT_B
VLDT_B
VLDT_B
VLDT_B

IOPWR

PWR-D

VDD_CORE

12-,19-

VDDNB_CORE

12-,18-,19-

12-,19-

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

AE5
AE4
AE3

CPU_VDDR

AE2

AC10

VTT

AB10

VTT

AA10

VTT

A10

VTT

D19

VSS

D21

VSS

D23

VSS

D25

VSS

E4

VSS

F2

VSS

F11

VSS

F13

VSS

F15

VSS

F17

VSS

F19

VSS

F21

VSS

F23

VSS

F25

VSS

H7

VSS

H9

VSS

H21

VSS

H23

VSS

J4

VSS

J6

VSS

J8

VSS

J10

VSS

J12

VSS

J14

VSS

J16

VSS

J18

VSS

K2

VSS

K7

VSS

K9

VSS

K11

VSS

K13

VSS

K15

VSS

K17

VSS

L6

VSS

L8

VSS

L10

VSS

L12

VSS

L14

VSS

L16

VSS

L18

VSS

M7

VSS

M9

VSS

M11

VSS

13-,18-,19-

VDD_CORE

MEM_MB_RST#

38A

VDD_CORE

12-,19-

VDD_CORE

12-,19-

CN810-5

AC4

VDD1

AD2

VDD1

G4

VDD0

H2

VDD0

J9

VDD0

J11

VDD0

J13

VDD0

K6

VDD0

K10

VDD0

K12

VDD0

K14

VDD0

L4

VDD0

L7

VDD0

L9

VDD0

L11

VDD0

L13

VDD0

M2

VDD0

M6

VDD0

M8

VDD0

M10

VDD0

N7

VDD0

VDD

N9

VDD0

N11

VDD0

P8

VDD1

P10

VDD1

R4

VDD1

R7

VDD1

R9

VDD1

R11

VDD1

T2

VDD1

T6

VDD1

T8

VDD1

T10

VDD1

T12

VDD1

T14

VDD1

U7

VDD1

U9

VDD1

U11

VDD1

U13

VDD1

V6

VDD1

V8

VDD1

V10

VDD1

V12

VDD1

V14

VDD1

W4

VDD1

Y2

VDD1

FOX_PZ63823_284S_41F_TEMP_638P

AA4

VSS

AA11

VSS

AA13

VSS

AA15

VSS

AA17

VSS

AA19

VSS

AB2

VSS

AB7

VSS

AB9

VSS

AB23

VSS

AB25

VSS

AC11

VSS

AC13

VSS

AC15

VSS

AC17

VSS

AC19

VSS

AC21

VSS

AD6

VSS

AD8

VSS

AD25

VSS

AE11

VSS

AE13

VSS

AE15

VSS

AE17

VSS

AE19

VSS

AE21

VSS

AE23

VSS

B4

VSS

B6

VSS

B8

VSS

B9

VSS

B11

VSS

B13

VSS

B15

VSS

B17

VSS

B19

VSS

B21

VSS

B23

VSS

B25

VSS

D6

VSS

D8

VSS

D9

VSS

D11

VSS

D13

VSS

D15

VSS

D17

VSS

AC6

VSS

11-,12-,14-,18-,19-,26-,27-,32-,33-

1.5A

3A

VDD_CORE

+V1.5

+V1.5

C993

1

22uF_6.3V

2

C946

1

22uF_6.3V

2

C992

1

22uF_6.3V

2

C952

1

22uF_6.3V

2

1
2

C998

22uF_6.3V

C991

1

22uF_6.3V

2

11-,12-,14-,18-,19-,26-,27-,32-,33-

C976

1

1

22uF_6.3V

2

2

C1019

22uF_6.3V

C981

1

0.22uF_6.3V

2

C940

1

0.22uF_6.3V

2

C986

1
2

180pF_50V

Place under socket on bottom side.

C995

1
2 2

0.01uF_16V

VDDNB_CORE

C945

1

22uF_6.3V

2

C994

1
2

0.01uF_16V

C997

1
2

180pF_50V

1
2

C947

180pF_50V

C942

1

4.7uF_6.3V

2

C978

1

0.22uF_6.3V

2

C985

1
2

0.1uF_10V

C979

1

4.7uF_6.3V

2

C987

1

0.22uF_6.3V

2

C939

1
2

0.01uF_16V

C983

1

4.7uF_6.3V

2

C984

1

0.22uF_6.3V

2

C977

1

180pF_50V

2

C941

1

4.7uF_6.3V

2

C980

1

0.22uF_6.3V

2

C982

1

180pF_50V

2

Place under socket on bottom side.

CPU_VDDR

13-,18-,19-

+V1.05S

C913

1

4.7uF_6.3V

2

C1054

1

0.22uF_6.3V

2

Place close to socket.

C949

1

1000pF_50V

2

C1056

1
2

180pF_50V

C1060

1

4.7uF_6.3V

2

C953

1

0.22uF_6.3V

2

C1053

1

1000pF_50V

2

C955

1
2

180pF_50V

4A

CN810-7

M16

VDDNB

P16

VDDNB

T16

VDDNB

K16

VDDNB

U15

VDD1

V16

VDDNB

J15

VDD0

L15

VDD0

FOX_PZ63823_284S_41F_TEMP_638P

VDD

M17

VSS

N4

VSS

N8

VSS

N10

VSS

N16

VSS

N18

VSS

P2

VSS

P7

VSS

P9

VSS

P11

VSS

P17

VSS

R8

VSS

R10

VSS

R16

VSS

R18

VSS

T7

VSS

T9

VSS

T11

VSS

T13

VSS

T15

VSS

T17

VSS

U4

VSS

U6

VSS

U8

VSS

U10

VSS

U12

VSS

U14

VSS

U16

VSS

U18

VSS

V2

VSS

V7

VSS

V9

VSS

V11

VSS

V13

VSS

V15

VSS

V17

VSS

W6

VSS

Y21

VSS

Y23

VSS

N6

VSS

AMD S1G4_H16 / B18

CN810-8

A5

RSVD

C5

RSVD RSVD

B5

RSVD

A3

RSVD

AA7

RSVD

B3

RSVD

B18

SDDR-CTRL

RSVD

27-

FOX_PZ63823_284S_41F_TEMP_638P

C912

4.7uF_6.3V

C1057

0.22uF_6.3V

C954

1000pF_50V

C948

180pF_50V

C1062

1

4.7uF_6.3V

2

C956

1

0.22uF_6.3V

C1055

1

1000pF_50V

2

C950

1
2

180pF_50V

1
2

1
2

1
2

1
2

CHANGE by

RSVD

RSVD
RSVD
RSVD
RSVD

C1
D5
H16
H18
H19
W18

26-

SDDR-CTRL

MEM_MA_RST#

+V1.1S

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

C916

1

4.7uF_6.3V

2

27-Jul-2009ALAN W

+V1.1S

C1023

1

4.7uF_6.3V

2

C957

1

0.22uF_6.3V

2

Place close to socket.

INVENTEC

TITLE

ST145a-UMA

CPU-4

CODE

SIZE

A3

CS

SHEET

C920

1

4.7uF_6.3V

2

C1021

1
2

180pF_50V

C958

1

0.22uF_6.3V

2

C1022

1

180pF_50V

2

DOC. NUMBER

OF

19 51

REV

X01Model_No

14-,34-,35-,36-,38-,40-,41-,45-,47-

0.1uF_16V

CPUFAN1_ON#

THERM_WARN#

37-

20-

TC7SET08FU

C999

PWR-A

U806

+V3S

(0,001A)

+V5S

8/13

12

5

1
2

DGND

3

I = 0.5A

+V5S

14-,34-,35-,36-,38-,40-,41-,45-,47-

2

Q821

12

AO3409

C1000

4.7uF_10V

R955

1 2

4

5.6K_5%

S

G

1

+V5S_FANPWR

0710

3

D

0.01uF_16V

PWR-B

FAN CONN

1
2

C1001

ACES_85205_0300N_3P

NB_THERMDA

2009/09/28

1
2
3

CN812

1
2
3

G

G1

G

G2

NB_THERMDC

H_THERMDA
H_THERMDC

THERM_WARN#

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

12

8/13

R956

10K_5%

R957

12

220pF_25V

1 2

C1002

0_5%

TACH0

37-

23-

23-

THM

18­18-

THM

20-

R1550

1 2

0_5%_OPEN

R1551

1 2

0_5%_OPEN

R1552 0_5%

1 2
1 2

R1553 0_5%

C1024

1000pF_50V

1 2

THM

R977

10_5%1 2

THM

10_5%

1 2

R978

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

PWR-D

1

C1025

0.1uF_16V

2

R979

1 2

10K_5%

THM
THM

H_THERMDA_R
H_THERMDC_R

U808

1

SMCLK

VDD

2

SMDATA

DXP

3

ALERT

DXN

4

THERM

TI_TMP431A_MSOP_8P

GND

37-

8
7

37-

6

18-

CPU-I

5

DGND

TMP431A : 6019B0671901

SMBus Address is "1001_100xb"

THM_CLK
THM_DAT

CPU_Q_ALERT#

SMBUS
SMBUS

INVENTEC

TITLE

ST145a-UMA

FAN & THERMAL

DOC. NUMBER

CHANGE by

CODE

SIZE

A3

CS

27-Jul-2009ALAN W

SHEET

20 51

REV

X01Model_No

OF

SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD

SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CMD

SPMEM-CMD

SPMEM-CMD

SPMEM-CMD
SPMEM-CMD

SPMEM-CMD
SPMEM-CMD
SPMEM-CMD
SPMEM-CTRL
SPMEM-CTRL
SPMEM-CTRL

SPMEM-CLK-B
SPMEM-CLK-B

+V1.5S_SIDEPORT

PWR-C

21-,25-

HTCADOUT-D
HTCADOUT-D
HTCADOUT-C
HTCADOUT-C
HTCADOUT-B
HTCADOUT-B
HTCADOUT-A
HTCADOUT-A
HTCADOUT-C
HTCADOUT-C
HTCADOUT-B
HTCADOUT-B
HTCADOUT-A
HTCADOUT-A
HTCADOUT-D
HTCADOUT-D

HTCADOUT-D
HTCADOUT-D
HTCADOUT-C
HTCADOUT-C
HTCADOUT-B
HTCADOUT-B
HTCADOUT-D
HTCADOUT-D
HTCADOUT-C
HTCADOUT-C
HTCADOUT-B
HTCADOUT-B
HTCADOUT-A
HTCADOUT-A
HTCADOUT-D
HTCADOUT-D

HTCADOUT-D
HTCADOUT-D
HTCADOUT-A
HTCADOUT-A

HTCADOUT-C
HTCADOUT-C
HTCADOUT-C
HTCADOUT-C

GM_MA(0)
GM_MA(1)
GM_MA(2)
GM_MA(3)
GM_MA(4)
GM_MA(5)
GM_MA(6)
GM_MA(7)
GM_MA(8)

GM_MA(9)
GM_MA(10)
GM_MA(11)
GM_MA(12)
GM_MA(13)

GM_BA0
GM_BA1
GM_BA2

GM_RAS#

GM_CAS#

GM_WE#

GM_CS#
GM_CKE
GM_ODT

GM_CLK

GM_CLK#

L0_CADOUT0H
L0_CADOUT0L
L0_CADOUT1H
L0_CADOUT1L
L0_CADOUT2H
L0_CADOUT2L
L0_CADOUT3H
L0_CADOUT3L
L0_CADOUT4H
L0_CADOUT4L
L0_CADOUT5H
L0_CADOUT5L
L0_CADOUT6H
L0_CADOUT6L
L0_CADOUT7H
L0_CADOUT7L

L0_CADOUT8H
L0_CADOUT8L
L0_CADOUT9H

L0_CADOUT9L
L0_CADOUT10H
L0_CADOUT10L
L0_CADOUT11H
L0_CADOUT11L
L0_CADOUT12H
L0_CADOUT12L
L0_CADOUT13H
L0_CADOUT13L
L0_CADOUT14H
L0_CADOUT14L
L0_CADOUT15H
L0_CADOUT15L

L0_CLKOUT0H

L0_CLKOUT0L

L0_CLKOUT1H

L0_CLKOUT1L
L0_CTLOUT0H

L0_CTLOUT0L
L0_CTLOUT1H
L0_CTLOUT1L

16­16­16­16­16­16­16­16­16­16­16­16­16­16­16­16-

16­16­16­16­16­16­16­16­16­16­16­16­16­16­16­16-

16­16­16­16-

16­16­16­16-

1 2

R980

301_1%

Please close to NB balls

SPMEM-CMDSPMEM-CMD

100_1%_OPEN

40.2_1%

40.2_1%

AB12
AE16

V11
AE15
AA12
AB16
AB14
AD14
AD13
AD15
AC16
AE13
AC14

Y14

AD16
AE17
AD17

W12

Y12
AD18
AB13
AB18

V14

V15

W14

AE12
AD12

25­25­25­25­25­25­25­25­25­25­25­25­25­25-

25­25­25-

25­25­25­25­25­25-

1

R1044

25­25-

R10803 close to NB no stub

R1041
R1042

2

1 2
1 2

Close to NB balls within 1"

Spacing : height 2:1

U810-1

PART 1 OF 6

Y25

HT_RXCAD0P

Y24

HT_RXCAD0N

V22

HT_RXCAD1P

V23

HT_RXCAD1N

V25

HT_RXCAD2P

V24

HT_RXCAD2N

U24

HT_RXCAD3P

U25

HT_RXCAD3N

T25

HT_RXCAD4P

T24

HT_RXCAD4N

P22

HT_RXCAD5P

P23

HT_RXCAD5N

P25

HT_RXCAD6P

P24

HT_RXCAD6N

N24

HT_RXCAD7P

N25

HT_RXCAD7N

AC24

HT_RXCAD8P

AC25

HT_RXCAD8N

AB25

HT_RXCAD9P

AB24

HT_RXCAD9N

AA24

HT_RXCAD10P

AA25

HT_RXCAD10N

Y22

HT_RXCAD11P

Y23

HT_RXCAD11N

W21

HT_RXCAD12P

W20

HT_RXCAD12N

V21

HT_RXCAD13P

V20

HT_RXCAD13N

U20

HT_RXCAD14P

U21

HT_RXCAD14N

U19

HT_RXCAD15P

U18

HT_RXCAD15N

T22

HT_RXCLK0P

T23

HT_RXCLK0N

AB23

HT_RXCLK1P

AA22

HT_RXCLK1N

M22

HT_RXCTL0P

M23

HT_RXCTL0N

R21

HT_RXCTL1P

R20

HT_RXCTL1N

C23

HT_RXCALP

A24

HT_RXCALN

AMD_RS880M_FCBGA_528P

U810-4

PAR 4 OF 6

MEM_A0_NC
MEM_A1_NC
MEM_A2_NC
MEM_A3_NC
MEM_A4_NC
MEM_A5_NC
MEM_A6_NC
MEM_A7_NC
MEM_A8_NC
MEM_A9_NC
MEM_A10_NC
MEM_A11_NC
MEM_A12_NC
MEM_A13_NC

MEM_BA0_NC
MEM_BA1_NC
MEM_BA2_NC

MEM_RAS#_NC
MEM_CAS#_NC
MEM_WE#_NC
MEM_CS#_NC
MEM_CKE_NC
MEM_ODT_NC

MEM_CKP_NC
MEM_CKN_NC

MEM_COMPP_NC
MEM_COMPN_NC

MEM_DQS0P_DVO_IDCKP_NC
MEM_DQS0N_DVO_IDCKN_NC

AMD_RS880M_FCBGA_528P

D24

HT_TXCAD0P

D25

HT_TXCAD0N

E24

HT_TXCAD1P

E25

HT_TXCAD1N

F24

HT_TXCAD2P

F25

HT_TXCAD2N

F23

HT_TXCAD3P

F22

HT_TXCAD3N

H23

HT_TXCAD4P

H22

HT_TXCAD4N

J25

HT_TXCAD5P

J24

HT_TXCAD5N

K24

HT_TXCAD6P

K25

HT_TXCAD6N

K23

HT_TXCAD7P

K22

HT_TXCAD7N

F21

HT_TXCAD8P

G21

HT_TXCAD8N

G20

HT_TXCAD9P

H21

HT_TXCAD9N

J20

HT_TXCAD10P

J21

HT_TXCAD10N

J18

HT_TXCAD11P

K17

HT_TXCAD11N

L19

HT_TXCAD12P

J19

HT_TXCAD12N

M19

HT_TXCAD13P
HT_TXCAD13N
HT_TXCAD14P
HT_TXCAD14N
HT_TXCAD15P
HT_TXCAD15N

HT_TXCLK0P
HT_TXCLK0N
HT_TXCLK1P
HT_TXCLK1N

HT_TXCTL0P
HT_TXCTL0N
HT_TXCTL1P
HT_TXCTL1N

HT_TXCALP
HT_TXCALN

MEM_DQ4_NC

MEM_DQ12_NC

MEM_DQS1P_NC
MEM_DQS1N_NC

MEM_DM0_NC

IOPLLVDD18_NC

IOPLLVDD_NC

IOPLLVSS_NC

MEM_VREF_NC

L18
M21
P21
P18
M18

H24
H25
L21
L20

M24
M25
P19
R18

HT_TXCALP

B24
B25

AA18
AA20
AA19
Y19
V17
AA17
AA15
Y15
AC20
AD19
AE22
AC18
AB20
AD22
AC22
AD21

Y17
W18
AD20
AE21

W17
AE19

AE23
AE24

AD23

AE18

HYPER TRANSPORT CPU I/F

MEM_DQ0_DVO_VSYNC_NC
MEM_DQ1_DVO_HSYNC_NC

MEM_DQ2_DVO_DE_NC
MEM_DQ3_DVO_D0_NC

MEM_DQ5_DVO_D1_NC
MEM_DQ6_DVO_D2_NC
MEM_DQ7_DVO_D4_NC
MEM_DQ8_DVO_D3_NC

MEM_DQ9_DVO_D5_NC
MEM_DQ10_DVO_D6_NC
MEM_DQ11_DVO_D7_NC

MEM_DQ13_DVO_D9_NC

MEM_DQ14_DVO_D10_NC
MEM_DQ15_DVO_D11_NC

MEM_DM1_DVO_D8_NC

SBD_MEM/DVO_I/F

16­16­16­16­16­16­16­16­16­16­16­16­16­16­16­16-

16­16­16­16­16­16­16­16­16­16­16­16­16­16­16­16-

16­16­16­16-

16­16­16­16-

1 2

L0_CADIN0H
L0_CADIN0L
L0_CADIN1H
L0_CADIN1L
L0_CADIN2H
L0_CADIN2L
L0_CADIN3H
L0_CADIN3L
L0_CADIN4H
L0_CADIN4L
L0_CADIN5H
L0_CADIN5L
L0_CADIN6H
L0_CADIN6L
L0_CADIN7H
L0_CADIN7L

L0_CADIN8H
L0_CADIN8L
L0_CADIN9H
L0_CADIN9L
L0_CADIN10H
L0_CADIN10L
L0_CADIN11H
L0_CADIN11L
L0_CADIN12H
L0_CADIN12L
L0_CADIN13H
L0_CADIN13L
L0_CADIN14H
L0_CADIN14L
L0_CADIN15H
L0_CADIN15L

L0_CLKIN0H
L0_CLKIN0L
L0_CLKIN1H
L0_CLKIN1L

L0_CTLIN0H
L0_CTLIN0L
L0_CTLIN1H
L0_CTLIN1L

HT_TXCALN

301_1%R981

HTCADIN-A
HTCADIN-A
HTCADIN-B
HTCADIN-B
HTCADIN-C
HTCADIN-C
HTCADIN-D
HTCADIN-D
HTCADIN-B
HTCADIN-B
HTCADIN-C
HTCADIN-C
HTCADIN-D
HTCADIN-D
HTCADIN-A
HTCADIN-A

HTCADIN-A
HTCADIN-A
HTCADIN-B
HTCADIN-B
HTCADIN-C
HTCADIN-C
HTCADIN-D
HTCADIN-D
HTCADIN-B
HTCADIN-B
HTCADIN-C
HTCADIN-C
HTCADIN-D
HTCADIN-D
HTCADIN-A
HTCADIN-A

HTCADIN-A
HTCADIN-A
HTCADIN-A
HTCADIN-A

HTCADIN-B
HTCADIN-B
HTCADIN-B
HTCADIN-B

Please close to NB balls

25-

GM_MD(0)

25-

GM_MD(1)

25-

GM_MD(2)

25-

GM_MD(3)

25-

GM_MD(4)

25-

GM_MD(5)

25-

GM_MD(6)

25-

GM_MD(7)

25-

GM_MD(8)

25-

GM_MD(9)

25-

GM_MD(10)

25-

GM_MD(11)

25-

GM_MD(12)

25-

GM_MD(13)

25-

GM_MD(14)

25-

GM_MD(15)

25-

GM_DQS0

25-

GM_DQS0#

25-

GM_DQS1

25-

GM_DQS1#

25-

GM_DM0

25-

NB_IOPLLVDD18

NB_IOPLLVDD

NB_MEM_VREF

C1033

2.2uF_6.3V

PWR-B
PWR-B

1
2

GM_DM1

L814

1 2

L813 BLM15AG221SN1D

1 2

1

C1032

2.2uF_6.3V

2

SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ
SPMEM-DQ

SPMEM-DQS
SPMEM-DQS
SPMEM-DQS

Trace Width >= 15mil

SPMEM-DQS

SPMEM-DQ
SPMEM-DQ

15mA

BLM15AG221SN1D

26mA

Close to NB balls within 0.5"
Trace width >= 20mil

+V1.8S

Trace Width >= 15mil

CHANGE by

PWR-D

11-,18-,23-,24-,31-

+V1.1S

PWR-D

14-,15-,18-,19-,22-,23-,24-,32-,47-

1
2

1
2

+V1.5S_SIDEPORT

21-,25-

1

C1101

R1040

0.1uF_10V

1K_1%

2

1

R1039

C1100

1K_1%

0.1uF_10V

2

27-Jul-2009ALAN W

PWR-C

INVENTEC

TITLE

ST145a-UMA

SIZE

CODE

CS

SHEET

DOC. NUMBER

21 51

A3

RS880M - 1

OF

REV

X01Model_No

A_C_RX0

A_C_RX0#

A_C_RX1

A_C_RX1#

A_C_RX2

A_C_RX2#

A_C_RX3

A_C_RX3#

PCIE_RXP0

PCIE_RXN0

PCIE_RXP1

PCIE_RXN1

29­29­29­29­29­29­29­29-

U810-2

PART 2 OF 6

D4

GFX_RX0P

C4

GFX_RX0N

A3

GFX_RX1P

B3

GFX_RX1N

C2

GFX_RX2P

C1

GFX_RX2N

E5

GFX_RX3P

F5

GFX_RX3N

G5

GFX_RX4P

G6

GFX_RX4N

H5

GFX_RX5P

H6

GFX_RX5N

J6

GFX_RX6P

J5

GFX_RX6N

J7

GFX_RX7P

J8

GFX_RX7N

L5

GFX_RX8P

L6

GFX_RX8N

M8

GFX_RX9P

L8

GFX_RX9N

P7

GFX_RX10P

M7

GFX_RX10N

P5

GFX_RX11P

M5

GFX_RX11N

R8

GFX_RX12P

P8

GFX_RX12N

R6

GFX_RX13P

R5

GFX_RX13N
GFX_RX14P
GFX_RX14N
GFX_RX15P
GFX_RX15N

GPP_RX0P
GPP_RX0N
GPP_RX1P
GPP_RX1N
GPP_RX2P
GPP_RX2N
GPP_RX3P
GPP_RX3N
GPP_RX4P
GPP_RX4N
GPP_RX5P
GPP_RX5N

SB_RX0P
SB_RX0N
SB_RX1P
SB_RX1N
SB_RX2P
SB_RX2N
SB_RX3P
SB_RX3N

PCE_CALRP_PCE_BCALRP
PCE_CALRN_PCE_BCALRN

PCIE I/F GFX

PCIE I/F GPP PCIE I/F SB

P4
P3
T4
T3

43­43­48­48-

AE3
AD4
AE2
AD3
AD1
AD2

V5
W6
U5
U6
U8
U7

AA8

Y8

AA7

Y7
AA5
AA6

W5

Y5

AMD_RS880M_FCBGA_528P

GFX_TX0P
GFX_TX0N
GFX_TX1P
GFX_TX1N
GFX_TX2P
GFX_TX2N
GFX_TX3P
GFX_TX3N
GFX_TX4P
GFX_TX4N
GFX_TX5P
GFX_TX5N
GFX_TX6P
GFX_TX6N
GFX_TX7P
GFX_TX7N
GFX_TX8P
GFX_TX8N
GFX_TX9P

GFX_TX9N
GFX_TX10P
GFX_TX10N
GFX_TX11P
GFX_TX11N
GFX_TX12P
GFX_TX12N
GFX_TX13P
GFX_TX13N
GFX_TX14P
GFX_TX14N
GFX_TX15P
GFX_TX15N

GPP_TX0P

GPP_TX0N

GPP_TX1P

GPP_TX1N

GPP_TX2P

GPP_TX2N

GPP_TX3P

GPP_TX3N

GPP_TX4P

GPP_TX4N

GPP_TX5P

GPP_TX5N

SB_TX0P
SB_TX0N
SB_TX1P
SB_TX1N
SB_TX2P
SB_TX2N
SB_TX3P
SB_TX3N

A5

36­36­36­36­36­36­36­36-

PCIE_TXP0
PCIE_TXN0
PCIE_TXP1
PCIE_TXN1

A_TX0
A_TX0#
A_TX1
A_TX1#
A_TX2
A_TX2#
A_TX3
A_TX3#

PCE_PCAL
PCE_NCAL

HDMI_TX2P
HDMI_TX2N
HDMI_TX1P
HDMI_TX1N
HDMI_TX0P
HDMI_TX0N
HDMI_TXCP

HDMI_TXCN

C1185
C1186
C1184
C1183
C1181
C1182
C1179
C1180

B5
A4
B4
C3
B2
D1
D2
E2
E1
F4
F3
F1
F2
H4
H3
H1
H2
J2
J1
K4
K3
K1
K2
M4
M3
M1
M2
N2
N1
P1
P2

AC1
AC2
AB4
AB3
AA2
AA1
Y1
Y2
Y4
Y3
V1
V2

AD7
AE7
AE6
AD6
AB6
AC6
AD5
AE5

AC8
AB8

C1146
C1145
C1177
C1178

0.1uF_10V

0.1uF_10V

0.1uF_10V

0.1uF_10V

0.1uF_10V

0.1uF_10V

0.1uF_10V

0.1uF_10V

R1038

1 2
1 2

HDMI-D
HDMI-D
HDMI-C
HDMI-C
HDMI-B
HDMI-B
HDMI-A
HDMI-A

1 2

1 2

1 2
1 2

1 2
1
1 2
1 2

0.1uF_10V

0.1uF_10V

0.1uF_10V

2

0.1uF_10V

1
1 2
1 2
1 2

1.27K_1%R1043
2K_1%

PCIE-16X

43­43­48­48-

29­29-

2

29­29­29­29­29­29-

HDMI

PCIE_C_TXP0
PCIE_C_TXN0
PCIE_C_TXP1
PCIE_C_TXN1

A_C_TX0
A_C_TX0#
A_C_TX1
A_C_TX1#
A_C_TX2
A_C_TX2#
A_C_TX3
A_C_TX3#

PCIE-TX-A

LAN

PCIE-TX-A
PCIE-TX-B

WLAN

PCIE-TX-B

+V1.1S

14-,15-,18-,19-,21-,23-,24-,32-,47-

PCIE-TX-A
PCIE-TX-A
PCIE-TX-B
PCIE-TX-B

CHANGE by

INVENTEC

TITLE

ST145a-UMA

SIZE

CODE

A3

CS

27-Jul-2009ALAN W

SHEET

RS880M - 2

DOC. NUMBER

OF

22 51

REV

X01Model_No

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V1.8S

I = 4mA

11-,18-,21-,23-,24-,31-

BLM15AG221SN1D

PWR-D

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

R1026

4.7K_5%_OPEN

R1025

4.7K_5%_OPEN

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

R1018

3K_5%_OPEN

1 2

R1021
3K_5%

1 2

L821

1 2

+V1.8S

11-,18-,21-,23-,24-,31-

12

C1073

22uF_6.3V

+V1.1S

1

EXT CLK

2

12

EXT CLK

R1019
3K_5%

1 2

12

R1020

3K_5%_OPEN

Trace Width >= 15mil

PWR-B

1

C1071

2.2uF_6.3V

2

Trace Width >= 15mil

I = 20mA

R1800

1 2

3.3_5%

L822

1 2

L826

1 2

I = 120mA

Trace Width >= 15mil

23-

CLK_NB_REF#

CPU-I

23-,29-,37-,48-

D818

2 1

N.C

RB501V_40_TE_17

23­23-,34­23-,34-

R1017

12

3K_5%_OPEN

NB_AVDDQ
NB_AVSSQ

2009/1119

BLM15AG221SN1D
BLM15AG221SN1D

4.7uF_4V

2009/1119

NB_HDMI_DAT

NB_HDMI_CLK

A_RST#

SUS_STAT#_R
NB_VSYNC
NB_HSYNC

I = 110mA

BLM15AG221SN1D

L825

1 2

C1138

2.2uF_6.3V

11-,18-,21-,23-,24-,31-

I = 20mA

+V1.8S

PWR-D

+V3S

C1075

1

0.1uF_10V

2

Trace Width >= 15mil

PWR-B

Trace Width >= 15mil

I = 65mA

+V1.1S

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

I = 20mA

12

C1074

NB_R_REFCLKP
NB_R_REFCLKN

CLK_NB_OSC

CLK_NB_REF#

L820

1 2

BLM15AG221SN1D

12

C1070

2.2uF_6.3V

29­29-

15-

R1034

1

23-

R1035

1 2

EXT CLK

R1023
R1022

1 2

36­36-

NB_PLLVDD

1

2

NB_PLLVDD18
NB_HTPVDD

NB_VDDA18PCIEPLL

PWR-B

12

C1139

2.2uF_6.3V

NB_ALLOW_LDTSTOP

0_5%_OPEN

2

0_5%_OPEN

CLK_R_NBGFX_REFP
CLK_R_NBGFX_REFN

0_5%

2

0_5%1

C1072

2.2uF_6.3V

A_RST#
NB_PWRGD_IN
NB_LDTSTOP#

HT_R_REFCLKP
HT_R_REFCLKN

NBLINK_R_CLKP

NBLINK_R_CLKN

NB_CRT_DAT
NB_CRT_CLK

NB_LCM_DAT
NB_LCM_CLK

LOAD_EEPROM_STRAPS ; SUS_STAT#_R
1 = Bypass the loading of EEPROM straps and use HW Default
0 = I2C Master can load straps from EEPROM if connected.

RS880M NB_VSYNC

Enables the test Debug Bus using GPIO

RS880M NB_VSYNC

0

Enable

Disable

1

RS880M NB_HSYNC
0 = Memory Side port available
1 = Memory Side port Not available

Register Readback of Strap: NB_CLKCFG: CLK_TOP_SPARE_D[1]

Trace Width >= 15mil

NB_AVDD

1
2

NB_CRT_R
NB_CRT_G
NB_CRT_B

NB_HSYNC

NB_VSYNC

1 2

715_1%

23-,29-,37-,48­31­18­23-

15-,29­15-,29-

NB_R_REFCLKP
NB_R_REFCLKN

CLK_R_NBGFX_REFP

15-,23-

CLK_R_NBGFX_REFN

15-,23-

15-,29­15-,29-

STRP_DATA

23-,34-

23-,34-

23-,34-

23-,34­23-,34­34­34-

R1036

DAC_RSET

Trace Width >= 10mil

R1069

0_5%

NB_RST#_IN

1 2

NB_PWRGD_IN_R

R1024

0_5%

1 2

CPU-I

35­35-

HDMI_DATA

HDMI_CLK

13-

RS880M_AUC_CAL

1

R1028
150_1%

2

TP831
TP830

TP829
TP828

PWR-B

U810-3

F12

AVDD1_NC

E12

AVDD2_NC

F14

AVDDDI_NC

G15

AVSSDI_NC

H15

AVDDQ_NC

H14

AVSSQ_NC

E17

C_Pr_DFT_GPIO5

F17

Y_DFT_GPIO2

F15

COMP_P#_DFT_GPIO4

G18

RED_DFT_GPIO0

G17

RED#_NC

E18

GREEN_DFT_GPIO1

F18

GREEN#_NC

E19

BLUE_DFT_GPIO3

F19

BLUE#_NC

A11

DAC_HSYNC_PWM_GPIO4

B11

DAC_VSYNC_PWM_GPIO6

E8

DAC_SDA_PCE_TCALRN

F8

DAC_SCL_PCE_RCALRN

G14

DAC_RSET_PWM_GPIO1

A12

PLLVDD_NC

D14

PLLVDD18_NC

B12

PLLVSS_NC

H17

VDDA18HTPLL

D7

VDDA18PCIEPLL1

E7

VDDA18PCIEPLL2

D8

SYSRESET#

A10

POWERGOOD

C10

LDTSTOP#

C12

ALLOW_LDTSTOP

C25

HT_REFCLKP

C24

HT_REFCLKN

E11

REFCLK_P_OSCIN_OSCIN

F11

REFCLK_N_PWM_GPIO3

T2

GFX_REFCLKP

T1

GFX_REFCLKN

U1

GPP_REFCLKP

U2

GPP_REFCLKN

V4

GPPSB_REFCLKP_SB_REFCLKP

V3

GPPSB_REFCLKN_SB_REFCLKN

A9

I2C_DATA

B9

I2C_CLK

A8

DDC_CLK0_AUX0P_NC

B8

DDC_DATA0_AUX0N_NC

B7

DDC_CLK1_AUX1P_NC

A7

DDC_DATA1_AUX1N_NC

B10

STRP_DATA

G11

RSVD

C8

AUX_CAL_NC

PART 3 OF 6

TXOUT_L2N_DBG_GPIO0

TXOUT_L3N_DBG_GPIO2

TXOUT_U1P_PCIE_RESET_GPIO3
TXOUT_U1N_PCIE_RESET_GPIO2

TXOUT_U3P_PCIE_RESET_GPIO5

CRT/TVOUT

TXCLK_LP_DBG_GPIO1

TXCLK_LN_DBG_GPIO3
TXCLK_UP_PCIE_RESET_GPIO4
TXCLK_UN_PCIE_RESET_GPIO1

PLL PWR

LVTM

PM

LVDS_DIGON_PCE_TCALRP

LVDS_BLON_PCE_RCALRP

LVDS_ENA_BL_PWM_GPIO2

CLOCKs

MIS.

TVCLKIN_PWM_GPIO5

THERMALDIODE_P
THERMALDIODE_N

AMD_RS880M_FCBGA_528P

VDDLTP18_NC
VSSLTP18_NC

VSSLT1_VSS
VSSLT2_VSS
VSSLT3_VSS
VSSLT4_VSS
VSSLT5_VSS
VSSLT6_VSS
VSSLT7_VSS

TMDS_HPD_NC

HPD_NC

TESTMODE

A22
B22
A21
B21
B20
A20
A19
B19

B18
A18
A17
B17
D20
D21
D18
D19

B16
A16
D16
D17

A13
B13

A15
B15
A14
B14

C14
D15
C16
C18
C20
E20
C22

E9
F7
G12

D9
D10

D12

AE8
AD8

D13

TXOUT_L0P_NC
TXOUT_L0N_NC
TXOUT_L1P_NC
TXOUT_L1N_NC
TXOUT_L2P_NC

TXOUT_L3P_NC

TXOUT_U0P_NC
TXOUT_U0N_NC

TXOUT_U2P_NC
TXOUT_U2N_NC

TXOUT_U3N_NC

VDDLT18_1_NC
VDDLT18_2_NC
VDDLT33_1_NC
VDDLT33_2_NC

NB_ALLOW_LDTSTOP

35­35­35­35­35­35-

35­35-

NB_LVDSVCC_EN
NB_LVDS_PWM
NB_LVDS_BLEN

R1076

1 2

TEST_EN

1 2

1.8K_5%

NB_LCM_TXDL0P
NB_LCM_TXDL0N
NB_LCM_TXDL1P
NB_LCM_TXDL1N
NB_LCM_TXDL2P
NB_LCM_TXDL2N

TP827

NB_LCM_TXCLP
NB_LCM_TXCLN

0_5%

CPU-I

R1027

+V1.8S

23-

NB_VDDLTP18

1
2

C1069

1
2

0.1uF_10V

R1071
R1073
R1075

4.7K_5%

4.7K_5%

1 2

R1029

100K_5%_OPEN

31-

SUS_STAT#

23-

SUS_STAT#_R

20-

NB_THERMDA

20-

NB_THERMDC

NB_VDDR18D

1 2

BLM15AG221SN1D

C1067

1
2

4.7uF_6.3V

1 2

CPU-I

1 2
1 2

1 2
1 2
1 2

36-

CLK_R_NBGFX_REFP
CLK_R_NBGFX_REFN

11-,18-,21-,23-,24-,31-

PWR-D

12

R1031

1K_5%

0_5%

1 2

29-

R1030

ALLOW_LDTSTOP

ALAN W 27-Jul-2009

Trace Width >= 15mil

I = 15mA

1 2

C1068

BLM15AG221SN1D

2.2uF_6.3V
+V1.8S

L819

Trace Width >= 15mil

I = 300mA

0_5%
0_5%
0_5%

R1070
R10724.7K_5%
R1074

DGPU_HPD_INTR

NB_CRT_R

NB_CRT_G

NB_CRT_B

+V1.8S

11-,18-,21-,23-,24-,31-

L818

11-,18-,21-,23-,24-,31-

35­35­35-

15-,23-

15-,23-

PWR-D

NB_LCMVCC_EN
NB_LCM_PWM
NB_LCM_BLEN

INT CLK

R1077

1 2

R1078

1 2

PWR-D

INT CLK

Place close to RS880M < 1"

23-,34-

23-,34-

23-,34-

1 2

150_1% R1033

INVENTEC

TITLE

ST145a-UMA

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEETCHANGE by

4.7K_5%

4.7K_5%

R1037140_1% 1

2

R1032150_1% 1 2

RS880M - 3

OF

REV

5123

+V1.1S

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

+V1.8S

11-,18-,21-,23-,24-,31-

L827

1 2

BLM21PG221SN1

Trace Width >= 25mil

I = 700mA

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

Trace Width >= 35mil

+V1.1S

PWR-D

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

+V1.1S

Trace Width >= 40mil

I = 700mA

Trace Width >= 20mil

I = 400mA

2009/11/23

C1148

1

4.7uF_6.3V

2

I = 600mA

1
2

C1094

1

4.7uF_6.3V

2

C1027

1
2

4.7uF_6.3V

C1026

1
2

10uF_6.3V

C1030

4.7uF_6.3V

C1082

1
2

0.1uF_10V

VDDHT

C1087

1
2

0.1uF_10V

VDDHTRX

C1029

1

0.1uF_10V

2

+V1.1S

VDDHTTX

C1091

C1031

1

1

2

2

Trace Width >= 15mil

Trace Width >= 15mil

0.1uF_10V

1
2

0.1uF_10V

I = 10mA

I = 25mA

0.1uF_10V

C1095

C1081

1
2

0.1uF_10V

C1028

1

0.1uF_10V

2

+V1.1S

C1096

1
2

0.1uF_10V

VDDA18PCIE

C1088

1
2

0.1uF_10V

+V1.8S

11-,18-,21-,23-,24-,31-

C1076

1
2

1uF_10V

+V1.8S

11-,18-,21-,23-,24-,31-

C1140

1
2

1uF_10V

C1093

1
2

0.1uF_10V

C1084

1
2

0.1uF_10V

U810-5

J17
K16
L16
M16
P16
R16
T16

H18
G19
F20
E21
D22
B23
A23

AE25
AD24
AC23
AB22
AA21

Y20
W19
V18
U17
T17
R17
P17
M17

J10
P10
K10
M10
L10

W9

H9
T10
R10

Y9
AA9
AB9
AD9
AE9
U10

F9

G9

AE11
AD11

PART 5/6

VDDHT_1
VDDHT_2
VDDHT_3
VDDHT_4
VDDHT_5
VDDHT_6
VDDHT_7

VDDHTRX_1
VDDHTRX_2
VDDHTRX_3
VDDHTRX_4
VDDHTRX_5
VDDHTRX_6
VDDHTRX_7

VDDHTTX_1
VDDHTTX_2
VDDHTTX_3
VDDHTTX_4
VDDHTTX_5
VDDHTTX_6
VDDHTTX_7
VDDHTTX_8
VDDHTTX_9
VDDHTTX_10
VDDHTTX_11
VDDHTTX_12
VDDHTTX_13

VDDA18PCIE_1
VDDA18PCIE_2
VDDA18PCIE_3
VDDA18PCIE_4
VDDA18PCIE_5
VDDA18PCIE_6
VDDA18PCIE_7
VDDA18PCIE_8
VDDA18PCIE_9
VDDA18PCIE_10
VDDA18PCIE_11
VDDA18PCIE_12
VDDA18PCIE_13
VDDA18PCIE_14
VDDA18PCIE_15

VDDG18_1_VDD18_1
VDDG18_2_VDD18_2
VDD18_MEM1_NC
VDD18_MEM2_NC

AMD_RS880M_FCBGA_528P

VDDPCIE_10
VDDPCIE_11
VDDPCIE_12
VDDPCIE_13
VDDPCIE_14
VDDPCIE_15
VDDPCIE_16
VDDPCIE_17

POWER

VDD_MEM1_NC
VDD_MEM2_NC
VDD_MEM3_NC
VDD_MEM4_NC
VDD_MEM5_NC
VDD_MEM6_NC

VDDG33_1_NC
VDDG33_2_NC

VDDPCIE_1
VDDPCIE_2
VDDPCIE_3
VDDPCIE_4
VDDPCIE_5
VDDPCIE_6
VDDPCIE_7
VDDPCIE_8
VDDPCIE_9

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8

VDDC_9
VDDC_10
VDDC_11
VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20
VDDC_21
VDDC_22

+V1.1S

C1137

14-,18-,25-,45-,47-,48-

1
2

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

C1806

1

10uF_6.3V

2

2009/11/19

+V1.5S

I = TBDA

Trace Width >= 130mil

A6
B6
C6
D6
E6
F6
G7
H8
J9
K9
M9
L9
P9
R9
T9
V9
U9

K12
J14
U16
J11
K15
M12
L14
L11
M13
M15
N12
N14
P11
P13
P14
R12
R15
T11
T15
U12
T14
J16

AE10
AA11
Y11
AD10
AB10
AC10

H11
H12

C1085

1
2

0.1uF_10V

C1092

1
2

0.1uF_10V

C1080

1
2

0.1uF_10V

C1097

1
2

0.1uF_10V

0.1uF_10V

10-,12-,14-,15-,20-,23-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

C1141

1
2

0.1uF_10V

C1089

1
2

0.1uF_10V

C1083

1
2

0.1uF_10V

C1098

+V3S

VDDPCIE

C1090

1
2

1uF_10V

Trace Width >= 550mil

I = 10A

C1142

1
2

10uF_6.3V

C1079

1
2

0.1uF_10V

C1099

1
2

0.1uF_10V

Trace Width >= 15mil

C1077

0.1uF_10V

C1078

1
2

0.1uF_10V

1
2

C1144

1
2

1uF_10V

C1143

1
2

10uF_6.3V

C1086

1
2

0.1uF_10V

C1147

1
2

0.1uF_10V

I = 60mA

I = 2.5A

1
2

4.7uF_6.3V

VCC_NB

13-,47-

C1149

1
2

4.7uF_6.3V

U810-6

PART 6/6

A25

VSSAHT1

D23

VSSAHT2

E22

VSSAHT3

G22

VSSAHT4

G24

VSSAHT5

G25

VSSAHT6

H19

VSSAHT7

J22

VSSAHT8

L17

VSSAHT9

L22

VSSAHT10

L24

VSSAHT11

L25

VSSAHT12

M20

VSSAHT13

N22

VSSAHT14

P20

VSSAHT15

R19

VSSAHT16

R22

VSSAHT17

R24

VSSAHT18

R25

VSSAHT19

H20

VSSAHT20

U22

VSSAHT21

V19

VSSAHT22

W22

VSSAHT23

W24

VSSAHT24

W25
Y21

AD25

L12
M14
N13
P12
P15
R11
R14
T12
U14
U11
U15
V12
W11

W15
AC12
AA14

Y18
AB11
AB15
AB17
AB19
AE20
AB21

K11

GROUND

VSSAHT25
VSSAHT26
VSSAHT27

VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34

AMD_RS880M_FCBGA_528P

VSSAPCIE1
VSSAPCIE2
VSSAPCIE3
VSSAPCIE4
VSSAPCIE5
VSSAPCIE6
VSSAPCIE7
VSSAPCIE8

VSSAPCIE9
VSSAPCIE10
VSSAPCIE11
VSSAPCIE12
VSSAPCIE13
VSSAPCIE14
VSSAPCIE15
VSSAPCIE16
VSSAPCIE17
VSSAPCIE18
VSSAPCIE19
VSSAPCIE20
VSSAPCIE21
VSSAPCIE22
VSSAPCIE23
VSSAPCIE24
VSSAPCIE25
VSSAPCIE26
VSSAPCIE27
VSSAPCIE28
VSSAPCIE29
VSSAPCIE30
VSSAPCIE31
VSSAPCIE32
VSSAPCIE33
VSSAPCIE34
VSSAPCIE35
VSSAPCIE36
VSSAPCIE37
VSSAPCIE38
VSSAPCIE39
VSSAPCIE40

VSS10

A2
B1
D3
D5
E4
G1
G2
G4
H7
J4
R7
L1
L2
L4
L7
M6
N4
P6
R1
R2
R4
V7
U4
V8
V6
W1
W2
W4
W7
W8
Y6
AA4
AB5
AB1
AB7
AC3
AC4
AE1
AE4
AB2

AE14

VSS1

D11

VSS2

G8

VSS3

E14

VSS4

E15

VSS5

J15

VSS6

J12

VSS7

K14

VSS8

M11

VSS9

L15

INVENTEC

TITLE

ST145a-UMA

SIZE

CODE

A3

CS

27-Jul-2009ALAN W

SHEETCHANGE by

RS880M - 4

DOC. NUMBER

OF

24 51

REV

X01Model_No

SIDE-PORT DDR III

GM_MA(0)
GM_MA(1)
GM_MA(2)
GM_MA(3)
GM_MA(4)
GM_MA(5)
GM_MA(6)
GM_MA(7)
GM_MA(8)

GM_MA(9)
GM_MA(10)
GM_MA(11)
GM_MA(12)
GM_MA(13)

GM_BA0
GM_BA1
GM_BA2

GM_ODT

GM_CS#
GM_RAS#
GM_CAS#

GM_WE#

GM_RESET#

GM_CKE

GM_CLK

GM_CLK#

GM_DM1

GM_DQS1

GM_DQS1#

GM_DM0

GM_DQS0

GM_DQS0#

SP_VREFDQ
SP_VREFCA

21­21­21­21­21­21­21­21­21­21­21­21­21­21-

21­21­21-

21­21­21­21­21-

25-,31-

21-

21­21-

21-

21-

21-

21-

21-

21-

25­25-

U811

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5
A6

R2

A7

T8

A8

R3

A9

L7

A10_AP

R7

A11

N7

A12_BC#

T3

A13

T7

A14

M7

A15_BA3

M2

BA0

N8

BA1

M3

BA2

K1

ODT_ODT0

L2

CS#_CS0#

J3

RAS#

K3

CAS#

L3

WE#

T2

RESET#

K9

CKE_CKE0

J7

CK

K7

CK#

D3

DMU

C7

DQSU

B7

DQSU#

E7

DML

F3

DQSL

G3

240_1%
R1046

12

DQSL#

L8

ZQ_ZQ0

J1

NC_ODT1

L1

NC_CS1#

J9

NC_CE1

L9

NC_ZQ1

H1

VREFDQ

M8

VREFCA

SAM_K4W1G1646E_HC15_FBGA_96P

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VDD_B2
VDD_D9
VDD_G7
VDD_K2
VDD_K8
VDD_N1
VDD_N9
VDD_R1
VDD_R9

VDDQ_A1
VDDQ_A8
VDDQ_C1
VDDQ_C9
VDDQ_D2
VDDQ_E9
VDDQ_F1
VDDQ_H2
VDDQ_H9

VSS_A9
VSS_B3
VSS_E1
VSS_G8

VSS_J2

VSS_J8
VSS_M1
VSS_M9
VSS_P1
VSS_P9

VSS_T1

VSS_T9

VSSQ_B1
VSSQ_B9
VSSQ_D1
VSSQ_D8
VSSQ_E2
VSSQ_E8

VSSQ_F9
VSSQ_G1
VSSQ_G9

21-

E3
F7
F2
F8
H3
H8
G2
H7R8

D7
C3
C8
C2
A7
A2
B8
A3

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

21­21­21­21­21­21­21-

21­21­21­21­21­21­21­21-

GM_MD(0)
GM_MD(1)
GM_MD(2)
GM_MD(3)
GM_MD(4)
GM_MD(5)
GM_MD(6)
GM_MD(7)

GM_MD(8)
GM_MD(9)
GM_MD(10)
GM_MD(11)
GM_MD(12)
GM_MD(13)
GM_MD(14)
GM_MD(15)

+V1.5S_SIDEPORT

21-,25-

0.5A

+V1.5S_SIDEPORT

21-,25-

SIDE PORT MEMORY DDR3 800MHz

HYNIX

SAMSUNG

6019B0647101
6019B0648501

R1206
R1186

SP_VREFDQ

SP_VREFCA

GM_RESET#

C1103

0.1uF_10V

25-

C1035

0.1uF_10V

C1107

0.1uF_10V

25-

C1106

0.1uF_10V

+V1.5S_SIDEPORT

21-,25-

1

1

R982

1K_1%

2

2

1

1

R983
1K_1%

2

2

+V1.5S_SIDEPORT

21-,25-

1

1

R1047
1K_1%

2

2

1

1

R1048
1K_1%

2

2

+V1.5S_SIDEPORT

21-,25-

R1045

10K_5%

1 2

25-,31-

12

C1105

0.01uF_16V

0.5A

+V1.5S +V1.5S_SIDEPORT

14-,18-,24-,45-,47-,48-

L815

1 2

BLM11P600S_OPEN

PAD5

POWERPAD_2_0610

10uF_6.3V

1
2

C1037

10uF_6.3V

1
2

C1034

1uF_10V

C1104

1
2

0.1uF_10V

1
2

1
2

1uF_10V

C1036C1108

0.1uF_10V

21-,25-

C1102

1
2

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

SIDE-PORT

CODE

SIZE

A3

Model_No X01

CS

SHEET

REVDOC. NUMBER

OF

5125

SO-DIMM0

SMBUS
SMBUS

SDDR-CTRL
SDDR-CTRL

SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ

SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS

SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS
SDDR-DQS

SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CMD

17-

MA_BA0

17-

MA_BA1

17-

MA_BA2

17-

MA_CS0#

17-

MA_CS1#

MA_CLK_DDR1

MA_CLK_DDR1#

MA_CLK_DDR2

MA_CLK_DDR2#

SB_3S_SMCLK

SB_3S_SMDATA

MA_DM(7:0)

MA_DQS(7:0)

MA_DQS#(7:0)

17­17­17­17­17-

MA_CKE0

17-

MA_CKE1

17-

MA_CAS#

17-

MA_RAS#

17-

MA_WE#

26-

SA0_DIM0

26-

SA1_DIM0

15-,27-,31-,40­15-,27-,31-,40-

17-

MA_ODT0

17-

MA_ODT1

17-

17-

17-

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

NOTE:

IF SA0_DIM0=0 , SA1_DIM0=0
SO-DIMMA SPD ADDRESS IS 0xA0
SO-DIMMA TS ADDRESS IS 0x30

IF SA0_DIM0=1 , SA1_DIM0=0
SO-DIMMA SPD ADDRESS IS 0xA2
SO-DIMMA TS ADDRESS IS 0x32

SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CTRL
SDDR-CTRL

SDDR-CTRL
SDDR-CTRL
SDDR-CMD
SDDR-CMD
SDDR-CMD
SDDR-CTRL

SDDR-CTRL

MA_A(0)
MA_A(1)
MA_A(2)
MA_A(3)
MA_A(4)
MA_A(5)
MA_A(6)
MA_A(7)
MA_A(8)
MA_A(9)
MA_A(10)
MA_A(11)
MA_A(12)
MA_A(13)
MA_A(14)
MA_A(15)SDDR-CMD

MA_DM(0)
MA_DM(1)
MA_DM(2)
MA_DM(3)
MA_DM(4)
MA_DM(5)
MA_DM(6)
MA_DM(7)

MA_DQS(0)
MA_DQS(1)
MA_DQS(2)
MA_DQS(3)
MA_DQS(4)
MA_DQS(5)
MA_DQS(6)
MA_DQS(7)
MA_DQS#(0)
MA_DQS#(1)
MA_DQS#(2)
MA_DQS#(3)
MA_DQS#(4)
MA_DQS#(5)
MA_DQS#(6)
MA_DQS#(7)

CN808-1

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10_AP

84

A11

83

A12

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

FOX_AS0A626_U4SG_7H_204P

+V3S

R864

10K_5%

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

PWR-D

1

R865
10K_5%_OPEN

2

1

1

R863

10K_5%

2

2

5
7
15
17
4
6
16
18
21
23
33
35
22
24
34
36
39
41
51
53
40
42
50
52
57
59
67
69
56
58
68
70
129
131
141
143
130
132
140
142
147
149
157
159
146
148
158
160
163
165
175
177
164
166
174
176
181
183
191
193
180
182
192
194

MA_DATA(0)
MA_DATA(1)
MA_DATA(2)
MA_DATA(3)
MA_DATA(4)
MA_DATA(5)
MA_DATA(6)
MA_DATA(7)
MA_DATA(8)
MA_DATA(9)
MA_DATA(10)
MA_DATA(11)
MA_DATA(12)
MA_DATA(13)
MA_DATA(14)
MA_DATA(15)
MA_DATA(16)
MA_DATA(17)
MA_DATA(18)
MA_DATA(19)
MA_DATA(20)
MA_DATA(21)
MA_DATA(22)
MA_DATA(23)
MA_DATA(24)
MA_DATA(25)
MA_DATA(26)
MA_DATA(27)
MA_DATA(28)
MA_DATA(29)
MA_DATA(30)
MA_DATA(31)
MA_DATA(32)
MA_DATA(33)
MA_DATA(34)
MA_DATA(35)
MA_DATA(36)
MA_DATA(37)
MA_DATA(38)
MA_DATA(39)
MA_DATA(40)
MA_DATA(41)
MA_DATA(42)
MA_DATA(43)
MA_DATA(44)
MA_DATA(45)
MA_DATA(46)
MA_DATA(47)
MA_DATA(48)
MA_DATA(49)
MA_DATA(50)
MA_DATA(51)
MA_DATA(52)
MA_DATA(53)
MA_DATA(54)
MA_DATA(55)
MA_DATA(56)
MA_DATA(57)
MA_DATA(58)
MA_DATA(59)

MA_DATA(61)
MA_DATA(62)
MA_DATA(63)

26-

SA0_DIM0

26-

SA1_DIM0

SDDR-CTRL

SDDR-CTRL

4A

C932

1
2

22uF_6.3V

+V1.5

PWR-D

11-,12-,14-,18-,19-,26-,27-,32-,33-

C972

1
2

22uF_6.3V

1

C874

1uF_10V

2

1
2

+V3S

17-17-

MA_DATA(63:0)MA_A(15:0)

SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ

1

C971

SDDR-DQ
SDDR-DQ

100uF_6.3V

SDDR-DQ

2

SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQ
SDDR-DQMA_DATA(60)
SDDR-DQ
SDDR-DQ
SDDR-DQ

M_VREF_DQ_A

C974

22uF_6.3V

PWR-D

1

C875

0.1uF_10V

2

M_VREF_DQ_A

C1121

2.2uF_6.3V

0.5A

2.2uF_6.3V

PWR-C

26-

R927

1 2

0_5%

CPU_MEMHOT#

C1017

1
2

0.1uF_10V

C931

M_VREF

1
2

PWR-C

26-

M_VREF

PWR-A

11-,26-,27-

18-,29-,31-

1
2

C934

1
2

0.1uF_10V

1

C1120

0.1uF_10V

2

11-,26-,27-

1
2

11-,12-,14-,18-,19-,26-,27-,32-,33-

Q810

MMBT3904

3 2

Layout NOTE: Place
these Caps near
SO-DIMM0 power pin

C1016

0.1uF_10V

MEM_MA_EVENT#

MEM_MA_RST#

+V1.5

PWR-D PWR-D

12

R860

2.2K_5%

2.2K_5%

B

E

Q811

1

B

C E

3

1
2

1
2

C930

0.1uF_10V

1

C

MMBT3904

C1018

0.1uF_10V

26-

CPU-I

19-

SDDR-CTRL

11-,12-,14-,18-,19-,26-,27-,32-,33-

+V1.5

12

12

R862

R861

2.2K_5%

2

CHANGE by

CN808-2

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

FOX_AS0A626_U4SG_7H_204P

12

R859

2.2K_5%

26-

MEM_MA_EVENT#

27-

MEM_MB_EVENT#

ALAN W 27-Jul-2009

44

VSS16

48

VSS17

49

VSS18

54

VSS19

55

VSS20

60

VSS21

61

VSS22

65

VSS23

66

VSS24

71

VSS25

72

VSS26

127

VSS27

128

VSS28

133

VSS29

134

VSS30

138

VSS31

139

VSS32

144

VSS33

145

VSS34

150

VSS35

151

VSS36

155

VSS37

156

VSS38

161

VSS39

162

VSS40

167

VSS41

168

VSS42

172

VSS43

173

VSS44

178

VSS45

179

VSS46

184

VSS47

185

VSS48

189

VSS49

190

VSS50

195

VSS51

196

VSS52

203

VTT1

204

VTT2

G1

G1

G2

G2

C872

4.7uF_6.3V

Place these caps
close to VTT1 and

VTT2

+V0.75S

11-,27-

PWR-A

1.5A

Note:Place C4100
on common path
for both DIMM’s

1

1

C873

2

2

0.1uF_10V

INVENTEC

TITLE

ST145a-UMA

DDR3 DIMM0

DOC. NUMBER

CODE

SIZE

A3

Model_No X01

CS

SHEET

REV

OF

5126

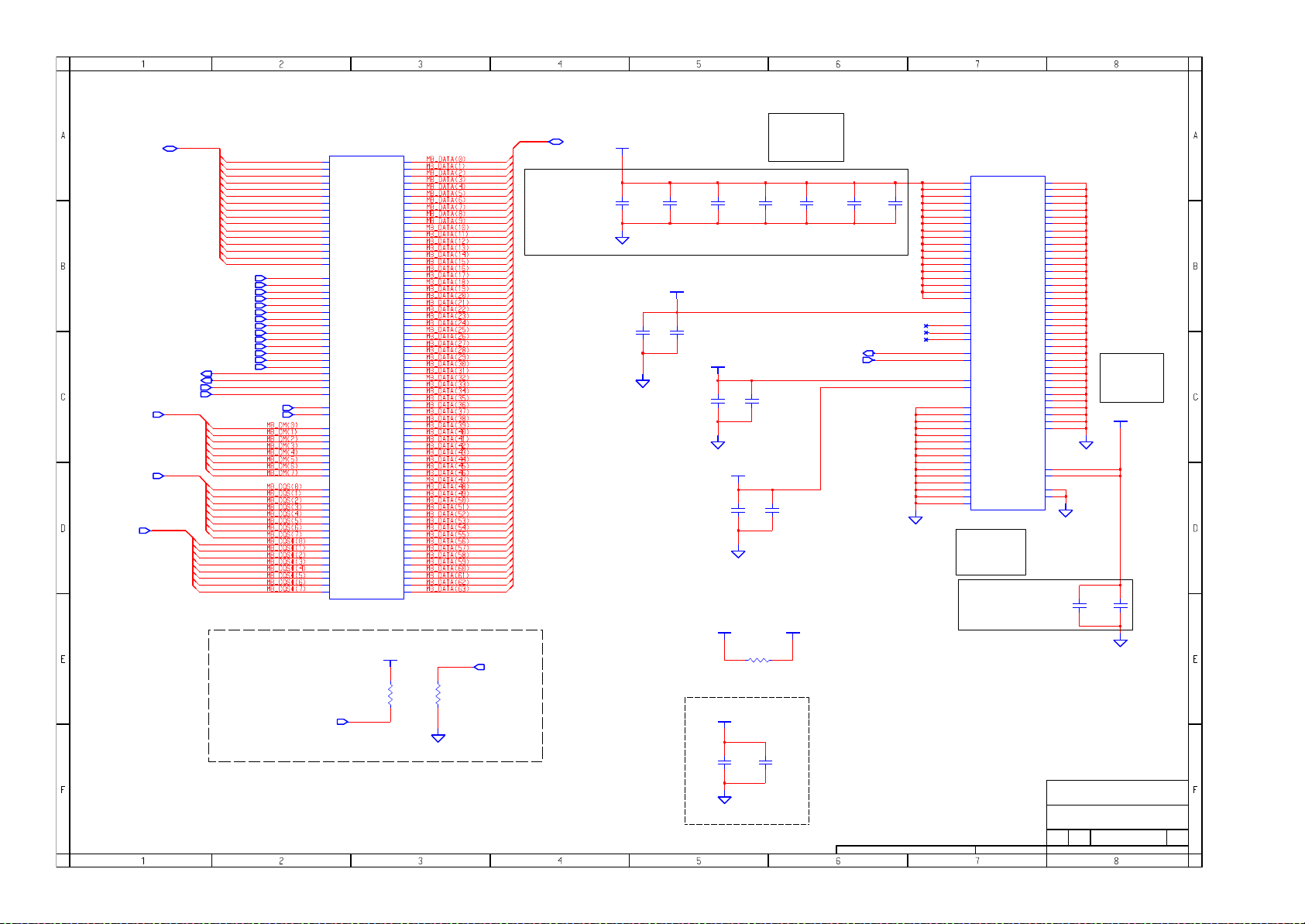

SO-DIMM1

MB_A(15:0)

MB_DM(7:0)

MB_DQS(7:0)

MB_DQS#(7:0)

17-

SA0_DIM1
SA1_DIM1

SB_3S_SMCLK

SB_3S_SMDATA

17-

17-

17-

MB_BA0
MB_BA1

MB_BA2
MB_CS0#
MB_CS1#

MB_CLK_DDR1
MB_CLK_DDR1#
MB_CLK_DDR2
MB_CLK_DDR2#

MB_CKE0
MB_CKE1
MB_CAS#
MB_RAS#

MB_WE#

27­27­15-,26-,31-,40­15-,26-,31-,40-

MB_ODT0
MB_ODT1

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

NOTE:
SO-DIMMB SPD ADDRESS IS 0xA4

SO-DIMMB TS ADDRESS IS 0x34

MB_A(0)
MB_A(1)
MB_A(2)
MB_A(3)
MB_A(4)
MB_A(5)
MB_A(6)
MB_A(7)
MB_A(8)
MB_A(9)
MB_A(10)
MB_A(11)
MB_A(12)
MB_A(13)
MB_A(14)
MB_A(15)

17­17­17­17­17­17­17­17­17­17­17­17­17­17-

CN809-1

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10_AP

84

A11

83

A12

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

17-

ODT0

120

17-

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

FOX_AS0A621_J8SG_7H_204P

SA1_DIM1

27-

R866

10K_5%

+V3S

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

MB_DATA(63:0)

17-

5

DQ0

7

DQ1

15

DQ2

17

DQ3

4

DQ4

6

DQ5

16

DQ6

18

DQ7

21

DQ8

23

DQ9

33
35
22
24
34
36
39
41
51
53
40
42
50
52
57
59
67
69
56
58
68
70
129
131
141
143
130
132
140
142
147
149
157
159
146
148
158
160
163
165
175
177
164
166
174
176
181
183
191
193
180
182
192
194

27-

R867
10K_5%

SA0_DIM1

1

2

1

2

4A

+V1.5

11-,12-,14-,18-,19-,26-,27-,32-,33-

C938

1
2

22uF_6.3V

C879

1
2

1uF_10V

C973

1
2

22uF_6.3V

C975

1
2

22uF_6.3V

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

C878

1
2

0.1uF_10V

M_VREF_DQ_B

27-

C1123

1
2

2.2uF_6.3V

M_VREF

C936

2.2uF_6.3V

+V1.5

Layout Note: Place
these Caps near
SO-DIMM1 power pin

C937

1
2

C1122

1
2

0.1uF_10V

0.5A

11-,26-,27-

C935

1

1

2

2

27-

11-,12-,14-,18-,19-,26-,27-,32-,33-

R928

1 2

0_5%

0.1uF_10V

M_VREFM_VREF_DQ_B

C1020

1
2

0.1uF_10V0.1uF_10V

MEM_MB_EVENT#

MEM_MB_RST#

11-,26-,27-

1
2

C933

0.1uF_10V

26­19-

C1015

1
2

0.1uF_10V

CN809-2

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

FOX_AS0A621_J8SG_7H_204P

VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52

VTT1
VTT2

G1
G2

Place these caps
close to VTT1 and

VTT2

4.7uF_6.3V

44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196

Place these caps

close to VTT1 and

VTT2

+V0.75S

11-,26-

1.5A

203
204

G1
G2

C876

C877

1

1

2

2

0.1uF_10V

C1413

12

33pF_50V_OPEN

33pF_50V_OPEN

C1414

12

RF

CHANGE by

ALAN W

27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

DDR3 DIMM1

SIZE

CODE

A3

DOC. NUMBER

Model_No X01

CS

SHEET OF

REV

5127

INVENTEC

TITLE

ST145a-UMA

DDR3 DAMPING

SIZE CODE DOC. NUMBER REV

A3

CHANGE by SHEET OF

20-Aug-2009ALAN W

CS

28 51

X01Model_No

ALINK-RX-A
ALINK-RX-A
ALINK-RX-B
ALINK-RX-B
ALINK-RX-C
ALINK-RX-C
ALINK-RX-D
ALINK-RX-D

A_RST#

A_C_RX0
A_C_RX0#
A_C_RX1
A_C_RX1#
A_C_RX2
A_C_RX2#
A_C_RX3
A_C_RX3#

PCIE_VDDR

PCIE & ALINK - 100MHZ

SBSRC_CLKP
SBSRC_CLKN

NBLINK_R_CLKP
NBLINK_R_CLKN

NB_REF - 100MHZ

NB_R_REFCLKP

NB_R_REFCLKN

NB_HT - 100MHZ

HT_R_REFCLKP
HT_R_REFCLKN

CPU - 200 MHZ

CPU_R_CLKP
CPU_R_CLKN

NB_GFX - 100MHZ
LAN - 100MHZ

PCIE_R_LAN_CLKP

PCIE_R_LAN_CLKN

WLAN - 100MHZ

PCIE_R_WLAN_CLKP
PCIE_R_WLAN_CLKN

CARD READER - 48MHZ

CLK-USB

2

0.1uF_10V

1 2

0.1uF_10V

1

2

0.1uF_10V

1 2

0.1uF_10V

1 2

CLK-SRC-A
CLK-SRC-A

RS812

CLK-SRC-B
CLK-SRC-B

CLK-HCLK-A

CLK-HCLK-A

15-,39-

1

RS806

C1306

R1175
R1174

PCIE_RST#_C

CPU-I

C1215
C1212
C1211
C1209

A_C_TX0
A_C_TX0#
A_C_TX1
A_C_TX1#
A_C_TX2
A_C_TX2#
A_C_TX3
A_C_TX3#

1 2
1 2

EXT CLK

RS803

1
2 3

0_5%_OPEN

INT CLK

1
2 3

0.5%

INT CLK

1
2 3

0.5%

INT CLK

RS810

1
2 3

0.5%

1
2

C1205

150pF_50V

23-,37-,48-

C1214

22- 33­22-

C1213

22­22-

C1210

22­22-

C1208

22­22-

ALINK-TX-A
ALINK-TX-A
ALINK-TX-B

ALINK-TX-B
ALINK-TX-C
ALINK-TX-C
ALINK-TX-D
ALINK-TX-D

32-

PWR-C

15­15-

15-,23-

CLK-SRC-B

15-,23-

CLK-SRC-B

23­23-

15-,23­15-,23-

15-,18­15-,18-

CLK-HCLK-A

15-,43-

CLK-SRC-C

15-,43-

CLK-SRC-C

15-,48-

CLK-SRC-D

15-,48-

CLK-SRC-D

CLK_CR48

R1221 1

0.1uF_10V

1 2

0.1uF_10V

2

1

0.1uF_10V

1 2

0.1uF_10V

1 2

590_1%

LPC
LPC

SB_NB_LINK_CLKP

4

SB_NB_LINK_CLKN

INT CLK

0.5%

2 3
1

RS804

4

INT CLK

1
2 3

0.5%

4

4

INT CLK

1
2 3

0.5%

INT CLK

1 2

R1172

R1140

1 2

1M_5%

X802

1 2

25MHz

27pF_50V

2009/11/19

22­22­22­22­22­22­22­22-

2K_1%

4

4

4

22_5%

29-

CPU-I

33_5%

2

CPU-I

PCIE_CALRP
PCIE_CALRN

SB_NB_DISP_CLKP

CLK-SRC-B

SB_NB_DISP_CLKN

CLK-SRC-B

RS800

SB_HT_CLKP

CLK-HCLK-A

SB_HT_CLKN

CLK-HCLK-A

SB_CPU_CLKP

CLK-HCLK-A

SB_CPU_CLKN

CLK-HCLK-A

SB_LAN_CLKP

CLK-SRC-C

SB_LAN_CLKN

CLK-SRC-C

RS809

SB_WLAN_CLKP

CLK-SRC-D

SB_WLAN_CLKN

CLK-SRC-D

SB_48M_OSC

1
2

C1206

27pF_50V

A_RX0
A_RX0#
A_RX1
A_RX1#
A_RX2
A_RX2#
A_RX3
A_RX3#

AD26
AD27
AC28
AC29
AB29
AB28
AB26
AB27

AE24
AE23
AD25
AD24
AC24
AC25
AB25
AB24

AD29
AD28

AA28
AA29

AA22

AA25
AA24

P1
L1

Y29
Y28
Y26
Y27
W28
W29

Y21

W23
V24
W24
W25

M23
P23

U29
U28

T26
T27

V21
T21

V23
T23

L29
L28

N29
N28

M29
M28

T25
V25

L24
L23

P25
M25

P29
P28

N26
N27

T29
T28

L25

L26

L27

U822-1

PCIE_RST#
A_RST#

A_TX0P
A_TX0N
A_TX1P
A_TX1N
A_TX2P
A_TX2N
A_TX3P
A_TX3N

A_RX0P
A_RX0N
A_RX1P
A_RX1N
A_RX2P
A_RX2N
A_RX3P
A_RX3N

PCIE_CALRP
PCIE_CALRN

GPP_TX0P
GPP_TX0N
GPP_TX1P
GPP_TX1N
GPP_TX2P
GPP_TX2N
GPP_TX3P
GPP_TX3N

GPP_RX0P
GPP_RX0N
GPP_RX1P
GPP_RX1N
GPP_RX2P
GPP_RX2N
GPP_RX3P
GPP_RX3N

PCIE_RCLKP_NB_LNK_CLKP
PCIE_RCLKN_NB_LNK_CLKN

NB_DISP_CLKP
NB_DISP_CLKN

NB_HT_CLKP
NB_HT_CLKN

CPU_HT_CLKP
CPU_HT_CLKN

SLT_GFX_CLKP
SLT_GFX_CLKN

GPP_CLK0P
GPP_CLK0N

GPP_CLK1P
GPP_CLK1N

GPP_CLK2P
GPP_CLK2N

GPP_CLK3P
GPP_CLK3N

GPP_CLK4P
GPP_CLK4N

GPP_CLK5P
GPP_CLK5N

GPP_CLK6P
GPP_CLK6N

GPP_CLK7P
GPP_CLK7N

GPP_CLK8P
GPP_CLK8N

SB800

14M_25M_48M_OSC

25M_X1

25M_X2

AMD_SB820M_FCBGA_605P

Part 1 of 5

PCICLK4_14M_OSC_GPO39

PCI CLKS

PCI EXPRESS INTERFACES

PCICLK0
PCICLK1_GPO36
PCICLK2_GPO37
PCICLK3_GPO38

PCIRST#

AD0_GPIO0
AD1_GPIO1
AD2_GPIO2
AD3_GPIO3
AD4_GPIO4
AD5_GPIO5
AD6_GPIO6
AD7_GPIO7
AD8_GPIO8

AD9_GPIO9
AD10_GPIO10
AD11_GPIO11
AD12_GPIO12
AD13_GPIO13
AD14_GPIO14
AD15_GPIO15
AD16_GPIO16
AD17_GPIO17
AD18_GPIO18
AD19_GPIO19
AD20_GPIO20
AD21_GPIO21
AD22_GPIO22
AD23_GPIO23
AD24_GPIO24
AD25_GPIO25
AD26_GPIO26
AD27_GPIO27
AD28_GPIO28
AD29_GPIO29
AD30_GPIO30
AD31_GPIO31

DEVSEL#

PCI INTERFACELPC

REQ1#_GPIO40
REQ2#_CLK_REQ8#_GPIO41
REQ3#_CLK_REQ5#_GPIO42

GNT1#_GPO44
GNT2#_GPO45

GNT3#_CLK_REQ7#_GPIO46

LDRQ1#_CLK_REQ6#_GPIO49

CLOCK GENERATOR

ALLOW_LDTSTP_DMA_ACTIVE#

SERIRQ_GPIO48

CPU

RTC

INTRUDER_ALERT#

CLKRUN#

INTE#_GPIO32

INTF#_GPIO33

INTG#_GPIO34

INTH#_GPIO35

LPCCLK0
LPCCLK1

LFRAME#

PROCHOT#

LDT_STP#
LDT_RST#

VDDBT_RTC_G

Trace Width >= 15mil

CBE0#
CBE1#
CBE2#
CBE3#

FRAME#

IRDY#
TRDY#

STOP#
PERR#
SERR#
REQ0#

GNT0#

LOCK#

LAD0
LAD1
LAD2
LAD3

LDRQ0#

LDT_PG

32K_X1

32K_X2

RTCCLK

PAR

R1237

W2

R1238

W1

R1239

W3

R1241

W4

R1240 1 2

Y1

V2

AA1
AA4
AA3
AB1
AA5
AB2
AB6
AB5
AA6
AC2
AC3
AC4
AC1
AD1
AD2
AC6
AE2
AE1
AF8
AE3
AF1
AG1
AF2
AE9
AD9
AC11
AF6
AF4
AF3
AH2
AG2
AH3
AA8
AD5
AD8
AA10
AE8
AB9
AJ3
AE7
AC5
AF5
AE6
AE4
AE11
AH5
AH4
AC12
AD12
AJ5
AH6
AB12
AB11
AD7

AJ6
AG6
AG4
AJ4

R1170

H24
H25

R1171

J27
J26
H29
H28
G28
J25
AA18
AB19

G21
H21
K19
G22
J24

C1

C2

D2
B2
B1

C1331

R1235

TP843

TP850

TP842

TP845
TP841

TP844

TP852

TP851

CPU-I

1
2

PWR-B

0.1uF_10V

1
1 2
1 2
1 2

1

PCI
PCI
PCI
PCI
PCI
PCI
PCI

PCI

DEFAULT_NET_TYPE

1 2

0_5%_OPENR1169

1 2

CPU-I
CPU-I

CPU-I

LPC

R1270

+V_RTC

1
2

C1330

2

22_5%_OPEN

22_5%
22_5%
22_5%
22_5%

2

33_5%

R1246

1 2

0_5%

0_5%R1245

1 2

29-,37-

29-,40-

12_5%1 2
22_5%

37-

CPU-I

18­23-

CPU-I

18­18­18­18-

29-

1 2

+V3AL

3

2

1uF_10V

PWR-B

13­33­33­33­33­33­33­33­38­29-

PCI_SERR#

ACCEL_INT

33-,37-

33-,48­29-,37-,48­29-,37-,48­29-,37-,48­29-,37-,48-

37-,48-

SERIRQ

LDT_REQ#
ALLOW_LDTSTOP
CPU_PROCHOT#

LDT_PG
LDTSTOP#
CPU_LDT_RST#

RTC_CLK

1M_5%_OPEN

7-,8-,9-,37-

D823
BAT54C

R1271

510_5%

1 2

PCI_CLK0

33-

PCI_CLK1

33-

PCI_CLK2
PCI_CLK3

33-

PCI_CLK4

150pF_50V

C1335

1 2

MPCIE_RST0#

VDDR_0.9_EN

PCI_3S_AD(23)
PCI_3S_AD(24)
PCI_3S_AD(25)
PCI_3S_AD(26)
PCI_3S_AD(27)
PCI_3S_AD(28)

PCI_3S_AD(29)
HDD_LOCK_LED
SB820M_MEMHOT#

LPC

LPC_CLK0

LPC

LPC_CLK1

LPC_AD(0)
LPC_AD(1)
LPC_AD(2)
LPC_AD(3)

LPC_FRAME#

CPU-I

DGND

+V_RTCBAT

29-

PWR-B

Trace Width >= 15mil

N.C ?

PCI
PCI
PCI
PCI
PCI

LPC
LPC
LPC
LPC
LPC
LPC
LPC

I = 200mA

PCI
PCI

PCI
PCI
PCI

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

PCI_RST# +V3S

29-,40-

ACCEL_INT

PCI_SERR#

RTC_CLK

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

SB_GPIO_PCIE_RST#

PCIE_RST#_C

31­29-

SHAQ SI PHASE CHANGE TO U823 N.C, R1286 STUFF

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3A

PWR-D

0.1uF_25V

5

1
2

U823

3

TSB_TC7SZ08F_SSOP_5P_OPEN

R1286

1 2

0_5%

R1243

DEFAULT_NET_TYPE

R1242 8.2K_5%

29-,37-

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

R1211

29-

C1339

1 2

R1285

1 2

LPC

4

33_5%

+V3S

12

12

R1274

CPU_MEMHOT#

18pF_50V

1

4

X805

1

-

C1329

2009/09/28

2 3

TXC_32.768_10PPM_4P

18pF_50V

1

C1303

8/21

R1269

10M_5%

1 2

R1208

10M_5%

1 2

+V_RTCBAT

29-

CN820

PWR-B

1+2

LOTES_AAA_BAT_032_K01_A_2P

CHANGE by

2.2K_5%

1

B

18-,26-,31-

C

3 2

MMBT3904

2

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

LPC_AD(0)
LPC_AD(1)
LPC_AD(2)
LPC_AD(3)

2

27-Jul-2009ALAN W

Q841

E

R1275

2.2K_5%

29-

SB820M_MEMHOT#

R1138

29-,37-,48-

R1162

29-,37-,48-

R1137 8.2K_5%

29-,37-,48-

R1139

29-,37-,48-

INVENTEC

TITLE

ST145a-UMA

SIZE

CODE

A3

CS

SHEET

1 2

PCI

1

1 2

12

LPC

1

LPC

1

LPC

1

LPC

1

C1340

150pF_50V

8.2K_5%

2

10K_5%_OPEN

43-,48-

PCIE_RST#

8.2K_5%

2

8.2K_5%

2

2

8.2K_5%

2

SB820M - 1

DOC. NUMBER

OF

29

+V3A

From GPIO

+V3A

REV

X01Model_No

51

SATA_0 --- HDD
SATA_1--- ODD
SATA_2--- ESATA

SATA_TX0P
SATA_TX0N

SATA_RX0N
SATA_RX0P

SATA_TX1P
SATA_TX1N

SATA_RX1N
SATA_RX1P

SATA_TX2P
SATA_TX2N

SATA_RX2N
SATA_RX2P

C1313

0.01uF_16V

40­40-

1 2

C1296

1 2

Close to SB

40­40-

C1294

0.01uF_16V

40­40-

1 2

C1295

1 2

Close to SB

40­40-

C1293

0.01uF_16V

42­42-

1 2

C1292

1 2

Close to SB

42­42-

SB820 A11 = R1193 = 800 OHM
SB820 A12 = R1193 = TBD OHM

1

LED_3S_SATA#

R1201

1 2

1M_5%

X804

1 2

25MHz

1 2

LPC

N.C

32-

PWR-C

AVDD_SATA

LPC

2009/09/28

1
2

C1297
18pF_50V

R1193

806_1%

931_1%

R1192

1
2

SATA_C_TX0P
SATA_C_TX0N

0.01uF_16V

SATA_C_TX1P
SATA_C_TX1N

0.01uF_16V

SATA_C_TX2P
SATA_C_TX2N

0.01uF_16V

2

C1298

18pF_50V

HYNIX

SAMSUNG

QIMONDA

U822-2

AH9

SATA_TX0P

AJ9

SATA_TX0N

AJ8

SATA_RX0N

AH8

SATA_RX0P

AH10

SATA_TX1P

AJ10

SATA_TX1N

AG10

SATA_RX1N

AF10

SATA_RX1P

AG12

SATA_TX2P

AF12

SATA_TX2N

AJ12

SATA_RX2N

AH12

SATA_RX2P

AH14

SATA_TX3P

AJ14

SATA_TX3N

AG14

SATA_RX3N

AF14

SATA_RX3P

AG17

SATA_TX4P

AF17

SATA_TX4N

AJ17

SATA_RX4N

AH17

SATA_RX4P

AJ18

SATA_TX5P

AH18

SATA_TX5N

AH19

SATA_RX5N

AJ19

SATA_RX5P

AB14

SATA_CALRP

AA14

SATA_CALRN

AD11

38-

PWR-A

SATA_ACT#_GPIO67

AD16

SATA_X1

AC16

SATA_X2

J5

SPI_DI_GPIO164

E2

SPI_DO_GPIO163

K4

SPI_CLK_GPIO162

K9

SPI_CS1#_GPIO165

G2

ROM_RST#_GPIO161

SB800

Part 2 of 5

SERIAL ATA

TEMPIN3_TALERT#_GPIO174

HW MONITOR

SPI ROM

FC_CLK

FC_FBCLKOUT

FC_FBCLKIN

FC_OE#_GPIOD145

FC_AVD#_GPIOD146

FC_WE#_GPIOD148
FC_CE1#_GPIOD149
FC_CE2#_GPIOD150
FC_INT1_GPIOD144
FC_INT2_GPIOD147

FC_ADQ0_GPIOD128
FC_ADQ1_GPIOD129
FC_ADQ2_GPIOD130
FC_ADQ3_GPIOD131
FC_ADQ4_GPIOD132
FC_ADQ5_GPIOD133
FC_ADQ6_GPIOD134
FC_ADQ7_GPIOD135
FC_ADQ8_GPIOD136
FC_ADQ9_GPIOD137

FC_ADQ10_GPIOD138
FC_ADQ11_GPIOD139
FC_ADQ12_GPIOD140

FLASH

FC_ADQ13_GPIOD141
FC_ADQ14_GPIOD142
FC_ADQ15_GPIOD143

FANOUT0_GPIO52
FANOUT1_GPIO53
FANOUT2_GPIO54

FANIN0_GPIO56
FANIN1_GPIO57
FANIN2_GPIO58

TEMPIN0_GPIO171

TEMPIN1_GPIO172

TEMPIN2_GPIO173

TEMP_COMM

VIN0_GPIO175
VIN1_GPIO176
VIN2_GPIO177
VIN3_GPIO178
VIN4_GPIO179
VIN5_GPIO180

VIN6_GBE_STAT3_GPIO181

VIN7_GBE_LED3_GPIO182

AH28
AG28
AF26

AF28
AG29
AG26
AF27
AE29
AF29
AH27

AJ27
AJ26
AH25
AH24
AG23
AH23
AJ22
AG21
AF21
AH22
AJ23
AF23
AJ24
AJ25
AG25
AH26

W5
W6
Y9

W7
V9
W8

B6
A6
A5

TP836

B5
C7

A3
B4
A4
C5
A7
B7

TP846

B8
A8

G27

NC1

Y2

NC2

43-

LAN_DIS#

30-

SB_PROCHOT#_C

30-

BID_0

30-

BID_1

49-

WWAN_POWER_OFF
WLAN_POWER_OFF

49-

WWAN_RF_OFF#

30-,48-

WLAN_RF_OFF#

49-

WWAN_DET#

48-

BTOFF

AMD_SB820M_FCBGA_605P

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

R1185

+V3A

1

R1186

2

10K_5%_OPEN

12

R1184

R1206

10K_5%

BOARD ID

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

R1145

10K_5%

SB_PROCHOT#_C

30-

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

PWR-D

12

10K_5%_OPEN

DEFAULT_NET_TYPE
DEFAULT_NET_TYPE

12

10K_5%

1

R1144

10K_5%

2

0

0
1

0
1

0

30-

BID_0

30-

BID_1

+V3S

1

2

Q833

1

B

MMBT3904

18-

CE

3

2

SB_PROCHOT#

+V3A

BID_1 BID_0

CHANGE by

WLAN_RF_OFF#

30-,48-

1 2

8.2K_5%R884

INVENTEC

TITLE

ST145a-UMA

SB820M-2

CODE

SIZE

27-Jul-2009ALAN W

A3

CS

SHEET

DOC. NUMBER

30 51

REV

X01Model_No

OF

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

+V3A

CPU_MEMHOT#

SLP_S3#
SLP_S5#

SB_PWRBTN#

SB_PWRGD

SUS_STAT#

A20GATE
KB_RST#

EC_SCI#
EC_SMI#

LAN_CABLE_IN#

SYS_RST#

PCIE_WAKE#

CPUTHERMTRIP#

NB_PWRGD

RSMRST#

SB_GPIO_PCIE_RST#

SB_PCIE_LAN_CLKREQ#

GPU_PWR_EN

45-

PCSPKR

R1173

10K_5%_OPEN

18-,26-,29-

37­37­37-

CPU-I

31-,37­23-,31-

D822
CHENMKO_BAT54_3P

37-

13

31-,37-

37-

31-,43­14­31-,43-,48-

18-,31-,37­31-

CPU-I

10-,31-,37-

29­31-,43-

31-

2

1

SB_PCIE_WLAN_CLKREQ#

DEFAULT_NET_TYPE

LPC

DEFAULT_NET_TYPE

SB_3S_SMCLK

SB_3S_SMDATA

W_SCLK1

W_SDATA1

BATLOW#

GM_RESET#

CLK_REQG#

HDA_BITCLK
HDA_SDOUT

HDA_SDIN0

HDA_SYNC

HDA_RST#

GBE_COL
GBE_CRS

GBE_RXERR

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

R1561

1 2

R1209
R1210
R1189

DEFAULT_NET_TYPE

15-,26-,27-,31-,40­15-,26-,27-,31-,40-

31­31-

31-,48-

DEFAULT_NET_TYPE

31­25-

31-

45­33-,45­45-

45­45-

31­31-

31-

R1216

0_5%

10K_5%_OPEN

1 2

10K_5%_OPEN

1 2
1 2

10K_5%_OPEN

SB_EC_GA20IN

R1215 0_5%

1 2

R1225

1 2

R1230

1 2

R1231
R1233

1 2

+V3A

0_5%

1 2

DEFAULT_NET_TYPE

1 2

33_5%
33_5%

33_5%
33_5%

1

R1223

2

1 2

10K_5%

SB_PWR_SWIN#

TP835

TP848
TP849
TP847
TP838
TP839
TP837
TP840

SB_HDA_BITCLK

SB_HDA_SDOUT

SB_HDA_SYNC

SB_HDA_RST#

12

R1222

10K_5%_OPEN

10K_5%_OPEN

R1191

NB_PWRGD

U822-4

J2

PCI_PME#_GEVENT4#

K1

RI#_GEVENT22#

D3

SPI_CS3#_GBE_STAT1_GEVENT21#

F1

SLP_S3#

H1

SLP_S5#

F2

PWR_BTN#

H5

PWR_GOOD

G6

SUS_STAT#

B3

TEST0

C4

TEST1_TMS

F6

TEST2

AD21

GA20IN_GEVENT0#

AE21

KBRST#_GEVENT1#

K2

LPC_PME#_GEVENT3#

J29

LPC_SMI#_GEVENT23#

H2

GEVENT5#

J1

SYS_RESET#_GEVENT19#

H6

WAKE#_GEVENT8#

F3

IR_RX1_GEVENT20#

J6

THRMTRIP#_SMBALERT#_GEVENT2#

AC19

NB_PWRGD

G1

RSMRST#

AD19

CLK_REQ4#_SATA_IS0#_GPIO64

AA16

CLK_REQ3#_SATA_IS1#_GPIO63

AB21

SMARTVOLT1_SATA_IS2#_GPIO50

AC18

CLK_REQ0#_SATA_IS3#_GPIO60

AF20

SATA_IS4#_FANOUT3_GPIO55

AE19

SATA_IS5#_FANIN3_GPIO59

AF19

SPKR_GPIO66

AD22

SCL0_GPIO43

AE22

SDA0_GPIO47

F5

SCL1_GPIO227

F4

SDA1_GPIO228

AH21

CLK_REQ2#_FANIN4_GPIO62

AB18

CLK_REQ1#_FANOUT4_GPIO61

E1

IR_LED#_LLB#_GPIO184

AJ21

SMARTVOLT2_SHUTDOWN#_GPIO51

H4

DDR3_RST#_GEVENT7#

D5

GBE_LED0_GPIO183

D7

GBE_LED1_GEVENT9#

G5

GBE_LED2_GEVENT10#

K3

GBE_STAT0_GEVENT11#

AA20

CLK_REQG#_GPIO65_OSCIN

H3

BLINK_USB_OC7#_GEVENT18#

D1

USB_OC6#_IR_TX1_GEVENT6#

E4

USB_OC5#_IR_TX0_GEVENT17#

D4

USB_OC4#_IR_RX0_GEVENT16#

E8

USB_OC3#_AC_PRES_TDO_GEVENT15#

F7

USB_OC2#_TCK_GEVENT14#

E7

USB_OC1#_TDI_GEVENT13#

F8

USB_OC0#_TRST#_GEVENT12#

M3

AZ_BITCLK

N1

AZ_SDOUT

L2

AZ_SDIN0_GPIO167

M2

AZ_SDIN1_GPIO168

M1

AZ_SDIN2_GPIO169

M4

AZ_SDIN3_GPIO170

N2

AZ_SYNC

P2

AZ_RST#

T1

GBE_COL

T4

GBE_CRS

L6

GBE_MDCK

L5

GBE_MDIO

T9

GBE_RXCLK

U1

GBE_RXD3

U3

GBE_RXD2

T2

GBE_RXD1

U2

GBE_RXD0

T5

GBE_RXCTL_RXDV

V5

GBE_RXERR

P5

GBE_TXCLK

M5

GBE_TXD3

P9

GBE_TXD2

T7

GBE_TXD1

P7

GBE_TXD0

M7

GBE_TXCTL_TXEN

P4

GBE_PHY_PD

M9

GBE_PHY_RST#

V7

GBE_PHY_INTR

E23

PS2_DAT_SDA4_GPIO187

E24

PS2_CLK_SCL4_GPIO188

F21

SPI_CS2#_GBE_STAT2_GPIO166

G29

FC_RST#_GPO160

D27

PS2KB_DAT_GPIO189

F28

PS2KB_CLK_GPIO190

F29

PS2M_DAT_GPIO191

E27

PS2M_CLK_GPIO192

SB800

Part 4 of 5

ACPI / WAKE UP EVENTS

GPIO

USB OC

EC_PWM0_EC_TIMER0_GPIO197
EC_PWM1_EC_TIMER1_GPIO198
EC_PWM2_EC_TIMER2_GPIO199

HD AUDIO

EC_PWM3_EC_TIMER3_GPIO200

GBE LAN

AMD_SB820M_FCBGA_605P

EMBEDDED CTRL

USBCLK_14M_25M_48M_OSC

USB_RCOMP

USB MISC

USB_FSD1P_GPIO186

USB_FSD1N

USB_FSD0P_GPIO185

USB_HSD13P
USB_HSD13N

USB_HSD12P
USB_HSD12N

USB_HSD11P
USB_HSD11N

USB_HSD10P
USB_HSD10N

USB 2.0

SCL2_GPIO193

SDA2_GPIO194
SCL3_LV_GPIO195
SDA3_LV_GPIO196

KSI_0_GPIO201
KSI_1_GPIO202
KSI_2_GPIO203
KSI_3_GPIO204
KSI_4_GPIO205
KSI_5_GPIO206
KSI_6_GPIO207
KSI_7_GPIO208

KSO_0_GPIO209
KSO_1_GPIO210
KSO_2_GPIO211
KSO_3_GPIO212
KSO_4_GPIO213
KSO_5_GPIO214
KSO_6_GPIO215
KSO_7_GPIO216
KSO_8_GPIO217

KSO_9_GPIO218
KSO_10_GPIO219
KSO_11_GPIO220
KSO_12_GPIO221
KSO_13_GPIO222
KSO_14_GPIO223
KSO_15_GPIO224
KSO_16_GPIO225
KSO_17_GPIO226

USB_FSD0N

USB_HSD9P
USB_HSD9N

USB_HSD8P
USB_HSD8N

USB_HSD7P
USB_HSD7N

USB_HSD6P
USB_HSD6N

USB_HSD5P
USB_HSD5N

USB_HSD4P
USB_HSD4N

USB_HSD3P
USB_HSD3N

USB_HSD2P
USB_HSD2N

USB_HSD1P
USB_HSD1N

USB_HSD0P
USB_HSD0N

USB 1.1

EMBEDDED CTRL

A10

G19

J10
H11

H9
J8

B12
A12

F11
E11

E14
E12

J12
J14

A13
B13

D13
C13

G12
G14

G16
G18

D16
C16

B14
A14

E18
E16

J16
J18

B17
A17

A16
B16

D25
F23
B26
E26
F25
E22
F22
E21

G24
G25
E28
E29
D29
D28
C29
C28

B28
A27
B27
D26
A26
C26
A24
B25
A25
D24
B24
C24
B23
A23
D22
C22
A22
B22

SB_USB_RCOMP

Keep impendence to 35ohm
Space : height 4 : 1

49-

USB_11P

49-

USB_11N

48-

USB_10P

48-

USB_10N

41-

USB_8P

41-

48­48-

35­35-

39­39-

41­41-

42­42-

42­42-

42­42-

FINGER PRINT(DB)

USB_8N
USB_7P

BlueTooth

USB_7N
USB_6P

Webcam(DB)

USB_6N
USB_5P

Card Reader

USB_5N

USB_3P

TOUCH SCREEN(DB)

USB_3N
USB_2P

USB2

USB_2N
USB_1P

USB1

USB_1N
USB_0P

ESATA

USB_0N

18­18-

33­33-

WWAN(Mini Card)
WLAN ( Half Mini Card)

GPIO199
GPIO200

R1188

1

10.5K_1%

Place close to SB balls

SCLK3

SDATA3

SPI/LPC DEFINE

2

SB_PWRGD
NB_PWRGD

SB_PCIE_LAN_CLKREQ#

SB_PCIE_WLAN_CLKREQ#

15-

1

2

1
2

NB_PWRGD

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

SB_3S_SMCLK

SB_3S_SMDATA

GPU_PWR_EN

GBE_RXERR

LAN_CABLE_IN#

PCIE_WAKE#

CPUTHERMTRIP#

CLK_SB48

R1187
0_5%_OPEN

C1265

4.7pF_50v_OPEN

11-,18-,21-,23-,24-,31-

R1194

CPU-I

1 2

31-

+V1.8S

11-,18-,21-,23-,24-,31-

R1555 0_5%

CPU-I

1 2

31-,37-

0_5%

R1557

1 2

31-

CPU-I

CLK_REQG#
SUS_STAT#

KB_RST#

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

GBE_COL
GBE_CRS

BATLOW#

W_SCLK1

W_SDATA1

RSMRST#

5

1

2

U100

3

TSB_TC7SZ08F_SSOP_5P

R1558

1 2

0_5%_OPEN

15-,26-,27-,31-,40-

15-,26-,27-,31-,40-

31-

31-

23-,31-

31-,37-

31-,43-

DEFAULT_NET_TYPE

31-,48-

DEFAULT_NET_TYPE

31-

R1226

31-

R1224

31-

R1229

31-,43-

R1220
R1190

31-,43-,48-

R1214

31-

R1212

31-

R1213

31-

18-,31-,37-

R1207

10-,31-,37-

DEFAULT_NET_TYPE

12

C1505

1 2

4

1

1 2

1 2

1 2

1 2

1 2

1

1 2

1 2

C1332

2.2uF_10V

2009/09/28

0.01uF_16V

R1556

1 2

33_5%

R1178

1 2

R1177

1 2

R1200

1 2

R1199

1

R1218

1

R1176

1

R1202

1 2

R1255

1 2

2

2.2K_5%_OPEN

2.2K_5%

2

22K_5%R1217

300_5%

2

2

2

10K_5%1 2
10K_5%
10K_5%

10K_5%
10K_5%
10K_5%

10K_5%

+V1.8S

CPU-I

2.2K_5%

2.2K_5%

8.2K_5%

8.2K_5%

4.7K_5%

10K_5%

8.2K_5%

8.2K_5%

12

+V3S

+V3A

23-

C1504

NB_PWRGD_IN

100pF_50V

INVENTEC

TITLE

CHANGE by

ALAN W 27-Jul-2009

ST145a-UMA

SIZE

CODE

A3

CS

SHEET

SB820M - 3

DOC. NUMBER

Model_No X01

REV

OF

5131

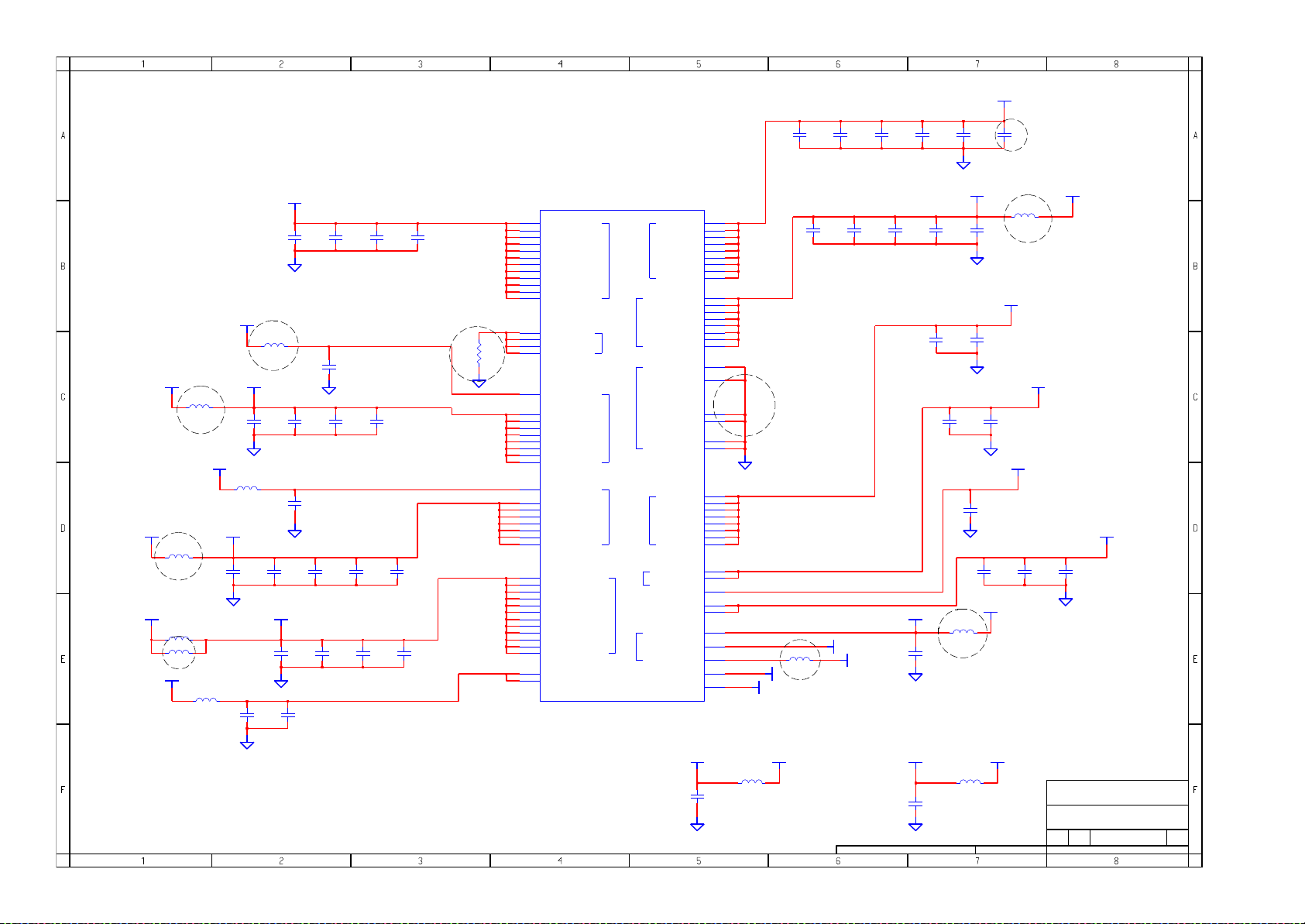

VDD -- S/B CORE POWER

0.1uF_10V

0.1uF_10V

C1284

C1286

1
2

510mA

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

1uF_10V

1uF_10V

C1283

1

1

2

2

C1280

1
2

1
2

C1278

10uF_6.3V

+V1.1S

12

C1800

10uF_6.3V

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

Trace Width >= 15mil

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

+V1.1S

PCIE_VDDR -- PCIE I/O power

600mA

Trace Width >= 100mil

With area fill under ASIC

Trace Width >= 15mil

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

+V1.1S

PWR-D

567mA

Trace Width >= 100mil

With area fill under ASIC

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

658mA

PWR-D

For support USB
wakeup --> 3V_S5

Trace Width >= 50mil

Trace Width >= 20mil

1 2

BLM21PG220SN1D

2009/09/28

+V3A

1 2
1 2

BLM18PG221SN1D

+V1.1A

PWR-D

200mA

43mA

L837

1 2

BLM21PG220SN1D

2009/09/28

+V3S

93mA

AVDD_SATA

L844

C1291

22uF_6.3V

BLM18PG221SN1DL834

L900

10-,14-,32-

L840

1 2

BLM15AG221SN1D

2.2uF_6.3V

PCIE_VDDR

C1237

22uF_6.3V

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1 2

BLM15AG221SN1D

PWR-C

30-

1
2

C1270

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

131mA

22uF_6.3V

+V3S

2009/09/28

L838

1 2

BLM15AG221SN1D

29-

1
2

L843

PWR-B

2.2uF_6.3V

1uF_10V

AVDD_USB

1
2

1
2

C1289

C1312

PWR-C

C1244

1
2

+V3S

2.2uF_6.3V

1
2

1uF_10V

1
2

10uF_6.3V

C1228

C1271

1

0.1uF_10V

2

1
2

C1238

C1242

1
2

1uF_10V

C1245

1
2

VDDQ--3.3V I/O power

0.1uF_10V

0.1uF_10V

C1285

1
2

1
2

0.1uF_10V

1
2

AVDDTX -- USB Phy
Analog I/O power

10uF_6.3V

C1269

VDDAN_11_USB

C1287

1
2

1.8V : FLASH MEMORY MODE [DEFAULT]

3.3V : IDE MODE

0.1uF_10V

C1239

C1240

1
2

VDDPL_33_SATA

0.1uF_10V

0.1uF_10V

C1288

1

1

2

2

C1273

1
2

1uF_10V

1uF_10V

C1290

1
2

0.1uF_10V

1
2

C1272

C1337

R1801

1 2

0_5%

2009/11/19

AC21

AA19

AF22
AE25
AF24
AC22

AE28

AD14

AJ20
AF18
AH20
AG19
AE18
AD18
AE16

U822-3

AH1

V6
Y19
AE5

AA2
AB4
AC8
AA7
AA9
AF7

U26
V22
V26
V27
V28
V29
W22
W26

A18
A19
A20
B18
B19
B20
C18
C20
D18
D19
D20
E19

C11
D11

SB800

VDDIO_33_PCIGP_1
VDDIO_33_PCIGP_2
VDDIO_33_PCIGP_3
VDDIO_33_PCIGP_4
VDDIO_33_PCIGP_5
VDDIO_33_PCIGP_6
VDDIO_33_PCIGP_7
VDDIO_33_PCIGP_8
VDDIO_33_PCIGP_9
VDDIO_33_PCIGP_10
VDDIO_33_PCIGP_11
VDDIO_33_PCIGP_12

VDDIO_18_FC_1
VDDIO_18_FC_2
VDDIO_18_FC_3
VDDIO_18_FC_4

POWER

VDDPL_33_PCIE

VDDAN_11_PCIE_1
VDDAN_11_PCIE_2
VDDAN_11_PCIE_3
VDDAN_11_PCIE_4
VDDAN_11_PCIE_5
VDDAN_11_PCIE_6
VDDAN_11_PCIE_7
VDDAN_11_PCIE_8

VDDPL_33_SATA

VDDAN_11_SATA_1
VDDAN_11_SATA_4
VDDAN_11_SATA_2
VDDAN_11_SATA_3
VDDAN_11_SATA_5
VDDAN_11_SATA_6
VDDAN_11_SATA_7

VDDAN_33_USB_S_1
VDDAN_33_USB_S_2
VDDAN_33_USB_S_3
VDDAN_33_USB_S_4
VDDAN_33_USB_S_5
VDDAN_33_USB_S_6
VDDAN_33_USB_S_7
VDDAN_33_USB_S_8
VDDAN_33_USB_S_9
VDDAN_33_USB_S_10
VDDAN_33_USB_S_11
VDDAN_33_USB_S_12

VDDAN_11_USB_S_1
VDDAN_11_USB_S_2

AMD_SB820M_FCBGA_605P

Part 3 of 5

CORE S03.3V_S5 I/O

PCI/GPIO I/O

FLASH I/O

VDDCR_11_GBE_S_1
VDDCR_11_GBE_S_2

GBE LAN

PCI EXPRESSSERIAL ATA

CORE S5

VDDCR_11_USB_S_1
VDDCR_11_USB_S_2

USB I/O

PLL CLKGEN I/O

VDDCR_11_1
VDDCR_11_2
VDDCR_11_3
VDDCR_11_4
VDDCR_11_5
VDDCR_11_6
VDDCR_11_7
VDDCR_11_8
VDDCR_11_9

VDDAN_11_CLK_1
VDDAN_11_CLK_2
VDDAN_11_CLK_3
VDDAN_11_CLK_4
VDDAN_11_CLK_5
VDDAN_11_CLK_6
VDDAN_11_CLK_7
VDDAN_11_CLK_8

VDDRF_GBE_S

VDDIO_33_GBE_S

VDDIO_GBE_S_1
VDDIO_GBE_S_2

VDDIO_33_S_1
VDDIO_33_S_2
VDDIO_33_S_3
VDDIO_33_S_4
VDDIO_33_S_5
VDDIO_33_S_6
VDDIO_33_S_7
VDDIO_33_S_8

VDDCR_11_S_1
VDDCR_11_S_2

VDDIO_AZ_S

VDDPL_33_SYS

VDDPL_11_SYS_S

VDDPL_33_USB_S

VDDAN_33_HWM_S

VDDXL_33_S

VDDXL_3.3V

CKVDD_1.1V -- Internal clock Generator I/O power

N13
R15
N17
U13
U17
V12
V18
W12
W18

K28
K29
J28
K26
J21
J20
K21
J22

V1

M10

L7
L9

M6
P8

A21
D21
B21
K10
L10
J9
T6
T8

F26
G26

M8

A11
B11

M21

L22

F19

D6

L20

5mA

PWR-B

2009/11/20

L901

17mA

1 2

BLM15AG221SN1D

PWR-D

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

32-

VDDXL_3.3V

Trace Width >= 15mil

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

32-

PWR-B

1

C1276

2.2uF_6.3V

2

L841

1

BLM15AG221SN1D

+V3A

2

0.1uF_10V

0.1uF_10V

C1231

1
2

PWR-B

Trace Width >= 15mil

PWR-D

C1234

1
2

32-

VDDPL_1.1V

PWR-D

C1235

1uF_10V

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

CHANGE by

+V1.1S_CKVDD

C1233

1
2

1uF_10V

S5_3.3 -- 3.3V standby power

C1207

1

1
2

22uF_6.3V

2

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

VDDIO_33_S

1

1

C1274

C1281

2.2uF_6.3V

2

2.2uF_6.3V

2

S5_1.1 -- 1.1V standby power

VDDCR_11_S

C1229

1

1

2

2

1uF_10V

11-,12-,14-,18-,19-,26-,27-,33-

VDDIO_AZ_S

1

C1279

2.2uF_6.3V

2

0.1uF_10V

C1266

1
2

VDDPL_3.3V

PWR-B

1

C1236

2.2uF_6.3V

2

VDDPL_1.1V

32-

PWR-B

1

C1232

2.2uF_6.3V

2

ALAN W 27-Jul-2009

2009/09/28

L842

1 2

BLM15AG221SN1D

62mA

L836

1 2

BLM15AG221SN1D

+V3S

+V1.1A

10-,14-,32-

14-,15-,18-,19-,21-,22-,23-,24-,32-,47-

+V1.1S

L835

BLM21PG220SN1D

2009/09/28

+V3A

32mA

800mA

PWR-D

12

Trace Width >= 100mil

With area fill under ASIC

PWR-D

Trace Width >= 20mil

10-,14-,32-

+V1.1A

113mA

C1230
1uF_10V

PWR-D

Trace Width >= 20mil

+V1.5

TBDmA
Trace Width >= 20mil

PWR-D

10-,14-,32-

VDDCR_11_USB

0.1uF_10V

C1267

1
2

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

47mA
Trace Width >= 15mil

+V1.1A

197mA

1
2

C1264

10uF_6.3V

PWR-D

Trace Width >= 15mil

INVENTEC

TITLE

ST145a-UMA

SIZE

A3

CODE

CS

SHEET

DOC. NUMBER

Model_No X01

REV

OF

5132

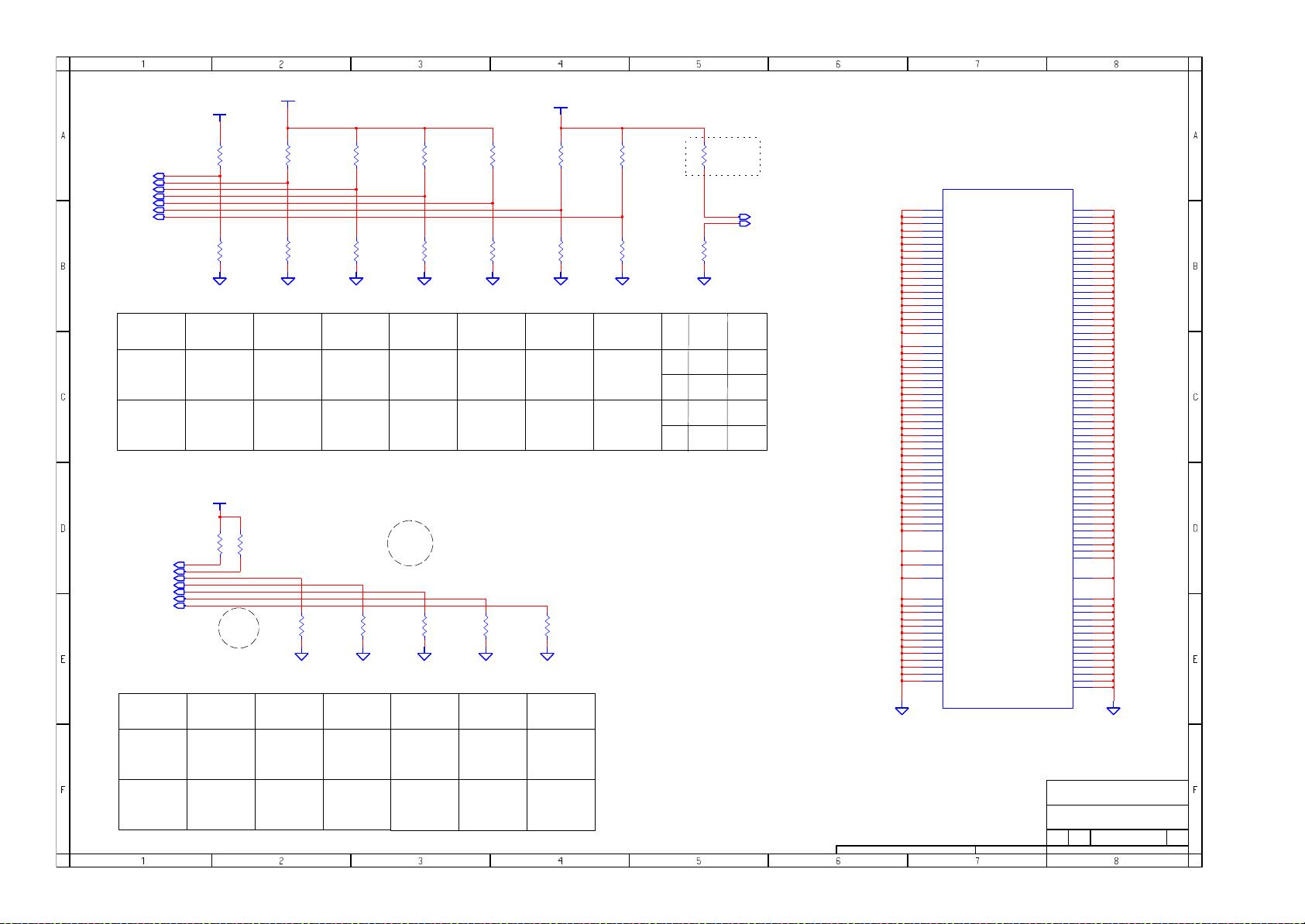

+V1.5

PWR-D

11-,12-,14-,18-,19-,26-,27-,32-

1

HDA_SDOUT

PCI_CLK1
PCI_CLK2
PCI_CLK3

PCI_CLK4
LPC_CLK0
LPC_CLK1

31-,45-

HDA

PCI

29­29­29­29­29-,37­29-,48-

2

2

Required Straps:

HDA_SDOUT

PULL
HIGH

PULL
LOW

LOW POWER
MODE

PERFORMANCE
MODE
(default)

+V3S

1

R1244

PCI_3S_AD(29)
PCI_3S_AD(28)
PCI_3S_AD(27)
PCI_3S_AD(26)
PCI_3S_AD(25)
PCI_3S_AD(24)
PCI_3S_AD(23)

10K_5%_OPEN

2

29­29­29­29­29­29­29-

Debug Straps

PCI_3S_AD(28)

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

R1228
10K_5%_OPEN

1

R1227

10K_5%

1

R1279
10K_5%

2

1

R1277

10K_5%_OPEN

2

PCI_CLK1

ALLOW USE

PCIE Gen2
(default)

FORCE CLKGEN
PCIE Gen1

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1

R1251
10K_5%_OPEN

2

1

R1253

2.2K_5%_OPEN

2

1

R1278

PCI

10K_5%_OPEN

2

1

R1276
10K_5%

2

PCI_CLK2

Watchdog
Timer
Enabled

Watchdog
Timer

Disabled
(default)

DEL R1250, R1249, R1196, R1247, R1195

1

R1252

2.2K_5%_OPEN

2

1

R1280

PCI

10K_5%_OPEN

2

1

R1282

10K_5%

2

PCI_CLK3

DEBUG

STRAP

IGNORE
DEBUG
STRAP (default)
(default)

2009/10/08

1

R1198

2.2K_5%_OPEN

2

1

R1281
10K_5%

2

PCI

1

R1283

10K_5%_OPEN

2

PCI_CLK4

non_Fusion
CLOCK MODE
(default)

FUSION
CLOCK MODE

1

R1248

2.2K_5%_OPEN

2

LPC_CLK0

EC
ENABLED

SB800 HAS 15K INTERNAL PU FOR PCI_AD[27:23]

PCI_3S_AD(27)

PCI_3S_AD(26)

PCI_3S_AD(25)

PCI_3S_AD(24)

PCI_3S_ AD(23)

+V3A

PWR-D

9-,11-,13-,14-,18-,29-,30-,31-,32-,35-,40-,41-,43-,47-,48-,49-

1

R1167

10K_5%_OPEN

2

LPC

1

R1165

10K_5%

2

1

R1166
10K_5%

2

INT

LPC

EXT

1

R1164

10K_5%_OPEN

2

LPC_CLK1

CLKGEN
ENABLED

EC
DISABLED
(default)

1

R1197

2.2K_5%_OPEN

2

DISABLED

GPIO 199 GPIO 200

TYPE

L : 2.2K

FWH

LPC

L : 2.2K

SPI

RSVD

1

R1168
10K_5%

2

1

R1163

2.2K_5%

2

N.C

N.C

31­31-

L : 2.2K

L : 2.2K

N.C

N.C

GPIO199
GPIO200

U822-5

Y14

VSSIO_SATA_1

Y16

VSSIO_SATA_2

AB16

VSSIO_SATA_3

AC14

VSSIO_SATA_4

AE12

VSSIO_SATA_5

AE14

VSSIO_SATA_6

AF9

VSSIO_SATA_7

AF11

VSSIO_SATA_8

AF13

VSSIO_SATA_9

AF16

VSSIO_SATA_10

AG8

VSSIO_SATA_11

AH7

VSSIO_SATA_12

AH11

VSSIO_SATA_13

AH13

VSSIO_SATA_14

AH16

VSSIO_SATA_15

AJ7

VSSIO_SATA_16

AJ11

VSSIO_SATA_17

AJ13

VSSIO_SATA_18

AJ16

VSSIO_SATA_19

A9

VSSIO_USB_1

B10

VSSIO_USB_2

K11

VSSIO_USB_3

B9

VSSIO_USB_4

D10

VSSIO_USB_5

D12

VSSIO_USB_6

D14

VSSIO_USB_7

D17

VSSIO_USB_8

E9

VSSIO_USB_9

F9

VSSIO_USB_10

F12

VSSIO_USB_11

F14

VSSIO_USB_12

F16

VSSIO_USB_13

C9

VSSIO_USB_14

G11

VSSIO_USB_15

F18

VSSIO_USB_16

D9

VSSIO_USB_17

H12

VSSIO_USB_18

H14

VSSIO_USB_19

H16

VSSIO_USB_20

H18

VSSIO_USB_21

J11

VSSIO_USB_22

J19

VSSIO_USB_23

K12

VSSIO_USB_24

K14

VSSIO_USB_25

K16

VSSIO_USB_26

K18

VSSIO_USB_27

H19

VSSIO_USB_28

Y4

EFUSE

D8

VSSAN_HWM

M19

VSSXL

P21

VSSIO_PCIECLK_1

P20

VSSIO_PCIECLK_2

M22

VSSIO_PCIECLK_3

M24

VSSIO_PCIECLK_4

M26

VSSIO_PCIECLK_5

P22

VSSIO_PCIECLK_6

P24

VSSIO_PCIECLK_7

P26

VSSIO_PCIECLK_8

T20

VSSIO_PCIECLK_9

T22

VSSIO_PCIECLK_10

T24

VSSIO_PCIECLK_11

V20

VSSIO_PCIECLK_12

J23

VSSIO_PCIECLK_13

AMD_SB820M_FCBGA_605P

SB800

GROUND

VSSIO_PCIECLK_14
VSSIO_PCIECLK_15
VSSIO_PCIECLK_16
VSSIO_PCIECLK_17
VSSIO_PCIECLK_18
VSSIO_PCIECLK_19
VSSIO_PCIECLK_20
VSSIO_PCIECLK_21
VSSIO_PCIECLK_22
VSSIO_PCIECLK_23
VSSIO_PCIECLK_24
VSSIO_PCIECLK_25
VSSIO_PCIECLK_26
VSSIO_PCIECLK_27

Part 5 of 5

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52

VSSPL_SYS

AJ2
A28
A2
E5
D23
E25
E6
F24
N15
R13
R17
T10
P10
V11
U15
M18
V19
M11
L12
L18
J7
P3
V4
AD6
AD4
AB7
AC9
V8
W9
W10
AJ28
B29
U4
Y18
Y10
Y12
Y11
AA11
AA12
G4
J4
G8
G9
M12
AF25
H7
AH29
V10
P6
N4
L4
L8

M20

H23
H26
AA21
AA23
AB23
AD23
AA26
AC26
Y20
W21
W20
AE26
L21
K20

PULL
HIGH

PULL

LOW

USE PCI
PLL

(default)

BYPASS
PCI PLL

DISABLE ILA
AUTORUN

(default)

ENABLE ILA
AUTORUN

USE FC
PLL

(default)

BYPASS FC
PLL

USE DEFAULT
PCIE STRAPS

(default)

USE EEPROM
PCIE STRAPS

DISABLE PCI
MEM BOOT

(default)

ENABLE PCI
MEM BOOT

CHANGE by

INVENTEC

TITLE

ST145a-UMA

SB820M-5

CODE

CS

SHEET

DOC. NUMBER

33 51

SIZE

27-Jul-2009ALAN W

A3

REV

X01Model_No

OF

PE_GPIO2

L
H

NB_CRT_G

NB_CRT_R

NB_CRT_B

OFF

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

SSM3K7002FU

+V15A_RC

+V5S

PWR-E

2009/11/29

S2

S1

OFF

ON

ON

RGB-B

RGB-B

RGB-B

RGB-B

RGB-B

Close to CONN

BLM18BA220SN1

1
2

C1616

0402_OPEN

L810

1 2

BLM18BA220SN1

1

2

C1617

0402_OPEN

L809

1 2

L806

1 2

BLM18BA220SN1

0402_OPEN

CRT_U_L_R

CRT_U_L_G

CRT_U_L_B

1

C1007

2

22pF_50V

12

150_1%

+V5S

NB_CRT_R

1

C1615

2

23-

23-

23-

12

12

R963

R962

140_1%

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

R935

150_1%

1 2

1

2

C1006

L811

1 2

22pF_50V

BLM18BB100SN1D

BLM18BB100SN1DL812

L807

1 2

1
2

C962

22pF_50V

CHENMKO_BAV99_OPEN

BLM18BB100SN1D

3

CHENMKO_BAV99_OPEN

1

D805

2

CRT_HSYNC
CRT_VSYNC

3

1

3

D806

2

CHENMKO_BAV99_OPEN

34­34-

CRT_L_U_R
CRT_L_U_G
CRT_L_U_B

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

+V5S

1

D807

2

Q871

14-

CRT_5V

34-

2

3

D

S

G

12

C961

1

2.2uF_16V

CRT_5V

34-

R939

1 2

33_5%

2009/10/14

R938

1 2

33_5%

R937

1 2

2.2K_5%
R936

1 2

2.2K_5%

Circuit : Fixed

2009/06/30

12

FUSE800

SMD1812P110TF

CN806

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

G1

12

CRT_R_HSYNC
CRT_R_VSYNC

SYN_070546HR015M22BZR_15P

G

G213

13

G

14

14

15

15

RGB-C

RGB-C

NB_VSYNC

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

NB_HSYNC

C960

1uF_6.3V

C959

1uF_6.3V

12

12

R934

100K_5%

5

3

U804
TC7SZ126FU

34-

CRT_VSYNC

214

23-

SMBUS

SMBUS

NB_CRT_DAT

NB_CRT_CLK

+V5S

23-

23-

D811

CHENMKO_CHPZ6V2_3P_OPEN

SMBUS

SMBUS

CRT CONN

C1C2

A

C1C2

D809

A

CHENMKO_CHPZ6V2_3P_OPEN

12

5

214

23-

3

U803
TC7SZ126FU

34-

CRT_HSYNC

INVENTEC

TITLE

ST145a-UMA

CHANGE by

ALAN W 27-Jul-2009

SIZE

A3

CRT

CODE

CS

SHEET

DOC. NUMBER

Model_No X01

REV

OF

5134

+V5A

C1807

1uF_10V

2009/11/20

9-,10-,11-,12-,13-,14-,36-,37-,38-,42-,47-

U830

3

VOUT

VIN

4

GND

HEAT-SINK

12

GMT_G1117_33T63Uf_SOT223_3P

7-,9-,10-,11-,12-,13-,47-

2

1

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,40-,41-,43-,47-,48-,49-

POWERPAD_2_0610_OPEN

12

C1808

10uF_6.3V

NB_LCMVCC_EN

+VBATR

POWERPAD1x1m

12

12

R5002

20K_5%

0.22uF_25V

12

R5001

10K_5%_OPEN

PAD6

PAD507

C6014

+V3A

47pF_50V_OPEN

RF

23-

100K_5%

3

D

S

G

Q867

1

2009/10/05

12

R1802
0_5%

C1041

1
2

R1052

VCC_BKL

35-

2

AO3409

Q867 N.C

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1

C1043

2

VCC_BKL

C1044

12

RF

47pF_50V_OPEN

37-,40-

23-

4700pF_25V

1

2

LCMVCC

35-

700mA

C1045

4.7uF_25v

1

2

1

R1049
100_5%

2

3

D

Q825

G

1

SSM3K7002FU

S

2

2009/11/12

LCM_PWM

D817

13

CHENMKO_BAT54_3P

R960

2

1

3K_5%

R987
100K_5%

35-

1
2

C1046

PWR-A

1000pF_50V_OPEN

3

2

D

S

Q823

AM2321P

C1700

G

1

G

1

1

R984

36K_5%

2

3

D

Q826

S

SSM3K7002FU

2

1

R985
180K_5%

2

2009/10/06

1

12

2

100pF_50V

LID_SW#

NB_LCM_BLEN

1

C1040
10uF_6.3V

2

LCM_BL

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

700mA

NB_LCM_CLK

NB_LCM_DAT

NB_LCM_TXDL0N
NB_LCM_TXDL0P
NB_LCM_TXDL1N
NB_LCM_TXDL1P
NB_LCM_TXDL2N
NB_LCM_TXDL2P

NB_LCM_TXCLN

NB_LCM_TXCLP

DMIC_CLK
DMIC_DAT

+V5S

USB-B
USB-B

12

C1003
10uF_6.3V

USB_6P
USB_6N

47pF_50V_OPEN

C1004

12

RF

1

1

R958

4.7K_5%

2

23­23-

23­23­23­23­23-

23-

23-

23-

45-

SMBUS

45­31­31-

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

+V5S

3

4.7K_5%

2

SMBUS

SMBUS

LVDS-A
LVDS-A
LVDS-B
LVDS-B
LVDS-C
LVDS-C
LVDS-D
LVDS-D

SMBUS

R961

1 2

R1559

0_5%

R1560

0_5%

1 2
1 2

C1005

33pF_50V_OPEN

2009/11/29

5

D816

Vp

CH1 CH2

4

Vn

CMD_1213_02ST_SOT23_5P_OPEN

2

FOR ESD

33_5%

R959

1
2

SMBUS

12

3.3pF_50V

C1814

3.3pF_50V

12

C1815

FOR USB RISE & FALL EDGE ISSUE

12

C1039

0.1uF_16V

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

CN870

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

C1038

12

RF

2200pF_50V_OPEN

G

G1

G

G2

ACES_87223_3001_30P

SI CHANGE TO 6012B0348301

NB_LCM_PWM

EC_LCM_PWM

R1651

1 2

23- 35-

PWR-A

0_5%
R1652

1 2

37-

PWR-A

0_5%_OPEN

2009/10/07

LCM_PWM

INVENTEC

TITLE

ST145a-UMA

LCM CONN

CODE

SIZE

A3

CHANGE by SHEET

27-Jul-2009ALAN W

CS

DOC. NUMBER

OF

35 51

REV

X01Model_No

HDMI_TX2P
HDMI_TX2N

HDMI_TX1P
HDMI_TX1N

HDMI_TX0P
HDMI_TX0N

HDMI_TXCP
HDMI_TXCN

I = 0.1A

CLOSE TO CONNECTOR

Plug Cable
Unplug Cable

HDMI-D

22-

HDMI-D

22-

HDMI-C

22-

22-

HDMI-C
HDMI-B

22-

22-

HDMI-B

HDMI-A

22-

HDMI-A

22-

+V5A

9-,10-,11-,12-,13-,14-,35-,37-,38-,42-,47-

12

C1166
1uF_10V

HDMI_HPD_CN

HDMI_HPD_CN

H
L

Place those CAP close to NB

C1132

0.1uF_10V

1 2

C1131

0.1uF_10V

C1134

0.1uF_10V

1 2

1 2

C1133

0.1uF_10V

C1129

0.1uF_10V

1 2

1 2

C1130

0.1uF_10V

C1135

0.1uF_10V

1 2

1 2

C1136

0.1uF_10V

1 2

DEFAULT_NET_TYPE

36-

R1119

1 2

91K_5%

1

R1120

200K_5%_OPEN

2

+V5S

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

100K_5%R1118

1 2

Q831

2

SSM3K7002FU

S

G

1

D

3

1

1

1

R1126

R1125

715_1%

715_1%

2

2

HDMI-D

HDMI-C

HDMI-B

HDMI-A

23-

NB_HDMI_CLK

SMBUS
SMBUS

NB_HDMI_DAT

HDMI_HPD_CN

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

PWR-D

3

CE

1

Q834

B

MMBT3904

2

R1116 1 2

1

R1141

2

2.7K_5%

SMBUS

23-

SMBUS

36-

0_5%

23-

1

R1127
715_1%

2

2

Plug Cable
Unplug Cable

DGPU_HPD_INTR

R1128
715_1%

750_1% (6013A0023301)

UMA
M92

499_1% (6013A0076801)

1

R1121
715_1%

2

DGPU_HPD_INTR

H

L

1

1

R1124

R1122

715_1%

715_1%

2

2

FUSE801

1 2

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

CHENMKO_BAV99_OPEN

D821

+V5S

D820

BAT54A

1

1

R1123

R1143

715_1%

4.7K_5%

2

2

1A_32V_0603SFF100F

+V5S

1

3

2

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

3

12

1

R1142

4.7K_5%

2

HDMI_C_TX2P

HDMI_C_TX2N
HDMI_C_TX1P

HDMI_C_TX1N
HDMI_C_TX0P

HDMI_C_TX0N
HDMI_C_TXCP

HDMI_C_TXCN

+HDMI_VDD2

1
2

CHANGE by

HDMI CONN

SYN_100042GR019M12BZL_19P

C1196

0.1uF_10v

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

CN818

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

G1

GND

G2

GND

G3

GND

G4

GND

INVENTEC

TITLE

ST145a-UMA

HDMI

CODE

CS

SHEET

DOC. NUMBER

36 51

SIZE

27-Jul-2009ALAN W

A3

REV

X01Model_No

OF

+V3AL

2009/11/29

EC_SCI#

7-,8-,9-,29-,37-

SPI_CS0#

SPI_SO

+V3AL

7-,8-,9-,29-,37-

C1509

10uF_6.3V

12

31-

+V3AL

L816

1 2

600OHM_25%

2009/09/28

7-,8-,9-,29-,37-

I=300mA

1

C1013

0.1uF_16v

2

D814

1 3

CHENMKO_BAT54_3P

D813

13

CHENMKO_BAT54_3P

R947

2

100K_5%

C969 Change to 6010B0058801

U813

37­37-

1 2

3.3K_5%R1057

1

CE#

15_5%R105812

2

SO

3

WP#

4

SST_SST25VF016B_75_4I_S2AF_SOIC_8P

VSS

2MByte

1

C1050

0.1uF_16v

2

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

RESUME_PWEN

1

1

C969

0.1uF_16V

2

+V3AL

7-,8-,9-,29-,37-

2009/09/28

L500

600OHM_25%

8

1 2

VDD

7

1 2

HOLD#

R1059

3.3K_5%

6

SCK

5

SI

37­37-

8/13

SPI BIOS

1

C970

0.1uF_16v

2

A_RST#

LPC_CLK0

LPC_FRAME#

RSMRST#

A20GATE

SERIRQ

PCI_SERR#

EC_RST#

KB_RST#

CHG_LED

MB_ID2

7-,8-,9-,29-,37-

+V3AL

SCAN_OUT(15:0)

0.1uF_16vC1119

1

2

SPI_CLK
SPI_SI

SCAN_IN(7:0)

1

C1014

0.1uF_16v

2

+V3S

1

R945

2

23-,29-,48­29-,33-

29-,48-

10-,31-

31­29-

29-

31­38-

11-,38-

1 2

10K_5%_OPEN

1 2

10K_5%

R12841

R12842

38-

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

L808

1 2

10K_5%

1 2

8/13

R946

1 2

10K_5%

DEFAULT_NET_TYPE

600OHM_25%

2009/11/29

29-,48-

LPC_AD(0)
LPC_AD(1)
LPC_AD(2)
LPC_AD(3)

0_5%R948

C1900

LPC_AD(3:0)

TP811

1
2

2.2uF_6.3V

R968

R970

DIS

UMA

NA

NA

FOR ITE 8500

7-,8-,9-,29-,37-

+V3AL

12

R989

FET_A

SPI_SO

SPI_SI
FET_B

10K_5%

TP821

37-

TP820

37­37­37-

TP819

DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE
DEFAULT_NET_TYPE

SCAN_IN(0)
SCAN_IN(1)
SCAN_IN(2)
SCAN_IN(3)
SCAN_IN(4)
SCAN_IN(5)
SCAN_IN(6)
SCAN_IN(7)

38-

DEFAULT_NET_TYPE

SPI_CLK

GPU_THROT#

0711

SPI_CS0#

SCAN_OUT(0)
SCAN_OUT(1)
SCAN_OUT(2)
SCAN_OUT(3)
SCAN_OUT(4)
SCAN_OUT(5)
SCAN_OUT(6)
SCAN_OUT(7)
SCAN_OUT(8)
SCAN_OUT(9)
SCAN_OUT(10)
SCAN_OUT(11)
SCAN_OUT(12)
SCAN_OUT(13)
SCAN_OUT(14)
SCAN_OUT(15)

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

+VSTBY_EC

+VCC_EC

1

C967

0.1uF_16v

2

10

LAD0

9

LAD1

8

LAD2

7

LAD3

22

LPCRST#-WUI4-GPD2

13

LPCCLK

6

LFRAME#

17

LPCPD#-WUI6-GPE6

126

GA20-GPB5

5

SERIRQ

15

ECSMI#-GPD4

23

ECSCI#-GPD3

14

WRST#

4

KBRST#-GPB6

16

PWUREQ#-GPC7

119

GPC0

123

GPB2

106

GPG0

105

FSCK

104

GPG6

103

FMISO

102

FMOSI

101

FSCE#

100

GPG2

36

KSO0-PD0

37

KSO1-PD1

38

KSO2-PD2

39

KSO3-PD3

40

KSO4-PD4

41

KSO5-PD5

42

KSO6-PD6

43

KSO7-PD7

44

KSO8-ACK#

45

KSO9-BUSY

46

KSO10-PE

51

KSO11-ERR#

52

KSO12-SLCT

53

KSO13

54

KSO14

55

KSO15

PWR-C

11

121

26

50

114

92

VCC

VSTBY

VSTBY

VSTBY

VSTBY

LPC

KSI0-STB#59KSI1-AFD#60KSI2-INIT#

KSI3-SLIN#

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

58

61

62

TP826

TP825

VSTBY

3

74

127

VBAT

AVCC

VSTBY

82

84

83

EGAD-GPE1

EGCS#-GPE2

EGCLK-GPE3

33

57

KSO16-GPC356KSO17-GPC5

U805_ 6019B0724201

U805
ITE_IT8502E-KX_L_LQFP_128P

FLASH

KBMX

VSS49VSS

VSS

VSS

VSS

KSI463KSI5

KSI664KSI7

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

65

VSS

1

27

75

91

113

122

R1665

1 2

220_5%

TP818

107

19

20

GINT-GPD5

L80HLAT-GPE0

L80LLAT-WUI7-GPE7

GPIO

AVSS

2

TP822
TP823

96

99

97

93

94

95

GPH4-ID4

GPH5-ID598GPH6-ID6

GPG1-ID7

WUI19-GPH3-ID3

CTX1-WUI18-GPH2-ID2

CRX1-WUI17-GPH1-ID1

PWM

WAKE UP

RING#-PWRFAIL#-LPCRST#-GPB7

A / D D / A

VCORE

12

1

C968

0.01uF_16V

35-,40-

31­42-

31-

7-

38-

38­40-

2009/10/05

40-

31-

R990

1 2

10K_5%

8/14

SMCLK0-GPB3
SMDAT0-GPB4
SMCLK1-GPC1

SM BUSPS / 2

SMDAT1-GPC2
SMCLK2-WUI22-GPF6
SMDAT2-WUI23-GPF7

PS2CLK0-GPF0
PS2DAT0-GPF1
PS2CLK1-GPF2

CLKRUN#-WUI16-GPH0-ID0

PS2DAT1-GPF3
PS2CLK2-WUI20-GPF4
PS2DAT2-WUI21-GPF5

PWM0-GPA0
PWM1-GPA1
PWM2-GPA2
PWM3-GPA3
PWM4-GPA4
PWM5-GPA5
PWM6-GPA6
PWM7-GPA7

TACH0-GPD6
TACH1-GPD7

TMRI0-WUI2-GPC4
TMRI1-WUI3-GPC6

PWRSW-GPE4

RI1#-WUI0-GPD0

RI2-WUI1-GPD1

WUI5-GPE5

TXD-GPB1

UART

RXD-GPB0

ADC0-GPI0
ADC1-GPI1
ADC2-GPI2
ADC3-GPI3
ADC4-GPI4
ADC5-GPI5
ADC6-GPI6
ADC7-GPI7

DAC0-GPJ0
DAC1-GPJ1
DAC2-GPJ2
DAC3-GPJ3
DAC4-GPJ4
DAC5-GPJ5

CK32KE

CLOCK

CK32K

LID_SW#
SB_PWRBTN#
USBPWR_EN

ME_FLASH_EN
TEMP_ALERT#

SLP_S3#
CHG_EN#
CAPS_LED#
LATCH_RES
SUS_PWR_DN_ACK
RF_WHITE_LED#

ODD_PW_EN#

MD#
BATT_B_DAT
BATT_B_CLK
SB_PWRGD

110
111
115
116

TP812

117

TP813

118

R1605

1 2

85

100_5%

TP824

86
87
88
89
90

24

TP802

25
28
29
30
31
32

TP814

34

47
48

120
124

125
18
21

35
112

109
108

66
67
68
69
70
71
72
73

76
77
78
79
80
81

EC_CLK32E

2

EC_CLK32

128

TXC_32.768_10PPM_4P

12

C965
18pF_50V

CHANGE by

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

R967

R969

X800

1

2 3

12-,13-

37-,42­18-,31-

37-,48-

20-

20­7-,8­7-,8-

14-

38-

35-

38-

20-

38-

14-

20-

14-

31-

11-

43-

38-

37-

37-

38-

45-

49-

48-

48-

OPEN

4

9-

7-

8­7­8­7­7-

12

10K_5%

12

10K_5%

12

THM_CLK
THM_DAT
BATT_CLK

BATT_DAT
PCH_SMCLK_THM
PCH_SMDAT_THM

CORE_PWEN#
ALARM_LATCH
DCHG_A
DCHG_B

PWR_LED
EC_LCM_PWM

AC_LED
CPUFAN1_ON#
KB_BLON
CORE_PWEN_D#
GPUTHERM_INT#

TACH0
ALL_PWGD_IN

ALWAYS_PW_EN

CPU_PWEN

EC_PWRBTN#
CPUTHERMTRIP#
SLP_S5#

ADP_PRES

CORE_PWEN

WOL_PWEN#
RF_LED#

MB_ID0
MB_ID1
BL_KB_DET
BATT_ID
ADP_ID
BATT_A_IN#
I_ADP
AC_OK

AMP_EN

WWAN_IND#
BT_IND
WLAN_IND#

DGPU_PWROK
BT_IND#

C966
18pF_50V

ALAN W 27-Jul-2009

MB_ID0
MB_ID1

9-,10-,11-,12-,13-,14-,35-,36-,38-,42-,47-

R991
R992

EC_PWRBTN#

37­37-

DEFAULT_NET_TYPE

8/13

BT_IND

+V5A

10K_5%

12

10K_5%

12

38-

TP_CLK

38-

TP_DAT

8/13

+V3AL

R966

1 2

37-,42-

100K_5%

12

C1012

0.1uF_10V

BOARD ID

+V3AL

7-,8-,9-,29-,37-

1

1

R996

R995

2

2

10K_5%_OPEN

10K_5%

12

12

R997

R994

10K_5%

10K_5%_OPEN

R993

1 2

37-,48-

100K_5%

INVENTEC

TITLE

ST145a-UMA

KBC

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEET

7-,8-,9-,29-,37-

OF

REV

5137

DC-JACK LED

AMBER

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

+V5A

12

12

R1568

47K_5%_OPEN

0.1uF_16V_OPEN

RESUME_PWEN

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

KB_BLON

11-,37-

SSM3K7002FU_OPEN

+V5S

12

R1653

100K_5%

Q869

1

37-

SSM3K7002FU

2

(RF_LED#)

1

2

C1555

PMV65XP_OPEN

Q858

1

G

2009/10/12

2

S

G

AO3409

3

D

G

S

2

R1567

0_5%

S

D

G

1

3

D

S

2

+V5S_KBBL

3

D

Q868

1

2

3

W

A

+V5A_TP

38-

Q859

2009/09/28

CN904

1

1

2

2

3

G

G1

3

4

G

G2

4

ACES_88502_040N_4P

2009/10/08

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1

(RF_WHUTE_LED#)

TouchPad Module CONN

+V5A_TP

38-

CN816

1

1

2

2

3

G1

G

3

4

TP_CLK
TP_DAT

37­37-

ACES_50501_00641_001_6P

1

C1167

10uF_6.3V

2

G

G2

4

5

5

6

6

KeyBoard CONN (30 pin)

12

C1610

12

C1611

+V5S

1
2

+V5S

1
2

37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37­37-

45­38­38-

37-

5

3

5

3

R1086

1 2

R1088
R1089 150_5%

1 2

R1090

1 2

1 2

R1091

1

12

R1900

100K_5%

U103

4

TC7SET08FU

U104

4

TC7SET08FU

100_5%

100_5%

150_5%

10K_5%

2

ACES_50523_03001_001_30P

38-

38-

+V3S

1 2

R1087

RF_LED#

RF_WHITE_LED#

SCAN_OUT(15)
SCAN_OUT(10)
SCAN_OUT(11)
SCAN_OUT(14)
SCAN_OUT(13)
SCAN_OUT(12)

SCAN_OUT(3)
SCAN_OUT(6)
SCAN_OUT(8)
SCAN_OUT(7)
SCAN_OUT(4)
SCAN_OUT(2)

SCAN_IN(0)
SCAN_OUT(1)
SCAN_OUT(5)

SCAN_IN(3)

SCAN_IN(2)
SCAN_OUT(0)

SCAN_IN(5)

SCAN_IN(4)
SCAN_OUT(9)

SCAN_IN(6)

SCAN_IN(7)

SCAN_IN(1)

CAPS_LED#

0_5%

MUTE_LED#

RF_LED#_AND

RF_W_LED#_AND

BL_KB_DET

0.1uF_16V

37-

0.1uF_16V

37-

CN815

G

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

G

RF_LED#_AND

RF_W_LED#_AND

2009/10/08

R835

1

2

0_5%

R836

1 2

0_5%

D827

2
3

12_22_S2ST3D_C30_2C

12

3

D

Q845

S

SSM3K7002FU

2

AMBER#

CN3 Pin5

(CHG_LED#)

7-

AMBER#

7-

WHITE#

1

+V5A

I = 6mA

R1335

1 2

330_5%

+V5S

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

WHITE#

CN3 Pin6

CHG_LED

(AC_LED#)

8/18

37-

PWR-A

SSM3K7002FU

R838
560_5%

WHITE

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

470_5%

Q807

3

D

G

1

S

2

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

12

R839

12

8/18

Q806

3

37-

G1

AC_LED

1

G

SSM3K7002FU

D

S

2

SATA LED & HDD-HALTED LED

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

8/18

LED_3S_SATA#

G2

30-

SSM3K7002FU

+V3S

12

R1327

10K_5%

Q844

3

D

SSM3K7002FU

1

G

S

2

HDD_LOCK_LED

Q846

1

8/14

150_5%

R1333

1 2

3

D

G

S

2

150_5%

R1318

2009/09/28

29-

100K_5%

G

1

R1317

1 2

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

POWER LED

8/18

R1334

1 2

21

470_5%

PWR_LED

37-

SSM3K7002FU

Q812

1

G

PWR_LED#

3

D

S

2

D828

12_125_W1D_ANPHY_3C

INVENTEC

TITLE

ST145a-UMA

KEYBOARD CONN

CHANGE by

ALAN W 27-Jul-2009

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEET

REV

OF

5138

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

R1288

1

330K_5%_OPEN

C1342

4700pF_25V

2

1
2

+SD_V1.8S

1

C1362

2.2uF_6.3V

2

0.1uF_16V

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

FOR USB RISE & FALL EDGE ISSUE

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

(0.055A)

0.05A

USB-A
USB-A

12

C1341

0.1uF_16V

+CPWR_V3S

39-

PWR-C

1

C1361

2

+V3S

0.05A

1

C1360

4.7uF_10V

2

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1

R1312
0_5%

2

XDCIS

1

R1313

0_5%_OPEN

1: For check (Default)

2

0: For no check

15-,29-

CLK_CR48 CR_LED#

330_5%

1 2

31-

USB_5P

31-

USB_5N

CTRL4
CTRL5
CTRL6

C1812

C1813

12

12

10pF_50V_OPEN

10pF_50V_OPEN

39­39­39-

CLK-USB

1

EXT48IN GPON7

2

CHIPRESET#

3

R1287

REXT

4

VD33P

5

DP
DM

7

VS33P

8

VDDU

9

CF_V33

10

V33

11

CTRL4

12

XDCDN

13

XDCEN

14 15

XDCIS

ALCOR_AU6437B52_GEF_GR_QFN_28P

U827

TML-PAD

CTRL1
CTRL3
DATA1
DATA0
DATA7
DATA6
CTRL0
DATA5
CTRL2
DATA4
DATA3
DATA2

XDWPN

29
28
27
26
25
24
236
22
21
20
19
18
17
16

39-

CTRL1

39-

CTRL3

39-

DATA1

39-

DATA0

39-

DATA7

39-

DATA6

39-

CTRL0

39-

DATA5

39-

CTRL2

39-

DATA4

39-

DATA3

39-

DATA2

39-

CTRL7

R1284

1 2

39-

CTRL0

CTRL0 AND CTRL0_A TRACE LENGTH SHOTER,

SURROUND WITH GND

CTRL1

CTRL1 AND CTRL1_B TRACE LENGTH SHOTER,

SURROUND WITH GND

0_5%
C1338

1 2

10pF_50v_OPEN

R1273

1 2

39-

0_5%
C1334

1 2

10pF_50v_OPEN

Card Reader CONN

CN821

P1

39­39­39­39-

39­39­39­39­39­39­39-

39­39-

39­39­39­39-

SD-CD

P2

SD-WP

P4

SD-DAT0

P3

SD-DAT1

P10

SD-CLK

P19

SD-CMD

P25

SD-DAT2

P23

SD-DAT3

P21

MMC-DATA4

P17

MMC-DATA5

P8

MMC-DATA6

P5

MMC-DATA7

P9
P16
P20
P12
P11
P14
P18

P7
P15

P6
P24

XD-WP-IN

MS-BS
MS-INS
MS-SCLK
MS-DATA0
MS-DATA1
MS-DATA2
MS-DATA3

SD-GND
SD-GND
MS-GND

SD-WP-GND
SD-CD-GND

MS-GND

TAI_R013_P10_HM_44P

CTRL0_A

CTRL1_B

CTRL3

CTRL1
DATA0
DATA1

CTRL2
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7

CTRL0
CTRL4

DATA0
DATA1
DATA2
DATA3

I = 400mA

SD-VCC

MS-VCC

XD-VCC

XD-CD

XD-R_B

XD-RE

XD-CE
XD-CLE
XD-ALE

XD-WE

XD-D0

XD-D1

XD-D2

XD-D3

XD-D4

XD-D5

XD-D6

XD-D7

XD-GND
XD-GND

+CPWR_V3S

39-

P13
P22
X18

X1
X2
X3
X4
X5
X6
X7
X8
X10
X11
X12
X13
X14
X15
X16
X17

X9
X19
P26
P27

8/18

39­39­39­39­39­39­39­39­39­39­39­39­39­39­39­39-

1
2

C1336

4.7uF_6.3V

CTRL5
CTRL2
CTRL4
CTRL6
CTRL1
CTRL0
CTRL3
CTRL7
DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7

PWR-C

12

5.1K_5%

R1272

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

AU6433 & CARDREADER CONN

CODE

CS

SHEET

DOC. NUMBER

Model_No

SIZE

A3

REV

X01

OF

5139

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

ODD_PW_EN#

37-

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

+V15A

9-,14-

+V3S

12

510K_5%

R1583

Q866

D

10K_5%_OPEN

1

G

S

SSM3K7002FU

12

R1580

3

0.1uF_25V

2

+V5S

12

PAD506

POWERPAD_2_0610

Q865

6

D

5

2

1

1 2

R1581 0_5%_OPEN

C1690

2009/10/05

+V5S_ODD_MB

AO6402AL

S

G

40-

4

3

LID SWITCH

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,41-,43-,47-,48-,49-

1 2

100K_5%

35-,37-

LID_SW#

C1008

0.01uF_16V

+V3A

R964

U809

1

2

MAG_MH248BESO_SOT23_3P

1
2

VDD

3

GND

OUT

SATA ODD FFC CONN on MB

1

2

C1049

0.1uF_10V

10uF_6.3V

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V5S_ODD_MB

1.6A

1
2

40 mils

C1118

C1048

40-

12

0402_OPEN

MD#

37-

RF

SATA_RX1P_CN
SATA_RX1N_CN

SATA_TX1N_CN
SATA_TX1P_CN

CLOSE TO SATA CONN

C1117

40­40-

40­40-

1 2

C1116

0.01uF_16V

1 2

0.01uF_16V

SATA_C_RX1P_CN
SATA_C_RX1N_CN

SATA HDD FFC CONN on MB

1A

1

10uF_6.3v

2

0.01uF_16V

C1371

+V5S

1
2

SATA_RX0P_CN
SATA_RX0N_CN

FOX_GS12201_1011_9H_20P

SATA_RX0P
SATA_RX0N

SATA_TX0N
SATA_TX0P

30­30-

C1396

30­30-

C1370

Close to HDD CONN

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

12

C1369

0.1uF_16v

0402_OPEN

RF

C1395

1 2

1 2

0.01uF_16V

+V3S

12

R1579

CN813

10K_5%

FOX_GS12207_11141_9H_20P

G1

G

1

1

2

2

G2

3

G

3

4

4

5

5

6

6

7

7

8

8

9

9

G3

10

G

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

G4

18

G

18

19

19

20

20

G5

G

CN851

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

G

G1

15

16

G

G2

16

17

G

G3

17

18

G

G4

18

19

19

20

20

SATA RE-DRIVER

R1655

0402_OPEN

12
12

R1656

0.01uF_16V

1 2

SATA_TX1N
SATA_TX1P

0402_OPEN

SATA_RX1P_RE

SATA_RX1N_RE

30-,40­30-,40-

R1291

10K_5%

1 2

1

R1319

10K_5%

2

TX_1P

5

TX_1N

4

GND

3

RX_0N

2

RX_0P

1

21

12
13
14

SATA-RX-B

C1603

SATA_RX1P
SATA_RX1N

SATA_TX1N
SATA_TX1P

30­30-

30-,40­30-,40-

1 2

0.01uF_16V
C1604

TI_SN75LVCP412RTJR_QFN_20P

SATA_RX1P_RE

SATA_RX1N_RE

ST-HP302DLTR interrupt pin default is low / active Hi,
BIOS need to programming 22h to change status
from active Hi to low

0_5% R12921 2

29-

ACCEL_INT

SB_3S_SMDATA

SB_3S_SMCLK

15-,26-,27-,31­15-,26-,27-,31-

SMBus Address is "1D"

HARDDRIVE PROTECTION
P/N = 6019B0505201

C1605

+V3S

C1600

0.01uF_16V

1

40­40-

+V3S

1

12

C6013

0.1uF_16V

2

0.01uF_16V
C1606

2

1 2

SATA_RX1P_CN
SATA_RX1N_CN

SATA_TX1N_RE

SATA_TX1P_RE

1

C1346

4.7uF_6.3V

2

C1602

0.01uF_16V

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

12

12

1

4.7K_5%

4.7K_5%

2

R1600 0_5%

R1601

R1602

6D09D18

7

10

EN

VCC

VCC

RX_1P
RX_1N

GND

U101

TX_0N

TX_0P

TML

VCC17GND

GND

GND

VCC

16

18

19

20

RS813

1

4

2 3

0_5%_OPEN

RS814

4

1
2 3

0_5%_OPEN

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

U828

8

INT_1
SDO
SDA_SDI_SDO
SCL_SPC

7

CS

9

INT_2

2

GND

ST_HP302DLTR8_LGA_14P

11
12
13

SATA_TX1N_RE
14
15

SATA-TX-B
SATA-TX-B

VDD_IO

RESERVED
RESERVED

GND
GND
GND

12

SATA_TX1P_RE

CLOSE TO ODD CONN

1

6

VDD

3
11

4
5
10

CHANGE by

1uF_6.3V

40-

SATA_RX1P_CN

40-

SATA_RX1N_CN

40-

SATA_TX1N_CN

40-

SATA_TX1P_CN

27-Jul-2009ALAN W

INVENTEC

TITLE

ST145a-UMA

SATA HDD & SATA ODD

CODE

CS

SHEET

DOC. NUMBER

40 51

A3

REVSIZE

X01Model_No

OF

OPTION PART

TOUCH SCREEN

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,43-,47-,48-,49-

12

C1910

0.1uF_10V

C1805

D906

12

10pF_50V_OPEN

10pF_50V_OPEN

USB_3P

USB_3N

2009/11/29

FOR ESD

31­31-

USB-D

12

1

D905

2

CN902

G1

G

1

1

TP807

2

2

3

TP808

3

4

TP809

4

5

TP853

5

6

TP854

6

G2

JST_SM06B_XSRK_ETB_HF_6P

C1809

FOR USB RISE & FALL EDGE ISSUE

G

PESD5V0U1BB_OPEN

PESD5V0U1BB_OPEN

2009/11/26

FingerPrint

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,43-,45-,48-,49-

2009/09/28

31-

USB_8P

31-

USB_8N

12

D907

PESD5V0U1BB_OPEN

PESD5V0U1BB_OPEN

2009/11/26

2009/11/26

14-,20-,34-,35-,36-,38-,40-,45-,47-

1
2

C1559

2.2uF_6.3V

12

D908

D21 need to be Load for FP ESD

+V5S+V3S

ACES_88502_060N_6P

C1810

C1811

1 12

12

2

FOR USB RISE & FALL EDGE ISSUE

10pF_50V_OPEN

10pF_50V_OPEN

1
2
3
4
5
6

CN901

1
2
3
4
5
6

G1

G
G

G2

INVENTEC

TITLE

ST145a-UMA

TOUXH SCREEN & FINGERPRINT

DOC. NUMBER

CODE

SIZE

A3

Model_No X01

CHANGE by OF

ALAN W 27-Jul-2009

CS

SHEET

REV

5141

ESATA CONN

(without Re-Driver chip)

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

2A

12

1

2

USBPWR_EN

ACTIVE HIGH

C1911

+V5A_ESATA

330uF_6.3V

C1247

22uF_6.3V

USB_0N_L

2

USB_0P_L

3

2009/11/21
FOR USB RISE & FALL EDGE ISSUE

42-

1

C1650
22uF_6.3V_OPEN

2

12

12

C1804

C1803

10pF_50V

10pF_50V

37-,42-

USB_0N

USB_0P

2009/11/29

31-

31-

2009/09/28

C1508

1uF_10V

1
2

L839

1

4

WCM_2012_900T

USB BOARD Cable on MB

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

12

12

11

11

10

G

G2

10

9

G1

USBPWR_EN

USB_2P

USB_2N

USB_1P

USB_1N

37-,42-

31­31-

31­31-

9
8
7
6
5
4
3
2
1

8
7
6
5
4
3
2
1

CN803

G

2009/09/28

U820

1

GND

2

IN1

3

IN2

4

EN

ANPEC_APL3510AXI_TRG_MSOP_8P

CN819

1

VBUS

2

D-

3

D+

4

GND

G1

GND

G2

GND

G3

GND

G4

GND

8

OUT1

7

OUT2

6

OUT3

5

OC

5

GND

6

A+

7

A-

8

GND

SATA_C_RX2N

9

B-

SATA_C_RX2P

10

B+

11

GND

TWIN_EU100_117CRL_TW_11P

PBN Cable CN on MB

PWR_LED#

EC_PWRBTN#

+V5A_ESATA

2A

C1249

1 2

C1248

1 2

8/18

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

8/18

38­37-

ACES_88502_060N_6P

42-

0.01uF_16V

0.01uF_16V

CN801

1

1

2

2

3

3

4

4

5

5

6

6

30-

SATA_TX2P

30-

SATA_TX2N

30-

SATA_RX2N

30-

SATA_RX2P

G

G1

G

G2

ACES_87213_1200G_12P

SI CHANGE TO 6012B0066401

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

ESATA & USB BOARD CABLE

SIZE

A3

DOC. NUMBER

CODE

Model_No X01

CS

SHEET

REV

OF

5142

DVDD12

43-

TRD0P
TRD0N

TRD1P
TRD1N

TRD2P
TRD2N

TRD3P
TRD3N

PCIE_C_TXP0

PCIE_C_TXN0
PCIE_R_LAN_CLKP
PCIE_R_LAN_CLKN

PCIE_RXP0
PCIE_RXN0

2009/09/28

+V3_LAN

43-,44-

44-

44-

44-

44-

44-

44-

44-

+V3_LAN

43-,44-

Trace Width 40mil

12

1

2

C1160

22uF_6.3V

CLOSE TO U12 PIN 44 & 45

1

AVDD33

2

MDIP0

3

MDIN0

4

FB12

5

MDIP1

6

MDIN1

7

GND

8

MDIP2

9

MDIN2

10

AVDD12

11

MDIP3

12

MDIN3

DVDD12

43-

22-

22-

15-,29-

15-,29-

C1155

22-

1 2

C1187

22-

1 2

+V3_LAN

43-,44-

C1161

0.1uF_16v

+V12_LAN

43-

DVDD12

R1084

1 2

2.49K_1%

SURROUND GND WITH R218

45

VDDSR

44

VDDSR

43

ENSR

42

CKTAL2

CKTAL1

AVDD33

48

47

GND

SROUT12

46

REST

40

41

U817
REA_RTL8111DL_VB_GR_LQFP_48P

REFCLK_N

REFCLK_P

0.1uF_10V

0.1uF_10V

DVDD12

13

14

GND

HSIN15HSIP

17

16

PCIE_C_RXP0
PCIE_C_RXN0

HSON

HSOP

EVDD12

18

21

20

19

LAN_CABLE_IN

X801

1 2

+V3_LAN

43-

39

38

LED0

AVDD12

LED2_EEDI_AUX

GPO

EGND

22

23

9/18

C1163

33pF_50V

1

25MHZ

C1162

33pF_50V

1

43-,44-

0.1uF_16v

37

VDD33

LED1_EESK

LED3_EEDO

ISOLATEB

LANWAKEB

CLKREQB

NC

24

2

2

9/18

1

C1193

pin40

44-

DVDD12

DVDD12

PERSTB

25MHz : 6018A0011301
HEIGHT : 1.3mm
for Reference

2

8/14

LED_LANRXACT# LED_LANLINK#

DVDD12

43-

36
35

3.6K_5%

1 2

34

R1117

33

TP834

R1115 1K_5%_OPEN

1 2

32

EECS

31

GND

30
29

VDD3

28
27

LPC

LPC

26
25

EVDD12

43-

2009/09/28

R1565

1 2

0_5%

43-

LAN_CABLE_IN

2009/09/28

R1566

1 2

Q861

SSM3K7002FU_OPEN

1

43-

0_5%

3

D

G

S

2

Place close to SB

44-

+V3_LAN

29-,48-

31-,48-

43-44-

31-

LAN_CABLE_IN#

WOL_PWEN#

43-,44-

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,45-,48-,49-

DVDD12

43-

Close L16 Within 200mil

+V3_LAN

+V3S

43-,44-

1K_1%

PCIE_RST#

PCIE_WAKE#

CLKREQ_LAN#

15K_1%

CLKREQ_LAN#

8/14

Q824

SSM3K7002FU_OPEN

1

37-

+V12_LAN

43-

PWR-E

SWF2520CF_4R7K_M

12

R1112

R1114

1 2

0_5%_OPEN

12

2009/09/28

R1113

EXT

12

0_5%_OPEN

12

0_5%

INT

SI CHANGE

R1051

1 2

200_5%_OPEN

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,47-,48-,49-

3

D

G

S

2

R1050

1

2

220K_5%

1

C1157

2

0.1uF_10v

(1.2V output:60mils)

L829

2

1

1
2

C1165

0.1uF_16V

C1164

22uF_6.3V

30-

LAN_DIS#

R1110

15-43-

EXT_PCIE_LAN_R_CLKREQ#

R1111

31-

SB_PCIE_LAN_CLKREQ#

CHANGE by

AM2321P

2

S

12

+V3_LAN

43-,44-

3

D

G

1

Q828

600mA

1
2

pin1

C1159

0.1uF_16v

1
2

C1190

0.1uF_16v

1
2

pin37pin29

C1195

0.1uF_16v

Placed near LAN Controller

EVDD12

43-

R1564

1 2

0_5%

8/14

Placed near LAN Controller

pin19

1

2

C1188

C1191

1uF_6.3V

pin30

12

pin19

1
2

C1189

1uF_6.3V

CLOSE TO U12 PIN19

12

C1192

0.1uF_16V

pin36

0.1uF_16V

DVDD12

Placed near LAN Controller

43-

DVDD12

(1.2V output:40mils)

pin13

1

C1156

0.1uF_16v

2

pin10

1

2

C1158

0.1uF_16v

pin39

1
2

C1194

0.1uF_16v

INVENTEC

TITLE

ST145a-UMA

SIZE

CODE

A3

CS

27-Jul-2009ALAN W

SHEET

RTL8111DL

DOC. NUMBER

OF

43 51

REV

X01Model_No

1

C1110

0.01uF_16v

2

BOTH_GST5009_SOP_24P

U812

1
3
2
4
6
5
7
9

8
10
12
11

TCT1
TD1­TD1+
TCT2
TD2­TD2+
TCT3
TD3­TD3+
TCT4
TD4­TD4+

12

C1111

0.01uF_16v

MCT1

MX1­MX1+
MCT2

MX2­MX2+
MCT3

MX3­MX3+
MCT4

MX4­MX4+

24
22
23
21
19
20
18
16
17
15
13
14

1

C1114

2

0.01uF_100v

1

75_5%

R1055

2

1

C1113

2

0.01uF_100v

1

75_5%

R1054

2

1
2

1

C1115

2

0.01uF_100v

1

75_5%

2

R1056

C1112
2200pF_2000V

SIZE : 1808

1

C1047

2

0.01uF_100v

1

75_5%

R986

2

+V3_LAN

43-

1

R1085

44-

LAN-A

RD-

44-

LAN-A

RD+

44-

LAN-B

TD-

44-

LAN-B

TD+

44-

LAN-C

RD1-

44-

LAN-C

RD1+

44-

TD1-

LAN-D

44-

TD1+

LAN-D

270_5%

2

LAN-A
LAN-A
LAN-B
LAN-C
LAN-C
LAN-B
LAN-D
LAN-D

LAN-A
LAN-A

LAN-B
LAN-B

LAN-C
LAN-C

LAN-D
LAN-D

1
2

TRD0N
TRD0P

TRD1N
TRD1P

TRD2N
TRD2P

TRD3N
TRD3P

C1042

0.01uF_16v

43­43-

43­43-

43­43-

43­43-

12

C1109

0.01uF_16v

LAYOUT NOTE : Place termination resistors and caps as close to LAN controller as possible

RD+
RD­TD+
RD1+
RD1­TD­TD1+
TD1-

PWR-E

1

R988

270_5%

2

B1 WHITE+ B2WHITE-

44-

1

44-

2

44-

3

44-

4

44-

5

44-

6

44-

7

44-

8

FOX_JM36111_N67D3_7H_12P

RJ45

JACK800

TX+
TX­RX+
P4
P5
RX­P7
P8
AMBER+A1 AMBER- A2

43-

PWR-A

LED_LANLINK#

43-

LED_LANRXACT#

8/13

8/13

G1

G

G

DGND

G2

PWR-A

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

LAN & RJ45 CONN

SIZE

A3

CS

SHEET

DOC. NUMBERCODE

Model_No

REV

X01

OF

5144

+V1.5S

14-,18-,24-,25-,47-,48-

R1506

1 2

0_5%

AU_DVDDIO

45-

Close to Pin3

HDA_BITCLK

HDA_SDIN0

HDA_SDOUT

HDA_SYNC

HDA_RST#

31-

31-

31-,33-

31-

31-

DMIC_DAT

DMIC_CLK

2009/09/09

35-,45-

35-,45-

AU_DVDDIO

12

C1403

0.1uF_16V

12

C1405

10pF_50V_OPEN

CLOSE TO CODEC 200MIL

12

12

C1404

C1402

10pF_50V_OPEN

10pF_50V_OPEN

45-

Close to Pin9

12

12

C1407

C1406

1uF_6.3V

0.1uF_16V

DMIC_CLK

DMIC_DAT

MUTE_LED#

+V3S

35-,45­35-,45-

38-

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

37-

AMP_EN

2009/11/12

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

1

C1401

10uF_6.3V

1 2

R1340 33_5%

1 2

R1339

1 2

C1365

1 2

2.2uF_16V

Close to Pin1

2

U829

1

DVDD_CORE

9

DVDD

3

DVDD_IO

6

HDA_BITCLK

8

SDATA_IN

5

SDATA_OUT

10

HDA_SYNC

11

HDA_RST#

2

DMIC_CLK-GPIO1

4

33_5%

DMIC0-GPIO2

PWR-A

46

DMIC1-GPIO0-SPDIF_OUT_1

48

SPDIF_OUT_0

47

EAPD

10K_5%R1326

35

CAP-

36

CAP+

7

DVSS

33

AVSS

30

AVSS

26

AVSS

42

PVSS

49

TML-PAD

8/19

IDT_92HD80B1X5NLGXYDX8_QFN_48P

AGND

AVDD
AVDD

PVDD
PVDD

SENSE_A
SENSE_B

HP0_PORT_A_L

HP0_PORT_A_R

VREFOUT_A_or_F

HP1_PORT_B_L

HP1_PORT_B_R

PORT_C_L
PORT_C_R

VREFOUT_C

SPKR_PORT_D_L+

SPKR_PORT_D_L-

SPKR_PORT_D_R-

SPKR_PORT_D_R+

PORT_E_L
PORT_E_R

PORT_F_L

PORT_F_R

PC_BEEP

MONO_OUT

CAP2

VREFFILT

VREG

AVDD

45-

12

C1367

0.1uF_16V

27

AGND

38

39
45

13
14

28
29
23

31
32

19
20
24

40
41

43
44

15
16

17
18

12

25

22

21

34

V-

37

Close to Audio Codec

1

2

C1364

AGND

1

2

C1366

2.2uF_6.3V

AGND

45-

46­46-

46­46­46-

45­45-

45­45-

C1408

C1386

2.2uF_6.3V

AGND

SENSE_A

HP_L_JACK
HP_R_JACK

MIC_L
MIC_R
MIC-REF

SPK_OUT_L+
SPK_OUT_L-

SPK_OUT_R­SPK_OUT_R+

1
2

12

AGND

2

1

10uF_6.3V

C1363
1uF_10V

AGND

0.1uF_10V

C1409

12

C1387

AGND

1

2

1
2

0.1uF_10V

C1385

10uF_10V

R1331

0.1uF_10V

AGND

R1341

12

AGND

1 2

1 2

47K_5%

10K_5%

14-,20-,34-,35-,36-,38-,40-,41-,47-

KC_FBMA_11_160808_700A10T

12

C1383
1uF_10V

AGND

12

C1384

0.1uF_16V

L852

1 2

100K_5%

C1389

R1342

1 2

0.1uF_10V

Q855

SSM3K7002FU

2009/09/09

+V5S

AVDD

45-

+V3S

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

12

R1328

10K_5%

3

D

31-

1

G

S

2

PCSPKR

2009/09/28

AGND

AVDD

45-

12

R1332

2.49K_1%

R1329

12

C1388
1000pF_50v

AGND

Discription
NO USE

Headphone
Microphone
SPKR
NO USE

NO USE

1 2

1 2

45-

SENSE_A

PLACE CLOSE TO PIN 13 WITHIN 500MIL

PORT

A
B
C

D
E
F

10K_1%R1330

20K_1%

46-

MICS

46-

HPS

Sense

HPS

MICS

INT-SPEAKER CONN

CN905

SPK_OUT_R+
SPK_OUT_R­SPK_OUT_L­SPK_OUT_L+

45­45­45­45-

1

1

2

2

3

G

G1

3

4

G

G2

4

ACES_50224_00401_001_4P

C1393

1 2

0.1uF_16V_OPEN

AGND

PAD805

POWERPAD_2_0610

AGND

C1392

1 2

0.1uF_16V_OPEN

AGND

C1391

1 2

0.1uF_16V_OPEN

AGND

FOR EMI

CHANGE by

INVENTEC

TITLE

ST145a-UMA

AUDIO CODEC IDT_92HD80

SIZE

CODE

CS

SHEET

DOC. NUMBER

45 51

27-Jul-2009ALAN W

A3

REV

X01Model_No

OF

Normal OPEN

MIC JACK

HP_R_JACK

HP_L_JACK

SINGA_2SJ2311_000111_6P

AUDIO-B

45-

AUDIO-B

45-

12

R1315

20K_5%

MICS

2009/09/28

JACK801

EMI

Close Conn

12

R1289

20K_5%

AGND

6
5
2
1
3
7

C1314

0.1uF_16v

1

16_5%

1 2

16_5%

1

R1314

R1290

45-

1
2

2

AGND

AUDIO-B

2

1 2

BLM11P600S

AUDIO-B

1 2

BLM11P600S

EMI

MIC-REF

C1317

220pF_50V

L849

L848

C1344

45-

BLM11P600S
BLM11P600S

1
2

AGND

1 2

0.1uF_16v

L847

1 2

L846

1

C1319
220pF_50V

1 2

0.1uF_16v

1
2

AGND

2

C1299

AUDIO-B

C1368

0.1uF_10V

EMI

AUDIO-B

1

R1257

4.7K_5%

2

1
2

HPS

1

1

2

R1256

4.7K_5%

2

AGND

C1316

C1315

12

1uF_50V

2

1

D824
PHP_PESD5V2S2UT_SOT23_3P

C1345

0.1uF_10V

45-

C1318
1uF_6.3v

1uF_50V

12

3

EMI

Close Conn

45-

MIC_R

45-

MIC_L

2009/11/12

2009/09/28

SINGA_2SJ2311_000111_6P

6
5
2
1
3
7

JACK802

C1343

1 2

0.1uF_16v

AGND

Normal OPEN

HP JACK

INVENTEC

TITLE

ST145a-UMA

AUDIO JACK

DOC. NUMBER

CODE

SIZE

A3

CS

27-Jul-2009ALAN W

SHEET

46 51

REV

X01Model_No

OFCHANGE by

S809

SCREW330_700_0_1P

CPU’s screws

S808

SCREW330_700_0_1P

S804

SCREW330_700_0_1P

S803

SCREW330_700_0_1P

For NB

S10

SCREW220_380_420_1P

S815

SCREW1.2_0_5_1P

S06

SCREW220_380_420_1P

S814

SCREW1.2_0_5_1P

S05

SCREW315_500_1P

FIX9

FIX_MASK

FIX15

FIX_MASK

FIX21

FIX_MASK

FIX10

FIX_MASK

FIX16

FIX_MASK

FIX22

FIX_MASK

FIX13

FIX_MASK

FIX19

FIX_MASK

FIX20

FIX_MASK

FIX804

FIX_MASK

C1251

0.1uF_25V

C1253

0.1uF_25V

C1250

0.1uF_25V

FIX807

FIX_MASK

S812

SCREW300_700_1P

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

1 2

+V1.1S+V3A

14-,15-,18-,19-,21-,22-,23-,24-,32-

1 2

1 2

FIX803

FIX_MASK

S816

SCREW300_800_1P

+VBATR +V3A

7-,9-,10-,11-,12-,13-,35-,47-

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

VCC_NB

13-,24-

FIX802

FIX801

FIX_MASK

FIX800

FIX_MASK

FIX_MASK

S802

SCREW300_800_1P SCREW300_800_1P

S818

SCREW300_550_700_1P

C1256

0.1uF_25V

+V1.5S

1 2

+VBATR

7-,9-,10-,11-,12-,13-,35-,47-

+V5S

C1257

1 2

0.1uF_25V

+VBATR +V1.5S

7-,9-,10-,11-,12-,13-,35-,47-14-,18-,24-,25-,45-,47-,48-

C1255

1 2

0.1uF_25V

FIX806

FIX_MASK

S800

S807

SCREW300_800X875S_800_1P

14-,18-,24-,25-,45-,47-,48-

+V5A

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

FIX805

FIX_MASK

+V5S +V3A

+VBATR +V5A

For SB

S813

SCREW300_800_1P

S817

SCREW300_892X750S_1P

14-,20-,34-,35-,36-,38-,40-,41-,45-,47-

C1252

7-,9-,10-,11-,12-,13-,35-,47-

C1701

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

2

1

0.1uF_25V

1 2

0.1uF_25V

S801

SCREW300_800_1P

9-,10-,11-,12-,13-,14-,35-,36-,37-,38-,42-,47-

S811

SCREW300_800_1P

EMI

INVENTEC

TITLE

ST145a-UMA

SCREW

SIZE

A3

CHANGE by SHEET

28-Jul-2009ALAN W

CS

DOC. NUMBER

OF

47 51

REVCODE

X01Model_No

31-

USB_7P

31-

USB_7N

BT_IND

2009/11/21

FOR USB RISE & FALL EDGE ISSUE

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,49-

BTOFF

DEFAULT_NET_TYPE

CLKREQ_WLAN#

BLUETOOTH CONN

SI CHANGE TO 6012B0341901

BTVCC

48-

CN823

G1

G

1

1

2

2

3

3

4

37-

12

12

C1801

C1802

4.7pF_50V

4.7pF_50V

+V3A

I = 70mA

1

R1336
10K_5%

2

R1337

1 2

30-,48-

39K_5%

2009/10/08

48-

4

5

5

6

6

G2

JST_SM06B_XSRK_ETB_HF_6P

G

BTVCC

Q854

AM2321P

2

3

S

D

12

G

1

1

C1394

0.1uF_16v

2

R1254

Q870

1

G

SSM3K7002FU

EXT

R1134

1 2

0_5%_OPEN

1 2

0_5%

INT

470_5%

3

D

S

2

48-

PWR-B

1

C1397

R1660

10uF_6.3v

2

2009/10/09

15-

EXT_PCIE_WLAN_R_CLKREQ#

31-

SB_PCIE_WLAN_CLKREQ#

DEFAULT_NET_TYPE

DEFAULT_NET_TYPE

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

PCIE_WAKE#

BTOFF

CLKREQ_WLAN#

PCIE_R_WLAN_CLKN
PCIE_R_WLAN_CLKP

A_RST#

LPC_CLK1

PCIE_RXN1
PCIE_RXP1

PCIE_C_TXN1

PCIE_C_TXP1

WLAN CONN (MINICARD)

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

Peak (mA)

2,750mA

+V3.3A

500mA

+V1.5

31-,43-

30-,48­48-

15-,29­15-,29-

23-,29-,37­29-,33-

22­22-

22­22-

+V3S

WLAN_PRIORITY

R885

1 2

0_5%_OPEN

TP800

CN804 CHANGE TO 6026B0184301

WLAN_RF_OFF#

WLAN_POWER_OFF

Normal (mA)

1,100mA

375mA

CN804

1

WAKE#

3

COEX_1

5

COEX_2

7

CLKREQ#

9

GND

11

REFCLK-

13

REFCLK+

15

GND

17

Reserved-UIM_C8

19

Reserved-UIM_C4

21

GND

23

PERn0

25

PERp0

27

GND

29

GND

31

PETn0

33

PETp0

35

GND

37

GND

39

+3.3Vaux

41

+3.3Vaux

43

GND

45

Reserved

47

Reserved

49

Reserved

51

Reserved +3.3Vaux

G1 G2

GND

ACES_88908_5204_52P

+3.3Vaux

UIM_PWR

UIM_DATA

UIM_CLK

UIM_RESET

UIM_VPP

W_DISABLE#

PERST#

+3.3Vaux

+1.5V

SMB_CLK

SMB_DATA

USB_D-

USB_D+

LED_WWAN#

LED_WLAN#

LED_WPAN#

+1.5V

GND

1.5V

GND

GND

GND

GND

GND

GND

PCH

GPIO57

GPIO35

2
4
6
8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

+V3S

1

4.7uF_6.3v

2

29-,37­29-,37­29-,37­29-,37­29-,37-

1 3

CHENMKO_BAT54_3P

14-,18-,24-,25-,45-,47-,48-

+V1.5S

SB800\820

GPIO12

GPIO176

C924

D808

LPC_FRAME#
LPC_AD(3)
LPC_AD(2)
LPC_AD(1)
LPC_AD(0)

30-

29-,43-

1

C892

1uF_6.3v

2

DEFAULT_NET_TYPE

WLAN_RF_OFF#
PCIE_RST#

12

12

C1816

10pF_50V

10pF_50V

0.5A

31­31-

C1817

12

1
2

PWR-C

C922

0.1uF_16v

+V1.5S

C891

47pF_50V

14-,18-,24-,25-,45-,47-,48-

12

C923

2.2uF_6.3V

NA

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3S

12

R922

10K_5%

12

R921

10K_5%

USB_10N
USB_10P

12

37­37-

C921
47pF_50V

WLAN_IND#
BT_IND#

RF

CHANGE by

ALAN W 27-Jul-2009

INVENTEC

TITLE

ST145a-UMA

WLAN & BT CONN

CODE DOC. NUMBER

SIZE

A3

Model_No X01

CS

SHEET

REV

OF

5148

OPTION PART

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49- 10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3A

+V3S

2.8A

12

C964

0402_OPEN

R943

1 2

220K_5%

12

Q822

4

S

G

AM3423P

CN807

1

WAKE#

3

COEX_1

5

COEX_2

7

CLKREQ#

9

GND

11

REFCLK-

13

REFCLK+

15

GND

17

Reserved-UIM_C8

19

Reserved-UIM_C4

21

GND

23

PERn0

25

PERp0

27

GND

29

GND

31

PETn0

33

PETp0

35

GND

37

GND

39

+3.3Vaux

41

+3.3Vaux

43

GND

45

Reserved

47

Reserved

49

Reserved

51

Reserved +3.3Vaux

G1 G2

GND

ACES_88908_5204_52P

1

D

2
5
63

+3.3Vaux

UIM_PWR

UIM_DATA

UIM_CLK

UIM_RESET

UIM_VPP

W_DISABLE#

PERST#

+3.3Vaux

SMB_CLK

SMB_DATA

USB_D-

USB_D+

LED_WWAN#

LED_WLAN#
LED_WPAN#

+1.5V

+1.5V

GND

1.5V

GND

GND

GND

GND

GND

GND

WWAN_POWER_OFF

R944

10K_5%

30-

CN807 CHANGE TO 6026B0184301

12

R965

0_5%_OPEN

+V3_WWAN

2
4
6
8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

49-

0.1uF_16v

2.8A

C1010

30-,49-

49­49­49­49­49-

31­31-

49-

C928

0.1uF_16v

1

1
2

2

UIM_PWR
UIM_DATA
UIM_CLK
UIM_RST
UIM_VPP

WWAN_DET#

USB_11N
USB_11P

WWAN_IND#_CN

49-

1
2

C963

0.1uF_16v

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

CHENMKO_BAT54_3P

D812

1 3

USB-B
USB-B

2009/09/28

10-,12-,14-,15-,20-,23-,24-,26-,27-,29-,30-,31-,32-,33-,35-,36-,37-,38-,39-,40-,41-,43-,45-,48-,49-

+V3_WWAN

49-

1

G

S

D

2

3

Q860

SSM3K7002FU

WWAN

Close pin2 and pin52 for RF option

12

C1011

1
2

C1009
47pF_50V

10uF_6.3v

+V3A

1

R942
10K_5%

2

30-

1

R941

10K_5%_OPEN

2

+V3S

12

R924

1K_5%

37-

SIM CARD CONN

1
2

C927
47pF_50V

UIM_PWR

4.7uF_6.3V

C926

R923

49-

1

1

C925

0.1uF_16v

2

2

R887

UIM_RST
UIM_CLK UIM_DATA

C894

18pF_50V_OPEN

1 2

49-

49-

12

43K_5%1 2
43K_5%

CN805

P1

VCC

P2

RST

R888

P3

1 2

CLK

0_5%

G1

G G

TAI_PMPAT5_06GLBS7N14_6P

P5

GND

P6

VPP

P7

I_O

G2

R886

1 2

0_5%

12

C893

18pF_50V_OPEN

49-

UIM_VPP

49-

+V3A

9-,11-,13-,14-,18-,29-,30-,31-,32-,33-,35-,40-,41-,43-,47-,48-,49-

1

R940
10K_5%

2

30-,49-

WWAN_DET#WWAN_RF_OFF#

WWAN_RF_OFF#

WWAN_POWER_OFF

WWAN_DET#

for WWAN

PCH

GPIO27

GPIO24

GPIO22

SB800\820

GPIO11

GPIO175

GPIO13

WWAN_IND#WWAN_IND#_CN

INVENTEC

TITLE

ST145a-UMA

WWAN & SIM CARD CONN

CHANGE by

CODESIZE

CS

SHEET

DOC. NUMBER

49 51

27-Jul-2009ALAN W

A3

REV

X01Model_No

OF

USB BOARD

USB BOARD Cable ON UB

+V5A_UB

50-

USBPWR_EN_UB

USB_8P_UB

USB_8N_UB

USB_9P_UB

USB_9N_UB

S24

SCREW300_800_1P

UB_DGND

USB_8N_UB

USB_8P_UB

USB_9N_UB

USB_9P_UB

50-

50­50-

50­50-

ACES_87213_1200G_12P

UB_DGND

50-

2

50-

3

WCM_2012_900T

Close to USB CON

50-

50-

WCM_2012_900T

Close to USB CON

CN6000

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

G

9

10

G

10

11

11

12

12

S25

SCREW300_800_1P

L6000

2

3

1

4

L6001

G1
G2

2009/11/29

USBPWR_EN_UB

UB_DGND

C6003

47uF_6.3V

U6000

+V5A_UBPWR

50-

4

PHP_PRTR5V0U2X_SOT143_4P_OPEN

1

4

+V5A_UBPWR

U6002

3

50-

PHP_PRTR5V0U2X_SOT143_4P_OPEN

UB_DGND

Vcc

330uF_6.3V

C6017

1uF_10V

C6002

12

UB_DGND

USB_L_8N

USB_L_8P

12

UB_DGND

+V5A_UB

1

2

12

50-

+V5A_UBPWR

50mil

2IO3 IO

1

GNDVcc

+V5A_UBPWR

50mil

C6000

47uF_6.3V

USB_L_9N

USB_L_9P

IO 2IO

14

GND

Circuit : Fixed

2009/06/29

(2A)

50-

U6001

1

2

3

4

ANPEC_APL3510AXI_TRG_MSOP_8P

UB_DGND

50-

USB CONN01

CN6001

1
2
3
4

SYN_020133GR004M52CZL_4P

UB_DGND

NA

UB_DGND

50-

USB CONN02

SYN_020133GR004M52CZL_4P

UB_DGND

NA

UB_DGND

8

OUT1

GND

7

OUT2

IN1

6

OUT3

IN2

5

OC

EN

G1

G

VCC

G2

D-

G
D+
G

UB_DGND

CN6002

G1

1

G

VCC

2

G2

D-

G

3

D+

4

G

UB_DGND

+V5A_UBPWR

I=2000mA

12

UB_DGND

50-

2009/11/29

C6018

150uF_6.3V

POWER LED

D5001

PWR_LED#_PBN

50-

EVL_19_217_W1D_AP1Q2QY_3T

POWER BUTTON

SW1 SI USE : 6026B0154801

Circuit : Fixed
2009/06/29

2

1

SW5000

214

MITSUMI_SOT_152HST_4P

3

50-

PWR_SW#_PBN

POWER BOTTON BOARD

R5000

1 2

470_5%

10/05

PBN_GND

CHANGE by

8/17

+V5A_PBN

50-

PWR_LED#_PBN

PWR_SW#_PBN

PBN_GND

ALAN W 27-Jul-2009

PBN Cable CN on PBN

+V5A_PBN

50-

8/17

PAD5000

1

SMDPAD6_100_28X118

2

PBN_GND

S27

SCREW230_430_1P

2
3
4
5
6

50­50-

1

PBN_GND

S26

SCREW230_430_1P

3

D5000
PHP_PESD3V3S2UT_SOT23_3P

INVENTEC

TITLE

ST145a-UMA

EXT USB CONN

CODE

A3

Model_No X01

CS

SHEET

50

REVDOC. NUMBERSIZE

OF

51
