HP v347k, DN091A Specification

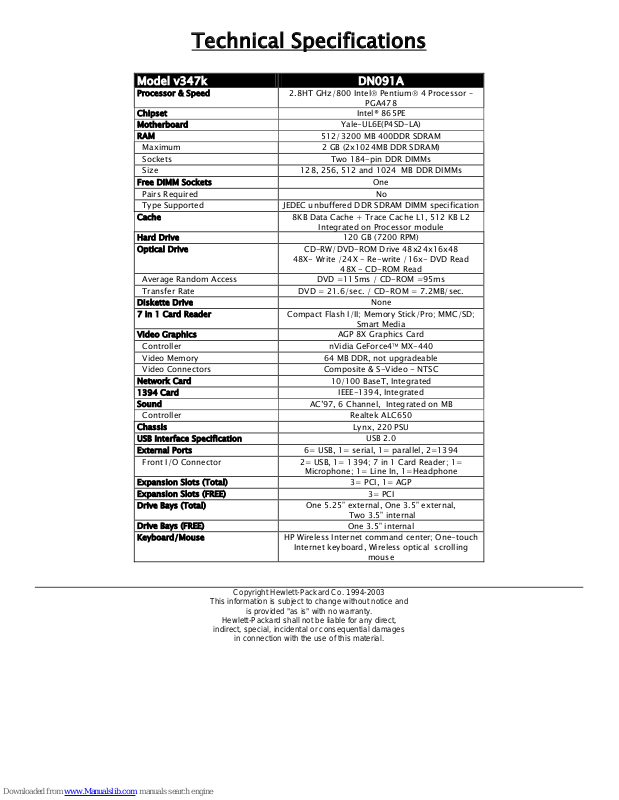

Technical Specifications

Model v347k DN091A

Processor & Speed

Chipset Intel® 865PE
Motherboard Yale-UL6E(P4SD-LA)
RAM 512/3200 MB 400DDR SDRAM
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2

Hard Drive 120 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;

Video Graphics AGP 8X Graphics Card
Controller
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Lynx, 220 PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1=

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) One 5.25” external, One 3.5” external,

Drive Bays (FREE) One 3.5” internal
Keyboard/Mouse HP Wireless Internet command center; One-touch

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

2.8HT GHz/800 Intel® Pentium® 4 Processor –
PGA478

Integrated on Processor module

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read

Smart Media

nVidia GeForce4™ MX-440

Microphone; 1= Line In, 1=Headphone

Two 3.5” internal

Internet keyboard, Wireless optical scrolling

mouse
