Page 1

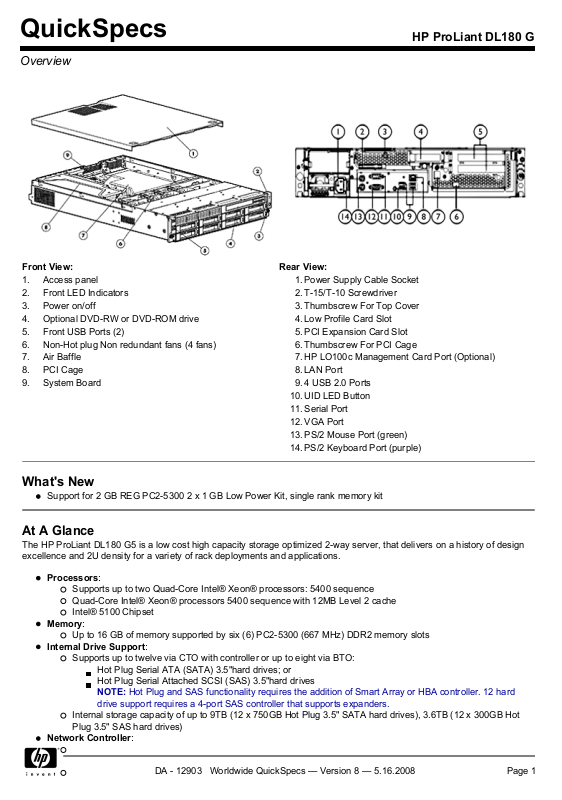

QuickSpecs

Overview

HP ProLiant DL180 G5

Front View:

Access panel

Front LED Indicators

Power on/off

Optional DVD-RW or DVD-ROM drive

Front USB Ports (2)

Non-Hot plug Non redundant fans (4 fans)

Air Baffle

PCI Cage

System Board

Rear View:

Power Supply Cable Socket

T-15/T-10 Screwdriver

Thumbscrew For Top Cover

Low Profile Card Slot

PCI Expansion Card Slot

Thumbscrew For PCI Cage

HP LO100c Management Card Port (Optional)

LAN Port

4 USB 2.0 Ports

10.

UID LED Button

11.

Serial Port

12.

VGA Port

13.

PS/2 Mouse Port (green)

14.

PS/2 Keyboard Port (purple)

What's New

Support for 2 GB REG PC2-5300 2 x 1 GB Low Power Kit, single rank memory kit

At A Glance

The HP ProLiant DL180 G5 is a low cost high capacity storage optimized 2-way server, that delivers on a history of design excellence and 2U density for a variety of rack deployments and applications.

Processors

Memory

Internal Drive Support

Network Controller

: Supports up to two Quad-Core Intel® Xeon® processors: 5400 sequence Quad-Core Intel® Xeon® processors 5400 sequence with 12MB Level 2 cache Intel® 5100 Chipset

Up to 16 GB of memory supported by six (6) PC2-5300 (667 MHz) DDR2 memory slots

Supports up to twelve via CTO with controller or up to eight via BTO:

Hot Plug Serial ATA (SATA) 3.5"hard drives; or Hot Plug Serial Attached SCSI (SAS) 3.5"hard drives

NOTE:

Hot Plug and SAS functionality requires the addition of Smart Array or HBA controller. 12 hard

drive support requires a 4-port SAS controller that supports expanders.

Internal storage capacity of up to 9TB (12 x 750GB Hot Plug 3.5" SATA hard drives), 3.6TB (12 x 300GB Hot Plug 3.5" SAS hard drives)

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 1

Page 2

QuickSpecs

Overview

One integrated NC105i PCI-e Gigabit NIC (embedded) (Wake on LAN and PXE capable)

Storage Controllers

HP Embedded SATA RAID Controller (up to 4 hard drive support on base Models: HP Smart Array E200 Controller (optional) HP Smart Array P400 Controller (optional) HP Smart Array P800 Controller (optional) HP SC11Xe Host Bus Adapter (optional) HP SC44Ge Host Bus Adapter (optional)

Expansion Slots

One available Low Profile x8 PCI-Express slot using a Low profile Riser. Two Full Height/ Full Length Riser options

Option1: 2 full-length/full-height PCI-Express x8 connector slots (x4 electrical - Standard)

Option2: full-length/full-height riser with 2 PCI-X Slots(Optional)

Management

Optional HP Lights Out 100c Remote Management card with Virtual KVM and Virtual Media support (includes IPMI2.0 and SMASH support)

USB Ports

Optical Drive

Power Supply

Form Factor

Deployment/Serviceability

Warranty

Seven USB ports (2) front, (4) rear, (1) internal

: Support for one (optional):Multi-bay DVD Optional Floppy (USB only, USB key)

750W Power Supply (Optional Redundancy Non-Hot Plug, Autoswitching) CSCI 2007/8 1200W High Efficiency Power Supply (Optional Redundancy Non-Hot Plug, Autoswitching) (Optional) CSCI 2007/8

NOTE:

2U rack models

Tooled access to all system components for easy in rack serviceability

: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase (3-1-1 warranty in AP and Brazil). Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE:

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support (3-1-1-in AP and Brazil) with next business day response. Additional information regarding worldwide limited warranty and technical support is available at:

Climate Savers Computing Initiative, 2007-2008 Compliant

HP ProLiant DL180 G5

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 2

Page 3

QuickSpecs

Standard Features

HP ProLiant DL180 G5

NOTE:

specifications, please visit:

NOTE:

Factory Integrated Models" section.

Processor

One of the following depending on Model

Upgradeability

Chipset

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

http://h71028.www7.hp.com/ERC/downloads/4AA1-2747EEW.pdf

For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information -

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB)

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB)

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65 W, 1066 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Upgradeable to two processors

Intel® 5100 Chipset

Cache Memory

Memory Protection

Memory

Network Controller

12MB (2 x 6MB) Level 2 cache (5400 sequence)

Registered Advanced ECC memory

Type

Standard

Maximum

One NC105i PCI-E Gigabit NIC (embedded) (Wake on LAN and PXE capable)

PC2-5300 DIMMs (DDR2-667)

1 GB

16 GB

(1 x 1 GB)

(2 x 4 GB) + (4 X 2 GB) Two 4 GB DIMMs should be populated in sockets 1 and 2 first (the right most sockets when looking from the front of the chassis) sockets 4 through 6 should be populated with 2 GB DIMMs. (Refer to hood label for more information)

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 3

Page 4

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Expansion Slots

Storage Controller

Slot Number

NOTE:

All slots can accept universal keyed PCI cards

* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

*** PCI-X bus speed will be 133MHz when only one PCI-X card is installed. It will be 100MHz when both slots have PCI-X cards installed.

4HDD Models

NOTE:

A diskette drive is needed to install storage controller drivers during a Windows operating

system installation from a CD.

NOTE:

A diskette drive is needed to install storage controller drivers during a Windows operating

system installation from a CD.

Bus Speed

x8 PCI-

Express

x4 PCI-

Express

x4 PCI-

Express

PCI-X***

Bus

Number

3 1

5 0

6 0

Dynamic

HP Embedded SATA RAID Controller (integrated into the south-bridge) supporting SW RAID 0,1

Device

Number

Hot Plug

(Y/N)

PCI Voltage

3.3 volts

Notes

Low Profile

Full Length

Full Height

Full length

Full Height

Full Length

Full Height

Full Length

Full Height

Storage

Maximum Internal Storage

Optical Drives:

DVD-ROM

DVD RW

Diskette Drives

Drive Bays:

Hot Plug SAS/SATA

SATA Maximum Internal

SAS Maximum Internal

8x IDE (ATAPI) DVD-ROM drive, slim (optional)

8x IDE (ATAPI) DVD-RW drive, slim (optional)

Via USB only

Up to 12 Hot Plug SAS/SATA 3.5" drives (4 drive bays standard)

NOTE:

4 Drive Models are Non-Hot Pluggable. Smart Array Controller must be added for Hot Plug drive capability. 4 Drive Models can be upgraded with the addition of a Smart Array Controller and a SAS/SATA Multi-lane cable (464830-B21). 12 Drive Model available via CTO factory integration ONLY.

NOTE:

a SAS/SATA Multi-lane cable (464830-B21)

9TB

3.6TB

The addition of a Smart Array Controller requires the addition of

12 x 750GB

12 x 300GB

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 4

Page 5

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Interfaces

Graphics

Form Factor

Remote Management

Parallel

Network RJ-45 (Ethernet)

Serial

Pointing Device (Mouse)

Graphics

Keyboard

USB

32MB shared supporting 1600 x 1200 x 16M resolution.

Rack (2U), (3.5 in/8.89 cm)

Lights-Out 100c

None

1 10/100/1000 NIC port (plus 1 optional for the HP ProLiant Lights Out 100c Remote Management Card)

7 total ports: (2) front, (4) rear, (1) internal

NOTE:

Please see the following URL for additional information regarding USB support:

http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html

Lights Out LO100c is a Remote Management Card (RMC) for HP ProLiant 100 series servers that do not have embedded LO100i. The LO100c has all the features of the LO100i Advanced license and allows customers, or their service providers, to remotely manage ProLiant servers over a LAN or the Internet from anywhere, anytime regardless whether the server is located in the same building, across town, or around the globe.

With LO100c, users can acquire complete remote control with Virtual KVM (graphical hardware-based, remote console). Users can also access the server's serial console, control system power, update system firmware and software, as well as monitor system environmental conditions. The LO100c remote management card can be accessed from a web browser or command line interface. This virtual "at-theserver" functionality means administrators stay in control of remote HP ProLiant 100 series servers.

The HP Lights-Out100c consists of a management processor and firmware that provides cost-effective, entry-level lights-out functionality, basic system board management functions, and diagnostics.

NOTE:

For more information, please refer to the QuickSpecs for the LO100c found at::

http://h18004.www1.hp.com/products/servers/management/ remotemgmt/lightsout100/index.html

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 5

Page 6

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Server Management Stand Alone Software Product – ProLiant Essentials

Core Infrastructure Management

HP Systems Insight Manager

ProLiant Essentials Rapid Deployment Pack

Subscriber's Choice

ROMPaq, software and latest drivers

HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP supports image capture and deployment on 100 series servers. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit:

NOTE:

ProLiant Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

Essentials Value Pack product QuickSpecs for more information.

NOTE:

please see the following URL:

http://www.hp.com/servers/proliantessentials

Subscriber's Choice Driver and Support Alerts/Notifications is a webbased email subscription service that provides software and driver change notifications for ProLiant products. Sign up at:

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from Software and Drivers download pages website at:

http://www.hp.com/go/support

Flexible and volume quantity license kits are available for

For more information regarding ProLiant Essentials Software,

http://www.hp.com/servers/rdp

or the various ProLiant

Industry Standard Compliance

Manageability

ACPI V2.0 Compliant

PCI 2.2 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

IPMI 2.0 Compliant

The optional HP PL100 G5 Lights-Out 100c Kit ALL provides the following OS-independent remote control capabilities with a riser card:

Virtual power System event log access System health Remote Serial console (serial redirection) Browser, Telnet access SMASH-CLP compliant IPMI 2.0 compliant Virtual media (Floppy, CD, USB 2.0 (with release 3.0) Secure Socket Layer Encryption Secure Shell Encryption Virtual KVM

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 6

Page 7

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Security

Server Power Cords

UPS and PDU Power Cord Matrix

Power Supply

Power-on password

Setup password

One Highline IEC Power cord ships standard (for connection to a Power Distribution Unit)

NOTE:

connection to 110V US wall outlets in a home or office. HP ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15), the NEMA power cord (AF556A) must be ordered separately.

If a local power cord is required, please reference the following power cord matrix:

http://www.hp.com/go/powercordmatrix

NOTE:

Localized cables included with geographic specific models in other world regions.

Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:

http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html

750Watts - (Non-Hot Plug, Autoswitching) Ships Standard

1200Watts - High Efficiency 12V Non-Hot Plug AC Power Supply (Autoswitching) (Optional)

750Watts - Power Supply (Redundant Non-Hot Plug, Autoswitching) (Optional)

1200Watts - High Efficiency Power Supply (Redundant Non-Hot Plug, Autoswitching), CSCI 2007/2008 (Optional)

NOTE: NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords that allow

Rack models ship standard with an IEC cable.

Climate Savers Computing Initiative, 2007-2008 Compliant For additional information please see the Options section of this QuickSpecs.

System Fans

OS Support

4 system fans ship standard; Non-hot plug, Non-redundant

Microsoft Windows 2003 and Microsoft Windows 2003/R2 Standard Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 Enterprise Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 Web Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Standard Edition (64-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Enterprise Edition (64-bit) Microsoft Windows Server 2008 Red Hat Enterprise Linux SUSE Linux Enterprise Server

NOTE:

select your server:

us&taskId=135&prodTypeId=15351&prodCatId=241435

NOTE:

from HP please visit the OS product site at:

http://h18004.www1.hp.com/products/servers/software/OEM.html

For an up-to-date listing of the latest software and drivers available for your server, please

http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc=

For more complete and up-to-date information on how to buy server operating systems

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 7

Page 8

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Rack Airflow Requirements

Rack Kit

Telco and Threaded Hole Rack Support

Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION:

This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

HP ProLiant DL180 rack models have fixed rails which provide support for round or square mounting holes, including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".

Support for all 2-post Telco racks and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at:

http://www.racksolutions.com/hp

If a third-party rack is used, observe the following additional requirements to ensure

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.

Factory Express Portfolio for Servers and Storage

HP Enterprise Configurator

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

http://www.hp.com/go/factory-express

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 8

Page 9

QuickSpecs

Standard Features

HP ProLiant DL180 G5

Service and Support

HP services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service

management.

Support Service Deployment Service

Enhanced Service

Support Service Deployment Service

– Simplify ProLiant solution implementation, maintenance and

– 3 Year, 9x5 Next Business Day coverage, excluding HP holidays only

– Hardware Installation only

– Optimize service level to increase IT performance and availability

– 3 Year 13x5 Same Business Day, 4-Hour response coverage

– Installation and Start-up only

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

For a complete listing of service offerings and information visit:

http://www.hp.com/services/proliantservices http://www.hp.com/go/proliant/carepack

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 9

Page 10

QuickSpecs

HP ProLiant DL180 G5

Models

Four Drive Serial ATA (SATA) Models

NOTE:

To upgrade from 4 Non-Hot Plug SATA hard drives to 4 Hot Plug SATA/SAS hard drives the addition of a storage controller and one Internal SATA/SAS cable (464830-B21) are required. To upgrade to 8 Hot Plug SATA/SAS hard drives, the addition of a storage controller and two Internal SATA/SAS cables (464830-B21) are required.

NOTE:

To upgrade to server models supporting 12 hard drives; you must start with HP ProLiant DL180 CTO Chassis (P/N 457649-B21). Please see the Configuration To Order section below.

HP DL180 G5, E5420

2.50GHz,(QC) 1GB (1P)

456830-xx1

HP DL180 G5, E5405

2.00 GHz,(QC) 1GB (1P)

456831-xx1

Processor

One of the following depending on model

Cache Memory

One of the following depending on model

Memory

One of the following depending on model

Network Controller

Storage Controller

Hard Drive

Internal Storage

Optical Drive

Form Factor

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB)

12MB (2 x 6MB) Level 2 cache (5400 sequence)

1GB (1 x 1GB) PC2-5300 DIMMs (DDR2-667)with Advanced ECC capabilities

One HP NC105i PCI-E (embedded)

Embedded SATA Raid Standard

None ship standard (up to 8 Hot Plug SATA or SAS drives supported standard with the addition of a controller and cable. 12 drive models supported via CTO only.)

BTO internal storage capacity of up to 6TB (8 x 750GB Hot Plug 3.5" SATA hard drives), 2.4TB (8 x 300GB Hot Plug 3.5" SAS hard drives)

DVD-ROM, DVD RW (Optional)

Rack (2U)

NOTE:

Server models supporting 4 hard drives are Non-Hot Pluggable.

Smart Array Controller must be added for Hot Plug drive capability.

NOTE:

SAS (Serial Attach SCSI) capability requires the addition of a

Smart Array or HBA Controller card.

Country Code Key

xx = 00

xx = 20

xx = 29

xx = 37

xx = 42

xx = AA

U.S.

Brazil

Japan

APD

Europe

PRC

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 10

Page 11

QuickSpecs

Configuration Information - Factory Integrated Models

HP ProLiant DL180 G5

NOTE:

configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.

NOTE:

Configure-to-order servers must start with a CTO Chassis.

NOTE: NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid

HP does not allow factory integration of options into standard models listed above.

This product offering does not support HP Factory Express Server Configuration Level 1. FIO indicates that this option is a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Hot Plug Models

HP ProLiant DL180 G5 Hot Plug SAS/SATA Rack CTO Chassis

Factory Integrated Model ships with:

One embedded NC105i PCI-E Gigabit Server Adapters (WOL & PXE-capable)

Three available PCI-Express slots:

Slot 1: x8 low-profile/half-height slot

Slot 2 & 3: x4 Full-Height/Full Length

NOTE:

Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

One HP SATA Embedded Cable Kit

750 Watt Power Supply

One Highline IEC Power Cord

4 Non-Hot Plug Fans

Rack (2U), (3.5 in/8.89 cm)

457649-B21

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

Processors

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

B21.

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

B21.

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

B21.

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

B21.

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066MHz FSB) Kit, FIO

NOTE:

B21.

If 2 processors are desired, select one 466106-L21 and one 466106-

If 2 processors are desired, select one 458784-L21 and one 458784-

If 2 processors are desired, select one 458785-L21 and one 458785-

If 2 processors are desired, select one 458786-L21 and one 458786-

If 2 processors are desired, select one 458787-L21 and one 458787-

466106-L21

458784-L21

458785-L21

458786-L21

458787-L21

Memory

1 GB PC2-5300 2 x 512 MB Single Rank Kit

1GB REG PC2-5300 1 x 1GB Kit

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

408850-B21

462483-B21

Page 11

Page 12

QuickSpecs

Configuration Information - Factory Integrated Models

HP ProLiant DL180 G5

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

4 GB REG PC2-5300 2 x 2 GB Single Rank Kit

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

Hard Drive Cage

HP DL180 8HDD Cage FIO Kit

HP DL180 12HDD Cage FIO Kit

NOTE:

The installation of a 12HDD Cage requires the addition of a 4-port SAS controller that supports expanders. A Smart Array Controller, P400 or better, is recommended.

NOTE:

supports expanders) requires the addition a SAS/SATA Multi-lane cable (464830-B21).

The addition of a Smart Array Controller (or 4-port SAS controller that

Step 3: Choose Additional Options for Factory Integration

NOTE:

integration. Please contact an HP sales representative for additional information.

For additional options, please refer to the "Options" section below. Some options may not be available for factory

483399-B21

408851-B21

461840-B21

408853-B21

408854-B21

451368-B21

451369-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 12

Page 13

QuickSpecs

Options

HP ProLiant DL180 G5

Unique Options

Power Supplies

Remote Management

Server Management Stand Alone Software Product – ProLiant Essentials

HP ProLiant DL180 PCI/X Riser Kit

NOTE:

base configuration

NOTE:

100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

750W Redundant Power Supply Kit

High Efficiency HP 1200W 12V Non Hot Plug AC Power Supply

NOTE:

both power supplies to be 1200W. The 1200W and 750W power supplies cannot be mixed.)

Lights-Out 100c Remote Management Card

HP Lights Out 100c Remote Management Card 100c Kit

NOTE:

Card, please see the following URL:

http://www.hp.com/servers/proliantessentials

NOTE:

select ProLiant Essentials software products. Please see the appropriate Insight Control and ProLiant Essentials QuickSpecs for additional information.

Deploy

Rapid Deployment Pack

ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates

NOTE:

Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

NOTE:

Essentials Value Packs. Refer to: or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

NOTE:

the following URL:

This option kit replaces the three internal expansion slots listed in step 1

Optional PCI-X option kit includes: Slot 1: full-length/full-height PCI-X

Redundant Power Supply configuration for 1200W power supply requires

For more information regarding Lights Out 100c Remote Management

Electronic licensing options are available for Insight Control suites and

This license allows 1 server to be deployed and managed via RDP.

For additional ProLiant Essentials Rapid Deployment Pack License Kits

Flexible and volume quantity license kits are available for ProLiant

http://www.hp.com/servers/proliantessentials

For more information regarding ProLiant Essentials Software, please see

http://www.hp.com/servers/proliantessentials

451285-B21

451366-B21

437572-B21

445513-B21

452151-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 13

Page 14

QuickSpecs

Options

HP ProLiant DL180 G5

Processor

Memory

Hard Drives

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB) Option Kit

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB) Option Kit

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Option Kit

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333 MHz FSB) Option Kit

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066 MHz FSB) Option Kit

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

1 GB REG PC2-5300 1 x 1 GB Kit

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

4 GB REG PC2-5300 2 x 2 GB LP Single Rank Kit

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

Serial-ATA (SATA) Hot Plug Hard Drives

HP 80GB SATA 7.2K Hot Plug 3.5" HDD

HP 160GB SATA 7.2K Hot Plug 3.5" HDD

HP 250GB SATA 7.2K Hot Plug 3.5" HDD

HP 500GB SATA 7.2K Hot Plug 3.5" HDD

HP 750GB SATA 7.2K Hot Plug 3.5" HDD

NOTE:

Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:

http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

(Worldwide)

Serial-Attached SCSI (SAS) Hot Plug Hard Drives

HP 72GB 3G SAS 15K 3.5" DP HDD

HP 72GB SAS 15K Hot Plug 3.5" SP HDD

HP 146GB 3G SAS 15K 3.5" DP HDD

HP 146GB SAS 15K Hot Plug 3.5" SP HDD

HP 300GB 3G SAS 15K 3.5" DP HDD

HP 300GB SAS 15K Hot Plug 3.5 SP HDD

NOTE:

capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

NOTE:

Array controller and two SAS/SATA cables (P/N 464830-B21) are required.

SATA drives have a 1 year warranty. Please see the QuickSpecs for

Please see the QuickSpecs for Technical Specifications such as

If selecting more than 4 hard drives or if using SAS hard drives a Smart

466106-B21

458784-B21

458785-B21

458786-B21

458787-B21

408850-B21

462483-B21

483399-B21

408851-B21

408853-B21

461840-B21

408854-B21

349237-B21

349238-B21

349239-B21

395473-B21

432341-B21

384852-B21

375870-B21

384854-B21

375872-B21

416127-B21

431944-B21

Optical Drives

DVD-ROM Drive

DVD-RW Drive

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

449991-B21

449998-B21

Page 14

Page 15

QuickSpecs

Options

HP ProLiant DL180 G5

Storage Controllers

SAS Controllers

HP SC44Ge Host Bus Adapter

NOTE:

http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html

(SC44Ge HBA)

SCSI HBA

HP SC11Xe Host Bus Adapter

NOTE:

http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html

(SCSI HBA)

Internal SAS/SATA Cable

NOTE:

Array controller is required and two SAS/SATA cables.

NOTE:

SAS/SATA Multi-lane cable.

HP Smart Array E200 Controller

HP Smart Array E200/128 BBWC Controller

HP Smart Array E500 Controller

HP Smart Array P400 Controller

HP Smart Array P400/256MB Controller

HP Smart Array P400/512MB Controller with BBWC

NOTE:

the 24" Battery Extension Cable (417836-B21) is required.

HP Smart Array P800 Controller

HP Smart Array P800/512 BBWC Controller

512 MB Battery-backed write cache upgrade

Battery-backed write cache upgrade

NOTE:

the 24" Battery Extension Cable (417836-B21) is required.

HP Smart Array 24" Battery Cable Kit

NOTE:

Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html

(Smart Array E200 Controller)

http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html

(Smart Array E500 Controller)

http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html

(Smart Array P400 Controller)

http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html

(Smart Array P800 Controller)

Please see the HBA QuickSpecs for additional information:

Please see the QuickSpecs for additional information:

If selecting more than 4 hard drives or if using SAS hard drives a Smart

The addition of a Smart Array Controller requires the addition of a

When ordering a Smart Array P400 Controller with BBWC the addition of

When ordering a Smart Array P800 Controller with BBWC the addition of

Please see the following Controller QuickSpecs for Technical

416096-B21

412911-B21

464830-B21

411508-B21

435129-B21

405132-B21

411064-B21

381513-B21

405148-B21

383280-B21

417836-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 15

Page 16

QuickSpecs

Options

HP ProLiant DL180 G5

Communications

HPC Specific Options

Rack Kits

HP StorageWorks Modular Smart Array 20

HP NC110T PCI Express Gigabit Server Adapter

NOTE:

HP NC360T PCI Express Dual Port Gigabit Server Adapter

HP NC364T PCI Express Quad Port Gigabit Server Adapter

NOTE:

HP NC373F PCI Express Multifunction Gigabit Server Adapter

HP NC373T PCI Express Multifunction Gigabit Server Adapter

HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter

NOTE:

HP NC510C PCIe 10 Gigabit Server Adapter

NOTE:

NC510C adapter.

HP NC510F PCIe 10 Gigabit Server Adapter

HP IB 4X DDR PCI-e Dual-port 0 memory HCA

HP Rack Cable Management Velcro Clips

HP StorageWorks Modular Smart Array 20

NOTE:

redundant power supplies.

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html

(Worldwide)

Does not support Windows 2000.

Supported on a Full Length-Full Height slot only.

A minimum of 1 gigabyte (1 GB) of server memory is required per each

Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity,

Please see the Modular Smart Array 20 QuickSpecs for additional

434905-B21

412648-B21

435508-B21

394793-B21

394791-B21

394795-B21

414129-B21

414126-B21

483513-B21

379820-B21

335921-B21

HP StorageWorks Modular Smart Array 30

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 30 SB

NOTE:

Rack-mountable 14 drive enclosure with single bus, redundant power supplies.

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11738_div/11738_div.html

(Worldwide)

HP StorageWorks Modular Smart Array 50 Enclosure

NOTE:

redundant hot plug power supplies and hot plug fans.

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html

(Worldwide)

Please see the Modular Smart Array 30 QuickSpecs for additional

Rack-mountable 10 SFF drive enclosure with single I/O module,

Please see the Modular Smart Array 50 QuickSpecs for additional

302969-B21

364430-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 16

Page 17

QuickSpecs

Options

HP ProLiant DL180 G5

HP StorageWorks Modular Smart Array 60

HP StorageWorks Modular Smart Array 70

HP StorageWorks Modular Smart Array 500

HP StorageWorks 60 Modular Smart Array

NOTE:

Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

(Worldwide)

HP StorageWorks 70 Modular Smart Array

NOTE:

3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

(Worldwide)

HP StorageWorks 500 Modular Smart Array

NOTE:

information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html

(Worldwide)

Please see the Modular Smart Array 60 QuickSpecs for additional

Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with

Please see the Modular Smart Array 70 QuickSpecs for additional

Please see the Modular Smart Array 500 QuickSpecs for additional

364430-B21

418800-B21

335880-B21

Tape Drives

NOTE:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

USB Tape Drives

HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive

SAS Tape Drives

NOTE:

(416096-B21) for a dedicated SAS HBA for tape.

HP StorageWorks DAT 160 SAS Internal Tape Drive

NOTE:

kit (AE459A) for a complete rack-mount solution.

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

NOTE:

kit (AE459A) for a complete rack-mount solution.

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

NOTE:

kit (AE459A) for a complete rack-mount solution.

HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive

HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760

HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive

NOTE:

kit (AG576A) for a complete rack-mount solution.

NOTE:

table in the Storage section of this document for a list of SAS controllers with tape support.

Ultrium Tape Drives

For the complete listing of Tape Drive offerings, please see:

For the DL180 G5, HP recommends purchasing the HP SC44Ge HBA

HP recommends combining this tape drive with the 1U SAS Rack-Mount

HP recommends combining this tape drive with the 3U SAS Rack-Mount

Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries"

AG703A

Q1587A

DW085A

EH847A

EH919A

EH946A

EH860A

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 17

Page 18

QuickSpecs

Options

HP ProLiant DL180 G5

HP StorageWorks LTO-1 Ultrium 232 Internal Tape Drive (Carbonite)

NOTE:

HP recommends combining this tape drive with the 1U SCSI Rack-Mount kit (A7445B) for a complete rack-mount solution.

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive (Carbonite)

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920

HP StorageWorks 3U SCSI Rack-mount kit with one LTO-3 Ultrium 960 (Carbonite)

HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive

NOTE:

for additional options such as controllers, media, and other related items:

http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html

(Worldwide)

http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html

(Worldwide)

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit:

Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U SCSI Rack-Mount kit

NOTE:

is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.

HP StorageWorks 1U USB Rack-Mount Kit

NOTE:

and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 tape drives.

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE:

and is compatible with the LTO-2 Ultrium 448 SAS and LTO-3 Ultrium 920 SAS tape drives.

HP StorageWorks 3U SCSI Rack-mount kit

NOTE:

height tape drives and is compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 600, LTO-1 Ultrium 232, LTO-2 Ultrium 460, LTO-2 Ultrium 448, LTO-3 Ultrium 920, LTO-3 Ultrium 960 and LTO-4 Ultrium 1840 tape drives.

HP StorageWorks 3U SAS Rack-mount Kit

NOTE:

tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, and LTO-4 Ultrium 1840 SAS tape drives.

NOTE:

information regarding these kits:

http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html

(Worldwide)

Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs

http://www.hp.com/go/connect

The 1U Rack-Mount Kit can support up to (2) half-height tape drives and

The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives

The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives

The 3U SCSI Rack-mount Kit can support up to (2) full-height or (4) half-

The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height

Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional

DW064A

DW028B

EH903A

Q1595B

EH926A

A7445B

A8007A

AE459A

274338-B22

AG576A

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 18

Page 19

QuickSpecs

Options

HP ProLiant DL180 G5

HP D2D Backup System

HP StorageWorks D2D110 Backup System

NOTE:

1TB of Disk Storage

HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit

NOTE:

1TB of Disk Storage

HP StorageWorks D2D120 Backup System

NOTE:

2TB of Disk Storage

HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit

NOTE:

2TB of Disk Storage

HP StorageWorks D2D130 Backup System

NOTE:

3TB of Disk Storage.

HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit

NOTE:

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive

NOTE:

information:

http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html

(Worldwide)

3TB of Disk Storage.

Please see the HP D2D Backup Systems QuickSpecs for additional

EH880A

EH923A

EH884A

EH924A

EH950A

EH951A

EH952A

Tape Autoloaders

HP StorageWorks DAT Autoloader

HP StorageWorks DAT 72x10 tape autoloader

HP StorageWorks 1/8 Tape Autoloader

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

HP StorageWorks 1/8 LTO-3 Ultrium 920 G2 Tape Autoloader

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

HP StorageWorks 1/8 LTO-2 Ultrium 448 G2 Tape Autoloader

HP StorageWorks 1/8 LTO-1 Ultrium 232 G2 Tape Autoloader

HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit

NOTE:

includes rails and rackmount instructions

NOTE:

http://www.hp.com/go/automation

complete solution; reference current compatibility information at:

http://www.hp.com/go/ebs

Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;

Please reference the Tape Autoloader QuickSpecs at:

for additional information needed to create a

AE313B

AK377A

AH165A

AH558A

AH164A

AH163A

AH166A

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 19

Page 20

QuickSpecs

Options

HP ProLiant DL180 G5

Tape Libraries

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library

HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library

HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library

HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library

HP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 4GB FC Library

HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 Drive Library

HP StorageWorks MSL6000 Tape Library

LTO-4 Ultrium 1840 technology

HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library

HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library

LTO-3 Ultrium 960 technology

HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library

HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library

HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library

HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library

NOTE:

Tape Library QuickSpecs at: information needed to create a complete solution; reference current compatibility information at:

Please reference the MSL2024, MSL4048, MSL8096 and MSL6000

http://www.hp.com/go/automation

http://www.hp.com/go/ebs

for additional

AJ033A

AJ034A

AK378A

AG115A

AG326B

AH559A

AH169A

AG116A

AJ035A

AJ036A

AK380A

AG322A

AG324B

AH560A

AH171A

AG320A

AJ039A

AJ040A

AK382A

AH561A

AH218A

AH219A

AJ029A

AJ030A

AJ031A

AJ032A

AD606B

AD608B

AD607B

AD609B

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 20

Page 21

QuickSpecs

Options

HP ProLiant DL180 G5

StorageWorks Options

USB Options

NOTE:

Windows and Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks 4 Gb PCI-X 2.0-to-Fibre Channel HBA

HP StorageWorks 4 Gb PCI-X 2.0 DC-to-Fibre Channel HBA

HP StorageWorks FC2142SR 4Gb PCI-E HBA

HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-E HBA

HP StorageWorks FC1142SR 4Gb PCI-E HBA

HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-E HBA

HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA

HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA

USB 1.44-MB External Diskette Drive

HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)

HP Keyboard (USB) standard 2004

HP 1GB USB 2.0 Floppy Drive Key

HP 256MB USB 2.0 Floppy Drive Key

HP USB Internal Cable Kit

The following is a list of all Fibre Channel Host Bus Adapters for

AB429A

AE369A

A8002A

A8003A

AE311A

AE312A

AD167A

AD168A

DC141B

DC172B

DT528A#ABA

442085-B21

442084-B21

451363-B21

HP KVM Switch Options

HP Serial Console Server Options

2x1x16 IP Console Switch with Virtual Media

4x1x16 IP Console Switch with Virtual Media

2x16 Server Console Switch with Virtual Media

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

HP Server Console Switch (KVM), 0 x 1 x 8 port

HP Server Console Switch (KVM), 0 x 2 x 16 port

PS/2 Interface Adapter, 1 pack

PS/2 Interface Adapter, 8 pack

USB Interface Adapter, 1 pack

Serial Interface Adapter - 1 pack with power supply

HP 1x4 Console Switch

HP PS2 Server Console Cable, 6 foot, 2-Pack

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

NOTE

Switches. Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm.

HP 16 Port Serial Console Server (worldwide)

HP 48 Port Serial Console Server (worldwide)

Serial Adapter, RJ45-D89 DCE Female, 1-pack

Serial Adapter, RJ45-D89 DCE Female, 8-pack

NOTE: For additional information regarding KVM switches, Serial Console

servers, rack mount monitors, keyboards and all related options please see the following URL:

Requires PS/2 and one USB port on server.

required for supporting USB peripherals.

: Cat5e cables are required to connect Interface Adapters to Console

http://www.hp.com/go/kvm

AF601A

AF602A

AF600A

AF604A

336044-B21

336045-B21

262588-B21

262587-B21

336047-B21

373035-B21

AF611A

AF612A

AF613A

AF101A

AF102A

AF103A

AF110A

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 21

Page 22

QuickSpecs

Options

HP ProLiant DL180 G5

Service and Support Offerings (HP Care

Pack Services)

Hardware Services 4-Hour On-site Service

13-Hour x 5-Day Coverage, 3 Years, Electronic

24-Hour x 7-Day Coverage, 3 Years, Electronic

13-Hour x 5-Day Coverage, 1 Years, Electronic

24-Hour x 7-Day Coverage, 1 Years, Electronic

13-Hour x 5-Day Coverage, 4 Years, Electronic

24-Hour x 7-Day Coverage, 4 Years, Electronic

13-Hour x 5-Day Coverage, 5 Years, Electronic

24-Hour x 7-Day Coverage, 5 Years, Electronic

Hardware Services Next Business Day On-Site Service

9-Hour x 5-Day Coverage, 3 Years, Electronic

9-Hour x 5-Day Coverage, 4 Years, Electronic

9-Hour x 5-Day Coverage, 5 Years, Electronic

Hardware Services 6-Hour Call to Repair On-Site Service

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 1 Years, Electronic

Hardware Installation, Electronic

NOTE:

http://www.hp.com/services/carepack

For more information, customer/resellers can contact:

UH271E

UH272E

UH267E

UH268E

UH275E

UH276E

UH278E

UH279E

UH270E

UH274E

UH277E

UH273E

UH269E

UH301E

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 22

Page 23

QuickSpecs

Memory

HP ProLiant DL180 G5

NOTE:

HP ProLiant DL180 G5 Standard Memory

1 GB (1 x 1GB) PC2-5300 Registered DIMM memory, with Advanced ECC Capabilities Memory installed.

Maximum Memory

Up to 16GB memory is available with the optional installation of PC2-5300 Registered DIMM memory kits.

NOTE: NOTE: NOTE:

Memory

Standard (1 GB)

Maximum (16 GB)

* Indicates the right most DIMM slots when looking from the front.

Following are memory options available from HP:

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

1 GB REG PC2-5300 1 x 1 GB Kit

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

4 GB REG PC2-5300 2 x2 GB Kit, Low Power, Single Rank Kit

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

Memory configurations listed do not apply to "Factory Integrated Models".

(all models)

Memory should be installed in pairs and matched for optimum performance. Chart does not represent all possible memory configurations. Only 1 dual rank 8GB kit can be populated.

Slot

1* 2*

1 GB

4 GB 4 GB 2 GB 2 GB 2 GB 2 GB

Empty Empty Empty Empty Empty

3 4 5 6

408850-B21

462483-B21

483399-B21

408851-B21

408853-B21

461840-B21

408854-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 23

Page 24

QuickSpecs

Storage

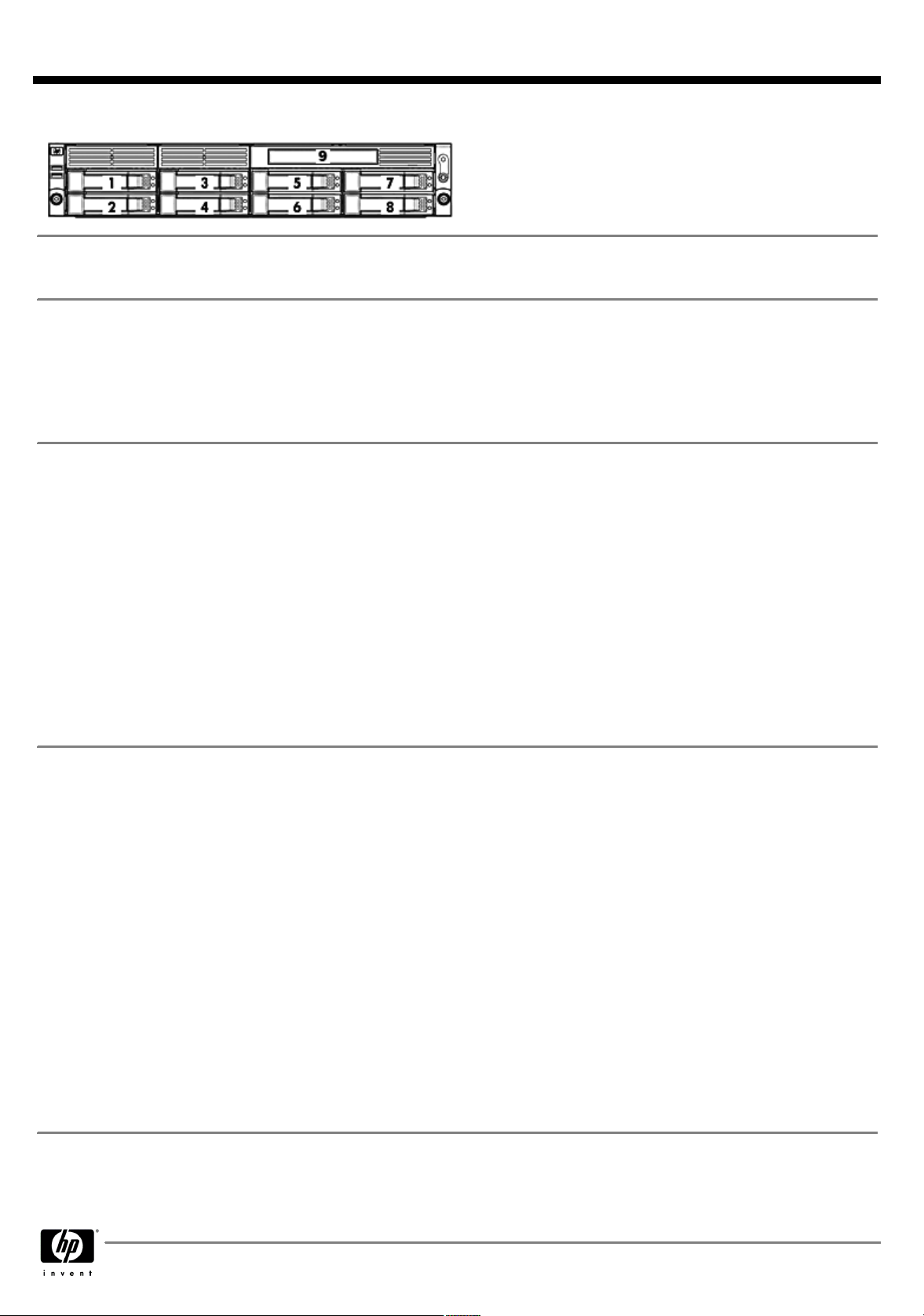

Drive Support

Removable Media

DVD-ROM

DVD RW

Hard Drives

SAS/SATA Hot Plug

3.5-inch

80GB SATA 7,200 rpm 160GB SATA 7,200 rpm 250GB SATA 7,200 rpm 500GB SATA 7,200 rpm 750GB SATA 7,200 rpm 72GB SAS 15,000 rpm 146GB SAS 15,000 rpm 300GB SAS 15,000 rpm

Quantity Supported

Up to 1

Quantity Supported

Up to 8

Position Supported

1-8

HP ProLiant DL180 G5

1.-8.

Eight 3.5" Hot Plug SAS/SATA Hard Drive Bays

DVD-ROM, DVD RW

Controller

Integrated IDE (ATAPI) (optional)

Controller

HP Smart Array E200/128 BBWC Controller HP Smart Array P400/256MB Controller HP Smart Array E500/256MB Controller HP Smart Array P800/512 BBWC Controller HP SC44Ge Host Bus Adapter HP SC11Xe Host Bus Adapter

External Storage

HP Storageworks MSA20 Enclosure

HP Storageworks MSA30 D-B Enclosure

HP Storageworks MSA50 Enclosure

HP Storageworks MSA60 Enclosure

HP Storageworks MSA70 Enclosure

Quantity Supported

Up to 2 per SA 6402 Up to 4 per SA 6404

Up to 2

Up to 8 per SA P800

Position Supported

External

Controller

Smart Array 6402 Controller Smart Array 6404 Controller

HP Smart Array E500/256MB controller

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 24

Page 25

QuickSpecs

Storage

Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup Systems

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/division/10233.html

(Worldwide)

HP ProLiant DL180 G5

NOTE:

below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/division/10809.html

NOTE:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE:

with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.

HP StorageWorks SCSI Tape Drives, External

LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-2 Ultrium 460 LTO-3 Ultrium 920 LTO-3 Ultrium 960 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160 DLT VS160 SDLT 600 1U Rack-Mount Kit 3U Rack-Mount Kit

HP StorageWorks USB Tape Drives, External

DAT 40 USB DAT 72 USB DAT 160 USB 1U USB Rack-Mount Kit

HP StorageWorks SAS Tape Drives, External

DAT 160 SAS LTO-2 Ultrium 448 SAS LTO-3 Ultrium 920 SAS LT0-4 Ultrium 1760 SAS LTO-4 Ultrium 1840 SAS 1U Rack-Mount Kit

HP StorageWorks SCSI Tape Automation, External

DAT 72x10 Autoloader 1/8 Tape Autoloader

For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed

(Worldwide)

For complete listing of tape drive offerings see:

SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied

Position

Supported

External

Controller

HP SC11Xe Host Bus Adapter

USB 2.0 Port

HP SC44Ge Host Bus Adapter *

HP Smart Array E500 Controller

HP Smart Array P800/512 BBWC Controller

NOTE:

Flash version 2.04 or higher for SAS tape support:

HP Smart Array P400/256MB Controller

HP Smart Array P400/512MB Controller

* Recommended

HP SC11Xe Host Bus Adapter

The following SAS Smart Array controllers require ROM

Controller Part

Number

412911-B21

N/A

416096-B21

435129-B21

381513-B21

405132-B21

411064-B21

412911-B21

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 25

Page 26

QuickSpecs

Storage

DAT 72x10 Autoloader 1/8 Tape Autoloader MSL2024 MSL4048 MSL8096 MSL6000

HP StorageWorks SAS Tape Automation, External

1/8 G2 Autoloader MSL2024 MSL4048 MSL8096

HP StorageWorks Fibre Tape Automation, External

MSL2024 MSL4048 MSL6000

HP StorageWorks D2D Backup Systems

D2D110 D2D120 D2D130

External

HP ProLiant DL180 G5

HP U320e SCSI Host Bus Adapter

NOTE:

HP SC44Ge Host Bus Adapter

NOTE:

about minimum SAS controller firmware version and SAS cabling requirements.

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

Embedded Network Controller

Only valid for MSL tape libraries.

Please visit

http://www.hp.com/go/connect

for detailed connectivity information.

for details

AH627A

416096-B21

N/A

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 26

Page 27

QuickSpecs

Power Specifications

HP ProLiant DL180 G5

750W Power Supply Spare Kit

Operational Input Voltage Range

Frequency Range

(Nominal) (Hz)

Nominal Input Voltage

(Vrms)

Max Rated Output Wattage Rating

Nominal Input Current

(A rms)

Max Rated Input Wattage Rating

Max. Rated VA

(Volt-Amp)

Efficiency Power Factor Leakage Current Maximum Inrush

Current Maximum Inrush

Current Duration

(A peak)

(Vrms)

(Watts)

(%)

(mA)

(mS)

451366-291, AA1, B21

90Vac to 264Vac full range

47 Hz to 63 Hz

100 115 200 220 230 240

750 750 750 750 750 750

9.1 7.9 4.3 4.0 3.8 3.7

893 888 872 862 862 862

911 906 890 880 880 880

0.98 0.98 0.98 0.98 0.98 0.98

<0.43 <0.50

30A 30A 30A 30A 30A 30A

5mS 5mS 5mS 5mS 5mS 5mS

84.5

86 87 87 87

<.0.90

<0.96 <1.00 <1.04

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 27

Page 28

QuickSpecs

Technical Specifications

HP ProLiant DL180 G5

System Unit

Dimensions

(with bezel)

Weight

(approximate)

Input Requirements

(per power supply)

BTU Rating

Power Specifications

(H x W x D)

3.44x 17.64 x 27.50 in (8.75 x 44.80 x 69.88cm)

Maximum

(all hard drives, power supplies and processors installed)

Minimum

(one hard drive, power supply and processor installed)

Rated Line Voltage

Rated Input Current

Rated Input Frequency

Rated Input Power

Maximum

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL:

http://h30099.www3.hp.com/configurator/calc/ Power%20Calculator%20Catalog.xls

51.5 lb (19.22 kg)

35.0 lb (13.06 kg)

100 - 240 VAC

9.10 A (at 100 VAC),

4.5 A (at 200 VAC)

50 to 60 Hz

910 W (at 100 VAC), 900 W (at 200 VAC)

3107.82 BTU/hr (at 100 VAC),

3073.67 BTU/hr (at 200 VAC)

Power Supply Output

(per power supply)

System Inlet Temperature

Relative Humidity

(non-condensing)

Altitude

Click on the system of interest. Example: DL180 G5 Follow the instructions of the next screens.

Rated Steady-State Power

Maximum Peak Power

Operating

Non-operating

Operating

Non-operating

Operating

750 W (at 100 VAC), 750 W (at 200 VAC)

750 W (at 100 VAC), 750W (at 200 VAC)

50° to 95°F (10° to 35°C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 86°F (30°C).

-22° to 140° F (-30° to 60° C). Maximum rate of change is 36° F/hr (20° C/hr).

10 to 90% relative humidity (Rh), 82.4° F (28° C) maximum wet bulb temperature, noncondensing.

5 to 95% relative humidity (Rh), 101.7° F (38.7° C) maximum wet bulb temperature, non-condensing.

10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 28

Page 29

QuickSpecs

Technical Specifications

HP ProLiant DL180 G5

Embedded NC105i PCIe Gigabit Server Adapter

(Embedded)

Acoustic Noise

Network Interface

Compatibility

Data Transfer Method

Network Transfer Rate

Connector

Cable Support

Non-operating

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA

74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

WAd

pAm

Operating

WAd

pAm

Integrated 10/100/1000BASE-T Transceiver

Combines a triple-speed IEEE 802.3TM - Compliant Media Access

Controller (MAC) with a triple-speed Ethernet transceiver.

Compliant to x1 PCIe Specification

10Base-T (Half-Duplex)

10Base-T (Full-Duplex)

100Base-TX (HalfDuplex)

100Base-TX (FullDuplex)

1000Base-TX (Half and Full-Duplex)

RJ-45

Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet on standard Category 5 UT

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

6.7 B

51 dBA

6.7 B

51 dBA

10 Mb/s

20 Mb/s

100 Mb/s

200 Mb/s

2000 Mb/s

Environment-friendly Products and Approach

End-of-life Management and Recycling

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: please go to: sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

http://www.hp.com/go/green http://www.hp.com/go/green

. To recycle your product, or contact your nearest HP

http://www.hp.com/go/green

. These

Page 29

Page 30

QuickSpecs

HP ProLiant DL180 G5

Technical Specifications

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 30
