HP Surestore 64, Director 2/64, Director 2/140 User Manual

user guide

hp StorageWorks

director product manager

Product Version: FW V05.01.00-24/HAFM SW V07.01.00-09

Second Edition June 2003

Part Number: AA–RTDUB–TE

This guide provides an introduction and overview of the HP StorageWorks Director 2/64
Product Manager and Director 2/140 Product Manager. It also explains how to use Product
Manager features to monitor, manage, and configure a director. Finally it describes how to use
Director 2/64 and Director 2/140 logs and maintenance features.

© Copyright 2001-2003 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to,

the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for
errors contained herein or for incidental or consequential damages in connection with the furnishing, performance,
or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be
photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard.
The information contained in this document is subject to change without notice.

Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The

information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties
for Hewlett-Packard Company products are set forth in the express limited warranty statements for such products.
Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

Director Product Manager User Guide
Second Edition June 2003
Part Number: AA–RTDUB–TE

contents

About this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Rack Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1 Product Manager Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Managing the StorageWorks Director 2/64 and Director 2/140. . . . . . . . . . . . . . . . . . . . . . . 22

HAFM Management Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

HAFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

View Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Product Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Fabrics Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

View Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Configure Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Logs Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

View Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Product Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configure Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents

3Director Product Manager User Guide

Contents

Logs Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Help Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Product Manager Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using Dialog Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Keyboard Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Illustrations Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Logging in to the HAFM Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Opening the Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Window Layout and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Product Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Management Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

FRU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Clear System Error Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Enable Unit Beaconing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Close. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Configure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

View Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Status Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

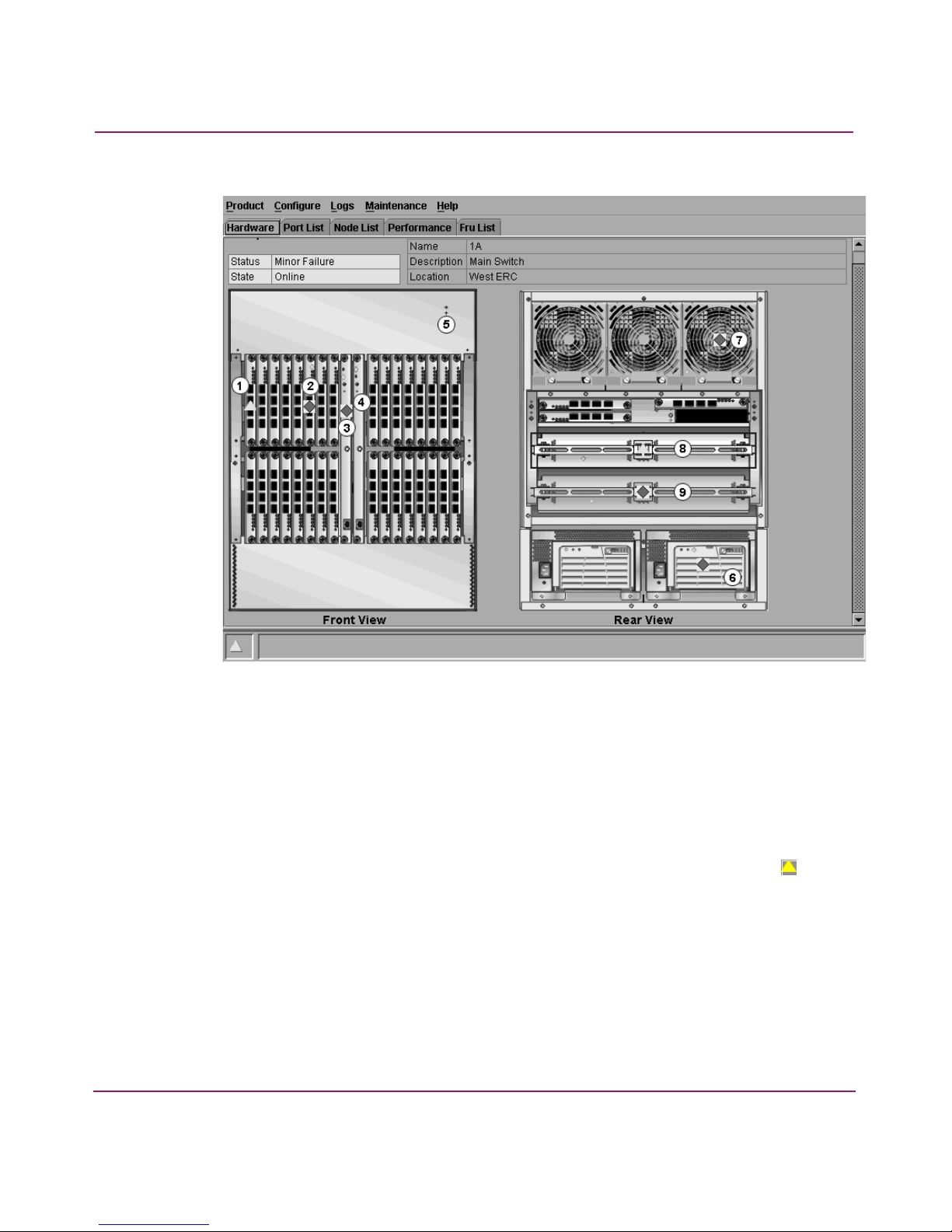

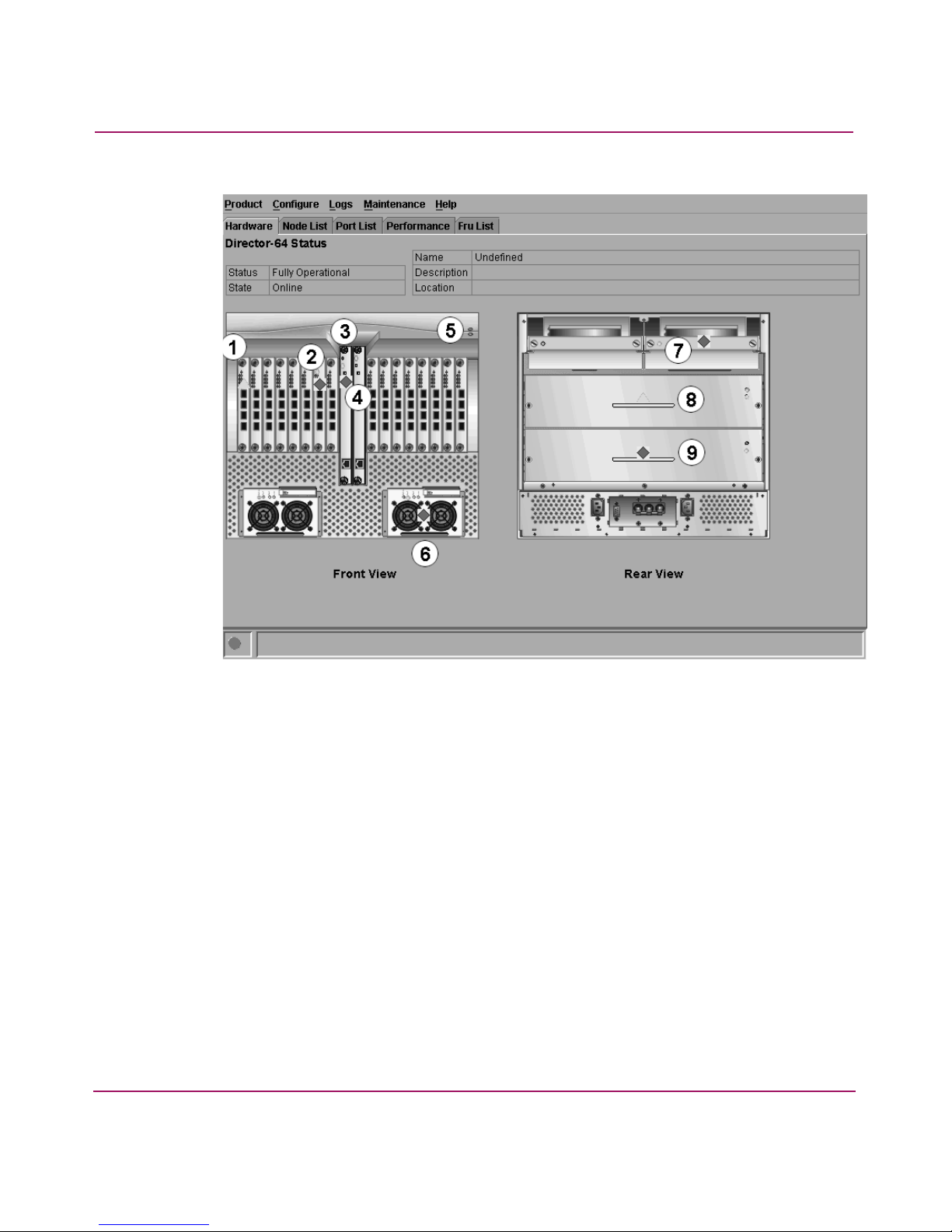

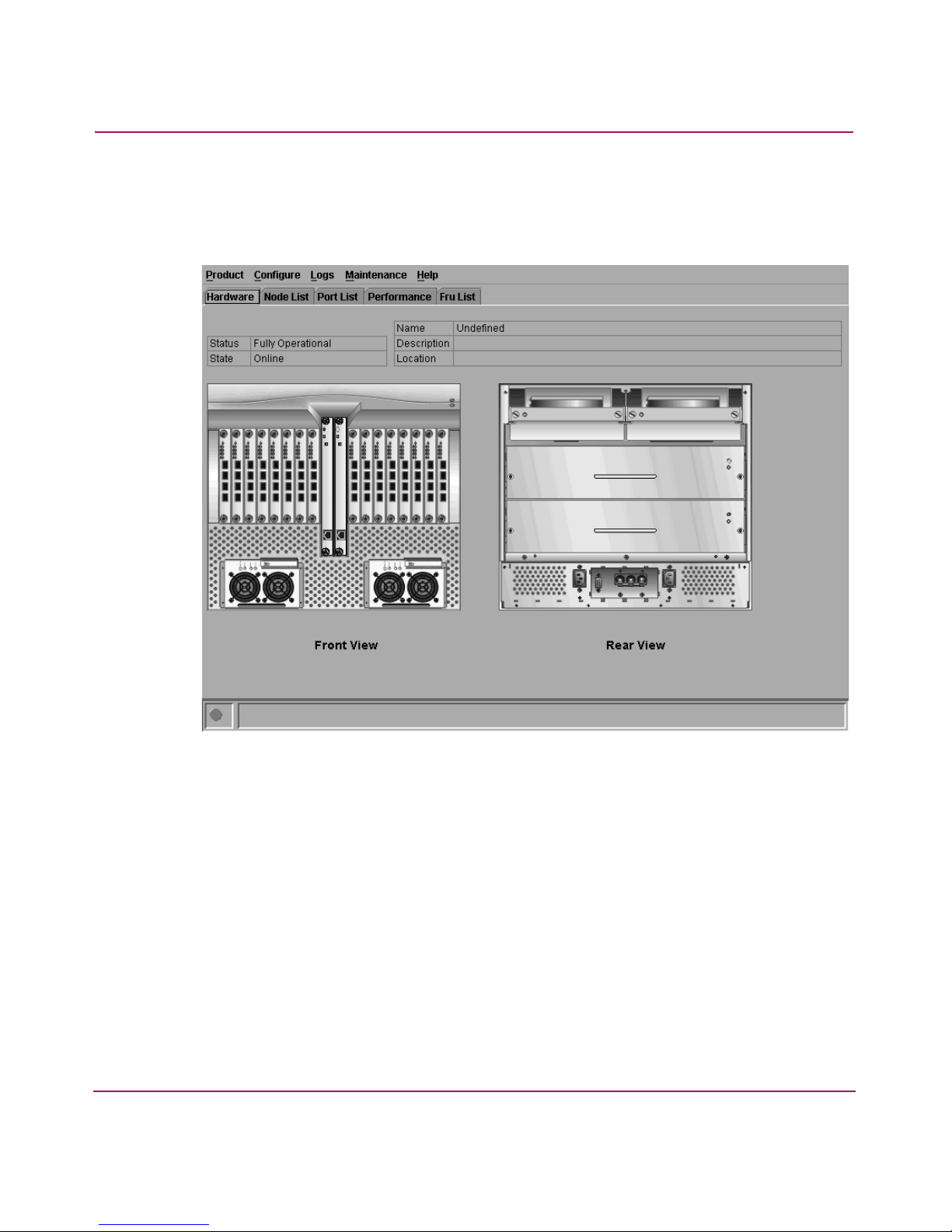

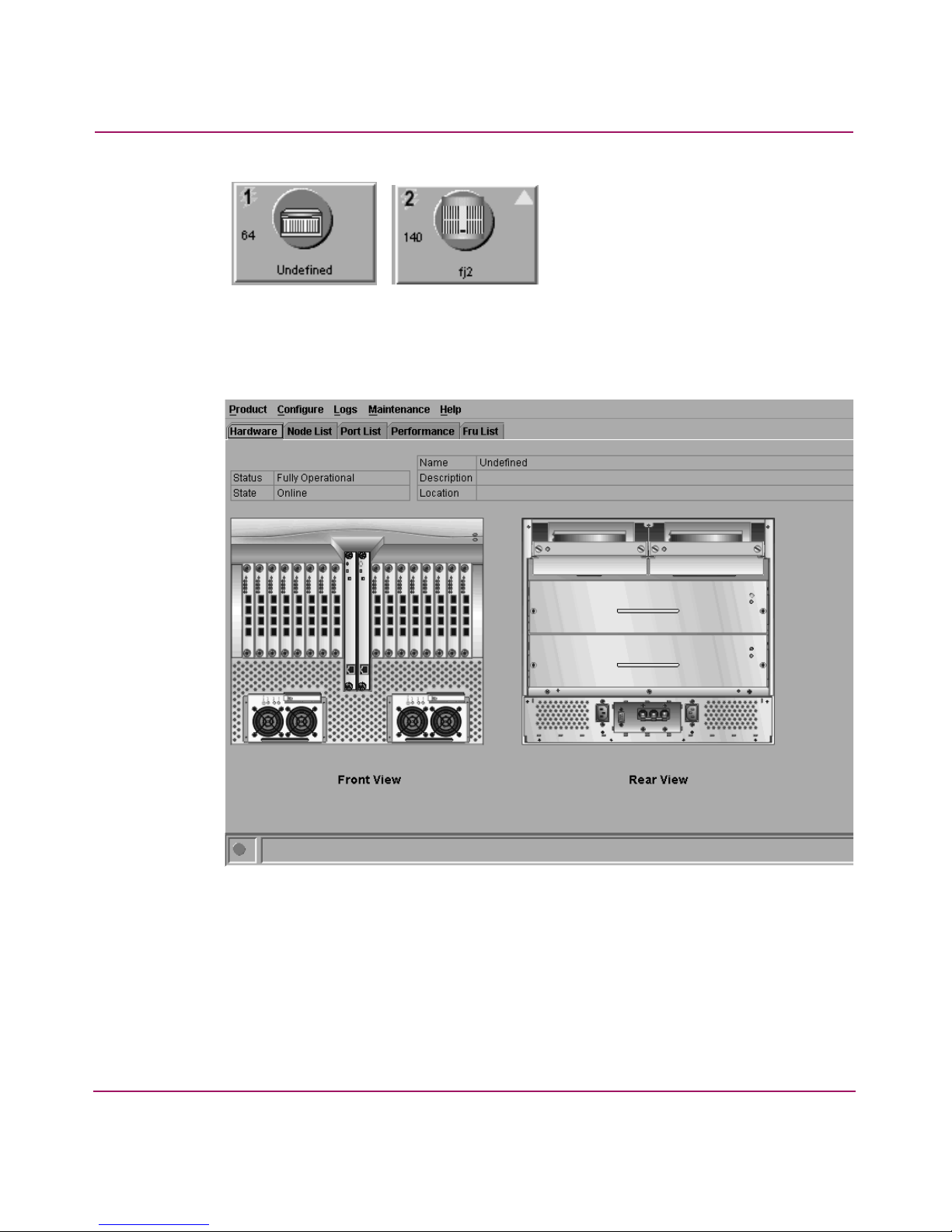

Hardware View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Director Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Port Card Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

CTP Card Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Cooling Fan Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SBAR Card Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Port Card View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

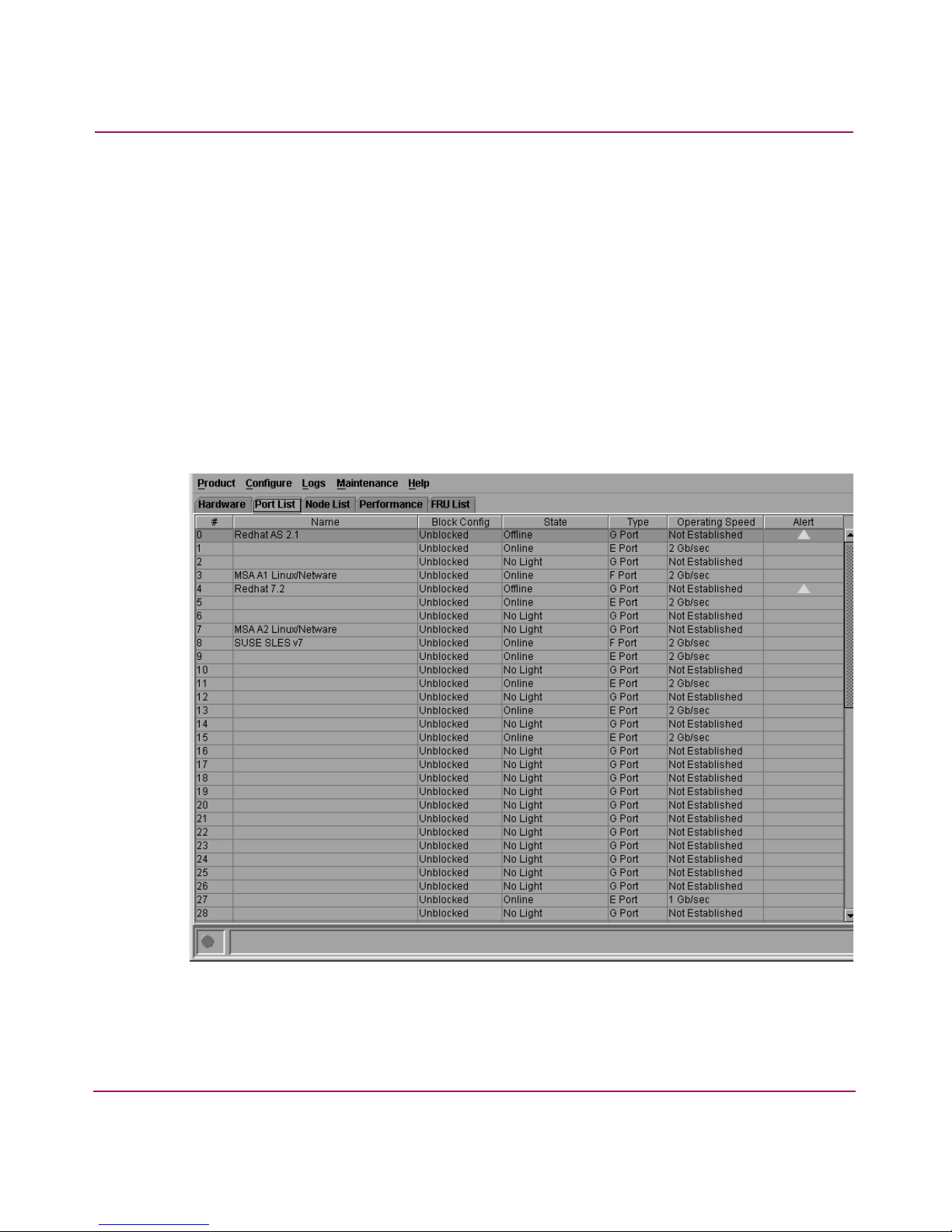

Port List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

FRU List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

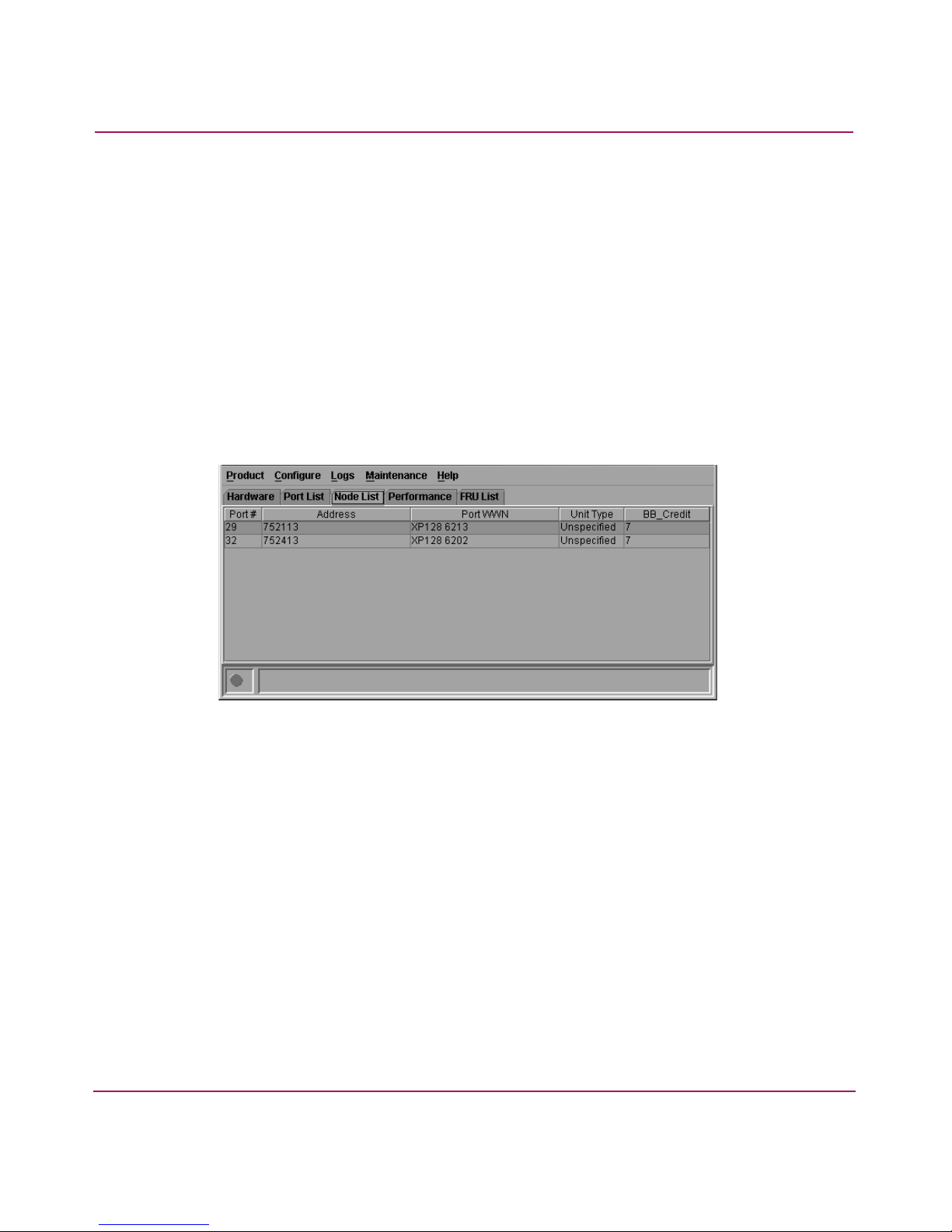

Node List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

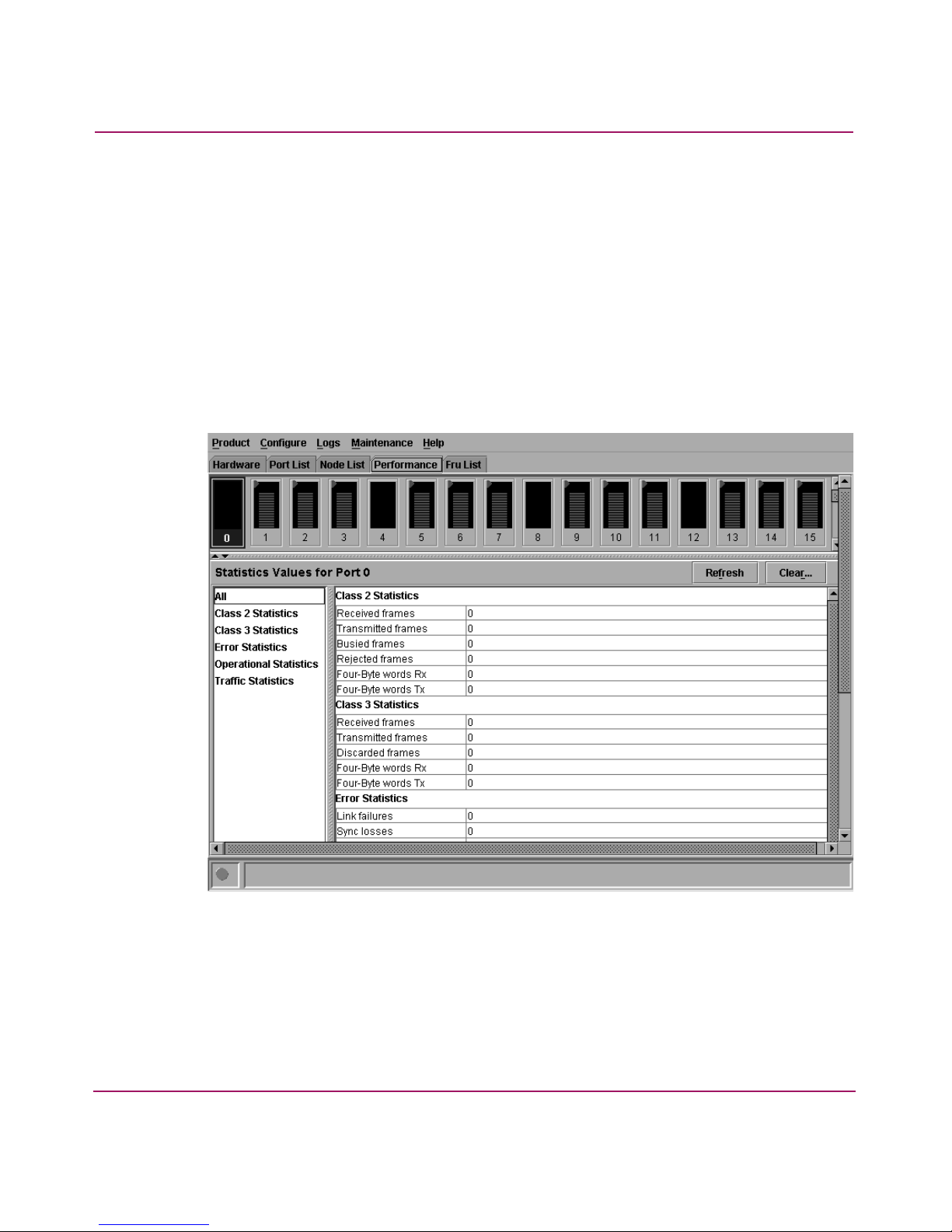

Performance View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Closing the Product Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

4 Director Product Manager User Guide

Contents

User Rights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

User Rights for Specific Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Backing Up and Restoring Product Manager Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Restoring Data to the HAFM server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Using the Backup Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

2 Monitoring and Managing the Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Hardware View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Identifying FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Monitoring Director Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Director Status Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

State. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

No Link Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Status Bar Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Monitoring Hardware Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Obtaining Hardware Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Displaying FRU Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Displaying Director Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Using Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Director Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Director Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Enable Unit Beaconing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Clear System Error Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

IPL Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Setting Director Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

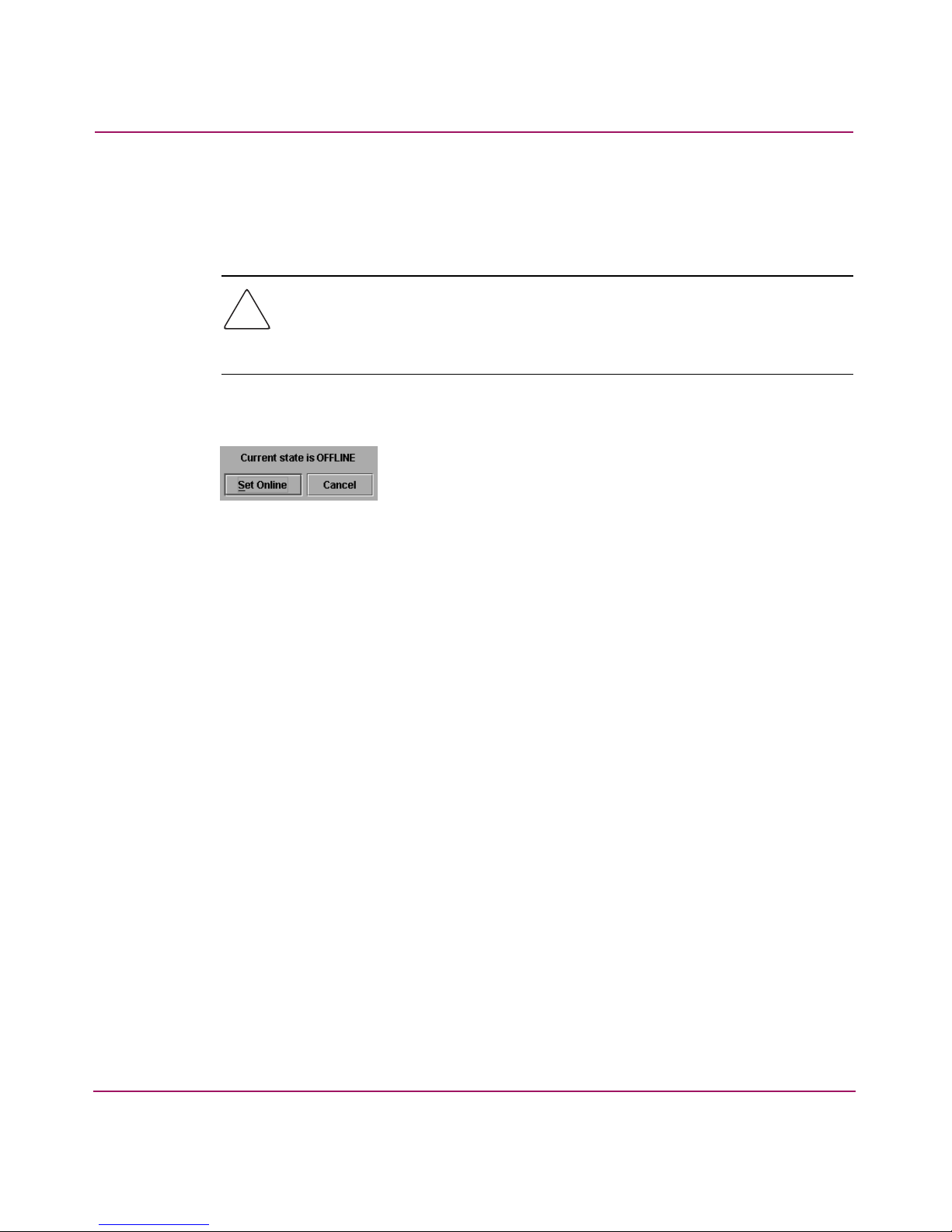

Setting Director Online State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Port Card Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Port Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

CTP Card Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Fan Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

SBAR Card Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Using the Port Card View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Symbols and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Displaying Port Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Port Card Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Port Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Port Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Node Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

5Director Product Manager User Guide

Contents

Port Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Block Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Enable Beaconing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Channel Wrap (FICON Management Style only). . . . . . . . . . . . . . . . . . . . . . . . 91

Swap Ports (FICON Management Style only) . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Clear Link Incident Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Reset Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Port Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Warning and Error Message Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Clear Threshold Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Port List View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

FRU List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Node List View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Displaying Node Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Performance View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Bar Graph Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Statistics Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Traffic Statistics with Receive and Transmit Values . . . . . . . . . . . . . . . . . . . . 107

Class 2 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Class 3 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Error Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Operational Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Traffic Statistics with Receive and Transmit Values . . . . . . . . . . . . . . . . . . . . 110

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Port Operational States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Link Incident Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Threshold Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

3 Configuring the Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Configuring Director Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Configuring Switch Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Switch Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Domain ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

6 Director Product Manager User Guide

Contents

Preferred . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Insistent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Rerouting Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Domain RSCNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Suppress RSCN’s on zone set activations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Director Speed (Director 2/64 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Management Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Configuring Fabric Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Fabric Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

BB_Credit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

R_A_TOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

E_D_TOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Switch Priority. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Interop Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Configuring Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Configuring Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Warning and Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Menu Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Configuring Ports in the Open Systems Management Style . . . . . . . . . . . . . . . . . . 133

Configuring Ports in the FICON Management Style . . . . . . . . . . . . . . . . . . . . . . . 135

Configuring Port Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Managing Stored Address Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Configuring SNMP Trap Message Recipients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Configuring Open Systems Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Configuring FICON Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Configuring Feature Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Configuring Director Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Setting Date and Time Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Synchronizing Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Configuring Threshold Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Creating New Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Modifying Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Activating or Deactivating Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Deleting Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Configure Open Trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Exporting the Configuration Report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Enabling Embedded Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

7Director Product Manager User Guide

Contents

Enabling Telnet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Backing Up and Restoring Configuration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

4 Using Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159

Using Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Expanding Columns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Sorting Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Hardware Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Link Incident Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Threshold Alert Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Open Trunking Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

5 Using Maintenance Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Port Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Swap Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Collect Maintenance Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Execute an IPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Set Online State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Manage Firmware Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Enable E-Mail Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Enable Call-Home Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Backup and Restore Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Reset Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

6 Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

FICON Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Configuring the FICON Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Open Systems Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Configuring the Open Systems Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . 189

SANtegrity Binding Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Fabric Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Enable/Disable and Online State Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

8 Director Product Manager User Guide

Contents

Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Configuring Switch Binding—Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Enable/Disable Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Editing the Switch Membership List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Enable/Disable and Online State Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Zoning with Switch Binding Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Enterprise Fabric Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Features and Parameters Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Fabric Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Switch Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Rerouting Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Domain RSCNs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Suppress RSCN’s on zone set activations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Insistent Domain Identification (ID). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Open Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Enabling and Configuring Open Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Use Algorithmic Threshold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Threshold % . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Open Trunking Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

A Information and Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205

A StorageWorks Director Product Manager Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231

Figures

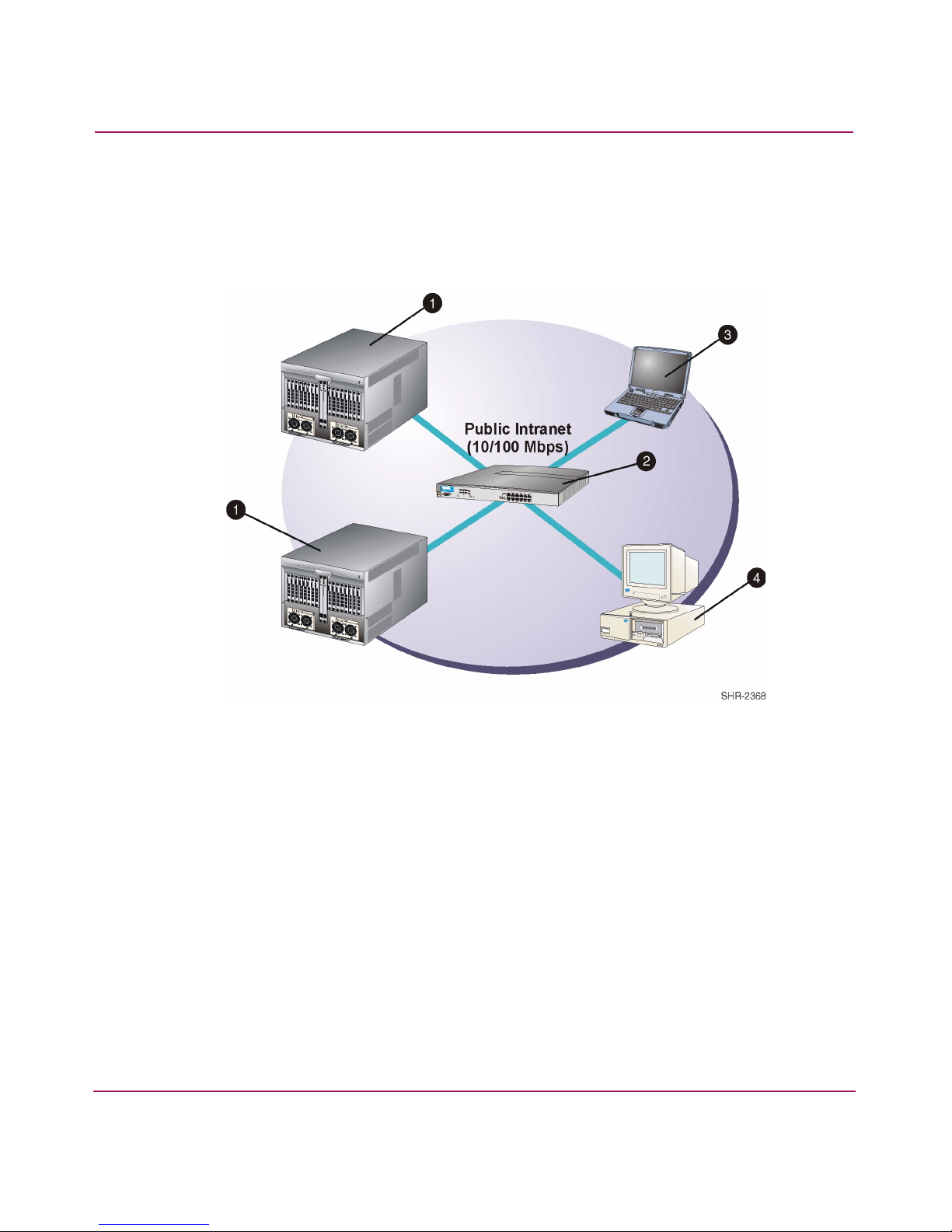

1 Typical network configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

2 HAFM application icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

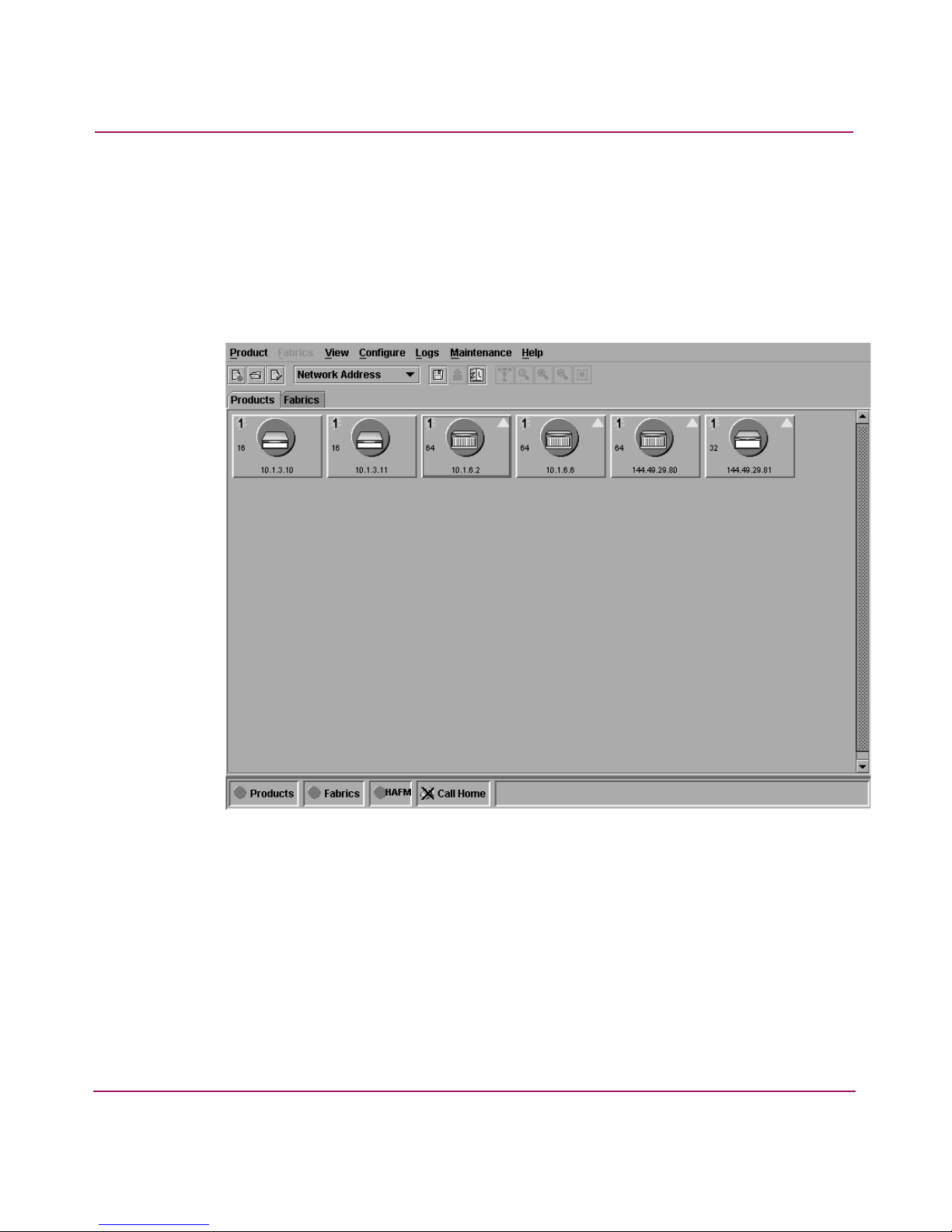

3 Main HAFM window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4 StorageWorks Director 2/64 and Director 2/140 icons . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5 StorageWorks Director 2/64 Product Manager window . . . . . . . . . . . . . . . . . . . . . . . . . 35

6 StorageWorks Director 2/140 Product Manager window . . . . . . . . . . . . . . . . . . . . . . . . 36

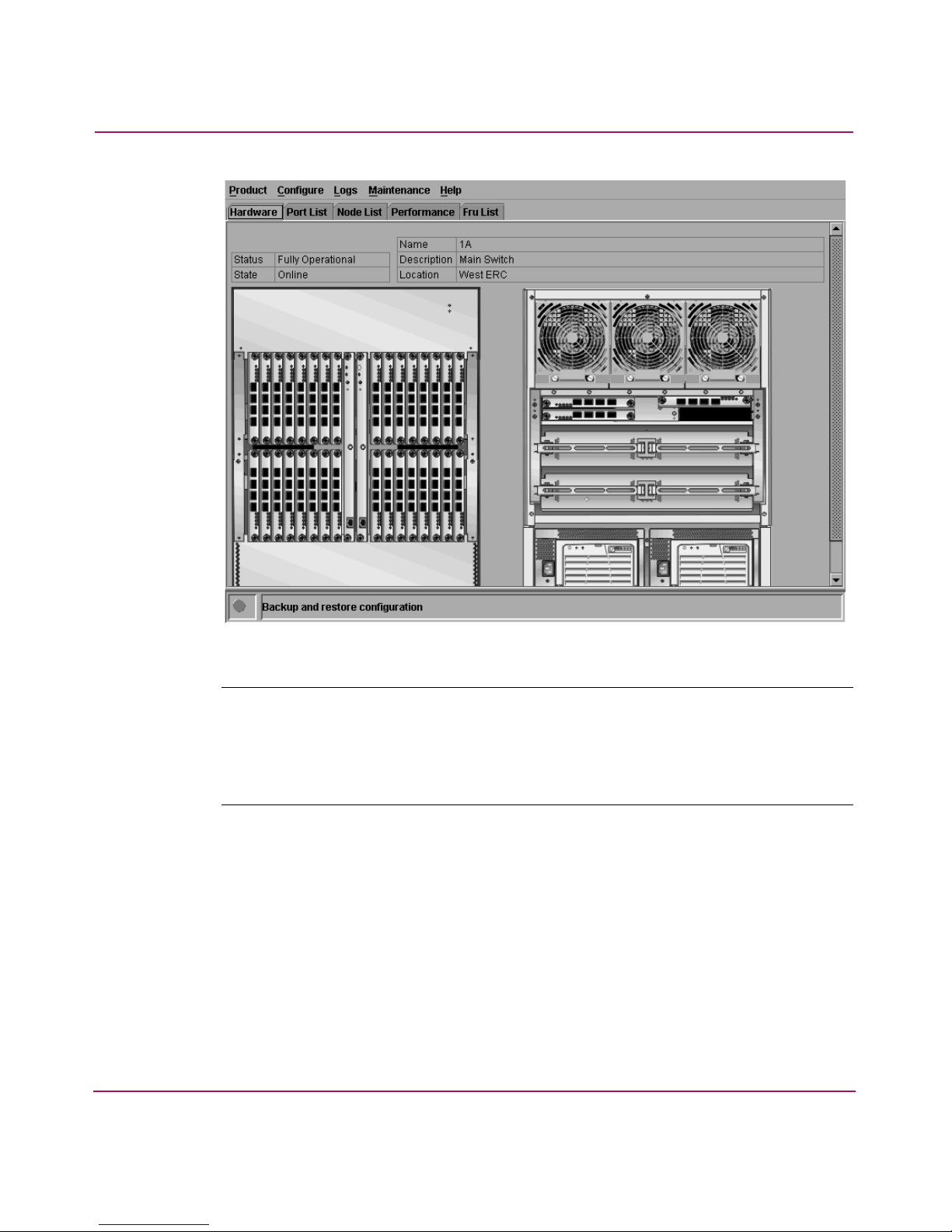

7 Hardware View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8 Port Card View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

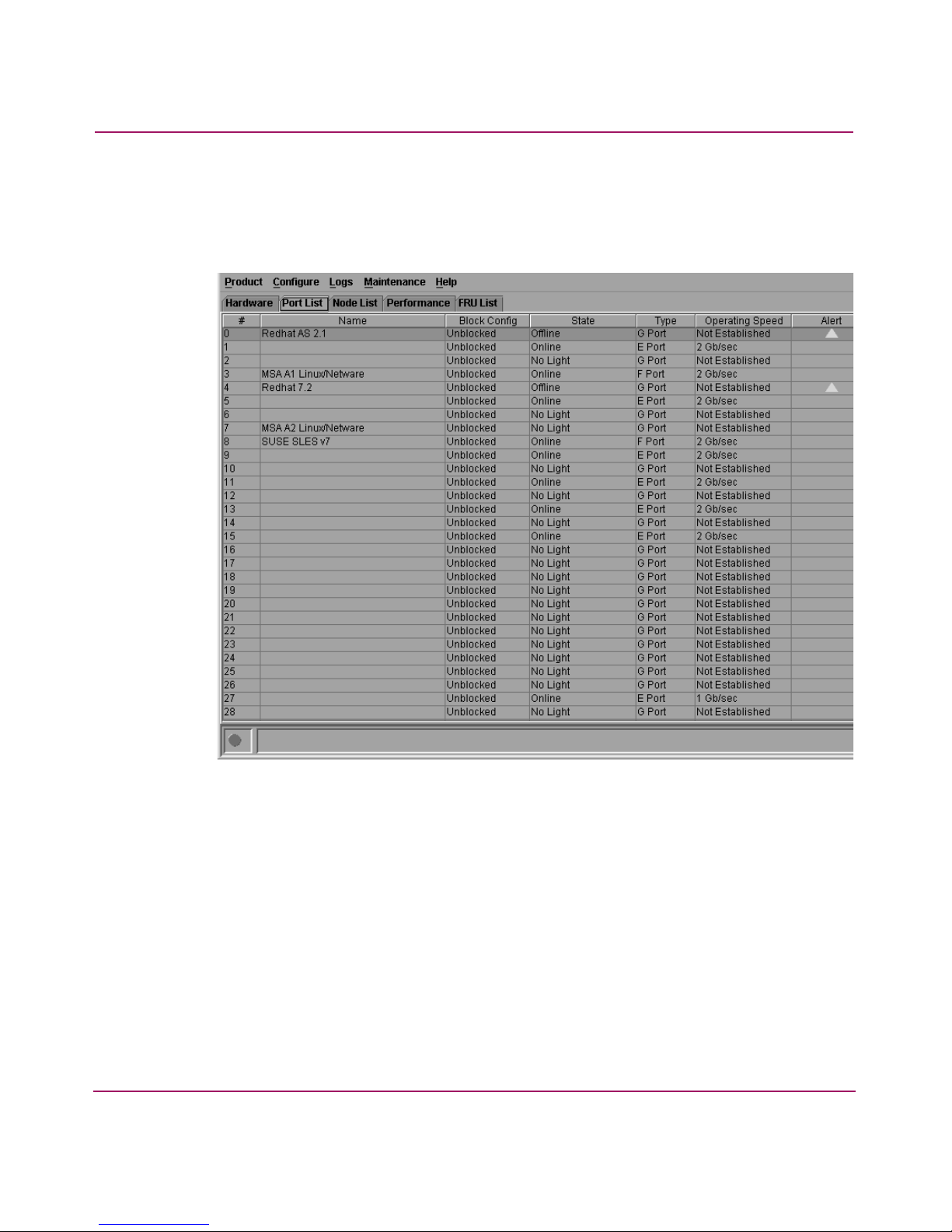

9 Port List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

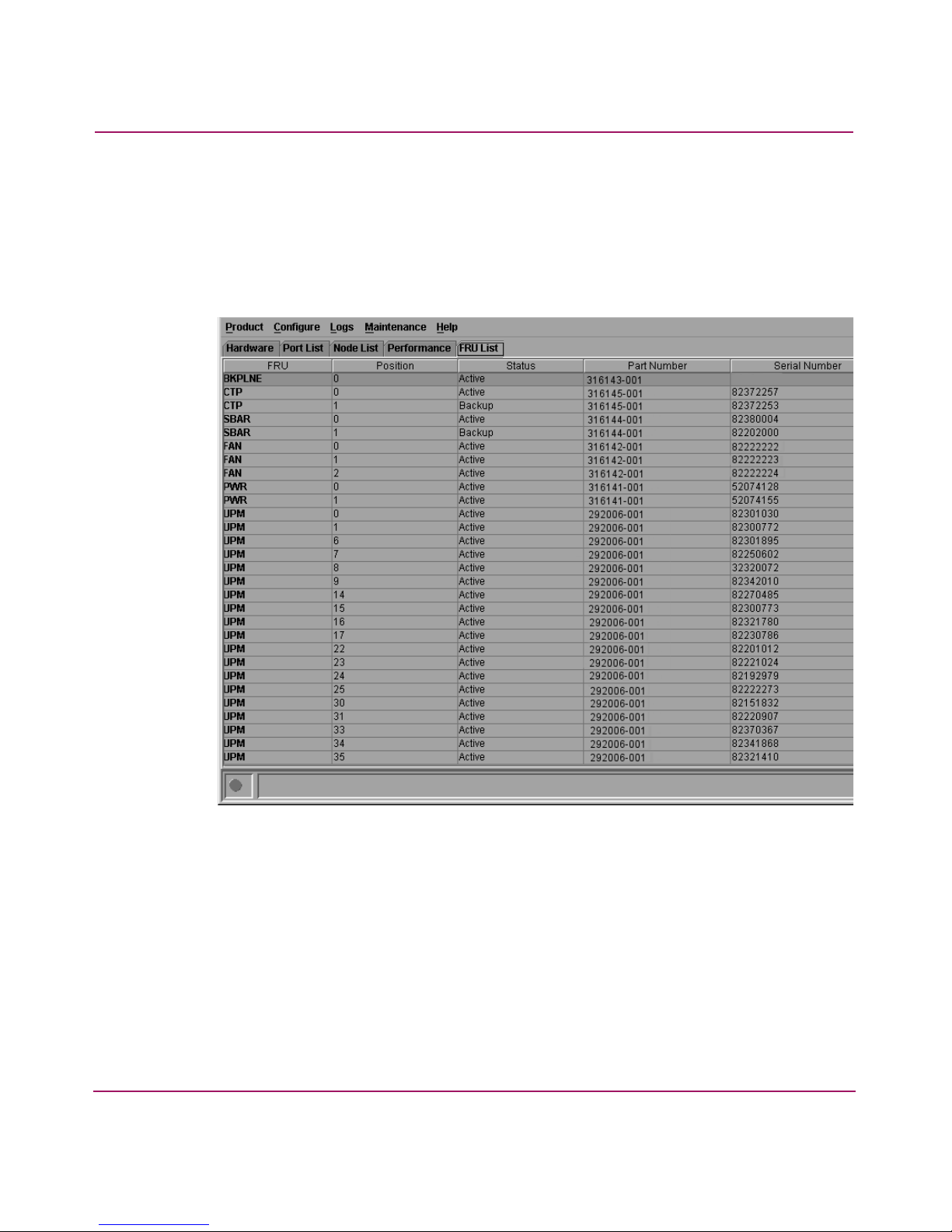

10 FRU List View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9Director Product Manager User Guide

Contents

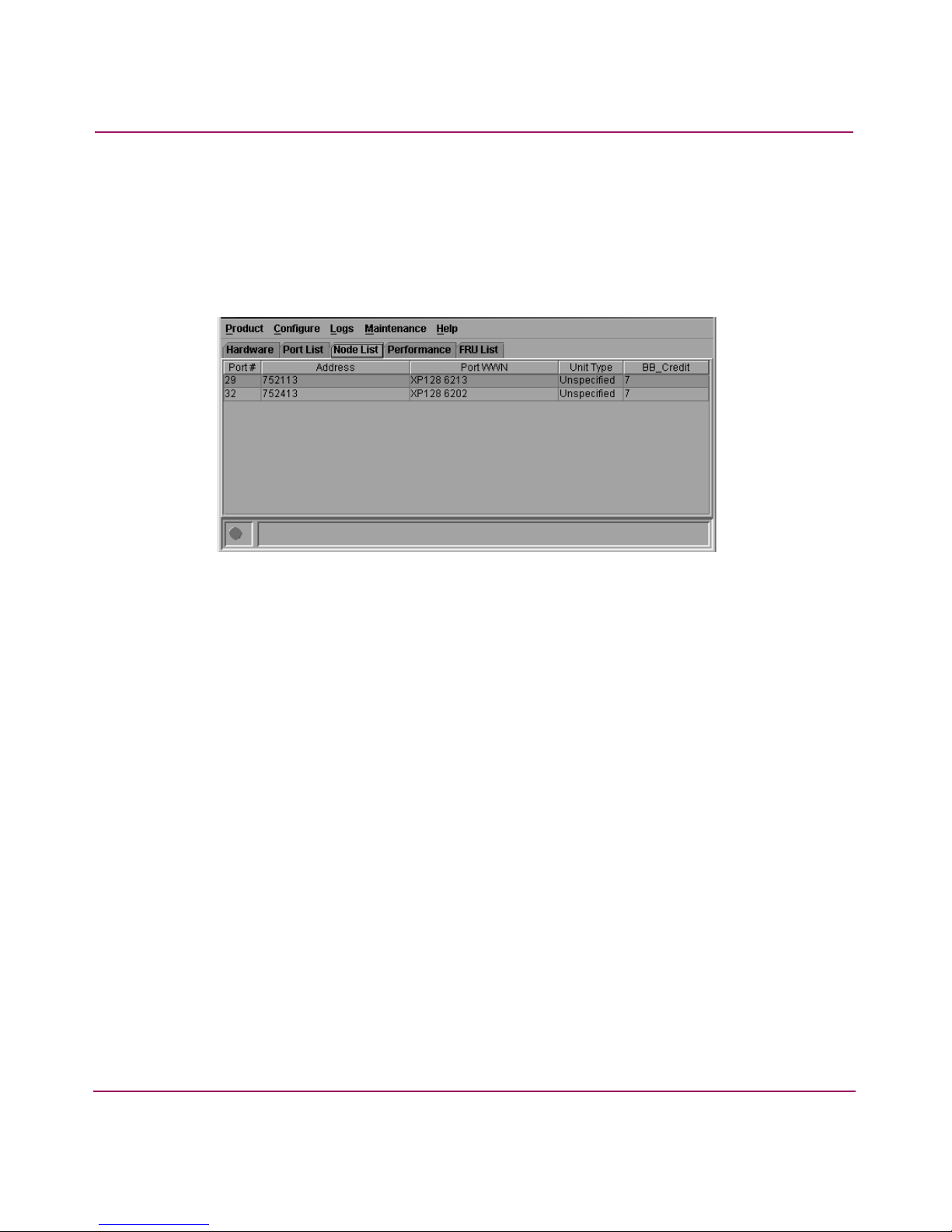

11 Node List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

12 Performance View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

13 Monitoring hardware operation—Director 2/64 Hardware View . . . . . . . . . . . . . . . . . . 72

14 Monitoring hardware operation—Director 2/140 Hardware View . . . . . . . . . . . . . . . . . 73

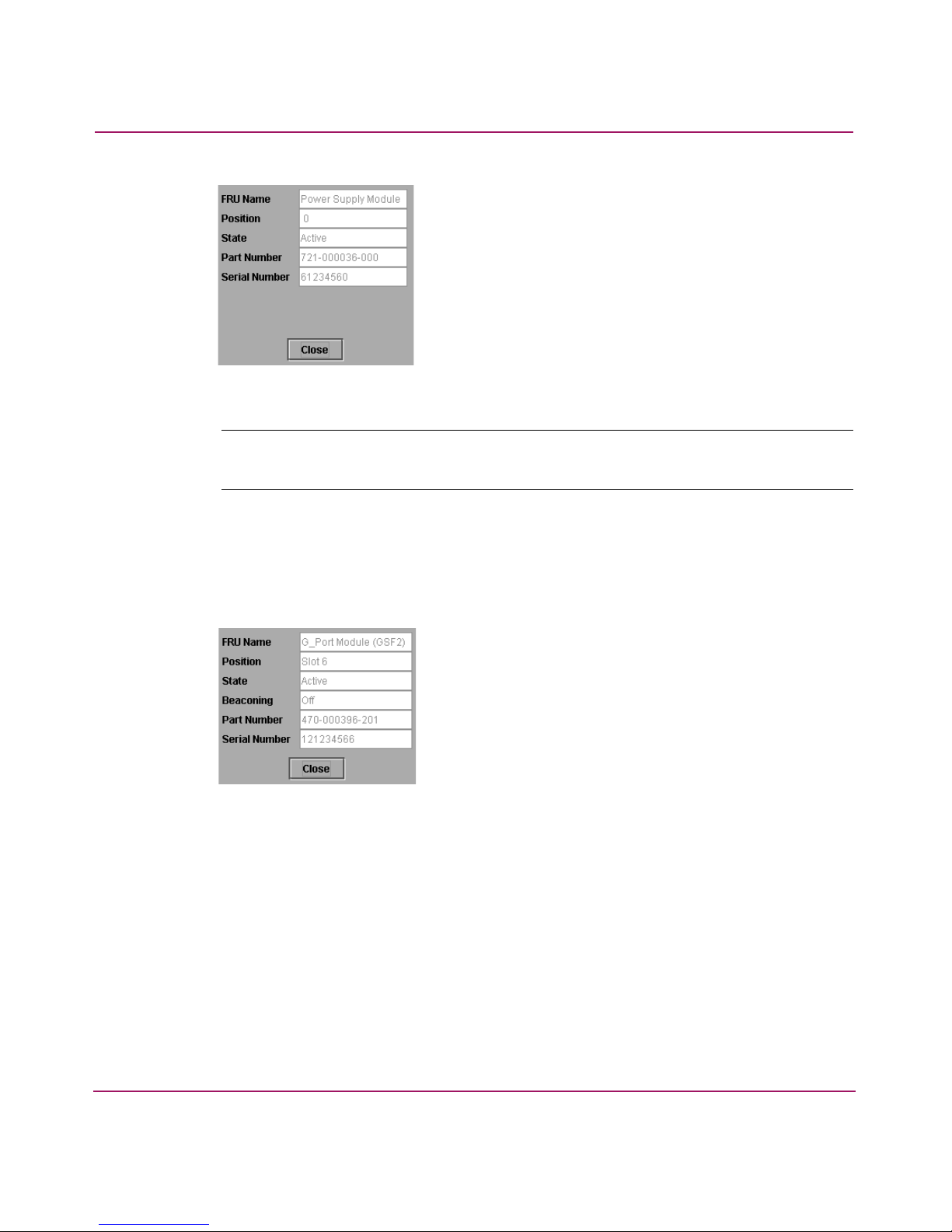

15 FRU Properties dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

16 Port Card FRU Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

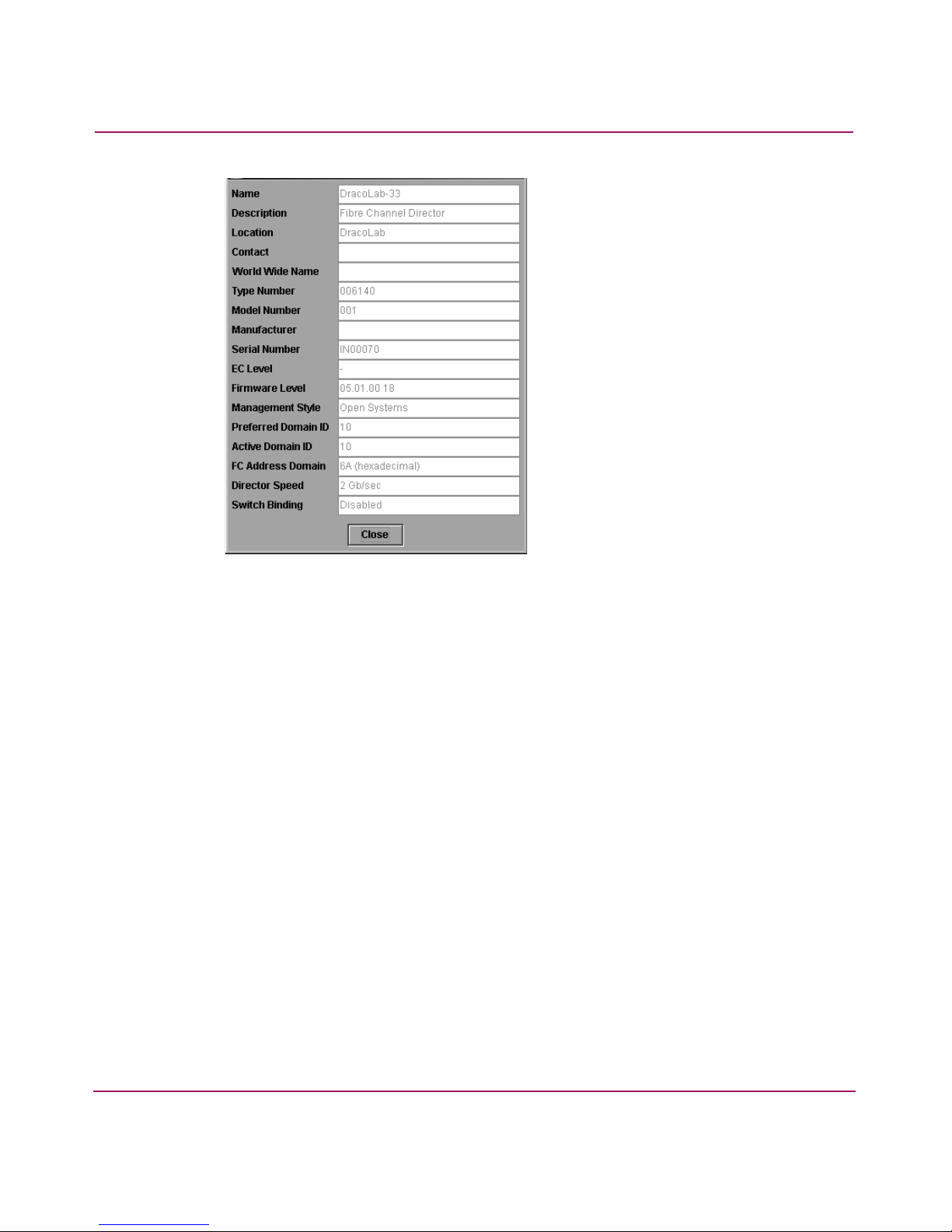

17 Director Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

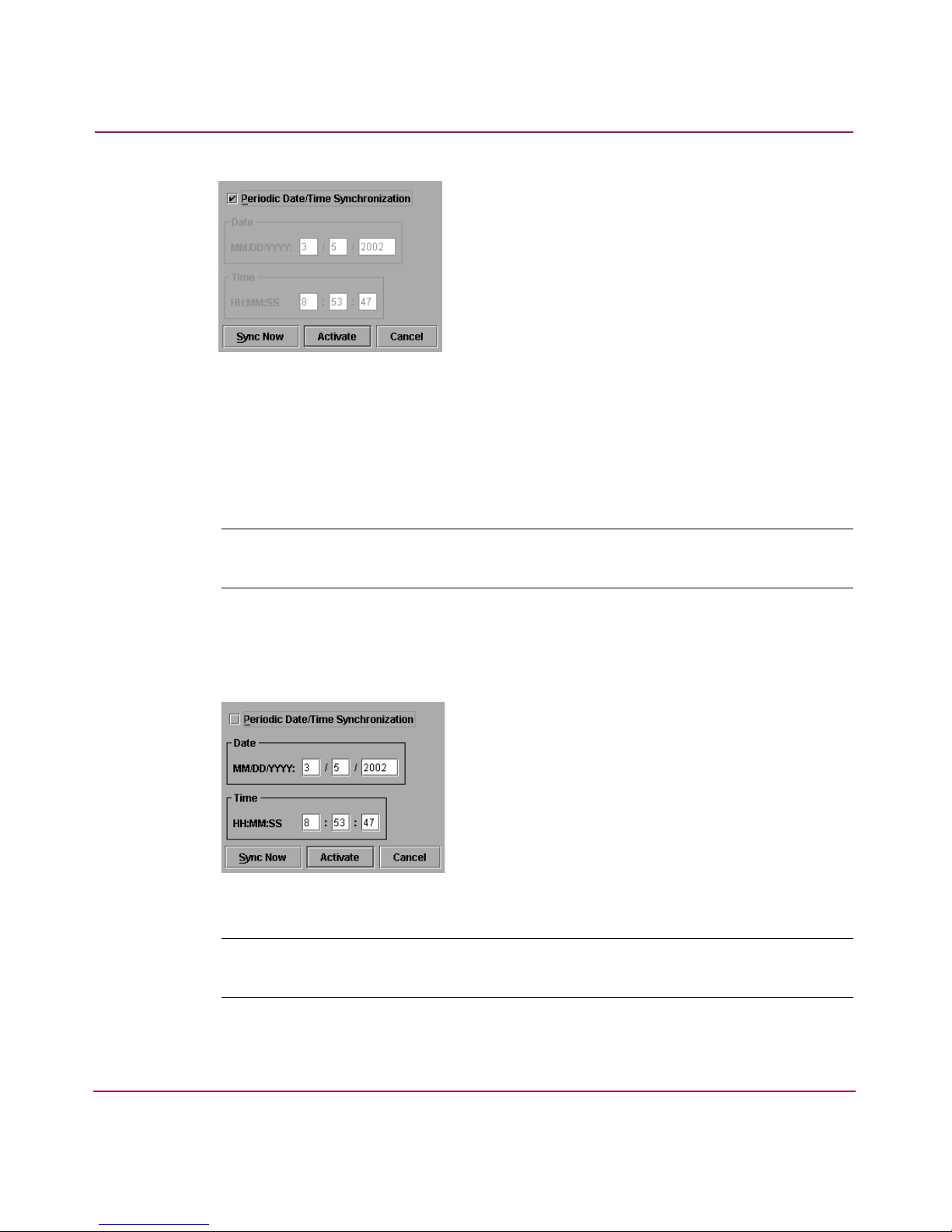

18 Configure Date and Time Periodic Synchronization dialog box. . . . . . . . . . . . . . . . . . . 80

19 Configure date and time (manually) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

20 Set Online State dialog box (Online) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

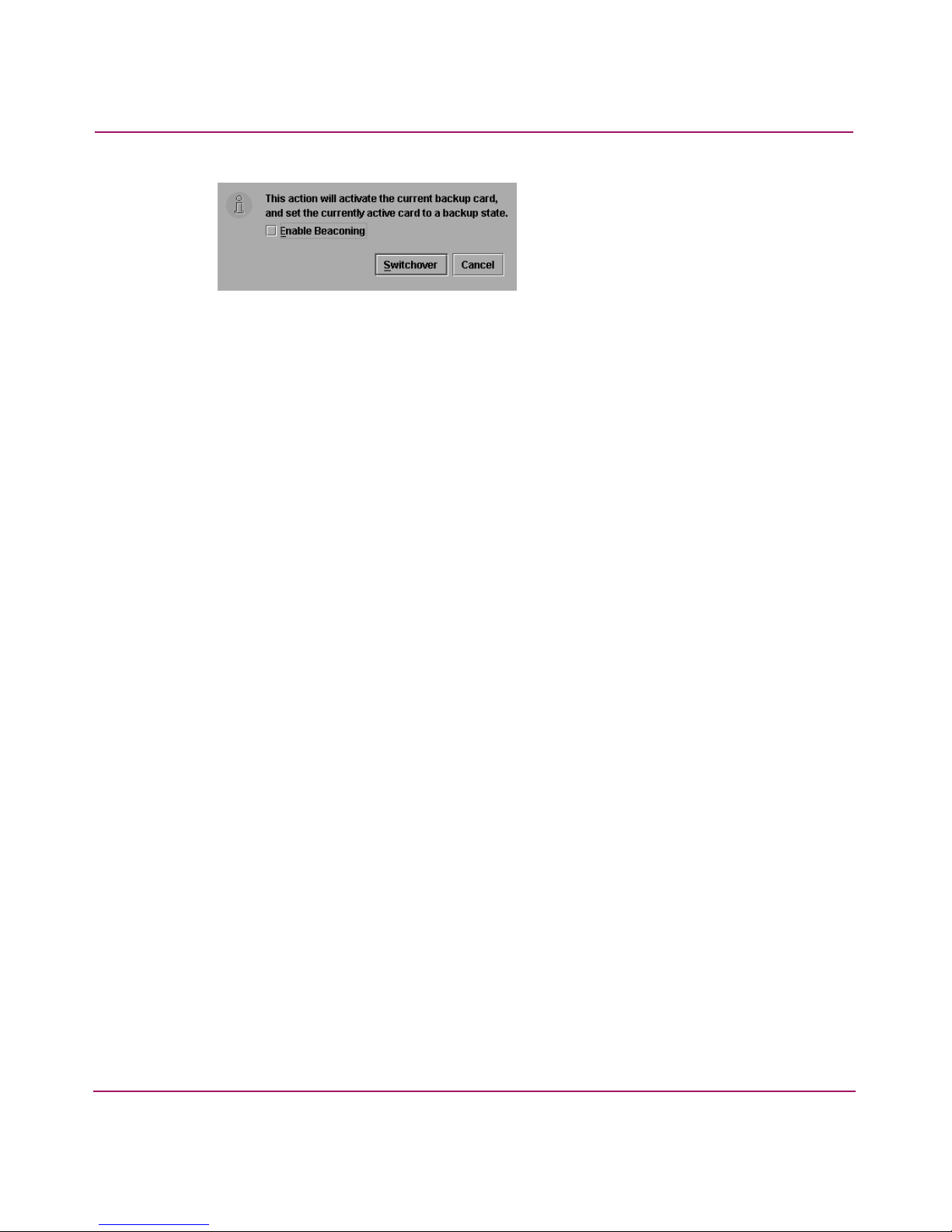

21 Switchover CTP dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

22 Port Card View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

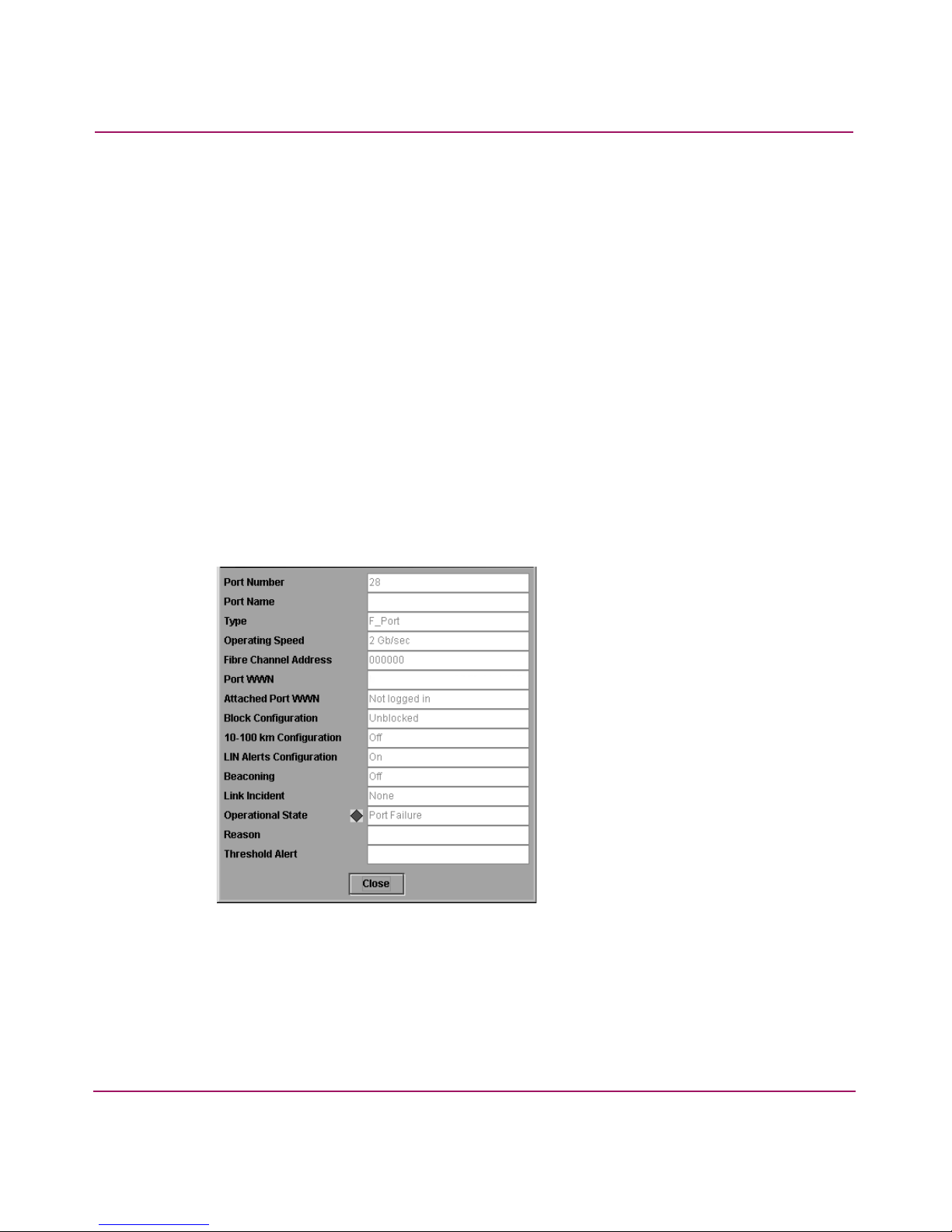

23 Port Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

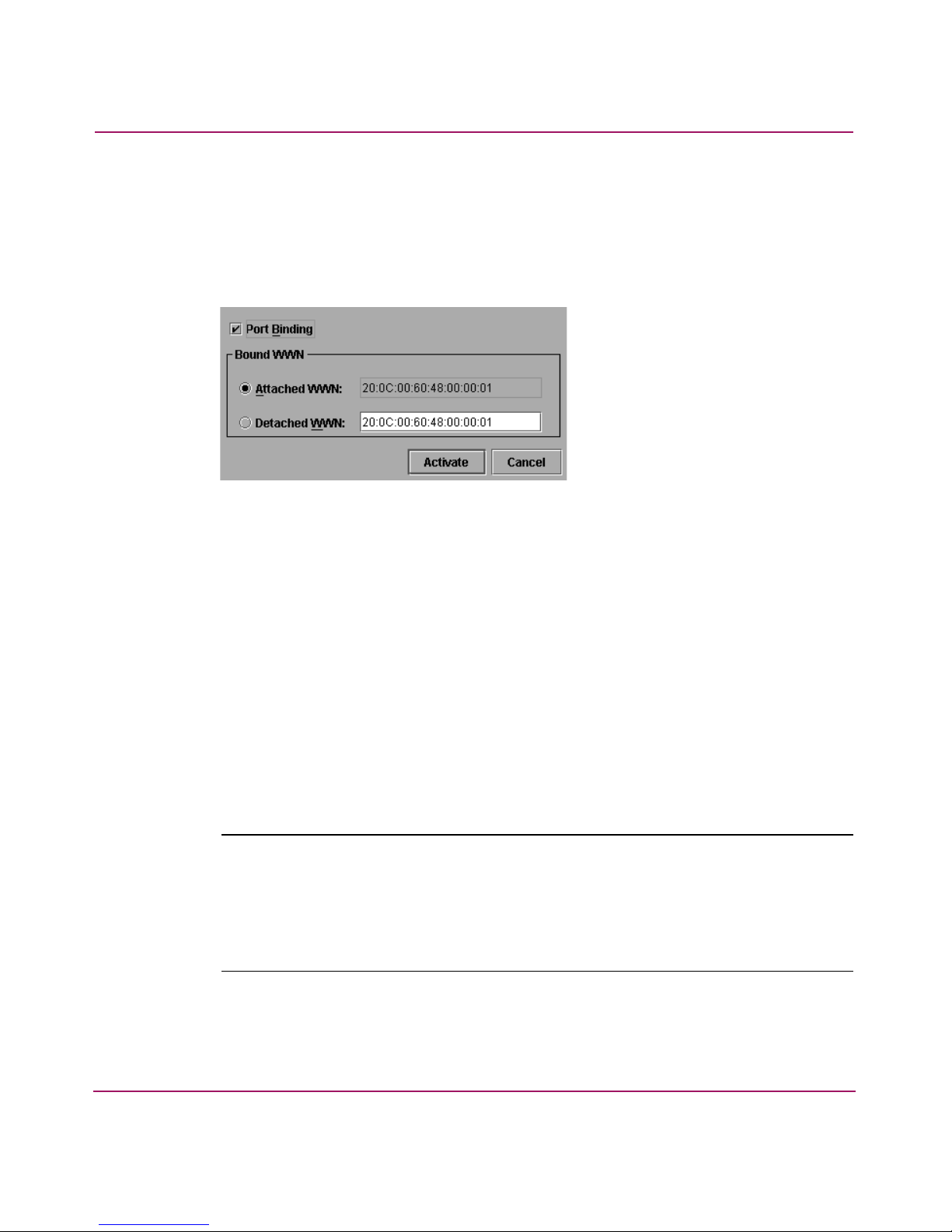

24 Port Binding dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

25 Clear Threshold Alerts dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

26 Port List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

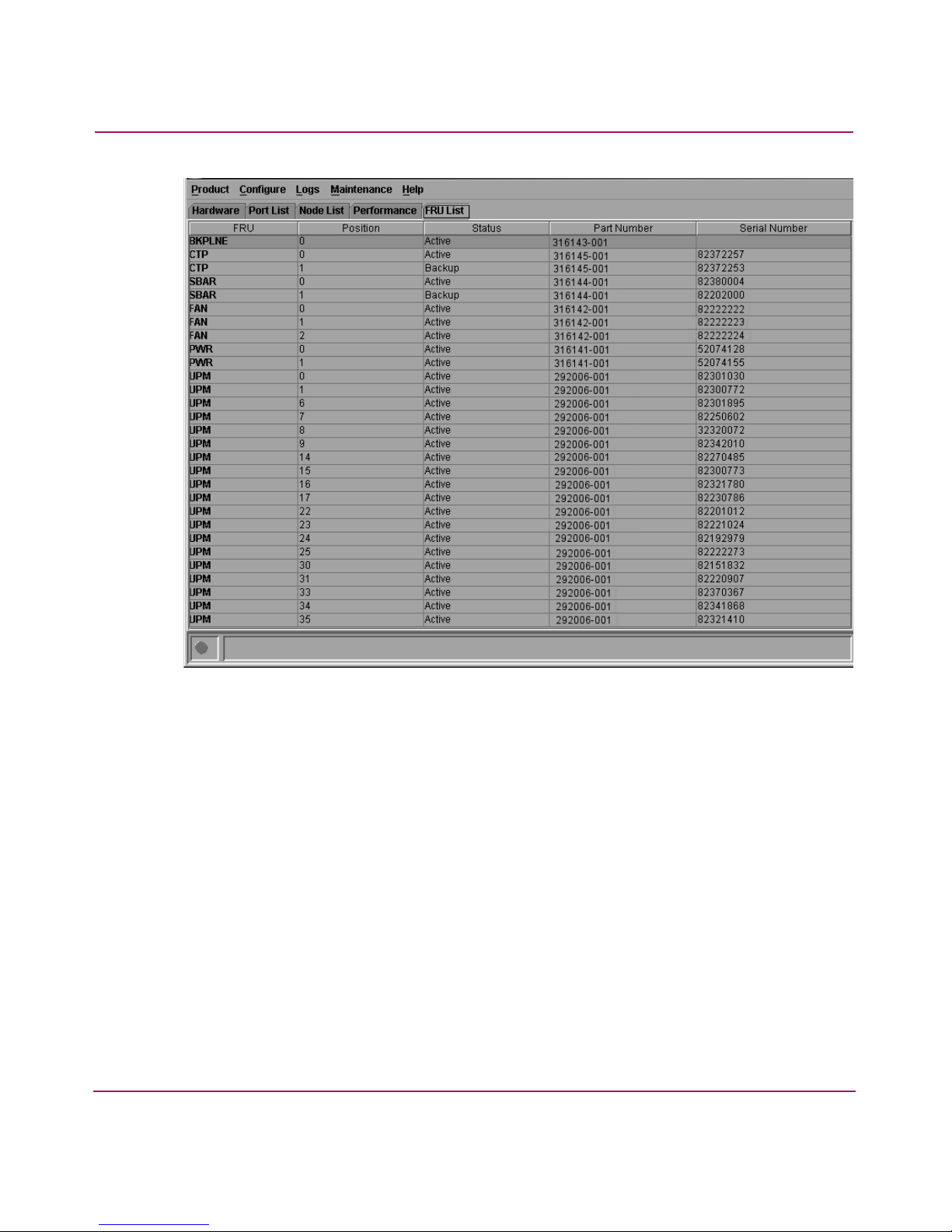

27 FRU List View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

28 Node List View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

29 Node Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

30 Performance View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

31 Configure Identification dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

32 Configure Switch Parameters dialog box (Director 2/64) . . . . . . . . . . . . . . . . . . . . . . . 119

33 Configure Switch Parameters dialog box (Director 2/140) . . . . . . . . . . . . . . . . . . . . . . 119

34 Configure Fabric Parameters dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

35 Warning! dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

36 Configure Ports dialog box (Open Systems management style) . . . . . . . . . . . . . . . . . . 133

37 Configure Ports dialog box (FICON management style). . . . . . . . . . . . . . . . . . . . . . . . 135

38 Prohibited Port Connection symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

39 Configure Addresses - “Active” dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

40 Address Configuration Library dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

41 Configure SNMP dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

42 Configure Feature Key dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

43 New Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

44 Configure Date and Time dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

45 Configure Threshold Alerts dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

46 New Threshold Alerts dialog box—first screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

47 New Threshold Alerts dialog box—second screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

48 New Threshold Alerts dialog box—third screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

10 Director Product Manager User Guide

Contents

49 New Threshold Alerts dialog box—summary screen . . . . . . . . . . . . . . . . . . . . . . . . . . 152

50 Configure Threshold Alerts dialog box—alert activated . . . . . . . . . . . . . . . . . . . . . . . . 152

51 Export Configuration Report dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

52 Save dialog box—log windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

53 Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

54 Event Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

55 Hardware Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

56 Link Incident Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

57 Threshold Alert Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

58 Swap Ports dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

59 IPL Confirmation dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

60 Backup and Restore Configuration dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

61 Configure FICON Management Server dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

62 Configure Open Systems Management Server dialog box . . . . . . . . . . . . . . . . . . . . . . 189

63 Switch Binding State Change dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

64 Switch Binding Membership List dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

65 Configure Open Trunking dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

66 Open Trunking Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Tables

1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2 Operating Status—Status Bar and Director Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

3 User Rights for Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

4 Port States and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

5 Event Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

6 FRU Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

7 Data Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

8 Available Code Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

9 Product Manager Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

11Director Product Manager User Guide

Contents

12 Director Product Manager User Guide

about this

guide

This reference guide provides information to use when planning to acquire and

About this Guide

install one or more of the following Hewlett-Packard (HP) StorageWorks

products:

■ Director 2/64

■ Director 2/140

■ High Availability Fabric Manager (HAFM) application

About this Guide

The Director 2/64 is a 64-port director, while the Director 2/140 is a 140-port

director. Functions and options available through the Product Manager

applications for these products are nearly identical. When there are differences,

this guide will contain notes such as Director 2/64 only or Director 2/140 only.

“About this Guide” topics include:

■ Overview, page 14

■ Conventions, page 15

■ Rack Stability, page 18

■ Getting Help, page 19

13Director Product Manager User Guide

About this Guide

Overview

This section covers the following topics:

■ Intended Audience

■ Related Documentation

Intended Audience

This publication is intended for use by configuration and installation planners;

however, information is also provided for system administrators, customer

engineers, and project managers.

Related Documentation

For a list of corresponding documentation included with this product, see the

Related Documents section of the HP StorageWorks Director Release Notes.

For the latest information, documentation, and firmware releases, please visit the

HP StorageWorks website:

http://h18006.www1.hp.com/storage/saninfrastructure.html

For information about Fibre Channel standards, visit the Fibre Channel Industry

Association website, located at

http://www.fibrechannel.org

.

14 Director Product Manager User Guide

Conventions

Conventions consist of the following:

■ Document Conventions

■ Text Symbols

■ Equipment Symbols

Document Conventions

The document conventions included in Tabl e 1 apply in most cases.

Table 1: Document Conventions

Cross-reference links Blue text: Figure 1

About this Guide

Element Convention

Text Symbols

Key and field names, menu items,
buttons, and dialog box titles

File names, application names, and text
emphasis

User input, command and directory
names, and system responses (output
and messages)

Variables <monospace, italic font>
Website addresses Blue, underlined sans serif font text:

Bold

Italics

Monospace font
COMMAND NAMES are uppercase

monospace font unless they are case
sensitive

http://www.hp.com

The following symbols may be found in the text of this guide. They have the

following meanings.

WARNING: Text set off in this manner indicates that failure to follow

directions in the warning could result in bodily harm or death.

Director Product Manager User Guide

15

About this Guide

Caution: Text set off in this manner indicates that failure to follow directions

could result in damage to equipment or data.

Note: Text set off in this manner presents commentary, sidelights, or interesting points

of information.

Equipment Symbols

The following equipment symbols may be found on hardware for which this guide

pertains. They have the following meanings.

Any enclosed surface or area of the equipment marked with these
symbols indicates the presence of electrical shock hazards. Enclosed
area contains no operator serviceable parts.

WARNING: To reduce the risk of personal injury from electrical shock

hazards, do not open this enclosure.

Any RJ-45 receptacle marked with these symbols indicates a network
interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to the

equipment, do not plug telephone or telecommunications connectors
into this receptacle.

Any surface or area of the equipment marked with these symbols
indicates the presence of a hot surface or hot component. Contact with
this surface could result in injury.

WARNING: To reduce the risk of personal injury from a hot component,

allow the surface to cool before touching.

16 Director Product Manager User Guide

About this Guide

Power supplies or systems marked with these symbols indicate the
presence of multiple sources of power.

WARNING: To reduce the risk of personal injury from electrical

shock, remove all power cords to completely disconnect power
from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the
component exceeds the recommended weight for one individual to
handle safely.

WARNING: To reduce the risk of personal injury or damage to the

equipment, observe local occupational health and safety requirements
and guidelines for manually handling material.

Director Product Manager User Guide

17

About this Guide

Rack Stability

Rack stability protects personnel and equipment.

WARNING: To reduce the risk of personal injury or damage to the

equipment, be sure that:

■ The leveling jacks are extended to the floor.

■ The full weight of the rack rests on the leveling jacks.

■ In single rack installations, the stabilizing feet are attached to the rack.

■ In multiple rack installations, the racks are coupled.

■ Only one rack component is extended at any time. A rack may become

unstable if more than one rack component is extended for any reason.

18 Director Product Manager User Guide

Getting Help

If you still have a question after reading this guide, contact an HP authorized

service provider or access our website:

HP Technical Support

Telephone numbers for worldwide technical support are listed on the following

HP website:

of origin.

Note: For continuous quality improvement, calls may be recorded or monitored.

Be sure to have the following information available before calling:

■ Technical support registration number (if applicable)

■ Product serial numbers

http://www.hp.com

http://www.hp.com/support/

About this Guide

.

. From this website, select the country

■ Product model names and numbers

■ Applicable error messages

■ Operating system type and revision level

■ Detailed, specific questions

HP Storage Website

The HP website has the latest information on this product, as well as the latest

drivers. Access storage at:

storage.html

. From this website, select the appropriate product or solution.

HP Authorized Reseller

For the name of your nearest HP authorized reseller:

■ In the United States, call 1-800-345-1518

■ In Canada, call 1-800-263-5868

■ Elsewhere, see the HP website for locations and telephone numbers:

http://www.hp.com

http://www.hp.com/country/us/eng/prodserv/

.

Director Product Manager User Guide

19

About this Guide

20 Director Product Manager User Guide

Product Manager Overview

1

This chapter provides an introduction and overview of the HP StorageWorks

Director 2/64 Product Manager and Director 2/140 Product Manager. It is

intended as a quick reference for using features available through the main

Product Manager window.

1

21Director Product Manager User Guide

Product Manager Overview

Managing the StorageWorks Director 2/64 and
Director 2/140

Three options are available for managing the director through a user interface:

■ The Product Manager application installed on a StorageWorks High

Availability Fabric Manager (HAFM) server. Access to the Product Manager
must be through the HAFM. The HAFM and Product Manager applications
are installed on the HAFM server. The Product Manager application installs
automatically with the HAFM on remote workstations using any standard web
browser. For instructions, refer to the appropriate appendix that pertains to the
operating system for your workstation in the HP StorageWorks HA-Fabric
Manager User Guide.

■ The Embedded Web Server (EWS) interface. Using a browser-capable PC

with an internet connection to the director, you can monitor and manage the
director through the web server interface. The interface provides a GUI
similar to the Product Manager application, and supports director
configuration, statistics monitoring, and basic operation. (The online help
provides information regarding zoning, zone sets, and SAN management.)

To launch the web server interface, enter the director’s IP address as the
internet uniform resource locator (URL) into any standard browser. Enter a
user name and password at the HAFM Login dialog box. The browser then
becomes a management console. Refer to the web server interface online help
for details on use. Refer to the HP StorageWorks Embedded Web Server User
Guide for more details on the Embedded Web Server.

Note: The default user name for the right to view status and other information is

“operator.” The default user name for the right to modify configuration data,
perform maintenance tasks, or perform other options is “administrator.” The default
password for both user names is “password.”

■ The command line interface (CLI). The CLI allows you to access many

HAFM and Product Manager functions while entering commands during a
telnet session with the director. The primary purpose of the CLI is to automate
management of a large number of directors using scripts. The CLI is not an
interactive interface; no checking is done for pre-existing conditions and no
prompts display to guide users through tasks. Refer to the HP StorageWorks
CLI Reference Guide for Directors and Edge Switches.

22 Director Product Manager User Guide

HAFM Management Menu Options

This user’s guide provides information on the StorageWorks Director 2/64

Product Manager and Director 2/140 Product Manager application only.

Information on the HAFM application is provided in the HP StorageWorks

HA-Fabric Manager User Guide. Following are lists of options available on the

menu bar in the applications. References are provided to the correct publication

for detailed information on these options.

HAFM

Following are options available through the HAFM. For more information, refer

to “Using the HAFM” in Chapter 2 of the HP StorageWorks HA-Fabric Manager

User Guide.

View Tabs

■ Products

■ Fabrics

Product Manager Overview

Product Menu

Fabrics Menu

■ New

■ Open

■ Delete

■ Modify

■ Properties

■ Logout

■ Exit

■ Rename

■ Persist Fabric Technology

■ Unpersist Fabric Technology

■ Export Fabric Topology

■ Show Route

■ Hide Route

23Director Product Manager User Guide

Product Manager Overview

■ Show Zone Members

■ Show View Port

■ Show Fabric Tree

■ Enterprise Fabrics Mode (active if SANtegrity Binding is installed)

■ Fabric Binding (active if SANtegrity Binding is installed)

View Menu

■ User Sessions

■ Zoom

—In
—Out
— Default
— Fit in View

■ Arrange Icons

■ Layout Icons

■ Center in Topology

■ Clear ISL Alerts

■ Clear All ISL Alerts

■ Enable Fly Over Display

Configure Menu

■ Users

■ Nicknames

■ Sessions

■ SNMP Agent

■ Activate Zone Set

— By name
— By severity

— Circular
—Spring

24 Director Product Manager User Guide

■ Zoning Library

■ Advanced Zoning

■ Deactivate Zone Set

■ Configure Default Zone

Logs Menu

■ Audit Log

■ Event Log

■ Session Log

■ Product Status Log

■ Fabric Log

Maintenance Menu

■ Configure E-Mail

Product Manager Overview

■ Test Remote Notification

■ Configure Ethernet Events

■ Configure Enable Call Home Event Notification

Help

■ Contents

■ About

Product Manager

Following are options available through the Product Manager application for

your director. For more information on these options, refer to “Configure Menu”

on page 39 in this manual.

25Director Product Manager User Guide

Product Manager Overview

View Tabs

■ Hardware

■ Node List

■ Port List

■ Performance

■ FRU List

Product Menu

■ Management Style

—Open Systems
—FICON

■ Port (options available when port is selected)

— Port Properties
— Node Properties
— Port Technology
— Block Port
— Enable Beaconing
— Port Diagnostics
— Channel Wrap (FICON Management Style only)
— Swap Ports (FICON Management Style only)
— Clear Link Incidents Alert(s)
— Reset Port
— Port Binding
— Clear Threshold Alert(s)
— Display Options (Nickname and Worldwide Name)

26 Director Product Manager User Guide

■ FRU (options available when FRU is selected)

■ Clear Error System Light

■ Enable Unit Beaconing

■ Properties

■ Close

Configure Menu

Product Manager Overview

— Open Port Card View
— FRU Properties
— Switchover
— Enable Beaconing
— Block All Ports
— Unblock All Ports
— Diagnostics

■ Identification

■ Operating Parameters

— Switch
—Fabric

■ Switch Binding

— Change State (active if SANtegrity Binding is installed)
— Edit Membership List (active if SANtegrity Binding is installed)

■ Ports

■ Addresses (FICON Management Style only)

—Active
—Stored

■ SNMP Agent

■ Management Server

■ Features

■ Date/Time

■ Threshold Alerts

27Director Product Manager User Guide

Product Manager Overview

■ Open Trunking (active if Open Trunking is installed)

■ Export Configuration Report

■ Enable Embedded Web Server

■ Enable Telnet

Logs Menu

■ Audit Log

■ Event Log

■ Hardware Log

■ Link Incident Log

■ Threshold Alerts Log

■ Open Trunking Log (active if Open Trunking is installed)

Maintenance Menu

Help Menu

■ Port Diagnostics

■ Swap Ports (FICON Management Style only)

■ Data Collection

■ IPL

■ Set Online State

■ Firmware Library

■ Configure Enable E-Mail Notification

■ Configure Enable Call Home

■ Backup and Restore Configuration

■ Reset Configuration

■ Contents

■ About

28 Director Product Manager User Guide

Product Manager Description

The Product Manager for the HP StorageWorks Director 2/64 and Director 2/140

has a Java-based graphical user interface (GUI) that provides in-depth

management, configuration, and monitoring functions for individual directors and

their field-replaceable units (FRUs).

In contrast to the Product Manager, the HAFM enables administrators to monitor

operational status for all products and Fibre Channel fabrics managed by an

HAFM server. The HAFM application also provides tools to administer user and

product access to the HAFM application and Product Manager.

The Product Manager provides graphical views of director hardware components

and displays of component status. By positioning the cursor on icons, graphics,

panels, and other visual elements in these views and clicking the left or right

mouse button, you can quickly manage and monitor the director on your network.

Using the Product Manager, you can:

■ Back up and restore configuration data.

■ Clear the system error indicator.

Product Manager Overview

■ Configure extended distance buffering for ports.

■ Configure Fibre Channel operating parameters for the director such as

BB_Credit, R_A_TOV, E_D_TOV, preferred domain ID, insistent domain ID,
domain RSCNs, switch priority, director speed (Director 2/64 only), and
rerouting delay.

■ Configure individual ports with a port name describing the node attached to

the port.

■ Configure LIN alerts.

■ Configure interoperability mode for multiswitch fabrics.

■ Configure a nickname to display instead of WWN for the director and for

attached node devices.

■ Configure port binding.

■ Configure port address configurations (FICON Management Style only).

■ Configure the FICON and Open Systems Management Server features if

installed.

■ Configure Switch Binding if optional SANtegrity Binding feature is installed.

■ Configure Open Trunking if optional Open Trunking feature is installed.

29Director Product Manager User Guide

Product Manager Overview

■ Configure the management style between Open Systems and FICON

functions.

■ Configure the data speed for the director (Director 2/64 only) and for

individual ports.

■ Configure threshold alerts for ports.

■ Configure SNMP trap recipients and community names.

■ Configure the director name, location, description, and contact person.

■ Control individual Fibre Channel ports by blocking/unblocking operation,

enabling LIN alerts, Port Binding, setting data speeds, and running internal
and external loopback diagnostics.

■ Display FRU properties, such as the FRU name, physical position in the

director (chassis slot number), active or failed state, part number, and serial
number.

■ Display information for individual Fibre Channel ports, such as the port name,

port number, Fibre Channel address, operational state, type of port, and login
data.

■ Display information on nodes attached to ports.

■ Display port performance and statistics.

■ Display vital product data for the director, such as the system name,

description, contact person, location, status, model number, firmware and
Engineering Change (EC) level, and manufacturer.

■ Enable beaconing for ports and the director unit.

■ Enable channel wrap mode (FICON Management Style only).

■ Maintain a port address library (FICON Management Style only).

■ Monitor the operational status of the director and each of its hardware FRUs.

■ Perform an initial program load (IPL).

■ Perform maintenance tasks for the director, including maintaining firmware

levels, administering the call-home feature, accessing the director logs, and
collecting data to support failure analysis.

■ Reset port operation.

■ Run port diagnostics.

■ Set the date and time on the director.

■ Swap addresses between ports (FICON Management Style only).

30 Director Product Manager User Guide

Product Manager Overview

Access the Director Product Manager when you click a director product icon on

the HAFM application’s Product View or Topology View.

Figure 1 illustrates director management components on a public network. The

figure shows the following elements:

1 Two Director 2/64s
2 HP Ethernet hub

3 HAFM server (laptop or rack mount)
4 Remote user workstation

Figure 1: Typical network configuration

31Director Product Manager User Guide

Product Manager Overview

Using the Product Manager

This section provides a general overview of the StorageWorks Director 2/64 and

Director 2/140 Product Manager application and its functions. For details on

performing specific tasks and using specific dialog boxes, refer to the appropriate

chapters in this guide.

Using Dialog Boxes

Buttons, such as OK, Activate, Close, and Cancel, initiate functions in a dialog

box. Click a button to perform its labeled function. Note the difference between

the OK and Activate buttons. The OK button saves the data you entered and

closes the dialog box. The Activate button saves the data you entered without

closing the dialog box. There is also a difference between the Close and Cancel

buttons. The Close button closes the dialog box and saves the data you entered.

The Cancel button cancels the operation and closes the dialog box without saving

the information you entered.

Keyboard Navigation

Keyboard navigation is an alternative to mouse navigation. The Product Manager

and HAFM applications support standard keyboard navigation.

Illustrations Used in This Manual

Illustrations of windows and dialog boxes are included for illustrative purposes

only. These illustrations may not match exactly what you see through your server

or workstation. Title bars have been removed from the illustrations, and fields in

the illustrations may contain different data than in fields displayed on your screen.

Logging in to the HAFM Application

To open the Product Manager, you must first log in to the HAFM application.

1. Perform one of the following steps:
— If you are using the HAFM server, the HAFM application automatically

starts when you power on or reboot the HAFM server. If you reboot the
HAFM server and the HAFM login dialog box displays, skip to step 3 to
log in.

— If you are using a remote user workstation, follow steps 2 through 5.

32 Director Product Manager User Guide

Product Manager Overview

— If the HAFM application window is displayed, skip to page 34.

2. Perform one of the following steps if you are using a remote user workstation
(a network PC with a remote client previously installed), and the HAFM
login dialog box or HAFM application window is not displayed.

Note: Install the

workstations using any standard web browser. For instructions, refer to the appropriate
appendix that pertains to the operating system for your workstation in the

StorageWorks HA-Fabric Manager User Guide

Product Manager

application with the

.

HAFM

application on remote

HP

— If the HAFM Login dialog box is displayed, go to step 3.
—Start the HAFM application and display the HAFM Login dialog box

when you double-click the HAFM application icon on the desktop, as
shown in Figure 2. Note that this icon only displays on a remote
workstation running the HAFM application remote client software.

Figure 2: HAFM application icon

The HAFM login dialog box displays.
Go to step 3.

— If the HAFM application window is open (Figure 3) and you need to log

in as another user or access a different HAFM server, choose Logout
from the Product menu on the menu bar to display the HAFM Login
dialog box. Go to step 3.

3. When the HAFM login dialog box displays, enter your user name and
password. The default user name is Administrator, and password is password,
unless changed by your system administrator.

Note: The default user name for the right to view status and other information is

“operator.” The default user name for the right to modify configuration data, perform
maintenance tasks, or perform other options is “administrator.” The default password
for both user names is “password.”

33Director Product Manager User Guide

Product Manager Overview

4. From the drop-down list on the HAFM Login dialog box, choose the HAFM
server to which you wish to connect. Note that if you are logging into a server
locally, localhost is the server name. Type in the network address of the server
if it is not in the list.

5. Click Activate or press the Enter key on your keyboard.
The main HAFM application window displays showing the Product View.

1

2

3

1 Menu Bar
2 Tool Bar
3 View Tabs

Figure 3: Main HAFM window

Opening the Product Manager

To open the Product Manager, double-click the product icon in the Product View
or right-click the icon and choose Open. The Director icons are shown in

Figure 4.

4

5

4 Main Panel
5 Status Panel

34 Director Product Manager User Guide

Product Manager Overview

Figure 4: StorageWorks Director 2/64 and Director 2/140 icons

The Product Manager displays showing the default Hardware View. Refer to

Figure 5 for the Director 2/64 and to Figure 6 for the Director 2/140.

Figure 5: StorageWorks Director 2/64 Product Manager window

35Director Product Manager User Guide

Product Manager Overview

Figure 6: StorageWorks Director 2/140 Product Manager window

Note: When the Product Manager window displays, the

still available as a separate window. You can drag the Product Manager window away
from the
minimize one or both of them to icons if desired. You can have a maximum of four
Product Manager windows open concurrently.

HAFM

application window and view both windows on your PC desktop or

Window Layout and Function

The main Product Manager window is divided into four main areas shown in

Figure 5 and Figure 6: menu bar, view tabs, view panel, and status bar. Use

features in these panels to configure director operation, monitor performance, and
access maintenance features.

HAFM

application window is

36 Director Product Manager User Guide

Menu Bar

Product Manager Overview

The menu bar on the Product Manager window displays tabs for the following
menus:

■ Product

■ Configure

■ Logs

■ Maintenance

■ Help

Product Menu

Choose one of the following options from the Product menu:

Management Style

This provides a secondary menu with radio buttons for Open Systems and FICON
management styles. These options change some Product Manager dialog boxes
and options to allow management of the director in open systems or FICON
environments.

■ Open Systems—Click this radio button for (non-FICON) Fibre channel

environments.

■ FICON—Typically, select this radio button when attaching an IBM S/390

Parallel Enterprise or zSeries server to the director and implementing inband
director management through a Fibre Connection (FICON) channel. If
director firmware is below the required level and the FICON Management
Server feature is enabled, the default management style will be FICON. The
management style cannot be changed to Open Systems with the FICON
Management Server feature enabled.

Port

This provides a secondary port menu only when the Port Card View, Port
List View, or Performance View displays in the view panel. To use this menu
for a specific port, click a port in the Port Card View, a port’s row in the Port
List View, or a port’s bar graph in the Performance View. The menu contains

options which are identical to those that display when you right-click the port,
port row, or port bar graph in those views. For detail on these options refer to
“Using the Port Card View” on page 84.

37Director Product Manager User Guide

Product Manager Overview

FRU

Click an SBAR card, CTP card, port card, power supply module, or cooling
fan module in the Hardware View only and choose FRU from the Product
menu to display a menu of specific options for that FRU. These are the same
menu option as when you right-click these components in the Hardware
View. For details on these options refer to the following sections in “Menu

Options” on page 96:

■ Port Card Menu

■ CTP Card Menu

■ SBAR Card Menu

■ Cooling Fan and Power Supply

Clear System Error Light

Choose this to turn off the amber system error LED, located below the green
power LED on the director front bezel.

Enable Unit Beaconing

Click the check box to toggle unit beaconing on or off. When the check box
has a check mark, unit beaconing is on, and the amber system error light on
the director front bezel blinks to help users locate the actual unit in an
equipment room. When you click the check box to remove the check mark,
unit beaconing is disabled and the amber LED goes out. You can only enable
beaconing if there are no system errors (the system error light is off).

Properties

Click to display the Director Properties dialog box. This dialog box contains
the director name, description, location, and contact person configured
through the Configure Identification dialog box. Also included is other
product information as detailed in Director Properties. You can also display
this dialog box when you double-click an area on the illustration in the
Hardware View, away from a hardware component.

Close

Choose this option to close the Product Manager window.

38 Director Product Manager User Guide

Product Manager Overview

Configure Menu

Click the Configure menu on the menu bar to display a menu that lists the
following options. For detailed information on using these dialog boxes, refer to

Chapter 3, “Configuring the Director.”

■ Identification—Choose this option to display the Configure Identification

dialog box. Enter the following information in this dialog box:
— Name—Assign a product name. Note that you can set this name as the

nickname for the director’s WWN, using the Set Name As Nickname
check box. The nickname then displays instead of the WWN in Product
Manager views.

— Description—Assign a unique product description.
— Location—Describe the product’s location.
— Contact—Assign a contact either by name, phone number, or e-mail

address.

Note: This information displays in the identification table at the top of the

Hardware View and in the
configured to display names.

■ Switch Operating Parameters—Choose this option to display the

HAFM

application Product View, if the Product View is

Configure Switch Parameters dialog box for setting Fibre Channel
operating parameters. In this dialog box, you can set the preferred domain
identification (1 to 31), and also make it insistent if SANtegrity Binding
feature is installed. You can also enable rerouting delay, and domain register
for state change notifications (RSCNs). In addition, you can also set the
director data speed (Director 2/64 only). The director must be offline to
configure director speed and preferred domain ID.

■ Fabric Operating Parameters—Choose this option to display the Configure

Fabric Parameters dialog box for setting fabric operating parameters. In this
dialog box, you can set buffer-to-buffer credit (BB_Credit) from 1 to 60
(default is 16) and the resource allocation time-out value (R_A_TOV) and
error detect time-out value (E_D_TOV) in tenth-of-a-second increments. In
addition, you can set the switch priority level (Principal, Default, or Never

Principal) and the interoperability modes between Homogeneous, and Open
Fabric 1.0. Refer to “Configuring Fabric Parameters” on page 124 for more

information on configuring these parameters for the director. The director
must be offline to configure any fabric operating parameter.

39Director Product Manager User Guide

Product Manager Overview

■ Switch Binding—This submenu provides two options:

— Change State—Allows you to activate Switch Binding according to a

— Edit Membership List—Allows you to create a list of switches and

■ Ports—Choose this option to display the Configure Ports dialog box. This

dialog has different functions in FICON management style versus Open
Systems management style.

— FICON management style—Use the dialog box to enable extended

— Open Systems management style—For each port you can provide a

specific connection policy (Restrict E_Ports, Restrict F_Ports, or All
Ports).

devices that you want to allow exclusively to attach to director ports.
Switch Binding is an optional feature that requires the SANtegrity
Binding Feature key. The feature can be installed through the Configure
Feature Key dialog box. For details, refer to “SANtegrity Binding

Features” on page 190.

distance buffering for 10 to 100km, link incident (LIN) alerts, and port
binding for each port.

name, block or unblock operation, configure extended distance buffering
for 10 to 100km, enable LIN alerts for each port, define a type (G, F, and
E), and enable port binding.

Note: Ports are automatically configured as G_Ports if no device is connected,

F_Ports if a device is connected, and E_Ports if a director is connected.

In both modes, you can enable the rerouting delay feature and for the
Director 2/64, you can set the director data speed.

Note: Your director model and firmware may not allow variable data speeds.

■ Addresses—FICON management style only. Choose from two options for

active and stored addresses.
— Active Addresses—Displays the Configure-Addresses - “Active”

dialog box. Use this dialog box to configure a name, blocked or
unblocked state, and prohibited and allowed connection attributes for a
port.

40 Director Product Manager User Guide

Product Manager Overview

— Stored Addresses—Displays the Address Configuration Library. Use

this dialog box to activate, modify, delete, and modify existing address
configurations created through the Active Addresses dialog box.

■ SNMP Agent— Choose this option to display the Configure SNMP dialog

box. Use this dialog box to configure network addresses and community
names for up to six SNMP trap recipients. Also authorize write permissions to
enable SNMP management stations to modify writable MIB variables. In
addition, you can enable authorization traps to be sent to management stations
when unauthorized stations request access to director SNMP data.

■ Management Server—Choose this option to display either the Configure

Open Systems Management Server or Configure FICON Management
Server dialog box, depending on which feature (if any) is enabled for the

director. Use this to configure a FICON or open systems inband management
program to function with the director. To use these procedures, you must have
enabled either the FICON Management Server or Open Systems
Management Server through the Configure Feature Key dialog box.

■ Features—Displays the Configure Feature Key dialog box. Use this dialog

box to enter a feature key to enable optional features that you have purchased
for the director.

■ Date/Time—Choose this option to display the Configure Date and Time

dialog box. Use this option to set the current date and time in the director.
When the Periodic Date/Time Synchronization check box is checked in the
dialog box, the Date and Time fields are grayed out (disabled), and the HAFM
server date and time periodically synchronizes the director date and time. If
the Periodic Date/Time Synchronization check box is not checked, you can
set the date and time in the dialog box fields manually.

■ Threshold Alerts—Choose this option to configure threshold alerts for ports.

A threshold alert notifies users when the transmit (Tx) or receive (Rx)
throughput reaches specified values for specific director ports or port types
(E_Ports or F_Ports). Using this option, you can configure:

— A name for the alert.
— A threshold type for the alert (Rx, Tx, or either).
— Active or inactive state of the alert.
— Threshold criteria. This includes configuring the threshold as the percent

of port traffic capacity utilized (% utilization), the time interval for
measuring throughput and sending notification, and the amount of
cumulative minutes that the % utilization should exist before an alert is
generated.

41Director Product Manager User Guide

Product Manager Overview

■ Open Trunking—Choose this option to enable the optional Open Trunking

feature. This feature monitors the average data rates of all traffic flows on
ISLs (from a receive port to a target domain), and periodically adjusts routing
tables to reroute data flows from congested links to lightly loaded links to
optimize bandwidth use. The feature can be installed through the Configure
Feature Key dialog box. For details, refer to “Open Trunking” on page 199.

■ Export Configuration Report—Choose this option to display the Export

Configuration Report dialog box, which enables you to specify a file name
in which to save an ASCII text file containing all current user-definable
configuration options in a printable format. Note that this file cannot be read
back into the Product Manager in order to set configuration parameters.

■ Enable Embedded Web Server—Choose this option by placing a check

mark in the check box to enable the Embedded Web Server Interface on the
director. Choose the option again to remove the check mark and disable the
Embedded Web Server Interface. When disabled, users at remote workstations
cannot access the interface.

If enabled, HP recommends changing the user names and/or passwords from
their default values to prevent unauthorized access.

■ Enable Telnet—Choose this option by placing a check mark in the check box

to enable telnet access to the director. Choose the option again to remove the
check mark and disable telnet access. When disabled, users at remote
workstations cannot access the director through telnet to use the Command
Line Interface (CLI) or perform other tasks.

Logs

The Logs menu on the menu bar displays the following options. For detailed
information on using these dialog boxes, refer to Chapter 4, “Using Logs.”

■ Audit Log—This log provides a record of all configuration changes made on

the director. Each entry displays the date and time of the change, a description
of the change, the source of the change (such as the HAFM server or SNMP
management station), and an identifier for the source, such as the IP address
of the HAFM server or SNMP management station.

■ Event Log—Choose this option to display the director event log. This log

provides a record of significant events that have occurred on the director, such
as hardware failures, degraded operation, and port problems. Each entry
includes the date and time of the event, a reason code for the event, the
severity level, a brief description, and up to 32 bytes of supplementary event
data. Refer to the HP StorageWorks Director 2/64 Service Manual or HP
StorageWorks Director 2/140 Service Manual for more information.

42 Director Product Manager User Guide

Product Manager Overview

■ Hardware Log—This log displays information on FRUs inserted and

removed from the director. Each log entry includes the name of the FRU
inserted or removed, the slot position relative to identical FRUs installed,
whether the FRU was inserted or removed, the FRU part number and serial
number, and the date and time the FRU was inserted or removed.

■ Link Incident Log—The link incident (LIN) log displays the most recent

incidents with the date and time, port number, and description of the incident.
A link incident can be one of several conditions detected on a fiber optic link.
For a list of events that may cause a link incident to be written to the log, refer
to “Link Incident Log” on page 169.

■ Threshold Alert Log—This log provides notifications of threshold alerts.

Besides the date and time that the alert occurred, it also displays information
that was configured through the Configure Threshold Alerts option under
the Configure menu. This includes the alert name, port for which the alert is
configured, the type of alert (transmit throughput, receive throughput, or
both), threshold utilization of traffic capacity, minutes the threshold was
configured for, and the configured time interval for the threshold. For more
detail on this log, refer to “Threshold Alert Log” on page 171.

■ Open Trunking Log—This log provides details on flow rerouting that is

occurring through director ports. Refer to “Open Trunking” on page 199.

Maintenance

The Maintenance menu on the menu bar displays the following options. For
detailed information on using these dialog boxes, refer to Chapter 5, “Using

Maintenance Features.”

■ Port Diagnostics—This option displays the Port Diagnostics dialog box.

Use this dialog box to run internal and external loopback tests on ports. Refer
to the HP StorageWorks Director 2/64 Service Manual or HP StorageWorks
Director 2/140 Service Manual for instructions.

■ Swap Ports—FICON management style only. Choose this option to display

the Swap Ports dialog box. Use this dialog box to swap one port address for
another.

■ Data Collection—This option displays the Save Data Collection dialog box.

Use this dialog box to collect maintenance data into a file. This file is used by
support personnel to diagnose system problems. Refer to the HP

StorageWorks Director 2/64 Service Manual or HP StorageWorks Director
2/140 Service Manual for instructions.

43Director Product Manager User Guide

Product Manager Overview

■ IPL—Choose this option to initiate an initial program load (IPL) on the

director. A dialog box displays to allow you to confirm the IPL. Note that an
IPL does not affect any configuration settings done through the Product
Manager. Port operation is interrupted during the IPL. Refer to the HP

StorageWorks Director 2/64 Service Manual or HP StorageWorks Director
2/140 Service Manual for more information.

■ Set Online State—Choose this option to display the Set Online State dialog

box. Use this dialog box to change the online state of the director to offline or
online.

■ Firmware Library—Choose this option to display the Firmware Library

dialog box. This dialog box displays all firmware versions currently installed
on the HAFM server that can be downloaded to directors. Use this dialog box
to add a new firmware version to the HAFM server hard disk, modify the
description displayed for an existing version, delete a version from the PC, or
download (send) a version for operation on a director. For additional
information on using this option, refer to the HP StorageWorks Director 2/64
Service Manual or HP StorageWorks Director 2/140 Service Manual.

■ Enable E-Mail Notification—The Simple Mail Transfer Protocol (SMTP)

server and e-mail recipient addresses are configured in the HAFM application
(not in the Director’s Product Manager). E-mail notification is also initially
enabled in the HAFM for all directors managed by the HAFM. Note, however,
that the E-Mail Notification option on the Product Manager’s Maintenance
menu must be enabled (checked) for e-mail notification to occur for the
specific director.

The default setting for the Enable E-Mail Notification function is enabled
(checked). To disable the function, choose Enable E-Mail Notification from
the Maintenance menu to clear the check box. For additional information on
using this option, refer to “Enable E-Mail Notification” on page 178.

■ Enable Call Home Notification—Choose Enable Call Home Notification

from the Maintenance menu to enable the call-home function for the director.
For directors and switches installed in some legacy environments, call-home

notification requires installation of HP Proactive Service software. This
service is offered at no additional charge for subsystems covered under an
on-site warranty or on-site storage hardware support contract. To register or
order Proactive Service software, contact your HP customer service
representative.

44 Director Product Manager User Guide

Product Manager Overview

Note: The default setting for the Enable Call Home Notification function is disabled

(unchecked).

■ Backup & Restore Configuration—Choose this option to save the product

configuration stored on the director to the HAFM server hard disk or to
restore the product configuration from the HAFM server. Only a single copy
of the configuration is kept on the server.

This backup is primarily for single-CTP systems, where a backup is needed to
restore the configuration data to a replacement CTP card. You cannot modify
the location or the file name of the saved configuration. For additional
information on using this option, refer to “Backing Up and Restoring

Configuration Data” on page 157.

Note: You can only restore the configuration to a director with the same IP

address.

■ Reset Configuration—Choose this option to reset all director configuration

data back to the factory defaults. A confirmation dialog box displays with a
warning upon choosing the option. For additional information on using this
option, refer to “Reset Configuration” on page 182.

WARNING: This operation resets all configurations, including any optional

features that have been installed. You will need to reenter any feature keys for
optional features after resetting the configuration.

Help

Choose the Help menu on the menu bar to display the following options.

■ Contents—Choose this option to display the Help window. The Help

window contains Contents, Index, and Glossary buttons and hypertext
linked items to help you quickly navigate through information. Use the
forward (>) and back (<) buttons to scroll forward and backward through the
displayed help frames. Exit the help feature at any time when you click the
Close icon at the top of the Help window.

■ About—Choose this option to display the version number for the Product

Manager and copyright information.

45Director Product Manager User Guide

Product Manager Overview

View Tabs

Click one of the view tabs across the top of the Product Manager window to
display the following views in the view panel:

■ Hardware—The Hardware View is the Product Manager default view. The

Hardware View is a dynamic illustration of all hardware components
installed in the front and back of the director. Operational status of the director
and hardware components is indicated by simulated light emitting diodes
(LEDs) and colored status symbols displayed in the graphics. Refer to

Figure 5 for an example of the Director 2/64 Hardware View and Figure 6

for an example of the Director 2/140 Hardware View. For additional
information on this view, refer to “Hardware View” on page 68.

■ Port List—The Port List View is a table of data on all Fibre Channel ports in

the director. This data includes the port number, port name, blocked
configuration state, operational state (such as online or failed), type of port
(G_Port, F_Port, or E_Port), operating speed, and any link incident alerts. For
additional information on this view, refer to “Port List View” on page 94.

■ FRU List—The FRU List View is a table of detailed information on all FRUs

installed in the director. (A FRU is a hardware component that can be replaced
as an assembly if it fails.) Information includes the FRU name, slot position in
the chassis relative to identical FRUs in the director, operational status (active
or failed), part number, and serial number. For additional information on this
view, refer to “FRU List View” on page 98.

■ Node List—The Node List View is a table of information about the node

attachments to existing F_Ports, sorted by port number. Information includes
the director's port number, node type, port World Wide Name, and the
buffer-to-buffer credit (BB_Credit) allocated to the port. To find out more
about the attached node, right-click a port’s row and choose Node Properties
from the menu. The Node Properties dialog box displays. For additional
information on this view, refer to “Node List View” on page 100.

■ Performance—The Performance View contains a bar graph for each of the

director ports. Each graph shows the current throughput percentage for each
port and marks the highest throughput achieved. When you click a bar graph
for a port, you can display cumulative port statistics and error count values for
the port, including traffic statistics, class 2 and 3 accounting statistics, and
error statistics. For additional information on this view, refer to “Performance

View” on page 105.

46 Director Product Manager User Guide

Status Bar

Product Manager Overview

The status bar displays a status symbol that indicates the current state of the
director. Refer to Tabl e 2 for the meaning of these status symbols. The status bar is
located along the bottom of the Product Manager window. The status symbol
displays on the left side of the bar and messages display in the panel to the right of
the symbol.

If a gray square displays in the status bar (no Ethernet connection), a reason for
the status displays in the Status table at the top of the Hardware View. Refer to
“No Link Status” on page 70 for details.

Table 2: Operating Status—Status Bar and Director Status

Director Status

Symbol Alert Panel

Green Circle Fully Operational All components and

Table Text

Meaning

installed ports are
operational; no failures.

47Director Product Manager User Guide

Product Manager Overview

Table 2: Operating Status—Status Bar and Director Status (Continued)

Symbol Alert Panel

Director Status

Table Text

Meaning

Yellow Triangle Redundant Failure A redundant component

has failed, such as a power
supply, and the backup
component has taken over
operation.

Minor Failure A failure occurred which

has decreased the director
operational ability. Normal
switching operations are
not affected.

■ One or more port

cards failed, but at
least one port card is
still operational.

■ A fan has failed or is

not rotating
sufficiently.

■ One of two CTP cards

failed.

■ One of two SBAR

cards failed.

Blinking Red
Diamond with
Yellow
Background

Not Operational A critical failure prevents

the director from
performing fundamental
switching operations.

■ All fans fail.

■ Both SBAR cards fail.

■ All installed port cards

fail.

48 Director Product Manager User Guide

Product Manager Overview

Table 2: Operating Status—Status Bar and Director Status (Continued)

Director Status

Symbol Alert Panel

Table Text

Meaning

Gray Square Never Connected

Link Timeout
Protocol Mismatch
Duplicate Session
Unknown Network

Address
Incorrect Product

Type

Director status is unknown.
This occurs if the Ethernet
network connection
between the HAFM server
and the director cannot be
established or if the CTP
fails. Refer to “No Link

Status” on page 70 for

details on the status table
text.

49Director Product Manager User Guide

Product Manager Overview

Hardware View

The Hardware View is the default view that displays in the main panel when you
open the Director Product Manager. Refer to Figure 7 for an example of this view.

Figure 7: Hardware View

In the Hardware View, colored indicators reflect the status of actual LEDs on the
director FRUs. The status bar displays a symbol to represent the most degraded
status currently reported by any of the director FRUs. For example, for a port
failure, indicated by a blinking red and yellow diamond on a port, a yellow
triangle displays on the status bar to indicate a degraded condition. However, if a
blinking red and yellow diamond displays over both SBAR cards, the status bar
displays a blinking red and yellow diamond, which indicates a failure requiring
immediate attention. For an explanation of the different status symbols and the
reasons they display in the Hardware View or Port List View, refer to
“Monitoring Hardware Operation” on page 71.

50 Director Product Manager User Guide

Product Manager Overview

Double-click the power supply, CTP card, cooling fan module, and SBAR card to
display a FRU Properties dialog box containing detailed information on the
hardware component. Double-click the director, away from a FRU, to display the
Director Properties dialog box.

For details on navigating and monitoring via the Hardware View, refer to

Chapter 2, “Monitoring and Managing the Director.”

Director Menu

Double-click the graphic away from a FRU to display the Director Properties
dialog box. Right-click a hardware graphic away from a FRU to display the
following options:

■ Director Properties

■ Enable Unit Beaconing

■ Clear System Error Light

■ IPL Director

■ Set Director Date and Time

■ Set Director Online State

For details on menu options, refer to “Director Menu” on page 78.
For details on navigating and monitoring via the Hardware View, refer to

Chapter 2, “Monitoring and Managing the Director.”

Port Card Menu

Double-click a port card to display the Port Card View. Refer to “Using the Port

Card View” on page 84. Right-click the port card to display the following options:

■ Open Port Card View

■ FRU Properties

■ Enable Port Card Beaconing

■ Block All Ports

■ Unblock All Ports

■ Diagnostics

Note that these same options are available when you click the port card and
choose the FRU secondary menu from the Product menu on the menu bar.

51Director Product Manager User Guide

Product Manager Overview

CTP Card Menu

Double-click a CTP card to display the Properties dialog box for the card.
Right-click a CTP card to display the following options. For details refer to
“Using the Port Card View” on page 84.

■ FRU Properties

■ Enable Card Beaconing

■ Switchover

Note that these same options are available when you click the CTP card and
choose the FRU secondary menu from the Product menu on the menu bar.

Cooling Fan Module

Double-click a Fan Module on the Rear View to display the FRU Properties
dialog box for the card. For details refer to “Fan Module” on page 83.

Note that these same options are available when you click the fan module and
choose the FRU secondary menu from the Product menu on the menu bar.

SBAR Card Menu

Double-click an SBAR card to display the FRU Properties dialog box for the
card. Right-click an SBAR card to display the following options. For details refer
to “SBAR Card Menu” on page 83.

■ FRU Properties

■ Enable Card Beaconing

■ Switchover

Note that these same options are available when you click the SBAR card and
choose the FRU secondary menu from the Product menu on the menu bar.

Port Card View

Double-click a port card in the Hardware View or right-click a port card and
choose Port Card View from the menu to display the Port Card View for that
port (Figure 8).

52 Director Product Manager User Guide

Product Manager Overview

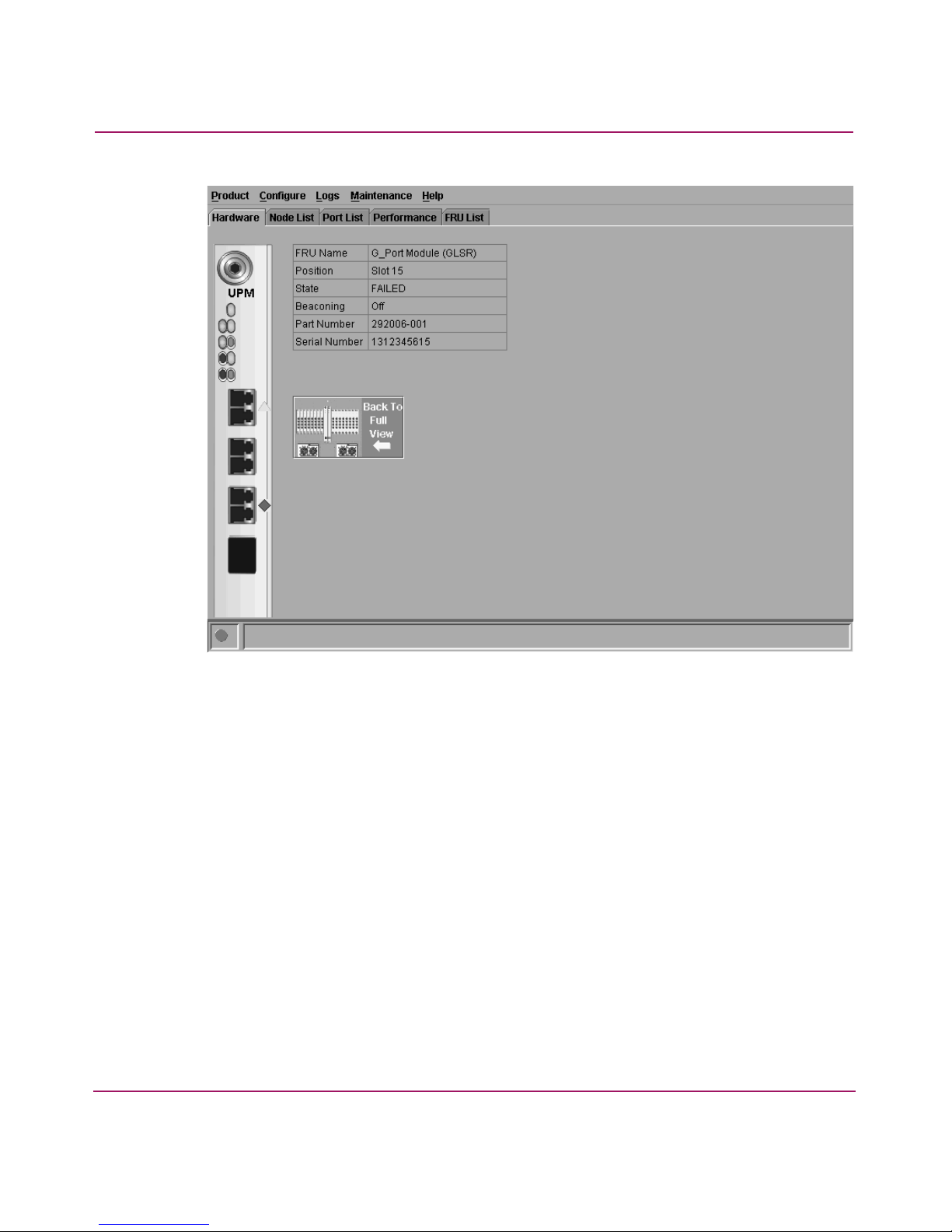

Figure 8: Port Card View

In this expanded view of the port card, you can:

■ Determine port card status by amber LED at the top of the card. A table also

displays on the Port Card View that provides the FRU name, position,
operating state, beaconing state, and part number.

■ Determine port status and operation by the status symbols that display next to

the port connectors and simulated LED indicators above the connectors.

■ Right-click the port card to display a menu with Block All Ports, Unblock

All Ports, and Diagnostics options.

■ Right-click the port connector to display a menu with Port Properties, Node

Properties, Port Technology, Block Port, Enable Beaconing, Port
Diagnostics, Channel Wrap (FICON Management Style only), Swap Ports
(FICON Management Style only), Clear Link Incident Alerts, Reset Port,
Port Binding, and Clear Threshold Alerts options.

53Director Product Manager User Guide

Product Manager Overview

Note that these same options also display when you click a port connector and
choose the Port secondary menu from the Product menu on the menu bar.

■ Double-click a port connector to display the Port Properties dialog box.

■ Click Back To Full View to return to the Hardware View.

Refer to “Using the Port Card View” on page 84 for detailed information on
this view.

Port List View

Choose the Port List View from the View menu. A table listing the port number,
port name, port address (FICON Management Style only), the block/unblock
configuration, operating state, port type, operating speed, and status condition
displays in the main panel. Figure 9 shows an example of the Port List View.

Figure 9: Port List View

54 Director Product Manager User Guide

Product Manager Overview

The Port List View displays information about all ports installed in the director.
All data is dynamic and updates automatically. Double-click any row in this view
to display the Port Properties dialog box for the port.

Right-click a port row to display the same menu options that display when you
right-click a port in the Hardware View or a port’s bar graph in the Performance
View. These include:

■ Port Properties

■ Node Properties

■ Port Technology

■ Block Port

■ Enable Beaconing

■ Port Diagnostics

■ Channel Wrap (FICON Management Style only)

■ Swap Ports (FICON Management Style only)

■ Clear Link Incident Alerts

■ Reset Port

■ Port Binding

■ Clear Threshold Alerts

Note that these same options also display when you click a port row and choose
the Port secondary menu from the Product menu on the menu bar.

For details on these menu options, refer to “Port Menu” on page 82.
For details on navigating and monitoring using the Port List View, refer to “Port

List View” on page 94.

FRU List View

Choose FRU List from the View menu. A table with information about each of
the FRUs installed in the director displays in the main panel. All data is dynamic
and updates automatically. Figure 10 shows an example of the FRU List View.

55Director Product Manager User Guide

Product Manager Overview

Figure 10: FRU List View

Click a FRU row to select it, then choose FRU Properties from the Product
menu on the menu bar. The FRU Properties dialog box displays.

For details on navigating and monitoring via the FRU List View, refer to “FRU

List View” on page 98.

Node List View

Choose Node List from the View menu. Figure 11 shows an example of the Node
List View. This view displays a table with information about all node attachments

or N_Ports that have logged in to existing F_Ports on the director. Only N_Ports
display in the Node List View after nodes have logged in to the fabric. The
columns that display in the table include port number where the node is attached,
the port’s address, unit type, WWN of the attached node’s port, and BB_Credit
used by the attached node.

56 Director Product Manager User Guide

Product Manager Overview

Double-click a port row to highlight it and display the Node Properties dialog
box for that port.

Right-click a port row to display the following menu options:

■ Port Properties—Displays the Port Properties dialog box.

■ Node Properties—Displays the Node Properties dialog box.

■ Define Nickname—Displays the Define Nickname dialog box, where you

can define a nickname to display for the attached device instead of the
device’s 8-byte WWN.

■ Display options—Allows you to display attached devices listed under the

Port WWN column in the Node List View by the device’s nickname
configured through the Define Nickname menu option or the device’s WWN.

Figure 11: Node List View

Note that these same options also display when you click a port row and choose
the Port secondary menu from the Product menu on the menu bar.

For details on navigating and monitoring via the Node List View, refer to “Node

List View” on page 100.

Performance View

Choose Performance from the view tabs. Figure 12 shows an example of the
Performance View. This view provides a graphical display of performance for all

ports. The top portion of the Performance View displays bar graphs that show the
level of transmit/receive activity for each port. This information updates every five
seconds. Each bar graph also shows the percentage link utilization for the port. A

57Director Product Manager User Guide

Product Manager Overview

red arrow marks the highest utilization level reached since the Performance View
was opened. If the system detects activity on a port, it represents minimal activity
with at least one bar.

When an end device (node) is logged in to a port, moving the cursor over the
port’s bar graph in the Performance View highlights the graph and displays a
message with the WWN of the connected node. If the connected node has more
than one port, this is the WWN of the specific port on the node. When a port is
functioning as an expansion port (E_Port), the message is “E_Port.” When a port
is not logged into an end-device (not functioning as an F_Port) or to another
director (not functioning as an E_Port), the message is the port’s current online
state.

Figure 12: Performance View

Right-click a bar graph to display a menu of port-related actions. The options
available on this menu are the same as those that are available when you
right-click a port in the Port Card View or right-click a row in the Port List
View. These include:

58 Director Product Manager User Guide

Product Manager Overview

■ Port Properties

■ Node Properties

■ Port Technology

■ Block Port

■ Enable Beaconing

■ Diagnostics

■ Channel Wrap (FICON Management Style only)

■ Swap Ports (FICON Management Style only)

■ Clear Link Incident Alerts

■ Reset Port

■ Port Binding

■ Clear Threshold Alerts

Note that these same options also display when you click a port graph and choose
the Port secondary menu from the Product menu on the menu bar.

For details on port menu options, refer to “Port Menu” on page 82.
The bottom portion of the Performance View displays cumulative statistical

information for the port selected in the bar graph. Values are displayed for
transmit and receive traffic, class 2 and 3 statistics, operational statistics, and error
categories. Click a category in the left side of the statistics area to display only
statistics in that category or click All to display values for all categories. Click
Refresh to update the data with current data from the port.

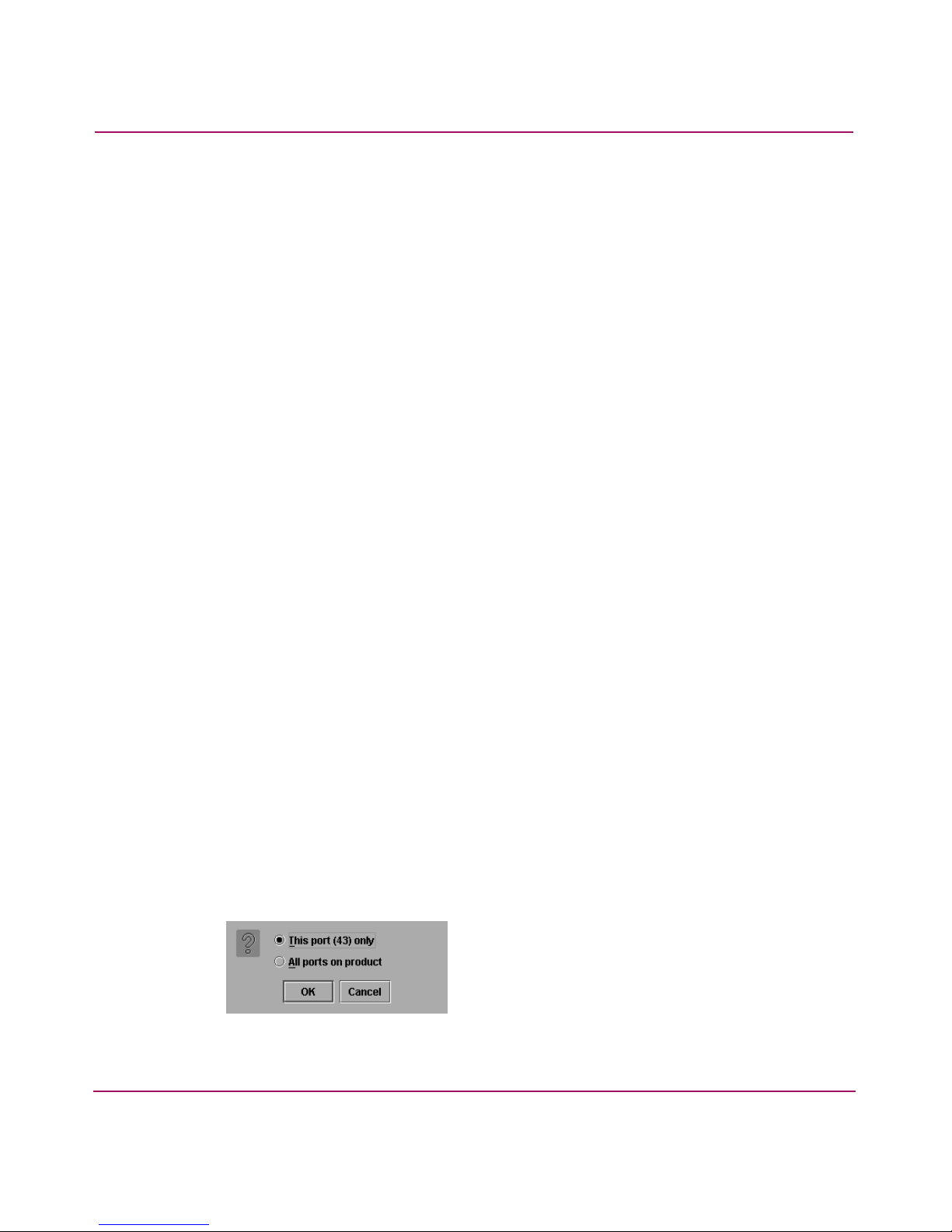

Click Clear to clear all of the counters to zero for the selected port and to place an
entry in the audit log indicating that statistics for the port have been cleared.

Note: Clearing the counters clears the statistics for all users.

For more information about the Performance View, including statistics
descriptions, refer to “Performance View” on page 105.

Closing the Product Manager

To close the Product Manager, choose Close from the Product menu on the menu
bar.

59Director Product Manager User Guide

Product Manager Overview

To logout of all HAFM applications, choose Logout or Exit from the Product
menu on the Product View window.

■ If you choose Logout, the HAFM Login dialog box displays. You can now

log in again using a user name and password. Log into a different HAFM
server by choosing a different server from the HAFM Server field.

■ If you choose Exit, the Product View window closes.

User Rights

The HAFM application’s system administrator can assign levels of access, or
“User Rights,” to Product Manager users through the HAFM application.

Note: The

operating in a specific
Manager’s product administrator has view rights only while operating in the
application.

HAFM

application’s system administrator has view rights only while

Product Manager

application. Conversely, a Product

HAFM

Detailed instructions concerning the assignment of user rights for the HAFM and
Product Manager applications display in Chapter 5 of the HP StorageWorks
HA-Fabric Manager User Guide.

There are five levels of access or “user rights” that can be assigned to specific
users:

■ System Administrator

■ Product Administrator

■ Operator

■ Maintenance

■ View

By default, all users have view rights, which allow for the viewing of
configurations but not the changing of configurations. View rights cannot be
removed.

The users with system administrator rights can make all control and configuration
changes implemented through the HAFM application.

60 Director Product Manager User Guide

User Rights for Specific Functions

Tabl e 3 itemizes the specific functions available to Product Manager users that

have been assigned “user rights” of product administrator, operator, and/or
maintenance. If a user does not have the right to perform a specific operation, an
error box displays when the operation is attempted stating that the operation is not
authorized.

Table 3: User Rights for Product Manager

Product Manager Overview

Product Manager

Rights

Backup and Restore
Configuration

Channel Wrap (FICON
management style)

Clear Audit Log X
Clear Event Log X
Clear Hardware Log X X
Clear LIN Alert X X X
Clear LIN Log X
Clear System Error

Light
Clear Threshold Alerts X
Clear Threshold Event

Log
Configure Addresses -

“Acti ve” ( F IC O N
management style)

Product

Administrator

XX X

XX

X

XX

Operator Maintenance

X

Configure Addresses ­“Stored” (FICON
management style)

Configure Date/Time X X X
Configure Feature Key X
Configure Identification X
Configure

Management Server

X

X

61Director Product Manager User Guide

Product Manager Overview

Table 3: User Rights for Product Manager (Continued)

Product Manager

Rights

Configure Switch

Product

Administrator

X

Operator Maintenance

Parameters
Configure Fabric

X

Parameters
Configure Ports X X
Configure SNMP X
Configure Switch

X

Binding
Configure Threshold

X

Alerts
Configure Open

X

Trunking
Configure Zoning X
Data Collection X
Date/Time Sync

XX X

Configuration
Enable Call Home

X

Notification
Enable E-Mail

X

Notification
Enable Telnet X
Enable Web Server X
Export Configuration

XX X

Report
FRU Beaconing X
FRU Switchover X
IPL X X X
Manage Firmware X
Modify Port Binding X
Port Diagnostics X

62 Director Product Manager User Guide

Table 3: User Rights for Product Manager (Continued)

Product Manager Overview

Product Manager

Rights

Product

Administrator

Operator Maintenance

Port Beaconing X X X
Set Online State X X X
Swap Ports (FICON

XX

management style)
Reset Configuration X
Reset Statistics Counters

XX

(Performance View)
Reset Port X X
Unit Beaconing X X X
View Audit Log X X
View Event Log X X X
View Firmware X
View Hardware Log X X X
View LIN Log X X X
View Open Trunking

XX

Log
View SNMP X X X
View Threshold Alert

XX X

Log

63Director Product Manager User Guide

Product Manager Overview

Backing Up and Restoring Product Manager Data

Critical information from both the Product Manager and HAFM applications is
automatically backed up to a backup drive when the data directory contents
change or when you reboot the HAFM server. The backup drive is either an
Iomega

Note: To ensure trouble-free backups; it is imperative that you leave the backup media

in the drive at all times. Removing the media during a backup or restore can corrupt the
database on the media. Make sure that data is not being written to or read from the
backup drive before you remove the backup media by observing the following:

■ The Iomega QuikSync icon in the Windows® system tray spins when data is being

■ The CD-RW drive write LED flashes when data is being written to disk.

A separate application installed on the HAFM server is configured to
automatically mirror the contents of the HafmData directory to the Zip drive or
CD-RW drive when the contents are changed, or when you reboot the HAFM
server. This directory contains all HAFM and Product Manager data, so it can be
copied back to a newly restored HAFM server to fully recover the preferred
operating environment.

® Zip drive or internal CD-RW drive, depending on your HAFM platform.

written to or read from the Zip drive.

The mirroring operation will only occur while a user is logged in to Windows on
the HAFM server PC (independent of the HAFM login).

The data contained in the HafmData directory and mirrored to the backup media
includes the following:

■ All HAFM configuration including:

— Product definitions
— User names, encrypted passwords, and user rights
—Nicknames
— Session options
— HAFM SNMP configurations
— E-mail configuration

■ All log files (both HAFM log files and individual Product Manager log files).

■ Zoning library (all zone sets and zone definitions).

■ Firmware library.

64 Director Product Manager User Guide

■ Call-home configuration (including phone numbers and dialing options).

■ Configuration data saved to the HafmData directory through the Backup &

Restore Configuration option on the Product Manager Maintenance menu.

The backup application will not back up certain Windows configurations that need
to be reconfigured on a newly restored HAFM server, including the following:

■ Windows user names and passwords.

■ TCP/IP network configuration (such as IP address, gateway address, and DNS

names).

The backup application is embedded with the HAFM application. A blank backup
disk (Zip disk or CD-RW disk) is required for each HAFM server and is included
with the HAFM server.

Restoring Data to the HAFM server

To restore data to the HAFM server, copy the: HafmData directory from the
backup media to: C:\hafmdata on the C drive.

Product Manager Overview

Using the Backup Application

For information on using the backup application, refer to the HP StorageWorks
HA-Fabric Manager User Guide.

65Director Product Manager User Guide

Product Manager Overview

66 Director Product Manager User Guide

Monitoring and Managing
the Director

2

This chapter describes how to use the features available in the Product Manager
main panel to monitor and manage director operation. These features include
status indicators, menu options, and dialog boxes available through the Hardware
View, Port List View, FRU List View, Node List View, and Performance View.

2

67Director Product Manager User Guide

Monitoring and Managing the Director

Hardware View

The Hardware View is the default view that is shown when you open the Product
Manager. If another view displays, you can display the Hardware View by
choosing the Hardware View tabs. Using this graphical view of the director, you
can view status symbols and simulated light emitting diode (LED) indicators,
display data, and use mouse functions to monitor status and obtain vital product
information for the director and its hardware components.

Identifying FRUs

Move the cursor over parts of the director graphic in the Hardware View to
display labels identifying each hardware component and its slot position in the
chassis relative to identical components installed in the director. Components
include:

■ Port cards.

— The Director 2/64 contains up to 16 port cards, slot positions 15 through 0

(left to right).

— The Director 2/140 contains up to 32 port cards in the front of the unit

(slot positions 0-31) and up to three additional port cards in the rear (slot
positions 33-35). The blank slot (position 32) relates to ports 128-131,
which are internal ports.

As you move the cursor over each card, labels display, identifying the card's
slot number and port technology. Acronyms that may display to identify port
technology, such as UPM, GSML, GXXL, FPM, GLSR, GSMR, GLSL,
and GXXR also display in the FRU column of the FRU List View. Refer to
“FRU List View” on page 98 for details.

■ CTP cards. Two CTP cards are installed, slot positions 1 and 0 (left to right).

■ Power supply modules.

— The Director 2/64 contains two modules in slot positions 1 and 0 (left to

right).

— The Director 2/140 contains two modules in slot positions 1 and 0 (left to

right).

■ Cooling fan modules.

— The Director 2/64 contains two modules in slot positions 1 and 0 (left to

right).

68 Director Product Manager User Guide

— The Director 2/140 contains three modules in slot positions 2, 1, and 0

(left to right).

■ SBAR cards.

— The Director 2/64 contains two SBARs in slot positions 1 (bottom) and 0

(top).

— The Director 2/140 contains two SBARs in slot positions 1 (bottom) and 0

(top).

Monitoring Director Operation

Monitor the operating status of the director using the Director Status table on the
Hardware View and the status symbol on the status bar.

Director Status Table

The Status table at the top of the Hardware View displays the director’s
operational status, operational state, name, description, and location.

Monitoring and Managing the Director

Status

Refer to Table 4 for the meaning of the text that displays in the Director Status
table and the corresponding status symbols that display on the status bar.

State

The State field displays one of the following:

■ Offline—When the director is OFFLINE, all ports are offline. The ports

cannot accept a login from an attached device or cannot connect to other
directors. You can configure this state through the Set Online State dialog
box. Refer to “Set Online State” on page 177 for instructions.

■ Online—All unblocked ports are able to connect with devices. You can

configure this state through the Set Online State dialog box. Refer to “Set

Online State” on page 177 for instructions. Note that the director

automatically goes online after a power-up or an initial machine load (IML) or
initial program load (IPL).

■ Coming online—This is a transitional state that occurs just before the

director goes online. This state normally only happens briefly, unless there is
a problem reaching the online state.

69Director Product Manager User Guide

Monitoring and Managing the Director

■ Going offline—This is a transitional state that occurs just before the director

goes offline. This state normally only happens briefly, unless there is a
problem reaching the offline state.

No Link Status

If the Ethernet network connection between the HAFM server and the director is
down, the Hardware View displays the front and rear of the unit without FRUs.
The Director Status table at the top of the Hardware View changes to display the
status (No Link) and reason with a yellow background. The name, description,
and location fields are blank.

The Reason field on the Director Status table displays one of the following
reasons when there are no links.

■ Never Connected—A network connection was never established between the

director and the HAFM server or the CTP card failed. Check the IP addresses,
the Ethernet local area network (LAN) physical connection between the
director and HAFM server, and other network connection conditions.

■ Link Timeout—The network connection that was established between the

director and server has been lost. Check the IP addresses, the Ethernet LAN
physical connection between the director and HAFM server, IP addresses, and
other network components.

■ Protocol Mismatch—The director and the server are not at compatible

software release levels. Update the HAFM application software version.

■ Duplicate Session—A link has previously been established between the

director and another instance of the HAFM server. Connect to the previously
established server from the HAFM login dialog box.

■ Unknown Network Address—The address defined for the director in the

HAFM application could not be found in the domain name server (DNS).
Either the name was incorrect when the director was added to the HAFM
application, or the name was not available from the DNS. Check the network
IP address for the director definition in the HAFM application when you
right-click the product icon and choose Properties. The IP address displays in
the Network Address field.

■ Incorrect Product Type—The product at the configured network address is

not a director. Verify address, configuration, and product type.

70 Director Product Manager User Guide

Status Bar Indicator

The status bar displays a colored status symbol that indicates the overall operating
status of the director unit. The operating status depends on hardware component
failures, which are indicated by status symbols that display over component
graphics in the Hardware View. Refer to “Status Bar” on page 47 for the
meanings of status symbols in the status bar.

The status bar indicates the director operating status based on component failures.
For example, for a single port failure, a blinking red and yellow diamond displays
on the port connector in the Hardware View. At the same time, a yellow triangle
displays in the status bar to indicate a degraded director. However, if a blinking
red and yellow diamond displays over both fan modules, the status bar displays a
red and yellow diamond, indicating a failure that requires immediate attention.

Monitoring Hardware Operation

Determine hardware component operating status and states by the simulated LED
indicators and status symbols that display on port cards, CTP cards, power
supplies, fan modules, and SBAR cards illustrated in the Hardware View.

Monitoring and Managing the Director

■ Green and amber indicators illuminate on each FRU to indicate either an

operational or degraded state, respectively. LEDs for individual ports do not
illuminate on port cards in the Hardware View, but do illuminate in the Port
Card View for each port (refer to “Using the Port Card View” on page 84).

■ Alert symbols, such as flashing red and yellow diamonds and yellow

triangles, display on FRUs to reflect the overall state of the hardware as
changes occur.

■ Corresponding or additional descriptions of hardware status and states also

display when you click components to display Properties dialog boxes.

Figure 13 illustrates the Director 2/64 Hardware View and Figure 14 illustrates

the Director 2/140 Hardware View with examples of symbols and simulated
LED indicators that can help you monitor hardware operation.

71Director Product Manager User Guide

Monitoring and Managing the Director

1 Port card attention indicator
2 Port card failure indicator
3 CTP card failure indicator
4 Active CTP card indicator

6 Power supply failure indicator
7 Cooling fan module failure indicator
8 SBAR card beaconing indicator
9 SBAR failure indicator

5 Power, system error, and unit beaconing

indicators

Figure 13: Monitoring hardware operation—Director 2/64 Hardware View

72 Director Product Manager User Guide

Monitoring and Managing the Director

1 Port card attention indicator
2 Port card failure indicator
3 CTP card failure indicator
4 Active CTP card indicator
5 Power, system error, and unit beaconing

indicators

6 Power supply failure indicator
7 Cooling fan module failure indicator
8 SBAR card beaconing indicator
9 SBAR failure indicator

Figure 14: Monitoring hardware operation—Director 2/140 Hardware View

■ Port card attention indicator—The yellow triangle status symbol ( )

indicates that the port card is in a degraded state. This could indicate a
problem with an individual port, such as a link failure or service-required
status. A yellow triangle could also indicate that a port is in beaconing state.
Click the port card to open the Port Card View to examine individual port
status. Refer to “Using the Port Card View” on page 84 for details.

73Director Product Manager User Guide

Monitoring and Managing the Director

■ Port card failure indicator—The blinking red and yellow diamond

displayed on the port card with the amber port card LED illuminated may
indicate that the card has failed. This may also indicate that an individual port
has failed on the card. To open the Port Card View, click the port card to
examine individual port status. If an individual port has not failed, the card is
at fault.

Refer to “Using the Port Card View” on page 84 for details on using the Port
Card View. Refer to Tabl e 4 for details on port operating states and the status
symbol and indicator operation.

■ CTP card failure indicator—The blinking red and yellow diamond ( ) on

the CTP card with the amber LED illuminated indicates that the card has
failed.

■ Active CTP card indicator—The green LED on a CTP card illuminates to

indicate that the card is active. Since the redundant CTP card on the left has
failed, this CTP card has become the active card. If both CTP cards are
operational, no LEDs illuminates on the backup card, while the green LED
illuminates on the active CTP card.

■ Power, system error, and unit beaconing indicators—The green and amber

indicators on the far right of the front bezel simulate the power and system
error LEDs on the actual director bezel.

— Power Indicator—The green indicator simulates the power LED on the

actual director. When the indicator illuminates, the director is connected
to facility AC power and is operational. The indicator will be on if either
power supply is operating.

— System Error Indicator—The amber system error light indicator

(illuminated in Figure 13) simulates the system error light on the actual
director. When this indicator illuminates, an event has occurred requiring
immediate attention, such as a system, fan, power supply, or port failure.
View details of system errors by choosing Event Log from the Logs
menu on the menu bar. The indicator in the Hardware View and the LED
on the actual unit remains illuminated until you right-click the director
graphic, away from a FRU, and choose Clear System Error Light from
the menu.

74 Director Product Manager User Guide

Monitoring and Managing the Director

Note: If the amber LED flashes, this indicates that unit beaconing has been

enabled for the director. You can enable or disable unit beaconing when you
right-click the director graphic, away from a FRU, and choose Enable Unit
Beaconing from the menu.

■ Power supply failure indicator—When a blinking red and yellow diamond

displays on a power supply with the amber Fault indicator illuminated, the
power supply has failed. The backup power supply has taken over to supply
DC voltage to the director.

Note: A green indicator displays and no status symbols display if the power

supply is working, as shown on the left (position 1) in the illustration.

■ Cooling fan module failure indicator—When a blinking red and yellow

diamond ( ) displays on a fan module with the amber LED indicator
illuminated, the module has failed or is rotating insufficiently.

■ SBAR card beaconing indicator—The yellow triangle status symbol ()

displaying on the SBAR card with the amber LED illuminated indicates that
beaconing has been enabled.

■ SBAR failure indicator—The blinking red and yellow diamond ()

displaying on the SBAR card with the amber LED illuminated indicates a card
failure.

Obtaining Hardware Information

This section explains how to access the FRU Properties, Port Properties, and
Director Properties dialog boxes.

Displaying FRU Information

Double-click a CTP card, power supply, cooling fan module, or SBAR card in the
Hardware View to display a FRU Properties dialog box. This dialog box
displays the FRU name, slot position relative to identical FRUs installed in the
chassis, active or failed state, beaconing state (CTP card, fan module, SBAR
card), part number, and serial number. For the CTP’s card dialog box, the Speed
Capability of the card displays as either 1 Gb/sec or 2 Gb/sec.

75Director Product Manager User Guide

Monitoring and Managing the Director

Figure 15: FRU Properties dialog box

Note: You can display a Properties dialog box for all FRUs when you right-click the

FRU and choose FRU Properties from the menu that displays.

Display a Properties dialog box for a port card when you right-click a card and
choose FRU Properties from the menu that displays. To display a Properties
dialog box for an individual port, you must be in the Port Card View. Refer to
“Using the Port Card View” on page 84 for details.

Figure 16: Port Card FRU Properties dialog box

Displaying Director Information

Double-click the director illustration, away from a hardware component, to
display the Director Properties dialog box, as shown in Figure 17.

76 Director Product Manager User Guide

Monitoring and Managing the Director

Figure 17: Director Properties dialog box

The following displays in this dialog box:

■ Director name, description, location, and contact configured through the

Configure Identification dialog box.

■ Fibre Channel World Wide Name (WWN) identifier for the director.

■ Product type number.

■ Product model number.

■ Product manufacturer.

■ Product serial number.

■ Engineering change (EC) level.

■ Firmware level.

■ Management Style. Open Systems or FICON management style.

■ Preferred Domain ID. This is set using the Configure Switch Parameters

dialog box.

■ Active Domain ID. The actual domain ID assigned to the director.

■ Director Speed (Director 2/64 only). This is set using the Configure Switch

Parameters dialog box and is either 1 Gb/sec or 2 Gb/sec.

77Director Product Manager User Guide

Monitoring and Managing the Director

Note: The director model and firmware may not support 2 Gb/sec data speeds.

■ Switch Binding. Enabled if the optional SANtegrity Binding features are

installed and enabled, otherwise Disabled displays.

Note: You can also display the Director Properties dialog box when you right-click

the director illustration away from a FRU and choose Properties from the menu.

Using Menu Options

Right-click various parts of the Hardware View to display menu options for
displaying status and information and for controlling the director and its FRUs.

Director Menu

Right-click any area of the director illustration where a hardware component is
not installed to display the following menu options:

Director Properties

Click to display the Director Properties dialog box. This dialog box contains the
director name, description, location, director data speed, and contact person
configured through the Configure Identification dialog box. Also included is
other product information as detailed in “Displaying Director Information” on
page 76. You can also display this dialog box when you click an area on the
illustration away from a hardware component.

Enable Unit Beaconing

Click the check box to toggle unit beaconing on or off. When the check box has a
check mark, unit beaconing is on, and the amber system error light on the director
front bezel blinks to help users locate the actual unit in an equipment room. When
you click the check box to remove the check mark, unit beaconing is disabled and
the amber LED goes out.

Note: You can only enable beaconing if there are no system errors (the system error

light is off).

78 Director Product Manager User Guide

Monitoring and Managing the Director

Clear System Error Light

Choose this to turn off the amber system error LED, located below the green
power LED on the director front bezel.

IPL Director

Choose this option to initiate an IPL on the director. When the dialog box displays
confirming the IPL, click Ye s .

Refer to the HP StorageWorks Director 2/64 Service Manual or HP
StorageWorks Director 2/140 Service Manual for details.

Note: An IPL is not intended for ordinary or casual use and should be performed only

when directed by your support personnel.

Setting Director Date and Time

Choose this option to display the Configure Date and Time dialog box.

1. Click to display the Configure Date and Time dialog box.
The dialog box displays with a check mark (the default) in the Periodic

Date/Time Synchronization check box. If this field is checked, the HAFM
server periodically sets the director time to automatically synchronize with the
HAFM server time. Daylight savings time automatically updates on the
director using this option.

The current date and time display in the Date and Time fields. If the Periodic
Date/Time Synchronization field is checked, the Date and Time fields are
disabled (grayed out).

To enable and disable Periodic Date/Time Synchronization, click the check
box and then click Activate.

FICON management style only. An error will result if periodic
synchronization and clock alert mode are enabled.

79Director Product Manager User Guide

Monitoring and Managing the Director

Figure 18: Configure Date and Time Periodic Synchronization dialog box

2. Perform one of the following steps:

■ To immediately synchronize the director date and time with the HAFM server,

be sure the Periodic Date/Time Synchronization option is enabled and then
click Sync Now.

Note: If you enable the Periodic Date/Time Synchronization feature and click

Activate, the time will synchronize at the next update period.

■ To set the director with a specific date and time, make sure that the Periodic

Date/Time Synchronization field is not selected. Refer to Figure 19. Enter
the date and time, and then click Activate.

Figure 19: Configure date and time (manually)

Note: Use the range of 0 to 23 for hours. Use the range of 0 to 59 for minutes and

seconds.

80 Director Product Manager User Guide

Monitoring and Managing the Director

Setting Director Online State

Click to display the Set Online State dialog box. The dialog box displays the
current state (offline or online) and provides a button for changing the state.

Caution: Before setting the director offline, warn administrators and users

currently operating attached devices that the director is going offline and that
there will be a disruption of port operation. Also, request that the devices
affected by an interruption of data flow be set offline.

1. Click Set Offline or Set Online to toggle between offline and online states.

Figure 20: Set Online State dialog box (Online)

2. When the Set Online or Set Offline warning dialog box displays, click OK to
set the director online or offline.

Port Card Menu

Right-click a port card in the Hardware View to display the following menu
options.

■ Open Port Card View—Choose this option to open the Port Card View.

■ FRU Properties—Choose this option to display the Properties dialog box

■ Enable Beaconing—Choose this option to add a check mark to the check box

As the director goes offline, the word, OFFLINE displays in the State field in
the left corner of the Hardware View. As the director goes online, the word,
ONLINE displays in the State field in the left corner of the Hardware View.
When going offline, LED indicators on all ports with attached devices stay
green, but the director sends offline sequences (OLS) to these devices.

You can also click the port card to open the Port Card View. Refer to “Using

the Port Card View” on page 84 for detailed information.

for the port card. This dialog box includes the FRU name, position (slot
number in backplane), state (active or failed), beaconing state (on or off), part
number, and serial number (refer to Figure 15).

and to enable beaconing for the card. This causes the amber LED on the card
to flash to help you locate the card in the unit.

81Director Product Manager User Guide

Monitoring and Managing the Director

■ Block All Ports—Choose this option to display the Block All Ports dialog

box. Click Ye s to block all ports on the selected card or click No to cancel.

■ Unblock All Ports—Choose this option to display the Unblock All Ports

dialog box. Click Ye s to unblock all ports on the selected card or No to cancel.

■ Diagnostics—Choose this option to display the Port Diagnostics dialog box.

Use this dialog box to run internal loopback and external loopback tests on
any port or all ports on the port card.

Port Menu

Double-click a port on the Port Card View to display the a menu of options for a
port. Refer to “Port Menu” on page 89 for details on displaying and using the port
menu.

CTP Card Menu

Right-click the CTP card in the Hardware View to display a menu with the
following options:

■ FRU Properties—Choose this option to display a FRU Properties dialog

box for the CTP card. Figure 15 is an example for the power supply module.
The FRU Properties dialog box includes the FRU name, position (slot
number in the backplane), state (active, backup, or failed), part number, serial
number, and speed capability.

■ Beaconing—Choose this option to add a check mark to the check box and

enable beaconing for the CTP card. This causes the amber LED on the card to
flash to help you locate it in the unit.

■ Switchover—Choose this option to display the Switchover CTP dialog box,

as shown in Figure 21. Click Switchover to switch operation from the active
card to the backup card. When switchover occurs, the green LED illuminates
on the backup CTP card to indicate that it is now the active card.

Note: You must have maintenance authorization rights to access this feature.

82 Director Product Manager User Guide

Fan Module

Monitoring and Managing the Director

Figure 21: Switchover CTP dialog box

If you click the Enable Beaconing check box to add a check mark, the amber
LED beacons (blinks) on the card that was the active card before switchover.

If a redundant card has failed, or is not installed, choosing Switchover
displays an error message explaining that two operational cards must be
installed to use this feature.

Double-click a cooling fan module card in the Hardware View to display the
FRU Properties dialog box with the following option:

■ FRU Properties—This option displays a FRU Properties dialog box for the

SBAR Card Menu

Right-click an SBAR card in the Hardware View to display a menu with the
following options:

■ FRU Properties—Choose this option to display a FRU Properties dialog

■ Enable Beaconing—Choose this option to add a check mark to the check box

■ Switchover—Choose this option to display the Switchover SBAR dialog

module. Figure 15 is an example for the power supply module. The FRU
Properties dialog box includes the FRU name, position (slot number in the

backplane), state (active, backup, or failed), part number, and serial number.

box for the card. Figure 15 is an example for the power supply module. The
FRU Properties dialog box includes the FRU name, position (slot number in
the backplane), state (active, backup, or failed), part number, and serial
number.

and enable beaconing for the SBAR card. This causes the amber LED on the
card to flash to help you locate it in the unit.

box, which is similar to the Switchover CTP dialog box (refer to Figure 21).
Click Switchover to switch operation from the active card to the backup card.
When switchover occurs, the green LED illuminates on the backup SBAR
card to indicate that it is now the active card.

83Director Product Manager User Guide

Monitoring and Managing the Director

If you click the Enable Beaconing check box to add a check mark, the amber
LED beacons (blinks) on the card that was the active card before switchover.

Note: You must have maintenance authorization rights to access this feature.

Using the Port Card View

In the Hardware View, double-click a port card or right-click and choose Open
Port Card View to see a detailed view of the port card. In the Port Card View,

colored indicators reflect functions of the actual LEDs on the card. The table in
the Port Card View displays the port operating state and vital product
information.

Symbols and Indicators

The following figure illustrates the status symbols and LED indicators that may
display on a port card in the Port Card View.

UPM

1

2

3

Figure 22: Port Card View

1 An amber LED (at the top of the card) that illuminates if

any port fails or blinks if FRU beaconing is enabled.

2 A bank of amber and green LEDs above the ports. One

amber LED and one green LED are associated with
each port and indicate port status as follows:

■ The green LED illuminates (or blinks if there is active

traffic) and the amber LED extinguishes to indicate
normal port operation.

■ The amber LED illuminates and the green LED

extinguishes to indicate a port failure.

■ Both LEDs extinguish to indicate a port is

operational but not communicating with an N_Port
(no cable attached, loss of light, port blocked, or
link recovery in process).

■ The amber LED flashes and the green LED either

remains on, extinguishes, or flashes to indicate a
port is beaconing or running online diagnostics.

3 Four duplex LC connectors for attaching fiber optic

cables.

84 Director Product Manager User Guide

Port states are described in detail under “Port Operational States” on page 112.

Displaying Port Information

Double-click a port or right-click a port and choose Port Properties from the
menu to display the port’s Properties dialog box, as shown in Figure 23. Also
display this dialog box by:

■ When you double-click a row in the Port List View or right-click a row and

choosing Port Properties from the pop-up menu.

■ When you double-click a port’s bar graph in the Performance View or

right-click the bar graph and choosing Port Properties from the menu.

■ When you right-click a port’s row in the Node List View and choose Port

Properties from the menu.

■ When you click a port, port row, or port bar graph in the preceding views and

choose Port Properties from the secondary Port menu in the Product menu
on the menu bar.

Monitoring and Managing the Director

Figure 23: Port Properties dialog box

The following paragraphs describe the fields in the Port Properties dialog box.

■ Port Number—The physical port number.

■ Port Name—User-defined port name or description. Refer to “Configuring

Ports” on page 127 for instructions.

85Director Product Manager User Guide

Monitoring and Managing the Director

■ Typ e—The type of port.

— G_Port. This displays if nothing is logged into the port.
— F_Port. This displays if a device is logged into the port.
— E_Port. This displays if the port is connected to another director’s E_Port

via an ISL.

■ Operating Speed—This field displays the current data speed for the port as

1 Gb/sec, 2 Gb/sec, or Not Established. Not established displays if Negotiate
was set for the port through the Configure Ports dialog box and the data
speed has not been resolved between the port and the attached device, or if the
port and device are not communicating.

■ Fibre Channel Address—The port’s Fibre Channel address identifier.

■ Port WWN—The port’s 16-digit World Wide Name (WWN).

■ Attached Port WWN—The WWN of the node logged into the port.

■ Block Configuration—Blocked or unblocked. Operation can be blocked or

unblocked through the Configure Ports dialog box or through the block ports
options on right-click menus in the Port Card View. Refer to “Configuring

Ports” on page 127 and “Using the Port Card View” on page 84 for details.

■ 10–100 km Configuration—Extended distance buffering. This can be

enabled or disabled for the port through the Configure Ports dialog box.
Refer to “Configuring Ports” on page 127 for instructions.

■ LIN Alerts Configuration—This field indicates whether link incident (LIN)

alerts are enabled or disabled. LIN alerts can be configured through the
Configure Ports dialog box. The default is for the LIN alerts to be enabled.

■ Beaconing—This field indicates the beaconing status for the port. To enable

or disable beaconing, right-click the port and choose Enable Beaconing.

■ Link Incident—Description of the last link incident that occurred on the port.

■ Operational State—Beaconing, inactive, invalid attachment, link incident,

link reset, no light, not operational, online, offline, port failure, segmented
E-Port, and testing. Refer to Table 4 for definitions of operational states.

■ Reason—Lists the reason for a segmented E_Port operating state or invalid

attachment, or inactive operating state for the port. An E_Port segmentation
occurs only when the director is connected to another director or a switch.
This field displays “NA” if a segmented E_Port or invalid attachment
operating state has not occurred.

86 Director Product Manager User Guide

Monitoring and Managing the Director

Refer to the section on joining zoned fabrics in the hp StorageWorks SAN
high availability planning guide.

The following messages display in the Reason field of the Port dialog box if
an Invalid Attachment, Segmented E_Port, or Inactive State occurs for the
port. Reason messages for segmentation can include:

— Incompatible operating parameters. Operating parameters, such as

resource allocation time-out values (R_A_TOV) or error-detect time-out
values (E_D_TOV), are inconsistent. Refer to “Configuring Fabric

Parameters” on page 124 for more information.

— Duplicate domain IDs. Identical preferred domain IDs are configured for

two or more directors or switches. Refer to “Configuring Switch

Parameters” on page 119 for more information.

— Incompatible zoning configurations. Refer to the HP StorageWorks

HA-Fabric Manager User Guide and the HP StorageWorks Director 2/64
Service Manual for more information on zoning.

— Build fabric protocol error.
— No principal switch. A principal director or switch is not defined for the

fabric.
— No response from the attached switch.
— ELP retransmission failure timeout. A director or switch with a hardware

or link failure attempted to join the fabric and transmitted multiple

exchange link protocol (ELP) frames to another director or switch.

Because of the failure, the failed director or switch did not receive

responses to the ELP frames and did not receive a FLOGI frame. The

failed director or switch times out.
A port binding error may be due to an invalid WWN or nickname entry in the

Configure Ports dialog box in the Bound WWN column. Refer to
“Configuring Ports” on page 127 for a description of the Configure Ports
dialog box.

Reasons messages for an invalid attachment can include:
— 01 Unknown. The reason is not known.
— 02 ISL connection not allowed on this port. ISL is

connected to a port configured as an F_Port.
— 03 ELP rejected by the attached switch. This director or

switch transmitted an exchange link protocol (ELP) frame that was

rejected by the switch at the other end of the ISL.

87Director Product Manager User Guide

Monitoring and Managing the Director

— 04 Incompatible switch at other end of the ISL.

The switch is configured for Open Fabric mode, and the switch at the

other end of the ISL is an HP switch configured for Homogeneous mode.
— 05 External loopback adapter connected to the

port. A loopback plug is connected to the port, and no diagnostic test is

running.
— 06 N_Port connection not allowed on this port. The

port type configuration does not match the actual port use (the port is

configured as an E_Port, but attaches to a node device).
— Non-HP switch at other end of the ISL. The cable is

connected to a non-HP switch, and Interop mode is set to Homogeneous

mode.
— 08 ISL connection not allowed on this port. The port

type configuration does not match the actual port use (the port is

configured as an F_Port, but attaches to a director or switch).
— 10 Port binding violation—Unauthorized WWN. The

WWN that was entered to configure port binding for this port is not valid,

or a nickname was used that was not configured for the attached device in

the Product Manager.
— 11 Unresponsive node connected to port. Possible causes

are: (1) a hardware problem on a switch or connected node where ELP

frames are not delivered; the response is not received, or a fabric login

(FLOGI) cannot be received (there may be problem in the switch SBAR);

(2) a faulty or dirty cable connection; (3) faulty host bus adapters that do

not send out a FLOGI within a reasonable time frame.
Reason messages for an inactive state include:
— 1 Switch speed conflict (Director 2/64 only). The director data

speed was set to 2 Gb/sec, but the port only supports 1 Gb/sec operation

because it is on an FPM port card. (All ports on all installed FPM cards

will go inactive if the director data speed is set to 2 Gb/sec.) To activate

the port, either set the director data speed to 1 Gb/sec using the Configure

Switch Parameters dialog box, or replace the FPM card with a UPM

card.
— 2 Optics speed conflict (Director 2/64 only). The port data

speed was set to 2 Gb/sec, but the director data speed was set to 1 Gb/sec.

To activate the port, set the director data speed to 2 Gb/sec using the

Configure Switch Parameters dialog box. Note that a port could also be

88 Director Product Manager User Guide

■ Threshold Alert—If a threshold alert exists for the port, an alert indicator

Port Card Menu

While in the Port Card View, right-click the card away from a port connector to
display a menu of port card functions.

■ Block All Ports—Choose this option to display the Block All Ports dialog

Monitoring and Managing the Director

inactive if the card is an FPM card and the port data speed was set to 2

Gb/sec. To activate the port in this case, set director data speed to 1

Gb/sec, or replace the FPM card with a UPM card.

Note: Your director model and firmware may not allow variable data speed

settings.

(yellow triangle) displays by the Threshold Alert field, and the configured
name for the last alert received displays in the field.

box. Click Ye s to block all ports on the selected card or No to cancel.

Port Menu

■ Unblock All Ports—Choose this option to display the Unblock All Ports

dialog box. Click Ye s to unblock all ports on the selected card or click No to
cancel.

■ Diagnostics—Choose this option to display the Port Diagnostics dialog box.

Use this dialog box to run internal loopback and external loopback tests on
any port or all ports on the port card. Refer to the HP StorageWorks Director
2/64 Service Manual for instructions on using these diagnostics.

While in the Port Card View, right-click any port to display the following menu
options:

Port Properties

Click this to display the Port Properties dialog box. This dialog box displays
information about the port. See “Displaying Port Information” on page 85 for
more information.

89Director Product Manager User Guide

Monitoring and Managing the Director

Node Properties

Click this to display the Node Properties dialog box. Note that if a node is not
logged into the port, a message displays indicating that node information is not
available. For details on information that displays in this dialog box, refer to
“Displaying Node Properties” on page 102.

Port Technology

Click this to display the Port Technology dialog box. This dialog box displays the
following information:

■ Port number.

■ Connector type—Always LC.

■ Transceiver type—Longwave laser LC or shortwave laser LC.

■ Distance—General distance range for port transmission. This can be either

short-to-long distances for the longwave laser LC transceiver or short
distances for the shortwave laser LC transceivers.

■ Media—The Fibre Channel mode and optic size. For the longwave laser LC

transceiver, this would be single mode 9 micron. For the shortwave laser LC
transceiver, this would be multimode 50 micron or 62.5 micron.

■ Speed—This will be set to either 1 Gbit per second or 1 Gbit, 2 Gbit per

second.

Block Port

Click to display a check mark and block port transmission. If blocked, a node
attached to the port is prevented from logging into the director or communicating
with other devices attached to switch ports. A blocked port continuously transmits
offline signals (OLS). Click to remove the check mark and unblock the port. If
unblocked, a node attached to the port can communicate with the switch and
communicate with other nodes attached to the switch.

Enable Beaconing

Click this to make the amber LED by the port blink on the actual switch and the
amber indicator blink for the port in the Hardware View. This enables users to
locate the unit where the port is located. When a blinking amber LED indicator
displays by a port, an attention indicator ( ) displays below the port's connector
in the Port Card View and on the port card in the Hardware View.

90 Director Product Manager User Guide

Monitoring and Managing the Director

Diagnostics

Click this option to display the Port Diagnostics dialog box. Use this dialog box
to run an internal loopback and external loopback test on the port. The Port
Diagnostics option enables you to run internal and external loopback tests on any
port or all ports on a port card. To use this option, follow the detailed steps in the

HP StorageWorks Director 2/64 Service Manual.

Channel Wrap (FICON Management Style only)

Click this while in FICON management style to display a check mark and allow a
channel wrap test to be initiated from an attached host or device. In this test,
frames are sent to the director port, then the director echoes the frames back to the
sending device to test the channel. The director remains in channel wrap mode
until the option is disabled. While in channel wrap mode, the port can only accept
echo commands from the host and display as to be blocked to all other
communication. Click the check box to remove the check mark and disable
channel wrap.

Swap Ports (FICON Management Style only)

Click this while in FICON management style to display the Swap Ports dialog
box. Use this dialog box to swap addresses between ports.

Clear Link Incident Alerts

Click this to clear the attention indicator on the Hardware View, the Port List
View, and the Performance View. In addition, the procedure clears the status

description in Port Properties dialog boxes. If there are no link incident alerts set
for a port, no actions occur. Although you can manually clear link incidents, they
may also be cleared by actions outside of the user interface, such as when
rebooting the HAFM server.

Reset Port

Click to display a confirmation dialog box. Click Ye s on that dialog box to reset
the port. If a switch is attached to the port and is online, this operation sends a link
reset to the attached switch; otherwise, this action disables port beaconing for the
port. And if the port is in a failed state, such as after failing a loopback test, the
reset restores the port to an operational state, clearing the service required (amber)
LED. The reset does not affect other ports in the switch.

91Director Product Manager User Guide

Monitoring and Managing the Director

Port Binding

Click to display the Port Binding dialog box. Click the Port Binding check box
to enable port binding. Either choose the Attached WWN option to bind to the
attached device listed, or choose Detached WWN to enter the WWN or nickname
of the device to bind.

Figure 24: Port Binding dialog box

Port Binding dialog box parameters:

■ Port Binding—Click this check box to place a check mark in the box and

enable WWN binding for the port. When enabled, only a specific device can
communicate through the port. This device is specified by the WWN or
nickname entered into the Bound WWN field (either the Attached WWN or
Detached WWN options). With the check box cleared, any device can
communicate through the port, even if a WWN or nickname is specified in the
Bound WWN field.

■ Attached WWN—If a device is logged into the port, click this option and the

device's WWN displays in the field. The device with this WWN or nickname
has exclusive communication privileges to the port if Port Binding is
enabled.

Note: If you click this radio button to bind the port to a logged-in device and there

are no devices logged in, the port is essentially bound to a WWN of “0.” This
prevents any device from logging in until this button is re-enabled to bind the
WWN of a logged-in device or until you explicitly bind the WWN of a device,
and when you click the Detached WWN option and enter a WWN or nickname
(see the WWN next). Changes only take effect when you click the Activate button.

92 Director Product Manager User Guide

Monitoring and Managing the Director

■ Detached WWN—Click this option and enter a World Wide Name (WWN)

in the proper format (xx.xx.xx.xx.xx.xx.xx.xx) or a nickname configured
through the Product Manager application. The device with this WWN or
nickname has exclusive communication privileges through the port if Port
Binding is enabled.

Note the following:
— If you do not enter a valid WWN or nickname in this field, but the Port

Binding check box is checked (enabled), then no devices can

communicate over the port.
— If you enter a WWN or nickname in this field and do not place a check in

the Port Binding check box, the WWN or nickname is stored, and all

devices can communicate over the port.

■ Activate—Click this button to activate settings in this dialog box.

Warning and Error Message Display

■ If one or more of the nodes logged into a port does not match the WWN or

nickname configured in the field by the WWN option, a warning dialog box
displays after you activate the configuration. This warning box displays a list
of all nodes that will be logged off if you continue. If you click Continue on
the warning box, these nodes are logged off and the port only attaches to the
device with the WWN or nickname configured in the WWN field.

■ An error message displays after you activate the configuration if the format

for the WWN entered in the WWN field is not valid (not in
xx.xx.xx.xx.xx.xx.xx.xx format) or if you have entered a nickname that was
not configured through the Product Manager.

Clear Threshold Alerts

Click this to display the Clear Threshold Alerts dialog box. Choose the
appropriate option to clear alerts for the selected port only or for all ports on the
director. This clears all attention indicators that notify users of threshold alerts in
dialog boxes and views. This action also restarts the notification interval and the
cumulative minutes for utilization % interval.

Figure 25: Clear Threshold Alerts dialog box

93Director Product Manager User Guide

Monitoring and Managing the Director

Port List View

Display the Port List View by choosing Port List from the View menu.

Figure 26 is an example of the Port List View.

Figure 26: Port List View

The Port List View displays the following information on all ports that can be
installed in the director. All information is updated automatically.

■ #—The physical port number, from 0-63 on the Director 2/64, and 0-127 and

132-143 on the Director 2/140. Note that for the Director 2/140, ports
128-131 are internal ports and not available for external connections.

■ Addr (FICON Management Style only)—Displays the logical address of

the port. The address equals the port number, plus 4. For example, the address
for port 0 is 4 (0+4). If port addresses have been swapped, those addresses
will be followed by an asterisk (*).

94 Director Product Manager User Guide

Monitoring and Managing the Director

Note: This column applies during FICON management style only and does not

display during Open Systems management style.

■ Name—Displays the port name as configured through the Configure Ports

dialog box.

■ Block Config—Indicates the blocked or unblocked configuration of the port

as set through:
—The Configure Ports dialog box.
—The Block Port option is available through port right-click menus in the

Port Card View and the Block All Ports option on the port card’s

right-click menus in the Port Card View and Hardware View.
—The Block Port option is also available on the port row right-click menus

in the Port List View, the port bar graph right-click menus in the

Performance View, and the Port secondary menu of the Product menu

on the menu bar.
Blocked states are:
— Blocked: Devices communicating with the port are prevented from

logging into the director or communicating with other devices attached to

director ports. A blocked port continuously transmits OLS.
— Unblocked: Devices communicating with the port can log into the

director and communicate with devices attached to any other unblocked

port in the same zone.

■ State—The following port operational states may display in this table. For

more information on these states and corresponding status symbol and LED
indicator operations in the Hardware View, see “Port Operational States” on
page 112.

— No Light
—Online
— Offline
— Beaconing
—Link Reset
— Not Operational
— Not Installed

95Director Product Manager User Guide

Monitoring and Managing the Director

— Invalid Attachment
— Port Failure
— Segmented E_Port
— Link Incident
— Testing
—Inactive

■ Typ e—The type of port. F_Port displays if an N_Port is attached. E_Port

displays if another E_Port is attached. G_Port displays if the port can function
as either an F_Port or an E_Port, but nothing is currently attached.

■ Alert—This column displays a yellow triangle if a link incident occurs on the

port or if the port's LED is beaconing. Blinking red and yellow diamonds
display for port failures or for ports requiring service. Double-click the row to
display the reason for the status in the Port Properties dialog box.

Double-click a row to choose it, highlight it, and display the Port Properties
dialog box. For an explanation of the fields on the Port Properties dialog box,
refer to “Displaying Port Information” on page 85.

Menu Options

Right-click a row to choose it, highlight it, and display a menu with the following
port-related action options. These are the same menu options that display when
you right-click a port in the Port Card View and a port’s bar graph in the
Performance View. You can also click a port or bar graph in the preceding views
and choose the Port option from the Product menu on the menu bar. Refer to
“Port Menu” on page 89 for an explanation of these pop-up menu options.

■ Port Properties

■ Node Properties

■ Port Technology

■ Block Port

■ Enable Beaconing

■ Port Diagnostics

■ Channel Wrap (FICON Management Style only)

■ Swap Ports (FICON Management Style only)

■ Clear Link Incident Alert

96 Director Product Manager User Guide

Monitoring and Managing the Director

■ Reset Port

■ Port Binding

■ Clear Threshold Alerts

Note: For Node Properties, if a node is not logged in, a message displays

indicating that node information is not available.

97Director Product Manager User Guide

Monitoring and Managing the Director

FRU List View

Display the FRU List in the View panel by choosing the FRU List option from
the View tabs. This View displays information about all installed FRUs on the
director. All data is dynamic and updates automatically as the software detects
changes.

Figure 27: FRU List View

You can display the FRU Properties dialog box for FRU when you click the
FRU’s row to select it, then choose FRU Properties from the FRU submenu on
the menu bar’s Product menu.

Information on the FRU List View for each FRU includes:

■ FRU—An acronym representing the FRU type. The meanings of FRU

acronyms are:
— BKPLNE—Backplane.

98 Director Product Manager User Guide

Monitoring and Managing the Director

— CTP—CTP card.
— SBAR—SBAR card.
— Port Card—The following acronyms may display to indicate the card’s

port technology:

—GLSL—G_Port, long wave, single mode LC connector, 1 Gigabit

—GSML—G_Port, short wave, multimode, LC connector, 1 Gigabit

— GXXL—G_Port, mixed mode, LC connector, 1 Gigabit

—FPM—G_Port, small form factor optics (SFO) pluggable, FICON

port module, 1 Gigabit.

—UPM—G_Port, small form factor optics (SFP) pluggable, FICON

port module, 2 Gigabit.

— GSFM—G_Port, short wave, single mode, MT-RJ connector, 1

Gigabit

—GLSR—G_Port, short wave, single mode, MT-RJ connector, 1

Gigabit

— GXXR—G_Port, mixed mode, MT-RJ connector, 1 Gigabit

— GXXL—G_Port, mixed mode, LC connector, 1 Gigabit
— FAN —Fan module.
— PWR—Power supply.

■ Position—A number representing the FRU chassis position. The chassis

(slot) position for a non-redundant FRU is 0. The chassis positions for
redundant FRUs are 0 and 1. The chassis positions for port cards are from
0-63 on the Director 2/64, and 0-127 and 132-143 on the Director 2/140. Note
that for the Director 2/140, ports 128-131 are internal ports and not available
for external connections.

■ Status—The FRU status (Active or Backup).

■ Part Number—The FRU part number.

■ Serial Number— The FRU serial number.

99Director Product Manager User Guide

Monitoring and Managing the Director

Node List View

Display the Node List View in the View panel by choosing Node List from the
view tabs. This view displays information about all node attachments to any
F_Ports on the director sorted by port number. All data is dynamic and updates
automatically as devices log in and log out.

Figure 28: Node List View

Information that displays for each node includes:

■ Port #—The physical port number, from 0-63 on the Director 2/64, and 0-127

and 132-143 on the Director 2/140. Note that for the Director 2/140, ports
128-131 are internal ports and not available for external connections.

■ Addr—For FICON management style, displays the logical port address (port

number plus 4). For Open Systems management style, displays the node’s
Fibre Channel address.

■ Unit Type—The following information, if supported, is supplied by the

attached device:

—Converter

— Channel path ##, where ## will be replaced with the Channel Path

Identifier (2 hex digits)
— Communications controller
—Converter
— Direct access storage
—Gateway
—HBA

100 Director Product Manager User Guide
