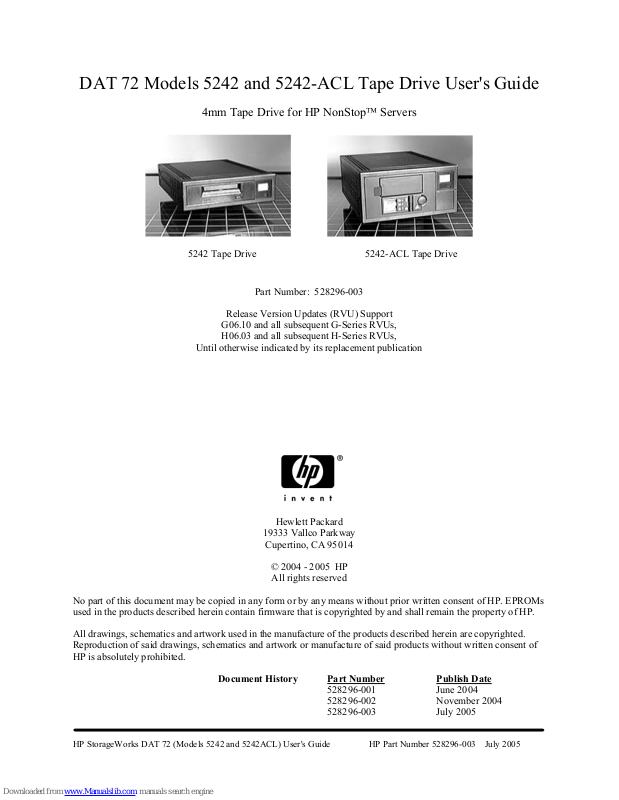

DAT 72 Models 5242 and 5242-ACL Tape Drive User's Guide

4mm Tape Drive for HP NonStop Servers

5242 Tape Drive 5242-ACL Tape Drive

Part Number: 528296-003

Release Version Updates (RVU) Support G06.10 and all subsequent G-Series RVUs, H06.03 and all subsequent H-Series RVUs,

Until otherwise indicated by its replacement publication

Hewlett Packard

19333 Vallco Parkway

Cupertino, CA 95014

No part of this document may be copied in any form or by any means without prior written consent of HP. EPROMs used in the products described herein contain firmware that is copyrighted by and shall remain the property of HP.

All drawings, schematics and artwork used in the manufacture of the products described herein are copyrighted. Reproduction of said drawings, schematics and artwork or manufacture of said products without written consent of HP is absolutely prohibited.

Document History Part Number

528296-001 June 2004 528296-002 November 2004 528296-003 July 2005

Publish Date

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 2

i List of Acronyms

ACL Automated cartridge loader ANSI American National Standard Institute BOM Beginning of media BOT Beginning of tape FRU Field replaceable unit DCLZ Data Compression Lempel Ziv DDS Digital Data Storage ECC Error correction code EOD End of data EOM End of media FRU Field replaceable unit LCD Liquid crystal display LED Light emitting diode SCSI Small Computer Systems Interface

ii Terminology Used in This Manual

Autoloader A device that includes a tape drive and a cartridge changer mechanism in a single case. Emulator The SCSI bridge between the host and the tape drive that provides intelligence to execute

commands to the tape drive and manipulate data for display on the LCD. Initiator A SCSI device that initiates the SCSI protocol to control one or many target devices. DAT72 Bare 3.5 inch 4mm DDS fifth generation tape drive. Target Receiver of the SCSI commands sent by an initiator. Target peripheral devices include

tape drives, tape drive robotics, disk drives, optical scanners, and so on.

iii Assumptions About Reader Knowledge

This manual assumes that the reader is familiar with:

• The operational principles of tape drives.

• The Small Computer Systems Interface (SCSI).

iv Safety Summary

Observe the following safety precautions during installation, operation and maintenance.

Warning

Keep away from live circuits. Do not connect the tape drive or make adjustments inside the equipment when the unit's power cord is connected. Voltages exist even when the power switch is in the off position. Always disconnect the power cord before removing the cover or touching any internal components.

CAUTION

Any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void user's authority to operate such equipment.

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 3

v Table of Contents

Section 1 – General Information

Chapter One

Chapter Two

Chapter Three

Chapter Four

Chapter Five

Chapter Six

Section 2 – 5242 Tape Drive

Chapter One

Chapter Two

Chapter Three

Chapter Four

......................................................................................………………………….1

Introduction.........................................................................………………………….1

Applications........................................................................………………………….1

Software Prerequisites.........................................................………………………….1

SCSI Cables ........................................................................………………………….1

Component Part Numbers...................................................………………………….2

Cartridges............................................................................………………………….2

Write-Protecting a Cartridge...............................................………………………….3

Labeled and Unlabeled Tapes.............................................………………………….3

Features...............................................................................………………………….3

......................................................................................………………………….5

SCSI Compatibility.............................................................………………………….5

DAT72 Format and Compatibility......................................………………………….5

....................................................................................………………………….6

Installing the 5242 and 5242-ACL on Nonstop Servers……………………….…….6

Installation Overview..........................................................………………………….6

Installation Planning ......................................................………………………….7

Physical Specifications ..................................................………………………….7

Environment Specifications ...........................................………………………….7

AC Power Requirements................................................………………………….8

Unpacking......................................................................………………………….9

Installing the Tape Drive................................................…………………………10

Connecting the SCSI Cable............................................…………………………11

Bringing the Tape Drive Online.....................................…………………………12

5242 Power-Up Sequence..............................................…………………………13

5242-ACL Power-Up Sequence.....................................…………………………14

Checking and Setting SCSI the ID.................................…………………………15

Starting and Testing .......................................................…………………………17

Troubleshooting .............................................................…………………………18

Configuring the 5242 and 5242-ACL for Nonstop Servers.…………………………19

......................................................................................…………………………24

Preventive Maintenance......................................................…………………………24

5242 Tape Path Cleaning....................................................…………………………24

5242-ACL Tape Path Cleaning...........................................…………………………25

Cleaning the Exterior ..........................................................…………………………26

Operating Environment.......................................................…………………………26

......................................................................................…………………………27

Technical Support ...............................................................…………………………27

........................................................................................…………………………28

Cabling Limitations.............................................................…………………………28

Differential Devices............................................................…………………………28

Cooling Fan and System .....................................................…………………………28

Specifications......................................................................…………………………28

......................................................................................…………………………30

Introduction.........................................................................…………………………30

Features...............................................................................…………………………30

......................................................................................…………………………31

Loading and Unloading a Cartridge....................................…………………………31

....................................................................................…………………………32

Controls and Indicators.......................................................…………………………32

Understanding the LEDs.....................................................…………………………32

......................................................................................…………………………34

Upgrading the Firmware From Tape...................................…………………………34

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 4

Section 3 – 5242-ACL Tape Drive

Chapter One

......................................................................................…………………………35

Introduction.........................................................................…………………………35

Features...............................................................................…………………………35

Chapter Two

......................................................................................…………………………36

Mode of Operation..............................................................…………………………36

Terminology........................................................................…………………………36

Front Panel Buttons.............................................................…………………………36

Loading and Unloading the Magazine and Cartridges........…………………………37

Ejecting the Magazine and Cartridges ................................…………………………38

Forcing a Tape to Eject.......................................................…………………………39

Front Panel LEDs................................................................…………………………39

Self-Test Display ................................................................…………………………40

Chapter Three

....................................................................................…………………………41

Display Regions on the Autoloader LCD ...........................…………………………41

Diagnostic Display..............................................................…………………………41

LCD Categories of Information ..........................................…………………………41

LCD Messages....................................................................…………………………43

Chapter Four

......................................................................................…………………………49

Upgrading Firmware...........................................................…………………………49

Section 4 – SCSI Electronics

Chapter One

......................................................................................…………………………50

Controls and Indicators.......................................................…………………………50

Mode Switch.......................................................................…………………………50

LEDs ...................................................................................…………………………50

Front Panel LCD.................................................................…………………………51

Understanding the Capacity Bar Graph ..............................…………………………51

Chapter Two

......................................................................................…………………………51

Introduction.........................................................................…………………………51

Initial LCD..........................................................................…………………………52

Performance LCD Format...................................................…………………………52

Setting Tape Density...........................................................…………………………55

Setup Display Format..........................................................…………………………55

Setup 1 Configuration Display Format ...............................…………………………58

Setup 2 Configuration Display Format Items......................…………………………61

Setup 3 Off-Line Utilities Display Format Items................…………………………62

Section 5 – Index and Safety

..................................................................................................…………………………68

Index Safety and Compliance

......................................................................…………………………70

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 5

viii About This Manual

This manual provides installation, operation, and maintenance Instructions for the 5242 and 5242-ACL tape drives. This guide first presents information common to both units and then provides product-specific information.

Section I Provides information that applies to both the 5242 and the 5242-ACL tape drive.

Section II Provides a detailed description of the 5242 tape drive

Section III Provides a detailed description of the 5242-ACL tape drive

Section IV Explains the electronics that execute SCSI commands to the tape drive and that provide

performance and statistical information to the LCD.

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 6

CLEAN TAPE HEADS

To maintain optimum performance and to prevent READ/WRITE errors, clean the tape heads of the 5242 and 5242ACL tape drive on a regular basis. Use the cleaning schedule noted in Table 1.

5242 and 5242-ACL Tape Path Cleaning

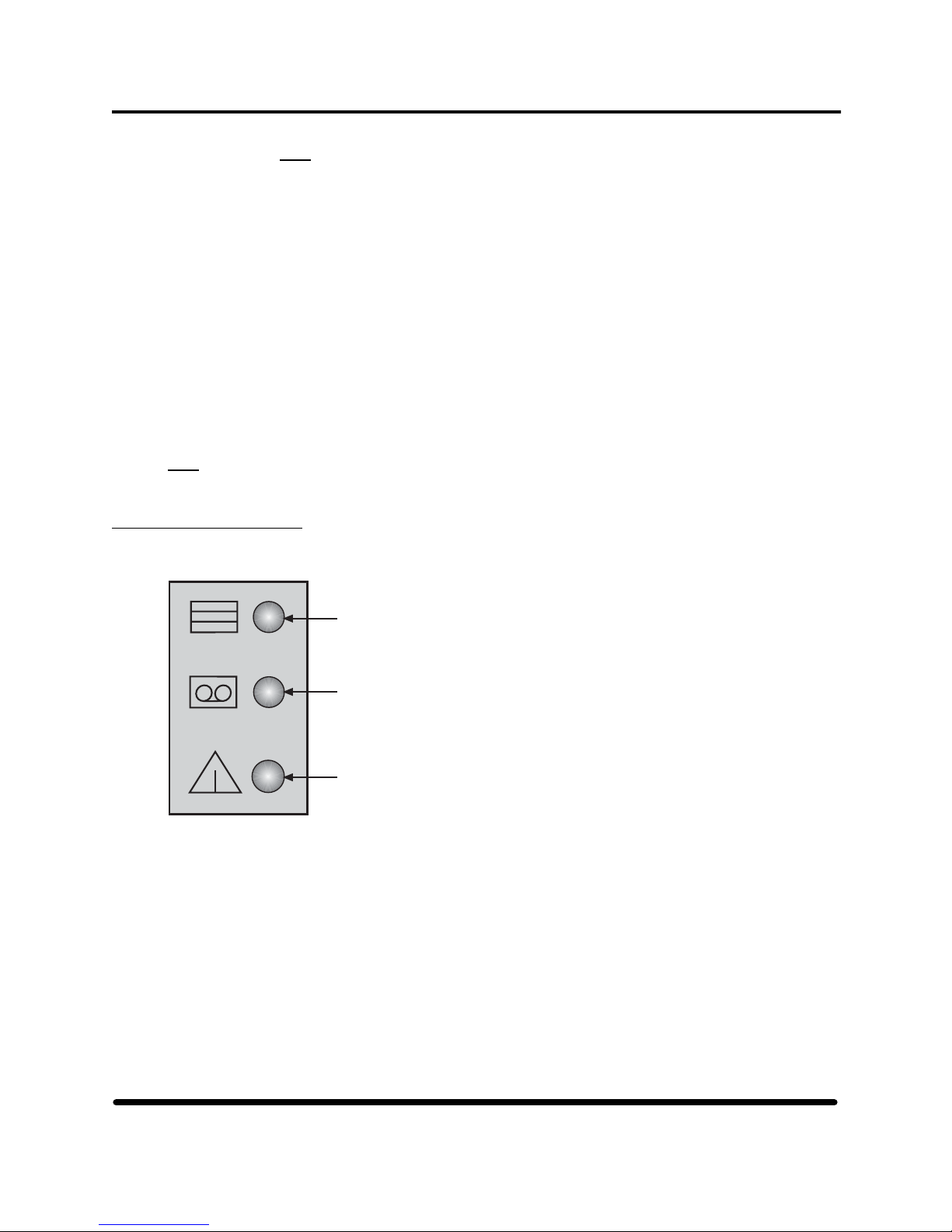

The Clean/Attention LED is located on the front panel of the tape drive. When it flashes amber, the tape heads are dirty and need to be cleaned.

Write E F COMPRESS

Tape Clean/

Attn.

2.3:1

Detail

Eject

Button

Mode

Switch

Figure 1 5242 Clean/Attention LED

Magazine Present LED

Autoloader LCD

Operator Attention Required

LED

Select Button

Eject

Tape

Activity

LED

Load Tape

Button

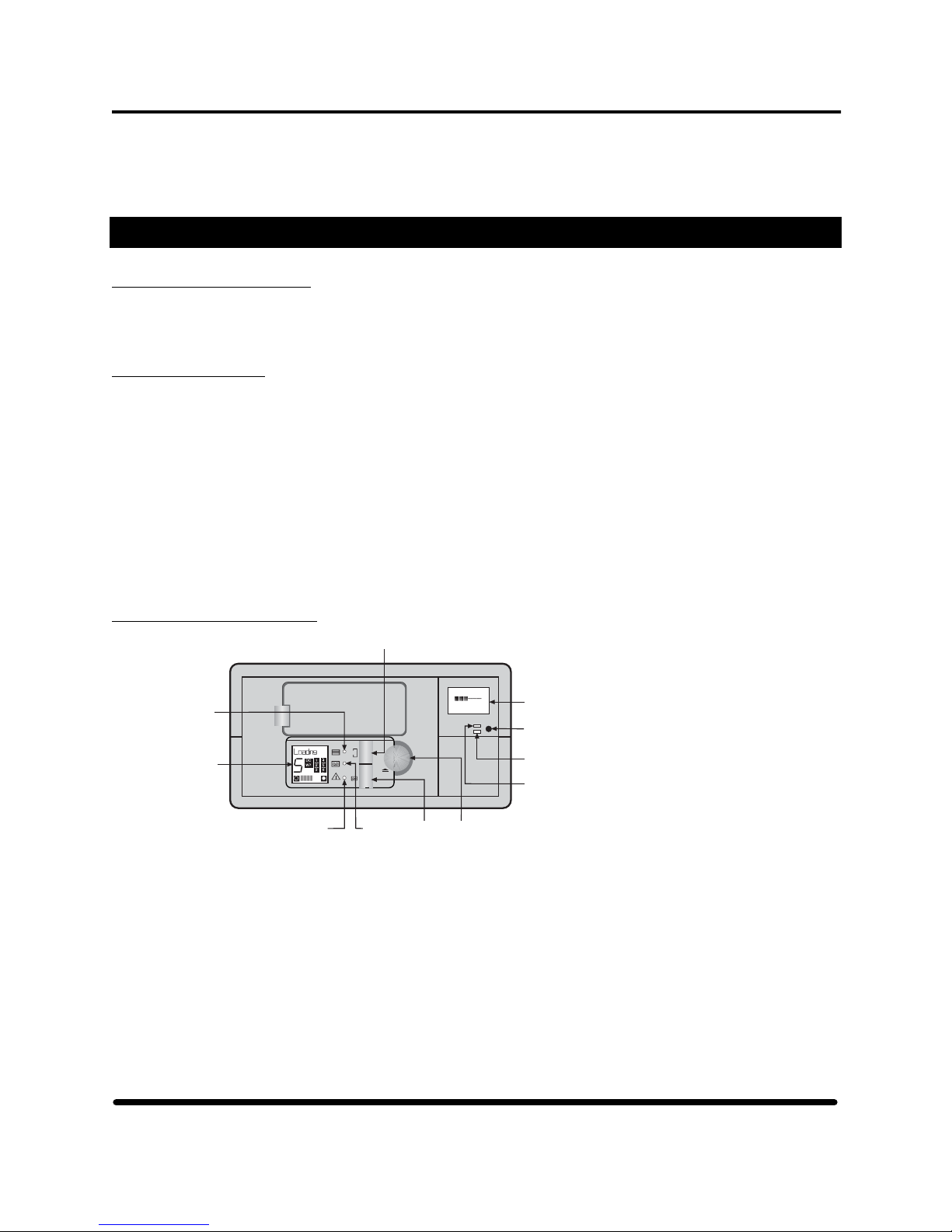

Write E F COMPRESS

2.3:1

Eject

Button

4-Line LCD, 8-Characters per line

Mode Switch

Programmable Error-Alert LED

Compression Indicator LED

Figure 2 5242-ACL Autoloader's front panel

Recommended Cleaning Schedule for

125m DDS-3 and 170m DAT72 Tape Cartridges

Number of tape cartridges used each day Recommended Cleaning Frequency

Table 1 Cleaning schedule for the 5242 when using DDS-3 and DAT72 tape cartridges

1 2 3 4 or more

8 weeks 4 weeks 3 weeks Weekly

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 7

Using the Cleaning Cartridge

: To prevent contamination of the subsystem and damage to the heads (1) do not use the cleaning

Note

cartridge for more than the manufacturer's specified number of cleaning cycles; and (2) do not attempt to rewind the material in the cleaning cartridge and reuse it.

 Insert the cleaning cartridge into the drive. The drive automatically takes the cartridge, loads it and

cleans the heads. After about 30 seconds, the drive ejects the cartridge.

: If the cartridge ejects after only about 14 seconds, this means the cartridge has reached the end of its

Note

useful life, and no cleaning has occurred. The Cleaning Needed LED may still be illuminated. If this happens, discard the cartridge and with a new cleaning cartridge, repeat the cleaning operation.

 Take the cartridge out of the drive. Write the date on the label of the cleaning cartridge so that there

is a record of how many times it has been used. Do not use the cleaning cartridge more times than specified by the manufacturer.

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide HP Part Number 528296-003 July 2005

Page 8

Section 1: General Information

General Information

1.1 Introduction

Both the 5242 and 5242-ACL tape drives use helical scan tape technology and offer full read-and-write capability. They come in tabletop configurations that integrate a tape drive, status display, and highperformance SCSI electronics.

With a steel chassis and a sturdy ABS plastic shell, the 5242 and 5242-ACL provide optimal performance in many environments. Place units on top of each other like stereo components or line them up like books on a shelf. The modules interlock securely for stability. With individual power supplies, they are self-contained and independently field replaceable units (FRUs).

1.2 Applications

The 5242 and the 5242-ACL are typically used as backup devices to prevent data loss from human error and hardware failures. They also support other tape applications such as:

• Archive data

• NonStop s-series SIT / SUT distribution

• File inquiry and update

• Distribution and exchange of data and software

1.3 Software Prerequisites

• G06.23 or later versions of OSM are required for HP NonStop S-series servers

• H06.03 or later versions of OSM are required for HP Integrity NonStop servers

• 5242 and 5242-ACL tape drives are supported on G06.10 through G06.22 by installing the G06.23 or later version of OSM and the appropriate software product revisions (SPRs). See prerequisite SPRs for OSM In the OSM Migration Guide for G06.23 or later.

1.4 SCSI Cable

A copper SCSI cable is used to connect the tape drive FRU to a NonStop server. One end of the cable has a 68-pin connector with thumb screws that connect to the uncapped SCSI port at the rear of the tape drive. The other end of the cable also has a 68-pin connector with thumbscrews that connects to the NonStop Sseries differential SCSI port or to the HP M8201fibre channel to M8201 Fibre Channel to HVD SCSI router on Integrity NonStop servers. Connectivity is supported for Integrity NonStop servers via attachment to a NonStop S-series I/O enclosure. Copper SCSI cable lengths can range from 10 feet (3 meters) to 75 feet (23 meters).

: The 5242 and 5242-ACL tape drives do not include a SCSI Cable. HP offers a variety of

Note

SCSI cable lengths . For HP cable information, see section 6.1 on page 28.

Section 1

Chapter One

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide 1 HP Part Number 528296-003 July 2005

Page 9

Section 1: General Information

1.5 Tape Drive Part Numbers

Description Part Number

5242 tape drive FRU 528078-001 5242-ACL tape drive FRU 528079-001 Each tape drive includes:

 Terminator, 68-pin  170m DAT72 data cartridge  Cleaning tape  User documentation (CD)

Table 2 Tape drive part numbers

1.6 Cartridges

A cartridge is a storage device that contains either magnetic tape or a cleaning ribbon inside a protective case. The cartridge protects the tape or ribbon and makes handling easier. The two types of cartridges: (1) cleaning cartridges and (2) cartridge tapes.

1.6.1. Cleaning Tapes

Cleaning cartridges are used to clean the recording heads of the tape drive with a cleaning ribbon.

1.6.2 Cartridge Tapes

Cartridge tapes hold magnetic storage media for the tape drive. A cartridge tape is a self-contained plastic shell containing a spool of magnetic tape. These cartridges are used to record and read back system data.

1.6.3 Humidity

To avoid condensation problems, allow a tape to stabilize at least two hours after a change in humidity or temperature before using.

1.6.4 Life Expectancy of Tapes

DDS-certified media is electronically checked to withstand at least 2000 passes. Under optimum environmental conditions (50% relative humidity, 22ºC), this is equivalent to about 200 to 300 backup operations. This rating takes into account that an area of tape might have several passes during a backup. Sustained use at the low end of the humidity specification reduces the tape life.

1.6.5 Using Labels

Cartridge and magazine labels must be firmly stuck to the recessed label area and nowhere else. To avoid a mechanism jam:

• Labels must be firmly stuck and not peeling off or curling at the corners.

• Labels must be stuck only within the label area.

• A label must not be stuck on top of another label.

• Only use the labels that are supplied with the cartridges or magazine.

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide 2 HP Part Number 528296-003 July 2005

Page 10

Section 1: General Information

1.6.6 Write-Protecting a Cartridge

The tape cartridge has a write-protect switch that protects data cartridges from being overwritten. To protect the cartridge, slide the switch all the way to the left. The hole will be visible. Data can then be read from the tape but not written to it. Slide the switch to the right (covering the hole) to write-enable the cartridge. Data can be written to and read from the tape.

Cartridge to be Loaded

in this Orientation

Cartridge to be Loaded

in this Orientation

Digital Data Storag

Label Side Up

Write Enabled

White Switch to the Right

Label Side Up

Write Protected

White Switch to the Left

Figure 3 Write-protecting a cartridge

Caution

: The tape log, which contains a history of usage of the tape, is not updated when

the cartridge is write-protected. The tape log is invalid if a cartridge is used when write-protected.

1.7 Labeled and Unlabeled Tapes

The 5242 and 5242-ACL tape drives can use both labeled and unlabeled cartridge tapes. A tape

label is a record at the beginning of a tape that identifies the tape volume and the files it contains. An expiration date protects labeled-tape information from being accidentally overwritten. A scratch tape is a labeled tape with an expiration data that has passed. If a tape has no standard label, it is considered unlabeled. Nonstop servers support two standard tape-label formats:

 ANSI  IBM-MVS

: Because they can be cataloged and offer security features for protecting data, labeled tapes

Note

should be used with the 5242 and 5242-ACL tape drives.

1.8 Features

1.8.1 Recording Technology:

 Helical scan tchnology

18.2 Capacity:

Typical Native Data Capacity

125m cartridge DDS-3 12.0 GB 72.0 GB 170m cartridge DAT72 36.0 GB 216.0 GB

Table 3 Tape cartridge capacities

Drive Type 5242 5242-ACL

Digital Data Storag

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide 3 HP Part Number 528296-003 July 2005

Page 11

Section 1: General Information

1.8.3 SCSI bus data transfer rates (sustained):

• 3.0 MB/s uncompressed

• 6.0 MB/s compressed

1.8.4 SCSI bus data transfer rates (burst):

• 3.0 Mb/s asynchronous

• 10.0 Mb/s synchronous

1.8.5 Interface:

• SCSI-3, high-voltage differential

1.8.6 LCD status display and control panel include:

• Intelligent front end, backlit, supertwist LCD

• Advanced drive test and exercise function

• Firmware upgrade function

HP StorageWorks DAT 72 (Models 5242 and 5242ACL) User's Guide 4 HP Part Number 528296-003 July 2005

Page 12

Section 1: General Information

Chapter Two

2.1 SCSI Compatibility

5242 and 5242-ACL tape drives comply with the American National Standard Institute (ANSI) standard X3.131-1986 (SCSI-1) and the ANSI standard X3T9.2 (SCSI-2). These standards define the specifications for the Small Computer System Interface (SCSI). As defined by the ANSI, SCSI is essentially an input/output bus for interconnecting computers and peripherals.

2.2 DAT72 Format and Compatibility

5242 and 5242ACL DAT72 format is an extension of the DDS-3 format. DDS formats have been developed to provide data storage for computers by using and extending DAT technology. DAT72 allows 36 GB of uncompressed data to be stored on a DAT72 (170m) cartridge. Data compression can increase the cartridges native capacity. A compression ratio of 2:1 raises the capacity of the cartridge to 72 GB.

• The DAT72 format allows compressed data to be stored in a way that maintains the full functionality of the DDS-3 format and ensures backward compatibility in reading and writing with existing 5142 and 5142ACL DDS-3 tape drives.

• The drive automatically decompresses data even if data compression is switched off.

• DDS-3 tapes written on a DAT72 drive are readable on a DDS-3 drive; however, a DAT72 tape (170 meters) is not readable on a DDS-3 drive. A DDS-3 drive (both single drive and ACL models) automatically ejects a DAT72 cartridge. An ACL unit ejects the cartridge into the magazine but does not unload the magazine. Additionally, the ACL displays: TAPE FAULT: TRY NEW TAPE.

• The DAT72 format uses the same error correction techniques as the DDS-3 format. It incorporates the error correction techniques used in DAT drives with additional techniques designed to provide superior data integrity.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 5 HP Part Number 528296-03 July 2005

Page 13

Section 1: General Information

Chapter Three

3.1 Installing the 5242 and 5242-ACL Tape Drives on Nonstop Servers

This chapter describes how to plan for and install the 5242 and 5242ACL tape drives:

• Installation overview

• Installation planning

• Unpacking the 5242 and 5242-ACL tape drives

• Installing a 5242 or 5242-ACL tape drives

• Starting and Testing the 5242 and 5242-ACL tape drives

• Troubleshooting the 5242 and 5242-ACL tape drives

3.2 Installation Overview

This table summarizes the tasks involved in installing a 5242 or 5242-ACL tape drive on a NonStop server:

Task Description See these headings

1. Plan for the installation. Installation Planning

2. Unpack the 5242 or 5242-ACL tape drive subsystems.

3. Connect the 5242 or 5242-ACL tape drive to the NonStop server.

4. Use SCF to add the 5242 or 5242-ACL tape drive to your configuration.

5. Bring the 5242 or 5242-ACL tape drive online.

6. Verify or set the SCSI ID for the 5242 or 5242-ACL tape drive.

7. Verify that the 5242 or 5242-ACL tape drive is ready for use.

Table 4 Summary of the tasks for installing the 5242 or 5242-ACL tape drives

3.2.1 Installation Planning

If connecting the 5242 or 5242-ACL tape drive to a previously installed NonStop server or to a new NonStop server, review the following information about site planning, power requirements and cable considerations before beginning tape drive installation.

3.2.1.1 Service Clearance and Dimensions

Note the following positioning and size information before beginning the installation:

• The 5242 and 5242-ACL requires 23 by 33 centimeters (9 inches by 13 inches) of space.

• Allow clearance of 31 centimeters to 46 centimeters (12 inches to 18 inches) at the front and 31 centimeters (12 inches) at the rear of each tape drive for adequate ventilation and servicing.

3.2.1.2 Physical Specifications

• 5242 dimensions:

•L292mm x W211mm x H64mm

•L11.5" x W8.3" x H2.5"

Unpacking the 5242 or 5242-ACL tape drives. Connecting the 5242 or 5242-ACL tape drives to a NonStop server. Configuring the 5242 or 5242-ACL tape drive online using SCF.

Bringing the 5242 or 5242-ACL tape drives online after installation. Checking and setting the SCSI ID.

Starting and testing the 5242 and 5242-ACL tape.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 6 HP Part Number 528296-03 July 2005

Page 14

Section 1: General Information

• 5242-ACL dimensions

•L292mm x W211mm x H107mm

•L11.5" x W8.3" x H4.2"

• The AC power cord measures 1.8 meters (6 feet).

• The maximum cable length for attaching a 5242 or 5242-ACL to a NonStop S-series server, M8201 Fibre Channel to HVD SCSI router, or NonStop S-series I/O enclosure is 25 meters (82 feet).

3.2.1.3 Environmental Requirements

Factor Operating (with

Temperature 5ºC to 40ºC -40ºC to 45ºC Relative Humidity Acoustic Noise 28 dB N/A

tape loaded)

20% to 80% 5% to 95%

Table 5 Environmental requirements for the 5242 and 5242-ACL

Country/

Region

North America (locking plug) North America (locking receptacle) Austria, Belgium, Finland, France, Germany, Netherlands, Norway and Sweden Australia, New Zealand United Kingdom 10 250 BS-1363 Switzerland 10 250 SEV

Italy 10 250 CEI 23-16/VII Denmark 10 250 Afsnit 107

Current (Amps)

10 125 NEMA 5-15P

10 125 NEMA 5-15R

10 250 CEE 7/7

10 250 AS 3112

Voltage

(Volts)

Table 6 Current and voltage ratings of AC power cords available for the tape drive

Nonoperating

Plug

1011.1959

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 7 HP Part Number 528296-03 July 2005

Page 15

Section 1: General Information

3.2.1.4 AC Power Requirements

Each 5242 and 5242-ACL tape drive includes an auto ranging-power supply that accepts input current in a voltage range of 115 volts AC to 230 volts AC at 50 hertz to 60 hertz. No switch is required to change between ranges or between 50 hertz and 60 hertz.

: The power supply cannot be replaced as a subassembly. If the power supply fails,

Note

you must replace the entire tape drive.

Power Volts 5242

USA 60 Hz 110/120 0.6 1.0 Europe 50 Hz 220 0.3 0.5 Orient 50 Hz 200 0.3 0.5

Amperes

Table 7 AC power requirements for the tape drive

Each tape drive includes a 1.8-meter (6-foot) AC power cord. One end of the power cord plugs in to the socket near the AC power switch at the rear of the tape drive. The other end of the power cord is routed to the AC power source. (See Connecting and Routing the AC Power Cords, page 10).

3.2.2 Unpacking the 5242 and 5242-ACL Tape Drives

The 5242 and 5242-ACL tape drives are shipped in individual cartons. Each carton contains the tape enclosure and a User's Kit. (See Figure 4.) A copper SCSI interface cable, if ordered, is shipped in a separate box.

5242-ACL

Amperes

User's Kit

Foam Supports

Tape Subsystem Enclosure

Shipping Container

Figure 4 Unpacking a 5242 or 5242-ACL tape drive

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 8 HP Part Number 528296-03 July 2005

Page 16

Section 1: General Information

3.2.2.1 The 5242 User's Kit contains:

• One 68-pin high voltage differential terminator

• One 170 meter DAT72 data cartridge

• One cleaning cartridge

• One power cable

• One CD user manual

3.2.2.2 The 5242-ACL User's Kit contains:

• One 68-pin high voltage differential terminator

• One 170 meter DAT72 data cartridge

• One cleaning cartridge

• One 6-tape magazine

• One user manual on CD

3.2.2.3 To unpack the 5242 or 5242-ACL tape drive:

1. Use a utility knife to cut the tape holding the carton's top flaps closed.

2. Open the flaps and remove the User's Kit box.

3. Lift the enclosure and foam supports out of the container. Set on a flat level surface.

4. Carefully remove the foam supports from either end of the tape drive enclosure.

5. Inspect the tape drive for shipping damage.

: Record any damage on the shipping bill. Report any damaged equipment to HP.

Note

Failure to report damaged equipment immediately can result in a loss of claim.

6. Check you have:

• 5242 or 5242-ACL tape drive

• User's Kit containing user manual, terminator, and power cord. If you are using a 5242-ACL, you will also find a 6-tape magazine.

7. Move the 5242 or 5242-ACL tape drive into place. Note the service clearance information. See Section 1, Chapter 3, Page 6.

8. Install the tape drive and connect it to the NonStop server. See the next section.

3.2.3 Installing the 5242 and 5242-ACL Tape Drive

This subsection describes the steps necessary to install the 5242 or 5242-ACL tape drives.

3.2.3.1 Connecting and Routing the AC Power Cord

An AC power cord connects the power supply in the 5242 and 5242-ACL tape drive to the external power source. To connect an AC power cord to the 5242 and 5242-ACL tape drives (assumes a non-computer-room installation):

1. Check that the AC power switch on the tape drive is set to the OFF (0) position. This prevents power from being accidentally supplied to the tape drive.

2. Plug the AC power cord connector into the AC power receptacle at the rear of the tape drive. See Figures 5 and 6.

3. Plug the other end of the AC power cord into the external power source. For information about power requirements, see AC Power Requirements on page 8.

4. Move the 5242 or 5242-ACL tape drive into place. Note the service clearance information under Service Clearance and Dimensions on page 6.

5. Install the 5242 or 5242-ACL tape drive and connect it to the NonStop server.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 9 HP Part Number 528296-03 July 2005

Page 17

Section 1: General Information

Blank

Fan AC Out

SCSI

Connectors

AC Out

Power

Connector

Power Switch

AC In Power Connector

Figure 5 5242 subsystem rear panel

Blank

Power Switch

AC Out Power Connector

Fan

SCSI

Connectors

AC In

Power

Connector

Figure 6 5242-ACL subsystem rear panel

3.2.3.2 Connecting a SCSI Cable to the Tape Drive FRU

Copper SCSI cables come in lengths ranging from 3 to 25 meters (10 – 82 feet) and do not require special installation. At the rear of each tape drive FRU, there are two 68-pin SCSI ports. SCSI cable links. Connect one of these ports to the NonStop S-series server, M8201 Fibre Channel to HVD SCSI router, or S-Series I/O enclosure for use on Integrity NonStop servers.. A SCSI terminator plugs into the other port. See Figure 9. Connect the SCSI cable to the SCSI port on the tape drive:

1. Locate the SCSI cable.

2. Align the 68-pin SCSI cable connector, which has thumb screw connectors, with the uncapped SCSI port on the top as you face the rear of tape drive.

3. Attach the 68-pin SCSI cable connector to the SCSI port and secure the thumb screw connectors. (See Figure 7.)

4. Ensure a SCSI terminator is firmly installed one of the two SCSI ports.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 10 HP Part Number 528296-03 July 2005

Page 18

Section 1: General Information

Copper

SCSI Cable

to PMF CRU

SCSI Port

SCSI

Terminator

on Port

Figure 7 Connecting the SCSI cable to the drive

3.2.3.4 Bringing the Tape Drive Online

After the 5242 or 5242-ACL tape drive has been installed and the cables attached, bring the tape drives online. For each tape drive:

1. Verify the AC power cord for the tape drive is plugged into an external power source.

2. Check that the 5242-ACL magazine is not in the drive.

3. Apply power to the tape drive by setting the AC power switch to the ON (|) position. To power off the tape drive, set the AC power switch to the OFF (0) position. See Figures 8 and 9.

Blank

Power Switch

AC In Power Connector

Fan AC Out

SCSI

Connectors

AC Out

Power

Connector

Figure 8 AC power switch on the 5242 tape drive

Fan

Blank

SCSI

Connectors

AC In

Power

Connector

Power Switch

AC Out Power Connector

Figure 9 AC power switch on the 5242-ACL tape drive

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 11 HP Part Number 528296-03 July 2005

Page 19

Section 1: General Information

4. Observe the progress of the power-on self-test on the front panel of the tape drive. See 5242-ACL Power-Up Sequence or Tape Drive Power-Up Sequence on page 12.

5. After the drive is installed and configured, bring up the path to the system using the

SCF START command:

1>SCF

->START $TAPE1

->EXIT

6. Run SCF commands to ensure the integrity of the modular tape subsystem. For the SCF commands, see Starting and Testing the Tape Drives page 16.

3.2.3.5 5242 Tape Drive Power-Up Sequence

When power is applied to the 5242 tape drive, the tape drive performs a series of self-tests to verify operation. The two LEDs (green and amber) below the drive access slot both turn on for one second. The amber light then turns off and the green LED flashes for 6 seconds. Both LEDs turn off when self-test completes. The LCD displays power-on self test for 2 seconds and then switches to the revision screen.. The tape drive is ready for operation when the revision screen appears on the front panel LCD. You can load a cartridge at this point by inserting the cartridge into the tape drive's access slot. If an error message appears during the power-up sequence, see Troubleshooting the 5242 and 5242-ACL Tape Drives on page 17.

Write E F COMPRESS

Tape Clean/

Attn.

2.3:1

Detail

Eject

Button

Mode

Switch

Figure 10 5242 tape drive LEDs

3.2.3.6 5242-ACL Power-Up Sequence

The AC power switch at the rear of the tape drive powers all internal components. When power is applied, the 5242-ACL performs a series of self-tests to verify operation of the 5242-ACL control panel LED, LCD, and the autoloader. The 5242-ACL has two LCD screens: the tape drive LCD and the autoloader LCD. (See Figure 15.) The tape drive LCD is the main display and is located on the right side of the front panel when facing the front of the tape drive. This display operates the same as described for the 5242 tape drive. The autoloader LCD is located below the drive's magazine access door. Next to this display are three LEDs.

Magazine Present LED

Autoloader LCD

Operator Attention Required

LED

Select Button

Eject

Tape

Activity

LED

Load Tape

Button

Write E F COMPRESS

2.3:1

Eject

Button

4-Line LCD, 8-Characters per line

Mode Switch

Programmable Error-Alert LED

Compression Indicator LED

Figure 11 5242-ACL front panel identified

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 12 HP Part Number 528296-03 July 2005

Page 20

Section 1: General Information

The 5242-ACL's power-up sequence includes:

1. The three LEDs blink until the self-test completes (approximately 30 seconds).

2. All segments of the 5242-ACL's autoloader LCD are energized.

3. The SCSI ID of the internal drive electronics displays on the autoloader LCD. This is not the same ID as seen by the NonStop server.

4. The value of the internal drive configuration switches is shown. It should be FF1.

5. A self-test message displays on the 5242-ACL autoloader LCD.

6. The Insert Mag message appears on 5242-ACL autoloader's LCD indicating that the tape drive is ready for operation.

If the magazine is inserted (but not loaded) during the power-up sequence, a message

prompts you to close the door. The drive is ready for operation when the Insert Mag message appears on the autoloader LCD. Load a cartridge by inserting it into the slot until the loader takes it in automatically. If an error message appears during the power-up sequence, see Troubleshooting the 5242 and 5242-ACL Tape Drives on page 17.

3.2.3.7 Checking and Setting the SCSI ID

The SCSI ID identifies the tape drive to the NonStop server. To display the SCSI ID, use the mode button and main LCD on the tape drive front panel. Tape drives attached to a NonStop server use a SCSI ID of 5 (daisy-chained drives use IDs 5 and 4). Tape drives always shipped with a SCSI ID of 5. Check the SCSI ID during installation, or after tape drive replacement.

The SCSI ID of a tape drive is stored in nonvolatile RAM. You can check or set the SCSI ID using the mode button and main LCD on the tape drive front panel. Power must be cycled to the tape drive to check or set the SCSI ID. The procedure is the same for both the 5242 and 5242-ACL. Familiarize yourself with the 5242 and 5242-ACL front-panel controls before beginning this procedure and review Sections 2 and 3.

1. Press the mode switch while powering on the 5242 or 5242-ACL tape drive. The following displays appear on the main LCD and cycle at a two second interval:

*Set-Up* Release Button to Start

Mode Switch

Enter Set-Up 1 PRESS to Select

Enter Set-Up 2 PRESS to Select

Enter Set-Up 3 PRESS to Select

Exit Set-Up PRESS to Select

Figure 12 5242 and 5242ACL setup menus

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 13 HP Part Number 528296-03 July 2005

Page 21

Section 1: General Information

2. Push the mode switch when Setup 1 appears. Screens cycle at a 2-second interval.

Enter Set-Up 1

PRESS to Select

Tape Term: On

*NOT sel ectable*

SCSI ID: [00]

PRESS to Alter

Density: [C0]

PRESS to Alter

Tape ID: [00]

*NOT sel ectable*

Rwr% 0.5 Ecc: 0.5

PRESS to Alter

Exit Set-Up 1

PRESS to Select

Figure 13 Setup 1 configuration menu

3. Select the SCSI ID screen by pressing the mode switch when the SCSI ID screen appears. This configuration menu item allows you to set the SCSI ID.

SCSI ID: [00] PRESS to Alter

Figure 14 Setting the SCSI ID

4. When the screen reads PRESS to Alter, press the mode switch.

5. The LCD shows the instruction PRESS to Increment. On the second line of the display, a highlight indicates what digit is alterable. To increment the digit, press the mode switch.

6. If no mode switch activity occurs for four seconds, the display shows PRESS if Done to confirm the setting. The displays returns to the Setup 1 configuration menu. Press the mode switch to exit the setup menus.

7. Check the new SCSI ID:

8. After setting the SCSI ID, cycle power to the drive using the AC power switch on the rear of the tape drive. Once complete, check the stored SCSI ID is correct. The ID is shown in the revision display on the main front panel LCD after power-up (ID is shown in the three right most positions on the last line of the display). Alternately, repeat the procedure in Checking and Setting the SCSI ID on page 13.

3.2.4 Starting and Testing the Tape Drives

This subsection describes the SCF commands to be used to start and test tape devices.

3.2.4.1 Starting a Tape Device

SCSI ID: [01] PRESS to Incremnt

SCSI ID: [01] PRESS if Done

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 14 HP Part Number 528296-03 July 2005

Page 22

Section 1: General Information

Use the SCF START TAPE command to start a tape device after the 5242 or 5242-ACL tape drive has been installed. The START command makes a stopped tape drive accessible to user processes. When the START command finishes successfully, the tape drive is in the

STARTED state. For more on the START command, see the SCF Reference Manual for the Storage Subsystem. For example:

->START $TAPE0

3.2.4.2 Testing a Tape Device

Use the SCF STATUS TAPE, DETAIL command to produce a report that shows information such as processor numbers for the tape process, logical device number of the tape device, and current state of the tape device. For example:

->STATUS TAPE $TAPE0, DETAIL

STORAGE – Detailed Status TAPE $TAPE0

Tape Process Information: LDev State SubState Primary Backup DeviceStatus

68 STARTED 0,291 1,273 ONLINE,BOT

Current Settings:

ACL ..............NOT INSTALLED/UNK BufferLevel .......RECORD

CheckSumMode .....NORMAL I/O *Compression ......OFF

Density ..........2.4-4.8 KB/mm Media Type ........Not applicable

Opens ............0 Product ...........5140/5142

RecSize ..........2048 Short Write Mode ..ALLOWED, PADDED

Subtype ..........11 Tape Mode .........STREAM

Volume Switching .EOT

PID PID

Figure 15 Example of a SCF status tape detail command

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 15 HP Part Number 528296-03 July 2005

Page 23

Section 1: General Information

This report shows $TAPE0 is:

• Using processor 0 as the primary processor

• Using processor 1 as the backup processor

• Logical device 68

• In the STARTED state

• Currently online at BOT

• A DDS-3 (5142) tape drive (5242 would be shown for that model)

For more on the STATUS command, refer to the SCF Reference Manual for the Storage

subsystem

3.2.5 Troubleshooting the 5242 and 5242-ACL Tape Drives

These troubleshooting tables help identify and correct problems that can occur when installing the 5242 or 5242-ACL tape drives. Each table addresses a specific problem, lists symptoms related to the possible cause of the problem, and lists actions to correct problem. If you need further help solving an installation problem, contact the HP Global Customer Support Center.

5242 Tape Drive Does Not Function Properly

Symptom Correct Action

Tape drive does not respond to software commands, or it functions abnormally.

Note: Refer to page 32 to

identify error conditions indicated by drives status LEDs.

• Check that a SCSI cable is firmly attached to one of the SCSI ports on the back of the tape drive.

• Use SCF commands to isolate the problem in the tape drive. See SCF example commands on page 19.

• Check that the SCSI ID is set to 5.

• If SCSI bus termination problems are suspected, check the terminator on the rear of the tape drive.

• If you cannot find the problem, contact the GCSC.

Table 8 Troubleshooting the 5242 Tape Drive

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 16 HP Part Number 528296-03 July 2005

Page 24

Section 1: General Information

5242ACL Tape Drive Does Not Function Properly

Symptom Correct Action

5242-ACL does not respond to commands, or it functions abnormally.

Note: Refer to page 32 for

error messages displayed by the ACL.

• Check that one of the SCSI cables listed on page 1 connects the tape drive to the NonStop server.

• Check that the SCSI ID is set to 5.

• Check that a SCSI terminator is firmly installed on the unused SCSI port on the back of the tape drive Then turn power off and on again.

• If the error message or check code persists, contact the GCSC.

Table 9 Troubleshooting the 5242ACL Tape Drive

3.3 Configuring the 5242 and 5242-ACL for NonStop servers

This subsection describes how to configure the 5242 and 5242-ACL tape drive to a processor multifunction (PMF) or IOMF:

• The group, module and slot hierarchy

• Identifying FRUs

• Completing the PMF or IOMF Configuration Form

• Configuring the 5242 and 5242-ACL tape drive online using SCF

Integrity NonStop servers are also covered in this section. They are configured in a similar manner except for the addition of some extra syntax specific to the Integrity server.

3.3.1 The Group, Module and Slot Hierarchy

Components in a NonStop S-series server are organized according to a group, module, and slot

hierarchy:

3.3.1.1 Group

A group consists of all objects accessible to a pair of service processors (SPs) in a system enclosure. A NonStop S-series group contains one enclosure with a single module.

3.3.1.2 Module

A module is a set of components sharing a common hardware interconnection, such as a backplane. A module is a subset of a group, and it is usually contained in a system enclosure. A module contains one or more slots. In a NonStop S-series server, there is one module in a group.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 17 HP Part Number 528296-03 July 2005

Page 25

Section 1: General Information

3.3.1.3 Slot

A slot is a labeled physical space in an enclosure into which a FRU is installed. FRUs are replaced by HP certified service providers.

3.3.2 Identifying FRUs

FRUs in NonStop S-series servers are identified by their physical location. To locate an FRU, you need to know:

3.3.2.1 Group Number

The group number identifies all objects connected through the service processors (SPs)

located on the processor multifunction (PMF). For NonStop S-series servers, this includes everything in a system enclosure.

3.3.2.2 Module Number

For Nonstop S-series servers, there is only one module in a group, so the module number is

always 1.

3.3.2.3 Slot Number

The slot number identifies a position within a module. The slot number is indicated by a label beneath the slot.

Group and slot labels help you locate I/O controllers that need service. Some software might show

the location using abbreviations for group, module, and slot. For example, the Subsystem Control Facility (SCF) storage subsystem might display the location of a PMF or IOMF as:

PMF.GRP-1.SLOT-50

For more information on system organization, group numbering, or labeling for a NonStop S-series

server, refer to the Nonstop S-Series Planning and Configuration Guide.

3.3.3 Completing the PMF Configuration Form

If you plan to connect a tape drive to a PMF or IOMF, document the configuration using a

Configuration Form. This form documents configurable entities associated with the connector. It also provides information about the tape drive to be connected.

: Ensure the IOMF or PMF is terminated on the NonStop S-series server.

Note

3.3.3.1 Enter the product number of the tape drive in the Product Number field. Allowable product numbers are 5242 and 5242ACL.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 18 HP Part Number 528296-03 July 2005

Page 26

Section 1: General Information

3.3.3.2 Enter the Subsystem Control Facility (SCF) name of the tape drive in the SCF name field.

3.3.3.3 Enter the product number of the SCSI cable you plan to use with this tape drive in the SCSI cable field. You must use one of the SCSI cables listed on page 1.

3.3.4 Configuring the 5242 and 5242-ACL Tape Drive Online Using SCF

Use the Subsystem Control Facility (SCF) to configure tape drives for NonStop servers. SCF allows

you to add, change the attributes of, and delete a tape drive. You can run SCF from any terminal on the system after you are logged on. Using SCF, you can:

• Obtain configuration information about a tape drive

• Restore access to a tape drive

• Stop access to a tape drive if there is no activity

• List tape drive status

• Switch the primary processor for a tape drive

: Use the product code 5242 when configuring the 5242 tape drive or 5242-ACL when

Note

configuring a 5242-ACL tape drive.

For information about how to use SCF to configure, control, and inquire about all supported tape

drives for Nonstop S-series servers, see the SCF Reference Manual for G-Series RVUs.

Example 1: Defining and Adding a Tape Drive

Use the SCF ADD TAPE command to define and add a 5242 or 5242-ACL tape drive to the

NonStop server configuration.

Before using the ADD TAPE command, check that the tape drive is installed properly. For

installation instructions, refer to page 5. Verify the group enclosure, module, and slot to which the tape drive it is connected.

The first example below adds a 5242 tape drive, $TAPE0. to a NonStop S-series system. The second

example adds a 5242 tape drive, $TAPE0, to an Integrity NonStop server system configuration:

->&PRIMARYCPU 0, BACKUPCPU 1, PRODUCT 5242

>ADD TAPE $TAPE0, SENDTO STORAGE, LOCATION (2, 1, 55),&

->ADD TAPE $TAPE1, SENDTO STORAGE, LOCATION (110, 3, 2),LUN0, SAC2, PORTNAME WWN OF DEVICE TO BE

->&PRIMARYCPU 2, BACKUPCPU 3, PRODUCT 5242

CONNECTED

In this example:

• The LOCATION attribute specifies the location (group, module, slot) of the PMF or IOMF

adapter to which the tape drive is attached.

• The PRIMARYCPU attribute specifies the processor in which the primary tape process should

execute.

• The BACKUPCPU attribute specifies the processor in which the tape process starts its backup

process.

• The PRODUCT attribute specifies the product number that identifies the model of the tape

drive.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 19 HP Part Number 528296-03 July 2005

Page 27

Section 1: General Information

For the Integrity NonStop server:

 The LUN attribute specifies the logical unit address of the target. LUNs 0 to 15 are valid.  The SAC attribute specifies the deck on the adapter.  The PORTNAME attribute specifies the worldwide name address of the tape target (WWN OF

THE DEVICE TO BE CONNECTED).

For NonStop servers, issue the SCF INFO TAPE command after the ADD TAPE command is

finished to verify that the tape drive has been properly configured. For example:

->INFO TAPE $TAPE0, DETAIL

STORAGE – Detailed Info TAPE configuration $TAPE0

Adapter Name .............................$ZZSTO.PMF.GRP-2.MOD-1.SLOT-55

*Adapter Location (Group,Module,Slot) .....(2,1,55)

BackupCpu ................................1

*Compression ..............................OFF

*Density ..................................2.4-4.8 KB/mm

*HighPin ..................................ON

*MaxOpens .................................4

PrimaryCpu ...............................0

Product ..................................5140/5142

*Program ..................................$SYSTEM.SYSTEM.OTPROCP

*RecSize ..................................2048

*StartState ...............................STARTED

Figure 16 Example of a SCF info tape command (5142 DDS-3 Drive)

For NonStop servers, the ADD TAPE command adds a 5242 tape drive connected to the PMF CRU in group 02, module 1 and slot 50 to the system configuration using the name $TAPE1:

->&PRIMARYCPU 2, BACKUPCPU 3, PRODUCT 5242

>ADD TAPE $TAPE1, SENDTO STORAGE, LOCATION (2, 1, 50)),&

The syntax is slightly different for Integrity NonStop servers:

->&PRIMARYCPU 2, BACKUPCPU 3, PRODUCT 5242

>ADD TAPE $TAPE1, SENDTO STORAGE, LOCATION (110, 3, 2),LUN0, SAC2, PORTNAME wwn of device to be connected

For more information on the ADD and INFO commands, see the SCF Reference Manual for the

Storage Subsystem.

Example 2: Changing the Values of Tape Drive Attributes

Use the SCF ALTER TAPE command to change the attribute values for a tape drive attached to

your system. The ALTER command changes only the attributes that are specified in the command. Other attributes remain as they were before you issued the command.

This example of the ALTER command changes the value of the compression attribute for the 5242

or 5242-ACL tape drive $TAPE0 to OFF and then issues the SCF INFO command to check the change has taken place:

>ALTER TAPE $TAPE0, COMPRESSION OFF >INFO TAPE $TAPE0

STORAGE – Info TAPE configuration $TAPE0 SubType Density *MaxOpens *RecSize *TapeMode *Compression Adapter

11 38000 BPI 4 2048 STREAM OFF 1,1,55

Location

Figure 17 Example of the alter command

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 20 HP Part Number 528296-03 July 2005

Page 28

Section 1: General Information

This example changes tape drive $TAPE1 so that its tape process runs only at a low PIN and then checks that the change has taken place:

>ALTER TAPE $TAPE1, HIGHPIN OFF

>INFO TAPE $TAPE1, DETAIL

STORAGE – Detailed Info TAPE configuration $TAPE1

Adapter Name .............................$ZZSTO.PMF.GRP-2.MOD-1.SLOT-55

*Adapter Location (Group,Module,Slot) .....(2,1,55)

BackupCpu ................................3

*Compression ..............................OFF

*Density ..................................2.4-4.8 KB/mm

*HighPin ..................................OFF

*MaxOpens .................................4

PrimaryCpu ...............................2

Product ..................................5140/5142

*Program ..................................$SYSTEM.SYSTEM.OTPROCP

*RecSize ..................................2048

*StartState ...............................STARTED

Figure 18 Example of a tape drive running at a low PIN

This example specifies that a maximum of 32 concurrent file opens are allowed for the tape drive $TAPE1:

>ALTER TAPE $TAPE1, NUMOPENERS 32

For more information on the ALTER and INFO commands, see the SCF Reference Manual for the

Storage Subsystem.

Example 3: Deleting a Tape Drive From the System

Use the SCF DELETE TAPE command to delete a tape drive form the system configuration

database.

Before issuing the DELETE command, use the SCF STATUS command to verify that the tape

drive is in the STOPPED state:

>STATUS TAPE $TAPE0

STORAGE – Status TAPE $TAPE0 LDev State SubState Primary Backup DeviceStatus

20 STOPPED 0,30 1,30

PID PID

Figure 19 SCF delete tape command

If the STATUS command shows that the tape drive is not in the STOPPED state, use the SCF STOP command to place the tape drive in the STOPPED state. For example:

>STOP TAPE $TAPE0

This example removes tape drive $TAPE0 from the system configuration:

>DELETE TAPE $TAPE0

Use the INFO command to verify that the tape drive has been removed from the system:

>INFO $TAPE*

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 21 HP Part Number 528296-03 July 2005

Page 29

Section 1: General Information

4.1 Preventive Maintenance

To maintain optimum performance and to prevent READ/WRITE errors, the tape heads of the 5242 and 5242-ACL tape drive must be cleaned on a regular basis. Use the recommended cleaning schedule per cartridge type as specified in Table 10. Cleaning procedures for each tape drive model follow.

Warning

Use only reliable HP approved cleaning cartridges.

4.2 5242 Tape Path Cleaning

The Clean/Attention LED is located on the front panel of the tape drive. When it flashes amber, the tape heads are dirty.

Tape Clean/

Attn.

Chapter Four

Write E F COMPRESS

2.3:1

Detail

Eject

Button

Mode

Switch

Figure 20 5242 clean/attention LEDs

Warning

The tape heads must be cleaned regularly. Follow the recommended cleaning schedule.

Recommended Cleaning Schedules for

125m DDS-3 and DAT72 Tape Cartridges

Number of

1 2 3 4 or more DDS cartridges used each day Recommended

8 weeks 4 weeks 3 weeks weekly Cleaning Frequency

Table 10 5242 cleaning schedule using DDS-3 or DAT72 cartridges

4.2.1 Using the Cleaning Cartridge

: To prevent contamination of the tape drive and damage to the heads do not use the

Note

cleaning cartridge for more than the manufacturer's specified number of cleaning cycles. Do not attempt to rewind the material in the cleaning cartridge and reuse it.

4.2.1.1 Insert the cleaning cartridge into the drive. The tape drive loads the cleaning cartridge and cleans the heads. After about 30 seconds, the tape drive ejects the cleaning cartridge.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 22 HP Part Number 528296-03 July 2005

Page 30

Section 1: General Information

: If the cleaning cartridge ejects after 14 seconds. The cartridge has reached the end

Note

of its useful life, and no cleaning has occurred. If the cleaning needed LED is still illuminated, discard the cartridge and repeat the cleaning operation with a new tape.

4.2.1.2 Remove the cleaning cartridge from the drive. Write the date on the label of the cleaning cartridge so that you have a record of usage. Do not use the cleaning cartridge more times than specified by the manufacturer.

4.3 5242-ACL Tape Path Cleaning

Clean the heads regularly. Do not use the cleaning cartridge for more than the manufacturer's specified number of cleaning cycles. Always and immediately clean the heads when a Clean Me message appears on the autoloader's LCD and when the Operator Attention LED flashes amber.

Magazine Present LED

Autoloader LCD

Select Button

Eject

Write E F COMPRESS

2.3:1

4-Line LCD, 8-Characters per line

Mode Switch

Programmable Error-Alert LED

Compression Indicator LED

Load

Operator Attention Required

LED

Tape

Activity

LED

Button

Tape

Eject

Button

Figure 21 5242-ACL front panel

Recommended Cleaning Schedule for

125m DDS-3 and 170m DAT72 Tape Cartridges

Number of

1 2 3 4 or more DDS cartridges used each day Recommended

8 weeks 4 weeks 3 weeks weekly Cleaning Frequency

Table 11 5242-ACL cleaning schedule using DDS-3 or DAT72 cartridges

4.3.1 Cleaning the Heads:

4.3.1.1 Place the cleaning cartridge into the first magazine slot. Insert the magazine into the autoloader. The tape loads automatically into the drive.

4.3.1.2 At the end of the cleaning cycle, the drive automatically ejects the cartridge. The changer mechanism places it in the magazine.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 23 HP Part Number 528296-03 July 2005

Page 31

Section 1: General Information

4.3.1.3 Eject the magazine and write the date on the label of the cleaning cartridge so that yopu have a record of usage. Do not use the cleaning cartridge more times manufacturer.

: Leaving the cleaning cartridge in the magazine reduces the amount of data you can back

Note

up to the magazine however, leaving the cleaning cartridge in the magazine ensures that the tape drive is cleaned prior to running a long job.

4.3.2 Cleaning Cartridge Life

If the Clean Me message still appears on the autoloader's LCD after you use the cleaning cartridge, the cleaning cartridge might have expired. If so, discard the cartridge and repeat the operation with a new cleaning cartridge.

4.4 Cleaning the Exterior

4.4.1 Enclosure:

Use a soft, damp, lint-free cloth to clean the enclosure.

Caution

4.4.2 LCD:

Put household glass cleaner on a soft cloth and wipe the screen.

Caution

: Do not use aerosol sprays, solvents, or abrasives that might damage the finish.

: Do not spray the cleaner directly on the LCD because the liquid might drip into

4.5 Operating Environment

The 5242 and 5242-ACL tape drives operate in any clean, indoor location. Do not store or operate the tape drive outside of the environmental ranges listed in Chapter 6.

4.5.1 Avoid placing the tape drive in direct sunlight, rain or other sources of moisture

4.5.2 Keep all the tape drive ventilation openings unobstructed.

Avoid getting moisture in any openings.

the tape drive.

than specified by the

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 24 HP Part Number 528296-03 July 2005

Page 32

Section 1: General Information

Chapter Five

5.1 Technical Support

Customers can contact HP Global Customer Support Center (GCSC). When calling the GCSC, have this

information available:

• Serial number of the equipment

• The initial LCD display showing the firmware revision

• The Performance LCD display when the error occurs

• A detailed description of the problem you are having with the equipment

• Your contact information

To order replacement 5242 and 5242-ACL tape drives:

Description Part Number

5242 Spare tape drive FRU 528081-001 5242-ACL Spare tape drive FRU 528086-001

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 25 HP Part Number 528296-03 July 2005

Page 33

Section 1: General Information

6.1 Cabling Limitations

Maximum total allowable cable length for a differential SCSI interface is 82 feet (25 meters). This distance must be measured from the controller to the last device on the bus. Cables must be 110 ohm twisted pair. If you are using a cable of unknown composition, replace it with the one provided by HP. When ordering, reference one of these part numbers:

519-001W 424360-001 1 meter (3 foot) SCSI Cable 68-pin to 68-pin 519-003W 424361-001 3 meter (10 foot) SCSI Cable 68-pin to 68-pin 519-015W 424362-001 15 meter (50 foot) SCSI Cable 68-pin to 68-pin 519-020W 424917-001 20 meter (67 foot) SCSI Cable 68-pin to 68-pin 519-023W 424363-001 23 meter (77 foot) SCSI Cable 68-pin to 68-pin

6.2 Differential Devices

The 5242 and 5242-ACL tape drives support a high voltage differential SCSI-3 interface.

6.3 Cooling Fan and System

The cooling system provides excellent heat dissipation at critical locations, such as read/write heads, where excess heat results in higher data failure. A unique airflow design directs cool air over these critical locations within the chassis.

6.4 Specifications

This section provides technical specifications for the tape drives.

6.4.1 Electrical Specifications

6.4.1.1 External AC power:

6.4.1.2 AC power outlet (to be used for stacking units only)

6.4.1.2 Internal DC power:

6.4.2 Display Unit

• 32 characters in 4 lines of 8 characters each

• Supertwist LCD technology

• Extra-wide viewing angle

• Full LED back lighting

• V115/230 1.0/0.5A 50/60 Hz

• V115/ 230 7.0/3.5A 50/60 Hz

• 5242

• 5242-ACL:

: +5, +12 volts 25 watts

Chapter Six

+5, +12 volts 65 watts

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 26 HP Part Number 528296-03 July 2005

Page 34

Section 1: General Information

6.4.3 SCSI Cables

75 feet (23m) maximum

6.4.4 Agency Approvals

See Section 6 page 70 for Agency certification statements.

6.4.5 Interfaces

6.6.5.1 SCSI-3 high voltage differential

6.6.5.3 Connectors 68-pin high density

6.4.6 Environmental Specifications

6.4.6.1 Operating temperature:

5ºC to 40ºC with tape loaded

6.4.6.2 Nonoperating temperature:

-40ºC to 45ºC

6.4.6.3 Operating humidity:

20% to 80% relative humidity with tape loaded

6.4.6.4 Nonoperating humidity:

5% to 95% relative humidity

6.4.7 Physical Specifications

6.4.7.1 5242 dimensions:

6.4.7.2 5242-ACL dimensions:

6.4.7.3 Weight:

• L11.5" x W8.3" x H2.5"

• L292mm x W211mm x H64mm

• L11.5" x W8.3" x H4.2"

• L292mm x W211mm x H107mm

• 5242: 7.0 lbs. (3.18 kg)

• 5242-ACL: 10.0 lbs. (4.54 kg)

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 27 HP Part Number 528296-03 July 2005

Page 35

Section 2: HP 5242 Tape Drive

1.1 Introduction

The 5242 tape drive is a 4mm, single-tape backup device combining an easy-to-read display with high performance electronics for reliable performance. The front panel LCD provides a clear and comprehensive status report of the tape drive's activities.

Section 2

5242 Tape Drive

Chapter One

Write E F COMPRESS

2.3:1

Figure 22 5242 tape drive

1.1.1 The 5242 tape drive includes:

• Tape drive

• LCD status display and control panel

• Differential SCSI interface

• Terminator

• Power supply and fan (integrated into the enclosure)

• Power cord

• User manual

1.2 5242 Features

• Support for both DDS-3 125m and DAT72 170m tape cartridges

• Firmware upgradeable by code tape

• Subsystem firmware upgradeable by code tape

• Sustained streaming transfer rate of 3 MB/s and up to 2:1 data compression

• Three levels of error correction code (ECC)

• Large 8-megabyte drive data buffer to maintain host transfer rate

• Self-test diagnostics

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 28 HP Part Number 528296-03 July 2005

Page 36

Section 2: HP 5242 Tape Drive

Chapter Two

2.1 Loading and Unloading a Cartridge

Warning

2.1.1 Loading a Cartridge

Ensure the tape drive power is on and the tape drive is ready before loading a cartridge.

Do not attempt to insert a cartridge backwards or upside down.

2.1.1.1 Power on the tape drive. The power switch is on the rear panel.

Note: Only use DAT72 or DDS-3 cartridges. Do not use DDS-2, DDS-1, or tapes labeled DAT.

2.1.1.2 Insert a cartridge into the slot on the front panel. The drive threads the tape, initiates a load sequence, and goes on-line.

2.1.1.3 During the load sequence:

1. Tape LED (number 1 in Figure 28) slowly flashes green while the tape is being

loaded.

2. The Tape LED becomes a steady green to indicate the tape is loaded.

3. If an excessive number of errors are detected, the Clean/Attention LED (number 2 in

Figure 23) flashes amber.

Write E F COMPRESS

Tape Clean/

Attn.

Detail

Eject

Button

2.3:1

Mode

Switch

Figure 23 Front panel LEDs and tape eject button

2.1.2 Unloading a Cartridge

2.1.2.1 The cartridge ejects from the tape drive either when you press the Eject Button or in response to a SCSI LOAD/UNLOAD command with the LOAD bit set to 0.

2.1.2.2 The drive rewinds, unloads, and ejects the cartridge unless the drive is not in an idle state or a contingent operation (which is locking the cartridge) with the NonStop server active.

2.1.2.3 The Tape LED slowly flashes green while the tape unloads. See Figure 27 on page 32.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 29 HP Part Number 528296-03 July 2005

Page 37

Section 2: HP 5242 Tape Drive

3.1 Controls and Indicators

This chapter discusses the 5242 controls and indicators by function, location, and type. Figure 24 provides views of the tape drive front panel and lists controls and indicators. Figure 25 shows the rear panel of the tape drive and identifies all connectors and switches.

Chapter Three

Tape Drive LEDs

Eject

Button

Figure 24 5242 front panel

Fan AC Out

SCSI

Connectors

Figure 25 5242 rear panel

3.2 Understanding the LEDs

The 5242 tape drive has two LEDs that communicate drive status. (See Figure 26. The LEDs can help determine operating states.

Write E F COMPRESS

2.3:1

Compression Indicator LED

Blank

AC Out

Power

Connector

4-Line LCD, 8-Characters per line

Mode Switch

Programmable Error-Alert LED

Power Switch

AC In Power Connector

Tape Clean/

Attn.

Detail

Figure 26 5242 communication LEDs

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 30 HP Part Number 528296-03 July 2005

Eject

Button

Write E F COMPRESS

2.3:1

Mode

Switch

Page 38

Section 2: HP 5242 Tape Drive

3.2.1 The Tape LED (number 1 in Figure 26) uses green to show tape activity:

 Slow flashing green while the tape loads or unloads  Steady green when the tape is loaded  Fast flashing green during read or write operations

3.2.2 The

3.2.3 Additional LED patterns

Clean/Attention LED (number 2 in Figure 31) uses amber to show:

 Slow flashing amber indicates that the heads need to be cleaned, or the cartridge is

wearing out.

 Steady amber indicates a hard fault. The tape drive should be replaced. Call the Global

Customer Support Center.

Key

Activity – load or unload

Activity – read or write

Cartridge loaded

Any

Cleaning Needed signal

Fault

Power-on (starts with two steady lights

Figure 12 Additional 5242 LED patterns

Off

Green

Amber

Flash Green (1/2s on, 1/2s off)

Flash Amber (1/2s on, 1/2s off)

Fast Flash Green (1/4s on, 1/4s off)

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 31 HP Part Number 528296-03 July 2005

Page 39

Section 2: HP 5242 Tape Drive

Chapter Four

4.1 Upgrading Firmware From Tape

The 5242 tape drive allows you to upgrade firmware by inserting a firmware upgrade cartridge. The process takes approximately 3 minutes to complete.

Caution

1. If the firmware upgrade is incompatible with your hardware, no upgrade takes

4.1.1 Upgrading the Firmware

4.1.1.1 Check that the tape drive is not engaged in any SCSI activity. The tape LED is off and the

4.1.1.2 Insert the firmware upgrade tape cartridge into the drive.

4.1.1.3 The upgrade process automatically takes place. During the actual erasure and reprogramming of

4.1.1.4 After about 3 minutes, when the upgrade is complete, the firmware cartridge ejects. Remove it, and

: Do not disconnect power at any time during the upgrade process, particularly when the

front panel lights are flashing, or it may result in the drive having corrupt firmware or no firmware at all. The drive will then have to be returned to the factory.

place. The tape is ejected after 1 minute instead of the usual 3 minutes.

2. The upgrade tape must not be write-protected.

3. The upgrade tape can only be used a certain number of times. After that, a tape drive reformats it for normal data use. However, it is not advisable to use it for data.

4. You cannot convert a firmware upgrade tape for normal use.

NonStop server is not going to be accessing the drive.

the firmware, it is critically important that you do not power down the tape drive. The front panel LEDs flash rapidly during this critical time.

replace it in its box.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 32 HP Part Number 528296-03 July 2005

Page 40

Section 3: HP 5242-ACL Tape Drive

Section 3

5242ACL Tape Drive Subsystem

Chapter One

1.1 Introduction

The 5242-ACL is a 4mm tape backup device. The 5242-ACL offers high-capacity, on-line tape storage, outstanding performance, and trouble-free operations. It combines a changer mechanism, a DAT 72 tape drive, data compression, and a SCSI interface. The LCD on the front panel of the 5242-ACL provides a clear and comprehensive status report of the tape drives activities.

The 5242-ACL houses up to six DAT 72 cartridges In a removable magazine and enables backup of up to 432GB of data, assuming a 2:1 compression ratio. The 5242-ACL supports sequential access mode with minimum interruption time between cartridges.

1.1.1 The 5242-ACL tape drive includes:

• Tape drive with 6-cartridge magazine

• LCD status display and control panel

• Differential SCSI interface

• Terminator

• Power supply and fan (integrated into the enclosure)

• Power cord

• User manual

Write E F COMPRESS

2.3:1

Eject

Figure 28 5242-ACL tape drive

1.2 5242-ACL Features

• Cartridge magazine carrying up to six DAT72 cartridges–typical magazine capacity of 216-432 gigabytes using 170m cartridges

• Support for DDS-3 125m tape cartridges

• Tape drive firmware upgradeable by code tape

• Subsystem firmware upgradeable by code tape

• Tape drive streaming transfer rate of 3 MB/s and up to 2:1 data compression

• Three levels of error correction code (ECC)

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 33 HP Part Number 528296-03 July 2005

Page 41

Section 3: HP 5242-ACL Tape Drive

• Large 8-megabyte data buffer to maintain host transfer rate

• Self test diagnostics

Chapter Two

2.1 Mode of Operation

When a cartridge ejects from the 5242-ACL drive following a host UNLOAD command, the autoloader automatically loads the next available cartridge in the magazine into the drive.

2.2 Terminology

Unloaded A cartridge unloads when it moves from the drive and is placed in the magazine. In this

state, the drive is off-line, and the host cannot perform any operation that would cause tape motion (write, read, space commands). The NonStop server can issue the LOAD command to put the tape drive on-line. Additionally, the NonStop server can execute any diagnostic command that does not access the tape.

Semi-Loaded A cartridge semi-loads when the cartridge is in the tape drive mechanism, but the tape is

not threaded around the head. The tape drive is off-line in this state.

Loaded The tape loads at the end of the load sequence. Then the tape drive is on-line and can

execute all commands, including those that set configurations or run diagnostic tests.

2.3 Front Panel Buttons

Select Button

Write

Magazine Present LED

Autoloader LCD

Operator Attention Required

LED

Tape

Activity

LED

E F COMPRESS

2.3:1

Eject

Load

Eject

Tape

Button

4-Line LCD, 8-Characters per line

Mode Switch

Programmable Error-Alert LED

Compression Indicator LED

Figure 29 5242-ACL front panel

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 34 HP Part Number 528296-03 July 2005

Page 42

Section 3: HP 5242-ACL Tape Drive

2.4 Loading and Unloading the Magazine and Cartridges

Caution

Use only cartridges labeled DAT72 or DDS-3. Do not use DDS-2 or DDS-1 cartridges or any

2.4.1 With the area opposite the side label pointing toward the center of the magazine, place the

: Check that the magazine label adheres firmly to the label area on the magazine. (See Figure

30). If the label is placed anywhere other than in the label area, the magazine might jam in the mechanism. Ensure that the corners of cartridge and magazine labels stick firmly to the surface and do not curl at their edges. Remove any old labels from the label area before placing a new label. Never use non-standard labels, and never stick anything to the cartridge in any other place than in the label area.

cartridge generically labeled DAT. They will not work.

required number of cartridges into the magazine. (see Figure 30.)

Do Not

fix labels here.

Label

Area

Figure 30 Loading cartridges in a magazine

2.4.2 Loading the Magazine Into the Autoloader

2.4.2.1 With the large arrow on the top of the magazine pointing toward the autoloader, insert the magazine into the slot in the front of the autoloader. (See Figure 31.)

Figure 31 Inserting a magazine

2.4.2.2 Apply steady pressure until the mechanism takes the magazine and pulls it into the autoloader. The autoloader then checks which magazine slots contain cartridges.

2.4.2.3 When the magazine check is complete, the tape drive loads the first available cartridge.

2.4.2.4 The tape drive now performs a load sequence:

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 35 HP Part Number 528296-03 July 2005

Page 43

Section 3: HP 5242-ACL Tape Drive

1. The tape drive mechanism threads the tape and checks the tape's format (DAT72,

DDS-3, blank, cleaning). If the tape is blank, the tape drive leaves the tape at BOM and waits for the next command.

2. Write and read tests are performed. If the error rate is high, the Operator Attention

LED lights and an error message appears on the LCD. The tape drive then reads the tape log.

3. The drive rewinds and goes on-line, awaiting a command from the NonStop server.

The load procedure takes a maximum of 25 seconds from the time the cartridge loads to the time the tape drive is ready to start acting on the next command from the NonStop server.

2.4.3 Once online, the tape drive sends a CHECK CONDITION on receipt of the next SCSI command from the NonStop server.

2.5 Ejecting the Magazine and Cartridges

2.5.1 A cartridge ejects from the 5242-ACL's autoloader when you press the Eject Button.

2.51.1 The tape rewinds to BOP.

Note: If the tape is write-enabled, the copy of the tape log held in RAM writes back to tape.

2.5.1.2 The tape rewinds to BOM and unthreads.

2.5.1.3 The changer places the cartridge in the magazine.

2.5.1.4 The magazine ejects.

2.5.2 If the NonStop server sends a SCSI LOAD or UNLOAD command with the LOAD bit set as 0, the same procedure is followed but the magazine is not ejected at the end.

Note: If the NonStop server has previously sent a PREVENT MEDIA REMOVAL command,

the unloading action is different in two ways:

1 The Eject Button is disabled and has no effect. It does not initiate an unload

sequence.

2 An UNLOAD command puts the tape drive into a semi loaded state. The drive is

offline and unthreads the tape, but does not eject it.

The effects of PREVENT MEDIA REMOVAL continue until an ALLOW MEDIA REMOVAL command is received or the drive is reset.

2.6 Forcing a Tape to Eject

Caution

If you press the Eject Button when the drive is busy, it may be a long time before the

: You can lose data if you force eject a tape. Also, the tape may end up invalidly formatted,

because EOD may not have been written. Force an eject only as a last resort to recover a cartridge. Never use it as a quick way of ejecting the cartridge

drive responds to the request, because it will first finish the task it is performing. This ensures that the task terminates in a controlled manner, and no data is lost.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 36 HP Part Number 528296-03 July 2005

Page 44

Section 3: HP 5242-ACL Tape Drive

Note: If the you urgently need to unload a cartridge, even at the risk of losing data, you

must force an eject.

2.6.1 Hold the Eject Button down for at least 5 seconds. The autoloader's LCD displays Force Eject.

2.6.2 The autoloader waits 35 seconds to give the normal eject procedure a chance to occur.

2.6.3 Once this time elapses and a tape is loaded in the tape drive, the tape immediately unthreads and the cartridge ejects, regardless of what operation the tape drive was performing. The cartridge is then placed in its slot in the magazine, and the tape drive resets as though the power had been cycled.

Because the force eject might interrupt operation, the tape drive might not write EOD before the

cartridge ejects. This situation causes loss of data, and results in a cartridge with an invalid format.

2.6.4 If no cartridge is loaded in the tape drive, the autoloader waits 35 seconds, then begins the process of ejecting the magazine. The autoloader resets as though power had been cycled.

: A forced eject overrides any SCSI Prevent Media Removal that is in effect and might abort any

Note

SCSI operations that are in progress on the autoloader.

2.7 Front Panel LEDs

The autoloader has three front panel LEDs that indicate how the autoloader is working. (See Figure 32.)

Magazine Present LED

T ape Activity LED

Operator Attention Required LED

Figure 32 Autoloader LEDs

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 37 HP Part Number 528296-03 July 2005

Page 45

Section 3: HP 5242-ACL Tape Drive

2.7.1 Magazine Present (Top LED)

2.7.1.1 This LED remains a steady green when a cartridge magazine is installed in the

autoloader.

2.7.1.2 The LED flashes green when a magazine is in the process of being installed, checked, or

ejected.

2.7.2 Tape Activity (Middle LED)

2.7.2.1 Steady green indicates that a cartridge is present in the drive.

2.7.2.2 Fast (4 times/second) flashing green means data is either being written or read, or that

activity other than the cartridge being loaded or unloaded is occurring.

2.7.2.3 Slow (2 times/second) flashing green means that the cartridge is being loaded or

unloaded.

2.7.3 Operator Attention Required (Lower LED)

2.7.3.1 Steady amber indicates that a serious hardware error has occurred. The tape drive should

be replaced. Call the GCSC.

2.7.3.2 Flashing amber indicates that a user-recoverable error has occurred. These errors are

shown in table 12. A slow flash rate is one cycle per second, medium is twice per second, and fast is four times a second. The message shown on the top line of the drive's front panel LCD area should help identify the problem.

Flash Meaning

Slow Hard fault condition that the drive cannot clear

Slow There is a tape in the autoloader but no magazine

Slow Front panel door is open when it should not be

Medium Drive heads need to be cleaned

Medium Tape is nearing the end of its useful life

Fast Firmware upgrade is taking place

Table 12 Operator attention required LED

2.8 Self-Test Display

2.8.1 During power-up, the tape drive executes a self-test diagnostic sequence. All three front panel lights flash at 2 cycles per second.

2.8.2 If the self-test fails, the Operator Attention Required LED changes to steady amber, and the other LEDs go off.

is present

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 38 HP Part Number 528296-03 July 2005

Page 46

Section 3: HP 5242-ACL Tape Drive

Chapter Three

3.1 Display Regions on the Autoloader

Figure 33 Autoloader LCD

: This display shows all the LCD sections might occur. Not all would show at any given time.

Note

1 The 10-character dot matrix display provides information on the autoloader's operating status and

potential error conditions. (For the types of message that appear here see Section 3.3 on this page.

2 The 7-segment display shows the number of the cartridges currently loaded in the drive. 3 The letters DC and WP, in the center of the LCD show if data compression is being used for

writing or if the cartridge is write-protected.

4 Numbered boxes on the right of the LCD individually light to indicate which magazine slots

contain a cartridge.

5 The odometer lines at the bottom of the LCD show how much tape remains in the current

partition. The more lines show, the less tape capacity remains.

3.2 Diagnostic Display

The purpose of the diagnostic firmware is to test the autoloader's electronics for functionality. During power-up, the drive executes a self-test diagnostic sequence where all three LEDs flash twice a second. If the self-test fails, the Operator Attention Required LED changes to steady amber and the other LEDs go off.

3.3 LCD Categories of Information:

Three categories of messages can be displayed on the front panel:

1. Normal autoloader operating status information

2. Information messages

3. Error messages

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 39 HP Part Number 528296-03 July 2005

Page 47

Section 3: HP 5242-ACL Tape Drive

3.3.1 Normal Autoloader Operating Status Messages

3.3.1.1 Status messages that appear on the LCD cover five functional fields of the autoloader's

operation. Only one field at a time controls the LCD text display. The function fields always appear in this order.

Functional

Field

Meaning

Reset Firmware

Upgrade State

Magazine Load State

Cartridge Load State

Tape Motion State

At power on, the Reset state has control of the LCD. After the self-test has been passed, this state has

control of the LCD if a firmware upgrade is taking place.

If no upgrade is being performed, control of the LCD passes to the Magazine Load state, and remains there until a magazine has been loaded.

After a magazine has been loaded, control of LCD passes to the Cartridge Load state until a cartridge has been moved to the drive and loaded.

Once a tape has been loaded, the Tape Motion state covers activity involving the tape, including reading and writing data.

Figure 34 Operating status messages

3.3.1.2 This chart (Figure 35.) shows the messages within each functional field and indicates

how control of the LCD passes to other fields. The messages in brackets do not appear on the LCD because control has already passed to the next functional field.

Reset

State

Self T est

(Test O.K)

Firmware

Upgrade

State

FW Upgrade

FW Check

FW Program

New FW!!!!

(No Upgrade)

Magazine

Load

State

Insert Mag

Mag Check

Mag Eject

(Mag Loaded)

Cartridge

Load State

Mag Loaded SemiLoaded

Loading Cleaning FW T ape

(Tape Loaded)

Tape

Motion

State

Ready xxm

Read

Write x.y Search>> Search<<

Rewind Format

Erase

Locate

Partition

Figure 35 Status message organization

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 40 HP Part Number 528296-03 July 2005

Page 48

Section 3: HP 5242-ACL Tape Drive

Note: If a write-protected tape is loaded, the Ready xxm message alternates with a Read Only message.

3.3.2 Information Messages

Informational messages appear when power is applied to the autoloader identifying its identity, SCSI ID, and configuration. They also confirm when you have pressed the front panel buttons.

: The SCSI ID of the autoloader is not the same SCSI ID that you can select using the 5242-ACL

Note

LCD and mode switch. The autoloader's SCSI ID Is set to 0 and is not selectable.

3.3.3 Autoloader Error Messages

The LCD shows a range of error messages relating to the autoloader's operation. If a fault is detected with the autoloader mechanism or data is at risk, the error message might be accompanied by a lit Operator Attention Required LED. A alphabetical listing of messages is provided in Section 3.4 on this page. Where possible, actions that you can take to recover from an error are also noted.

3.4 LCD Messages:

3.4.1 The OAR column indicates the state of the Operator Attention Required LED on the autoloader's front panel while the message is being displayed.

3.4.2 The Type column can present one of three letters:

E Error message I Informational message S Status message

Table 13 Front panel messages

Message Type OAR Meaning Action

At BOD Error On A SPACE command

unexpectedly encountered BOD. The tape is now positioned at BOD

At EOD Error On A READ or SPACE

command encountered the EOD area unexpectedly. The tape is now positioned at EOD.

Bad Media Error Flashing A READ or SPACE

command has failed because the tape is not in DDS format.

C7438 Info The product identifier. It is

displayed for 2 seconds during power-up.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 41 HP Part Number 528296-03 July 2005

Unload the tape and use a DDS-certified (Media Recognition System) tape.

Page 49

Section 3: HP 5242-ACL Tape Drive

Clean Me Error Flashing A high error rate has been

detected reading or writing.

Insert a cleaning cartridge to clean the tape heads.

Config: xxy

Note: For the 5242ACL xxy is factory configured at "FF1"

Close Door Error Flashing The front panel door is

Drive Comms Error

Eject Fail Error Flashing An eject command has

Info This indicates the value of

the switches used to configure the drive for different host systems. xx is the hexadecimal value of the Configuration Switches on the underside of the autoloader, and y the value of the Autoloader Option Switches on the rear panel. During the power-up sequence, it is displayed for 2 seconds following the SCSI ID.

open. Any autoloader motion will be delayed.

Error On The drive has stopped

communicating with the changer mechanism.

failed, either after you pressed the Eject button or after a host command.

Probably a magazine that is partially inserted through the door. Push the magazine fully in or remove it.

Contact the HP GCSC.

Try forcing ejection.

Eject Mag Info This is displayed when you

press the Eject button.

Error X Error Flashing The mechanism has

jammed. X gives the reason for the jam.

ForceEject Info A forced ejection is in

progress.

Format Status A SCSI command for

generating a one- or twopartition tape is being executed, or the drive is changing the size of the partitions on an existing two-partition tape.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 42 HP Part Number 528296-03 July 2005

Press the Eject button to attempt to recover cartridge and magazine. If the problem persists, note the value of X and call the HP GCSC.

Page 50

Section 3: HP 5242-ACL Tape Drive

FRU 1 Dead Error On The controller board for the

embedded drive has failed its self-test.

Call the HP GCSC.

FRU 2 Dead Error On The drive mechanism has

FW Check Status Firmware upgrade data is

FW Data Err

FW Upgrade

FW Read Fail

FW Tape Write Protected

FW Write Fail

Error Flashing The autoloader has failed

Status Firmware upgrade data is

Error Flashing A firmware upgrade failed

failed its self-test.

being checked for compatibility.

to upgrade the drive firmware because the new firmware is corrupt.

being read either through a tape or the SCSI bus.

because of an error in reading data from the tape.

because the tape is writeprotected.

because of an error in writing a modified upgrade count to the tape.

Call the HP GCSC.

Obtain a good copy of the firmware upgrade.

Try again. If it still fails, call the HP GCSC.

Change the writeprotect switch on the tape and try again.

Try again. If it still fails, call the HP GCSC.

Illegal FW Error Flashing The autoloader has failed

to upgrade the drive firmware because the new firmware is incompatible.

Illegal HW Error Flashing The autoloader has failed

to upgrade the drive firmware because the new firmware is for incompatible hardware.

Insert Mag Status The autoloader is waiting

for you to insert a magazine.

Load Tape Info Displayed when you press

the Load Tape button.

Loading Status Either a cartridge is being

moved from the magazine and placed into the drive mechanism, or the drive is loading a cartridge.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 43 HP Part Number 528296-03 July 2005

Obtain a correct version of the firmware upgrade.

Page 51

Section 3: HP 5242-ACL Tape Drive

Locate Status The drive is moving the

tape to a point specified by the host.

Mag Check Status The autoloader is

Mag Eject Status The autoloader is ejecting

Mag Loaded Status A magazine is loaded and

New FW!!!! Status The firmware upgrade

No EODmark

Partition Status The drive is switching to

Partition 1 too large

Error Flashing The drive is trying to read

Error On A command to format the

examining the magazine to discover occupied slots.

the magazine.

the magazine check has been carried out.

process has been successfully completed.

what appears to be a blank tape (one with no DDSformat EOD pattern). Probably a result of a power-fail while writing.

the other partition on a two-partition tape.

tape has failed because the request size for partition 1 is too large.

Try again with a smaller partition 1 or, if possible, a longer tape.

Read Status The drive is reading data

from the tape.

Read Fail Error Flashing A read has failed. The host

should reposition and try again.

Rewind Status The drive is rewinding the

tape to the beginning of partition.

SCSI Error Error On A SCSI command error has

been detected.

SCSI ID: x Info x indicates the SCSI ID of

the autoloader. During the power-on sequence, it displays for 2 seconds following the product identifier.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 44 HP Part Number 528296-03 July 2005

Check the SCSI interface connection and try again.

Page 52

Section 3: HP 5242-ACL Tape Drive

Search << Status The drive is searching for a

record, filemark, setmark, or BOD toward the beginning of the tape that is responding to a SCSI SPACE command with a negative count field.

Search >> Status The drive is searching for a

Select Tape Info Displayed when you press

Self Test Status The autoloader is

Stray Tape: Insert Empty Mag

Tape Fault Error Flashing The cartridge in the drive is

Info There is a cartridge in the

record, filemark, setmark or EOD toward the end of the tape that is responding to a SCSI SPACE command with a positive count field.

the Select button and for a short time after the button is released.

performing its power-on self-test.

autoloader but there is no magazine present to put it in.

faulty, possibly because the tape has snapped, or the cartridge has an invalid pattern of identification holes.

Insert an empty magazine to retrieve the cartridge.

Use a new cartridge and ensure that it is Media Recognition System.

Tape Full Error On A READ, SPACE,

Tape has DC data

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 45 HP Part Number 528296-03 July 2005

Error On A READ command has

WRITE, or WRITE FILEMARKS command encountered EOP. When reading, this might mean the required data is on the next cartridge in sequence.

encountered compressed data on the tape, but the drive is not currently configured to decompress data. The host might have disabled data compression, or Configuration Switch 2 (on the underside of the autoloader) is off so the host ability to control the drive's state is disabled.

Check that the host has not disabled compression. Check that switch 2 is on by reconfiguring the drive using the Configuration Switches on the underside of the autoloader.

Page 53

Section 3: HP 5242-ACL Tape Drive

Tape Position Lost

Error Flashing A WRITE, READ,

SPACE, or REWIND command has failed to complete. The tape is positioned on the far side of the bad group of data.

Reposition and try again.

Unloading Status Either the drive is

unloading a cartridge, or a cartridge is being ejected from the drive and replaced in the magazine.

UpgradeErr Error Flashing The autoloader has failed

to download an upgrade of the firmware via SCSI.

Worn Media Error Flashing A high error rate has been

detected while writing, suggesting that the tape is nearing the end of its useful life.

Write x.y Status The drive is writing data to

tape. x.y:1 is the cumulative compression ratio since power-on, or since the compression ratio was lasted cleared, for example, Write 2.1" means a compression ratio of

2.1:1. The compression ratio is only displayed after about 1 megabyte of data has been written since power-on.

Check the SCSI connection and try again.

Copy any data you want to keep from the cartridge onto a new cartridge and discard the old cartridge.

Write Protected Tape

Write Fail Error Flashing A WRITE, WRITE

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 46 HP Part Number 528296-03 July 2005

Error Flashing A WRITE, WRITE

FILEMARK, or ERASE command has been attempted on a writeprotected tape.

FILEMARK, or ERASE command has failed.

Remove the tape and change it to writeenabled.

Use a new cartridge.

Page 54

Section 3: HP 5242-ACL Tape Drive

Chapter Four

4.1 Upgrading the Tape Drive Firmware

The autoloader allows you to upgrade its firmware by inserting a firmware upgrade tape. The process takes at least 3 minutes to complete. To upgrade the firmware by a tape load:

Caution

: Do not disconnect power to the autoloader at any time during the upgrade to avoid

corrupting the firmware in the autoloader.

1. Check that the tape drive is not engaged in any SCSI activity. The Tape Activity LED is off. It is recommended that you first take the unit off-line and unplug the SCSI cable from the tape drive.

2. Place the firmware upgrade tape into magazine slot 1. Insert the magazine into the autoloader.

3. About halfway through the upgrade process, the tape drive automatically ejects the cartridge and the changer mechanism replaces it in the magazine. The magazine ejects.

4. When the LCD shows the message New FW!!!!, the firmware has been successfully upgraded. Remove the firmware upgrade tape and replace it in its box.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 47 HP Part Number 528296-03 July 2005

Page 55

Section 4: SCSI Bridge Electronics

SCSI Bridge Electronics

Chapter One

1.0 Controls and Indicators

4-Line LCD, 8-Characters per line

Mode Switch

Section 4

Programmable

Error-Alert LED

Figure 36 Display unit controls and indicators

1.1 Mode Switch

The mode switch is located in the right, lower corner of the display unit. Use to select the SCSI ID, turn compression on and off, access the off-line utilities, and perform the initial setup of the tape drive.

1.2 LEDs

The tape drive display unit has two LEDs, one green and one amber. The green LED indicates that data compression is active. The amber LED is a user-programmable, error-alert indicator that lights when the error-rate percentage reaches a predetermined value. To set this value or alter it, use the mode switch in conjunction with the setup menus.

Compression

Indicator LED

Compression Indicator LED

Mode

Switch

Programmable

Error-Alert LED

= Green = Amber

Figure 37 Display unit LEDs

Warning: Using the LCD functionality to change operations or configuration parameters without proper understanding can cause the 5242 to become nonoperational.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 48 HP Part Number 528296-03 July 2005

Page 56

Section 4: SCSI Bridge Electronics

1.3 Front Panel LCD

A 4-line, 8-character-per-line, backlit liquid crystal display (LCD) provides you with performance information, configuration selections, and diagnostic and special utility menus. During tape activity, the LCD shows current tape-drive operation, a bar graph tracking tape capacity, and items such as total data transferred, average transfer rate, compression ratio, ECC rate percentage, remaining tape capacity, and rewrite percentage. When you enter the configuration, diagnostic, and utility menus, the LCD presents a series of items to choose from and instructions to follow.

Write E F TOTL XFR 74MB

Sample Performance Display

Sample Configuration Display

SCSI ID:

]

[00 PRESS to Alter

Figure 38 Front panel LCD

1.4 Understanding the Capacity Bar Graph

The capacity bar graph display updates dynamically during read and write operations. Beginning with the native capacity of the cartridge (125m = 12.0 GB, 170m = 36.0 GB), as reported by the tape drive after a cartridge is loaded. The SCSI bridge electronics applies the current average compression ratio (if any), computes the then current maximum capacity, and displays the bar graph by incrementing or decrementing the appropriate number of vertical bars between the empty icon and the full icon. There are thirty vertical bars, each equating to approximately 3.33% of total capacity.

Empty Icon

Read

E F

ECC Rate

0.0%

Full Icon

Capacity

Indicators

Figure 39 Understanding the capacity bar graph

2.1 Introduction

The SCSI bridge electronics are at the heart of the display system that provides performance information about the tape operation. In addition to bridging communications between the host and tape drive, the electronics autonomously send commands to the tape drive to extract the data necessary for the display. A high-performance processor and dual SCSI buses allow the unit to appear to the host as a tape device on the host bus, and to interface with the tape drive as a new host on the tape bus. This private tape bus can operate independently of a host to provide such capabilities as code-tape generation, code-tape loading and off-line

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 49 HP Part Number 528296-03 July 2005

Chapter Two

Page 57

Section 4: SCSI Bridge Electronics

drive testing. Other features of the SCSI bridge electronics include software configuration retained in nonvolatile memory, flash memory for firmware upgrade, and low semiconductor parts count for reliability.

2.2 Initial LCD

After applying power to the tape drive, the SCSI bridge electronics attempt to access the drive at the selected tape ID. Typically, tape drives require a few seconds to perform their self-test before they respond. The tape drive is not selectable to the NonStop server during this period. If the tape ID has not been correctly selected the tape drive will not complete its power-up sequence and remains inaccessible to the NonStop server. The tape ID is set at the factory and is NOT user-selectable. If the tape drive fails to complete its power-up sequence, contact the HP GCSC.

InFourmm ======== Power-on SelfTest

Initial Power-Up Screen

Figure 40 LCD at startup

When the drive is accessed, the LCD presents the tape drive model identification and firmware level on the top two lines, and the SCSI bridge electronics' product name, firmware level and host SCSI ID on the bottom two lines. The tape drive is now selectable by the NonStop server at the host SCSI ID.

Figure 41 Identification of LCD items

This screen appears similar for the 5242 and 5242ACL models. The differences are:

Identification

5242 Display 5242ACL Display Drive Product Identification Q1525A Q1566 Infourmm Firmware Level D72A D72B Drive Firmware level V312 B312

2.3 Performance LCD Format

Upon receiving a TEST UNIT READY or INQUIRY SCSI command from the host, the LCD switches to the performance format. This is the main operational format of the LCD. The top two lines of the LCD always display the current SCSI command and the tape-capacity bar graph. The bottom two lines of the display alternate between five performance/status items.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 50 HP Part Number 528296-03 July 2005

Page 58

Section 4: SCSI Bridge Electronics

Figure 42 Tape drive performance LCD format

2.3.1 Current Tape Operation

The SCSI command being executed displays on the top line of the LCD. Typical commands shown

are Read, Write, WrtFMK, Rewind, Space, and so on.

Write E F

TOTL XFR 74MB

Figure 43 Current tape operation display

Additionally, off-line utilities use this area to display tape-drive errors. The SCSI Request Sense

command provides information about an error.

2.3.2 Total Data Transferred

Total data bytes read or written from the tape drive appear with a KB (1024), MB (1024 x 1024)

or GB (1024 x 1024 x 1024) multiplier. On the first read or write command following a rewind, the count is set to zero.

Write E F

TOTL XFR 74MB

Figure 44 Total data transferred LCD

2.3.3 Transfer Rates in Kbytes per Second

The average transfer rate between the NonStop server and the tape drive is calculated by dividing the total data transferred by the elapsed time since the first read or write command following a rewind or write filemark.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 51 HP Part Number 528296-03 July 2005

Page 59

Section 4: SCSI Bridge Electronics

Write E F

XFR RATE 425KB/s

Figure 45 Transfer rate LCD

: Tape drives incorporate a data buffer to help maintain a constant data rate to the recording

Note

heads. When this buffer is empty, 1 MB of data or more can appear to be instantly written to the tape drive and a correspondingly high transfer rate is displayed on the LCD. When the buffer is sufficiently full, the recording heads are set in motion.

A substantial delay accompanies the first write operation to tape. This results in a drop in

the transfer rate. With continued writing to the tape drive, the tape constantly moves and the average transfer rate approaches the quoted streaming rate.

2.3.4 Compression Ratio

Write E F

COMPRESS

2.3:1

Figure 46 Compression ratio LCD

The average compression/decompression ratio shows as the ratio of the compressed and

uncompressed data lengths as reported by the tape drive. The ratio always appears in the format XX:X.

2.3.5 Remaining Capacity

This value is an estimate of remaining tape capacity that is computed by multiplying the average

compression ratio by the remaining block count, which was obtained from the tape drive. KB, MB and GB represent multipliers of 1024, 1024 x 1024, and 1024 x 1024 x 1024, respectively.

Read E F

REMAIN'G

1.7GB

Figure 47 Remaining capacity readout

2.3.6 ECC/Rewrite Percentage

The number of ECC (when reading) or rewrite (when writing) occurrences, as a percentage of the

total number of read or write commands since the last rewind, appear in the format XX.X. In general, error rates are the highest at the beginning of a tape because this part of the tape is written to every time the tape unloads. When this area becomes worn, tapes become unreliable. Errors above

10.0 suggest worn tapes or the need to clean the recording heads.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 52 HP Part Number 528296-03 July 2005

Page 60

Section 4: SCSI Bridge Electronics

Read E F

ECC Rate

0.0%

Figure 48 ECC/Rewrite percentage displays

2.4 Setting Tape Density

Tape density format can be controlled by the SCSI bridge electronics or by the NonStop server. Some applications will not function without having software control. When the appropriate drivers exist, the latter method is preferred, and a setting of FF should be used (default setting). When the tape drive is not busy, you can change the tape density by pressing the mode switch. Pressing the mode switch cycles the available density settings. The options for tape density scroll on the LCD.

DEN=CO

Rev 0096 5170 T134 ID5

O = compression on

40 = compression off

a b c

Figure 49 Compression control screens

2.4.1 To enable compression

Press the mode switch when the LCD appears as shown in Figure 49a.

2.4.2 To disable compression

Press the mode switch when the LCD appears as shown in Figure 49b.

2.4.3 To enable host control of density

Press the mode switch when the LCD appears as shown in Figure 49c.

2.5 Setup Display Format

Configuration of the SCSI bridge electronics is accomplished using the LCD and the mode switch. All configuration values are retained in nonvolatile memory. There are three setup menus. Setup 1 and Setup 2 contain configuration items, Setup 3 consists of diagnostic and special utilities. Enter the setup menus by holding in the mode switch while powering up the subsystem. The menu display system forms this hierarchy:

Read E F

RWr RATE

0.0%

DEN=40

Rev 0096 5170 T134 ID5

DEN=FF

Rev 0096 5170 T134 ID5

Valve should be

at FF only

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 53 HP Part Number 528296-03 July 2005

Page 61

Section 4: SCSI Bridge Electronics

*Set-Up* Release Button to Start

Mode Switch

Enter Set-Up 1 PRESS to Select

Enter Set-Up 2 PRESS to Select

Enter Set-Up 3 PRESS to Select

Exit Set-Up PRESS to Select

Figure 50 Tape Drive setup menus

2.5.1 Setup Overview

2.5.1.1 Within each menu, the individual items generally take this format on the 4-line LCD:

Parameter Instruction

SCSI ID: [00] PRESS to Alter

LCD Setup Format

Figure 51 Tape drive LCD setup format

1. PARAMETER denotes the configuration being reviewed or edited.

2. SETTING (in SETUP 1 and SETUP 2) is the value that you can change.

3. INSTRUCTION describes what action should be taken if the mode switch is pressed. If the mode switch is inactive for four seconds, the display changes. In general, the menu system is designed to show continuously the current settings with the instruction PRESS to Alter, which lets the operator alter the value.

2.5.2 Changing a Setting

Depending on the menu item, alter settings by the appropriate method that follows. When the instruction reads PRESS to Alter, you have the option of exiting from the editing mode or remaining in the editing mode to review the settings.

Setting

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 54 HP Part Number 528296-03 July 2005

Page 62

Section 4: SCSI Bridge Electronics

2.5.2.1 Numeric Entry Method

Enables you to change a setting by entering a decimal or hexadecimal number digit by

digit. The LCD shows the instruction PRESS to Incremnt. On the second line, the digit to the right is highlighted and currently alterable. To increment the digit, press the mode switch. Continue this process through all the sequentially highlighted digits. When the highlight proceeds past the rightmost digit, the display shows PRESS if Done, allowing you to confirm the change. If the numerical value requires additional editing, do not press the mode switch. Wait until the highlight restarts at the leftmost digit and then continue editing the setting.

SCSI ID: [00] PRESS to Alter

SCSI ID: [01] PRESS to Incremnt

SCSI ID: [01] PRESS if Done

Figure 52 Numeric entry example

2.5.2.2 Pick Entry Method

Allows you to select from a predefined list of items. When PRESS to Scroll displays on

the LCD, you can view the list of items by pressing the mode switch. When the switch is inactive for four seconds, the instruction PRESS if Done appears to allow you to confirm the setting. If you want the setting, wait until the PRESS to Scroll instruction appears on the LCD and then continue editing.

BaudRate

bps

9600 PRESS to Alter

BaudRate

bps

9600 PRESS to Scroll

BaudRate 1200 bps PRESS to Scroll

BaudRate

bps

2400 PRESS to Scroll

Figure 53 Pick entry example

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 55 HP Part Number 528296-03 July 2005

BaudRate

bps

19K2 PRESS if Done

Page 63

Section 4: SCSI Bridge Electronics

2.6 Setup 1 Configuration Display Format Items

Enter Set-Up 1

PRESS to Select

Tape Term: On

*NOT sel ectable*

SCSI ID: [00]

PRESS to Alter

Density: [C0]

PRESS to Alter

Tape ID: [00]

*NOT sel ectable*

Rwr% 0.5 Ecc: 0.5

PRESS to Alter

Exit Set-Up 1

PRESS to Select

Figure 54 Setup 1 configuration items

2.6.1 Setting the host SCSI ID

SCSI ID: [00] PRESS to Alter

SCSI ID: [01] PRESS to Incremnt

SCSI ID: [01] PRESS if Done

Figure 55 Setting the host SCSI ID

This configuration menu item sets the host SCSI ID used by the NonStop server to select the tape

drive. Enter a value (0 to 15) using the Numeric Entry Method. No two devices can have the same SCSI ID on the host bus. For available SCSI Ids consult your system administrator.

: The ability to independently set the tape drive SCSI ID and the NonStop server SCSI ID is very

Note

useful. The tape drive ID can be altered from tape drive front panel without regard to the actual physical SCSI ID of the drive itself, making SCSI device additions quick and simple.

2.6.2 Setting the Tape Drive SCSI ID

Tape ID: [00] *NOT sel ectable*

Figure 56 Setting the tape drive ID

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 56 HP Part Number 528296-03 July 2005

Page 64

Section 4: SCSI Bridge Electronics

The tape drive SCSI ID is factory configured and is not user-selectable.

2.6.3 Setting the Tape Termination

Tape Term:On *NOT sel ectable*

Figure 57 Setting the tape termination

Tape termination is factory-configured and is not user-selectable.

2.6.4 Selecting the Tape Density

Density: [C0] PRESS to Alter

Density:

[00]

PRESS to

PRESS to Incremnt

Incremnt

Density:

[F0] PRESS to Incremnt

Density:

[FF] PRESS if Done

Figure 58 Selecting the tape density

Tape density format can be controlled by the display unit or by the NonStop server. When the

appropriate drivers exist, the latter method is generally preferred and a setting of FF should be used. These other density values allow the SCSI bridge electronics to control the tape density:

DAT Drives

C0 = Compressed mode 40 = Noncompressed mode FF = Density controlled by the host software

: Once the settings have been configured through the setup menus, these settings become

Note

the default start-up values. Density can be changed on a tape-by-tape basis any time the tape is at BOT during normal Performance Display operation. Pressing the mode switch cycles the available density settings. Pressing the mode switch a second time selects the setting. This setting is used until the unit is power cycled or reset. The setting selected in the setup menu is then used as the default value.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 57 HP Part Number 528296-03 July 2005

Page 65

Section 4: SCSI Bridge Electronics

2.6.5 Setting the Error-Alert (ECC/Rewrite Percentages) Thresholds

The SCSI bridge electronics allow you to set numeric percentage for error-alert thresholds that, when exceeded, cause the amber LED (the lower LED on the tape drive front panel) to flash. Enter thresholds by the Numeric Entry method. The rewrite threshold value is set first, followed by the ECC threshold value. Entries take the form XX.X so you can enter values in the range of 00.0 percent to 99.9 percent. (It is recommended setting this threshold to a value of 10.0 percent.) Lower values cause the amber LED to light to flash at a lower percentage of error occurrences.

: Because the beginning of tape is written to every time a tape is unloaded, this area of the

Note

tape tends to wear sooner than the rest of the tape. As a result, it is not unusual to experience rewrites or ECC's at the beginning of tape. If these occur, the predetermined thresholds can be exceeded early, but the percentage then drops below the threshold as reading or writing moves further down the tape. To signal this, the error-alert LED flashes when the error rates exceed the set values but returns to a steady illumination if, once exceeded, the error rate falls below the set value.

Rwr% 0.5 Ecc:80.5 PRESS to Alter

Rwr% 0.5 Ecc:80.5 PRESS to Incremnt

Rwr%30.7 Ecc:80.5 PRESS to Alter

Rwr%30.7 Ecc:20.5 PRESS to Incremnt

Rwr%30.7 Ecc:24.2 PRESS if Done

Rwr% 0.5 Ecc:80.5 PRESS to Incremnt

Rwr%30.7 Ecc:24.5 PRESS to Incremnt

Rwr%30.5 Ecc:80.5 PRESS to Incremnt

Rwr%30.7 Ecc:24.2 PRESS to Incremnt

Figure 59 Setting error-alert (ECC/Rewrite percentages) thresholds

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 58 HP Part Number 528296-03 July 2005

Page 66

Section 4: SCSI Bridge Electronics

2.7 Setup 2 Configuration Display Format Items

Enter Set-Up 2

PRESS to Select

Key:2.01 [

288FEA

*NOT sel ectable*

BaudRate

bps

9600

PRESS to Alter

]

ptions:

O 00001401

PRESS to Alter

EM: --- NONE

*NOT sel ectable*

Exit Set-Up 2

PRESS to Select

Figure 60 Setup 2 configuration items

2.7.1 Editing the Option Access Key

Key:2.01 [ *NOT sel ectable*

288FEA

]

Figure 61 Editing the option access key

This option is factory configured and is not user-selectable.

2.7.2 Configuring the Options Setting

Options 00001400 PRESS to Alter

Figure 62 Configuring the options setting

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 59 HP Part Number 528296-03 July 2005

Options 01001400

PRESS to Incremnt

ptions:

O 00001400 PRESS if Done

Page 67

Section 4: SCSI Bridge Electronics

If your configuration or NonStop server environment requires unique settings or special

configurations, HP can provide assistance and minor firmware configurations for specific platforms, software or drives through the use of this menu item. This setting is factory-configured at 00001400 and you should never have to changed it. As noted, special situations may require this setting be changed, but it is highly recommended that you contact your service provider before changing this setting. Use the Numeric Entry Method to enter the eight-digit hex value.

2.7.3 Selecting a Baud Rate

BaudRate

bps

9600 PRESS to Alter

BaudRate

bps

9600 PRESS to Scroll

BaudRate 1200 bps PRESS to Scroll

BaudRate

bps

2400 PRESS to Scroll

BaudRate

bps

19K2 PRESS if Done

Figure 63 Selecting a baud rate

Four different baud rates are available for connecting to a serial terminal or terminal emulator: No parity, 8 data bits, 1 stop bit, and xon/xoff flow control. The 3-pin serial connector on the tape drive can connect to a PC serial port by using a communication package such as PRO-COMM (with xon/xoff enabled) to upgrade the flash firmware. Use the Pick Entry Method to select a baud rate.

2.8 Setup 3 Off-line Utilities Display Format Items

Enter Set-Up 3

PRESS to Select

Drive Test

PRESS to Run

Hdwr Test

press to run

Create a CodeTape

PRESS to Run

Load a CodeTape

PRESS to Run

Figure 64 Setup 3 off-line utilities menu

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 60 HP Part Number 528296-03 July 2005

Exit Set-Up 3

PRESS to Select

Page 68

Section 4: SCSI Bridge Electronics

Pressing the mode switch at this menu item invokes the drive self-test and offers a series of options from which you can select. This standalone exerciser can be used to diagnose problems within the tape drive. Modes of operation include fixed/variable block transfers, spacing, differing densities/compression modes, and a means to control the running time. Records are written with interspersed filemarks, rewound and read/verified. This cycle repeats for other densities supported by the tape drive. During the testing process, you can observe the error rate. If after you use a new tape and clean the heads, a high error rate persists, you might have a tape drive problem. Other errors might display the KEY/ASC/ASCQ bytes of a Request Sense command that are described in your tape drive product manual.

2.8.1 Invoking the Drive Test Option

Enter Set-Up 3 PRESS to Select

Drive Test PRESS to Run

10M Fixd.Tst PRESS to Run

200M Vari.Tst PRESS to Run

Custom Tst PRESS to Select

1M Fixd.Tst

PRESS to Run

10M Vari.Tst PRESS to Run

2.5G Fixd.Tst PRESS to Run

Exit Menu PRESS to Select

Figure 65 Drive self-test options

1M Vari.Tst PRESS to Run

200M Fixd.Tst PRESS to Run

2.5G Vari.Tst PRESS to Run

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 61 HP Part Number 528296-03 July 2005

Page 69

Section 4: SCSI Bridge Electronics

Enter Set-Up 3 PRESS to Select

Drive Test PRESS to Run

200M Fixd.Tst

PRESS to Run

200M Fixd.Tst PRESS to Confirm

Write E F TOTL XFR 24MB

Write E F COMPRESS

2.3:1

Write E F REMAIN'G

1.9GB

200M Fixd.Tst

PRESS to Escape

200M Fixd.Tst Waiting for Tape

Write E F XFR RATE

424KB/s

Write E F RWr Rate

0.0%

Pass E F REMAIN'G

1.9GB

Figure 66 Example drive test

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 62 HP Part Number 528296-03 July 2005

Press to Return

to Self Test Menu

Page 70

Section 4: SCSI Bridge Electronics

Enter Set-Up 3 PRESS to Select

Drive Test PRESS to Run

Variable Mode PRESS to Toggle

Ready to Run PRESS to

Escape

Write E F TOTL XFR 1024MB

Write E F RWr RATE

0.0%

Custom Test PRESS to Select

Run Once PRESS to Toggle

Ready to Run PRESS to

Confirm

Write E F XFR RATE

301KB/s

Write E F REMAIN'G

1.8

1MB to Xfer PRESS to

Increment

Ready to Run PRESS to Start

Ready to Run Waiting for tape

Write E F COMPRESS

1.0:1

Pass E F REMAIN'G

1761MB

Figure 67 Example custom drive test menu

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 63 HP Part Number 528296-03 July 2005

Press to Return

to Self Test Menu

Page 71

Section 4: SCSI Bridge Electronics

2.8.2 Activating a Hardware Self-Test

Enter Set-Up 3 PRESS to Select

Hdwr Test press to run

Figure 68 Activating a hardware self-test

2.8.3 Making a Code Tape

Enter Set-Up 3 PRESS to Select

Hdwr Test

Testing Scsi

Hdwr Test Ram Test & Reset

InFourmm ======== Power On SelfTest

C7438A Rev L610 5170 T133BID5

Create a CodeTape PRESS to Run

Figure 69 Making a code tape

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 64 HP Part Number 528296-03 July 2005

Create a CodeTape

PRESS to Confirm

Create a CodeTape

PRESS to Escape

Create a CodeTape waiting for tape

Load Tape

Page 72

Section 4: SCSI Bridge Electronics

The SCSI bridge electronics firmware may be copied to another tape drive by making a Code

Tape. Configuration settings are not carried across but must be entered manually. You are prompted to insert a scratch tape. During operation the Performance Display appears and 64Kb transfers displays on the LCD. The tape unloads and you are returned to the menu system.

2.8.4 Loading a Code Tape

Enter Set-Up 3 PRESS to Select

Load a CodeTape PRESS to Run

Load a CodeTape

PRESS to Confirm

Load a CodeTape

PRESS to Escape

Load a CodeTape waiting for tape

Load Tape

Figure 70 Loading a code tape

The SCSI bridge electronics firmware can be upgraded by using a Code Load Tape. You are

prompted to insert the tape. Do not disturb the unit's power until the end of the procedure. The SCSI bridge electronics relocate some internal firmware, switch to the Performance Display format, read 64Kb, and verifies the tape, rewinds the tape, rereads the 64Kb, programs the firmware and, unloads the tape when complete. You are not be returned to the menu system because this utility alters the RAM/ROM in a non recoverable manner. A cold reset executes.

: For this procedure, it is recommended that you take the tape drive off-line and disconnect

Note

the SCSI cable from the rear connector of the tape drive.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 65 HP Part Number 528296-03 July 2005

Page 73

Section 4: SCSI Bridge Electronics

5242 Tape Drive

Bringing Online 29 Cartridge

Loading 70

Unloading 71 Controls and Indicators 72 Features 69 Installation 22

AC Power 22

SCSI Cable 24

Interfaces 64

Components 4 Introduction 68 LEDs 73 Maintenance

Enclosure 59

Head Cleaning xxii, 54

LCD 59 Power Requirements 19 Power-Up Sequence 31 SCSI Cable 6 SCSI ID, Setting and Checking 34 Specifications

Electrical 63

Environmental 64

LCD 63

Physical 65

SCSI Cable 64

Transfer Rates

Burst 12

Starting 38 Testing 39 Troublehooting 40

5242ACL Tape Drivem

Autoloader LCD

Bringing Online 29 Cartridges and Magazines 83

Diagnostic Display 92 Features 81 Front Panel LEDs

Installation 22

Introduction 80 LEDs 88 Magazine, Ejecting 86 Magazine, Forcing an Ejection 87 Magazine, Loading 84 Maintenance

Power Requirements 19 Power-Up Sequence 32 SCSI Cable 6 SCSI ID, Setting and Checking 34 Specifications

Sustained 12

Categories of Information 92

Display Regions 91

Categories of Information

Error Messages 95 Normal Status 93

Operation 82

Terminology 82

Magazine Present 89

Tape Activity 89

AC Power 22

SCSI Cable 24

Interfaces 64

Components 4

Enclosure 59

Head Cleaning xxv, 57

LCD 59

Electrical 63

Environmental 64

LCD 63

Physical 65

Index

Transfer Rates

Burst 12

Starting 38 Testing 39

Troubleshooting 40 Agency Approvals 64 Burst Transfer Rates 12 Component Part Numbers 7 DAT72 Display Unit, specifications 63

HP Processor Multifunction (PMF 5

HP NonStop servers

Configuring 43

Installation

SCF

Interfaces 64

Components 4 LEDs

5242 Tape Drive 73

5242ACL Tape Drive 88 PMF FRU Configuration Form 45 Power Requirements 19 Processor Multifunction (PMF) 5 SCF

Adding a Tape Drive 48

Deleting a Tape Drive 52

Tape Drive Attributes 50 SCSI Cable

Connecting to the Tape Drive 24

Connecting to the PMF 26

Copper (PMF FRU) 6

Cable Length Limiations 62

Length Limitations 64 SCSI Compatibility 13 SCSI ID, Setting the ID 124 Specifications 63

Agency Approvals 64

Electrical 63

Environmental 64

Physical 65 Sustained Transfer Rates 12

Sustained 12

5242 and 5242ACL

Online Using SCF 47

Using the SCF 50 Group 43 Identifying CRUs 44

Group Number 44

Model Number 44

Slot Number 44 Module 43 PMF CRU Configuration Form 45 Slot 44

5242 and 5242ACL

AC Power 22

Bringing Online 29

Checking & Setting the SCSI ID 34

Power-Up 31

Power-Up Sequence 32

SCSI Cable 24

Starting 38

Testing 39

Troubleshooting 40 5242 and 5242ACL Tape Drives 15, 22 Overview 15 Planning Requirements 16

AC Power 19

Environmental 18

Physical Specifications 17

Service Clearance 17

Adding a Tape Drive 48 Deleting a Tape Drive 52 Tape Drive Attributes 50

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 66 HP Part Number 528296-03 July 2005

Page 74

Safety and Compliance

Tape

Cartridge 8 Capacity 11 Cleaning Tape 8 Compatibility 13 Humidity 8

Labeled and Unlabeled Tapes 11 Life Expectancy 9 Using Labels 9 Write-Protecting 10

Tape Drive Specifications

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 67 HP Part Number 528296-03 July 2005

Page 75

Safety and Compliance

Regulatory Compliance Statements

This section contains three types of required safety and compliance statements:

• Ρεγυλατορψ χοµπλιανχε

• Ωαστε Ελεχτριχαλ ανδ Ελεχτρονιχ Εθυιπµεντ (ΩΕΕΕ)

• Σαφετψ

Regulatory Compliance Statements

The following regulatory compliance statements apply to the products documented by this manual.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by Hewlett-Packard Computer Corporation could void the user’s authority to operate this equipment.

Canadian Compliance

This class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règelment sur le matériel brouilleur du Canada.

Korea MIC Compliance

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 68 HP Part Number 528296-03 July 2005

Page 76

Safety and Compliance

Taiwan (BSMI) Compliance

Japan (VCCI) Compliance

This is a Class A product based on the standard or the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may occur, in which case the user may be required to take corrective actions.

European Union Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms (the equivalent international standards are in parenthesis):

• ΕΝ55022 (ΧΙΣΠΡ 22)Ελεχτροµαγνετιχ Ιντερφερενχε

• ΕΝ55024 (ΙΕΧ61000−4−2, 3, 4, 5, 6, 8, 11)Ελεχτροµαγνετιχ Ιµµυνιτψ

• ΕΝ61000−3−2 (ΙΕΧ61000−3−2)Ποωερ Λινε Ηαρµονιχσ

• ΕΝ61000−3−3 (ΙΕΧ61000−3−3)Ποωερ Λινε Φλιχκερ

• ΕΝ60950 (ΙΕΧ950)Προδυχτ Σαφετψ

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 69 HP Part Number 528296-03 July 2005

Page 77

Safety and Compliance

Laser Compliance

This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber optic transceiver. Each of these devices contains a laser that is classified as a Class 1 Laser Product in accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous laser radiation.

WARNING: Use the controls or adjustments or performance of procedures other than those specified herein or in the laser product’s installation guide may result in hazardous radiation exposure. To reduce the risk of exposure to hazardous radiation:

•

∆ο νοτ τρψ το οπεν τηε µοδυλε ενχλοσυρε. Τηερε αρε νο υσ ερ−σερϖιχεαβλε χοµπονεντσ ινσιδε.

•

∆ο νοτ οπερατε χοντρολσ, µακε αδϕυστµεντσ, ορ περφορµ προχεδυρεσ το τηε λασερ δεϖιχε οτηερ τηαν τηοσε σπεχιφιεδ ηε ρειν.

•

Αλλοω ονλψ ΗΠ Αυτηοριζεδ Σερϖιχε τεχηνιχιανσ το ρεπα ιρ τηε µοδυλε.

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the Unites States.

SAFETY CAUTION

The following icon or caution statements may be placed on equipment to indicate the presence of potentially hazardous conditions:

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 70 HP Part Number 528296-03 July 2005

DUAL POWER CORDS CAUTION: “THIS UNIT HAS MORE THAN ONE POWER SUPPLY CORD.

DISCONNECT ALL POWER SUPPLY CORDS TO COMPLETELY REMOVE POWER FROM THIS UNIT."

"ATTENTION: CET APPAREIL COMPORTE PLUS D'UN CORDON D'ALIMENTATION. DÉBRANCHER TOUS LES CORDONS D'ALIMENTATION AFIN DE COUPER COMPLÈTEMENT L'ALIMENTATION DE CET ÉQUIPEMENT".

DIESES GERÄT HAT MEHR ALS EIN NETZKABEL. VOR DER WARTUNG BITTE ALLE NETZKABEL AUS DER STECKDOSE ZIEHEN.

Page 78

Safety and Compliance

Any surface or area of the equipment marked with these symbols indicates the presence of electric shock hazards. The enclosed area contains no operator-serviceable parts.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure.

DOUBLE POLE FUSING

CAUTION: DOUBLE-POLE /NEUTRAL FUSING.

ATTENTION: DOUBLE POLE/FUSIBLE SUR LE NEUTRE

NOT FOR EXTERNAL USE

CAUTION: NOT FOR EXTERNAL USE. ALL RECEPTACLES ARE FOR INTERNAL USE ONLY.

ATTENTION: NE PAS UTILISER A L’EXTERIEUR DE L’EQUIPEMENT

IMPORTANT: TOUS LES RECIPIENTS SONT DESTINES UNIQUEMENT A UN USAGE INTERNE.

VORSICHT: ALLE STECKDOSEN DIENEN NUR DEM INTERNEN GEBRAUCH.

HIGH LEAKAGE CURRENT

To reduce the risk of electric shock due to high leakage currents, a reliable grounded (earthed) connection should be checked before servicing the power distribution unit (PDU).

Observe the following limits when connecting the product to AC power distribution devices: For PDUs that have attached AC power cords or are directly wired to the building power, the total combined leakage current should not exceed 5 percent of the rated input current for the device.

“HIGH LEAKAGE CURRENT, EARTH CONNECTION ESSENTIAL BEFORE CONNECTING SUPPLY”

“HOHER ABLEITSTROM. VOR INBETRIEBNAHME UNBEDINGT ERDUNGSVERBINDUNG HERSTELLEN”

“COURANT DE FUITE E’LEVE’. RACCORDEMENT A LA TERRE INDISPENSABLE AVANT LE RACCORDEMENT AU RESEAU”

FUSE REPLACEMENT

CAUTION – For continued protection against risk of fire, replace only with same fuse type TCF15, Rated 600V~, 15A. Disconnect power before changing fuses.

Waste Electrical and Electronic Equipment (WEEE)

Information about the Waste Electrical and Electronic Equipment (WEEE) directive can be accessed from the left navigation area of the NTL home page: select NonStop Computing > Waste Electrical and Electronic Equipment (WEEE).

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 71 HP Part Number 528296-03 July 2005

Page 79

Safety and Compliance

Important Safety Information

Safety information can be accessed from the left navigation area of the NTL home page: select NonStop Computing>Important Safety Information. A document window containing a binder of safety information, in several languages, appears. In the document window, click a document title to open the safety information in another language. Local HP support can also help direct you to your safety information.

HP StorageWorks DAT 72 (Models 5242 and 5242-ACL) User's Guide 72 HP Part Number 528296-03 July 2005
