Hardware Reference Guide
HP t200 Zero Client for MultiSeat
© Copyright 2011 Hewlett-Packard
Development Company, L.P. The information
contained herein is subject to change
without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products and
services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (August 2011)
Document Part Number: 667766–001
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Book ENWW
Table of contents
1 Front Panel Components ................................................................................................... 1
2 Rear Panel Components .................................................................................................... 2
3 Serial Number Location .................................................................................................... 3
Appendix A Specifications ................................................................................................... 4
Appendix B Security Provisions ............................................................................................ 5
HP t200 Zero Client for MultiSeat Security Clip ........................................................................... 5
Securing the HP t200 Zero Client for MultiSeat ............................................................. 5
Securing the HP t200 Zero Client for MultiSeat in the Mounting Bracket .......................... 6
Appendix C Mounting the HP t200 Zero Client for MultiSeat ................................................. 7
Mounting Bracket ..................................................................................................................... 7
Attaching the HP t200 Zero Client for MultiSeat to the Mounting Bracket ......................... 7
Releasing the HP t200 Zero Client for MultiSeat from the Mounting Bracket ...................... 8
Supported Mounting Options ..................................................................................................... 8
Non-supported Mounting Option ............................................................................................. 10
Appendix D HP t200 Zero Client for MultiSeat Operation ................................................... 11
Routine t200 Zero Client Care ................................................................................................. 11
Supported Orientations ........................................................................................................... 11
Non-supported Orientation ...................................................................................................... 13
Appendix E Shipping Information ...................................................................................... 14
Shipping Preparation .............................................................................................................. 14
Important Service Repair Information ........................................................................................ 14
Index ................................................................................................................................. 15
ENWW v
vi ENWW
1 Front Panel Components
For more information, http://www.hp.com and search for your specific t200 Zero Client model to find
the model-specific QuickSpecs.
Figure 1-1 Front panel components
(1) Power LED (3) Line-out (headphone) audio connector
(2) Line-in (microphone) connector (4) USB 2.0 connectors (4)
NOTE: If the optional DC adapter is not
connected, the t200 Zero Client supports a standard
USB keyboard and USB mouse plus one 100 mA
USB device (low power), such as some flash drives.
If the optional DC adapter is connected to a working
power outlet or to the monitor, the t200 Zero Client
supports a USB keyboard, a USB mouse, and two
500 mA (high power) USB devices.
HP monitors with power-pass-through (such as the HP
LE1851wt 18–inch Widescreen LCD Monitor) can
supply power to the t200 Zero Client.
ENWW 1
2 Rear Panel Components
For more information, http://www.hp.com and search for your specific t200 Zero Client model to find
the model-specific QuickSpecs.
Figure 2-1 Rear panel components
(1) On/off switch (5) DC power connector
(2) Reset button (6) Ethernet RJ-45 connector
(3) VGA connector (7) Security clip slot
(4) USB PC connector to host PC (USB Type A/B cable
included)
2 Chapter 2 Rear Panel Components ENWW
3 Serial Number Location
Figure 3-1 Serial number location
Every t200 Zero Client includes a unique serial number located as shown in the following illustration.
Have this number available when contacting HP customer service for assistance.
ENWW 3
A Specifications
Table A-1 t200 Zero Client
Dimensions
Width (side to side)
Height (without mounting bracket)
Height (with mounting bracket)
Depth (front to back)
Approximate Weight
Without mounting bracket
With mounting bracket
Temperature Range *
136 mm
35 mm
41 mm
91 mm
343 g
381 g
5.35 in.
1.38 in
1.61 in
3.58 in.
12.1 oz
13.44 oz
Operating**
(max. rate of change is 10° C per hour or 18° F per hour)
Nonoperating
(max. rate of change is 20° C per hour or 36° F per hour)
*Specifications are at sea level with altitude derating of
1° C/300m (1.8° F/1000ft) to a maximum of 3Km
(10,000ft), with no direct, sustained sunlight. Upper limit
may be limited by the type and number of options installed.
Relative Humidity (non-condensing)
Operating
(max. wet bulb temperature is 28° C or 84.2° F)
Nonoperating
(max. wet bulb temperature is 38.7° C or 101.6° F)
Maximum Altitude (unpressurized)
Operating
(max. allowed rate of change is 457 m per minute or 1500
ft per minute)
Nonoperating
10° to 40° C
-30° to 60° C
** The operating temperature range when the t200
Zero Client is attached to a flat panel using the
mounting bracket is 50° to 95° F (10° to 35° C).
10–90%
5–95%
3,048 m
9,144 m
50° to 104° F
-22° to 140° F
10–90%
5–95%
10,000 ft
30,000 ft
(max. allowed rate of change is 457 m per minute or 1500
ft per minute)
4 Appendix A Specifications ENWW
B Security Provisions
HP t200 Zero Client for MultiSeat Security Clip
The t200 Zero Client ships with a security clip which can be fastened to the rear panel of the t200 Zero
Client. To prevent unauthorized removal of the t200 Zero Client, fasten a padlock through the clip and
a cable.
Securing the HP t200 Zero Client for MultiSeat

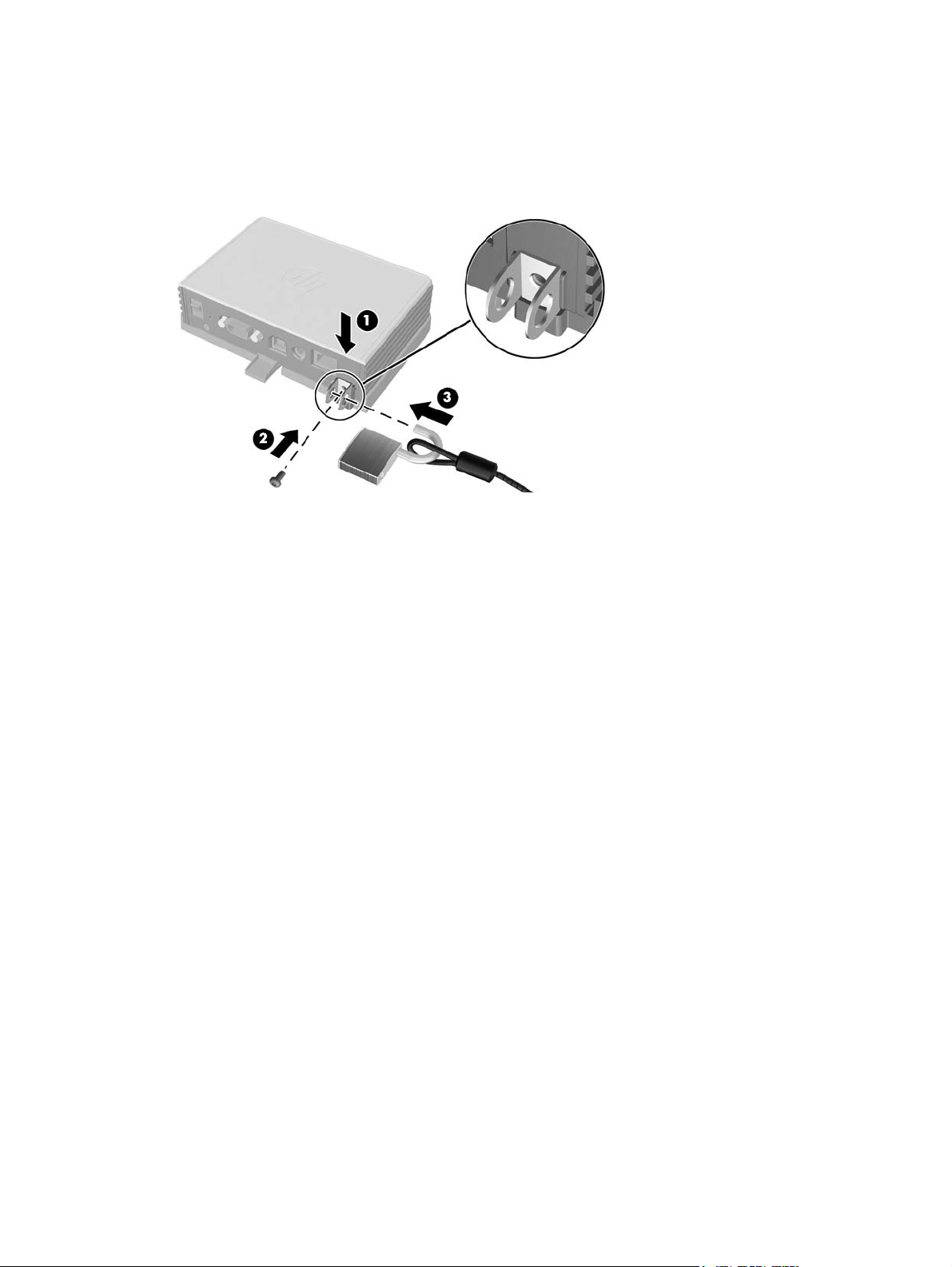

Figure B-1 Securing the t200 Zero Client
ENWW
1. With the tab of the t200 Zero Client security clip pointing up, insert the t200 Zero Client security
clip between the guides on the back of the t200 Zero Client (1). Use the provided screw to fasten
the security clip to the t200 Zero Client (2).
2. Insert a padlock through the loops of the security clip (3) and a cable.
HP t200 Zero Client for MultiSeat Security Clip
5
Securing the HP t200 Zero Client for MultiSeat in the Mounting Bracket
Figure B-2 Securing the t200 Zero Client in the mounting bracket
1. With the tab of the t200 Zero Client security clip pointing down, insert the t200 Zero Client
security clip between the guides on the back of the t200 Zero Client into the slot on the back of
the mounting bracket (1). Use the provided screw to fasten the security clip to the t200 Zero Client
(2).
2. Insert a padlock through the loops of the security clip (3) and lock it to prevent access to the
security clip screw.
6 Appendix B Security Provisions ENWW
C Mounting the HP t200 Zero Client
for MultiSeat
Before mounting the t200 Zero Client, be sure to attach the mounting bracket.
Mounting Bracket
The t200 Zero Client ships with a mounting bracket which should be used to secure the t200 Zero
Client to various mounting solutions. The bracket incorporates four mounting points on one side of the
unit. These mounting points follow the VESA (Video Electronics Standards Association) standard, which
provides industry-standard mounting interfaces for Flat Displays (FDs), such as flat panel monitors, flat
displays, and flat TVs.
Attaching the HP t200 Zero Client for MultiSeat to the Mounting Bracket
Figure C-1 Inserting the t200 Zero Client into the mounting bracket
ENWW
Mounting Bracket
7
Releasing the HP t200 Zero Client for MultiSeat from the Mounting Bracket
Figure C-2 Removing the mounting bracket
Supported Mounting Options
Figure C-3 t200 Zero Client mounted on back of monitor stand
8 Appendix C Mounting the HP t200 Zero Client for MultiSeat ENWW
Figure C-4 t200 Zero Client mounted on back of monitor
Figure C-5 t200 Zero Client mounted on wall
ENWW
Figure C-6 t200 Zero Client mounted under desk
Supported Mounting Options
9
Non-supported Mounting Option
CAUTION: Mounting the t200 Zero Client in an non-supported manner could result in failure of the
mounting bracket and damage to the t200 Zero Client and/or other equipment.
Do not mount the t200 Zero Client on a flat panel monitor stand, between the panel and the stand.
Figure C-7 Unsupported mounting position—t200 Zero Client between stand and monitor
10 Appendix C Mounting the HP t200 Zero Client for MultiSeat ENWW
D HP t200 Zero Client for MultiSeat
Operation
Routine t200 Zero Client Care
Use the following information to properly care for the t200 Zero Client:
Never operate the t200 Zero Client with the outside panel removed.
●
Keep the t200 Zero Client away from excessive moisture, direct sunlight, and extreme heat and
●
cold. For information about the recommended temperature and humidity ranges for the t200 Zero
Client, see
Keep liquids away from the t200 Zero Client.
●
Turn off the t200 Zero Client and wipe the exterior with a soft, damp cloth as needed. Using
●
cleaning products may discolor or damage the finish.
Supported Orientations
Specifications on page 4.
HP supports the following orientations for the t200 Zero Client.
CAUTION: You must adhere to HP-supported orientations to ensure your t200 Zero Client functions
properly.
If the t200 Zero Client is not to be mounted, only the horizontal orientation is supported. Be sure
●
to set the t200 Zero Client on its rubber feet.
Figure D-1 Horizontal orientation
ENWW

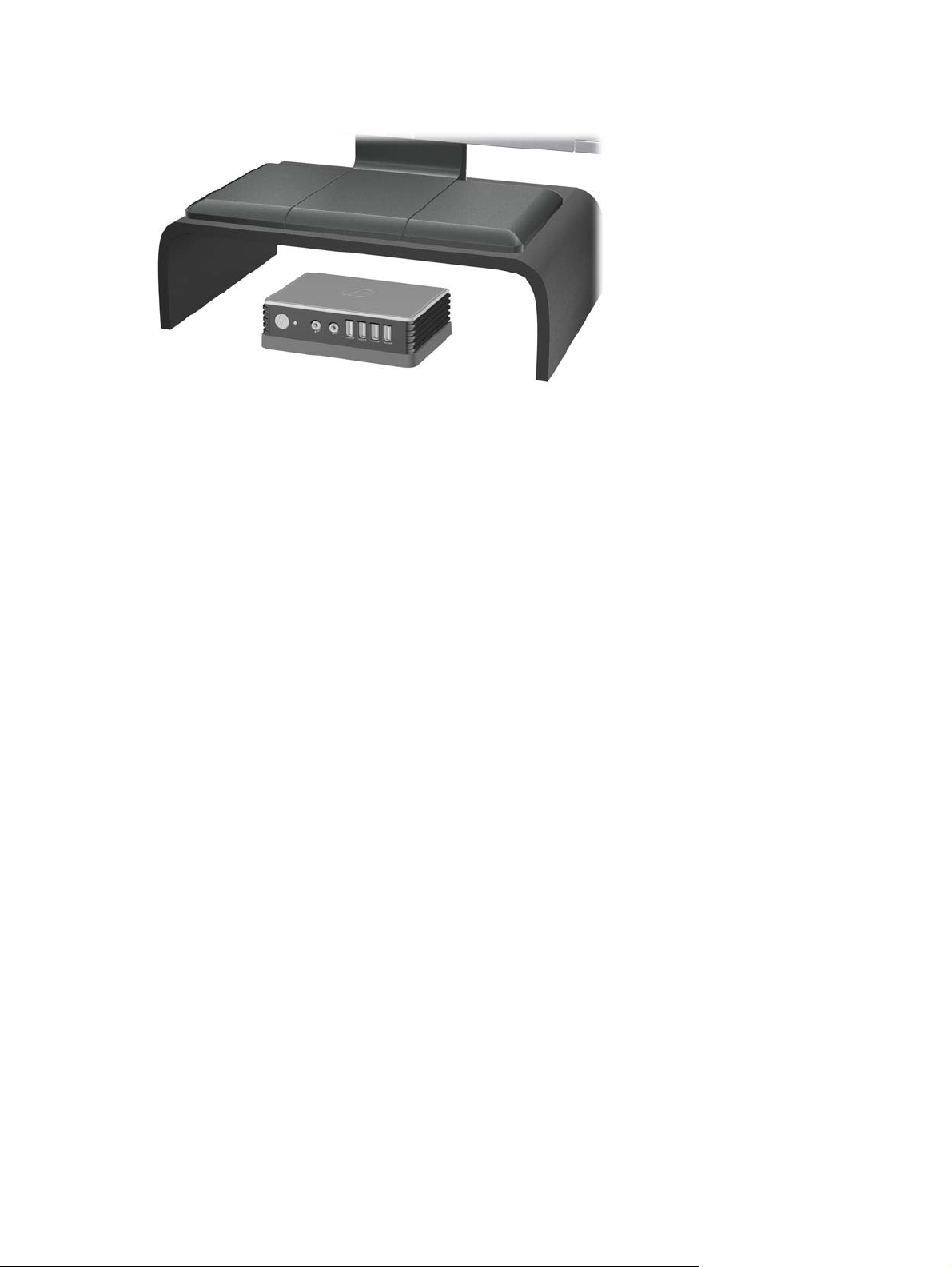

You can lay the t200 Zero Client under a monitor stand with at least one inch of clearance.
●
Routine t200 Zero Client Care
11
Figure D-2 Under monitor stand
12 Appendix D HP t200 Zero Client for MultiSeat Operation ENWW
Non-supported Orientation
HP does not support the following orientation for the t200 Zero Client.
CAUTION: Non-supported placement of the t200 Zero Client could result in operation failure and/or
damage to the devices.
CAUTION: The t200 Zero Client requires proper ventilation to maintain operating temperature. Do
not block the vents.
Do not put the t200 Zero Client in a drawer or other sealed enclosure. Do not place a monitor or other
object on top of the t200 Zero Client. The t200 Zero Client requires proper ventilation to maintain
operating temperatures.
Figure D-3 Do not put the t200 Zero Client in a drawer or other sealed enclosure
Figure D-4 Do not place a monitor on the t200 Zero Client
ENWW
Non-supported Orientation
13
E Shipping Information
Shipping Preparation
Follow these suggestions when preparing to ship the t200 Zero Client:
1. Turn off external devices connected to the t200 Zero Client.
2. Disconnect the system components and external devices from their power sources, then from the
t200 Zero Client.
3. Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
NOTE: For environmental nonoperating ranges, see Specifications on page 4.
Important Service Repair Information
In all cases, remove and safeguard all external options before returning the t200 Zero Client to HP for
repair or exchange.
14 Appendix E Shipping Information ENWW
Index
A
altitude specifications 4
B
bracket, mounting 7
C
cautions
mounting t200 Zero Client 10
t200 Zero Client orientation
11, 13
ventilation 13
components
front panel 1
rear panel 2
D
DC adapter, optional 1
DC power connector 2
dimensions 4
F
front panel components 1
H
hardware specifications 4
headphone connector location 1
horizontal orientation 11
humidity specifications 4
M
microphone connector location 1
monitor 1
mounting bracket 7
attaching 7
removing 8
mounting options
on back of monitor stand 8
on wall 8
under desk 8
with flat panel on wall 8
mounting t200 Zero Client 7
N
non-supported orientations
in a drawer 13
under a monitor 13
P
power LED location 1
R
rear panel components 2
relative humidity specifications 4
routine care 11
S
security 5
security clip 5
attaching 5
attaching to mounting bracket
6
security clip slot 2
serial number location 3
service repair 14
shipping preparation 14
specifications
altitude 4
dimensions 4
hardware 4
humidity 4
relative humidity 4
t200 Zero Client 4
temperature 4
weight 4
supported mounting options 8
supported orientations 11
horizontal 11
under monitor stand 11
vertical 11
T
temperature specifications 4
U
unsupported mounting option 10
USB connectors 1
USB PC power connector
location 2
V
vertical orientation 11
VGA connector location 2
W
weight 4
ENWW
Index
15
Loading...
