HP Slate8 Pro
Maintenance and Service Guide IMPORTANT! This document is intended for HP authorized service providers only.
© Copyright 2013 Hewlett-Packard Development Company, L.P.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: December 2013
Document Part Number: 741896-001
Product notice
This guide describes features that are common to most models. Some features may not be available on your tablet.
Software terms
By installing, copying, downloading, or otherwise using any software product preinstalled on this tablet, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a refund subject to the refund policy of your place of purchase.
For any further information or to request a full refund of the tablet, please contact your local point of sale (the seller).
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description ........................................................................................................... 1
2 External component identification ..................................................................................... 3
3 Illustrated parts catalog .................................................................................................... 5
Locating the serial number, product number, and model number .................................................... 5
Tablet major components .......................................................................................................... 6
Miscellaneous parts .................................................................................................................. 7
Sequential part number listing .................................................................................................... 7
4 Removal and replacement preliminary requirements ........................................................ 9
Tools required .......................................................................................................................... 9
Service considerations .............................................................................................................. 9
Plastic parts .............................................................................................................. 9
Cables and connectors .............................................................................................. 9
Grounding guidelines ............................................................................................................. 10
Electrostatic discharge damage ................................................................................. 10
Packaging and transporting guidelines ....................................................... 11
Workstation guidelines .............................................................. 11
5 Removal and replacement procedures ............................................................................ 13
Tablet component replacement procedures ................................................................................ 13
Back cover ............................................................................................................................ 13
Display panel cable ............................................................................................................... 14
I/O board cable .................................................................................................................... 16

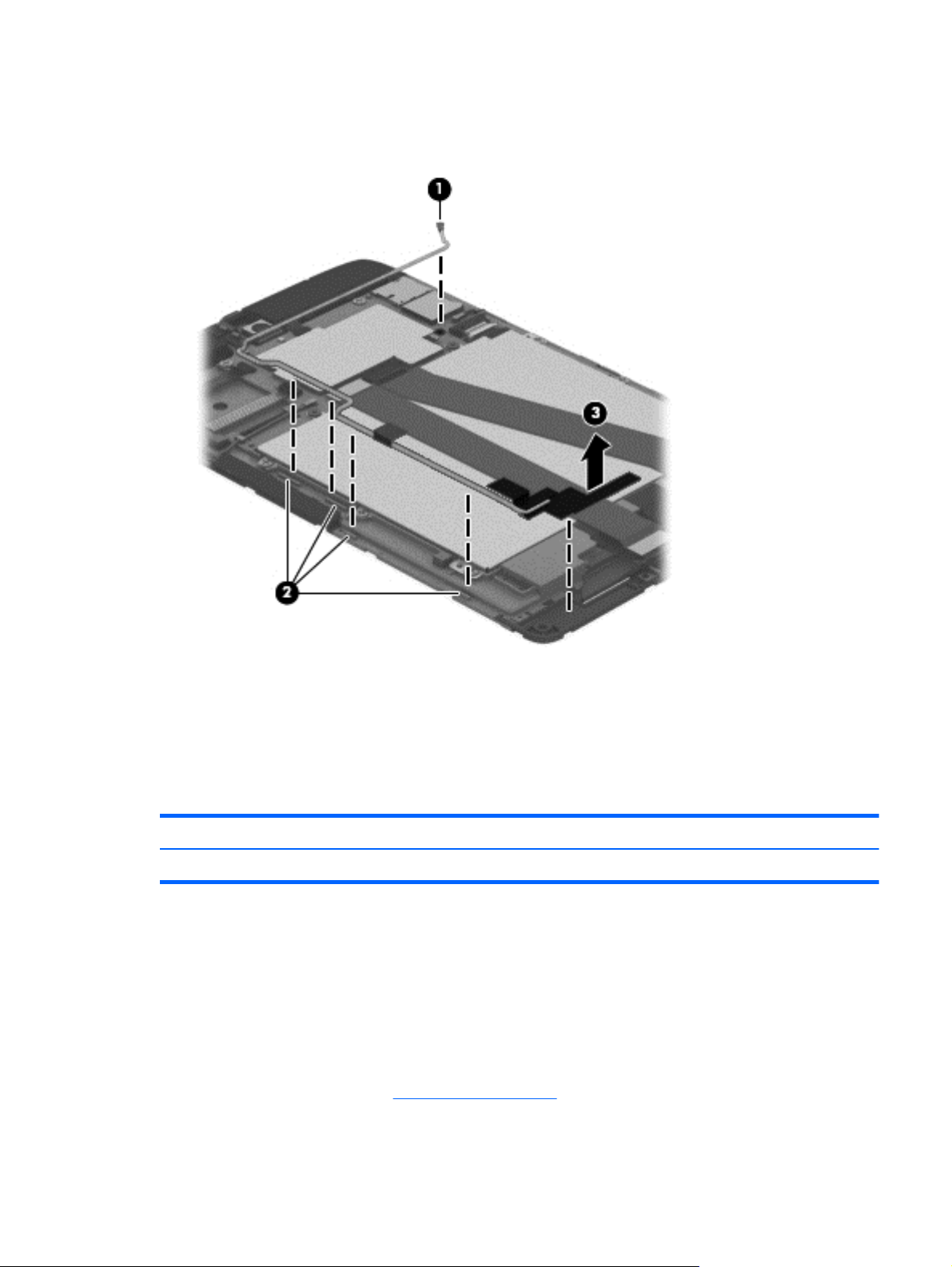

Battery .................................................................................................................................. 18
I/O board ............................................................................................................................. 20
Speakers ............................................................................................................................... 21
WLAN antenna ..................................................................................................................... 23
GPS antenna ......................................................................................................................... 25
Microphone .......................................................................................................................... 27
v
Rear-facing webcamera .......................................................................................................... 29
Front-facing webcamera .......................................................................................................... 31
Power button board ................................................................................................................ 32
Volume button board .............................................................................................................. 35
LTE antenna ........................................................................................................................... 37
System board ........................................................................................................................ 38
6 Specifications ................................................................................................................. 42
7 Power cord set requirements .......................................................................................... 43
Requirements for all countries .................................................................................................. 43
Requirements for specific countries and regions ......................................................................... 43
8 Recycling ........................................................................................................................ 45
Index ................................................................................................................................. 46
vi

1 Product description

Category Description
Product Name HP Slate8 Pro
Processor nVidia® T40S A15 1.80-GHz quad core soldered on-chip (SOC) processor
Panel 7.98-in, (1600×1200), AntiGlare, UltraSlim, TouchScreen display panel with light-emitting
diode (LED) backlight; 4:3 wide aspect ratio
Touch Screen: Multi-touch capacitive digitizer, Gorilla glass 3 with anti-smudge and direct­bonding (compliant with Windows 8 requirements)
Typical brightness: 360 nits
Graphics Internal graphics: nVidia graphics accelerator
Supports HD playback, streaming, and recording @ 1080p/30fps
Supports open GL ES 2.0
Supports HDMI
Memory Supports 2 configurations:
2-GB, 16-GB 1600-MHz LP-DDR3 single package 4×128-MB×32 dual-channel Memory IC with 32-GB storage
1-GB, 8-GB 1600-MHz LP-DDR3 single package 2×128-MB×32 dual-channel Memory IC with 16-GB storage
Mass storage Supports embedded MultiMedia Card (eMMC) solid-state drives NAND flash v. 4.5 and
later
Supports 32.0- and 16.0-GB eMMC solid-state drives
Audio and video Integrated stereo speakers (2), 0.5-W per channel
One digital microphone
Support Beats Audio
8.0-MP, autofocus rear-facing webcamera with LED flash
1.0-MP, 720-p front-facing webcamera
1
Category Description
Sensors Accelerometer
Ambient light
e-Compass
GPS position
Gyro
Hall-effect
Wireless networking Integrated WiFi option: Broadcom 43241 WiFi/BT 4.0 combo with 2 antenna
Integrated GPS option: Integrated GPS SOC with 1 antenna
Integrated Bluetooth option: Class 1 Bluetooth (10-m+ range), Bluetooth 4.0+LE Wifi
802.11abgn 2×2 MIMO
Integrated WiDi option: Global ME936 WWAN module SOC
External expansion Integrated micro SD Card Reader expandable to 32-GB
Ports
Power requirements Supports a 2-cell, 21-WHr, 2.84-AHr, Li-ion battery (non-removable), USB charging
Operating system Preinstalled: Android 4.2
Serviceability End user replaceable part: AC adapter
Audio: 3.5-mm headphone/microphone combo jack (supports North American-type headset only)
Micro HDMI connector
Micro USB 2.0 type AB connector (supports OTG and charging)
Supports a 10-W AC adapter with DC plug and localized cable plug support
2 Chapter 1 Product description

2 External component identification

Item Component Item Component
(1) Microphone (7) Audio-out (headphone)/Audio-in
(microphone) jack
(2) Power button (8) Micro HDMI port
(3) Camera flash (9) Micro USB 2.0 port
(4) Rear-facing webcamera (10) Speakers (2)
3
Item Component Item Component
(5) Front-facing webcamera (11) Micro SD Card Reader slot
(6) Volume control buttons (2)
4 Chapter 2 External component identification

3 Illustrated parts catalog

Locating the serial number, product number, and model number

The serial number and product number of your tablet are located on the bottom edge of the tablet. You may need this information when you travel internationally or when you contact support.
Locating the serial number, product number, and model number
5

Tablet major components

Item Component Spare part number
(1) Back cover 743926-001
(2) Display panel cable 743832-001
(3) I/O board cable 743830-001
(4) Battery, 2-cell, 21-WHr, 2.84-AHr, LI (includes cable) 743821-001
(5) LTE antenna
LTE main antenna 746232-001
LTE auxilliary antenna 746233-001
(6) WLAN main antenna (includes cable and transceiver) 746230-001
(7) Microphone (includes cable) 743927-001
(8) Front-facing webcamera (includes cable) 743817-001
(9) Rear-facing webcamera (includes cable) 743818-001
(10) System board equipped with an nVidia T40S quad core A15 1.80-GHz processor:
6 Chapter 3 Illustrated parts catalog
Item Component Spare part number
Equipped with 2.0-GB DDR3 system memory and a 32-GB eMMC hard drive 743816-001
Equipped with 1.0-GB DDR3 system memory and a 16-GB eMMC hard drive 743815-001
(11) I/O board 743829-001
(12) Speaker Kit (includes left and right speakers and cables) 743819-001
(13) Power button board (includes cable) 743928-001
(14) Volume button board (includes cable and double-sided adhesive) 743831-001
(15) WLAN auxilliary antenna (includes cable and transceiver) 746231-001
(16) GPS antenna (includes cable and transceiver) 746229-001
(17) Display panel assembly, 7.98-in, AntiGlare, LED, TouchScreen 745814-001

Miscellaneous parts

Component Spare part number
AC adapter:
10-W, USB (non-PFC) AC adapter 743820-001
10-W AC adapter with plug for use only in Australia 745807-002
10-W AC adapter with plug for use only in Europe and South Korea 745807-009
10-W AC adapter with plug for use only in North America 745807-008
10-W AC adapter with plug for use only in the United Kingdom and Singapore 745807-003
HP Slate8 Pro:
Equipped with an nVidia T40S quad core A15 1.80-GHz processor, 1.0-GB DDR3 system memory, and a 16-GB eMMC hard drive
Equipped with an nVidia T40S quad core A15 1.80-GHz processor, 2.0-GB DDR3 system memory, and a 32-GB eMMC hard drive
Screw Kit 746286-001
USB extension cable 743828-001

Sequential part number listing

Spare part number Description
743834-001
743833-001
743815-001 System board equipped with an nVidia T40S quad core A15 1.80-GHz processor, 1.0-GB DDR3
system memory, and a 16-GB eMMC hard drive
743816-001 System board equipped with an nVidia T40S quad core A15 1.80-GHz processor, 2.0-GB DDR3
system memory, and a 32-GB eMMC hard drive
Miscellaneous parts
7
Spare part number Description
743817-001 1-MP front-facing webcamera (includes cable)
743818-001 8-MP rear-facing webcamera (includes cable)
743819-001 Speaker Kit (includes left and right speakers and cables)
743820-001 10-W, USB (non-PFC) AC adapter
743821-001 Battery, 2-cell, 21-WHr, 2.84-AHr, LI (includes cable)
743828-001 USB extension cable
743829-001 I/O board
743830-001 I/O board cable
743831-001 Volume button board (includes cable and double-sided adhesive)
743832-001 Display panel cable
743833-001 HP Slate8 Pro equipped with an nVidia T40S quad core A15 1.80-GHz processor, 1.0-GB DDR3
system memory, and a 16-GB eMMC hard drive
743834-001 HP Slate8 Pro equipped with an nVidia T40S quad core A15 1.80-GHz processor, 2.0-GB DDR3
system memory, and a 32-GB eMMC hard drive
743926-001 Back cover
743927-001 Microphone (includes cable)
743928-001 Power button board (includes cable)
745807-002 10-W AC adapter with plug for use only in Australia
745807-003 10-W AC adapter with plug for use only in the United Kingdom and Singapore
745807-008 10-W AC adapter with plug for use only in North America
745807-009 10-W AC adapter with plug for use only in Europe and South Korea
745814-001 7.98-in, AntiGlare, LED, TouchScreen display panel assembly
746229-001 GPS antenna (includes antenna cable and transceiver)
746230-001 WLAN main antenna (includes antenna cable and transceiver)
746231-001 WLAN auxilliary antenna (includes antenna cable and transceiver)
746232-001 LTE main antenna
746233-001 LTE auxilliary antenna
746286-001 Screw Kit
8 Chapter 3 Illustrated parts catalog
4 Removal and replacement
preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:
Magnetic screw driver
Phillips P0 screw driver
Plastic case utility tool

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the tablet, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.
Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the tablet, be sure that cables are placed in their proper locations during
the reassembly process. Improper cable placement can damage the tablet.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
Tools required
9

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
CAUTION: To prevent damage to the tablet when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
10 Chapter 4 Removal and replacement preliminary requirements
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a component or assembly.
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
Use conductive field service tools, such as cutters, screw drivers, and vacuums.
When fixtures must directly contact dissipative surfaces, use fixtures made only of static­safe materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines
11
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
Antistatic smocks, aprons, and sleeve protectors
Conductive bins and other assembly or soldering aids
Nonconductive foam
Conductive tabletop workstations with ground cords of one megohm resistance
Static-dissipative tables or floor mats with hard ties to the ground
Field service kits
Static awareness labels
Material-handling packages
Nonconductive plastic bags, tubes, or boxes
Metal tote boxes
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
12 Chapter 4 Removal and replacement preliminary requirements
5 Removal and replacement
procedures

Tablet component replacement procedures

CAUTION: Tablet components described in this chapter should only be accessed by an authorized
service provider. Accessing these parts can damage the tablet and void the warranty.
This chapter provides removal and replacement procedures for authorized service provider only parts.
There are as many as 14 screws that must be removed, replaced, and/or loosened when servicing the tablet. Make special note of each screw size and location during removal and replacement.

Back cover

Description Spare part number
Back cover 743926-001
Display panel assembly, 7.98-in, AntiGlare, LED, TouchScreen 745814-001
Before disassembling the tablet, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
Tablet component replacement procedures
13
Remove the back cover:
1. Place the tablet on a flat surface, display panel side up, with the SIM slot and SD Card slot
toward you.
2.
Insert a thin, plastic tool (1) between the back cover and the display panel assembly. The first insertion point should be in the top edge of the tablet away from the power button and microphone area.
CAUTION: When inserting the plastic tool into the tablet as described in Step 2, make sure not
to insert the tool into the power button (2) or microphone (3) areas. Failure to follow this caution can result in damage to the tablet.
3. Lift the top edge of the back cover (4) until it separates from the display panel assembly.
4. Remove the back cover (5).
Reverse this procedure to install the back cover.

Display panel cable

Description Spare part number
Display panel cable 743832-001
Before removing the display panel cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
14 Chapter 5 Removal and replacement procedures
3.
Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 13).
Remove the display panel cable:
1. Disconnect the battery cable from the system board.
2.
Release the zero insertion force (ZIF) connector (1) to which the display panel cable is attached, and then disconnect the display panel cable from the system board.
3.
Release the ZIF connector (2) to which the display panel cable is attached, and then disconnect the display panel cable from the display panel assembly.
Display panel cable
15
4.
Remove the display panel cable (3).
Reverse this procedure to install the display panel cable.

I/O board cable

Description Spare part number
I/O board cable 743830-001
Before removing the I/O board cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4.
Remove the back cover (see
Back cover on page 13).
16 Chapter 5 Removal and replacement procedures
Remove the I/O board cable:

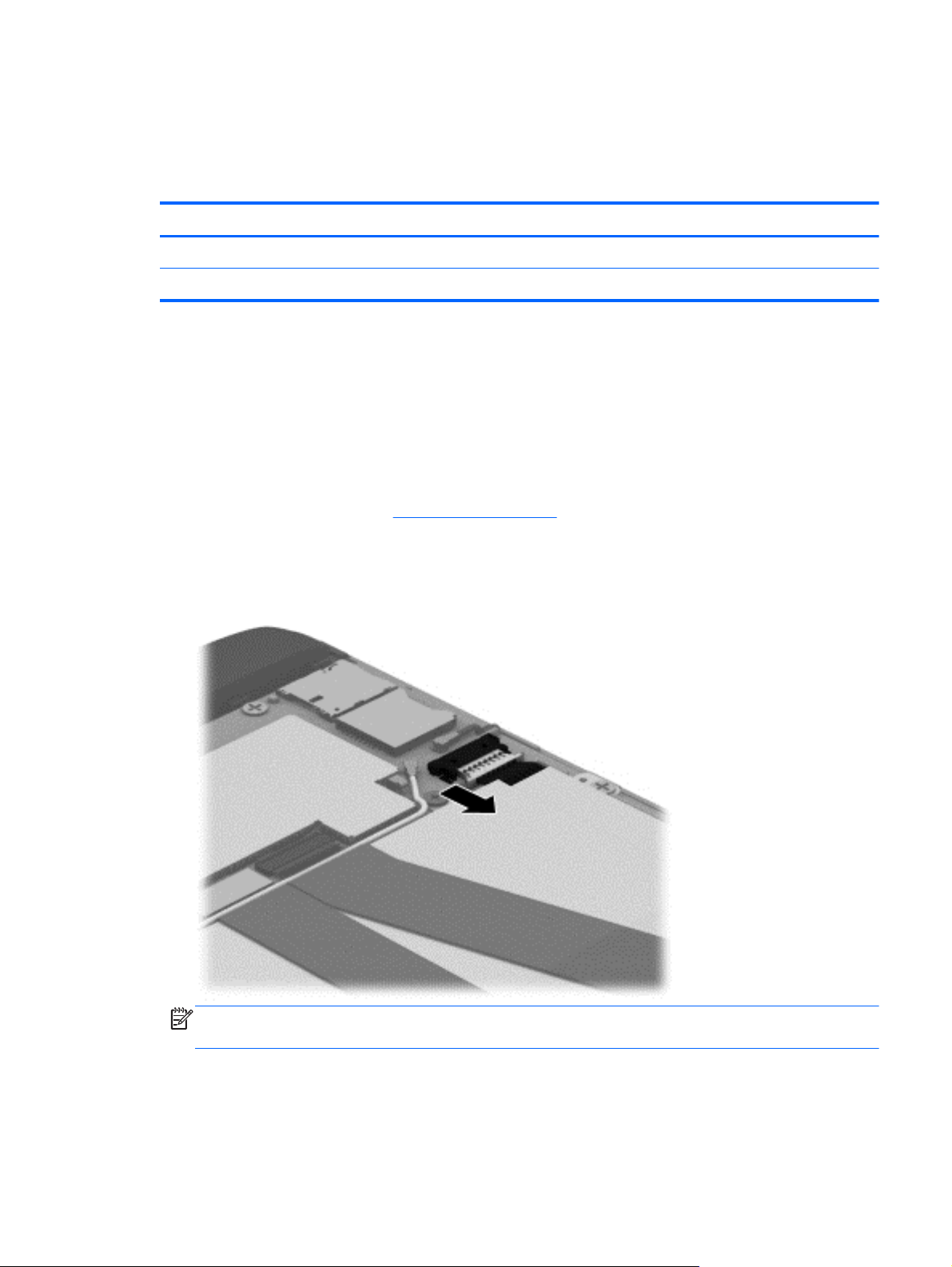

1. Disconnect the battery cable from the system board.
2. Release the ZIF connector (1) to which the I/O board cable is attached, and then disconnect the
I/O board cable from the system board.
3. Release the ZIF connector (2) to which the I/O board cable is attached, and then disconnect the
I/O board cable from the I/O board.
I/O board cable
17
4.
Remove the I/O board cable (3).
Reverse this procedure to install the I/O board cable.

Battery

Description Spare part number
Battery, 2-cell, 21-WHr, 2.84-AHr, LI (includes cable) 743821-001
Before removing the battery, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
2.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
5. Remove the display panel cable (see
6. Remove the I/O board cable (see
and then shut it down through the operating system.
Disconnect the power from the tablet by unplugging the power cord from the tablet.
Back cover on page 13).
Display panel cable on page 14).
I/O board cable on page 16).
WARNING! To reduce potential safety issues, use only the battery provided with the tablet, a
replacement battery provided by HP, or a compatible battery purchased from HP.
18 Chapter 5 Removal and replacement procedures
CAUTION: Removing a battery that is the sole power source for the tablet can cause loss of
information. To prevent loss of information, save your work or shut down the tablet through Windows before removing the battery.

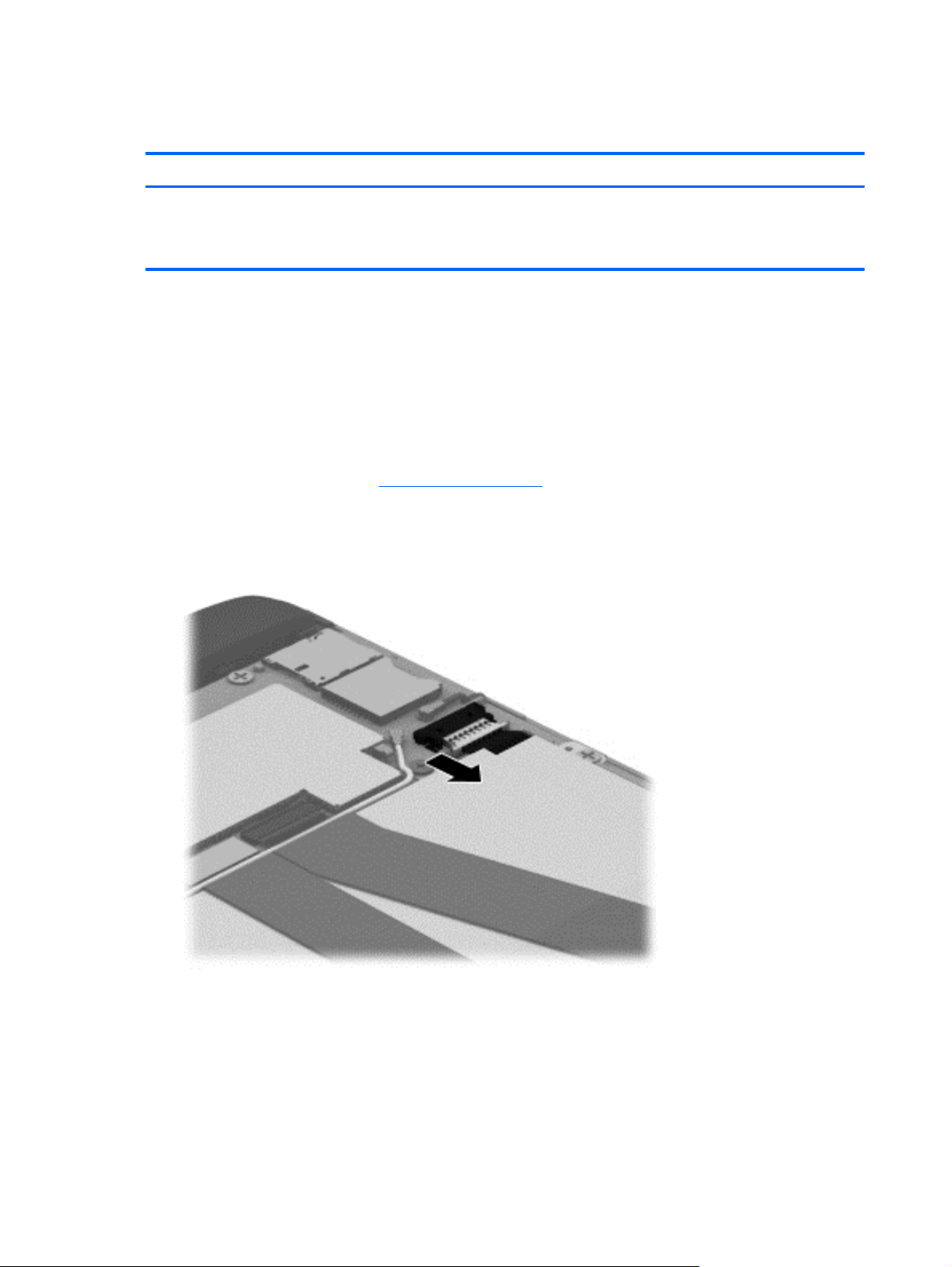

Remove the battery:
1.
Disconnect the battery cable (1) from the system board.
2. Remove the warranty tag (2) that covers the battery retention screw.
3. Remove the two Phillips PM1.5×3.0 screws (3) and the six Phillips PM1.5×2.5 screws (4) that
secure the battery to the display panel assembly.
4. Remove the battery (5).
Reverse this procedure to install the battery.
Battery
19

I/O board

Description Spare part number
I/O board
NOTE: The I/O board spare part kit does not include the I/O board cable. The I/O board
cable is available using spare part number 743830-001.
743829-001
Before removing the I/O board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4.
Remove the back cover (see
Back cover on page 13).
Remove the I/O board:
1. Disconnect the battery cable from the system board.
2. Release the ZIF connector (1) to which the I/O board cable is attached, and then disconnect the
I/O board cable from the I/O board.
3. Disconnect the speaker cables (2) from the I/O board.
4. Remove the two Phillips PM1.5×4.0 screws (3) that secure the I/O board to the display
panel assembly.
20 Chapter 5 Removal and replacement procedures
5.
Remove the I/O board (4).
Reverse this procedure to install the I/O board.

Speakers

Description Spare part number
Speaker Kit (includes left and right speakers and cables) 743819-001
Before removing the speakers, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4.
Remove the back cover (see
5. Remove the I/O board (see
Back cover on page 13).
I/O board on page 20).
Speakers
21
Remove the speakers:

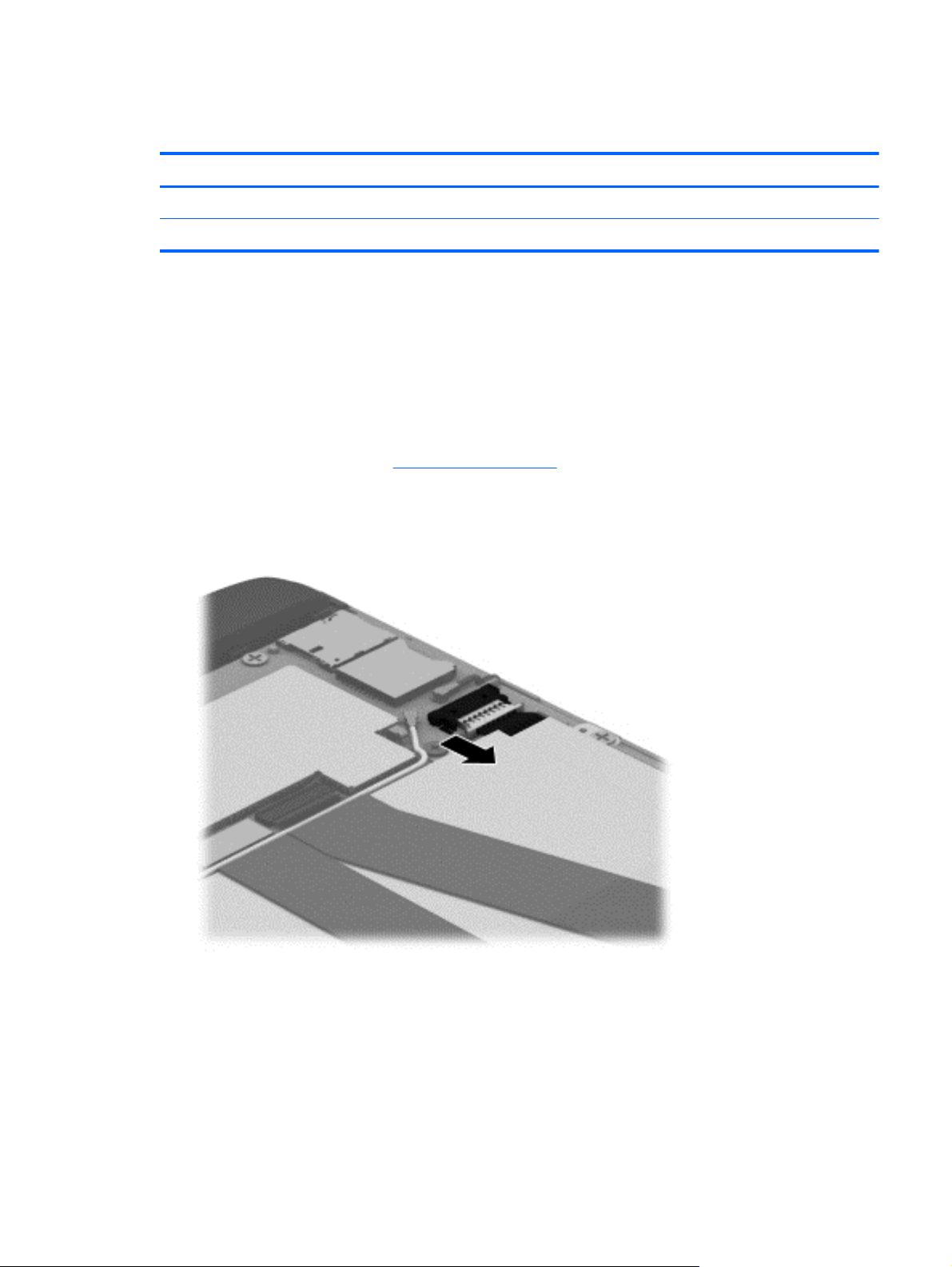

1. Disconnect the battery cable from the system board.
2. Remove the two Phillips PM1.5×3.0 screws (1) that secure the speakers to the display
panel assembly.
3. Remove the speakers (2).
22 Chapter 5 Removal and replacement procedures
Reverse this procedure to install the speakers.

WLAN antenna

Description Spare part number
WLAN main antenna (includes cable and transceiver) 746230-001
WLAN auxilliary antenna (includes cable and transceiver) 746231-001
Before removing the WLAN antenna, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3.
Disconnect all external devices from the tablet.
4. Remove the back cover (see
Remove the WLAN antenna:

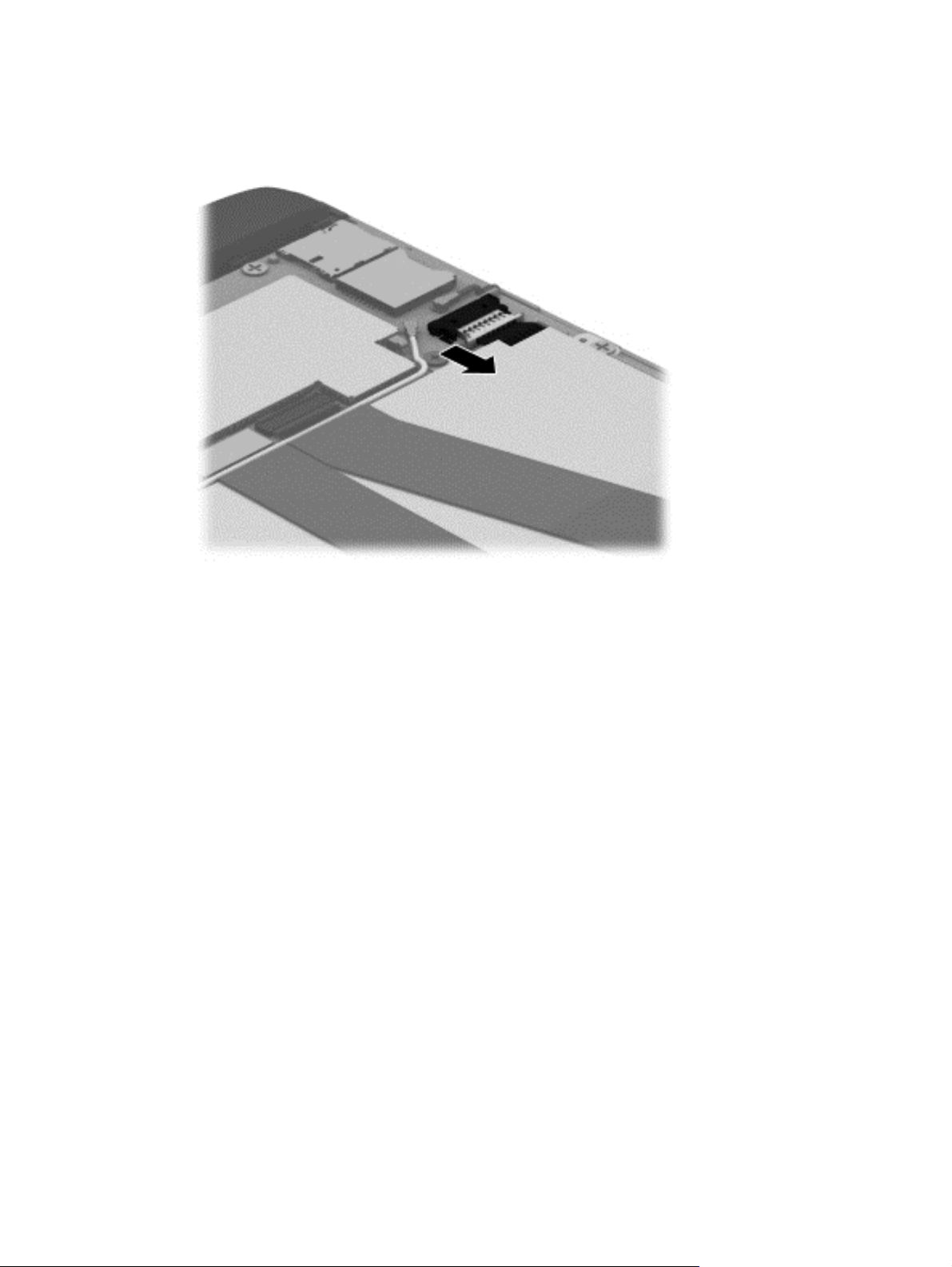

1. Disconnect the battery cable from the system board.
Back cover on page 13).
NOTE: Steps 2 through 5 contain WLAN main antenna removal information. See steps 6
through 9 for WLAN auxilliary antenna removal information.
2.
Disconnect the WLAN main antenna cable (1) from the main terminal on the system board.
3.
Release the WLAN main antenna cable from the routing clips (2) and channel built into the display panel assembly.
WLAN antenna
23
4.
Detach the WLAN main antenna transceiver (3) from the display panel assembly. (The WLAN main antenna transceiver is attached to the display panel assembly with double-sided adhesive.)
5. Remove the WLAN main antenna transceiver and cable.
NOTE: Steps 6 through 9 contain WLAN auxilliary antenna removal information. See steps 2
through 5 for WLAN main antenna removal information.
6. Disconnect the WLAN auxilliary antenna cable (1) from the auxilliary terminal on the
system board.
7. Release the WLAN auxilliary antenna cable from the routing clips (2) and channel built into the
display panel assembly.
24 Chapter 5 Removal and replacement procedures
8.
Detach the WLAN auxilliary antenna transceiver (3) from the display panel assembly. (The WLAN auxilliary antenna transceiver is attached to the display panel assembly with double­sided adhesive.)
9.
Remove the WLAN auxilliary antenna transceiver and cable.
Reverse this procedure to install the WLAN antenna.

GPS antenna

Description Spare part number
GPS antenna (includes cable and transceiver) 746229-001
Before removing the GPS antenna, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 13).
GPS antenna
25
Remove the GPS antenna:
1. Disconnect the battery cable from the system board.
2. Disconnect the GPS antenna cable (1) from the GPS terminal on the system board.
3.
Release the GPS antenna cable from the routing clip (2) built into the display panel assembly.
26 Chapter 5 Removal and replacement procedures
4.
Detach the GPS antenna transceiver (3) from the display panel assembly. (The GPS antenna transceiver is attached to the display panel assembly with double-sided adhesive.)
5. Remove the GPS antenna transceiver and cable.
Reverse this procedure to install the GPS antenna.

Microphone

Description Spare part number
Microphone (includes cable) 743927-001
Before removing the microphone, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 13).
Microphone
27
Remove the microphone:
1. Disconnect the battery cable from the system board.
2. Release the ZIF connector (1) to which the microphone cable is attached, and then disconnect the
microphone cable from the system board.
3. Detach the microphone cable (2) from the display panel assembly. (The microphone cable is
attached to the display panel assembly with double-sided adhesive.)
28 Chapter 5 Removal and replacement procedures
4.
Detach the microphone (3) from the display panel assembly. (The microphone is attached to the display panel assembly with double-sided adhesive.)
5. Remove the microphone and cable.
Reverse this procedure to install the microphone.

Rear-facing webcamera

Description Spare part number
Rear-facing webcamera (includes cable) 743818-001
Before removing the rear-facing webcamera, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2.
Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 13).
Rear-facing webcamera
29
Remove the rear-facing webcamera:
1. Disconnect the battery cable from the system board.
2. Disconnect the rear-facing webcamera cable (1) from the system board.
3.
Release the rear-facing webcamera (2) from the molding built into the display panel assembly.
4.
Remove the rear-facing webcamera and cable.
30 Chapter 5 Removal and replacement procedures
Reverse this procedure to install the rear-facing webcamera.

Front-facing webcamera

Description Spare part number
Front-facing webcamera (includes cable) 743817-001
Before removing the front-facing webcamera, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Remove the front-facing webcamera:
1. Disconnect the battery cable from the system board.
Back cover on page 13).
2. Disconnect the front-facing webcamera cable (1) from the system board.
Front-facing webcamera
31
3.
Detach the front-facing webcamera (2) from the display panel assembly. (The front-facing webcamera is attached to the display panel assembly with double-sided adhesive.)
4. Remove the front-facing webcamera and cable.
Reverse this procedure to install the front-facing webcamera.

Power button board

Description Spare part number
Power button board (includes cable) 743928-001
Before removing the power button board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4.
Remove the back cover (see
Back cover on page 13).
32 Chapter 5 Removal and replacement procedures
Remove the power button board:
1. Disconnect the battery cable from the system board.
2. Release the ZIF connector (1) to which the power button board cable is attached, and then
disconnect the power button board cable from the system board.
3. Detach the power button board cable (2) from the display panel assembly. (The power button
board cable is attached to the display panel assembly with double-sided adhesive.)
Power button board
33
4.
Remove the power button board (3) and cable.
Reverse this procedure to install the power button board and cable.
34 Chapter 5 Removal and replacement procedures

Volume button board

Description Spare part number
Volume button board (includes cable) 743831-001
Before removing the volume button board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Remove the volume button board:
1. Disconnect the battery cable from the system board.
Back cover on page 13).
2. Release the ZIF connector (1) to which the volume button board cable is attached, and then
disconnect the volume button board cable from the system board.
3. Detach the volume button board cable (2) from the display panel assembly. (The volume button
board cable is attached to the display panel assembly with double-sided adhesive.)
Volume button board
35
4.
Detach the volume button board (3) from the display panel assembly. (The volume button board is attached to the display panel assembly with double-sided adhesive.)
5. Remove the volume button board and cable.
Reverse this procedure to install the volume button board.
36 Chapter 5 Removal and replacement procedures

LTE antenna

Description Spare part number
LTE main antenna 746232-001
LTE auxilliary antenna 746233-001
Before removing the LTE antenna, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Remove the LTE antenna:
1. Disconnect the battery cable from the system board.
Back cover on page 13).
LTE antenna
37
2.
Detach the LTE main and auxilliary antenna transceivers from the display panel assembly. (The LTE antenna transceivers are attached to the display panel assembly with double-sided adhesive.)
3. Remove the LTE main and auxilliary antenna transceivers.
Reverse this procedure to install the LTE main and auxilliary antenna transceivers.

System board

Description Spare part number
System board equipped with an nVidia T40S quad core A15 1.80-GHz processor, 2.0-GB DDR3 system memory, and a 32-GB eMMC hard drive
System board equipped with an nVidia T40S quad core A15 1.80-GHz processor, 1.0-GB DDR3 system memory, and a 16-GB eMMC hard drive
Before removing the system board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
743816-001
743815-001
4. Remove the back cover (see
Back cover on page 13).
38 Chapter 5 Removal and replacement procedures
Remove the system board:
1. Disconnect the battery cable from the system board.
System board
39
2.
Disconnect the following cables from the system board:
(1) WLAN main antenna cable (see
(2) WLAN auxilliary antenna cable (see
(3) Microphone ZIF cable and connector (see
(4) Rear-facing webcamera cable (see
(5) Front-facing webcamera cable (see
WLAN antenna on page 23)
WLAN antenna on page 23)
Microphone on page 27)
Rear-facing webcamera on page 29)
Front-facing webcamera on page 31)
(6) Power button board ZIF cable and connector, and detach the power button board cable (7) from the display panel assembly. (The power button board cable is attached to the display panel assembly with double-sided adhesive; see
Power button board on page 32)
(8) Volume button board ZIF cable and connector, and detach the volume button board cable (9) from the display panel assembly. (The volume button board cable is attached to the display panel assembly with double-sided adhesive; see
Volume button board on page 35)
(10) GPS antenna cable, and release the GPS antenna cable (11) from the retention clip built into the display panel assembly (see
GPS antenna on page 25)
3.

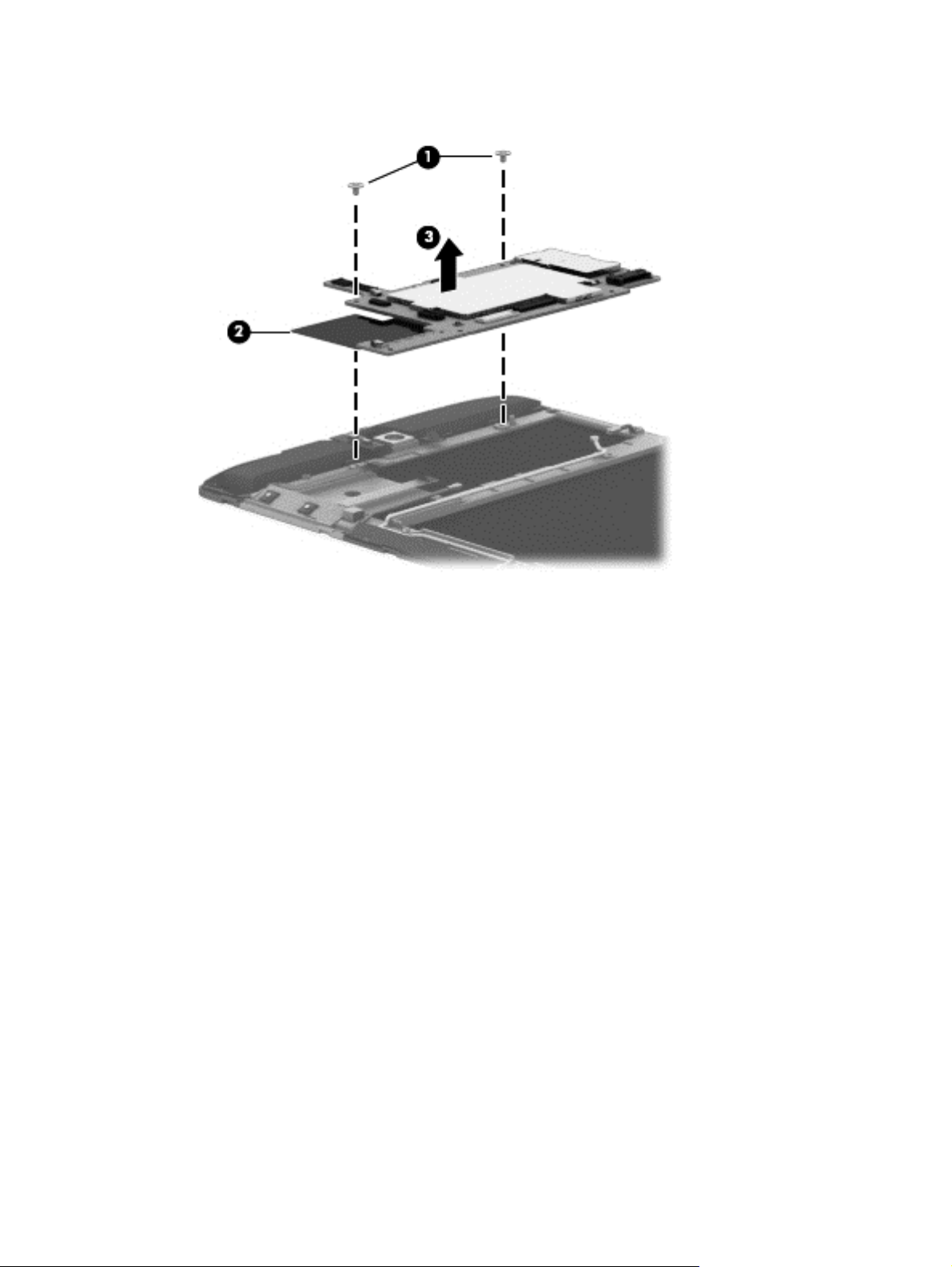

Remove the two Phillips PM1.5×2.5 screws (1) that secure the system board to the display panel assembly.
4. Detach the metal shielding (2) that secures the system board to the display panel assembly. (The
metal shielding is attached to the display panel assembly with double-sided adhesive.)
40 Chapter 5 Removal and replacement procedures
5.
Remove the system board (3).
Reverse this procedure to install the system board.
System board
41

6 Specifications

Metric U.S.
Dimensions
Width 14.05 cm 5.53 in
Depth 0.99 cm 0.39 in
Height 21.70 cm 8.54in
Weight (lowest weight configuration) 0.46 g 1.01 lb
Input power
The tablet operates on DC power, which can be supplied by an AC or a DC power source. The AC power source must be rated at 100—240 V, 50/60 Hz.
NOTE: The tablet can operate on DC power using an industry-standard micro-A or micro-B USB cable. The HP 5.3V 2A
adapter included with your tablet is recommended for charging the tablet.
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (non-condensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this
range of temperatures.
42 Chapter 6 Specifications

7 Power cord set requirements

The wide-range input feature of the tablet permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC.
The 3-conductor power cord set included with the tablet meets the requirements for use in the country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region where the tablet is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:
The length of the power cord set must be at least 1.0 m (3.3 ft) and no more than 2.0 m (6.5 ft).
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by the power system of each country or region.
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the tablet.

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number
Australia EANSW 1
Austria OVE 1
Belgium CEBC 1
Canada CSA 2
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Requirements for all countries
43
Country/region Accredited agency Applicable note number
Germany VDE 1
Italy IMQ 1
Japan METI 3
The Netherlands KEMA 1
Norway NEMKO 1
The People's Republic of China COC 5
South Korea EK 4
Sweden CEMKO 1
Switzerland SEV 1
Taiwan BSMI 4
The United Kingdom BSI 1
The United States UL 2
1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
44 Chapter 7 Power cord set requirements

8 Recycling

When a non-rechargeable or rechargeable battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for battery disposal.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, see the HP Web site at
http://www.hp.com/recycle.
45

Index

A
AC adapter, spare part numbers
7, 8
antenna
removal 23, 25, 37 spare part numbers 6, 7, 8,
23, 25, 37 audio, product description 1 audio-in jack 3 audio-out jack 3
B
back cover
removal 13 spare part number 6, 8, 13
battery
removal 18 spare part number 6, 8, 18
buttons
power 3 volume control 4
C
cables, service considerations 9 camera flash 3 Card Reader slot 4 connectors, service
considerations 9
D
display panel assembly, spare part
number 7, 8, 13
display panel cable
removal 14 spare part number 6, 8, 14
display panel, product
description 1
E
electrostatic discharge 10 equipment guidelines 12 external expansion, product
description 2
F
front-facing webcamera
location 4 removal 31 spare part number 6, 8, 31
G
GPS antenna
removal 25
spare part number 7, 8, 25 graphics, product description 1 grounding guidelines 10 guidelines
equipment 12
grounding 10
packaging 11
transporting 11
workstation 11
H
HDMI port 3 headphone jack 3
I
I/O board
removal 20
spare part number 7, 8, 20 I/O board cable
removal 16
spare part number 6, 8, 16
J
jacks
audio-in 3 audio-out 3 headphone 3 microphone 3
L
LTE auxilliary antenna
removal 37 spare part number 6, 8, 37
LTE main antenna
removal 37 spare part number 6, 8, 37
M
mass storage device, product
description 1
memory module, product
description 1
microphone
location 3 product description 1 removal 27
spare part number 6, 8, 27 microphone jack 3 model name 1
O
operating system, product
description 2
P
packaging guidelines 11 plastic parts, service
considerations 9
ports
HDMI 3
46 Index
product description 2
USB 2.0 3 power button 3 power button board
removal 32
spare part number 7, 8, 32 power cord, set requirements 43 power requirements, product
description 2 processor, product description 1 product description
audio 1 display panel 1 external expansion 2 graphics 1 mass storage 1 memory module 1 microphone 1 operating system 2 ports 2 power requirements 2 processors 1 product name 1 sensor 2 serviceability 2 video 1 wireless networking 2
product name 1
R
rear-facing webcamera
location 3 removal 29 spare part number 6, 8, 29
S
Screw Kit, spare part number 7, 8 sensor, product description 2 service considerations
cables 9 connectors 9 plastic parts 9
serviceability, product description
2 Speaker Kit, spare part number 7,
8, 21 speakers
location 3 removal 21 spare part number 7, 8, 21
system board
removal 38 spare part numbers 6, 7, 38
T
tablet
major components 6 spare part numbers 7, 8
specifications 42 tools required 9 transporting guidelines 11
U
USB 2.0 port 3 USB extension cable, spare part
number 7, 8
V
video, product description 1 volume button board
removal 35
spare part number 7, 8, 35 volume control buttons 4
W
webcamera
removal 29, 31
spare part numbers 6, 8, 29,
31
wireless antenna
removal 23
spare part numbers 6, 7, 23 wireless networking, product
description 2
WLAN auxilliary antenna
removal 23
spare part number 7, 8, 23 WLAN main antenna
removal 23
spare part number 6, 8, 23 workstation guidelines 11
Index
47
Loading...
