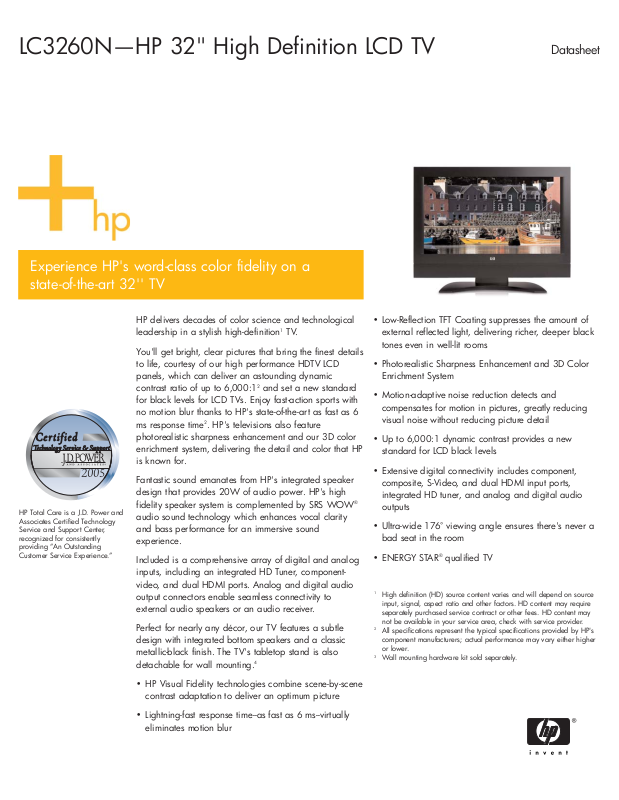

LC3260N—HP 32" High Definition LCD TV
Experience HP's word-class color fidelity on a
state-of-the-art 32'' TV
Datasheet
HP Total Care is a J.D. Power and
Associates Certified Technology
Service and Support Center,
recognized for consistently
providing “An Outstanding
Customer Service Experience.”
HP delivers decades of color science and technological
leadership in a stylish high-definition
1
TV.
You'll get bright, clear pictures that bring the finest details
to life, courtesy of our high performance HDTV LCD
panels, which can deliver an astounding dynamic
contrast ratio of up to 6,000:1
2
and set a new standard
for black levels for LCD TVs. Enjoy fast-action sports with
no motion blur thanks to HP's state-of-the-art as fast as 6
ms response time
2
. HP's televisions also feature
photorealistic sharpness enhancement and our 3D color
enrichment system, delivering the detail and color that HP
is known for.
Fantastic sound emanates from HP's integrated speaker
design that provides 20W of audio power. HP's high
fidelity speaker system is complemented by SRS WOW
®
audio sound technology which enhances vocal clarity
and bass performance for an immersive sound
experience.
Included is a comprehensive array of digital and analog
inputs, including an integrated HD Tuner, componentvideo, and dual HDMI ports. Analog and digital audio
output connectors enable seamless connectivity to
external audio speakers or an audio receiver.
Perfect for nearly any décor, our TV features a subtle
design with integrated bottom speakers and a classic
metallic-black finish. The TV's tabletop stand is also
detachable for wall mounting.
4
• Low-Reflection TFT Coating suppresses the amount of
external reflected light, delivering richer, deeper black
tones even in well-lit rooms
• Photorealistic Sharpness Enhancement and 3D Color
Enrichment System
• Motion-adaptive noise reduction detects and
compensates for motion in pictures, greatly reducing
visual noise without reducing picture detail
• Up to 6,000:1 dynamic contrast provides a new
standard for LCD black levels
• Extensive digital connectivity includes component,
composite, S-Video, and dual HDMI input ports,
integrated HD tuner, and analog and digital audio
outputs
• Ultra-wide 176˚ viewing angle ensures there's never a
bad seat in the room
• ENERGY STAR
1
High definition (HD) source content varies and will depend on source
input, signal, aspect ratio and other factors. HD content may require
separately purchased service contract or other fees. HD content may
not be available in your service area, check with service provider.
2
All specifications represent the typical specifications provided by HP's
component manufacturers; actual performance may vary either higher
or lower.
3
Wall mounting hardware kit sold separately.
®
qualified TV
• HP Visual Fidelity technologies combine scene-by-scene
contrast adaptation to deliver an optimum picture
• Lightning-fast response time--as fast as 6 ms--virtually
eliminates motion blur
LC3260N—HP 32" High Definition LCD TV
Technical specifications
Datasheet
Video
Resolution
Brightness
Contrast Ratio
Dynamic Contrast Ratio
Displayable Colors
Viewing Angle
Response Time
Panel Life
Tuning
Digital Tuner (ATSC/NTSC/Clear-QAM)
Video Enhancers
Digital Comb Filter
Video Noise Reduction
3:2 Pulldown
Fine Detail Enhancement
Ambient Light Adaptation
Auto Contrast Optimization
Advanced Color Management
Audio
No. of Speakers
Audio Output
Speaker Type
Dolby Digital Out
Surround Sound
Connectivity
HDMI
Component In
S-Video In
Composite Video In
Antenna In (RF)
HDMI Audio In (RCA)
AV Audio In
Audio Out (Analog)
Digital Audio Out
Convenience
V-chip
Closed Captioning
Sleep On/Off
1
All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
2
The life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous
operation at 25±°C. 60,000 hours equates to more than twenty-three years at seven hours a day viewing.
3
Wireless access point required and is not included. Wireless Internet use requires separately purchased Internet service contract.
1366x768
up to 450 cd/m2
up to 1200:1
up to 6000:1
16.7 million colors
176 degrees
as fast as 6 ms
up to 60000 hours
1
1
1
1
Yes
Yes
Yes
Yes
No
Yes
Yes
2
20 watts
Integrated (Bottom)
Dolby 5.1
SRS WOW
2
2
2
2
1
1
4
1
1 (Coax)
Yes
Yes
Yes
1
2
Fit/Finish
Bezel Color
Bezel Finish
Accessories
Stand
Speakers
Remote
Wall-mounts
Media Center/DEC
Warranty
Parts & Labor
Extended Warranty (3 years)
General
Power Supply
Power Consumption
Dimensions—with speaker and stand
(H x W x D)
Dimensions—with speaker, without stand
(H x W x D)
Weight—with speaker and stand
Weight—with speaker, without stand
VESA Wall Mount Standard
Front Side
32.4"
23.3"
Black
Metallic Black
Detachable (Included)
Integrated
Included
Optional/recommended
Optional/recommended
1 year
Optional/recommended
120V AC 60Hz
170W
26.1” x 32.4” x 11”
23.3” x 32.4” x 4.5”
43 lb
37.5 lb
VESA 200
26.1"
Back
7.9''
4.5"
11"
HDMI, the HDMI logo and High-Definition Multimedia interface are registered trademarks of HDMI Licensing LLC.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
SRS WOW is a registered trademark of SRS Labs.
ENERGY STAR is a mark of the USA Environmental Agency.
J.D. Power and Associates Certified Technology Service and Support Program, developed in conjunction with the Service & Support
Professionals Association (SSPA). For more information, visit www.jdpower.com or thesspa.com
HP is a registered trademark of the Hewlett Packard Company. All other trademarks are the property of their respective owners.
©2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice and is provided “as is” without warranty of any kind. HP shall
not be liable for technical or editorial errors or omissions contained herein.
COAXIAL
AV2-AUDIO AV2-VIDEO AV2-S/VIDEO
MONO
MONO
AV1-AUDIO AV1-VI DEO AV1-S/VID EO
AUDIO
OUT IN
5.5''
7.9''
ANT75
COMPONENT-2
COMPONENT2-AUDIO
MONO
COMPONENT-1
COMPONENT1-AUDIO
Connectivity
AUDIO IN L(MONO)
AUDIO IN R HDMI IN 2 HDMI IN 1
For more information visit our website at www.hp.com
02/03/2006_r1 fq
