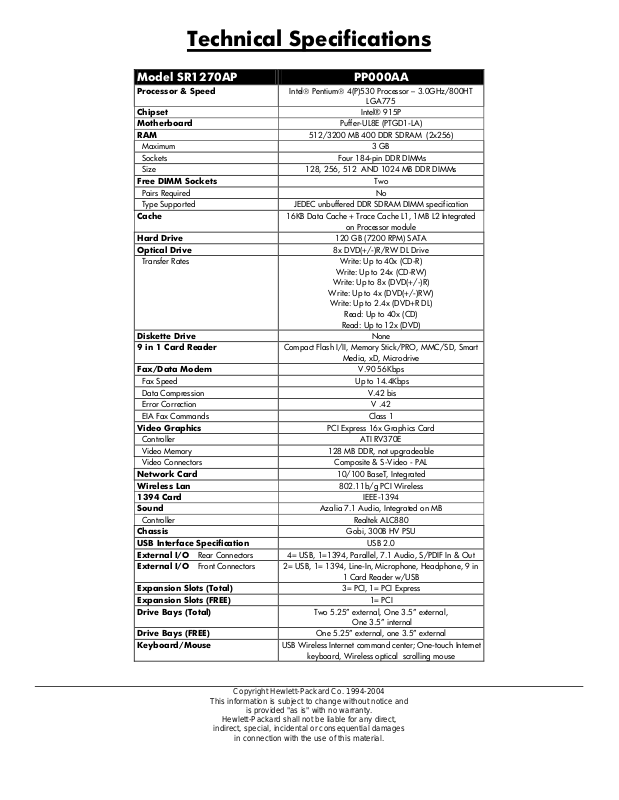

Technical Specifications

Model SR1270AP PP000AA

Processor & Speed Intel® Pentium® 4(P)530 Processor – 3.0GHz/800HT

LGA775

Chipset Intel® 915P
Motherboard Puffer-UL8E (PTGD1-LA)
RAM 512/3200 MB 400 DDR SDRAM (2x256)

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Two
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM) SATA
Optical Drive 8x DVD(+/-)R/RW DL Drive

Transfer Rates Write: Up to 40x (CD-R)

Write: Up to 24x (CD-RW)

Write: Up to 8x (DVD(+/-)R)

Write: Up to 4x (DVD(+/-)RW)

Write: Up to 2.4x (DVD+R DL)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics PCI Express 16x Graphics Card
Controller ATI RV370E
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL

Network Card 10/100 BaseT, Integrated
Wireless Lan 802.11b/g PCI Wireless
1394 Card IEEE-1394
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Gobi, 300B HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel, 7.1 Audio, S/PDIF In & Out
External I/O Front Connectors 2= USB, 1= 1394, Line-In, Microphone, Headphone, 9 in

1 Card Reader w/USB

Expansion Slots (Total) 3= PCI, 1= PCI Express
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, one 3.5” external
Keyboard/Mouse USB Wireless Internet command center; One-touch Internet

keyboard, Wireless optical scrolling mouse
