HP Compaq Presario R1228AN Technical Specifications

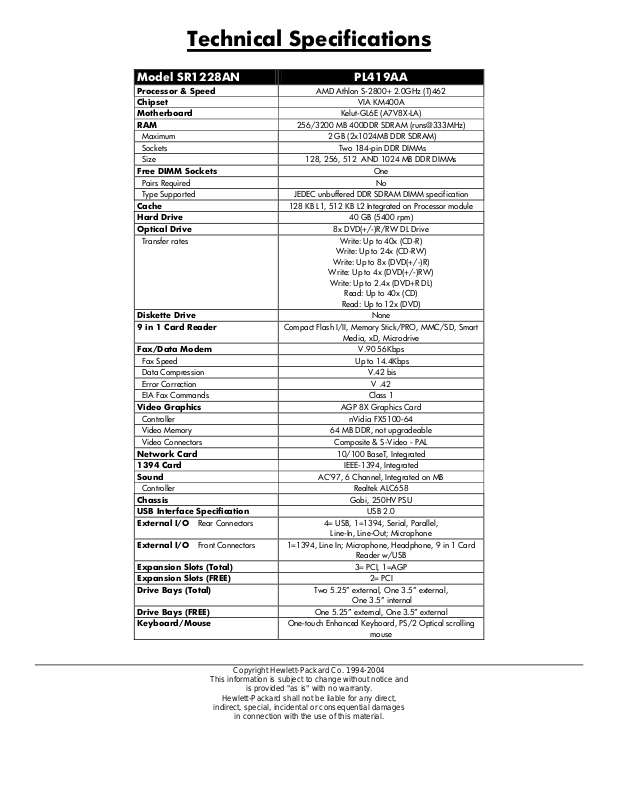

Technical Specifications
Model SR1228AN PL419AA
Processor & Speed AMD Athlon S-2800+ 2.0GHz (T)462
Chipset VIA KM400A
Motherboard Kelut-GL6E (A7V8X-LA)
RAM 256/3200 MB 400DDR SDRAM (runs@333MHz)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 128 KB L1, 512 KB L2 Integrated on Processor module
Hard Drive 40 GB (5400 rpm)
Optical Drive 8x DVD(+/-)R/RW DL Drive
Transfer rates
Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5100-64
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Gobi, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,
External I/O Front Connectors 1=1394, Line In; Microphone, Headphone, 9 in 1 Card
Expansion Slots (Total) 3= PCI, 1=AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Drive Bays (FREE) One 5.25” external, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
Copyright Hewlett-Packard Co. 1994-2004
This information is subject to change without notice and
is provided "as is" with no warranty.
Hewlett-Packard shall not be liable for any direct,
indirect, special, incidental or consequential damages
in connection with the use of this material.
Write: Up to 40x (CD-R)
Write: Up to 24x (CD-RW)
Write: Up to 8x (DVD(+/-)R)
Write: Up to 4x (DVD(+/-)RW)
Write: Up to 2.4x (DVD+R DL)
Read: Up to 40x (CD)
Read: Up to 12x (DVD)
Media, xD, Microdrive
Line-In, Line-Out; Microphone
Reader w/USB
One 3.5” internal
mouse
