HP Compaq Presario R1220AP Technical Specifications

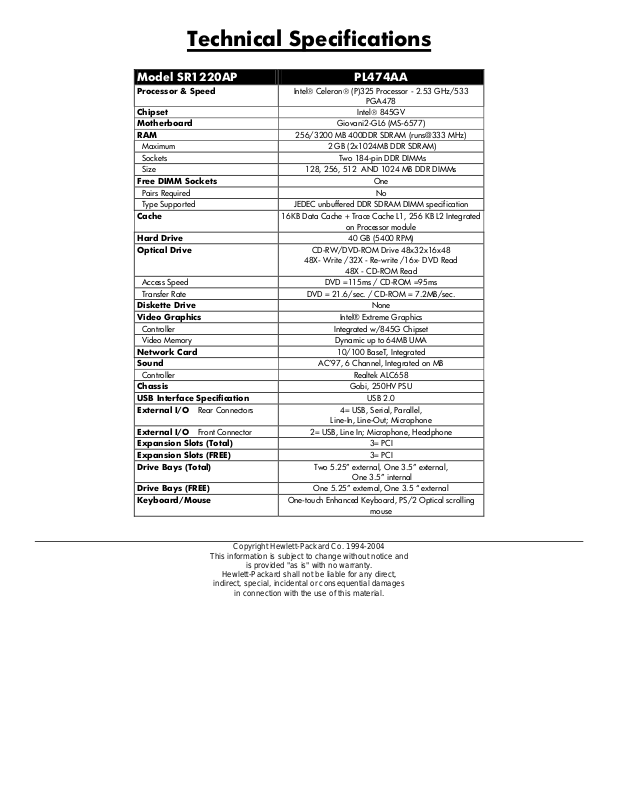

Technical Specifications

Model SR1220AP PL474AA

Processor & Speed Intel® Celeron® (P)325 Processor - 2.53 GHz/533

PGA478

Chipset Intel® 845GV
Motherboard Giovani2-GL6 (MS-6577)
RAM 256/3200 MB 400DDR SDRAM (runs@333 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 256 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
Video Graphics Intel® Extreme Graphics

Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Gobi, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connector 2= USB, Line In; Microphone, Headphone
Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5 “ external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.
