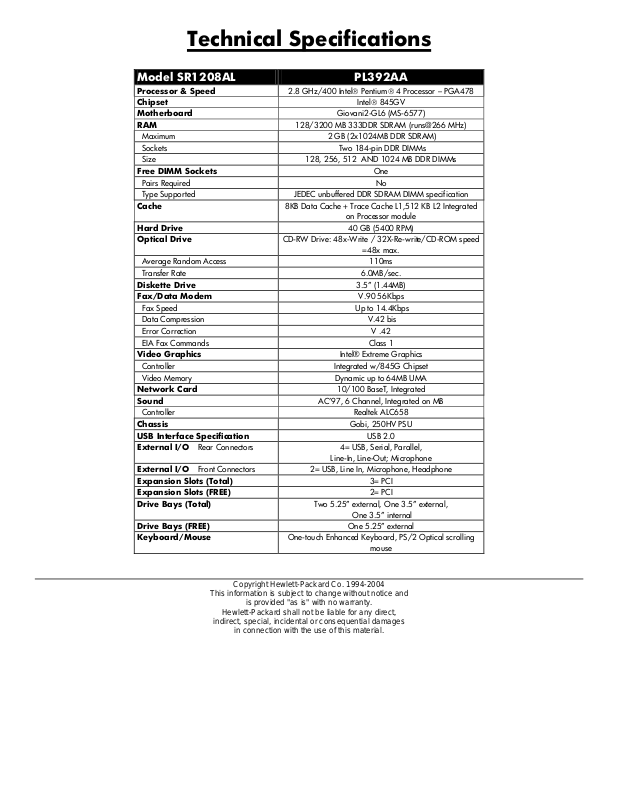

HP Compaq Presario R1208AL Technical Specifications

Technical Specifications

Model SR1208AL PL392AA

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 845GV
Motherboard Giovani2-GL6 (MS-6577)
RAM 128/3200 MB 333DDR SDRAM (runs@266 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1,512 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM)
Optical Drive CD-RW Drive: 48x-Write / 32X-Re-write/CD-ROM speed

=48x max.
Average Random Access 110ms
Transfer Rate 6.0MB/sec.

Diskette Drive 3.5” (1.44MB)
Fax/Data Modem V.90 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Gobi, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, Line In, Microphone, Headphone
Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
