HP COMPAQ NX6125, COMPAQ NX6115 User Manual

Notebook Tour
Document Part Number: 383364-001
May 2005
This guide explains the notebook hardware features.

Contents

Notebook Tour
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Buttons, Switches and Readers . . . . . . . . . . . . . . . . . . . 7
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Hotkey Quick Reference . . . . . . . . . . . . . . . . . . . . . . . 14
Front Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rear Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Right-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Left-Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Display Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Wireless Antennae (Select Models Only) . . . . . . . . . . . . . 28
Additional Hardware Components. . . . . . . . . . . . . . . . . . . 29
Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . 31
Rated Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Index
Notebook Tour ii

Notebook Tour

This guide explains the hardware features of the notebook.
Components included with your notebook may vary by
geographical region and by model. The illustrations in this guide identify the standard external features included in most notebook models. Refer to the illustrations that most closely match your notebook.
Notebook Tour 1

Top Components

Lights

Refer to the illustration that most closely matches your
notebook.
Component Description
1 Power/standby lights* (2) Green: The notebook is on.
Blinking green: The notebook is in standby mode.
Off: The notebook is off or in hibernation.
(Continued)
2Notebook Tour
Component Description
2 Wireless lights
(2) On: An integrated wireless device,
such as a wireless local area network (LAN) device and/or a Bluetooth® device is turned on.
3 Caps lock light On: Caps lock is on.
4 Num lock light On: Num lock is on or the embedded
numeric keypad is enabled.
5 Volume mute light On: System sound is turned off.
IDE (Integrated Drive
6
Electronics) drive light
Battery light Amber: A battery pack is charging.
7
*There are 2 power/standby lights. Both display the same information. The light on the power button is visible only when the notebook is open; the other power/standby light is always visible on the front of the notebook.
There are 2 wireless lights. Both display the same information. The light
the wireless button is visible only when the notebook is open; the other
on wireless light is always visible on the front of the notebook.
Blinking: The hard drive or optical drive is being accessed.
Green: A battery pack is close to full charge capacity.
Blinking amber: A battery pack that is the only available power source has reached a low-battery condition. When
critical
the battery reaches a low-battery condition, the battery light begins blinking more quickly.
Off: If the notebook is connected to an external power source, the light is turned off when all batteries in the notebook are fully charged. If the notebook is not connected to an external power source, the light is turned off until the battery reaches a low-battery condition.
Notebook Tour 3
Component Description
Power/standby lights* (2) Green: The notebook is on.
1
Blinking green: The notebook is in standby mode.
Off: The notebook is off or
hibernation.
in
2 Wireless lights
(2) On: An integrated wireless device,
such as a wireless LAN device and/or a Bluetooth device is turned on.
3 Caps lock light On: Caps lock is on.
4 Num lock light On: Num lock is on or the embedded
numeric keypad is enabled.
(Continued)
4Notebook Tour
Component Description
5 IDE drive light Blinking: The hard drive or optical drive
is being accessed.
Battery light Amber: A battery pack is charging.
6
Green: A battery pack is close to full charge capacity.
Blinking amber: A battery pack that is the only available power source has reached a low-battery condition. When
critical
the battery reaches a low-battery condition, the battery light begins blinking more quickly.
Off: If the notebook is connected to an external power source, the light is turned off when all batteries in the notebook are fully charged. If the notebook is not connected to an external power source, the light is turned off until the battery reaches a low-battery condition.
*There are 2 power/standby lights. Both display the same information. The light on the power button is visible only when the notebook is open; the other power/standby light is always visible on the front of the notebook.
There are 2 wireless lights. Both display the same information. The light
the wireless button is visible only when the notebook is open; the other
on wireless light is always visible on the front of the notebook.
Notebook Tour 5

TouchPad

Component Description
1 TouchPad* Moves the pointer and selects or
activates items on the screen. Can be set to perform other mouse functions, such as scrolling, selecting, and double-clicking.
2 Left TouchPad button* Functions like the left button on
external mouse.
an
3 Right TouchPad button* Functions like the right button on
an external mouse.
4 TouchPad scroll zone* Scrolls upward or downward.
*This table describes default settings. For information about changing default settings, refer to the user guides located in the Help and Support Center. Select Start > Help and Support > User Guides.
6Notebook Tour

Buttons, Switches and Readers

Refer to the illustration that most closely matches your
notebook.
Notebook Tour 7
Component Description
1 Power/standby button* When the notebook is
Off, press the button to turn on
the notebook.
In standby, briefly press the button
to exit standby.
In hibernation, briefly press the
button to exit hibernation.
If the notebook has stopped responding and Microsoft® Windows® shutdown procedures cannot be used, press the power/standby button and hold for at least 5 seconds to turn off the notebook.
2 Display switch Initiates standby mode if the display
closed while the notebook is
is
on.
turned
3 Info Center button Launches Info Center, which enables
you to open the following software solutions: Altiris Local Recovery, Contact HP, Help and Support, Accessories Product Tour (Options Demo), ProtectTools Security Manager, Software Setup, System Information, and Wireless Assistant.
4 Wireless button* Turns the wireless functionality on
off, but does not create a wireless
or connection.
To establish a wireless
connection, a wireless network must already be set up. For more information about establishing a wireless connection from Windows, visit
http://www.hp.com/go/wireless.
(Continued)
8Notebook Tour
Component Description
5 Presentation mode button Turns on Presentation mode.
6 Volume mute button Mutes system sound.
7 Volume down button Decreases system volume.
8 Volume up button Increases system volume.
Fingerprint reader Allows a fingerprint logon to Windows
9
*This table describes default settings. For information about changing default settings, refer to the user guides located in the Help and Support Center. Select Start > Help and Support > User Guides.
instead of a password logon.
Notebook Tour 9
Component Description
1 Power/standby button* When the notebook is
Off, press the button to turn
on the notebook.
In standby, briefly press the
button to exit standby.
In hibernation, briefly press
button to exit hibernation.
the
If the notebook has stopped responding and Microsoft Windows shutdown procedures cannot be used, press the power/standby button and hold for 5 the
10 Notebook Tour
seconds to turn off
notebook.
(Continued)
Component Description
2 Display switch Puts the notebook in standby if the
display is closed while the notebook
turned on.
is
3 Wireless button* Turns the wireless functionality on
off, but does not create a wireless
or connection.
To establish a wireless
connection, a wireless network must already be set up. For more information about establishing
wireless connection
a
Windows, visit
from
http://www.hp.com/go/wireless.
*This table describes default settings. For information about changing default settings, refer to the user guides located in the Help and Support Center. Select Start > Help and Support > User Guides.
Notebook Tour 11

Keys

Your notebook may look slightly different from the illustration
in this section.
Component Description
esc key Executes frequently used system
1
Windows logo key Displays the Microsoft Windows
2
functions when pressed in combination with the fn
Start
key.
menu.
3 fn key Executes frequently used system
functions when pressed in combination with a function key or the esc
12 Notebook Tour
key.
(Continued)
Component Description
4 Function keys Execute frequently used system
functions when pressed in combination
with the fn key.
Refer to the table in “Hotkey
Quick Reference” for a
description of each hotkey.
5 Embedded numeric
keys
keypad
Can be used like the keys on an external numeric keypad.
6 Windows applications key Displays a shortcut menu for items
beneath the pointer.
Notebook Tour 13

Hotkey Quick Reference

Key Combination to Activate
Function
Initiate standby fn+f3 Power/standby
Alternate between notebook display and external display
Mute the system sound fn+f5 fn+f5
Decrease system sound fn+f6 Not applicable
Increase system sound fn+f7 Not applicable
View battery information fn+f8 fn+f8
Decrease screen brightness fn+f9 Not applicable
Increase screen brightness fn+f10 Not applicable
Display system information fn+esc fn+esc
Function
fn+f4 fn+f4
Key Combination to Deactivate Function
button
14 Notebook Tour

Front Components

Refer to the illustration that most closely matches your
notebook.
Component Description
1 Speakers (2) Produce system sound.
2 Display release latch Opens the notebook.
3 6-in-1 Digital Media Slot
(select models only)
4 6-in-1 Digital Media Slot light
(select models only)
Notebook Tour 15
Supports 6 optional digital media card formats: SD (Secure Digital) Memory Card, MultiMediaCard, Memory Stick, Memory Stick Pro, SmartMedia card, and xD-Picture Card.
On: Slot is accessing a digital
card.
media
Component Description

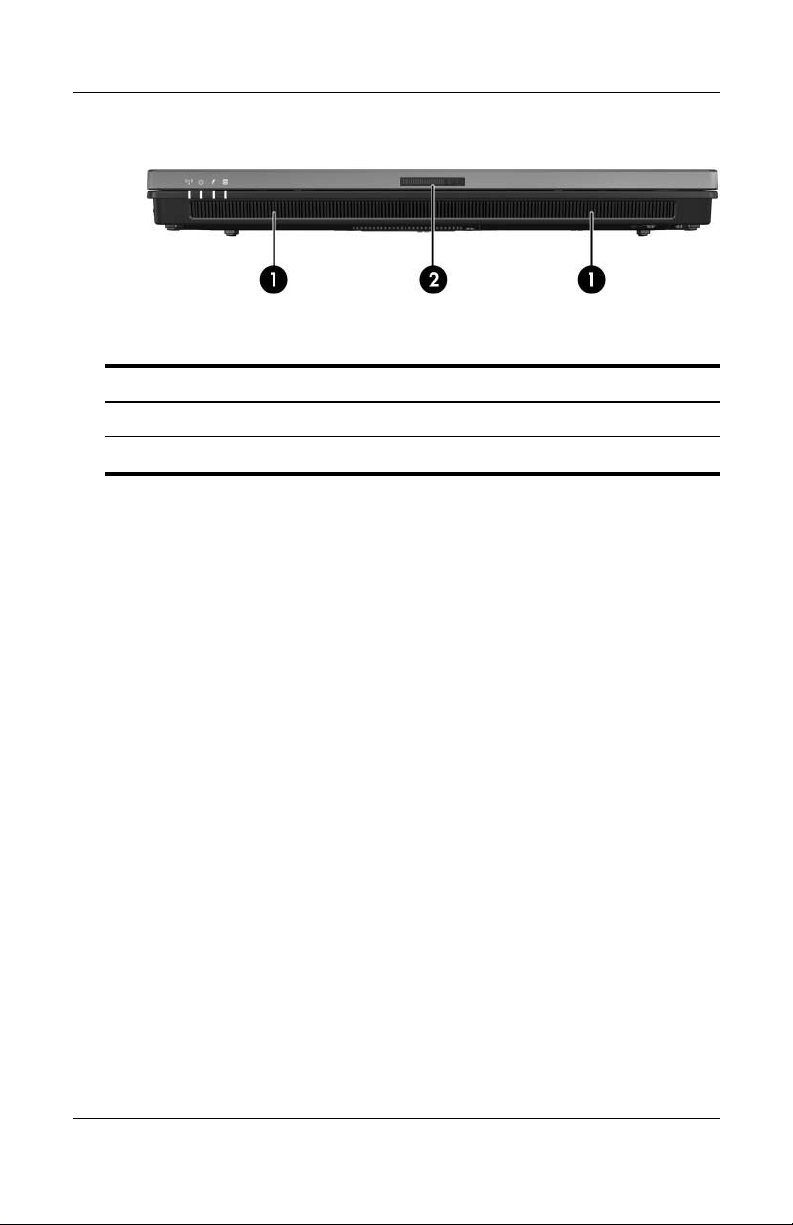

1 Speakers (2) Produce system sound.
Display release latch Opens the notebook.
2
16 Notebook Tour

Rear Components

Refer to the illustration that most closely matches your
notebook.
Component Description
1 Security cable slot Attaches an optional security cable
the notebook.
to
Security solutions are
Ä
designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen.
2 Power connector Connects an AC adapter or an optional
power adapter.
(Continued)
Notebook Tour 17
Component Description
3 RJ-45 (network) jack Connects a network cable.
4 USB port Connects USB 1.1- and 2.0-compliant
devices to the notebook using a standard USB cable, or connects an optional External MultiBay II to the notebook. The MultiBay II must be connected to an external power source.
S-Video-out jack Connects an optional S-Video
5
such as a television, VCR,
device camcorder, overhead projector, or video capture card.
18 Notebook Tour
Component Description
1 Security cable slot Attaches an optional security cable
the notebook.
to
Security solutions are
Ä
designed to act as deterrents. These deterrents may not prevent a product from being mishandled or stolen.
2 Power connector Connects an AC adapter or an optional
power adapter.
RJ-45 (network) jack Connects a network cable.
3
USB port Connects USB 1.1- and 2.0-compliant
4
devices to the notebook using a standard USB cable, or connects an optional External MultiBay II to the notebook. The MultiBay II must be connected to an external power source.
Notebook Tour 19

Right-Side Components

Your notebook may look slightly different from the illustration
in this section.
Component Description
1 Optical drive button Releases the media tray.
2 Optical drive Reads an optical disc.
3 RJ-11 (modem) jack Connects a modem cable.
20 Notebook Tour

Left-Side Components

Your notebook may look slightly different from the illustration
in this section.
Component Description
1 Vent Enables airflow to cool internal
components.
To prevent overheating, do
Ä
2 External monitor port Connects an external monitor.
obstruct vents. Using the
not notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing, may block airflow.
3 1394 port Connects an optional IEEE 1394
device, such as a camcorder.
(Continued)
Notebook Tour 21
Component Description
4 USB ports (2) Connect USB 1.1- and 2.0-compliant
devices to the notebook using a standard USB cable. Either port can also connect an optional External MultiBay II to the notebook. The MultiBay II must be connected to
external power source.
an
5 Audio-in (microphone) jack Connects an optional headset
microphone or a monaural microphone.
6 Audio-out (headphone) jack Produces system sound when
connected to optional powered stereo speakers, headphones, headset,
television audio.
or
7 PC Card slot Supports optional Type I or Type II
Cards.
PC
ExpressCard slot
8
9
22 Notebook Tour
models only)
(select
PC Card slot eject button (1) Ejects the PC Card from the
Supports optional ExpressCard/54
ExpressCard/34 cards.
or
Card slot.
PC

Bottom Components

Refer to the illustration that most closely matches your
notebook.
Component Description
Hard drive bay Holds the hard drive.
1
Vents (2 or 3)* Enable airflow to cool internal
2
Notebook Tour 23
components.
To prevent overheating, do
Ä
obstruct vents. Using the
not notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing, may block airflow.
(Continued)
Component Description
Docking connector Connects the notebook to an optional
3
docking device.
Primary battery pack release
4
latches (2)
Release the primary battery pack from the battery bay.
5 Primary battery bay Holds the primary battery pack.
Travel battery connector Connects an optional travel battery.
6
7 Memory module
compartment
*Depending on your notebook model, the vents on the notebook may vary
number and location.
in
Contains the memory module slots.
24 Not ebook Tour
Component Description
Hard drive bay Holds the hard drive.
1
Vents (2 or 3)* Enable airflow to cool internal
2
components.
To prevent overheating, do
Ä
not obstruct vents. Using the notebook on a soft surface, such as a pillow, blanket, rug, or thick clothing, may block airflow.
3 Primary battery pack release
latches (2)
Notebook Tour 25
Release the primary battery pack from the battery bay.
(Continued)
Component Description
4 Primary battery bay Holds the primary battery pack.
Travel battery connector Connects an optional travel battery.
5
6 Memory module
compartment
*Depending on your notebook model, the vents on the notebook may vary
number and location.
in
Contains the memory module slots.
26 Notebo ok Tour

Display Components

Your notebook may look slightly different from the illustration
in this section.
Component Description
1 Display release latch Opens the notebook.
Internal microphone Records sound.
2
Notebook Tour 27
Wireless Antennae (Select
On select notebook models, there are 2 wireless antennae that send and receive wireless device signals. They are not visible from the outside of the notebook.
For wireless regulatory notices in your region, refer to the Regulatory, Safety and Environmental Notices guide located in the Help and Support Center. Select Start > Help and Support > User Guides.
Your notebook may look slightly different from the illustration
in this section.
Models Only)
28 Notebook Tour

Additional Hardware Components

Component Description
1 Power cord* Connects an AC adapter to an
outlet.
AC
2 AC adapter Converts AC power to DC power.
3 Modem cable* Connects an internal modem to
RJ-11 telephone jack or to a
an country-specific modem adapter.
4 Primary battery pack* Powers the notebook when the
notebook is not connected to external
*Modem cables, battery packs, and power cords vary in appearance by region and country.
Notebook Tour 29
power.

Labels

The labels affixed to the notebook provide information you may need when you troubleshoot system problems or travel internationally with the notebook.
Service Tag—Provides the product name, product number
Microsoft Certificate of Authenticity—Contains the
Regulatory label—Provides regulatory information about the
Modem Approval label—Provides regulatory information
(P/N), and serial number (S/N) of your notebook. You may need the product number and the serial number when you contact Customer Care. The Service Tag label is affixed to the bottom of the notebook. The information on the Service Tag is also available through Start > Help and Support.
Microsoft Windows Product Key. You may need the Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom of the notebook.
notebook. The Regulatory label is affixed to the bottom of the notebook.
about the modem and lists the agency approval markings required by some of the countries in which the modem has been approved for use. You may need this information when traveling internationally. The Modem Approval label is affixed to the bottom of the notebook.
Wireless certification labels—Some notebook models include
an optional wireless local area network (WLAN) device and/or an optional Bluetooth® device. If your notebook model includes one or more wireless devices, a certificate is included with your notebook. It provides regulatory information about each device and the approval markings of some of the countries in which the device has been approved for use. You may need this information when traveling internationally. Wireless certification labels are affixed to the bottom of the notebook.
30 Notebook Tour

Specifications

Operating Environment

The operating environment information in the following table may be helpful if you plan to use or transport the notebook in extreme environments.
Factor Metric U.S.
Temperature
Operating (not writing to optical disc) 0°C to 35°C 32°F to 95°F
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia) -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft
Notebook Tour 31

Rated Input Power

The power information in this section may be helpful if you plan to travel internationally with the notebook.
The notebook operates on DC power, which can be supplied by an AC or a DC power source. Although the notebook can be powered from a stand-alone DC power source, it is strongly recommended that the notebook be powered only with an
adapter or a DC power cord supplied by or approved by HP.
AC
The notebook is capable of accepting DC power within the following specifications.
Input Power Rating
Operating voltage 18.5 V dc @ 3.5 A - 65 W
Operating current 3.5 A
This product is designed for IT power systems in Norway with phase-to-phase voltage not exceeding 240 V rms.
32 Notebook Tour

Index

1394 port 21 6-in-1 Digital Media Slot light
15
6-in-1 Digital Media Slot,
location
15
A
AC adapter, identifying 29 altitude specifications antennae applications key, Windows audio-in (microphone) jack audio-out (headphone) jack
28
31
13
22 22
B
battery bay 24, 26, 30 battery light, identifying battery pack release latch
25 battery pack, identifying bays
battery hard drive
Bluetooth label
24, 26, 30
23, 25
30
3, 5
24,
29
buttons
Info Center mute optical drive PC Card slot eject power/standby Presentation mode TouchPad volume wireless
8
9
6
9
8, 11
C
cables
RJ-11 (modem) RJ-45 (network)
18, 19, 22
USB caps lock light Certificate of Authenticity
30
label
compartments, memory
module
3, 4
24, 26
20
22
8, 10
9
18, 19, 29
18, 19
Notebook Tour Index–1
components
bottom display front left-side rear right-side top
connectors
docking power travel battery
cord, power, identifying
23
27
15
21
17
20
2
24
17, 19
24, 26
29
D
digital media cards 15 display release latch display switch, identifying
11 docking connector drives, optical
15, 16, 27
8,
24
20
E
eject button, PC Card slot 22 environmental specifications
31 exhaust vents ExpressCard external monitor port
21, 23, 25
22
21
F
fingerprint reader 9
fn key 12
function keys
13
H
hard drive bay, identifying 23,
25 headphone (audio-out) jack hotkey commands
alternate displays decrease screen brightness
14 decrease system sound display system information
14 increase screen brightness
14 increase system sound initiate standby mute system sound view battery information
14
hotkeys, Quick Reference humidity specifications
I
IDE drive light 3, 5 IEEE 1394 port Info Center button internal microphone
21
J
jacks
audio-in (microphone) audio-out (headphone) RJ-11 (modem) RJ-45 (network) S-Video-out
18
22
14
14
14
14
14
14
31
8
27
22 22
20
18, 19
Index–2 Notebook Tour
K
keypad keys 13 keys
esc 12 fn 12
function keypad Windows applications Windows logo
13
13
12
L
labels
Bluetooth Microsoft Certificate of
Authenticity Modem Approval Regulatory Service Tag wireless certification WLAN
latches
battery pack release display release
lights
6-in-1 Digital Media Slot
15 battery caps lock IDE drive mute num lock power/standby wireless
lock, security cable
30
30
30
30
30
15, 16, 27
3, 5
3, 4
3, 5
3
3, 4
2, 4
3, 4
17, 19
30
30
24, 25
13
M
memory module compartment
24, 26
Memory Stick Memory Stick Pro microphone (audio-in) jack microphone, internal Microsoft Certificate of
Authenticity label Modem Approval label modem cable monitor port, external MultiMediaCard mute button mute light
15
18, 19
9
3
N
network (RJ-45) jack 18, 19 network cable num lock light
18, 19
3, 4
O
operating environment
specifications operating system
Microsoft Certificate of
Authenticity label
Product Key optical drive button optical drive, identifying optional power adapter
31
30
P
PC Card slot 22 PC Card slot eject button
15
22
27
30
30
21
15
30
20
20
17, 19
22
Notebook Tour Index–3
ports
21
1394 external monitor
18, 19, 22
USB power connector power cord power/standby button power/standby light Presentation mode button Product Key product name and number,
notebook
29
30
30
21
17, 19
8, 10
2, 4
9
R
rated input power
specifications
regulatory information
Modem Approval label
Regulatory label
wireless certification labels
30
release latch
battery pack
display RJ-11 (modem) cable RJ-11 (modem) jack RJ-45 (network) jack
32
30
30
24, 25
15, 16, 27
29
20
18, 19
S
scrolling regions, TouchPad 6 Secure Digital (SD) Memory
15
Card security cable slot serial number, notebook
17, 19
30
Service Tag slots
6-in-1 Digital Media memory module PC Card
security cable SmartMedia (SM) card speakers specifications
operating environment
rated input power S-Video-out jack switches
display
identifying
30
22
17, 19
15, 16
18
8, 11
8, 11
T
temperature specifications 31 TouchPad travel battery connector traveling with notebook
environmental
Modem Approval label
wireless certification labels
6
specifications
30
U
USB cable 18, 19, 22 USB ports, identifying
22
V
vents, exhaust 21, 23, 25 volume buttons
9
15
24, 26
15
31
32
24, 26
32
30
18, 19,
Index–4 Notebook Tour
W
Windows applications key 13 Windows logo key wireless antennae wireless button wireless certification label wireless light WLAN label
12
28
8, 11
30
3, 4
30
X
xD-Picture Card 15
Notebook Tour Index–5
© Copyright 2005 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Notebook Tour First Edition May 2005 Document Part Number: 383364-001
Loading...
