Compaq MP1600
Microportable Projector
User's Guide
Notice
The information in this guide is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE
LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR
OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
This guide contains information protected by copyright. No part of
this guide may be photocopied or reproduced in any form without
prior written consent from Compaq Computer Corporation.
1999 Compaq Computer Corporation.
All rights reserved. Printed in Taiwan.
Compaq and Deskpro are registered in the U. S. Patent and
Trademark Office.
Microsoft, MS-DOS, Windows, Windows NT, and other names of
Microsoft products referenced herein are trademarks or registered
trademarks of Microsoft Corporation.
Product names mentioned herein may be trademarks and/or
registered trademarks of their respective companies.
The software described in this guide is furnished under a license
agreement or nondisclosure agreement. The software may be used
or copied only in accordance with the terms of the agreement.
User’s Guide
Compaq MP1600 Microportable Projector
Second Edition (November 1999)
Part Number 383706-002
Compaq Computer Corporation
ONTENTS
C
preface
SING THIS GUIDE
U
Symbols and Conventions..................................................................v
Warning Messages ............................................................................vi
book 1
NGLISH
E
Product Features..............................................................................1-1
Introduction.....................................................................................1-2
Setting Up the Projector..................................................................1-3
Connecting the Projector to a Portable Computer.....................1-4
Connecting the Projector to a Desktop Computer.....................1-5
Connecting the Projector to a Compaq PC Companion ............1-6
Connecting the Projector to Other Video Sources......................1-7
Attaching the Compaq Video Adapter to the
MP1600 Microportable Projector ............................................1-7
Connecting a Camcorder, VCR, or DVD Player
to the Compaq Video Adapter..................................................1-8
Powering On the Projector..........................................................1-9
Adjusting the Projected Image..................................................1-11
Adjusting the Projector Height ..............................................1-11
Adjusting the Projector Focus................................................1-13
Image Size Adjustment.............................................................1-14
Using the Compaq MP1600 Presentation Utility .....................1-15
Using the Compaq Projector Display Assistant........................1-16
Powering Off the Projector.......................................................1-17
Operating the Projector .................................................................1-18
On-Screen Menu Adjustments..................................................1-19
Video On-Screen Menu Adjustments ....................................1-20
Adjusting the On-Screen Menus............................................1-21
Explaining Functions in the On-Screen Menu.......................1-23
Special On-Screen Messages....................................................1-25
Contents iii
Care and Maintenance ..................................................................1-26
Protecting the Projector............................................................1-26
Cleaning the Lens.....................................................................1-27
Replacing the Projector Lamp Module ....................................1-28
appendix A
ROUBLESHOOTING
T
appendix B
GENCY REGULATORY NOTICES
A
Federal Communications Commission Notice.............................. B-1
Modifications............................................................................. B-1
Cables ........................................................................................ B-1
Declaration of Conformity for Products Marked
with the FCC Logo—United States Only............................... B-2
Canadian Notice...................................................................... B-2
Avis Canadien......................................................................... B-2
European Notice ..................................................................... B-3
Japanese Notice ...................................................................... B-3
PECIFICATIONS
S
Specifications................................................................................. B-4
Preset Display Resolutions Table.............................................. B-5
Color Display Values.............................................................. B-6
Power Cords .............................................................................. B-6
appendix C
SING THE COMPAQ VIDEO ADAPTER
U

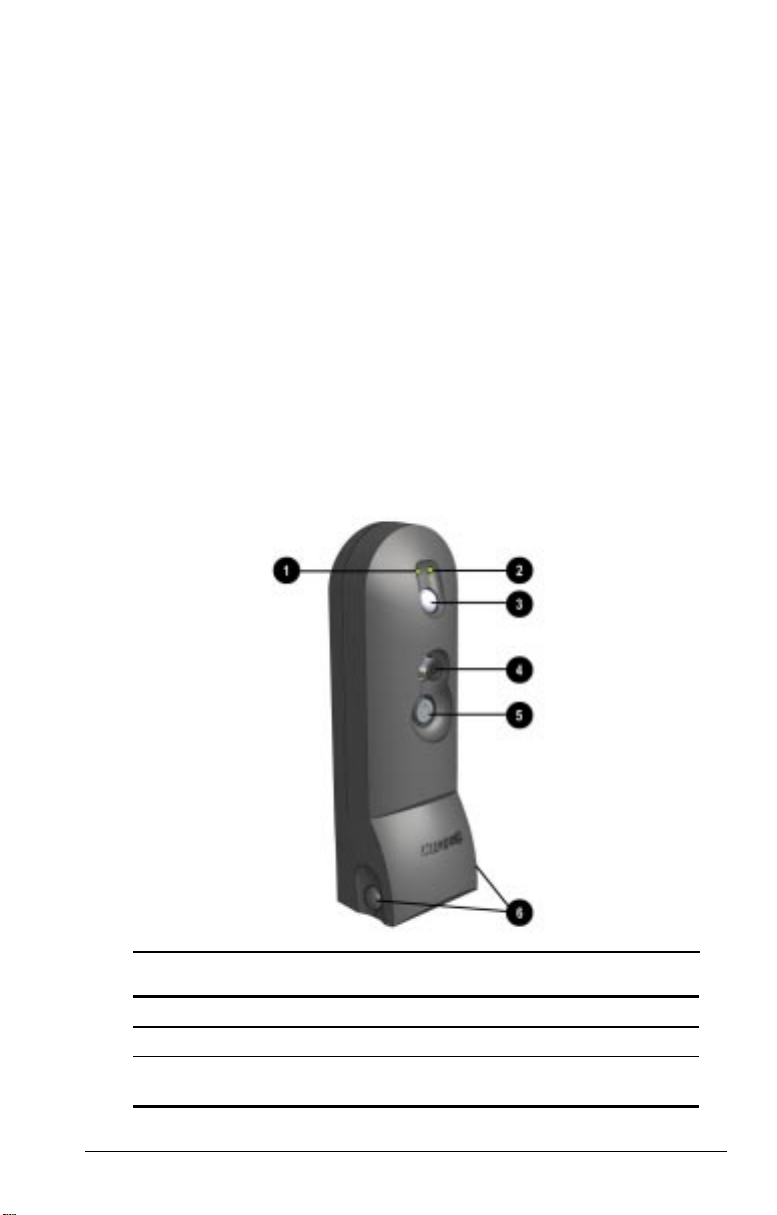

Identifying the Buttons and Connectors........................................ C-1
Attaching the Video Adapter to the
MP1600 Microportable Projector.................................................. C-2
Connecting a Video Player............................................................ C-3
iv Contents
preface
Using This Guide
The User's Guide includes general information about your
projector, troubleshooting and diagnostics, and technical
specifications.
Symbols and Conventions
The following words and symbols mark special messages
throughout this guide:
WARNING:
!
failure to follow directions could result in bodily harm or
loss of life.
CAUTION:
failure to follow directions could result in damage to
equipment or loss of information.
Text set off in this manner presents clarifying information,
✎
specific instructions, commentary, sidelights, or interesting
points of view
Text set off in this manner indicates that
Text set off in this manner indicates that
.
Preface v
Warning Messages
Before operating the projector, please read the following messages.
!
WARNING:
To reduce the risk of harm to your eyes, do not look
directly into the bright light of the projection lens.
To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
To reduce the risk of electric shock, do not
disassemble the projector other than to replace the
lamp module.
To reduce the risk of personal injury, allow the unit to
cool down before changing the lamp, and always
unplug the power cord first.
vi Preface
book 1
English
Product Features
The Compaq MP1600 Microportable Projector generates crisp,
clear images onto a projection screen by using Digital Light
Processing (DLP) Technology. The features include the
following:
120-watt high-efficiency, long-life lamp
1024 × 768 native XGA resolution
Maximum resolution: 1280 × 1024 SXGA
Digitally zooms to 32×
Weighs 4.2 pounds (weight may vary slightly)
Standard VGA analog connection
All digital DFP connection
Convenient auto-image adjustment
16.7 million displayable colors
Multilingual on-screen adjustment menu
Plug and Play capability
Compaq MP1600 Presentation utility for ease of use in setting
up the projector with portable computers
Compaq Projector Display Assistant utility to adjust screen
settings
Carrying case, projector carrying handle, and lens cleaning
cloth kit included
Security lock slot
User replaceable lamp module
Optional video adapter
MP1600 Microportable Projector 1-1
Introduction
The Compaq MP1600 Microportable Projector comes with the
following items:
Projector and lens cap
10-foot power cable
Two signal cables:
One VGA signal cable for use with computers, portables,
and some handheld products
One digital DFP (digital flat panel) signal cable for use
with compatible digital sources
Carrying case and separate projector carrying handle
Lens cleaning cloth kit
Phillips screwdriver
Quick Setup card, this
CD-ROM containing the Compaq MP1600 Presentation
User’s Guide
and other documentation
utility program, Compaq Projector Display Assistant utility,
and an English
User’s Guide
1-2 MP1600 Microportable Projector
If your shipping box does not contain all of the listed items,
please contact your Compaq authorized dealer, reseller, or service
provider.
Setting Up the Projector
Instructions below and on the following pages explain how to set
up the projector. Separate setup instructions are described for the
following products:
Portable and desktop computer
Handheld computers with VGA capability
VCR, DVD, or camcorder (requires optional video adapter)
The projector is hot pluggable and can be connected, while
✎
powered on, to these products while they are powered on.
IMPORTANT:
Place the projector on a stable desk or table at a
distance not less than 3.3 feet and not greater than 35 feet from
the projection screen.
damage to your equipment:
Do not disable the power cord grounding plug. The
WARNING:
!
To reduce the risk of electric shock or
grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed)
electrical outlet that is easily accessible at all times.
Disconnect power from the projector by unplugging
the power cord from the electrical outlet.
Do not place anything on power cords or cables.
Arrange them so that no one may accidentally step
on or trip over them. Do not pull on a cord or cable.
When unplugging from the electrical outlet, grasp
the cord by the plug.
MP1600 Microportable Projector 1-3
Connecting the Projector to a
Portable Computer
1. Connect one end of the projector signal cable to the projector
and the other end to the VGA connector
connector
screws. Use the VGA cable OR the DFP cable; do not connect
both cables.
Be sure the signal cable aligns with the connector. Do not
✎
force the cable onto the connector or you may damage the
signal cable or the projector.
2. Connect one end of the power cord 2 into the back of the
projector, and the other end to an electrical outlet that is easily
accessible and close to the projector.
on the portable computer and tighten the
1
A
or the DFP
1
B
For more information on setting up the projector with a
✎
portable computer, see the white paper “Compaq MP1600
Microportable Projector and the Armada Graphics/Video
Capabilities” included on the CD-ROM.
1-4 MP1600 Microportable Projector
Connecting the Projector to a
Desktop Computer
1. Connect one end of the projector signal cable
projector and the other end to the VGA connector on the
desktop computer and tighten the screws.
If your computer has a digital connector, connect one end of
✎
the digital flat panel (DFP) signal cable 1A to the digital
connector on the projector and the other end to the digital
connector on the computer. Connect either the VGA cable OR
the DFP cable; do not connect both cables.
Be sure the signal cable aligns with the connector. Do not force
✎
the cable onto the connector or you may damage the signal
cable or the projector.
2. Connect one end of the power cord 2 into the back of the
projector, and the other end to an electrical outlet that is easily
accessible and close to the projector.
1
to the
B
For security purposes, this projector has been fitted with a slot
✎
(located on the left, front side) for use with a security cable lock
that can be purchased separately at most computer stores.
MP1600 Microportable Projector 1-5
3
Connecting the Projector to a
Compaq PC Companion
To connect the projector to a Compaq PC Companion, the PC
Companion must have a male connector adapter and a VGA-out
PC Card with a 15-pin connector.
The VGA-out PC Card with the 15-pin connector is not
✎
included with the Compaq PC Companion. It is sold
separately. For information on purchasing this card, call your
Compaq authorized dealer, seller, or reseller. To locate a
reseller near you, call Compaq at 1-800-AT-COMPAQ or visit
the Compaq web site at http://www.compaq.com.
1. Connect one end of the signal cable 1 to the projector and
connect the other end to the VGA-out PC Card. The VGA-out
PC Card may be inserted into the PC slot on the Compaq PC
Companion before or after connecting the signal cable.
2. Connect one end of the power cord 2 into the back of the
projector, and the other end to an electrical outlet that is easily
accessible and close to the projector.
To connect a Compaq Aero device, follow the instructions for
✎
connecting the projector to a portable computer.
1-6 MP1600 Microportable Projector
Connecting the Projector to Other Video Sources
To connect the projector to a camcorder, DVD player, or VCR,
the Compaq Video Adapter must be connected to the projector.
The Compaq Video Adapter has been specifically designed to fit
the Compaq MP1600 Microportable Projector. This adapter
converts the signals from the camcorder for compatibility with the
projector.
The Compaq Video Adapter is not included with the Compaq
✎
MP1600 Microportable Projector. It is sold separately. For
information on purchasing this video adapter, call your Compaq
authorized dealer, seller, or reseller. To locate a reseller near
you, call 1-800-AT-COMPAQ or visit the Compaq web site at
http://www.compaq.com.
Attaching the Compaq Video Adapter to the
MP1600 Microportable Projector
1. Push in the two buttons 1 on the bottom sides of the video
adapter.
2. Insert the hooks on top of the video adapter into the upper
slots 2 on the projector by inserting and pushing upward,
then insert the adapter plug into the digital connector 3 on the
back of the projector.
Release the buttons on the sides of the video adapter to
3.
complete the connection.
MP1600 Microportable Projector 1-7
✎
When the adapter is activated, one of the LEDs 4 on the
video adapter will turn green.
Connecting a Camcorder, VCR, or DVD Player
to the Compaq Video Adapter
1. Use an RCA cable to connect a VCR to the video connector
on the video adapter. Use an S-video cable to connect a
camcorder or DVD player to the S-video connector 2 on the
video adapter.
2. Connect one end of the power cord 3 into the back of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.
3. Press the Source button 4 to select between the analog and
the composite S-video connectors when both are connected to
digital products.
1
The Compaq Video Adapter can remain attached to the projector,
or it can be removed and stored in the carrying case. For more
information on using the video adapter, see Appendix C, “Using
the Compaq Video Adapter.”
1-8 MP1600 Microportable Projector
Be sure to place the rubber boot cover over the DFP
✎
(digital) connector on the projector when it is not in use to
prevent electrostatic discharges from damaging the
connector.
Powering On the Projector
Follow these instructions to power on the projector:
1. Ensure that the power cord and signal cable are securely
connected.
✎
Make sure the projector is perpendicular to the screen.
2. Remove the lens cap 1 by pulling it straight out.
3. Turn on the Main power switch 2 on the back of the projector
and allow the projector to warm up for 1-2 minutes.
When the projector has warmed up, the Compaq startup screen
✎
will display and the LED on the Standby button 3 will turn
green. When the startup screen disappears, the video from the
attached computer will display. If there is no incoming video,
the “Check Video Cable” message will display on the
projection screen.
MP1600 Microportable Projector 1-9
4. Power on your source (computer, PC Companion, or VCR,
etc.) and launch the software application being used to display
images on the projection screen. If applicable, press the
Function key on the computer designated for external display.
If there is a long delay between the time the startup screen
✎
displays and the time the presentation software is launched,
the lamp may shut off and the projector will automatically go
into standby mode. If this happens, press the Standby button
to power on the lamp.
3
1-10 MP1600 Microportable Projector
Adjusting the Projected Image
There are two ways to adjust the projected image:
Adjusting the projector height
Adjusting the projector focus
Adjusting the Projector Height
This projector has a built-in elevator foot that can raise the
projector approximately 1-inch. To adjust the height:
1. Turn the foot sideways to balance the projector.
MP1600 Microportable Projector 1-11
2. Raise the projector to the desired display angle, then press the
elevator button 1 on the front of the projector to release the
foot 2.
3. To lower the display angle, press the button on the front of the
projector again and press down on the projector to lower it.
WARNING:
!
overturning, always turn the elevator foot 90 degrees
from its original position before pressing the elevator
button.
To fine-tune the leveling of the projector, hold the elevator
✎
button in and adjust the leveling.
1-12 MP1600 Microportable Projector
To reduce the risk of the projector tipping or
Adjusting the Projector Focus
To focus the projected image, rotate the focus ring 1 until the
image is clear. The projector will focus at distances from 3.3 feet
to 35.64 feet (1 meter to 10.8 meters).
If vertical bars appear on the display after adjusting the focus,
press the Resync button 2 to automatically synchronize and track
the display. If the button does not correct the display, use the
Digital Conversion feature in the on-screen menu to manually
adjust the synchronization and tracking (refer to the “On-Screen
Menu Adjustments” section).
MP1600 Microportable Projector 1-13
Image Size Adjustment
Screen
Diagonal
Screen
Width
Screen
Height
Projection
Distance
✎
1-14 MP1600 Microportable Projector
42.2" 56.2" 84.3" 112.5" 140.6" 168.7" 196.9" 225" 253.1" 281.2"
33.8" 45" 67.4" 90" 112.4" 135" 157.5" 180" 202.4" 225"
25.3" 33.7" 50.6" 67.5" 84.4" 101.2" 118.1" 135" 151.9" 168.7"
4.9' 6.6' 9.8' 13.1' 16.4' 19.7' 23.0' 26.2' 29.5' 32.8'
If the projector is used at the maximum distance in this chart, the
display may appear to be dimmer than usual.
Using the Compaq MP1600 Presentation Utility
The Compaq MP1600 Presentation utility included on the CDROM is for use with portable computers only. The purpose of the
MP1600 Presentation utility is to disable power management
features of the portable computer while the Compaq MP1600
Microportable Projector is connected to it. The utility also
disables the computer’s screen savers and auto-suspend feature.
A graphical user interface (GUI) is required to control the
MP1600 Projector’s resolution settings and the enabled/disabled
status. The Compaq MP1600 Presentation utility supports the
following GUI operating systems: Microsoft Windows 95,
Windows 98, and Windows NT 4.0.
To install the MP1600 Presentation utility onto a portable
computer:
1. Insert the CD-ROM into the computer’s CD drive. The CDROM menu will automatically launch on the screen.
2. From the launch menu, click on “Install SoftwareInstall
MP1600 Presentation Utility” and follow the on-screen
instructions.
3. Select Next in the dialog box to install the program. The
MP1600 Presentation utility installs on the hard drive and the
user is prompted to restart the computer. Upon restart, a
program icon (Yellow beam of light containing a Q) is placed
in the Windows system tray.
4. Double-click the program icon to launch the Presentation
Properties dialog box.
5. Set the Presentation Mode Duration time in the dialog box.
The dialog box has default settings enabled to turn off the
computer’s power management features and screen saver
features.
6. Select OK from the dialog box to execute the settings. The
software dialog box closes and the computer is ready to
continue with the presentation.
MP1600 Microportable Projector 1-15
The MP1600 Presentation utility is provided on the CD-ROM in
the following languages: English, Dutch, French, German, Italian,
and Spanish. When the installation is executed, the appropriate
language is installed on the computer based on the computer’s
operating system language. If the computer’s operating system
language is not included as one of the six languages above, then,
by default, the English version will install on the computer.
Using the Compaq Projector Display Assistant
The Compaq Projector Display Assistant utility included on the
CD-ROM is an adjustment tool for improving the display quality
of the MP1600 projector. Adjustments need to be made when the
projector is first attached to a computer or when a different
display mode is selected for the first time. This utility can be run
directly from the CD-ROM or copied to a directory on the
computer hard drive and run from there.
To run the Projector Display Assistant for Microsoft Windows 95,
Windows 98, or Windows NT 4.0:
1. Insert the CD-ROM into the computer’s CD drive. The CDROM menu will automatically launch on the screen.
2. From the launch menu, click on “Install SoftwareInstall
Compaq’s Projector Display Assistant” and follow the onscreen instructions.
1-16 MP1600 Microportable Projector
Powering Off the Projector
1. Press the Standby button to turn off the projector lamp.
The message “Going to Standby” displays and the LED on the
Standby button blinks amber.
IMPORTANT:
Allow the projector to cool down for about
five to ten minutes before turning it off.
2. Turn off the Main power switch on the back of the projector.
3. Disconnect the power cord from the electrical outlet and the
projector.
CAUTION:
If the LEDs on all five buttons rapidly flash
amber, this indicates that the lamp has overheated and the
projector has automatically shut down. Remove any
obstruction that may prevent proper ventilation to the
projector, and wait five to ten minutes to allow the projector
to cool down before powering it on again.
MP1600 Microportable Projector 1-17
Operating the Projector
Symbol Control Function
1
Standby button
and LED
Powers the projector lamp on and off.
The Standby LED changes color modes to indicate
the following operating modes:
1. Green glow indicates power is on.
2. Amber glow indicates warm-up or suspend
3. Flashing amber indicates the projector is
4. All five LED buttons rapidly flashing amber
modes.
going into standby mode and cannot be
restarted until the LED glows amber steadily.
indicates the lamp has overheated and the
projector has automatically shut down.
2
−
3
+
4
R
5
1-18 MP1600 Microportable Projector
Select button 1. Launches first, second, and third-level on-
Minus button Selects and adjusts the on-screen menu functions.
Plus button Selects and adjusts the on-screen menu functions.
Resync button Automatically synchronizes the projector to track
screen menus.
2. Exits the on-screen menus.
the input source.
IMPORTANT:
To use standby mode, press the Standby button and,
after a six to ten-second delay, the unit enters standby mode and
the projector lamp turns off. A “Going to Standby” message
appears on the screen for the duration of the six to ten-second
delay. When the message disappears from the screen, there is a
45-second delay before the lamp can be turned back on. Wait 45
seconds to allow the lamp to cool before pressing the Standby
button again.
On-Screen Menu Adjustments
The adjustments for screen settings are located in the on-screen
menu and can be viewed in one of six available languages. The
following menu shows the functions at each level:
Main Menu Menu Level 2 Menu Level 3
Brightness Adjustment scale
Contrast Adjustment scale
Position Horizontal Position
Zoom Zoom
Keystone Adjustment scale
Picture Dark - Light
Color 7100 K
Digital
Conversion
Vertical Position
Save and Return
Cancel
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Custom Color
Saturation
Save and Return
Cancel
Clock
Clock Phase
Save and Return
Cancel
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Continued
MP1600 Microportable Projector 1-19
On-Screen Menu (Continued)
Language Deutsche
English
Espanol
Francais
Italiano
Nederlands
Save and Return
Menu Location Up-Down
Left-Right
Save and Return
Cancel
Management Power Saver
Lamp Hours
Reset Lamp Hours
Flip Image Horizontal
Serial Number
Master Reset
Save and Return
Cancel
Factory Reset Confirm Reset
Exit
Adjustment scale
On-Off
Display hours - 5 digits
Confirmation
Vertical
Both
Save and Return
Cancel
Display Serial Number
Confirmation
Video On-Screen Menu Adjustments
When the Compaq Video Adapter is attached to the projector, an
alternate Video On-Screen menu (shown below) will activate
when the Select button is pressed.
Video Menu Video Menu Level 2 Video Menu Level 3
Brightness Adjustment scale
Contrast Adjustment scale
Zoom Zoom
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Keystone Adjustment scale
Color 7100 K
Custom Color
Saturation
Save and Return
Cancel
1-20 MP1600 Microportable Projector
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Adjustment scale
Video On-Screen Menu
Tint Adjustment scale
Sharpness Adjustment scale
Language Deutsche
Menu Location Up-Down
Management Power Saver
Factory Reset Confirm Reset
Exit
(Continued)
English
Espanol
Francais
Italiano
Nederlands
Save and Return
Left-Right
Save and Return
Cancel
Lamp Hours
Reset Lamp Hours
Flip Image Horizontal
Serial Number
Master Reset
Save and Return
Cancel
Adjustment scale
On-Off
Display hours - 5 digits
Confirmation
Vertical
Both
Save and Return
Cancel
Display Serial Number
Confirmation
Adjusting the On-Screen Menus
To launch and make adjustments to the Main and Video on-screen
menus:
1. Press the Select button 1 located on the projector panel. The
Main menu will display on the projection screen.
2. To select a function, press the Minus (-) button 2 to scroll
down the Display menu. To reverse the scroll direction, press
the Plus (+) 3 button.
3. Highlight the function to be adjusted and press the Select
button 1 again.
MP1600 Microportable Projector 1-21
The bar on the bottom of the on-screen menu shows the current
✎
operating resolution.
For example, to select the
button 2 until
button 1 to display the level 2 menu for
menu displays expanded menu items.
4. To make a selection from the level 2 menu, press the Minus
(-) button to scroll down the level 2 menu, or press the Plus
(+) button to reverse the scroll direction.
5. Highlight the selection and press the Select button to confirm
the selection. The level 3 menu displays.
6. Level 3 for
Use the Minus button to decrease and the Plus button to
increase the screen Horizontal and Vertical positions.
Some menu functions display adjustment scales in the level 2
✎
menu, while others display adjustment scales in the level 3
menu.
7. After making the adjustment, select
void any changes made, select
Return
1-22 MP1600 Microportable Projector
.
Position
Position
Position
is highlighted, then press the Select
functions display the adjustment scales.
function, press the Minus
Position.
Save and Return
Cancel
instead of
The level 2
To
.
Save and
8. To exit from the on-screen menu, select
from the Main
Exit
menu. If the display is a second or third-level menu, select
Save and Return
or
Cancel,
then select
from the Main
Exit
menu.
The on-screen menu is easy to use; just follow the instructions on
the screen.
Explaining Functions in the On-Screen Menu
Brightness and Contrast—Adjusts the displayed image
■
brightness and contrast ranges from 0 to 100.
✎
An example of a standard setting is to set the contrast level to
67 and the brightness level to 50.
Position—Fine-tunes the horizontal and vertical positions of
■
the display.
Zoom—Magnifies an image up to a factor of 32 on the
■
projection screen (zooms in to a specific area on the screen,
and pans left, right, up, and down).
Keystone—Adjusts image distortion at the top and bottom
■
widths of the screen caused by tilting the projector.
Picture—Adjusts the gamma value or degree of contrast of
■
darkness or light for the projected image.
Color—Adjusts color balance to compensate for ambient
■
conditions using three submenus:
❏
7100°K—The factory default.
❏
Custom Color—Modifies the color temperature balance.
❏
Saturation—Magnifies the color intensity.
MP1600 Microportable Projector 1-23
Digital Conversion—Improves picture stability of user modes
■
by adjusting:
Clock—Increase/decrease the value to stretch or shrink the
image on the screen.
Clock Phase—Increase/decrease the value to minimize
video distortion or video jitter.
If the projector image becomes distorted when adjusting the
✎
Clock and Clock Phase values, continue adjusting the values
until the distortion disappears. To restore the factory settings,
select Factory Reset in the on-screen menu, or press the
Resync button.
Language—Select display from six languages in their native
■
spelling. The current language is highlighted. Select another
language to display all menu functions in that language.
Menu Location—Positions the on-screen menu at a
■
convenient location on the projector screen; moves up and
down, left and right.
Management—Allows the user to control power saver
■
characteristics of the display, or to view the cumulative lamp
hours, reset the lamp hour timer, view the unit’s serial
number, or perform a Master Reset.
Factory Reset—Resets the current operating option to its
■
original factory setting.
1-24 MP1600 Microportable Projector
Special On-Screen Messages
Special on-screen messages will appear on the projection display
to identify the following conditions:
■
Check Video Cable:
Indicates the video cable may not be
plugged into the projector or the selected video input is not
accurate.
■
Input Signal Out of Range—
Indicates the projector is
unable to access the appropriate input signal.
■
2 Inputs Active - Remove One—
The projector has two data
inputs: one is an analog D-Sub input and the other is a digital
DFP input. This message indicates that both inputs are active
simultaneously and the user should detach one of them.
■
Going to Standby—
Indicates the projector is entering a sleep
mode or is powering off the lamp.
■
Lamp May Fail Soon, Replacement Suggested—
Indicates
the lamp is approaching failure. The message will remain on
the screen for five seconds or until the on-screen menu Select
button is pressed.
MP1600 Microportable Projector 1-25
Care and Maintenance
This section explains how to care for and maintain your Compaq
projector during normal everyday use.
Protecting the Projector
To protect your projector from overheating and other types of
damage, follow these suggestions:
Use only a power source and connection appropriate for this
■
projector as indicated on the marking label.
Do not overload an electrical outlet, power strip, or
■
convenience receptacle. The overall system load must not
exceed 80 percent of the branch circuit rating. If an extension
cord or power strip is used, make sure that the cord or strip is
rated for the product and that the total ampere ratings of all
products plugged into the extension cord or power strip do not
exceed 80 percent of the extension cord or strip ampere
ratings limit.
Install the projector near an outlet that you can easily reach.
■
Disconnect the product by grasping the plug firmly and
pulling it from the outlet. Never disconnect it by pulling the
cord.
Unplug the projector from the wall outlet before cleaning. Do
■
not use liquid cleaners or aerosol cleaners.
Slots and openings in the cabinet are provided for ventilation.
■
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
Do not drop the projector or place it on an unstable surface.
■
Do not expose this product to rain or moisture.
■
Do not allow anything to rest on the power cord. Do not walk
■
on the cord.
Do not open the projector or attempt to service this product
■
for any other reason than to replace the lamp module. Adjust
only those controls that are covered by the operating
instructions. If the projector is not operating properly or has
been dropped or damaged, contact your Compaq authorized
dealer, reseller, or service provider.
1-26 MP1600 Microportable Projector
Cleaning the Lens
To minimize the risk of damaging the coating or scratching the
lens surface, this cleaning procedure has been developed. The
first recommendation is to remove any dust particles from the
lens by blowing them off with clean, dry, deionized air. However,
this may not be a convenient method, and an alternate method is
described below using the cloth included with the projector.
To clean the lens, use only the
the projector and follow these steps:
CAUTION:
directly on the lens surface. Do not use liquid cleaners on
the cloth as this may contaminate the cloth.
1. Wipe the lens in a single direction with the
Do not wipe back and forth across the lens surface.
2. If the cloth is dirty or smears the lens, wash the cloth. If the
cloth is still dirty after washing it or the fabric is damaged,
replace it.
Do not
✎
sheets when drying the cloth.
use fabric softener when washing the cloth or softener
CAUTION:
for a long time as doing so may contaminate the lens with
dye from the cloth. Keep the cloth in its case when it is not
being used. The cloth can be contaminated if left in the
open air or in a lab coat pocket.
Do not spray any type of fluid or cleaner
Do not store the cloth in contact with the lens
cloth that was included with
clean
clean, dry
cloth.
MP1600 Microportable Projector 1-27
Replacing the Projector Lamp Module
When the projector lamp reaches its end of life, it may pop when
it burns out. The lamp will need to be replaced before the
projector can be used again.
WARNING:
!
or rupture. To reduce the risk of personal injury, be careful
when removing the lamp cover as broken glass may be
present. Never open the lamp cover while the projector is
operating or when the lamp is hot.
The projector will alert you when the lamp approaches its failure
mode or end of life. When the message “Lamp May Fail Soon Replacement Suggested” displays on the projection screen, you
should change the lamp as soon as possible. Contact your local
Compaq authorized dealer, seller, or reseller to purchase a spare
lamp or have the lamp changed.
When the lamp reaches its end of life, it may pop
1-28 MP1600 Microportable Projector
To replace the projector lamp module, follow these steps:
1. Turn off the power to the projector by pressing the Standby
button 1.
2. Allow the projector to cool down for at least 30 minutes.
WARNING:
!
temperature. To reduce the risk of personal injury, allow the
projector to cool down for at least 30 minutes before opening
the lamp cover. Never open the lamp cover while the projector
is operating or when the lamp is hot.
3. Turn off the main power switch 2.
4. Disconnect the power cord 3.
The lamp assembly operates at a very high
MP1600 Microportable Projector 1-29
5. Use the provided Phillips screwdriver to remove the screw
from the lamp cover.
6. Remove the cover 5.
7. On the left side of the lamp module, push the electrical
connector 6 up to disengage it from the projector base.
8. Remove the three screws 7 from the lamp module.
9. Pull out the lamp module 8.
4
WARNING:
!
drop the lamp module or touch the glass bulb. The glass may
shatter and cause an injury if it is dropped.
To replace the lamp module, reverse the previous steps.
After replacing the lamp module, remember to reset the lamp
✎
hours in the on-screen menu.
IMPORTANT:
weight. If the projection lamp breaks, the mercury may be
released into the atmosphere. Please follow applicable federal,
state, and local regulations for disposal and/or recycling.
1-30 MP1600 Microportable Projector
To reduce the risk of personal injury, do not
This lamp contains < 0.125 percent mercury by
appendix A
Troubleshooting
Image does not appear on
the projection screen
Scrolling, cut-off, or
incorrect image displayed
1. Make sure the projector is
powered on.
2. Ensure the lens cap has been
removed.
3. Press the Standby button again.
4. Ensure that the power cable is
securely connected.
5. Ensure the pins on the
connectors are not crooked or
broken.
6. Turn off or disable the portable or
desktop computer screen saver
function.
7. Ensure the projection lamp has
been securely installed.
8. Ensure your portable computer’s
external video port is turned on.
Toggle the
keys.
1. Press the Resync button.
2. Turn everything off; then power
on the projector first and power
on the portable or desktop
computer second.
Fn + F4
function
3. If the above steps do not correct
the display image, adjust the
resolution of the portable or
desktop computer to 1024 × 768.
Continued
Troubleshooting A-1
Continued
Portable computer or PC
Companion screen is not
displaying the presentation
Portable computer:
Mac PowerBooks:
Most portable computers have a
monitor loop-through or simultaneous
viewing function. Press the Fn and
the F4 function keys on the portable
computer to switch the image from
the portable screen to the projection
screen or to toggle through the
following three options:
1. LCD: Output displays only on the
portable screen.
2. CRT: Output displays only on the
projection screen.
3. CRT/LCD: Output displays on the
portable screen and the
projection screen.
Activate CRT/LCD “ON” at the same
time. To identify any alternate
function keys to be used, refer to
your portable computer’s user
manual.
1. To control video mirroring, click
Control PanelDisplay, then set
Video Mirroring to ON for both
internal and external viewing.
Image is flickering or
unstable
A-2 Troubleshooting
2. Set Video Mirroring OFF for
image on external monitor only or
internal only, depending on
monitor selection in Monitors.
Press the Resync button on the
projector panel to adjust the tracking.
If that doesn't stop the flickering,
adjust the Clock Phase function in the
on-screen menu.
Continued
Continued
Image is out of focus
1. Adjust the Focus Ring on the
projection lens.
2. Make sure the projection screen
is within the required distance
(3.3 - 35 feet) from the projector.
3. Check the projection lens to see
if it needs cleaning. Follow the
“Cleaning the Lens” procedures
on page 1-27 to clean the lens.
Projected colors do not
match computer or
camcorder color
Black or gray border visible
outside the usable area of
the projection screen
Only the Compaq startup
screen displays
1. Adjust the Brightness, Contrast,
or Color functions in the onscreen menu.
2. Make sure the pins on the cable
connectors are not bent or
broken.
The black border surrounding the
active area of the projection screen is
part of the total projected image;
however, it is an inactive area and
cannot display any part of the image.
1. Check that the cables are
connected securely.
2. Verify that the proper input
source is connected.
3. Make sure your portable
computer's external video port is
activated.
Continued
Troubleshooting A-3
Continued
Lamp shuts off
1. If all five LEDs flash amber, the
projector has overheated and will
automatically shut down. Wait
five to ten minutes until the LED
buttons stop flashing and the
Standby Button turns amber
before restarting the projector
again.
2. A minor power surge may cause
the lamp to shut off. Wait a few
minutes, then turn it back on.
Lamp burns out or makes a
popping sound
When the lamp reaches its end of life,
it will burn out and may make a loud
popping sound. If this happens, the
projector will not turn back on until
the lamp module has been replaced.
Contact your local Compaq
authorized dealer, seller, or reseller
to purchase a replacement lamp
module. To replace the lamp, follow
the procedures in the "Replacing the
Projector Lamp Module" section.
A-4 Troubleshooting
appendix B
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and the
■
receiver.
Connect the equipment into an outlet on a circuit different
■
from the circuit that the receiver is connected.
Consult the dealer or an experienced radio or television
■
technician for help.
Modifications
The FCC requires the user to be notified that if any changes or
modifications are made to this device, not expressly approved by
Compaq Computer Corporation, this may void the user’s
authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Agency Regulatory Notices B-1
Declaration of Conformity for Products Marked
with the FCC Logo—United States Only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Compaq Computer Corporation
P.O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672 (1-800-OK COMPAQ)
For questions regarding this FCC declaration, contact:
Compaq Computer Corporation
P.O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
B-2 Agency Regulatory Notices
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European norms:
EN55022 (CISPR 22) - Radio Frequency Interference
■
EN50082-1 (IEC801-2, IEC801-3, IEC801-4) -
■
Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
■
Japanese Notice
Agency Regulatory Notices B-3
Specifications
Compaq MP1600 Microportable Projector
Projection Panel
Lamp Type
Image Size
Avg. Lamp Life in Hours
Projection Distance
Maximum Weight
(Unpacked)
Maximum Dimensions
W × H × D 3 in × 8 in × 9 3/8 in
Maximum Graphics
Resolution
Displayable Colors
Horizontal Frequencies
Analog signals
Digital signals
Vertical Frequencies
Analog signals
Digital signals
Required Environmental Temperatures for
the Following Altitudes:
Sea Level
Operating Temperature
Storage Temperature
2,500 - 5,000 Feet
Operating Temperature
Storage Temperature
5,000 - 10,000 Feet
Operating Temperature
Storage Temperature
Humidity (Non-Condensing)
Operating
Non-Operating
Power Source
Power Consumption
Input Terminal
DMD XGA 1024 × 768 × 1
120 watt High Brightness Lamp
See the Image Size Adjustment table.
1,500 hours
3.3 feet - 35.64 feet 1 meter - 10.8 meters
4.2 lbs (without cables) 1.9 kg
1280 × 1024
16.7 million colors
15 - 69 kHz
15 - 60 kHz
48 - 85 Hz
48 - 75 Hz
50 to 104°F
-22 to 149°F
50 to 95°F
-22 to 149°F
50 to 82°F
-22 to 149°F
20 to 80%
5 to 95%
90 - 265 VAC, 50-60 Hz
< 185 watts
One 15-pin D-type connector with one cable included
One Digital FP connector with one cable included
10 to 40°C
-40 to 65°C
10 to 35°C
-40 to 65°C
10 to 28°C
-40 to 65°C
B-4 Agency Regulatory Notices
Preset Display Resolutions Table
This projector automatically recognizes the preset display
resolutions listed in the following table.
Display Resolutions
Preset Modes Resolutions
1. Industry Standard 640 × 350 at 31.5 kHz/70 Hz
2. VESA Standard 640 × 350 at 37.8 kHz/85 Hz
3. Industry Standard 640 × 480 at 37.8 kHz/72 Hz
4. VESA Standard 640 × 480 at 37.5 kHz/75 Hz
5. VESA Standard 640 × 480 at 43.3 kHz/85 Hz
6. Industry Standard 720 × 400 at 31.5 kHz/70 Hz
7. VESA Standard 720 × 400 at 37.9 kHz/85 Hz
8. VESA Standard 800 × 600 at 35.1 kHz/56 Hz
9. VESA Standard 800 × 600 at 37.8 kHz/60 Hz
10. VESA Standard 800 × 600 at 48 kHz/72 Hz
11. VESA Standard 800 × 600 at 46.9 kHz/75 Hz
12. VESA Standard 800 × 600 at 53.7 kHz/85 Hz
13. Macintosh-compatible 832 × 624 at 49.7 kHz/75 Hz
14. VESA Standard 1024 × 768 at 35.5 kHz/43.4 Hz
15. VESA Standard 1024 × 768 at 48.4 kHz/60 Hz
16. VESA Standard 1024 × 768 at 56.4 kHz/70 Hz
17. VESA Standard 1024 × 768 at 60 kHz/75 Hz
18. VESA Standard 1024 × 768 at 68.7 kHz/85 Hz
19. VESA Standard 1280 × 1024 at 63.9 kHz/60 Hz
Agency Regulatory Notices B-5
Color Display Values
CIE* Chromaticity Coordinates
x (+/- 0.030) y (+/- 0.030)
Red
Green
Blue
White Point (7100 K)
Gamma: 2.2
*Commission International d’Eclairage, 1931 Standard.
0.62 0.362
0.32 0.574
0.149 0.08
0.301 0.354
Power Cords
The projector power supply is provided with Automatic Line
Switching (ALS). This feature allows the projector to operate on
input voltages between 100-120V or 200-240V.
The power cord set (flexible cord or wall plug) received with the
projector meets the requirements for use in the country where you
purchased the equipment.
If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.
The power cord must be rated for the product and for the voltage
and current marked on the product’s electrical ratings label. The
voltage and current rating of the cord should be greater than the
voltage and current rating marked on the product. In addition, the
diameter of the wire must be a minimum of 0.75 mm
2
and the length of the cord must be between 6 feet (1.8 m) and
12 feet (3.6 m). If you have questions about the type of power
cord to use, contact your Compaq authorized service provider.
A power cord should be routed so that it is not likely to be walked
on or pinched by items placed upon it or against it. Particular
attention should be paid to the plug, electrical outlet, and the
point where the cord exits from the product.
B-6 Agency Regulatory Notices
or 18AWG,
appendix C
Using the Compaq Video Adapter
Identifying the Buttons and Connectors
The Compaq Video Adapter converts video signals for
compatibility with the Compaq MP1600 Microportable Projector.
The Compaq Video Adapter is not included with the
✎
Compaq MP1600 Microportable Projector. It is sold separately.
For information on purchasing this video adapter, call your
Compaq authorized dealer, seller, or reseller. To locate a
reseller, call Compaq at 1-800-AT-COMPAQ or visit the
Compaq web site at http://www.compaq.com.
Video Adapter LEDs, Buttons, and Ports
1 Green Video LED 4 Video/RCA port
2 Green Data LED 5 S-Video port
3 Source button to switch
between data and video signals
6 Install buttons to connect
to projector
Using the Compaq Video Adapter C-1
Attaching the Video Adapter to the
MP1600 Microportable Projector
To attach the Compaq Video Adapter to the projector:
1. Push in the two buttons 1 on the bottom sides of the video
adapter.
2. Insert the hooks on top of the video adapter into the upper
slots 2 on the projector, then insert the adapter plug into the
digital connector 3 on the back of the projector.
3. Release the buttons 1 on the sides of the video adapter to
complete the connection.
After the video adapter is connected to the projector and the
projector is turned on, one of the LED lights on the adapter will
illuminate to indicate the adapter is operating.
C-2 Using the Compaq Video Adapter
Connecting a Video Player
If your video player uses a round, one-prong composite video
✎
connector, use the RCA video cable. If your video player uses
a round, four-prong S-video connector, use the S-video cable.
Both cables are included with the Compaq Video Adapter.
1. Plug the RCA video cable into the video-out port on the video
player and the video port on the video adapter. If you are
using the S-video cable, connect it to the S-video out
connector on the video player and the S-video port on the
video adapter.
2. Turn on the projector first, then the video player.
3. Push the Source button on the back of the video adapter to
switch the projector signal from data (computer icon) to video
(TV icon). The data mode receives computer inputs and the
video mode receives video input such as a TV tuner, VCR,
video, or camera.
With the Compaq Video Adapter attached, the projector is
compatible with major video standards such as NTSC, PAL, and
SECAM. Use the on-screen menu to adjust the video performance
manually or press the Resync button to optimize it automatically.
Using the Compaq Video Adapter C-3
W
elcome to Using this Guide
Go to Using this Guide
(this section)
Previous Page
Next Page
Click a subject in the bookmarks on the left side of the screen to jump to that subject.
Click any blue text to jump to information on that topic.
Click the Go Back Arrows (
) in the task bar to return to the previous page.
Loading...
