HP Compaq LA1905wg, LA2205wg, and
LA2405wg LCD Monitors
User Guide
© 2009 Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United States
and/or other countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services . Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Second Edition (October 2009)
Document Part Number: 537704-002
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen display
menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Guide ENWW
Table of contents
1 Product Features
HP LCD Monitors ................................................................................................................................. 1
2 Safety and Maintenance Guidelines
Important Safety Information ................................................................................................................ 3
Maintenance Guidelines ....................................................................................................................... 4
Cleaning the Monitor ............................................................................................................ 4
Shipping the Monitor ............................................................................................................ 4
3 Setting Up the Monitor
Unfolding the Monitor Pedestal Base ................................................................................................... 5
Rear Components ................................................................................................................................ 6
Connecting the Cables ......................................................................................................................... 7
Adjusting the Monitor ............................................................................................................................ 8
Turning on the Monitor ....................................................................................................................... 10
Connecting USB Devices ................................................................................................................... 11
Removing the Monitor Pedestal Base ................................................................................................ 12

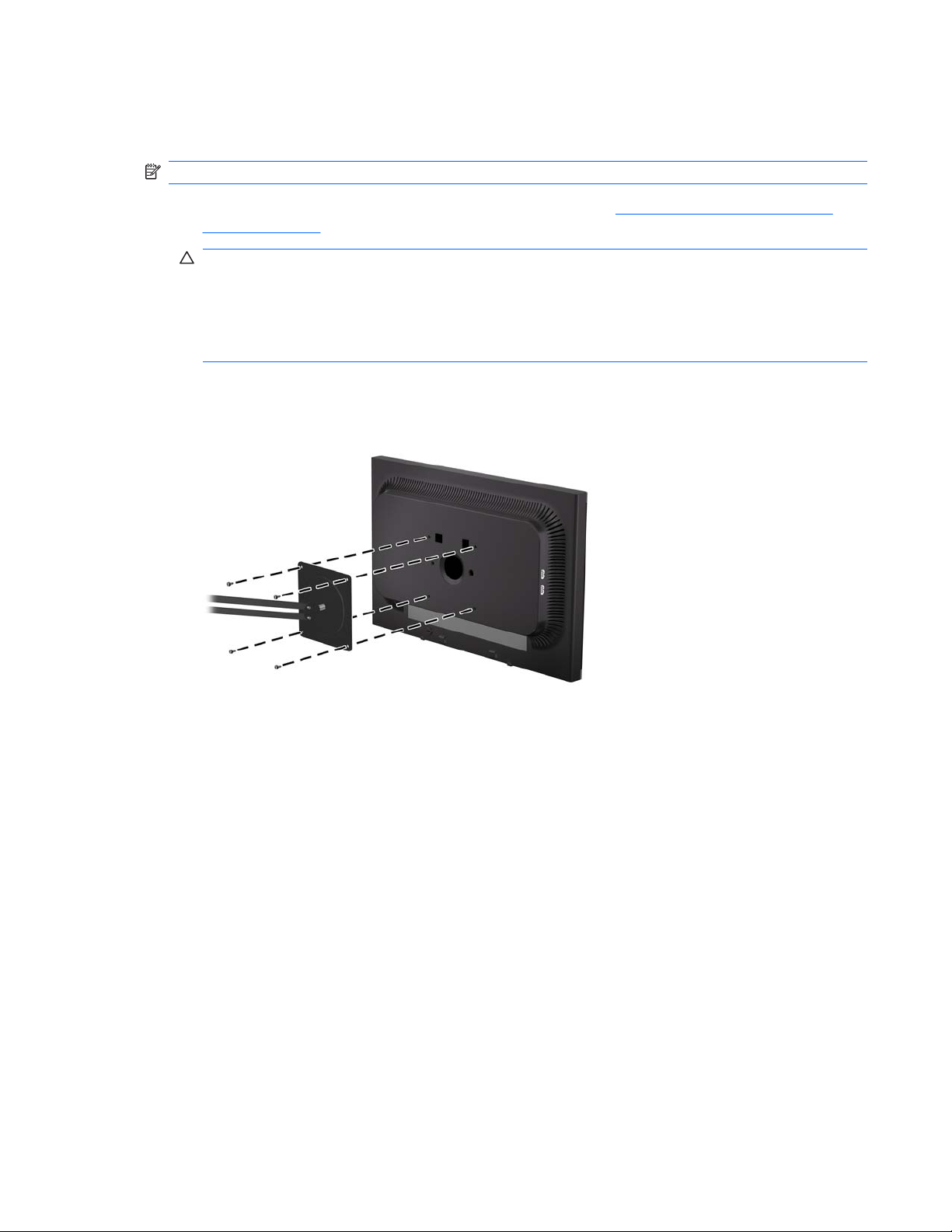

Mounting the Monitor ......................................................................................................... 13
Locating the Rating Labels ................................................................................................................. 14
Installing a Cable Lock ....................................................................................................................... 14
4 Operating the Monitor
Software and Utilities .......................................................................................................................... 15
The Information File ........................................................................................................... 15
The Image Color Matching File .......................................................................................... 15
Installing the .INF and .ICM Files ....................................................................................................... 16
Installing from the CD ........................................................................................................ 16
Downloading from the Worldwide Web .............................................................................. 16
Using the Auto-Adjustment Function .................................................................................................. 17
Front Panel Controls .......................................................................................................................... 18
Adjusting the Monitor Settings ............................................................................................................ 19
Using the On-Screen Display Menu .................................................................................. 19
OSD Menu Selections ....................................................................................... 20
ENWW v
Optimizing Digital Conversion ........................................................................... 23
Using the HP Display Assistant Utility ............................................................................... 24
Identifying Monitor Conditions ............................................................................................................ 24
Sleep Timer Mode .............................................................................................................................. 25
HP Display LiteSaver ......................................................................................................................... 26
Installing the HP Display LiteSaver Software .................................................................... 26
sRGB Support .................................................................................................................................... 27
Changing the Color Temperature ...................................................................................... 27
Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP .................... 27
Installing the sRGB ICM File for Microsoft Windows Vista ................................................ 28
Installing the sRGB ICM File for Microsoft Windows 7 ...................................................... 28
Appendix A Troubleshooting
Solving Common Problems ................................................................................................................ 29
Online Technical Support ................................................................................................................... 31
Preparing to Call Technical Support ................................................................................................... 31
Appendix B Technical Specifications
LA1905wg Model ................................................................................................................................ 32
LA2205wg Model ................................................................................................................................ 33
LA2405wg Model ................................................................................................................................ 34
Recognizing Preset Display Resolutions ............................................................................................ 36
LA1905wg Model ............................................................................................................... 36
LA2205wg Model ............................................................................................................... 36
LA2405wg Model ............................................................................................................... 36
Entering User Modes .......................................................................................................................... 37
Energy Saver Feature ........................................................................................................................ 37
Appendix C Agency Regulatory Notices
Federal Communications Commission Notice ................................................................................... 38
Modifications ...................................................................................................................... 38
Cables ................................................................................................................................ 38
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 38
Canadian Notice ................................................................................................................................. 39
Avis Canadien .................................................................................................................................... 39
European Union Regulatory Notice .................................................................................................... 39
German Ergonomics Notice ............................................................................................................... 40
Japanese Notice ................................................................................................................................. 40
Korean Notice ..................................................................................................................................... 40
Power Cord Set Requirements ........................................................................................................... 40
Japanese Power Cord Requirements ................................................................................ 40
Product Environmental Notices .......................................................................................................... 41
ENERGY STAR® Qualification .......................................................................................... 41
vi ENWW
Materials Disposal ............................................................................................................. 41
Disposal of Waste Equipment by Users in Private Household in the European
Union ................................................................................................................................. 42
HP Recycling Program ...................................................................................................... 42
Chemical Substances ........................................................................................................ 42
Restriction of Hazardous Substances (RoHS) ................................................................... 42
Turkey EEE Regulation ..................................................................................................... 43
Appendix D LCD Monitor Quality and Pixel Policy
ENWW vii
viii ENWW
1 Product Features
HP LCD Monitors
The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The
monitor models and features include:
●
LA1905wg model, 48.1 cm (19-inch) diagonal viewable area display with 1440 × 900 resolution,
plus full-screen support for lower resolutions; includes custom scaling for maximum image size
while preserving original aspect ratio
●
LA2205wg model, 55.88 cm (22-inch) diagonal viewable area display with 1680 x 1050 resolution,
plus full-screen support for lower resolutions; includes custom scaling for maximum image size
while preserving original aspect ratio
●
LA2405wg model, 60.96 cm (24-inch) diagonal viewable area display with 1920 x 1200 resolution,
plus full-screen support for lower resolutions; includes custom scaling for maximum image size
while preserving original aspect ratio
●
Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
●
Tilt capability
●

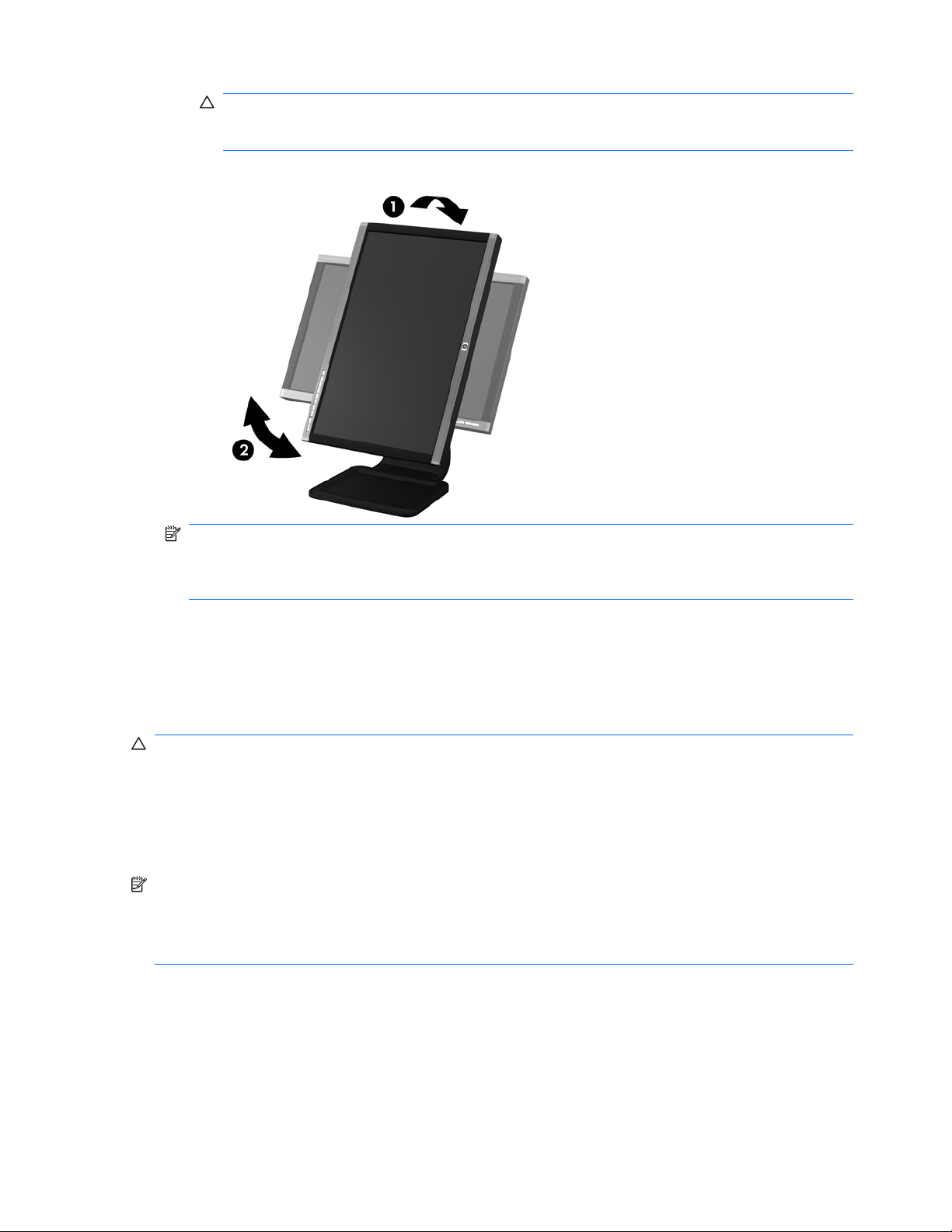

Pivot capability to rotate display to portrait mode
●
Swivel and height adjustment capabilities
●
Removable stand for flexible monitor panel mounting solutions
●
Video signal input to support VGA analog with VGA signal cable provided
●
Video signal input to support DVI digital with DVI-D signal cable provided
●
Video signal input to support DisplayPort digital (DisplayPort cable not provided)
●
USB 2.0 hub with one upstream port (connects to the computer) and two downstream ports
(connects to USB devices)
●
USB cable provided to connect the monitor's USB hub to the USB connector on the computer
●
Supports an optional HP speaker bar
●
Plug and play capability if supported by the system
●
Privacy filter slots to insert filters (purchased separately) to block side screen viewing
●

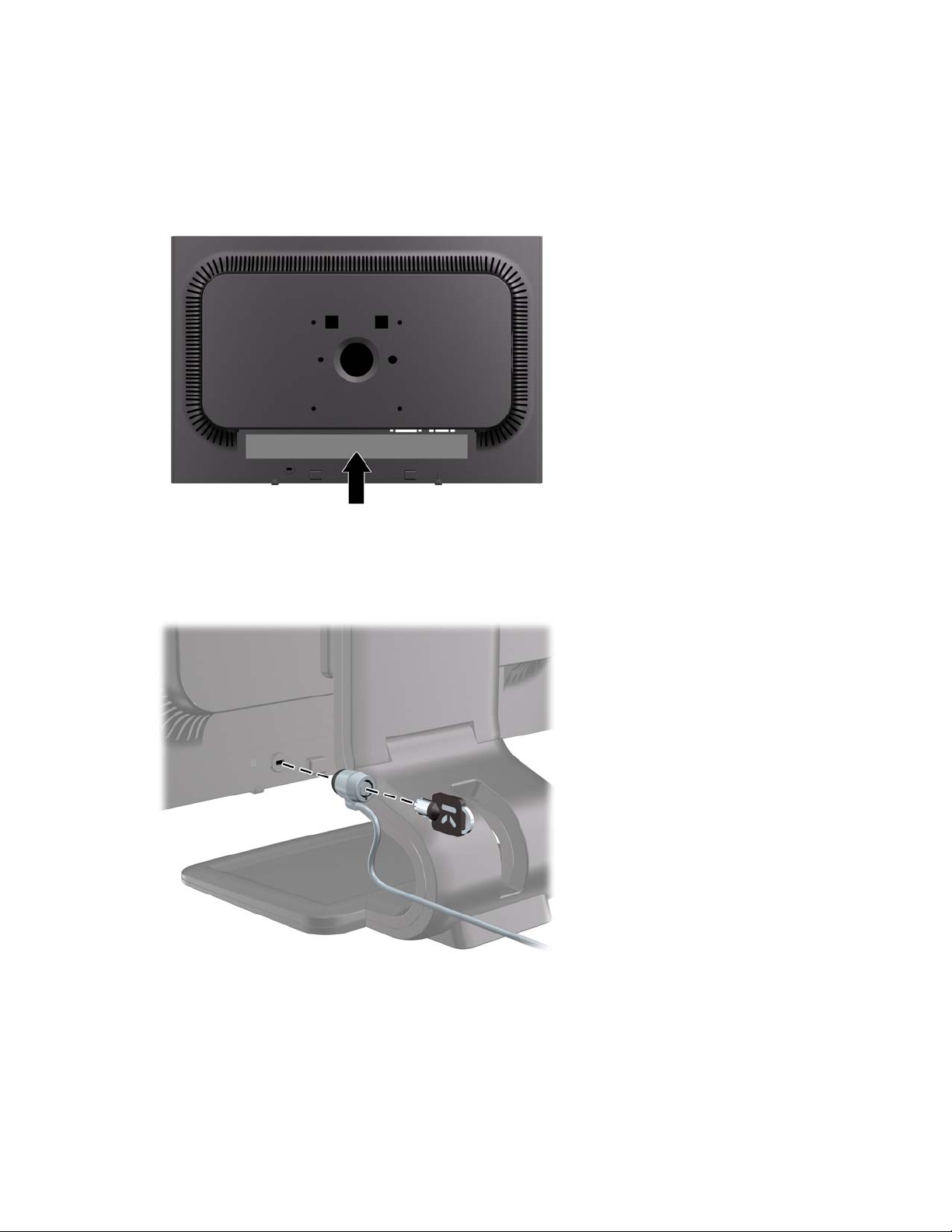

Security slot provision on rear of monitor for optional cable lock
●
Cable management feature for placement of cables and cords
ENWW HP LCD Monitors 1
●
On-Screen Display (OSD) adjustments in several languages for easy setup and screen
optimization
●
HP Display Assistant for adjusting monitor settings
●
Pivot Pro software for viewing information on the screen in portrait mode
●
Theft deterrence software
●
HDCP copy protection on DVI and DisplayPort inputs
●
Software and documentation CD that includes monitor drivers and product documentation
●
Energy saver feature to meet requirements for reduced power consumption
●
Energy Star qualified
●
Intelligent Management AssetControl
●
Compliant with the following regulated specifications:
◦
European Union CE Directives
◦
Swedish TCO Requirements
2 Chapter 1 Product Features ENWW
2 Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the
Power Cord Set Requirements on page 40 in Appendix C.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical
outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation,
setup, posture, and health and work habits for computer users, and provides important electrical and
mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and/or on
the documentation CD, if one is included with the monitor.
CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for the
computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge
protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips
provide surge protection; the power strips must be specifically labeled as having this ability. Use a power
strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if
surge protection fails.
ENWW Important Safety Information 3
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
●
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
●
Use only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
●
Be sure the total ampere rating of the products connected to the outlet does not exceed the current
rating of the electrical outlet, and the total ampere rating of the products connected to the cord does
not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS
or A) for each device.
●
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the
plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
●
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
NOTE: Monitors with a “burned-in image” are not covered under the HP warranty.
●
Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked
or covered. Never push objects of any kind into cabinet slots or other openings.
●
Do not drop the monitor or place it on an unstable surface.
●
Do not allow anything to rest on the power cord. Do not walk on the cord.
●
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
●
When removing the monitor stand, you must lay the monitor face down on a soft area to prevent
it from getting scratched, defaced, or broken.
Cleaning the Monitor
1. Turn off the monitor and unplug the power cord from the back of the unit.
2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
3. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.
CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface.
Never spray the cleaner directly on the screen surface. It may run behind the bezel and damage the
electronics.
CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene, thinner,
or any volatile substance to clean the monitor screen or cabinet. These chemicals may damage the
monitor.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.
4 Chapter 2 Safety and Maintenance Guidelines ENWW
3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Unfolding the Monitor Pedestal Base
1. Lift the monitor from its box and place it face down on a flat surface.
2. Hold down the monitor base with one hand (1) then grasp the handle with the other hand and unfold
the display head 90 degrees (2).
CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-
uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its
normal condition.
Figure 3-1 Unfolding the Monitor Pedestal Base
NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting to a
full-height position. To adjust the display head to full height, press down on the display head to unlock
it then pull up on the display head to raise it to the full-height position.
ENWW Unfolding the Monitor Pedestal Base 5
Rear Components
Figure 3-2 Rear Components
Component Function
1 AC Power Connector Connects the AC power cord to the monitor.
2 DisplayPort Connects the DisplayPort cable (not included) to the monitor.
3 DVI Connects the DVI-D cable to the monitor.
4 VGA Connects the VGA cable to the monitor.
5 USB Upstream
Connector
Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub.
6 USB Downstream
Connectors (2)
Connects optional USB devices to the monitor.
6 Chapter 3 Setting Up the Monitor ENWW
Connecting the Cables
1. Place the monitor in a convenient, well-ventilated location near the computer.
NOTE: Before connecting the cables, route them through the opening on the monitor's pedestal.
2. Connect a VGA signal cable, DVI-D signal cable, or DisplayPort signal cable.
NOTE: The monitor is capable of supporting either analog or digital input. The video mode is
determined by the video cable used. The monitor will automatically determine which inputs have
valid video signals. The inputs can be selected by pressing the +/Source button on the front panel
or through the On-Screen Display (OSD) feature by pressing the Menu button.
●
For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to
the VGA connector on the rear of the monitor and the other end to the VGA connector on the
computer.
●
For DVI digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal cable
to the DVI connector on the rear of the monitor and the other end to the DVI connector on the
computer.
●
For DisplayPort digital operation, use a DisplayPort signal cable (not provided). Connect the
DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and the other
end to the DisplayPort connector on the computer.
3. Connect one end of the provided USB cable to the USB hub connector on the rear panel of the
computer, and the other end to the upstream USB connector on the monitor.
4. Connect one end of the power cable to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.
Figure 3-3 Connecting the Cables
ENWW Connecting the Cables 7
WARNING! To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical
outlet, grasp the cord by the plug.
NOTE: An optional speaker bar that mounts on to the monitor is available from HP.
Adjusting the Monitor
NOTE: Your monitor model may look different than the model in the following illustrations.
1. Tilt the monitor's panel forward or backward to set it to a comfortable eye level.
Figure 3-4 Tilting the Monitor
8 Chapter 3 Setting Up the Monitor ENWW
2. Swivel the monitor to the left or right for the best viewing angle.
Figure 3-5 Swiveling the Monitor
3. Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing position.
NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting
to a full-height position. To adjust the display head to full height, press down on the display head
to unlock it then pull up on the display head to raise it to the full-height position.
Figure 3-6 Adjusting the Height
4. Pivot the monitor from landscape to portrait orientation viewing to adapt to your application.
a. Adjust the monitor to the full height position and tilt the monitor back to the full tilt position (1).
b. Pivot the monitor clockwise 90° from landscape to portrait orientation (2).
ENWW Adjusting the Monitor 9
CAUTION: If the monitor is not in full height and full tilt position when pivoting, the bottom
right corner of the monitor panel will come in contact with the base and potentially cause
damage to the monitor.
Figure 3-7 Pivoting the Monitor
NOTE: To view information on the screen in portrait mode, you will need to install the Pivot Pro
software included on the software and documentation CD. The position of the OSD menu can also
be rotated to portrait mode. To rotate the OSD menu, access the OSD menu by pressing the
Menu button on the front panel, select OSD Control, then select Rotate OSD.
Turning on the Monitor
1. Press the power button on the computer to turn it on.
2. Press the power button on the front of the monitor to turn it on.
CAUTION: Burn-in image damage may occur on monitors that display the same static image on
screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you
should always activate a screen saver application or turn off the monitor when it is not in use for a
prolonged period of time. Image retention is a condition that may occur on all LCD screens. Monitors
with a “burned-in image” are not covered under the HP warranty.
* A prolonged period of time is 12 consecutive hours of non-use.
NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be enabled.
To disable this feature, press and hold the monitor power button for 10 seconds.
NOTE: You can disable the power LED in the OSD menu. Press the Menu button on the front of the
monitor, then select Management > Bezel Power LED > Off.
When the monitor is powered on, a Monitor Status message is displayed for five seconds. The message
shows which input (DisplayPort, DVI, or VGA) is the current active signal, the status of the auto-switch
source setting (On or Off; factory default is On), the default source signal (factory default is DisplayPort),
the current preset display resolution, and the recommended preset display resolution.
The monitor automatically scans the signal inputs for an active input and uses that input for the display.
If two or more inputs are active, the monitor will display the default input source. If the default source is
10 Chapter 3 Setting Up the Monitor ENWW
not one of the active inputs, then the monitor will display the highest ranking priority input in the following
order: DisplayPort, DVI, then VGA. You can change the default source in the OSD by pressing the front
panel menu button and selecting Source Control > Default Source.
Connecting USB Devices
USB connectors are used to connect devices such as a digital camera, USB keyboard, or USB mouse.
Two USB connectors are located on the side panel of the monitor.
NOTE: You must connect the USB hub cable from the monitor to the computer to enable the USB 2.0
ports on the monitor. Refer to Step 3 in
Connecting the Cables on page 7.
Figure 3-8 Connecting USB Devices
ENWW Connecting USB Devices 11
Removing the Monitor Pedestal Base
You can remove the monitor panel from the pedestal base to install the panel on a wall, a swing arm,
or other mounting fixture.
CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the
power and signal cables are both disconnected. Also disconnect all USB cables connected to the
monitor.
1. Disconnect and remove the signal, power, and USB cables from the monitor.
2. Lay the monitor face down on a flat surface covered by a clean, dry cloth.
3. Pivot the base 45 degrees clockwise and remove the screw from the back of the monitor, then pivot
the base 45 degrees counter-clockwise and remove the other screw from the back of the monitor.
Figure 3-9 Removing the Pedestal Base Screws
4. Rotate the base of the monitor up (1) then pull it back (2) to unhinge the tabs on the monitor stand
from the slots in the monitor.
Figure 3-10 Removing the Pedestal Base
12 Chapter 3 Setting Up the Monitor ENWW
Mounting the Monitor
The monitor panel can be attached to a wall, swing arm, or other mounting fixture.
NOTE: This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.
1. Remove the monitor panel from the pedestal base. Refer to Removing the Monitor Pedestal
Base on page 12 in the previous section.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach
a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are
required. Longer screws must not be used because they may damage the monitor. It is important
to verify that the manufacturer’s mounting solution is compliant with the VESA standard and is rated
to support the weight of the monitor display panel. For best performance, it is important to use the
power and video cables provided with the monitor.
2. To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing arm
plate and into the mounting holes on the monitor.
Figure 3-11 Mounting the Monitor
To attach the monitor to other mounting fixtures, follow the instructions included with the mounting
fixture to ensure that the monitor is safely attached.
3. Reconnect the cables to the monitor panel.
ENWW Removing the Monitor Pedestal Base 13
Locating the Rating Labels
The rating labels on the monitor provide the spare part number, product number, and serial number.
You may need these numbers when contacting HP about the monitor model. The rating labels are
located on the rear panel of the monitor display head.
Figure 3-12 Locating the Rating Labels
Installing a Cable Lock
You can secure the monitor to a fixed object with an optional cable lock available from HP.
14 Chapter 3 Setting Up the Monitor ENWW
4 Operating the Monitor
Software and Utilities
The CD that comes with the monitor contains files you can install on the computer:
●
an .INF (Information) file
●
an .ICM (Image Color Matching) file
●
auto-adjustment pattern utility
●
additional software for the monitor model
NOTE: If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP
monitors support Web site. See
Downloading from the Worldwide Web on page 16 in this chapter.
The Information File
The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor
compatibility with the computer’s graphics adapter.
This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without
installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s graphic card is
VESA DDC2–compliant and that the monitor connects directly to the graphics card. Plug and Play does
not work through separate BNC type connectors or through distribution buffers/boxes.
The Image Color Matching File
The .ICM files are data files that are used in conjunction with graphics programs to provide consistent
color matching from monitor screen to printer, or from scanner to monitor screen. This file is activated
from within graphics programs that support this feature.
NOTE: The ICM color profile is written in accordance with the International Color Consortium (ICC)
Profile Format specification.
ENWW Software and Utilities 15
Installing the .INF and .ICM Files
After you determine that you need to update, you can install the .INF and .ICM files from the CD or
download them.
Installing from the CD
To install the .INF and .ICM files on the computer from the CD:
1. Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2. View the Monitor Driver Software Readme file.
3. Select Install Monitor Driver Software.
4. Follow the on-screen instructions.
5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.
NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the CD
in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.
Downloading from the Worldwide Web
To download the latest version of .INF and .ICM files from the HP monitors support Web site:
1. Refer to
http://www.hp.com/support and select the country region.
2. Follow the links for the monitor to the support page and download page.
3. Ensure the system meets the requirements.
4. Download the software by following the instructions.
16 Chapter 4 Operating the Monitor ENWW
Using the Auto-Adjustment Function
You can optimize the screen performance for the VGA (analog) input by using the OK/auto button on
the monitor and the auto-adjustment pattern software utility on the CD provided.
Do not use this procedure if the monitor is using a DVI or DisplayPort input. If the monitor is using a
VGA (analog) input, this procedure can correct the following image quality conditions:
●
Fuzzy or unclear focus
●
Ghosting, streaking or shadowing effects
●
Faint vertical bars
●
Thin, horizontal scrolling lines
●
An off-center picture
To use the auto-adjustment feature:
1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Press the OK/auto button on the monitor front panel.
●
You can also press the Menu button, then select Image Control > Auto-Adjustment from
the OSD Main Menu. Refer to
Adjusting the Monitor Settings on page 19 in this chapter.
●
If the result is not satisfactory, continue with the procedure.
3. Insert the CD in the disc drive. The CD menu is displayed.
4. Select Open Auto-Adjustment Software. The setup test pattern is displayed.
5. Press the OK/auto button on the monitor front panel to produce a stable, centered image.
6. Press the ESC key or any other key on the keyboard to exit the test pattern.
ENWW Using the Auto-Adjustment Function 17
Front Panel Controls
Table 4-1 Monitor Front Panel Controls
Control Function
1 Menu Opens, selects or exits the OSD menu.
2 Minus If the OSD menu is on, press to navigate backward through
the OSD menu and decrease adjustment levels.
3 Plus/source If the OSD menu is on, press to navigate forward through the
OSD menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the source
button that chooses the video signal input (VGA, DVI, or
DisplayPort)
4 OK/auto If the OSD menu is on, press to select the highlighted menu
item.
If the OSD menu is inactive, press to activate the auto
adjustment feature to optimize the screen image.
5 Power LED Green = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
6 Power Turns the monitor on or off.
18 Chapter 4 Operating the Monitor ENWW
Adjusting the Monitor Settings
The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP Display
Assistant utility.
NOTE: If there is a problem with the display settings, try resetting the settings to the factory defaults
by opening the OSD and selecting Factory Reset from the OSD menu.
Using the On-Screen Display Menu
Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To
access the OSD, do the following:
1. If the monitor is not already on, press the Power button to turn on the monitor.
2. To access the OSD Menu, press the Menu button on the monitor’s front panel.
3. To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to scroll
up, or the – (Minus) button to scroll in reverse.
4. To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your selection,
then press the OK button to select that function.
5. Adjust the item using the + or – buttons on the front panel to adjust the scale.
6. After adjusting the function, select Save and Return, or Cancel if you don’t want to save the setting,
then select Exit from the Main Menu.
NOTE: If the buttons remain untouched for 10 seconds while displaying a menu, new adjustments will
be discarded and the settings will revert to previous settings and exit the menu.
ENWW Adjusting the Monitor Settings 19
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions.
After changing an OSD menu item, and if the menu screen has these options, you may choose to:
●
Cancel—to return to the previous menu level.
●
Save and Return—to save all changes and return to the OSD Main Menu screen. This Save and
Return option is only active if you change a menu item.
Table 4-2 OSD Menu
Icon Main Menu Submenu Description
Brightness Adjustable scale Adjusts the brightness level of the screen. The factory
default range is 90.
Contrast Adjustable scale Adjusts the contrast level of the screen. The factory
default range is 80.
Color Selects the screen color. The factory default is 6500K
or Custom Color, depending on the model.
9300 K Changes to slightly blueish white.
6500 K Changes to slightly reddish white.
sRGB Sets your screen colors to adapt to the color standards
used in the image technology industry.
Custom Color Selects and adjusts your own color scales:
●
R—sets your own red color levels
●
G—sets your own green color levels
●
B—sets your own blue color levels
Image Control Adjusts the screen image. (VGA input only)
Auto Adjustment Automatically adjusts the screen image.
Clock Minimizes any vertical bars or strips visible on the
screen background. Adjusting the Clock will also
change the horizontal screen image.
Clock Phase Adjusts the focus of the display. This adjustment
allows you to remove any horizontal noise and clear or
sharpen the image of characters.
Horizontal Position Adjusts the position of the screen image left and right.
Vertical Position Adjusts the position of the screen image up and down.
Custom Scaling Selects the method on how displayed information on
the monitor will be formatted. Select:
●
Fill to Screen - image fills the entire screen and
may look distorted or elongated because of nonproportional scaling of height and width
●
Fill to Aspect Ratio - image is sized to fit the
screen and maintains proportional image
20 Chapter 4 Operating the Monitor ENWW
Icon Main Menu Submenu Description
Sharpness (non-native
modes)
Adjusts the screen image to look sharper or soft.
Dynamic Contrast Ratio Turns Dynamic Contrast Ratio On or Off. The factory
default is Off.
OSD Control Provides a menu for adjusting the on-screen display
(OSD) controls.
Horizontal OSD
Position
Changes the viewing position of the OSD menu to the
left or right area of the screen. The factory default
range is 50.
Vertical OSD Position Changes the viewing position of the OSD menu to the
top or bottom area of the screen. The factory default
range is 50.
OSD Transparency Adjust to view the background information through the
OSD.
OSD Timeout Sets the time duration in seconds that the OSD is
visible after the last button is pressed. The range is 5
– 60 seconds. The factory default is 30 seconds.
Rotate OSD Rotates the OSD menus and messages to support the
monitor's pivot feature. The choices are Landscape
and Portrait.
Management Selects the OSD and power management features of
the monitor.
Power Saver Enables the power saving feature. Select:
●
On
●
Off
The factory default is On.
Power On Recall Restores power to the monitor following an
unexpected removal of power. Select:
●
On
●
Off
The factory default is On.
Mode Display Displays the resolution, refresh rate and frequency
information on the screen each time the OSD Main
Menu is accessed. Select:
●
On
●
Off
The factory default is On.
Table 4-2 OSD Menu (continued)
ENWW Adjusting the Monitor Settings 21
Icon Main Menu Submenu Description
Monitor Status Displays the operating status of the monitor each time
the monitor is powered on. Select the location to
display the status to:
●
Top
●
Middle
●
Bottom
●
Off
The factory default is Top.
DDC/CI Support Allows the computer to control some OSD menu
features such as brightness, contrast and color
temperature. Set to:
●
On
●
Off
The factory default is On.
Bezel Power LED Turns off the power LED on the front panel of the
monitor. The factory default is On.
Sleep Timer Provides the timer adjustment menu options:
●
Set Current Time—sets the current time in hours
and minutes
●
Set Sleep Time—sets the time you want to place
the monitor in sleep mode
●
Set on Time—sets the time you want the monitor
to wake up from sleep mode
●
Timer—sets the Sleep Timer feature On or Off.
The default setting is Off.
●
Sleep Now—immediately sets the monitor to
enter sleep mode
Language Selects the language in which the OSD menu is
displayed. The factory default is English.
Information Selects and displays important information about the
monitor.
Current Settings Provides the current input video mode.
Recommended
Settings
Provides the recommended resolution mode and
refresh rate for the monitor.
Serial Number Reports the serial number of the monitor. The serial
number is needed if contacting HP technical support.
FW Version Reports the firmware version of the monitor.
Backlight Hours Reports the total hours of backlight operation.
Service Support http://www.hp.com/support
Table 4-2 OSD Menu (continued)
22 Chapter 4 Operating the Monitor ENWW
Icon Main Menu Submenu Description
Factory Reset Returns all OSD menu settings and DDC/CI controls
to the factory default settings, except the Language.
Source Control Selects the video input signal. DP (DisplayPort) is the
factory default.
DP Selects DP (DisplayPort) as the video input signal.
DVI Selects DVI as the video input signal.
VGA Selects VGA as the video input signal.
Default Source Selects the default or primary video input signal when
the monitor is connected to two active and valid video
sources. The monitor will automatically determine the
video format. The choices are:
●
DP
●
DVI
●
VGA
The factory default is DP (DisplayPort).
Auto-Switch Source Turns the system's automatic video signal input to On
or Off. The factory default is On.
Exit Exits the OSD menu screen.
Optimizing Digital Conversion
Two controls in the on-screen display can be adjusted to improve image performance: Clock and Clock
Phase.
NOTE: The Clock and Clock Phase controls are adjustable only when using an analog input. These
controls are not adjustable for digital inputs.
The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock
setting. Use these controls only when the auto-adjustment function does not provide a satisfactory
image.
●
Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the screen
background.
●
Clock Phase—Increases/decreases the value to minimize video distortion or video jitter.
NOTE: When using the controls, you will obtain the best results by using the auto-adjustment pattern
software utility provided on the CD.
When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue
adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the
Factory Reset menu in the on-screen display.
Table 4-2 OSD Menu (continued)
ENWW Adjusting the Monitor Settings 23
Using the HP Display Assistant Utility
HP Display Assistant, included on the software and documentation CD, is a software utility that guides
you through the tuning process with easy to understand instructions and background patterns designed
for each monitor control. It provides:
●
Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the best
overall image quality.
●
Software control of the monitor image and color settings to eliminate dependence on the monitor’s
front panel buttons and On-Screen Display (OSD) menu.
●
Defined preset display settings for each individual user in a multi-user environment.
●
Multiple preset display settings for a single user based on content and ambient lighting.
●
Asset Management and Power Management capabilities that include remote control for individual
or a group of displays on the domain from a centralized console application.
The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred
method of use is Wizard mode, which takes you through a step-by-step process to accurately calibrate
the monitor. This method relies on a sequence of steps that will obtain the best display results when
completed.
NOTE: Refer to the HP Display Assistant user guide for additional information about the software.
Identifying Monitor Conditions
Special messages will appear on the monitor screen when identifying the following monitor conditions:
●
Monitor Status—When the monitor is powered on or when the input source signal is changed, a
Monitor Status message is displayed for five seconds. The message shows which input is the
current active signal, the status of the auto-switch source setting (On or Off), the default source
signal, the current preset display resolution, and the recommended preset display resolution.
●
Input Signal Out of Range—Change resolution setting to 1440 x 900 – 60Hz—Indicates the
monitor does not support the input signal because the resolution and/or refresh rate are set higher
than the monitor supports (model LA1905wg).
●
Input Signal Out of Range—Change resolution setting to 1680 x 1050 – 60Hz—Indicates the
monitor does not support the input signal because the resolution and/or refresh rate are set higher
than the monitor supports (model LA2205wg).
●
Input Signal Out of Range—Change resolution setting to 1920 x 1200 – 60Hz—Indicates the
monitor does not support the input signal because the resolution and/or refresh rate are set higher
than the monitor supports (model LA2405wg).
●
No Source Signal—Indicates the monitor is not receiving a video signal from the PC on the monitor
video input connector. Check to determine if the PC or input signal source is off or in the power
saving mode.
●
Auto Adjustment in Progress—Indicates the auto-adjustment function is active.
●
Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.
●
Check Video Cable—Indicates the video cable is not properly connected to the computer.
24 Chapter 4 Operating the Monitor ENWW
●
OSD Lockout—The OSD can be enabled or disabled by pressing and holding the Menu button
on the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lockout
displays for ten seconds.
◦
If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.
◦
If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.
●
Power Button Lockout—Indicates the power button is locked. If the power button is locked, the
warning message Power Button Lockout displays.
◦
If the power button is locked, press and hold the power button for 10 seconds to unlock the
power button function.
◦
If the power button is unlocked, press and hold the power button for 10 seconds to lock out
the power button function.
●
Theft Mode Enabled—Indicates that theft deterrence mode has been activated. Theft deterrence
is an optional feature that can be set up in HP Display Assistant. Theft deterrence mode is triggered
if both the power and display cables have been disconnected from the monitor, the monitor is
reconnected to a different computer, and the theft deterrence PIN number is not entered within the
elapsed time. When the monitor is in theft deterrence mode, all front panel buttons are disabled
other than the power button.
Sleep Timer Mode
The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to
power on and off at the same time every day. This also extends the life of the backlight bulbs in the
monitor. The Sleep Timer has five settings:
●
Set Current Time
●
Set Sleep Time
●
Set On Time
●
Timer: On/Off
●
Sleep Now
To set the timer:
1. Press the Menu button on the monitor front panel to display the OSD Menu.
2. Scroll down and highlight Management.
3. Press the OK button to select Management.
4. Scroll down and highlight and select Sleep Timer > Set Current Time.
NOTE: You must set the current local time before you reset the time for Sleep Time or On
Time. Note that the time is displayed in a 24–hour clock format. For example, 1:15 p.m. is displayed
as 13 hours 15 minutes.
A power failure or loss of power to the monitor will cause the timer to reset to 00:00. If this occurs,
you will need to reset the sleep timer mode.
5. Press the OK button once to enter the adjustment mode for hours.
ENWW Sleep Timer Mode 25
6. Press the - (Minus) or + (Plus) button to adjust the hour.
7. Press the OK button again to enter the time for minutes.
8. Press the - (Minus) or + (Plus) button to adjust the minutes.
9. Press the OK button to lock in the time chosen.
10. After setting the current time, the highlight automatically skips to Set Sleep Time. Repeat steps 6
through 9 to set Sleep Time.
11. If you do not want to set Sleep Time, press the OK button twice, then select Save and Return to
exit the menu.
12. After setting Sleep Time, the highlight automatically skips to Set On Time. Repeat steps 6 through
9 to set On Time.
13. Set the Timer mode to On to activate the Sleep Timer settings.
14. When you are finished, select Save and Return to exit the menu.
The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode
until the next On Time activates or a monitor button is pressed.
HP Display LiteSaver
HP Display LiteSaver is a software application, available on the CD, that increases monitor life and
saves energy. It allows you to place the monitor into its low power sleep mode at predefined times by
shutting down or reducing power to most internal circuits. This helps protect the LCD panel against
image retention. Image retention can occur when the monitor is left on while displaying the same image
for an extended period of time, leaving a shadow of the image on the screen.
Installing the HP Display LiteSaver Software
1. Insert the CD in the computer CD-ROM Drive. The CD menu is displayed.
2. Select Install HP Display LiteSaver Software.
3. After installing the software, click the HP Display LiteSaver icon in the Windows system tray or
right-click the icon and select Configure from the pop-up menu.
4. Select the following options to configure the HP Display LiteSaver features:
Table 4-3 HP Display LiteSaver Configuration Options
Select This Option To Do This
Enable Display LiteSaver Enables the HP Display LiteSaver functions; deselect to disable the HP Display
LiteSaver.
Display Off Sets the time when the monitor automatically turns off. This does not affect screen
saver operation, which has priority over the HP Display LiteSaver.
Display On Sets the time when the monitor automatically turns on. This does not affect screen
saver operation, which has priority over the HP Display LiteSaver.
26 Chapter 4 Operating the Monitor ENWW
Select This Option To Do This
Activity Extension Sets the time in minutes before the monitor turns off if there is any keyboard or mouse
activity after the Display Off time is reached. If the keyboard or mouse is used, then
HP Display LiteSaver waits until the set amount of time before turning the display
off again. Set to 0 to disable. If disabled, the monitor will turn off as soon as the
Display Off time is reached, regardless of keyboard or mouse activity.
Show 1 minute Display Off Notice Displays a popup message in the system tray 1 minute before the monitor is turned
off by HP Display LiteSaver.
Status Shows the time until the monitor is next due to be turned off by HP Display LiteSaver.
OK Stores the current settings and minimizes HP Display LiteSaver to the System Tray.
Cancel Restores the previous settings and minimizes HP Display LiteSaver to the System
Tray. HP Display LiteSaver will continue to run.
Help Opens the online help file.
Exit Exits and closes the HP Display LiteSaver. It will no longer control the monitor power
until it is next run.
View HP Display LiteSaver Readme on the CD for additional information on how to configure HP Display
LiteSaver.
sRGB Support
The monitor is designed to support sRGB for color management, which adapts to the color standards
used in the image technology industry.
To take advantage of the sRGB support, you will need to change the monitor’s color temperature to
sRGB and install the sRGB color profile (ICM) file.
NOTE: The sRGB color temperature preset will improve the color accuracy of sRGB images on the
computer monitor, but some color variation may still occur.
Changing the Color Temperature
1. Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.
2. Select Color.
3. Select sRGB.
4. Select Save and Return to exit the menu.
Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP
NOTE: To complete the following procedure, you must be logged in as an administrator or a member
of the administrator’s group. If the computer is connected to a network, network policy settings may
prevent you from completing this procedure. The sRGB ICM file does not support Windows 95 and
Windows NT operating systems.
1. Click the Display icon in the Control Panel.
2. In the Display Properties windows, select the Settings tab, then click the Advanced button.
Table 4-3 HP Display LiteSaver Configuration Options (continued)
ENWW sRGB Support 27
3. Select the Color Management tab, then click the Add button to open the Add Profile
Association dialog box.
4. Select the sRGB Color Space Profile.icm file, then click the Add button
5. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select
sRGB Color Space Profile, then click Set as Default button.
6. Click Apply or OK.
Installing the sRGB ICM File for Microsoft Windows Vista
1. Click Appearance and Personalization icon in the Control Panel.
2. Click Personalization.
3. Click Display Settings.
4. Click the Advanced Settings button.
5. Click the Color Management tab, then click the Color Management button.
6. Click the Advanced tab, then click the Change System Defaults button.
7. On the Devices tab, click the Add button.
8. Select the RGB Color Space Profile.icm file, then click the OK button.
9. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select
sRGB Color Space Profile, then click the Set as Default button.
Installing the sRGB ICM File for Microsoft Windows 7
1. Click Appearance and Personalization icon in the Control Panel.
2. Click Display.
3. Click Change display settings.
4. Click Advanced settings.
5. Click the Color Management tab, then click the Color Management button.
6. Click the Advanced tab, then click the Change System Defaults button.
7. On the Devices tab, click the Add button.
8. Select the RGB Color Space Profile.icm file, then click the OK button.
9. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select
sRGB Color Space Profile, then click the Set as Default button.
28 Chapter 4 Operating the Monitor ENWW
A Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the recommended
solutions.
Problem Possible Cause Solution
Screen is blank. Power cord is disconnected. Connect the power cord.
Power button on front panel of
the monitor is turned off.
Press the front panel power button.
NOTE: If pressing the power button has no effect,
press and hold the power button for 10 seconds to
disable the power button lockout feature.
Video cable is improperly
connected.
Connect the video cable properly. Refer to Chapter
3,
Setting Up the Monitor on page 5 for more
information.
Screen blanking is active. Press any key on the keyboard or move the mouse
to inactivate the screen blanking utility.
Screen image appears distorted; text is
fuzzy or blurred; image quality is
degraded.
The computer’s graphics card
resolution is set lower or higher
than the monitor’s native
resolution.
Set the computer’s display resolution to the same
mode as the monitor’s recommended native screen
resolution to provide the best picture quality.
Image appears blurred, indistinct, or
too dark.
Brightness and contrast are
too low.
Press the OK/auto button on the front panel. If this
does not correct the image, press the Menu button
to open the OSD Menu, and adjust the brightness
and contrast scales as needed.
Image is not centered Position may need adjustment. Press the Menu button to access the OSD menu.
Select Image Control/Horizontal Position or Vertical
Position to adjust the horizontal or vertical position
of the image.
Check Video Cable is displayed on
screen.
Monitor video cable is
disconnected.
Connect the appropriate video cable (DisplayPort,
DVI, or VGA) between the computer and monitor. Be
sure that the computer power is off while connecting
the video cable.
Input Signal Out of Range. Change
Settings to 1440 x 900 @ 60Hz (19”
wide panel models) OR Input Signal
Out of Range. Change Settings to
1680 x 1050 @ 60Hz (22” wide panel
models) OR Input Signal Out of
Range. Change settings to 1920 x
1200 @ 60 Hz (24-inch wide panel
models) is displayed on screen.
Video resolution and/or refresh
rate are set higher than what
the monitor supports.
Restart the computer and enter Safe Mode. Change
the settings to a supported setting (see
Recognizing
Preset Display Resolutions on page 36). Restart
the computer so that the new settings take effect.
ENWW Solving Common Problems 29
Problem Possible Cause Solution
HP Display LiteSaver doesn't turn off
the monitor screen.
The Activity Extension time
has not elapsed.
The default Activity Extension value is set to 10
minutes. The HP Display LiteSaver will wait to detect
no input or movement from the keyboard or mouse
for 10 consecutive minutes after the Display Off time
has passed, before the monitor enters into lowpower mode. For example, if the Display Off time is
set to 5 minutes from the current time and the Activity
Extension is set to 10 minutes, the HP Display
LiteSaver will not actually turn off the display until 10
minutes of inactivity has elapsed, even though the
Display Off time is 5 minutes from now.
The HP Display LiteSaver may
not be compatible with the
computer system. Some
notebook computers are not
compatible and the monitor
power can not be controlled.
Confirm that the HP Display LiteSaver is compatible
with the system.
1. Right-click on the HP Display LiteSaver icon in
the system tray.
2. Select Power Off Display from the menu.
The monitor screen should turn off if the system is
compatible. To turn the monitor back on, wait 5
seconds and move the mouse.
NOTE: If the monitor did not turn off, then the
computer graphics driver is not compatible with the
HP Display LiteSaver software.
The monitor is off but it did not seem to
enter into a low-power sleep mode.
The monitor's power saving
control is disabled.
In the monitor's OSD menu, select Management
> Power Saver. The control should be set to On to
allow the monitor to enter into low-power modes.
OSD Lockout is displayed. The monitor's OSD Lockout
function is enabled.
Press and hold the Menu button for 10 seconds to
disable the OSD Lockout function.
Power Button Lockout is displayed. The monitor's Power Button
Lockout function is enabled.
Press and hold the Power button for 10 seconds to
unlock the power button function.
30 Appendix A Troubleshooting ENWW
Online Technical Support
For the online access to technical support information, self-solve tools, online assistance, community
forums of IT experts, broad mutlivendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support.
Preparing to Call Technical Support
If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical
support. Have the following information available when you call:
●
Monitor model number
●
Monitor serial number
●
Purchase date on invoice
●
Conditions under which the problem occurred
●
Error messages received
●
Hardware configuration
●
Name and version of the hardware and software you are using
ENWW Online Technical Support 31
B Technical Specifications
NOTE: All performance specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component manufacturers' typical level
specifications for performance and actual performance may vary either higher or lower.
LA1905wg Model
Table B-1 LA1905wg Specifications
Display
Type
48.1 cm wide screen
TFT LCD
19 inches wide screen
Viewable Image Size 48.1 cm diagonal 19–inch diagonal
Tilt -5 to 30°
Swivel -170 to 170°
Maximum Weight (Unpacked) 6.2 kg 13.67 lbs.
Dimensions (include base)
Height (highest position)
Height (lowest position)
Depth
Width
42.95 cm
37.15 cm
24.48 cm
44.46 cm
16.91 inches
14.63 inches
9.64 inches
17.5 inches
Maximum Graphic Resolution 1440 x 900 (60 Hz) analog input
1440 x 900 (60 Hz) digital input
Optimum Graphic Resolution 1440 x 900 (60 Hz) analog input
1440 x 900 (60 Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.284 (H) × 0.284 (W) mm
Pixels Per Inch 89.4 PPI
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
32 Appendix B Technical Specifications ENWW
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
5 to 35° C
-20 to 60° C
41 to 95° F
-4 to 140° F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC 50/60 Hz
Altitude:
Operating
Storage
0 to 5000 m
0 to 12192 m
0 to 16,400 feet
0 to 40,000 feet
Measured Power Consumption:
Full Power
Typical Settings
Energy Star Test Methods
Sleep
Switch Off
28.5 watts
24.6 watts
20.9 watts
0.82 watts
0.43 watts
Input Terminal One VGA connector with cable included;
one DVI connector with cable included;
one DisplayPort connector (cable not
included)
LA2205wg Model
Table B-2 LA2205wg Specifications
Display
Type
55.9 cm wide screen
TFT LCD
22 inches wide screen
Viewable Image Size 55.9 cm diagonal 22–inch diagonal
Tilt -5 to 30°
Swivel -170 to 170°
Maximum Weight (Unpacked) 7.25 kg 15.98 lbs.
Dimensions (include base)
Height (highest position)
Height (lowest position)
Depth
Width
45.22 cm
37.35 cm
25.49 cm
51.12 cm
17.80 inches
14.70 inches
10.04 inches
20.13 inches
Maximum Graphic Resolution 1680 x 1050 (60 Hz) analog input
1680 x 1050 (60 Hz) digital input
Table B-1 LA1905wg Specifications (continued)
ENWW LA2205wg Model 33
Optimum Graphic Resolution 1680 x 1050 (60 Hz) analog input
1680 x 1050 (60 Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.282 (H) × 0.282 (W) mm
Pixels Per Inch 90.1 PPI
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
5 to 35° C
-20 to 60° C
41 to 95° F
-4 to 140° F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating
Storage
0 to 5000 m
0 to 12192 m
0 to 16,400 feet
0 to 40,000 feet
Measured Power Consumption:
Full Power
Typical Settings
Energy Star Test Methods
Sleep
Switch Off
31 watts
23 watts
21.4 watts
0.55 watts
0.48 watts
Input Terminal One VGA connector with cable included;
one DVI connector with cable included;
one DisplayPort connector (cable not
included)
LA2405wg Model
Table B-3 LA2405wg Specifications
Display
Type
60.96 cm wide screen
TFT LCD
24 inches wide screen
Viewable Image Size 60.96 cm diagonal 24–inch diagonal
Tilt -5 to 30°
Swivel -170 to 170°
Maximum Weight (Unpacked) 7.9 kg 17.42 lbs.
Table B-2 LA2205wg Specifications (continued)
34 Appendix B Technical Specifications ENWW
Dimensions (include base)
Height (highest position)
Height (lowest position)
Depth
Width
48.75 cm
38.05 cm
27.84 cm
55.68 cm
19.19 inches
14.98 inches
10.96 inches
21.92 inches
Maximum Graphic Resolution 1920 x 1200 (60 Hz) analog input
1920 x 1200 (60 Hz) DisplayPort digital
input
1920 x 1200 (60 Hz) DVI digital input
(reduced blanking)
Optimum Graphic Resolution 1920 x 1200 (60 Hz) analog input
1920 x 1200 (60 Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.269 (H) x 0.269 (W) mm
Pixels Per Inch 94.3 PPI
Horizontal Frequency 24 to 94 kHz
Vertical Refresh Rate 50 to 60 Hz
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
5 to 35° C
-20 to 60° C
41 to 95° F
-4 to 140° F
Relative Humidity 20 to 80%
Power Source 100 – 265 VAC, 50/60 Hz
Altitude:
Operating
Storage
0 to 5000 m
0 to 12192 m
0 to 16,400 feet
0 to 40,000 feet
Measured Power Consumption:
Full Power
Typical Settings
Energy Star Test Methods
Sleep
Switch Off
48.4 watts
42.1 watts
34.5 watts
.86 watts
.51 watts
Input Terminal One VGA connector with cable included;
one DVI connector with cable included;
one DisplayPort connector (cable not
included)
Table B-3 LA2405wg Specifications (continued)
ENWW LA2405wg Model 35
Recognizing Preset Display Resolutions
The display resolutions listed below are the most commonly used modes and are set as factory defaults.
This monitor automatically recognizes these preset modes and they will appear properly sized and
centered on the screen.
LA1905wg Model
Table B-4 Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
4 1024 × 768 48.363 60.004
5 1280 × 960 60.00 60.00
6 1280 × 1024 63.981 60.02
7 1440 × 900 55.94 59.89
LA2205wg Model
Table B-5 Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
4 1024 × 768 48.363 60.004
5 1280 × 960 60.00 60.00
6 1280 × 1024 63.981 60.02
7 1440 × 900 55.935 59.887
8 1600 × 1200 75.00 60.00
9 1680 × 1050 65.29 60.00
LA2405wg Model
Table B-6 Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.469 59.940
2 720 × 400 31.469 70.087
3 800 × 600 37.879 60.317
36 Appendix B Technical Specifications ENWW
4 1024 × 768 48.363 60.004
5 1280 × 960 60.00 60.00
6 1280 × 1024 63.981 60.02
7 1440 × 900 55.935 59.887
8 1600 × 1200 75.00 60.00
9 1680 × 1050 65.29 60.00
10 1920 × 1080 67.5 60.00
11 1920 × 1200 74.038 59.95
12 1920 × 1200 74.556 60.00
Entering User Modes
The video controller signal may occasionally call for a mode that is not preset if:
●
You are not using a standard graphics adapter.
●
You are not using a preset mode.
It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen
display. Your changes can be made to any or all of these modes and saved in memory. The monitor
automatically stores the new setting, then recognized the new mode just as it does a preset mode. In
addition to the factory preset modes, there are 15 (LA1905wg model), 20 (LA2205wg model), or 25
(LA2405wg model) user modes that can be entered and stored.
Energy Saver Feature
When the monitor is in its normal operating mode, the monitor uses less than 28.5 watts (LA1905wg
model), 31 watts (LA2205wg model), or 48.4 watts (LA2405wg model) and the Power light is green.
The monitor also supports a reduced power state. The reduced power state will be entered into if the
monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon
detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and
the power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize
less than 2 watts of power. There is a brief warm up period before the monitor will return to its normal
operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called power
management features).
NOTE: The above power saver feature only works when connected to computers that have energy
saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter
into the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes
the monitor to enter the reduced power state, the power light blinks amber.
Table B-6 Factory Preset Modes (continued)
ENWW Entering User Modes 37
C Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and the receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by Hewlett Packard Company may void the user's authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for Products Marked with the
FCC Logo (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
For questions regarding the product, contact:
38 Appendix C Agency Regulatory Notices ENWW
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-HP-INVENT (1-800 474-6836)
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Regulatory Notice
This product complies with the following EU Directives:
●
Low Voltage Directive 2006/95/EC
●
EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for
this product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom
products and EU harmonized Telecom
products (e.g. Bluetooth)
This marking is valid for EU nonharmonized Telecom products.
*Notified body number (used only if
applicable — refer to the product label).
ENWW Canadian Notice 39
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany
German Ergonomics Notice
HP products which bear the “GS” approval mark, when forming part of a system comprising HP brand
computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable ergonomic
requirements. The installation guides included with the products provide configuration information.
Japanese Notice
Korean Notice
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the
monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use
in the country where you purchased the equipment.
If you need to obtain a power cord for a different country, you should purchase a power cord that is
approved for use in that country.
The power cord must be rated for the product and for the voltage and current marked on the product's
electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and
current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum
of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m).
If you have questions about the type of power cord to use, contact an authorized HP service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon
it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the
cord exits from the product.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
40 Appendix C Agency Regulatory Notices ENWW
Product Environmental Notices
ENERGY STAR® Qualification
HP Displays marked with the ENERGY STAR® certification mark meet the requirements of the U.S.
Environmental Protection Agency (EPA) ENERGY STAR program. The EPA ENERGY STAR®
certification mark does not imply endorsement by the EPA. As an ENERGY STAR Partner, Hewlett
Packard Company has determined that this product meets the ENERGY STAR® program requirements
for display energy efficiency.
The following ENERGY STAR® certification mark appears on all ENERGY STAR qualified displays:
The ENERGY STAR® program specifications for displays and computers were created by the EPA to
promote energy efficiency and reduce air pollution through more energy-efficient equipment in homes,
offices, and factories. One way products achieve this goal is by using the Microsoft Windows power
management feature to reduce power consumption when the product is not in use.
The power management feature enables the computer to initiate a low-power or “sleep” mode after a
period of user inactivity. When used with an external ENERGY STAR® qualified display, this feature
also supports similar power management features for the display. To take advantage of these potential
energy savings, users should use the default power management settings that are provided with
ENERGY STAR qualified computers and displays. The default power management settings on
ENERGY STAR qualified computers are preset to behave in the following ways when the system is
operating on AC power:
●
Turn off an external display after 15 minutes of user inactivity
●
Initiate a low power sleep mode for the computer after 30 minutes of user inactivity
ENERGY STAR® qualified computers exit the low power sleep mode and ENERGY STAR qualified
displays resume operation when the user resumes use of the computer. Examples include the user
pressing the power/sleep button, receiving an input signal from an input device, receiving an input signal
from a network connection with the Wake On LAN (WOL) feature enabled, etc.
Additional information on the ENERGY STAR® program, its environmental benefits and the potential
energy and financial savings of the power management feature can be found on the EPA ENERGY
STAR Power Management Web site at
http://www.energystar.gov/powermanagement.
Materials Disposal
This HP product contains mercury in the fluorescent lamp in the display LCD that might require special
handling at end-of-life.
Disposal of this material can be regulated because of environmental considerations. For disposal or
recycling information, contact the local authorities or the Electronic Industries Alliance (EIA)
http://www.eiae.org.
ENWW Product Environmental Notices 41
Disposal of Waste Equipment by Users in Private Household in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with
your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing
it over to a designated collection point for the recycling or waste electrical and electronic equipment.
The separate collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects human health and
the environment. For more information about where you can drop off your waste equipment for recycling,
please contact the local city office, the household waste disposal service or the shop where you
purchased the product.
HP Recycling Program
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to
http://www.hp.com/
recycle.
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our
products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006
of the European Parliament and Council). A chemical information report for this product can be found
at
http://www.hp.com/go/reach.
Restriction of Hazardous Substances (RoHS)
A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic products
offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit
http://www.hp.com/go/jisc0950.
42 Appendix C Agency Regulatory Notices ENWW
11363-2006
11363-2006
Turkey EEE Regulation
In Conformity with the EEE Regulation
EEE Yönetmeliğine Uygundur
ENWW Product Environmental Notices 43
D LCD Monitor Quality and Pixel Policy
The TFT monitor uses high-precision technology, manufactured according to HP standards, to
guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that
appear as small bright or dark spots. This is common to all LCD displays used in products supplied by
all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective
pixels or sub-pixels.
●
A pixel consists of one red, one green, and one blue sub-pixel.
●
A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off
(a dark spot on a bright background). The first is the more visible of the two.
●
A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and only
visible on a specific background.
To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal
operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (20
in).
HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer
cosmetic imperfections and HP will adjust guidelines as improvements are made.
44 Appendix D LCD Monitor Quality and Pixel Policy ENWW
Loading...
