MT
MTMT
MT
(175 x 420 x 367.4 mm)
SFF
SFFSFF
SFF
(101.1 x 339.2 x 390.2 mm)
1.
Monitor (sold separately)
6.
One external 3.5" bay for optional diskette drive or other 3.5"
device
2.
2-Button Scroll Mouse
7.
3 full-height PCI 2.3 slots, 1 PCI-Ex1 slot
3.
HP Standard Keyboard
8.
6 USB 2.0 ports, 1 serial port, 1 parallel port, 2 PS/2, 1 RJ45, 1 VGA, 1 audio in, 1 audio out, 1 MIC
4.
Front I/O – 2 USB 2.0 ports & Mic-in, Headset
9.
250W PSU as standard configuration on both MT and SFF
300W non-PFC for India only on Microtower.
5.
2 internal 3.5" bays
10.
2 external 5.25" bays for optional optical drives (MT only)
What's New
What's NewWhat's New
What's New
Intel® new generation chipset Broadwater Q963/ICH8
Choice of operating systems(during launch)
Microsoft Windows XP 32-bit Home – Cost Reduced (China Only)
Microsoft Windows XP 32-bit Professional – Cost Reduced (China Only)
Microsoft Windows XP 32-bit Home SP2
Microsoft Windows XP 32-bit Professional SP2
Redflag Linux (Post launch) – applicable only for China.
Within Vista RC1 plus 90 days, Vista OS will be pulled for Taihu.
Integrated Realtek 8110SC Gigabit Network Connection
PC2-533/667 DDR2 SDRAM
Single or Dual Channel memory configurations (recommend to adopt dual channels on memory configuration)
4 Memory DIMMs for mounting
High definition Audio Realtek ALC 885

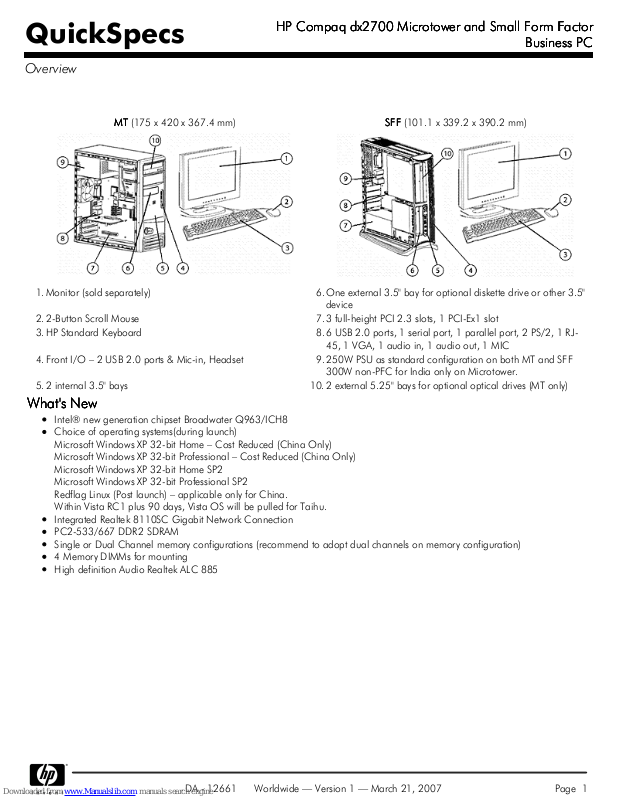

QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Overview
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 1
At A Glance
At A GlanceAt A Glance
At A Glance
Intel Core 2 Duo(E6xxx), Pentium D(9xx/8xx), Pentium 4 (6xx/5xx), Cedar Mill and Celeron D LGA775 processors
Choice of operating systems:
FreeDos
Redflag Linux (Redflag Linux will gradually replace Freedos especially on governmental deals)
Microsoft Windows XP 32-bit Home – Cost Reduced (China Only)
Microsoft Windows XP 32-bit Professional – Cost Reduced (China Only)
Microsoft Windows XP 32-bit Home SP2
Microsoft Windows XP 32-bit Professional SP2
NOTES
NOTESNOTES
NOTES
:
1. At product launch, Vista capable program and its logo will be applied for the applicable SKUs.
2. Vista OS will become mandatory after Vista RC1 +90 days.
Intel new generation chipset Broadwater Q963/ICH8 on Northbridge and Southbridge
Intel Integrated Graphic Media Accelerator 3000
1 PCI-Epressx1 slot/3 PCI 2.3 ver slots
Integrated Realtek 8110SC Gigabit Network Connection
Integrated SATA controller for Serial ATA Hard Drives and Optical Drives. (There are no supports for PATA ODD)
Single or Dual channel DDR2 system memory (4 DIMMs)
Integrated High definition ALC 885 Audio
Energy Star(Rev3.0) /CCEC compliant with energy-saving features.
Protected by HP Services, including a 1-1-1 or 3-1-1 Standard warranty and variable or flexible warranty. Terms and
conditions vary by country. Certain restrictions and exclusions apply.
250W power as Standard config (300W non-PFC PSU only configured for India on Microtower)
RoHS/WEEE complaint on system
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Overview
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 2
Processors(EM64T)
Processors(EM64T)Processors(EM64T)
Processors(EM64T)
Intel Celeron D Processors:
Intel Celeron D Processors:Intel Celeron D Processors:
Intel Celeron D Processors:
Intel Celeron D 326 Processor (2.53-GHz, 256K L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 331 Processor (2.66-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 336 Processor (2.80-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 341 Processor (2.93-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 346 Processor (3.06-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 351 Processor (3.20-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Celeron D 355 Processor (3.33-GHz, 256KB L2 cache, 533-MHz FSB), EM64T/XD
Intel Pentium 4 Processors with Hyper-Threading Technology:
Intel Pentium 4 Processors with Hyper-Threading Technology:Intel Pentium 4 Processors with Hyper-Threading Technology:
Intel Pentium 4 Processors with Hyper-Threading Technology:
630 – 3.00-GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
640 – 3.20-GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
650 – 3.40-GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
Intel Core 2 Duo(E6xxx) Family Processors:
Intel Core 2 Duo(E6xxx) Family Processors:Intel Core 2 Duo(E6xxx) Family Processors:
Intel Core 2 Duo(E6xxx) Family Processors:
E6700 – 2.66GHz, 4-MB L2 cache, 1066-MHZ FSB, VT/EM64T/XD/EISFF
E6600 – 2.4GHz, 4-MB L2 cache, 1066-MHZ FSB, VT/EM64T/XD/EISFF
E6400 – 2.13GHz, 4-MB L2 cache, 1066-MHZ FSB, VT/EM64T/XD/EISFF
E6300 – 1.86GHz, 4-MB L2 cache, 1066-MHZ FSB, VT/EM64T/XD/EISFF
E4200 – 1.6GHz, 2-MB L2 cache, 800-MHz FSB, EM64T/XD/EISFF(Trailing CPU)
Intel Pentium D Family Processors:
Intel Pentium D Family Processors:Intel Pentium D Family Processors:
Intel Pentium D Family Processors:
950 – 3.4GHz, 4-MB L2 cache, 800-MHz FSB, VT/EM64T/XD/EISFF
945 – 3.4GHz, 4-MB L2 cache, 800-MHz FSB, EM64T/XD/EISFF(Trailing CPU)
940 – 3.2GHz, 4-MB L2 cache, 800-MHz FSB, VT/EM64T/XD/EISFF
930 – 3.0GHz, 4-MB L2 cache, 800-MHz FSB, VT/EM64T/XD/EISFF
925 – 3.0GHz, 4-MB L2 cache, 800-MHz FSB, EM64T/XD/EISFF(Trailing CPU)
915 – 2.8GHz, 4-MB L2 cache, 800-MHz FSB, EM64T/XD/EISFF(Trailing CPU)
820 – 2.8GHz, 2-MB L2 cache, 800-MHz FSB, EM64T/XD
805 – 2.66GHz, 2-MB L2 cache, 533-MHz FSB, EM64T/XD(Trailing CPU)
Intel Pentium 4 6x1 & CeleronD 3xx Family Processors:
Intel Pentium 4 6x1 & CeleronD 3xx Family Processors:Intel Pentium 4 6x1 & CeleronD 3xx Family Processors:
Intel Pentium 4 6x1 & CeleronD 3xx Family Processors:
661 – 3.6GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
651 – 3.4GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
641 – 3.2GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
631 – 3.0GHz, 2-MB L2 cache, 800-MHz FSB, HT/EM64T/XD/EISFF
541 – 3.2GHz, 1-MB L2 cache, 800-MHz FSB, HT/EM64T/XD
531 – 3.0GHz, 1-MB L2 cache, 800-MHz FSB, HT/EM64T/XD
524 – 3.06GHz, 1-MB L2 cache, 533-MHz FSB, HT/EM64T/XD
360 – 3.46GHz, 512K L2 cache, 533-MHz FSB, EM64T/XD
356 – 3.33GHz, 512K L2 cache, 533-MHz FSB, EM64T/XD
352 – 3.2GHz, 512K L2 cache, 533-MHz FSB, EM64T/XD
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Available Technology and Features
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 3
Operating Systems and
Operating Systems andOperating Systems and
Operating Systems and
Application Software
Application SoftwareApplication Software
Application Software
FreeDos
Microsoft Windows XP Home SP2
Microsoft Windows XP Professional SP2
Microsoft Windows XP Home SP2 - Cost Reduced (China Only)
Microsoft Windows XP Professional SP2 - Cost Reduced (China Only)
Microsoft Office 2003 Basic (India and SEAT Only)
Microsoft Office 2003 Small Business (India and SEAT Only)
Microsoft Office 2003 Professional (India and SEAT Only)
Adobe Acrobat Reader 7.0
Symantec Anti-Virus 2006
InterVideo WINDVD (pre-installed)
HP Backup & Recovery Manager
Lightscribe driver (DIB) for Lightscribe drives only
Roxio DigitalMedia Plus (pre-installed/DIB) for rewritable drives only
Microsoft Works 8.5 (pre-installed/DIB) (India and SEAT only)
Redhat Linux (For India only)
SCO Unix (For China Only)
Network Clone (Customized for China only, not included in drop in box)
Santools SMART Disk Monitor Application for HDD Pre-failure alert (Available for India sku only)
Google tool bar
Sun Java Runtime Environment
BRAND.ini
Branding approved wallpaper
Modified XP Help and Support Module
Safety and Comfort Guide
Set Video Refresh
Insight Windows Diagnostics (Insight)
PDF complete (SRP)
Hard Drives
Hard DrivesHard Drives
Hard Drives
40-GB Serial ATA 1.5-Gb/s Hard drive (7200 rpm)
80-GB Serial ATA 3.0-Gb/s Hard drive (7200 rpm)
160-GB Serial ATA 3.0-Gb/s Hard drive (7200rpm)
250-GB Serial ATA 3.0-Gb/s Hard drive (7200rpm)
System Memory
System MemorySystem Memory
System Memory
Single Channel
Single ChannelSingle Channel
Single Channel
Configurations
ConfigurationsConfigurations
Configurations
256-MB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (1 x 256-MB)
512-MB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (1 x 512-MB)
1-GB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (1 x 1-GB)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Available Technology and Features
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 4
System Memory
System MemorySystem Memory
System Memory
Dual Channel
Dual ChannelDual Channel
Dual Channel
Configurations
ConfigurationsConfigurations
Configurations
512-MB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (2 x 256-MB)
1-GB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (2 x 512-MB)
1-GB DDR2 SDRAM DDR2 – 533 or 667 Non-ECC (4 x 256-MB)
2-GB DDR SDRAM DDR2 – 533 or 667 Non-ECC (2 x1-GB)
2-GB DDR SDRAM DDR2 – 533 or 667 Non-ECC (4 x512-MB)
4-GB DDR SDRAM DDR2 – 533 or 667 Non-ECC (4 x1-GB)
NOTE:
NOTE: NOTE:
NOTE:
In order to achieve best performance, memory speeds and sizes should not be mixed and dual
channel installation is recommended. See memory section for more information.
Removable Storage
Removable StorageRemovable Storage
Removable Storage
1.44MB diskette drive
16 in 1 card reader
Optical Storage
Optical Storage Optical Storage
Optical Storage
(SATA
interface only)
52X CD-ROM drive
48X/32X/48X CD-RW drive
16X/48X DVD-ROM drive
48X/32X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW Light scribe Drive (Double Layer/Dual Format)
Keyboard
KeyboardKeyboard
Keyboard
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
Mouse
MouseMouse
Mouse
HP PS/2 2-Button scroll mouse
HP USB 2-Button scroll mouse
HP USB 2-Button optical scroll mouse
HP PS/2 2- Button optical mouse
Audio
AudioAudio
Audio
Integrated Realtek ALC885 high definition Audio
Communication
CommunicationCommunication
Communication
Integrated Realtek 8100s 10/100/1000 Network Connection
Broadcom Netxtreme Gigabit Ethernet PCI Express x1 FH Adapter (MT)
Broadcom Netxtreme Gigabit Ethernet PCI Express x1 LP Adapter (SFF)
Intel Pro Gb NIC PCIex1 FH adapter (MT)
Intel Pro Gb NIC PCIex1 LP adapter (SFF)
Agere 56K PCI Soft Modem FH (MT)
Agere 56K PCI Soft Modem LP (SFF)
Graphics
GraphicsGraphics
Graphics
Intel integrated GMA 3000 (new graphics engine)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Available Technology and Features
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 5
Base Unit
Base UnitBase Unit
Base Unit
uATX Microtower or Small Form Factor chassis, including power supply and front bezel;
functioning five (5/3) drive bays and 1 PCI express slot plus 3 PCI expansion slots (
NOTE:
NOTE: NOTE:
NOTE:
SFF
only has 3 bays.
)
Microsoft or Linux operating system CD (Varies upon different countries)
Active type Heatsink
92 x 92 x 25 mm chassis fan
Motherboard with Intel Q963/ICH8 chipset, Realtek Gb integrated network interface, integrated
graphics and high definition audio, 3 PCI slots, 1 PCI Express x1 slot, 4 DDR2 DIMM memory
slots
(2) SATA data cables – provided for 1 SATA HDD and 1 SATA ODD support.
FDD as option
Chassis intrusion alert for India, SEAT and HK on both of MT and SFF form factor.
Internal speaker for India, SEAT and Hong Kong' shipment on both of MT and SFF product
PCA Slots/Headers
PCA Slots/HeadersPCA Slots/Headers
PCA Slots/Headers
PCI 2.3
PCI 2.3PCI 2.3
PCI 2.3
3 full-height slots on PCA
Memory Expansion
Memory ExpansionMemory Expansion
Memory Expansion
4 DIMM slots (up to maximum 4G )
PCIex1
PCIex1PCIex1
PCIex1
1 PCIex1 slot on PCA
FDD connector
FDD connectorFDD connector
FDD connector
1 Floppy connector
SATA headers
SATA headersSATA headers
SATA headers
4 SATA headers
SATA headers
SATA headersSATA headers
SATA headers
4 SATA headers
Chassis Bays
Chassis BaysChassis Bays
Chassis Bays
Internal
InternalInternal
Internal
Two (2) 3.50" half-height (MT)
One (1) 3.50" half-height (SFF)
External
ExternalExternal
External
Two (2) 5.25" half-height (MT)
One (1) 5.25" half-height (SFF)
One (1) 3.50" half-height (MT)
One (1) 3.50" half-height (SFF)
USB Support
USB SupportUSB Support
USB Support
EHCI high-speed USB 2.0 controller
Two (2) front ports; Six (6) rear ports
Rear I/O Ports
Rear I/O Ports Rear I/O Ports
Rear I/O Ports
(Legacy)
One (1) parallel port
One (1) serial port
One (1) PS/2 keyboard port
One (1) PS/2 mouse port
One (1) analog VGA video port
One (1) line in; one (1) line out; one (1) Microphone
One (1) RJ-45 network port
Six (6) USB 2.0 ports
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 6
Weight & Dimensions
Weight & DimensionsWeight & Dimensions
Weight & Dimensions
(MT and SFF)
Chassis Dimensions
Chassis DimensionsChassis Dimensions
Chassis Dimensions
(H x W x D)
175 x 367.4 x 420 mm (H x W x D) – MT
101.1 x 339.2 x 390.2 mm (H x W x D) – SFF
Packaged Dimensions
Packaged DimensionsPackaged Dimensions
Packaged Dimensions
(L x W x H)
555 x 501 x 402 mm – MT
495 x 595 x 219 mm – SFF
System Weight
System WeightSystem Weight
System Weight
8.45 Kg – MT
8.36 Kg – SFF
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
Supported Technology &
Supported Technology &Supported Technology &
Supported Technology &
Features
FeaturesFeatures
Features
Memory Type
Memory TypeMemory Type
Memory Type
DDR2 533 or 667 SDRAM un-buffer non-ECC
Single or dual channel configurations
4GB maximum system memory
Hard Drive Interfaces
Hard Drive InterfacesHard Drive Interfaces
Hard Drive Interfaces
Supported
SupportedSupported
Supported
Serial ATA 1.5-Gb/s (40GB) and 3.0-Gb/s (80GB/160GB/250GB)
hard drives are supported
Intel Core 2 Duo E6xxx
Intel Core 2 Duo E6xxxIntel Core 2 Duo E6xxx
Intel Core 2 Duo E6xxx
Family Processors
Family ProcessorsFamily Processors
Family Processors
(Dual core)
Coprocessor
CoprocessorCoprocessor
Coprocessor
Integrated
CPU Socket
CPU SocketCPU Socket
CPU Socket
Type/Number
Type/NumberType/Number
Type/Number
Socket T
LGA775
CPU Package
CPU PackageCPU Package
CPU Package
FCPGA4
Front Side Bus Speed
Front Side Bus SpeedFront Side Bus Speed
Front Side Bus Speed
1066-MHz or 800-MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
4MB or at least 2MB
Intel Pentium D 9xx/8xx
Intel Pentium D 9xx/8xxIntel Pentium D 9xx/8xx
Intel Pentium D 9xx/8xx
Family Processors
Family ProcessorsFamily Processors
Family Processors
(Dual core)
Coprocessor
CoprocessorCoprocessor
Coprocessor
Integrated
CPU Socket
CPU SocketCPU Socket
CPU Socket
Type/Number
Type/NumberType/Number
Type/Number
Socket T
LGA775
CPU Package
CPU PackageCPU Package
CPU Package
FCPGA4
Front Side Bus Speed
Front Side Bus SpeedFront Side Bus Speed
Front Side Bus Speed
800-MHz or 533-MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
4MB or at least 2MB
Intel Pentium 4 /Celeron
Intel Pentium 4 /CeleronIntel Pentium 4 /Celeron
Intel Pentium 4 /Celeron
D CPU
D CPUD CPU
D CPU
(Single core)
6xx & 5xx & 3xx
6xx & 5xx & 3xx6xx & 5xx & 3xx
6xx & 5xx & 3xx
Coprocessor
CoprocessorCoprocessor
Coprocessor
Integrated
CPU Socket
CPU SocketCPU Socket
CPU Socket
Type/Number
Type/NumberType/Number
Type/Number
Socket T
LGA775
CPU Package
CPU PackageCPU Package
CPU Package
FCPGA4
Front Side Bus Speed
Front Side Bus SpeedFront Side Bus Speed
Front Side Bus Speed
800-MHz or 533-MHz
Cache Memory
Cache MemoryCache Memory
Cache Memory
256-KB L2 (Celeron D)
2-MHz L2 (Pentium 4)
512-KB or 2-MHz (Cedar Mill)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 7
Chassis
ChassisChassis
Chassis
Front Panel
Front PanelFront Panel
Front Panel
Power button
Power LED
HDD LED
Cooling Solutions
Cooling SolutionsCooling Solutions
Cooling Solutions
Supported
SupportedSupported
Supported
Power Supply Fan (variable speed)
Active heatsink (variable speed)
Chassis fan (variable speed)
Slots Supported
Slots SupportedSlots Supported
Slots Supported
3 PCI slots + PCIex1 slot full height for MT
3 PCI slots + PCIex1 slot low profile for SFF
Front I/O
Front I/OFront I/O
Front I/O
Two (2) USB 2.0 ports, Headset and Microphone
Rear I/O
Rear I/ORear I/O
Rear I/O
Standard uATX I/O connectors, including Six (6) USB 2.0 ports
Drive Bays
Drive BaysDrive Bays
Drive Bays
Two (2/1) 5-1/4" external –
MT/SFF
MT/SFFMT/SFF
MT/SFF
One (1) 3-1/2" external –
MT/SFF
MT/SFFMT/SFF
MT/SFF
Two (2/1) 3-1/2" internal –
MT/SFF
MT/SFFMT/SFF
MT/SFF
Physical Security features
Physical Security featuresPhysical Security features
Physical Security features
Security Loop for external pad lock
Power Supply
Power SupplyPower Supply
Power Supply
Micro-tower:
Micro-tower:Micro-tower:
Micro-tower:
Standard 250 watt ATX PFC or non-PFC power supply as default
300W non-PFC power supply as option for India/SEAT/HK
Small Form Factor:
Small Form Factor:Small Form Factor:
Small Form Factor:
Only 250W PFC or non-PFC power supply selectable
Unit Environment and
Unit Environment andUnit Environment and
Unit Environment and
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
General Unit Operating Guidelines
General Unit Operating GuidelinesGeneral Unit Operating Guidelines
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Temperature RangeTemperature Range
Temperature Range
Operating Temperature: 41° to 104° F (5° to 40° C)
Non-operating Temperature: -22° to 140° F( -30° to 60° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
Operating Humidity 10% to 90% (non condensing at ambient)
Non-operating Humidity 5% to 95% (non condensing at ambient)
Maximum Altitude
Maximum AltitudeMaximum Altitude
Maximum Altitude
(unpressurized)
Operating: 8,000 ft (2500 m)
Non-operating: 30,000 ft (9000 m)
NOTE:
NOTE:NOTE:
NOTE:
Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above
sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be
limited by the type and number of options installed.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 8
Motherboard
MotherboardMotherboard
Motherboard
Socket-T LGA775 industry standard uATX form factor
Socket-T LGA775 industry standard uATX form factorSocket-T LGA775 industry standard uATX form factor
Socket-T LGA775 industry standard uATX form factor
Processor
ProcessorProcessor
Processor
LGA 775
Support Dual core Conroe/Pentium D processors or Single core Intel
Pentium 4/Celeron D processors(E6xxx/9xx/8xx/6xx/5xx/3xx)
PWM
PWMPWM
PWM
ON 3 phase power solution
Meet Intel FMB05B
Chipset
ChipsetChipset
Chipset
Intel Q963/ICH8
Super I/O
Super I/OSuper I/O
Super I/O
SCH5017
Front Side Bus Frequency
Front Side Bus FrequencyFront Side Bus Frequency
Front Side Bus Frequency
533/800/1066 MHz
Memory
MemoryMemory
Memory
4 x DIMM sockets
Support single and dual channel
DDR2 533/667 SDRAM
Clock Generator
Clock GeneratorClock Generator
Clock Generator
SILEGO SLG84516STR
Integrated Graphics
Integrated GraphicsIntegrated Graphics
Integrated Graphics
Intel GMA3000
Audio
AudioAudio
Audio
Realtek ALC885 High definition Audio
LAN
LANLAN
LAN
Realtek 8100s 10/100/1000 LAN
Expansion Slots
Expansion SlotsExpansion Slots
Expansion Slots
3 x PCI 2.3 slots
1 – PCIex1 slot
BIOS
BIOSBIOS
BIOS
8Mbit flash EEPROM
Award BIOS, PnP, ACPI, SMBIOS 2.4, Boot Block, DMI2.0
Manageability
ManageabilityManageability
Manageability
WFM 2.0, DMI 2.0
Industrial Standard
Industrial StandardIndustrial Standard
Industrial Standard
PCI 2.3 compliant
USB 2.0
Rear Side I/O Ports
Rear Side I/O PortsRear Side I/O Ports
Rear Side I/O Ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
6 x USB 2.0 ports
1 x RJ-45 10/100/1000 port
1 x Serial port
1 x Parallel port
1 x DB 15 pin Analog VGA port
3 x Audio ports(Line-in, Line-out, Micro-phone)
On Board I/O Interfaces
On Board I/O InterfacesOn Board I/O Interfaces
On Board I/O Interfaces
1 x ATX 24 pins power connector
1 x Floppy connector
2 x 5 Header for Front Panel (Power Switch, Power LED, and HDD
activities LED)
1 x 4 Header for CPU Heat-sink
1 x 3 Header for System Fan
1 x 4 Header for CD Audio – in
2 x 5 Header support 2 USB 2.0 ports at front I/O
2 x 5 Header for Front Headset and Microphone
4 x SATA connector
Board Size
Board SizeBoard Size
Board Size
uATX form factor, PCB size: 9.6 x 9.6" 4-layer PCB
Additional Features
Additional FeaturesAdditional Features
Additional Features
WOL enabled
Support S1, S3, S4 and S5
ACPI 3.0/APM1.2
Hardware monitor capability
System Smart Fan control (CPU Heat-sink/System Fan)
Bios PXE( Pro-boot Execution Environment) enabled
Bios RPL(Remote Program Load) supported
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 9
Power Supply
Power SupplyPower Supply
Power Supply
ATX Power Supply – Passive PFC at 230V only/non-PFC with a 115v/230V line switch
Passive Power Factor Correction (PFC) – with voltage set to 230V
50–60 Hz rated line frequency
250 watt as default power output for both MT and SFF
MT has maximum 300W non-PFC power supply to migrate for non-China regions only.
SFF form factor doesn't have 300W to upgrade.
Power Conservation
Power ConservationPower Conservation
Power Conservation
‘Energy Saver‘
‘Energy Saver‘‘Energy Saver‘
‘Energy Saver‘
Energy Star compliant
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
CCEC – China Only (<3 w in S5 – power off)
<10 watt power consumption in Sleep mode – suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
Default waiting time no less than 30 minutes prior to entering sleep mode
System Environmental
System EnvironmentalSystem Environmental
System Environmental
Specs
SpecsSpecs
Specs
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
Ambient Air Temperature
Ambient Air TemperatureAmbient Air Temperature
Ambient Air Temperature
Operating
OperatingOperating
Operating
5° to 40°C at sea level with an altitude de-rating
of 1.0°C per every 1000 ft (300 m) above sea
level to a maximum of 8,000 ft (2500 m), no
direct sustained sunlight. Maximum rate of
change is 25°C/Hr. The upper limit may be
limited by the type and number of options
installed.
Storage
StorageStorage
Storage
-30° to 60°C –
Maximum rate of change: 210°C/Hr.
Humidity
HumidityHumidity
Humidity
Operating
OperatingOperating
Operating
10% to 90% relative humidity (Rh), 30°C
maximum wet bulb temperature, non-condensing
Storage
StorageStorage
Storage
10% to 95% relative humidity (Rh), 38.7°C
maximum wet bulb temperature, non-condensing
Altitude
AltitudeAltitude
Altitude
Operating
OperatingOperating
Operating
0 to 8,000 feet (0 to 2438.4 meters) – This value
may be limited by the type and number of
options installed. Maximum allowable altitude
change rate is 1,000 ft/min (304.8 m/min).
Non-Operating
Non-OperatingNon-Operating
Non-Operating
0 to 30,000 feet (0 to 9,144 meters) – Maximum
allowable altitude change rate is 1200 ft/min
(365.76 m/min).
Shock
ShockShock
Shock
Listed are the levels of shock the product can withstand with NO damage
being incurred. The values represent peak input acceleration during an 2~3
ms half-sine shock pulse
Non-Operating
Non-OperatingNon-Operating
Non-Operating
35G's (Half-sine Shock)
35G's (Trapezoidal Shock)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 10
Vibration
VibrationVibration
Vibration
Listed are the levels of vibration the product can withstand with NO damage
being incurred. The values represent a flat random vibration input
acceleration profile across the given frequency range.
Operating
OperatingOperating
Operating
Random vibration at 5Hz@0.00025G2/Hz,
10Hz@0.01 G2/Hz, 100Hz@0.01G2/Hz,
300Hz@0.00001G2/Hz
5Hz to 300Hz, (0.25 Gs nominal).
Non-Operating
Non-OperatingNon-Operating
Non-Operating
Random vibration at 0.008G²/Hz,
10Hz to 500Hz, (2 Grms nominal).
Acoustic Noise
Acoustic NoiseAcoustic Noise
Acoustic Noise
Listed are the declared A-WEIGHTED SOUND POWER LEVELS (LWAd) and
declared average desktop seated operator position A-WEIGHTED SOUND
PRESSURE LEVELS (LpAm) when the product is operating in a 23°C ambient
environment. Noise emissions were measured in accordance with ISO 7779
(ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
IDLE
IDLEIDLE
IDLE
(Fixed disk drive
spinning)
LWAd = 4.3 Bels (goal), <4.5 Bels (must)
Desktop Average LpAm = 32 dBA (goals)
Desktop Average LpAm < 35 dBA (must)
FIXED DISK
FIXED DISKFIXED DISK
FIXED DISK
(Random
write)
LWAd = 4.8 Bels,
Desktop Average LpAm = 37 dBA
CD-ROM
CD-ROMCD-ROM
CD-ROM
(Sequential
Reads)
LWAd = 5.5 Bels,
Deskside Average LpAm = 55 dBA
Service and Support
Service and SupportService and Support
Service and Support
On-site Warranty
Note 1
: These 1-1-1, 3-1-1, 3-3-1, or 90-0-0 limited warranty delivers on-site, next
business-day
Note 2
service for parts and labor and includes free telephone support
Note 3
Global
coverage ensures that any product purchased in one country and transferred to another non-restricted
country will remain fully covered under the original warranty and service offering. One-year onsite and
labor are not available in all countries.
NOTE 1:
NOTE 1:NOTE 1:
NOTE 1:
Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2:
NOTE 2: NOTE 2:
NOTE 2:
On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
NOTE 3:NOTE 3:
NOTE 3:
Technical telephone support applies only to HP-configured Compaq and third-party HP-
qualified hardware and software. Toll-free calling support may not be available in some countries.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
System Details
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 11
Not all products available in all listed countries – check local price list for availability
Not all products available in all listed countries – check local price list for availabilityNot all products available in all listed countries – check local price list for availability
Not all products available in all listed countries – check local price list for availability
Communications
CommunicationsCommunications
Communications
Modems
ModemsModems
Modems
Agere PCI Hi-Speed 56K International Soft Modem
EK694AA
HP RJ11 Modem Adapter Kit
DC131C#xxx
Wireless & Network Interface Cards
Wireless & Network Interface CardsWireless & Network Interface Cards
Wireless & Network Interface Cards
Wireless A+G PCI Adapter – WW except Americas
PZ928AA
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Card
EA833AA
Intel Pro 1000 GT PCI Gigabit NIC(FH) card
AG393AA
HP bt450 Bluetooth Wireless Printer and PC Adapter(IPG)
Q6398A
Hard Disk Drives
Hard Disk DrivesHard Disk Drives
Hard Disk Drives
Serial ATA Hard Drive
Serial ATA Hard DriveSerial ATA Hard Drive
Serial ATA Hard Drive
80-GB 7200 rpm SATA 3.0Gb/s Hard Drive
PY276AA
160-GB 7200 rpm SATA 3.0Gb/s Hard Drive
PY277AA
250-GB 7200 rpm SATA 3.0Gb/s Hard Drive
PY278AA
Removable Storage
Removable StorageRemovable Storage
Removable Storage
Devices
DevicesDevices
Devices
Diskette Drive
Diskette DriveDiskette Drive
Diskette Drive
1.44 MB USB Floppy Drive – External
DC141B
1.44 MB Internal Floppy for 5.25 all
EY084AA
512-MB HP Drive Key II (USB 2.0)
ED516AA
1-GB HP Drive Key II (USB 2.0)
AG382AA
Input Devices
Input DevicesInput Devices
Input Devices
Keyboards
KeyboardsKeyboards
Keyboards
HP PS/2 Standard Keyboard
DT527A#xxx
HP USB Standard Keyboard
DT528A#xxx
HP PS/2 Easy Access Keyboard
DC167B#xxx
HP USB Smart Card keyboard
DC170B#xxx
Mouse
MouseMouse
Mouse
HP PS/2 2-Button Scroll Mouse
DD440B
HP USB 2-Button Scroll Mouse
DD441B
HP USB 2-Button Optical Scroll Mouse
DC172B
HP PS/2 2-Button Optical Scroll Mouse
EY703AA
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
After-Market Options
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 12
Memory
MemoryMemory
Memory
PC4200 (533-MHz) DDR2 SDRAM non-ECC
PV558AA
512-MB DDR2 SDRAM PC4200 (533-MHz) non-ECC
PV560AA
1-GB DDR2 SDRAM PC4200 (533-MHz) non-ECC
PV557AA
2-GB DDR2 SDRAM PC4200(533-MHz) non-ECC
PX977AA
256MB PC2-5300 DDR2-667 non-ECC
PX974AA
512MB PC2-5300 DDR2-667 non-ECC
PX975AA
1GB PC2-5300 DDR2-667 non-ECC
PX976AA
2GB PC2-5300 DDR2-667 non-ECC
PX977AA
Audio
AudioAudio
Audio
HP Satellite Speakers
ZD929AA#xxx
Optical Drives
Optical Drives Optical Drives
Optical Drives
(SATA)
I/O Devices
I/O DevicesI/O Devices
I/O Devices
16X DVD+/-RW Drive Lightscribe Drive (Dual Format, Double Layer Format)
PR595A
52X SATA CD-ROM (APJ)
AH045AA
48X/32X SATA Combo Drive (CD-RW/DVD)
AH046AA
16X/48X SATA DVD-ROM Drive
AH047AA
16X SATA DVD+/-RW Drive (Dual Format, Double Layer, LightScribe)
AH048AA
HP 16-in-1 Media Card Reader with PCI card
EM718AA
Security Devices
Security DevicesSecurity Devices
Security Devices
HP Business PC Security Lock Kit
PV606AA
Kensington Compaq Security Lock Ind – All
PC766AA
HP USB Biometric Fingerprint Reader
EM717AA
USB to Serial Adapter
USB to Serial AdapterUSB to Serial Adapter
USB to Serial Adapter
Belkin USB to Serial Adapter, 3ft
EM449AA
Graphics & Graphics
Graphics & GraphicsGraphics & Graphics
Graphics & Graphics
Cables
CablesCables
Cables
Tower Stand – Carbonite dc5000 SFF/dx5150 SFF
DE870A
NVIDIA Quadro NVS 55 PCI Graphics Card
EK561AA
NVIDIA Quadro NVS 280 PCI Graphics Card
DY599A
HP DMS59 DVI Dual-head Connector Cable
DL139A
HP DVI to DVI Cable (for all DVI enabled flat panels)
DC198A
1394 Interface
1394 Interface1394 Interface
1394 Interface
Adaptec FireConnect 2100 FireWire (1394) PCI Card
PA997A
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
After-Market Options
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 13
Monitors
MonitorsMonitors
Monitors
TFT
TFTTFT
TFT
HP L1506 15” TFT Flat Panel Monitor – Analog only
PX848AA
HP L1706 17” TFT Flat Panel Monitor – Analog only
PX849AA
HP L1706v 17” TFT Flat Panel Monitor – Analog only
(Specific for PRC)
(Specific for PRC)(Specific for PRC)
(Specific for PRC)
PX849A2
HP L1906 19” TFT Flat Panel Monitor – Analog only
PX850AA
HP L1740 17” TFT Flat Panel Monitor – Analog/Digital
PL766AA
HP L1755 17” TFT Flat Panel Monitor – Analog/Digital
PL777AA
HP L1940T 19” TFT Flat Panel Monitor – Analog/Digital
EM869AA
HP L1955 19” TFT Flat Panel Monitor – Analog/Digital
PD974AA
HP L2065 20” TFT Flat Panel Monitor – Analog/Digital
EF227A4
HP LP2465 24” Widescreen TFT Flat Panel Monitor – Analog/Digital
EF224A4
CRT
CRTCRT
CRT
HP s5502 15” CRT Monitor
PQ560AA
HP s7540 17” (16.0 vis) CRT Monitor
PF997AA
HP v7650 17” (16.0 vis) Flat-face CRT Monitor
PF996AA
HP v930 19” Flat-face CRT Monitor
(Specific for Korea)
(Specific for Korea)(Specific for Korea)
(Specific for Korea)
EU601AA
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
After-Market Options
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 14
Intel Q963/ICH8 chipset
Intel Q963/ICH8 chipsetIntel Q963/ICH8 chipset
Intel Q963/ICH8 chipset
DDR2 SYNCH DRAM NON-ECC MEMORY
DDR2 SYNCH DRAM NON-ECC MEMORYDDR2 SYNCH DRAM NON-ECC MEMORY
DDR2 SYNCH DRAM NON-ECC MEMORY
The Intel Q963 Express chipset supports non-ECC DDR2 memory on both DDR2 533 and 667 frequency. Memory upgrades are
accomplished by adding single or dual DIMMs of the same or variable sizes. This chart does not represent all possible memory
configurations.
MAXIMUM MEMORY
MAXIMUM MEMORYMAXIMUM MEMORY
MAXIMUM MEMORY
(SMALL FORM FACTOR AND MICROTOWER)
Supports up to 42-GB of DDR2 SYNCH DRAM.
POSSIBLE MEMORY CONFIGURATIONS (SMALL FORM FACTOR AND MICROTOWER)
POSSIBLE MEMORY CONFIGURATIONS (SMALL FORM FACTOR AND MICROTOWER)POSSIBLE MEMORY CONFIGURATIONS (SMALL FORM FACTOR AND MICROTOWER)
POSSIBLE MEMORY CONFIGURATIONS (SMALL FORM FACTOR AND MICROTOWER)
NOT ALL MEMORY CONFIGURATIONS POSSIBLE ARE REPRESENTED BELOW
DIMM Size
DIMM SizeDIMM Size
DIMM Size
Slot
SlotSlot
Slot
Channel A
Channel AChannel A
Channel A
Channel B
Channel BChannel B
Channel B
Slot 1
Slot 1Slot 1
Slot 1 Slot 2
Slot 2Slot 2
Slot 2 Slot 1
Slot 1Slot 1
Slot 1 Slot 2
Slot 2Slot 2
Slot 2
256MB
256MB256MB
256MB 256MB
512MB
512MB512MB
512MB 512MB
512MB
512MB512MB
512MB
256MB*
256MB*
768MB
768MB768MB
768MB 256MB
512MB
1GB
1GB1GB
1GB
256MB* 256MB* 256MB* 256MB*
1GB
1GB1GB
1GB
512MB*
512MB*
1GB
1GB1GB
1GB
1GB
1.5GB
1.5GB1.5GB
1.5GB
1GB
512MB
2GB
2GB2GB
2GB
512MB* 512MB* 512MB* 512MB*
4GB
4GB4GB
4GB
1GB* 1GB* 1GB* 1GB*
*
HP recommends dual channel configurations for maximum performance.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Memory
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 15
HP Compaq Business Desktop dx2700 MT
HP Compaq Business Desktop dx2700 MTHP Compaq Business Desktop dx2700 MT
HP Compaq Business Desktop dx2700 MT
HP Compaq Business Desktop dx2700 SFF
HP Compaq Business Desktop dx2700 SFFHP Compaq Business Desktop dx2700 SFF
HP Compaq Business Desktop dx2700 SFF
Maximum Quantity
Maximum QuantityMaximum Quantity
Maximum Quantity
Supported
SupportedSupported
Supported
Position Supported
Position SupportedPosition Supported
Position Supported
Controller
ControllerController
Controller
Drive Support
Drive SupportDrive Support
Drive Support
Diskette Drives (MT)
1 3
ICH8
Diskette Drives (SFF)
1 1
ICH8
CD-ROM Drives (MT)
2
1, 2
SATA
CD-ROM Drives (SFF)
1 2
SATA
DVD-ROM Drives (MT)
2
1, 2
SATA
DVD-ROM Drives (SFF)
1 2
SATA
CD-RW/Combo Drives (MT)
2
1, 2
SATA
CD-RW/Combo Drives (SFF)
1 2
SATA
DVD+/-RW Drives (MT)
2
1, 2
SATA
DVD+/-RW Drives (SFF)
1 2
SATA
3.5" Serial ATA Hard Drives (MT)
2
4, 5
SATA
3.5" Serial ATA Hard Drives (SFF)
1 3
SATA
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 16
Integrated Realtek
Integrated RealtekIntegrated Realtek
Integrated Realtek
ALC885 Audio
ALC885 AudioALC885 Audio
ALC885 Audio
Type
TypeType
Type
Integrated
High definition
High definitionHigh definition
High definition
Yes
Sampling
SamplingSampling
Sampling
Supports 96 KHz
Power Support
Power SupportPower Support
Power Support
Digital: 3.3V
Analog: 5V
NOTE:
NOTE: NOTE:
NOTE:
External Speakers need to be powered externally.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Audio
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 17
Agere 56K PCI Modem
Agere 56K PCI ModemAgere 56K PCI Modem
Agere 56K PCI Modem
Data Transmission
Data TransmissionData Transmission
Data Transmission
56,000 Kbps maximum downstream data
NOTE:
NOTE: NOTE:
NOTE:
56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
Data Speeds
Data SpeedsData Speeds
Data Speeds
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/
12,000/9,600/7,200/4,800/2,400/1,200/300
Data Standards
Data StandardsData Standards
Data Standards
ITU-T V.90, ITU-T, V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and
Bell 103
Fax Speeds
Fax SpeedsFax Speeds
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/300 b/s
Fax Mode Capabilities
Fax Mode CapabilitiesFax Mode Capabilities
Fax Mode Capabilities
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Error Correction and
Error Correction andError Correction and
Error Correction and
Data Compression
Data CompressionData Compression
Data Compression
V.44, 42bis, V.42 and MNP2-5
Power Management
Power ManagementPower Management
Power Management
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Upgradeability
UpgradeabilityUpgradeability
Upgradeability
Driver upgradeable for future enhancements
Video
VideoVideo
Video
ITU-T V.80 video ready interface
Other
OtherOther
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 158° F (0° to 70° C)
Operating Humidity
Operating HumidityOperating Humidity
Operating Humidity
20% to 90%, non-condensing
Power
PowerPower
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Chipset
ChipsetChipset
Chipset
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Dimensions
Dimensions Dimensions
Dimensions
(L X H)
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Connection
ConnectionConnection
Connection
Single RJ-11 connector
Other Features
Other FeaturesOther Features
Other Features
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
Safety
SafetySafety
Safety
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
EMC
EMCEMC
EMC
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
Telecom
TelecomTelecom
Telecom
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Health
HealthHealth
Health
Bare PCB material compliant to 94V-0 or better (marked as such)
Other
OtherOther
Other
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Communications
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 18
Kit Contents
Kit ContentsKit Contents
Kit Contents
DC132D : Agere Systems PCI International Softmodem with full-height
bracket attached, additional low-profile bracket, RJ-11 modem cable, driver
and documentation CD.
NOTE:
NOTE: NOTE:
NOTE:
RJ-11 modem adapter is not included.
DC131C #xxx RJ-11 modem adapter kit for use with DC132D #ACJ: India
Broadcom NetXtreme
Broadcom NetXtremeBroadcom NetXtreme
Broadcom NetXtreme
Gigabit Ethernet PCI
Gigabit Ethernet PCIGigabit Ethernet PCI
Gigabit Ethernet PCI
Express x1 Adapter
Express x1 AdapterExpress x1 Adapter
Express x1 Adapter
Connector
ConnectorConnector
Connector
RJ-45
Controller
ControllerController
Controller
Broadcom 5751 PCI-Express LAN Controller
Memory
MemoryMemory
Memory
Integrated 96Kb frame buffer memory
Data rates supported
Data rates supportedData rates supported
Data rates supported
10/100/1000 Mbps
Compliance
ComplianceCompliance
Compliance
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
Bus architectureBus architecture
Bus architecture
PCI-E
Data path width
Data path widthData path width
Data path width
Single channel, PCI-E
Data transfer mode
Data transfer modeData transfer mode
Data transfer mode
Bus-master DMA
Hardware certifications
Hardware certificationsHardware certifications
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV-GS Mark
for European Union
Power requirement
Power requirementPower requirement
Power requirement
3.1 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Boot ROM supportBoot ROM support
Boot ROM support
Yes
Network transfer mode
Network transfer modeNetwork transfer mode
Network transfer mode
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate
Network transfer rateNetwork transfer rate
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
EnvironmentalEnvironmental
Environmental
Operating temperature
Operating temperatureOperating temperature
Operating temperature
32° to 131° F (0° to 55° C)
Operating humidity
Operating humidityOperating humidity
Operating humidity
85% at 131° F (55° C)
Dimensions
DimensionsDimensions
Dimensions
4.4 x 2.2 x 0.08 in (11.2 x 5.5 x 0.2 cm)
Management capabilities
Management capabilitiesManagement capabilities
Management capabilities
ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
AlertingAlerting
Alerting
N/A
Kit contents
Kit contentsKit contents
Kit contents
Broadcom 5751, CD, Broadcom NetXtreme Gigabit Ethernet PCI-E Adapter,
drivers, quick install guide, product warranty Statement
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Communications
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 19
Integrated Intel
Integrated IntelIntegrated Intel
Integrated Intel
GMA3000
GMA3000GMA3000
GMA3000
3D/2D Controller
3D/2D Controller3D/2D Controller
3D/2D Controller
Support is fully compliant with Microsoft Standard API such as Direct Draw,
GDI/GDI+ and Direct Show
VGA Controller
VGA ControllerVGA Controller
VGA Controller
Integrated
Bus Type
Bus TypeBus Type
Bus Type
none
RAMDAC
RAMDACRAMDAC
RAMDAC
Integrated 400-MHz DAC
Memory
MemoryMemory
Memory
Graphics memory is shared with system memory. Graphics memory usage
can be up to maximum 192MB depending on the amount of system memory
installed and system load. Additional memory is allocated for graphics using
Intel's Dynamic Video Memory Technology (DVMT) to balance the optimum
amount of memory between graphics and other system use.
Controller Clock Speed
Controller Clock SpeedController Clock Speed
Controller Clock Speed
333 MHz
Overlay Planes
Overlay PlanesOverlay Planes
Overlay Planes
Single Overlay support with 5x3 filtering
Maximum Color Depth
Maximum Color DepthMaximum Color Depth
Maximum Color Depth
64-bits/pixel
Maximum Vertical Refresh
Maximum Vertical RefreshMaximum Vertical Refresh
Maximum Vertical Refresh
Rate
RateRate
Rate
75Hz at 2048 x 1536. Varies with mode and configuration. See table below
Multi-display Support
Multi-display SupportMulti-display Support
Multi-display Support
Dual independent display
Graphics/Video API
Graphics/Video APIGraphics/Video API
Graphics/Video API
Support
SupportSupport
Support
Microsoft DirectX®9, DirectXVA®, VMR9, GDI/GDI+; OpenGL® 1.4.
Resolutions Supported
Resolutions SupportedResolutions Supported
Resolutions Supported
1111
Resolution
ResolutionResolution
Resolution
Maximum Refresh Rate (Hz)
Maximum Refresh Rate (Hz)Maximum Refresh Rate (Hz)
Maximum Refresh Rate (Hz)
Analog Monitor
Analog MonitorAnalog Monitor
Analog Monitor
Digital Monitor
Digital MonitorDigital Monitor
Digital Monitor
640 x 480
640 x 480640 x 480
640 x 480
85 70
800 x 600
800 x 600800 x 600
800 x 600
85 70
1024 x 768
1024 x 7681024 x 768
1024 x 768
85 70
1152 x 864
1152 x 8641152 x 864
1152 x 864
85 70
1280 x768
1280 x7681280 x768
1280 x768
60 70
1280 x 960
1280 x 9601280 x 960
1280 x 960
85 70
1280 x 1024
1280 x 10241280 x 1024
1280 x 1024
85 70
1600 x 900
1600 x 9001600 x 900
1600 x 900
60 70
1600 x 1200
1600 x 12001600 x 1200
1600 x 1200
85 60
1920 x 1080
1920 x 10801920 x 1080
1920 x 1080
60
-
1920 x 1200
1920 x 12001920 x 1200
1920 x 1200
60
-
1920 x 1440
1920 x 14401920 x 1440
1920 x 1440
75
-
2048 x 1536
2048 x 15362048 x 1536
2048 x 1536
75
-
1
Modes listed are supported with a single active display. The supported mode list for multiple active
displays is a subset of this list. Not all modes will support video playback and some supported modes
may use software MC (motion compensation) rather than hardware MC. Not all modes will support 3D
acceleration depending on the system configuration (e.g., resolution selected, size of frame buffer,
number of installed memory modules, etc.).
*NOTE
*NOTE*NOTE
*NOTE
: Other resolutions and refresh rates may be selectable but are not recommended.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Graphics
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 20
HP PS/2 or USB Standard
HP PS/2 or USB StandardHP PS/2 or USB Standard
HP PS/2 or USB Standard
Keyboard
KeyboardKeyboard
Keyboard
Physical
PhysicalPhysical
Physical
characteristics
characteristicscharacteristics
characteristics
Keys
KeysKeys
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions
DimensionsDimensions
Dimensions
(L x W x H)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
WeightWeight
Weight
2 lb (0.9 kg) minimum
Electrical
ElectricalElectrical
Electrical
Operating voltage
Operating voltageOperating voltage
Operating voltage
+ 5VDC ± 5%
Power consumption
Power consumptionPower consumption
Power consumption
50-mA maximum (with three LEDs ON)
ESD
ESDESD
ESD
CE level 4, 15-kV air discharge
EMI – RFI
EMI – RFIEMI – RFI
EMI – RFI
Conforms to FCC rules for a Class B computing
device
Microsoft
MicrosoftMicrosoft
Microsoft
PC 99 – 2001
PC 99 – 2001PC 99 – 2001
PC 99 – 2001
Functionally compliant
Mechanical
MechanicalMechanical
Mechanical
Languages
LanguagesLanguages
Languages
38 available
Keycaps
KeycapsKeycaps
Keycaps
Low-profile design
Switch actuation
Switch actuationSwitch actuation
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
Switch lifeSwitch life
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Switch typeSwitch type
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
Key-leveling mechanismsKey-leveling mechanisms
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
Cable lengthCable length
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001
Microsoft PC 99 – 2001Microsoft PC 99 – 2001
Microsoft PC 99 – 2001
Mechanically compliant
Acoustics
AcousticsAcoustics
Acoustics
43-dBA maximum sound pressure level
Environmental
EnvironmentalEnvironmental
Environmental
Operating temperature
Operating temperatureOperating temperature
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
Non-operatingNon-operating
Non-operating
temperature
temperaturetemperature
temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
Operating humidityOperating humidity
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
Non-operating humidityNon-operating humidity
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
Operating shockOperating shock
Operating shock
40 g, six surfaces
Non-operating shock
Non-operating shockNon-operating shock
Non-operating shock
80 g, six surfaces
Operating vibration
Operating vibrationOperating vibration
Operating vibration
2-g peak acceleration
Non-operating vibration
Non-operating vibrationNon-operating vibration
Non-operating vibration
4-g peak acceleration
Drop
DropDrop
Drop
(out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop
DropDrop
Drop
(in box)
42 in (107 cm) on concrete, 16-drop sequence
Approvals
ApprovalsApprovals
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
Ergonomic complianceErgonomic compliance
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Input/Output Devices
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 21
HP 2-Button Scroll Mouse
HP 2-Button Scroll MouseHP 2-Button Scroll Mouse
HP 2-Button Scroll Mouse
(PS/2 or USB)
Scroll Wheel
Scroll WheelScroll Wheel
Scroll Wheel
8 mm
Maximum Rotation Speed
Maximum Rotation SpeedMaximum Rotation Speed
Maximum Rotation Speed
30 mm/s
Switch Type
Switch TypeSwitch Type
Switch Type
Light force micro-switch
Switch Life
Switch LifeSwitch Life
Switch Life
1 million operations
Mechanical Life
Mechanical LifeMechanical Life
Mechanical Life
Minimum 200,000 revolutions
Environmental
EnvironmentalEnvironmental
Environmental
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating
Non-operatingNon-operating
Non-operating
Temperature
TemperatureTemperature
Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
Operating HumidityOperating Humidity
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
Non-operating HumidityNon-operating Humidity
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
Operating ShockOperating Shock
Operating Shock
40 g, 6 surfaces
Non-operating Shock
Non-operating ShockNon-operating Shock
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
Operating VibrationOperating Vibration
Operating Vibration
2 g peak acceleration
Non-operating Vibration
Non-operating VibrationNon-operating Vibration
Non-operating Vibration
4 g peak acceleration
Electrical
ElectricalElectrical
Electrical
Operating Voltage
Operating VoltageOperating Voltage
Operating Voltage
+ 5VDC ± 10%
Power Consumption
Power ConsumptionPower Consumption
Power Consumption
15mA
System Consumption
System ConsumptionSystem Consumption
System Consumption
PS/2 mini-din connector
ESD
ESDESD
ESD
CE level 4, 15 kV air discharge
EMI-RFI
EMI-RFIEMI-RFI
EMI-RFI
Conforms to FCC rules for a Class B computing
device
PC98
PC98PC98
PC98
Functionally compliant
Mechanical
MechanicalMechanical
Mechanical
Resolution
ResolutionResolution
Resolution
400 ± 20% DPI
Tracking Speed
Tracking SpeedTracking Speed
Tracking Speed
10 in/s maximum
Acceleration
AccelerationAcceleration
Acceleration
100 in/s
Switch Actuation
Switch ActuationSwitch Actuation
Switch Actuation
85 g nominal peak force
Switch Life
Switch LifeSwitch Life
Switch Life
1,000,000 operations (using Hasco modified
tester)
Cable Length
Cable LengthCable Length
Cable Length
2 m
PC98-99
PC98-99PC98-99
PC98-99
Mechanically compliant
Regulatory Approvals
Regulatory ApprovalsRegulatory Approvals
Regulatory Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Input/Output Devices
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 22
7200 rpm Serial ATA
7200 rpm Serial ATA7200 rpm Serial ATA
7200 rpm Serial ATA
Hard Drives
Hard DrivesHard Drives
Hard Drives
40-GB
40-GB40-GB
40-GB
Capacity
CapacityCapacity
Capacity
40,020,664,320 bytes
Dimensions
DimensionsDimensions
Dimensions
(H x W)
1.0 x 4.0 in (2.5 x 10.2 cm)
Interface
InterfaceInterface
Interface
Serial ATA
Synchronous Transfer
Synchronous TransferSynchronous Transfer
Synchronous Transfer
Rate
RateRate
Rate
(Maximum)
1.5 Gb/s
Buffer
BufferBuffer
Buffer
2 MB
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads,
includes controller
overhead, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.0 ms
Average
AverageAverage
Average
8.5 ms
Full-Stroke
Full-StrokeFull-Stroke
Full-Stroke
18 ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7,200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
78,165,360
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
41° to 131° F (5° to 55° C)
80 GB
80 GB80 GB
80 GB
Capacity
CapacityCapacity
Capacity
80,026,361,856 bytes
Height
HeightHeight
Height
1 in (2.6 cm)
Width
WidthWidth
Width
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Interface
InterfaceInterface
Interface
Serial ATA
Synchronous Transfer
Synchronous TransferSynchronous Transfer
Synchronous Transfer
Rate
RateRate
Rate
(Maximum)
3.0 Gb/s
Buffer
BufferBuffer
Buffer
8 MB
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads,
includes controller
overhead, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.0 ms
Average
AverageAverage
Average
8.5 ms
Full-Stroke
Full-StrokeFull-Stroke
Full-Stroke
18 ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7,200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
156,301,488
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 140° F (0° to 60° C)
160 GB
160 GB160 GB
160 GB
Capacity
CapacityCapacity
Capacity
160,041,885,696 bytes
Height
HeightHeight
Height
1 in (2.6 cm)
Width
WidthWidth
Width
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Interface
InterfaceInterface
Interface
Serial ATA
Synchronous Transfer
Synchronous TransferSynchronous Transfer
Synchronous Transfer
Rate
RateRate
Rate
(Maximum)
3.0 Gb/s
Buffer
BufferBuffer
Buffer
8 MB
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads,
includes controller
overhead, including
settling)
Single Track
Single TrackSingle Track
Single Track
1.0 ms
Average
AverageAverage
Average
8.5 ms
Full-Stroke
Full-StrokeFull-Stroke
Full-Stroke
18 ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7,200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
312,581,808
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
32° to 140° F (0° to 60° C)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Hard Drives
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 23
250 GB
250 GB250 GB
250 GB
Capacity
CapacityCapacity
Capacity
250,059,350,016 bytes
Height
HeightHeight
Height
1 in (2.6 cm)
Width
WidthWidth
Width
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Interface
InterfaceInterface
Interface
Serial ATA
Synchronous Transfer
Synchronous TransferSynchronous Transfer
Synchronous Transfer
Rate
RateRate
Rate
(Maximum)
3.0 Gb/s
Buffer
BufferBuffer
Buffer
8 MB
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads,
includes controller
overhead, including
settling)
Single Track
Single TrackSingle Track
Single Track
0.8 ms
Average
AverageAverage
Average
<9.0 ms
Full-Stroke
Full-StrokeFull-Stroke
Full-Stroke
=17 ms
Rotational Speed
Rotational SpeedRotational Speed
Rotational Speed
7,200 rpm
Logical Blocks
Logical BlocksLogical Blocks
Logical Blocks
488,397,168
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
41° to 131° F (5° to 55° C)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Hard Drives
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 24
48X Max CD-ROM Drive
48X Max CD-ROM Drive48X Max CD-ROM Drive
48X Max CD-ROM Drive
Interface
InterfaceInterface
Interface
SATA
Data Buffer
Data BufferData Buffer
Data Buffer
2MB
Data Transfer Rates -
Data Transfer Rates -Data Transfer Rates -
Data Transfer Rates Read
ReadRead
Read
Audio CD - 1,800 to 3,600 KB/s (24X) Max
CD-ROM, CD-R - 2,400 to 7,200 KB/s (48x) Max
Access Time (ms)
Access Time (ms)Access Time (ms)
Access Time (ms)
Random: <125ms
Full-Stroke seek: <210 ms
Disk Formats Read
Disk Formats ReadDisk Formats Read
Disk Formats Read
CD-ROM Mode 1, CD-ROM XA (Mode 2, Form 1 and 2), CD Digital
Audio, CD-EXTRA, CD-I (Mode 2, Form 1 and 2) and CD-I Ready, CD-Text,
CD-Bridge, Photo CD (Single and Multi Session), Video CD, CD-R and CDRW Multi-Session
Disk Formats Written
Disk Formats WrittenDisk Formats Written
Disk Formats Written
None
Disk Capacity
Disk Capacity Disk Capacity
Disk Capacity
(CD)
180MB, 540MB, 650 MB, and 700MB
Block Size
Block SizeBlock Size
Block Size
Mode 1 - 2,048, 2,352 bytes
Mode 2 - 1, 2,048, 2,328, 2,336, 2,340, 2,353 bytes
Mode 2 - 2, 2,328, 2,336, 2,340, 2,352 bytes
CD-DA - 2,352, 2,368 bytes
Diameter
DiameterDiameter
Diameter
12 cm; 8 cm
Thickness
ThicknessThickness
Thickness
1.2 mm
Track Pitch
Track PitchTrack Pitch
Track Pitch
1.6 µm
Audio Output Level
Audio Output LevelAudio Output Level
Audio Output Level
Line-out - 0.7 V @ 47 Kohm
Headphone - 0.6 V @ 32 ohm
Startup Time
Startup TimeStartup Time
Startup Time
<7 seconds (typical); < 30 seconds with multi-session
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
Temperature
TemperatureTemperature
Temperature
41° to 120° F (5° to 50° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
10% to 90%
Dimensions
DimensionsDimensions
Dimensions
(H x W x D, maximum)
1.7 x 5.9 x 8.0 in (4.3 x 15.0 x 20.3 cm)
Weight
WeightWeight
Weight
2.6 lb (1200 g)
48X/32X/48X CD-RW
48X/32X/48X CD-RW48X/32X/48X CD-RW
48X/32X/48X CD-RW
Drive
DriveDrive
Drive
Orientation
OrientationOrientation
Orientation
Either horizontal or vertical
Disc Loading Mechanism
Disc Loading MechanismDisc Loading Mechanism
Disc Loading Mechanism
Half-height, tray load
Interface Type
Interface TypeInterface Type
Interface Type
SATA
Dimensions
DimensionsDimensions
Dimensions
(W x H x D)
7.99 x 5.88 x 1.71 in (203 x 149.5 x 43.5 mm)
Weight
WeightWeight
Weight
(maximum)
2.6 lb (1.2 kg)
Disc Diameter
Disc DiameterDisc Diameter
Disc Diameter
12 cm, 8 cm
Disc Thickness
Disc ThicknessDisc Thickness
Disc Thickness
1.2 mm
Track Pitch
Track PitchTrack Pitch
Track Pitch
1.6 m µm
Disc Center Hole
Disc Center HoleDisc Center Hole
Disc Center Hole
Diameter
DiameterDiameter
Diameter
15 mm
Reference Scanning
Reference ScanningReference Scanning
Reference Scanning
Velocity
VelocityVelocity
Velocity
1.2 m/s
Recording/Playing Time
Recording/Playing TimeRecording/Playing Time
Recording/Playing Time
80 minutes with CD-R media
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 25
Read Only Disc
Read Only DiscRead Only Disc
Read Only Disc
Parameters
ParametersParameters
Parameters
Formats and Modes
Formats and ModesFormats and Modes
Formats and Modes
Supported
SupportedSupported
Supported
CD-ROM - Mode 1; CD-ROM XA - Mode 2
(forms 1 and 2); CD digital audio; CD Extra;
CD-I - Mode 2 (forms 1 and 2) and CD-I-Ready;
Photo CD (single and multi-session); video CD
Capacity
CapacityCapacity
Capacity
185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode
2, 12 cm)
Block Size
Block SizeBlock Size
Block Size
Mode 1 - 2,048 and 2,352 bytes; mode 2, form
1 - 2,048; 2,328; 2,336; 2,340 and 2,352
bytes; mode 2, form 2 - 2,328; 2,336; 2,340
and 2,352 bytes; CD-DA - 2,352 and 2,368
bytes
Writeable Disc
Writeable DiscWriteable Disc
Writeable Disc
Parameters
ParametersParameters
Parameters
Disc Type
Disc TypeDisc Type
Disc Type
CD-R and CD-RW
Write Methods
Write MethodsWrite Methods
Write Methods
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
Format and Modes
Format and ModesFormat and Modes
Format and Modes
Supported
SupportedSupported
Supported
CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD
Capacity
CapacityCapacity
Capacity
185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode
2, 12 cm)
Block Size
Block SizeBlock Size
Block Size
Mode 1 - 2,048 bytes; mode 2, form 1 - 2,048
and 2,352 bytes; mode 2, form 2 - 2,352 bytes;
CD-DA - 2,352 bytes
Access Times
Access TimesAccess Times
Access Times
(typical)
Random
RandomRandom
Random
< 120 ms
Full Stroke
Full StrokeFull Stroke
Full Stroke
< 200 ms
CD-RW Write
CD-RW WriteCD-RW Write
CD-RW Write
4800 KB/s (32X) Max
CD-ROM, CD-R read
CD-ROM, CD-R readCD-ROM, CD-R read
CD-ROM, CD-R read
7200 KB/s (48X) Max
CD-RW read
CD-RW readCD-RW read
CD-RW read
7200 KB/s (32X) Max
CD-R write
CD-R writeCD-R write
CD-R write
7200 KB/s (48X) Max
Data Transfer Modes
Data Transfer ModesData Transfer Modes
Data Transfer Modes
ATA PIO mode 4 (16.7MB/s); ATA multi-word DMA mode 2 (16.7 MB/s);
ATA UltraDMA mode 0 (16.7 MB/s); ATA UltraDMA mode 1 (24 MB/s);
ATA UltraDMA mode 2 (33 MB/s) - default.
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
2 MB (minimum)
Start-up Time
Start-up Time Start-up Time
Start-up Time
(single)
< 7 seconds typical
Start-up Time
Start-up Time Start-up Time
Start-up Time
(multi-
session)
< 30 seconds typical
Stop Time
Stop TimeStop Time
Stop Time
< 4 seconds
Power
PowerPower
Power
Source
SourceSource
Source
Four-pin, DC power receptacle
DC Power Requirement
DC Power RequirementDC Power Requirement
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
DC CurrentDC Current
DC Current
5 VDC < 1A (typical)< 1600 mA (maximum)
12 VCD < 600 mA (typical) < 1.4A (maximum)
Total Drive Power
Total Drive PowerTotal Drive Power
Total Drive Power
(standby mode)
< 2.5 Watt
Audio Output
Audio OutputAudio Output
Audio Output
Line-Out
Line-OutLine-Out
Line-Out
0.7 VRMS
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 26
Configuration Jumper
Configuration JumperConfiguration Jumper
Configuration Jumper
Block
BlockBlock
Block
Master, slave and cable select modes
Data Interface Connector
Data Interface ConnectorData Interface Connector
Data Interface Connector
50-pin IDE interface
Environmental
EnvironmentalEnvironmental
Environmental
(all conditions, noncondensing)
Temperature
Temperature Temperature
Temperature
(operating)
Operating 41° to 122° F (5° to 50° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
(operating)
10% to 90%
Maximum Wet Bulb
Maximum Wet BulbMaximum Wet Bulb
Maximum Wet Bulb
Temperature
Temperature Temperature
Temperature
(operating)
84° F (29° C)
Certifications,
Certifications,Certifications,
Certifications,
Requirements
RequirementsRequirements
Requirements
ACA AS/NZS 3548, ANSI C63.4-1992, CB Test Certificate for IEC
950, CE Mark, CFR 47 part 15, CNS 13438, CSA C22.2 No. 60950,
DHHS/FDA - 1040, EN60825, EN55022:1998, EN55024, EN60
950:2000, ICES-003 class B, IEC 61000 4-2 - 4-11, Nordic EN60 950,
TUV or VDE EN60 950, UL 60950, C.I.S.P.R. Publication 22 Class B, BSMI,
Microsoft P2001, Microsoft Logo for Windows 98, 2000 and XP
16X/40X DVD-ROM Drive
16X/40X DVD-ROM Drive16X/40X DVD-ROM Drive
16X/40X DVD-ROM Drive
Height
HeightHeight
Height
5.25-in, half-height
Interface Type
Interface TypeInterface Type
Interface Type
ATAPI
Dimensions– External,
Dimensions– External,Dimensions– External,
Dimensions– External,
Excluding Bezel
Excluding BezelExcluding Bezel
Excluding Bezel
(W x H)
5.88 x 1.71 in (149.5 x 43.5 mm)
Disc Diameter
Disc DiameterDisc Diameter
Disc Diameter
12 cm, 8 cm
Disc Thickness
Disc ThicknessDisc Thickness
Disc Thickness
1.2 mm
Track Pitch
Track PitchTrack Pitch
Track Pitch
1.6 µm (CD), 0.74 µm (DVD)
Disc Center Hole
Disc Center HoleDisc Center Hole
Disc Center Hole
Diameter
DiameterDiameter
Diameter
15 mm
Disc Formats
Disc FormatsDisc Formats
Disc Formats
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ;
CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2;
CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD,
CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
Disc Capacity
Disc CapacityDisc Capacity
Disc Capacity
DVD-ROM
DVD-ROMDVD-ROM
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7 GB
(DVD-R version 2.0), 4.7 GB (DVD-RW version
1.0 and 1.1), 4.7 GB (DVD+RW), 4.7 GB
(DVD+R)
CD-ROM
CD-ROMCD-ROM
CD-ROM
40 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
Block Size
Block Size Block Size
Block Size
(bytes)
DVD-ROM - 2048; CD-ROM Mode 0 - 2352; CD-ROM Mode 1 - 2352,
2340, 2336, 2048; CD-ROM Mode 2 - 2352, 2340, 2336, 2048
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
DVD-ROM Single LayerDVD-ROM Single Layer
DVD-ROM Single Layer
120 ms (typical)
CD-ROM Mode 1
CD-ROM Mode 1CD-ROM Mode 1
CD-ROM Mode 1
90 ms (typical)
Full Stroke DVD
Full Stroke DVDFull Stroke DVD
Full Stroke DVD
240 ms (seek) (typical)
Full Stroke CD
Full Stroke CDFull Stroke CD
Full Stroke CD
160 ms (seek) (typical)
Maximum Data Transfer
Maximum Data TransferMaximum Data Transfer
Maximum Data Transfer
Rates
RatesRates
Rates
CD-ROM Read
CD-ROM ReadCD-ROM Read
CD-ROM Read
6000 KB/s (40X) Max
DVD-ROM Read
DVD-ROM ReadDVD-ROM Read
DVD-ROM Read
21,600 KB/s (16X) Max
Data Transfer Modes
Data Transfer ModesData Transfer Modes
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA
Mode 3 (44.4 MB/s)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 27
Power
PowerPower
Power
Source
SourceSource
Source
Four-pin, DC power receptacle
DC Power Requirement
DC Power RequirementDC Power Requirement
DC Power Requirement
5 VDC ± 5% – 100 mV ripple p-p
12 VDC ± 5% – 200 mV ripple p-p
DC Current
DC CurrentDC Current
DC Current
5 VDC – <800 mA typical, < 1000 mA
maximum
12 VDC – < 870 mA typical
Audio Output Level
Audio Output LevelAudio Output Level
Audio Output Level
0.7 Vrms (typical)
Configuration Jumper
Configuration JumperConfiguration Jumper
Configuration Jumper
Block
BlockBlock
Block
Master, slave, and cable select modes
Data Interface Connector
Data Interface ConnectorData Interface Connector
Data Interface Connector
40-pin, shrouded and keyed, flat ribbon
Environmental
EnvironmentalEnvironmental
Environmental
(all conditions noncondensing)
Temperature
TemperatureTemperature
Temperature
(operating)
41° to 122° F (5° to 50° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
(operating)
10% to 85%
Maximum Wet Bulb
Maximum Wet BulbMaximum Wet Bulb
Maximum Wet Bulb
Temperature
TemperatureTemperature
Temperature
(operating)
86° F (30° C)
Certifications, Approvals
Certifications, ApprovalsCertifications, Approvals
Certifications, Approvals
MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE
EN60950, EN 55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN
60825-1, UL 60950, and CSA C22.2 60950-2000.
Kit Contents
Kit ContentsKit Contents
Kit Contents
16X/40X DVD-ROM Drive, Roxio CinePlayer software, and installation
guide.
48X/32X/48X/16X
48X/32X/48X/16X48X/32X/48X/16X
48X/32X/48X/16X
Combo CD-RW/DVD-
Combo CD-RW/DVD-Combo CD-RW/DVD-
Combo CD-RW/DVDROM
ROMROM
ROM
Form Factor
Form FactorForm Factor
Form Factor
5.25-inch, half-height, tray-load
Color
ColorColor
Color
Carbonite
Mounting Orientation
Mounting OrientationMounting Orientation
Mounting Orientation
Either horizontal or vertical
Interface
InterfaceInterface
Interface
SATA
Dimensions
Dimensions Dimensions
Dimensions
(HxWxD)
5.77 x 1.71 x 7.36 in (146.5 x 43.5 x 187 mm) (external, excluding bezel)
Disc Diameter
Disc DiameterDisc Diameter
Disc Diameter
12 cm, 8 cm
Disc Thickness
Disc ThicknessDisc Thickness
Disc Thickness
0.05 in (1.2 mm)
Track Pitch
Track PitchTrack Pitch
Track Pitch
1.6 um (CD), 0.74 um (DVD)
Disc Center Hole
Disc Center HoleDisc Center Hole
Disc Center Hole
Diameter
DiameterDiameter
Diameter
0.6 in (15 mm)
Reference Scanning
Reference ScanningReference Scanning
Reference Scanning
Velocity
VelocityVelocity
Velocity
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Read Only Disc
Read Only DiscRead Only Disc
Read Only Disc
Parameters
ParametersParameters
Parameters
Formats and Modes
Formats and ModesFormats and Modes
Formats and Modes
Supported
SupportedSupported
Supported
CD-ROM - Mode 1; CD-ROM XA - Mode 2
(forms 1 and 2); CD-Bridge; CD digital audio;
CD Extra; CD-I - Mode 2 (forms 1 and 2) and
CD-I-Ready; Photo CD (single and multisession); video CD; DVD (single- and doublelayer); DVD-R; DVD-RW; DVD-RW Multi-Border;
DVD+R; DVD+R Multi-Session, and DVD+RW
Capacity
CapacityCapacity
Capacity
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (Mode
2, 12 cm); 4.7 GB (DVD-5); 8.54 GB (DVD-9);
9.4 GB (DVD-10)
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 28
Block Size
Block SizeBlock Size
Block Size
Mode 1 - 2,048 and 2,352 bytes; mode 2, form
1 - 2,048; 2,328; 2,336; 2,340 and 2,352
bytes; mode 2, form 2-2,328; 2,336; 2,340 and
2,352 bytes; CD-DA-2,352 bytes; DVD-2,048
bytes
Writeable Disc
Writeable DiscWriteable Disc
Writeable Disc
Parameters
ParametersParameters
Parameters
Disc Type
Disc TypeDisc Type
Disc Type
CD-R and CD-RW
Write Methods
Write MethodsWrite Methods
Write Methods
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
Format and Modes
Format and ModesFormat and Modes
Format and Modes
Supported
SupportedSupported
Supported
CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD; CD-Bridge; Video CD
Capacity
CapacityCapacity
Capacity
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (mode
2, 12 cm)
Block Size
Block SizeBlock Size
Block Size
CD-DA - 2,352 bytes; mode 0 - 2,336 and
2,352 bytes; mode 1 - 2,048 and 2,352 bytes;
mode 2 - 2,336 and 2,352; mode 2,
form 1 - 2,048 and 2,352 bytes; mode 2,
form 2 - 2,324 and 2,352 bytes
Access Times
Access TimesAccess Times
Access Times
(typical reads, including
settling)
Random DVD
Random DVDRandom DVD
Random DVD
< 140 ms (typical)
Random CD
Random CDRandom CD
Random CD
< 125 ms, (typical)
Full Stroke DVD
Full Stroke DVDFull Stroke DVD
Full Stroke DVD
< 250 ms (seek)
Full Stroke CD
Full Stroke CDFull Stroke CD
Full Stroke CD
< 210 ms (seek)
Maximum Data Transfer
Maximum Data TransferMaximum Data Transfer
Maximum Data Transfer
Rates
RatesRates
Rates
CD-R write
CD-R writeCD-R write
CD-R write
7200 KB/s (48X) Max
CD-RW write
CD-RW writeCD-RW write
CD-RW write
1500 KB/s (10X) Max
CD-ROM, CD-R,
CD-ROM, CD-R,CD-ROM, CD-R,
CD-ROM, CD-R,
CD-RW read
CD-RW readCD-RW read
CD-RW read
7200 KB/s (48X) Max
DVD ROM read
DVD ROM readDVD ROM read
DVD ROM read
21,632 KB/s (16X ) Max
DVD RW
DVD RWDVD RW
DVD RW
Data Transfer Modes
Data Transfer ModesData Transfer Modes
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s);
ATA UltraDMA mode 0 (16.7 MB/s); ATA UltraDMA mode 1 (24 MB/s),
mode 2 (33 MB/s); ATA UltraDMA Mode 3 44 Mbytes/s (default)
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
2 MB (minimum)
Startup Time
Startup TimeStartup Time
Startup Time
(single)
< 7 seconds (typical)
Startup Time
Startup TimeStartup Time
Startup Time
(multi-session)
< 30 seconds (typical)
Stop Time
Stop TimeStop Time
Stop Time
< 4 seconds
Power
PowerPower
Power
Source
SourceSource
Source
Four-pin, DC power receptacle
DC Power Requirement
DC Power RequirementDC Power Requirement
DC Power Requirement
5 VDC ± 5% - 100 mV ripple p-p
12 VDC ± 5% - 200 mV ripple p-p
DC Current
DC CurrentDC Current
DC Current
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
Total Drive Power
Total Drive PowerTotal Drive Power
Total Drive Power
(standby mode)
< 2.5 Watt
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 29
Audio Output
Audio OutputAudio Output
Audio Output
Line-Out
Line-OutLine-Out
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
Signal-to-Noise RatioSignal-to-Noise Ratio
Signal-to-Noise Ratio
74 dB
Channel Separation
Channel SeparationChannel Separation
Channel Separation
65 dB
Configuration Jumper
Configuration JumperConfiguration Jumper
Configuration Jumper
Block
BlockBlock
Block
Master, slave, and cable select modes
Data Interface Connector
Data Interface ConnectorData Interface Connector
Data Interface Connector
40-pin, shrouded and keyed, flat ribbon
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
(all conditions noncondensing)
Temperature
TemperatureTemperature
Temperature
41° to 122° F (5° to 50° C)
Relative humidity
Relative humidityRelative humidity
Relative humidity
10% to 90%
Maximum wet bulb
Maximum wet bulbMaximum wet bulb
Maximum wet bulb
temperature
temperaturetemperature
temperature
86° F (30° C)
Certifications, Approvals
Certifications, ApprovalsCertifications, Approvals
Certifications, Approvals
MPC-3 compliant, multi-read requirements, ACA AS/NZS 3548, ANSI
C63.4-1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No.
92A, CSA C22.2 No. 950-1995, C.I.S.P.R. Pub 22, EMKO-TSE 207/94,
TUV or VDE EN60 950, EN60825-1, Microsoft PC2001 certification,
Microsoft Logo for Windows XP, 2000, and NT4
16X DVD+/-RW Drive
16X DVD+/-RW Drive16X DVD+/-RW Drive
16X DVD+/-RW Drive
Height
HeightHeight
Height
5.25-inch, half-height, tray-load
Orientation
OrientationOrientation
Orientation
Either horizontal or vertical
Interface Type
Interface TypeInterface Type
Interface Type
ATAPI/EIDE or SATA
Disc Recording Capacity
Disc Recording CapacityDisc Recording Capacity
Disc Recording Capacity
8.5 GB DL or 4.7 GB Standard
Dimensions
DimensionsDimensions
Dimensions
(W x H x D)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight
WeightWeight
Weight
(maximum)
2.6 lb (1.2 kg)
Write Speed
Write Speed Write Speed
Write Speed
(maximum)
DVD+R
DVD+RDVD+R
DVD+R
Up to 16X
DVD+RW
DVD+RWDVD+RW
DVD+RW
Up to 4X
DVD+R DL
DVD+R DLDVD+R DL
DVD+R DL
Up to 2.4X
DVD-R
DVD-RDVD-R
DVD-R
Up to 8X
DVD-RW
DVD-RWDVD-RW
DVD-RW
Up to 4X
CD-R
CD-RCD-R
CD-R
Up to 40X
CD-RW
CD-RWCD-RW
CD-RW
Up to 24X
Read Speed
Read Speed Read Speed
Read Speed
(maximum)
DVD+R/-R/+RW/-RW
DVD+R/-R/+RW/-RWDVD+R/-R/+RW/-RW
DVD+R/-R/+RW/-RW
Up to 16X
DVD-ROM
DVD-ROMDVD-ROM
DVD-ROM
Up to 16X
CD-R/RW
CD-R/RWCD-R/RW
CD-R/RW
Up to 40X
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 30
Access Time
Access TimeAccess Time
Access Time
(typical
reads, including settling)
Random
RandomRandom
Random
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
Full Stroke
Full StrokeFull Stroke
Full Stroke
DVD: < 240 ms (seek), CD: < 200 ms (seek)
Startup Time
Startup TimeStartup Time
Startup Time
Single-session: < 7 seconds (typical), Multisession: < 30 seconds (typical)
Stop Time
Stop TimeStop Time
Stop Time
< 4 seconds
Cache Buffer
Cache BufferCache Buffer
Cache Buffer
2 MB (minimum)
Data Transfer Modes
Data Transfer ModesData Transfer Modes
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Power
PowerPower
Power
Source
SourceSource
Source
Four-pin, DC power receptacle
DC Power Requirement
DC Power RequirementDC Power Requirement
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
DC Current
DC CurrentDC Current
DC Current
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
Total Drive Power
Total Drive PowerTotal Drive Power
Total Drive Power
(standby mode)
< 2.5 Watt
Audio Output
Audio OutputAudio Output
Audio Output
Line-Out
Line-OutLine-Out
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
Signal-to-Noise RatioSignal-to-Noise Ratio
Signal-to-Noise Ratio
74 dB
Channel Separation
Channel SeparationChannel Separation
Channel Separation
65 dB
Operating Environmental
Operating EnvironmentalOperating Environmental
Operating Environmental
(all conditions noncondensing)
Temperature
TemperatureTemperature
Temperature
41° to 122° F (5° to 50° C)
Relative humidity
Relative humidityRelative humidity
Relative humidity
10% to 90%
Maximum wet bulb
Maximum wet bulbMaximum wet bulb
Maximum wet bulb
temperature
temperaturetemperature
temperature
86° F (30° C)
System Configuration
System ConfigurationSystem Configuration
System Configuration
Intel Pentium III Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
Regulatory Approvals
Regulatory ApprovalsRegulatory Approvals
Regulatory Approvals
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
T13.1153D, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
Option Kit contents
Option Kit contentsOption Kit contents
Option Kit contents
16X DVD+/-RW drive, Roxio DigitalMedia Plus, Dantz Retrospect Express
Backup Software, installation guide, and DVD+R media.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Optical Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 31
HP 1.44-MB Diskette
HP 1.44-MB DisketteHP 1.44-MB Diskette
HP 1.44-MB Diskette
Drive
DriveDrive
Drive
Size
SizeSize
Size
3.5 in (8.89 cm)
LED Indicators
LED Indicators LED Indicators
LED Indicators
(front
panel)
Green
Read/Write Capacity per
Read/Write Capacity perRead/Write Capacity per
Read/Write Capacity per
Diskette
Diskette Diskette
Diskette
(high/low)
1.44 MB/720 KB
Drive Height
Drive HeightDrive Height
Drive Height
One-third
Drive Rotation
Drive RotationDrive Rotation
Drive Rotation
300 rpm
Transfer Rate
Transfer Rate Transfer Rate
Transfer Rate
(high/low)
500/250 KB/s
Bytes/Sector
Bytes/SectorBytes/Sector
Bytes/Sector
512
Sectors/Track
Sectors/Track Sectors/Track
Sectors/Track
(high/low)
18/9
Tracks/Side
Tracks/Side Tracks/Side
Tracks/Side
(high/low)
80/80
Access Times
Access TimesAccess Times
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/173 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders
Cylinders Cylinders
Cylinders
(high/low)
80/80
Read/Write Heads
Read/Write HeadsRead/Write Heads
Read/Write Heads
Two
© Copyright 2007 Hewlett-Packard Development Company, L.P.
All rights reserved.
Microsoft, Windows and Windows NT are US registered trademarks of Microsoft Corporation. Pentium and Intel are US registered
trademarks of Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form FactorHP Compaq dx2700 Microtower and Small Form Factor
HP Compaq dx2700 Microtower and Small Form Factor
Business PC
Business PCBusiness PC
Business PC
Technical Specifications - Removable Storage
DA - 12661 Worldwide — Version 1 — March 21, 2007
Page 32
Loading...
