HP AG-2 User Manual
AG-2
750 Naples Street • San Francisco, CA 94112 • (415) 584-6360 • http://www.pumpkininc.com
Assembly Guide
Printing to a Mac-only HP
DeskWriter® from a Windows®
PC®
Introduction
Got a "Mac-only" HP DeskWriter inkjet printer gathering dust?
Want to connect it to a PC and print to it from Windows? Then this
Application Guide is for you!
Hewlett-Packard® made two very similar series of desktop inkjet
printers – the DeskJet® series for Windows / PCs, and the
DeskWriter series for Apple® Macintosh® computers. The
DeskWriter line has been discontinued in favor of the current
DeskJet line, now that Macs use USB as their preferred means of
connecting serial devices.
This Application Guide explains how to print from a PC running
Windows 98 or Windows XP to an HP DeskWriter 660C inkjet
printer that has only a mini-DIN-8 connector – a decidedly
nonstandard configuration that is not supported by HP. An unused
serial port (DB-9 or DB-25) is required to connect the PC to the
DeskWriter 660C.
Cabling
DeskWriters with mini-DIN-8 (8-pin) connectors are normally
connected to a Macintosh computer via a Macintosh serial printer
cable with male mini-DIN-8 connectors on each end. Since these
cables are not used in the PC world, a cable must be acquired or
made to connect a DeskWriter to a PC's serial port.
A somewhat similar, widely-available and well-documented cable
provides a good place to start – the Mac modem cable is a min-
DIN-8-to-DB-25 cable that facilitates connecting a Mac modem to
a conventional (i.e. PC) RS-232 serial port. This is a straight-
created by Andrew E. Kalman on Aug 19, 2000 updated on Feb 21, 2006
All trademarks mentioned herein are properties of their respective companies.
though-style cable. The pinout can be found by opening the PICT
resources of the Apple Modem Tool with ResEdit:
Figure 1: Modem Cable Pinout (from Apple). Differs from
Serial Printer Cable Pinou t.
Figure 1 shows the pinout of commercially available cables like
the Belkin® F2V088-06 "6FT MAC MODEM DIN8M/DB25M"
cable, described as "This modem cable interfaces the
Mac+/SE/IIGS and Mac series II computers to all Apple
peripherals with 8 pin mini din serial ports."
Mac serial printer cables differ from Mac modem cables in that
they are null-modem-style cables. Therefore a Mac modem cable
cannot be used (alone) to connect a DeskWriter to a PC. Belkin
makes a very small number of mini-DIN-8-to-DB-25 Mac serial
printer cables (e.g. F2V026-06), but they are configured to connect
a mini-DIN-8 Mac to printers with a DB-25 female connector.
Unfortunately this is the opposite of what we are looking for.
It turns out that what is needed to connect a DeskWriter to a PC is
a combination of the Apple modem cable and a null-modem cable
(fully wired). As a test, we connected a DeskWriter 660C to a PC's
COM2 serial port (DB-9 male) with the following cables and
adapters:
• Apple modem cable (min-DIN-8 male, DB-25 male)
• gender changer adapter (DB-25 female, DB-25
female)
• adapter (DB-25 male, DB-9 male )
• null modem cable (DB-9 female, DB-9 female)
Assembly Guide
2
Note
Apple modem cable and a null-modem cable with female DB-25
connectors on both ends.
If you'd like to make your own mini-DIN-8-to-DB-9 printer cable
and you're handy with a soldering iron, refer to Figure 2.1 You can
make one from an existing Mac serial printer cable and a female
A simpler cable can be assembled with, for example, an
AG-2 Printing to a Mac-only HP DeskWriter® from a Windows® PC®
Assembly Guide
DB-9 connector and hood, available at many electronics stores for
a combined cost of around $10.
Figure 2: Pinout for mini-DIN-8-to-DB-9 Serial Printer
Cable
You can connect the cable shown in Figure 2 directly between a
PC's serial/COM port's DB-9 connector and a DeskWriter's miniDIN-8 connector.
If you have an older PC with DB-25 connectors on one or more of
its serial/COM ports, you'll need to make the cable shown in
Figure 3:2
Figure 3: Pinout for mini-DIN-8-to-DB-25 Serial Printer
Note
The pinout on the side of the DB-25 connector in Figure 3
is completely different from that of the DB-9 connector in Figure
2.
Caution
The DB-9 and DB-25 serial/COM port connectors on
PCs are male / pin / plug type, and mate with female / receptacle /
socket type connectors found on serial cables. PC's also have 25pin female connectors – these are the parallel/LPT port connectors.
Serial/COM and parallel/LPT ports are not interchangeable.
AG-2 Printing to a Mac-only HP DeskWriter® from a Windows® PC®
Cable
3
More Advice on Cabling
Assuming you already have a Mac modem cable (DB-25-to-miniDIN-8), what you need is also a null-modem cable "inline" on your
way to connecting the printer to your PC. Then, you need gender
changers because nearly all null-modem cables these days have
female DB-9s on each end.
There are also some molded DB-25-to-DB-9 adapters out there –
but you will need one with the right sexes (DB-25 female, DB-9
male).
Table 1 (male = pin, female = socket) lists all the connectors and
their sexes as an example of how to connect a typical PC (with
DB-9 serial ports) to a DeskWriter. Each connection is made from
one item's end B to the next item's end A.
PC serial port – male DB-9
Null-modem cable female DB-9 female DB-9
Adapter(s) male DB-9 female DB-25
Mac modem cable male DB-25 male mini-DIN-8
DeskWriter female mini-DIN-8 –
Assembly Guide
Item End A End B
Note
computer or LapLink® cables. Regardless, cables with female DB9s on each end are usually null-modem cables. Null modem cables
are internally different from straight-through / extension cables,
which are always female on one end and male on the other.
Software Configuration
Some Windows drivers for HP DeskJet printers appear to work
properly with their DeskWriter equivalents having the same model
number. In general, you should use the Windows printer driver for
the DeskJet that is most similar to your DeskWriter.
Separate installation instructions for Windows 98 and Windows
XP are presented below.
Table 1: Example Connection using Readily Available
Cables and Adapters
Null-modem cables are also sometimes called computer-to-
Drivers Details – Windows 98
For the DeskWriter 660C, the most obvious HP driver choice is the
DeskJet 660 (Color) driver supplied with Windows 98. Version
4
AG-2 Printing to a Mac-only HP DeskWriter® from a Windows® PC®
Assembly Guide
4.00, using
hpdskjtb.drv
, will provide color and B&W output to
the DeskWriter 660C, allows supports serial printing, but the color
output is of very poor quality and the driver properties are very
limited. Later versions of this driver (e.g. v9.02 and v11.0),
available at HP's web site http://www.hp.com/, do not support
printing to the serial port. Unfortunately, "tricks" like redirecting
printer port output to the serial port via the DOS mode
LPTn=COMn redirection command do not overcome this
limitation.
Interestingly, a driver for a much more modern HP DeskJet series
of printers does work, and it works very nicely. The drivers for the
DeskJet 640C series (with USB and Parallel interfaces) are entirely
compatible with the DeskWriter 660C, and support printing to a
serial port. The "HP DeskJet 640 Series Printer Driver USB"
driver,
dh653en.exe
3
v2.4.4, can be downloaded from HP. The
startup screen is shown below:
Figure 4: HP DeskJet 640C Printer Driver Installer
Run the setup program4 on your PC by selecting "Install HP
DeskJet 640C Series printer software", and select a parallel port
(e.g. LPT1:) even though your DeskWriter is not connected to said
parallel port. Use the Skip option to disregard any problems the
installer has communicating with the printer. After setup is
complete, the printer driver will have been successfully installed:5

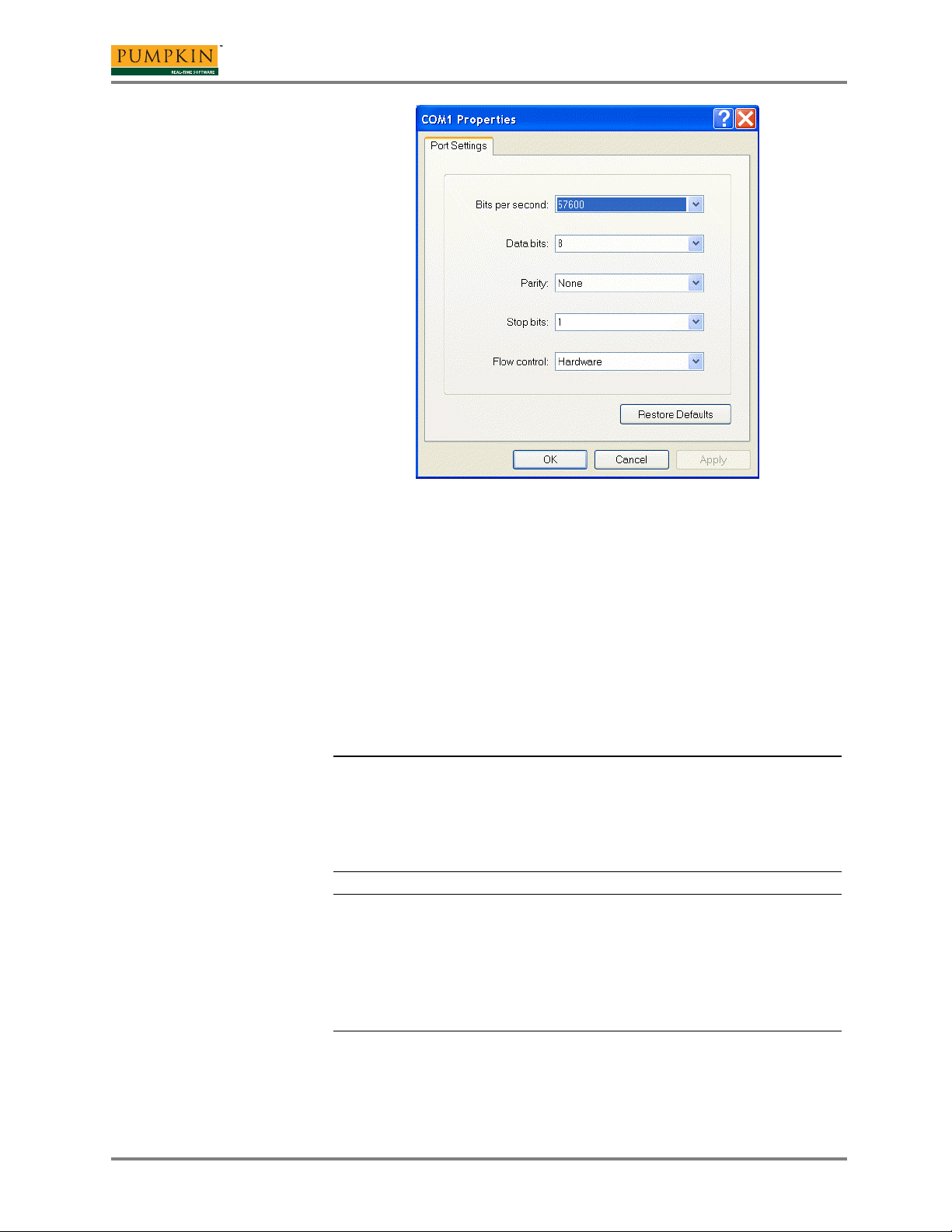

AG-2 Printing to a Mac-only HP DeskWriter® from a Windows® PC®
5
