Installation

Guide

hp StorageWorks

AB232A PCI-X Host Bus Adapter

Third Edition (June 2004)

Part Number: AA–RU1ZC–TE

This guide describes how to install, configure, and use the diagnostic utilities for the AB232A PCI-X host bus adapter for 64-bit Windows operating systems.

Page 2

the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information contained in this document is subject to change without notice.

Microsoft®, Windows®, and Windows NT® are U.S. registered trademarks of Microsoft Corporation. Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The

information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements for such products. Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

AB232A PCI-X Host Bus Adapter Installation Guide Third Edition (June 2004) Part Number: AA–RU1ZC–TE

Page 3

3AB232A PCI-X Host Bus Adapter Installation Guide

contents

Contents

About this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Recording Reference Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installing the HBA into a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Verifying the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Configuration Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3 Installing the SCSI Miniport Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Device Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installing or Upgrading a New Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installing the LightPulse Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Page 4

Contents

4 AB232A PCI-X Host Bus Adapter Installation Guide

4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

POST Conditions and Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using The Event Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Windows Miniport Event Log Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5 Diagnostic and Configuration Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Using LightPulse Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

View HBA Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Modify Diagnostic Driver Parameters in the Windows Registry . . . . . . . . . . . . . . . . . . 40

Modify the Driver Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Set Up Persistent Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Setting Up Persistent Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Global Automap and Unmasking Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Prerequisites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Mapping and Masking LUNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Test Host Bus Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Modify Test Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Restart Host Bus Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Show Host Bus Adapter Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Quit the LightPulse Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

A Regulatory Compliance Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Federal Communications Commission Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Class A Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Declaration of Conformity for Products Marked with FCC Logo—United States Only 52

Network and Serial Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

IEC EMC Statement (Worldwide). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Spécification ATI Classe A (France). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Canadian Notice (Avis Canadien) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Class A Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Harmonics Conformance (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

German Noise Declaration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Certification and Classification Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Page 5

Contents

5AB232A PCI-X Host Bus Adapter Installation Guide

B Electrostatic Discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Grounding Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Figures

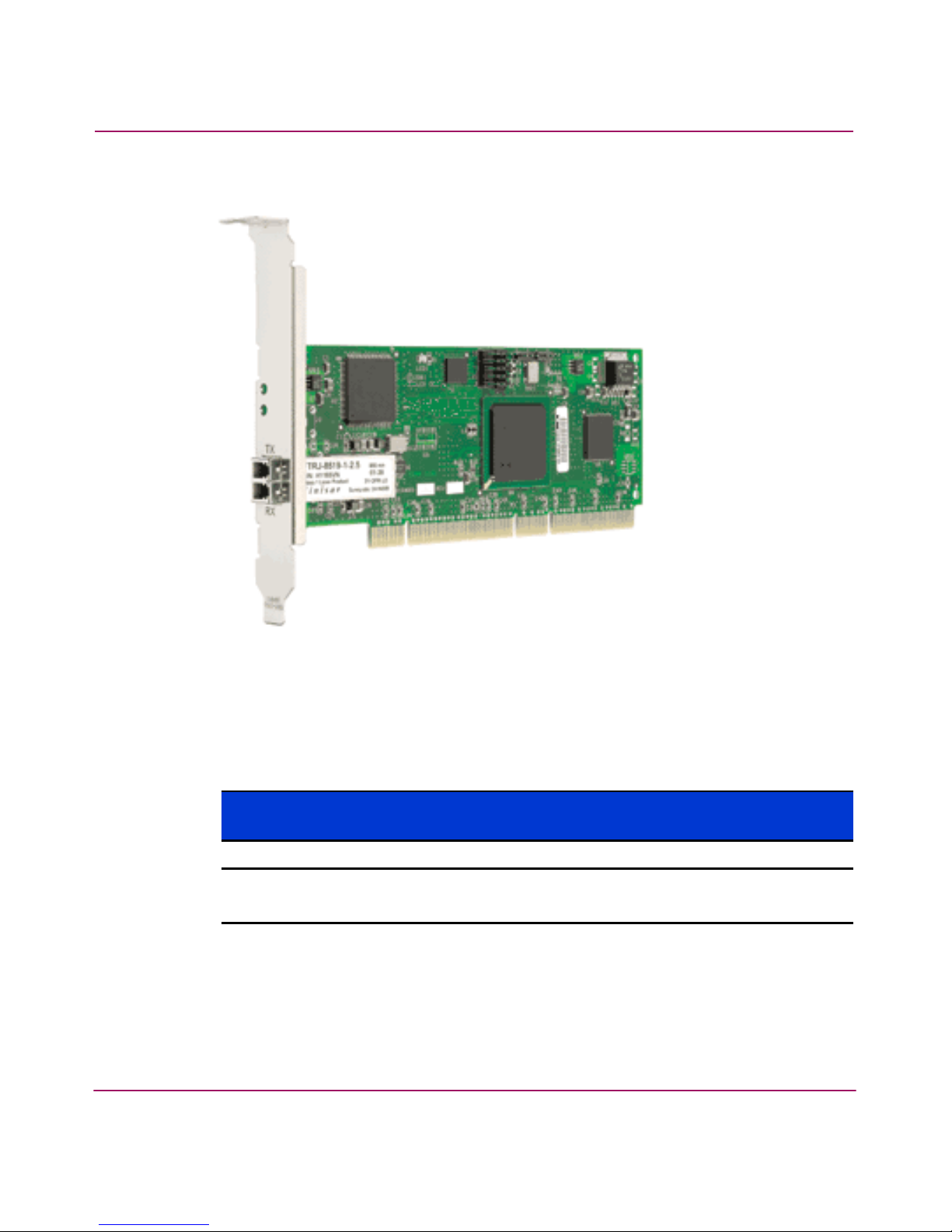

1 AB232A HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

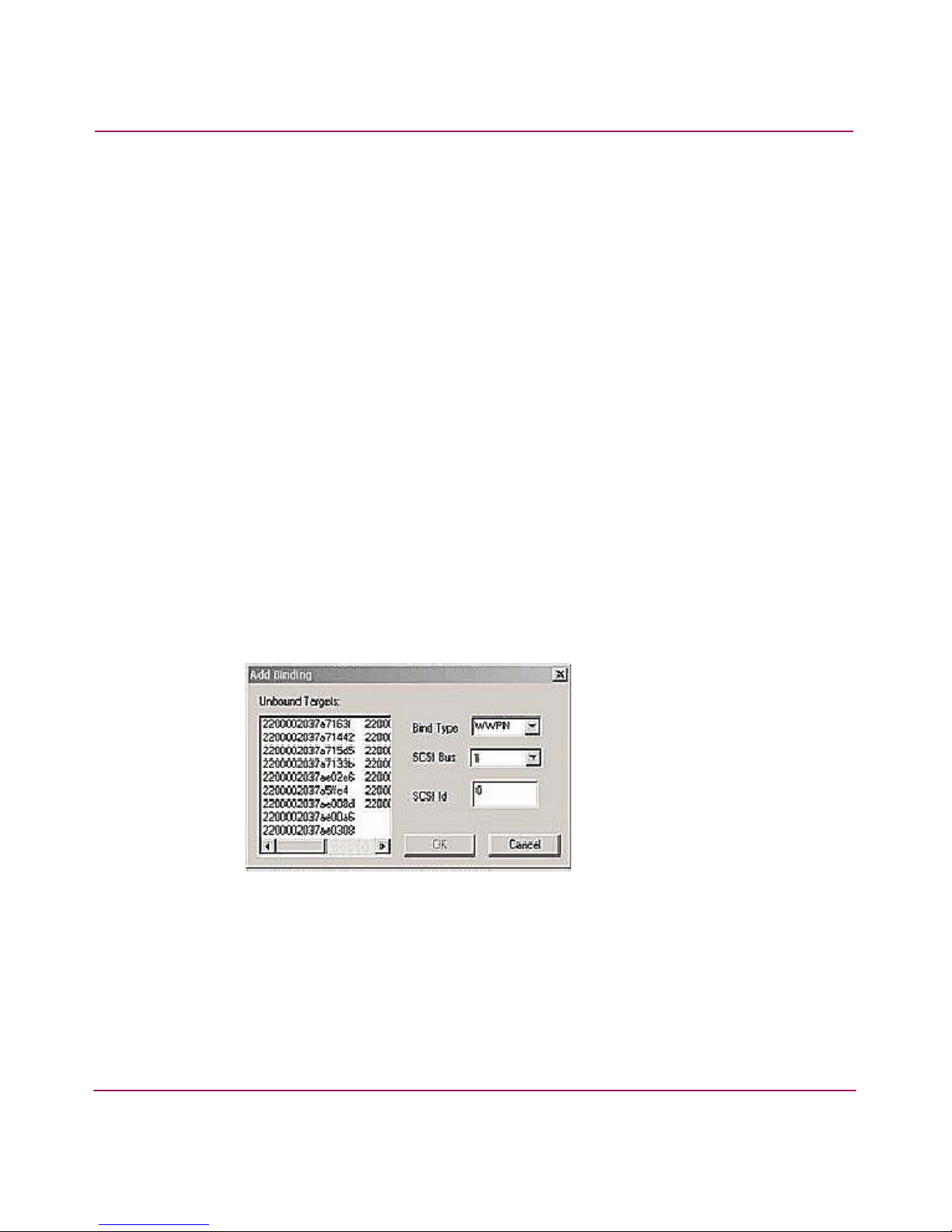

2 Add Binding window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3 Lunmap window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Tables

1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 AB232A HBA Diagram Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 Normal POST LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4 Normal POST LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5 SCSI Port Error Log Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6 CmdStat Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

7 Parameter Error Values Valid only when CmdStat=0x3. . . . . . . . . . . . . . . . . . . . . . . . . 33

8 Drive Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9 AL-PA Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page 6

Contents

6 AB232A PCI-X Host Bus Adapter Installation Guide

Page 7

7AB232A PCI-X Host Bus Adapter Installation Guide

about this

guide

About this Guide

This installation guide provides information to help you:

■ Install, configure, and use the diagnostic utilities for the AB232A PCI-X host

bus adapter for 64-bit Windows systems.

■ Contact technical support for additional assistance.

“About this Guide” topics include:

■ Overview, page 8

■ Conventions, page 9

■ Getting Help, page 11

Page 8

About this Guide

8 AB232A PCI-X Host Bus Adapter Installation Guide

Overview

This section covers the following topics:

■ Intended Audience

■ Related Documentation

Intended Audience

This book is intended for use by system administrators who are experienced with the following:

■ Windows Server 2003 Enterprise Edition, 64-bit version

■ Host bus adapters

Related Documentation

In addition to this guide, refer to the HP StorageWorks AB232A PCI-X Host Bus Adapter Release Notes.

Page 9

About this Guide

AB232A PCI-X Host Bus Adapter Installation Guide

Conventions

Conventions consist of the following:

■ Document Conventions

■ Text Symbols

■ Equipment Symbols

Document Conventions

The document conventions included in Table 1 apply in most cases.

Text Symbols

The following symbols may be found in the text of this guide. They have the following meanings.

WARNING: Text set off in this manner indicates that failure to follow

directions in the warning could result in bodily harm or death.

Table 1: Document Conventions

Element Convention

Cross-reference links Blue text: Figure 1 Key and field names, menu items,

buttons, and dialog box titles

Bold

File names, application names, and text emphasis

Italics

User input, command and directory names, and system responses (output and messages)

Monospace font COMMAND NAMES are uppercase

monospace font unless they are case

sensitive Variables <monospace, italic font> Website addresses Blue, underlined sans serif font text:

http://www.hp.com

Page 10

About this Guide

10 AB232A PCI-X Host Bus Adapter Installation Guide

Caution: Text set off in this manner indicates that failure to follow directions

could result in damage to equipment or data.

Note: Text set off in this manner presents commentary, sidelights, or interesting points

of information.

Equipment Symbols

The following equipment symbols may be found on hardware for which this guide pertains. They have the following meanings.

Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts.

WARNING: To reduce the risk of personal injury from electrical shock

hazards, do not open this enclosure.

Any RJ-45 receptacle marked with these symbols indicates a network interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to

the equipment, do not plug telephone or telecommunications connectors into this receptacle.

Any surface or area of the equipment marked with these symbols indicates the presence of a hot surface or hot component. Contact with this surface could result in injury.

WARNING: To reduce the risk of personal injury from a hot

component, allow the surface to cool before touching.

Page 11

About this Guide

AB232A PCI-X Host Bus Adapter Installation Guide

Power supplies or systems marked with these symbols indicate the presence of multiple sources of power.

WARNING: To reduce the risk of personal injury from electrical

shock, remove all power cords to completely disconnect power from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the

equipment, observe local occupational health and safety requirements and guidelines for manually handling material.

Getting Help

If you still have a question after reading this guide, contact an HP authorized service provider or access our website

http://www.hp.com

HP Technical Support

Telephone numbers for worldwide technical support are listed on the HP website

http://www .hp.com/support/

. From this website, select the country of origin.

Note: For continuous quality improvement, calls may be recorded or monitored.

Be sure to have the following information available before calling:

■ Technical support registration number (if applicable)

■ Product serial numbers

■ Product model names and numbers

■ Applicable error messages

■ Operating system type and revision level

■ Detailed, specific questions

Page 12

About this Guide

12 AB232A PCI-X Host Bus Adapter Installation Guide

HP Storage Website

The HP website has the latest information on this product, as well as the latest drivers. Access storage at

http://h18006.www1.hp.com/storage/saninfrastructu re.html

From this website, select the appropriate product or solution.

HP Authorized Reseller

For the name of your nearest HP authorized reseller:

■ In the United States, call 1-800-345-1518

■ In Canada, call 1-800-263-5868

■ Elsewhere, see the HP website for locations and telephone numbers:

http://www.hp .com

Page 13

13AB232A PCI-X Host Bus Adapter Installation Guide

Adapter Features

This introduction to the AB232A PCI-X Host Bus Adapter (HBA) includes:

■ Product Description, page 14

■ Performance Specifications, page 16

Page 14

Adapter Features

14 AB232A PCI-X Host Bus Adapter Installation Guide

Product Description

The AB232A HBA has the following characteristics:

■ Robust suite of software supporting Windows Server 2003 Enterprise Edition,

64-bit version.

■ Optical small form factor (LC) interface LC Fibre connector.

■ Embedded optical shortwave laser, multi-mode Fibre Channel interface.

■ AB232A is designed using a single custom Application Specific Integrated

Circuit (ASIC). The custom ASIC implements a very high performance, multiclass, multiprotocol Fibre Channel host adapter with a 64-bit PCI-X bus connection.

■ 66/100/133MHz PCI-X 1.0a compatibility.

■ AB232A has a 266MIPs onboard processor, an embedded 1GB/2GB

SERDES, and a high performance unified QDR SRAM.

Page 15

Adapter Features

15AB232A PCI-X Host Bus Adapter Installation Guide

Figure 1 illustrates the AB232A HBA.

Figure 1: AB232A HBA

■ Table 2 describes the AB232A HBA.

Table 2: AB232A HBA Diagram Description

Figure

Legend

Description

1 Fibre Channel (LC) connectors. 2 POST LEDs indicators

Note: See Table 3, on page 22 for detailed descriptions.

Page 16

Adapter Features

16 AB232A PCI-X Host Bus Adapter Installation Guide

Performance Specifications

The AB232A HBA offers a highly integrated 2 Gbps Fibre Channel HBA for use in Itanium servers based on the latest PCI-X expansion bus. The features of the AB232A HBA provides the flexibility and broad interoperability needed for complex, highly scalable SANs.

The AB232A HBA also features sophisticated hardware that provides superior performance in SANs and provides best in class server CPU offload. This exclusive hardware delivers low latency and high throughput in switched fabric, arbitrated loop, and clustered environments. Support for fiber optic cabling is provided through an embedded small form factor (LC) optical interface.

The AB232A HBA is both ANSI Fibre Channel and PCI Local Bus Compliant and supports:

■ Full duplex 2 Gbps Fibre Channel that provides data transfers of up to 400

MBps.

■ Full fabric boot support to multiple LUNs.

■ FC-Tape (FC-2) devices.

■ Point-to-point, arbitrated-loop, and switch fabric FC connections.

■ Storage protocol.

■ Fibre Channel class 2 and 3.

■ Automatic speed negotiation and topology detection.

■ End-to-end parity protection for high data integrity.

Collectively, these characteristics create a high-performance Fibre Channel HBA.

Page 17

17AB232A PCI-X Host Bus Adapter Installation Guide

Installation

This chapter provides step-by-step instructions for installing the AB232A HBA, including:

■ Hardware Requirements

■ Recording Reference Numbers

■ Installing the HBA into a Computer

■ Verifying the Installation

■ Configuration Guidelines

This chapter also provides information on installation guidelines and supported configurations for the operating systems.

Caution: The HBAs contain static-sensitive components. Make sure you

comply with Electrostatic Discharge (ESD) procedures described on page 59.

Page 18

Installation

18 AB232A PCI-X Host Bus Adapter Installation Guide

Hardware Requirements

The system hardware requirements for installing the HBAs include:

■ AB232A HBA requires one open 64-bit/133 MHz PCI-X universal slot.

■ Multimode fiber optic cable with LC connector, used with shortwave lasers.

Page 19

Installation

19AB232A PCI-X Host Bus Adapter Installation Guide

Recording Reference Numbers

Each HBA ships with a unique address identifier that is stored in flash memory. Fibre Channel industry standards issue two unique identifiers: WorldWide Port Name (WWPN) and Node Name (NN), each of which is derived from the HBA’s IEEE address. Combined, the WWPN and NN create the WorldWide Name (WWN) which is an 8-byte field that uniquely identifies an HBA on a FC circuit.

The WWN address and serial number are clearly marked on the HBA. Record the addresses on the lines below for future reference.

Note: The WWN is a static identifier that cannot be changed.

IEEE address: __________________________________________________ Serial number: __________________________________________________

Page 20

Installation

20 AB232A PCI-X Host Bus Adapter Installation Guide

Installing the HBA into a Computer

Use the following procedure for installing the HBA into a computer.

Caution: Be sure to observe the ESD precautions described on page 59 for

this procedure.

1. Make sure the computer is powered off.

2. Remove the screws on the computer cover, and then remove the cover.

3. Wearing a static wrist strap, remove the blank panel from an empty 64-bit PCI-X bus slot.

Compare the removed panel to the bracket on the HBA. Follow steps 4–7 to change the bracket if the brackets are different sizes.

Note: The HBAs come with a standard PCI bracket installed. The low-profile mounting

bracket is shorter than the standard bracket; approximately 7.9 cm (3.11 in.) compared to 12.06 cm (4.75 in.) long.

4. Remove the mounting bracket screws from the top of the HBA.

5. Remove the bracket and store it for future use.

6. Align the new mounting bracket tabs with the holes in the HBA.

Note: Be careful not to push the bracket past the transceiver housing's grounding

tabs.

7. Replace the screws that attach the HBA to the bracket.

8. Insert the HBA into the empty PCI-X bus slot; press firmly until it is seated securely.

9. Secure the HBA mounting bracket to the computer panel with the panel screws.

10. Replace the computer cover and secure it using the previously removed screws.

Page 21

Installation

21AB232A PCI-X Host Bus Adapter Installation Guide

11. Attach media: a. Connect the fiber optic cable to the LC connector on the HBA. b. Connect the other end of the cable to the Fibre Channel device.

Note: The HBAs do not allow normal data transmission on an optical link unless the

link is connected to a similar or compatible laser product. That is, both products are multimode to multimode.

Page 22

Installation

22 AB232A PCI-X Host Bus Adapter Installation Guide

Verifying the Installation

To verify the HBA is properly installed and is operating:

1. Turn on the computer.

2. At power up, observe the POST LED indicators on the HBA. The position of the POST LED indicators is defined in page 15 on page 15, and Table 2 on

page 22 of this guide. The green LED indicates power functions and the

amber LED signifies port activity. The amber LED blinks at all times during normal operation.

Table 3 lists normal LED indications.

Table 3: Normal POST LED Indicators

Amber LED (L1) Green LED (L2) State

Off Off Wake-up failure (dead board) On Off POST failure (dead board) Slow blink (1 Hz) Off Wake-up failure (dead board) Fast blink (4 Hz) Off Failure in POST (dead board) Flashing (irregular) Off POST processing in progress Off On Failure while functioning On On Failure while functioning Slow blink (1 Hz) On Normal—1 Gb link rate Fast blink (4 Hz) On Normal—2 Gb link rate Off Blink (1 Hz) Normal—link down or not yet

started

Page 23

Installation

23AB232A PCI-X Host Bus Adapter Installation Guide

Configuration Guidelines

The software for loading the driver also contains the default registry parameter settings that are loaded as part of the driver installation. Consult the following sources for any restriction and for information on supported configurations specific to your operating system and topology.

■ Release Notes

■ HP Website at

http://www .hp.com/country/us/eng/support.html

Page 24

Installation

24 AB232A PCI-X Host Bus Adapter Installation Guide

Page 25

25AB232A PCI-X Host Bus Adapter Installation Guide

Installing the SCSI Miniport Driver

This chapter contains step-by-step instructions for installing the SCSI Miniport driver.

System managers must be familiar with the Windows Server 2003 operating system under which the PCI-X-to-Fibre Channel HBA is to operate. System managers must also have access to standard system documentation.

HBA files are updated periodically. You can download the latest versions of the HBA driver kits from the HP website at

http://h18000.www1.hp.com/stora ge/saninfrastructure.html

Note: This chapter describes the steps for installing the device driver and for

accessing Fibre Channel storage devices. For other configuration changes, see Modify

Diagnostic Driver Parameters in the Windows Registry, on page 40.

Page 26

Installing the SCSI Miniport Driver

26 AB232A PCI-X Host Bus Adapter Installation Guide

Device Driver Installation

This section describes the instructions for installing the Windows SCSI Miniport driver.

System Requirements

Ensure that your system meets these minimum requirements:

■ Installed HBA

■ StorageWorks Fibre Channel Storage subsystem (interconnect device and

storage device)

Installing or Upgrading a New Driver

The AB232A HBA is a plug-and-play device that is detected by Windows operating systems. Perform the following steps to add or update the Windows driver to a previously installed Windows system:

1. Install the HBA as described in Chapter 2 on page 17.

2. Restart or turn on the computer.

3. Browse to the the driver kit on the Smart Setup CD-ROM (or one you downloaded from the website if it is more recent).

4. Double-click cp00xxxx.exe.

Note: Refer to the following website for the information about this Smart Component’s

final version number:

http://h18000.www1.hp.com/storage/saninfrastructure.htm

5. Follow the installation wizard instructions.

6. When the installation completes, you must reboot.

7. Repeat step 1 through step 6 for any additional HBAs. Make sure to reboot after installing the driver for the last HBA.

Page 27

Installing the SCSI Miniport Driver

27AB232A PCI-X Host Bus Adapter Installation Guide

Installing the LightPulse Utility

The LightPulse Utility, LpUtilNt (described in Diagnostic and Configuration

Utilities, on page 37) does not automatically load. HP recommends that after

loading the HBA driver, you install LpUtilNt as follows:

1. Browse to the LighPulse folder on the Smart Setup CD-ROM (or to one downloaded from the web site if it is more recent).

2. Double-click cp00xxxx.exe.

Note: Refer to the following website for the information about this Smart Component’s

final version number:

http://h18000.www1.hp.com/storage/saninfrastructure.htm

3. Follow the installation wizard instructions.

4. After the installation completes, you can start the LightPulse Utility by choosing Start > Programs > LpUtilNt.

Page 28

Installing the SCSI Miniport Driver

28 AB232A PCI-X Host Bus Adapter Installation Guide

Page 29

29AB232A PCI-X Host Bus Adapter Installation Guide

Troubleshooting

The Power-On Self Test (POST) and the Windows Event Viewer are utilities you can use for troubleshooting the HBA. This chapter explains the use of these utilities in the event of an HBA problem.

Page 30

Troubleshooting

30 AB232A PCI-X Host Bus Adapter Installation Guide

POST Conditions and Results

Table 4 lists the HBA LED states with descriptions of each.The position of the

POST LED indicators is defined in Figure 1 on page 15, and Tabl e 3 on page 22 of this guide.

If the LEDs indicate a failure during POST:

1. Make sure that the HBA is seated firmly in the PCI slot.

2. Verify that the fiber cable connection to the HBA is secure.

Table 4: Normal POST LED Indicators

Amber LED (L1) Green LED (L2) State

started

Page 31

Troubleshooting

31AB232A PCI-X Host Bus Adapter Installation Guide

Using The Event Viewer

The Windows SCSI driver verifies the condition of the HBA POST. If there is a failure or a suspected failure, an error log entry is issued to the Windows Event log.

Following is the procedure for viewing the event log. From the Main menu:

1. Double-click or choose the Administrative Tools program group.

2. Double-click or choose the Event Viewer.

3. Specify LPXNDS.

Note: You can find the source name in the SCSI device’s Disk Manager.

4. Double-click any event with the source name.

5. Change the data view from Bytes (default) to Word s.

6. Examine the entry at offset 0x10: if the low byte = En, match the low byte with the error found in Tabl e 5 on page 32, SCSI Port Error Log. Ta bl e 6 on page 34, and Table 7 on page 35 list CmdStat values and Parameter error values.

Page 32

Troubleshooting

32 AB232A PCI-X Host Bus Adapter Installation Guide

Windows Miniport Event Log Codes

The Windows Miniport driver logs events and errors in the Windows Event log. Serious errors are always logged. Informational events are only logged if the registry parameter LogError=1 is used.

All Miniport logged events are issued with an Event ID of 11 (INTERNAL ADAPTER ERROR) but do not necessarily indicate an HBA error occurred. Byte offset 0x10 of the event is the driver event code. Byte offsets 0x11 to 0x13 contain event-specific information.

Table 5 describes the SCSI port error log codes.

Table 5: SCSI Port Error Log Codes

0x10

Offset

Explanation 0x11 to 0x13 Further Information

0xD0 SNS_REQ (XMIT_SEQ

failed)

0x11 = cmdstat, 12 = parm err

0xD1 SNS_RSP (RCV_SEQ

failed)

0x11 = cmdstat, 12 = parm err

0xD3 RCV_ELS_REQ failed 0x11 = cmdstat, 12 = parm err 0xD4 XMT_ELS_REQ failed 0x11 = cmdstat, 12 = parm err 0xD5 Too many targets found

(160+)

0x11 to 13 = D_DID that didn’t fit

0xD6 SNS request time-out 0x11 to 13 = no additional information 0xD7 Mailbox interrupt time-out 0x11 = mailbox word 0 0xD8 TPRLO requested when

busy

0x11 = local req. state, 12 = discstate, 13 = mailbox word 0

0xD9 Link down time-out

occurred

0x11 = local req. state, 12 = discstate, 13 = mailbox word 0

0xDA Hard link down time-out

occurred

0x11 = local req. state, 12 = discstate, 13 = mailbox word 0

0xE1 Error interrupt occurred Status register bytes 1–3 in event

11–13. E1 error indicates an HBA hardware failure, return HBA for repair.

0xE2 Mailbox cmd time-out 0x11 = command

Page 33

Troubleshooting

33AB232A PCI-X Host Bus Adapter Installation Guide

0xE3 Mailbox rsp err 0x11 = command, 12–13 =

mbxstatus

0xE4 HBA not ready after init Status register bytes 1–3 in event

11–13

0xE5 Requested loop but link =

PT–PT

0xE6 Mailbox int. but cmd not

complete

0x11 = MB cmd, 12–13 = mbxstatus

0xE7 SRB already queued to ring 0xE8 RESTART failed 0xE9 PORT BYPASS (LPB)

received 0xEB Unknown IOCB cmd rsp 0x11 = 15:8 = cmd field 0xEC Uncached extension alloc.

error 0xED Link down @ boot time

(30 sec) 0xEF Too many interrupts at

initial boot 0xF1 LinkUp error; LP8 down,

driver up

0x11 = parameter field, 12 = IOCB cmd

0xF2 LinkUp w/ illegal or corrupt

RPI

0x11 = parameter field, 12 = IOCB cmd

0xF3 DeQueue

ring->iotcmd.head

0x11 = caller ID

0xF4 HBA reset 0x11 = coded reason for reset:

Bit 0 = IOCB requeue; bit 1 = readla retry

Bit 2 = initlink retry; bit 3 = rstbus retry Bit 4 = mailbox time-out

0xF5 PCP_IXXX_CR IOCB rsp

err

0x11 = cmdstat, 12 = parm err, 13 = ALPA

Table 5: SCSI Port Error Log Codes (Continued)

0x10

Offset

Explanation 0x11 to 0x13 Further Information

Page 34

Troubleshooting

34 AB232A PCI-X Host Bus Adapter Installation Guide

0xF6 PCP_IXXX_CR IOCB rsp

err

0x11 = cmdstat, 12 = parm err, 13 = ALPA

0xF7 Ring hd !=0 &&

pendingsrb!=NULL 0xF8 Invalid FCP_RSP 0x11 = pcpcntrl, 12 = scsisat, 13 =

len

0xF9 Two consec. time-outs,

issue LIP 0xFA START_IO error 0x11 = errtype, 12 = srbstat, 13 =

linkup

0xFB ELS_REQ_CR IOCB rsp err 0x11 = cmdstat, 12 = parm err, 13 =

ALPA

0xFC ELS_REQ_CR IOCB rsp err 0x11 = cmdstat, 12 = parm err, 13 =

ALPA 0xFE FLOGI failed 0x11 = cmdstat, 12 = parm err 0xFF SNS_PLOGI failed 0x11 = cmdstat, 12 = parm err

Table 6: CmdStat Values

0x11

Offset

Explanation Further Information

0x1 IOSTAT_FCP_RSP_ERR 0x2 IOSTAT_REMOTE_STOP Remote sent an ABTS

0x3 IOSTAT_LOCAL_REJECT Parameter field contains

additional information

0x4 IOSTAT_NPORT_RJT 0x5 IOSTAT_FABRIC_RJT 0x6 IOSTAT_NPORT_BSY 0x7 IOSTAT_FBRIC_BSY

Table 5: SCSI Port Error Log Codes (Continued)

0x10

Offset

Explanation 0x11 to 0x13 Further Information

Page 35

Troubleshooting

35AB232A PCI-X Host Bus Adapter Installation Guide

0x8 IOSTAT_INTERMED_RSP 0x9 IOSTAT_LS_RJT Remote sent LS_RJT

0xA IOSTAT_BA_RJT Remote sent BA_RJT

Table 7: Parameter Error Values Valid only when CmdStat=0x3

0x12

Offset

Explanation Further Information

0x00 IOERR_SUCCESS 0x01 IOERR_MISSING_CONTINUE 0x02 IOERR_SEQUENCE_TIMEOUT Possible bad cable/link noise 0x03 IOERR_INTERNAL_ERROR 0x04 IOERR_INVALID_RPI Remote port login data invalid 0x05 IOERR_NO_XRI 0x06 IOERR_ILLEGAL_COMMAND 0x07 IOERR_XCHG_DROPPED 0x08 IOERR_ILLEGAL_FIELD 0x09 IOERR_BAC_CONTINUE 0x0A IOERR_TOO_MANY_BUFFERS 0x0B IOERR_RCV_BUFFER_WAITING 0x0C IOERR_NO_CONNECTION 0x0D IOERR_TX_DMA_FAILED 0x0E IOERR_RX_DMA_FAILED 0x0F IOERR_ILLEGAL_FRAME Possible bad cable/link noise 0x10 IOERR_EXTRA_DATA 0x11 IOERR_NO_RESOURCES 0x12 IOERR_RESERVED 0x13 IOERR_ILLEGAL_LENGTH 0x14 IOERR_UNSUPPORTED_

FEATURE

0x15 IOERR_ABORT_IN_PROGRESS

Table 6: CmdStat Values (Continued)

Page 36

Troubleshooting

36 AB232A PCI-X Host Bus Adapter Installation Guide

0x16 IOERR_ABORT_REQUESTED 0x17 IOERR_RECEIVE_BUFFER_

TIMEOUT

0x18 IOERR_LOOP_OPEN_FAILURE FC_AL target not responding.

Received our own transmitted frame back. Port may be

bypassed by a hub. 0x19 IOERR_RING_RESET 0x1A IOERR_LINK_DOWN 0x1B IOERR_CORRUPTED_DATA 0x1C IOERR_CORRUPTED_RPI 0x1D IOERR_OUT_OF_ORDER Possible bad cable/link noise 0x1E IOERR_OUT_OF_ORDER_ACK 0x1F IOERR_DUPLICATE_FRAME 0x20 IOERR_INVALID_ACK 0x21 IOERR_BAD_40BIT_ADDRESS 0x22 IOERR_RESERVED 0x23 IOERR_RESERVED 0x24 IOERR_RESERVED 0x25 IOERR_ABORT_MULTI_

REQUESTED 0x26 IOERR_RESERVED 0x27 IOERR_RESERVED 0x28 IOERR_LINK_BUFFER_

SHORTAGE 0x29 IOERR_RCV_XRIBUF_WAITING

Table 7: Parameter Error Values Valid only when CmdStat=0x3 (Continued)

0x12

Offset

Explanation Further Information

Page 37

37AB232A PCI-X Host Bus Adapter Installation Guide

Diagnostic and Configuration Utilities

This chapter contains instructions for using the LightPulse Utility, LpUtilNt, a Windows-based graphical user interface. Use this utility to update firmware, BIOS, view registry parameters, perform persistent binding operations on selected targets, and obtain specific information about all HBAs installed in the server.

Page 38

Diagnostic and Configuration Utilities

38 AB232A PCI-X Host Bus Adapter Installation Guide

Using LightPulse Utility

The LightPulse Utility (LpUtilNt) is an HBA utility that lets you:

■ View HBA parameters

■ Modify driver parameters in the Windows registry

The Original Equipment Manufacturer (OEM) setup file provided in the software kit sets these parameters. The Fibre Channel setup file that comes with the platform kit, modifies these parameters. The resulting parameter settings provide the optimal setting for your configurations.

Note the following:

■ You must install and connect the SCSI Miniport driver to at least one drive

before LightPulse Utilitycan operate properly. You can alternately set the registry parameter Simulate Device=1.

■ LightPulse Utility does not load automatically on Windows Server 2003

systems. HP recommends that you install the LightPulse utility after installing the HBA drivers as described in the section Installing the LightPulse Utility on page 27.

View HBA Parameters

From the LightPulse Utility Main menu screen:

1. Choose an HBA.

2. On the menu bar, click on an HBA or pull down the category list.

3. Choose an option to view HBA parameters. Each of the following options displays a different group of HBA parameters:

■ Adapter Revision Levels—View information about the chipset and

firmware revision levels of the selected HBA.

■ Firmware Maintenance—View detailed information about the firmware

in the flash ROM of the selected host adapter. Update host adapter firmware and boot code, manage existing firmware, and enable or disable the BootBIOS bootup message.

■ Loop Map—View a list of the members of the selected HBA loop map.

■ PCI Registers—View the values of the PCI configuration registers for the

selected HBA.

Page 39

Diagnostic and Configuration Utilities

39AB232A PCI-X Host Bus Adapter Installation Guide

■ Configuration Data—View information about the data in each of the

configuration regions in the flash ROM of the selected HBA.

■ Drive Parameters—View information about device driver parameters that

are maintained in the Windows/NT registry.

■ Persistent Binding—View and manage persistent binding for the adapter,

and LUN mapping and masking for devices in your SAN.

■ Link Statistics—View statistics about the arbitrated loop of the selected

HBA.

■ Status and Counters—View status and counters for bytes, frames,

sequences, exchanges, and so on.

4. Expand the category list and choose Firmware Maintenance.

5. Click Download.

6. Locate the new upgrade file.

7. Click Open.

Note: The new software is transferred to the HBA.

8. Expand the category list and choose Adapter Revision Levels.

9. Verify that the new firmware revision is shown.

Page 40

Diagnostic and Configuration Utilities

40 AB232A PCI-X Host Bus Adapter Installation Guide

Modify Diagnostic Driver Parameters in the Windows Registry

This screen provides information about device driver parameters that are maintained in the Windows registry and allows you to modify those values.

Caution: Do not modify the registry parameters unless specifically instructed

to do so by support personnel. Modifying registry parameters can result in an unstable SAN.

The data display lists all available device driver parameters, along with the current, minimum, maximum, and default values. Parameters that have their value specified in the system registry are denoted with either a G or an L in the left-most column of the screen. The G indicates that the value is set in the global registry entry, which applies to all HBAs that do not have a local registry entry. The L indicates that the value is set in a registry entry specific to the selected HBA, which overrides the value settings in the global entry.

Modify the Driver Parameters

From the LightPulse Utility Main menu screen:

1. Choose the desired HBA.

2. Expand the category list and choose Driver Parameters.

3. Double-click a Parameter Name.

4. Enter the desired value in the New Value field.

5. Choose the Permanent or Global checkbox:

■ Choose Permanent to cause the new value to be written to the system

registry. If Permanent is not selected, the parameter reverts to its default value when the driver is reset.

■ Choose Global to change the global registry entry. Otherwise, the change

is made to the HBA-specific registry entry.

Page 41

Diagnostic and Configuration Utilities

41AB232A PCI-X Host Bus Adapter Installation Guide

Table 8 lists the current parameters that you can set.

Table 8: Drive Parameters

Parameter Description

AbortStatus = 0xn Values from 0x00 – 0xFF. Controls NT SRB error status

for general Abort conditions. Default = SRB_STATUS_BUS_RESET (0x0E) which will not cause the current NT class driver to throttle down I/O performance after four of these errors have been

received (on a per-LUN basis). ALTOV = n Values are in milliseconds from 1 to 15. Default = 15. ARBTOV = n Values are milliseconds from 500 to 10000. Default =

1000. Represents FC_AL arbitration time-out prior to LIP.

Class = n Values from 0 to 2. Default = 2. Controls which Fibre

Channel Class will be used: 0 = Class 1, 1 = Class 2, 2 =

Class 3. EDTOV = n Values are in milliseconds from 500 to 10000. Default =

1000. Represents error detect time-out value prior to LIP.

EnableDPC = n Values 0 or 1. Default = 0. 0 = process I/O completion at

interrupt level, 1 = process at DPC level. FrameSizeMSB = n Values from 1 – 8. Default = 8. Controls the upper byte of

the receive FrameSize if issued in PLOGI. This allows the

FrameSize be constrained on 256 byte increments from

256 (1) – 2048 (8). HardALPA = 0xn Values from 0x01 – 0xEF. Default = 0x01 allows the HBA

use a hard assigned loop address. NOTE: Only valid

ALPAs can be used (see Table 9 on page 44). LinkTimeOut = n Values are in seconds from 1 – 500. Default = 60.

Controls the time-out at which link no longer busy with

requests but issues SELECTION_TIMEOUT error status. LogErrors = n Values 0 or 1. Default = 0. 0 = don’t log general

HBA/drive errors. 1 = use Event Log to log general

errors. NodeTimeOut = n Values are in seconds from 1–255.

Default = 10. Controls the time-out at which a formerly

logged-in node will issue SELECTION_TIMEOUT error

status to an I/O request.

Page 42

Diagnostic and Configuration Utilities

42 AB232A PCI-X Host Bus Adapter Installation Guide

QueueDepth = n Values from 1–64 (decimal). Default = 64. Requests per

LUN/Target (see Queue Target parameter). QueueTarget = n Values 0 or 1 (decimal). Default = 0. 0 = QueueDepth

applies on a per LUN basis: 1 = QueueDepth applies on

a Target basis. RATOV = n Values are in seconds from 2 to 120. Default = 2. This

value is the ELS request time-out. ReadCheck = n Values 0 or 1. Default = 1. 0 = do not enable byte

counting for read operations. 1 = enable byte counting. If

bytes counted are less than requested transfer count,

issue underrun. ResetFF = n Values 0 or 1. Default = 1. 0 = ResetBus translates to LIP

(F7). 1 = ResetBus translates to LIP (FF). Used for

WolfPack to force reservations to be freed when

ResetBus issued. Only meaningful for FC_AL topology

and Seagate native FC hard drives. ResetTPRLO = n Values 0 or 1. Default = 1. 0 = ResetBus translates to LIP

(). 1 = ResetBus translates to ThirdPartyProcessLogout +

LIP (). Used for WolfPack to force reservations to be

freed when ResetBus is issued. RetryInterval = n Values are in seconds from 2-255. Default = 45. Used for

time-out interval if RetryloTimeOut = 1. Must be shorter

than Class driver TimeOutInterval. RetryloTimeOut = n Values 0 or 1. Default = 1. 1 = allows HBA to time-out I/O

prior to port driver’s time-out that causes a LIP/Link

Reset. RTTOV = n Values are in milliseconds from 100 to 511. Default =

256. Represents time-out between phases of Off-line to

On-line protocol. ScanDown = n Values 0 or 1. Default = 0. 0 = Lowest AL_PA = Lowest

physical disk (ascending AL_PA order). 1 = Highest

AL_PA = Lowest Physical Disk (ascending SEL_ID

order).

Table 8: Drive Parameters (Continued)

Parameter Description

Page 43

Diagnostic and Configuration Utilities

43AB232A PCI-X Host Bus Adapter Installation Guide

SilFlags = n Values from 0-2. Default = 0. Controls which driver

interface to use. 0 = automode; attempt SLI-2 first. If that

fails, uses SLI-1. 1 = always use SLI-1. 2 = always use

SLI-2. SimulateDevice = n Values 0 or 1. Default = 0. 0 = do not create a “dummy”

disk device. 1 = create a dummy disk to force the driver

to load even if no disk devices are present at boot time. SnsALL = n Values 0 or 1. Default = 1. Controls which N_Ports are

queried from the NameServer. 0 = SCSI FCP only. 1 = All

N_Ports. Topology = n Value 0 through 3. Default = 2. 0 = FC_AL (loop), 1 =

PT-PT Fabric, 2=FC-AL first, then attempt PT-PT,

3=PT-PT first, then attempt FC-AL. When set to 1,

FLOGI, SCR/RSCN and NameServer queries are

employed. TrafficCop = n Values 0 or 1. Default = 0. 1 = enable FC-AL loop master

to run unfair and break potential arbitration problems by

sending frames to itself. 0 = run fair all the time.

Table 8: Drive Parameters (Continued)

Parameter Description

Page 44

Diagnostic and Configuration Utilities

44 AB232A PCI-X Host Bus Adapter Installation Guide

Table 9 lists the Arbitrated Loop Physical Addresses (AL-PA) you can set.

Set Up Persistent Binding

The persistent binding feature allows you to control the devices that are to be presented to the system.

The Miniport driver detects all devices attached to the HBAs. Global automapping assigns a binding type, target ID, SCSI bus, and SCSI ID to the device. The binding type, SCSI bus, and SCSI ID may change when the system is rebooted. When persistent binding is applied to one of these targets, the binding type, SCSI bus, and SCSI ID remain the same, whether the system is rebooted or whether Global Automap All Targets is subsequently disabled (enabled by default).

The binding information is permanent because it is stored in the Windows registry. The driver refers to the binding information at bootup.

Table 9: AL-PA Values

0x01 0x02 0x04 0x08 0x0F 0x10 0x17 0x18 0x1B 0x1D 0x1E 0x1F 0x23 0x25 0x26 0x27 0x29 0x2A 0x2B 0x2C 0x2D 0x2E 0x31 0x32 0x33 0x34 0x35 0x36 0x39 0x3A 0x3C 0x43 0x45 0x46 0x47 0x49 0x4A 0x4b 0x4C 0x4D 0x4D 0x51 0x52 0x53 0x54 0x55 0x56 0x59 0x5A 0x5C 0x63 0x65 0x66 0x67 0x69 0x6A 0x6B 0x6C 0x6D 0x6E 0x71 0x72 0x73 0x74 0x75 0x75 0x79 0x7A 0x7C 0x80 0x81 0x82 0x84 0x88 0x8F 0x90 0x97 0x98 0x9B 0x9D 0x9E 0x9F 0xA3 0xA5 0xA6 0xA7 0xA9 0xAA 0xAB 0xAC 0xAD 0xAE 0xB1 0xB2 0xB3 0xB4 0xB5 0xB6 0xB9 0xBA 0xBC 0xC3 0xC5 0xC6 0xC7 0xC9 0xCA 0xCB 0xCC 0xCD 0xCE 0xD1 0xD2 0xD3 0xD4 0xD5 0xD5 0xD9 0xDA 0xDC 0xE0 0xE1 0xE2 0xE4 0xE8 0xEF

Page 45

Diagnostic and Configuration Utilities

45AB232A PCI-X Host Bus Adapter Installation Guide

Persistent binding permanently maps a device to the following:

■ Binding type World Wide Port Name (WWPN), World Wide Node Name

(WWNN), or a Destination Identifier (D_ID)

■ SCSI bus

■ SCSI ID

Prerequisites

■ Installed Miniport driver with the adjunct driver

■ Installed LightPulse Utility

■ Global Automap All Targets is enabled. Global Automap All Targets is

enabled or disabled from the Global Automap window

Setting Up Persistent Binding

From the LightPulse Utility Main menu screen:

1. Choose the desired HBA.

2. Expand the category list and choose Persistent Binding.

3. Click on a target and click Add. The Add Binding window displays, as

shown in Figure 2.

Figure 2: Add Binding window

4. Click the target to be bound from the Unbound Targets list.

5. If required, change the Bind Type for the target.

6. If required, change the SCSI Bus and SCSI ID values.

7. Click OK. The letters PB display next to the target row.

Page 46

Diagnostic and Configuration Utilities

46 AB232A PCI-X Host Bus Adapter Installation Guide

Global Automap and Unmasking Overview

Global Automap All Targets defaults to enabled, to allow the driver to detect all Fibre Channel devices attached to the HBAs. If Global Automap All Targets is disabled, the driver detects Fibre Channel devices attached to the HBA, and does not pass them to the operating system unless they are already persistently bound.

Global Automap All LUNs defaults to enabled and assigns an operating system LUN ID to a Fibre Channel LUN ID for all LUNs behind the targets in your SAN. LUN mapping can also be enabled and disabled at the target level. Global automapping of LUNs is different from persistent binding. Global LUN automapping does not concern itself with the SCSI ID or SCSI Bus. This is because the global LUN mapping stays the same for the target when the system is rebooted.

Globally Unmask All LUNs defaults to enabled, to allow the operating system to see all LUNS behind targets. If Globally Unmask All LUNS is set to disabled and you want the operating system to see all LUNS behind a specific target, you must set unmasking at the target level.

Prerequisites

■ Installed SCSI Miniport driver

■ Installed LightPulse Utility

■ A target device with LUNs that have been properly configured

■ LUN Automap enabled and LUN Unmasking disabled on the LUN Mapping

window: — If LUN Automap is enabled for the target, you can map each LUN

individually.

— Unless LUNs were previously mapped, if LUN Automap is disabled for

the target, no LUNs will be mapped when you reboot the system.

— If LUN Unmasking is disabled for the target, the HBA can see all LUNS

behind a specific target.

Page 47

Diagnostic and Configuration Utilities

47AB232A PCI-X Host Bus Adapter Installation Guide

Mapping and Masking LUNs

From the LightPulse Utility Main menu screen:

1. Choose the desired HBA.

2. Expand the category list and choose Persistent Binding.

3. Click on a target. The Lunmap button becomes active.

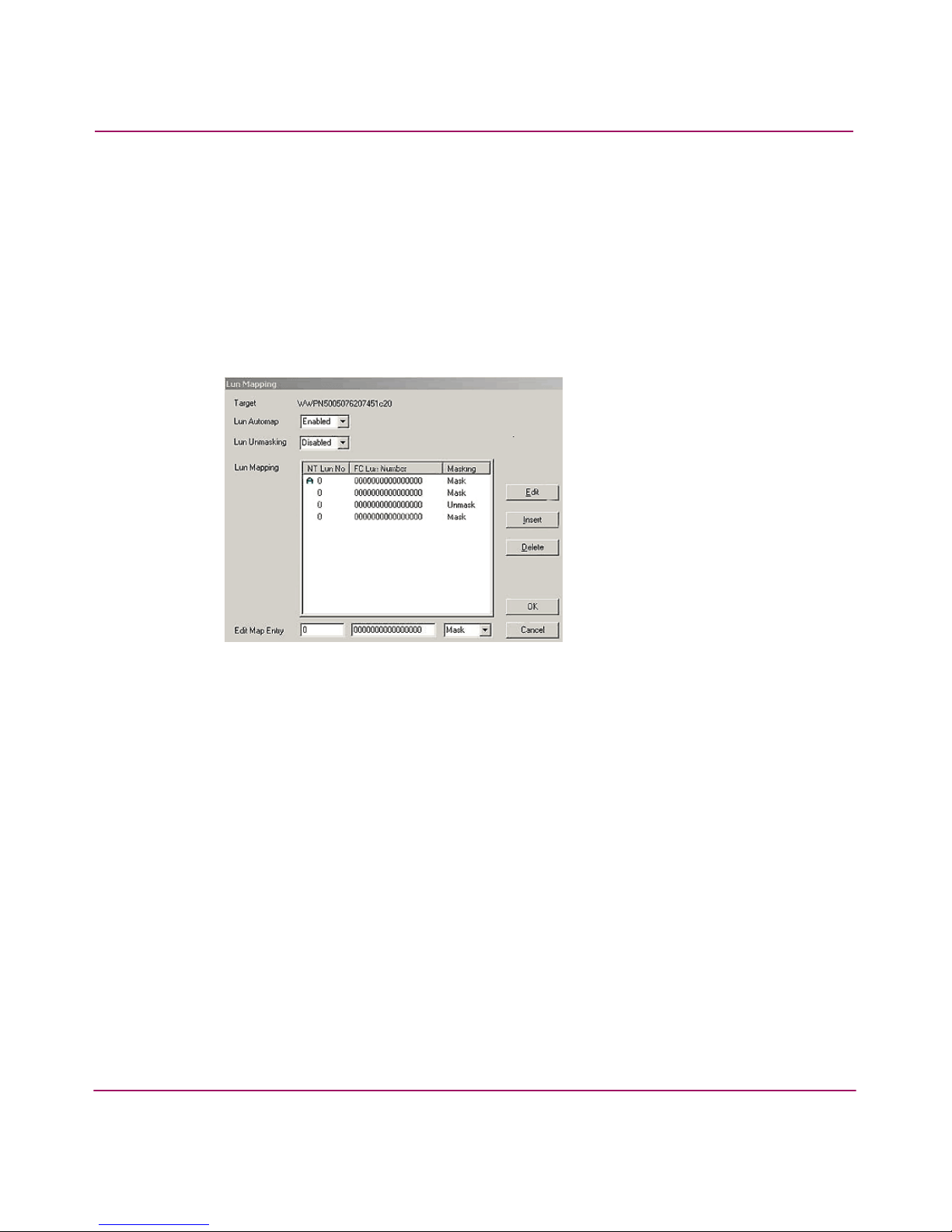

4. Click Lunmap. The Lunmap window displays, as shown in Figure 3:

Figure 3: Lunmap window

Test Host Bus Adapters

Choose this option to run host-based internal and external loopback tests on the HBAs.

From the LightPulse Utility Main menu screen:

1. Choose Test Host Bus Adapters.

2. Enable or disable the external loopback tests:

a. Enable the external loopback tests by choosing 1=Y. The default is

disabled, 0=No. Internal BIU PCI loopback and other loopback tests are run automatically.

b. Choose 0=No if you do not have an external loopback connector.

Page 48

Diagnostic and Configuration Utilities

48 AB232A PCI-X Host Bus Adapter Installation Guide

Note: Testing the HBA while it is connected to an arbitrated loop is not recommended.

Modify Test Options

Use this option to specify the number of passes on one or more of these tests: PCI loopback, internal loopback, external Loopback, or all three.

From the LightPulse Utility Main menu screen:

1. Choose Te st .

2. Choose the following data for the PCI loopback, Internal loopback, External Loopback tests:

a. The number of passes. The default is 0x50. 0=infinity b. The action to take upon encountering errors. Choose one of the following:

— 0 = stop (default) —1 = repeat —2 = ignore

Restart Host Bus Adapters

Choose this option to reset the HBA. When a restart HBA occurs, the HBA performs POST testing and reloads functional firmware.

Input/Output

Choose this option to open or close input and output files. The contents of the input file are interpreted and executed by the program. The output file contains a log of all messages. Note that nesting of input files is not supported.

Maintenance

Choose this option to update firmware or non-volatile parameters in the flash ROM. This option also displays program images (load list) stored in the HBA memory. You must reboot the HBA for the new firmware to take effect.

Page 49

Diagnostic and Configuration Utilities

49AB232A PCI-X Host Bus Adapter Installation Guide

Show Host Bus Adapter Info

Choose this option to display HBA data in these areas:

■ BIU PCI Configuration Parameters

■ HBA Info and Status

■ Adapter Revisions

■ Display Configuration Data

■ Service Parameters

■ Status/Counters Info

■ Link Status

■ Link Attention

Quit the LightPulse Utility

Choose this option to exit the program. A warning message indicates if any errors were encountered during the session.

Page 50

Diagnostic and Configuration Utilities

50 AB232A PCI-X Host Bus Adapter Installation Guide

Page 51

51AB232A PCI-X Host Bus Adapter Installation Guide

Regulatory Compliance Notices

This appendix covers the following topics:

■ Federal Communications Commission Notice, page 52

■ Canadian Notice (Avis Canadien), page 54

■ European Union Notice, page 55

■ Japanese Notice, page 56

■ Laser Safety, page 58

Page 52

Regulatory Compliance Notices

52 AB232A PCI-X Host Bus Adapter Installation Guide

Federal Communications Commission Notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic devices, including computers, generate RF energy incidental to their intended function and are, therefore, covered by these rules. These rules place computers and related peripheral devices into two classes, A and B, depending upon their intended installation. Class A devices are those that may reasonably be expected to be installed in a business or commercial environment. Class B devices are those that may reasonably be expected to be installed in a residential environment (for example, personal computers). The FCC requires devices in both classes to bear a label indicating the interference potential of the device as well as additional operating instructions for the user.

The rating label on the device shows the classification (A or B) of the equipment. Class B devices have an FCC logo or FCC ID on the label. Class A devices do not have an FCC logo or ID on the label. After the class of the device is determined, refer to the corresponding statement in the sections below.

Class A Equipment

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Declaration of Conformity for Products Marked with FCC Logo—United States Only

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Page 53

Regulatory Compliance Notices

53AB232A PCI-X Host Bus Adapter Installation Guide

Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense. The end user of this product should be aware that any changes or modifications made to this equipment without the approval of Hewlett-Packard could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

Network and Serial Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

IEC EMC Statement (Worldwide)

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

Spécification ATI Classe A (France)

DECLARATION D'INSTALLATION ET DE MISE EN EXPLOITATION d'un matériel de traitement de l'information (ATI), classé A en fonction des niveaux de perturbations radioélectriques émis, définis dans la norme européenne EN 55022 concernant la Compatibilité Electromagnétique.

Page 54

Regulatory Compliance Notices

54 AB232A PCI-X Host Bus Adapter Installation Guide

Canadian Notice (Avis Canadien)

Class A Equipment

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Page 55

Regulatory Compliance Notices

55AB232A PCI-X Host Bus Adapter Installation Guide

European Union Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms (the equivalent international standards are in parenthesis):

■ EN55022 1998 (CISPR 22)-Electromagnetic Interference

■ EN55024 1998 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,

IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11)-Electromagnetic Immunity

■ EN60950 (IEC60950)-Product Safety

■ Power Quality: (IEC610000-3-2)-Harmonics and (IEC61000-3-3)-Voltage

Fluctuations and Flicker

■ Also approved under UL 1950, 3rd Edition/CSA C22.2 No. 950-95, Safety of

Information Technology Equipment

Page 56

Regulatory Compliance Notices

56 AB232A PCI-X Host Bus Adapter Installation Guide

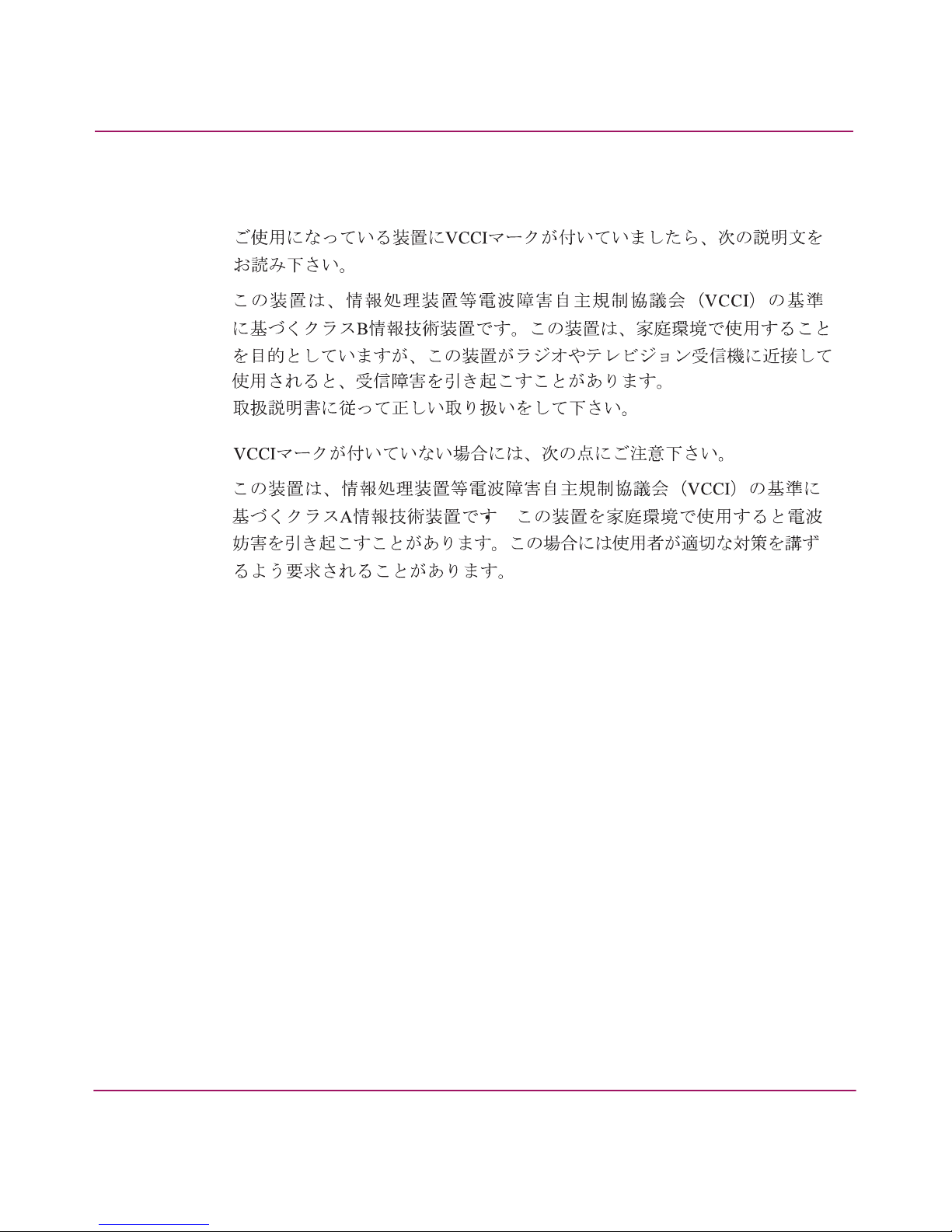

Japanese Notice

Page 57

Regulatory Compliance Notices

57AB232A PCI-X Host Bus Adapter Installation Guide

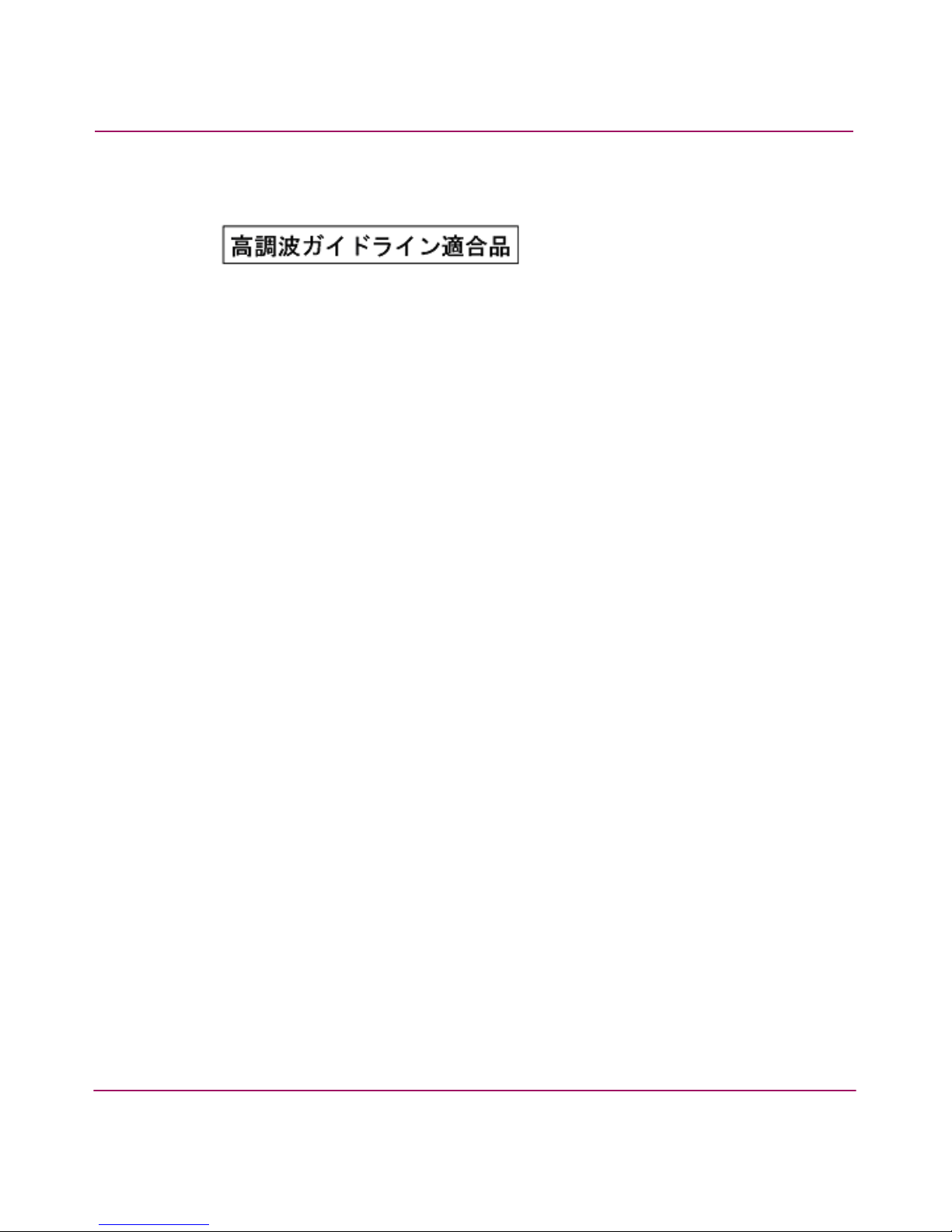

Harmonics Conformance (Japan)

German Noise Declaration

Schalldruckpegel Lp = 70.3 dB(A) Am Arbeitsplatz (operator position) Normaler Betrieb (normal operation) Nach ISO 7779:1988 / EN 27779:1991 (Typprüfung)

Page 58

Regulatory Compliance Notices

58 AB232A PCI-X Host Bus Adapter Installation Guide

Laser Safety

WARNING: To reduce the risk of exposure to hazardous radiation:

• Do not try to open the laser device enclosure. There are no user-serviceable components inside.

• Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein.

• Allow only HP authorized service technicians to repair the laser device.

Certification and Classification Information

This product contains a laser internal to the Optical Link Module (OLM) for connection to the Fiber communications port.

In the USA, the OLM is certified as a Class 1 laser product conforming to the requirements contained in the Department of Health and Human Services (DHHS) regulation 21 CFR, Subchapter J. The certification is indicated by a label on the plastic OLM housing.

Outside the USA, the OLM is certified as a Class 1 laser product conforming to the requirements contained in IEC 825-1:1993 and EN 60825-1:1994, including Amendment 11:1996.

The OLM includes the following certifications:

■ UL Recognized Component (USA)

■ CSA Certified Component (Canada)

■ TUV Certified Component (European Union)

■ CB Certificate (Worldwide)

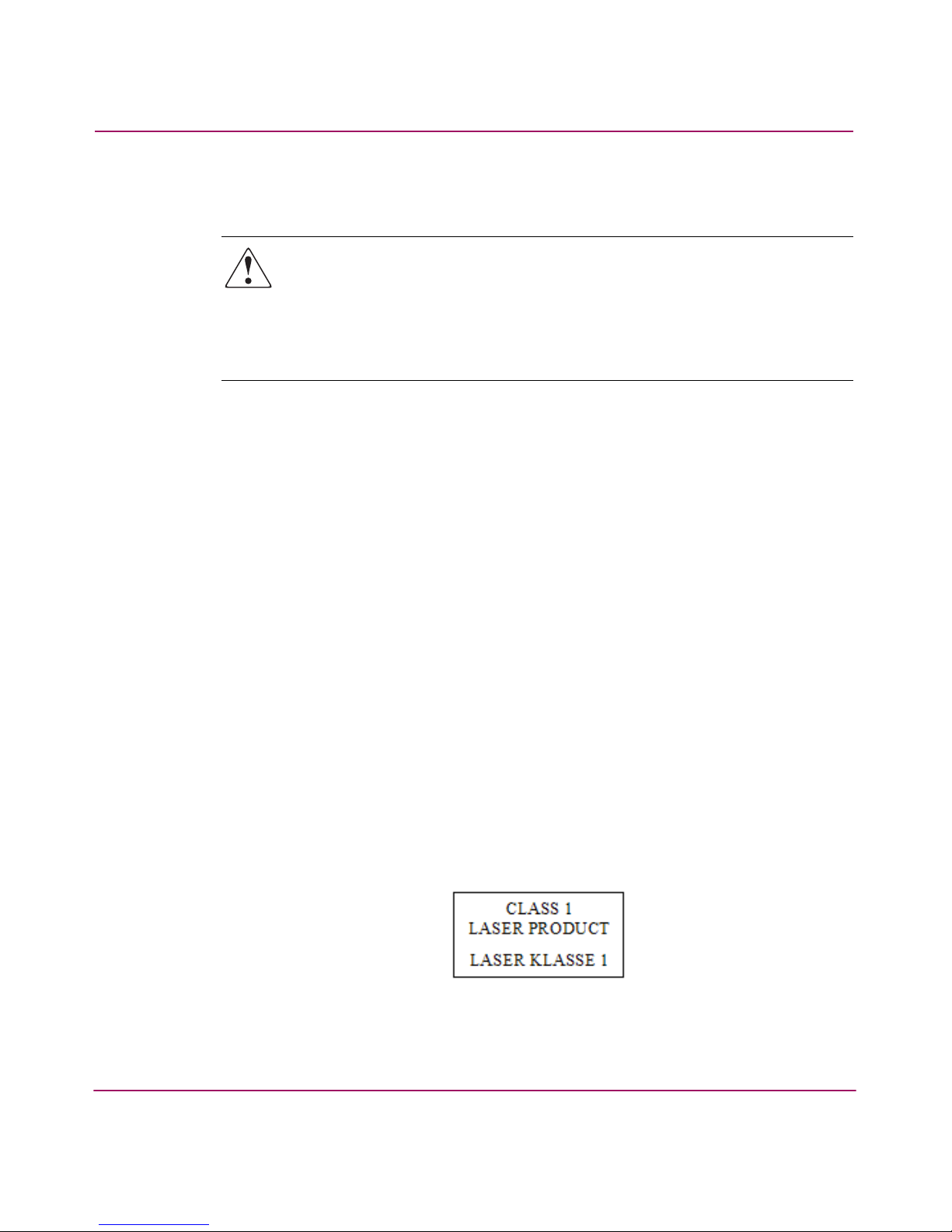

The following figure shows the Class 1 information label that appears on the metal cover of the OLM housing.

Page 59

59AB232A PCI-X Host Bus Adapter Installation Guide

Electrostatic Discharge

To prevent damaging the system, you must take precautions when setting up the system or when handling parts. A discharge of static electricity from a finger or other conductor may damage system adapters or other static-sensitive devices. This type of damage can reduce the life expectancy of the device.

To prevent electrostatic damage, observe the following precautions:

■ Avoid hand contact by transporting and storing products in static-safe

containers.

■ Keep electrostatic-sensitive parts in their containers until they arrive at

static-free workstations.

■ Place parts on a grounded surface before removing them from their

containers.

■ Avoid touching pins, leads, or circuitry.

■ Always make sure you are properly grounded when touching a static-sensitive

component or assembly.

Page 60

Electrostatic Discharge

60 AB232A PCI-X Host Bus Adapter Installation Guide

Grounding Methods

There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:

■ Use a wrist strap connected by a ground cord to a grounded workstation or

computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent resistance in the ground cords. To provide proper grounding, wear the strap snug against the skin.

■ Use heel straps, toe straps, or boot straps at standing workstations. Wear the

straps on both feet when standing on conductive floors or dissipating floor mats.

■ Use conductive field service tools.

■ Use a portable field service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an HP authorized reseller install the part.

Note: For more information on static electricity, or for assistance with product

installation, contact your HP authorized reseller.

Page 61

61AB232A PCI-X Host Bus Adapter Installation Guide

index

Index

AB232A host bus adapter

see

HBAs

Arbitrated Loop Physical Addresses (AL_PA),

table of 44 audience 8 authorized reseller, HP 12

cables, FCC compliance statement 53 Canadian Notice (Avis Canadien)

Regulatory Compliance

notices 54 CE marking 55 CmdStat values 34 configuration guidelines for HBAs 23 conventions, document 9 cp003654.exe 27 cp003667.exe 26

declaration of conformity 52 diagram, HBAs 15 document conventions 9 driver parameters, table of 41 drivers

installing 26 updating 26

electrostatic discharge 59 equipment symbols 10 European Union notice 55

FCC

class A compliance notice 52 compliance statement, cables 53

Federal Communications Commission (FCC)

notice 52

flash ROM, updating parameters in 48

getting help 11 grounding methods 60

HBAs

configuration guidelines 23 diagram description 15 installation overview 17 installation procedure 20 installation requirements 18 peformance specifications 16 POST LED results 30 product description 13 recording reference numbers 19 restarting 48 verifying installation 22

viewing parameters 38 help, obtaining 11 HP

authorized reseller 12

storage website 12

technical support 11

Page 62

Index

62 AB232A PCI-X Host Bus Adapter Installation Guide

installation

overview 17 procedure 20 requirements 18 verifying 22 Windows drivers 26

laser

devices 58

LightPulse Utility

input and output files 48 loading on Windows 2003 Server 27 modifying driver parameters 40, 45 modifying test options 48 overview 38 restarting HBAs 48 showing HBA information 48 updating flash ROM parameters 48 viewing HBA parameters 38

LpUtilNt

see

LightPulse Utility 38

parameter error values 35 POST LED indicators, verifying HBA installation

22, 30

reference numbers 19 Regulatory Compliance

notices 53

HP AB232A Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
