HP AA-RTDRB-TE User Manual

Download

user guide

hp StorageWorks

embedded web server

Product Version: FW V05.01.00-24/HAFM SW V07.01.00-09

Second Edition (June 2003)

Part Number: AA-RTDRB-TE

This guide describes the Embedded Web Server (EWS) and its features. It tells you how to use EWS to configure, operate, and monitor Storage Area Networks (SANs).

the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information contained in this document is subject to change without notice.

Compaq Computer Corporation is a wholly-owned subsidiary of Hewlett-Packard Company. Intel® is a U.S. registered trademarks of Intel Corporation. Microsoft®, MS-DOS®, and Windows® are U.S. registered trademarks of Microsoft Corporation. UNIX® is a registered trademark of The Open Group. Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The

information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements for such products. Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

Embedded Web Server User Guide Second Edition (June 2003) Part Number: AA-RTDRB-TE

About this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rack Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using EWS to Perform Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Viewing the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Key Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Storage Area Network (SAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Zone (Zoning) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Zone Member. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Suggested Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Where to Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Starting EWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

3Embedded Web Server User Guide

Contents

2 Configuring the Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Factory Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring Product Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Configuring Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Configuring Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Configuring Fabric Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Configuring Network Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Configuring SNMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Enabling or Disabling the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Enabling or Disabling Host Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Zoning Tab View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Configuring User Rights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

User Rights Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Binding Ports to Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Configuring Open Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Installing Feature Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3 Configuring Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Understanding Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Controlling Access Across a Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Controlling Access at the Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Controlling Access at the Server or Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . 58

Zoning Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Naming Conventions for Zones and Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Using WWNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Using Port Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Default Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Active Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Merging Zoned Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Rules for Merging Zoned Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuring, Adding, or Deleting Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Configuring Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

4 Embedded Web Server User Guide

Contents

4 Viewing Product and Fabric Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Viewing Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Viewing a Representation of the Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Viewing Port Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Viewing FRU Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Viewing Unit Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Viewing Operating Parameters for the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Viewing Fabric Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Viewing Operating Parameters for a Fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Viewing Fabric Directors and Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Parts of the Product Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Product Cell Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Parts of the Product Graphic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Viewing Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

5 Monitoring Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Monitoring Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Port List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Port Operational States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Accessing Port Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Troubleshooting Tip for Port Stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Parts of Statistics Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Traffic Transmit and Receive Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Class 2 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Class 3 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Error Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Open Trunking Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Reviewing the Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Severity Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Error Event Code Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Clearing Event Log Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Clearing the System (Product) Error Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Viewing Node List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

5Embedded Web Server User Guide

Contents

6 Operating and Managing

Products and Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Key Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Setting Product Beaconing On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Setting Product Online or Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Resetting Product Configuration to Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Set Individual Port Beaconing On or Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Resetting Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Performing Diagnostics on Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Retrieving Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Obtaining Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Upgrading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Activating (Installing) Optional Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

A Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Figures

1 Example Embedded Web Server page for Edge Switch 2/24 . . . . . . . . . . . . . . . . . . . . . 19

2 Enter Network Password dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3 Switch Tab View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4 Configure Ports tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5 Configure product Identification tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6 Configure date and time tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

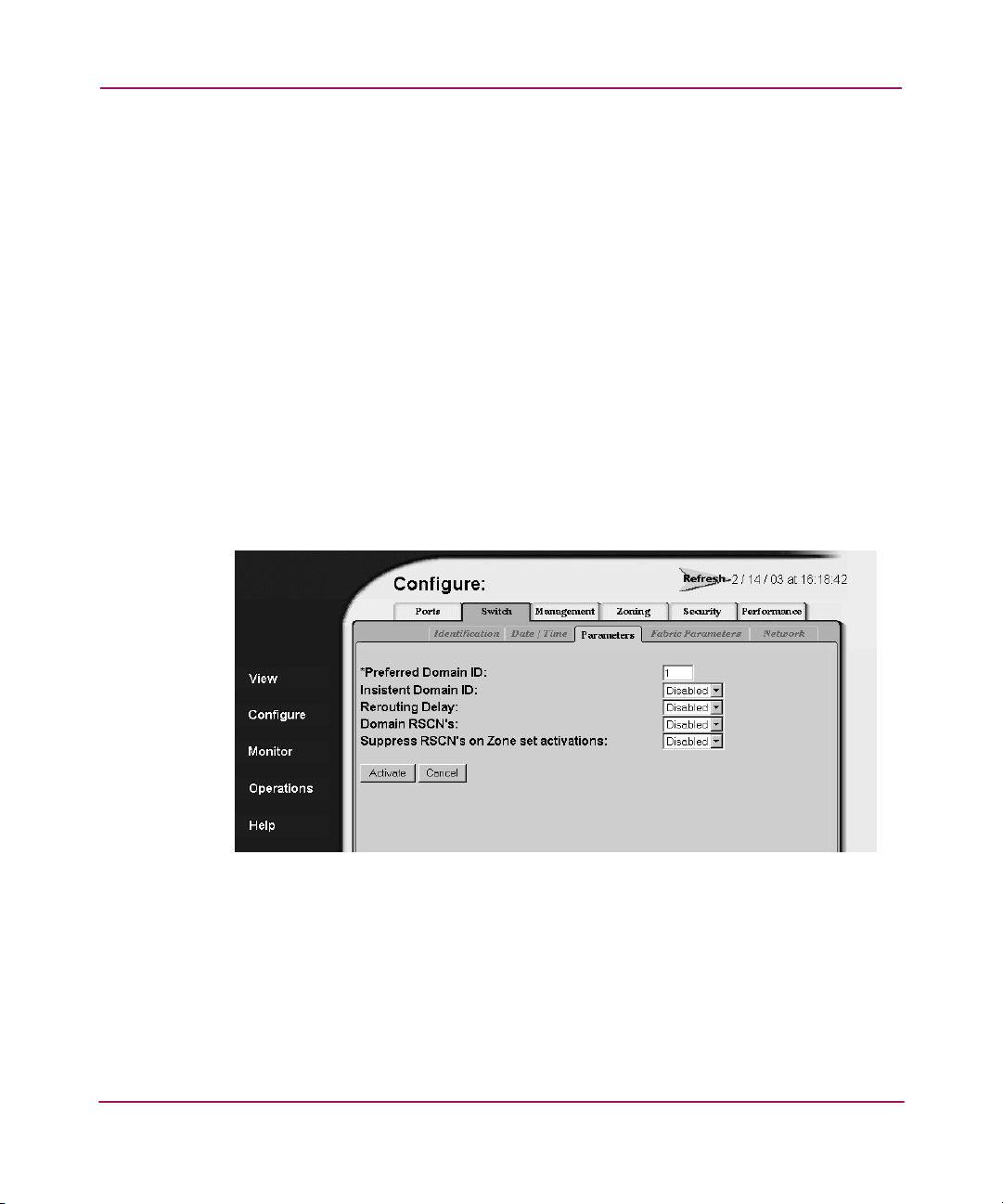

7 Configure product parameters tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8 Fabric Parameters tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

9 Configuring network parameters tab view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

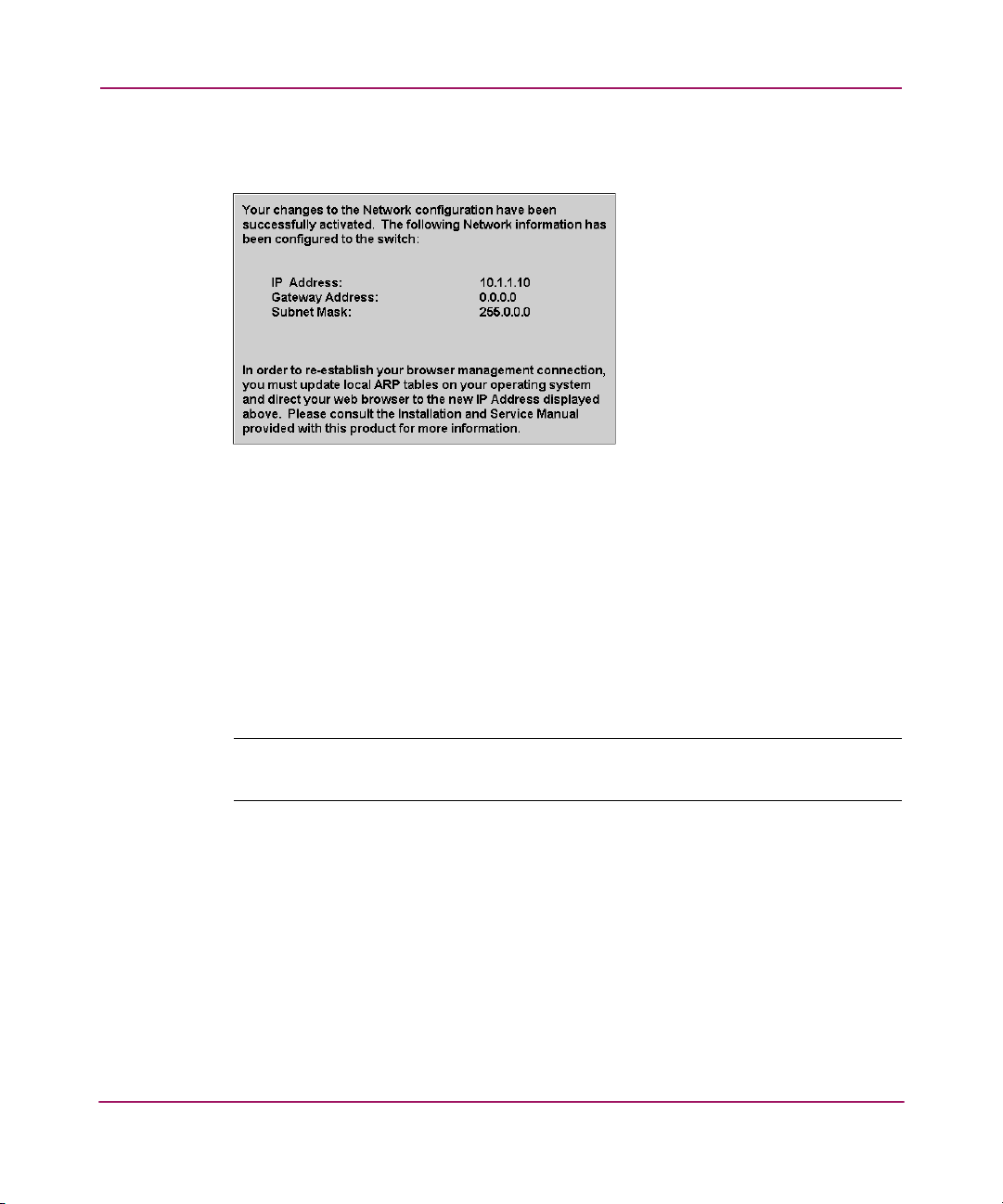

10 Network information message box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

11 Configure SNMP parameters tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

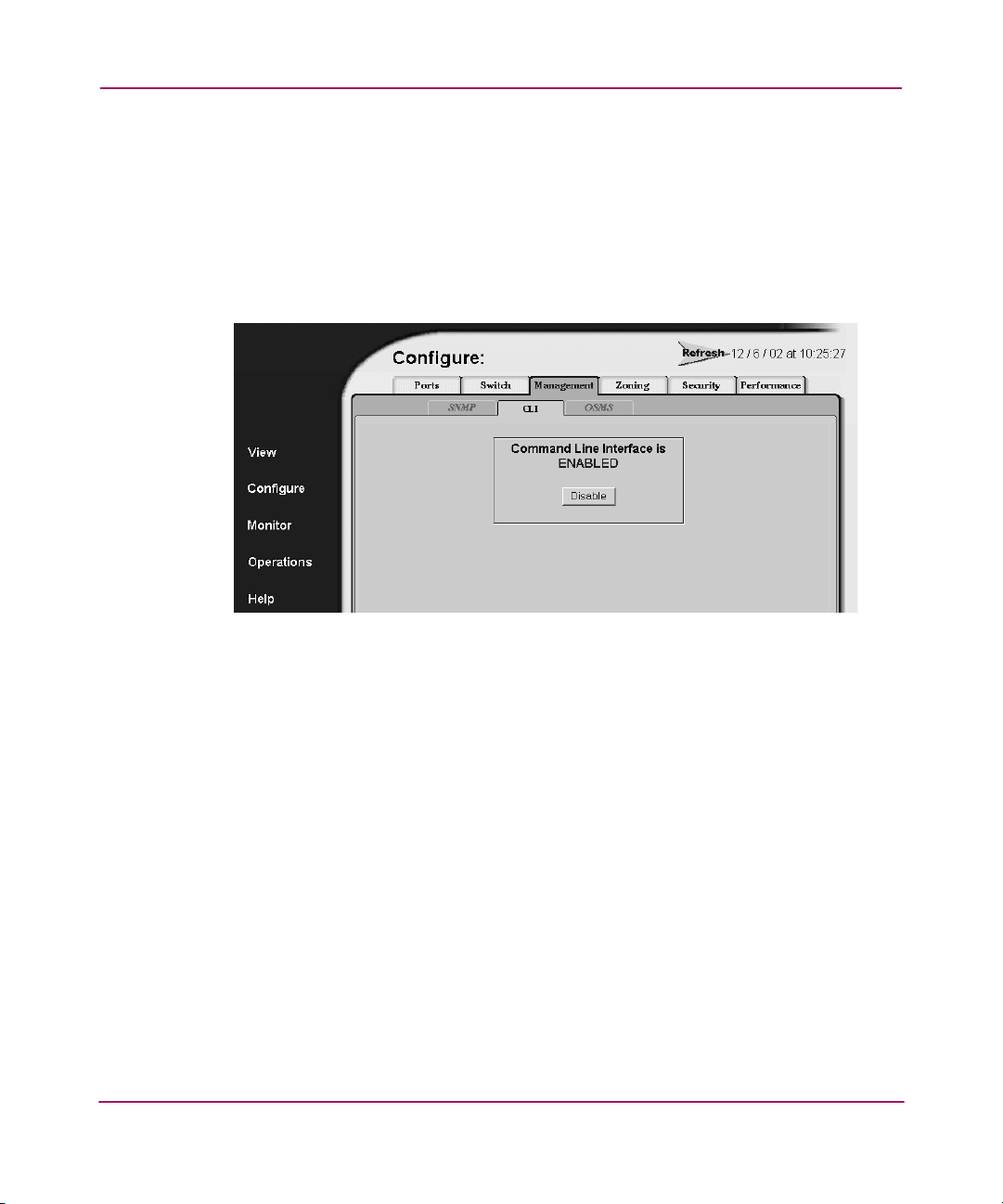

12 Disabling the CLI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

13 Enabling OSMS host control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

14 Configuring user IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

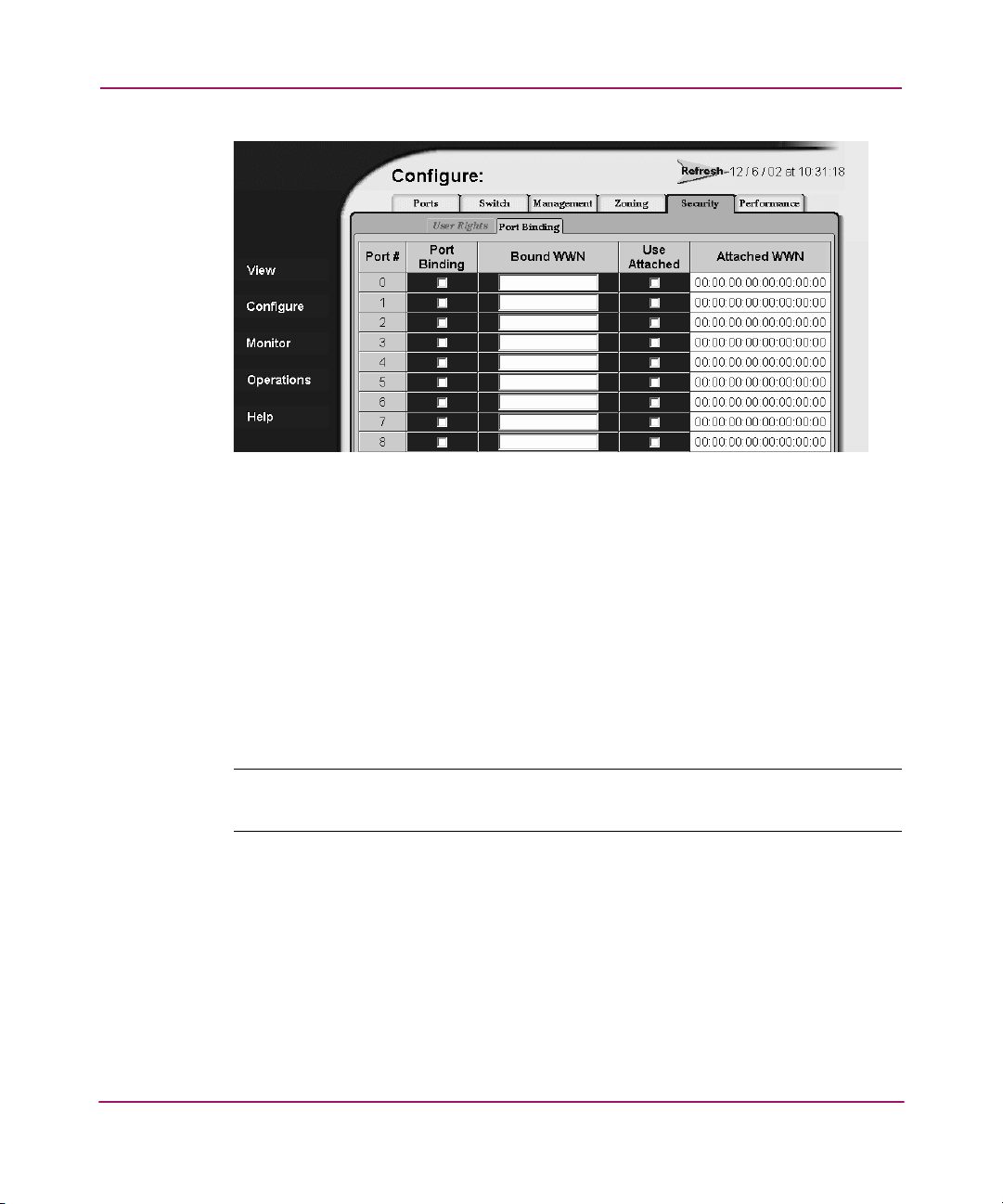

15 Configuring Port Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

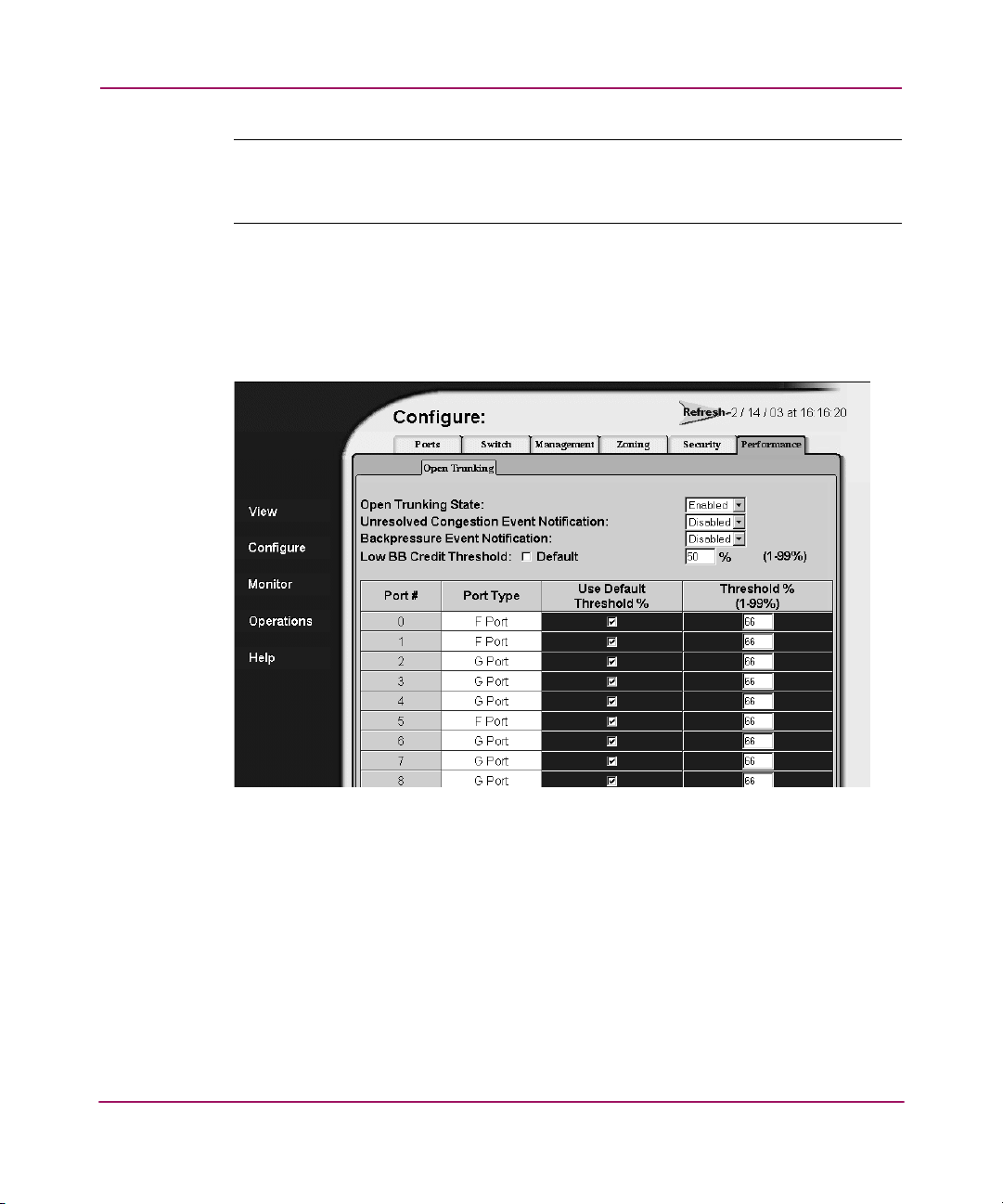

16 Configuring Open Trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

17 Feature Installation tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

18 Zoning through a single Fibre Channel managed product. . . . . . . . . . . . . . . . . . . . . . . . 56

19 Zoning through a multiswitch fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

20 Configuring zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

6 Embedded Web Server User Guide

Contents

21 Modify Zone tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

22 Zone Set tab view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

23 Switch tab view for an Edge Switch 2/24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

24 Port Properties tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

25 FRU Properties tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

26 Unit Properties tab view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

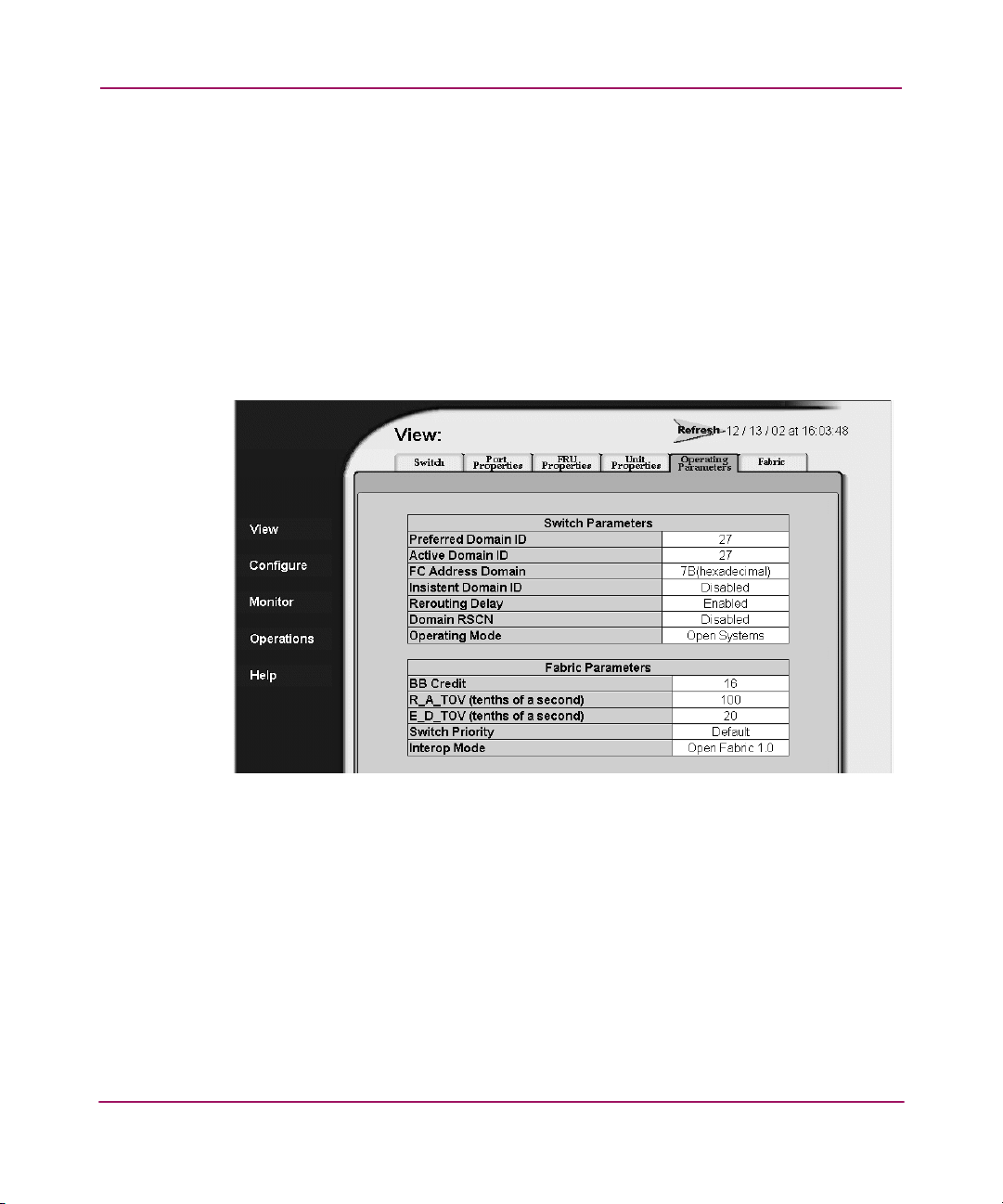

27 Operating Parameters tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

28 Fabric tab with Products tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

29 Fabric tab with Topology tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

30 Port List tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

31 Port Statistics tab view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

32 Log tab view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

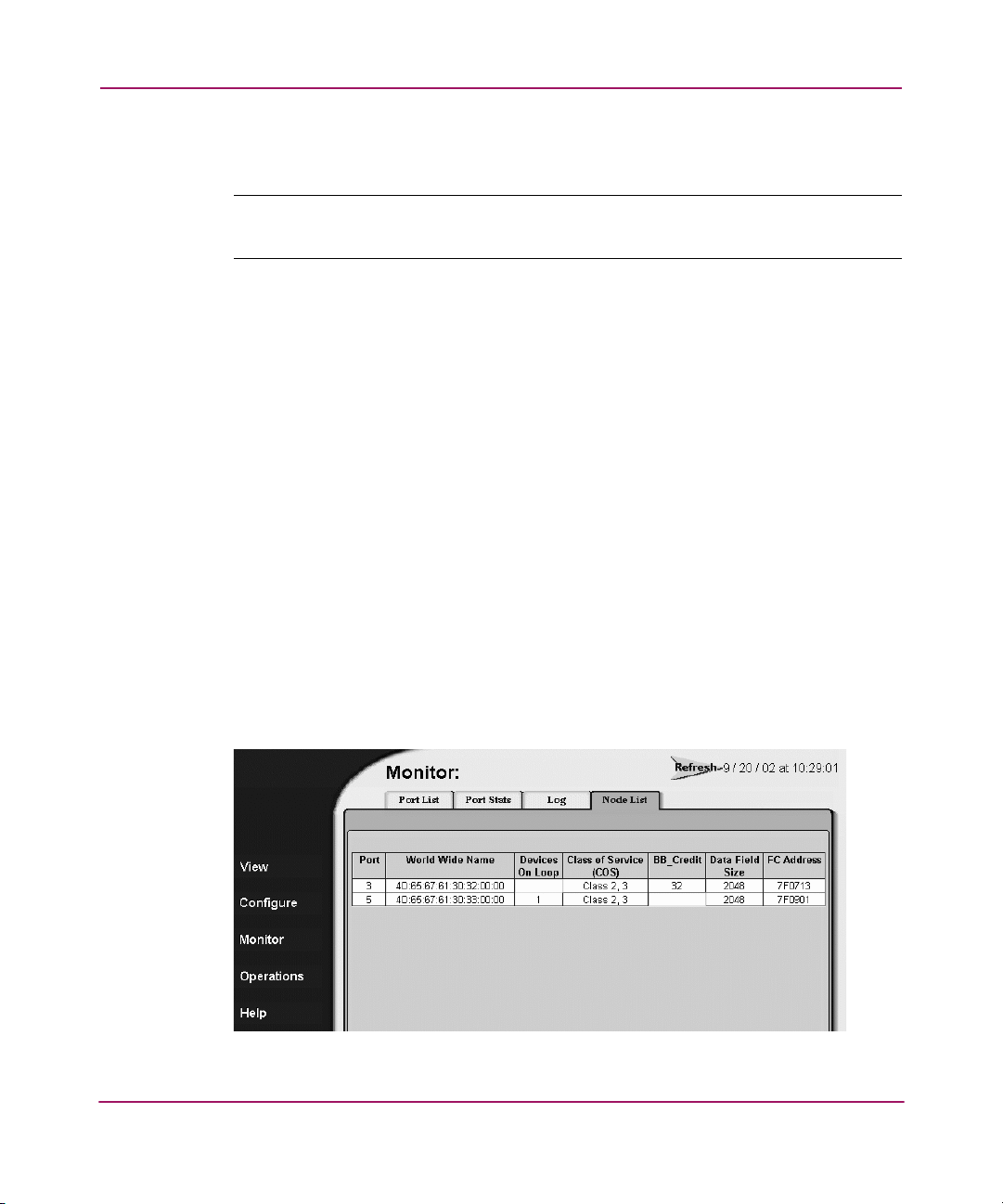

33 Node List tab view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

34 Setting product beaconing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

35 Setting product online or offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

36 Resetting product to default values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

37 Setting individual port beaconing on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

38 Resetting ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

39 Performing diagnostics on ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

40 Diagnostics test in progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

41 Completed diagnostics test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

42 Retrieving the CTP maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

43 Choosing the location to save the CTP maintenance information . . . . . . . . . . . . . . . . . 113

44 Obtaining product information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

45 Upgrading firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Tables

1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2 User Rights Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

3 Merging Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4 State Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

5 Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

6 Information on the Product Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

7 Operating Status Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

8 Components of the Topology Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

9 Embedded Web Serve Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

7Embedded Web Server User Guide

Contents

8 Embedded Web Server User Guide

about this

guide

This user guide provides information to help you:

■ Use the Embedded Web Server (EWS) to configure and manage the following

About this Guide

HP StorageWorks products:

—Director 2/64

—Director 2/140

— Edge Switch 2/16

— Edge Switch 2/24

— Edge Switch 2/32

■ Use the Embedded Web Server to monitor Storage Area Networks (SANs).

“About this Guide” topics include:

■ Overview, page 10

■ Conventions, page 11

■ Rack Stability, page 13

■ Getting Help, page 14

9Embedded Web Server User Guide

About this Guide

Overview

This section covers the following topics:

■ Intended Audience

■ Related Documentation

Intended Audience

This book is intended for use by data center administrators, LAN administrators,

operations personnel, and customer support personnel who administer user access

to this application and monitor and manage product operation.

Conventions

Conventions consist of the following:

■ Document Conventions

■ Text Symbols

■ Equipment Symbols

Document Conventions

The document conventions included in Tabl e 1 apply in most cases.

Table 1: Document Conventions

Cross-reference links Blue text: Figure 1 Key and field names, menu items,

buttons, and dialog box titles File names, application names, and text

emphasis User input, command and directory

names, and system responses (output and messages)

Variables <monospace, italic font> Website addresses Blue, underlined sans serif font text:

About this Guide

Element Convention

Bold

Italics

Monospace font COMMAND NAMES are uppercase

monospace font unless they are case sensitive

http://www.hp.com

Embedded Web Server User Guide

About this Guide

Text Symbols

The following symbols may be found in the text of this guide. They have the

following meanings.

WARNING: Text set off in this manner indicates that failure to follow

directions in the warning could result in bodily harm or death.

Caution: Text set off in this manner indicates that failure to follow directions

could result in damage to equipment or data.

Note: Text set off in this manner presents commentary, sidelights, or interesting points

of information.

Equipment Symbols

The following equipment symbols may be found on hardware for which this guide

pertains. They have the following meanings.

Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts.

WARNING: To reduce the risk of personal injury from electrical shock

hazards, do not open this enclosure.

Any RJ-45 receptacle marked with these symbols indicates a network interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to the

equipment, do not plug telephone or telecommunications connectors into this receptacle.

12 Embedded Web Server User Guide

About this Guide

Any surface or area of the equipment marked with these symbols indicates the presence of a hot surface or hot component. Contact with this surface could result in injury.

WARNING: To reduce the risk of personal injury from a hot component,

allow the surface to cool before touching.

Power supplies or systems marked with these symbols indicate the presence of multiple sources of power.

WARNING: To reduce the risk of personal injury from electrical

shock, remove all power cords to completely disconnect power from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the component exceeds the recommended weight for one individual to handle safely.

Rack Stability

Rack stability protects personnel and equipment.

WARNING: To reduce the risk of personal injury or damage to the

equipment, be sure that:

■ The leveling jacks are extended to the floor.

■ The full weight of the rack rests on the leveling jacks.

■ In single rack installations, the stabilizing feet are attached to the rack.

■ In multiple rack installations, the racks are coupled.

■ Only one rack component is extended at any time. A rack may become

unstable if more than one rack component is extended for any reason.

Embedded Web Server User Guide

WARNING: To reduce the risk of personal injury or damage to the

equipment, observe local occupational health and safety requirements and guidelines for manually handling material.

About this Guide

Getting Help

If you still have a question after reading this guide, contact an HP authorized

service provider or access our website:

HP Technical Support

In North America, call technical support at 1-800-652-6672, available 24 hours a

day, 7 days a week.

Note: For continuous quality improvement, calls may be recorded or monitored.

Outside North America, call technical support at the nearest location. Telephone

numbers for worldwide technical support are listed on the HP website under

support:

Be sure to have the following information available before calling:

■ Technical support registration number (if applicable)

■ Product serial numbers

■ Product model names and numbers

http://www.hp.com/country/us/eng/support.html

http://www.hp.com

■ Applicable error messages

■ Operating system type and revision level

■ Detailed, specific questions

HP Storage Website

The HP website has the latest information on this product, as well as the latest

drivers. Access storage at:

storage.html

14 Embedded Web Server User Guide

. From this website, select the appropriate product or solution.

http://www.hp.com/country/us/eng/prodserv/

HP Authorized Reseller

For the name of your nearest HP authorized reseller:

■ In the United States, call 1-800-345-1518

■ In Canada, call 1-800-263-5868

■ Elsewhere, see the HP website for locations and telephone numbers:

http://www.hp.com

About this Guide

Embedded Web Server User Guide

About this Guide

16 Embedded Web Server User Guide

Introduction

Overview

The Embedded Web Server (EWS) is a web-based graphical user interface (GUI),

based on HTML, that enables the user to administer products, monitor products

and ports, and perform tasks to manage a simple Storage Area Network (SAN).

You can also use EWS to perform troubleshooting tasks and upgrade product

firmware.

With product firmware 04.00.00 (or later) installed, administrators or operators

with a browser-capable PC and an Internet connection can monitor and manage

the product through the EWS interface.

The EWS interface supports product configuration, statistics monitoring, and

basic operation. The EWS interface neither replaces nor offers all of the

management capability of the High Availability Fabric Manager (HAFM) and its

Product Manager applications (for example, the EWS interface does not support

all product maintenance functions).

In addition, EWS provides hyperlink access to other products in a fabric, which

means those products can also be managed.

Using EWS to Perform Tasks

Users can perform the following tasks using EWS:

■ Display the properties and operational status of the product, FRUs, and Fibre

Channel ports; display product operating parameters; and display fabric parameters.

■ Configure the director or edge switch, including:

— Fibre Channel port parameters, port types, and data transmission speeds.

— Product identification, date and time, operating domain parameters, fabric

parameters, and network addresses.

17Embedded Web Server User Guide

Introduction

— Parameters for product management through Simple Network

Management Protocol (SNMP), the Command Line Interface (CLI), the Open System Management Server (OSMS) feature, or the Fibre Connection (FICON) Management Server (FMS) feature.

Note: The Edge Switch 2/24 does not support out-of-band management through FMS.

However, the Edge Switch 2/24 does support transmission of FICON frames.

— Zones and zone sets.

— User rights (administrator and operator).

■ Monitor ports and port statistics, and display the event log and node list.

■ Perform product operations and maintenance tasks, including:

— Enable unit beaconing, set the product online or offline, and perform a

configuration reset.

— Enable port beaconing, perform port diagnostics, and reset ports.

— Retrieve dump files and retrieve product information files.

— Install optional feature keys.

— Configure product Internet Protocol (IP) addresses, names, and SNMP

settings.

— Install new versions of product firmware.

— Manage user access to features.

— Control product ports on an individual basis.

— Troubleshoot problems using event log and error status indicators.

Administrators and operators can access real-time information about the product and fabric.

The EWS interface can be opened from a standard web browser running Netscape

Navigator 4.6 or higher or Microsoft

® Internet Explorer 4.0 or higher. At the web

browser, the user enters the IP address of the product as the Internet uniform

resource locator (URL). When prompted at a login screen, the user enters a user

name and password.

Note: The default user name is Administrator and the default password is password.

The user name and password are case-sensitive.

18 Embedded Web Server User Guide

Viewing the User Interface

When the EWS interface opens, the default display is the View page. Figure 1

shows an example EWS view with labels for the various parts of the image. This

example shows the Configure > Switch > Identification screen for the

Edge Switch 2/24. For other products, the corresponding page looks very similar.

Introduction

Figure 1: Example Embedded Web Server page for Edge Switch 2/24

As shown in Figure 1, particular terms are used when describing the EWS

interface:

■ Navigation panel — at the left of the screen is a menu of the various primary

views available on the screen. The navigation panel options include:

— View — At the View page, the Director or Switch (default), Port

Properties, FRU Properties, Unit Properties, Operating Parameters, and Fabric task selection tabs display.

— Configure — At the Configure page, the Ports (default), Director or

Switch, Management, Zoning, and User Rights task selection tabs display.

19Embedded Web Server User Guide

Introduction

— Monitor — At the Monitor page, the Port List (default), Port Stats,

Log, and Node List task selection tabs display.

— Operations — At the Operations page, the Director or Switch (default),

Port, Maintenance, and Feature Installation task selection tabs display.

— Help — The Help option opens online user documentation that supports

the EWS interface. This manual supplements the online help that is included with the EWS interface.

■ Page — describes the entire screen except the navigation panel. When you

choose an item from the navigation panel, the corresponding page view displays. For example, choose Configure from the navigation panel to view the Configure page.

■ Ta b — describes a label for a viewing option on a page, such as the Switch

and Identification tabs shown in Figure 1. Task selection tabs display at the top of the page. The task selection tabs allow users to perform director- or switch-specific tasks.

■ Ta b vie w — describes the fields, buttons, and labels that display when you

click on a tab. The tab view contains the information you are trying to access and activities that you can complete.

■ Date and Time — specifies the time when the information shown on the page

view was last updated.

Benefits

The EWS interface provides the following benefits:

■ Enables a single product to be managed from a single point of access.

■ Allows an administrator to manage a product from any location (such as their

office, a raised floor area, or a conference room) within the company’s public/private networks.

■ Enables an administrator to view the most current information about a product

upon accessing the product.

(This easy access provides a single point of product administration that is not limited to the location of an application or special hardware.)

20 Embedded Web Server User Guide

Key Terms

Introduction

■ Protects the authorized rights of users to perform tasks through roles defined

as operators and administrators.

(This protection enables companies to decide who should perform everyday tasks, such as monitoring product status, and sensitive tasks, such as installing firmware updates. This flexible approach enables companies to define roles within their organization while providing a level of security against unauthorized access.)

■ Enables users to simply start a web browser, enter the network address of the

product, and log in to start using EWS.

(No additional installation is required. EWS is ready and available to perform administration tasks once the hardware is installed and connected to the Ethernet network.)

■ Allows users to utilize a familiar web browser-based graphical user interface

that uses standard web browser applications for access.

■ Allows users to obtain assistance in performing tasks through online help.

This section provides key terms that will help you perform tasks, especially tasks

such as zoning.

Fabric

Entity that interconnects N_Ports and is capable of routing (switching) Fibre

Channel frames using the destination ID information in the Fibre Channel frame

header accompanying the frames.

21Embedded Web Server User Guide

Introduction

Storage Area Network (SAN)

A high-performance data communications environment that interconnects

computing and storage resources so that the resources can be effectively shared

and consolidated.

Zone (Zoning)

A zone is a group of devices or zone members in a SAN that can communicate

and access each other. Communication is only allowed between devices in the

same zone. A device can be in multiple zones so that shared resources can be

accessed by many devices. Because SANs connect many types of devices that

may carry different protocols, separating an entire fabric into zones can control

access between specific devices. Zone (or zoning) is an efficient method of

managing, partitioning, and controlling access to SAN devices. Zoning maximizes

resources while maintaining data security and enabling heterogeneous systems

and products to operate in the same SAN.

Zone Member

Specification (definition) of a device that belongs to a zone. A zone member can

be identified by the port number of the device to which it is attached or by its

device or host bus adapter or World Wide Name (WWN). In multiswitch fabrics,

identification of end-devices and nodes by WWN is preferable.

Zone Set

A zone set is composed of one or more zones. When a zone set is activated, all

zones in the set are activated at the same time. Only one zone set can be active in

the fabric at one time, and that zone set is referred to as the active zone set.

Where to Start

Depending upon whether the Hewlett-Packard product you purchased has already

been installed, you may need to go to a specific chapter. If the product has not

been installed, you should start at Chapter 2.

If the product was installed, then many of the configuration tasks were probably

already completed. In that case, you may need to configure a zone. Configuring

(including adding, deleting, and changing) zones is described in Chapter 3.

If the products have been configured and you have a functioning SAN, then you

most likely will be interested in performing system administration tasks. Those

tasks are described in Chapter 4, Chapter 5, and Chapter 6.

If you need to perform troubleshooting, then you will want to review Chapter 5

and Chapter 6.

Starting EWS

Open the EWS interface as follows:

1. Ensure the workstation (or device you use to launch the web browser) and the Ethernet LAN segment containing the product, such as Edge Switch 2/24, are attached and connected through the Internet.

Introduction

Note: You must be able to make a connection between the web browser and the

product in order to login to the product.

2. Launch the web browser application (such as Netscape Navigator, version 4.6 or higher, or Microsoft Internet Explorer, version 4.0 or higher).

3. At the web browser, enter the IP address of the product as the Internet uniform resource locator (URL) such as http://10.1.1.11.

Note: If the product has not been installed, refer to the product’s installation and

service manual for the appropriate IP address, login ID, and password that is initially used when you install and configure the product.

23Embedded Web Server User Guide

Introduction

After a connection is made between the web browser and the product, the Enter Network Password dialog box displays as shown in Figure 1.

Figure 2: Enter Network Password dialog box

4. Type the user name and password. The EWS interface opens with the View page displayed, as shown in Figure 3.

Note: The default user name is available from the installation and service guide that

was shipped with the product. The user name and password are case-sensitive. Also, during installation, the default values may have been changed. If defaults have changed, contact your system administrator for the valid user names and passwords.

Figure 3: Switch Tab View

24 Embedded Web Server User Guide

Configuring the Product

This chapter describes how to configure an HP product using the EWS interface. These procedures can be used to configure a product after installation and as changes are needed. You can use the tabs of the Configure page to configure the following aspects of a director or edge switch:

■ Factory Default Values on page 26

■ Configuring Ports on page 26

■ Configuring Product Identification on page 29

■ Configuring Date and Time on page 31

■ Configuring Operating Parameters on page 32

■ Configuring Fabric Parameters on page 35

■ Configuring Network Information on page 38

■ Configuring SNMP on page 40

■ Enabling or Disabling the CLI on page 42

■ Enabling or Disabling Host Control on page 43

■ Zoning Tab View on page 44

■ Configuring User Rights on page 44

■ Binding Ports to Devices on page 47

■ Configuring Open Trunking on page 49

■ Installing Feature Keys on page 52

25Embedded Web Server User Guide

Configuring the Product

Factory Default Values

HP products on a SAN have preset, default configuration values that were set in the factory. The items that have factory-set default values are:

■ Passwords (customer and maintenance-level)

■ Internet Protocol (IP) address

■ Subnet mask

■ Gateway address

The specific default values associated with a particular HP product are documented in the installation and service manual for the product.

Configuring Ports

Perform procedures in this section to configure names and operating characteristics for Fibre Channel ports. To configure one or more ports:

1. If you are going to change the Speed parameter on an Director 2/64, set the product offline as follows:

a. Choose Operations from the navigation panel. The Operations page

displays.

b. Click the Online State tab, then click Set Offline. The following message

displays: Your operations changes have been successfully activated.

2. At the EWS screen, choose Configure from the navigation panel. The Configure page and the Ports tab view display (Figure 4).

Note: Because the Director 2/140 has many ports, the listing of ports is divided into

separate displays, which are accessed by clicking the hyperlinks 1-31, 32-63, 64-95, 96-127, and 132-143. (Ports 128 through 131 are internal ports and not available for external connections.) If you make any changes to a particular list of ports, click Activate before selecting another list of ports. If you do not click Activate, changes are not implemented on the director.

26 Embedded Web Server User Guide

Configuring the Product

Figure 4: Configure Ports tab view

a. For each port to be configured, type a port name of 24 alphanumeric

characters or less in the associated Name field.

Note: When naming ports, you may want to name each port based on the device

attached to the port. For example, if the port is attached to an e-mail server, you might name the port email1 server port 2. The important point is to relate the name of the port to the device that is attached to the port.

b. Click a check box in the Blocked column to block or unblock a port

(default is unblocked). A check mark in the box indicates a port is blocked. Blocking a port prevents the attached devices or HP products in the fabric from communicating. A blocked port continuously transmits the offline sequence (OLS).

c. Click the check box in the FA N column to enable or disable the fabric

address notification (FAN) feature (default is enabled). (The FAN column is available only on the Edge Switch 2/24.) A check mark in the box indicates FAN is enabled. When the feature is enabled, the port transmits a FAN frame after loop initialization to verify that Fibre Channel Arbitrated Loop (FC-AL) devices are still logged in. It is recommended this option be enabled for ports configured for loop operation.

27Embedded Web Server User Guide

Configuring the Product

Note: If a device is connected and logged in to the fabric when extended distance is

enabled or disabled on the corresponding port, the HP product sends OLS for 5 milliseconds to force the device to log in again and obtain the new BB_Credit value set for the port.

d. Click a check box in the 10-100 km column to define extended distance

buffering. (This column is not available on the Edge Switch 2/24.) A check mark in the box indicates extended distance buffering is enabled. You can enable extended distance for a port even if it is not an extended distance port. However, enabling extended distance buffering for a port disables the ability of the port to send broadcast traffic. When you choose this option, the port can support up to 60 buffer-to-buffer credits (BB_Credits) to handle link distances up to 100 km. This enables the port to process 2K frames from attached devices. If this option is not enabled, the port uses the BB_Credit value.

e. Choose from the drop-down list in the Ty pe column to configure the port

type. Available selections are:

— G_Port — Generic port.

— F_Port — Fabric port.

— E_Port — Expansion port.

— GX_Port — Generic mixed port. Use this selection to configure a

port as a generic loop port (GL_Port). The port automatically negotiates any connection type (Edge Switch 2/24 only).

— FX_Port — Fabric mixed port. Use this selection to configure a port

as a fabric loop port (FL_Port). The port automatically negotiates F_Port and FL_Port connections only (Edge Switch 2/24 only).

f. Choose from the drop-down list in the Speed column to configure the port

transmission rate. Available selections are:

— Negotiate — Auto-negotiate between 1.0625 and 2.125 gigabits per

second (Gbps) operation. This is valid only on products that are capable of 2 Gbs operation.

— 1 Gb/sec — 1.0625 Gbps operation.

— 2 Gb/sec — 2.125 Gbps operation.

28 Embedded Web Server User Guide

3. Click Activate to save and activate the changes. The following message displays: Your changes to the port configuration have been successfully activated.

4. If the product is offline, set the product online as follows:

a. Choose Operations from the navigation panel. The Operations page

displays.

b. Click the Online State tab, then click Set Online. The following message

message displays: Your operations changes have been successfully activated.

Configuring Product Identification

Perform this procedure to configure the HP product’s name, description, location, and contact person. The Name, Location, and Contact variables configured here correspond respectively to the variables used by SNMP management workstations when obtaining data from managed edge switches or directors. To configure identification:

1. Choose Configure from the navigation panel. Choose the Switch or Director tab, as appropriate. The Switch or Director tab displays with the Identification tab view (Figure 5).

Configuring the Product

Figure 5: Configure product Identification tab view

29Embedded Web Server User Guide

Configuring the Product

Note: Spaces are allowed in the Name field.

2. Click Activate to save and activate the changes. The following message

a. Type a name of 24 alphanumeric characters or less in the Name field.

Each product should be configured with a unique name.

If the product is installed on a public LAN, it is recommended that the name reflect the product’s Ethernet network domain name system (DNS) host name. For example, if the DNS host name is edgeswitch224.hp.com, the name entered in this dialog box should be edgeswitch224.

b. Type a product description of 255 alphanumeric characters or less in the

Description field.

c. Type the product’s physical location (255 alphanumeric characters or less)

in the Location field.

d. Type the name of a contact person (255 alphanumeric characters or less)

in the Contact field.

displays: Your changes to the identification configuration have been successfully activated.

30 Embedded Web Server User Guide

Configuring Date and Time

Perform this procedure to configure the effective date and time for the product. To set the date and time:

1. Choose Configure from the navigation panel. Choose the Switch or Director tab, as appropriate. Click the Date/Time tab to display the Date/Time tab view (Figure 6).

Configuring the Product

Figure 6: Configure date and time tab view

a. Click the Date fields that require change, and type numbers in the

following ranges:

—Month (MM): 01 through 12.

—Day (DD): 01 through 31.

— Year (YYYY): greater than 1980.

b. Click the Time fields that require change, and type numbers in the

following ranges:

—Hour (HH): 00 through 23.

—Minute (MM): 00 through 59.

— Second (SS): 00 through 59.

2. Click Activate to save and activate the changes. The following message displays: Your changes to the date/time configuration have been successfully activated.

31Embedded Web Server User Guide

Configuring the Product

Configuring Operating Parameters

Perform this procedure to configure the product’s preferred domain ID, insistent domain ID, rerouting delay, and domain registered state change notifications (RSCNs). The product must be set offline to configure the preferred domain ID. To configure parameters:

1. If you are going to set the preferred domain ID, set the product offline as follows:

a. Choose Operations from the navigation panel. The Operations page

displays.

b. Click the Online State tab, then click Set Offline. The following message

displays: Your operations changes have been successfully activated.

2. Choose Configure from the navigation panel. The Configure page displays.

3. Click the Switch or Director tab, as appropriate. Click the Parameters tab to display the Parameters tab view (Figure 7).

Figure 7: Configure product parameters tab view

a. At the Preferred Domain ID field, type a value of 1 through 31. The

domain ID uniquely identifies each product in a fabric.

32 Embedded Web Server User Guide

Configuring the Product

Note: If the product is attached to a fabric element, the product and element must have

unique domain IDs. If the values are not unique, the E_Port connection to the element cannot carry traffic and the product cannot communicate with the fabric.

b. At the Insistent Domain ID field, choose Enabled or Disabled. When

this parameter is enabled, the domain ID configured in the Preferred Domain ID field becomes the active domain identification when the fabric initializes. (The Insistent Domain ID is automatically enabled if the SANtegrity Binding feature is installed.)

Note: If Enterprise Fabric Mode (an optional SANtegrity Binding feature) is enabled,

then Insistent Domain ID must be enabled.

c. At the Rerouting Delay field, choose Enabled or Disabled. When this

parameter is enabled, traffic is delayed through the fabric by the specified error detect time out value (E_D_TOV). This delay ensures Fibre Channel frames are delivered to their destination in order, even if a change to the fabric topology creates a new (shorter) transmission path. This parameter is only applicable if the product is being configured in a multiswitch fabric.

Note: If Enterprise Fabric Mode (an optional SANtegrity Binding feature) is enabled,

then Rerouting Delay

must be enabled.

d. At the Domain RSCNs field, choose Enabled or Disabled. When this

parameter is enabled, messages can be sent between end devices in a fabric to provide additional connection information to host bus adapters (HBA) and storage devices. Consult with your HBA and storage device vendor to determine if enabling Domain RSCNs will cause problems with your HBA or storage products.

Note: If Enterprise Fabric Mode (an optional SANtegrity Binding feature) is enabled,

then Domain RSCNs must be enabled.

33Embedded Web Server User Guide

Configuring the Product

Note: Some older versions of EWS may show the Zoning Configuration Change

RSCNs field for this item. The functionality is the same.

4. Click Activate to save and activate the changes. The following message

5. If fabric parameters require configuration, go to “Configuring Fabric

e. At the Suppress RSCNs on Zone Set Activations field, choose Enabled

or Disabled. When this parameter is enabled, RSCN messages are prohibited from being sent to ports on the switch following any change to the fabric's active zone set. Consult with your HBA and storage device vendor to determine if enabling this parameter will cause problems with your HBA or storage products.

f. If you are configuring parameters for the Director 2/64, a Switch Speed

field is displayed. Choose 1 Gb/sec or 2 Gb/sec. These options specify the speed used on the switch. This field is valid only for the Director 2/64, which is able to run at both speeds.

displays: Your changes to the operating parameters configuration have been successfully activated.

Parameters” on page 35. If the configuration is complete, set the product

online as follows:

a. Choose Operations from the navigation panel. The Operations page

displays.

b. Click the Online State tab, then click Set Online. The following message

displays: Your operations changes have been successfully activated.

34 Embedded Web Server User Guide

Configuring Fabric Parameters

Perform this procedure to configure the fabric operating parameters, including resource allocation time out value (R_A_TOV), E_D_TOV, product priority, and interop mode. The product must be set offline. To configure parameters:

1. If product is online, set the product offline as follows:

a. Choose Operations from the navigation panel. The Operations page

displays.

b. Click the Online State tab, then click Set Offline. The following message

displays: Your operations changes have been successfully activated.

2. Choose Configure from the navigation panel.

3. Click the Switch or Director tab (as appropriate), then click the Fabric Parameters tab. The Fabric Parameters tab view displays (Figure 8).

Configuring the Product

Figure 8: Fabric Parameters tab view

a. At the BB_Credit field, type a value between 1 and 60. (This field is not

available for the Edge Switch 2/24.) Configure the product to support buffer-to-buffer credit (BB_Credit) from 1 through 60. This is the value used for all ports, except those configured for extended distance buffering (10-100 km). The default value is 16. For a description of the buffer-to-buffer credit, refer to industry specification, Fibre Channel Physical and Signaling Interface.

35Embedded Web Server User Guide

Configuring the Product

Note: If the product is attached to a fabric element, the product and element must be

set to the same R_A_TOV value. If the values are not identical, the E_Port connection to the element fails and the product cannot communicate with the fabric.

Note: If the product is attached to a fabric element, the product and fabric element

must be set to the same E_D_TOV value. If the values are not identical, the E_Port connection to the element fails and the product cannot communicate with the fabric.

b. At the R_A_TOV field, type a value between 10 through 1200 tenths of a

second (1 through 120 seconds). (The R_A_TOV value must be greater than the E_D_TOV value.)

c. At the E_D_TOV field, type a value between 2 through 600 tenths of a

second (0.2 through 60 seconds). (The E_D_TOV value must be less than the R_A_TOV value.)

d. Choose from the Switch Priority drop-down list to set the product

priority. Available selections are Default, Principal, and Never Principal. The default setting is Default.

This value designates the fabric’s principal switch. The principal switch is assigned a priority of 1 and controls the allocation and distribution of domain IDs for all fabric elements (including itself).

Principal is the highest priority setting, Default is the next highest, and Never Principal is the lowest priority setting. The setting Never Principal means the switch is incapable of becoming a principal switch.

If all switches are set to Principal or Default, the switch with the highest priority and the lowest World Wide Name (WWN) becomes the principal switch.

At least one switch in a fabric must be set as Principal or Default. If all switches are set to Never Principal, all interswitch links (ISLs) will segment, causing a failure of connectivity.

e. Choose from the Interop Mode drop-down list to set the product

operating mode. This option does not display if the operation mode is S/390. (S/390 mode is not supported with the Edge Switch 2/24.)

36 Embedded Web Server User Guide

Configuring the Product

Note: The operation mode parameter in the EWS interface is equivalent to the

management style parameter in the HAFM interface. The S/390 mode used for the EWS interface is equivalent to the FICON management style in the HAFM.

This setting only affects the mode used to manage the product; it does not affect port operation. Available selections are:

— Homogenous Fabric — Choose this option if the product is

fabric-attached only to other HP directors or switches operating in Homogenous Fabric mode.

— Open Fabric 1.0 — Choose this option for managing heterogeneous

fabrics and if the product is fabric-attached to HP directors or switches and open-fabric compliant switches produced by other original equipment manufacturers (OEMs).

4. Click Activate to save and activate the changes. The following message displays: Your changes to the fabric parameters configuration have been successfully activated.

5. Set the product online as follows:

a. Choose Operations from the navigation panel. The Operations page

opens.

b. Click the Online State tab, then click Set Online. The following message

displays: Your operations changes have been successfully activated.

37Embedded Web Server User Guide

Configuring the Product

Configuring Network Information

Verify the type of LAN installation with the customer’s network administrator. If one HP product is installed on a dedicated LAN, network information (IP address, subnet mask, and gateway address) does not require change.

If multiple HP products are installed or a public LAN segment is used, network information must be changed to conform to the customer’s LAN addressing scheme.

Perform the following steps to change a product’s IP address, subnet mask, or gateway address.

1. Choose Configure from the navigation panel.

2. Click the Switch or Director tab, then click the Network tab to display the Network tab view (Figure 9).

Figure 9: Configuring network parameters tab view

a. At the IP Address field, type the new value specified by the customer’s

network administrator (default is 10.1.1.10).

b. At the Subnet Mask field, type the new value specified by the customer’s

network administrator (default is 255.0.0.0).

c. At the Gateway Address field, type the new value specified by the

customer’s network administrator (default is 0.0.0.0).

38 Embedded Web Server User Guide

Configuring the Product

3. Click Activate to save and activate the changes. The following message box displays (Figure 10).

Figure 10: Network information message box

4. Update the address resolution protocol (ARP) table for the browser PC. Delete the product’s old IP address from the ARP table using the process that is appropriate for the operating system (OS) in use by the system.

5. At the PC, launch the browser application (Netscape Navigator

or Internet

Explorer).

6. At the browser, enter the product’s new IP address as the Internet URL. The Enter Network Password dialog box displays.

7. Type the user name and password.

Note: The default user name is Administrator and the default password is password.

The user name and password are case-sensitive.

8. Click OK. The EWS interface opens with the View page open and the Switch or Director page displayed.

39Embedded Web Server User Guide

Configuring the Product

Configuring SNMP

Perform this procedure to configure community names, write authorizations, network addresses, and user datagram protocol (UDP) port numbers for up to six SNMP trap message recipients. A trap recipient is a management workstation that receives notification (through SNMP) if a switch event occurs. To configure SNMP trap recipients:

1. Choose Configure from the navigation panel.

2. Choose the Management tab. The Management and SNMP tab views display (Figure 11).

Figure 11: Configure SNMP parameters tab view

a. Click the Enable Authorization Traps field to enable authorization trap

messages to be sent to SNMP management stations when unauthorized stations try to access SNMP information from the product.

b. For each trap recipient to be configured, type a community name of 32

alphanumeric characters or less in the Community Name field. The community name is incorporated in SNMP trap messages to prevent unauthorized viewing or use.

40 Embedded Web Server User Guide

Configuring the Product

Note: Spaces are allowed in the Community Name field.

c. Click the check box in the Write Authorization column to enable or

disable write authorization for the trap recipient (default is disabled). A check mark indicates write authorization is enabled. When the feature is enabled, a management workstation user can change sysContact, sysName, and sysLocation SNMP variables.

d. Type the IP address or DNS host name of the trap recipient (SNMP

management workstation) in the Trap Recipient field in four-byte, dotted-decimal format. It is recommended the IP address be used.

e. The default UDP port number for trap recipients is 162. Type a decimal

port number in the UDP Port Number field to override the default value.

3. Click Activate to save and activate the changes. The following message displays: Your changes to the SNMP configuration have been successfully activated.

41Embedded Web Server User Guide

Configuring the Product

Enabling or Disabling the CLI

Perform this procedure to enable or disable the state of the product’s command line interface (CLI). To change the CLI state:

1. Choose Configure from the navigation panel.

2. Click the Management tab and the CLI tab. The CLI tab view displays (Figure 12).

Figure 12: Disabling the CLI

3. Perform one of the following steps as required:

a. Click Enable to activate the CLI. The following message displays: Your

changes to the CLI enable state have been successfully activated.

b. Click Disable to deactivate the CLI. The following message displays:

Your changes to the CLI enable state have been successfully activated.

42 Embedded Web Server User Guide

Enabling or Disabling Host Control

Perform this procedure to enable or disable host control of the product through the OSMS.

The OSMS is a keyed feature that allows host control and inband management of the director or switch through a management application that resides on an open-systems interconnection (OSI) device. This device is attached to a director or switch port. The device communicates with the switch or director through Fibre Channel common transport (FC-CT) protocol.

The OSMS feature must be installed to access this control. Refer to “Installing

Feature Keys” on page 52 for instructions. If the feature is not installed, the

message Feature not installed displays. To enable or disable host control:

1. Choose Configure from the navigation panel.

2. Choose the Management tab and the OSMS tab. The OSMS tab view displays (Figure 13).

Configuring the Product

Figure 13: Enabling OSMS host control

3. Perform one of the following steps as required:

a. Click Enable to activate the OSMS host control. The following message

displays: Your changes to the host control enable state have been successfully activated.

b. Click Disable to deactivate the OSMS host control. The following

message displays: Your changes to the host control enable state have been successfully activated.

43Embedded Web Server User Guide

Configuring the Product

Zoning Tab View

The functionality provided by the Zoning tab view is described in Chapter 3.

Configuring User Rights

EWS has two login IDs, the administrator-level ID and the operator-level ID. These user names and passwords are used to access the EWS interface through the Enter Network Password dialog box. (For a listing of user rights availability for the Administrator and Operator, see “User Rights Settings” on page 46.)

The default administrator-level user name is Administrator and the default password is password. The default operator-level user name is Operator and the default password is password. All user names and passwords are case-sensitive.

To configure user names and passwords:

1. Choose Configure from the navigation panel.

2. Choose the Security tab and the User Rights tab. The User Rights tab view displays (Figure 14) showing the Administrator and Operator user access levels.

Figure 14: Configuring user IDs

44 Embedded Web Server User Guide

Configuring the Product

3. For the Administrator set of data fields:

a. Type the administrator user name (as specified by the customer’s network

administrator) in the New User Name field. Use 16 alphanumeric characters or less.

b. Type the administrator password (as specified by the customer’s network

administrator) in the New Password field. Use 16 alphanumeric characters or less.

c. Type the administrator password again in the Confirm New Password

field.

4. For the Operator set of data fields:

a. Type the operator user name (as specified by the customer’s network

administrator) in the New User Name field. Use 16 alphanumeric characters or less.

b. Type the operator password (as specified by the customer’s network

administrator) in the New Password field. Use 16 alphanumeric characters or less.

c. Type the operator password again in the Confirm New Password field.

5. Click Activate. The User Rights tab redisplays with the message Your

changes to the User Rights configuration have been successfully activated. Login may be required. The new

settings for user name and password are implemented.

Note: In some cases, you may need to log into EWS again to continue using EWS.

45Embedded Web Server User Guide

Configuring the Product

User Rights Settings

Tabl e 2 lists the management functions provided by EWS along with the access

permissions for each function. If a user lacks the rights to access a specific function, they will receive a login password dialog box indicating the rights (either administrator or operator) required to access the function.

Table 2: User Rights Levels

Administrator

Functionality

View: Product Available Available View: Port Properties Available Available View: FRU Properties Available Available View: Product Properties Available Available View: Fabric - Products Available Available View: Fabric - Topology Available Available View: Operating Parameters Available Available Configure: Ports Available Available Configure: Product Identification Available Unavailable Configure: Product Date/Time Available Unavailable Configure: Product Parameters Available Unavailable Configure: Fabric Parameters Available Unavailable Configure: Product Network Available Unavailable Configure: Management SNMP Available Unavailable Configure: Management CLI Available Unavailable Configure: Management OSMS Available Unavailable Configure: Zone Set Available Unavailable Configure: Zones Available Unavailable Configure: Modify Zone Available Unavailable Configure: Security - Port Binding Available Unavailable Configure: Security - User Rights Available Unavailable Configure: Performance - Open

Trunking Monitor: Port List Available Available

Rights

Available Unavailable

Operator

Rights

46 Embedded Web Server User Guide

Table 2: User Rights Levels (Continued)

Configuring the Product

Administrator

Functionality

Monitor: Port Stats Available Available Monitor: Event Log Available Available Monitor: Node List Available Available Operations: Product Beacon Available Available Operations: Product Online State Available Unavailable Operations: Product Reset Config Available Unavailable Operations: Port Beacon Available Available Operations: Port Reset Available Available Operations: Port Diagnostics Available Unavailable Operations: Maintenance Dump

Retrieval Operations: Maintenance Product

Info Operations: Maintenance Firmware

Upgrade Operations: Feature Installation Available Unavailable Help Available Available

Rights

Available Unavailable

Operator

Rights

Binding Ports to Devices

The Port Binding tab view enables you to bind a specific switch or director port to the WWN of an attached device for exclusive communication.

To configure port binding:

1. Choose Configure from the navigation panel.

2. Choose the Security tab and the Port Binding tab. The Port Binding tab view displays (Figure 14).

47Embedded Web Server User Guide

Configuring the Product

Figure 15: Configuring Port Binding

3. Click the check box in the Port Binding column next to the port number to

4. Identify the WWN to which the port is bound using one of the following

enable port binding for the port.

methods:

■ Enter the WWN to which the port is to bind in the Bound WWN column.

■ Click the check box in the Use Attached column. This option is valid

only if a WWN is present in the Attached WWN column for the port. (The Attached WWN column indicates the WWN that is currently attached to the port, but is not bound to it.)

Note: If the Port Binding check box is checked and a WWN is not specified for

binding, no devices can attach to the port.

5. Click the Activate button at the bottom of the screen.

48 Embedded Web Server User Guide

Configuring Open Trunking

The Open Trunking page enables you to configure open trunking settings. Open Trunking is an optional software feature that is enabled using a feature key.

The purpose of Open Trunking is to make efficient use of redundant interswitch links (ISLs) between neighboring switches by means of load balancing. ISLs are fiber optic cables that connect ports between Fibre Channel switches and link these switches into a multiswitch fabric. Fibre Channel traffic flows through these ISLs from end devices (servers and storage devices) attached to ports on individual switches.

When the traffic on a particular port exceeds a specified threshold, the Open Trunking functionality routes some of the traffic to another ISL. This prevents traffic from becoming congested on an ISL. Open trunking provides automatic, dynamic, statistical traffic load balancing across ISLs in a fabric environment.

The Open Trunking feature monitors Fibre Channel data rates through multiple ISLs, dynamically applies a fibre shortest path first (FSPF) networking algorithm to calculate the optimum path between fabric elements, and balances the Fibre Channel traffic load accordingly. The objective is to make the most efficient possible use of redundant ISLs between neighboring switches, even if these ISLs have different bandwidths.

Configuring the Product

The Open Trunking feature monitors the average data rates of all traffic flows (from a transmit port to a destination domain), and periodically adjusts routing tables to reroute data flows from congested links to lightly loaded links and optimizes bandwidth use.

Load-balancing among the ISLs does not require user configuration, other than enabling open trunking and selecting optional or default settings for congestion thresholds (per port) and a response threshold for lack of BB_Credits. In particular, you do not need to manually configure ISLs into trunk groups of redundant links where data can be off-loaded.

Candidate links for rerouting flow are identified automatically and maintained by the FSPF protocol. All ISLs that lead to adjacent switches on the shortest path to the flow’s destination are considered. This means that even if a link is not on the shortest path to the destination, the flow may be rerouted to this link to relieve congestion. This also means that flow may be rerouted onto a link that goes to a different adjacent switch.

49Embedded Web Server User Guide

Configuring the Product

Note: For the Director 2/140, ports are displayed through several pages in groups of

32. To configure all of the ports, make sure you go through each set. You must click

Activate for each view before moving to the next.

To configure Open Trunking:

1. Choose Configure from the navigation panel.

2. Choose the Performance tab and the Open Trunking tab. The Open Trunking tab view displays (Figure 16).

Figure 16: Configuring Open Trunking

3. Choose Enabled in the Open Trunking State drop down list.

4. Choose Enabled or Disabled from the Unresolved Congestion Event Notification drop down list. If enabled, an unresolved congestion entry is made in the event log and, if SNMP is configured, an SNMP trap is generated. Unresolved congestion occurs when a flow cannot be rerouted to another link because it would exceed the other link's threshold.

50 Embedded Web Server User Guide

Configuring the Product

5. Choose Enabled or Disabled from the Backpressure Event Notification drop down list. If enabled, a backpressure entry is made in the event log and, if SNMP is configured, an SNMP trap is generated. Backpressure occurs when the threshold of unavailable BB_Credits is exceeded for any link.

6. Specify a value for the Low BB Credit Threshold option, if desired.

Note: Earlier versions of this dialog box may display Credit Starvation Threshold

instead of the Low BB Credit Threshold.

The system monitors the percentage of time that the port experiences no transmit BB_credits on the link. The link cannot transmit without BB_credits. When the threshold is exceeded, the system reroutes flows away from the ISL that is experiencing this problem. This threshold is also used to prevent rerouting of traffic to an ISL that is experiencing a low BB_credit threshold condition. The enabled Default check box indicates that the default threshold value of 10% should be used rather than the value in the % entry field. This parameter must be a value in the range 1 to 99, if the Default box is not checked.

7. Specify a load-balancing threshold value in the Threshold % field for each port, if desired. Use this field to configure the value of the load-balancing threshold for each port. When this threshold is exceeded, the open trunking functionality offloads some of the traffic to another ISL. The threshold must be a value in the range 1 to 99, if the Default box is not checked.

8. Click the Activate button at the bottom of the screen.

51Embedded Web Server User Guide

Configuring the Product

Installing Feature Keys

Perform this procedure to install one or more of the following optional features:

■ OSMS — The Open Systems Management Server feature allows open

systems host control of the product.

■ FICON Management Server — The FICON Management Server feature

allows host control and inband management of the director or switch through an IBM System/390 to a director or switch port. The server communicates with the switch or director through a FICON channel.

■ Flexport — A Flexport switch is delivered at a discount with only a portion

of the switch’s ports enabled. When additional port capacity is required, the remaining ports are enabled (in eight-port increments) through purchase of this feature.

■ SANtegrity Binding — This feature enhances security in SANs, which is

valuable in SANs that contain a large or heterogeneous group of fabrics and attached devices.

■ Open Trunking — This feature enhances efficiency in the use of redundant

ISLs between neighboring switches by means of load balancing. This prevents traffic from becoming congested on an ISL.

After purchasing a feature, obtain the required feature key from the website to which the feature documentation directs you. A feature key is an alphanumeric string consisting of both uppercase and lowercase characters. The total number of characters may vary depending on keys and serial number. The feature key is case sensitive and must be entered exactly, including dashes.

or zSeries 900 Parallel Enterprise Server server attached

Feature keys use a format similar to the following:

XxXx-XXxX-xxXX-xX.

Note: You must be logged in with Administrator-level rights to install feature keys.

52 Embedded Web Server User Guide

Configuring the Product

The feature key can be installed while the product is online, except in the following circumstances:

■ With E/OS 3.0 or earlier, the product must be offline before a feature can be

enabled.

■ If the new feature key removes existing functionality, the product must be

offline during the installation process.

(See “Setting Product Online or Offline” on page 105 for instructions on setting the product offline.)

After obtaining the feature key, install the feature as follows:

1. Choose Operations from the navigation panel. The Operations page opens.

2. Click the Feature Installation tab. The Feature Installation tab view displays (Figure 17).

Note: If the new feature key is removing an existing feature of your system, you must

set the switch offline before completing the feature activation process.

Figure 17: Feature Installation tab view

53Embedded Web Server User Guide

Configuring the Product

3. Type the feature key and click Activate. The interface displays a confirmation

Note: When Activate is selected, all current features are removed and replaced with

the features specified in the feature key. Features not included in the new feature key are no longer available on the system. Because of this, it is important to verify that the feature key enables all desired features.

4. Click Activate to activate the new feature key. (The system automatically

Note: If you receive the error message, Error 238, Invalid Key, it means that

either the feature key was entered incorrectly or the feature key is not a valid key for that feature. Re-enter the feature key. If you continue to have problems, contact technical support.

page with a warning, stating this action overrides the current set of product features.

undergoes an IPL).

54 Embedded Web Server User Guide

Configuring Zones

Understanding Zoning

Designing zoning can be a complex task, especially for multiswitch fabrics. Consult with your managed product vendor’s professional services organization before configuring zoning.

This section is designed to help you understand the following concepts so that you can more efficiently use Embedded Web Server features to configure and manage zones across a multiswitch fabric:

■ Benefits of zoning.

■ How zoning works to control access to storage devices and servers across a

fabric.

■ Other methods of controlling access at the switch and at the server and device,

such as binding.

■ Merging zoned fabrics.

■ Basic terms and concepts of zoning that you must understand when

configuring zoning.

Controlling Access Across a Fabric

Embedded Web Server zoning features enable you to establish zoning across a fabric of devices attached to switches and directors by partitioning these devices into groups called zones. A zone consists of devices that can access each other through port-to-port connections. Devices in the same zone can recognize and communicate with each other; devices in different zones cannot.

System administrators create zones to increase security and prevent data loss or corruption by controlling access between devices (such as servers and data storage units), or between separate user groups (such as engineering or human resources).

55Embedded Web Server User Guide

Configuring Zones

Zoning allows an administrator to:

■ Establish barriers between devices that use different operating systems. For

example, it is often critical to separate servers and storage devices with different operating systems because accidental transfer of information from one to another can delete or corrupt data. Zoning prevents this by grouping devices that use the same operating systems into zones.

■ Create logical subsets of closed user groups. Administrators can authorize

access rights to specific zones for specific user groups, thereby protecting confidential data from unauthorized access.

■ Create groups of devices that are separate from devices in the rest of a fabric.

Zoning allows certain processes (such as maintenance or testing) to be performed on devices in one group without interrupting devices in other groups.

■ Allow temporary access between devices for specific purposes.

Administrators can remove zoning restrictions temporarily (for example, to perform nightly data backup), then restore zoning restrictions to perform normal processes.

Figure 18 illustrates three zones established on a single managed product with

four devices in each zone. Devices in each zone can communicate with and access devices only in their respective zones.

ZONE 1

ZONE 2

ZONE 3

Director

Figure 18: Zoning through a single Fibre Channel managed product

56 Embedded Web Server User Guide

Configuring Zones

Figure 19 illustrates how zones can consist of ports and/or devices installed on

ports in three managed products in a multiswitch fabric.

zoning through a multiswitch fabri c

Zone 1

Zone 2

Zone 3

Director

Figure 19: Zoning through a multiswitch fabric

Interswitch Link

Director

57Embedded Web Server User Guide

Configuring Zones

Controlling Access at the Switch

A port binding feature is available on switches and directors that allows you to bind a specific switch or director port to the WWN of an attached device for exclusive communication. This Port Binding feature is available through the Port Binding tab, which is under the Security tab of the Configure page view.

Controlling Access at the Server or Storage Device

Features available at the server or storage device can add methods, beyond zoning, to increase network security measures, differentiate between operating systems, and prevent data loss or corruption by controlling access between devices or between separate user groups (such as engineering or human resources).

Server-level access control is called persistent binding. Persistent binding uses configuration information stored on the server and is implemented through the server’s host bus adapter (HBA) driver. The process binds a server device name to a specific Fibre Channel storage volume or logical unit number (LUN), through a specific HBA and storage port WWN. In essence, this feature creates a reliable route across the fabric that sustains the small computer system interface (SCSI) connection between a server and storage device.

For persistent binding:

■ Each server HBA is explicitly bound to a storage volume or LUN, and access

is explicitly authorized (access is blocked by default).

■ The process is compatible with open system interconnection (OSI) standards.

The following are transparently supported:

— Different operating systems and applications.

— Different storage volume managers and file systems.

— Different fabric devices, including disk drives, tape drives, and tape

libraries.

■ If the server is rebooted, the server-to-storage connection is automatically

re-established.

■ The connection is bound to a storage port WWN. If the fiber-optic cable is

disconnected from the storage port, the server-to-storage connection is automatically re-established when the port cable is reconnected. The connection is also automatically re-established if the storage port is cabled through a different managed product port.

58 Embedded Web Server User Guide

Access can also be controlled at the storage device as an addition or enhancement to redundant array of independent disks (RAID) controller software. Data access is controlled within the storage device, and server HBA access to each LUN is explicitly limited (access is blocked by default). Storage-level access control:

■ Provides control at the storage port and LUN level, and does not require

■ Is typically proprietary and protects only a specific vendor’s storage devices.

Before establishing persistent binding or access control features at the storage device, consult with your managed-product vendor’s professional services organization.

Zoning Concepts

Zoning is configured by authorizing or restricting access to name server information associated with device ports that attach to product ports. A zone member is specified by the number of the product port to which a device is attached, or by the 8-byte WWN assigned to the HBA or Fibre Channel interface installed in a device. A device port can belong to multiple zones.

Zoning concepts include:

Configuring Zones

configuration at the server.

Storage-level access control may not be available for many legacy devices.

■ Zones

■ Default Zone

■ Zone Sets

■ Active Zone Set

59Embedded Web Server User Guide

Configuring Zones

Naming Conventions for Zones and Zone Sets

The following naming conventions apply to zones and zone sets:

■ All names must be unique and may not differ by case only. For example,

myzone and MyZone are both valid individually, but they are not unique.

■ The first character of a zone set name must be a letter (A-Z, a-z).

■ A zone set name cannot contain spaces.

■ Valid characters are a-z, A-Z, 0-9, ^, -, _, and $.

■ A zone set name can have a maximum of 64 characters.

Zones

A zone contains a set of members that can access each other. Refer to Tabl e 3 on page 64 for details on the number of members that you can configure in a zone and the number of zones that you can configure with the EWS Configure Zone functions.

A zone member can be a switch or director port or the WWN of the device. Ports and devices spread throughout multiple managed products in a multiswitch fabric may be grouped into the same zone. Members of a zone can see each other; members in different zones cannot. The number of members that you can configure for a zone varies according to the number of zones in the zone set, the length of the zone names, and other factors, but is essentially bounded by the available nonvolatile random-access memory (NVRAM) in the managed product.

Note: Port numbers cannot be used for zone members if the interoperability mode for

the switch or director is set to Open Fabric 1.0 mode. In this case, you must use node WWNs as zone members.

The type of zone members identified for a zone may be mixed and matched. For example, two members may be specified by a port number and the third member by the WWN of the device.

Using WWNs

To identify a zone member by WWN, use the 16-digit WWN of the device. For example:

10:00:08:00:88:40:C0:D4

60 Embedded Web Server User Guide

Configuring Zones

In EWS the WWN displays with the switch or director manufacturer’s name before the WWN. The WWN is assigned to the Fibre Channel interface or HBA installed in devices such as servers or storage devices. Although the device may also have a node WWN, this WWN is not used for zoning identification.

Note: Nicknames can be assigned to the WWN using the HAFM Product Manager.

This functionality is not available in EWS.

The advantage of identifying a zone member as the WWN of the attached device is that the identification will not change if fiber cable connections to ports are rearranged. This is especially important if you are using spare ports. You can simply move the fiber cable to a spare port from a failed port and still maintain the zoning configuration.

The disadvantage of identifying a zone member by the WWN is that removal and replacement of a device HBA or Fibre Channel interface (thereby changing the device WWN) disrupts zone operation and may incorrectly include or exclude a device from a zone.

Using Port Numbers

To identify a zone member by port number, use the domain identification number of the managed product and the port number on that managed product. For example:

Domain 1, Port 1

Note: Port numbers cannot be used for zone members if the interoperability mode for

the switch or director is set to Open Fabric 1.0 mode.

Port numbers can be 0 through n, with n representing the number of ports on the managed product minus one. When you define a zone member by a port number, any device attached through that port is included in the zone. A port number that you assign as a zone member is automatically prefixed with the domain identification number of the managed product.

The advantage of identifying a zone member by port number is that if the HBA on an attached device fails, you don’t have to identify the member with the WWN of the replacement HBA.

61Embedded Web Server User Guide

Configuring Zones

Default Zone

A disadvantage of port zoning is that someone may rearrange cable connections to ports (because of port failures or other reasons) and inadvertently allow devices to communicate that should not have access to each other.

Note: If a managed product’s Domain ID changes, you must reconfigure all zones that

contained the managed product’s port as a zone member. We recommend assigning unique Preferred Domain IDs to each switch in the fabric. You can make these assignments using the EWS Configure page, Switch, Parameters tabs to change the Preferred Domain IDs.

A default zone consists of all devices that have not been configured as members of a zone in a currently-active zone set. The following are some important points to remember about zone sets:

■ You can enable or disable the default zone separately from the active zone set

by choosing the Zoning option from the Configure menu. Enabling the default zone allows all devices and ports not configured as members of the active zone set to communicate. If the default zone is disabled, these ports and devices cannot communicate.

■ When no zone set is activated, then all devices are considered to be in the

default zone.

■ If a zone set is active, then all connected devices that are not included as

members of a zone in the active zone set are included in the default zone.

Zone Sets

A zone set is a group of zones that you can activate or deactivate as a single entity across all managed products in either a single switch or a multiswitch fabric. Only one zone set can be active at one time. Devices that are members of zones in the zone set can only communicate with members of zones in the same zone set. However, devices can be included as members of more than one zone set. By activating a zone set, you are making all zones in the set active.

Refer to Tabl e 3 on page 64 for details on the number of zones and zone members that you can configure in a zone set and the number of zone sets that you can configure.

62 Embedded Web Server User Guide

The following are some important points to remember about zone sets:

■ If no zone set is active, and the default zone is disabled, then no devices can

communicate.

■ If you activate a zone set when there is already an active zone set, that set will

replace the currently-active zone set.

■ If you deactivate the current active zone set, then all devices connected in the

fabric become members of the default zone.

Active Zone Set

An active zone set is a zone set that is currently active on a single-switch fabric or across all managed products in a multiswitch fabric. At any time, you can disable zoning by deactivating the active zone set and enabling the default zone, or you can enable zoning by activating a zone set. When a zone set is active, all zones that are members of that zone set are active. Only one zone set can be active for the fabric at one time. If no zones are active, then all devices are considered to be in the default zone.

Merging Zoned Fabrics

Managed products are linked through Interswitch Links (ISLs) to form multiswitch fabrics. In a multiswitch fabric, the active zoning configuration applies to the entire fabric. Any change to the configuration applies to all switches in the fabric.

When fabrics join through an ISL, adjacent managed products exchange active zone configurations and determine if the configurations are compatible and can merge. Zoning configurations are compatible if the active zone names in each fabric are unique. If there are identical zone names in each fabric, then the zones must have identical members for the fabrics to join.

If the configurations can merge, the fabrics join. The resulting configuration will be a single zone set containing zone definitions from each fabric.

Configuring Zones

If configurations cannot merge, the expansion ports (E_Ports) on each product become segmented. Segmented E_Ports cannot carry traffic from attached devices (class 2 or 3 traffic), but can carry management and control traffic (class F traffic) between managed products.

63Embedded Web Server User Guide

Configuring Zones

Rules for Merging Zoned Fabrics

Certain rules are enforced to ensure that zoning is consistent across the fabric.

Tabl e 3 on page 64 summarizes rules for joining two fabrics through an ISL. The

following terms are used in the table:

■ Not zoned — No zone set is active in the fabric and the default zone is

enabled. In other words, all devices in the fabric are visible to all other devices in the fabric.

■ Zoned — A zone set is active in the fabric and/or the default zone is disabled.

In this case, devices can discover other devices that are members of the same zone.

■ Zoning configuration — Combination of the active zone set definition and the

default zone state (enabled or disabled).

Table 3: Merging Zones

Fabric A Fabric B Result

Not zoned Not zoned Fabrics join successfully. The new fabric

Not zoned Zoned Fabrics join successfully and the active

Zoned Not zoned Fabrics join successfully and the active

Zoned Zoned Fabrics can merge if the zone names in

remains not zoned.

zone set will propagate across the fabric. Fabric A inherits zoning configuration from Fabric B.

zone set will propagate across the fabric. Fabric B inherits zoning configuration from Fabric A.

each fabric are unique. The resulting active zone set is a union of the zones from each fabric. Once you have merged the two zoned fabrics, click the

Save active zone set as button in the Zoning view to save the active zone

set. If there is a zone name conflict (the

same zone name in each fabric) then the zones must have identical members for the fabrics to join.

If the two zones have the same name but contain different members, then the E_Ports will segment and the fabrics will not join.

64 Embedded Web Server User Guide

Note: If merging zones will result in segmented E_Ports and the fabrics will not join,

you can join the fabrics by deactivating the active zone set on one of the fabrics (default zone is enabled). This eliminates any conflicts because the fabrics will then join using only the active zone set. After the fabrics join, you can make adjustments to zoning configurations as you desire.

Configuring, Adding, or Deleting Zones

Perform this procedure to configure, change, add, or delete zones. A zone is a group of devices that can access each other through port-to-port connections. Devices in the same zone can recognize and communicate with each other; devices in different zones cannot.

Caution: If, in your business practices, zoning tasks are performed using both

the Command Line Interface (CLI) and EWS, you risk potential conflicts in the configuration and functionality could be lost.

To configure zones:

Configuring Zones

1. Choose Configure from the navigation panel.

2. At the Configure page, choose the Zoning tab and the Zones tab. The Zones tab view displays as shown in Figure 20.

65Embedded Web Server User Guide

Configuring Zones

Figure 20: Configuring zones

3. To configure a zone, first add the zone name to the product configuration. The following naming conventions apply to zones and zone sets:

■ All names must be unique and may not differ by case only. For example,

zone-1 and Zone-1 are both valid individually, but are not considered unique.

■ The first character of a zone set name must be a letter

(A through Z or a through z).

■ A zone set name cannot contain spaces.

■ Valid characters are alphanumerics and the caret ( ^ ),

hyphen ( - ), underscore ( _ ), or dollar ( $ ) symbols.

■ A zone set name can have a maximum of 64 characters.

Note: A product can have a maximum of 1024 zones.

66 Embedded Web Server User Guide

Configuring Zones

4. Type the zone name and click Add New Zone. After the name is validated, the new zone name (Zone-1) and an associated Delete button display at the bottom of the page. Note the following:

■ Save and activate the zone — Changes to a zone or zoning configuration

are not saved and activated on the product until saved as part of a zone set. See “Configuring Zone Sets” on page 69 for information about performing this function.

■ Delete all zones — To delete all configured zones and zone members,

click Delete All Zones. A confirmation dialog box displays. Click OK to delete all zones.

■ Delete a single zone — To delete a single zone and its zone members,

click the Delete button adjacent to the zone name. A confirmation dialog box displays. Click OK to delete the zone.

■ Display more zones — If a zone set contains more than 64 zones, the

Display More Zones link activates to display subsequent pages. In addition, the Display Previous Zones link activates on subsequent displayed pages.

5. To add devices (members) to the zone, click the zone name (Zone-1). The Modify Zone tab view displays (Figure 21).

Figure 21: Modify Zone tab view

67Embedded Web Server User Guide

Configuring Zones

Rename the zone — To rename a configured zone, type the new name in the Zone field and click Rename Zone. After the name is validated, the zone name is changed.

6. Nodes may be local to this product or they may be attached to a remote fabric member. Add or delete zone members as follows:

Note: A zone can have a maximum of 1024 zone members. A product can have a

maximum of 1024 zone members in its zones.

■ Add member by attached node WWN — Choose the WWN of an

attached device (node) from the Attached Node World Wide Name drop-down list and click the Add Member button. The device is added to the zone.

Note: The Attached Node World Wide Name list is ordered by Domain ID and

includes the first 140 attached nodes in the fabric.

■ Add member by WWN — Type the WWN of a device in the World

Wide Name field and click the adjacent Add Member button. The device is added to the zone.

■ Add member by domain ID and port number — Type the domain ID

(1 through 31) of the switch in the Domain ID field, type the switch port number to which a device is attached, and click the adjacent Add Member button. The device attached to that port is added to the zone.

■ Delete a member — To delete a zone member, click the Delete button

adjacent to the configured zone member (WWN or domain ID and port number) at the bottom of the page. A confirmation dialog box displays. Click OK to delete the zone member.

7. Changes to a zone, zoning configuration, or zone member are not saved and activated on the switch until saved as part of a zone set. See the next section, “Configuring Zone Sets,” for information about performing this function.

8. Up to 64 zones may be displayed on a single page. If a zone set has more than 64 zones defined, you can display additional pages by choosing Display Previous Zones or Display More Zones. These fields are grayed out if there are 64 or fewer zones defined for a zone set.

68 Embedded Web Server User Guide

Configuring Zone Sets

Perform this procedure to configure, change, enable, or disable zone sets. A zone set is a group of zones that is activated or deactivated as a single entity across all managed products in either a single switch or a multiswitch fabric. Only one zone set can be active at one time. To configure zone sets:

1. Choose Configure from the navigation panel.

2. Choose the Zoning tab and the Zone Set tab. The Zone Set tab view displays (Figure 22).

Configuring Zones

Figure 22: Zone Set tab view

3. Click Save and Activate Zoning Configuration. After the zone set name is validated, a confirmation dialog box displays.

4. Click OK to save and activate the new zone set. The following message displays: Your changes to the Zoning configuration have been successfully activated. Note the following:

■ Rename zone set — To rename a zone set, type the new name in the

Zone Set Name field. Click Rename Zone Set. The new zone set name is validated and changed.

Note: If no name is specified, the name NEW_ZONE_SET is used.

69Embedded Web Server User Guide

Configuring Zones

■ Enable or disable default zone — To toggle (enable or disable) the

default zone state, click Enable Default Zone or Disable Default Zone. Depending on the toggle state, the Default Zone field changes to Enabled or Disabled.

■ Disable zone set — To disable the active zone set and place all attached

devices in the default zone, click Disable Zone Set. A confirmation dialog box displays. Click OK to disable the active zone set.

■ Discard changes — To discard unsaved changes made to a zone set

configuration and revert to a saved zoning configuration, click Discard Changes. A confirmation dialog box displays. Click OK to discard the changes.

70 Embedded Web Server User Guide

Viewing Product and Fabric Data

This chapter describes how to use the Embedded Web Server to view information related to the configuration, status, and communications of a product using the View page. You can use EWS to view configuration information for the product and the fabric in which the product participates.

This chapter has been subdivided as follows:

■ Viewing Product Information on page 72

— Viewing a Representation of the Product on page 72

— Viewing Port Properties on page 75

— Viewing FRU Properties on page 79

— Viewing Unit Properties on page 80

— Viewing Operating Parameters for the Product on page 81

■ Viewing Fabric Information on page 82

— Viewing Operating Parameters for a Fabric on page 83

— Viewing Fabric Directors and Switches on page 83

— Viewing Fabric Topology on page 88

71Embedded Web Server User Guide

Viewing Product and Fabric Data

Viewing Product Information

The View panel of the EWS interface enables you to see a representation of the physical product, whether a director or switch, and view the various IDs and configuration items for the product.

Viewing a Representation of the Product

To view the representation of the product, choose View from the navigation panel. The View page opens displaying the Switch or Director tab view, as appropriate for the product (Figure 23).

Figure 23: Switch tab view for an Edge Switch 2/24

This page shows the following:

■ Status — The product’s operational status. Possible values are: Operational,

Degraded, and Failed.

■ State — The product’s operational state. Possible states are defined in Tabl e 4

on page 73.

72 Embedded Web Server User Guide

Viewing Product and Fabric Data

Table 4: State Definitions

State Description

OFFLINE When the product is OFFLINE, all ports are offline. The

Online All unblocked ports are able to connect with devices. You

■ Name — The user-defined name or description assigned to the product.

■ Front View and Rear View — Using this graphical view of the product, you

ports cannot accept a login from an attached device and cannot connect to other switches. You can configure this state through the Online State tab view (See to Setting

Product Online or Offline on page 105 for instructions).

can configure this state through the Set Online State tab view (See to Setting Product Online or Offline on page 105 for instructions). Note that the product automatically goes online after a power-up, an initial machine load (IML), or initial program load (IPL).

can view status symbols and simulated light emitting diode (LED) indicators, display data, or use mouse functions to monitor status and obtain vital product information for the product and its hardware components.

Move the cursor over parts of the graphics to display labels identifying each hardware component or port and its slot position in the chassis. Choose a port to view the corresponding Port Properties tab for the port. Choose an FRU to view the FRU Properties tab for the FRU.

Colored indicators reflect the status of actual LEDs on the product’s components. Table 5 describes the port operational states and the LED and attention indicators that display on the Switch or Director page.

73Embedded Web Server User Guide

Viewing Product and Fabric Data

Table 5: Status Indicators

View LED Name Color Behavior

Front System Power Green Off when the LAN is down.

Rear FRU Service

On when the LAN is up.

System Error Light (SEL)

Amber Off when the SEL on the

hardware is off. On when the SEL on the

hardware is on. When this indicator illuminates, an event has occurred requiring immediate attention, such as a system, fan, power supply, or port failure.

Port Online Green/Blue Off when port status is

anything but Online. Green when port status is

Online and the operating speed is 1 Gbps.

Blue when port status is Online and the operating speed is 2 Gbps (Edge Switch 2/24 only).

Port Service Required

Amber Off when port status is

anything but Failed or Service Required.

On when port status is Failed or Service Required.

Amber Off when FRU status is Active.

Required

On when FRU status is Failed.

74 Embedded Web Server User Guide

Viewing Port Properties

To view the properties of a port on a product, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Port Properties tab. The Port Properties tab view displays (Figure 24) showing the properties for only one port.

Viewing Product and Fabric Data

Figure 24: Port Properties tab view

3. To display properties for a specific port, insert the port’s number in the Port Number field and click the Get Port Properties button. (You can also use the <<Back and Fwd>> buttons to view port information incrementally, one at a

time.)

The Port Properties page provides the following information:

■ Port Number — The physical port number.

■ Port Name — User-defined port name or description.

75Embedded Web Server User Guide

Viewing Product and Fabric Data

■ Type

— G_port — Displays if nothing is logged into the port and the port is

configured to be a G_Port.

— F_Port — Displays if a device is logged into the port.

— E_Port — Displays if the port is connected to another switch’s E_Port

through an ISL.

— GX_Port — Valid only on the Edge Switch 2/24; allows a port to operate

as either a Fabric Loop Port, Fabric Port, or an Expansion Port. This displays if nothing is logged into the port and the port is configured to be a GX_Port.

— FX_Port — Valid only on the Edge Switch 2/24; restricts a port to

operate as either a Fabric Loop Port or a Fabric Port.

■ Operating Speed — This field displays the current data speed for the port as

1 Gb/sec, 2 Gb/sec, or Not Established. Not Established displays if Negotiate is defined as the operating speed and the data speed has not been resolved between the port and the attached device, or if the port and device are not communicating. Note that 2 Gb/sec and Not Established can display only on machines that support 2 Gbps speeds.

■ Fibre Channel Address — Fibre Channel Address identifier of the port. Not

displayed for some products.

■ Port WWN — The port’s 16-digit WWN.

■ Attached Port WWN — Fibre Channel WWN identifier of the device

attached to the port. (This field is not valid on the Edge Switch 2/24.

■ Block Configuration — Indicates whether the port is blocked or unblocked.

■ Beaconing — This field indicates the beaconing status for the port.

■ FAN Configuration — This field indicates the FAN status for the port. This

field is valid only on the Edge Switch 2/24.

■ Operational State — Inactive, invalid attachment, link incident, no light, not

operational, online, offline, port failure, segmented E_Port, testing, or not installed.

76 Embedded Web Server User Guide

Viewing Product and Fabric Data

■ Reason — When the port operating state is Segmented E_Port,

Invalid Attachment, or Inactive, this field displays the reason for

that state. When an E_Port is segmented, two fabrics are prevented from joining. This only occurs when the switch is attempting to connect to another switch. Reasons and probable causes are as follows:

— If Operational State is Segmented E Port:

— Segment Not Defined

— Incompatible Operating Parameters

— Duplicate Domain ID(s)

— Incompatible Zoning Configurations

— Build Fabric Protocol Error

— No Principal Switch

— No Response from Attached Switch

— ELP Retransmission Failure Timeout

— If Operational State is Invalid Attachment:

— Unknown

— ISL connection not allowed on this port

— ELP rejected by the attached switch

— Incompatible switch at other end of the ISL

— External loopback adapter connected to the port

— N_Port connection not allowed on this port

— Non-HP high availability fabric switch or compatible switch at other

end of the ISL

— ISL connection not allowed to external Fabrics

— Port binding violation — unauthorized WWN

— Unresponsive node connected to Port

77Embedded Web Server User Guide

Viewing Product and Fabric Data

— If Operational State is Inactive:

—No Serial Number

—No Key Enabled

— Switch Speed Conflict

— Optics Speed Conflict (Director 2/64 and Director 2/140 only)

— No SBAR Support (Director 2/64 and Director 2/140 only)

■ Te ch nolo gy

Identifies the technology used for the following aspects of the port:

— Connector Type — The type of connector: LC, MT_RJ, MU, Unknown,

or Internal Port.

— Tran scei ver — The type of transceiver: Longwave Laser (LC),

Shortwave Laser, Shortwave Laser with OFC, Longwave Laser (LL), Long Distance Laser, Unknown, or None.

— Distance Capability — General distance range for port transmission:

Short, Intermediate, Long, Very Long, or Unknown.

— Media — The Fibre Channel mode and optic size: Single-Mode,

Multi-Mode 50 micrometer, Multi-Mode 62.5 micrometer, Multi-Mode 50, 62.5 micrometer, or Unknown.

— Speed — The speed capability of the product. Values that may display

include 1 Gbps, 2 Gbps, and Unknown. Both 1Gbps and 2 Gbps may display for optics that support both speeds.

78 Embedded Web Server User Guide

Viewing FRU Properties

To view the properties of an FRU on a product, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the FRU Properties tab. The FRU Properties tab view displays (Figure 25) showing each FRU on the product.

Viewing Product and Fabric Data

Figure 25: FRU Properties tab view

This page shows the following information for the FRUs:

■ FRU — Name of the FRU.

■ Position — Slot position relative to identical FRUs installed in the chassis.

■ Status — Status of the FRU: Active, Backup, Failed, or Not

Installed.

■ Part number — The OEM part number, as set in non-volatile memory of the

FRU (if applicable).

■ Serial number — Serial number of the FRU, as set in its non-volatile

memory (if applicable).

79Embedded Web Server User Guide

Viewing Product and Fabric Data

Viewing Unit Properties

To view the unit properties of a product, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Unit Properties tab. The Unit Properties tab view displays (Figure 26) showing product properties.

Figure 26: Unit Properties tab view

This page shows the following information for the product:

■ Name — The name configured for the port.

■ Description — A configurable description of the product functionality.

■ Location — Location of the product.

■ Contact — Name of the product’s point of contact.

■ WWN — Fibre Channel WWN address.

■ Type Number — Type Number of the product (such as 6064 for the

Director 2/64).

■ Model Number — Model Number of the product.

■ Manufacturer — Three-letter identifier of the product’s manufacturer.

■ Serial Number — Product serial number.

80 Embedded Web Server User Guide

■ EC Level — Current engineering change (EC) level.

■ Firmware Level — Release number of the firmware that is currently

installed.

Viewing Operating Parameters for the Product

To view the Operating Parameters of a product, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Operating Parameters tab. The Operating Parameters tab view displays (Figure 27) showing Switch Parameters and Fabric Parameters.

Viewing Product and Fabric Data

Figure 27: Operating Parameters tab view

This tab view shows the following Switch Parameters information for the product:

■ Preferred Domain ID — The ID to be used if the product participates in a

multiswitch fabric. The preferred domain ID must be unique for each director and switch in a fabric.

■ Active Domain ID — The domain ID assigned to the switch.

■ FC Address Domain ID — The value of the domain byte of the Fibre

Channel address for ports on this product.

81Embedded Web Server User Guide

Viewing Product and Fabric Data

■ Insistent Domain ID — Indicates whether the domain ID is enabled to be

insistent. This option is required if Enterprise Fabric Mode (an optional SANtegrity Binding feature) is enabled.

■ Rerouting Delay — Indicates whether rerouting delay is enabled. Enabling

the rerouting delay ensures that frames are delivered in order through the fabric to their destination.

■ Domain RSCNs — Domain Register For State Change Notifications (domain

RSCNs) are sent between end devices in a fabric to provide additional connection information to host bus adapters (HBA) and storage devices. This option is required if Enterprise Fabric mode (an optional SANtegrity feature) is enabled.

■ Operating Mode — Indicates whether the operation mode is S/390 mode or

Open Systems mode. (S/390 mode is not supported with the Edge Switch 2/24.)

Note: The operation mode parameter of the EWS interface is equivalent to the

management style parameter of the HAFM interface. The S/390 mode used for the EWS interface is equivalent to the FICON management style on the HAFM. The EWS term Open Systems mode is equivalent to Open Systems management style for the HAFM.

■ Director Speed — speed of communications on the product. Values can be

1 Gbps or 2 Gbps. Valid on the Director 2/64 only.

Viewing Fabric Information

Options on the View panel of the EWS interface enable you to see information about the fabric in which a product participates. You can view each of the following:

■ Operating parameters for a fabric.

■ Information about each of the devices that make up the fabric.

■ Topology of the fabric.

82 Embedded Web Server User Guide

Viewing Operating Parameters for a Fabric

To view the Operating Parameters of a product, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Operating Parameters tab. The Operating Parameters tab view displays (Figure 27 on page 81) showing Switch Parameters and Fabric Parameters.

This tab view shows the following Switch Parameters information for the product:

■ BB Credit — the BB_Credit value for the fabric (not available on the

Edge Switch 2/24).

■ R_A_TOV — Resource Allocation Time Out Value (R_A_TOV) used by the

fabric. Specified in tenths of a second.

■ E_D_TOV — Error Detection Time Out Value (E_D_TOV) value used by the

fabric. Specified in tenths of a second.

■ Switch Priority — Priority value of the switch. Values can be Default,

Principal, and Never Principal.

■ Interop Mode — Interoperability mode of the fabric. Values can be

Homogenous Fabric and Open Fabric 1.0. (This field is not valid if the product’s Operation Mode is S/390.)

Viewing Product and Fabric Data

Viewing Fabric Directors and Switches

To view information about the HP high availability fabric directors and switches on a menu, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Fabric tab and the Products tab. The Products tab view displays (Figure 28).

Note: The page may take some time to display. If the message Attempting to

Collect Data displays in a product cell, you may want to refresh the image to load

data that has been collected. Click the Refresh icon at the top right of the window.

83Embedded Web Server User Guide

Viewing Product and Fabric Data

Figure 28: Fabric tab with Products tab view

The Products page provides a quick glance at the devices in the fabric, as well as direct hyperlink access to fabric participants that support the EWS interface. The devices are shown in separate product cells organized by domain ID in numerical order.

Each device on the fabric is shown in a separate box called a product cell. The boxes consist of a list of properties for the device, and a graphic showing the product and a symbol that represents the status of the product.

The information shown in the product cells reflects the state of devices before the information displays. This information does not update automatically. You must refresh the screen manually to see the most recent information. Click the Refresh icon at the top right of the window.

Note: If the message Attempting to Collect Data displays in a product cell,

you may want to reload the page, because it will not update automatically after the initial view is loaded.

84 Embedded Web Server User Guide

Parts of the Product Cell

The product cell has the following parts:

■ A graphic representation of the device and its status. For more information,

see “Parts of the Product Graphic” on page 86.

■ Information about the device. For more information, see the next section,

“Product Cell Information.”

■ View Topology text that acts as a hyperlink to the Topo log y page for the

fabric (firmware 04.00.00 and higher only). Choose this hyperlink to view the Topol ogy page. (The hyperlink is found only on the Edge Switch 2/16, Edge Switch 2/32, Edge Switch 2/24, SAN Director 64, Director fc-64, Director 2/64, and Director 2/140.) Other HP switches and non-HP products do not have this hyperlink.

Product Cell Information

Each product cell provides information about a device on the fabric as described in Tabl e 6.

Table 6: Information on the Product Cell

Information Description Availability

Domain ID Domain ID of the product

WWN WWN of the product used in

IP IP addresses of the product. HP high availability fabric

Name Nickname assigned to the

used in the fabric.

the fabric.

product.

Viewing Product and Fabric Data

Available for any product.

directors and switches only. HP high availability fabric

directors and switches only.

85Embedded Web Server User Guide

Viewing Product and Fabric Data

Table 6: Information on the Product Cell

Information Description Availability

Firmware Level of firmware used by the

Status Status of the product, which

Parts of the Product Graphic

The product graphic provides the following information:

■ The maximum number of ports on the product.

■ A graphic representing the status of the product.

■ An icon representing the appearance of the product. You can click the graphic

to view the default pages for these devices:

product.

can be Operational,

Degraded, Failed, or Unknown.

HP high availability fabric directors and switches only.

The following HP high availability fabric directors and switches only:

■ Edge Switch 2/16

■ Edge Switch 2/32

■ Edge Switch 2/24

■ SAN Director 64

■ Director fc-64

■ Director 2/64

■ Director 2/140

— Edge Switch 2/16

— Edge Switch 2/24

— Edge Switch 2/32

— SAN Director 64

— Director fc-64

—Director 2/64

— Director 2/140

— Generic product. All other HP products in the fabric have a generic

product graphic. The generic product graphic does not provide a link to the device’s default page.

The symbols that display behind the product graphic indicate the status of the product. The meaning of each symbol is explained in Table 7 .

86 Embedded Web Server User Guide

Table 7: Operating Status Symbols

Symbol

Name

Green

Status Meaning

Fully Operational All components and installed

Circle

Viewing Product and Fabric Data

ports are operational; no failures.

Yellow Triangle

Red Diamond

Redundant Failure A redundant component has

failed, such as a power supply, and the backup component has taken over operation.

Minor Failure A failure occurred that has

decreased the product’s operational ability. Normal switching operations are not affected.

One or more ports failed, but at least one port is still operational.

A fan has failed or is not rotating sufficiently.

NOT OPERATIONAL A critical failure prevents the

product from performing fundamental operations.

All fans failed. All installed ports failed. Both power supplies failed.

87Embedded Web Server User Guide

Viewing Product and Fabric Data

Viewing Fabric Topology

The topology of a fabric is a high-level view of the routing and pathways on the fabric. To view the fabric topology from the viewpoint of the hosting machine, perform the following procedure:

1. Choose View from the navigation panel.

2. Choose the Fabric tab and the To pol ogy tab. The Top olo gy tab view displays (Figure 29).

Figure 29: Fabric tab with Topology tab view

Note: If you attempt to access this page during a fabric build, or any other instance in

which the fabric is not operational, only the top line of the page displays, with the message Fabric Not Operational.

88 Embedded Web Server User Guide

Viewing Product and Fabric Data

3. The Topol og y page provides the information shown in Tab le 8.

Table 8: Components of the Topology Page

Part of Page Component Description

Host Information Topology From Identifies the host product that is providing

the fabric topology information. All information on the page is provided from the point of view of the host machine.

Domain ID Domain ID of the host product.

List of Domains in Fabric

Destination Description

Domains in Fabric

Domain ID Domain IDs of each device in the fabric.

WWN WWN of the device that corresponds to the

Destination Domain ID

WWN WWN of the destination device. Number of Paths

to Destination

List of Paths A list of each path used by the host product

The total number of domains in the fabric.

(The ID number that is followed by an asterisk is the ID for the host product.)

Domain ID next to the WWN. The Domain ID of the destination device.

The destination device is described from the point of view of the host product.

Total paths that can be used by the host product to communicate with the destination device.

to communicate with the destination device. The details include the Exit Port used for the path and the number of hops needed to reach the destination fabric device.

89Embedded Web Server User Guide

Viewing Product and Fabric Data

90 Embedded Web Server User Guide

Monitoring Products

The Monitor page is used to access information about the product including port and node information as well as critical information about performance. Key tasks you can perform to troubleshoot problems from the Monitor page are:

■ Monitoring Ports on page 91

■ Accessing Port Statistics on page 94

■ Reviewing the Event Log on page 98

■ Viewing Node List on page 100.

Monitoring Ports

You can obtain information about ports from the Port List and Port Stats tab views.

Port List

Choose Monitor on the navigation panel. The Port List tab view displays (Figure 30). The Port List tab view provides the following information including information on the port state:

■ Port # — The number of the port.

■ Name — Displays the port name as configured through the Configure Ports

tab.

91Embedded Web Server User Guide

Monitoring Products

■ Block Configuration — Indicates the blocked or unblocked configuration of

the port:

— Blocked — Devices communicating with the port are prevented from

logging into the product or communicating with other devices attached to product ports.

— Unblocked — Devices communicating with the port can log in to the

product and communicate with devices attached to any other unblocked port in the same zone.

■ State — See “Port Operational States” in the next section for an explanation

of the states.

■ Type — The type of port. The valid options vary by product.

Figure 30: Port List tab view

Port Operational States

The State column of the Port List tab view displays one of the following operational states:

■ Beaconing — The port is beaconing, which means that the beaconing light

is flashing on the physical hardware. (A port in a failed state cannot beacon.)

■ Inactive — The switch port is in an inactive state. Reasons for this state

display in the Reason field of the Port Properties page. (See “Viewing Port

Properties” on page 75 for more information.)

92 Embedded Web Server User Guide

Monitoring Products

Note: Note that if port optics have also failed, the amber LED will be on.

■ Invalid Attachment — The switch port is in an invalid attachment

state.

■ Link Incident — A link incident occurred on one of the ports.

■ Link Reset — The switch and the attached device are performing a link

reset operation to recover the link connection. Ordinarily, this is a transient state.

■ No Light — No signal (light) is being received on the switch port. This is a

normal condition when there is no cable plugged into the port or when the power of the device attached to the other end of the link is off.

■ Not installed — The port optics are not installed or the feature that

provides additional port function is not enabled.

■ Not Operational — The switch port is receiving the Fibre Channel not

operational sequence (NOS) indicating that the attached device is not operational.

■ Online — The attached device has successfully connected to the switch and

is ready to communicate or is in the process of communicating with other attached devices.

■ Offline — The switch port was configured as “blocked” and is

transmitting the Fibre Channel OLS to the attached device.

■ Port Failure — The switch port has failed and requires service. (A port

in the failed state cannot beacon.)

■ Segmented E_Port — The E_Port is segmented preventing the two

fabrics from joining (this only occurs when two switches are connected to each other).

■ Testing — Port is executing an internal loopback test.

93Embedded Web Server User Guide

Monitoring Products

Accessing Port Statistics

Choose Monitor on the navigation panel. Choose the Port Stats tab; the Port Stats tab view displays (Figure 31).

To display port statistics for a selected port, enter a port number in the Port Number field and choose Get Port Statistics. (You can also choose the Back or Fwd buttons to view the previous or next port.) The Port Statistics are divided into

Traffic Statistics, Error Statistics, Class Two Statistics, and Class Three Statistics. (You may need to scroll down to see all of the categories.)

The information shown that displays is current as of the time when the view displays. The information does not update automatically.

Figure 31: Port Statistics tab view

Troubleshooting Tip for Port Stats

As a general rule, you should clear all the counters by choosing Clear Port Stats or Clear All Port Stats after you have resolved a problem. When troubleshooting, keep track of the time interval when errors accumulate to judge the presence and severity of a problem. (There is a link recovery hierarchy implemented in Fibre Channel to handle some level of “expected anomalies.”) For troubleshooting purposes, you want to focus on errors that, as displayed in the Counter column, increment very quickly.

94 Embedded Web Server User Guide

Parts of Statistics Tables

The tables of statistics contain the following columns:

■ Statistics — Type of statistic being tracked.

■ # of Wraps — Number of times the Counter value wraps, for statistics that

grow rapidly. The maximum value that either the Counter or the #ofWraps can hold is 2 maximum value of 2

■ Counter — Number of instances of the tracked item recorded since system

, or 4,294,967,296. Each time the Counter field reaches the

initialization or the last time the counters were cleared.

Traffic Transmit and Receive Statistics

The Traffic Statistics include these transmit and receive values.

■ Frames Rx — Number of frames that the port has received.

■ Frames Tx — Number of frames that the port has transmitted.

■ Four byte words Rx — Number of words that the port has received.

■ Four byte words Tx — Number of words that the port has transmitted.

■ Offline sequences Rx — Number of offline sequences (OLS) received by this

port.

Monitoring Products

, the wrap count is incremented by 1.

■ Offline sequences Tx — Number of offline sequences (OLS) transmitted by

this port.

■ Link resets Rx — Number of link reset protocol frames received by this port

from the attached N_Port.

■ Link resets Tx — Number of link reset protocol frames transmitted by this

port to the attached N_Port.

■ Link utilization % Rx — Current link utilization for the port expressed as a

percentage. On 1 Gbps links, ports can transmit or receive data at 100 MB per second. On 2 Gbps links, ports can transmit or receive data at 200 MB per second. Link utilization is calculated over one-second intervals.

■ Link utilization % Tx — Current link utilization for the port expressed as a

percentage. On 1 Gpbs links, ports can transmit or receive data at 100 MB per second. On 2 Gbps links, ports can transmit or receive data at 200 MB per second. Link utilization is calculated over one-second intervals.

95Embedded Web Server User Guide

Monitoring Products

For the Edge Switch 2/24, the following statistics are also shown:

■ LIPs Detected — A loop initialization primitive (LIP) was detected, which

■ LIPs Generated — A loop initialization primitive was created to initialize a

Class 2 Statistics

The Class 2 Statistics include these transmit and receive values:

■ Received Frames — Number of Class 2 frames received by this F_Port from

■ Transmitted Frames — Number of Class 2 frames transmitted by this F_Port

■ Busied Frames — Number of F_BSY frames generated by this F_Port

■ Rejected Frames — Number of F_RJT frames generated by this F_Port

■ 4-byte words Rx — Number of Class 2, 4-byte words received by the port.

■ 4-byte words Tx — Number of Class 2, 4-byte words transmitted by the port.

means the loop was completed.

loop.

its attached N_Port.

to its attached N_Port.

against Class 2 frames.

Class 3 Statistics

The Class 3 Statistics include these transmit and receive values:

■ Received Frames — Number of Class 3 frames received by the F_Port from

its attached N_Port.

■ Transmitted Frames — Number of Class 3 frames transmitted by this F_Port

to its attached N_Port.

■ Discarded Frames — Number of Class 3 frames discarded (including

multicast frames with bad Domain IDs).

■ 4-byte words Rx — Number of Class 3, 4-byte words received by the port.

■ 4-byte words Tx — Number of Class 3, 4-byte words transmitted by the port.

96 Embedded Web Server User Guide

Error Statistics

Monitoring Products

The Error Statistics include these transmit and receive values:

■ Link failures — Number of link failures recorded because a not operational

sequence (NOS), protocol timeout, or port failure was detected.

■ Sync losses — Number of loss-of-synchronizations detected because an

attached device was reset or disconnected from the port.

■ Signal losses — Number of loss-of-signal errors detected because the

attached device was reset or disconnected from the port.

■ Primitive sequence errors — Number of primitive sequence protocol errors

received from an attached device, which indicates a Fibre Channel link-level protocol violation.

■ Discarded frames — A received frame could not be routed and was

discarded because the frame timed out due to an insufficient buffer-to-buffer credit, or the destination device was not logged into the product.

■ Invalid transmission words — Number of invalid transmission words from

an attached device. This indicates that a frame or primitive sequence arrived at the port corrupted.

■ CRC errors — A received frame failed a cyclic redundancy check (CRC)

validation, indicating the frame arrived at the port corrupted. Frame corruption may be caused by device disconnection, an optical transceiver failure at the device, a bad fiber cable, or a poor cable connection.

■ Delimiter errors — Number of times that the switch detected an

unrecognized start-of-frame (SOF), an unrecognized end-of-frame (EOF) delimiter, or an invalid class of service. This indicates that the frame arrived at the switch’s port corrupted. This corruption can be due to plugging/unplugging the link, bad optics at either end of the cable, bad cable, or dirty or poor connections. Moving the connection around or replacing cables can isolate the problem.

■ Address ID errors — A received frame had an unavailable or invalid Fibre

Channel destination address, or an invalid Fibre Channel source address. This typically indicates the destination device is unavailable.

■ Frames too short — A received frame exceeded the Fibre Channel frame

maximum size or was less than the Fibre Channel minimum size, indicating the frame arrived at the switch’s port corrupted. Frame corruption may be caused by device disconnection, an optical transceiver failure at the device, a bad fiber cable, or a poor cable connection.

97Embedded Web Server User Guide

Monitoring Products

Open Trunking Statistics

The Open Trunking Statistics include these transmit and receive values:

■ Flows rerouted to ISL — The number of Fibre Channel traffic flows that

were rerouted to this ISL from another ISL due to congestion. (This value increments only if the Open Trunking feature is installed.)

■ Flows rerouted from ISL — The number of Fibre Channel traffic flows that

were rerouted from this ISL to another ISL due to congestion. (This value increments only if the Open Trunking feature is installed.)

Reviewing the Event Log

Choose Monitor on the navigation panel. Choose the Log tab; the Log tab view displays (Figure 32). This log displays a record of significant events that have occurred on the product, such as degraded operation, FRU failures, and port problems. The event log is an important tool you can use to monitor and troubleshoot the products in the SAN. Information contained in the event log may also be used by customer support and service personnel to help resolve problems.

The event log displays the date and time of the event, a unique error event code, event severity level, and additional event data in hexadecimal format.

Figure 32: Log tab view

98 Embedded Web Server User Guide

Severity Levels

Severity levels are:

■ Informational

■ Minor

■ Major

■ Severe (not operational)

Error Event Code Categories

Error Event Codes define event categories; the categories and events vary by product. Below is a list of event codes:

■ 1xx-system events

■ 2xx-power supply events

■ 3xx-fan events

■ 4xx-control processor card events

■ 5xx-port or universal port module card events

Monitoring Products

■ 6xx-serial crossbar assembly (SBAR) events

■ 8xx-thermal incident events

For detailed information on event codes and isolating problems from events and record event data, see the product installation and service manual.

Note: In addition to the event log, another method to obtain operation information

about the status of the product is from the Fabric tab view. See Chapter 4 for more information.

There are two options available that you can use to clear either event logs or the system error light. These options are described below.

99Embedded Web Server User Guide

Monitoring Products

Clearing Event Log Entries

Note: Before clearing the event logs, make sure the logs are not needed for

troubleshooting. Once the event log is cleared, the data cannot be retrieved.

To access this option, choose Monitor and choose the Log tab. Choose Clear Event Log Entries to clear the event logs for the product. A message displays

stating that the operation has been performed successfully.

Clearing the System (Product) Error Light

To access this option, choose Monitor, and then choose the Log tab. Click Clear System Error Light to clear the ERR (error) LED on the product’s front panel.

(The ERR LED remains illuminated as long as an event like a FRU failure is active.) A message displays stating that the operation has been performed successfully.

Viewing Node List

Choose Monitor on the navigation panel. Choose the Node List tab; the Node List tab view displays (Figure 33). The Node List tab view displays information
