hp StorageWorks

edge switch 2/32 installation guide

Part Number: AA-RSTZB-TE/958-000290-000

Second Edition (January 2003)

This installation guide provides procedures for setting up, configuring, and managing the Edge Switch 2/32.

not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information contained in this document is subject to change without notice.

Microsoft, Windows, and Windows 2000 are trademarks of Microsoft Corporation in the U.S. and/or other countries.

All other product names mentioned herein may be trademarks of their respective companies. Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained

herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

hp StorageWorks edge switch 2/32 installation guide Second Edition (January 2003) Part Number: AA-RSTZB-TE/958-000290-000

About This Guide

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Symbols in Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Symbols on Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Rack Stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Getting Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

HP Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

1 Introduction

Edge Switch 2/32 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Error-Detection, Reporting, and Serviceability . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Multi-Switch Fabrics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Switch Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Field Replaceable Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

SFP Transceivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Cooling Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Connectors and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Initial Machine Load Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Ethernet LAN Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

Power and System Error LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

FRU Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Maintenance Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Software Diagnostic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9

edge switch 2/32 installation guide iii

Contents

HAFM Server Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

Ethernet Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

Optional Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

2 Installing and Configuring

the Edge Switch 2/32

Summary of Installation Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Task 1: Verify Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Task 2: Unpack, Inspect, and Install the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Unpack and Inspect the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Desktop Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Rack-Mount Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Task 3: Configure Network Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Task 4: LAN-Connect the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

Task 5: HAFM Server (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Task 6: Configure the Switch to the HAFM Application . . . . . . . . . . . . . . . . . . . 2–13

Task 7: Record or Verify HAFM Server Restore Information . . . . . . . . . . . . . . . 2–13

Task 8: Verify Switch-to-HAFM Server Communication. . . . . . . . . . . . . . . . . . . 2–14

Task 9: Configure Feature Key (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

Configure HP Flexport Technology Feature Key . . . . . . . . . . . . . . . . . . . . . . 2–16

Configure OSMS Feature Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16

Configure FMS Feature Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

Task 10: Configure OSMS or FICON Management Server (Optional) . . . . . . . . 2–19

Configure OSMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

Configure FMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20

Task 11: Set Switch Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

Set Date and Time Manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

Periodically Synchronize Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23

Task 12: Configure the Edge Switch 2/32 Product Manager Applications. . . . . . 2–23

Configure Switch Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–24

Configuring the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–25

Configuring Switch Operating Parameters. . . . . . . . . . . . . . . . . . . . . . . . 2–25

Switch Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–26

Configure Fabric Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–29

Fabric Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–30

Configure Ports (Open Systems Mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–32

Configure Ports (S/390 Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–34

iv edge switch 2/32 installation guide

Contents

Configure Port Addresses (S/390 Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–36

Configure SNMP Trap Message Recipients. . . . . . . . . . . . . . . . . . . . . . . . . . 2–39

Configure and Enable E-mail Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–40

Configure and Enable Call-Home Features . . . . . . . . . . . . . . . . . . . . . . . . . . 2–42

Configure Threshold Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–42

Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–43

Create New Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–43

Modify an Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–48

Activate or Deactivate Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–49

Delete Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–49

Task 13: Test Remote Notification (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–50

Task 14: Back Up HAFM Configuration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–51

Task 15: Configure the Switch from the Embedded Web Server (Optional) . . . . 2–51

Configure Switch Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–54

Configure Switch Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–55

Configure Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–57

Configure Switch and Fabric Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–58

Configure Switch Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–58

Set Fabric Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–60

Configure Network Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–62

Configure SNMP Trap Message Recipients. . . . . . . . . . . . . . . . . . . . . . . . . . 2–65

Configure User Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–67

Task 16: Cable Fibre Channel Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–69

Task 17: Connect Switch to a Fabric (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . 2–69

Task 18: Unpack, Inspect, and Install the Ethernet Hub (Optional) . . . . . . . . . . . 2–71

3 Flexport Upgrade Instructions

Unpack and Inspect the Optics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Edge Switch 2/32 Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Upgrading to 24 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Upgrading to 32 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

Configure Feature Key in Product Manager, EWS, or CLI. . . . . . . . . . . . . . . . . . . . . . 3–3

A Regulatory Compliance Notices

Regulatory Compliance ID Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1

Federal Communications Commission Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

Class A Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

Class B Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

edge switch 2/32 installation guide v

Contents

Declaration of Conformity for Products Marked with FCC Logo—United States Only A–3

Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

Network and Serial Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

IEC EMC Statement (Worldwide). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Spécification ATI Classe A (France). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Canadian Notice (Avis Canadien) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Class A Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Class B Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–4

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5

Taiwanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–5

Harmonics Conformance (Japan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

German Noise Declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

Laser Safety (Finland) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–6

Certification and Classification Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–7

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–9

B Technical Specifications

Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Physical Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–3

Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

Operating Tolerances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

Laser Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–5

Glossary Index Figures

1–1 Switch, HAFM server, and Ethernet hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1–2 Edge Switch 2/32 (Front View). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

1–3 Edge Switch 2/32 (Rear View) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

1–4 HAFM server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

1–5 12-Port Ethernet hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

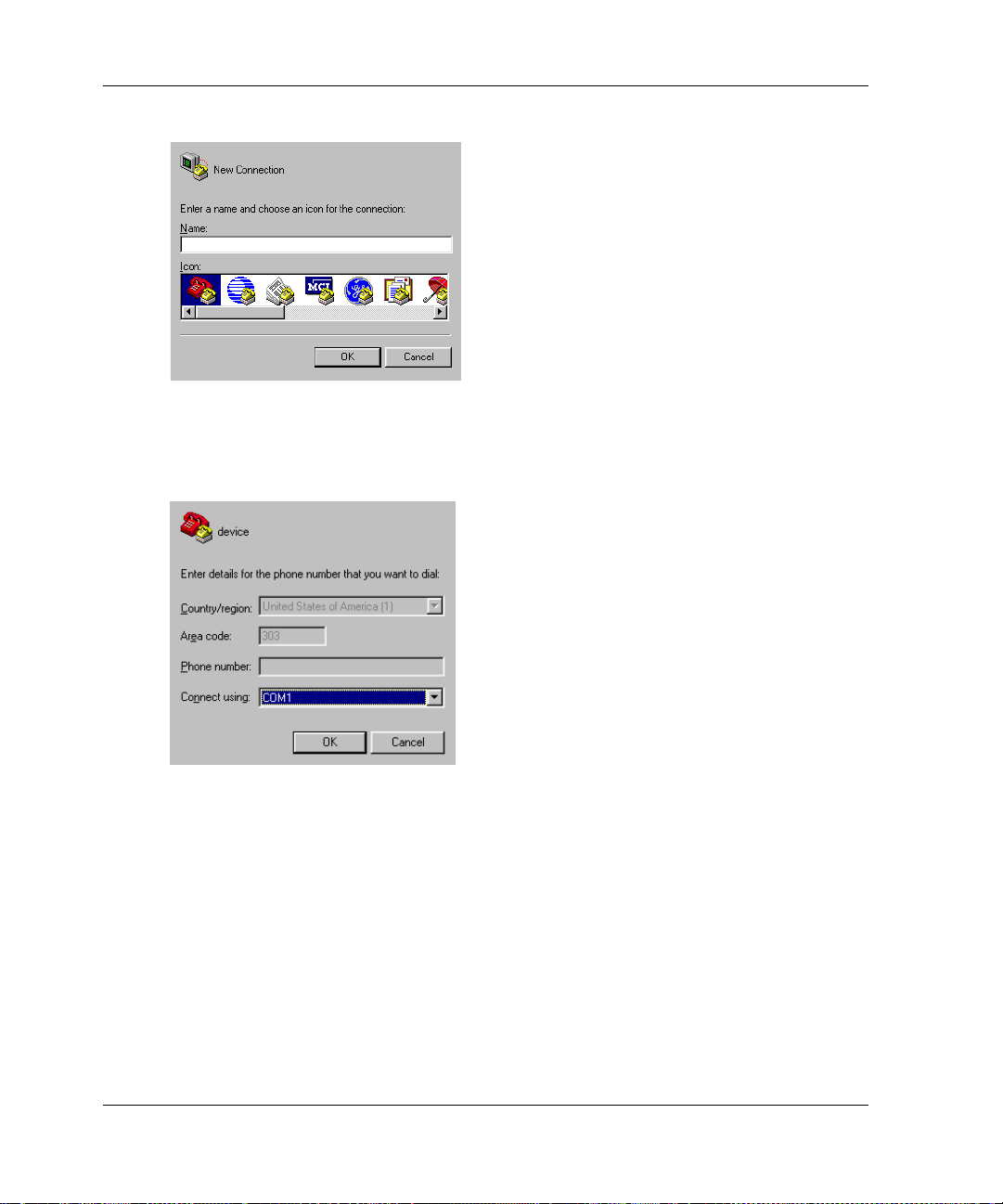

2–1 Connection Description dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

vi edge switch 2/32 installation guide

Contents

2–2 Connect To dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2–3 Port Settings dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2–4 HyperTerminal window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

2–5 Disconnect Now dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

2–6 Save Session dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11

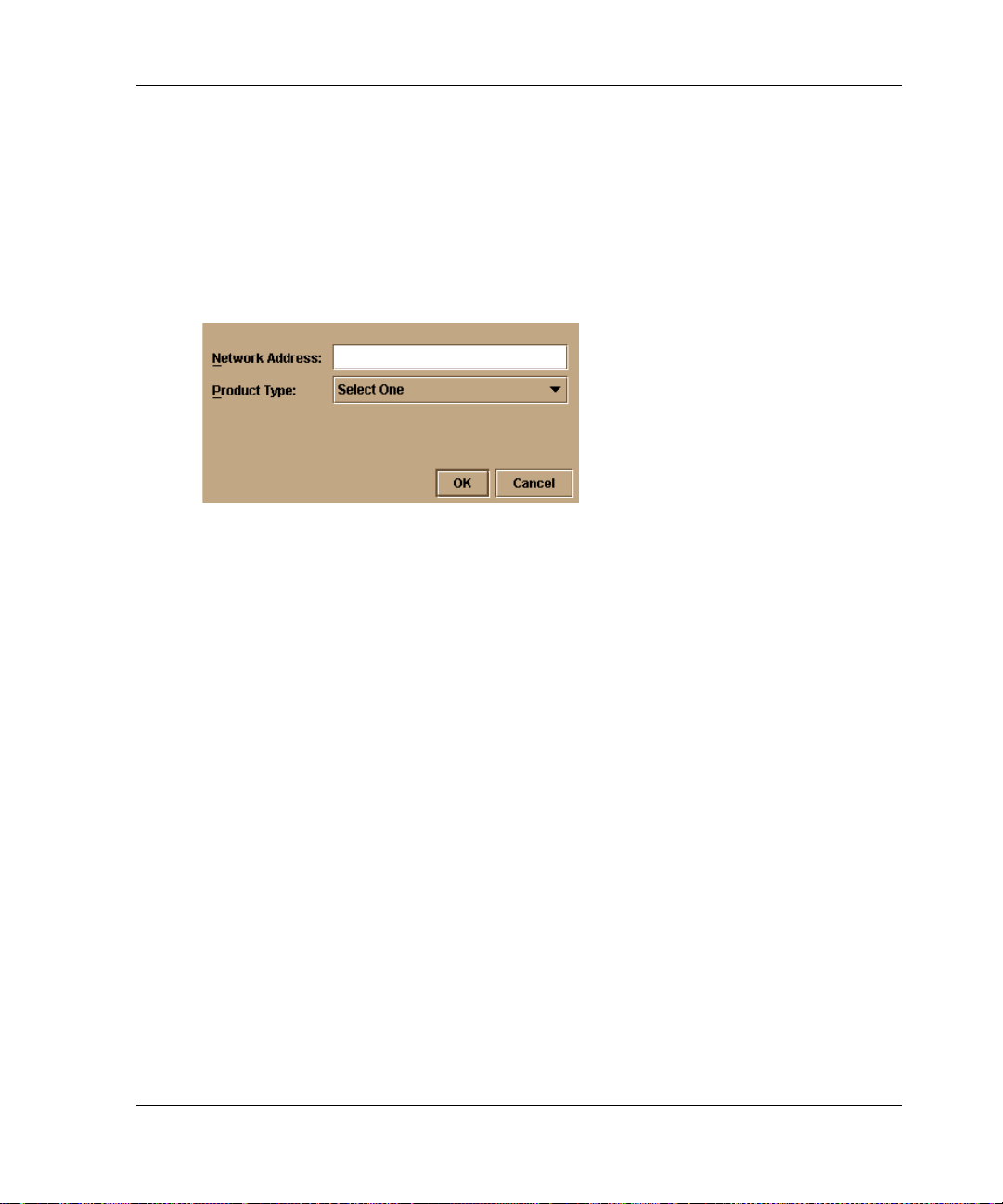

2–7 New Product dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

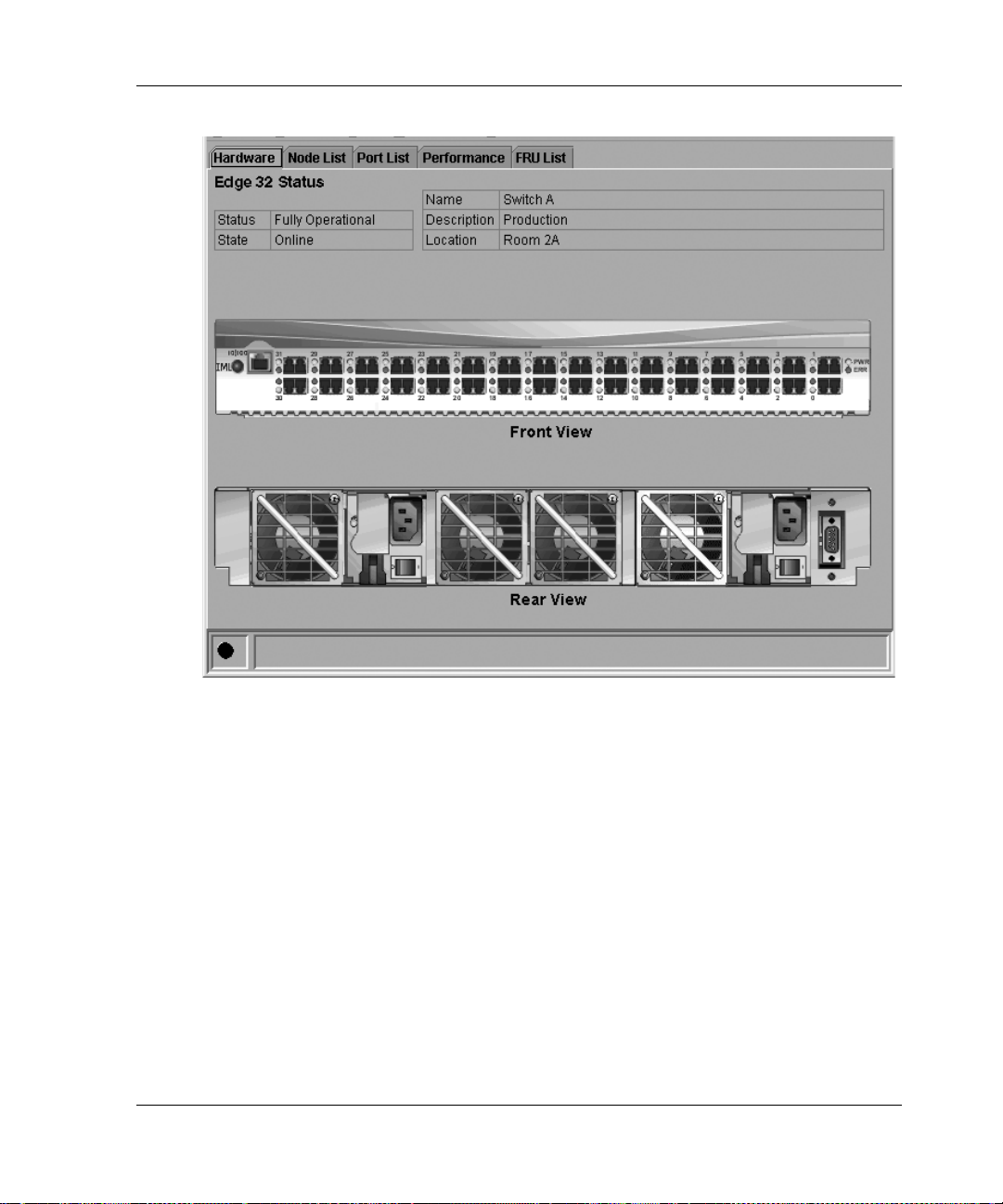

2–8 Switch Hardware View page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15

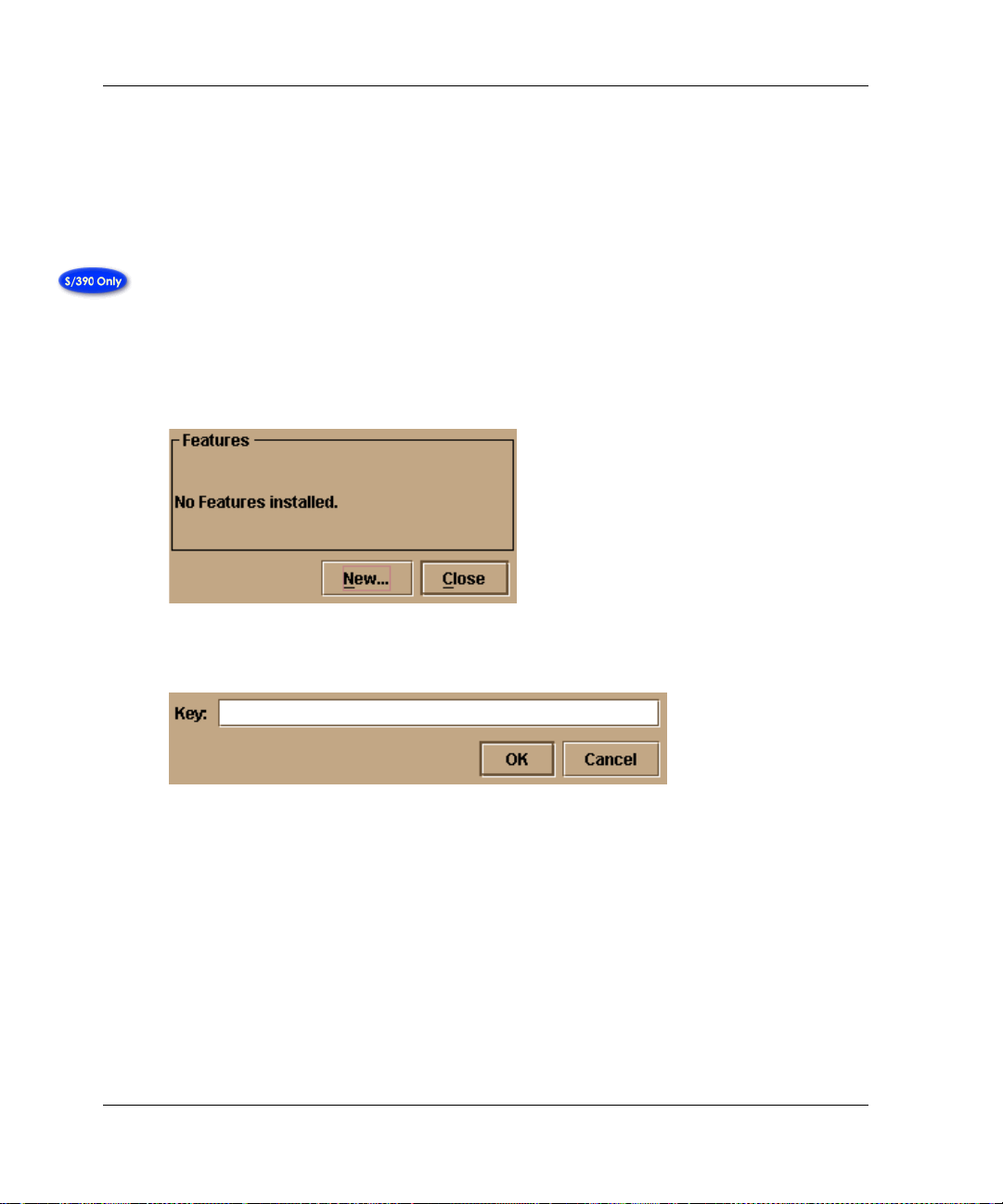

2–9 Configure Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

2–10 New Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

2–11 Enable Feature Key dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–17

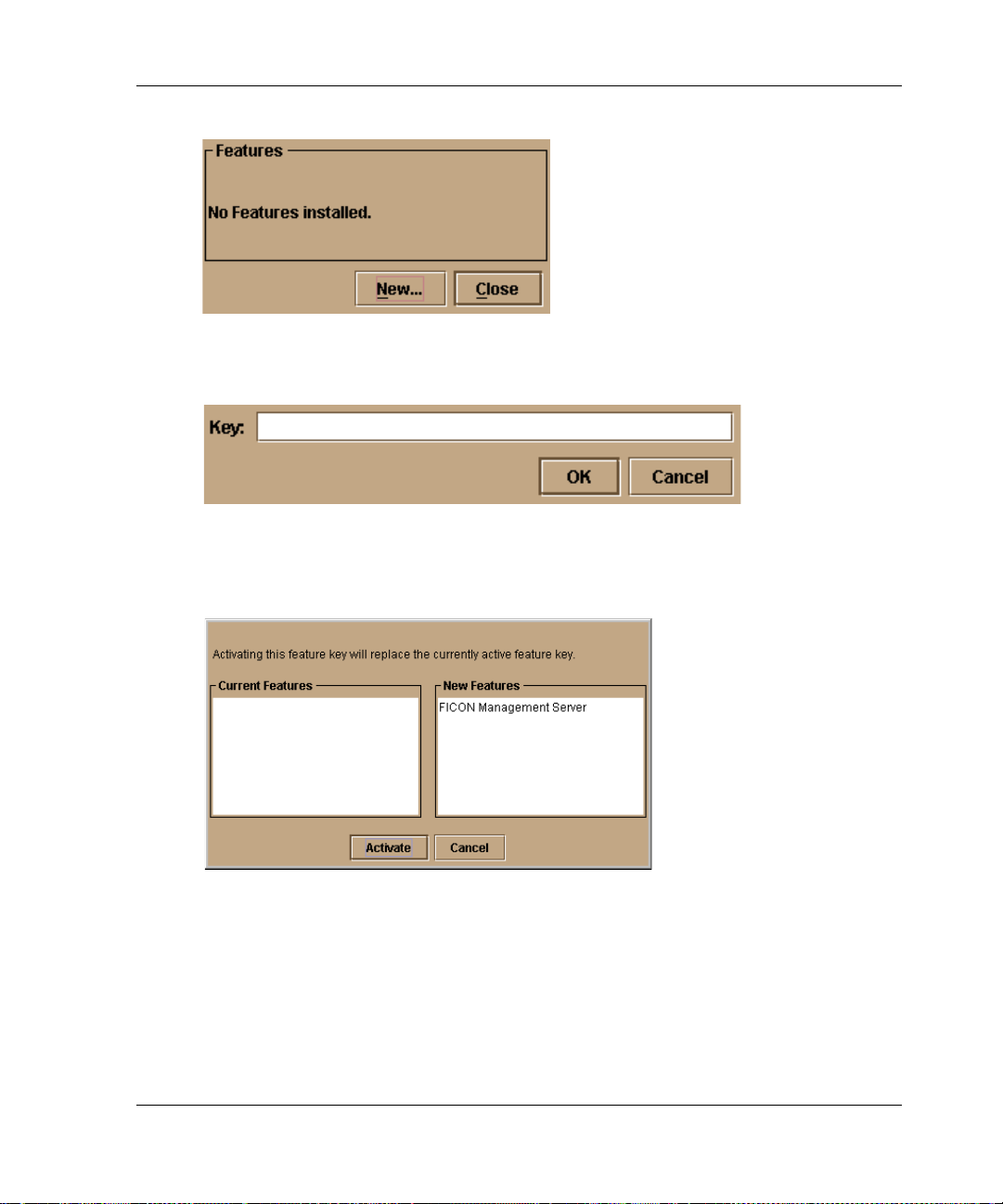

2–12 Configure Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

2–13 New Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18

2–14 Activate FMS feature key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–19

2–15 Configure Open Systems Management server dialog box . . . . . . . . . . . . . . . 2–19

2–16 Configure FICON Management server dialog box. . . . . . . . . . . . . . . . . . . . . 2–20

2–17 Configure Date and Time dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–22

2–18 Date and Time Synced dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23

2–19 Configure Identification dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–24

2–20 Configure Switch Parameters dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–26

2–21 Configure Fabric Parameters dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–30

2–22 Configure Ports dialog box (open systems mode) . . . . . . . . . . . . . . . . . . . . . 2–33

2–23 Configure Ports dialog box (S/390 mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–35

2–24 Configure Addresses—Active dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–37

2–25 Save Address Configuration As dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . 2–38

2–26 Configure SNMP Agent dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–39

2–27 Configure SNMP dialog box—Enable Authorization Traps . . . . . . . . . . . . . 2–40

2–28 Configure E-Mail dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–41

2–29 Configure Threshold Alerts dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–43

2–30 New Threshold Alerts dialog box—first screen . . . . . . . . . . . . . . . . . . . . . . . 2–44

2–31 New Threshold Alerts dialog box—second screen. . . . . . . . . . . . . . . . . . . . . 2–45

2–32 New Threshold Alerts dialog box—third screen . . . . . . . . . . . . . . . . . . . . . . 2–46

2–33 New Threshold Alerts dialog box—summary screen. . . . . . . . . . . . . . . . . . . 2–47

2–34 Configure Threshold Alerts dialog box—alerts activated . . . . . . . . . . . . . . . 2–48

2–35 Test Remote Notification dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–50

2–36 Information dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–50

2–37 Username and Password Required dialog box . . . . . . . . . . . . . . . . . . . . . . . . 2–52

2–38 Embedded Web Server interface—View window . . . . . . . . . . . . . . . . . . . . . 2–53

2–39 Block or unblock a port from the Configure window. . . . . . . . . . . . . . . . . . . 2–54

edge switch 2/32 installation guide vii

Contents

2–40 Switch page—Identification tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–56

2–41 Switch page—Date/Time tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–57

2–42 Switch page—Parameters tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–59

2–43 Switch page—Fabric Parameters tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–61

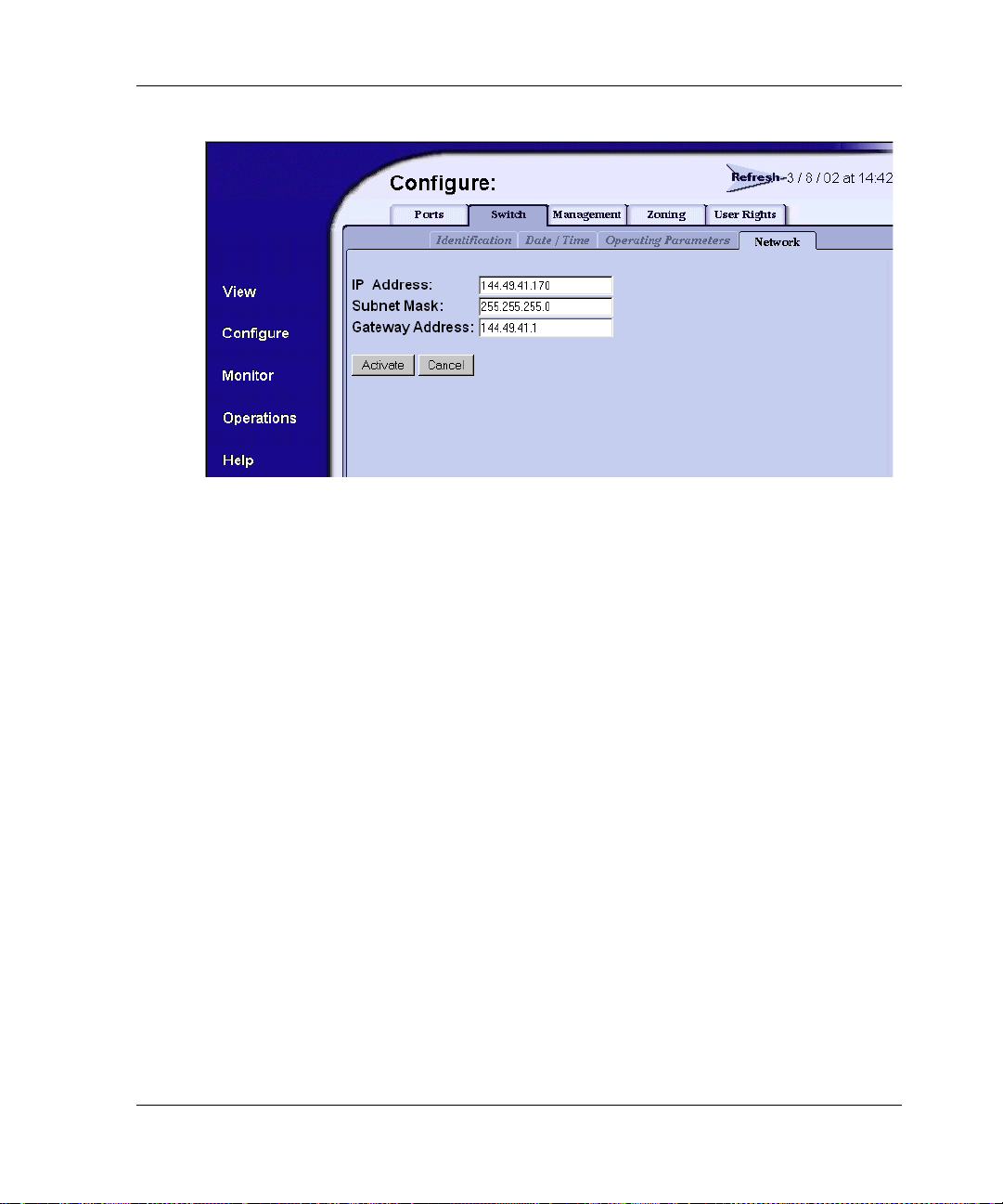

2–44 Switch page—Network tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–63

2–45 Network configuration changes activated. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–64

2–46 Management page—SNMP tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–66

2–47 User Rights page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–68

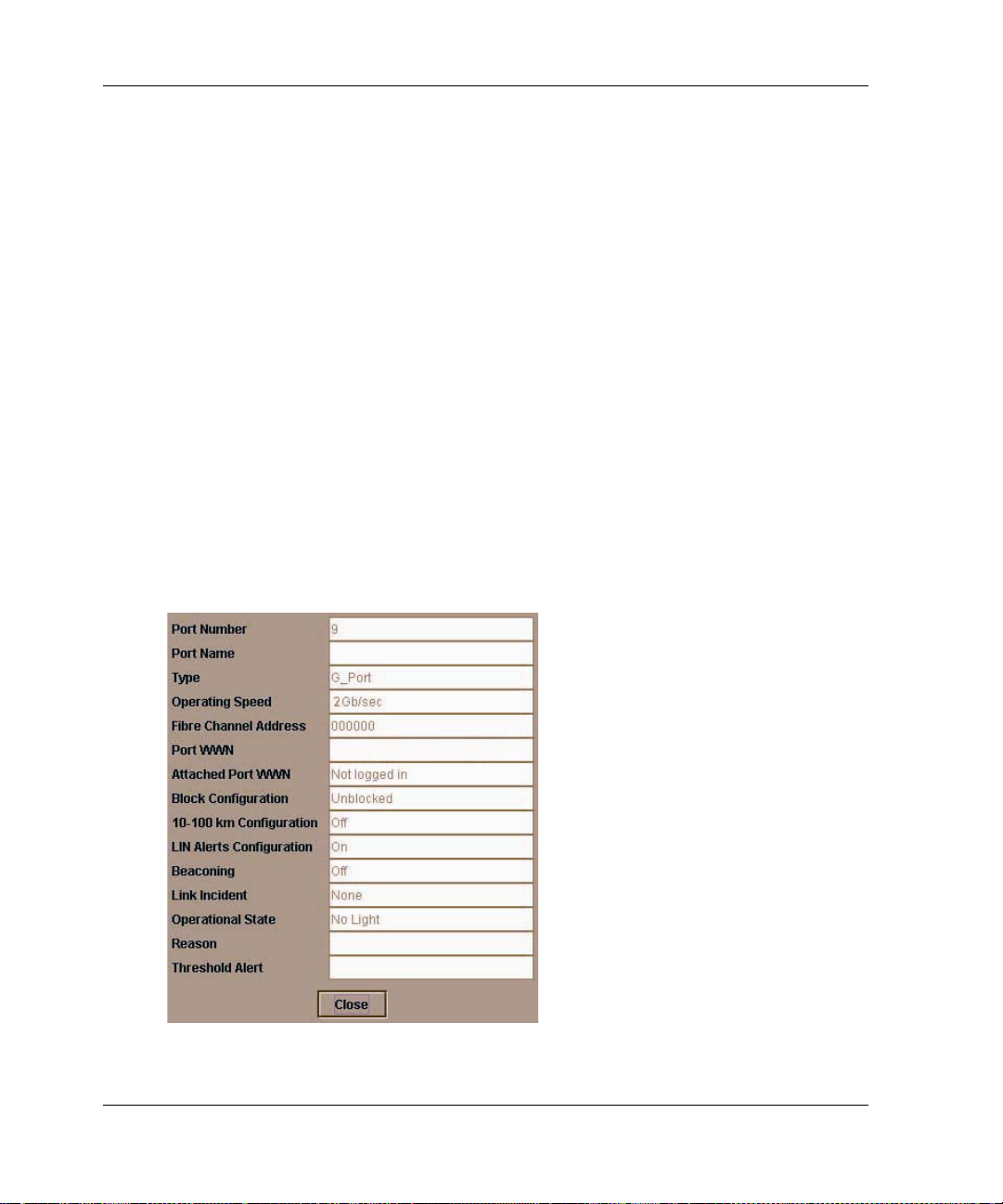

2–48 Port Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–70

3–1 Edge Switch 2/32 port locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3–2 Configure Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3–3 New Feature Key dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3–4 Enable Feature Key dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Tables

1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

1–1 Edge switch 2/32 Optional Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

2–1 Installation Task Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2–2 Switch Operational States and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

2–3 Code Page Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–21

B–1 Factory-Set Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

B–2 Switch Factory-Default Values for Reset

Configuration Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2

B–3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–3

B–4 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

B–5 Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

B–6 Operating Tolerances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–4

B–7 Laser specs — 2 Gb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–5

viii edge switch 2/32 installation guide

This installation guide provides information to help you:

• Set up the Edge Switch 2/32.

• Configure the Edge Switch 2/32.

• Manage the Edge Switch 2/32.

• Contact technical support for additional assistance.

Intended Audience

This book is intended for use by administrators who are experienced with the

following:

About This Guide

• Fibre Channel technology

• StorageWorks Fibre Channel Switches by HP

Document Conventions

The conventions included in Table 1 apply.

Table 1: Document Conventions

Element Convention

Cross-reference links Blue text: Figure 1 Key na mes, menu items, buttons, and

dialog box titles File names, application names , and t e xt

emphasis User input, command names, system

responses (output and messages )

Variables Monospace, italic font Website addresses Sans serif font (http://thenew.hp.com

Bold

Italics

Monospace font COMMAND NAMES are uppercase

unless they are case sensitive

)

x edge switch 2/32 installation guide

Symbols in Text

These symbols may be found in the text of this manual. They have the following

meanings.

WARNING: Text set off in this manner indicates that failur e to follow directions in the warning could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could

result in damage to equipment or data.

IMPORTANT: Text set off in this manner presents clarifying information or specific instructions.

NOTE: Text set off in this manner presents commentary, sidelights, or interesting points of

information.

Symbols on Equipment

About This Guide

Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts.

WARNING: To reduce the risk of injury from electrical shock hazards, do not open this enclosure.

Any RJ-45 receptacle marked with these symbols indicates a network interface connection.

WARNING: To reduce the risk of electrical shock, fire, or damage to the equipment, do not plug telephone or telecommunicatio ns connectors into this receptacle.

xiedge switch 2/32 installation guide

About This Guide

Any surface or area of the equipment marked with these symbols indicates the presence of a hot surface or hot component. Contact with this surface could result in injury.

WARNING: To reduce the risk of injury from a hot component, allow the surface to cool before touching.

Power supplies or systems marked with these symbols indicate the presence of multiple sources of power.

WARNING: To reduce the risk of injury from electrical shock, remove all power cords to completely disconnect power from the power supplies and systems.

Any product or assembly marked with these symbols indicates that the component exceeds the recommended weight for one individual to handle safely.

WARNING: To reduce the risk of personal injury or damage to the equipment, observe local occupational health and safety requirements and guidelines for manually handling material.

Rack Stability

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

• The leveling jacks are extended to the floor.

• The full weight of the rack rests on the leveling jacks.

• In single rack installations, the stabilizing feet are attached to the rack.

• In multiple rack installations, the racks are coupled.

• Only one rack component is extended at any time. A rack may become unstable if more than one rack component is extended for any reason.

xii edge switch 2/32 installation guide

Getting Help

If you still have a question after reading this manual, contact an HP authorized service provider or access our website: http://thenew.hp.com.

HP Technical Support

In North America, call technical support at 1-800-652-6672, available 24 hours a day, 7 days a week.

NOTE: For continuous quality improvement, calls may be recorded or monitored.

Outside North America, call technical support at the nearest location. Telephone numbers for worldwide technical support are listed on the HP website under support:

http://thenew.hp.com/country/us/eng/support.html

Be sure to have the following information available before calling:

• Techn ical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

About This Guide

• Applicable error messages

• Operating system type and revision level

• Detailed, specific questions

HP Website

The HP website has the latest information on this product, as well as the latest drivers. Access storage at: http://thenew.hp.com/country/us/eng/prodserv/storage.html website, select the appropriate product or solution.

HP Authorized Reseller

For the name of your nearest HP Authorized Reseller:

• In the United States, call 1-800-345-1518

• In Canada, call 1-800-263-5868

• Elsewhere, see the HP website for locations and telephone numbers:

http://thenew.hp.com.

. From this

xiiiedge switch 2/32 installation guide

About This Guide

xiv edge switch 2/32 installation guide

Introduction

The HP StorageWorks Edge Switch 2/32 provides dynamic switched connections between Fibre Channel servers and devices in a storage area network (SAN) environment. SANs introduce the concept of server-to-device networking and multi-switch fabrics, eliminate requirements for dedicated connections, and enable the enterprise to become data centric.

A SAN provides speed, high capacity, and flexibility for the enterprise, and is primarily based upon Fibre Channel architecture. The switch implements Fibre Channel technology that provides a bandwidth of 2.125 Gbps, redundant switched data paths, a scalable number of activ e ports, and long transmission distances (up to 35 km).

This chapter describes the switch and attached HP StorageWorks Ha-Fabric Manager (HAFM) server. The chapter specifically discusses:

• Switch management, error-detection and reporting features, serviceability features, zoning, multi-switch fabrics, and specifications.

• The HAFM server and minimum hardware specifications.

• Remote workstation configurations and hardware specifications.

• Maintenance approach.

• Field-replaceable units (FRUs).

• Connectors and indicators.

• Software diagnostic features.

• Tools and test equipment.

edge switch 2/32 installation guide 1–1

Introduction

Edge Switch 2/32 Description

The switch can be installed on a table or desk top, or mounted in an equipment cabinet or in any standard equipment rack.

Multiple switches and the HAFM server communicate on a local area network (LAN) through one or more 10Base-T Ethernet hubs. One or more 24-port Ethernet hubs are optional and can be ordered with the switch. Up to three hubs are daisy-chained as required to provide additional Ethernet connections as more switches (or other HP managed products) are installed on a customer network.

Figure 1–1 illustrates the switch, HAFM server, and Ethernet hub.

HPJ329 4 A

Figure 1–1: Switch, HAFM server, and Ethernet hub

The switch provides dynamic switched connections for servers and devices, supports mainframe and open-systems interconnection (OSI) computing envi ronments, and provides data transmission and flow control between device node ports (N_Ports) as dictated by the Fibre Channel Physical and Si gnalin g In terface (FC-PH 4.3). Through interswitch links (ISLs), the switch can connect additional switches to form a Fibre Channel multi-switch fabric.

The switch provides connectivity for devices manufactured by multiple original equipment manufacturers (OEMs). T o determine if an OEM product can communicate through connections provided by the switch, or if communication restrictions apply, refer to the supporting publications for the product or contact your HP marketing representative.

1–2 edge switch 2/32 installation guide

Features

The following sections describe the features of the Edge Switch 2/32:

Error-Detection, Reporting, and Serviceability

The switch provides the following error-detection, reporting, and serviceability features:

• Light-emitting diodes (LEDs) on switch FRUs and adjacent to Fibre Channel ports that provide visual indicators of hardware status or malfunctions.

• System and threshold alerts, event logs, audit logs, link incident logs, th reshold alert logs, and hardware logs that display switch, Ethernet link, and Fibre Channel link status at the HAFM server.

• Diagnostic software that performs power-on self-tests (POSTs) and port diagnostics (internal loopback, external loopback, and Fibre Channel (FC) loopback tests). The FC loopback test applies only when the switch is configured to operate in S/390 mode.

• Automatic notification of significant system events (to support personnel or administrators) through e-mail messages or the call-home feature at the HAFM server.

Introduction

• A modem for use by support personnel to dial-in to the HAFM server for event notification and to perform remote diagnostics.

• An RS-232 maintenance port at the rear of the switch (port access is password protected) that enables installation or service personnel to change the switch’s internet protocol (IP) address, subnet mask, and gateway address. Or to run diagnostics and isolate system problems through a local or remote terminal.

• Redundant FRUs—small form factor pluggable (SFP) optical transceivers, power supplies, and cooling fans—that are removed or replaced without disrupting switch or Fibre Channel link operation.

• A modular design that enables quick removal and replacement of FRUs without tools or equipment.

• Concurrent port maintenance—SFPs and fiber-optic cables are removed and attached to ports without interrupting other ports or director operation.

• Beaconing to assist service personnel in locating a specific port or switch. When port beaconing is enabled, the amber LED associated with the port flashes. When unit beaconing is enabled, the system error indicator on the front panel flashes. Beaconing does not affect port or switch operation.

edge switch 2/32 installation guide 1–3

Introduction

• Data collection through the Product Manager application to help isolate system

• Simple network management protocol (SNMP) management using th e Fibre

• SNMP management using the Fibre Channel Fabric Element MIB (Version 1.10),

NOTE: For more information about SNMP support provided by HP products, refer to the hp StorageWorks SNMP reference guide for director 2/64, edge switch 2/16, and edge switch 2/32.

Zoning

The switch supports a name server zoning feature that partitions attached devices into restricted-access groups called zones. Devices in the same zone can recognize and communicate with each other through switched port-to-port connections. Devices in separate zones cannot communicate with each other.

problems. The data includes a memory dump file and audit, hardware, and engineering logs.

Alliance MIB that runs on the HAFM server. Up to 12 authorized management workstations can be configured through the HAFM application to receive unsolicited SNMP trap messages. The trap messages indicate operational state changes and failure conditions.

transmission control protocol/internet protocol (TCP/IP) MIB-II definition (RFC

1213), or a product-specific MIB that run on each switch. Up to 12 authorized

management workstations can be configured through the Product Manager application to receive unsolicited SNMP trap messages. The trap messages indicate switch operational state changes and failure conditions.

Zoning is configured by authorizing or restricting access to name server information associated with device N_Ports that attach to switch fabric ports (F_Ports). A zone member is specified by the port number to which a device is attached, or by the eight-byte (16-digit) World Wide Name (WWN) assigned to the host bus adapter (HBA) or Fibre Channel interface installed in a device. A device can belong to multiple zones.

CAUTION: If zoning is implemented by port number, a change to the s witch fiber-optic cable configuration disrupts zone operation and may incorrectly include or exclude a device from a zone.

If zoning is implemented by WWN, removal and replacement of a device HBA or Fibre Channel interface (thereby changing the device WWN) disrupts zone operation and may incorrectly include or exclude a device from a zone.

In Open Fabric mode, only zoning by WWN is supported. Zoning by port numbers is not.

1–4 edge switch 2/32 installation guide

Zones are grouped into zone sets. A zone set is a group of zones that is enabled (activated) or disabled across all switches in a multi-switch fabric. Only one zone set can be enabled at one time.

Multi-Switch Fabrics

A Fibre Channel topology that consists of one or more interconnected switches or switch elements is called a fabric. Operational software provides the ability to interconnect switches (through expansion port (E_Port) connections) to form a multi-switch fabric. The data transmission path through the fabric is typically determined by fabric elements and is user-transparent. Subject to zoning restrictions, devices attached to any interconnected switch can communicate with each other through the fabric.

Switch Management

These options are available for managing the Edge Switch 2/32 through a user interface:

•The Product Manager application installed on an High Availability Fabric Manager (HAFM) server. Access to the Product Manager must be through the HAFM applications. These applications are installed on the HAFM server.

Introduction

• The Embedded Web Server interface. Using a browser-capable PC with an internet connection to the switch, you can monitor and manage the switch through the web server interface embedded in the switch firmware. The interface provides a GUI similar to the Product Manager application and supports switch configuration, statistics monitoring, and basic operation.

To launch the Embedded Web Server interfa ce, enter the switches IP address as the internet uniform resource locator (URL) into any standard browser. Enter a user name and password at a the login screen. The browser then becomes a management console. Refer to the web server interface online help for details on use.

NOTE: The default user name for the right to view status and other information is operator. The default user name for the right to modify configuration data, perform maintenance tasks, or perform other options is administrator. The default password for both user names is password.

• The command line interface (CLI). The CLI allows you to access many HAFM and Product Manager functions while entering commands during a Telnet session with the switch. The primary purpose of the CLI is to automate management of a large number of switches using scripts. The CLI is not an interactive interface; no

edge switch 2/32 installation guide 1–5

Introduction

checking is done for pre-existing conditions and no prompts display to guide users through tasks. Refer to hp StorageWorks CLI reference guide for edge switches and directors.

This manual provides details on the Product Mana ger application for the Edge Switch 2/32 only. Use this manual for the Product Manager installed on an HAFM server. This manual does not cover the Embedded Web Server interface or CLI.

Field Replaceable Units

The switch provides a modular design that enables quick remo val and replacement of FRUs small form factor pluggable SFP optical transceivers, power supplies, and fans.

Figure 1–2 illustrates the front of the switch. The switch front panel includes:

StorageWorks edge switch 2/32

35791113151719212325272931

10/100

262830

1 Initial machine load (IML) button 2 Ethernet LAN connector 3 SFP fiber optic connectors

4 Por t LEDs 5 Err or LED (amber) 6 Power LED (green)

0246810121416182022

PWR ERR

SHR-2369

Figure 1–2: Edge Switch 2/32 (Front View)

Figure 1–3 illustrates the rear of the switch. The FRUs on the rear panel include two

power supplies and four individual cooling fan FRUs. Also sho wn on the rear panel is an RS-232 maintenance port (not labeled).

1–6 edge switch 2/32 installation guide

Introduction

1 Cooling fan (4) 2 Power supply (2)

Figure 1–3: Edge Switch 2/32 (Rear View)

SFP Transceivers

A single-mode or multi-mode fiber-optic cable attaches to a port through a pluggable small form factor (SFP) transceiver. The SFP provides a duplex LC interface, and can be detached from the switch port for easy replacement. Two fiber-optic transceiver types are available:

• Shortwave laser — Shortwave laser SFPs provide short-distance connections (2 to 500 meters) through 50-micron or 62.5-micron multi-mode fiber.

• Longwave laser — Longwave laser SFPs provide long-distance connections (up to 10 kilometers) through 9-micron single-mode fiber.

Cooling Fans

Four fans (each a separate FR U) pro vide cooling for the switch power supplies and the control processor (CTP) card, as well as redundancy for continued operation if a single fan fails.

3 2

3 Power switches on power supplies

(2)

Each fan FRU can be replaced while the switch is operating.

Power Supplies

Redundant, load-sharing power supplies step down and rectify facility input power to provide 3.3 volts direct current (VDC), 5 VDC, and 12 VDC to the CTP. The power supplies also provide input filtering, overvoltage protection, and overcurrent protection. Either power supply can be replaced while the switch is operational.

edge switch 2/32 installation guide 1–7

Introduction

Each power supply has a separate CTP connection to allow for independent A C po wer sources. The power supplies are input-rated at 100 to 230 volts alternating current (VAC).

Power supply requirements are listed in Appendix B.

Connectors and Indicators

Connectors and indicators include the:

• Initial machine load (IML) button.

• Ethernet LAN connector.

• Green power (PWR) and amber system error (ERR) LEDs.

• Green and amber status LEDs associated with FRUs.

• RS-232 maintenance port.

Initial Machine Load Button

When the IML button, as shown in Figure 1–2 is pressed and held for three seconds, the switch performs an IML that takes approximately 30 seconds and resets the:

• Microprocessor and functional logic for the CTP and loads firmware from FLASH memory.

• Ethernet LAN interface, causing the connection to the HAFM server to drop momentarily until the connection automatically recovers.

• Ports, causing all Fibre Channel connections to drop momentarily until the connections automatically recover.

An IML should only be performed if a CTP failure is indicated. Do not IML the switch unless directed to do so by a procedural step or the next level of support. As a precaution, the IML button is flush mounted to protect against accidental activation.

Ethernet LAN Connector

The front panel provides a 10/100 megabit per second (Mbps) RJ-45 twisted-pair connector, as shown in Figure 1–2 that attaches to an Ethernet LAN to provide communication with the HAFM server or an SNMP management workstation. Two green LEDs are associated with the LAN connector. When illuminated, the left LED indicates LAN operation at 10 Mbps, and the right LED indicates LAN operation at 100 Mbps.

1–8 edge switch 2/32 installation guide

Power and System Error LEDs

The PWR LED, as shown in Figure 1–2 illuminates when the switch is connected to facility AC power and powered on. If the LED extinguishes, a facility power source, power cord, or power distribution failure is indicated.

The ERR LED, as shown in Figure 1–2 illuminates when the switch detects an event requiring immediate operator attention, such as a FRU failure. The LED remains illuminated as long as an event is active. The LED extinguishes when the Clear System Error Light function is selected from the Product Manager application. The LED blinks if unit beaconing is enabled. An illuminated ERR LED (indicating a failure) takes precedence over unit beaconing.

FRU Status LEDs

Amber and green LEDs associated with switch FRUs provide status information as follows:

• Port SFP — Amber and green LEDs to the left of the port, as shown in

Figure 1–2 illuminate, extinguish, or blink to indicate various port states

(operational with active Fibre Channel traf f ic, operat ional b ut not communicating, beaconing, blocked, failed, inactive, or running diagnostics).

Introduction

• Fan — An amber LED at the lower left corner of each fan, as shown in Figure 1–3

illuminates if the fan fails or rotates too slowly.

• Power Supply — A green LED at the upper left corner of each power supply, as

shown in Figure 1–3 illuminates if the power supply is operational and receiving AC power.

Maintenance Port

The rear panel provides a 9-pin RS-232 maintenance port, as shown in Figure 1–3 that provides a connection for a local terminal or dial-in connection for a remote terminal. Although the port is typically used by authorized maintenance personnel, operations personnel can use the port to configure switch network addresses.

Software Diagnostic Features

The switch provides the following diagnostic software features that aid in fault isolation and repair of problems:

edge switch 2/32 installation guide 1–9

Introduction

• FRUs provide on-board diagnostic and monitoring circuits that continuously report FRU status to the HAFM and Product Man ager applications. These applications provide system alerts and logs that display failure and diagnostic information at the HAFM server or a remote workstation communicating with the HAFM server.

• The HAFM Services application that runs as a Windows 2000 service and provides an additional user interface to display operational status.

• The Embedded Web Server interface that provides Internet access to isolate problems for a single switch.

• Unsolicited SNMP trap messages that indicate operational state changes or failures can be transmitted to up to 12 authorized management workstations.

• E-mail messages or call-home reports provide automatic notif ication of significant system events to designated support personnel or administrators.

HAFM Server Description

The HAFM server, as shown in Figure 1–4 is a notebook personal computer (PC) that provides a central point of control for up to 48 LAN-connected directors or Edge Switches.

Figure 1–4: HAFM server

The server is mounted in a slide-out drawer in the HP-supplied equipment rack. The HAFM server or Ethernet access to the Embedded Web Server (EWS) interface is required to install, configure, and manage the Edge Switch 2/32.

1–10 edge switch 2/32 installation guide

Although a configured switch operates normally without HAFM server intervention, an attached server should operate at all times to monitor switch operation, log events and configuration changes, and report failures.

The HAFM server provides an auto-detecting 10/100 Mbps LAN connection, provided by an internal Ethernet adapter card. This LAN port attaches to the customer’s public intranet to allo w access from remote user workstations. An optional Ethernet adapter card (not supplied by HP) can be installed in the personal computer memory card international association (PCMCIA) slot to provide a connection to a private LAN segment for dedicated director communication.

Ethernet Hub

The HAFM server and managed directors connect through a rack-mounted 10/100 Base-T Ethernet hub. Figure 1–5 illustrates the optional 12-port hub.

ProCurve

0/100

J 3

Power

Fault

Reset

Introduction

Link 100

Act

Col

Port

nly

MDI-X

MDI

(out)

(in)

10X

11X

12X

Figure 1–5: 12-Port Ethernet hub

Optional Kits

Contact your HP authorized service provider to purchase the following optional edge switch 2/32 kits. See Table 1–1.

Table 1–1: Edge switch 2/32 Optional Kits

Supporting Kit Description

8-flexport upgrade for Edge Switch 2/32, Part Number: DS-DM8PU-AA / 302660-B21

2/32 Product Manager license, Part Number: QM-6YCAA-AA / 300658-B21

edge switch 2/32 installation guide 1–11

Used to upgrade from 16 to 24 and 24 to 32 ports.

Used when switch is managed through HAFM.

Introduction

1–12 edge switch 2/32 installation guide

Installing and Configuring

the Edge Switch 2/32

This chapter describes tasks to install, configure, and verify operation of the edge switch 2/32. The switch can be installed on a table or desk top, or mounted in any standard equipment rack.

For a list of the factory-set defaults for the switch and the Reset Configuration option, refer to Appendix B.

Summary of Installation Tasks

Table 2–1 summarizes installation tasks for the switch, HAFM server, and Ethernet

hub. The table numbers and describes each task, states if the task is required or optional, and lists the page reference for the task. If a task is optional, decision-related information is included.

Table 2–1: Installation Task Summary

Task Number and Description Required or Optional Page

Task 1: Verify Installation Requirements Required 2–3 Task 2: Unpack, Inspect, and Insta ll the

Switch Task 3: Configure Network Information Optional—configure if connecting

Task 4: LAN-Connect the Switch Required 2–11 Task 5: HAFM Server (Optional) Optional—if not done, then the switch

edge switch 2/32 installation guide 2-1

Required 2–4

2–6 multiple switches or if connecting a switch and LAN.

should be configured using the Embedded Web Server (EWS) interface.

HAFM server to a public

2–12

Installing and Configuring the Edge Switch 2/32

Table 2–1: Installation Task Summary (Continued)

Task Number and Description Required or Optional Page

Task 6: Configure the Switch to the HAFM Application

Task 7: Record or Verify HAFM Server Restore Information

Task 8: Verify Switch-to-HAFM Server Communication

Task 9: Configure Feature Key (Optional)

Task 10: Configure OSMS or FICON Management Server (Optional)

Required if Task 5: HAFM Server

(Optional) task was done.

Required if Task 5: HAFM Server

(Optional) task was done.

Required if Task 5: HAFM Server

(Optional) task was done.

Optional—configure if a feature key is ordered by the customer.

Optional—configure if the HAFM server is installed.

2–13

2–14

2–15

2–19

Task 11: Set Switch Date and Time Optional 2–21 Task 12: Configure the Edge Switch

Required 2–23

2/32 Product Manager Applications Task 13: Test Remote Notification

Optional 2–50

(Optional) Task 14: Back Up HAFM Configuration

Required 2–51

Data Task 15: Configure the Switch from the

Embedded Web Server (Optional)

Optional—if not done, then the switch should be configured using the HAFM

2–51

server.

Task 16: Cable Fibre Channel Ports Required 2–69 Task 17: Connect Switch to a Fabric

(Optional) Task 18: Unpack, Inspect, and Install

the Ethernet Hub (Optional)

Optional—perform this task to connect

the switch to a fabric.

Optional—install only if ordered and

Ethernet segment does not exist to

connect switches and the

HAFM

2–69

2–71

server.

2-2 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Installation Options

The switch is installed in one of two configurations. The options are:

• Table or desk top—one or more switches, an optional HAFM server, and an

optional Ethernet hub are delivered an d installed at the customer facil ity on a desk or table top. Ethernet cabling distance, and local area network (LAN) addressing issues must be considered.

• Customer-supplied equipment rack—one or more switches, an opt ional HAFM

server, and an optional Ethernet hub are delivered to the customer facility for installation in a customer-supplied equipment rack. Rack-mount hardware is provided in the shipping container. Ethernet cabling, distance, and LAN addressing issues must be considered.

Task 1: Verify Installation Requirements

Verify the following requirements are met prior to switch and HAFM server installation. Ensure:

• A site plan is prepared, configuration planning tasks are complete, planning considerations are evaluated, and related planning checklists are complete. Fabric and device connectivity are evaluated, and the related planning worksheet is complete. Refer to the hp StorageWorks product in a SAN environment: planning guide for director 2/64, edge switch 2/16, and edge switch 2/32.

• Support equipment and personnel are available for the installation.

• The required number and type of fiber-optic jumper cables are delivered and available. Ensure the cables are the correct length with the required connectors.

• A customer-supplied equipment rack and associated hardware are available (optional).

• Remote workstations or simple network management protocol (SNMP) workstations are available (optional). Workstations are customer-supplied and connected through a corporate or dedicated LAN.

edge switch 2/32 installation guide 2-3

Installing and Configuring the Edge Switch 2/32

Task 2: Unpack, Inspect, and Install the Switch

The following paragraphs provide instructions to unpack and inspect the edge switch 2/32, and install it in a desktop or rack-mount configuration.

Unpack and Inspect the Switch

Unpack and inspect the switch:

CAUTION: When you remove the switch from the carton, do not rest it on its rear window while examining it. To do so may break the FRU handles.

1. Inspect the shipping containers for damage caused during transit. If a container is damaged, ensure a representative from the freight carrier is present when the container is opened.

2. Unpack the shipping containers and inspect each item for damage. Save all shipping and packing materials. Ensure that all items on the enclosed shipping list are in each container.

3. If any items are damaged or missing, cus tomers should contact a HP authorized service provider or reseller.

Desktop Installation

To install and configure the switch on a desktop:

1. Remove the backing from the four adhesiv e rubb er pads and ap ply the pads to the underside of the switch. Ensure the pads are aligned with the scribed circles at each corner.

2. Position the switch on a table or desktop as directed by the customer. Ensure:

• Grounded AC electrical outlets are available.

• Adequate ventilation is present.

• Areas with excessive heat, dust, or moisture are avoided.

• All planning considerations are met. Refer to the hp StorageWorks product in

a SAN environment: planning guide for director 2/64, edge switch 2/16, and edge switch 2/32.

3. Verify that all FRUs are installed as ordered.

2-4 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

4. Verify that the SFP optical transceivers are installed as required for your

installation.

5. Connect the U.S. or country-specific (optional) AC po wer cords to the right ( PS0)

and left (PS1) receptacles at the rear of the chassis.

WARNING: An HP-supplied power cord is provided for each switch power supply. To prevent electric shock when connecting the switch to primary facility power, use only the supplied power cords, and ensure the facility power receptacle is the correct type, supplies the required voltage, and is properly grounded.

6. Connect the remaining ends of the AC power cords to separate facility power

sources that provide single-phase, 120 to 240 volt alternating current (VAC) current. This provides power redundancy.

7. Turn on the power. Two power switches are on the back of the unit. Turn on both

switches. The unit powers on and performs power-on self-tests (POSTs). During POSTs:

a. The green power (PWR) LED on the front panel turns On. b. The amber system error (ERR) LED on the front panel flashes momentarily

while the switch is tested.

c. The green LEDs associated with the Ethernet port flashes momentarily while

the port is tested.

d. The green and amber LEDs associated with the ports flash momentarily while

the ports are tested.

8. After successful POST completion, the green power (PWR) LED remains O

all other front panel LEDs turn O

FF.

N and

9. If a POST error or other malfunction occurs, refer to the hp StorageWorks edge

switch 2/32 service manual to isolate the problem.

Rack-Mount Installation

To install the switch in a customer-supplied equipment rack, refer to the hp StorageWorks edge switch rack mount kit installation instructions. The installation instructions are located on the hp StorageWorks edge switch 2/32 documentation CD.

edge switch 2/32 installation guide 2-5

Installing and Configuring the Edge Switch 2/32

Task 3: Configure Network Information

The edge switch 2/32 is delivered with the following default network addresses:

• MAC address—the media access control (MAC) address is programmed into FLASH memory on the CTP card at the time of manufacture. The MA C add ress is unique for each switch, and should not be changed. The address is in xx.xx.xx.xx.xx.xx format, where xx is a hexadecimal pair.

NOTE: References to the CTP in this manual are to the control processor logic contained on the switch motherboard. If an event occurs that indicates the CTP as faulty, replacement of the switch assembly is required.

• IP address—the factory preset default internet proto col (IP) address is 10.1.1.10. The default IP address is also 10.1.1.10.

If Reset Configuration is selected from the Product Manager application, the switch resets to the default address of 10.1.1.10.

If multiple switches are installed on the same LAN, each switch (and the HAFM server) must have a unique IP address. One switch can use the factory-set address, but the addresses of the remaining switches must be changed.

NOTE: If you have enabled additional port function with the HP Flexport Feature since the switch shipped from the factory, resetting the configuration will return this feature to the factory default of only 16 ports enabled. You must re-enable the additional ports using the Configure Feature Key dialog box (see “Task 9: Configu r e Feature Key (Optional)” on page 2–15).

WARNING: This operation resets all configuration including any optional features that have been installed. You will need to re-enter your feature key to enable all optional features after resetting the configuration parameters.

• Subnet mask—the default subnet mask is 255.0.0.0. If the switch is installed on a complex public LAN with one or more routers, the address may require change.

• Gateway address—the default gateway address is 0.0.0.0. If the switch is installed on a dedicated LAN with no connection through a router, the address does not require change. If the switch is installed on a public LAN (corporate intranet), the gateway address must be changed to the address of the corporate intranet’s local router.

2-6 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Verify the type of LAN installation with the customer’s network administrator. If one switch is installed on a dedicated LAN, network addresses do not require change.

If multiple switches are installed or a public LAN segment is used, network addresses must be changed to conform to the customer’s LAN addressing scheme. The following tools are required:

• A maintenance terminal (desktop or notebook PC) with:

— The Microsoft Windows 98, Windows

2000, Windows XP, or Windows

Millennium Edition operating system installed.

— RS-232 serial communication software (such as ProComm Plus or

HyperTerminal) installed. HyperTerminal is provided with Windows operating systems.

Note that the HAFM server may be used for this function and that HyperTerminal is included in Wind ows 2000 provided in the HAFM server as a windows 2000 application.

• An asynchronous RS-232 null modem cable (provided with the switch). Perform the following steps to change a switch’s IP address, subnet mask, or gateway

address:

1. Remove the protective metal plate from the 9-pin maintenance port at the rear of

the switch (a phillips-tip screwdriver is required). Connect the 9-pin end of the RS-232 null modem cable to the port.

2. Connect the other cable end to a 9-pin communication port (COM1 or COM2) at

the rear of the maintenance terminal PC.

3. Power on the maintenance terminal. After the PC powers on, the Windows

desktop displays. Refer to operating instructions shipped with the PC.

NOTE: Steps 4-13 describe changing network addresses using the HyperTerminal serial communication software.

4. Choose Start > Programs > Accessories > Communications >HyperTerminal.

The Connection Description dialog box displays, as shown in Figure 2–1.

edge switch 2/32 installation guide 2-7

Installing and Configuring the Edge Switch 2/32

Figure 2–1: Connection Description dialog box

5. Type edge switch 2-32 in the Name field and click OK. The Connect To dialog box displays, as shown in Figure 2–2.

Figure 2–2: Connect To dialog box

2-8 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

6. Ensure the Connect using field displays COM1 or COM2 (depending on the

serial communication port connection to the switch), and click OK. The Port Settings dialog box displays, as shown in Figure 2–3.

Figure 2–3: Port Settings dialog box

7. Configure the Port Settings parameters as follows:

— Bits per second—57600 — Data bits—8 — Parity—None — Stop bits—1 — Flow control—Hardware When the parameters are set, click OK. The HyperTerminal window displays.

8. At the > prompt, type the user-level password (the default is password) and press

Enter. The password is case sensitiv e. The HyperTerminal window displays with a C> prompt at the top of the window, as shown in Figure 2–4.

edge switch 2/32 installation guide 2-9

Installing and Configuring the Edge Switch 2/32

Figure 2–4: HyperTerminal window

9. At the C> prompt, type ipconfig and press Enter. The HyperTerminal window displays with configuration information listed as follows:

— MAC Address

— IP Address (default is 10.1.1.10, factory preset is 10.1.1.10) — Subnet Mask (default is 255.0.0.0). — Gateway Address (default is 0.0.0.0) Only the IP Address, Subnet Mask, and Gateway Address fields are

configurable.

10. Change the IP address, subnet mask, and gateway address as directed by the customer’s network administrator. To change switch network addresses, type the following at the C> prompt and press Enter.

ipconfig xxx.xxx.xxx.xxx yyy.yyy.yyy.yyy zzz.zzz.zzz.zzz

The IP address is always xxx.xxx.xxx.xxx, the subnet mask is always yyy.yyy.yyy.yyy, and the gateway address is always zzz.zzz.zzz.zzz, where the octets xxx, yyy, and zzz are decimals from zero through 255. If a network address is to remain unchanged, type the current address in the respective field.

When the new network addresses are configured at the switch, the message

Request completed OK displays at the bottom of the edge switch 2/32 — HyperTerminal window.

2-10 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

11. Choose Exit from the File menu to close the HyperTerminal application. A

message box displays, as shown in Figure 2–5.

Figure 2–5: Disconnect Now dialog bo x

12. Click Yes. A message box displays, as shown in Figure 2–6.

Figure 2–6: Save Session dialog box

13. Click No to exit and close the HyperTerminal application.

14. Power off the maintenance terminal:

a. Choose Start > Shut Down. The Shut Down Windows dialog box displays. b. At the Shut Down Windows dialog box, choose Shut down the Computer

and click Yes to power off the PC.

15. Disconnect the RS-232 null modem cable from the switch and the maintenance

terminal. Replace the protective plate over the maintenance port.

Task 4: LAN-Connect the Switch

Connect the switch to the customer-supplied Ethernet LAN segment or the HP-supplied Ethernet hub.

To connect the desktop or rack-mounted switch to the Ethernet LAN segment:

1. Connect one end of the Ethernet patch cable (supplied with the switch) to the

RJ-45 connector (labeled 10/100) on the left front of the chassis.

edge switch 2/32 installation guide 2-11

Installing and Configuring the Edge Switch 2/32

2. Connect the remaining end of the Ethernet cable to the LAN as follows: a. If the switch is installed on a customer-supplied LAN segment, connect the

cable to the LAN as directed by the customer’s network administrator.

b. If the switch is installed on the HP-supplied Ethernet hub, connect the cable to

any available port on the hub.

3. Perform one of the following steps:

• If an HAFM server or customer-supplied server platform is delivered and

available, the Ethernet LAN segment does not require connection to the internet. Go to “Task 5: HAFM Server (Optional)” on page 2–12.

• If an HAFM server is not available and the switch is managed through the

EWS interface, attach the Ethernet LAN segment to an internet connection and go to “Task 15: Configure the Switch from the Embedded Web Server

(Optional)” on page 2–51.

Task 5: HAFM Server (Optional)

T o run HAFM software, you must set up and configure the HP OmniBook 6000/62000 notebook PC to function as an HAFM server.

Refer to the hp StorageWorks HAFM server installation guide for instructions on:

• Setting up the HAFM server

• Connecting the HAFM server to the LAN

• Configuring the network addressing for the HAFM server

• Setting HAFM server date and time

• Creating HAFM user names and passwords

2-12 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Task 6: Configure the Switch to the HAFM Application

To manage a new switch, it must be identified to the HAFM application. To identify the new switch:

1. Right-click in a blank area of the Product View page and select New or click

Product on the menu bar and choose New. The New Product dialog box displays, as shown in Figure 2–7.

Figure 2–7: New Product dialog box

2. Type the IP address or DNS host name of the switch (determined by the

customer’s network administrator).

3. Select edge-32 from the Product Type field and click OK. A new switch icon

displays at the Product View page.

4. Repeat step 1 through step 3 for each new switch.

Task 7: Record or Verify HAFM Server Restore Information

Configuration information must be recorded to restore the HAFM server in case of hard drive failure. The Windows 2000 operating system and the HAFM and Edge Switch 2/32 Product Manager application must also be restored. Refer to the hp StorageWorks edge switch 2/32 service manual for instructions.

To record or verify HAFM server configuration information refer to the hp StorageWorks HAFM server installation guide for instructions.

edge switch 2/32 installation guide 2-13

Installing and Configuring the Edge Switch 2/32

Task 8: Verify Switch-to-HAFM Server Communication

Communication must be verified between the switch and the HAFM server (High Availability Fabric Manager and Product Manager applications). To verify

switch-to-server communication:

1. At the Windows 2000 desktop, click HAFM at the task bar (bottom of the desktop) to maximize the Product View page.

2. At the Product View page, inspect the shape and color of the symbol behind the Edge Switch 2/32 icon. Table 2–2 explains operational states and associated symbols.

Table 2–2: Switch Operational States and Symbols

Operational State Symbol

Operational—switch-to server communication is established, the switch is operational, and no failures are indicated. Go to “Task 11:

Set Switch Date and Time” on page 2–21.

Degraded—switch-to server communication is established, but the switch is operating in degraded mode and requires service. This condition is typical if a port or redundant FRU fails. Go to step 3.

Failed—switch-to server communication is established, but the switch f ailed and requires immediate service. Go to step 3.

Status Unknown—the switch status is unknown because of a network communication failure bet ween the switch and server. Go to step 3.

HAFM

3. Double-click the switch icon. The Hardware View page for the selected switch displays, as shown in Figure 2–8. In the example, FRU failures are indicated by Flashing red and yellow diamonds, and switch degradation is indicated by the yellow triangle at the alert panel.

2-14 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–8: Switch Hardware View page

4. Inspect switch status at the Hardware View page and perform one of the

following steps: a. If the switch displays operational (no FRU alert symbols and a green circle at

the alert panel), go to “Task 11: Set Switch Date and Time” on page 2–21.

b. If switch operation displays degraded or a switch failure is indicated (FRU

alert symbols and a yellow triangle or red diamond at the alert panel), refer to the hp StorageWorks edge switch 2/32 service manual to isolate the problem.

Task 9: Configure Feature Key (Optional)

Perform this task to display or install operating features that are available as customer-specified options. Available features include the:

• Open systems management server (OSMS)

edge switch 2/32 installation guide 2-15

Installing and Configuring the Edge Switch 2/32

• Fiber connection (FICON) management server (FMS)

These features allow open systems or FICON host control of the switch and are mutually exclusive. Only one of these feature s can be installed at a time.

Features are enabled through a feature key that is encoded to work with the serial number of a unique switch. A feature key is a case-sensitive alphanumeric string with dashes every four characters.

Configure HP Flexport Technology Feature Key

This feature key enables additional port function. The factory default settings enable 16 of the 32 ports, and this feature key enables additional ports. Until this feature is enabled the additional ports will display as Not Installed in the Port Operational State window of the Hardware View and Port List View pages. See Chapter 3 for instructions on configuring this feature key and on upgrading the number of ports.

Configure OSMS Feature Key

NOTE: HP does not support OSMS.

Perform this procedure to configure the OSMS feature key. This feature enables host control of the switch from an open-systems interconnection (OSI) device attached to a switch port. The device communicates with the switch through the Fibre Channel common transport (FC-CT) protocol.

To configure the OSMS feature key:

1. Set the switch offline.

2. At the Hardware View page for the selected switch, choose Configure > Features. The Configure Feature Key dialog box displays, as shown in

Figure 2–9.

2-16 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–9: Configure Feature Key dialog box

3. Click New. The New Feature Key dialog box displays, as shown in Figure 2–10.

Figure 2–10: New Feature Key dialog box

4. Type the OSMS feature key (case-sensitive xxxx-xxxx-xxxx-xx format) and click

OK. The Enable Feature Key dialog box displays, as shown in Figure 2–11.

Figure 2–11: Enable Feature Key dialog box

5. Click Activate to enable the OSMS feature key. When the feature key is enabled,

the switch performs an IPL, but is not automatically set to open systems operating mode.

edge switch 2/32 installation guide 2-17

Installing and Configuring the Edge Switch 2/32

Configure FMS Feature Key

Perform this procedure to configure the FMS feature key. This feature key enables host control of the switch from an IBM System/390

or zSeries 900 Parallel Enterprise server attached to a switch port. The server communicates with the switch through a FICON channel.

To configure the FMS feature key:

1. Set the switch offline.

2. At the Hardware View page for the selected switch, choose Configure >

Features. The Configure Feature Key dialog box displays, as shown in

Figure 2–12.

Figure 2–12: Configure Feature Key dialog box

3. Click New. The New Feature Key dialog box displays, as shown in Figure 2–13.

Figure 2–13: New Feature Key dialog box

4. Type the FMS feature key (case-sensitive xxxx-xxxx-xxxx-xx format) and click

OK. The Enable Feature Key dialog box displays.

5. Click Activate to enable the FMS feature key , as sho wn in Figure 2–14. When the

feature key is enabled, the switch performs an IPL and is automatically set to S/390 operating mode.

2-18 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–14: Activate FMS feature key

Task 10: Configure OSMS or FICON Management Server (Optional)

Perform this task to configure the open systems management server or FICON management server. Only one management server can be configured at a time.

Configure OSMS

Perform this procedure to configure the open systems management server and enable OSI host control of the switch. Implementing host control requires installation of a SAN management application on the OSI server. Management applications include Veritas SANPoint Control (Version 1.0 or later), or Tivoli NetView (Version 6.0 or later).

To configure the open systems management server:

1. At the Hardware View page for the selected switch, choose Configure > Management Server. Th e Configure Open Systems Management Server dialog box displays, as shown in Figure 2–15.

Figure 2–15: Configure Open Systems Manag ement server dialog box

edge switch 2/32 installation guide 2-19

Installing and Configuring the Edge Switch 2/32

2. Allow or prohibit host (OSI server) control by selecting Host Contro l Prohibited. If a check mark displays, host control is prohibited.

3. Click Activate to enable a change and allow or prohibit open systems host control.

Configure FMS

Perform this procedure to configure the FICON management server and enable FICON host control of the switch. Implementing host control requires installation of System Automation for Operating System/390 (SA OS/390), version 1.2 or later.

To configure the FICON management server:

1. At the Hardware View page for the selected switch, choose Configure > Management Server. Th e Configure FICON Management Server dialog box displays, as shown in Figure 2–16.

Figure 2–16: Configure FICON Management server dialog box

2. Enable or disable the following options by clicking the associated check box:

• Switch Clock Alert Mode—this option enables or disables a warning

message that displays if the switch is set to periodically synchronize date and time with the HAFM server (see “Task 11: Set Switch Date and Time” on page 2–21). Synchronizing date and time with the HAFM server may conflict with the date and time set from the attached host. If a check mark displays, clock alert mode is enabled.

• Programmed offline state control—this option enables or disables host

(S/390 or zSeries 900) ability to set the switch offline state. If a check mark displays, control is enabled.

• Host Control Prohibited—this option allows or prohibits host (S/390 or

zSeries 900) control of the switch. If a check mark displays, host control is prohibited.

2-20 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

• Active = Saved—when this option is enabled, the active configuration of

logical port addresses is used when the IPL configuration file is updated. If a check mark displays, the Active = Saved option is enabled.

3. Select the appropriate country code page from the following Code Page list box,

as shown in Table 2–3.

Table 2–3: Code Page Choices

Code

Code Page Name

United States/Canada

Germany/Austria 00273 Brazil 00275 Italy 00280 Japan 00281 Spain/Latin

America United Kingdom 00285 France 00297 International #5 00500

Page

00037

00284

4. Click Activate to enable changes and allow or prohibit FICON host control.

Task 11: Set Switch Date and Time

The Edge Switch 2/32 Product Manager log entries are stamped with the date and time received from the switch. To set the effective date and time for the switch:

1. At the Hardware View page for the selected switch, choose Configure >

Date/Time. The Configure Date and Time dialog box displays, as shown in

Figure 2–17.

The switch date and time can be set manually, or set to be periodically updated by the HAFM application (the switch and HAFM application synchronize at least once daily).

edge switch 2/32 installation guide 2-21

Installing and Configuring the Edge Switch 2/32

Figure 2–17: Configure Date and Time dialog box

Set Date and Time Manually

To set the switch date and time manually:

1. At the Configure Date and Time dialog box, click Periodic Date/Time Synchronization to deselect the option (no check mark in the box). The greyed out Date and Time fields activate.

2. Click the Date fields that require change, and type numbers in the following ranges:

Month (MM): 1 through 12 Day (DD): 1 through 31 Year (YY): greater than 1980

3. Click the Time fields that require change, and type numbers in the following ranges:

Hour (HH): 0 through 23 Minute (MM): 0 through 59 Second (SS): 0 through 59

4. Click Activate to set the switch date and time and close the Configure Date and Time dialog box.

2-22 edge switch 2/32 installation guide

Periodically Synchronize Date and Time

To set the switch to periodically synchronize date and time with the HAFM application:

1. Click Periodic Date/Time Synchronization to select the option (check mark in

the box). The Date and Time fields are greyed out and not selectable. Perform one of the following options:

• Click Activate to enable synchronization and close the Configure Date and Time dialog box. The switch date and time synchronize with the HAFM application date and time at the next update period (at least once daily).

• Click Sync Now to synchronize the switch and HAFM application immediately. The Date and Time Synced dialog box displays, as shown in

Figure 2–18.

Installing and Configuring the Edge Switch 2/32

Figure 2–18: Date and Time Synced dialog box

2. Click OK to synchronize the date and time and close the Date and Time Synced dialog box, then click Activate to enable synchronization and close the Configure Date and Time dialog box.

Task 12: Configure the Edge Switch 2/32 Product Manager Applications

Selectively perform the following configuration tasks for the Edge Switch 2/32 Product Manager application according to the customer’s installation requirements. For additional information, refer to the hp StorageWorks edge switch 2/32 product manager user guide.

• Identify the switch to the HAFM application.

• Configure switch operating mode (open systems or S/390).

• Configure switch operating parameters.

edge switch 2/32 installation guide 2-23

Installing and Configuring the Edge Switch 2/32

• Configure switch ports.

• Configure logical port addresses.

• Configure SNMP trap message recipients.

• Configure and enable e-mail notification.

• Enable call-home notification.

Configure Switch Identification

Perform this procedure to configure the switch name, description, location, and contact person for the HAFM application. The information displays in multiple dialog boxes throughout the application. In addition, the Name, Location, and Contact variables configured at the Configure Identification dialog box correspond respectively to the SNMP variables sysName, sysLocation, and sysContact. These variables are used by SNMP management workstations when obtaining data from managed switches.

To configure the switch identification:

1. At the Hardware View page for the selected switch, choose Configure > Identification. The Configure Identification dialog box displays, as shown in

Figure 2–19.

Figure 2–19: Configure Identification dialog box

a. Type a switch name of 24 alphanumeric characters or less in the Name field.

Each switch should be configured with a unique name. If the switch is installed on a public LAN, the name should reflect the switch’s

Ethernet network DNS host name. For ex ample, if the DNS host name is hpes232.hp.com, enter hpes232.

b. Click Set Name as Nickname and add a check mark if you want to use the

name in the name field as th e nickname for the switc h’ s WWN. Th e nickname will display instead of the WWN in Product Manager views.

2-24 edge switch 2/32 installation guide

c. Type a switch description of 255 alphanumeric characters or less in the

Description field.

d. Type the switch’s physical location (255 alphanumeric characters or less) in

the Location field .

e. T ype the name of a c ontact person (255 alphanumeric ch aracters or less) in the

Contact field.

2. Click Activate to configure the switch identification and close the dialog box.

Configuring the Switch

Configuring Switch Operating Parameters

Use the procedures in this section to set parameters on the switch for fabric operation through the Configure Switch Parameters dialog box. These operating parameters are stored in NV-RAM on the switch.

1. The switch must be offline to change Preferred Domain ID and Operating

Mode parameters. If it is not and you activate values in this dialog box, a dialog box displays prompting you to set the unit offline.

Installing and Configuring the Edge Switch 2/32

CAUTION: Setting the switch offline terminates all Fibre Channel connections.

To set the unit offline. a. Choose Maintenance > Set Online State from the Product Manager

window. The Set Online State dialog box displays.

b. Click Set Offline. A warning box displays asking you to confirm the offline

state.

c. Click OK.

2. Choose Configure > Operating Parameters > Switch Parameters. The

Configure Switch Parameters dialog box displays, as shown in Figure 2–20.

edge switch 2/32 installation guide 2-25

Installing and Configuring the Edge Switch 2/32

Figure 2–20: Configure Switch Parameters dialog box

Ordinarily, you do not need to change values in this dialog box from their defaults. The only exception is the Preferred Domain ID. Change this value if the switch will participate in a multiswitch fabric.

1. Use information under “Switch Parameters” to change settings as required for parameters in this dialog box.

2. After you change settings, click the Activate button.

Switch Parameters

Configure the following parameters as required by your fabric.

Domain ID

The domain identification is a value between 1 and 31 that provides a unique identification for the switch in a fabric. An Edge Switch cannot contain the same domain ID as another switch or their E_Ports will segment when they try to join.

In the Configure Switch Parameters dialog box, a field is provided to enter a preferred domain ID and a check box is provided to enable this ID as an insistent domain ID.

2-26 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Preferred

NOTE: To change this value, you must first set the s witch offline . Choose Set Online State from the Maintenance menu to display the Set Online State dialog box, then click the Set Offline button. Be sure to set the switch back online after you change this value.

Use this field to set the a unique domain ID for the switch. The default value is 1. Set a value between 1 and 31. When a switch comes online with a preferred ID, it requests an ID from the fabric’s principal switch (indicating its preferred value as part of the request). If the requested domain ID is not allocated to the fabric, the domain ID is assigned to the requesting switch. If the requested domain ID is already allocated, an unused domain ID is assigned. Note that you must set the switch offline before you can change to the preferred domain ID.

The preferred domain ID must be unique for each director and switch in a fabric. If two switches or directors have the same preferred domain ID, the E_Ports segment, causing the fabric to segment.

For more information on domain ID, refer to the section on domain ID assignment for multiswitch fabrics in the HP StorageWorks Products in a SAN Environment — Planning Manual for details.

Insistent

This option is not supported unless the SANtegrity feature is installed. Click the check box to remove or add a check mark. The default state is disabled (no check mark).

When a check mark displays, the dom ai n ID configured in the Preferred Domain ID field will become the active domain identification when the fabric initializes. See the following notes:

• This option is required if High Availability Fabric Manager (HAFM) is enabled.

• If you enable Insistent Domain while the switch or director is online, the Preferred

Domain ID will change to the current active domain ID if the IDs are different.

CAUTION: If a switch with a duplicate domain ID exists in the fabric, both switches' E_Ports will segment when they try to join.

Rerouting Delay

Placing a check mark in the check box to the left of the Rerouting Delay option enables rerouting delay. This option is only applicable if the configured switch is in a multiswitch fabric. The default state is disabled.

edge switch 2/32 installation guide 2-27

Installing and Configuring the Edge Switch 2/32

Enabling the rerouting delay ensures that frames are delivered in order through the fabric to their destination. If there is a change to the fabric topology that creates a new path (for example, a new switch is added to the fabric), frames may be routed ov er this new path if its hop count is less than a previous path with a minimum hop count. This may result in frames being delivered to a destination out of order since frames sent over the new, shorter path may arrive ahead of older frames still in route ov er the older path.

If rerouting delay is enabled, traffic ceases in the fabric for the time specified in the E_D_TOV field of the Configure F a bric Parameters dialog box. This delay allows frames sent on the old path to exit to their destination before new frames begin traversing the new path.

NOTE: This option is required if High Availability Fabric Manager (HAFM) is enabled.

Domain RSCNs

Domain register for state change notifications (domain RSCNs) are sent between end devices in a fabric to provide additional connection information to host bus adapters (HBA) and storage devices. As an example, this information might be that a logical path has been broken because of a physical event, such as a fiber optic cable being disconnected from a port. Consult with your HBA and storage device vendor to determine if enabling Domain RSCNs will cause problems with your HBA or storage products. Note that this option is required if High Availability Fabric Manager (HAFM) is enabled.

Operating Mode

NOTE: To change this value, you must first set the switch offline. Select Set Online State from the Maintenance menu to display the Set Online State dialog box, then click the Set Offline button. Be sure to set the switch back online after you change this value.

Click either the S/390 or Open Systems radio buttons:

• If the FICON Management Server feature is enabled, the default mode will be S/390. The operating mode cannot be changed to Open Systems with the FICON Management Server feature enabled. Typically, S/390 mode is used when attaching an IBM S/390 Parallel Enterprise or IBM zSeries server to the switch and implementing inband switch management through a Fib r e Connection (FICON) channel.

2-28 edge switch 2/32 installation guide

•Use Open Systems mode for all other (non-FICON) Fibre Chan nel environments.

Configure Fabric Operating Parameters

Use procedures in this section to set parameters on the switch for fabric operation through the Configure Fabric Parameters dialog box. These operating parameters are stored in NV-RAM on the switch.

1. The switch must be offline to change parameters in this dialog box. If it is not and

you activate values, a dialog box displays prompting you to set the unit offline.

CAUTION: Setting the switch offline terminates all Fibre Channel connections.

To set the unit offline: a. Choose Maintenance > Set Online State from the Product Manager

window. The Set Online State dialog box displays.

b. Click Set Offline. A warning box displays asking you to confirm the offline

state.

c. Click OK.

Installing and Configuring the Edge Switch 2/32

2. Choose Configure > Operating Parameters > Fabric Parameters from the

Product Manager window. The Configure Fabric Parameters dialog box

displays, as shown in Figure 2–21.

edge switch 2/32 installation guide 2-29

Installing and Configuring the Edge Switch 2/32

Figure 2–21: Configure Fabric Parameters dialog box

NOTE: Ordinarily, you do not need to change values in this dialog box from their defaults. The

only exception is the Preferred Domain ID. Change this value if the switch will participate in a multiswitch fabric.

3. Use information under “Fabri c Parameters” to change settings as required for parameters in this dialog box.

4. After you change settings, click the Activate button.

5. Back up the configuration data when you are finished configuring the switch.

Fabric Parameters

Configure the following parameters as required by your fabric.

BB_Credit

Configure the switch to support buf fer to buf fer credit (BB_Credit) from 1 through 60. This is the value used for all ports, ex cept those configured for extended distance buffering (10-100 km). The default value is 16. For a description of the buffer-to-buffer credit, refer to the industry specification, F ibre Channel Physical and Signaling Interface.

2-30 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

R_A_TOV

Configure resource allocation time-out value (R_A_TOV) in tenth-of-a-second increments. This variable works with the error detect time-out value (E_D_TOV) variable to control the switch’s behavior when an error condition occurs. Resources are allocated to a circuit when errors are detected and are not released for reuse until the time set by the R_A_TOV value expires. The default value is 100 tenths (10 seconds). Set a value between 10 tenths and 1200 tenths (1 through 120 seconds).

NOTE: Set the same value f or R_A_TOV on all directors and switches in a multiswitch fabric. If the value is not the same on all units, the fabric segments. Also , the value f or R_A_T OV must be greater than the value configured for E_D_TOV.

E_D_TOV

Adjust the E_D_TOV in tenth-of-a-second increments. An error condition occurs when an expected response is not received within the time limit set by this value. The default value is 20 tenths (2 seconds). Set a v alue between 2 tenths through 600 tenths (.2 through 60 seconds).

NOTE: Set the same value f o r E_D_TOV on all switches and directors in a multiswitch fabric. If the value is not the same, the fabric segments.

Switch Priority

Setting this value determines the principal switch for the multiswitch fabric. Choose

Principal (highest priority), Default, or Never Principal (lowest priority) from the Switch Priority drop-down list.

Setting these priority values determines the principal switch selected for the multiswitch fabric. For example, if you hav e three switches in the fabric and set one as Principal, one as Default, and one as Never Principal, the unit set to Principal becomes the principal switch in the fabric.

If all switches are set to Principal or Default, the switch with the highest priority and the lowest WWN becomes the principal switch. Following are some examples of principal switch selection when switches have these settings:

• If you have three switches and set all to Default, the switch with the lo west WWN

becomes the principal switch.

• If you have three switches and set two to Principal and one to Default, the switch

with the Principal setting that has the lowest WWN becomes the principal switch.

edge switch 2/32 installation guide 2-31

Installing and Configuring the Edge Switch 2/32

• If you have three switches and set tw o to Default and one to Nev er Principal, the switch with the Default setting and the lowest WWN becomes the principal switch.

At least one switch in a multiswitch fabric needs to be set as Principal or Default. If all of the switches are set to Never Principal, all of the interswitch links (ISLs) will segment. If all but one switch is set to Never Principal and the switch that was principal goes offline, then all of the other ISLs will segment.

NOTE: We recommend you lea ve the switch priority setting as Default. If you are considering setting this value to something other than default, refer to the section on principal switch selection for multiswitch fabrics in the HP StorageWorks Products in a SAN Environment — Planning Manual for details.

In, for example, the audit log, you may notice that the Principal setting maps to a number code of 1, Default maps to a number code of 254, and Nev er P rincip al maps to a number code of 255. The number codes of 2 — 253 are not currently in use.

Interop Mode

Select the following option:

• Open Fabric 1.0. Select this mode if the fabric contains HP directors and switches, as well as other open-fabric compliant switches. Select this mode for managing heterogeneous fabrics.

Configure Ports (Open Systems Mode)

If the switch is set to open systems mode, perform this procedure to define Fibre Channel port names, configure ports as blocked or unblocked, enable extended distance operation and link incident (LIN) alerts configure port binding, and define port types.

To configure switch ports:

1. At the Hardware View page for the selected switch, choose Configure > Ports. The Configure Ports dialog box (open systems mode) displays.

a. Select a blank Name field and type a descriptive port name of 24 or fewer

alphanumeric characters. Use a name that reflects the device connected to the port.

2-32 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

b. Click Blocked check box to block or unblock a port. A check mark in the box

indicates the port is blocked. Blocking the port prevents the attached device from communicating with the switch. A blocked port continuously transmits the offline sequence (OLS), as shown in Figure 2–22.

Figure 2–22: Configure Ports dialog box (open systems mode)

c. Click 10-100 km to enable extended distance buffering for a port. A check

mark in the box indicates extended distance operation up to 100 kilometers (through repeaters) is enabled.

d. Click LIN Alerts to enable or disable LIN alerts for a port. A check mark in

the box indicates alerts are enabled. When the feature is enabled and an incident occurs on the link, an alert indicator (yellow triangle) displays at the Hardware View, Port List View, and Port Card View pages, and a message is sent to configured e-mail recipients. LIN alerts are enabled by default.

e. Select a Type field and choose generic port (G_Port), fabric port (F_Port), or

expansion port (E_Port) from the list box.

f. Click the Speed field for a port. A Speed drop-down list displays. Choose

1 Gb/sec, 2 Gb/sec, or Navigate as the desired setting depending on the speed capability of the device to be plugged into the port.

edge switch 2/32 installation guide 2-33

Installing and Configuring the Edge Switch 2/32

A right-click in the Speed column allows you to choose from a menu to set all ports to 1 Gb/sec, 2 Gb/sec, or Navigate.

g. Port Binding—Click this check box to display a check mark and enable

WWN binding for the port. This allows only a specific device to attach to the port. This device is specified by the WWN or nickname entered into the Bound WWN column. With the check box cleared, any device can attach to the port even if a WWN or nickname is specified in the Bound WWN column. or Bound WWN—Enter a world wide name (WWN) in the proper format (xx.xx.xx.xx.xx.xx.xx.xx) or a nickname configured through the Product Manager application. The device with this WWN or nickname will have exclusive attachment to the port if Port Binding is enabled. If a valid WWN or nickname is not entered in this field, but the Port Binding check box is checked (enabled), then no devices can connect to the port. If you enter a WWN or nickname in this field and do not place a check in the Port Binding check box, the WWN or nickname will be stored, and all devices can connect to the port.

2. Use the vertical scroll bar as necessary to display additional port information rows (up to 32 ports).

3. Click Activate to save the configuration information and close the dialog box.

Configure Ports (S/390 Mode)

If the switch is set to S/390 mode, perform this procedure to enable extended distance operation and LIN alerts for Fibre Channel ports. Then continue to “Configure Port

Addresses (S/390 Mode)” on page 2–36 to define port names, configure ports as

blocked or unblocked, and define the control unit port (CUP). To configure switch ports:

1. At the Hardware View page for the selected switch, choose Configure > Ports. The Configur e P orts dialog box (S/390 mode) di splays, as shown in Figure 2–23.

2-34 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–23: Configure Ports dialog box (S/390 mode)

a. Click 10-100 km to enable extended distance buffering for a port. A check

mark in the box indicates extended distance operation up to 100 kilometers (through repeaters) is enabled.

b. Click LIN Alerts to enable or disable LIN alerts for a port. A check mark in

c. WWN Binding—Click this check box to display a check mark and enable

d. Choose a port speed.

edge switch 2/32 installation guide 2-35

Installing and Configuring the Edge Switch 2/32

e. Bound WWN—Enter a World Wide Name (WWN) in the proper format

(xx.xx.xx.xx.xx.xx.xx.xx) or a nickname configured through the Product Manager application. The device with this WWN or nickname will have exclusive attachment to the port if WWN B inding is enabled. If a v alid WWN or nickname is not entered in this field, but the WWN Binding check box is checked (enabled), then no devices can connect to the port. If you enter a WWN or nickname in this field and do not place a check in the WWN Binding check box, the WWN or nick name will be stored, and all de vices can connect to the port.

2. Use the vertical scroll bar as necessary to display additional port information rows (up to 64 ports).

3. Click Activate to save the configuration information and close the dialog box.

Configure Port Addresses (S/390 Mode)

If the switch is set to S/390 mode, perform this procedure to access the switch matrix and define Fibre Channel port names, configure ports as blocked or unblocked, and define the CUP name. Perform this procedure in conjunction with “Configure Ports

(S/390 Mode)” on page 2–34.

To configure switch port addresses:

1. At the Hardware View page for the selected switch, choose Configure > Addresses > Active. The Configur e Addr esses — Active dialog box displays, as shown in Figure 2–24.

2-36 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–24: Configure Addresses—Active dialog box

a. Select a blank Name field and type a descriptive port name of 24 or fewer

alphanumeric characters. Use a name that reflects the device connected to the port.

b. Click Blocked to block or unblock a port. A check mark in the box indicates

the port is blocked. Blocking the port prevents the attached device from communicating with the switch. A blocked port continuously transmits the offline sequence (OLS).

2. The yellow shaded area of the dialog box (matrix) represents a rectangular array

of port addresses used to configure connections. The default state is an empty cell representing an allowed connection between two port addresses.

a. Click a blank matrix cell to prohibit the connection of the two intersecting

ports. A prohibited connection is indicated by a red circle with a slash in the cell.

b. Click a prohibited matrix cell to clear the restriction and allow the connection

of the two intersecting ports.

c. Right-click a matrix cell to display a menu that provides the following port

configuration selections:

edge switch 2/32 installation guide 2-37

Installing and Configuring the Edge Switch 2/32

• Prohibit or allow connections for an entire row (row 0C is prohibited in the

Configure Addresses—Active dialog box example),

• Prohibit or allow connections for all switch ports,

• Block or unblock all switch ports, or

• Clear connectivity restrictions for all switch ports.

3. At the CUP Name field, type a control unit port description of 24 or fewer alphanumeric characters (optional). The CUP is an internal switch port that communicates with channels to report errors and link initialization.

4. Perform one of the following to activate the configuration (without saving it), or save the configuration for later activation:

• Activate the Configuration—click Activate to activate the configuration

changes (without saving) and close the Configure Addresses — Active dialog box.

• Save the Configuration—click Save As. The Save Address Configuration

As dialog box displays, as shown in Figure 2–25.

Figure 2–25: Save Address Configuration As dialog box

— At the Name field, type a configuration name of 8 or fewer alphanumeric

characters.

— At the Description field, type a configuration description of 24 or fewer

alphanumeric characters.

— Click OK to save the configuration in the address configuration library

and close the Save Address Configuration As dialog box.

— At the Configure Addresses—Active dialog box, click Activate to

activate the conf iguration and close the dialog box, or click Close to close the dialog box.

2-38 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Configure SNMP Trap Message Recipients

Perform this procedure to configure community names, write authorizations, and network addresses and for up to 12 SNMP trap message recipients. A trap recipient is a management workstation that receiv es notif ication (through SNMP) if a switch e vent occurs.

To configure SNMP trap recipients:

1. At the Hardware View page for the selected switch, choose Configure> SNMP

Agent. The Configure SNMP Agent dialog box displays, as shown in

Figure 2–26.

Figure 2–26: Configure SNMP Agent dialog box

a. For each trap recipient to be configured, type a community name of 64

alphanumeric characters or less in the associated Community Name field. The community name is incorporated in SNMP trap messages to ensure against unauthorized viewing or use.

b. Click the check box in the Write Authorization column to enable or disable

write authorization for the trap recipient (default is disabled). A check mark in the box indicates write authorization is enabled. When the feature is enabled, a management workstation user can change the HAFM server’s sysContact, sysName, and sysLocation SNMP variables.

c. Type the IP address or DNS host name of the trap recipient (SNMP

management workstation) in the associated Trap Recipient field. Use 32 alphanumeric characters or less. It is recommended the IP address be used.

d. The default user datagram protocol (UDP) port number for trap recipients

is 162. Type a decimal port number in the associated UDP Port Number field to override the default.

edge switch 2/32 installation guide 2-39

Installing and Configuring the Edge Switch 2/32

2. To enable transmission of trap messages to configured SNMP management workstations, click Enable Au thorizatio n Traps. A check mark displays in the box when transmission is enabled, as shown in Figure 2–27.

Figure 2–27: Configure SNMP dialog box—Enable Authorization Traps

3. Click Activate to save the information and close the dialog box.

Configure and Enable E-mail Notification

Perform this procedure to configure and enable e-mail addresses and simple mail transfer protocol (SMTP) server addresses to receiv e e-mail notification of switch (and other managed product) events. The addresses must be configured at the HAFM application, then enabled. See “Task 13: Test Remote Notification (Optional)” on page 2–50 for instructions on testing this notification feature.

To configure and enable e-mail and SMTP se rver addresses:

1. At the Product View page, choose Maintenance > Configure E-Mail. The Configure E-Mail dialog box displays, as shown in Figure 2–28.

2-40 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–28: Configure E-Mail dialog box

a. Type the IP address or DNS host name of the SMTP server in the SMTP

server f ield. Use 64 alphanumeric characters or less. It is recommended the IP

address be used.

b. For the E-Mail Addresses fields, type the e-mail addresses of up to five

recipients who should be informed of system events. Use 64 alphanumeric characters or less for each entry.

2. To enable e-mail transmission to configure d ad dresses, click Enable E-Mail

Event Notification. A check mark displays in the box when transmission is enabled.

NOTE: The enable function must also be activated for each switch through the Edge Switch 2/32 Product Manager application. E-mail notification can be active for some switches and inactive for others.

3. Click OK to save the information and close the dialog box.

4. Click the switch icon. The Hardware View page for the selected switch displays.

5. At the Hardware View page for the selected switch, choose Maintenance >

Enable E-Mail Notification. A check mark displays in the check box to indicate e-mail notification for the switch is enabled, and the menu closes.

edge switch 2/32 installation guide 2-41

Installing and Configuring the Edge Switch 2/32

Configure and Enable Call-Home Features

There are two call-home features available, and only one is installed when the HAFM application is installed on the HAFM server. To learn more about configuring Call-Home features, refer to the hp StorageWorks HAFM server installation guide.

Configure Threshold Alerts

A threshold alert notifies users when the transmit (Tx) or receive (Rx) throughput reaches specified values for specific switch po rts or port types, (E_Ports or F_Ports).

You are notified of a threshold alert in four ways:

• An attention indicator (yellow triangl e) that displays on the port in the Hardware View page.

• An attention indicator (yellow triangle) that displays in the Alert column of the Port List View page.

• An attention indicator (yellow triangle) that displays by the Threshold Alerts field in the Port Properties dialog box.

• Detailed threshold alert data is recorded in the Threshold Alert Log.

Choose Configure > Threshold Alerts to configure the following:

• Name for the alert.

• Type of threshold for the alert (Rx, Tx, or either).

• Active or inactive state of the alert.

• Threshold criteria: — Percent traffic capacity utilized. This is the percent of the port’s throughput

capacity achieved by the measured throughput. This setting constitutes the threshold value. For example the v alue of 50 means that the port’s threshold is reached when throughput is 50% of capacity.

— Time interval during which throughput is measured and alert notification can

occur.

— The time that the percentage of throughput capacity (% utilization) must exist

during the set time interval before an alert generates.

• Ports for which you are configuring threshold alerts.

You can configure up to 16 alerts, and any number of alerts can be active at one time.

2-42 edge switch 2/32 installation guide

Procedures

Use the following procedures to create a new threshold alert, or to modify, activate, deactivate, or delete an alert.

Create New Alert

1. At the Hardware View for the selected switch, choose Configure > Threshold

Alerts. The Configure Threshold Alerts dialog box displays, as shown in

Figure 2–29.

If alerts are configured, they will display in table format showing the name of the alert, type of alert (Rx, TX, or Rx or Tx), and alert state (inactive or active).

Installing and Configuring the Edge Switch 2/32

Figure 2–29: Configure Threshold Alerts dialog box

edge switch 2/32 installation guide 2-43

Installing and Configuring the Edge Switch 2/32

2. Click New. The New Threshold Alert dialog box displays, as shown in

Figure 2–30.

Figure 2–30: New Threshold Alerts dialog box—first screen

3. Enter a name from one to 64 characters in length. All characters in the ISO Latin-1 character set, excluding control characters, are allowed.

4. Select one of the following options from the drop-down list under the Name field:

• Rx Throughput. An alert will occur if the threshold set for receive

throughput is reached.

• Tx Throughput. An alert will occur if the threshold set for transmit

throughput is reached.

• Rx or Tx Throughput. An alert will occur if the threshold set for either

receive or transmit throughput is reached.

2-44 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

5. Click Next. A new screen displays with additional parameters. The name

configured for the alert displays at the top of the screen. Click Previous to return to the previous screen, as shown in Figure 2–31.

Figure 2–31: New Threshold Alerts dialog box—second screen

6. Enter a percentage from 1 through 100 for % utilization. When throughput

reaches this percentage of port capacity, a threshold alert will occur.

7. Enter the amount of cumulative minutes in which the % utilization should exist

during the notification interval before an alert is generated. You can also select At any time if you want an alert to occur whenever the set % utilization is reached. The valid range is 1 to the interval set in step 8 (following).

8. Enter the interval in minutes in which throughput is measured and threshold

notifications can occur. The valid range is 5 minutes to 70,560 minutes.

edge switch 2/32 installation guide 2-45

Installing and Configuring the Edge Switch 2/32

9. Click Next. A new screen displays for selecting ports for the alerts, as shown in

Figure 2–32.

Figure 2–32: New Threshold Alerts dialog box—third screen

10. Either select Port Type or Port List.

• If you select Port Type, selecting either E_Ports or F_Ports will cause this

alert to generate for all ports configured as E_Ports or F_Ports respectively.

• If you select Por t List, you can select individual ports by clicking the check

box by each port number or set all ports. Selecting Set All Ports places a check mark by each port number. Selecting Clear All Ports will clear the check marks by each port number.

2-46 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

11. Click Next. A final screen displays to provide a summary of your alert

configuration. To make any changes, backwards and forwards through the configuration screens by selecting Previous and Next, as shown in Figure 2–33.

Figure 2–33: New Threshold Alerts dialog box—summary screen

12. Select Finish. The Configure Threshold Alerts dialog box displays listing the

name, type, and state of the alert that you just configured. At this point, the alert is not active. To activate the alert, select the alert

information that displays in the Configure Threshold Alerts table and select Activate, as shown in Figure 2–34.

edge switch 2/32 installation guide 2-47

Installing and Configuring the Edge Switch 2/32

Figure 2–34: Configure Threshold Alerts dialog box—alerts activated

Modify an Alert

Use the following steps to modify an existing threshold alert configuration.

1. Choose Configure > Threshold Alerts. The Configure Threshol d Alerts dialog box displays.

2. Select the alert that you want to modify by clicking the alert information in the table.

3. If the alert is active, click Deactivate, then select the alert information in the table again.

4. Click Modify.

NOTE: If the alert is active, an error message displays prompting you deactivate the alert.

An initial Modify Threshold screen displays where you can change the threshold type.

5. Choose a threshold type from the drop-down list.

2-48 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

6. Click Next when you are done. A Modify Threshold screen displays where you

can change the % utilization, cumulative minutes for the threshold to occur before notification, and the time interval for measurin g throughput and for alert notification.

7. Make appropriate changes, then continue throu gh the Modify Threshold screens,

making changes as necessary , until the summary screen displays sho wing the alert configuration.

8. Perform either of the following steps:

• If you need to change any parameters, select Previous and Next to display the

desired Modify Threshold screen.

• Select Finish when you are done.

Activate or Deactivate Alerts

Use the following steps to activate or deactivate existing threshold alerts. In the active state, notifications are generated for the alert. In the inactive state, notifications do not occur.

1. Choose Configure > Threshold Alerts. The Configure Threshol d Alerts dialog

box displays. The port’s current state, deactive or active, is listed under the State column.

2. To change the state, select the alert information in the table.

• If the alert is active, click Deactivate to change to the deactive state.

• If the alert is deactive, click Activate to change to the active state.

Delete Alerts

Use the following steps to delete existing threshold alerts.

1. Choose Configure > Threshold Alerts. The Configure Threshol d Alerts dialog

box displays.

2. Select the alert that you want to delete by selecting the alert information in the

table.

3. Click Delete. A message displays asking you to confirm the deletion.

4. Click Yes. The alert is removed from the dialog box.

edge switch 2/32 installation guide 2-49

Installing and Configuring the Edge Switch 2/32

Task 13: Test Remote Notification (Optional)

If the call-home and e-mail notification features are enabled, set up the HAFM application to test these remote notification features. Because the features are configured at the HAFM application, call-home and e-mail notification are enabled for multiple switches or HP managed products. To test remote notification:

1. Close the Hardware View page for the switch and return to the Product View page by closing the window.

2. At the Product View page, choose Maintenance > Test Remote Notification. The Test Remote Notification dialog box displays, as shown in Figure 2–35.

Figure 2–35: Test Remote Notification dialog box

3. Choose Call Home and E-Mail to perform applicable tests. The call home test provides a test notification message to a remote support center.

Depending on the option chosen during HAFM installation, the test notif ication message is transmitted over telephone lines or LAN.

4. Click Send Test. Call-home and e-mail test messages are transmitted and an Information dialog box displays, as shown in Figure 2–36. Click OK to close the dialog box.

5. Verify with recipients that call-home and e-mail notifications were received.

Figure 2–36: Information dialog box

2-50 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Task 14: Back Up HAFM Configuration Data

It is important to back up the HAFM configuration data. This data is used to restore the HAFM server operating environment in case of hard drive failure.

Refer to the hp StorageWorks HAFM server installation guide for instructions on backing up the HAFM configuration data.

Once the HAFM configuration data is backed up, go to “T ask 16: Cable Fibre Channel

Ports” on page 2–69.

Task 15: Configure the Switch from the Embedded W eb Server (Optional)

If an HAFM server is not available, use the Embedded Web Server (EWS) interface to configure the Edge Switch 2/32. Sel ecti vely perform th e follo wing conf iguration tasks according to the customer’s installation requirements:

• Configure the switch ports.

• Configure the switch identification, date and time, operating parameters, and

network addresses.

• Configure SNMP trap message recipients.

• Configure user passwords.

NOTE: This section covers the initial set up of the edge switch 2/32. F or additional inf o rmation regarding setting up zoning, zone sets, and SAN management in general, see the online EWS help.

A PC platform with LAN access and standard web browser running Netscape Navigator 4.6 or higher or Microsoft Internet Explorer 4.0 or higher is required. To open the Embedded Web Server interface:

1. Ensure the browser-capable PC and the Ethernet LAN segment (with the switch

attached) are connected.

2. At the PC, launch the browser application (Netscape Navigator

or Internet

Explorer).

edge switch 2/32 installation guide 2-51

Installing and Configuring the Edge Switch 2/32

3. At the browser, enter the IP address of the switch as the internet uniform resource locator (URL). Use the default IP address of 10.1.1.10, the factory preset of

10.1.1.10, or the IP address configured while performing “Task 3: Configure

Network Information” on page 2–6. The Username and Password Required

dialog box displays, as shown in Figure 2–37.

Figure 2–37: Username and Password Required dialog box

2-52 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

4. Type the default user name and password.

NOTE: The default user name is Administrator and the default password is password. The user name and password are case-sensitive.

5. Click OK. The Embedded Web Server interface opens with the View window

displayed, as shown in Figure 2–38.

Figure 2–38: Embedded Web Server interface—View window

edge switch 2/32 installation guide 2-53

Installing and Configuring the Edge Switch 2/32

Configure Switch Ports

Perform the procedure in this section to configure names and operating characteristics for the switch ports.

To configure one or more ports:

1. At the View window, click Configure at the left side of the window. The Configure window opens with the Ports tab displayed.

a. For each port to be configured, type a port name of 24 alphanumeric

characters or less in the associated Name field. The port name should identify the device to which the port is attached.

b. Choose the check box in the Blocked column to block or unblock a port

(default is unblocked). A check mark in the box indicates the port is blocked. Blocking a port prevents the attached device from communicating with the switch. A blocked port continuously transmits the offline sequence (OLS), as shown in Figure 2–39.

Figure 2–39: Block or unblock a port from the Configure window

2-54 edge switch 2/32 installation guide

c. Choose the check box in the 10-100 km column to enable extended distance

buffering for a port (default is disabled). A check mark in the box indicates extended distance operation up to 100 kilometers (through repeaters) is enabled.

d. Select a Type field and choose generic port (G_Port), f abric port (F_Port), or

expansion port (E_Port) from the list box.If F_Port or E_Port is selected, the port will only operate as the port type selected. If G_Port is selected, the port type is automatically detected and will operate as an E_Port or F_Port.

e. Click the Speed field for a port. A Speed drop-down list displays. Choose

1 Gb/sec, 2 Gb/sec, or Navigate as the desired setting depending on the speed capability of the device to be plugged into the port.

2. Click Activate to save the information. The message Your changes to the

port configuration have been successfully activated displays.

Configure Switch Identification

Perform this procedure to configure the switch name, description, location, and contact person. The Name, Location, and Contact variables configured here correspond respectively to the SNMP variables sysName, sysLocation, and sysContact. These variables are used by SNMP management workstations when obtaining data from managed switches.

Installing and Configuring the Edge Switch 2/32

To configure the switch identification:

1. At the Configure window, click the Switch tab. The Switch page displays with

Identification tab selected, as shown in Figure 2–40.

edge switch 2/32 installation guide 2-55

Installing and Configuring the Edge Switch 2/32

Figure 2–40: Switch page—Identification tab

a. Type a switch name of 24 alphanumeric characters or less in the Name field.

Each switch should be configured with a unique name. If the switch is installed on a public LAN, the name should reflect the switch’s

Ethernet network DNS host name. For ex ample, if the DNS host name is hpes232.hp.com, then enter hpes232.

b. Type a switch description of 255 alphanumeric characters or less in the

Description field.

c. Type the switch physical location (255 alphanumeric characters or less) in the

Location field.

d. Type the name of a contact person (255 alphanumeric characters or less) in the

Contact field.

2. Click Activate to save the information. The message Your changes to the

identification configuration have been successfully activated displays.

2-56 edge switch 2/32 installation guide

Configure Date and Time

Perform this procedure to configure the effective date and time for the switch. To set the date and time:

1. At the Configure window, click the Switch tab, then select Date/Time tab. The

Switch page displays with Date/Time tab selected (highlighted red), as shown in

Figure 2–41.

Installing and Configuring the Edge Switch 2/32

Figure 2–41: Switch page—Date/Time tab

a. Click the Date fields that require change, and type numbers in the following

ranges: Month (MM): 1 through 12

Day (DD): 1 through 31 Year (YY): greater than 1980

b. Click the Time fields that require change, and type numbers in the following

ranges: Hour (HH): 0 through 23

Minute (MM): 0 through 59 Second (SS): 0 through 59

2. Click Activate to save the information. The message Your changes to the

date/time configuration have been successfully activated displays.

edge switch 2/32 installation guide 2-57

Installing and Configuring the Edge Switch 2/32

Configure Switch and Fabric Parameters

Perform this procedure to configure the following switch and fabric operating parameters: Buffer-to-Buffer Credit (BB_Credit), Error Detect Time Out Value (E_D_TOV), and Resource Allocation Time Out Value (R_A_TOV), preferred domain ID and switch priority.

Configure Switch Parameters

The switch must be set offline to configure operating parameters. To configure the parameters:

1. Set the switch offline as follows: a. At the View panel, select Operations at the left side of the panel. The

Operations panel opens with the Switch Beacon page displayed.

b. At the Current State window, click Set Offline. The message Your

operations changes have been successfully activated displays.

2. At the View panel, select Configure at the left side of the panel. The Configure panel opens with the Ports page displayed.

3. At the Configure panel, click the Switch tab, then select Parameters. The Switch page displays with Switch Parameters displayed.

4. Set the switch parameters:

2-58 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–42: Switch page—Parameters tab

a. At the Preferred Domain ID field, type a value between 1 and 31 (default is

1). The domain ID uniquely identifies each switch in a fabric. All fabric-attached switches must have unique domain IDs. If the value is not

unique, the E_Port connection to the switch segments and the switch cannot communicate with the fabric.

b. Insistent Domain: This option is not supported unless the SANtegrity feature

is installed. Click the check box to remove or add a check mark. The default state is disabled (no check mark).

When a check mark displays, the domain ID configured in the Preferred Domain ID field will become the active domain identification when the fa bric initializes. See the following notes:

— This option is required if High Availability Fabric Manager (HAFM) is

enabled.

— If you enable Insistent Domain while the switch or director is online, the

Preferred Domain ID will change to the current active domain ID if the IDs are different.

edge switch 2/32 installation guide 2-59

Installing and Configuring the Edge Switch 2/32

c. Click the Rerouting Delay check box to enable or disable the option. If a

check mark displays, the option is enabled. If rerouting delay is enabled, traffic is delayed through a f abric by the specif ied E_D_T OV time. This delay ensures Fibre Channel frames are delivered to their destination in order, even if a change to the fabric topology creates a new (shorter) transmission path.

d. Domain RSCNs: Domain register for state change notifications (domain

RSCNs) are sent between end devices in a fabric to provide additional connection information to host bus adapters (HBA) and storage de vices. As an example, this information might be that a logical path has been broken because of a physical event, such as a fiber optic cable being disconnected from a port. Consult with your HBA and storag e device v endor to determine if enabling Domain RSCNs will cause problems with your HBA or storage products. Note that this option is required if High Availability Fabric Manager (HAFM) is enabled.

5. Click Activate to save the information. The message Your changes to the

operating parameters configuration have been successfully activated displays.

Set Fabric Parameters

The switch must be set offline to configure fabric parameters. To configure the parameters:

1. Set the switch offline as follows: a. At the View panel, select Operations at the left side of the panel. The

Operations panel opens with the Switch Beacon page displayed.

b. At the Current State window, click Set Offline. The message Your

operations changes have been successfully activated displays.

2. At the View panel, select Configure at the left side of the panel. The Configure panel opens with the Ports page displayed.

3. At the Configure panel, click the Switch tab, then select Fabric Parameters. The Switch page displays with Fabric Parameters.

4. Set the fabric parameters:

2-60 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–43: Switch page—Fabric Parameters tab

a. At the BB_Credit field, type a value between 1 an 60 buffers. The default is

16. Use a value of 60 buffers only for extended distance port operation.

b. At the R_A_TOV field, type a value between 10 through 1200 tenths of a

second (one through 120 seconds). The default is 10 seconds (100 tenths). All fabric-attached switches must be set to the same R_A_TOV. If the value is

not compatible, the E_Port connection to the switch segments and the switch cannot communicate with the fabric. In addition, the R_A_TOV must be greater than the E_D_TOV.

c. At the E_D_TOV field, type a v alue between 2 through 600 tenths of a second

(0.2 through 60 seconds). The default is 20 tenths of a second (2 seconds). All fabric-attached switches must be set to the same E_D_TO V. If the v alue is

not compatible, the E_Port connection to the switch segments and the switch cannot communicate with the fabric. In addition, the E_D_TOV must be less than the R_A_TOV.

d. The switch priority value designates the fabric’s principal switch. The

principal switch controls the allocation and distribution of domain IDs for all fabric directors and switches (including itself). At the Switch Priority field, select Principal, Never Principal, or Default (the default setting is Default).

e. Select the Interop Mode:

edge switch 2/32 installation guide 2-61

Installing and Configuring the Edge Switch 2/32

— HP Fabric 1.0. Default. Select this mode if the fabric contains only HP

switches and switches that are operating in HP Fabric 1.0 mode.

— Open Fabric 1.0. Select this mode if the fabric contains HP directors and

switches, as well as other open-fabric compliant switches. Select this mode for managing heterogeneous fabrics.

5. Click Activate to save the information. The message Your changes to the

operating parameters configuration have been successfully activated displays.

6. Set the switch online: a. At the View panel, select Operations at the left side of the panel. The

Operations panel opens with the Switch Beacon page displayed.

b. At the Operations panel, click the Online State tab, then click Set Online.

The message Your operations changes have been successfully activated displays.

Configure Network Information

Verify the type of LAN installation with the customer’s network administrator. If one switch is installed on a dedicated LAN, network information (IP address, subnet mask, and gateway address) does not require change. Go to “Configure Ports (Open Systems

Mode)” on page 2–32.

If multiple switches are installed, or a public LAN segment is used, network information must be changed to conform to the customer’s LAN addressing scheme. Perform one of the following:

• If network information was changed while performing “Task 3: Configure

Network Information” on page 2–6, this procedure is not required. Go to

“Configure SNMP Trap Message Recipients” on page 2–39.

• If network information was not changed, perform this procedure.

Perform the following steps to change a switch IP address, subnet mask, or gateway address.

1. Choose Configure at the left side of the window. The Configure window opens with the Ports page displayed.

2. At the Configure window, click the Switch tab, then click the Network tab. The Switch page displays with the Network tab selected, as shown in Figure 2–44.

2-62 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Figure 2–44: Switch page—Network tab

a. At the IP Address field, type the new value as specified by the customer’s

network administrator (default is 10.1.1.10, factory preset is 10.1.1.10).

b. At the Subnet Mask field, type the new value as specified by the customer’s

network administrator (default is 255.0.0.0).

c. At the Gateway Address field, type the new value as specified by the

customer’s network administrator (default is 0.0.0.0).

edge switch 2/32 installation guide 2-63

Installing and Configuring the Edge Switch 2/32

3. Click Activate to save the information. The following message box displays, as shown in Figure 2–45.

Figure 2–45: Network configuration changes activated

4. Update the address reso lution protocol (ARP) table for the browser PC. a. Choose File >Exit to close the Embedded Web Server and browser

applications. The Windows desktop displays.

b. Choose Start > Programs > Command Prompt. A disk operating system

(DOS) window displays.

c. Delete the switch’s old IP address from the ARP table. At the command

(C:\) prompt, type arp —d xxx.xxx.xxx.xxx, where xxx.xxx.xxx.xxx is the old IP address for the switch.

d. Click close (X) at the upper right corner of the DOS window to close the

window and return to the Windows desktop.

5. At the PC, launch the browser application (Netscape Navigator

or Internet

Explorer).

6. At the browser, enter the switch’s new IP address as the Internet URL. The Username and Password Required dialog box displays.

2-64 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

7. Type the default user name and password.

NOTE: The default user name is Administrator and the default pass word is password. The user name and password are case-sensitive.

8. Click OK. The Embedded Web Server interface opens with the View window

displayed.

Configure SNMP Trap Message Recipients

Perform this procedure to configure community names, write authorizations, and network addresses and for up to 6 SNMP trap message recipients. A trap recipient is a management workstation that receives notification (through SNMP) if a switch event occurs.

To configure SNMP trap recipients:

1. Choose Configure at the left side of the window. The Configure window opens

with the Ports tab displayed.

2. At the Configure window, click the Management tab. The Management page

displays with SNMP tab selected, as shown in Figure 2–46.

edge switch 2/32 installation guide 2-65

Installing and Configuring the Edge Switch 2/32

Figure 2–46: Management page—SNMP tab

a. For each trap recipient to be configured, type a community name of 32

alphanumeric characters or less in the associated Community Name field. The community name is incorporated in SNMP trap messages to ensure against unauthorized viewing or use.

b. Click the check box in the Write Authorization column to enable or disable

write authorization for the trap recipient (default is disabled). A check mark in the box indicates write authorization is enabled. When the feature is enabled, a management workstation user can change sysContact, sysName, and sysLocation SNMP variables.

c. Type the IP address or DNS host name of the trap recipient (SNMP

management workstation) in the associated Trap Recipient field. Use 64 alphanumeric characters or less. It is recommended the IP address be used.

d. The default user datagram protocol (UDP) port number for trap recipients

is 162. Type a decimal port number in the associated UDP P ort Number field to override the default.

2-66 edge switch 2/32 installation guide

3. Click Activate to save the information. The message Your changes to the

SNMP configuration have been successfully activated

displays.

Configure User Rights

Perform this procedure to configure the administrator-level and operator-level passwords used to access the Embedded Web Server interface through the Username and Password Required dialog box.

To configure passwords:

1. At the Configure window, click the User Rights tab. The User Rights page

displays.

2. For the Administrator set of data fields:

a. Type the administrator user name (as specified by the customer’s network

administrator) in the New User Name field. Use 16 alphanumeric characters or less.

b. Type the administrator password (as specified by the customer’s network

administrator) in the New Password field. Use 16 alphanumeric characters or less.

Installing and Configuring the Edge Switch 2/32

edge switch 2/32 installation guide 2-67

Installing and Configuring the Edge Switch 2/32

c. Type the administrator password again in the Confirm New Password field,

as shown in Figure 2–47.

Figure 2–47: User Rights page

3. For the Operator set of data fields: a. Type the operator user name (as specified by the customer’s network

administrator) in the New User Name field. Use 16 alphanumeric characters or less.

b. Type the operator password (as specified by the customer’s network

administrator) in the New Password field. Use 16 alphanumeric characters or less.

c. Type the operator password again in the Confirm New Password field.

4. Click Activate to save the information. The message Your changes to the

user rights configuration have been successfully activated displays.

5. Close the browser application by choosing File > Close.

2-68 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

Task 16: Cable Fibre Channel Ports

Perform this task to connect devices to the switch. To cable Fibre Channel ports:

1. Route singlemode or multimode fiber-optic cables (depending on the type of SFP

pluggable optic transceivers installed) from customer-specified devices to ports at the front of the switch.

2. Connect device cables to small form factor pluggable (SFP) transceivers. Start

with port 0 and continue sequentially to the left through port 31.

3. Perform one of the following:

a. If the switch is installed on a table or desk top, bundle and secure the Fibre

Channel cables as directed by the customer.

b. If the switch is installed in a customer-supplied equipment rack, bundle Fibre

Channel cables from the switch and other equipment (groups of 16 maximum), and secure them as directed by the customer.

4. Set the switch online.

Task 17: Connect Switch to a Fabric (Optional)

To provide Fibre Channel connectivity between public devices and fabric-attached devices, connect the switch to an expansion port (E_Port) of an HP director or switch. The switch port to switch port connection is called an interswitch link (ISL). To fabric-attach the switch and create an ISL:

1. Ensure the switch is defined to the HAFM application (defined while performing

“Task 6: Configure the Switch to the HAFM Application” on page 2–13.

2. Ensure the preferred domain ID for the switch is unique and does not conflict with

the ID of another switch participating in the fabric. To change the domain ID, see “Task 12: Configure the Edge Switch 2/32 Product Manager Applications” on page 2–23.

3. Ensure the R_A_TOV and E_D_TOV values for the switch are identical to the

values for all switches participating in the fabric. To change the values, see “Task

12: Configure the Edge Switch 2/32 Product Manager Applications” on

page 2–23.

4. Route a multimode or singlemode fiber-optic cable (depending on the type of SFP

transceiver installed) from a customer-specified E_Port of the switch to the switch.

edge switch 2/32 installation guide 2-69

Installing and Configuring the Edge Switch 2/32

5. Connect the switch-attached fiber-optic cable to the port SFP transceiver.

6. If the switch is managed by an attached HAFM server, go to step 7. If the switch is managed by the Embedded Web Server interface:

a. Choose View at the left side of the window . The View window opens with the

Switch tab selected and displayed.

b. At the View window , click the Po rt Properties tab . The Port Pr operties page

displays with 0 selected, and port information listed for port 0.

c. Choose the port number of the port used to make this ISL connection. d. Ensure the Operational State field displays Online and the Reason field

displays N/A or is blank. If an ISL segmentation or other problem is indicated, refer to the hp StorageWorks edge switch 2/32 service manual to isolate the problem. If no problems are indicated, installation tasks are complete.

7. At the HAFM server’s Product View page, double-click the switch icon. The Hardware View page fo r the selected switch displays.

8. Double-click the port connector used to make this ISL connection to open the Port Properties dialog box, as shown in Figure 2–48.

Figure 2–48: Port Properties dialog box

2-70 edge switch 2/32 installation guide

Installing and Configuring the Edge Switch 2/32

9. Ensure the Link Incident field displays None and the Reason field is blank. If an

ISL segmentation or other problem is indicated, refer to the hp StorageW orks edge switch 2/32 service manual to isolate the problem. If no problems are indicated, installation tasks are complete.

Task 18: Unpack, Inspect, and Install the Ethernet Hub (Optional)

The HAFM server and one or more switches connect through an Ethernet hub installed on a 10/100 Mbps LAN segment. One hub port is required to connect the HAFM server, and one hub port is required to connect each switch. A combination of up to 48 HP products can be configured and managed by a single HAFM server, therefore multiple hubs may be required to provide sufficient port connections. These hubs must be connected in accordance with the hub manufacturer’s specifications. HP recommends using a star or hub-and-spoke topology when connecting multiple hubs. The HAFM server must be connected to the center hub, and there should never be more than two hubs between the HAFM server and any switch. Refer to the hub manufacturer’s documentation for more detailed information.

For instructions to unpack and inspect one or more Ethernet hubs, and install the hubs in a desktop or rack-mount configuration, refer to the appropriate Ethernet hub documentation.

edge switch 2/32 installation guide 2-71

Flexport Upgrade Instructions

This chapter provides instructions for upgrading the edge switch 2/32 from 16 ports to 24 ports and from 24 ports to 32 ports by installing the Edge Switch 2/32 flexport upgrade kit, see Table 1–1 on page 1–11.

Each port expansion kit includes eight optical transcei vers, upgrade instructio ns, and a entitlement certificate containing transaction code for obtaining a software licence key (feature key) through an HP website. The feature key can be enabled in the switch using one of the following methods:

• Configure menus of the Product Manager

• Configure menus of the Embedded Web Server (EWS) for the specific switch

• Through the command line interface (CLI)

Unpack and Inspect the Optics

Unpack and inspect the optics as follows:

• Inspect the shipping container for damage caused during transit. If a container is

damaged, ensure a representative from the freight carrier is present when the container is opened.

• Unpack the shipping container and inspect each item for damage. Ensure all items

listed on the enclosed bill of materials are included in the container.

• If any items are damaged or missing, please contact a HP authorized service

provider or reseller.

Edge Switch 2/32 Upgrade

This section describes how to upgrade from 16 to 24 ports and from 24 to 32 ports.

NOTE: For more information on installing optical transceivers, refer to the hp StorageWorks SFP transceiver installation instructions.

edge switch 2/32 installation guide 3–1

Flexport Upgrade Instructions

Upgrading to 24 Ports

Ports 0 through 15 should already be populated (see Figure 3–1, 3).

1. Insert 8 new optical transceivers into ports 16 through 23 (see Figure 3–1, 2) as follows:

a. To install a new SFP transceiver, position one of the SFP transceivers so that

the key is oriented correctly to the port, and insert the transcei v er into the port until it is firmly seated and the latching mechanism clicks.

NOTE: Transceivers are keyed so that they can only be inserted with the correct orientation. If a transceiver doesn’t slide in easily, en sure it is correctly oriented. For instructions that are specific to the transceiver model, refer to the transceiver manufacturer’s documentation.

b. Repeat step a for the remaining ports.

2. If you have no more ports to upgrade, go to “Configure Feature Key in Product

Manager, EWS, or CLI.” If you want to install more ports, continue with

“Upgrading to 32 Ports.”

1 Ports 24 to 31 2 Ports 16 to 23 3 Ports 0 to 15

Figure 3–1: Edge Switch 2/32 port locations
