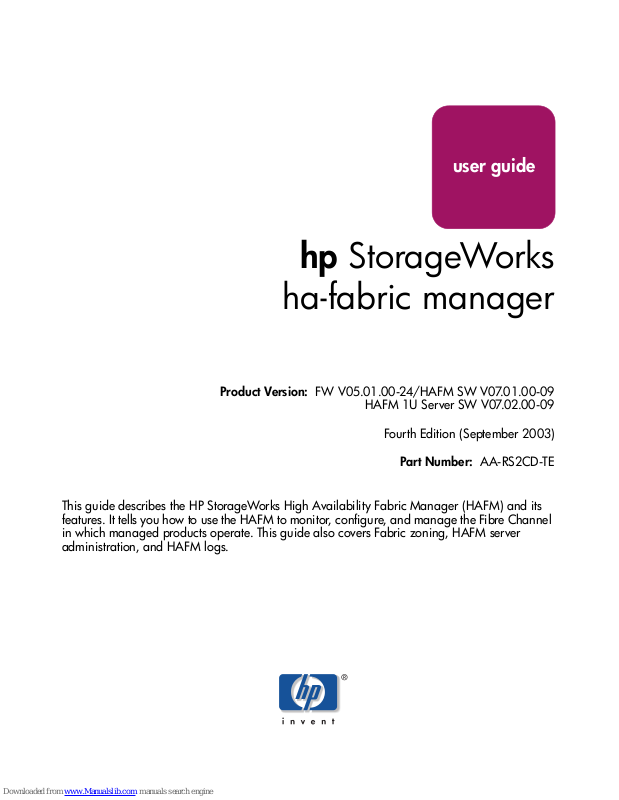

user guide
hp StorageWorks
ha-fabric manager
Product Version: FW V05.01.00-24/HAFM SW V07.01.00-09
HAFM 1U Server SW V07.02.00-09
Fourth Edition (September 2003)
Part Number: AA-RS2CD-TE
This guide describes the HP StorageWorks High Availability Fabric Manager (HAFM) and its
features. It tells you how to use the HAFM to monitor, configure, and manage the Fibre Channel
in which managed products operate. This guide also covers Fabric zoning, HAFM server
administration, and HAFM logs.
Page 2
© Copyright 2001-2003 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for
errors contained herein or for incidental or consequential damages in connection with the furnishing, performance,
or use of this material.
This document contains proprietary information, which is protected by copyright. No part of this document may be
photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard.
The information contained in this document is subject to change without notice.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The
information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties
for Hewlett-Packard Company products are set forth in the express limited warranty statements for such products.
Nothing herein should be construed as constituting an additional warranty.
Printed in the U.S.A.
High Availability Fabric Manager User Guide
Fourth Edition (September 2003)
Part Number: AA-RS2CD-TE
Page 3
contents
About this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Text Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rack Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
HP Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
HP Storage Website . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1 Introduction and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Introduction to High Availability Fabric Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
HAFM Server Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
High Availability Fabric Manager Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessing HAFM on the 1U Rack-Mount Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessing HAFM on the Notebook Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Accessing Remote HAFM Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Starting HAFM on Remote Workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Starting HAFM on a Windows System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Starting HAFM on a Linux or Solaris System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Starting HAFM on an HP-UX or AIX System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Managing Remote Access to the HAFM Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Requirements for Remote Workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installing Software on Remote Workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Displaying Remote Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Backing Up and Restoring Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Contents
3High Availability Fabric Manager User Guide
Page 4
Contents
Starting and Stopping HAFM Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
HAFM Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
High Availability Fabric Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
View Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Product Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Fabrics Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
View Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Configure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Logs Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Help Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
View Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Product Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Configure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Logs Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Maintenance Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Help Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2 Using the HAFM Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Window Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Illustrations Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Layout of Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Window Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Title Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Tool Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Main Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Status Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Tool Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
New Product Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Open Product Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Properties Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Display Drop-Down List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Persist Fabric Topology Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Export Fabric Topology Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Show Zoning Library Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Layout Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Show View Port Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4 High Availability Fabric Manager User Guide
Page 5
Contents
Zoom In Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Zoom Out Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Fit Topology in View Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Main Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Products View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Fabrics View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Products Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fabrics Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
HAFM Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Text Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3 Using the Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
New . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Modify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Fabrics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Rename. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Persist Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Unpersist Fabric Topology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Export Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Show Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Hide Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Show Zone Members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Show View Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Show Fabric Tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Enterprise Fabric Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fabric Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
User Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Arrange Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Layout Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Center in Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5High Availability Fabric Manager User Guide
Page 6
Contents
Clear ISL Alert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Clear All ISL Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Enable Fly-Over Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Configure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
User Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
User Rights for Specific Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Open the Configure User Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Add New User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Open the Modify User Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Modify User Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Delete User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Adding Nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Deleting Nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Exporting Nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Importing Nicknames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Activate Zone Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Zoning Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Advanced Zoning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Event Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Session Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Product Status Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Fabric Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Configure E-Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Test Remote Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Configure Ethernet Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Configure Call-Home Event Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
4 Using the Products View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Product Icon Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Icon Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
6 High Availability Fabric Manager User Guide
Page 7
Contents
View Context Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
View Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
New Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Sort Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Product Icon Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Modify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Delete. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Accessing a Product Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Available Tool Bar Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Available Menu Bar Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Product Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
View Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5 Using the Fabrics View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Topology Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Zone Set Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Fabric Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Using the Topology Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Fabric Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Fabric Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Rename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Persist Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Unpersist Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Product Pop-Up Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Center in Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Node Pop-Up Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Show Route. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Nickname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
7High Availability Fabric Manager User Guide
Page 8
Contents
Show Zone Members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Topology View Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Fly-Over Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Product Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
ISL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
View Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Adjusting the Fabric Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Persistent Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Graphic Indicators in View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Fabric Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Unpersisting Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Available Menu Bar Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Rename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Persist Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Unpersist Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Export Fabric Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Exported File Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Show Route. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hide Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Show Zone Members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Show View Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Show Fabric Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Enterprise Fabric Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Fabric Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
User Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Layout Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Center in Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Clear ISL Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Clear All ISL Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
8 High Availability Fabric Manager User Guide
Page 9
Contents
Enable Fly Over Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Configure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Nicknames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Sessions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
SNMP Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Activate Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Zoning Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Advanced Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Active Tool Bar Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Open Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Display Drop-Down Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Persist Fabric Topology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Export Fabric Topology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Show Zoning Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Layout Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Show View Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Zoom In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Zoom Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Fit Topology in View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Using the Zone Set Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
View Area Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Available Menu Bar Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
For More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Updating Fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
6 Fabric Zoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Zoning Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Controlling Access Across a Fabric. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Controlling Access at the Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Controlling Access at the Server or Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Zoning Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Naming Conventions for Zones and Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Using WWNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Using Port Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Default Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
9High Availability Fabric Manager User Guide
Page 10
Contents
Active Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Zoning Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Merging Zoned Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Configurations of Merged Zoned Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Rules for Merging Zoned Fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Configuring Zoning through the HAFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Using the Zoning Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Display Configured Zone Sets and Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Configure Zones and Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Modify Zones and Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Copy Zones and Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Delete Zones and Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Rename Zones and Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Import and Export Zone Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Import Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Export Zone Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Display Zone and Zone Set Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Find Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Find Zone Members. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Closing the Zoning Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Activate Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Deactivate Zone Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Configure the Default Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Show Zone Members. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Backing Up Zoning Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
10 High Availability Fabric Manager User Guide
Page 11
Contents
7 HAFM Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
Using Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Sorting Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Button Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Expanding Columns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
High Availability Fabric Manager Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
High Availability Fabric Manager Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
High Availability Fabric Manager Session Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
High Availability Fabric Manger Product Status Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
High Availability Fabric Manager Fabric Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Export Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
8 Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
FICON Management Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Configuring the FICON Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Configuration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Open Systems Management Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Configuring the Open Systems Management Server . . . . . . . . . . . . . . . . . . . . . . . 181
SANtegrity Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Fabric Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Enable/Disable and Online State Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Configuring Switch Binding Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Enable/Disable Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Editing the Switch Membership List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Enable/Disable and Online State Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Zoning with Switch Binding Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Enterprise Fabric Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Fabric Binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Switch Binding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Rerouting Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Domain RSCNs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Insistent Domain Identification (ID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Open Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Enabling and Configuring Open Trunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Use Algorithmic Threshold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
11High Availability Fabric Manager User Guide
Page 12
Contents
Threshold % . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Open Trunking Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
A Information and Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
B Configuring Remote Workstations: Windows Systems. . . . . . . . . . . . . . . . . . . . . . .215
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Running the High Availability Fabric Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
C Configuring Remote Workstations: Solaris Systems. . . . . . . . . . . . . . . . . . . . . . . . .225
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Running the High Availability Fabric Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
D Configuring Remote Workstations: HP-UX, AIX, and Linux . . . . . . . . . . . . . . . . . . .231
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Running the High Availability Fabric Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237
Figures
1 Product management options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2 VNC Authentication Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3 Welcome to Windows dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4 Log On to Windows dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5 High Availability Fabric Manager Login dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6 High Availability Fabric Manager main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7 High Availability Fabric Manager Login dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8 High Availability Fabric Manager main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9 High Availability Fabric Manager Login dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10 User Sessions dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
11 High Availability Fabric Manager main window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
12 New Product icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
13 Open Product icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
14 Properties icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
15 Display drop-down list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
16 Persist Fabric Topology icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12 High Availability Fabric Manager User Guide
Page 13
Contents
17 Export Fabric Topology icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
18 Show Zoning Library icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
19 Layout Icons icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
20 Show View Port icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
21 Zoom In icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
22 Zoom Out icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
23 Fit Topology in View icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
24 Products View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
25 Fabrics View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
26 User Sessions dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
27 Configure Users dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
28 New User dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
29 Modify User dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
30 Delete User Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
31 Configure Nicknames dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
32 Add Nickname dialog box (Detached Node). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
33 Export Nicknames Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
34 Import Nicknames Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
35 Configure Sessions dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
36 Configure SNMP dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
37 Configure E-Mail dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
38 Test Remote Notification dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
39 Results of Remote Notification Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
40 Configure Ethernet Events dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
41 Products View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
42 Director 2/64 Product icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
43 New Product dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
44 Modify Network Address dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
45 Product Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
46 Director 2/64 Product Manager window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
47 Fabrics View — Topology tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
48 Fabrics View — Zone Sets tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
49 Fabric Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
50 Director 2/64 Product Manager window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
51 Node Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
52 ISL Properties dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
53 Persisted fabric in Topology view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
54 Icon display when switch or director removed from fabric. . . . . . . . . . . . . . . . . . . . . . 115
13High Availability Fabric Manager User Guide
Page 14
Contents
55 Icon display when switch or director added to fabric . . . . . . . . . . . . . . . . . . . . . . . . . . 115
56 Show Route dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
57 Route displayed in Topology tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
58 Zoning through a single Fibre Channel managed product. . . . . . . . . . . . . . . . . . . . . . . 135
59 Zoning through a multiswitch fabric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
60 Zoning Library dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
61 New Zone dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
62 New Zone dialog box — adding zone members . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
63 Add Detached Nodes dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
64 New Zone Set dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
65 New Zone Set dialog box — adding zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
66 Zone Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
67 Zone Set Properties dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
68 Find WWN/Nickname dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
69 Activate Zone Set dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
70 Activate Zone Set (Differences) screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
71 Activate Zone Set (Directors/Switches Affected) screen. . . . . . . . . . . . . . . . . . . . . . . . 164
72 High Availability Fabric Manager Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
73 High Availability Fabric Manager Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
74 High Availability Fabric Manager Session Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
75 High Availability Fabric Manager Product Status Log . . . . . . . . . . . . . . . . . . . . . . . . . 173
76 High Availability Fabric Manager Fabric Log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
77 Save dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
78 Configure FICON Management Server dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
79 Configure Open Systems Management Server dialog box . . . . . . . . . . . . . . . . . . . . . . 181
80 Switch Binding State Change dialog box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
81 Switch Binding Membership List dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
82 Configure Open Trunking dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
83 Open Trunking log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
84 Remote Client Installation screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
85 Security Warning page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
86 InstallAnywhere Web Installer page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
87 HAFM Installer — Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
88 HAFM Installer — License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
89 HAFM Installer — Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
90 HAFM Installer — Choose Install Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
91 HAFM Installer — Choose Shortcut Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
92 HAFM Installer — Pre-Installation Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
14 High Availability Fabric Manager User Guide
Page 15
Contents
93 Installing HP HAFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
94 HAFM Installer — Install Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
95 HP HAFM page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
96 Security Warning page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
97 HP StorageWorks HAFM page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
98 Security Warning page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Tables
1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2 Operational States and Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3 User Rights for HAFM Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4 Merging Fabrics — Results for Zone Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 144
5 Zoning Configuration Limits for High Availability Fabric Manager . . . . . . . . . . . . . . 146
6 Menu Options in Zoning Dialog Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
7 Icons and Text Indicators for Zone Set Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
8 Port Name Language Code Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
9 High Availability Fabric Manager Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
15High Availability Fabric Manager User Guide
Page 16
Contents
16 High Availability Fabric Manager User Guide
Page 17
about this
guide
This user guide provides information to help you:
■ Use the High Availability Fabric Manager (HAFM) to monitor, configure, and
About this Guide
About this Guide
manage the Fibre Channel in which managed products operate.
■ Manage Fabric zoning and HAFM logs.
About this Guide topics include:
■ Overview, page 18
■ Conventions, page 19
■ Rack Stability, page 21
■ Getting Help, page 22
17High Availability Fabric Manager User Guide
Page 18
About this Guide
Overview
This section covers the following topics:
■ Intended Audience
■ Related Documentation
■ Related Documentation
Intended Audience
This book is intended for use by data center administrators, LAN administrators,
operations personnel, and customer support personnel who:
■ Administer user access to the HAFM application.
■ Monitor and manage product operation.
Related Documentation
For a list of corresponding documentation, see the Related Documents section of
the Release Notes that came with the product.
For the latest information, documentation, and firmware releases, please visit the
following StorageWorks website:
http://h18006.www1.hp.com/storage/saninfrastructure.html
For information about Fibre Channel standards, visit the Fibre Channel
Association website, located at
http://www.fibrechannel.org
.
18 High Availability Fabric Manager User Guide
Page 19
Conventions
Conventions consist of the following:
■ Document Conventions
■ Text Symbols
■ Equipment Symbols
Document Conventions
The document conventions included in Tabl e 1 apply in most cases.
Table 1: Document Conventions
Cross-reference links Blue text: Figure 1
About this Guide
Element Convention
Text Symbols
Key and field names, menu items,
buttons, and dialog box titles
File names, application names, and text
emphasis
User input, command and directory
names, and system responses (output
and messages)
Variables <monospace, italic font>
Website addresses Blue, underlined sans serif font text:
Bold
Italics
Monospace font
COMMAND NAMES are uppercase
monospace font unless they are case
sensitive
http://www.hp.com
The following symbols may be found in the text of this guide. They have the
following meanings.
WARNING: Text set off in this manner indicates that failure to follow
directions in the warning could result in bodily harm or death.
High Availability Fabric Manager User Guide
19
Page 20
About this Guide
Caution: Text set off in this manner indicates that failure to follow directions
could result in damage to equipment or data.
Note: Text set off in this manner presents commentary, sidelights, or interesting points
of information.
Equipment Symbols
The following equipment symbols may be found on hardware for which this guide
pertains. They have the following meanings.
Any enclosed surface or area of the equipment marked with these
symbols indicates the presence of electrical shock hazards. Enclosed
area contains no operator serviceable parts.
WARNING: To reduce the risk of personal injury from electrical shock
hazards, do not open this enclosure.
Any RJ-45 receptacle marked with these symbols indicates a network
interface connection.
WARNING: To reduce the risk of electrical shock, fire, or damage to the
equipment, do not plug telephone or telecommunications connectors
into this receptacle.
Any surface or area of the equipment marked with these symbols
indicates the presence of a hot surface or hot component. Contact with
this surface could result in injury.
WARNING: To reduce the risk of personal injury from a hot component,
allow the surface to cool before touching.
20 High Availability Fabric Manager User Guide
Page 21
About this Guide
Power supplies or systems marked with these symbols indicate the
presence of multiple sources of power.
WARNING: To reduce the risk of personal injury from electrical
shock, remove all power cords to completely disconnect power
from the power supplies and systems.
Any product or assembly marked with these symbols indicates that the
component exceeds the recommended weight for one individual to
handle safely.
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements
and guidelines for manually handling material.
Rack Stability
Rack stability protects personnel and equipment.
WARNING: To reduce the risk of personal injury or damage to the
equipment, be sure that:
■ The leveling jacks are extended to the floor.
■ The full weight of the rack rests on the leveling jacks.
■ In single rack installations, the stabilizing feet are attached to the rack.
■ In multiple rack installations, the racks are coupled.
■ Only one rack component is extended at any time. A rack may become
unstable if more than one rack component is extended for any reason.
High Availability Fabric Manager User Guide
21
Page 22
About this Guide
Getting Help
If you still have a question after reading this guide, contact an HP authorized
service provider or access our website:
HP Technical Support
In North America, call technical support at 1-800-652-6672, available 24 hours a
day, 7 days a week.
Note: For continuous quality improvement, calls may be recorded or monitored.
Outside North America, call technical support at the nearest location. Telephone
numbers for worldwide technical support are listed on the HP website under
support:
Be sure to have the following information available before calling:
http://www .h p.com/country/us/eng/support.html
http://www .hp.com
.
.
■ Technical support registration number (if applicable)
■ Product serial numbers
■ Product model names and numbers
■ Applicable error messages
■ Operating system type and revision level
■ Detailed, specific questions
HP Storage Website
The HP website has the latest information on this product, as well as the latest
drivers. Access storage at:
storage .html
http://www .hp.com/country/us/eng/prodserv/
. From this website, select the appropriate product or solution.
22 High Availability Fabric Manager User Guide
Page 23
HP Authorized Reseller
For the name of your nearest HP authorized reseller:
■ In the United States, call 1-800-345-1518
■ In Canada, call 1-800-263-5868
■ Elsewhere, see the HP website for locations and telephone numbers:
http://www .hp .com
About this Guide
.
High Availability Fabric Manager User Guide
23
Page 24
About this Guide
24 High Availability Fabric Manager User Guide
Page 25
Introduction and General
Information
This chapter presents an overview of the High Availability Fabric Manager
(HAFM). It includes:
■ An introduction to using HAFM.
■ Information on how to access HAFM.
Introduction to High Availability Fabric Management
The High Availability Fabric Manager (HAFM) is a Java-based graphical user
interface (GUI) that enables the user to manage users and products, monitor
products, and open Product Managers.
Note: Although the HAFM and Product Managers are separate applications, the
Product Managers are only accessible through the HAFM.
1
The HAFM and Product Managers are installed on the HAFM server to provide
local access to managed products. These applications can also be installed on
remote user workstations to provide remote access to the managed products
through the HAFM server. A maximum of eight concurrent remote users (in
addition to the local HAFM server user) can log in to the HAFM application.
If dual Ethernet adapters are to be used on the HAFM server, remote workstations
must use the adapter connected to the customer's intranet, and this must be adapter
number 1 (the primary adapter) in the HAFM server. Directors and switches must
communicate with the HAFM server on a private network using adapter number 2
(the secondary adapter). Remote workstations are not supported on the secondary
adapter, and must always connect to the primary adapter (Figure 1 on page 26).
For details on configuring remote workstations, refer to the appendix in this guide
that covers your workstation’s operating system.
25High Availability Fabric Manager User Guide
Page 26
Introduction and General Information
2
3
Director 2/64
Remote
Workstation
HAFM Server
Customer Intranet
1
4
5
8
9
1
2
1
3
1
6
1
7
M
I
D
2
0
2
1
M
D
I
X
2
4
P
B
o
r
a
t
s
S
el
1
t
a
i
ne
t
u
s
2
10
/
1
3
00
H
4
ub
5
6
1
3
7
C
14
o
l
l
i
s
8
i
o
1
n
5
9
1
6
10
1
7
11
1
Gr
8
12
e
1
e
0
19
n
0
M
1
0
20
0
M
,
21
Y
el
l
o
22
w
-1
0
2
M
3
,F
24
la
sh
1
0
-
M
A
c
t
i
v
i
t
y
P
o
w
e
r
®
3
C164
1
1
S
3
up
e
com
r
Sta
®
ck
3
H
D
D
FA
N
L
1
L
2
E
N
T
E
R
Customer Intranet
(10/100 Mbps)
(10/100 Mbps)
10/100 Mbps
Ethernet Hub
Director 2/64
Remote
Workstation
Figure 1: Product management options
Besides the HAFM and Product Managers on the HAFM server, out-of-band
(non-Fibre Channel) management access to HP products is provided through the
following:
■ Management using simple network management protocol (SNMP). An
SNMP agent is implemented through the HAFM application, which allows
administrators on SNMP management workstations to access product
management information using any standard network management tool.
Administrators can assign Internet Protocol (IP) addresses and corresponding
community names for up to six SNMP workstations functioning as SNMP
trap message recipients.
■ Management through the Internet using the Embedded Web Server (EWS)
interface installed on the director or switch. This interface supports
configuration, statistics monitoring, and basic operation of the product, but
does not offer all the capabilities of the corresponding Product Manager
application. Administrators launch the web server interface from a remote PC
by entering the product’s IP address as the Internet uniform resource locator
(URL), then entering a user name and password at a login screen. The PC
browser then becomes a management console.
26 High Availability Fabric Manager User Guide
Page 27
■ Management through a PC-based Telnet session using the command line
interface (CLI). Any platform that supports Telnet client software can be used.
HAFM Server Information
The HAFM server provides a central point of control for managed Fibre Channel
products. The HAFM server is required for installing, configuring, and managing
these products.
Note: Although products can perform normal operations without an HAFM server, the
HAFM server should operate at all times to monitor product operations, report failures,
log event changes, and log configuration changes.
High Availability Fabric Manager Overview
This section provides a general overview of the HAFM features.
Introduction and General Information
Accessing HAFM on the 1U Rack-Mount Server
You can log in to HAFM located on the rack-mount server from a browser-capable
PC connected through an Ethernet LAN segment. Use the following steps:
1. Ensure the HAFM server and a browser-capable PC are connected through an
Ethernet LAN segment. At the PC, launch the browser application (Netscape
Navigator
2. At the PC browser, enter the IP address of the HAFM server for the HAFM
LAN to which the PC is connected (LAN 1 or LAN 2), followed by :5800.
Enter the URL in the following format:
http://xxx.xxx.xxx.xxx:5800
Where xxx.xxx.xxx.xxx is the default IP address or the IP address
configured for the server during installation. The VNC Authentication screen
displays (Figure 2).
or Internet Explorer).
27High Availability Fabric Manager User Guide
Page 28
Introduction and General Information
Figure 2: VNC Authentication Screen
3. Type the password and click OK. The Welcome to Windows dialog box
displays (Figure 3).
Note: The default TightVNC viewer password is password.
Figure 3: Welcome to Windows dialog box
4. Click the Send Ctrl-Alt-Del button at the top of the window to log on to the
HAFM Server desktop. The Log On to Windows dialog box displays
(Figure 4).
Note: Do not simultaneously press the Ctrl, Alt, and Delete keys. This action logs the
user on to the browser-capable PC, not the rack-mount HAFM server.
28 High Availability Fabric Manager User Guide
Page 29
Introduction and General Information
Figure 4: Log On to Windows dialog box
5. Type the Windows 2000 user name and password and click OK. The HAFM
Server’s Windows 2000 desktop opens and the HAFM Manager Login
dialog box displays (Figure 5).
Note: The default Windows 2000 user name is Administrator and the default
password is password. The user name and password are case-sensitive.
6. In the HAFM Login dialog box (Figure 5), enter your user name and
password in the User Name and Password fields. User names and passwords
are case-sensitive.
Note: If user names have not been established, you can use the default user name
(Administrator) and password (password). The user name and password are
case-sensitive. HP recommends that you change the default password as soon as
possible.
To add or modify user names, passwords, and user rights, refer to the
appropriate subsections in the “Users” section on page 67.
29High Availability Fabric Manager User Guide
Page 30
Introduction and General Information
Figure 5: High Availability Fabric Manager Login dialog box
7. In the HAFM Server field, type or choose the HAFM server to which you
want to connect. If you are logging in to the local HAFM server, the HAFM
server name is localhost.
The default address that displays in the HAFM Server field is the address of
the last server accessed. Click the HAFM server arrow to see the network
addresses of all HAFM servers that were accessed from the computer you are
logged into.
If you want to connect to an HAFM server that is not listed, enter the server
name or IP address in the HAFM Server field.
8. Click Login. The main HAFM window displays the Product View
(Figure 6).
30 High Availability Fabric Manager User Guide
Page 31
Introduction and General Information
Figure 6: High Availability Fabric Manager main window
1 Menu Bar. For details, refer to Chapter 3 on page 59.
2 Tool Bar. For details, refer to Tool Bar on page 47.
3 View Tabs. For details, refer to Main Panel on page 53.
4 Main Panel. For details, refer to Main Panel on page 53.
5 Status Panel. For details, refer to Status Bar on page 56.
Accessing HAFM on the Notebook Server
The HAFM application starts automatically when the HAFM server is powered
on. If it is necessary to start the application yourself, perform the following steps.
1. Turn on the HAFM server, or if the server is already turned on, double-click
the HAFM icon on the desktop. The HAFM application opens.
2. In the HAFM Login dialog box (Figure 5), enter your user name and
password in the User Name and Password fields. User names and passwords
are case-sensitive.
31High Availability Fabric Manager User Guide
Page 32
Introduction and General Information
Note: If user names have not been established, you can use the default user name
(Administrator) and password (password). The user name and password are
case-sensitive. HP recommends that you change the default password as soon as
possible.
To add or modify user names, passwords, and user rights, refer to the
appropriate subsections in the “Users” section on page 65.
Figure 7: High Availability Fabric Manager Login dialog box
3. In the HAFM Server field, type or choose the HAFM server to which you
want to connect. If you are logging in to the local HAFM server, the HAFM
server name is localhost.
The default address that displays in the HAFM Server field is the address of
the last server accessed. Click the HAFM server arrow to see the network
addresses of all HAFM servers that were accessed from the computer you are
logged into.
If you want to connect to an HAFM server that is not listed, enter the server
name or IP address in the HAFM Server field.
32 High Availability Fabric Manager User Guide
Page 33
Introduction and General Information
4. Click Login. The main HAFM window displays the Product View
(Figure 6).
Figure 8: High Availability Fabric Manager main window
1 Menu Bar. For details, refer to Chapter 3 on page 57.
2 Tool Bar. For details, refer to Tool Bar on page 45.
3 View Tabs. For details, refer to Main Panel on page 51.
4 Main Panel. For details, refer to Main Panel on page 51.
5 Status Panel. For details, refer to Status Bar on page 54.
33High Availability Fabric Manager User Guide
Page 34
Introduction and General Information
Accessing Remote HAFM Servers
To access remote HAFM servers, enter the server’s network address or DNS host
name in the HAFM Login dialog box. If you are already logged in to the HAFM
and want to access this dialog box, choose Logout from the Product menu.
Figure 9: High Availability Fabric Manager Login dialog box
1. In the HAFM Login dialog box, enter your user name and password.
Note: If user names have not been established, you can use the default user name
(Administrator) and password (password). The user name and password are
case-sensitive. We recommend that you change the default password as soon as
possible.
2. Delete the existing host name or IP address in the HAFM Server field, and
enter or choose a valid HAFM server IP address or host name.
3. Click Login.
If the HAFM window displays, you have logged in to the server. The server
network address you entered remains in the HAFM server list for future logins. If
you fail to connect to the server, the network address does not remain in the list.
34 High Availability Fabric Manager User Guide
Page 35
Starting HAFM on Remote Workstations
If the HAFM application is not running or the HAFM Login dialog box is not
displayed on your remote workstation, you can start the application following
appropriate steps for your workstation’s operating system.
Starting HAFM on a Windows System
To start the HAFM application on a Windows 95, Windows 98, Windows 2000, or
Windows NT system:
1. Double-click the HAFM icon on the desktop. The HAFM Login dialog box
displays.
2. Log into the HAFM application using steps under Accessing Remote HAFM
Servers on page 34.
Starting HAFM on a Linux or Solaris System
To start the HAFM application on a Linux or Solaris system from the home
directory:
Introduction and General Information
Note: If you have saved the
appropriate directory names.
HAFM
application in a different location, type in the
1. Type the following in the Te rm ina l window:
# cd /home
2. Click Enter.
3. Type the following in the Te rm ina l window:
# cd HAFM
4. Click Enter.
5. Type the following in the Te rm ina l window:
# ./HAF_Manager &
6. Click Enter. The HAFM Login dialog box displays.
7. Log into the HAFM application using steps under Accessing Remote HAFM
Servers on page 34.
35High Availability Fabric Manager User Guide
Page 36
Introduction and General Information
Starting HAFM on an HP-UX or AIX System
To start the HAFM application on an HP-UX or AIX system from the home
directory:
Note: If you have saved the
appropriate directory names.
HAFM
application in a different location, type in the
1. Type the following in the Te rm ina l window:
# cd /home
2. Click Enter.
3. Type the following in the Te rm ina l window:
# cd HAFM
4. Click Enter.
5. Type the following in the Te rm ina l window:
# ./HAF_Manager &
6. Click Enter. The HAFM Manager Login dialog box displays.
7. Log into the HAFM application using steps under Accessing Remote HAFM
Servers on page 34.
Managing Remote Access to the HAFM Server
Users at the HAFM server can open the HAFM and Product Managers loaded on
the server itself. Users at remote PC workstations can also access the same HAFM
server or other HAFM servers if the workstations meet minimum hardware and
software requirements and are running the HAFM application. Workstations must
also be configured to connect with the HAFM server over a TCP/IP network
connection.
Figure 1 on page 26 illustrates a remote user workstation connected to the HAFM
server through a LAN. Please note that this is an example configuration only.
Operators at remote workstations can manage and monitor all products controlled
by the HAFM server. Each active connection between a remote workstation and
an HAFM server and managed products is called a session. A maximum of nine
concurrent remote users (eight remote and one local HAFM server user) can log in
to the HAFM application.
36 High Availability Fabric Manager User Guide
Page 37
Requirements for Remote Workstations
The HAFM is downloaded and installed on user workstations from the HAFM
server. The remote workstations can be Windows® 95, Windows 98, Windows
2000, Windows XP, HP-UX, AIX, Linux, or Solaris systems.
For the minimum system requirements for remote workstations, refer to the
appendix in this guide for the appropriate operating system:
■ Appendix B for Windows.
■ Appendix C for Solaris.
■ Appendix D for HP-UX, AIX, and Linux.
Installing Software on Remote Workstations
For procedures to install HAFM software on remote user workstations and
configure the workstations for connection to an HAFM server, refer to the
appendix in this guide for the appropriate operating system.
■ Appendix B for Windows.
Introduction and General Information
■ Appendix C for Solaris.
■ Appendix D for HP-UX, AIX, and Linux.
Displaying Remote Sessions
A maximum of nine concurrent users (eight remote and one local HAFM server
user) can log in to the HAFM application. Display the current active sessions for
the HAFM server that you are logged into via the User Sessions dialog box.
To display the User Sessions dialog box:
1. From the View menu, choose User Sessions.
The User Sessions dialog box displays.
Figure 10: User Sessions dialog box
37High Availability Fabric Manager User Guide
Page 38
Introduction and General Information
The User Sessions dialog box displays active session information in this format:
■ User — The name of the current user (in Figure 10, Administrator).
■ Network Address — The network address of the current user.
■ Connection Established — The date and time that the session was
established.
Backing Up and Restoring Data
For instructions on backing up and restoring data to the 1U rack-mount HAFM
server, refer to HP StorageWorks HA-Fabric Manager Server Installation Guide,
AA-RU5FA-TE.
For instructions on backing up and restoring data to the notebook HAFM server,
refer to HP StorageWorks HAFM Server for Windows 2000 Installation Guide,
AA-RT4KC-TE.
Starting and Stopping HAFM Services
Options are available for starting and stopping HAFM Management Services
through the desktop Start menu.
1. Select the Start button on the left corner of the HAFM server desktop.
2. Select Programs > HAFM Management Services.
3. Select the Stop Services option to stop all HAFM services and HAFM server
functions. Select Start Services to restart these functions.
HAFM Management Services is the software application that provides services to
the HAFM application. HAFM Management Services runs only on the HAFM
server.
HAFM Menu Options
This user’s guide provides information on the management options on the HAFM
application only. Information on the Product Manager application is provided in
the Product Manager user guide for your switch or director. Following are lists of
options available under navigation control panel menus in all three applications.
References are provided to the correct publication for detailed information on
these options.
38 High Availability Fabric Manager User Guide
Page 39
High Availability Fabric Manager
The following options are available through the HAFM. For more information
about these options, refer to Chapter 3.
View Tabs
■ Products
■ Fabrics
Product Menu
■ New
■ Open
■ Delete
■ Modify
■ Properties
■ Logout
Introduction and General Information
■ Exit
Fabrics Menu
■ Rename
■ Persist Fabric Topology
■ Unpersist Fabric Topology
■ Export Fabric Topology
■ Show Route
■ Hide Route
■ Show Zone Members
■ Show View Port
■ Show Fabric Tree
■ Enterprise Fabrics Mode (only active if SANtegrity Binding is installed)
■ Fabric Binding (only active if SANtegrity Binding is installed)
39High Availability Fabric Manager User Guide
Page 40
Introduction and General Information
View Menu
■ User Sessions
■ Zoom
—In
—Out
— Default
— Fit in View
■ Arrange Icons
—By Name
— By Severity
■ Layout Icons
— Circular
—Spring
■ Center in Topology
■ Refresh Topology
■ Clear ISL Alert
■ Clear All ISL Alerts
■ Enable Fly Over Display
Configure Menu
■ Users
■ Nicknames
■ Sessions
■ SNMP Agent
■ Activate Zone Set
■ Zoning Library
■ Advanced Zoning
— Deactivate Zone Set
— Configure Default Zone
40 High Availability Fabric Manager User Guide
Page 41
Logs Menu
■ Audit Log
■ Event Log
■ Session Log
■ Product Status Log
■ Fabric Log
Maintenance Menu
■ Configure E-Mail
■ Test Remote Notification
■ Configure Ethernet Events
■ Configure Call Home Event Notification
Help Menu
■ Contents
Introduction and General Information
■ About
Product Manager
The following options are available through the Product Manager application for
your switch or director. For more information on these options, refer to the “Menu
Bar” section of Chapter 1 in the Product Manager user guide for your switch or
director.
View Tabs
■ Hardware
■ Port List
■ Node List
■ Performance
■ FRU List
Product Menu
■ Management Stye (not available on the Edge Switch 2/24)
—Open Systems
—FICON
41High Availability Fabric Manager User Guide
Page 42
Introduction and General Information
■ Port (options available when port is selected)
— Port Properties
— Node Properties
— Port Technology
— Block Port
— Enable Beaconing
— Port(s) Diagnostics
— Channel Wrap (FICON management style only)
— Swap Ports (FICON management style only)
— Clear Link Incident Alert(s)
— Reset Port
— Port Binding
— Clear Threshold Alert(s)
■ FRU (options depend on FRU selected)
— Open Port Card View (director only)
— FRU Properties
— Switchover (director only)
— Enable Beaconing
— Block All Ports
— Unblock All Ports
— Diagnostics
■ Clear System Error Light
■ Enable Unit Beaconing
■ Properties
■ Close
Configure Menu
■ Identification
■ Operating Mode
■ Operating Parameters
42 High Availability Fabric Manager User Guide
Page 43
Introduction and General Information
— Switch Parameters
— Fabric Parameters
■ Switch Binding
— Change State (only active if SANtegrity Binding is installed)
— Edit Membership List (only active if SANtegrity Binding is installed)
■ Ports
■ Addresses (FICON management style only)
—Active
—Stored
■ SNMP Agent
■ Management Server (only active if a management server feature is installed)
■ Features
■ Date/Time
■ Threshold Alerts
■ Open Trunking (only active if Open Trunking feature is installed)
■ Export Configuration Report
■ Enable Web Server
■ Enable Telnet
Logs Menu
■ Audit Log
■ Event Log
■ Hardware Log
■ Link Incident Log
■ Threshold Alert Log
■ Open Trunking Log (only active if Open Trunking feature is installed)
Maintenance Menu
■ Port Diagnostics
■ Swap Ports (FICON management style only)
■ Data Collection
43High Availability Fabric Manager User Guide
Page 44
Introduction and General Information
■ IPL
■ Set Online State
■ Firmware Library
■ Enable E-Mail Notification
■ Enable Call Home Notification
■ Backup & Restore Configuration
■ Reset Configuration
Help Menu
■ Contents
■ About
44 High Availability Fabric Manager User Guide
Page 45
Using the HAFM Window
This chapter provides a description of the High Availability Fabric Manager main
window, except for the menu bar, which is covered in Chapter 3.
Window Overview
This section provides an overview of the HAFM main window.
Illustrations Used in this Manual
Figures containing HAFM and Product Manager screens are included for
illustration purposes only. These illustrations may not match exactly what you see
on your server or workstation. Title bars have been removed from most of the
illustrations, and fields in the illustrations may contain different data than in
screens displayed on your system.
2
Layout of Elements
The HAFM main window is shown in Figure 11 on page 46. The Microsoft®
Windows® title bar displays above the HAFM window. The HAFM main
window is divided as follows:
■ Title bar for the product, which is not shown in the illustrations.
■ Menu bar, under the title bar and above the tool bar.
■ Tool bar, under the menu bar and above the main panel.
■ Main panel, which has two tabs: Products and Fabrics. When the Fabrics tab
is selected, the main panel is divided into two panels (left and right).
■ Status bar, at the bottom of the window.
45High Availability Fabric Manager User Guide
Page 46
Using the HAFM Window
Figure 11: High Availability Fabric Manager main window
Window Elements
The HAFM main window elements are shown in Figure 11.
Title Bar
The title bar identifies the product.
Menu Bar
The menu bar provides actions for working with products, fabrics, views,
configurations, logs, maintenance. A help menu is also provided. For a detailed
description of the menu bar, refer to Chapter 3.
Tool Bar
The tool bar provides a number of icons for quick access to frequently used menu
items, namely, commands to work with a product or to work with a fabric.
46 High Availability Fabric Manager User Guide
Page 47
Main Panel
Status Bar
Tool Bar
Using the HAFM Window
The main panel has two tabs available at the top left for choosing a view:
Products or Fabrics.
In the Fabrics View, the main panel is divided into two panels (left and right). The
left panel shows the Fabric Tree. The right panel contains the view area. The right
panel has tabs at the lower left of the view area for choosing between a Topo logy
tab view or a Zone Set tab view.
The status bar has icons for product status, fabric status, and HAFM server
(HAFM) status, as well as a text area for messages.
The tool bar has a number of icons for quick access to frequently used menu
items; namely, commands to work with a product or to work with a fabric.
New Product Icon
The New Product icon (Figure 12) is available only in the Products View. This
icon has the same functionality as choosing the Products > New option. It allows
you to add a product to the HAFM manager.
Figure 12: New Product icon
47High Availability Fabric Manager User Guide
Page 48
Using the HAFM Window
Open Product Icon
The Open Product icon (Figure 13) is available in both the Products View and
the Fabrics View:
■ In the Products View, the Open Product icon is available when a product
icon is selected.
■ In the Fabrics View, the Open Product icon is available when the To po lo gy
tab is selected and a product icon is selected.
This button has the same functionality as choosing the Product > Open option. It
allows you to open the Product Manager for a selected product.
Figure 13: Open Product icon
Properties Icon
The Properties icon (Figure 14) is available in the Products View when you
click a product icon. The icon is also available in the Fabrics View when the
Top olo gy tab is chosen. Click the product icon and then click the Properties icon
to display the Properties dialog box for the selected product. In the Fabrics
View, click outside the product icons before clicking the Properties icon to
display the Properties dialog box for the selected fabric. Refer to “Properties” on
page 93 for a description of the Product Properties dialog box; refer to
“Properties” on page 128 for a description of the Fabric Properties dialog box.
Figure 14: Properties icon
48 High Availability Fabric Manager User Guide
Page 49
Display Drop-Down List
The Display drop-down list (Figure 15) provides options to change the label that
displays for the product icons in the Products and Fabrics views. This section
describes these options.
Figure 15: Display drop-down list
■ Product Name — The name of the product configured through the
Configure Identification dialog box in the Product Manager.
■ Network Address — The internet protocol (IP) address or DNS host name of
the product.
Using the HAFM Window
■ World Wide Name — The product’s 8-byte WWN.
■ Domain ID — The product’s domain identification number (1-31) assigned
by the fabric.
■ Nickname — The nickname is configured through the Configure Nicknames
dialog box (Configure menu on menu bar). If the nickname is not configured,
the WWN displays instead.
Refer to “Display Options” on page 91 in Chapter 4 for details about the Display
Option drop-down list in the Products View. Refer to “Display Drop-Down Box”
on page 128 in Chapter 5 for details about the options in the Fabrics View.
49High Availability Fabric Manager User Guide
Page 50
Using the HAFM Window
Persist Fabric Topology Icon
In the Fabrics View, the Persist Fabric Topology icon (Figure 16) is available
when the Top olo gy tab is selected. Choose the Persist Fabric Topology icon to
display the Persist Fabric dialog box for the selected fabric. Enter a name for the
fabric and click OK.
A persisted fabric is a “snapshot” of the current fabric. When the fabric
configuration of interswitch links (ISLs) and products change from this snapshot,
status indicators display in the Topo lo gy tab view area, and entries about fabric
changes appear in the Fabric Log. Refer to “Persistent Fabrics” on page 113 for
information about persisted fabrics.
Figure 16: Persist Fabric Topology icon
Export Fabric Topology Icon
In the Fabrics View, the Export Fabric Topology icon (Figure 17) is available
when the Top olo gy tab is selected. Click the Export Fabric Topology icon to
display the Export Fabric Topology dialog box. Enter a name for the .xml file in
the File Name field, select a folder on your C: drive or network drive where you
want to save the .xml file, and then click Save. For additional information about
this .xml file, refer to “Export Fabric Topology” on page 128.
Figure 17: Export Fabric Topology icon
Show Zoning Library Icon
The Show Zoning Library icon (Figure 18) is available in both the Products
View and the Fabrics View. Click the Show Zoning Library icon to open the
Zoning Library dialog box.
Figure 18: Show Zoning Library icon
50 High Availability Fabric Manager User Guide
Page 51
Using the HAFM Window
Use this dialog box to perform the major tasks for configuring zoning on the
fabric:
■ Configure zone sets by combining zone members (attached nodes)
■ Configure zone sets by combining zones
■ Clear zones
■ Delete zones and zone sets
■ Import and export zone sets
■ Display zone properties
■ Copy zones and zone sets
■ Find zone members in zones
■ Find zones in zone sets
■ Display zone sets, zones, and zone members in the library
Refer to “Using the Zoning Library” on page 145 for details on zoning and the use
of this dialog box.
Layout Icons
In the Fabrics View, the Layout Icons icon (Figure 19) is available when the
Top olo gy tab is selected. Click the Layout Icons icon to arrange the icons in the
Top olo gy tab view area in the default layout, either circular or spring. To change
the original default layout (circular), choose the Layout Icons icon, and click
Spring.
Spring shortens the length of the ISLs in the Topo logy tab view area, and springs
the product icons closer together. Circular displays the fabric in a more spread out,
circular layout.
Figure 19: Layout Icons icon
51High Availability Fabric Manager User Guide
Page 52
Using the HAFM Window
Show View Port Icon
In the Fabrics View, the Show View Port icon (Figure 20) is available when the
Top olo gy tab is selected. Click the Show View Port icon to see a magnified view
of the entire fabric that is in the Top ol ogy tab view area.
Click inside the view port, and move the mouse in any direction to adjust what
you see in the Top olo gy tab view area. The view port makes navigation easier
when a large fabric is displayed in the Top ol og y tab view area.
Figure 20: Show View Port icon
Zoom In Icon
In the Fabrics View, the Zoom In icon (Figure 21) is available when the
Top olo gy tab is selected. Choose the Zoom In icon to increase the size of the
fabric elements. Return to the original size by choosing View > Zoom Default.
Figure 21: Zoom In icon
Zoom Out Icon
In the Fabrics View, the Zoom Out icon (Figure 22) is available when the
Top olo gy tab is selected. Choose the Zoom Out icon to decrease the size of the
fabric elements in the Topo lo gy tab view area. Return to the original size by
choosing View > Zoom Default.
Figure 22: Zoom Out icon
52 High Availability Fabric Manager User Guide
Page 53
Fit Topology in View Icon
In the Fabrics View, the Fit Topology in View icon (Figure 23) is available when
the Topo logy tab is selected. Choose the Fit Topology in View icon to display
the entire fabric in the Top ol ogy tab view area. Note that for larger fabrics, text
and icons may be difficult to see. Return to the original size by choosing View >
Zoom Default.
Figure 23: Fit Topology in View icon
Main Panel
The HAFM main panel contains two views, which are displayed by choosing
either the Products tab or the Fabrics tab.
Using the HAFM Window
Products View
When you first access the HAFM, the Products View displays, as shown in
Figure 24. To access the Products View from the Fabrics View, click the
Products tab.
53High Availability Fabric Manager User Guide
Page 54
Using the HAFM Window
Figure 24: Products View
The Products View provides a graphical overview of all the products that you can
manage and monitor through the HAFM. In a full-screen environment on an 800 x
600 resolution monitor, this panel displays up to 48 product icons.
Right-click a product icon or a blank part of the view to display a pop-up menu.
The options on the product icon menu enable you to administer the product for the
HAFM. The options on the menu available in the background part of the view
enable you to change product display options.
The Products View also provides access to the Product Manager application for
each displayed product. Double-click a product icon to display its Product
Manager application.
For a complete description of the Products View, refer to Chapter 4.
54 High Availability Fabric Manager User Guide
Page 55
Fabrics View
Using the HAFM Window
To access the Fabrics View, click the Fabrics tab. The Fabrics View displays, as
shown in Figure 25.
Figure 25: Fabrics View
The Fabrics View is divided into two panels. The left panel, the Fabric Tree,
contains an expandable list of fabrics, products in fabrics, and nodes connected to
products. The tree displays all fabrics currently known to the HAFM server.
The right panel is the view area. At the bottom of the view area are two tabs that
change the view of the fabric: the Topo log y tab and the Zone Set tab.
In the Top olo gy tab view area, right-click a product icon for a menu of options for
the particular product. Right-click a blank part of the view to display a menu of
options for the fabric.
In the Zone Set tab, the currently active zone set for fabrics that you chose in the
Fabric Tree is displayed in the view area.
For a complete description of the Fabrics View, refer to Chapter 5.
55High Availability Fabric Manager User Guide
Page 56
Using the HAFM Window
Status Bar
The products, fabrics, and HAFM status elements use the symbols in table Table 2
to indicate their operational state:
Table 2: Operational States and Symbols
Operational
Network communication is established. All products,
fabrics, and the server are operational and no
failures are indicated.
Degraded
At least one product, fabric, or the server under
management is operating in a degraded mode and
requires service. This condition typically occurs
when a redundant FRU fails and the backup FRU is
operational.
Failed
A product, fabric, or the server under management
has failed and requires immediate service.
Operational State Symbol
Unknown
The HAFM cannot determine product status because
of a network communication failure between the
product and the HAFM server, or because the
managed product or fabric is not responding. The
link may never have been established, or the link
may have malfunctioned.
Products Status
The product status box, labelled Products, indicates the operational state of the
most critical product status of all the products managed by the HAFM. To find
products that are causing the non-operational status, examine the product icons in
the Products View.
The colored icons indicate the product status:
■ A blinking red and yellow diamond means that the product has failed and
■ A yellow triangle means that the product is degraded, but is still performing as
requires immediate service.
designed.
56 High Availability Fabric Manager User Guide
Page 57
■ A green circle means that the product is fully operational.
■ A gray square means that the HAFM cannot determine product status.
■ Double-click the icon to display the product status. This log records
Fabrics Status
The fabrics status box, labelled Fabrics, indicates the operational state of the most
critical status of all the persisted fabrics known to the HAFM. To find the persisted
fabrics that are causing the non-operational status, examine the fabrics in the
Fabrics View.
The colored icons indicate the persisted fabric status:
■ A blinking red and yellow diamond means that the fabric has split into two or
Using the HAFM Window
information when managed products change status. Each entry displays the
date and time that the change occurred, the product network address, and the
new status, such as Unknown, Operational, Degraded, or Failed. For details,
refer to “High Availability Fabric Manger Product Status Log” on page 173.
more fabrics.
■ A yellow triangle means that all fabric connections are intact; however,
attention indicators appear on one or more ISLs in the To pol ogy tab for the
fabric.
■ A green circle means that the fabric is fully operational and no attention
indicators appear in an ISL in the Top olo gy tab for the fabric.
■ A gray square means that no information can be determined for the fabric.
Double-click the icon to display a fabric log. This log displays only if the fabric
has been persisted. This log reflects the time and nature of significant changes in
the managed fabric. Entries contain the date/time that the change took place, the
type of change, and a description of the change. For details, refer to “High
Availability Fabric Manger Product Status Log” on page 173.
57High Availability Fabric Manager User Guide
Page 58
Using the HAFM Window
HAFM Status
The HAFM status box indicates the operational state of the HAFM server into
which the HAFM is logged. Position the mouse cursor over the status box to
display one of the following messages in the text panel:
■ Server status is Operational. The server is fully operational. The status symbol
■ Server status is Degraded. The server is degraded and needs attention. The
■ Server status is Failed. The server has failed and requires immediate service.
■ Server status is Unknown. The server status cannot be determined. The status
Text Panel
The text panel gives additional information about a command when the mouse
moves over a tool-bar icon or over a menu item. This information is available even
if the Enable Fly Over Display option in the View menu is not checked.
is a green circle.
status symbol is a yellow triangle.
The status symbol is a red diamond.
symbol is a gray square.
58 High Availability Fabric Manager User Guide
Page 59
Using the Menu Bar
This chapter provides a description of the following High Availability Fabric
Manager menus on the menu bar:
■ Product
■ Fabrics
■ View
■ Configure
■ Logs
■ Maintenance
■ Help
Product
The Product menu displays options that are relevant to products.
3
New
When the Products tab in the main panel is selected, the New option is available
to display the New Product dialog box.
To identify a product to the HAFM and add its icon to the Products View, follow
the steps in “New Product” on page 90.
59High Availability Fabric Manager User Guide
Page 60
Using the Menu Bar
Open
Delete
The Open option is only available when a product icon is highlighted in either the
Products View or the Fabrics View.
To open the Product Manager for a product:
1. Click the product icon in either the Products View or Fabrics View to
highlight the icon.
2. Click the Product menu.
3. Click the Open option.
Refer to “Accessing a Product Manager” on page 94 for more information about
opening a Product Manager.
The Delete option is only available when the Products tab is selected.
To delete a product:
1. Click the product icon in the Products View to highlight the icon.
2. Click the Product menu.
3. Click the Delete option.
4. When a Warning dialog box displays asking if you want to remove the item
from the system, click Ye s .
The product icon is deleted from the Products View.
Caution: Deleting a product from the Products View removes all information
about the product from the system. This includes configuration information,
event logs, diagnostic information, and any other data maintained by the
corresponding Product Manager.
60 High Availability Fabric Manager User Guide
Page 61
Modify
Properties
Using the Menu Bar
The Modify option is only available when the Products tab is selected.
To open the Modify Network Address dialog box for a product:
1. Click a product icon in the Products View to highlight the icon.
2. Click the Product menu.
3. Click the Modify option.
The Modify Network Address dialog box displays.
4. Use this dialog box to modify the network address of the product. Refer to
“Modify” on page 92 for information about entering the network address.
The Properties icon is available in the Products View when you click a product
icon. Click the product icon and then click the Properties icon to display the
Properties dialog box for the selected product.
Logout
Exit
The Properties dialog box is also available in the Fabrics View when the
Top olo gy tab is selected. Click a product icon, then choose the Fabrics View.
Click the Properties icon to display the Properties dialog box for the selected
fabric.
Refer to “Properties” on page 93 for a description of the Product Properties
dialog box; refer to “Properties” on page 128 for a description of the Fabric
Properties dialog box.
Choose this option to log out of the current session, close the HAFM, and close
any open Product Managers. The HP StorageWorks HAFM Login dialog box
displays.
Choose this option to close the HAFM and any open Product Managers.
61High Availability Fabric Manager User Guide
Page 62
Using the Menu Bar
Fabrics
When the Fabrics tab is selected, the Fabrics menu is available; the Fabrics
menu is not available when the Products tab is selected. The Fabrics menu
displays options that are relevant to fabrics.
Rename
Choose this option to rename a Persistent Fabric. Until the fabric has been
persisted, this option is not available.
Choose this option to display the Rename Fabric dialog box. Enter a name in the
dialog box to display in the Fabric Tree and at the top of the Top ol og y and Zone
Set tabs.
Persist Fabric Topology
Choose this option to display the Persist Fabric dialog box. Enter a name for the
fabric, and click OK to “persist” the fabric. This saves a snapshot of the fabric’s
current configuration (switches, directors, and ISLs) that displays in the To pol ogy
tab. Visual indicators display in the Topo logy tab as products, and ISLs are
deleted or added to help you monitor the fabric’s status over time. This also
creates a Fabric Log (available from the Logs menu on the menu bar) that tracks
changes to the fabric over time. For details, refer to “Persistent Fabrics” on
page 113.
Unpersist Fabric Topology
Choosing this option displays a warning that the Fabric Log will be lost if the
fabric is unpersisted. Click Ye s to unpersist the fabric, and the current view of the
fabric displays in the tab’s view area without the fabric status indicators. The
name of the fabric in the Fabric Tree changes back to the fabric’s WWN. A fabric
status icon will not appear by the WWN.
Export Fabric Topology
Choose this option to export the current fabric topology into an XML-formatted
file. You can name the output file in the Export Fabric Topology dialog box that
this option displays.
62 High Availability Fabric Manager User Guide
Page 63
Show Route
Choose this option to display the Show Route dialog box. Use this dialog box to
view the path that Fibre Channel frames must take between two end devices in a
multiswitch fabric. Refer to “Show Route” on page 108 for the requirements to
show a route and how to interpret the display.
Hide Route
If a route has been displayed, the Hide Route option is available. Choose this
option to remove the route currently displayed in the Top ol og y tab view area.
Show Zone Members
Choose this option to display the Show Zone Members dialog box. This dialog
box displays a tree of all products in the selected fabric in the left panel. Click an
icon by a product to expand the list of attached nodes. Choose a node, and the
WWNs or nicknames (if configured) of nodes that are members of the same zone
as the selected node display in the right panel. Refer to Chapter 6 for details on
zoning and zoning configuration.
Using the Menu Bar
Show View Port
Click the check box to remove or display a check mark. With a check mark
displayed, the View Port secondary window displays. Click inside the window
and move the mouse to adjust the view of the fabric in the tab’s view area.
Click the check box by the menu option when it contains a check mark to remove
the check mark and remove the View Port secondary window from the screen.
Show Fabric Tree
Click the check box to display a check mark. With a check mark displayed, the
Fabric Tree displays on the left side of the Fabrics tab.
Click the check box when it contains a check mark to remove the check mark; the
Fabric Tree is removed from the left side of the Fabrics tab.
63High Availability Fabric Manager User Guide
Page 64
Using the Menu Bar
Enterprise Fabric Mode
This option is active only if the SANtegrity feature key is installed on each switch
in the fabric. For general instructions on enabling feature keys, refer to Chapter 3
in the appropriate Product Manager user manual for your switch or director
product. Choose this option to display the Enterprise Fabric Mode dialog box.
Use this dialog box to enable and disable Enterprise Fabric mode. Activating
Enterprise Fabric Mode automatically enables the following features and
operating parameters:
■ Fabric Binding — SANtegrity feature.
■ Switch Binding — SANtegrity feature.
■ Rerouting Delay — Parameter available through the Configure Switch
Parameters dialog box. Refer to “Enable/Disable and Online State
Functions” on page 183 for more information.
■ Domain RSCNs — Parameter available through the Configure Switch
Parameters dialog box. Refer to “Enable/Disable and Online State
Functions” on page 183 for more information.
■ Insistent Domain ID — Parameter available through the Configure Switch
For complete instructions on using this option and the SANtegrity features, refer
to “Enterprise Fabric Mode” on page 189.
Fabric Binding
This option is only active if the SANtegrity feature key is installed on each in the
fabric. For general instructions on enabling feature keys, refer to Chapter 3 in the
Product Manager user manual for your switch or director product. Once
SANtegrity is installed and enabled, you can configure fabric binding for a
specific fabric by selecting the fabric in Fabrics tab, then selecting Fabric
Binding option from the Fabrics menu. This displays the Fabric Binding dialog
box. Use this dialog box to enable and disable Fabric Binding and restrict
unspecified switches from attaching to the selected fabric.
For complete instructions on using this option, refer to “Fabric Binding” on
page 183.
Parameters dialog box. Refer to “Enable/Disable and Online State
Functions” on page 183 for more information.
64 High Availability Fabric Manager User Guide
Page 65
View
The View menu displays options that alter the view of application components.
User Sessions
Choose the User Sessions option to display the User Sessions dialog box
(Figure 26). This dialog box lists all the current management sessions, including
the name of each user connection, the network address of the user, and the time
when the connection was established. Click Close when you have finished
reviewing the sessions.
Figure 26: User Sessions dialog box
Using the Menu Bar
Zoom
Choose the In and Out options from the Zoom option to increase and decrease the
size of fabric elements. Return to the original view by selecting the Default
option.
Choose the Fit In View option to display the entire fabric in the view area. Note
that for larger fabrics, text and icons may be difficult to see. Choose Default from
the Zoom menu to return to the original view, or use the Out option to selectively
reduce the view.
65High Availability Fabric Manager User Guide
Page 66
Using the Menu Bar
Arrange Icons
The Arrange Icons option is available only when the Products tab is selected.
Choose the by Name option from the Arrange Icons option to sort the product
icons alphabetically by product name in the Products tab view area.
Choose the by Severity option from the Arrange Icons option to sort the product
icons by status in the Products tab view area. The products are displayed from
most to least critical: failed products, products with degraded status, and products
with unknown operational status. Within these groupings, icons appear
alphabetically by their network address (IP address or DNS host name) or product
name, depending on the selected display option.
Layout Icons
Choose the Spring option from the Layout Icons option to shorten the length of
the ISLs in the view area and “spring in” the product icons closer together. Click
the Circular option to display the fabric in the more spread-out, circular layout.
Center in Topology
Choose a product icon in the To pol ogy tab view area, and then select this option
to center the product and surrounding portion of the fabric in the view area.
Choosing this option without selecting an icon centers the entire fabric in the view
area.
Clear ISL Alert
Choose an ISL in the Top ol ogy tab view area, and then choose this option to clear
the alert. This option is not available when there is no alert for the currently
selected ISL. An alert only occurs in persisted fabrics when an ISL is removed
from the fabric.
Clear All ISL Alerts
Choose this option to clear all ISL alerts, as shown in the Topology View. This
option is not available when there are no ISL alerts. An alert only occurs in
persisted fabrics when an ISL is removed from the fabric.
66 High Availability Fabric Manager User Guide
Page 67
Enable Fly-Over Display
When the Enable Fly-Over Display option is enabled, move the cursor over
fabric products in the tab’s view area to display the product identification under
the product icon. Moving the cursor over the ISL lines between products displays
the actual number of ISLs between the products.
Disable the fly-over display by selecting and removing the check mark by the
Enable Fly-Over Display option.
Configure
The Configure menu displays options for managing the fabric.
Users
To grant access to the HAFM, the administrator can assign user names,
passwords, and access rights to users. The administrator can configure up to
sixteen users in the HAFM, but no more than nine users (eight remote and one the
local user) can simultaneously access one HAFM server.
Using the Menu Bar
User Rights
Specific levels of access, called “user rights,” are assigned to Product Manager
users by the HAFM system administrator in the HAFM application.
Note: The HAFM system administrator has view rights only while operating in a
specific
administrator has view rights only while operating in the
Product Manager
application. Conversely, a Product Manager’s product
HAFM
application.
There are five levels of access or “user rights” that can be assigned to specific
users:
■ System Administrator
■ Product Administrator
■ Maintenance
■ Operator
■ View
67High Availability Fabric Manager User Guide
Page 68
Using the Menu Bar
By default, all users have View rights, which allow the viewing of configurations,
but not the changing of configurations. View rights cannot be removed.
The users with System Administrator rights can make all control and
configuration changes implemented through the HAFM application.
User Rights for Specific Functions
Tabl e 3 lists the specific functions available to HAFM users who have been
assigned the user rights of System Administrator, Product Administrator,
Maintenance, or Operator. If a user’s assigned rights do not include the right to
perform a specific operation, a Not Authorized message displays when the
operation is attempted.
Table 3: User Rights for HAFM Functions
System
Rights
Clear Logs X
Configure
Call-Home
Event
Notification
Configure
E-Mail
Configure
Ethernet
Events
Configure
Nicknames
Configure
Product
Configure
Session
Options
Configure
SNMP
Administrator
Product
Administrator
XX
XX
XX
X
X
X
X
Maintenance Operator
Configure
User
Configure
Zoning
68 High Availability Fabric Manager User Guide
X
X
Page 69
Table 3: User Rights for HAFM Functions (Continued)
Using the Menu Bar
System
Rights
Display
Options
Enterprise
Fabric Mode
Export Fabric
Topology
Export Logs X
Fabric Zoom X
Persist Fabric X
Remote
Notification
Show Route X
Show Zone X
View Logs X X
Administrator
XXX
X
X
XX
Open the Configure User Dialog Box
Product
Administrator
Maintenance Operator
1. Choose Configure > Users.
The Configure Users dialog box displays (Figure 27).
2. Use the appropriate buttons along the bottom of the dialog box to administer
users.
Figure 27: Configure Users dialog box
69High Availability Fabric Manager User Guide
Page 70
Using the Menu Bar
Add New User
Use the New User dialog box (Figure 28) to create new users for the HAFM.
Assign a user name, a password, and certain permissions to each user configured.
1. Choose Configure > Users.
The Configure Users dialog box displays (Figure 27 on page 69).
2. Click New.
The New User dialog box displays (Figure 28).
Figure 28: New User dialog box
3. In the User name field, enter a user name of 16 characters or less.
The user name is case-sensitive.
4. In the Password box, enter a password of 16 characters or less for the new
user.
The password is case-sensitive.
5. In the Confirm Password box, reenter the password exactly as you entered it
in the Password box.
70 High Availability Fabric Manager User Guide
Page 71
6. (Optional) In the Description field, provide a description of the user (such as
employee number, department, and function).
Assign rights to the new user using the Add and Remove buttons. Select a
right in the Rights Available list, and click Add to display the right in the
Rights Granted list. For a discussion of user rights, refer to “Managing
Remote Access to the HAFM Server” on page 36.
By default, view rights are granted to all users.
7. Click OK to activate the administration and close the New User dialog box.
8. Click Close to close the Configure Users dialog box.
Open the Modify User Dialog Box
1. Choose Configure > Users.
The Configure Users dialog box displays (Figure 27 on page 69).
2. In the User column, select the user whose parameters are to be changed.
3. Click Modify.
Using the Menu Bar
The Modify User dialog box displays, with the name of the selected user in
the User name field (Figure 29).
Figure 29: Modify User dialog box
71High Availability Fabric Manager User Guide
Page 72
Using the Menu Bar
Modify User Parameters
The Modify User dialog box (Figure 29) is used to change the password,
description, and rights for those users already configured in the HAFM.
1. In the Password field, delete the current password and enter another
password of 16 characters or less. (The password is case-sensitive.)
2. In the Confirm Password field, reenter the new password exactly as it was
entered in the Password field.
3. (Optional) In the Description field, change the description of the user (such
as employee number, department, and function) as necessary.
4. Re-assign rights to the user, using the Add and Remove buttons to display the
right in the Rights Granted list. Refer to “User Rights” on page 67 for
definitions of user rights.
By default, view rights are granted to all users.
5. Click OK to activate the administration and close the dialog box.
6. Click Close to close the Configure Users dialog box.
Delete User
Delete users from the system through the Configure Users dialog box (Figure 27
on page 69).
1. From the Configure menu, choose Users.
The Configure Users dialog box displays (Figure 27 on page 69).
2. In the User column, select the user to be deleted.
3. Click Delete.
A Warning dialog box opens confirming the deletion (Figure 30).
Figure 30: Delete User Warning
4. Click Ye s to delete the user from the HAFM.
5. Click Close to close the Configure Users dialog box.
72 High Availability Fabric Manager User Guide
Page 73
Nicknames
Nicknames replace the standard 8-byte World Wide Names of switches, directors,
and attached nodes. By setting a nickname, you can assign a more meaningful
name than a WWN. When you assign a nickname, the nickname replaces the
World Wide Name in the HAFM views.
Note: Nicknames may have a maximum of 32 characters.
Adding Nicknames
To add a nickname:
1. Choose Configure > Nicknames.
The Configure Nicknames dialog box displays with existing nicknames that
have already been configured (Figure 31).
Using the Menu Bar
Figure 31: Configure Nicknames dialog box
The left column in the dialog box shows the selected WWN, while the right
column shows the assigned nickname.
Note: If no nicknames are configured, the World Wide Name and Nickname
columns are blank.
73High Availability Fabric Manager User Guide
Page 74
Using the Menu Bar
2. Click New to add a new nickname.
The Add Nickname dialog box displays (Figure 32).
Figure 32: Add Nickname dialog box (Detached Node)
3. To add a node or switch that is currently managed by HAFM:
a. Click Select World Wide Name from List, then click a switch or node
WWN from the list. If nodes are attached to a switch, the switch WWN
will be next to a folder. To expand a list of node WWNs attached to a
switch, click the plus sign by the folder.
b. Click OK.
The World Wide Name now appears in the World Wide Name column
of the Configure Nicknames dialog box.
Note: You cannot assign more than one nickname to the same World Wide Name.
c. In the Nickname column, enter the nickname that you want to assign.
d. Click OK to close the Configure Nicknames dialog box.
4. To add a node or switch not currently managed by HAFM:
a. Click Manually type in World Wide Name.
b. Click OK.
c. A blank row is added to the list in the Configure Nicknames dialog box.
d. In the World Wide Name column, enter the 8-byte World Wide Name, in
the standard format. For example, 10:00:08:00:88:40:20:B1
e. In the right column, enter the nickname you want to assign.
f. Click OK to close the Configure Nicknames dialog box.
74 High Availability Fabric Manager User Guide
Page 75
Deleting Nicknames
To delete a nickname:
1. In the Configure Nicknames dialog box, select the nickname that you want
to delete (Figure 31 on page 73).
2. Click Delete.
3. Click Ye s to confirm that you want to delete the nickname.
4. Click OK to close the Configure Nicknames dialog box.
Exporting Nicknames
Export a list of WWNs and their nicknames to a file (*.properties extension) by
clicking the Export button at the bottom of the Configure Nicknames dialog
box. You can then import this file into an HAFM application on another HAFM
server using the Import button at the bottom of the Configure Nicknames dialog
box.
To export nicknames:
Using the Menu Bar
1. Click the Export button to display the Export Nicknames dialog box
(Figure 33).
Figure 33: Export Nicknames Dialog Box
2. Export the file to a specific location by clicking the navigation buttons and
drop-down list at the top of the Export Nicknames dialog box and by
double-clicking folders in the display area.
3. Enter the file name in the File Name field.
4. Click Export. The *.properties file is saved to the specified location.
75High Availability Fabric Manager User Guide
Page 76
Using the Menu Bar
Importing Nicknames
Import a list of WWNs and their nicknames from a file with the following
extensions into the HAFM by clicking the Import button at the bottom of the
Configure Nicknames dialog box:
■ *.properties file — This file is exported from the HAFM using the Export
button at the bottom of the Configure Nicknames dialog box. The file
contains a list of the 16-digit World Wide Names and their nicknames that
were configured through the Configure Nicknames dialog box.
■ *.txt — This file can be created for importing nicknames and their WWNs
into the HAFM and populating the Configure Nicknames dialog box.
WWNs and nicknames should be listed in a text file in the following format
(where x's are digits in the 16-digit WWN):
To import nicknames:
xx:xx:xx:xx:xx:xx:xx:xx = nickname
xx:xx:xx:xx:xx:xx:xx:xx = nickname
and so forth.
1. Click the Import button to display the Import Nicknames dialog box
Figure 34).
Figure 34: Import Nicknames Dialog Box
2. Click on the navigation buttons and drop-down list at the top of the Import
Nicknames dialog box and double-click folders in the display area to locate
the nicknames file.
76 High Availability Fabric Manager User Guide
Page 77
Sessions
Using the Menu Bar
3. Click the file or enter the file name in the File Name field.
4. Click Import. The WWNs and nicknames in the file should display in the
Configure Nicknames dialog box.
Sessions allow access to the HAFM server from all workstations or only from
specific remote workstations through the Configure Sessions dialog box. A
maximum of nine concurrent users (eight remote and one local HAFM server
user) can log in to the HAFM application.
1. Choose Configure > Sessions.
The Configure Sessions dialog box (Figure 35) displays.
Figure 35: Configure Sessions dialog box
2. Click the Allow remote management sessions check box (a check mark
displays) to allow remote access from remote workstations. If you do not
choose this option, remote access is blocked even if you provide access
information in other parts of this dialog box. Use this check box as a method
to prohibit remote access while saving the current access administration in
this dialog box.
Note: If this option is not selected, existing sessions will not terminate, but future
sessions will be prohibited.
77High Availability Fabric Manager User Guide
Page 78
Using the Menu Bar
3. Select the number of remote management sessions to be allowed from the
Maximum number of remote management sessions list.
4. If you do not want to restrict access to the HAFM, click Allow any network
address to connect and click OK.
5. If you want to restrict access to an address:
a. Click Restrict access to the following network addresses.
b. Click Add. The New Network Address dialog box displays.
c. Enter the IP address of the remote workstation to be authorized in the
Network Address field.
d. Click OK. The New Network Address dialog box closes.
e. Click OK on the Configure Sessions dialog box.
6. If you want to remove the access currently granted to a remote workstation:
a. Click Restrict access to the following network addresses. The IP
addresses display in the Network Address Restrictions area.
b. Select the address to be deleted.
SNMP Agent
c. Click Remove.
d. Click Ye s in the Warning dialog box.
e. Click OK to save the required changes.
Choose the SNMP Agent option to open the Configure SNMP dialog box that
allows you to configure the SNMP agent that runs on the HAFM server and
implements the Fibre Alliance MIB.
The HAFM server software contains a simple network management protocol
(SNMP) agent component. The HAFM SNMP agent instruments the objects
defined in the Fibre Channel Management (FCMGMT) Management Information
Base (MIB) Version 2.2 and a small number of objects defined in MIB II.
Through instrumentation of these MIB objects, the agent acts as a translator of
information stored on the HAFM server and attached directors into a form usable
by SNMP management stations such as HP OpenView. Refer to the HP
StorageWorks SNMP Reference Guide for Directors and Edge Switches.
Use these steps to configure the SNMP agent that runs on the HAFM server and
implements the Fibre Alliance MIB.
78 High Availability Fabric Manager User Guide
Page 79
Using the Menu Bar
You can configure network addresses and community names for up to 12 SNMP
trap recipients, which receive messages through SNMP for specific events that
occur on the HAFM server.
When configuring SNMP, you can configure just the community names of valid
SNMP management stations. In this case, you do not need to fill in the Trap
Recipient column or the UDP Port Number column.
To configure and enable SNMP traps, use the following steps:
1. Choose Configure > SNMP Agent.
The Configure SNMP dialog box displays (Figure 36).
Figure 36: Configure SNMP dialog box
2. Click in the Community Name column and enter the SNMP community
name for a trap recipient. This name defines the community name that SNMP
managers use for reading variables from or writing variables to the HAFM
server. This name must be 64 characters or less.
To modify existing fields in this dialog box, click in the field and enter your
changes.
3. Select the Write Authorization check box to grant or deny the configured
SNMP management station write authorization. When this option is selected,
an administrator at an SNMP management station has write permissions for
writable MIB objects on the HAFM server.
4. Click in the Trap Recipient column, and enter the IP address or DNS host
name for a trap recipient (SNMP management station). This must be 64
characters or less.
79High Availability Fabric Manager User Guide
Page 80
Using the Menu Bar
5. If you want the trap recipient to be an active recipient, click the check box in
the Active column to add a check mark. If you want to configure the recipient
and then activate the recipient at a later time, leave the check box empty.
6. To override the default User Datagram Protocol (UDP) port number for a trap
recipient with any legal, decimal UDP number, enter the UDP port number in
the UDP Port Number column.
7. To enable or disable the SNMP agent to capture events, select the Enable
SNMP Agent on server check box.
8. To enable or disable authorization traps to be sent when unauthorized
management stations try to access SNMP information through the HAFM
server, select the Enable Authorization Traps check box.
9. Click OK to accept and activate the data.
Activate Zone Set
Opens the Activate Zone Set dialog box that allows you to select and activate
configured zone sets. Only one zone set in the fabric can be active at one time.
Activating a zone set replaces the current active zone set with the one you
activate.
The dialog box displays all zone sets currently configured for the fabric. You can
click Next to display additional screens that help you through the activation
process or Previous to view previous screens. Refer to “Activate Zone Sets” on
page 162 for details on zoning and use of this dialog box.
Zoning Library
Opens the Zoning Library dialog box. Use this dialog box to perform the major
tasks for configuring zoning on the fabric:
■ Configure zone sets by combining zone members (attached nodes)
■ Configure zone sets by combining zones
■ Clear zones
■ Delete zones and zone sets
■ Import and export zone sets
■ Display zone and zone set properties
■ Copy zones and zone sets
■ Find zone members in zones
80 High Availability Fabric Manager User Guide
Page 81
■ Find zones in zone sets
■ Display zone sets, zones, and zone members in library
Refer to “Using the Zoning Library” on page 145 for details on zoning and use of
this dialog box.
Advanced Zoning
Choose this option to open a secondary menu with the following options:
■ Deactivate Zone Set — Click this option to display the Deactivate Zone Set
dialog box. Use this dialog box to deactivate the current active zone set. Click
Start to begin the process. Messages display to indicate deactivation status.
When the Close button displays, you can close the dialog box. Refer to
“Default Zone” on page 141 for details on zoning and use of this dialog box.
■ Configure Default Zone — Click this option to display the Configure
Default Zone dialog box. Use this dialog box to enable and disable the
default zone. Click Start to begin the process. Messages display to indicate
process status. When the Close button displays, you can close the dialog box.
Refer to “Default Zone” on page 141 for details on zoning and use of this
dialog box.
Using the Menu Bar
Logs
Audit Log
Sorting log entries is the same for all logs. Sort log entries in columns by clicking
a column heading. For columns that contain text, the columns are sorted
alphabetically. For columns with data, such as date and time, the columns are
sorted by date. The default view for all logs is to show the most current event
based on date and time when the event occurred.
A down arrow in the header indicates sorting in descending order. An up arrow
indicates sorting in ascending order. Click once to sort. Click again to reverse the
sort.
Choose this option to display the Audit Log, which contains a history of user
actions performed through the HAFM. Refer to “High Availability Fabric
Manager Audit Log” on page 169 for a detailed description of the Audit Log.
81High Availability Fabric Manager User Guide
Page 82
Using the Menu Bar
Event Log
Choose this option to display the Event Log, which lists errors related to HAFM
operation. Refer to “High Availability Fabric Manager Event Log” on page 170
for a detailed description of the Event Log.
Session Log
Choose this option to display the Session Log, which lists the users who have
logged in and logged out of the HAFM server. Refer to “High Availability Fabric
Manager Session Log” on page 172 for a detailed description of the Session Log.
Product Status Log
Choose this option to display the Product Status Log, which records the
operational status changes of each managed product. Refer to “High Availability
Fabric Manger Product Status Log” on page 173 for a detailed description of the
Product Status Log.
Fabric Log
Choose this option to display the Fabric Log, which records all the significant
changes that have occurred in the managed fabric. This only displays if a fabric
was persisted. Refer to “High Availability Fabric Manager Fabric Log” on
page 174 for a detailed description of the Fabric Log.
Maintenance
The Maintenance menu provides tools for setting remote communication
options.
Configure E-Mail
Configure up to five e-mail addresses for administrators or others who should be
notified of significant product events. The events that initiate e-mail notification
are specific to each managed product. Some examples of events that initiate
e-mail notification are:
■ Change in system operational status.
■ Problem detection, such as a failed field-replaceable unit (FRU).
82 High Availability Fabric Manager User Guide
Page 83
Using the Menu Bar
■ Problem correction.
■ State change that requires user attention or a report to product administrator or
service representative.
To display and modify e-mail notification:
1. Choose Maintenance > Configure E-Mail.
The Configure E-Mail dialog box displays (Figure 37).
Figure 37: Configure E-Mail dialog box
2. Enter an IP address or DNS host name for your SMTP server.
3. Enter up to five e-mail addresses for personnel who should be notified
automatically of system events.
4. To enable or disable e-mail notification, choose the Enable E-Mail Event
Notification check box.
5. This will enable e-mail notification for all Product Managers if e-mail
notification is enabled through each Product Manager’s Enable E-Mail
Notification option. If the Enable E-Mail Event Notification check box is
not selected, e-mail notification is disabled for all Product Managers.
6. Click OK to confirm the information that you have entered.
The SMTP server address and e-mail addresses can be up to 64 characters.
83High Availability Fabric Manager User Guide
Page 84
Using the Menu Bar
Test Remote Notification
Use the test remote notification feature to test the call-home feature and the
current configuration parameters for the e-mail notification feature.
■ To use this feature you must first configure telephone numbers and other
information for the Call-Home feature. In LAN-based environments, call
home event notification requires installation of Proactive Service software.
This service is offered at no additional charge for susbsystems covered under
an on-site warranty or an on-site storage hardware support contract. To
register or order Proactive Service software, contact your HP Customer
Service representative.
■ Configure Call-Home event notification through the HAFM Maintenance
menu (refer to “Configure Call-Home Event Notification” on page 86).
■ Configure e-mail through the HAFM Maintenance menu (refer to
“Configure E-Mail” on page 82).
■ Enable Call-Home event notification through the Product Manager
Maintenance menu.
Once you have run the test, you should contact the call-home recipient or the
e-mail recipient to confirm that a message was received.
1. Choose Maintenance > Test Remote Notification.
The Test Remote Notification dialog box displays (Figure 38).
Figure 38: Test Remote Notification dialog box
You can check remote notification for one or both remote communication
methods.
2. To test the call-home feature, click the Call Home check box.
3. To test the e-mail notification feature, click the E-Mail check box.
84 High Availability Fabric Manager User Guide
Page 85
4. Click Send Test.
A message box displays indicating that the test was initiated (Figure 39).
Figure 39: Results of Remote Notification Test
5. Click OK to close the message box.
Configure Ethernet Events
An Ethernet event occurs when the Ethernet link between the HAFM server and
the managed product is dropped. You can configure Ethernet events for all
managed products and set a specific time interval for an event to be generated
after the communication drops.
1. Choose Maintenance > Configure Ethernet Events.
Using the Menu Bar
The Configure Ethernet Events dialog box displays (Figure 40).
Figure 40: Configure Ethernet Events dialog box
2. To enable Ethernet events, click the Enable ethernet events check box.
3. To change the default timeout of 30 minutes, enter a new value in the
Ethernet timeout field. The value must be between 10 and 120.
4. Click OK to accept and activate the data.
If e-mail notification is also enabled, an e-mail will be sent if the HAFM cannot
communicate with a product.
If call-home notification is also enabled, a call-home notification will be
generated if the HAFM cannot communicate with a product.
85High Availability Fabric Manager User Guide
Page 86
Using the Menu Bar
Configure Call-Home Event Notification
Call-home notification, which you configure for each product through the Product
Manager, enables the HAFM server to automatically contact a support center to
report system problems. The support center server accepts calls from the HAFM
server, logs reported events, and notifies support center representatives.
To use this feature, you must first configure telephone numbers and other
information for the modem-based call-home feature through the Windows dial-up
networking application. Refer to the HAFM server installation guide for details.
To enable and disable call-home notification for system problems, use the
following procedure:
1. Choose Maintenance > Enable Call Home Event Notification.
The Enable Call Home Event Notification dialog box displays.
2. Check the Enable Call Home Event Notification check box to enable the
feature.
3. To test call-home notification, click Send Test; otherwise, click OK.
Help
Note that after you enable call-home in the HAFM, you must enable the feature
for each specific switch or product that will use this feature in the Product
Manager application for that product.
The Help menu provides access to two options:
■ Contents — Choose this option to open the HAFM Online Help window. The
Contents, Index, and Glossary items in the left frame of the Help window are
hyperlinked to topic text and graphics in the right frame.
■ About — Choose this option to display version and copyright information for
the HAFM application.
86 High Availability Fabric Manager User Guide
Page 87
Using the Products View
This chapter provides information to help you use features in the Products tab.
Overview
Display the Products View by clicking the Products tab on the High Availability
Fabric Manager window. This is the default tab for the HAFM. It displays icons of
all products, such as switches and directors, that you can manage through the
HAFM and Product Manager applications.
Figure 41 illustrates the Products tab displayed in the HAFM window.
4
Figure 41: Products View
87High Availability Fabric Manager User Guide
Page 88
Using the Products View
Product Icon Display
The Products View can display up to 48 product icons. Use the scroll bar to
display any icons that are out of view.
The view in Figure 41 on page 87 displays director and edge switch product icons.
You can also determine the product represented by the icon by right-clicking the
icon and choosing Properties or double clicking the icon to display the product’s
HAFM Properties dialog box. When the dialog box displays, verify the product
listed in the Product Type field.
The icon in Figure 42 is an icon for the Director 2/64.
Figure 42: Director 2/64 Product icon
Icon Description
Information in each product icon includes:
■ Product data speed setting (upper left corner). This speed, either 1 or 2
■ Attention indicator (upper right corner). A yellow triangle in the upper right
■ Port count. The port count displayed is the maximum number of ports for the
Gb/sec, is configured through the Product Manager application for a specific
director. Switches have 1 or 2 GB/sec speeds that you cannot configure.
corner means that product requires attention. Open the Product Manager
application for the director by double-clicking on the icon to find out more
information.
product, not the enabled number of ports.
88 High Availability Fabric Manager User Guide
Page 89
Using the Products View
■ Status indicator. This is the colored symbol behind the product’s illustration
in the icon.
— A blinking red and yellow diamond means that the product has failed and
requires immediate service.
— A yellow triangle means that the product is degraded, but is still
performing as designed.
— A green circle means that the product is fully operational.
— A gray square means that the HAFM cannot determine product status.
If a status symbol does not display behind the product, the product is not
managed by the HAFM server to which you are logged in.
Either the product name or network address, WWN, domain ID, or nickname (if
configured) displays at the bottom of the icon. Select the display through Display
Options in the view’s right-click pop-up menu from the drop-down menu on the
tool bar. Refer to “View Pop-Up Menu” in the next section for details.
■ Product Name — Select this option to display the product’s name in the icon
label. Change a product’s name through the Product Manager application.
Refer to your Product Manager user manual for instructions.
■ Network Address — Select this option to display the product’s IP address or
DNS (domain name server) host name in the icon label. Configure network
addresses through the New Product dialog box.
■ World Wide Name — Select this option to display the product’s 8-byte
WWN.
■ Domain ID — Select this option to display the product’s domain
identification number (1-31) assigned by the fabric.
■ Nickname — Select this option to display the nickname, if configured
through the Configure Nicknames dialog box (Configure menu on menu
bar). If the nickname is not configured, the WWN displays instead.
Note: If the product name displays inside the icon, moving the cursor over the icon
displays the network address below the icon. If the network address displays inside the
icon, moving the cursor over the icon displays the product name below the icon.
The most critical status reflected by a product in the view is also reflected in the
Products status bar in the left corner of the HAFM status bar. For example, if a
product is degraded, a yellow triangle displays in the status bar.
89High Availability Fabric Manager User Guide
Page 90
Using the Products View
View Context Menus
Two pop-up menus are available by right-clicking in the view. One is available
when you right-click the view, away from a product icon, and the other when you
right-click a product icon. Refer to “Product Icon Pop-Up Menu” on page 92.
View Pop-Up Menu
The pop-up menu that displays when you right-click the view area (away from a
product icon) enables you to add products, change product icon labels, and sort
product icons in the view. Use the following procedures to use these menu
options.
New Product
Choose this option to display the New Product dialog box. Use this dialog box to
identify a product to the HAFM and add its icon to the Product View.
Figure 43: New Product dialog box
1. Enter a valid IP address or domain name server (DNS) host name in the
Network Address field. A valid IP address is in the form nnn.nnn.nnn.nnn,
where nnn is a decimal in the range 0-255.
2. Select the product type from the Product Type list.
3. Click OK.
A new icon for the product displays in the Products View.
Note: You can also choose the New option while in the Products View from the
Product menu on the menu bar at the top of the HAFM window.
90 High Availability Fabric Manager User Guide
Page 91
Display Options
This option displays additional options for displaying the label beneath the icon.
■ Product Name — Choose this option to display the product’s name in the
■ Network Address — Choose this option to display the product’s IP address
■ World Wide Name — Select this option to display the product’s 8-byte
■ Domain ID — Select this option to display the product’s domain
■ Nickname — Select this option to display the nickname, if configured
Using the Products View
icon label. Change a product’s name through the Product Manager
application. Refer to the Product Manager user guide for your switch or
director model for instructions.
or DNS (domain name server) host name in the icon label. Configure network
addresses through the New Product dialog box.
WWN.
identification number (1-31) assigned by the fabric.
through the Configure Nicknames dialog box (Configure menu on menu
bar). If the nickname is not configured, the WWN displays instead.
Sort Options
This option displays additional options for displaying product icons.
■ By Name — Arrange icons alphabetically, by product name.
■ By Severity — (Default). Arrange icons according to the product’s operating
status. Failed products appear first, followed by products with degraded, then
unknown, then fully operational status. Within these groupings, icons appear
alphabetically by their network address (IP address or DNS host name) or
product name, depending on the selected display option.
91High Availability Fabric Manager User Guide
Page 92
Using the Products View
Product Icon Pop-Up Menu
Access a menu for the product icon by right-clicking the icon.
Open
Choose this option to open the Product Manager for the selected product. Refer to
“Accessing a Product Manager” on page 94 for more information.
Modify
Choose this option to display the Modify Network Address dialog box. Use this
dialog box to modify the network address.
To modify existing product properties, use the following steps:
1. In the Products View, right-click a product icon for which you want to
change administration and choose Modify.
The Modify Network Address dialog box displays (Figure 44). This dialog
box contains the network address of the product.
Delete
Figure 44: Modify Network Address dialog box
2. Change the address in the Network Address field.
3. Click OK.
1. Choose this option to delete the product from the Products View.
2. When a Warning dialog box displays asking if you want to remove the item
from the system, click Ye s .
The product icon is deleted from the Products View.
Caution: Deleting a product from the Products View removes all information
about the product from the system. This includes configuration information,
event logs, diagnostic information, and any other data maintained by the
corresponding Product Manager.
92 High Availability Fabric Manager User Guide
Page 93
Properties
Using the Products View
Click this option to display the product’s Properties dialog box, which lists the
product name, location, contact person, description, product type, network
address, and operational status for the product. The product name, location,
contact person, and description are configured through the Product Manager.
Refer to the Product Manager user guide for your switch or director for
instructions. The network address is configured in the New Product dialog box in
the HAFM.
You can display product properties through the Products View. To display
information about a managed product:
1. Right-click a product’s icon in the Products View and choose Properties.
The product’s Properties dialog box displays (Figure 45).
Figure 45: Product Properties dialog box
The switch or director Properties dialog box displays information about a product
managed by the HAFM including the following:
■ Name of the product as configured through the Configure Identification
dialog box in the Product Manager application.
■ Location of the product as configured through the Configure Identification
dialog box in the Product Manager application.
■ Contact person for the product as configured through the Configure
Identification dialog box in the Product Manager application.
■ Description of the product as configured through the Configure
Identification dialog box in the Product Manager application.
93High Availability Fabric Manager User Guide
Page 94
Using the Products View
■ Product type, for example “Edge-32,” as configured through the HAFM New
Product dialog box.
■ Network address as configured through the HAFM New Product dialog box.
■ Current product operational status:
— Operational — Product is fully operational.
— Degraded — Product needs attention. Typically, this displays when a
redundant FRU fails, but the product is still performing as designed.
— Failed — Product needs immediate attention.
— Unknown — The HAFM cannot determine product status because of a
network communication failure between the product and the HAFM
server, or because the managed product is not responding.
Accessing a Product Manager
There are three ways to access a product’s Product Manager through the Products
View.
■ Double-click the product icon.
■ Right-click the product icon and choose Open.
■ Click a product icon to select it, then click the Open Product icon from the
tool bar.
The Product Manager window displays (Figure 46).
94 High Availability Fabric Manager User Guide
Page 95
Using the Products View
Figure 46: Director 2/64 Product Manager window
The Product Manager provides several views for managing and monitoring
individual Fibre Channel devices, including the Hardware, Node List, Port List,
Performance, and FRU List Views. Through the Product Manager Hardware
View, for example, you can determine status and control operation of individual
hardware components.
Through a Product Manager, you can perform the following tasks for the product:
■ Configure the device name, location, description, and contact person that is
displayed in application panels and dialog boxes.
■ Monitor operational status of the product and its hardware components.
■ Control fiber optic port operation.
■ Determine port performance.
■ Control the system error indicator light emitting diode (LED) and beaconing
operation for other product LEDs.
■ Enable an initial program load (IPL).
95High Availability Fabric Manager User Guide
Page 96
Using the Products View
■ Download firmware.
■ Perform other configuration and monitoring tasks specific to the product.
Note: A maximum of eight remote users (in addition to the local HAFM server user)
can concurrently access Product Managers for a specific product.
The HAFM window is still available as a separate window when a Product
Manager is open. You can drag the Product Manager window away from the
HAFM window and view both on your desktop. You can also minimize each
window.
To return to the HAFM, choose Close from the Close menu in the Product
Manager.
Refer to the appropriate Product Manager user guide for your switch or director
model for information on using the Product Manager.
Available Tool Bar Options
The following options are enabled on the tool bar at the top of the HAFM window
when you select a product in the view to select it. For information on tool bar
options that are not enabled, refer to “Tool Bar” on page 47.
■ New Product — This performs the same function as the New option in the
view pop-up menu by adding a managed product to the HAFM. Refer to
“New Product” on page 90 for details.
■ Open Product — This opens the Product Manager application for the product.
Refer to “Accessing a Product Manager” on page 94 for details.
■ Properties — This opens the Properties dialog box for the product. Refer to
“Properties” on page 93 for details.
■ Product Name and Network Address drop-down list — These options
perform the same functions as the Display Options available through the
view pop-up menu. Refer to “Display Options” on page 91 for details.
■ Show Zoning Library — This displays the Zoning Library dialog box. Refer
to “Zoning Library” on page 142 for complete information.
96 High Availability Fabric Manager User Guide
Page 97
Available Menu Bar Options
The following options are active only in the Products View. For information on
other menu options, refer to Chapter 3.
Product Menu
New — Choose this option to display the New Product dialog box. Use this
dialog box to identify a product to the HAFM and add its icon to the Products
View. You can also choose this option from the view pop-up menu by
right-clicking in the view area away from product icons and selecting New
product. For details on this option, refer to “New Product” on page 90 under the
view pop-up menu.
Open —Choose this option to open the Product Manager for a selected product.
Delete —Choose this option to delete a product.
Modify — Choose this option to modify the network address of a product.
Properties — Choose this option to display the product’s Properties dialog box,
which lists the product name, location, contact person, description, product type,
network address, and operational status for the product.
Using the Products View
View Menu
Logout — Choose this option to log out of the current session, close the HAFM,
and close any open Product Managers. The HAFM Login dialog box displays.
Exit — Choose this option to close the HAFM and any open Product Managers.
User Sessions — This displays the User Session table. This table list all the
current management sessions, including the name of each user connection, the
network address of the user, and the time when the connection was established.
Arrange Icons — Use this option to modify the display of product icons in the
view.
■ By Name — Arrange icons alphabetically by product name.
■ By Severity — (Default). Arrange icons according to the product’s operating
status. Failed products appear first, followed by products with degraded, then
unknown operational status. Within these groupings, icons appear
alphabetically by their network address (IP address or DNS host name) or
product name, depending on the selected display option.
97High Availability Fabric Manager User Guide
Page 98
Using the Products View
You can also arrange icons by name and severity by selecting the Sort option
from the view pop-up menu by right-clicking in the view, away from product
icons.
Enable Fly-Over Display — When Fly-Over Display is enabled (View menu on
menu bar), move the cursor over fabric products in the tab’s view area to display
the product’s WWN over the product icon. Moving the cursor over the ISL lines
between products displays the actual number of ISLs between the products.
Disable the fly-over display by selecting and removing the check mark by the
Enable Fly-Over Display option.
98 High Availability Fabric Manager User Guide
Page 99
Using the Fabrics View
This chapter provides information to help you use the Fabrics View in the High
Availability Fabric Manager window.
Overview
Access the Fabrics View by clicking the Fabrics tab on the HAFM window. The
left panel of this view is the Fabric Tree, which is the expandable list of fabrics,
products in fabrics, and nodes connected to products. The view area for the tab is
to the right of the Fabric Tree.
Click the Top ol og y and Zone Set tabs at the bottom of the view area to change
the views. The Top ol ogy tab (default) is illustrated in Figure 47.
5
Figure 47: Fabrics View — Topology tab
99High Availability Fabric Manager User Guide
Page 100
Using the Fabrics View
Topology Tab
The view area of the Top ol ogy tab provides details on all fabrics known to the
HAFM server and HAFM application. This area displays product icons like those
in the Products View, each representing switches and directors in fabrics that you
select from a Fabric Tree on left panel of the view. Interswitch links (ISLs)
display between the product icons as black lines. For details on the product icons,
refer to “Icon Description” on page 88. Fabrics are initially listed in the Fabric
Tree by the World Wide Name (WWN) of the fabric’s principal switch, but if the
fabric is “persisted,” they could have various names configured by the user (refer
to “Fabric Tree” on page 101 for details). The selected fabric’s name displays
above the icons at the top of the tab.
Refer to “Using the Topology Tab” on page 102 for more details on this tab.
Zone Set Tab
The Zone Set tab is described in “Using the Zone Set Tab” on page 130. This tab
displays the currently active zone set for fabrics that you select from the left side
of the view. The zones and zone members that make up the zone set display in a
scrollable tree structure below the name of the active zone set. Menu options
available in this tab allow you to quickly determine fabric zoning structure (zone
sets, zones, and zone members), determine logged in and logged out zone
members, save active zones under another name, determine the default zone
members, deactivate/activate zone sets, and change the default zone
.
100 High Availability Fabric Manager User Guide
Loading...
