Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Core are
U.S. registered trademarks of Intel
Corporation. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation. SD
Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: January 2013
First Edition: May 2012
Document Part Number: 677157-003
Page 3
Safety warning notice
WARNING!To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard,
flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
Front ................................................................................................................................................... 21

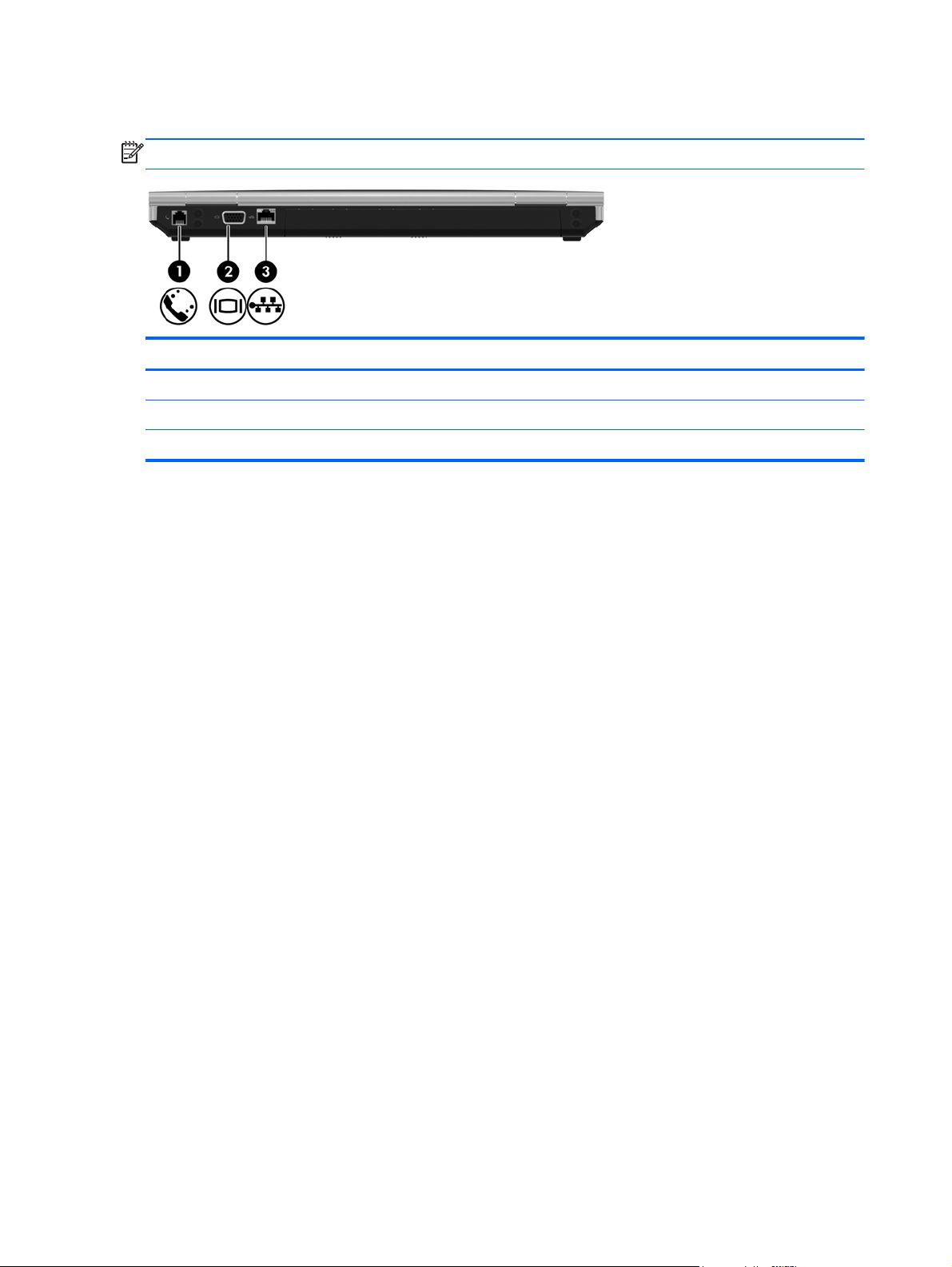

Left side .............................................................................................................................................. 22
Right side ........................................................................................................................................... 23
3 Illustrated parts catalog ............................................................................................................................... 27
Service tag ......................................................................................................................................... 27
Computer major components ............................................................................................................. 29
Index ................................................................................................................................................................. 161
viii
Page 9
1Product description
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
Product NameHP EliteBook 8470w Mobile Workstationl√
HP ProBook 8470p Notebook PC√
Processors
Intel® Quad Core® i7-3840QM 2.80-
●
GHz processor (SC turbo up to 3.80GHz; 1600-MHz FSB, 8.0-MB L3
cache, 45 W)
Intel Quad Core i7-3820QM 2.70-GHz
●
processor (SC turbo up to 3.70-GHz;
1600-MHz FSB, 8.0-MB L3 cache,
45 W)
●Intel Quad Core i7-3740QM 2.70-GHz
processor (SC turbo up to 3.70-GHz;
1600-MHz FSB, 6.0-MB L3 cache,
45 W)
●Intel Quad Core i7-3720QM 2.60-GHz
processor (SC turbo up to 3.60-GHz;
1600-MHz FSB, 6.0-MB L3 cache,
45 W)
Intel Quad Core i7-3630QM 2.40-GHz
●
processor (SC turbo up to 3.40-GHz;
1600-MHz FSB, 6.0-MB L3 cache,
45 W)
√
HP EliteBook 8470p
Notebook PC
●Intel Quad Core i7-3610QM 2.30-GHz
processor (SC turbo up to 3.30-GHz;
1600-MHz FSB, 6.0-MB L3 cache,
45 W)
(WPAN) option by way of Bluetooth 4.0
enhanced data rate (EDR) module
Supports no WPAN option
(WLAN) options by way of wireless module
Three WLAN antennas built into
display assembly
Support for the following WLAN formats:
Atheros WB225 1×1 802.11b/g/n
●
Bluetooth Combo Adapter
Broadcom 43228 802.11abgn 2×2 Wi-
●
Fi Adapter
√√
√√
√√
Intel Centrino Advanced-N 6205
●
Combo Adapter
●Intel Centrino Advanced-N 6205
WLAN module
Intel Centrino Ultimate-N 6300
●
WLAN module
Intel Centrino Wireless-N 2200
●
802.11b/g/n 2×2 WiFi Adapter
Supports no WLAN option
7
Page 16
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Wireless (continued)Integrated wireless wide area network
(WWAN) options by way of wireless module
Two world-wide/5-band WWAN antennas
built into display assembly
Secured by subscriber identity module
(SIM, user-accessible behind battery)
Support for the following WWAN formats:
HP hs2350 HSPA+ Mobile
●
Broadband Module
HP lt2523 LTE/HSPA+ Mobile
●
Broadband Module
HP un2430 EV-DO/HSPA Mini Card
●
●HP lt2522 LTE/EV-DO Mobile
Broadband Module
HP un2430 EV-DO/HSPA Mini Card
●
●HP un2430 EV-DO/HSPA Mobile
Broadband Module
Supports no WWAN option
Supports WWAN after market option
√√
External media cardsIntegrated 54-mm ExpressCard
Secure Digital (SD) flash media slot with
push-push technology, supporting the
following digital card formats:
●MultiMediaCard (MMC)
MMC+
●
Secure Digital (SD) Memory Card
●
●SDHC
SDXC
●
√√
8Chapter 1 Product description
Page 17
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Ports●1394a port
Audio-in (mono microphone)
●
Audio-out (stereo headphone)
●
●Battery connector
DisplayPort 1.2 (on computer models
●
equipped with a graphics subsystem
with discrete memory)
●DisplayPort 1.1a (on computer models
equipped with a graphics subsystem
with UMA memory)
Docking connector
●
eSATA/USB 2.0 combo port
●
HP Smart AC adapter
●
RJ-45 (Ethernet)
●
RJ-11 (modem)
●
●Secondary battery connector
Serial port
●
USB 3.0 ports (2)
●
√√
●USB 2.0 port
USB 2.0 charging port
●
VGA (Dsub 15 pin) supporting:
●
1920×1200 external resolution @
75 Hz, hot plug and unplug and
autodetection for correct output to
wide-aspect vs. standard aspect video
Keyboard/pointing
devices
Gesture support: MultiTouch gestures
Taps enabled by default√√
Support for TouchPad with image sensor√√
Support for Windows 8 Indirect Touch√√
Power requirementsSupports the following HP Smart AC adapters:
Power requirements
(continued)
●90-W HP Smart AC adapter (PFC, 3-
Full-size keyboard with numeric keypad
(upper-left justified), dual-point, spillresistant, chiclet-style, with durakeys
enabled, two-finger scrolling, and pinchzoom as default
●90-W HP Smart AC adapter (PFC,
EM, 3-wire)
wire)
√√
√√
√√
√√
9
Page 18
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
●65-W HP Smart AC adapter (non-PFC,
●65-W HP Smart AC adapter (RC/V,
Supports the following batteries:
SecuritySupports security cable lock√√
Supports fingerprint reader and no
Supports Trusted Platform Module (TPM)
Integrated Smart Card reader (active)√√
Full volume encryption√√
3-wire)
EM, 3-wire)
9-cell, 100-Wh, 3.0-Ah battery
●
9-cell, 73-Wh, 2.2-Ah battery
●
●6-cell, 62-Wh, 2.8-Ah battery
6-cell, 55-Wh, 2.8-Ah battery
●
3-cell, 31-Wh, 2.8-Ah battery
●
fingerprint reader option
1.2 (Infineon, soldered down) and
TPM Enhanced Drive Lock (not supported
in Asia and the People's Republic of China)
√√
√√
√√
√√
√√
Preboot authentication (password,
Operating systemPreinstalled:
Smart Card)
Windows® 8 ML 64 with Microsoft
●
Basics (Japan only)
Windows 8 Professional 64 with
●
Microsoft Basics (Japan only)
Windows 8 Professional 64 DPK with
●
Windows 7 Professional 64 and 32
(Japan only)
Windows 7 Home Premium 64 and 32
●
with Microsoft Basics
Windows 7 Professional 64 and 32
●
with Microsoft Basics
Windows 7 Service Pack 1
●
FreeDOS
●
SUSE Linux (SLED; People's Republic
●
of China only)
√√
√√
10Chapter 1 Product description
Page 19
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Preinstalled with Microsoft Office:
Windows 8 CH 64-bit with Office 2010
●
Transition OPK (People's Republic of
China only)
Windows 8 EM 64-bit with Office 2010
●
Transition OPK (not available
in Japan)
●Windows 8 ML 64-bit with Office 2010
Business and Home (Japan only;
requires configuration with Office
Personal Japan 2010 app AV)
Windows 8 ML 64-bit with Office 2010
●
Personal (Japan only; requires
configuration with Office Personal
Japan 2010 app AV)
●Windows 8 ML 64-bit with Office 2010
Professional (Japan only; requires
configuration with Office Personal
Japan 2010 app AV)
Windows 8 ML 64-bit with Office 2010
●
Transition OPK (not available
in Japan)
(Continued)
11
Page 20
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Operating system
(continued)
Preinstalled with Microsoft Office:
(continued)
Windows 8 Professional 64-bit DPK
●
with Windows 7 Professional 64- and
32-bit with Office 2010 Business and
Home (Japan only; requires
configuration with Office Personal
Japan 2010 app AV)
Windows 8 Professional 64-bit DPK
●
with Windows 7 Professional 64- and
32-bit with Office 2010 Personal
(Japan only; requires configuration
with Office Personal Japan 2010 app
AV)
Windows 8 Professional 64-bit DPK
●
with Windows 7 Professional 64- and
32-bit with Office 2010 Professional
(Japan only; requires configuration
with Office Personal Japan 2010 app
AV)
Windows 8 Professional 64-bit DPK
●
with Windows 7 Professional 64- and
32-bit with Office 2010 Starter (not
available in Asia-Pacific countries and
regions, Japan, or the People's
Republic of China)
√√
Windows 8 Professional 64-bit with
●
Office 2010 Business and Home
(Japan only; requires configuration
with Office Personal Japan 2010 app
AV)
Windows 8 Professional 64-bit with
●
Office 2010 Personal (Japan only;
requires configuration with Office
Personal Japan 2010 app AV)
Windows 8 Professional 64-bit with
●
Office 2010 Professional (Japan only;
requires configuration with Office
Personal Japan 2010 app AV)
Windows 8 Professional 64-bit with
●
Office 2010 Transition OPK (not
available in Japan)
●Windows 7 Home Basic 32-bit with
Office Starter (emerging markets only)
(Continued)
12Chapter 1 Product description
Page 21
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Operating system
(continued)
Preinstalled with Microsoft Office:
(Continued)
Windows 7 Home Premium 64- and
●
32-bit with Office Starter (not available
in Japan)
Windows 7 Home Premium 64-bit with
●
Office 2010 Personal (only in Japan)
●Windows 7 Home Premium 64-bit with
Office 2010 Home & Business (only
in Japan)
Windows 7 Home Premium 64-bit with
●
Office 2010 Personal (only in Japan)
●Windows 7 Home Premium 64-bit with
Office 2010 Professional (only
in Japan)
●Windows 7 Professional 64- and 32-bit
with Office 2010 Starter (not available
in Japan)
Windows 7 Professional 64- and 32-bit
●
with Office 2010 Business & Home
(only in Japan)
Windows 7 Professional 64- and 32-bit
●
with Office 2010 Personal (only
in Japan)
√√
●Windows 7 Professional 64- and 32-bit
with Office 2010 Professional (only
in Japan)
Restore media—DR-DVD:
●Windows 8 (available with any
Windows 8 operating system and
required with Windows 8 Professional
64-bit DPK with Windows 7 image)
●Windows 7 (available with any
Windows 7 HP, Windows 7
Professional loc, Windows 7 HB, or
Windows 8 Professional 64-bit DPK
with Windows 7 image)
√√
13
Page 22
CategoryDescriptionHP EliteBook 8470w
Mobile Workstation
HP EliteBook 8470p
Notebook PC
Operating system
(continued)
Certified:
Restore media—OS-DVD:
Windows 8 Professional 64-bit
●
(required with Windows 8 Professional
64-bit DPK with Windows image)
Windows 7 Home Basic 32-bit
●
(available with any Windows 7 Home
Basic location except Asia-Pacific
countries and regions and the People's
Republic of China)
Windows 7 Home Premium 64- and
●
32-bit (available with any Windows 7
Premium location except Asia-Pacific
countries and regions and the People's
Republic of China)
Windows 7 Professional 64- and 32-bit
●
(available with any Windows 7
Professional or Windows 8
Professional 64-bit DPK with Windows
image location except Asia-Pacific
countries and regions and the People's
Republic of China)
●Microsoft WHQL
√√
√√
●SuSE Linux Enterprise (SLED) 64-bit
Service Pack 2
Operating system
(continued)
ServiceabilityEnd user replaceable parts:
Web-only support:
Windows XP Pro 32-bit
●
Windows 7 Enterprise 64- and 32-bit
●
●Windows 7 Ultimate 64- and 32-bit
●AC adapter
Battery
●
Hard drive
●
●Keyboard
Memory module
●
mSATA drive
●
●Optical drive
Solid-state drive
●
WLAN module
●
√√
√√
14Chapter 1 Product description
WWAN module
●
Page 23
2External component identification
Display
ItemComponentDescription
(1)Internal display switchTurns off the display or initiates Suspend if the display is
(2)WLAN antennas (3)*Send and receive wireless signals to communicate
(3)Internal microphones (2)Record sound.
(4)Webcam light (select models only)On: The webcam is in use.
(5)Webcam (select models only)Records video and captures still photographs.
(6)Keyboard light buttonTurns the keyboard light on or off.
closed while the power is on.
NOTE: The display switch is not visible from the
outside of the computer.
with WLANs.
Display15
Page 24
ItemComponentDescription
(7)Keyboard lightIlluminates the keyboard, especially in low-
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, see the section of the Regulatory, Safety,and Environmental Notices that applies to your country or region.
light conditions.
16Chapter 2 External component identification
Page 25
Buttons and fingerprint reader (select models only)
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)TouchPad on/off buttonTurns the TouchPad on and off.
(2)Power button
When the computer is off, press the button to turn
●
on the computer.
●When the computer is on, press the button briefly
to initiate Suspend.
●When the computer is in the Suspend state, press
the button briefly to exit Suspend.
When the computer is in Hibernation, press the
●
button briefly to exit Hibernation.
If the computer has stopped responding and operating
system shutdown procedures are ineffective, press and
hold the power button for at least 5 seconds to turn off
the computer.
To learn more about your power settings:
●Windows 8—From the Start screen, type power,
select Settings, and then select Power Options.
Windows 7:
●
1.Select Computer > Control Center.
2.In the left pane, click System, and then click
Power Management in the right pane.
(3)Wireless buttonTurns the wireless feature on or off but does not
establish a wireless connection.
Buttons and fingerprint reader (select models only)17
Page 26
ItemComponentDescription
Keys
(4)Web browser button
(5)Volume mute buttonMutes and restores speaker sound.
(6)Fingerprint reader (select models only)Allows a fingerprint logon instead of a password logon.
When the computer is on, press the button to open
●
the default Web browser.
When the computer is off, in the Suspend state, or
●
in Hibernation, the button does not perform any
action or function.
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)Function keysExecute frequently used system functions when pressed
(2)fn keyExecutes frequently used system functions when
(3)Operating system logo keyDisplays the operating system menu.
(4)Operating system applications keyDisplays a shortcut menu for items beneath the cursor.
(5)Embedded numeric keypadWhen the keypad is turned on, it can be used like an
(6)num lk keyTurns the embedded numeric keypad on and off when
18Chapter 2 External component identification
in combination with the fn key.
pressed in combination with a function key.
external numeric keypad.
Each key on the keypad performs the function indicated
by the icon in the upper-right corner of the key.
pressed in combination with the fn key.
Page 27
Lights
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)TouchPad light
(2)Caps lock light
(3)Power light
(4)Wireless light●White: An integrated wireless device, such as a
(5)Web browser light
(6)Mute light
(7)Num lock lightOn: Num lock is on.
Amber: The TouchPad is off.
●
●Off: The TouchPad is on.
On: Caps lock is on.
●
●Off: Caps lock is off.
On: The computer is on.
●
●Blinking: The computer is in the Suspend state.
Off: The computer is off or in Hibernation.
●
WLAN device and/or a Bluetooth device, is on.
●Amber: All wireless devices are off.
On: The computer is on.
●
●Off: The computer is off, in the Suspend state, or
in Hibernation.
Amber: Computer sound is off.
●
●Off: Computer sound is on.
TouchPad
NOTE:Your computer may look slightly different from the illustration in this section.
Lights19
Page 28
ItemComponentDescription
(1)Pointing stick (select models only)Moves the pointer and selects or activates items on
(2)Left pointing stick button (select
models only)
(3)TouchPad on/off buttonTurns the TouchPad on or off.
(4)TouchPad zoneMoves the pointer and selects or activates items on
(5)Left TouchPad buttonFunctions like the left button on an external mouse.
(6)Right TouchPad buttonFunctions like the right button on an external mouse.
(7)Right pointing stick button (select
models only)
the screen.
Functions like the left button on an external mouse.
the screen.
Functions like the right button on an external mouse.
20Chapter 2 External component identification
Page 29
Front
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)Display release latchOpens the computer.
(2)Wireless light
(3)Power light
(4)AC adapter/Battery light●Amber: The computer is connected to external
(5)Hard drive light●Blinking white: The hard drive or optical drive is
White: An integrated wireless device, such as a
●
WLAN device and/or a Bluetooth device, is on.
●Amber: All wireless devices are off.
On: The computer is on.
●
●Blinking: The computer is in the Suspend state.
Off: The computer is off or in Hibernation.
●
power and the battery is charged from 0 to
90 percent.
●White: The computer is connected to external
power and the battery is charged from 90 to 99
percent.
Blinking amber: A battery that is the only available
●
power source has reached a low battery level.
When the battery reaches a critical battery level,
the battery light begins blinking rapidly.
Off: The battery is fully charged.
●
being accessed.
●Amber: HP 3D DriveGuard has temporarily parked
the hard drive.
(6)Speakers (2)Produce sound. One of the speakers is on the bottom of
the computer, and it cannot be seen from the front of
the computer.
Front21
Page 30
Left side
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)Power connectorConnects an AC adapter.
(2)1394 portConnects an optional IEEE 1394 or 1394a device, such
(3)USB 3.0 ports (2)Connect optional USB 3.0 devices and provide
as a camcorder.
enhanced USB power performance.
(4)HP ExpressCard slot or Smart Card reader
(depending on configuration)
(5)Media Card ReaderSupports the following digital card formats:
(6)Upgrade bay (optical drive shown)The upgrade bay can hold a weight-saver option, a hard
(7)Optical drive eject button (select
models only)
Supports optional ExpressCards or smart cards.
●MultiMediaCard (MMC)
MMC+
●
Secure Digital (SD) Memory Card
●
●SDHC
●SDXC
drive, or an optical drive that reads an optical disc.
NOTE: On select models, the optical drive also writes
to an optical disc.
Releases the disc tray.
22Chapter 2 External component identification
Page 31
Right side
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)Audio-out (headphone) jackProduces sound when connected to optional powered
(2)Audio-in (microphone) jackConnects an optional computer headset microphone,
(4)eSATA/USB 2.0 portConnects an optional high-performance eSATA
(5)USB charging portConnects an optional USB device. The USB charging
(6)DisplayPortConnects an optional digital display device, such as a
(7)Vents (2)Enables airflow to cool internal components.
stereo speakers, headphones, earbuds, a headset, or
television audio. Also connects an optional
headset microphone.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information,
refer to the Regulatory, Safety, andEnvironmental Notices.
NOTE: When a device is connected to the jack,
the computer speakers are disabled.
stereo array microphone, or monaural microphone.
component, such as an eSATA external hard drive, or
connects an optional USB device.
port can also charge select models of cell phones and
MP3 players, even when the computer is off.
high-performance monitor or projector.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
(8)Security cable slotAttaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from
being mishandled or stolen.
Right side23
Page 32
Rear
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)RJ-11 (modem) jackConnects a modem cable.
(2)External monitor portConnects an external VGA monitor or projector.
(3)RJ-45 (network) jackConnects a network cable.
24Chapter 2 External component identification
Page 33
Bottom
NOTE:Your computer may look slightly different from the illustration in this section.
ItemComponentDescription
(1)Vents (4)Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
(2)Battery release latchReleases the battery.
(3)Docking connectorConnects an optional docking device.

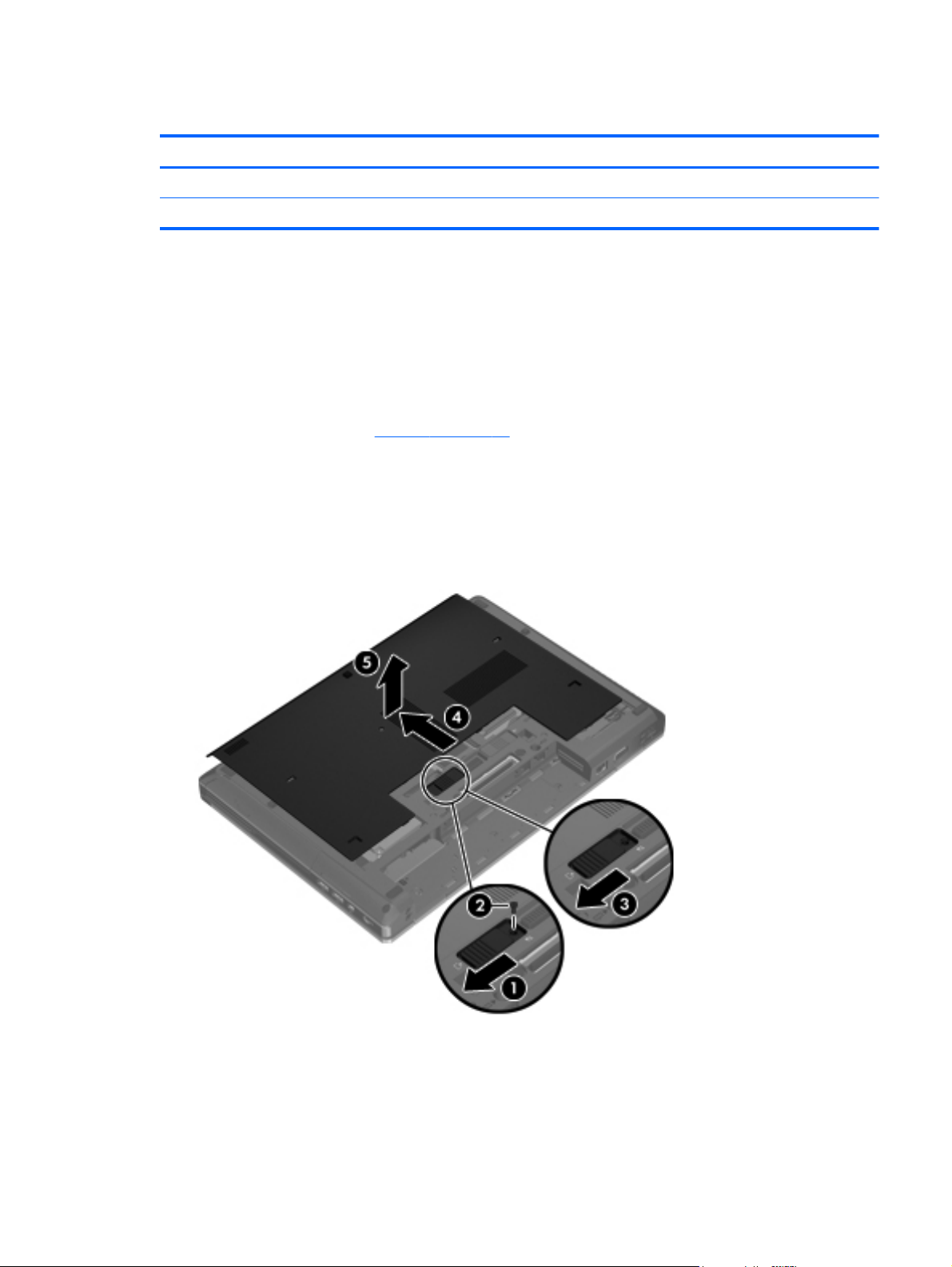

(4)Service cover release latchReleases the service cover from the computer.
(5)Battery bayHolds the battery.
(6)Accessory battery connectorConnects an optional accessory battery.
(6)Speakers (2)Produce sound.
Bottom25
Page 34
ItemComponentDescription

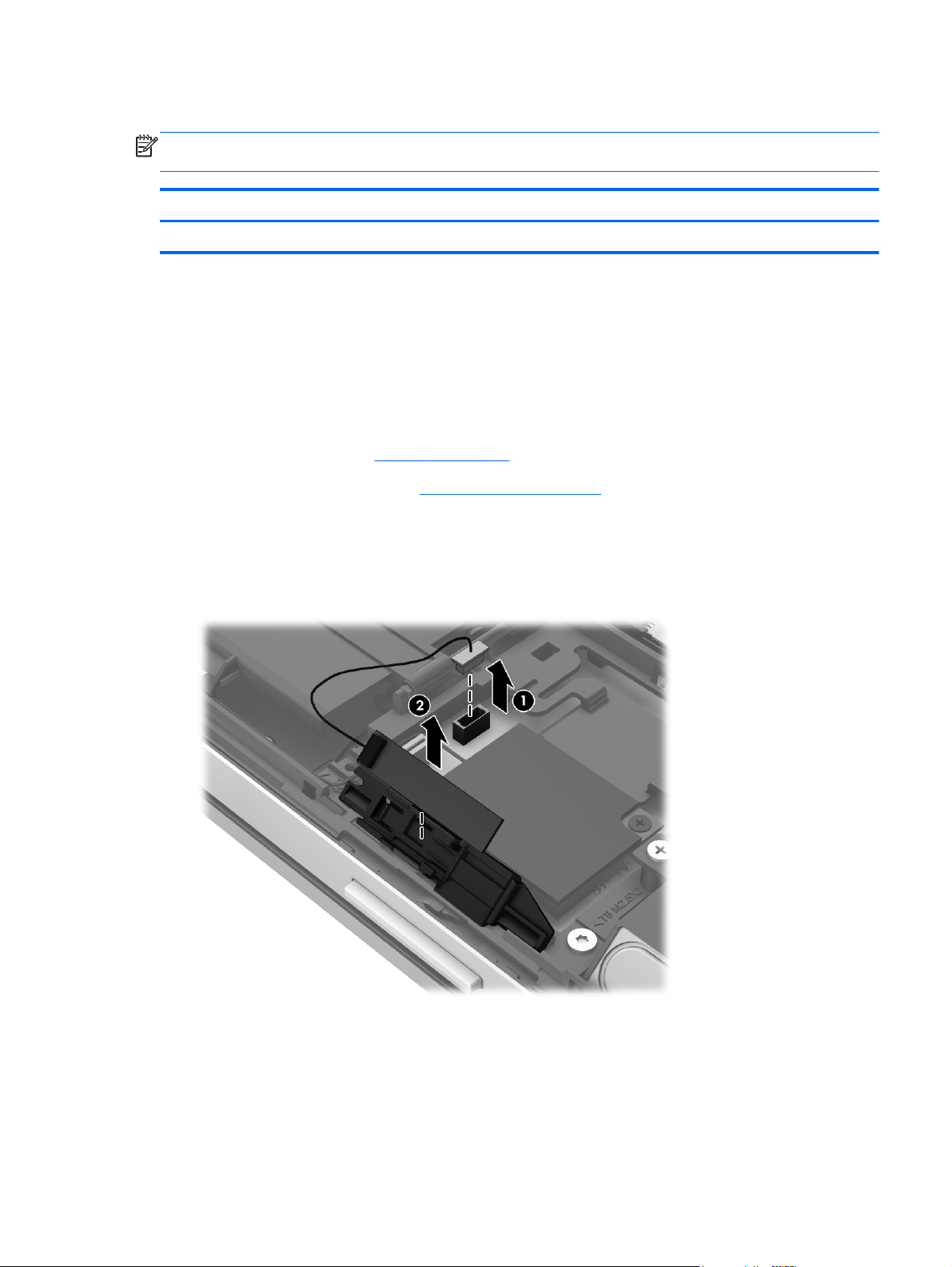

(7)Bluetooth compartmentContains a Bluetooth device (select models only).

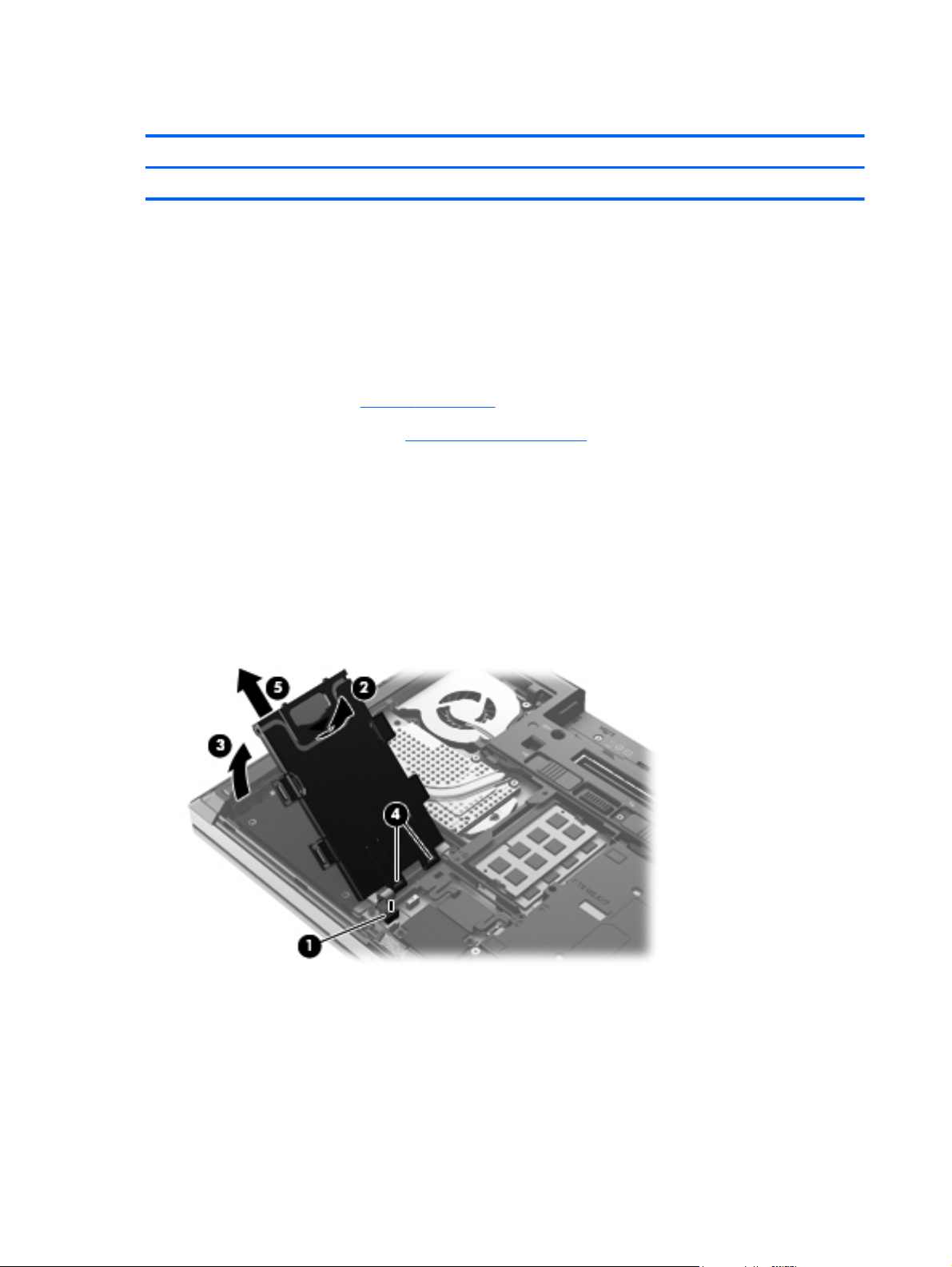

(8)Service coverProvides access to the hard drive, and also contains the
WLAN module slot and the memory module slots.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless module
authorized for use in the computer by the governmental
agency that regulates wireless devices in your country
or region. If you replace the module and then receive a
warning message, remove the module to restore
computer functionality, and then contact support.
26Chapter 2 External component identification
Page 35
3Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
number provided on the service tag. It is necessary to remove the battery to obtain these numbers.
See Battery
Battery on page 67 for battery removal instructions.
ItemDescriptionFunction
(1)Product nameThis is the product name affixed to the front of
(2)Serial number (s/n)This is an alphanumeric identifier that is unique to
the computer.
each product.
Service tag27
Page 36
ItemDescriptionFunction
(3)Part number/Product number (p/n)This number provides specific information about the
(4)Warranty periodThis number describes the duration of the warranty
(5)Model descriptionThis is the alphanumeric identifier used to locate
product's hardware components. The part number
helps a service technician to determine what
components and parts are needed.
period for the computer.
documents, drivers, and support for the computer.
28Chapter 3 Illustrated parts catalog
Page 37
Computer major components
Computer major components29
Page 38
ItemComponentSpare part number
(1)Display assembly: The display assembly is spared at the subcomponent level only. For more display assembly
spare part information, see
(2)Keyboard with pointing stick for use only on HP EliteBook 8470w Mobile Workstation computer models (includes
keyboard cable and pointing stick cable):
For use only on computer models equipped with the Windows 8 operating system:
For use in Belgium702649-A41
For use in Brazil702649-201
For use in Bulgaria702649-261
For use in Canada702649-DB1
For use in the Czech Republic and Slovakia702649-FL1
For use in Denmark702649-081
For use in France702649-051
For use in Germany702649-041
For use in Greece702649-151
For use in Hungary702649-211
For use in Iceland702649-DD1

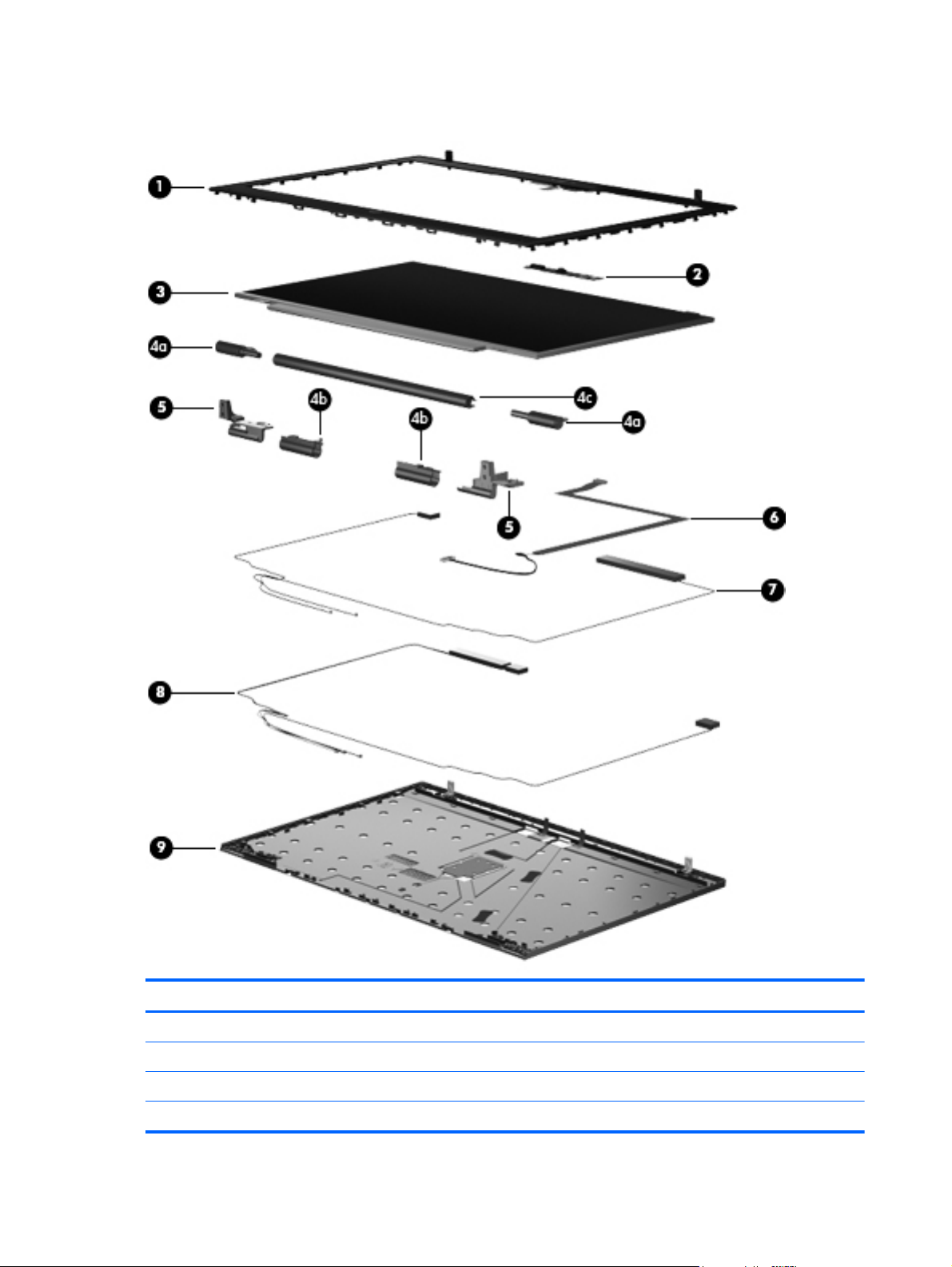

Display assembly subcomponents on page 38.
For use in India702649-D61
For use in Israel702649-BB1
For use in Italy702649-061
For use in Japan702649-291
For use in Latin America702649-161
For use in the Netherlands702649-B31
For use in Norway702649-091
For use in Northwest Africa702649-FP1
For use in Portugal702649-131
For use in Romania702649-271
For use in Russia702649-251
For use in Saudi Arabia702649-171
For use in Slovenia702649-BA1
For use in South Korea702649-AD1
For use in Spain702649-071
For use in Sweden and Finland702649-B71
For use in Switzerland702649-BG1
For use in Taiwan702649-AB1
For use in Thailand702649-281
30Chapter 3 Illustrated parts catalog
Page 39
ItemComponentSpare part number
For use in Turkey702649-141
For use in the United Kingdom and Singapore702649-031
For use in the United States702649-001
For use only on computer models equipped with the Windows 7 operating system:
For use in Belgium686300-A41
For use in Brazil686300-201
For use in Bulgaria686300-261
For use in Canada686300-DB1
For use in the Czech Republic and Slovakia686300-A81
For use in Denmark686300-081
For use in France686300-051
For use in Germany686300-041
For use in Greece686300-DJ1
For use in Hungary686300-211
For use in Iceland686300-DD1
For use in India686300-D61
For use in Israel686300-BB1
For use in Italy686300-061
For use in Japan686300-291
For use in Latin America686300-161
For use in the Netherlands686300-B31
For use in Norway686300-091
For use in Northwest Africa686300-FP1
For use in Portugal686300-131
For use in Romania686300-271
For use in Russia686300-251
For use in Saudi Arabia686300-171
For use in Slovenia686300-BA1
For use in South Korea686300-AD1
For use in Spain686300-071
For use in Sweden and Finland686300-B71
For use in Switzerland686300-BG1
For use in Taiwan686300-AB1
For use in Thailand686300-281
Computer major components31
Page 40
ItemComponentSpare part number
For use in Turkey686300-141
For use in the United Kingdom and Singapore686300-031
For use in the United States686300-001
Keyboard with pointing stick for use only on HP EliteBook 8470p Notebook PC computer models (includes
For use only on computer models equipped with the Windows 8 operating system:
For use in Belgium702651-A41
For use in Brazil702651-201
For use in Bulgaria702651-261
For use in Canada702651-DB1
For use in the Czech Republic and Slovakia702651-FL1
For use in Denmark702651-081
For use in France702651-051
For use in Germany702651-041
For use in Greece702651-151
For use in Hungary702651-211
For use in Iceland702651-DD1
For use in India702651-D61
For use in Israel702651-BB1
For use in Italy702651-061
keyboard cable and pointing stick cable):
For use in Japan702651-291
For use in Latin America702651-161
For use in the Netherlands702651-B31
For use in Norway702651-091
For use in Northwest Africa702651-FP1
For use in Portugal702651-131
For use in Romania702651-271
For use in Russia702651-251
For use in Saudi Arabia702651-171
For use in Slovenia702651-BA1
For use in South Korea702651-AD1
For use in Spain702651-071
For use in Sweden and Finland702651-B71
For use in Switzerland702651-BG1
For use in Taiwan702651-AB1
32Chapter 3 Illustrated parts catalog
Page 41
ItemComponentSpare part number
For use in Thailand702651-281
For use in Turkey702651-141
For use in the United Kingdom and Sinapore702651-031
For use in the United States702651-001
For use only on computer models equipped with the Windows 7 operating system:
For use in Belgium686299-A41
For use in Brazil686299-201
For use in Bulgaria686299-261
For use in Canada686299-DB1
For use in the Czech Republic and Slovakia686299-FL1
For use in Denmark686299-081
For use in France686299-051
For use in Germany686299-041
For use in Greece686299-DJ1
For use in Hungary686299-211
For use in Iceland686299-DD1
For use in India686299-D61
For use in Israel686299-BB1
For use in Italy686299-061
For use in Japan686299-291
For use in Latin America686299-161
For use in the Netherlands686299-B31
For use in Norway686299-091
For use in Northwest Africa686299-FB1
For use in Portugal686299-131
For use in Romania686299-271
For use in Russia686299-251
For use in Saudi Arabia686299-171
For use in Slovenia686299-BA1
For use in South Korea686299-AD1
For use in Spain686299-071
For use in Sweden and Finland686299-B71
For use in Switzerland686299-BG1
For use in Taiwan686299-AB1
Computer major components33
Page 42
ItemComponentSpare part number
For use in Thailand686299-281
For use in Turkey686299-141
For use in the United Kingdom and Singapore686299-031
For use in the United States686299-001
(3)Top cover (includes TouchPad):
Equipped with pointing stick buttons and a fingerprint reader for use only on HP
EliteBook 8470w Mobile Workstation computer models
Equipped with pointing stick buttons and a fingerprint reader for use only on HP
EliteBook 8470p Notebook PC computer models
Equipped with pointing stick buttons but not a fingerprint reader for use only on HP
EliteBook 8470p Notebook PC computer models
(4)Smart Card reader686025-001
(5)Display lid switch board (includes cable)684340-001
685993-001Antenna Kit (includes left and right WLAN antenna cables and transceivers and left and right
685995-001Display enclosure for use only on HP EliteBook 8470p Notebook PC computer models
685996-001Display enclosure for use only on HP EliteBook 8470w Mobile Workstation computer models
685997-001Base enclosure (includes four rubber feet, service cover release latch assembly, and battery
686012-001Display bezel for use only on HP EliteBook 8470p Notebook PC computer models
686014-001Display bezel for use only on HP EliteBook 8470w Mobile Workstation computer models
686016-001Display panel cable for use only on HP EliteBook 8470p Notebook PC computer models equipped
WWAN antenna cables and transceivers)
release latch assembly)
with an HD display assembly
Sequential part number listing47
Page 56
Spare part numberDescription
686017-001Display panel cable for use only on HP EliteBook 8470w Mobile Workstation computer models
686018-001Display panel cable for use only on HP EliteBook 8470p Notebook PC computer models equipped
686019-001Display panel cable for use only on HP EliteBook 8470w Mobile Workstation computer models
686021-001Heat sink for use on computer models equipped with a graphics subsystem with discrete memory
686022-001Display Panel Support Kit for use only on HP EliteBook 8470p Notebook PC computer models
686023-001Display Panel Support Kit for use only on HP EliteBook 8470w Mobile Workstation computer
686024-001Display Hinge Cover Kit (includes hinge tube, left and right hinge covers, cable guides, left and
686025-001Smart Card reader
686027-001Plastics Kit for use only on HP EliteBook 8470p Notebook PC computer models (includes
686031-001Service cover (includes label indicating “Made in China”)
686032-001Screw Kit
equipped with an HD display assembly
with an HD+ display assembly
equipped with an HD+ display assembly
(includes display enclosure, WLAN antenna cables and transceivers, and WWAN antenna cables
and transceivers)
models (includes display enclosure, WLAN antenna cables and transceivers, and WWAN antenna
cables and transceivers)
right inner covers, and left and right outer covers)
ExpressCard slot space saver, optical drive bay space saver, RJ-11 jack cover, and wireless
antenna clips)
686040-001System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
a graphics subsystem with UMA memory and the Windows 7 operating system in all countries and
regions except the People's Republic of China and the Ukraine (includes replacement
thermal material)
686040-501System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
686040-601System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
686041-001System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
686041-501System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
686041-601System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
a graphics subsystem with UMA memory and the Windows 8 Standard operating system in all
countries and regions except the People's Republic of China and the Ukraine (includes
replacement thermal material)
a graphics subsystem with UMA memory and the Windows 8 Professional operating system in all
countries and regions except the People's Republic of China and the Ukraine (includes
replacement thermal material)
a graphics subsystem with discrete memory and the Windows 7 operating system in all countries
and regions except the People's Republic of China and the Ukraine (includes replacement
thermal material)
a graphics subsystem with discrete memory and the Windows 8 Standard operating system in all
countries and regions except the People's Republic of China and the Ukraine (includes
replacement thermal material)
a graphics subsystem with discrete memory and the Windows 8 Professional operating system in
all countries and regions except the People's Republic of China and the Ukraine (includes
replacement thermal material)
48Chapter 3 Illustrated parts catalog
Page 57
Spare part numberDescription
686042-001System board for use only on HP EliteBook 8470w Mobile Workstation computer models
686042-501System board for use only on HP EliteBook 8470w Mobile Workstation computer models
686042-601System board for use only on HP EliteBook 8470w Mobile Workstation computer models
686043-001Top cover with pointing stick buttons and a fingerprint reader for use only on HP EliteBook 8470w
686048-001Blu-ray R/RE DVD±RW SuperMulti DL Drive (for use only on HP EliteBook 8470w Mobile
686299-001Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with a graphics subsystem with discrete memory and the Windows 7 operating system
in all countries and regions except the People's Republic of China and the Ukraine (includes
replacement thermal material)
equipped with a graphics subsystem with discrete memory and the Windows 8 Standard
operating system in all countries and regions except the People's Republic of China and
the Ukraine (includes replacement thermal material)
equipped with a graphics subsystem with discrete memory and the Windows 8 Professional
operating system in all countries and regions except the People's Republic of China and
the Ukraine (includes replacement thermal material)
Mobile Workstation computer models (includes TouchPad)
Workstation computer models; includes bezel and bracket)
equipped with the Windows 7 operating system in the United States (includes keyboard cable and
pointing stick cable)
686299-031Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-041Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-051Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-061Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-071Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-081Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-091Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-131Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with the Windows 7 operating system in the United Kingdom and Singapore (includes
keyboard cable and pointing stick cable)
equipped with the Windows 7 operating system in Germany (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in France (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Italy (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Spain (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Denmark (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Norway (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Portugal (includes keyboard cable and pointing
stick cable)
Sequential part number listing49
Page 58
Spare part numberDescription
686299-141Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-161Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-171Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-201Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-211Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-251Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-261Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-271Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with the Windows 7 operating system in Turkey (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Latin America (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in Saudi Arabia (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in Brazil (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Hungary (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Russia (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Bulgaria (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Romania (includes keyboard cable and pointing
stick cable)
686299-281Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with the Windows 7 operating system in Thailand (includes keyboard cable and pointing
stick cable)
686299-291Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-A41Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-AB1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-AD1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-B31Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-B71Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-BA1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with the Windows 7 operating system in Japan (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Belgium (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Taiwan (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in South Korea (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in the Netherlands (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in Sweden and Finland (includes keyboard cable
and pointing stick cable)
equipped with the Windows 7 operating system in Slovenia (includes keyboard cable and pointing
stick cable)
50Chapter 3 Illustrated parts catalog
Page 59
Spare part numberDescription
686299-BB1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-BG1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-D61Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-DB1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-DD1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-DJ1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-FB1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
686299-FL1Keyboard with pointing stick for use on HP EliteBook 8470p Notebook PC computer models
equipped with the Windows 7 operating system in Israel (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Switzerland (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in India (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Canada (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Iceland (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Greece (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Northwest Africa (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in the Czech Republic and Slovakia (includes
keyboard cable and pointing stick cable)
686300-001Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in the United States (includes keyboard cable and
pointing stick cable)
686300-031Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-041Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-051Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-061Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-071Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-081Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-091Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in the United Kingdom and Singapore (includes
keyboard cable and pointing stick cable)
equipped with the Windows 7 operating system in Germany (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in France (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Italy (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Spain (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Denmark (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Norway (includes keyboard cable and pointing
stick cable)
Sequential part number listing51
Page 60
Spare part numberDescription
686300-131Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-141Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-161Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-171Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-201Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-211Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-251Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-261Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in Portugal (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Turkey (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Latin America (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in Saudi Arabia (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in Brazil (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Hungary (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Russia (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Bulgaria (includes keyboard cable and pointing
stick cable)
686300-271Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in Romania (includes keyboard cable and pointing
stick cable)
686300-281Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-291Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-A41Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-A81Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-AB1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-AD1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-B31Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in Thailand (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Japan (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Belgium (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in the Czech Republic and Slovakia (includes
keyboard cable and pointing stick cable)
equipped with the Windows 7 operating system in Taiwan (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in South Korea (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in the Netherlands (includes keyboard cable and
pointing stick cable)
52Chapter 3 Illustrated parts catalog
Page 61
Spare part numberDescription
686300-B71Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-BA1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-BB1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-BG1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-D61Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-DB1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-DD1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
686300-DJ1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in Sweden and Finland (includes keyboard cable
and pointing stick cable)
equipped with the Windows 7 operating system in Slovenia (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Israel (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Switzerland (includes keyboard cable and
pointing stick cable)
equipped with the Windows 7 operating system in India (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Canada (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Iceland (includes keyboard cable and pointing
stick cable)
equipped with the Windows 7 operating system in Greece (includes keyboard cable and pointing
stick cable)
686300-FP1Keyboard with pointing stick for use on HP EliteBook 8470w Mobile Workstation computer models
equipped with the Windows 7 operating system in Northwest Africa (includes keyboard cable and
pointing stick cable)
686963-001Plastics Kit for use on HP EliteBook 8470w Mobile Workstation computer models (includes
686964-001Top cover with pointing stick buttons for use only on HP EliteBook 8470p Notebook PC computer
686965-001Top cover with pointing stick buttons for use only on HP EliteBook 8470p Notebook PC computer
689075-001DVD-ROM Drive for use only on HP EliteBook 8470p Notebook PC computer models (includes
689076-001DVD-ROM Drive for use only on HP EliteBook 8470w Mobile Workstation computer models
689077-001DVD±RW Double-Layer with SuperMulti Drive for use only on HP EliteBook 8470p Notebook PC
689078-001DVD±RW Double-Layer with SuperMulti Drive for use only on HP EliteBook 8470w Mobile
689079-001Blu-ray ROM DVD±RW SuperMulti DL Drive for use only on HP EliteBook 8470p Notebook PC
689080-001Blu-ray ROM DVD±RW SuperMulti DL Drive for use only on HP EliteBook 8470w Mobile
ExpressCard slot space saver, optical drive bay space saver, RJ-11 jack plug, and wireless
antenna clips)
models equipped with a fingerprint reader (includes TouchPad)
models not equipped with a fingerprint reader (includes TouchPad)
bezel and bracket)
(includes bezel and bracket)
computer models (includes bezel and bracket)
Workstation computer models (includes bezel and bracket)
computer models (includes bezel and bracket)
Workstation computer models (includes bezel and bracket)
689954-00124-GB flash cache module
Sequential part number listing53
Page 62
Spare part numberDescription
690229-001128-GB SATA III solid-state drive
691466-001256-GB SATA III self-encrypting solid-state drive
691716-001System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
691717-001System board for use only on HP EliteBook 8470p Notebook PC computer models equipped with
691718-001System board for use only on HP EliteBook 8470w Mobile Workstation computer models
692097-001180-GB SATA III solid-state drive
693371-001Heat sink for use only on computer models equipped with a graphics subsystem with UMA
693710-00165-W HP Smart AC adapter (RC/V, EM, 3-wire)
693711-00165-W HP Smart AC adapter (non-PFC, 3-wire)
693712-00190-W HP Smart AC adapter (PFC, 3-wire)
693713-00190-W HP Smart AC adapter (PFC, EM, 3-wire)
L3 cache, 35 W; includes replacement thermal material)
replacement thermal material)
Sequential part number listing59
Page 68
4Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●Flat-bladed screw driver
●Magnetic screw driver
Phillips P0 and P1 screw drivers
●
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE:As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION:Using excessive force during disassembly and reassembly can damage plastic parts.
Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.
Cables and connectors
CAUTION:When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.
60Chapter 4 Removal and replacement procedures
Page 69
Drive handling
CAUTION:Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the
operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors
or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION:To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by
different activities.
Preliminary replacement requirements61
Page 70
CAUTION:A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event10%40%55%
Walking across carpet35,000 V15,000 V7,500 V
Walking across vinyl floor12,000 V5,000 V3,000 V
Motions of bench worker6,000 V800 V400 V
Removing DIPS from plastic tube2,000 V700 V400 V
Removing DIPS from vinyl tray11,500 V4,000 V2,000 V
Removing DIPS from Styrofoam14,500 V5,000 V3,500 V
Removing bubble pack from PCB26,500 V20,000 V7,000 V
Packing PCBs in foam-lined box21,000 V11,000 V5,000 V
62Chapter 4 Removal and replacement procedures
Page 71
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or
●
packaging.
●Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or
●
nonconductive foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
●
mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded
●
tools and equipment.
●Use conductive field service tools, such as cutters, screw drivers, and vacuums.
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-
●
safe materials.
●Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.
●Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
●
●Turn off power and input signals before inserting or removing connectors or test equipment.
Preliminary replacement requirements63
Page 72
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible
straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
●
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive must be
worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
●Conductive tabletop workstations with ground cords of one megohm resistance
●Static-dissipative tables or floor mats with hard ties to the ground
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
●Metal tote boxes
●Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
MaterialUseVoltage protection level
Antistatic plasticsBags1,500 V
Carbon-loaded plasticFloor mats7,500 V
Metallized laminateFloor mats5,000 V
64Chapter 4 Removal and replacement procedures
Page 73
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 73 screws that must be removed, replaced, and/or loosened when servicing
the computer. Make special note of each screw size and location during removal and replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model
number provided on the service tag. It is necessary to remove the battery to obtain these numbers.
Battery on page 67 for battery removal instructions.
See
ItemComponentDescription
(1)Product nameThis is the product name affixed to the front of
(2)Serial number (s/n)This is an alphanumeric identifier that is unique to
(3)Part number/Product number (p/n)This number provides specific information about the
the computer.
each product.
product’s hardware components. The part number helps
a service technician determine what components and
parts are needed.
Component replacement procedures65
Page 74
ItemComponentDescription
(4)Warranty periodThis number describes the duration of the warranty
(5)Model descriptionThis is the alphanumeric identifier used to locate
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare
part number 642768-001. There are 4 rectangular rubber feet (1) and two square rubber feet (2) that
attach to the base enclosure and service cover in the locations illustrated below.
period for the computer.
documents, drivers, and support for the computer.
66Chapter 4 Removal and replacement procedures
Page 75
Battery
DescriptionSpare part number
9-cell, 100-Wh, 3.00-Ah, Li ion631243-001
9-cell, 100-Wh, 3.00-Ah, Li ion634087-001
9-cell, 73-Wh, 2.20-Ah, Li ion634089-001
6-cell, 62-Wh, 2.80-Ah, Li ion628670-001
6-cell, 62-Wh, 2.80-Ah, Li ion628668-001
6-cell, 51-Wh, 2.55-Ah, Li ion659083-001
3-cell, 31-Wh, 2.80-Ah, Li ion628664-001
Before disassembling the computer, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
Remove the battery:
1.Position the computer upside-down on a flat surface, with the battery bay toward you.
2.Slide the battery release latch (1) to release the battery.
3.Remove the battery (2) from the computer.
Component replacement procedures67
Page 76
SIM
Install the battery by inserting it into the battery bay until you hear a click.
NOTE:This section applies only to computer models with WWAN capability.
NOTE:If there is a SIM inserted in the SIM slot, it must be removed before disassembling the
computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.
Before removing the SIM, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
Remove the SIM:
1.Press in on the SIM (1). (The module is partially ejected from the SIM slot.)
2.Remove the SIM (2) from the SIM slot.
Battery on page 67).
Reverse this procedure to install the SIM.
68Chapter 4 Removal and replacement procedures
Page 77
Service cover
DescriptionSpare part number
Includes label indicating “Made in China”686031-001
Includes label indicating country of origin699325-001
Before removing the service cover, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
Battery on page 67).
Remove the service cover:
1.Slide the release latch (1) and remove the locking screw (if installed) (2).
2.Slide the release latch (3) to disengage the door from the computer.
3.Slide the door toward the front of the computer (4), and then lift the door off the computer (5).
Reverse the removal procedures to install the service cover.
Component replacement procedures69
Page 78
Smart Card reader
DescriptionSpare part number
Smart Card reader686025-001
Before removing the Smart Card reader, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the Smart Card reader:
1.Disconnect the Smart Card reader cable (1) from the low insertion force (LIF) connector on the
system board.
2.Use the Smart Card reader tab (2) to lift the left side of the Smart Card reader (3) and swing it up
and to the right.
3.Detach the clips (4) on the right side of the Smart Card reader from the base enclosure.
4.Remove the Smart Card reader by sliding it up and the left at an angle (5).
Reverse the removal procedures to install the Smart Card reader.
70Chapter 4 Removal and replacement procedures
Page 79
Optical drive
NOTE:The optical drive spare part kit includes an optical drive bezel and optical drive bracket.
DescriptionSpare part number
For use only on HP EliteBook 8470w Mobile Workstation computer models:
Blu-ray R/RE DVD±RW SuperMulti DL Drive686048-001
Blu-ray ROM DVD±RW SuperMulti DL Drive689090-001
DVD±RW Double-Layer with SuperMulti Drive689078-001
DVD-ROM Drive689076-001
For use only on HP EliteBook 8470p Notebook PC computer models:
Blu-ray ROM DVD±RW SuperMulti DL Drive689079-001
DVD±RW Double-Layer with SuperMulti Drive689077-001
DVD-ROM Drive689075-001
Before removing the optical drive, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the optical drive:
1.Position the computer upside-down with the right side toward you.
2.Loosen the captive Phillips screw (1) that secures the optical drive to the computer.
3.Use a flat-blade screw driver or similar tool to press on the optical drive bracket tab (2) to
release the optical drive.
Component replacement procedures71
Page 80
4.Remove the optical drive (3) from the computer.
5.If it is necessary to replace the optical drive bezel, use a thin tool or an unbent paper clip (1) to
release the optical drive tray.
6.Use a flat-blade screw driver or similar tool to press on the optical drive bezel tab (2), and then
release the left side of the optical drive bezel (3).
7.Remove the optical drive bezel (4).
8.If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel
toward you.
9.Remove the three Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the
optical drive.
72Chapter 4 Removal and replacement procedures
Page 81
10. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
Upgrade bay cradle
DescriptionSpare part number
Upgrade bay cradle643921-001
Before removing the upgrade bay cradle, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the upgrade bay cradle:
1.Position the computer upside-down with the right side toward you.
Component replacement procedures73
Page 82
2.Remove the four Phillips PM2.0×4.0 screws that secure the upgrade bay cradle to the computer.
3.Loosen the captive Phillips screw that secures the upgrade bay cradle in the upgrade bay (1).
4.Use a flat-blade screw driver or similar tool to press on the upgrade bay bracket tab (2) to
release the upgrade bay.
5.Remove the upgrade bay (3) from the computer.
Reverse this procedure to install the upgrade bay.
74Chapter 4 Removal and replacement procedures
Page 83
Hard drive
NOTE:The hard drive spare part kit does not include the hard drive bracket or screws.
DescriptionSpare part number
750-GB, 7200-rpm, 9.5-mm633252-001
500-GB, 7200-rpm, 9.5-mm SED683801-001
500-GB, 7200-rpm, 9.5-mm634925-001
320-GB, 7200-rpm, 9.5-mm634862-001
Hard Drive Hardware Kit (includes hard drive bracket and screws)642774-001
Before removing the hard drive, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
computer on, and then shut it down through the operating system.
4.Remove the battery (see
5.Remove the service cover (see
6.Remove the Smart Card reader (see
Battery on page 67).
Service cover on page 69).
Smart Card reader on page 70).
Remove the hard drive:
1.Loosen the three Phillips screws (1) that secure the hard drive to the computer.
2.Use the hard drive tab (2) to slide the hard drive to the right to disconnect it from the
system board.
Component replacement procedures75
Page 84
3.Remove the hard drive (3) from the hard drive bay.
4.If it is necessary to disassemble the hard drive, perform the following steps:
a.Remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the
hard drive.
b.Remove the hard drive bracket (2) from the hard drive. The hard drive bracket and screws
are available in the Hard Drive Hardware Kit, spare part number 642774-001.
Reverse this procedure to reassemble and install the hard drive.
76Chapter 4 Removal and replacement procedures
Page 85
Memory module
NOTE:Primary and expansion memory is installed in a stacked configuration in the bottom of
CAUTION:To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the WLAN module:
1.Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE:The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal
labeled “1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal
labeled “2”. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN
antenna cable connects to the middle terminal on the WLAN module.
2.Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the
system board. (The WLAN module tilts up.)
Component replacement procedures81
Page 90
3.Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE:WLAN modules are designed with a notch (4) to prevent incorrect insertion.
NOTE:If the WLAN antennas are not connected to the terminals on the WLAN module, the
protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
82Chapter 4 Removal and replacement procedures
Page 91
Bluetooth module
NOTE:The Bluetooth module spare part kit does not include a Bluetooth module cable. The
Bluetooth module cable is included in the Cable Kit, spare part number 641830-001.
DescriptionSpare part number
Bluetooth module 4.0 EDR655792-001
Before removing the Bluetooth module, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the Bluetooth module:
1.Disconnect the Bluetooth module cable (1) from the system board.
2.Release the Bluetooth module (2) from the clip built into the base enclosure.
3.Remove the Bluetooth module.
Reverse this procedure to install the Bluetooth module.
Component replacement procedures83
Page 92
Modem module
NOTE:The modem module spare part kit does not include an RJ-11 jack cable. The RJ-11 jack
cable is included in the Cable Kit, spare part number 641830-001.
DescriptionSpare part number
Modem module628824-001
Before removing the modem module, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the modem module:
1.Remove the two Phillips PM2.0×3.0 screws (1) that secure the modem module to the
system board.
2.Disconnect the modem module (2) from the system board by lifting it straight up.
3.Disconnect the RJ-11 jack cable (3) from the modem module.
4.Remove the modem module.
Reverse this procedure to install the modem module.
84Chapter 4 Removal and replacement procedures
Page 93
Fan
DescriptionSpare part number
Fan (includes cable)641839-001
Before removing the fan, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
Remove the fan:
1.Disconnect the fan cable (1) from the system board.
2.Loosen the captive Phillips screw (2) that secures the fan to the top cover.
3.Remove the Phillips PM2.5×5.0 screw (3) that secures the fan to the top cover.
4.Remove the fan (4).
Reverse this procedure to install the fan.
Component replacement procedures85
Page 94
Keyboard
For use in country/regionSpare part
Keyboard with pointing stick for use only on HP EliteBook 8470w Mobile Workstation computer models
For use only on computer models equipped with the
Windows 8 operating system:
For use in Belgium702649-A41For use in Norway702649-091
For use in Brazil702649-201For use in Northwest Africa702649-FP1
For use in Bulgaria702649-261For use in Portugal702649-131
For use in Canada702649-DB1For use in Romania702649-271
For use in the Czech Republic
and Slovakia
For use in Denmark702649-081For use in Saudi Arabia702649-171
For use in France702649-051For use in Slovenia702649-BA1
For use in Germany702649-041For use in South Korea702649-AD1
For use in Greece702649-151For use in Spain702649-071
For use in Hungary702649-211For use in Sweden and Finland702649-B71
For use in Iceland702649-DD1For use in Switzerland702649-BG1
number
(includes keyboard cable and pointing stick cable):
702649-FL1For use in Russia702649-251
For use in country/regionSpare part
number
For use in the Netherlands702649-B31
For use in India702649-D61For use in Taiwan702649-AB1
For use in Israel702649-BB1For use in Thailand702649-281
For use in Italy702649-061For use in Turkey702649-141
For use in Japan702649-291For use in the United Kingdom
For use in Latin America702649-161For use in the United States702649-001
For use only on computer models equipped with the
Windows 7 operating system:
For use in Belgium686300-A41For use in Norway686300-091
For use in Brazil686300-201For use in Northwest Africa686300-FP1
For use in Bulgaria686300-261For use in Portugal686300-131
For use in Canada686300-DB1For use in Romania686300-271
For use in the Czech Republic
and Slovakia
For use in Denmark686300-081For use in Saudi Arabia686300-171
For use in France686300-051For use in Slovenia686300-BA1
For use in Germany686300-041For use in South Korea686300-AD1
For use in Greece686300-DJ1For use in Spain686300-071
686300-A81For use in Russia686300-251
and Singapore
For use in the Netherlands686300-B31
702649-031
For use in Hungary686300-211For use in Sweden and Finland686300-B71
86Chapter 4 Removal and replacement procedures
Page 95
For use in country/regionSpare part
number
For use in Iceland686300-DD1For use in Switzerland686300-BG1
For use in India686300-D61For use in Taiwan686300-AB1
For use in Israel686300-BB1For use in Thailand686300-281
For use in Italy686300-061For use in Turkey686300-141
For use in country/regionSpare part
number
For use in Japan686300-291For use in the United Kingdom
For use in Latin America686300-161For use in the United States686300-001
Keyboard with pointing stick for use only on HP EliteBook 8470p Notebook PC computer models
(includes keyboard cable and pointing stick cable):
For use only on computer models equipped with the
Windows 8 operating system:
For use in Belgium702651-A41For use in Norway702651-091
For use in Brazil702651-201For use in Northwest Africa702651-FP1
For use in Bulgaria702651-261For use in Portugal702651-131
For use in Canada702651-DB1For use in Romania702651-271
For use in the Czech Republic
and Slovakia
For use in Denmark702651-081For use in Saudi Arabia702651-171
For use in France702651-051For use in Slovenia702651-BA1
For use in Germany702651-041For use in South Korea702651-AD1
For use in Greece702651-151For use in Spain702651-071
For use in Hungary702651-211For use in Sweden and Finland702651-B71
702651-FL1For use in Russia702651-251
and Singapore
For use in the Netherlands702651-B31
686300-031
For use in Iceland702651-DD1For use in Switzerland702651-BG1
For use in India702651-D61For use in Taiwan702651-AB1
For use in Israel702651-BB1For use in Thailand702651-281
For use in Italy702651-061For use in Turkey702651-141
For use in Japan702651-291For use in the United Kingdom
For use in Latin America702651-161For use in the United States702651-001
For use only on computer models equipped with the
Windows 7 operating system:
For use in Belgium686299-A41For use in Norway686299-091
For use in Brazil686299-201For use in Northwest Africa686299-FB1
For use in Bulgaria686299-261For use in Portugal686299-131
For use in Canada686299-DB1For use in Romania686299-271
For use in the Czech Republic
and Slovakia
686299-FL1For use in Russia686299-251
and Singapore
For use in the Netherlands686299-B31
702651-031
Component replacement procedures87
Page 96
For use in country/regionSpare part
number
For use in Denmark686299-081For use in Saudi Arabia686299-171
For use in France686299-051For use in Slovenia686299-BA1
For use in Germany686299-041For use in South Korea686299-AD1
For use in Greece686299-DJ1For use in Spain686299-071
For use in Hungary686299-211For use in Sweden and Finland686299-B71
For use in Iceland686299-DD1For use in Switzerland686299-BG1
For use in India686299-D61For use in Taiwan686299-AB1
For use in Israel686299-BB1For use in Thailand686299-281
For use in Italy686299-061For use in Turkey686299-141
For use in country/regionSpare part
number
For use in Japan686299-291For use in the United Kingdom
and Singapore
For use in Latin America686299-161For use in the United States686299-001
686299-031
Before removing the keyboard, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
5.Remove the service cover (see
Battery on page 67).
Service cover on page 69).
88Chapter 4 Removal and replacement procedures
Page 97
Remove the keyboard:
1.Loosen the three Phillips captive screws that secure the keyboard to the computer.
2.Rest and secure the computer on its right side.
3.Partially open the computer.
4.Insert a screw driver or similar thin tool into the keyboard release opening in the battery bay, and
then press on the back of the keyboard until the keyboard disengages from the computer.
5.Turn the computer right-side up with the front toward you.
Component replacement procedures89
Page 98
6.Lift the rear edge of the keyboard (1), and then swing the keyboard up and forward (2) until it
rests upside down on the palm rest.
7.Release the zero insertion force (ZIF) connector to which the pointing stick cable is attached,
and then disconnect the pointing stick cable (1) from the keyboard.
8.Release the ZIF connector (2) to which the keyboard cable is attached, and then disconnect the
keyboard cable (3) from the system board.
9.Remove the keyboard.
Reverse this procedure to install the keyboard.
90Chapter 4 Removal and replacement procedures
Page 99
Base enclosure
DescriptionSpare part number
Base enclosure (includes four rubber feet, service cover release latch assembly, and battery
release latch assembly)
685997-001
Before removing the base enclosure, follow these steps:
1.Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.Disconnect the power from the computer by unplugging the power cord from the computer.
3.Disconnect all external devices from the computer.
4.Remove the battery (see
a.Service cover (see
b.Smart Card reader (see
c.Optical drive (see
d.Hard drive (see
e.Modem module (see
f.Keyboard (see
Battery on page 67), and then remove the following components:
Service cover on page 69)
Smart Card reader on page 70)
Optical drive on page 71)
Hard drive on page 75)
Modem module on page 84)
Keyboard on page 86)
NOTE:When replacing the base enclosure, be sure to remove the following components from the
defective base enclosure and install them on the replacement base enclosure:
Bluetooth module and cable (see
●
Speaker assembly (see
●
RJ-11 jack assembly (see
●
Speaker assembly on page 94)
RJ-11 jack cable on page 96)
Bluetooth module on page 83)
Remove the base enclosure:
1.Close the computer.
2.Turn the computer upside down, with the front toward you.
3.Remove the four rubber screw covers (1). The rubber screw covers are included in the Rubber
Kit, spare part number 642768-001.
4.Remove the eight Torx PM2.5×8.0 screws (2) that secure the base enclosure to the computer.
Component replacement procedures91
Page 100
5.Remove the two Phillips PM2.5×11.0 screws from the docking connector alignment guides (3)
that secure the base enclosure to the computer.
6.Remove the following screws that secure the base enclosure to the computer:
(1) One Phillips PM2.0×3.0 screw from the hard drive bay
(2) Two Phillips PM2.0×3.0 screws from the battery bay
(3) One Phillips PM2.0×4.0 broad head screw from the battery bay
(4) Two Phillips PM2.5×4.5 screws from the optical drive bay
7.Position the computer with the battery bay toward you.
8.Remove the four Torx TM2.5×8.0 screws (1) from the rear panel of the computer.
92Chapter 4 Removal and replacement procedures
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
