Page 1

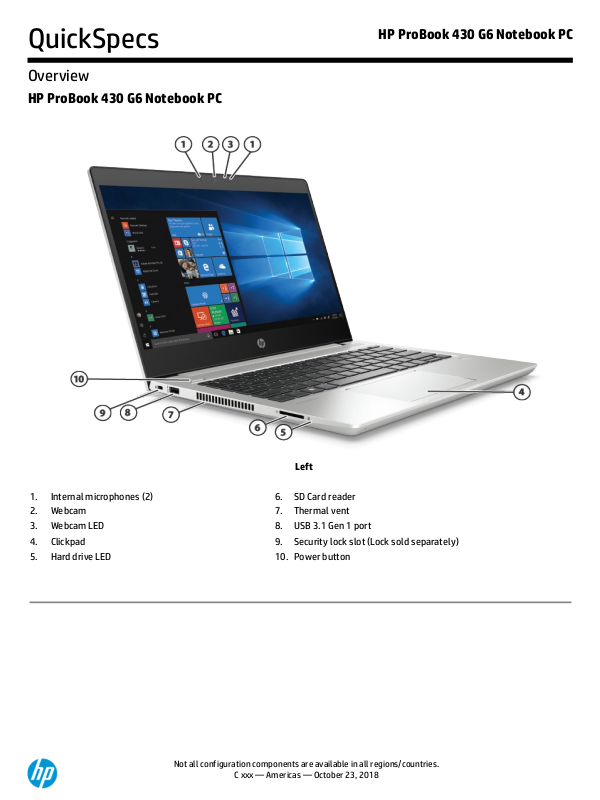

QuickSpecs

HP ProBook 430 G6 Notebook PC

Overview

Left

Internal microphones (2)

SD Card reader

Webcam

Thermal vent

Webcam LED

USB 3.1 Gen 1 port

Clickpad

Security lock slot (Lock sold separately)

Hard drive LED

10.

Power button

HP ProBook 430 G6 Notebook PC

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 2

QuickSpecs

HP ProBook 430 G6 Notebook PC

Overview

Right

Power connector

USB 3.1 Gen 1 port

USB Type-C™ 3.1 Gen 1 port

Headphone/microphone combo jack

Ethernet port (RJ-45)

HP Fingerprint Sensor

HDMI port (Cable not included)

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 3

QuickSpecs

HP ProBook 430 G6 Notebook PC

Overview

•

1. MIL STD 810G testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

At a Glance

Preinstalled with Windows 10 versions or FreeDOS 3.0

• Choice of 8th Generation Intel® Core™ i7, i5, i3 processors

• Display include your choice of 33.8 cm (13.3") diagonal HD, Ultra Wide Viewing Angle FHD, Touch or Non-Touch screen

• Integrated Intel® HD Graphics 610 and intel® UHD 620

• Enhanced security features including TPM2.0, HP BIOSphere, Hardware enforced Firmware Protection, optional

Fingerprint sensor, and optional IR camera

• Designed to pass MIL-STD 810G testing.

• Weight starting at 3.28 lbs (1.49 kgs)

• HP Long-Life Rechargeable battery, with HP Fast Charge Technology recharges 50% in 30 minutes

• Supports wireless LAN options for connectivity on the go

• Up to 512 GB Solid State Drives or 1 TB Hard Drive

• Up to 32 GB total system memory

• 720p HD webcam, IR camera for face authentication with Windows Hello

• Spill-resistant and optional backlit Keyboard, and Clickpad with multi-touch gestures enabled, taps enabled as default

Damage under the MIL STD test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.

2. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode when used with the power adapter provided with the notebook. After charging has reached 50% capacity, charging speed will return to normal. Charging time may vary +/-10% due to System tolerance.

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 4

QuickSpecs

Technical Specifications

HP ProBook 430 G6 Notebook PC

Preinstalled

Windows 10 Pro 641

Intel® Core™ i7-8565U with Intel® UHD Graphics 620 (1.8 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost

3. Multicore is designed to improve performance of certain software products. Not all customers or software

or Windows 7 drivers on http://www.support.hp.com.

PRODUCT NAMES

OPERATING SYSTEMS

HP ProBook 430 G6 Notebook PC

Windows 10 Pro 64 (National Academic only)2

Windows 10 Home 64 Windows 10 Home Single Language 64 FreeDOS 3.0

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.

2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.

PROCESSORS

Technology, 8 MB L3 cache, 4 cores) Intel® Core™ i5-8265U with Intel® UHD Graphics 620 (1.6 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores) Intel® Core™ i3-8145U with Intel® UHD Graphics 620 (2.1 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 4 MB L3 cache, 2 cores) Intel® Core™ i7+ 8565U processor (Core™ i7 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 620 (1.8 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores) Intel® Core™ i5+ 8265U processor (Core™ i5 and 16 GB Intel® Optane™ memory) with Intel® UHD Graphics 620 (1.6 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores)

Processors Family

8th Generation Intel® Core™ i7 processor (i7-8565U) 8th Generation Intel® Core™ i5 processor (i5-8265U) 8th Generation Intel® Core™ i3 processor (i3-8145U)

3,4,5,6

3,4,5,6,7

applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.

4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.

5. Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See

http://www.intel.com/technology/turboboost for more information.

6. NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 5

QuickSpecs

Technical Specifications

configuration with an optional Intel® Core™ i(5 or 7)+ processor.

Integrated with processor

Integrated

sRGB for HD+IR camera and two WLAN

10. Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Docking station

Total

Max. resolutions

Dock

Technical limitations

7. Intel® Optane™ memory system acceleration does not replace or increase the DRAM in your system and requires

CHIPSET

GRAPHICS

Intel® UHD graphics 6208

8. HD content required to view HD images.

HP ProBook 430 G6 Notebook PC

DISPLAYS

Internal

Non-Touch

33.8 cm (13.3") diagonal HD SVA eDP anti-glare LED-backlit Ultraslim, 220 cd/m², 67% sRGB for two WLAN antennas (1366 x 768)

33.8 cm (13.3") diagonal HD SVA eDP anti-glare LED-backlit Ultraslim, 220 cd/m², 67% sRGB for HD camera and two WLAN antennas (1366 x 768)

33.8 cm (13.3") diagonal HD SVA eDP anti-glare LED-backlit Ultraslim, 220 cd/m², 67% antennas (1366 x 768)

33.8 cm (13.3") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD camera and two WLAN antennas (1920 x 1080)

33.8 cm (13.3") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD+IR camera and two WLAN antennas (1920 x 1080)

Touch

33.8 cm (13.3") diagonal HD SVA eDP LED-backlit Ultraslim touch screen, 220 cd/m², 67% sRGB for HD camera and two WLAN antennas (1366 x 768)

33.8 cm (13.3") diagonal FHD UWVA eDP LED-backlit slim touch screen, 220 cd/m², 67% sRGB for HD camera and two WLAN antennas (1920 x 1080)

HDMI

Supports resolutions up to 4K 30Hz

8. HD content required to view HD images.

9. Sold separately or as an optional feature.

8,10

8,9,10

model

number of supported

displays

(incl. the

supported

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Connect3ors

Page 6

QuickSpecs

Technical Specifications

notebook

HP UltraSlim Docking

Station

HP USB-C Dock G4

Dual 2K @ 60Hz

HP USB-C Universal

Dock

Dual 4K @ 60Hz

Single 5K @ 60Hz

HP USB-C Travel

Dock

Single 2K @ 60Hz

1xHDMI, 1xVGA

Single external display

Only HDMI or VGA at the time

HP USB-C Mini Dock

Single 4K @ 30Hz

1xHDMI, 1xVGA

Single external display

Only HDMI or VGA at the time

Primary Storage

Memory

HP Thunderbolt Dock

120W G2

HP ProBook 430 G6 Notebook PC

display)

3 Dual 2.5K @ 60Hz 2xDP, 1xVGA Dual 2.5k only with both displays into DP

3 Dual 4k @60Hz

2xDP, 1xVGA,

1xTB,

1xUSB-C alt-mode

Dual 4k only with one display in to DP and +

TB port or USB-C alt mode + TB port

Single 4K @ 60Hz

(3840 x 1440)

STORAGE AND DRIVES

500 GB 7200 rpm SATA11 1 TB 5400 rpm SATA

Primary M.2 Storage

128 GB M.2 SATA TLC Solid State Drive 256 GB PCIe® NVMe™ M.2 Value Solid State Drive11 512 GB PCIe® NVMe™ M.2 TLC Solid State Drive

11. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for

Windows 10) is reserved for system recovery software.

NOTE: PCIe SSD not available for Celeron

1xHDMI, 2xDP

2xDP

MEMORY

32 GB DDR4-2400 SDRAM (2 x 16 GB)12 16 GB DDR4-2400 SDRAM (1 x 16 GB) 16 GB DDR4-2400 SDRAM (2 x 8 GB) 12 GB DDR4- 2400 SDRAM (4 GB and 8 GB (1 x 8 GB) 8 GB DDR4-2400 SDRAM (1 x 8 GB) 8 GB DDR4-2400 SDRAM (2 x 4 GB) 4 GB DDR4-2400 SDRAM (1 x 4 GB)

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 7

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Maximum

party memory modules, we recommend HP branded memory

to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Wireless LAN (WLAN)

Realtek RTL8111HSH-CG 10/100/1000 GbE NIC15

limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications

Audio

Camera Keyboard

32 GB DDR4-2400 SDRAM12

Memory Slots

2 SODIMM Both slots are customer accessible / upgradeable DDR4 PC4 SODIMMS, system runs at 2400 Supports Dual Channel Memory

12. Due to the non-industry standard nature of some third-

NETWORKING/COMMUNICATIONS

Realtek 802.11ac (2x2) WLAN and Bluetooth® 4.2 Combo13 Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) WLAN and Bluetooth® 5 Combo, non-vPro™13

Ethernet

13. Wireless access point and Internet service required and sold separately. Availability of public wireless access points

differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.

15. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

AUDIO/MULTIMEDIA

Integrated microphone (Mono or Dual Array) 2 Integrated stereo speakers

720p HD camera8 720p HD camera+IR Camera

8. HD content required to view HD images.

9. Sold separately or as an optional feature.

8,9

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

HP Premium Keyboard, spill resistant with optional backlit function

Pointing Device

Clickpad with multi-touch gesture support

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 8

QuickSpecs

Technical Specifications

Function Keys

Fn+E - Insert

ESC: system information F1 - Display Switching F2 - Blank F3 - Brightness Down F4 - Brightness Up F5 - Audio Mute F6 - Volume Down F7 - Volume Up F8 - Mic Mute F9 - Blank or Backlit Toggle F10 - numlk F11 - Wireless F12 – Sleep

Hidden Functions Fn+R - Break Fn+S - Sys Rq Fn+C - Scroll Lock

HP ProBook 430 G6 Notebook PC

SOFTWARE AND SECURITY

BIOS

HP BIOSphere Gen4

HP DriveLock & Automatic DriveLock

BIOS Update via Network

Secure Erase

Absolute Persistence Module

Pre-boot Authentication

HP Wireless Wakeup

Software

HP Native Miracast Support

HP LAN-Wireless Protection

HP Connection Optimizer

HP 3D DriveGuard

HP Hotkey Support - CMIT

HP Jumpstart

HP Support Assistant

HP Noise Cancellation Software

HP PhoneWise

HP Host Based MAC Address Manager

Buy Office (sold separately)

Manageability Features

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 9

QuickSpecs

Technical Specifications

HP Driver Packs22

http://www.hp.com/go/clientmanagement.

HP System Software Manager (SSM)

HP BIOS Config Utility (BCU)

HP Client Catalog

HP Manageability Integration Kit Gen2

Ivanti Management Suite

Client Security Software

- HP Client Security Suite Gen4

- HP Security Manager

- HP Fingerprint Sensor

- HP Device Access Manager

- HP Power On Authentication

Windows Defender

Security Management

Secure Erase

TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)

SATA 0,1 port disablement (viaBIOS)

RAID configurations

Serial, USB enable/disable (viaBIOS)

Power-on password (viaBIOS)

Setup password (viaBIOS)

Support for chassis padlocks and cable lock devices

Integrated hood sensor

HP Sure Click

HP ProBook 430 G6 Notebook PC

including:

(including Credential Manager, HP Password Manager, HP Spare Key)

16. HP BIOSphere Gen4 requires Intel(R) or AMD 8th Gen processors. Features may vary depending on the platform and configurations.

17. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method.

18. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:

http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete is an

optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.

19. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming

20. HP Support Assistant requires Windows and Internet access.

21. HP PhoneWise Client is only available on select platforms. For supported platforms and HP PhoneWise system requirements see www.hp.com/go/HPPhoneWise.

22. HP Driver Packs not preinstalled, however available for download at

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 10

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

23. HP Manageability Integration Kit can be downloaded from

33. Availability may vary by country.

http://www8.hp.com/us/en/ads/clientmanagement/overview.html

24. Ivanti Management Suite subscription required

25. HP Client Security Suite Gen 4 requires Windows and Intel® or AMD 8th generation processors..

26. HP Password Manager requires Internet Explorer or Chrome or FireFox. Some websites and applications may not be supported. User may need to enable or allow the add-on / extension in the internet browser.

27. HP Fingerprint Sensor sold separately or as an optional feature.

28. HP Device Access Manager requires HP Client Security Suite Gen4.

29. Windows Defender Opt in and internet connection required for updates.

30. Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).

31. RAID configuration is optional and does require a second hard drive.

32. HP Sure Click is available on most HP PCs and supports Microsoft® Internet Explorer and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.

POWER

HP Smart 65 W External AC power adapter33

HP Smart 65 W EM External AC power adapter HP Smart 65 W USB Type-C™ adapter HP Smart 45 W External AC power adapter HP Smart 45 W USB Type-C™ adapter

Primary Battery

HP Long Life 3-cell, 45 Wh Li-ion

Power Cord

3-wire plug - 1m 3-wire plug - 1.8m 2-wire plug - 1m Duckhead power cord- 1m Duckhead power cord- 1.8m

Battery Life

TBD

Battery Weight

0.49 lb

0.22 kg

34. Battery is internal and not replaceable by customer. Serviceable by warranty.

35. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See http://www.bapco.com for additional details.

WEIGHTS & DIMENSIONS

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 11

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Weight

30.85 x 23.1 x 1.8 cm

36. Weight will vary by configuration.

Ports

HP Services offers 3-year and 1-year limited warranties and 90 day software limited warranty options depending on

. HP services are governed by the applicable HP terms and conditions of service provided or indicated to

Stand-Alone Power Requirements (AC Power)

Nominal Operating Voltage

19V

Average Operating Power

Win 10

Integrated graphics

5.71W

Starting at 3.28 lb36 Starting at 1.49 kg

Dimensions (w x d x h)

12.15 x 9.09 x 0.71 in

PORTS/SLOTS

1 USB 3.1 Type-C™ Gen 1 (Power delivery, DisplayPort™) 1 USB 3.1 Gen 1 1 USB 3.1 (Powered port) 1 HDMI 1.4b 1 RJ-45 1 AC power 1 Headphone/microphone combo jack

Expansion Slots

1 SD Supports SD, SDHC, SDXC

37. HDMI cable sold separately.

SERVICE AND SUPPORT

country. Batteries have a default one year limited warranty except for Long Life Batteries which will have same 1-year or 3year limited warranty as the platform. On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at:

38. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit

www.hp.com/go/cpc

Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.

http://www.hp.com/go/cpc .

SYSTEM UNIT

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 12

QuickSpecs

Technical Specifications

Max Operating Power

UMA < 45W

Temperature

Operating

32° to 95° F (0° to 35° C)

Non-operating

-4° to 140° F (-20° to 60° C)

Relative Humidity

Operating

10% to 90%, non-condensing

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

Shock

Operating

40 G, 2 ms, half-sine

200 G, 2 ms, half-sine

Random Vibration

Operating

0.75 grms

1.50 grms

Altitude (unpressurized)

Operating

-50 to 10,000 ft (-15.24 to 3,048 m)

-50 to 40,000 ft (-15.24 to 12,192 m)

Planned Industry Standard

UL Yes

CSA Yes

FCC Compliance Yes

ENERGY STAR® Selected models39

EPEAT Registered Gold in United States40

ICES Yes

Australia / Yes

NZ A-Tick Compliance Yes

CCC Yes

Japan VCCI Compliance

BSMI CE Marking Compliance

Yes

Saudi Arabian Compliance (ICCP)

Yes

SABS Yes

UKRSERTCOMPUTER Yes

Non-operating

HP ProBook 430 G6 Notebook PC

Non-operating

Certifications

BNCI or BELUS CIT GOST

Yes Yes Yes

39. Configurations of the HP ProBook 430 G6 that are ENERGY STAR® certified on HP websites and on http://www.energystar.gov.

40. EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories at

http://www.hp.com/go/options.

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

are identified as HP ProBook 430 G6 ENERGY STAR

Page 13

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Panel LCD 13.3 inch

Outline Dimensions (W x H x D)

Active Area

Weight

Diagonal Size

Thickness

Interface

Surface Treatment

Touch Enabled

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Format

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

Panel LCD 13.3 inch

Outline Dimensions (W x H x D)

300.56 x 187.77 max.

Active Area

293.76 x 165.24 typ.

Weight

<383 max.

Diagonal Size

13.3"

Thickness

3.2mm max.

Interface

eDP 1.2 (2 lanes)

Surface Treatment

BrightView Glass

Touch Enabled

Yes

Contrast Ratio

600:1 (typ)

Refresh Rate

60Hz

Brightness

220 nits typical (Panel Only)

Pixel Resolution

1920 x 1080 (FHD)

Format

RGB

Backlight

LED

Color Gamut Coverage

45%

Color Depth

6 bits (Hi FRC @ system GFX output 8bits)

Viewing Angle

UWVA 85/85/85/85

Outline Dimensions (W x H x D)

300.56 x 187.77 max. (w/ PCB & w/o bracket)

DISPLAYS

Note: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may

vary either higher or lower.

300.56 x 187.77 max.

diagonal FHD (1920x1080) Anti-Glare WLED UWVA 45% cg 220nits eDP slim NB non-touch

293.76 x 165.24 typ. <260 max.

13.3"

3.0mm max. eDP 1.2 (2 lanes) Anti-glare No 600:1 (typ) 60Hz 220 nits typical (Panel Only) 1920 x 1080 (FHD) RGB LED 45% 6 bits (Hi FRC @ system GFX output 8bits) UWVA 85/85/85/85

diagonal FHD (1920x1080) WLED UWVA 45% cg 220nits eDP slim NB touch

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 14

QuickSpecs

Technical Specifications

Panel LCD 13.3 inch diagonal

Active Area

293.83 x 165.20 typ.

Weight

<260 max.

Diagonal Size

13.3 (inch)

Thickness

3.0mm max.

Interface

eDP 1.2 (2 lanes)

Surface Treatment

Anti-glare

Touch Enabled

Contrast Ratio

300:1 (typ)

Refresh Rate

60Hz

Brightness

220 nits typical (Panel Only)

Pixel Resolution

1366 x 768 (HD)

Format

RGB

Backlight

LED

Color Gamut Coverage

45%

Color Depth

6 bits (Hi FRC @ system GFX output 8bits)

Viewing Angle

SVA 45/45/15/30

Panel LCD 13.3 inch diagonal

Outline Dimensions (W x H x D)

Active Area

Weight

Diagonal Size

Thickness

Interface

Surface Treatment

Touch Enabled

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Format

Backlight

Color Gamut Coverage

Color Depth

Viewing Angle

500 GB 7200 rpm SATA

Drive Weight

0.20 lbs (92 g) ~ 0.21 lbs (95 g)

Rotation speed

7200 rpm

Cache Buffer

Up to 32 MB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

HD (1366x768) Anti-Glare WLED SVA 45% cg 220nits eDP slim NB non-touch

HP ProBook 430 G6 Notebook PC

HD (1366x768) WLED SVA 45% cg 220nits eDP slim NB touch

STORAGE AND DRIVES

300.56 x 187.77 max. (w/ PCB & w/o bracket)

293.83 x 165.20 typ. <383 max.

13.3 (inch)

3.2mm max. eDP 1.2 (2 lanes) BrightView Glass Yes 300:1 (typ) 60Hz 220 nits typical (Panel Only) 1366 x 768 (HD) RGB LED 45% 6 bits (Hi FRC @ system GFX output 8bits) SVA 45/45/15/30

Hard Drives

Hard Drive

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 15

QuickSpecs

Technical Specifications

Interface

ATA-8, SATA 3.0

Transfer Rate

600 MB/s

Seek Time

Maximum: 18 ~ 22 ms

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Security Features

ATA Security

Features

S.M.A.R.T., NCQ, Ultra DMA

1 TB 5400 rpm SATA

Drive Weight

0.21 lbs (94 g)

Rotation speed

5400 rpm

Cache Buffer

Up to 32 MB

Height

0.28 in (7.2 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

600 MB/s

Seek Time

Single Track2 ms

Logical Blocks

1,953,525,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Security Features

ATA Security

Features

S.M.A.R.T., NCQ, Ultra DMA

Hard Drive

HP ProBook 430 G6 Notebook PC

Single Track: 2 ~ 1.5 ms; Average: 11 ~ 13 ms;

Average12 ~ 13 ms Maximum18 ~ 22 ms

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 16

QuickSpecs

Technical Specifications

SSD 128 GB 2280 M2

Form Factor

M.2 2280

Capacity

128GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Maximum Sequential Read

Up To 520 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

256 GB 2280 PCIe NVMe

Form Factor

M.2 2280

Capacity

256 GB

NAND Type

TLC

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3

Maximum Sequential Read

Up To 1700 MB/s

Maximum Sequential Write

Up to 1300 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

512 GB 2280 M2 PCIe NVMe

Form Factor

M.2 2280

Capacity

512 GB

NAND Type

TLC

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Maximum Sequential Read

Up To 2600 MB/s

Maximum Sequential Write

Up To 1400 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

SATA-3 TLC

HP ProBook 430 G6 Notebook PC

NAND Type TLC

Weight 0.02 lb (10 g)

Maximum Sequential Write Up To 450 MB/s

Features DIPM; TRIM; DEVSLP

Value Solid State Drive

TLC Solid State Drive

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 17

QuickSpecs

Technical Specifications

16 GB 2280 PCIe-3x2 NVMe

Form Factor

M.2 2280

Capacity

16 GB

NAND Type

Xpoint

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X2

Maximum Sequential Read

1400

Maximum Sequential Write

300

Logical Blocks

28,181,188

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

L1.2

IEEE 802.11v

Interoperability

Wi-Fi® certified

Frequency Band

Data Rates

160MHz)

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security3

•

3D Xpoint Solid State Drive

NETWORKING/COMMUNICATIONS

HP ProBook 430 G6 Notebook PC

WLAN

Intel® 9560

802.11a/b/g/n/ac (2x2) WLAN and Bluetooth® 5.0

Combo non-vPro

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r

802.11b/g/n

• 2.402 – 2.482 GHz

802.11a/n/ac

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, , 80MHz &

Modulation

Not all configuration components are available in all regions/countries.

Direct Sequence Spread Spectrum

IEEE and WiFi® compliant 64 / 128 bit WEP encryption for a/b/g

C xxx — Americas — October 23, 2018

Page 18

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Models

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

802.11ac, MCS9: -59dBm maximum

Antenna type

support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

Weight

1. Type 2230: 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9%

Temperature

Operating Non-operating

14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)

Humidity

Operating

10% to 90% (non-condensing)

mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• Cisco Certified Extensions, all versions through CCX4 and CCX Lite

• WAPI

Network Architecture

Power Consumption Transmit mode: 2.0 W

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

Receive mode: 1.6 W Idle mode (PSP)180 mW (WLAN Associated) Idle mode: 50 mW (WLAN unassociated) Connected Standby/Modern Standby: 10mW

802.11b, 1Mbps: -93.5dBm maximum

802.11b, 11Mbps: -84dBm maximum

802.11a/g, 6Mbps: -86dBm maximum

802.11a/g, 54Mbps: -72dBm maximum

802.11n, MCS07: -67dBm maximum

802.11n, MCS15: -64dBm maximum

802.11ac, MCS0: -84dBm maximum

High efficiency antenna with spatial diversity, mounted in the display

enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to

1. Type 2230: 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 19

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Non-operating

5% to 95% (non-condensing)

Altitude

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

1. Check latest software/driver release for updates on supported security features.

packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology

Bluetooth® Specification

4.0/4.1/4.2/5.0 Compliant

Frequency Band

2402 to 2480 MHz

Channels

Legacy: 3 Mbps signaling rate1

BLE: 1 Mbps signaling data rate1

Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with

Power Consumption

Peak (Tx) 330 mW

Selective Suspend 17 mW

Electrical Interface

USB 2.0 compliant

Bluetooth Software

Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950UL, CSA, and CE Mark

Bluetooth Profiles

BT4.1-ESR 5/6/7 Compliance

LE Data Packet Length Extension

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a

Number of Available

Signaling Data Rate

Supported

Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)

1. Actual throughput may vary.

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

a maximum transmit power of + 4 dBm for BR and EDR.

Peak (Rx) 230 mW

Supported

Not all configuration components are available in all regions/countries.

LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies

C xxx — Americas — October 23, 2018

Page 20

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

FAX Profile (FAX)

Advanced Audio Distribution Profile (A2DP)

Realtek

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11ac

Interoperability

Wi-Fi® certified

Frequency Band

802.11b/g/n

Data Rates

•

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

•

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

•

Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP)

802.11a/b/g/n/ac (2x2) WLAN and Bluetooth® 4.1

Combo

Security3

IEEE 802.11b IEEE 802.11g IEEE 802.11n

•2.402 – 2.482 GHz

802.11a/n

•4.9 – 4.95 GHz (Japan)

•5.15 – 5.25 GHz

•5.25 – 5.35 GHz

•5.47 – 5.725 GHz

•5.825 – 5.850 GHz

802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac: MCS0 ~ MCS7, (1SS) (20MHz, 40MHz, and 80MHz)

IEEE and WiFi® compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• Cisco Certified Extensions, all versions through CCX4 and CCX Lite

• WAPI

Not all configuration components are available in all regions/countries.

802.11b: +14dBm minimum

• 802.11g: +12dBm minimum

• 802.11a: +12dBm minimum

• 802.11n HT20(2.4GHz): +12dBm minimum

• 802.11n HT40(2.4GHz): +12dBm minimum

• 802.11n HT20(5GHz): +10dBm minimum

C xxx — Americas — October 23, 2018

Page 21

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

•

Power Consumption

Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

802.11b, 1Mbps: -93.5dBm maximum

802.11ac, MCS9: -59dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display

support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230: 2.3 x 22.0 x 30.0 mm

Weight

Type 2230: 2.8g

Operating Voltage

3.3v +/- 9%

Temperature

Non-operating

–40° to 176° F (–40° to 80° C)

Humidity

Operating

10% to 90% (non-condensing)

Altitude

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

1. Check latest software/driver release for updates on supported security features.

and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0/4.1 Wireless Technology

Bluetooth® Specification

4.0/4.1 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

BLE: 0~39 (2 MHz/CH)

Signaling Data Rate

Legacy: 3 Mbps signaling data rate1

BLE: 1 Mbps signaling data rate1

802.11n HT40(5GHz): +10dBm minimum

• 802.11ac VHT80(5GHz): +10dBm minimum

Transmit: 2.0 W (max) Receive: 1.6 W (max) Idle mode (PSP): 180 mW (WLAN Associated) Idle mode: 50 mW (WLAN unassociated) Connect Standby: 10 mW (WLAN+BT)

802.11b, 11Mbps: -84dBm maximum

802.11a/g, 6Mbps: -86dBm maximum

802.11a/g, 54Mbps: -72dBm maximum

802.11n, MCS07: -67dBm maximum

802.11n, MCS15: -64dBm maximum

802.11ac, MCS0: -84dBm maximum

enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to

Operating

Non-operating

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)

14° to 158° F (–10° to 70° C)

5% to 95% (non-condensing)

Not all configuration components are available in all regions/countries.

Legacy: 0~79 (1 MHz/CH)

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

1. Actual throughput may vary.

C xxx — Americas — October 23, 2018

Page 22

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

Power Consumption

Peak (Tx) 330 mW

Selective Suspend 17 mW

Electrical Interface

USB 2.0 compliant

Bluetooth Software

Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950UL, CSA, and CE Mark

Bluetooth Profiles

BT4.1-ESR 5/6/7 Compliance

Advanced Audio Distribution Profile (A2DP)

Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Peak (Rx) 230 mW

Supported

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 23

QuickSpecs

Technical Specifications

HP 45W Smart

Dimensions (H x W x D)

3.74 x 1.57 x 1.04 in (9.5 x 4.0 x 2.65 cm)

Weight

0.386 lb (175g) max

Input

90 to 265 VAC

Input Efficiency

87.74% at 115Vac and 88.4% at 230Vac

Input frequency range

47 to 63 Hz

Input AC current

1.4 A at 90 VAC

Output

Output power

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<8.0A

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

Non-operating (storage) temperature

-4°F to 185°F (-20° to 85°C)

Altitude

0 to 16,400 ft (0 to 5,000 m)

Humidity

20% to 95%

EMI and Safety

CE Mark - full compliance with LVD and EMC directives

HP 65W Smart AC Adapter

Dimensions

90x51x28.5mm

Weight

unit: 220g +/- 10g

Input Efficiency

88% at 115 VAC and 89% at 230 VAC

Input frequency range

Input AC current

1.7 A at 90 VAC

Output

Output power

65W

DC output

19.5V

Hold-up time

5 ms at 115 VAC input

Connector

Environmental Design

Operating temperature

32°F to 95°F (0°to 35°C)

Non-operating (storage) temperature

Altitude

0 to 16,400 ft (0 to 5000m)

POWER

AC Adapter

HP ProBook 430 G6 Notebook PC

45W

32°F to 95°F (0° to 35°C)

Certifications

Storage Humidity 10% to 95%

Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. MTBF - over 200,000 hours at 25°C ambient condition.

47 to 63 Hz

Output current limit <11A

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

-4°F to 185°F (-20°to 85°C)

Page 24

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

Humidity

Storage Humidity

10% to 95%

HP 65W EM Smart AC

Dimensions

102x55x30mm

Weight

270g +/- 10g

Input Efficiency

87% min at 115V/230V

Input frequency range

47 to 63 Hz

Input AC current

DC output

65W(19.5V/3.33A)

Hold-up time

5 msec at 115 VAC input

Output current limit

<11A, Over voltage protection- 29V max automatic shutdown

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

0° to 35° C

Non-operating (storage) temperature

Altitude

0 to 5,000 m

Humidity

Storage Humidity

0% to 95%

EMI and Safety

AC Adapter 65 Watt nPFC

Dimensions

74x74x28.5mm

Weight

unit: 245g +/- 10g

Input Efficiency

81.5% min at 115 Vac/ 230Vac @ 5V/3A

89% min at 115 Vac/ 230Vac @ 20V/3.25A

Input AC current

1.7 A at 90 VAC and maximum load

Output power

65W

20% to 95%

adapter

EMI and Safety Certifications

CE Mark - full compliance with LVD and EMC directives* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.

1.7 A at 90 VAC and maximum load

-20° to 85° C

Certifications

USB type C

0% to 95%

86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 10V/5A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A

Input frequency range 47 ~ 63 Hz

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 25

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

DC output

Hold-up time

5ms at 115 Vac input

Environmental Design

Operating temperature

32°Fto 95°F (0°to 35°C)

Non-operating (storage) temperature

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

5% to 95%

Storage Humidity

5% to 95%

EMI and Safety

AC Adapter 45 Watt nPFC

Dimensions

62.0x62.0x28.5mm

Input Efficiency

Average Efficiency of 25%, 50%, 75%, 100%

81.5%9V : 86.7%10V : 87.5%12V : 87.8%15V :

87.8%20V : 87.8%

Input frequency range

47 ~ 63Hz

Input AC current

Max. 1.4 A at 90 Vac

Output power

5V/15W

20V/45W

Hold-up time

5ms at 115 Vac input

Output current limit

<5.0A

Connector

Type C

Environmental Design

Operating temperature

32°F to 95°F (0°to 35°C)

Non-operating (storage) temperature

-4°F to 185°F (-20°to 85°C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

Storage Humidity

10% to 95%

5V/9V/10V/12V/15V/20V

Output current limit <8.0A

Connector Type C

-4°F to 185°F (-20°to 85°C)

CE Mark - full compliance with LVD and EMC directives* Worldwide safety

Certifications

standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.

USB type C

Weight unit: 220g +/- 10g

DC output 5V / 9V / 10V /12V / 15V / 20V

load condition with 115Vac/230Vac Spec:5V :

9V/27W 10V/37.5W 12V/45W 15V/45W

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

20% to 95%

Page 26

QuickSpecs

HP ProBook 430 G6 Notebook PC

Technical Specifications

EMI and Safety

3 Cell WHr 45 Long Life -

Dimensions

6.0. x184.7x88.9 mm

Weight

Cells/Type

3cell Lithium-Ion

Voltage

11.55V

Amp-hour capacity

3.900Ah

Watt-hour capacity

45Wh

Operating (Charging)

Operating (Discharging)

14˚ to 122˚ F (-10˚ to 60˚ C)

1. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode when used with the power

time may vary +/-10% due to System tolerance.

Country of Origin

China

CE Mark - full compliance with LVD and EMC directives* Worldwide safety

Certifications

Polymer HP Fast Charge Technology

adapter provided with the notebook. After charging has reached 50% capacity, charging speed will return to normal. Charging

0.22 kg (0.48lb)

32˚ to 113˚ F (0˚ to 45˚ C)

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 27

QuickSpecs

HP ProBook 430 G6 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

Type

Description

Part Number

Cases

HP Essential Top Load Case

H2W17AA

HP Essential Backpack

H1D24AA

HP Essential Messenger Case

H1D25AA

Docking

HP USB-C Mini Dock

1PM64AA

HP USB-C Universal Dock

1MK33AA

HP USB-C Dock G4

3FF69AA

Input/Output

HP USB Essential Keyboard and Mouse

H6L29AA

HP Ultra Mobile Wireless Mouse

H6F25AA

HP Comfort Grip Wireless Mouse

H2L63AA

HP 3-Button USB Laser Mouse

H4B81AA

HP USB Travel Mouse

G1K28AA

HP HDMI to DVI Adapter

F5A28AA

Memory

4GB 2666MHz DDR4

4VN05AA

8GB 2666MHz DDR4

4VN06AA

16GB 2666 MHz DDR4

4VN07AA

Power

HP 45W Smart AC Adapter 4.5mm

H6Y88AA

HP 65W Slim AC Adapter

H6Y82AA

HP 65W USB-C Power Adapter

3PN48AA

HP 45W USB-C Power Adapter

1HE17AA

HP 65W USB-C Power Adapter

1HE08AA

HP Power Bank

N9F71AA

HP USB-C Power Bank

2NA10AA

HP 45W LC USB-C Power Adapter

1MZ01AA#ABA

Storage

HP External USB Optical Drive

F2B56AA

HP 500GB 7200rpm HDD

F3B97AA

Security

HP Combination Lock

T0Y15AA

HP Essential Keyed Cable lock 12.3mm

T0Y14AA

HP Keyed Cable Lock 10mm

T1A62AA

HP UltraSlim Keyed Cable Lock

T1A62AA

UCC

HP Conferencing Keyboard

K8P74AA

HP Speaker Phone

K7V16AA

HP Wired Headset

K7V17AA

Displays

HP ProDisplay P223 21.5-inch Monitor

X7R61AA

HP ProDisplay P232 23-inch Monitor

K7X31AA

HP ProDisplay P240va 23.8-inch Monitor

X3B48AA

HP EliteDisplay E243 23.8-inch Monitor

1FH47AA

HP EliteDisplay E243m 23.8-inch Collaboration Monitor

1FH48AA

HP EliteDisplay E273 27-inch Monitor

1FH50AA

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018

Page 28

QuickSpecs

HP ProBook 430 G6 Notebook PC

Summary of Changes

Date of change:

Version History:

Description of change:

V1 to V2

and/or

Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Bluetooth is a trademark of its proprietor and used by HP Inc. under license. Intel, Core, Celeron and Intel vPro are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. NVIDIA, the NVIDIA logo, and GeForce are trademarks registered trademarks of NVIDIA Corporation in the U.S. and other countries. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Microsoft and

Not all configuration components are available in all regions/countries.

C xxx — Americas — October 23, 2018
