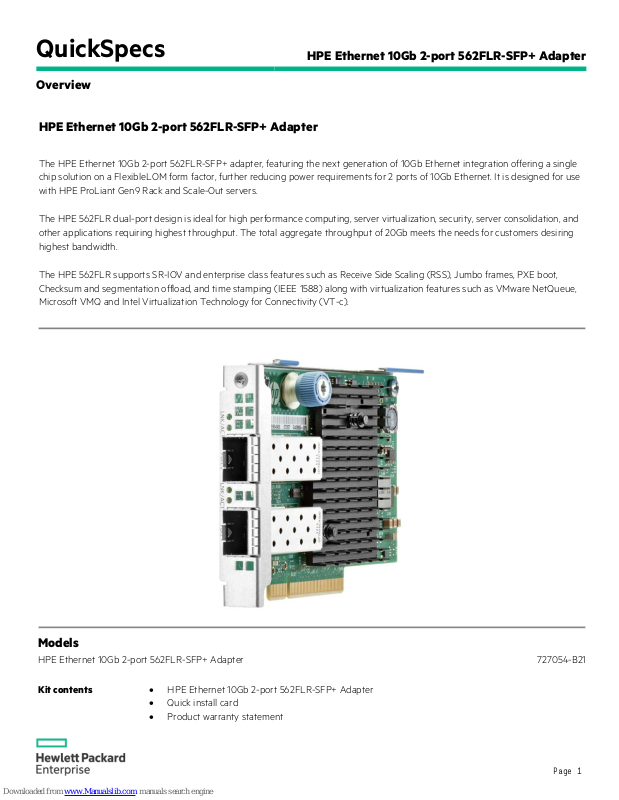

QuickSpecs

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

Overview

Page 1

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

The HPE Ethernet 10Gb 2-port 562FLR-SFP+ adapter, featuring the next generation of 10Gb Ethernet integration offering a single
chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use
with HPE ProLiant Gen9 Rack and Scale-Out servers.

The HPE 562FLR dual-port design is ideal for high performance computing, server virtualization, security, server consolidation, and
other applications requiring highest throughput. The total aggregate throughput of 20Gb meets the needs for customers desiring
highest bandwidth.

The HPE 562FLR supports SR-IOV and enterprise class features such as Receive Side Scaling (RSS), Jumbo frames, PXE boot,
Checksum and segmentation offload, and time stamping (IEEE 1588) along with virtualization features such as VMware NetQueue,
Microsoft VMQ and Intel Virtualization Technology for Connectivity (VT-c).

Models

HP

E Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-

B21

Kit contents

• HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

• Quick install card

• Product warranty statement

QuickSpecs

HPE Ethernet 10Gb 2-port 562FLR-

SFP+ Adapter

Compatibility

Page

2

Servers ProLiant DL (rack-optimized):

• HPE ProLiant DL120 Gen9

• HPE ProLiant DL160 Gen9

• HPE ProLiant DL180 Gen9

• HPE ProLiant DL360 Gen9

• HPE ProLiant DL380 Gen9

• HPE ProLiant DL560 Gen9

• HPE ProLiant DL580 Gen9

Density Optimized

• HPE Apollo 2000 Gen9

• HPE Apollo 4000 Gen9

• HPE Apollo 6000 Gen9

NOTE: This is a list of supported servers. Some may be discontinued.

QuickSpecs

HPE Ethernet 10Gb 2-port 562FLR-

SFP+ Adapter

Standard Features

Page

3

Product Features • Dual-port 10GbE FlexibleLOM that provides the flexibility to meet growing infrastructure needs.

Industry-leading throughput and latency performance

• Up to 40Gb/s bi-directional near line rate throughput

• Supports SR-IOV (requires server FW, SW and OS support)

• Hardware acceleration and offloads for stateless TCP/IP

• Support for Preboot eXecution Environment (PXE)

• Supports Wake-on-LAN (at 1 Gb)

NOTE: Wake-on-LAN is supported only on Port 1 from system power state S5.

• Improved small packet performance

• Integrated PHY and MAC

Dual-

port 10 Gigabit

Ethernet
Throughput

The HPE 562FLR FlexibleLOM delivers 20Gbps full duplex Ethernet transfer rate per port (40 Gbps
aggregate full duplex), providing the network performance needed to improve response times and alleviate
bottlenecks that impact performance of next generation data centers. 10Gb Ethernet bandwidth is ideal for
high performance computing, database clusters, and more.

Jumbo Frames The HPE 562FLR FlexibleLOM supports jumbo frames (also known as extended frames), permitting up to a

9.5K byte (KB) transmission unit (MTU) when running Ethernet I/O traffic. This is over 5X the size of a
standard 1500-byte Ethernet frame. With jumbo frames, networks can achieve higher throughput
performance and greater CPU utilization. These attributes are particularly useful for database transfer and
tape backup operations.

802.1Q VLANs IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the HPE 562FLR
FlexibleLOM to be separated into multiple virtual NICs for added network segmentation and enhanced
security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast
traffic to within the same VLAN domain also improves performance.

Optimized for
Virtualization

I/O Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of
consolidated virtual workloads.

Compliant with Single-Root I/O Virtualization (SR-IOV), accommodating multiple Virtual Machines (VMs) to
share single PCIe resources. The HPE 562FLR-SFP+ supports SR-IOV, and requires Firmware, Software and
OS support.

MSI and MSI-X MSI and MSI-X Message Signaled Interrupt (Extended) provides performance benefits for multi-core servers

by balancing interrupts between CPUs/cores load.

TCP/IP Stateless
Offloading

TCP, IP, UDP checksum offload, Large Send Offload (LSO), TCP, Segmentation Offload (TSO). These features
optimize host efficiency, leaving the CPU available for other duties.

QuickSpecs

HPE Ethernet 10Gb 2-port 562FLR-

SFP+ Adapter

Standar

d Features

Page 4

FlexibleLOM slot
Compatibility

Compatible with HPE FlexibleLOM slot for select HPE ProLiant Gen9 Rack and Scale-Out servers.

Network Adapter
Teaming

The HPE 562FLR FlexibleLOM support for NIC teaming helps IT administrators increase network fault
tolerance and increased network bandwidth, The team of adapters can work together as a single virtual
adapter. The HPE 562FLR provides support for several different types of teaming enabling IT administrators
to optimize availability, improve performance and help reduce costs.

Network Management

Management
Support

The HPE 562FLR FlexibleLOM can be administered from HPE Systems Insight Manager (SIM). The adapters
can be managed individually or in teams, providing SNMP based statistics for reporting purposes. The HPE
562FLR adapter can also be managed by other applications with SNMP support.

Server Integration The HPE 562FLR FlexibleLOM is a validated, tested, and qualified solution that is optimized for HPE ProLiant

servers. Hewlett Packard Enterprise validates a wide variety of major operating systems drivers with the full
suite of web-based enterprise management utilities including HPE Intelligent Provisioning and HPE Systems
Insight Manager that simplify network management.

This approach provides a more robust and reliable networking solution than offerings from other venders and
provides users with a single point of contact for both their servers and their network adapters.

Configuration
Utilities

Each HPE 562FLR ships with a suite of operating system-tailored configuration utilities that allow the user to
enable initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for Microsoft
Windows operating systems. Additionally, support for scripted installations of teams in a Microsoft Windows
environment allow for unattended OS installations.

LED Indicators The colored LEDs on each port of the HPE 562FLR adapter indicate link status and link activity.

Preboot Execution
Environment (PXE)

PXE allows the server to boot over the network and download software residing in the network. The HPE
562FLR supports PXE.

HPE Sea of Sensors
3D

Support for HPE's Sea of Sensors which is a collection of 32 sensors that automatically track thermal activity ­heat - across the server. When temperatures get too high, sensors can kick on fans and make other
adjustments to reduce energy usage. What makes it better is the upgrade from all six fans kicking on at one
time to a new system where only one kicks on - the one in proximity of the area that started heating up - thus
reducing the amount of energy used for cooling.

Active Health
System

Supports HPE Active Health System monitors and records changes in the server hardware and configuration
enabling customers to have accurate information that will assist in diagnosing problems and delivering rapid
resolution when server failures occur.
