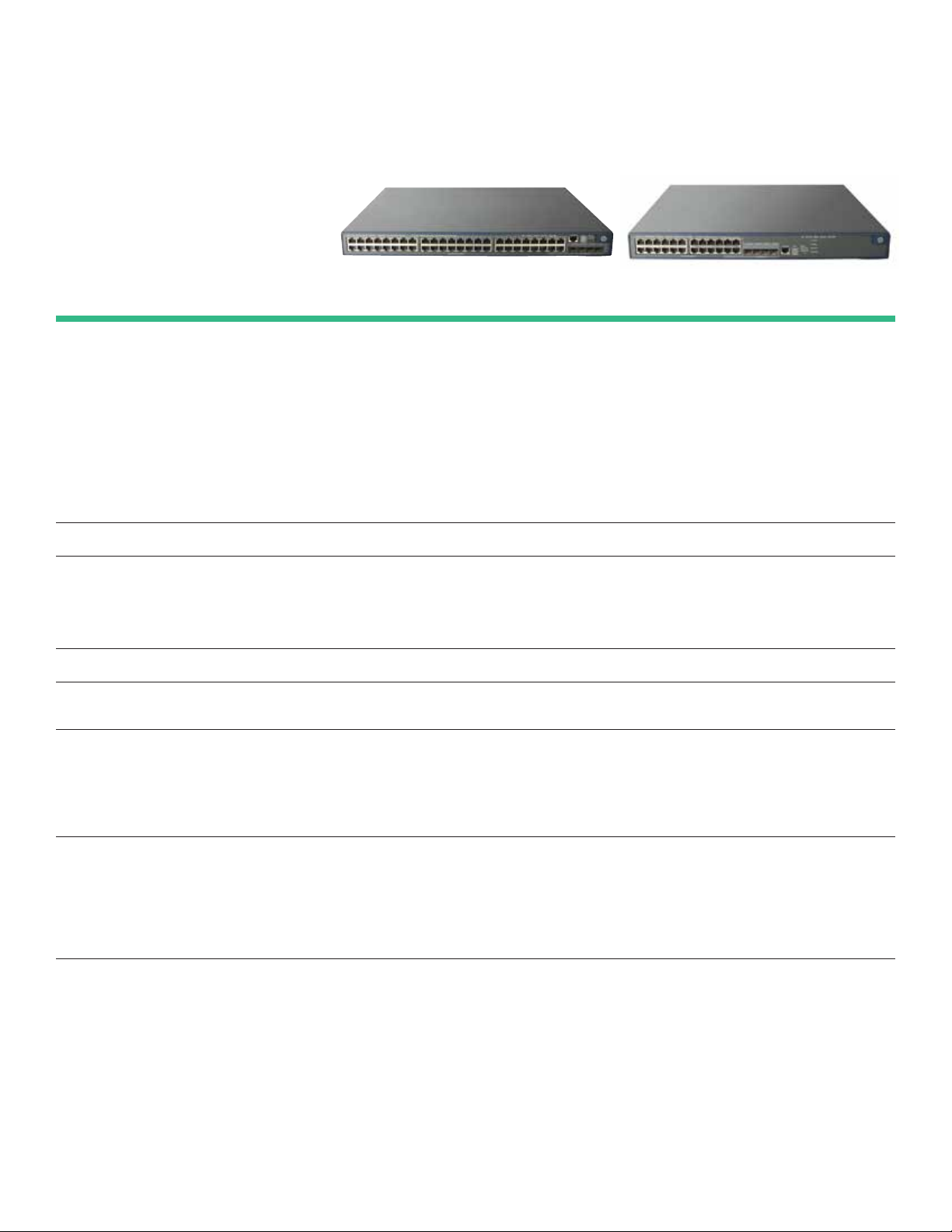

HPE 5500 EI Switch Series

Data sheet

Key features

• High expandability for investment protection

• Premium security and integrated management

• Multilayer reliability

• Convergence-ready support

• Outstanding quality of service (QoS)

Product overview

These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HPE 5500 EI Switch Series consists of Layer 2 or 3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traic prioritization technologies to enhance applications on convergent networks. With complete IPv4 or IPv6 dual-stack support, the series provides a migration path from IPv4 to IPv6 and has hardware support for IPv6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional 1GbE and 10GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability.

Data sheet

Page 2

Features and benefits

Software-defined networking

• OpenFlow

Supports OpenFlow 13 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Quality of service (QoS)

• Storm restraint

Allows limitation of broadcast, multicast, and unknown unicast traic rate to cut down on unwanted broadcast traic on the network

• Advanced classifier-based QoS

Classifies traic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies, such as setting priority level and rate limit, to bi-directional selected traic on a per-port, per-VLAN, or whole switch basis

• Powerful QoS feature

Creates traic classes based on ACLs, IEEE 8021p precedence, IP, DSCP, or ToS precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR), SP+WRR, weighted fair queuing (WFQ), and weighted random early discard (WRED)

• Traic policing

Supports Committed Access Rate (CAR) and line rate

Management

• Friendly port names

Allows assignment of descriptive names to ports

• Remote configuration and management

Enables configuration and management through a secure Web browser or a CLI located on a remote device

• Manager and operator privilege levels

Provide read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces

• Command authorization

Leverages HWTACACS to link a custom list of CLI commands to an individual network administrator’s login; also provides an audit trail

• Secure Web GUI

Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS

• Dual flash images

Provide independent primary and secondary operating system files for backup while upgrading

• Multiple configuration files

Store easily to the flash image

• Complete session logging

Provides detailed information for problem identification and resolution

Data sheet

Page 3

• SNMPv1, v2c, and v3

Facilitate centralized discovery, monitoring, and secure management of networking devices

• Remote monitoring (RMON)

Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group

• IEEE 8021AB Link Layer Discovery Protocol (LLDP)

Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

• sFlow (RF C 3176)

Provides scalable ASIC-based wire-speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

• Management VLAN

Segments traic to and from management interfaces, including CLI or telnet, a Web browser interface, and SNMP

• Remote Intelligent Mirroring

Mirrors ingress or egress ACL-selected traic from a switch port or VLAN to a local or remote switch port anywhere on the network

• Device Link Detection Protocol (DLDP)

Monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, preventing network problems such as loops

• IPv6 management

Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6

• Troubleshooting

Ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems

• In-Service Software Upgrade (ISSU)

Enables operators to perform upgrades in the shortest possible amount of time with reduced risk to network operations or traic disruptions

Connectivity

• Auto-MDIX

Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

• Flow control

Provides back pressure using standard IEEE 8023x, reducing congestion in heavy traic situations

• Jumbo packet support

Supports up to 9216-byte frame size to improve the performance of large data transfers

• High-density port connectivity

Provides up to 48 fixed 10/100/1000BASE-T or 24 SFP 100/1000BASE-X ports in a Layer 2 or Layer 3 stackable switch supporting unique IRF stacking

Data sheet

Page 4

• IEEE 8023at Power over Ethernet (PoE+) support

Simplifies deployment and dramatically reduces installation costs by helping to reduce the time and cost involved in supplying local power at each access point location

• Ethernet operations, administration, and maintenance (OAM)

Detects data link layer problems that occurred in the last mile using the IEEE 8023ah OAM standard; monitors the status of the link between two devices

• High-bandwidth CX4 and SFP+ local stacking

Provides 10 Gbps SPF+ or 12 Gbps CX4 local stacking cables; achieves a resilient stacking configuration

• Optional 10GbE ports

Deliver, through the use of optional modules, additional 10GbE connections, which are available for uplinks or high-bandwidth server connections; flexibly support copper, XFP, SFP+, or CX4 local connections

Performance

• Nonblocking architecture

Up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput

• Hardware-based wirespeed access control lists (ACLs)

Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation

Resiliency and high availability

• Separate data and control paths

Separates control from services and keeps service processing isolated; increases security and performance

• External redundant power supply

Provides high reliability

• Smart link

Allows 50 ms failover between links

• Spanning Tree or MSTP, RSTP

Provide redundant links while preventing network loops

• Rapid Ring Protection Protocol (RRPP)

Connects multiple switches in a high-performance ring using standard Ethernet technology; traic can be rerouted around the ring in less than 50 ms, reducing the impact on traic and applications

• Virtual Router Redundancy Protocol (VRRP)

Allows a group of routers to dynamically back each other up to create highly available routed environments

• Intelligent Resilient Framework (IRF)

Creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can remove the need for complex protocols like Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation

Data sheet

Page 5

• IP Fast Reroute (FRR)

Forms backup paths and allows 50 ms switchover in case of a main path fault

• IRF capability

Provides single IP address management for a resilient virtual switching fabric of up to nine switches

Layer 2 switching

• 32K MAC addresses

Provide access to many Layer 2 devices

• IEEE 8021ad QinQ and selective QinQ

Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network

• GARP VLAN Registration Protocol

Allows automatic learning and dynamic assignment of VLANs

• IEEE 8021ad QinQ

Increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network

• 10GbE port aggregation

Allows grouping of ports to increase overall data throughput to a remote device

• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping

Controls and manages the flooding of multicast packets in a Layer 2 network

Layer 3 services

• Address Resolution Protocol (ARP)

Determines the MAC address of another IP host in the same subnet

• Dynamic Host Configuration Protocol (DHCP)

Simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets

• Loopback interface address

Define an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic capability

• User Datagram Protocol (UDP) helper function

Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

• Route maps

Provide more control during route redistribution; allow filtering and altering of route metrics

Layer 3 routing

• IPv4 routing protocols

Support static routes, RIP, OSPF, ISIS, and BGP

• IPv6 routing protocols

Provide routing of IPv6 at wire speed; support static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+ for IPv6

Data sheet

Page 6

• Equal-Cost Multipath (ECMP)

Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth

• Policy-based routing

Makes routing decisions based on policies set by the network administrator

• IGMPv1, v2, and v3

Allow individual hosts to be registered on a particular VLAN

• PIM-SSM, PIM-DM, and PIM-SM (for IPv4 and IPv6)

Support IP Multicast address management and inhibition of DoS attacks

• IPv6 tunneling

Allows a smooth transition from IPv4 to IPv6 by encapsulating IPv6 traic over an existing IPv4 infrastructure

• Unicast Reverse Path Forwarding (uRPF)

Limits erroneous or malicious traic in accordance with RFC 3074

• Bidirectional Forwarding Detection (BFD)

Enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, IS-IS, VRRP, and IRF

Security

• Access control lists (ACLs)

Provide IP Layer 2 to Layer 4 traic filtering; support global ACL, VLAN ACL, port ACL, and IPv6 ACL. Up to 3072 ingress ACLs and 448 egress ACLs are supported

• IEEE 8021X

Is an industry-standard method of user authentication that uses an IEEE 8021X supplicant on the client in conjunction with a RADIUS server

• MAC-based authentication

Authenticates the client with the RADIUS server based on the client’s MAC address

• Identity-driven security and access control

– Per-user ACLs

Permit or deny user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data

– Automatic VLAN assignment

Automatically assigns users to the appropriate VLAN based on their identities

• Secure management access

Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, or SNMPv3

• Secure FTP

Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file

• Guest VLAN

Provides a browser-based environment to authenticated clients that is similar to IEEE 8021X

Data sheet

Page 7

• Endpoint Admission Defense (EAD)

Provides security policies to users accessing a network

• Port security

Allows access only to specified MAC addresses, which can be learned or specified by the administrator

• Port isolation

Secures and adds privacy, and prevents malicious attackers from obtaining user information

• STP BPDU port protection

Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

• STP root guard

Protects the root bridge from malicious attacks or configuration mistakes

• DHCP protection

Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

• Dynamic ARP protection

Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

• IP source guard

Helps prevent IP spoofing attacks

• RADIUS or HWTACACS

Eases switch management security administration by using a password authentication server

• Multiple Customer Edge (MCE)

Facilitates MPLS VPN network integration with up to 64 VPNs support

• Unicast Reverse Path Forwarding (URPF)

Allows normal packets to be forwarded correctly, whereas the attaching packet will be discarded due to lack of reverse path route or incorrect inbound interface; prevents source spoofing and distributed attacks; supports distributed URPF

Convergence

• IEEE 8021AB Link Layer Discovery Protocol (LLDP)

Facilitates easy mapping using network management applications with LLDP automated device discovery protocol

• LLDP-MED

Is a standard extension that automatically configures network devices, including LLDP-capable IP phones

• LLDP-CDP compatibility

Receives and recognizes CDP packets from Cisco’s IP phones for seamless interoperation

• IEEE 8023af Power over Ethernet

Provides up to 154 W per port to PoE-powered devices such as IP phones, wireless access points, and video cameras

• PoE allocations

Support multiple methods (automatic, IEEE 8023af class, LLDP-MED, or user-specified) to allocate PoE power for more eicient energy savings

Data sheet

Page 8

• Voice VLAN

Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance

• IP multicast snooping (data-driven IGMP)

Prevents flooding of IP multicast traic

• Internet Group Management Protocol (IGMP)

Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3

• Protocol Independent Multicast (PIM)

Defines modes of Internet multicasting to allow one-to-many and many-to-many transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific Mode (SSM)

• Multicast Source Discovery Protocol (MSDP)

Allows multiple PIM-SM domains to interoperate; is used for inter-domain multicast applications

• Multicast Border Gateway Protocol (MBGP)

Allows multicast traic to be forwarded across BGP networks and kept separate from unicast traic

• Multicast VLAN

Allows multiple VLANs to receive the same IPv4 or IPv6 multicast traic, lessening network bandwidth demand by reducing or removing multiple streams to each VLAN

Device support

• Cisco prestandard PoE support

Detects and provides power to Cisco’s prestandard PoE devices such as wireless LAN access points and IP phones

Additional information

• Green IT and power

Improves energy eiciency through the use of the latest advances in silicon development; shuts o unused ports and utilizes variable-speed fans, reducing energy costs

• Green initiative support

Provides support for RoHS and WEEE regulations

Warranty and support

• Limited Lifetime Warranty

See hpe.com/networking/warrantysummary for warranty and support information included with your product purchase

• Software releases

To find software for your product, refer to hpe.com/networking/support; for details on the software releases available with your product purchase, refer to

hpe.com/networking/warrantysummary

Data sheet

HPE 5500 EI Switch Series

Page 9

Specifications HPE 5500-24G EI

I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports

Additional ports and slots 1 RJ-45 serial console port 1 RJ-45 serial console port 1 RJ-45 serial console port

Power supplies 2 power supply slots

Physical characteristics

Dimensions

Weight

Switch with 2 Interface Slots (JD377A)

(IEEE 8023 Type 10BASE-T, IEEE 8023u Type 100BASE-TX, IEEE 8023ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex : 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 dual-personality ports; autose nsing 10/100/100 0BASE-T or SFP

2 port expansion module slots

Supports a maximum of 24 autosensing 10/100/1000 ports

1732(w) x 1181(d) x 172(h) in (44 x 30 x 436 cm) (1U height) 882 lb (4 kg)

HPE 5500-48G EI Switch with 2 Interface Slots (JD375A)

48 RJ-45 autosensing 10/100/1000 ports (IEEE 8023 Type 10BASE-T, IEEE 8023u Type 100BASE-TX, IEEE 8023ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10 BAS E-T/1 0 0 BASE -TX : ha lf o r full ; 1000BASE-T: full only

4 dual-personality ports; autose nsing 10/100/100 0BASE-T or SFP

2 port expansion module slots

Supports a maximum of 48 autosensing 10/100/1000 ports

1732(w) x 1181(d) x 172(h) in (44 x 30 x 436 cm) (1U height) 992 lb (45 kg)

HPE 5500-24G-SFP EI Switch with 2 Interface Slots (JD374A)

24 fixed Gigabit Ethernet SFP ports

8 dual-personality ports; autose nsing 10/100/100 0BASE-T or SFP

2 port expansion module slots

1 minimum power supply required includes: 1 x JD362A (HPE 5800/5500150W AC Power Supply)

1732(w) x 1417(d) x 172(h) in (44 x 36 x 436 cm) (1U height) 1389 lb (63 kg)

Memory and processor 256 MB SDRAM, 32 MB flash; packet

Mounting and enclosure Mounts in an

Performance

1000 Mb Latency 10 Gbps Latency Throughput Routing/Switching capacity Routing table size

Environment

Operating temperature Operating relative humidity Nonoperating/Storage temperature Nonoperating/Storage relative humidity Acoustic

buer size: 2 MB

EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

< 32 µs < 26 µs 1072 million pps 144 G bp s 12000 entries (IPv4)

32°F to 113°F (0°C to 45°C) 10% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C) 5% to 95%, noncondensing Low-speed fan: 426 dB, High-speed fan: 497 dB; ISO 7779

256 MB SDRAM, 32 MB flash; packet buer size: 4 MB

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

< 32 µs < 26 µs 1429 million pps 192 G b p s 12000 entries (IPv4)

32°F to 113°F (0°C to 45°C) 10% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C) 5% to 95%, noncondensing Low-speed fan: 413 dB, High-speed fan: 501 dB; ISO 7779

256 MB SDRAM, 32 MB flash; packet buer size: 2 MB

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

< 32 µs < 26 µs 1072 million pps 144 G bp s 12000 entries (IPv4)

32°F to 113°F (0°C to 45°C) 10% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C) 5% to 95%, noncondensing Low-speed fan: 453 dB, High-speed fan: 504 dB; ISO 7779

Data sheet

Page 10

Specifications HPE 5500-24G EI

Electrical characteristics

Frequency Maximum heat dissipation AC voltage DC voltage Maximum power rating

Safety UL 60950-1; EN 60825-1 Safety of Laser

Emissions FCC part 15 Class A; VCCI Class A;

(continued)

Switch with 2 Interface Slots (JD377A)

50/60 Hz 375 BTU/hr (39563 kJ/hr) 100 to 240 VAC

110 W

Notes:

Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C222 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C6342003; ETSI EN 300386 V133; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 6100 0 -3-3; EN 61000 -4 -2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-22006; EN 6100 0 -3-31995 +A12001+A22005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

HPE 5500-48G EI Switch with 2 Interface Slots (JD375A)

50/60 Hz 528 BTU/hr (55704 kJ/hr) 100 to 240 VAC

155 W

Notes:

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C222 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C6342003; ETSI EN 300386 V133; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 6100 0 -3-3; EN 61000 -4 -2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-22006; EN 6100 0 -3-31995 +A12001+A22005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

HPE 5500-24G-SFP EI Switch with 2 Interface Slots (JD374A)

50/60 Hz 392 BTU/hr (41356 kJ/hr) 100 to 240 VAC

-48 to -60 VDC 115 W

Notes:

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C222 No. 60950-1; EN 60 950 -1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

Management IMC—Intelligent Management Center;

Notes 1 power supply included

Services

command-line interface; Web browser; SNMP Manager; IEEE 8023 Ethernet MIB

Refer to the Hewlett Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services, and response times in your area, please contact your local Hewlett Packard Enterprise sales oice.

IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 8023 Ethernet MIB

Data sheet

HPE 5500 EI Switch Series

Page 11

Specifications HPE 5500-48G-PoE+ EI

I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports

Additional ports and slots 1 RJ-45 serial console port 1 RJ-45 serial console port

Physical characteristics

Dimensions

Weight

Memory and processor 256 MB SDRAM, 32 MB flash; packet buer size: 4 MB 256 MB SDRAM, 32 MB flash; packet buer size: 2 MB

Mounting and enclosure Mounts in an EIA-standard 19 in. telco rack or equipment

Switch with 2 Interface Slots (JG240A)

(IEEE 8023 Type 10BASE-T, IEEE 8023u Type 100BASE-TX, IEEE 8023ab Type 1000BASE-T, IEEE 8023at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 dual-personality ports; autose nsing 10/100/100 0BASE-T or SFP

2 port expansion module slots

Supports a maximum of 48 autosensing 10/100/1000 ports

1732(w) x 1654(d) x 172(h) in (4399 x 4201 x 437 cm) (1U height) 1433 lb (65 kg)

cabinet (hardware included)

HPE 5500-24G-PoE+ EI Switch with 2 Interface Slots (JG241A)

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 8023 Type 10BASE-T, IEEE 8023u Type 100BASE-TX, IEEE 8023ab Type 1000BASE-T, IEEE 8023at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 dual-personality ports; autose nsing 10/100/100 0BASE-T or SFP

2 port expansion module slots

Supports a maximum of 24 autosensing 10/100/1000 ports

1732(w) x 1654(d) x 169(h) in (4399 x 4201 x 429 cm) (1U height) 1323 lb (6 kg)

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

Performance

1000 Mb Latency 10 Gbps Latency Throughput Routing/Switching capacity Routing table size

Environment

Operating temperature Operating relative humidity Nonoperating/Storage temperature Nonoperating/Storage relative humidity Acoustic

< 32 µs < 26 µs 1429 million pps 192 G b p s 12000 entries (IPv4)

32°F to 113°F (0°C to 45°C) 10% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C)

5% to 95%, noncondensing Low-speed fan: 495 dB, High-speed fan: 541 dB; ISO 7779

< 32 µs < 26 µs 1072 million pps 144 G bp s 12000 entries (IPv4)

32°F to 113°F (0°C to 45°C) 10% to 90%, noncondensing

-40°F to 158°F (-40°C to 70°C) 5% to 95%, noncondensing Low-speed fan: 481 dB, High-speed fan: 511 dB; ISO 7779

Data sheet

Page 12

Specifications HPE 5500-48G-PoE+ EI

Electrical characteristics

Frequency Maximum heat dissipation

AC voltage Maximum power rating PoE power

Safety UL 60950-1; EN 60825-1 Safety of Laser

continued

Switch with 2 Interface Slots (JG240A)

50/60 Hz 2255 BTU/hr (237902 kJ/hr). Max heat dissipation for AC is 2255 BTU/hr and 3173 BTU/hr for DC. 100 to 240 VAC 661 W 740 W

Notes:

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantit y of power supplies and may be supplemented with the use of an external power supply (EPS). With AC input, the maximum power consumption is 661 W; PoE is 370 W. With DC input, the maximum power consumption is 930 W; PoE is 740 W.

Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA- C222 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

HPE 5500-24G-PoE+ EI Switch with 2 Interface Slots (JG241A)

50/60 Hz 2016 BTU/hr (212688 kJ/hr). Max heat dissipation for AC is 2016 BTU/hr and 1678 BTU/hr for DC. 100 to 240 VAC 591 W 370 W

Notes:

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traic, all ports plugged in, and all modules populated. PoE power is the power supplied by the internal power supply. It is dependent on the type and quantit y of power supplies and may be supplemented with the use of an external power supply (EPS). With AC input, the maximum power consumption is 591 W; PoE is 370 W. With DC input, the maximum power consumption is 492 W; PoE is 370 W.

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA- C222 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

Emissions FCC part 15 Class A; VCCI Class A; EN 55022 Class A;

Management IMC—Intelligent Management Center;

Services

CISPR 22 Class A; ICES- 003 Class A; ANSI C6342003; ETSI EN 300386 V133; AS/NZS CISPR 22 Class A; EN 6100 0-3-2; EN 61000-3-3; EN 61000- 4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-22006; EN 6100 0-3-31995+A12001+A22005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

command-line interface; Web browser; SNMP Manager; IEEE 8023 Ethernet MIB

Refer to the Hewlet t Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services, and response times in your area, please contact your local Hewlett Packard Enterprise sales oice.

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES- 003 Class A; ANSI C6342003; ETSI EN 300386 V133; AS/NZS CISPR 22 Class A; EN 6100 0-3-2; EN 61000-3-3; EN 61000- 4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-22006; EN 6100 0-3-31995+A12001+A22005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

IMC—Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 8023 Ethernet MIB

Refer to the Hewlet t Packard Enterprise website at hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services, and response times in your area, please contact your local Hewlett Packard Enterprise sales oice.

Data sheet

Standards and Protocols

(applies to all products in series)

Page 13

BGP RFC 1657 Definitions of Managed Objects

for BGPv4

Device management RFC 1157 SNMPv1/v2c

RFC 1305 NTPv3 RFC 1901 (Community based SNMPv2) RFC 2452 MIB for TCP6 RFC 2454 MIB for UDP6

General protocols IEEE 8021ad Q -in -Q

IEEE 8021ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP) IEEE 8021D MAC Bridges IEEE 8021p Priorit y IEEE 8021Q (GVRP) IEEE 8021v VLAN classification by Protocol and Port IEEE 8021w Rapid Reconfiguration of Spanning Tree IEEE 8023ab 1000BASE-T IEEE 8023ac (VLAN Tagging Extension) IEEE 8023ad Link Aggregation (LAG) IEEE 8023ae 10-Gigabit Ethernet IEEE 8023af Power over Ethernet IEEE 8023at PoE+ IEEE 8023i 10BASE-T IEEE 8023u 100 BASE-X IEEE 8023x Flow Control IEEE 8023z 1000BASE-X RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 854 TELNET RFC 925 Multi-LAN Address Resolution RFC 950 Internet Standard Subnetting Procedure RFC 951 BOOTP RFC 1027 Proxy ARP RFC 1058 RIPv1

RFC 1771 BGPv4 RFC 2858 BGP-4 Multi-Protocol

RFC 2573 (SNMPv3 Applications) RFC 2576 (Coexistence bet ween SNMP V1, V2, V3) RFC 2819 RMON RFC 3410 (Management Framework) RFC 3416 (SNMP Protocol Operations v2)

RFC 1122 Host Requirements RFC 1141 Incremental updating of the Internet checksum RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1542 BOOTP Extensions RFC 1723 RIP v2 RFC 1812 IPv4 Routing RFC 1887 An Architecture for IPv6 Unicast Address Allocation RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2338 VRRP RFC 2375 IPv6 Multicast Address Assignments RFC 2616 HTTP Compatibility v11 RFC 2644 Directed Broadcast Control RFC 2711 IPv6 Router Alert Option RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 3246 Expedited Forwarding PHB RFC 3410 Applicability Statements for SNMP RFC 3414 User-based Security Model (USM) for version 3 of the Simple Net work Management Protocol (SNMPv3)

Extensions

RFC 3417 (SNMP Transport Mappings) HTML and telnet management Multiple Configuration Files SNMP v3 and RMON RFC support SSHv1/SSHv2 Secure Shell

RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) RFC 3484 Default Address Selec tion for Internet Protocol version 6 (IPv6) RFC 3493 Basic Socket Interface Extensions for IPv6 RFC 3542 Advanced Sockets Application Program Interface (API) for IPv6 RFC 3587 IPv6 Global Unicast Address Format RFC 3596 DNS Extensions to Support IP Version 6 RFC 3623 Graceful OSPF Restart RFC 3704 Unicast Reverse Path Forwarding (URPF) RFC 3768 VRRP RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 RFC 4113 Management Information Base for the User Datagram Protocol (UDP) RFC 4213 Basic IPv6 Transition Mechanisms RFC 4443 Internet Control Message Protocol (ICMPv6) for the Internet Protocol Version 6 (IPv6) Specification RFC 4594 Configuration Guidelines for DiServ Service Classes 8021r—GARP Proprietary Attribute Registration Protocol (GPRP)

IP multicast RFC 2236 IGMPv2

RFC 2710 Multicast Listener Discovery (MLD) for IPv6 RFC 2858 Multiprotocol Extensions for BGP-4

RFC 3376 IGMPv3 RFC 3569 An Overview of Source-Specific Multicast (SSM)

RFC 3618 Multicast Source Discovery Protocol (MSDP) RFC 3973 PIM Dense Mode RFC 4601 PIM Sparse Mode

Data sheet

Standards and Protocols (continued)

(applies to all products in series)

Page 14

IPv6 RFC 1881 IPv6 Address Allocation

Management RFC 1887 IPv6 Unicast Address Allocation Architecture RFC 1981 IPv6 Path MTU Discover y RFC 2080 RIPng for IPv6 RFC 2373 IPv6 Addressing Architecture RFC 2375 IPv6 Multicast Address Assignments RFC 2460 IPv6 Specification RFC 2461 IPv6 Neighbor Discovery RFC 2462 IPv6 Stateless Address Auto-configuration RFC 2463 ICMPv6 RFC 2464 Transmission of IP v6 over Ethernet Networks RFC 2475 IPv6 DiSer v Architecture

MIBs RFC 1212 Concise MIB Definitions

RFC 1213 MIB II RFC 1493 Bridge MIB RFC 1657 BGP-4 MIB RFC 1724 RIPv2 MIB RFC 1757 Remote Network Monitoring MIB RFC 1850 OSPFv2 MIB RFC 2012 SNMPv2 MIB for TCP RFC 2013 SNMPv2 MIB for UDP RFC 2233 Interface MIB

RFC 2710 Multicast Listener Discovery (MLD) for IPv6 RFC 2711 IPv6 Router Alert Option RFC 2740 OSPFv3 for IPv6 RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) RFC 2925 Remote Operations MIB (P ing onl y) RFC 3056 Connection of IPv6 Domains via IPv4 Clouds RFC 3162 RADIUS and IPv6 RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses RFC 3307 IPv6 Multicast Address Allocation

RFC 2452 IPV6-TCP-MIB RFC 2454 IPV6-UDP-MIB RFC 2465 IPv6 MIB RFC 2466 ICMPv6 MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Target MIB RFC 2574 SNMP USM MIB RFC 2618 RADIUS Authentication Client MIB RFC 2620 RADIUS Accounting Client MIB

RFC 3315 DHCPv6 (client and relay) RFC 3484 Default Address Selection for IPv6 RFC 3493 Basic Socket Interface Extensions for IPv6 RFC 3513 IPv6 Addressing Architecture RFC 3542 Advanced Sockets API for IPv6 RFC 3587 IPv6 Global Unicast Address Format RFC 3596 DNS Extension for IPv6 RFC 3810 MLDv2 for IPv6 RFC 4113 MIB for UDP RFC 4443 ICMPv6 RFC 5340 OSPFv3 for IPv6

RFC 2665 Ethernet-Like-MIB RFC 2674 Definitions of Managed Objects for Bridges with Traic Classes, Multicast Filtering, and Virtual Extensions RFC 2737 Entity MIB (Version 2) RFC 2787 VRRP MIB RFC 2819 RMON MIB RFC 2925 Ping MIB RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 4113 UDP MIB

Network management IEEE 8021AB Link Layer Discovery

Protocol (LLDP) IEEE 8021D (STP) RFC 1157 SNMPv1 RFC 1212 Concise MIB definitions RFC 1215 SNMP Generic traps RFC 1757 RMON 4 groups: Stats, History, Alarms and Events RFC 1901 SNMPv2 Introduction RFC 1918 Private Internet Address Allocation RFC 2373 Remote Network Monitoring Management Information Base for High Capacity Networks

OSPF RFC 1587 OSPF NSSA RFC 1850 OSPFv2 Management

QoS/CoS IEEE 8021P (CoS)

RFC 2474 DSCP DiServ

Security IEEE 8021X Port Based Network Access

Control RFC 1492 TACACS+ RFC 1918 Address Allocation for Private Internets

RFC 2571 An Architecture for Describing SNMP Management Frameworks RFC 2572 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP) RFC 2573 SNMP Applications RFC 2574 SNMPv3 User-based Security Model (USM) RFC 2575 SNMPv3 View-based Access Control Model (VACM) RFC 2576 Coexistence between SNMP versions RFC 2578 SMIv2 RFC 2581 TCP6

Information Base (MIB), traps

RFC 2475 DiServ Architecture RFC 2597 DiServ Assured Forwarding (AF)

RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting Access Control Lists (ACLs)

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (even ts) RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations RFC 3176 sFlow RFC 3410 Introduction to Version 3 of the Internet-standard Network Management Framework RFC 3414 SNMPv3 User-based Security Model (USM) RFC 3415 SNMPv3 View-based Access Control Model VACM) ANSI/TIA-1057 LLDP Media Endpoint Discover y (LLDP-MED) SNMPv1/v2c/v3

RFC 2328 OSPFv2 RFC 2370 OSPF Opaque LSA Option RFC 3623 Graceful OSPF Restart

RFC 2598 DiServ Expedited Forwarding (EF) RFC 4594 Configuration Guidelines for DiServ Service Classes

MAC Authentication Port Security SSHv2 Secure Shell

Data sheet

HPE 5500 EI Switch Series accessories

Page 15

Modules HPE 55002-port 10GbE XFP Module (JD359B)

Transceivers HPE X110100M SFP LC FX Transceiver (JD102B)

HPE 55002-port 10GbE Local Connect Module (JD360B) HPE 55001-port 10GbE XFP Module (JD361B) HPE 5500/48002-port GbE SFP Module (JD367A) HPE 5500/51202-port 10GbE SFP+ Module (JD368B) HPE 5500/51202-port 10GBASE-T Module (JG535A)

HPE X110100M SFP LC LH40 Transceiver (JD090A) HPE X110100M SFP LC LH80 Transceiver (JD091A) HPE X110100M SFP LC LX Transceiver (JD120B) HPE X1201G SFP LC BX 10-D Transceiver (JD099B) HPE X1201G SFP LC BX 10-U Transceiver (JD098B) HPE X1201G SFP LC LH401550nm Transceiver (JD062A) HPE X1201G SFP LC LX Transceiver (JD119B) HPE X1201G SFP LC SX Transceiver (JD118B) HPE X1201G SFP RJ45 T Transceiver (JD089B) HPE X1251G SFP LC LH401310nm Transceiver (JD061A) HPE X1251G SFP LC LH70 Transceiver (JD063B) HPE X13010G SFP+ LC ER 40km Transceiver (JG234A) HPE X13010G SFP+ LC LR Transceiver (JD094B) HPE X13010G SFP+ LC LRM Transceiver (JD093B) HPE X13010G SFP+ LC SR Transceiver (JD092B) HPE X13010G XFP LC LR Transceiver (JD108B) HPE X13010G XFP LC SR Transceiver (JD117B) HPE X13510G XFP LC ER Transceiver (JD121A) HPE X24010G SFP+ SFP+ 7m Direct Attach Copper Cable (JC784C) HPE X24010G SFP+ to SFP+ 065m Direct Attach Copper Cable (JD095C) HPE X24010G SFP+ to SFP+ 12m Direct Attach Copper Cable (JD096C) HPE X24010G SFP+ to SFP+ 3m Direct Attach Copper Cable (JD097C) HPE X24010G SFP+ to SFP+ 5m Direct Attach Copper Cable (JG081C)

Cables HPE X230 Local Connect 100cm CX4 Cable (JD364B)

HPE X230 CX4 to CX43m Cable (JD365A) HPE 05 m Multimode OM3 LC/LC Optical Cable (AJ833A) HPE 1 m Multimode OM3 LC/LC Optical Cable (AJ834A) HPE 2 m Multimode OM3 LC/LC Optical Cable (AJ835A) HPE 5 m Multimode OM3 LC/LC Optical Cable (AJ836A) HPE 15 m Multimode OM3 LC/LC Optical Cable (AJ837A) HPE 30 m Multimode OM3 LC/LC Optical Cable (AJ838A) HPE 50 m Multimode OM3 LC/LC Optical Cable (AJ839A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 1m Cable (QK732A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 2m Cable (QK733A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 5m Cable (QK734A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 15m Cable (QK735A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 30m Cable (QK736A) HPE Premier Flex LC/LC Multi-mode OM42 fiber 50m Cable (QK737A) HPE X230 Local Connec t 50cm CX4 Cable (JD363B)

Data sheet

HPE 5500 EI Switch Series accessories (continued)

Power Supply HPE RPS 800 Redundant Power Supply (JD183A)

HPE RPS1600 Redundant Power System (JG136A) HPE RPS16001600W AC Power Supply (JG137A)

Power cords HPE X2901000 A JD52m RPS Cable (JD187A)

HPE X2901000 A JD5 Non-PoE 2m RPS Cable (JD188A) HPE X2901000 B JD52m RPS Cable (JD189A) HPE X290500/8001m RPS Cable (JD190A) HPE X290500 U 1m RPS Cable (JD185A)

HPE 5500-24G-SFP EI Switch with 2 Interface Slots (J D374A )

Product s covered by 1 year warran ty. See details at hpe.com/networking/warrantyquickref

HPE X361150W 100-240VAC to 12VDC Power Supply (JD362B) HPE X361150W 48-60VDC to 12VDC Power Supply (JD366B)

Learn more at

hpe.com/networking

© Copyright 2010–2016 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

sFlow is a registered trademark of InMon Corp.

4AA3-0729ENW, October 2016, Rev. 12

HP 5500 EI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
