HP 550 Service Manual

HP 550 Notebook PC

Maintenance and Service Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Core, and Celeron are trademarks of Intel Corporation in the United States and other countries. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Second Edition: December 2008

First Edition: August 2008

Document Part Number: 488361–002

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ................................................................................................................................... 6

TouchPad ............................................................................................................................ 6

Buttons, lights, and speaker ................................................................................................ 7

Keys ..................................................................................................................................... 8

Front components ................................................................................................................................ 9

Right-side components ....................................................................................................................... 10

Left-side components ......................................................................................................................... 11

Bottom components ........................................................................................................................... 12

Wireless antennae (select models only) ............................................................................................. 13

3 Illustrated parts catalog

Serial number location ........................................................................................................................ 14

Computer major components ............................................................................................................. 15

Plastics Kit .......................................................................................................................................... 21

Cable Kit ............................................................................................................................................. 22

Mass storage devices ......................................................................................................................... 23

Miscellaneous parts ............................................................................................................................ 24

Sequential part number listing ............................................................................................................ 25

4 Removal and replacement procedures

Preliminary replacement requirements ............................................................................................... 31

Tools required .................................................................................................................... 31

Service considerations ....................................................................................................... 31

Plastic parts ....................................................................................................... 31

Cables and connectors ..................................................................................... 32

Drive handling ................................................................................................... 32

Grounding guidelines ......................................................................................................... 33

Electrostatic discharge damage ........................................................................ 33

Packaging and transporting guidelines ............................................. 34

Workstation guidelines ..................................................................... 34

Equipment guidelines ....................................................................... 35

Unknown user password ................................................................................................... 36

Component replacement procedures ................................................................................................. 37

Serial number .................................................................................................................... 37

Computer feet .................................................................................................................... 38

Battery ............................................................................................................................... 39

Hard drive .......................................................................................................................... 40

WLAN module .................................................................................................................... 42

Memory module ................................................................................................................. 45

Optical drive ....................................................................................................................... 46

Switch cover ...................................................................................................................... 48

Keyboard ........................................................................................................................... 50

Speaker ............................................................................................................................. 53

Display lid switch module ................................................................................................... 54

Display assembly ............................................................................................................... 55

Top cover ........................................................................................................................... 60

TouchPad board and TouchPad button board ................................................................... 63

Bluetooth module ............................................................................................................... 65

System board ..................................................................................................................... 66

Fan ..................................................................................................................................... 70

Heat sink ............................................................................................................................ 72

Processor ........................................................................................................................... 74

Modem module .................................................................................................................. 76

RTC battery ....................................................................................................................... 78

ExpressCard assembly ...................................................................................................... 79

5 Computer Setup

Starting Computer Setup .................................................................................................................... 81

Using Computer Setup ....................................................................................................................... 82

Computer Setup menus ..................................................................................................................... 83

6 Specifications

Computer specifications ..................................................................................................................... 88

15.4-inch, WXGA display specifications ............................................................................................. 89

Hard drive specifications .................................................................................................................... 90

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications ........ 91

DVD/CD-RW Combo Drive specifications .......................................................................................... 92

Navigating and selecting in Computer Setup ..................................................................... 82

Restoring factory settings in Computer Setup ................................................................... 82

File menu ........................................................................................................................... 83

Security menu .................................................................................................................... 84

Diagnostics menu .............................................................................................................. 84

System Configuration menu .............................................................................................. 85

System DMA specifications ................................................................................................................ 93

System interrupt specifications ........................................................................................................... 94

System I/O address specifications ..................................................................................................... 95

System memory map specifications ................................................................................................... 97

7 Screw listing

Phillips PM2.0×5.0 captive screw ....................................................................................................... 99

Phillips PM2.5×12.0 captive screw ................................................................................................... 100

Phillips PM3.0×4.0 screw ................................................................................................................. 101

Phillips PM2.5×4.0 screw ................................................................................................................. 102

Slotted Torx ST8M2.5×7.0 screw ..................................................................................................... 103

Phillips PM2.0×4.0 screw ................................................................................................................. 105

Torx T8M2.5×9.0 screw ................................................................................................................... 107

Torx T8M2.5×3.0 broadhead screw ................................................................................................. 108

Torx T8M2.5×4.0 screw ................................................................................................................... 109

Phillips PM2.0×2.0 broadhead screw ............................................................................................... 111

Torx T8M2.5×6.0 screw ................................................................................................................... 112

Phillips PM2.0×6.0 screw ................................................................................................................. 113

Torx T8M2.0×4.0 screw ................................................................................................................... 114

Phillips PM2.5×7.0 screw ................................................................................................................. 115

Phillips PM2.5×7.0 captive screw ..................................................................................................... 116

Phillips PM2.5×10.0 captive screw ................................................................................................... 117

Phillips PM2.0×8.0 screw ................................................................................................................. 118

8 Backup and recovery

Backup and recovery in Windows Vista ........................................................................................... 120

Overview .......................................................................................................................... 120

Backing up your information ............................................................................................ 120

Performing a recovery ..................................................................................................... 121

Backup and Recovery in Windows XP ............................................................................................. 124

Overview .......................................................................................................................... 124

Backing up your information ............................................................................................ 124

Performing a recovery ..................................................................................................... 125

9 Connector pin assignments

Audio-out (headphone) ..................................................................................................................... 126

Audio-in (microphone) ...................................................................................................................... 126

External monitor ............................................................................................................................... 127

Using the Windows recovery tools .................................................................. 121

Using f11 ......................................................................................................... 122

Using a Windows Vista operating system DVD (purchased separately) ........ 122

Recovering your information ........................................................................... 125

Recovering the operating system and programs ............................................ 125

vii

RJ-11 (modem) ................................................................................................................................ 128

RJ-45 (network) ................................................................................................................................ 129

Universal Serial Bus ......................................................................................................................... 129

10 Power cord set requirements

Requirements for all countries and regions ...................................................................................... 130

Requirements for specific countries and regions ............................................................................. 131

11 Recycling

Battery .............................................................................................................................................. 132

Display .............................................................................................................................................. 132

Index ................................................................................................................................................................. 138

viii

1 Product description

Category Description Computer models

equipped with GLE960 system board

Processors Intel® Core™2 Duo processors

Intel Celeron® M processors

Intel Celeron M processors, Dual Core

Chipset Northbridge: Intel GME965 with up to 800-MHz FSB √

Northbridge: Intel GLE960 with up to 533-MHz FSB √

T5670 1.80-GHz processor, 2-MB L2 cache,

●

800-MHz front side bus (FSB)

T5470 1.60-GHz processor, 2-MB L2 cache,

●

800-MHz front side bus (FSB)

T5270 1.40-GHz processor, 2-MB L2 cache,

●

800-MHz FSB

P550 2.0-GHz processor, 1-MB L2 cache, 533-

●

MHz FSB

P530 1.73-GHz processor, 1-MB L2 cache,

●

533-MHz FSB

T1400 1.73-GHz processor, 533Mhz FSB

●

√

Computer models equipped with GME965 system board

Southbridge: Intel ICH8M √ √

Graphics Intel Universal Memory Architecture (UMA)

graphics subsystem integrated with shared video memory (dynamically allocated)

Panel All display assemblies include 2 wireless local area

network (WLAN) antennae

Memory 2 customer-accessible/upgradable memory module

Supports dual-channel memory √ √

Supports up to 4 GB of system RAM √ √

PC2-5300, 667-MHz, DDR2 √√

15.4-inch WXGA BrightView

●

slots

√ √

Category Description Computer models

equipped with GLE960 system board

Computer models equipped with GME965 system board

Supports the following configurations in all countries

and regions except Brazil:

4096-MB total system memory (2048 × 2, dual-

●

channel)

3072-MB total system memory (2048 + 1024)

●

2560-MB total system memory (2048 + 512)

●

2048-MB total system memory (1024 × 2, dual-

●

channel)

2048-MB total system memory (2048 × 1)

●

1536-MB total system memory (1024 + 512)

●

1024-MB total system memory (512 × 2, dual-

●

channel)

1024-MB total system memory (1024 × 1)

●

512-MB total system memory (512 × 1)

●

Supports the following configurations only in Brazil:

2048-MB total system memory (2048 × 1)

●

2048-MB total system memory (1024 × 2, dual-

●

channel)

√ √

1024-MB total system memory (1024 × 1)

●

1024-MB total system memory (512 × 2, dual-

●

channel)

512-MB total system memory (512 × 1)

●

Hard drives Supports 9.5-mm, 2.5-inch hard drives √ √

Customer-accessible √ √

Serial ATA √ √

Supports the following drives:

250-GB, 5400-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

HP DriveGuard √ √

Optical drives Fixed (removal of 1 screw required) √ √

Customer-accessible √ √

12.7-mm tray load √ √

Supports the “no optical drive” option √√

√ √

2 Chapter 1 Product description

Category Description Computer models

equipped with GLE960 system board

Computer models equipped with GME965 system board

Supports the following Parallel ATA (PATA) drives:

DVD±RW and CD-RW SuperMulti Double-

●

Layer Combo Drive with LightScribe

DVD/CD-RW Combo Drive

●

DVD-ROM Drive

●

Supports the following Serial ATA (SATA) drives:

DVD±RW and CD-RW Supermulti Double-

●

Layer Combo Drive with LightScribe

DVD/CD-RW Combo Drive

●

DVD-ROM Drive

●

Diskette drive Supports external USB diskette drive only √ √

Supports boot from external USB diskette drive √ √

Supports 3-mode diskette drive √ √

Audio HD audio - ADI1981 √ √

Modem 56K V.92 1.5-inch data/fax modem with digital line

guard

Ethernet Intel 82562GT √ √

√ √

S3/S4/S5 wake on LAN: DC - no √ √

S3/S4/S5 wake on LAN: AC - yes √ √

Wireless Integrated WLAN options by way of wireless module:

Support for no-WLAN option √ √

Support for the following WLAN formats:

Integrated personal area network (PAN) options by way of Bluetooth® module:

Broadcom Bluetooth 2.0+EDR √ √

External media card One ExpressCard/54 slot √√

2 WLAN antennae built into display assembly √ √

√ √

Broadcom 802.11a/b/g/n

●

Broadcom 802.11b/g

●

Intel 802.11a/b/g

●

Intel 802.11b/g

●

Intel 802.11a/b/g/n Kedron without iAMT

●

Intel 802.11a/b/g Kedron without iAMT

●

Support for no-WPAN option √ √

Category Description Computer models

equipped with GLE960 system board

Computer models equipped with GME965 system board

SD Card Reader supporting Secure Digital (SD)

Memory Card and MultiMediaCard (MMC)

Ports Audio-in (stereo microphone) √ √

Audio-out (stereo headphone) √ √

RJ-11 (modem) √ √

RJ-45 (Ethernet, includes link and activity lights) √ √

USB (3) √ √

VGA (Dsub 15-pin) supporting 1600 × 1200 external

2-pin AC power √ √

Keyboard/pointing devices

TouchPad only, with 2 TouchPad buttons and

Power requirements 65-W AC adapter with localized cable plug support

6-cell, 47-Wh Li-ion battery √ √

resolution at 75-GHz (hot plug/unplug with autodetect)

11.97-inch keyboard with embedded numeric keypad

vertical scrolling (taps enabled as default)

(2-wire plug with ground pin, supports 2-pin DC connector)

√ √

Security Supports Kensington security lock √ √

Operating system Preinstalled:

Windows Vista® Basic 32 Japan (in Japan only) √ √

Windows Vista Basic 32 Japan with Office Personal

Windows Vista Basic 32 Japan with Office

Windows Vista Business 32 with Office Ready √ √

Windows Vista Business 32 Japan (in Japan only) √

Windows Vista Business 32 Japan with Office

Windows Vista Business with XP Professional with

Windows Vista® Basic 32 with Office Ready √ √

√ √

(in Japan only)

√ √

with PowerPoint (in Japan only)

Professional (in Japan only)

√ √

Personal (in Japan only)

√ √

Personal with PowerPoint (in Japan only)

√ √

Professional (in Japan only)

√√

Office Ready

4 Chapter 1 Product description

Category Description Computer models

equipped with GLE960 system board

Computer models equipped with GME965 system board

Windows Vista Business with XP Professional

Japan (in Japan only)

Windows Vista Business with XP Professional

Japan with Office Personal (in Japan only)

Windows Vista Business with XP Professional

Japan with Office Personal with PowerPoint (in Japan only)

Windows Vista Business with XP Professional

Japan with Office Professional (in Japan only)

Windows Vista Home Premium with Office Ready √ √

FreeDOS √ √

Red Flag Linux (in the People's Republic of China

only)

Mandriva Linux √ √

Restore media:

Windows Vista Home Premium √ √

Windows Vista Business 32 √ √

Red Flag Linux (in the People's Republic of China

Windows Vista Basic 32 √ √

only)

√

√ √

DRDVD Windows Vista √ √

DRDVD Windows XP Pro √ √

Windows® XP Professional √ √

Web Support: Windows® XP Professional √ √

Certified: Microsoft® WHQL √ √

Serviceability End-user replaceable parts:

Battery (system) √ √

Hard drive √ √

Memory module √ √

Optical drive √ √

WLAN module √√

AC adapter √ √

2 External component identification

Top components

TouchPad

Item Component Function

(1) TouchPad* Moves the pointer and selects or activates items on the

screen.

(2) Left TouchPad button* Functions like the left button on an external mouse.

(3) Right TouchPad button* Functions like the right button on an external mouse.

(4) TouchPad scroll zone Scrolls up or down.

*This table describes factory settings. View or change pointing device preferences as follows:

In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.

●

In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.

●

6 Chapter 2 External component identification

Buttons, lights, and speaker

Item Component Function

(1) Caps lock light On: Caps lock is on.

(2) Wireless button Turns the wireless feature on or off but does not establish

a wireless connection.

NOTE: You must set up or access a wireless network to

establish a wireless connection.

(3) Wireless light

(4) Power button

Blue: An integrated wireless device, such as a

●

wireless local area network (WLAN) device, the HP Broadband Wireless Module, and/or a Bluetooth device, is on.

Amber: All wireless devices are off.

●

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to initiate

●

Hibernation.

When the computer is in the Sleep state (Windows

●

Vista) or in Standby (Windows XP), press the button briefly to exit the Sleep state or Standby.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, follow these steps:

In Windows Vista, select Start > Control Panel >

●

System and Maintenance > Power Options.

In Windows XP, select Start > Control Panel >

●

Performance and Maintenance > Power Options

Top components 7

Item Component Function

Keys

(5) Power light

(6) Speaker Produces sound.

On: The computer is on.

●

Blinking: The computer is in the Sleep state (Windows

●

Vista) or Standby (Windows XP).

Off: The computer is off or in Hibernation.

●

Item Component Function

(1) esc key Displays system information when pressed in combination

with the fn key.

(2) fn key Executes frequently used system functions when pressed

in combination with a function key or the esc key.

(3) Windows logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the pointer.

(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

(6) Function keys Execute frequently used system functions when pressed

in combination with the fn key.

8 Chapter 2 External component identification

Front components

Item Component Function

(1) Audio-out (headphone) jack Connects optional powered stereo speakers, headphones,

ear buds, a headset, or television audio.

(2) Audio-in (microphone) jack Connects an optional computer headset microphone,

(3) SD Card Reader Supports the following optional digital card formats:

stereo array microphone, or monaural microphone.

Secure Digital (SD) Memory Card

●

MultiMediaCard (MMC)

●

Front components 9

Right-side components

Item Component Function

(1) Optical drive Reads an optical disc.

(2) Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

10 Chapter 2 External component identification

Left-side components

Item Component Function

(1) RJ-11 (modem) jack Connects a modem cable.

(2) Vent Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(3) External monitor port Connects an external VGA monitor or projector.

(4) Power connector Connects an AC adapter.

(5) RJ-45 (network) jack Connects a network cable.

(6) USB ports (3) Connect optional USB devices.

(7) ExpressCard slot Supports optional ExpressCards.

(8) Battery light

Amber: A battery is charging.

●

Turquoise: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

Left-side components 11

Bottom components

Item Component Function

(1) Battery release latches (2) Release the battery from the battery bay.

(2) Battery bay Holds the battery.

(3) Vents (6) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(4) Memory module compartment Contains the memory module slots.

(5) WLAN module compartment (select models only) Contains a WLAN module slot.

NOTE: To prevent an unresponsive system, replace the

wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

(6) Hard drive bay Holds the hard drive.

12 Chapter 2 External component identification

Wireless antennae (select models only)

On select computer models, at least 2 antennae send and receive signals from one or more wireless devices. These antennae are not visible from the outside of the computer.

NOTE: For optimal transmission, keep the areas immediately around the antennae free from

obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Wireless antennae (select models only) 13

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Product Name (1). This is the product name affixed to the front of the computer.

●

Serial Number (s/n) (2). This is an alphanumeric identifier that is unique to each product.

●

Part Number/Product Number (p/n) (3). This number provides specific information about the

●

product's hardware components. The part number helps a service technician to determine what components and parts are needed.

Model Description (4). This is the number you use to locate documents, drivers, and support for

●

your notebook.

Warranty Period (5). This number describes the duration (in years) of the warranty period for this

●

computer.

14 Chapter 3 Illustrated parts catalog

Computer major components

Computer major components 15

Item Description Spare part number

(1) Display assemblies (include 2 WLAN antenna transceivers and cables)

Display assembly internal components:

Display hinges (includes left and right hinges) 456806-001

Display inverter 456618-001

Display Cable Kit (includes 2 wireless antennae) 508816-001

(2) Switch cover (includes button board and cable) 495388-001

(3) Keyboards

For use in Brazil 495400-201

For use in the Czech Republic 495400-221

For use in Denmark 495400-081

For use in France 495400-051

For use in French Canada 495400-121

For use in Germany 495400-041

For use in Greece 495400-DJ1

15.4-inch, WXGA BrightView 495385-001

Display enclosure (includes 2 WLAN antenna transceivers and cables) 495402-001

For use in Belgium 495400-181

For use in Hungary 495400-211

For use in Iceland 495400-DD1

For use in Israel 495400-BB1

For use in Italy 495400-061

For use in Japan 495400-291

For use in Latin America 495400-161

For use in the Netherlands 495400-B31

For use in Norway 495400-091

For use in Portugal 495400-131

For use in Russia 495400-251

For use in Saudi Arabia 495400-171

For use in Slovakia 495400-231

For use in Slovenia 495400-BA1

For use in South Korea 495400-AD1

For use in Spain 495400-071

For use in Sweden 495400-B71

For use in Switzerland 495400-BG1

16 Chapter 3 Illustrated parts catalog

Item Description Spare part number

For use in Taiwan 495400-AB1

For use in Thailand 495400-281

For use in Turkey 495400-141

For use in the United Kingdom 495400-031

For use in the United States 495400-001

(4) Speaker 456593-001

(5) Top cover (includes TouchPad board and cable, and TouchPad button board and cable) 495399-001

Plastics Kit (see Plastics Kit on page 21 for more Plastics Kit spare part information): 456614-001

(6a) ExpressCard slot protective insert

(6b) WLAN module compartment cover

(6c) Memory module compartment cover

(6d) Hard drive bay cover

(6e) Optical drive bay protective insert (not illustrated)

TouchPad components (included with the top cover)

(7a)

(7b) TouchPad board (includes cable)

(7c) Touchpad button board (includes cable)

(8) ExpressCard assembly (included with all system boards)

(9) System boards (include replacement thermal material and the ExpressCard assembly)

For use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA

For use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA

For use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA

(10) Fan 431312-001

(11) Optical drive connector board

Optical drive connector board (PATA) 456805-001

Optical drive connector board (SATA) 495386-001

(12) Broadcom Bluetooth modules (do not include Bluetooth module cable)

TouchPad bracket

For use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA graphics subsystem, and PATA optical drive

graphics subsystem, and PATA optical drive

graphics subsystem, and SATA optical drive

495410-001

495395-001

495404-001

495397-001

NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth module cable

is included in the Cable Kit, spare part number 456594-001. See part number information.

For use only in Japan and Asia Pacific countries and regions 450066-001

For use in all countries and regions except Japan and Asia Pacific countries and regions 398393-002

Cable Kit on page 22 for more Cable Kit spare

Computer major components 17

Item Description Spare part number

(13) Heat sink (includes replacement thermal material) 456605-001

(14) Processors (includes replacement thermal material)

Intel Core2 Duo processors:

Intel Celeron M processors:

Intel Celeron M Dual processors:

(15) RTC battery 449137-001

(16) Modem module

For use in the United States 461749-001

For use in Australia and New Zealand 461749-011

(17) Base enclosure (includes rubber feet) 495398-001

Rubber Kit (not illustrated, contains 4 computer feet and 8 display bezel screw covers) 500132-001

T5670 1.80-GHz (2-MB L2 cache, 800-MHz FSB)

●

T5470 1.60-GHz (2-MB L2 cache, 800-MHz FSB)

●

T5270 1.40-GHz (2-MB L2 cache, 800-MHz FSB)

●

P550 2.0-GHz (1-MB L2 cache, 533-MHz FSB)

●

P530 1.73-GHz (1-MB L2 cache, 533-MHz FSB)

●

T1400 1.73-GHz (1–MB L2 cache, 533-MHz FSB)

●

NOTE: The modem module spare part kit does not include a modem module cable. The

modem module cable is included in the Cable Kit, spare part number 456954-001. See Cable

Kit on page 22 for more Cable Kit spare part number information.

508758-001

500757-001

495383-001

508759-001

500756-001

506446-001

(18) Battery

(19) WLAN modules

Intel 802.11a/b/g/n WLAN modules:

Broadcom 802.11a/b/g/n Sangria M/C WLAN modules:

6-cell, 47-Wh Li-ion battery 500764-001

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in South Korea

●

441086-001

441086-002

441086-003

441086-AD1

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

●

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

487330-001

487330-002

441082-001 and 451861-001

441082-002 and 451861-002

441082-003 and 451861-003

Intel 802.11b/g WLAN module for use in Thailand 451861-004

Broadcom 802.11b/g WLAN modules:

For use in Japan

●

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

441082-292 and 451861-291

459263-001

Computer major components 19

Item Description Spare part number

(20) Memory modules (PC2-5300, 667-MHz, DDR2)

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

2-GB 500759-001

459263-002

1-GB 500758-001

512-MB 500760-001

(21) Hard drives (include hard drive bracket)

160-GB, 5400-rpm 500762-001

120-GB, 5400-rpm 500761-001

(22) Optical drives (include bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 500768-001

DVD/CD-RW Combo Drive 500767-001

DVD-ROM Drive 500766-001

Supports the following SATA optical drives:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 507116-001

DVD/CD-RW Combo Drive 507117-001

DVD-ROM Drive 507115-001

Cable Kit (not illustrated; see Cable Kit on page 22 for more Cable Kit spare part number

250-GB, 5400-rpm 500763-001

Supports the following PATA optical drives:

456594-001

information)

20 Chapter 3 Illustrated parts catalog

Plastics Kit

Item Description Spare part number

Plastics Kit: 456614-001

(1) Hard drive bay cover (includes 2 captive screws, secured by C-clips)

(2) WLAN module compartment cover (includes one captive screw, secured by a C-clip)

(3) ExpressCard slot protective insert

(4) Memory module compartment cover (includes one captive screw, secured by a C-clip)

(5) Optical drive bay protective insert (not illustrated)

Plastics Kit 21

Cable Kit

Item Description Spare part number

Cable Kit: 456594-001

(1) RJ-11 jack cable

(2) Display lid switch module and cable

(3) Bluetooth module cable

22 Chapter 3 Illustrated parts catalog

Mass storage devices

Item Description Spare part number

(1) Optical drives (include bezel and bracket)

Supports the following PATA optical drives:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 500768-001

DVD/CD-RW Combo Drive 500767-001

DVD-ROM Drive 500766-001

Supports the following SATA optical drives:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 507116-001

DVD/CD-RW Combo Drive 507117-001

DVD-ROM Drive 507115-001

(2) Hard drives (include bracket)

250-GB, 5400-rpm 500763-001

160-GB, 5400-rpm 500762-001

120-GB, 5400-rpm 500761-001

Mass storage devices 23

Miscellaneous parts

Description Spare part number

65-W AC adapter 417220-001

Logo Kit 495408-001

Nylon carrying case 325814-001

USB 1.1 diskette drive 359118-001

Power cords:

For use in Argentina

For use in Australia 490371-011

For use in Brazil 490371-201

For use in Denmark 490371-081

For use in Europe, the Middle East, and Africa 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in the People's Republic of China 490371-AA1

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Taiwan 490371-AB1

For use in the United Kingdom 490371-031

490371-D01

24 Chapter 3 Illustrated parts catalog

Description Spare part number

For use the United States 490371-001

Screw Kit

Phillips PM3.0×4.0 screw

●

Phillips PM2.5×12.0 captive screw

●

Phillips PM2.5×10.0 captive screw

●

Phillips PM2.5×7.0 captive screw

●

Phillips PM2.5×7.0 screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.0×8.0 screw

●

Phillips PM2.0×6.0 screw

●

Phillips PM2.0×5.0 captive screw

●

Phillips PM2.0×4.0 screw

●

Phillips PM2.0×2.0 broadhead screw

●

Torx T8M2.5×9.0 screw

●

Slotted Torx ST8M2.5×7.0 screw

●

Torx T8M2.5×6.0 screw

●

Torx T8M2.5×4.0 screw

●

500131-001

Torx T8M2.5×3.0 broadhead screw

●

Torx T8M2.0×4.0 screw

●

Sequential part number listing

Spare part number

398393-002 Bluetooth module for use in North America

417220-001 65-W AC adapter

431312-001 Fan

441082-001 Intel 802.11a/b/g WLAN module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados,

Description

NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth module

cable is included in the Cable Kit, spare part number 456594-001. See Kit spare part number information.

Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

Cable Kit on page 22 for more Cable

Sequential part number listing 25

Spare part number

Description

441082-002 Intel 802.11a/b/g WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia,

441082-003 Intel 802.11a/b/g WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic of China,

441082-292 Intel 802.11a/b/g WLAN module for use in Japan

441086-001 Intel 802.11a/b/g/n WLAN module for use in the United States

441086-002 Intel 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia,

441086-003 Intel 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, and the People's Republic of

441086-AD1 Intel 802.11a/b/g/n WLAN module for use in South Korea

449137-001 RTC battery

450066-001 Bluetooth module for use in Japan and Asia Pacific countries and regions

Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

and South Korea

China

NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth module

cable is included in the Cable Kit, spare part number 456594-001. See Cable Kit on page 22 for more Cable Kit spare part number information.

451861-001 Intel 802.11a/b/g WLAN module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados,

451861-002 Intel 802.11a/b/g WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia,

4451861-003 Intel 802.11a/b/g WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic of China,

451861-004 Intel 802.11b/g WLAN module for use in Thailand

451861-291 Intel 802.11a/b/g WLAN module for use in Japan

456593-001 Speaker

456594-001 Cable Kit (see Cable Kit on page 22 for more Cable Kit spare part information)

456605-001 Heat sink (includes replacement thermal material)

456614-001 Plastics Kit (see Plastics Kit on page 21 for more Plastics Kit spare part information)

456618-001 Display inverter

456805-001 Optical drive connector board (PATA)

and South Korea

26 Chapter 3 Illustrated parts catalog

Spare part number

456806-001 Display hinges (includes left and right hinges)

459263-001 Broadcom 802.11b/g WLAN module for use in Canada, Cayman Islands, Guam, Puerto Rico, the U.S. Virgin

459263-002 Broadcom 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and

Description

Islands, and the United States

Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

461749-001 Modem module (includes modem module cable)

NOTE: The modem module spare part kit does not include a modem module cable. The modem module

cable is included in the Cable Kit, spare part number 456594-001. See Kit spare part number information.

461749-011 Modem module (includes modem module cable) for use in Australia and New Zealand

NOTE: The modem module spare part kit does not include a modem module cable. The modem module

cable is included in the Cable Kit, spare part number 456594-001.

487330-001 Broadcom 802.11a/b/g/n WLAN module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas,

Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

487330-002 Broadcom 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria,

Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

490371-001 Power cord for use in the United States

490371-011 Power cord for use in Australia and New Zealand

490371-021 Power cord for use in Europe, the Middle East, Africa

490371-031 Power cord for use in the United Kingdom

Cable Kit on page 22 for more Cable

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

Sequential part number listing 27

Spare part number

490371-201 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in Africa

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

490371-D61 Power cord for use in India

495383-001 Intel Core2 Duo T5270 1.40-GHz processor (2-MB L2 cache, 800-MHz FSB, includes replacement thermal

495385-001 15.4-inch, WXGA display assembly (includes 2 WLAN antenna transceivers and cables)

495386-001 Optical drive connector board (SATA)

495388-001 Switch cover (includes button board and cable)

Description

material)

495395-001 System board for use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA

495397-001 System board for use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA

495398-001 Base enclosure (includes rubber feet)

495399-001 Top cover (includes TouchPad board and cable, and TouchPad button board and cable)

495400-001 Keyboard for use in the United States

495400-031 Keyboard for use in the United Kingdom

495400-041 Keyboard for use in Germany

495400-051 Keyboard for use in France

495400-061 Keyboard for use in Italy

495400-071 Keyboard for use in Spain

495400-081 Keyboard for use in Denmark

495400-091 Keyboard for use in Norway

495400-121 Keyboard for use in French Canada

495400-131 Keyboard for use in Portugal

graphics subsystem, and PATA optical drive (includes replacement thermal material and the ExpressCard assembly)

graphics subsystem, and SATA optical drive (includes replacement thermal material and the ExpressCard assembly)

495400-141 Keyboard for use in Turkey

495400-161 Keyboard for use in Latin America

495400-171 Keyboard for use in Saudi Arabia

495400-181 Keyboard for use in Belgium

28 Chapter 3 Illustrated parts catalog

Spare part number

495400-201 Keyboard for use in Brazil

495400-211 Keyboard for use in Hungary

495400-221 Keyboard for use in the Czech Republic

495400-231 Keyboard for use in Slovakia

495400-251 Keyboard for use in Russia

495400-281 Keyboard for use in Thailand

495400-291 Keyboard for use in Japan

495400-AB1 Keyboard for use in Taiwan

495400-AD1 Keyboard for use in South Korea

495400-B31 Keyboard for use in the Netherlands

495400-B71 Keyboard for use in Sweden and Finland

495400-BA1 Keyboard for use in Slovenia

495400-BB1 Keyboard for use in Israel

495400-BG1 Keyboard for use in Switzerland

495400-DD1 Keyboard for use in Iceland

Description

495400-DJ1 Keyboard for use in Greece

495402-001 Display enclosure (includes 2 WLAN antenna transceivers and cables)

495404-001 System board for use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA

graphics subsystem, and SATA optical drive (includes replacement thermal material and the ExpressCard assembly)

495408-001 Logo Kit

495410-001 System board for use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA

graphics subsystem, and PATA optical drive (includes replacement thermal material and the ExpressCard assembly)

500131-001 Screw Kit

500132-001 Rubber Kit (contains 4 computer feet and 8 display bezel screw covers)

500756-001 Intel Celeron M P530 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB, includes replacement thermal

500757-001 Intel Core2 Duo T5470 1.40-GHz processor (2-MB L2 cache, 800-MHz FSB, includes replacement thermal

500758-001 1-GB memory module (PC2-5300, 667-MHz, DDR2)

500759-001 2-GB memory module (PC2-5300, 667-MHz, DDR2)

500760-001 512-MB memory module (PC2-5300, 667-MHz, DDR2)

500761-001 120-GB, 5400-rpm hard drive (includes bracket)

material)

500762-001 160-GB, 5400-rpm hard drive (includes bracket)

500763-001 250-GB, 5400-rpm hard drive (includes bracket)

Sequential part number listing 29

Spare part number

500764-001 6-cell, 47-Wh Li-ion battery

500766-001 DVD-ROM Drive (includes bezel and bracket) (PATA)

500767-001 DVD/CD-RW Combo Drive (includes bezel and bracket) (PATA)

Description

500768-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe (includes bezel and bracket)

506446-xx1 T1400 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB)

507115-001 DVD-ROM Drive (includes bezel and bracket) (SATA)

507116-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe (includes bezel and bracket)

507117-001 DVD/CD-RW Combo Drive (includes bezel and bracket) (SATA)

508758-001 T5670 1.80-GHz processor (2-MB L2 cache, 800-MHz FSB)

508759-001 P550 2.0-GHz processor (1-MB L2 cache, 533-MHz FSB)

508816-001 Display Cable Kit (contains 2 wireless antennae)

(PATA)

(SATA)

30 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Torx T8 screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Preliminary replacement requirements 31

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

32 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 33

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

34 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 35

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password:

NOTE: These steps also clear CMOS.

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the real-time clock (RTC) battery (see

6. Wait approximately 5 minutes.

7. Replace the RTC battery and reassemble the computer.

8. Connect AC power to the computer. Do not reinsert any batteries at this time.

9. Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 39).

RTC battery on page 78).

36 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 82 screws, in 18 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

Product Name (1). This is the product name affixed to the front of the computer.

●

Serial Number (s/n) (2). This is an alphanumeric identifier that is unique to each product.

●

Part Number/Product Number (p/n) (3). This number provides specific information about the

●

product's hardware components. The part number helps a service technician to determine what components and parts are needed.

Model Description (4). This is the number you use to locate documents, drivers, and support for

●

your notebook.

Warranty Period (5). This number describes the duration (in years) of the warranty period for this

●

computer.

Component replacement procedures 37

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare part number 500132-001. There are 4 rubber feet that attach to the base enclosure in the locations illustrated below.

38 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6-cell, 47-Wh Li-ion battery 500764-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

1. Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latches (1) to release the battery.

3. Remove the battery (2) from the computer.

Insert the battery into the battery bay until it is seated. The battery release latches automatically lock the battery into place.

Component replacement procedures 39

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

250-GB, 5400-rpm hard drive 500763-001

160-GB, 5400-rpm hard drive 500762-001

120-GB, 5400-rpm hard drive 500761-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

Remove the hard drive:

1. Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive bay cover to the

computer.

3. Lift the right side of the hard drive bay cover (2), swing it to left, and remove the cover. The hard

drive bay cover is included in the Plastics Kit, spare part number 456614-001.

4. Loosen the Phillips PM2.5×12.0 captive screw (1) that secures the hard drive to the computer.

5. Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the left to disconnect it from

the system board.

40 Chapter 4 Removal and replacement procedures

6. Remove the hard drive (4) from the hard drive bay.

7. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive

bracket screws (1) from each side of the hard drive.

8. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 41

WLAN module

Description Spare part number

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11a/b/g/n Sangria M/C WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

441086-001

441086-002

441086-003

441086-291

487330-001

487330-002

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the

●

United States

441082-001 and 451861-001

441082-002 and 451861-002

441082-003 and 451861-003

441082-292 and 451861-291

459263-001

42 Chapter 4 Removal and replacement procedures

Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Japan

●

Intel 802.11b/g WLAN module for use in Thailand 451861-004

459263-002

459263-291

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

Remove the WLAN module:

1. Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the WLAN module compartment

cover to the computer.

Component replacement procedures 43

3. Lift the right side of the WLAN module compartment cover (2), swing it to left, and remove the

cover. The WLAN module compartment cover is included in the Plastics Kit, spare part number 456614-001.

4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

5. Remove the two Phillips PM2.5×4.0 screws (2) that secure the WLAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

6. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion.

Reverse this procedure to install the WLAN module.

44 Chapter 4 Removal and replacement procedures

Memory module

Description Spare part number

2-GB (PC2-5300, 667-MHz, DDR2) 500759-001

1-GB (PC2-5300, 667-MHz, DDR2) 500758-001

512-MB (PC2-5300, 667-MHz, DDR2) 500760-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

Remove the memory module:

1. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the memory module compartment

cover to the computer.

2. Lift the front edge of the cover (2), swing it up and back, and remove the cover. The memory module

compartment cover is included in the Plastics Kit, spare part number 456614-001.

3. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

Component replacement procedures 45

4. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install a memory module.

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

Supports the following PATA optical drives:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 500768-001

DVD/CD-RW Combo Drive 500767-001

DVD-ROM Drive 500766-001

Optical drive connector board (PATA) 456805-001

Supports the following SATA optical drives:

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 507116-001

DVD/CD-RW Combo Drive 507117-001

DVD-ROM Drive 507115-001

Optical drive connector board (SATA) 495386-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

46 Chapter 4 Removal and replacement procedures

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

Remove the optical drive:

1. Position the computer with the right side toward you.

2. Remove the slotted Torx ST8M2.5×7.0 screw (1) that secures the optical drive to the computer.

3. Insert a flat-bladed screwdriver or similar tool into the optical drive tab access (2) and press the

tab to the left to release the optical drive from the computer.

4. Remove the optical drive (3) from the computer.

5. If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward

you.

6. Remove the two Phillips PM2.0×4.0 screws (1) that secure the optical drive bracket to the optical

drive.

7. Remove the optical drive bracket (2).

Component replacement procedures 47

Reverse this procedure to reassemble and install an optical drive.

Switch cover

Description Spare part number

Switch cover (includes button board and cable) 495388-001

Before removing the switch cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

Remove the switch cover:

1. Turn the computer upside down, with the rear panel toward you.

2. Remove the two slotted Torx T8M2.5×9.0 screws (1) and the three Torx T8M2.5×3.0 broadhead

screws (2) that secure the switch cover to the computer.

3. Turn the computer right-side up, with the front toward you.

4. Open the computer as far as possible.

5. Release the ZIF connector to which the button board cable (1) is attached, and disconnect the

cable from the system board.

48 Chapter 4 Removal and replacement procedures

6. Remove the switch cover (2) by lifting it straight up.

Reverse this procedure to install the switch cover.

Component replacement procedures 49

Keyboard

For use in: Spare part number For use in: Spare part number

Belgium

Brazil

The Czech Republic

Denmark

France

French Canada

Germany

Greece

Hungary

Iceland

Israel

Italy

Japan

Latin America

The Netherlands and Europe

495400-181

495400-201

495400-221

495400-081

495400-051

495400-121

495400-041

495400-DJ1

495400-211

495400-DD1

495400-BB1

495400-061

495400-291

495400-161

495400-B31

Norway

Portugal

Russia

Saudi Arabia

Slovakia

Slovenia

South Korea

Spain

Sweden and Finland

Switzerland

Taiwan

Thailand

Turkey

The United Kingdom

The United States

495400-091

495400-131

495400-251

495400-171

495400-231

495400-BA1

495400-AD1

495400-071

495400-B71

495400-BG1

495400-AB1

495400-281

495400-141

495400-031

495400-001

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the switch cover (see

Battery on page 39).

Switch cover on page 48).

Remove the keyboard:

1. Position the computer with the front toward you.

50 Chapter 4 Removal and replacement procedures

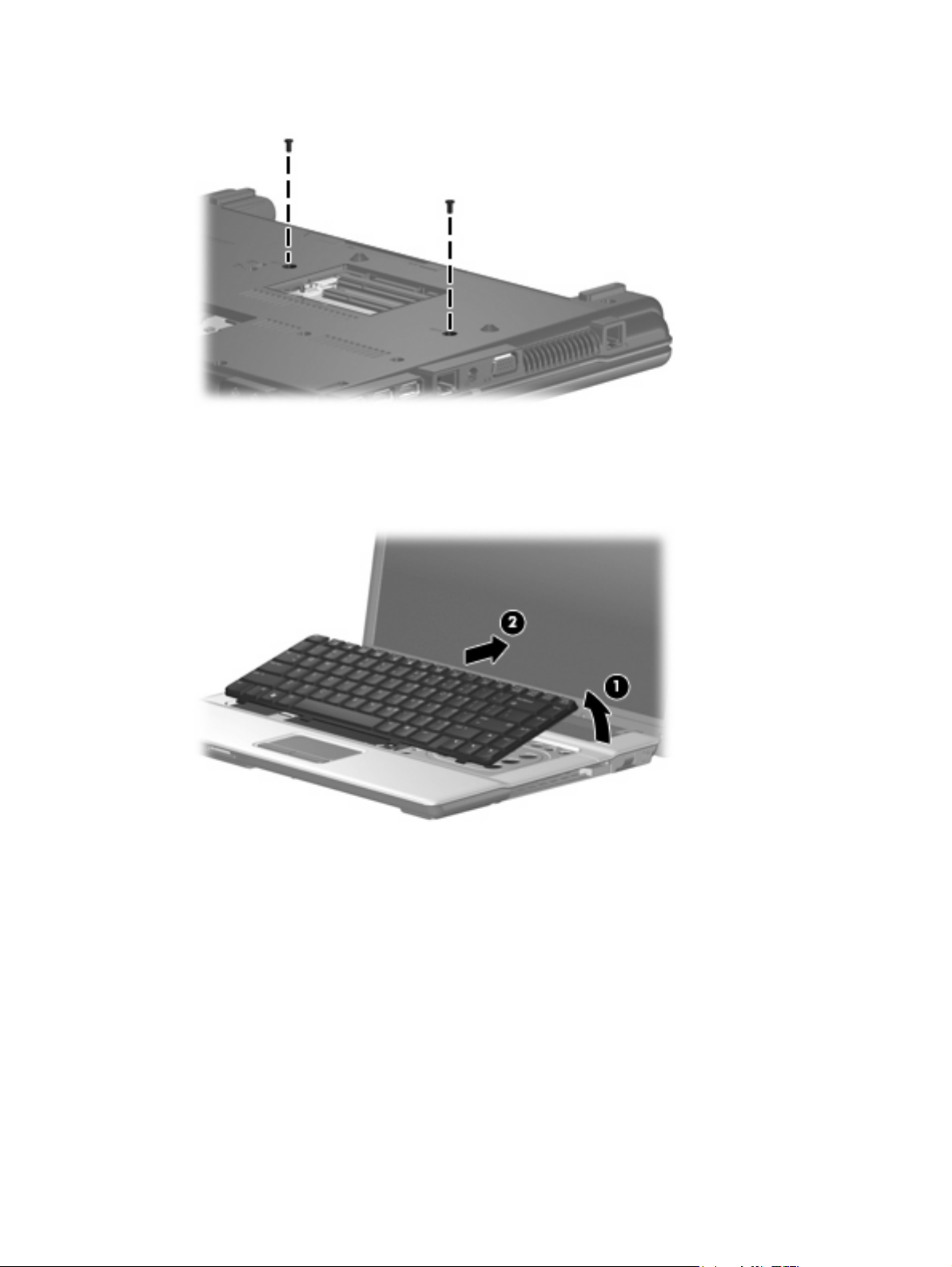

2. Remove the two slotted Torx ST8M2.5×7.0 screws that secure the keyboard to the computer.

3. Turn the computer display-side up, with the front toward you.

4. Open the computer as far as possible.

5. Lift the rear edge of the keyboard (1) and slide it back until it rests on the display assembly (2).

Component replacement procedures 51

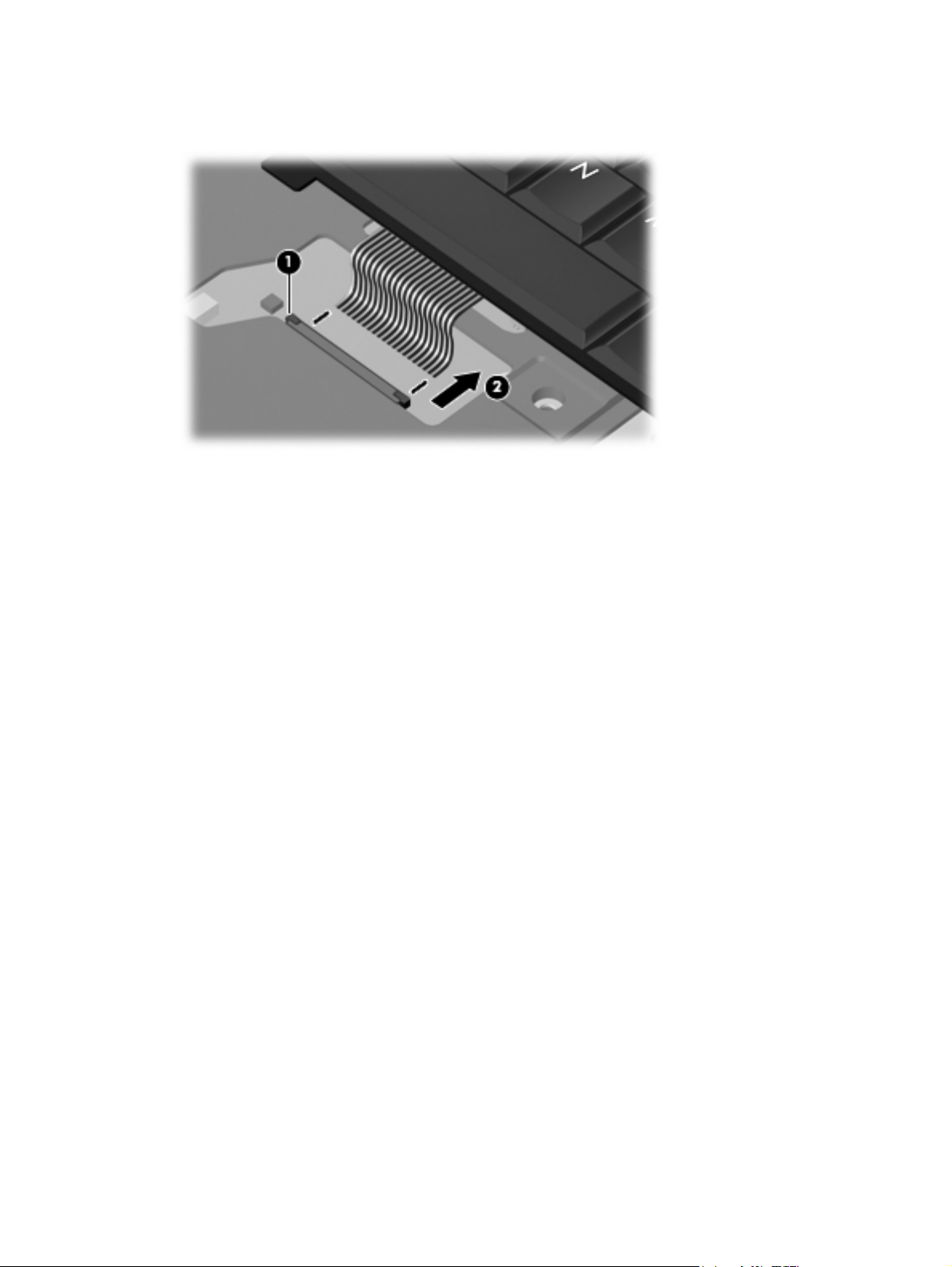

6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

disconnect the keyboard cable (2) from the system board.

7. Remove the keyboard.

Reverse this procedure to install the keyboard.

52 Chapter 4 Removal and replacement procedures

Speaker

Before removing the speaker, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

Description Spare part number

Speaker 456593-001

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the keyboard (see

6. Remove the switch cover (see

Battery on page 39).

Keyboard on page 50).

Switch cover on page 48).

Remove the speaker:

1. Disconnect the speaker cable (1) from the system board.

2. Remove the two Torx T8M2.5×4.0 screws (2) that secure the speaker to the top cover.

3. Remove the speaker (3) from the top cover.

Reverse this procedure to install the speaker.

Component replacement procedures 53

Display lid switch module

NOTE: The display lid switch module is included in the Cable Kit, spare part number Cable Kit, spare

part number 456594-001.

Before removing the display lid switch module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the keyboard (see

6. Remove the switch cover (see

Remove the display lid switch module:

1. Disconnect the display lid switch module cable (1) from the system board.

2. Remove the display lid switch module (2) from the clip built into the top cover.

3. Remove the display lid switch module cable from the clips (3) built into the top cover.

Battery on page 39).

Keyboard on page 50).

Switch cover on page 48).

Reverse this procedure to install the display lid switch module.

54 Chapter 4 Removal and replacement procedures

Display assembly

NOTE: All display assembly spare part kits include 2 WLAN antenna transceivers and cables.

Description Spare part number

15.4-inch, WXGA with BrightView 495385-001

Display Cable Kit (includes 2 wireless antennae) 508816-001

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Disconnect the wireless antenna cables from the WLAN module (see

Battery on page 39).

WLAN module on page 42).

6. Remove the following components:

a. Keyboard (see

b. Switch cover (see

c. Speaker (see

d. Display lid switch module (see

Switch cover on page 48

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Remove the display assembly:

1. Close the computer and turn it upside down, with the rear panel toward you.

2. Remove the two slotted Torx ST8M2.5×7.0 screws that secure the display assembly to the

computer.

Component replacement procedures 55

3. Turn the computer right-side up, with the front toward you.

4. Open the computer as far as possible.

5. Disconnect the display panel cables (1) and (2) from the system board.

6. Remove the wireless antenna cables (3) from the clips and routing channels built into the top cover.

7. Remove the four slotted Torx ST8M2.5×7.0 screws (1) that secure the display assembly to the

computer.

CAUTION: Support the display assembly when removing the following screws. Failure to support

the display assembly can result in damage to the display assembly and other computer components.

8. Lift the display assembly (2) straight up and remove it.

56 Chapter 4 Removal and replacement procedures

9. If it is necessary to replace the display bezel, display inverter, or display hinges, remove the eight

rubber screw covers (1) and the eight Torx T8M2.5×6.0 screws (2) that secure the display bezel to the display assembly. The rubber screw covers are available in the Rubber Kit, spare part number 500132-001.

10. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

11. Remove the display bezel (3). The display bezel is available using spare part number

495402-001.

12. If it is necessary to replace the display inverter, remove the inverter (1) from the display enclosure

as far as the display panel cable and the backlight cable will allow.

Component replacement procedures 57

13. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.

14. Remove the display inverter. The display inverter is available using spare part number

456618-001.

15. If it is necessary to replace the display hinges, remove the four Torx T8M2.5×6.0 screws (1) that

secure the display panel to the display enclosure.

16. Remove the display panel (2).

17. Remove the four Phillips PM2.0×4.0 screws (1) that secure each display hinge to the display

panel.

58 Chapter 4 Removal and replacement procedures

18. Remove the display hinges (2). The left and right display hinges are available using spare part

number 456806-001.

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 59

Top cover

NOTE: The top cover includes the TouchPad board and cable, and the TouchPad button board and

cable.

Description Spare part number

Top cover 495399-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Remove the top cover:

1. Turn the computer upside down, with the front toward you.

60 Chapter 4 Removal and replacement procedures

2. Remove the followng screws:

(1) Three Phillips PM2.0×2.0 broadhead screws

(2) Seven slotted Torx ST8M2.5×7.0 screws

(3) One Torx T8m2.5×4.0 screw

3. Turn the computer right-side up, with the left side toward you.

4. Press in on the ExpressCard slot eject button (1) two times. The first press releases the

ExpressCard slot eject button. The second press releases the ExpressCard slot protective insert, if one is present, from the ExpressCard slot.

5. Remove the ExpressCard slot insert(2).

6. Remove the three slotted Torx ST8M2.5×7.0 screws (3) that secure the top cover to the computer.

7. Lift the rear edge of the top cover (1) and swing it up and forward until it rests at an angle.

8. Lift the front edge of the top cover (2) until it disengages from the base enclosure.

9. Tilt the top cover (3) back until the TouchPad cable is accessible.

Component replacement procedures 61

10. Release the ZIF connector (4) to which the TouchPad cable is connected and disconnect the

TouchPad cable (5) from the system board.

11. Remove the top cover.

Reverse this procedure to install the top cover.

62 Chapter 4 Removal and replacement procedures

TouchPad board and TouchPad button board

NOTE: The top cover, spare part number 495399-001, includes the TouchPad board and cable, and

the TouchPad button board and cable.

Before removing the TouchPad board and TouchPad button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

Remove the TouchPad board and TouchPad button board:

1. Turn the top cover upside down, with the front toward you.

2. Release the ZIF connectors on the TouchPad button board (1) and TouchPad board (2) to which

the TouchPad board cable is connected.

3. Disconnect and remove the TouchPad board cable (3).

Battery on page 39).

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

Component replacement procedures 63

4. Remove the two Phillips PM2.0×4.0 screws (4) that secure the TouchPad bracket to the computer.

5. Release the TouchPad bracket (1) by sliding it back.

6. Remove the TouchPad bracket (2) by lifting it straight up.

7. Remove the TouchPad button board (3).

8. Remove the TouchPad button board cable (4) from the opening in the TouchPad bracket.

64 Chapter 4 Removal and replacement procedures

9. Remove the TouchPad board (1) from the top cover.

NOTE: When replacing the TouchPad board and TouchPad button board, be sure the TouchPad

button actuators (2) are installed in the top cover.

Reverse this procedure to install the TouchPad board and TouchPad button board.

Bluetooth module

NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth

module cable is included in the Cable Kit, spare part number 456594-001.

Description Spare part number

For use in all countries and regions except Japan and Asia Pacific countries and regions 398393-001

Before removing the Bluetooth module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

Hard drive on page 40)

Optical drive on page 46)

c. Keyboard (see

Keyboard on page 50)

d. Switch cover (see

e. Speaker (see

Speaker on page 53)

Switch cover on page 48)

Component replacement procedures 65

f. Display lid switch module (see Display lid switch module on page 54)

g. Display assembly (see

h. Top cover (see

Top cover on page 60)

Display assembly on page 55)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the two Phillips PM2.0×4.0 screws (2) that secure the Bluetooth module to the base

enclosure.

3. Remove the Bluetooth module (3) from the base enclosure.

Reverse this procedure to install the Bluetooth module.

System board

NOTE: All system board spare part kits include the ExpressCard assembly.

NOTE: All system board spare part kits include replacement thermal material. Replacement thermal

material is also available in the heat sink spare part kit, spare part number 456605-001.

Description Spare part number

For use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA graphics subsystem, and PATA optical drive

For use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA graphics subsystem, and PATA optical drive

For use only with computer models equipped with Intel GME965 graphics chipset, Intel UMA graphics subsystem, and SATA optical drive

For use only with computer models equipped with Intel GLE960 graphics chipset, Intel UMA graphics subsystem, and SATA optical drive

495410-001

495395-001

495404-001

495397-001

66 Chapter 4 Removal and replacement procedures

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory module (see

●

WLAN module (see

●

Processor (see

●

Processor on page 74)

Battery on page 39).

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

Memory module on page 45)

WLAN module on page 42)

ExpressCard assembly (see

●

Remove the system board:

1. Remove the RJ-11 jack (1) from the clip built into the base enclosure and remove the RJ-11 jack

cable from the hook (2) built into the base enclosure.

ExpressCard assembly on page 79)

Component replacement procedures 67

2. Disconnect the fan cable (3) and the Bluetooth module cable (4) from the system board.

3. Remove the following screws:

(1) Two Phillips PM2.0×6.0 screws

(2) Two Torx T8M2.0×4.0 screws

(3) One Torx T8M2.5×4.0 screw

4. Flex the left side of the base enclosure (1) until the external monitor connector (2) is clear of the

opening in the base enclosure.

5. Lift the rear edge of the system board (3) until it rests at an angle.

68 Chapter 4 Removal and replacement procedures

6. Remove the system board (4) from the base enclosure by sliding it back.

7. If it is necessary to replace the optical drive connector board, remove it from the connector on the

system board. The optical drive connector board is available using spare part numbers 456805-001 (PATA) or 495386-001 (SATA).

Reverse the preceding procedure to install the system board.

Component replacement procedures 69

Fan

Description Spare part number

Fan 431312-001

Before removing the fan, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

i. System board (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

System board on page 66)

Remove the fan:

1. Remove the two Phillips PM2.5×7.0 screw s(1) that secures the fan to the base enclosure.

70 Chapter 4 Removal and replacement procedures

2. Remove the fan (2) from the base enclosure.

Reverse this procedure to install the fan.

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side

of the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Component replacement procedures 71

Heat sink

NOTE: The heat sink spare part kit includes replacement thermal material.

Description Spare part number

Heat sink (includes replacement thermal material) 456605-001

Before removing the heat sink, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

i. System board (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

System board on page 66)

Remove the heat sink:

1. Turn the system board upside down, with the USB connectors toward you.

2. Following the 1, 2, 3, 4 sequence stamped into the heat sink, loosen the four Phillips PM2.5×10.0

screws (1) that secure the heat sink to the system board.

72 Chapter 4 Removal and replacement procedures

3. Remove the heat sink (2).

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) and

(2), the processor (3), and graphics system component (4) each time the heat sink is removed. Thermal

pads and thermal paste must be installed on all surfaces before the heat sink assembly is reinstalled. Thermal material is included with all heat sink and processor spare part kits.

Reverse this procedure to install the heat sink.

Component replacement procedures 73

Processor

NOTE: All processor spare part kits include replacement thermal material. Replacement thermal

material is also available in the heat sink spare part kit, spare part number 456605-001.

Description Spare part number

Intel Core2 Duo processors:

T5670 1.80-GHz (2-MB L2 cache, 800-MHz FSB)

●

T5470 1.60-GHz (2-MB L2 cache, 800-MHz FSB)

●

T5270 1.40-GHz (2-MB L2 cache, 800-MHz FSB)

●

Intel Celeron M processors:

P550 2.0-GHz (1-MB L2 cache, 533-MHz FSB)

●

P530 1.73-GHz (1-MB L2 cache, 533-MHz FSB)

●

Intel Celeron M Dual Core processors:

T1400 1.73-GHz (1–MB L2 cache, 533-MHz FSB) 506446-001

●

508758-001

500757-001

495383-001

508759-001

500756-001

Before removing the processor, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

i. System board (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

System board on page 66)

74 Chapter 4 Removal and replacement procedures

Remove the processor:

1. Turn the system board upside down, with the USB connectors toward you.

2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise

until you hear a click.

3. Lift the processor (2) straight up and remove it.

NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned

with the triangle (4) embossed on the processor socket.

Reverse this procedure to install the processor.

Component replacement procedures 75

Modem module

NOTE: The modem module spare part kit does not include a modem module cable. The modem

module cable is included in the Cable Kit, spare part number 456594-001.

Description Spare part number

For use in the United States 461749-001

For use in Australia and New Zealand 461749-011

Before removing the modem module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

i. System board (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

System board on page 66)

Remove the modem module:

1. Turn the system board upside down, with the USB connectors toward you.

2. Remove the two Phillips PM2.5×4.0 screws (1) that secure the modem module to the system board.

76 Chapter 4 Removal and replacement procedures

3. Lift the modem module (2) straight up to disconnect it from the system board.

4. Remove the modem module.

Reverse this procedure to install the modem module.

Component replacement procedures 77

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all

passwords and CMOS settings to be cleared.

Description Spare part number

RTC battery 449137-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

h. Top cover (see

i. System board (see

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

Top cover on page 60)

System board on page 66)

Remove the RTC battery:

1. Turn the system board upside down, with the audio connectors toward you.

78 Chapter 4 Removal and replacement procedures

2. Remove the RTC battery from the socket on the system board.

Reverse this procedure to install the RTC battery.

ExpressCard assembly

NOTE: All system board spare part kits include the ExpressCard assembly.

Before removing the ExpressCard assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Speaker (see

f. Display lid switch module (see

g. Display assembly (see

Battery on page 39).

Hard drive on page 40)

Optical drive on page 46)

Keyboard on page 50)

Switch cover on page 48)

Speaker on page 53)

Display lid switch module on page 54)

Display assembly on page 55)

h. Top cover (see

i. System board (see

Top cover on page 60)

System board on page 66)

Component replacement procedures 79

Remove the ExpressCard assembly:

1. Turn the system board upside down, with the USB connectors toward you.

2. Remove the two Phillips PM2.0×8.0 screws (1) and the two Phillips PM2.0×4.0 screws (2) that

secure the ExpressCard assembly to the system board.

3. Turn the system board right-side up, with the USB connectors toward you.

4. Remove the ExpressCard assembly from the system board.

Reverse this procedure to install the ExpressCard assembly.

80 Chapter 4 Removal and replacement procedures

5 Computer Setup

Starting Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.

NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your

computer.

NOTE: Pointing devices are not supported in Computer Setup. You must use the keyboard to navigate

and make selections.

NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB legacy

support is enabled.

To start Computer Setup, follow these steps:

1. Turn on or restart the computer.

2. Before Windows® opens and while the “F10=ROM Based Setup” message is displayed in the

lower-left corner of the screen, press f10.

Starting Computer Setup 81

Using Computer Setup

Navigating and selecting in Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and System Configuration menus.

1. Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

Because Computer Setup is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke:

To choose a menu or a menu item, use the arrow keys.

●

To select an item, press enter.

●

To close open dialog boxes and return to the main Computer Setup screen, press esc.

●

To view navigation information, press f1.

●

To change the language, press f2.

●

2. Select the File, Security, Diagnostics, or System Configuration menu.

3. To exit Computer Setup, choose one of the following methods:

To exit Computer Setup without saving your preferences, use the arrow keys to select File >

●

Ignore Changes and Exit. Then follow the instructions on the screen.

To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

●

Changes and Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

Restoring factory settings in Computer Setup

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select File > Restore defaults, and then press enter.

3. When the confirmation dialog box opens, press f10.

4. To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

Changes and Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory

settings.

82 Chapter 5 Computer Setup

Computer Setup menus

The menu tables in this section provide an overview of Computer Setup options.

NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your

computer.

File menu

Select To do this

System information

Restore defaults Replace the configuration settings in Computer Setup with the

Ignore changes and exit Cancel any changes entered during the current session. Then

Save changes and exit Save any changes entered during the current session. Then

View identification information for the computer and the

●

batteries in the system.

View specification information for the processor, cache

●

and memory size, system ROM, video revision, and keyboard controller version.

original factory settings. (Password settings and security settings are not changed when you restore the factory settings.)

exit and restart the computer.

exit and restart the computer. Your changes go into effect when the computer restarts.

Computer Setup menus 83

Security menu

Select To do this

Setup password Enter, change, or delete a setup password.

Power-On password Enter, change, or delete a power-on password.

Password options

DriveLock passwords

System IDs Enter user-defined computer asset tracking number and

Disk Sanitizer Run Disk Sanitizer to destroy all existing data on the primary

Enable/disable stringent security.

●

Enable/disable password requirement on computer

●

restart.

Enable/disable DriveLock on any computer hard drive

●

and on optional MultiBay hard drives.

Change a DriveLock user password or master password.

●

NOTE: DriveLock settings are accessible only when you

enter Computer Setup by turning on (not restarting) the computer.

ownership tag.

hard drive. The following options are available:

Fast: Runs the Disk Sanitizer erase cycle once.

●

Optimum: Runs the Disk Sanitizer erase cycle 3 times.

●

Custom: Allows you to select the desired number of Disk

●

Sanitizer erase cycles from a list.

CAUTION: If you run Disk Sanitizer, the data on the primary

hard drive is destroyed permanently.

Diagnostics menu

Select To do this

Hard Drive Self-Test options Run a comprehensive self-test on any hard drive in the system

Memory Check Run a comprehensive check on system memory.

Startup Check (select models only) Verify the system components needed for starting the

84 Chapter 5 Computer Setup

or on any optional MultiBay hard drive.

computer.

System Configuration menu

NOTE: Some of the listed System Configuration options may not be supported by your computer.

Select To do this

Language (or press f2) Change the Computer Setup language.

Boot options

Device configurations

Set f9, f10, and f12 delay when starting up.

●

Enable/disable CD-ROM boot.

●

Enable/disable floppy boot.

●

Enable/disable internal network adapter boot and set the

●

boot mode (PXE or RPL).

Enable/disable MultiBoot, which sets a boot order that

●

can include most boot devices in the system.

Set the Express Boot Popup delay in seconds.

●

Set the boot order.

●

Swap the functions of the fn key and left ctrl key.

●

Enable/disable multiple standard pointing devices at

●

startup. (To set the computer to support only a single, usually nonstandard, pointing device at startup, select Disable.)

Enable/disable USB legacy support. When enabled, USB

●

legacy support allows the following:

Use of a USB keyboard, mouse, and hub in

◦

Computer Setup even when a Windows operating system is not running.

Startup from bootable USB devices, including a hard

◦

drive, diskette drive, or optical drive connected by a

Computer Setup menus 85

Select To do this

Select a parallel port mode: EPP (Enhanced Parallel

●

Port), standard, bidirectional, or ECP (Enhanced Capabilities Port).

Enable/disable BIOS DMA data transfers.

●

Enable/disable fan always on while connected to an AC

●

outlet.

Enable/disable Intel Data Execution Prevention or AMD®

●

PSAE Execution Disable. When enabled, the processor can disable some virus code execution, which helps to improve computer security.

Enable/disable LAN Power Save. When enabled, saves

●

power by turning off the LAN when not in use.

Enable/disable SATA Native Mode.

●

Enable/disable Dual Core CPU.

●

Enable/disable Secondary Battery Fast Charge.

●

Choose Bit-shift or LBA assisted HDD Translation Mode.

●

Enable/disable Windows direct application launcher.

●

USB port to the computer or to an optional docking device (select models only).

Enable/disable HP Lockout.

●

86 Chapter 5 Computer Setup

Select To do this

Built-In Device Options

Port Options

Enable/disable embedded WWAN Device Radio.

●

Enable/disable embedded WLAN Device Radio.

●

Enable/disable embedded Bluetooth Device Radio.

●

Enable/disable LAN/WLAN Switching. When enabled,

●

switches to a WLAN when a LAN is either unavailable or disconnected.

Enable/disable Wake on LAN from Off.

●

Enable/disable the ambient light sensor.

●

Enable/disable the serial port.

●

Enable/disable the parallel port.

●

Enable/disable the flash media reader.

●

Enable/disable the USB port.

●

CAUTION: Disabling the USB port also disables

MultiBay devices and ExpressCard devices on the advanced port replicator.

Enable/disable the 1394 port.

●

Enable/disable the cardbus slot.

●

Enable/disable the ExpressCard slot.

●

Enable/disable the infrared port.

●

Enable/disable the optical disk drive.

●

Enable/disable the network controller.

●

Computer Setup menus 87

6 Specifications

Computer specifications

Metric U.S.

Dimensions

Length

Width 35.80 cm 14.10 in

Height (front to rear) 3.23 to 3.58 cm 1.27 to 1.41 in

Weight (equipped with optical drive, hard drive, and battery) 2.45 kg 5.4 lbs

Input power

Operating voltage

Operating current 4.74 A

Temperature

Operating (not writing to optical disc)

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

Operating (14.7 to 10.1 psia)

26.68 cm 10.50 in

19.0 V dc @ 4.74 A – 90 W

0°C to 35°C 32°F to 95°F

10% to 90%

-15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating

Nonoperating 200 g, 2 ms, half-sine

Random vibration

Operating

88 Chapter 6 Specifications

125 g, 2 ms, half-sine

0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate

Metric U.S.

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this

range of temperatures.

15.4-inch, WXGA display specifications

Metric U.S.

Dimensions

Height

Width 33.1 cm 13.03 in

Diagonal 39.1 cm 15.39 in

Number of colors Up to 16.8 million

Contrast ratio 200:1 (typical)

Brightness 180 nits (typical)

Pixel resolution

Pitch

Format 1366 × 768

Configuration RGB vertical stripe

Backlight CCFT

Character display 80 × 25

Total power consumption 7.0 W

Viewing angle +/-40 horizontal, +/–50° vertical (typical)

20.7 cm 8.15 in

0.197 × 0.197 mm

15.4-inch, WXGA display specifications 89

Hard drive specifications

250-GB* 160-GB* 120-GB*

Dimensions

Height

Width 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g

Interface type SATA SATA SATA

Transfer rate 100 MB/sec 100 MB/sec 100 MB/sec

Security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track

Average 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms

Logical blocks 488,397,168 312,560,640 234,420,480

Disc rotational speed 5400 rpm 5400 rpm 5400 rpm

Operating temperature 5°C to 55°C (41°F to 131°F)

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm 9.5 mm 9.5 mm

3 ms 3 ms 3 ms

90 Chapter 6 Specifications

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CDROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CDRW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Access time CD DVD

Random < 160 ms < 190 ms

Cache buffer 2 MB

Data transfer rate

24X CD-ROM

8X DVD-ROM 10,800 KB/sec

24X CD-R 3,600 KB/sec

24X CD-RW 3,600 KB/sec

8X DVD+R 10,800 KB/sec

8X DVD-R 10,800 KB/sec

8X DVD+RW 10,800 KB/sec

3,600 KB/sec

Write:

CD-R and CD-RW

DVD+R, DVD+RW, DVD-R, DVDRW, DVD-RAM

6X DVD-RW 8,100 KB/sec

6X DVD±DUAL 8,100 KB/sec

5X DVD-RAM 6,750 KB/sec

Transfer mode Multiword DMA Mode

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications 91

DVD/CD-RW Combo Drive specifications

Applicable disc Read:

Access time CD DVD

Random < 110 ms < 130 ms

Cache buffer 2 MB

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 3,600 KB/sec

24X CD-R 3,600 KB/sec

24X CD-RW 3,600 KB/sec

Transfer mode Multiword DMA mode 2

Write:

CD-R and CD-RW

92 Chapter 6 Specifications

HP 550 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Top components

TouchPad

Buttons, lights, and speaker

Keys

Front components

Right-side components

Left-side components

Bottom components

Wireless antennae (select models only)

3 Illustrated parts catalog

Serial number location

Computer major components

Plastics Kit

Cable Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Computer feet

Battery

Hard drive

WLAN module

Memory module

Optical drive

Switch cover

Keyboard

Speaker

Display lid switch module

Display assembly

Top cover

TouchPad board and TouchPad button board

Bluetooth module

System board

Heat sink

Processor

Modem module

RTC battery

ExpressCard assembly

5 Computer Setup

Starting Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

Restoring factory settings in Computer Setup

Computer Setup menus

File menu

Security menu

Diagnostics menu

System Configuration menu

6 Specifications

Computer specifications

15.4-inch, WXGA display specifications

Hard drive specifications

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications

DVD/CD-RW Combo Drive specifications
