HP (Hewlett-Packard) 5100 User Manual

hp officejet

5100 series

all-in-one

reference guide

All rights are reserved. No part of the document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

This product incorporates Adobe’s PDF technology, which contains an implementation of LZW licensed under U.S. Patent 4,558,302.

Adobe and the Acrobat logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Apple, the Apple logo, Mac, Mac logo, Macintosh, and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

Publication number: Q1678-90158 First edition: October 2002 Printed in U.S.A., Germany, or

Singapore

Windows ME®, Windows XP®, and Windows 2000

of Microsoft Corporation.

Intel trademarks of Intel Corporation.

, Windows NT®, Windows

are U.S.-registered trademarks

and Pentium® are registered

notice

The information contained in this document is subject to change without notice and should not be construed as a commitment by the Hewlett-Packard Company.

Hewlett-Packard assumes no responsibility for any errors that may appear in this document, nor does it make expressed or implied warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

The Hewlett-Packard Company shall not be liable for incidental or consequential damages in connection with, or arising out of the furnishing, performance, or use of this document and the program material which it describes.

Note: Regulatory information can be found in the technical information section of this guide.

It is n ot lawful in many places to make copies of the following items. When in doubt, check with a legal representative first.

• Governmental paper or documents:

-Passports

- Immigration papers

- Selective service papers

- Identification badges, cards, or

insignias

• Governmental stamps:

- Postage stamps

- Food stamps

• Checks or drafts drawn on governmental agencies

• Paper currency, traveler’s checks, or money orders

• Certificates of deposit

•Copyrighted works

safety information

Warning! To

prevent fire or shock hazard, do not expose this product to rain or any type of moisture.

Always follow bas ic safety precaut ions when using this product to reduce risk of injury from fire or electric shock.

WARNING: potential shock hazard

1 Read and understand all

instructions in the setup poster.

2 Use only a grounded electrical

outlet when connecting the unit to a power source. If you do not know whether the outlet is grounded, check with a qualified electrician.

3 Observe all warnings and

instructions marked on the product.

4 Unplug this product from wall

outlets before cleaning.

5 Do not install or use this product

near water or when you are wet.

6 Install the product securely on a

stable surface.

7 Install the product in a protected

location where no one can step on or trip over the line cord, and where the line cord will not be damaged.

8 If the product does not operate

normally, see the online Troubleshooting help.

9 No operator-serviceable parts

inside. Refer servicing to qualified service personnel.

10 Use in a well-ventilated area.

1 get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2 quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

front panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

use your hp officejet with a computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

review the hp director. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 load originals and load paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

load originals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

load paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

load envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

tips for loading other types of paper in the paper tray . . . . . . . . . . . . . . . . . . . .9

set the paper type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

set the paper size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 use the copy features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

make copies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

make a copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

increase copy speed or quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

set the number of copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

reduce or enlarge a copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

make copies lighter or darker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

enhance text sharpness and photo colors . . . . . . . . . . . . . . . . . . . . . . . . .13

change settings for all copy tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

perform special copy jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

copy a photo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

fit a copy to the page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

prepare a color t-shirt transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

copy options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

5 use the scan features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

scan an original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

stop a scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

6 use the fax features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

enable fax confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

send a fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

initiate the fax process from your hp officejet . . . . . . . . . . . . . . . . . . . . . . .20

receive a fax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

receive a fax automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

receive a fax manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

save frequently-used fax numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

set basic fax settings using the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . .21

set the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

set the fax header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

enter text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

set the answer mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

set the rings to answer setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

check for dial tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

contents

7 maintain your hp officejet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

clean the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

work with print cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

print a self-test report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

handle print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

replace the print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

align cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

clean the print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

restore factory defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

setup menu options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8 additional setup information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

possible installation problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

set the language and country/region. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

connect your hp officejet to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . .30

connect your usb port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

connect your hp officejet to a phone, modem, or answering machine. . . . . . . . .31

remove and reinstall your hp officejet software . . . . . . . . . . . . . . . . . . . . . . . .31

9 technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

system requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

paper specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

print specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

print margin specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

copy specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

scan specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

fax specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

power specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

additional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

environmental product stewardship program . . . . . . . . . . . . . . . . . . . . . . . 37

regulatory notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

notice to users of the U.S. telephone network: FCC requirements . . . . . . . . .38

doc statement / déclaration de conformité (Canada) . . . . . . . . . . . . . . . . .40

notice to users of the Canadian telephone network. . . . . . . . . . . . . . . . . . .40

notice to all users of the European Economic Area (EEA) . . . . . . . . . . . . . . .40

notice to users of the German telephone network . . . . . . . . . . . . . . . . . . . .41

VCCI-2 (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

notice to Korean customers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

10 get hp officejet 5100 support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

get support and other information from the internet . . . . . . . . . . . . . . . . . . . . .43

hp customer support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

prepare your hp officejet for shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

hp distribution center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

hp officejet 5100 series warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

warranty service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

return your hp officejet 5100 series for service. . . . . . . . . . . . . . . . . . . . . .48

hewlett-packard limited global warranty statement . . . . . . . . . . . . . . . . . . .48

index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

hp officejet 5100 series

get help

help description

Setup Poster The Setup Poster provides instructions for setting up and configuring your

HP Officejet. Make sure you use the correct poster for your operating system (Windows PC or Macintosh).

Product Tour The tour provides a brief introduction to the HP Officejet and its

capabilities, so you can start using it immediately. You can take the tour immediately after installing the HP Officejet software, or to take the tour at any time, see the product specific online help.

HP Photo & Imaging Help

Reference Guide The Reference Guide contains information on using your HP Officejet

Troubleshooting Help To access troubleshooting information, go to the HP Director, then click

Internet Help and Technical Support

Readme File After you install your software, you can access the Readme file from either

The HP Photo & Imaging Help provides detailed information on using the software for your HP Officejet.

For Windows PC users: Go to the HP Director, and click Help. For Macintosh users: Go to the HP Director, and click Help, then select hp photo & imaging help.

and provides additional troubleshooting assistance for the installation process. The Reference Guide also contains information on how to order supplies and accessories, technical specifications, support, and warranty information.

Help. Open the Troubleshooting book in the HP Photo & Imaging Help, then follow the links to general troubleshooting as well as links to Troubleshooting help that is specific to your HP Officejet. Troubleshooting is also available from the Help button that appears on some error messages.

If you have Internet access, you can get more information from the HP website at:

http://www.hp.com/support

The website also provides answers to frequently-asked questions.

the HP Officejet 5100 Series CD-ROM or the HP Officejet 5100 Series program folder. The Readme file contains late-breaking information that does not appear in the Reference Guide or the online help. To access the Readme file, do the following:

For Windows PC: go to the Windows PC taskbar, click Start, point to Programs or All Programs (XP), point to Hewlett-Packard, point to hp officejet 5100 series, and then select Readme. For Macintosh: go to the HD:Applications:HP Officejet Software folder.

get help

help description

Dialog Box Help (Windows PC only)

For Windows PC: Clicking Help in a dialog box displays information about options and settings within the dialog box.

To get help while working in a dialog box, click

Help.

hp officejet 5100 series

quick start

You can perform many functions using either the front panel or the HP Officejet software.

Even if you do not connect your HP Officejet to a computer, you can use the front panel to copy and fax documents or photos. You can change a wide variety of settings using the front-panel buttons and menu system.

front panel features

Review the illustrations below and identify the location of the buttons on the front panel.

feature purpose

1 One-touch speed-dial buttons: Enter and label speed-dial numbers for quick

access.

2 Auto Answer light: If lit, automatic answering is on.

3 A

4 SPEED DIAL button: Access speed-dial numbers.

5 R

6 Keypad: Dial fax numbers or enter text.

7 S

8 P

UTO ANSWER button: Turn automatic answering for fax on or off.

EDIAL PAUSE button: Dial the last number again, or insert a pause in a number

to be dialed.

TAR/SYMBOLS key: Enter punctuation characters or use as directed in voice mail.

OUND/SPACE key: Enter spaces or use as directed in voice mail.

quick start

feature purpose

9 S

10 S

CAN button: Press to begin the scanning process.

TART, BLACK button: Start a black-and-white scan, fax, or copy.

11 FAX button: Press to begin the faxing process.

12 S

13 C

TART, COLOR button: Start a color scan, fax, or copy.

OPY button: Press to begin the copy process.

14 PHOTO FIT TO PAGE button: Enlarge and copy a photo to a full-size page.

15 S

16 O

17 O

ETUP button: Access various unit settings.

N button: Turn unit on and off.

PTIONS button: Access various scan, copy, and fax options.

18 Left and Right arrows: Scroll through scan, fax, and copy option settings, or move

forward and backward in a text entry.

19 E

20 C

NTER button: Select or save displayed setting.

ANCEL button: Stop job or exit menu.

use your hp officejet with a computer

If you installed the HP Officejet software on your computer according to the Setup Poster, you can access all the features of the HP Officejet using the HP Director.

review the hp director

The HP Director is available through the desktop shortcut (Windows PC only).

for Windows PC users

1 Do one of the following:

–Double-click the hp director icon on the desktop. – In the Windows PC taskbar, click Start, point to Programs or All

Programs (XP), point to Hewlett-Packard, point to hp officejet 5100 series, then select hp director.

The Director displays only the buttons that are appropriate for the selected device.

hp officejet 5100 series

use your hp officejet with a computer

hp director for Windows PC

feature purpose

1 Help: Provides access to the HP Photo View Center, which provides

software help, a product tour, and troubleshooting information.

2 Status: Describes the HP Officejet’s current status and displays the current

front panel text.

3 Log: Lists received, sent, pending, or blocked faxes.

4 Address Book: Opens the Microsoft Windows address book.

5 Officejet Web: Opens the HP Officejet Product and Services web page.

6 Fax: Opens the Send Fax dialog box.

7 Scan Document: Scans text and displays it in the selected destination text

editing software program.

8 Settings: Lets you view or change various settings for your HP device,

such as print, scan, copy, or image unload.

9 Scan Picture: Scans an image and displays it in the

HP Photo View Center.

10 View Images: Opens the HP Photo View Center.

11 Copy: Opens the Copy dialog box.

Macintosh users

for

` Do one of the following:

– For OS 9.x, double-click the HP Director icon on the desktop. –For OSX, click the HP Director icon on the dock.

The following figure shows some of the features available through the HP Director for Macintosh. Consult the legend for a brief explanation of a specific feature.

quick start

hp director for Macintosh

feature purpose

9 10

1 Workplace: Allows you to access the Workplace for annotating image documents,

custom printing, viewing the fax log, etc.

2 Scan: Allows you to quickly scan documents and images into many applications.

3 Scan Chooser: Allows you to select or change your scan device.

4 Copy: Allows you to use your HP Officejet as a copier.

5 Fax: Allows you to fax a document or photo to someone else.

6 Email: Allows you to quickly scan a document and e-mail it to someone else.

7 OCR: Allows you to scan a document and convert it to text for editing in a text

processor.

8 Archive: Allows you to quickly scan a document and save it in your archive folder.

9 Copy Plus: Allows you to scan a document and print a copy of it on another printer

on your network.

10 Custom: Allows you to quickly scan a document and process the resulting image

using any application of your choosing.

11 Tools: Allows you to access to the HP Toolbox for device maintenance and

configuration.

12 Customize: Allows you to add, remove, and resize buttons in the Director.

13 User’s Guide: Allows you to access the onscreen User’s Guide for assistance with

the HP software.

14 About: Displays the version and copyright information about the application.

hp officejet 5100 series

load originals and load paper

You can make copies from originals loaded in the automatic document feeder (ADF). You can also print and copy onto a variety of paper types, weights, sizes, and transparency films. It is important, however, that you select the right paper and make sure that it is loaded correctly and not damaged.

load originals

You can copy or scan any original by loading it in the ADF. If you are working with originals that are printed on 16-24 lb. (60-90 gsm) plain

paper or HP Premium Inkjet Paper, you can load more than one in the ADF. If you are working with photos or originals of an odd size (no smaller than

3.25 x 3.25 inches or 82 x 82 millimeters), load them in the ADF one at a time. When working with fragile, torn, or odd-sized originals, we recommend that you use a document sleeve or sheet protector (available from most office-product stores) for the original. Place a single sleeve into the ADF with the sealed edge first and the transparent side down.

1 Place the original(s) in the ADF

2 Adjust the document guides to

Note: If you have trouble with originals feeding incorrectly, make sure the

ADF tray is snapped into position.

with the printed side facing toward the back and with the top of the document pointing down.

fit your document.

load paper

Following is the basic procedure for loading paper. There are specific considerations for loading certain types of paper, transparency film, postcards, and envelopes. After you review this procedure, see tips for loading other types of paper in the paper tray on page 9 and load envelopes on page 9.

For best results, adjust the paper settings each time you change paper types or paper sizes. For more information, see set the paper type on page 10.

load originals and load paper

to load the input tray

1 Slide the paper-width and -length

guides to their outermost positions.

2 Tap the stack on a flat surface to

align the edges of the paper, and then check the paper for the following: – Make sure it is free of rips,

– Make sure all the paper in the

3 With the output tray raised, insert paper into the input tray until it stops.

The print side should be facing down, and the letterhead or top of page should be facing forward. Do not overfill the input tray as this may cause paper jams.

4 Slide the paper-width and -length

guides in until they stop at the edges of the paper. Make sure that the paper stack lies flat in the input tray and fits under the tab of the paper-length guide.

dust, wrinkles, and curled or bent edges.

stack is the same size and type.

5 To prevent paper from falling off

the tray, fully extend the output-tray extender.

hp officejet 5100 series

load envelopes

Use the print feature of your software to print to envelopes with your HP Officejet. Your HP Officejet provides two methods for working with envelopes. Do not use shiny or embossed envelopes, or envelopes that have clasps or windows.

• If you are printing one envelope,

• If you are printing multiple

load envelopes

slide the envelope into the envelope slot, which is located on the right side toward the back of the output tray. Insert the envelope with the flap up and on the left, as shown in the illustration. Slide the envelope on the top until it stops.

envelopes, remove all paper from the paper tray. Slide a stack of envelopes into the tray, with the envelope flaps up and to the left (print-side down), until they stop.

Adjust the paper-width guide against the envelopes (be careful not to bend the envelopes). Make sure the envelopes fit within the tray (do not overload it).

Consult the help files in your word-processing software for details on how to format text for printing on envelopes.

tips for loading other types of paper in the paper tray

This section provides guidelines for loading special types of paper and transparency film. For best results, adjust the paper settings each time you change paper types and paper sizes. For more information, see set the paper

type on page 10.

HP Inkjet T-Shirt Transfer Iron-On

Flatten the transfer sheet completely before using it; do not load curled sheets. To prevent curling, keep transfer sheets sealed in the original package until you are ready to use them. Manually feed one sheet at a time, with the unprinted side facing down and the blue stripe facing up.

HP Premium or Premium Plus Inkjet Transparency Film

Insert the film so that the white transparency strip with arrows and the HP logo is on top and goes into the tray first.

load originals and load paper

Labels (use only for printing)

• Always use letter-size or A4-size label sheets designed for use with HP Inkjet products (like Avery Inkjet Labels), and make sure that the labels are not over two years old.

• Fan the stack of labels to make sure none of the pages are sticking together.

• Place a stack of label sheets on top of standard paper in the paper tray, print-side down. Do not insert labels one sheet at a time.

set the paper type

If you want to use a different type of paper, such as photo paper, transparency film, t-shirt transfer paper, or brochures, simply load that paper in the paper tray. You should then change the paper type settings to ensure the best print quality.

HP recommends paper type settings according to the type of paper you’re using. This section refers to copy options only. If you want to set the paper type for

printing, set the properties from the Print dialog box.

to set the paper type for current and future copy jobs

1 On the front panel press COPY until Paper Type appears. 2 Press until the appropriate paper type appears, and then press E

to select it.

3 Press C

Yes appears. Press E

NTER

OPY again until Set New Defaults appears, and then press until

NTER to set the new defaults.

set the paper size

The HP Officejet can copy and print onto letter, legal, or A4 paper. Use the following procedure to set the paper size for copying.

1 Select one of the following:

– To change the size for a copy job, press C

appears.

– To change the size for a fax job, press S

appears, and then press E appears, press until 4:Paper Size appears, and then press E select it.

2 Press until the desired paper size appears, and then press E

select it.

OPY until Paper Size

ETUP until 3: Basic Fax Setup

NTER to select it. After 1:Date and Time

NTER to

hp officejet 5100 series

The copy features let you do the following:

• Produce high-quality color and black-and-white copies using a variety of

• Reduce or enlarge the size of the copies you make from 25% to 200% of

• Make the copy lighter or darker, adjust the color intensity, select the

• Use special copying features to make many sizes of photos, make high-

make copies

You can make copies using the front panel of your HP Officejet or by using the HP Officejet software on your computer. Many copy features are available using either method. However, you may find that the software offers easier access to special copy features.

All copy settings that you select on the front panel are reset two minutes after the HP Officejet completes the copy, unless you save the settings as the default settings as described in change settings for all copy tasks on page 13.

use the copy features

paper types and sizes, including iron-on transfers.

the copy’s original size. This varies based on your HP Officejet model.

number of copies, and specify the quality of the copies you make.

quality copies of photos using special photo paper, or create transparencies.

make a copy

1 Load the input tray with the appropriate paper.

2 Load your original in the ADF.

3 If you want to make more than one copy (the default), do the following:

4 If you are using anything other than plain paper, do the following:

5 Press the C

6 Press S

For more information, see load paper on page 7.

For more information, see load originals on page 7.

a. Press C b. After Number of Copies appears, use the keypad or arrow keys to

For more information, see set the number of copies in the onscreen User’s Guide. You can make up to 99 copies.

a. Press C b. Press until the appropriate paper type appears, and then press

settings, such as reduction or enlargement.

OPY.

enter the number of copies, and then press E

OPY until Paper Type appears.

NTER to select it.

OPY button and arrow keys to change any other applicable

TART, BLACK or START, COLOR.

NTER.

use the copy features

increase copy speed or quality

The HP Officejet provides three options that affect copy speed and quality.

• Best produces the highest quality for all paper and eliminates the banding (striping) effect that sometimes occurs in solid areas. Best copies more slowly than the other quality settings.

• Normal delivers high-quality output and is the recommended setting for most of your copying. Normal copies faster than Best.

• Fast copies faster than the Normal setting. The text is of comparable quality to the Normal setting, but the graphics may be of lower quality. Using Fast also cuts down on the frequency of replacing your print cartridges, because it uses less ink.

1 Load your original in the ADF. 2 Press C 3 Press until the desired quality setting appears, and then press E

select it.

4 Press S

set the number of copies

You can set the number of copies using the front panel. 1 Press C

or ) to enter the number of copies, and then press E

If you hold down the right arrow button, then after reaching 10 the number of copies changes by increments of 5 to make it easier to set a large number of copies.

2 Press S

OPY until Copy Quality appears.

NTER to

TART, BLACK or START, COLOR.

OPY. After Number of Copies appears, use the keypad (or press

NTER.

TART, BLACK or START, COLOR.

reduce or enlarge a copy

You can reduce or enlarge a copy of an original using Reduce/Enlarge. For more information about additional copy options such as Photo Fit to Page,

see perform special copy jobs on page 13.

1 Press C 2 Press until the appropriate reduce/enlarge option appears, and then

press E

3 If you select Custom, Set custom size appears. Use the arrow keys or type

a % on the number keypad. Press E displayed.

4 Press S

make copies lighter or darker

Use Lighter/Darker to adjust the lightness and darkness of the copies you make. 1 Press C

The range of Lighter/Darker values appears as a circle on a scale on the front-panel display.

OPY until Reduce/Enlarge appears.

NTER to select it.

NTER when the desired percentage is

TART, BLACK or START, COLOR.

OPY until Lighter/Darker appears.

hp officejet 5100 series

2 Press to lighten the copy or to darken it. The circle moves to the left

or right, depending on the button you press. Press E setting.

3 Press S

TART, BLACK or START, COLOR.

enhance text sharpness and photo colors

Use Text enhancements to sharpen edges of black text. Use Photo enhancements for photographs or pictures to enhance light colors that may otherwise appear white.

Text enhancement is the default option. You can turn off Text enhancement by selecting Photo or None if the following occur:

• Stray dots of color surround some text on your copies.

• Large, black typefaces look splotchy (not smooth).

• Thin, colored objects or lines contain black sections.

• Horizontal grainy or white bands appear in light- to medium-gray areas.

1 Press C

OPY until Enhancement appears.

2 Press until the desired enhancement (Text, Photo, or None) appears.

Press E

NTER to select the setting.

3 Press S

TART, BLACK or START, COLOR.

change settings for all copy tasks

Save the copy settings you use most often by setting them as the default. This includes changes to copy options such as Paper Type and Paper Size, as well as other copy settings on the front panel, such as Number of Copies and Copy

Quality. 1 Make any desired changes to the copy options. 2 Press C 3 Press until Yes appears. 4 Press E

OPY until Set New Defaults appears.

NTER to set the options as a default.

Your settings are saved.

perform special copy jobs

NTER to select the

perform special copy jobs

In addition to supporting standard copying, your HP Officejet can also do the following:

• copy a photo

• fit a copy to the page

• prepare a color t-shirt transfer

copy a photo

When copying a photo, you should select options for the correct paper type and photo enhancement.

1 Load the photo in the ADF. 2 If you are using photo paper, load it in the paper tray.

use the copy features

fit a copy to the page

3 Press COPY until Paper Type appears. 4 Press until the desired photo paper option appears, then press E

NTER

to select it.

5 Press C 6 Press until Photo appears, then press E 7 Press S

OPY until Enhancements appears.

NTER to select it.

TART, BLACK or START, COLOR.

Tip — To enlarge a photo automatically to a full page, see fit a copy to the page.

Use the PHOTO FIT TO PAGE button when you want to automatically enlarge or reduce your original to fit the paper size you have loaded. You can enlarge a small photo to fit a full-size page, as shown below, or you can use this feature to easily copy a legal-size original to letter-size paper or vice versa. Using

HOTO FIT TO PAGE may prevent unwanted cropping of text or images around

the margins.

Original

oto Fit to Page

1 Load your original photo or document in the ADF. 2 Press the P 3 Press until the appropriate paper type appears, and then press E

to select it.

4 Press S

prepare a color t-shirt transfer

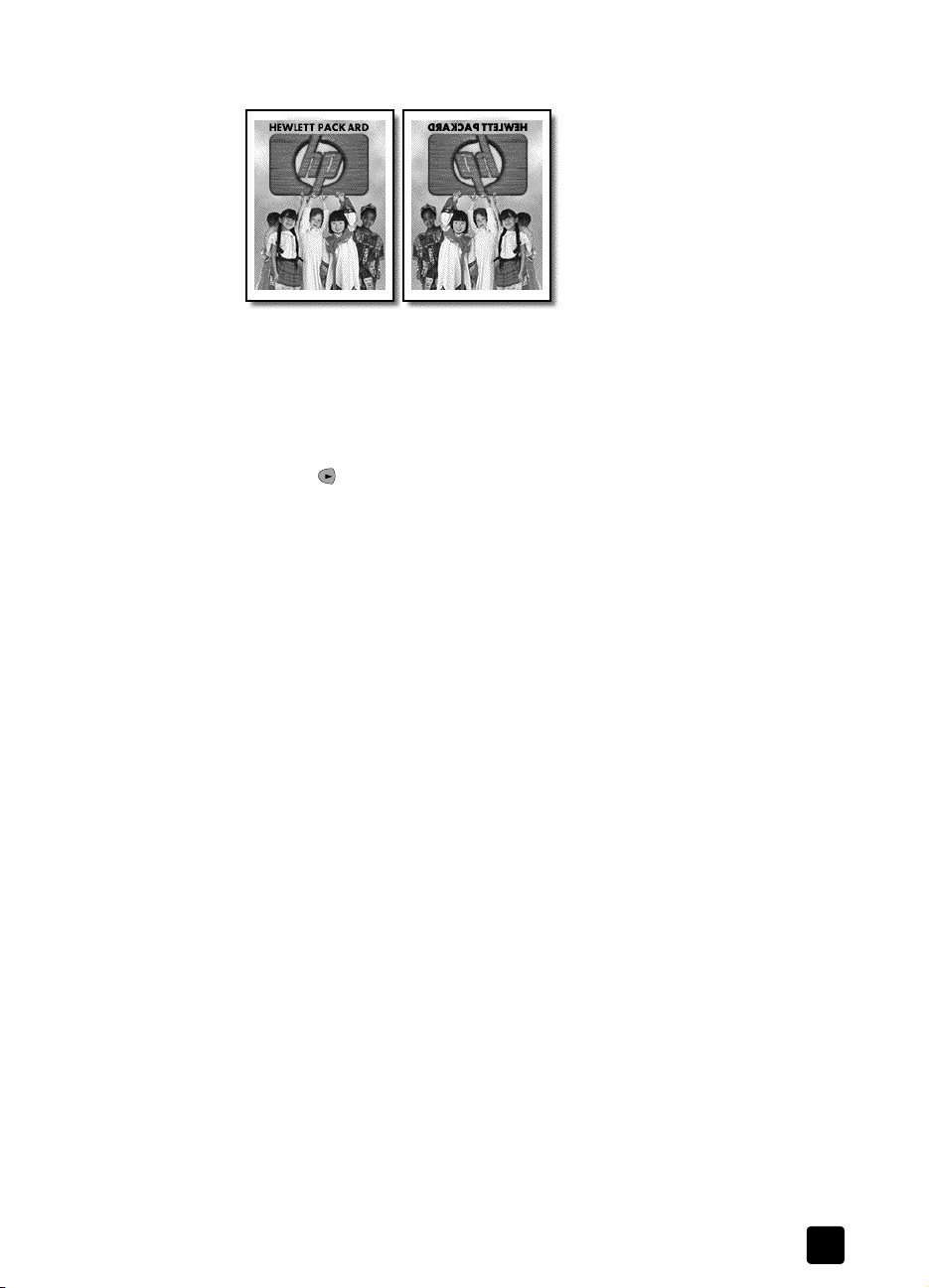

Use the Iron-On feature to reverse text and images so that they appear backwards. After you iron a transfer onto a T-shirt, the picture appears properly on the shirt.

HOTO FIT TO PAGE button.

NTER

TART, BLACK or START, COLOR.

hp officejet 5100 series

+ 40 hidden pages
