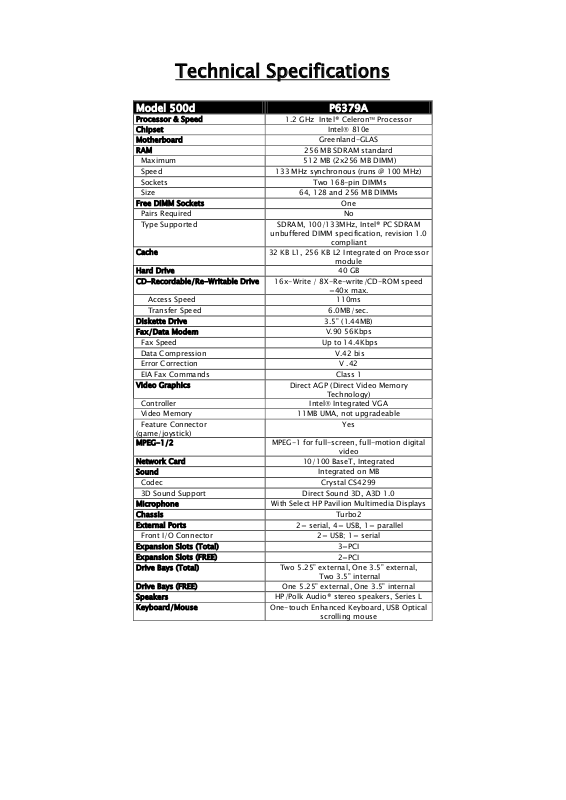

HP 500d Technical Specifications

Technical Specifications

Model 500d P6379A

Processor & Speed
Chipset
Motherboard Greenland-GLAS
RAM 256 MB SDRAM standard
Maximum 512 MB (2x256 MB DIMM)
Speed 133 MHz synchronous (runs @ 100 MHz)
Sockets Two 168-pin DIMMs
Size 64, 128 and 256 MB DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported SDRAM, 100/133MHz, Intel® PC SDRAM

Cache 32 KB L1, 256 KB L2 Integrated on Processor

Hard Drive 40 GB
CD-Recordable/Re-Writable Drive 16x-Write / 8X-Re-write/CD-ROM speed

Access Speed 110ms
Transfer Speed 6.0MB/sec.
Diskette Drive 3.5” (1.44MB)
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Direct AGP (Direct Video Memory

Controller Intel® Integrated VGA
Video Memory 11MB UMA, not upgradeable
Feature Connector

(game/joystick)
MPEG-1/2 MPEG-1 for full-screen, full-motion digital

Network Card 10/100 BaseT, Integrated
Sound Integrated on MB
Codec Crystal CS4299
3D Sound Support Direct Sound 3D, A3D 1.0
Microphone With Select HP Pavilion Multimedia Displays
Chassis Turbo2
External Ports 2= serial, 4= USB, 1= parallel
Front I/O Connector 2= USB; 1= serial
Expansion Slots (Total) 3=PCI
Expansion Slots (FREE) 2=PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Speakers HP/Polk Audio® stereo speakers, Series L
Keyboard/Mouse One-touch Enhanced Keyboard, USB Optical

1.2 GHz Intel® Celeron™ Processor
Intel® 810e

unbuffered DIMM specification, revision 1.0

compliant

module

=40x max.

Technology)

Yes

video

Two 3.5” internal

scrolling mouse
