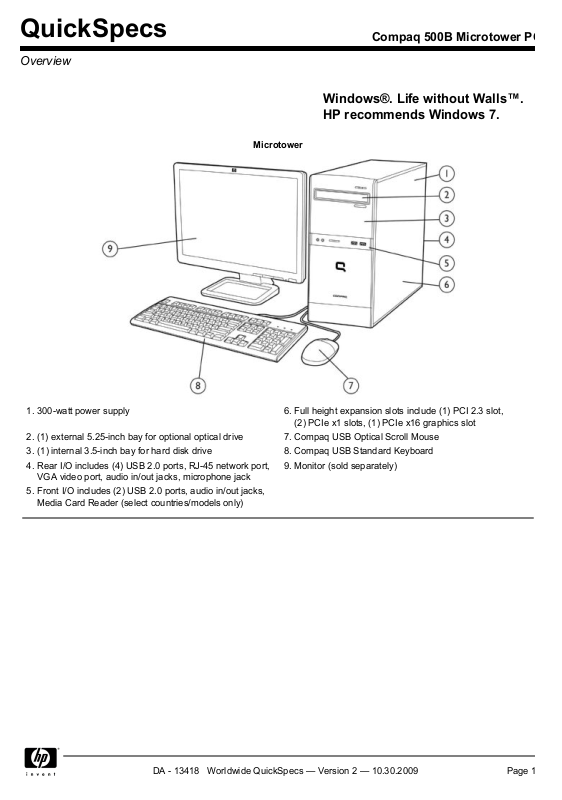

QuickSpecs

Overview

Compaq 500B Microtower PC

Windows®. Life without Walls™. HP recommends Windows 7.

Microtower

300-watt power supply

(1) external 5.25-inch bay for optional optical drive

(1) internal 3.5-inch bay for hard disk drive

Rear I/O includes (4) USB 2.0 ports, RJ-45 network port, VGA video port, audio in/out jacks, microphone jack

Front I/O includes (2) USB 2.0 ports, audio in/out jacks, Media Card Reader (select countries/models only)

Full height expansion slots include (1) PCI 2.3 slot, (2) PCIe x1 slots, (1) PCIe x16 graphics slot

Compaq USB Optical Scroll Mouse

Compaq USB Standard Keyboard

Monitor (sold separately)

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 1

QuickSpecs

Compaq 500B Microtower PC

Overview

At A Glance

Intel® Core™ 2 Quad and Core™ 2 Duo processors, Intel Pentium® processors, or Intel Celeron® processors Choice of operating systems:

Genuine Windows 7 Professional Edition 32 Windows XP Professional (available through downgrade rights from Genuine Windows 7 Professional) Genuine Windows 7 Home Premium Edition 32 Genuine Windows 7 Home Basic Edition 32 Genuine Windows 7 Starter Genuine Windows Vista Home Basic Novell SUSE Linux Enterprise Desktop 11

FreeDOS Intel G41 Express Chipset Intel I/O Controller Hub 7 (ICH7) DDR3 SDRAM PC3-10600 (1066/1333 MHz) non-ECC system memory Intel Graphics Media Accelerator 4500 PCI and PCI Express I/O buses Serial ATA controller USB 2.0 support Realtek RTL8103EL 10/100 Fast Ethernet controller Choice of hard drives and optical drives Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 2

QuickSpecs

Compaq 500B Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Processor and Speed

One of the following

Intel Celeron Processors

Intel Celeron 440 Processor (2.00 GHz, 512-KB L2 cache, 800 MHz FSB)

Intel Celeron 450 Processor (2.2 GHz, 512K L2 cache, 800 MHz FSB)

Intel Celeron Dual-Core Processors

Intel Celeron E1500 Processor (2.2 GHz, 512K L2 cache, 800 MHz FSB)

Intel Celeron E1600 Processor (2.4 GHz, 512K L2 cache, 800 MHz FSB)

Intel Celeron E3200 Processor (2.4 GHz, 1MB L2 cache, 800 MHz FSB)

Intel Celeron E3300 Processor (2.5 GHz, 1MB L2 cache, 800 MHz FSB)

Intel Pentium Dual-Core Processors

Intel Pentium E5300 Processor (2.6 GHz, 2MB L2 cache, 800 MHz FSB)

Intel Pentium E5400 Processor (2.70 GHz, 2MB L2 cache, 800 MHz FSB)

Intel Pentium E6300 Processor (2.80 GHz, 2MB L2 cache, 1066 MHz FSB)

Intel Pentium E6500 Processor (2.93 GHz, 2MB L2 cache, 1066 MHz FSB)

Intel Core 2 Duo Processors

Intel Core 2 Duo E7500 Processor (2.93 GHz, 3 MB L2 cache, 1066 MHz FSB)

Intel Core 2 Quad Processors

Intel Core 2 Quad Q8300 processor (2.50 GHz, 4 MB L2 cache, 1333 MHz FSB)

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers

differentiate features within each processor family, not across different processor families.

Operating Systems and Application Software

(availability varies by region)

Preinstalled

Supported

Certified

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See:

http://www.microsoft.com/windows/windows-7/

** Certain Windows Vista product features require advanced or additional hardware. See:

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx

Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

+ Windows 7 Professional disk may also be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order annually at least 25 customer systems with the same custom image.

Microsoft Office 2007 Basic

Microsoft Office 2007 Small Business

Microsoft Office 2007 Professional

HP Power Manager 2.0

Roxio Creator Business 10 HD

Genuine Windows 7 Professional Edition 32 Windows XP Professional (available through downgrade rights from Genuine Windows 7 Professional) Genuine Windows 7 Home Premium Edition 32 Genuine Windows 7 Home Basic Edition 32 Genuine Windows 7 Starter* Genuine Windows Vista Home Basic** Novell SUSE Linux Enterprise Desktop 11 FreeDOS

Genuine Windows Vista Business 32

Novell SUSE Linux Enterprise Desktop 11

for details.

http://www.windowsvista.com/upgradeadvisor

and

for details. Windows Vista

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 3

QuickSpecs

Compaq 500B Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Hard Drives

System Memory

Corel WinDVD Player

McAfee Total Protection Anti-Virus with 60 day trial Subscription

PDF Complete

HP Total Care Advisor

++ Supporting software available with certain optical drive configurations

160-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)

250-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)

320-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)

500-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)

1-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 2GB)

3-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 2GB, 1x1GB)

4-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 2GB)

NOTE:

Memory runs at maximum system supported speed of 1066 MHz.

Storage

One or more of the following (see Storage section below)

Input Devices

Audio

Communication

–

Media Reader

HP 6-in-1 Media Card Reader (part of front I/O assembly)

Optical Drives (Serial ATA)

SATA DVD-ROM Drive

SATA SuperMulti LightScribe DVD Writer Drive

Keyboard

Compaq USB Standard Keyboard

HP Mini USB Keyboard (optional)

Mouse

Compaq USB Optical Scroll Mouse

Realtek ALC662 High Definition audio codec

3D audio compliant and HD Audio compatible

HP USB Thin Powered Speakers

Integrated Realtek RTL8103EL 10/100 Ethernet Controller

Intel Gigabit CT Desktop NIC (optional)

LSI PCIe x1 Hi-Speed 56K International SoftModem (optional)

HP PCIe Wireless 802.11b/g/n

(select countries/models only)

Graphics

Integrated Intel Graphics Media Accelerator 4500

NVIDIA GeForce G210 HDMI PCIe x16 Graphics Card

ATI Radeon HD 4350 HDMI PCIe x16 Graphics Card

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 4

QuickSpecs

Compaq 500B Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Miscellaneous

HP FireWire / IEEE 1394 PCI Card (full height)

HP Serial/Parallel PCI Card (full height)

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 5

QuickSpecs

System Details

Compaq 500B Microtower PC

Base Unit

Slots

Bays

Micro ATX microtower chassis, including power supply and front bezel Two (2) drive bays and four expansion slots Microsoft operating system CD – optional Active type heatsink 92 x 92 x 25 mm chassis fan System board with Intel G41 Express chipset, Intel I/O Controller Hub 7 (ICH7), Realtek RTL8103EL 10/100 Ethernet controller, Intel GMA graphics, and Realtek audio, (1) fullheight PCI 2.3 slot, (2) PCI Express x1 slots, (1) PCI Express x16 slot, (2) DDR3 DIMM memory slots, (4) Serial ATA data connectors Product documentation on CD HP system restore CD – optional Power cord

PCI

Memory Expansion

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all

memory may not be available due to system resource requirements.

Internal

External

One (1) full-height PCI 2.3 slot Two (2) full-height PCI Express x1 slots One (1) full-height PCI Express x16 slot (for graphic cards)

Two (2) DDR3 SDRAM DIMM slots (4 GB maximum memory support)

One (1) 3.5”

One (1) 5.25”

USB Support

Interfaces

Weight & Dimensions

Technology and Features

(Legacy)

EHCI high-speed USB 2.0 controller

Two (2) front ports; Four (4) rear ports, Two (2) internal ports on system board

One (1) analog VGA video port

One (1) line in; one (1) line out; one (1) mic in

One (1) RJ45 network port

Chassis Dimensions

(H x W x D)

Packaged Dimensions

(L x W x H)

System Weight

Shipping Weight

Memory Type

NOTE:

Memory runs at maximum system supported speed of 1066 MHz. For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements.

Hard Drive Interfaces Supported

15.11 x 6.54 x 16.87 in 384 x 166 x 428 mm

23.03 x 19.61 x 9.65 in 585 x 498 x 245 mm

22.4 lb (10.2 kg)

30.8 lb (14.0 kg)

PC3-10600 DDR3 SDRAM (1066/1333MHz) non-ECC Up to 4-GB maximum system memory supported

Serial ATA

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 6

QuickSpecs

System Details

Compaq 500B Microtower PC

Chassis

Unit Environment and Operating Conditions

Front Panel

Cooling Solutions Supported

Slots Supported

Front I/O

Rear I/O

Drive Bays

Internal Speaker

Security

Power Supply

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range. Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow. Never restrict airflow into the computer by blocking any vents or air intakes. Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-circulated or preheated air. Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow. If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Relative Humidity

Maximum Altitude

(unpressurized)

NOTE:

Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

Power button Power On LED HDD Activity LED

Power Supply Fan (variable speed) Active heatsink (variable speed) Chassis fan

Four (4) full-height expansion slots

Two (2) USB 2.0 ports

Standard Micro ATX I/O connectors, including four (4) USB 2.0 ports

One (1) 5-1/4” external One (1) 3-1/2” internal

N/A

Padlock loop Kensington Lock Support Support for chassis padlocks and cable lock devices

300-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch (varies by country/region)

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

50° to 95° F (10° to 35° C)

–22° to 140° F (–30° to 60° C)

10% to 90% (non-condensing at ambient)

5% to 95% (non-condensing at ambient)

10,000 ft (3048 m)

30,000 ft (9000 m)

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 7

QuickSpecs

System Details

Compaq 500B Microtower PC

System Board

Processor

PWM

Chipset

Super I/O

Front Side Bus Frequency

Memory

Clock Generator

Integrated Graphics

Audio

LOM

Storage

Expansion Slots

BIOS

Industrial Standard

Rear Side I/O Ports

On Board I/O Interfaces

Board Size

Additional Features

Socket T; LGA775 industry standard Micro ATX form factor Supports Intel Core 2 Quad and Core 2 Duo processors, Intel Pentium processors, Intel Celeron processors

ISL6312 – 3 Phase

Intel G41 Express Intel I/O Controller Hub 7 (ICH7)

Fintek F71882FG

800/1066/1333 MHz

DDR3 SDRAM 2 x DIMM slots

SLG505YC26481

Intel Graphics Media Accelerator (GMA)

Realtek ALC662 HD Audio compatible codec with two channel audio 3D audio

Realtek RTL8103EL 10/100 Fast Ethernet controller

Four Serial ATA interfaces (hard drive and optical drive)

1 x PCI 2.3 slot 2 x PCI Express x1 slots 1 x PCI Express x16 slot

SPI EEPROM

PCI 2.3 compliant USB 2.0

4 x USB 2.0 ports 1 x RJ-45 10/100 port 1 x D-sub 15 pin analog VGA port 3 x audio ports

1 x ATX power connector 1 x +12V power connector 1 x Front panel connector, Switch, LED (ON/Flash/OFF) 2 x Fan headers for CPU, chassis, with voltage/fan speed control 1 x header to support 2 USB 2.0 ports at front side 1 x header to support 2 front (Headphone/Mic) audio ports 1 x header to support USB media reader

Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm) 4-layer PCB with green color

Bootable without keyboard, mouse or monitor Keyboard/mouse/USB wake up Support S3, S4 and S5 ACPI status Hardware monitor capability CPU fan speed control

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 8

QuickSpecs

System Details

Compaq 500B Microtower PC

Network Interface

Wireless

Power Supply

Integrated Realtek RTL8103EL 10/100 Fast Ethernet Controller

Intel Gigabit CT Desktop NIC

Wireless 802.11b/g/n PCIe Card (full height bracket)

ATX Power Supply – Passive PFC/non-PFC with a 115v/230v line switch Passive Power Factor Correction (PFC) – with line switch set to 230V – No PFC in 115V line switch position 90 to 140VAC, or 180 to 264VAC operating voltage range 100 to 127VAC, or 200 to 240VAC rated voltage range 50-60 Hz rated line frequency 47-63 Hz operating line frequency range 300 watt maximum rated power 80-mm power supply fan – variable speed for optimum acoustics

Hardware Highlights

Features

Hardware Highlights

Features

PCIe x1 interface

10-Mbps and 100-Mbps operation Crossover detection and auto-correction Wake-on-Lan and remote Wake-up (Wakeon-LAN supported from S3, S4 only. Not supported from S5)

PCI Express interface

10-Mbps, 100-Mbps and 1000-Mbps operation (Wake-on-LAN supported from S3, S4 only. Not supported from S5)

Power Conservation ‘Energy Saver'

System Environmental Specs

APM 1.2 support Screen blanking Hard drive 'Idle' mode System Idle mode ~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC) Processor/Cache memory power-down (S3) Eup Lot 6 – less than 1W with BIOS setup option (Max power savings)

Values are subject to change without notification and are for reference only. Performance of system, options, and ancillary equipment will vary depending on the system configuration. Levels presented do not account for non-HP/Compaq installed hardware.

Ambient Air Temperature

Humidity

Altitude

Operating

Storage

Operating

Storage

Operating

50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300 m) above sea level to a maximum of 8000 ft (2500 m), no direct sustained sunlight. Maximum rate of change is 77°F/Hr (25°C/Hr). The upper limit may be limited by the type and number of options installed.

–22° to 140°F (–30° to 60°C) – Maximum rate of change: 410°F/Hr (210°C/Hr).

10% to 90% relative humidity (Rh), 86°F (30°C) maximum wet bulb temperature, noncondensing

10% to 95% relative humidity (Rh), 101.66°F (38.7°C) maximum wet bulb temperature, non-condensing

0 to 10,000 feet (0 to 3048 meters) – This

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 9

QuickSpecs

System Details

Shock

Vibration

Compaq 500B Microtower PC

value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1,000 ft/min (304.8 m/min).

Non-Operating

Listed are the levels of shock the product can withstand with NO damage being incurred. The values represent peak input acceleration during a 2 to 3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.

Non-Operating

Listed are the levels of vibration the product can withstand with NO damage being incurred. The values represent a flat random vibration input acceleration profile across the given frequency range.

Operating

Non-Operating

0 to 30,000 feet (0 to 9,144 meters) – Maximum allowable altitude change rate is 1200 ft/min (365.76 m/min).

35G's (Half-sine Shock) 35G's (Trapezoidal Shock)

Random vibration at 5Hz@0.00025G²/Hz, 10Hz@0.01G²/Hz, 100Hz@0.01G²/Hz, 300Hz@0.00001G²/Hz 5Hz to 300Hz, (0.25G's nominal).

Random vibration at 0.008G²/Hz, 10Hz to 500Hz, (2 Grms nominal).

Service and Support

On-site Warranty business-day Global coverage another non-restricted country will remain fully covered under the original warranty and service offering. One-year onsite and labor are not available in all countries.

NOTE 1:

Other warranty variations may be offered in your region

NOTE 2:

authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3:

qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

On-site service may be provided pursuant to a service contract between HP and an

Technical telephone support applies only to HP-configured Compaq and third-party HP-

Note 1

Note 2

: One-year (1-1-1) limited warranty delivers one year of on-site, next

service for parts and labor and includes free telephone support

Note 2

ensures that any product purchased in one country and transferred to

Note 3

24 x 7.

DA - 13418 Worldwide QuickSpecs — Version 2 — 10.30.2009

Page 10

+ 21 hidden pages
