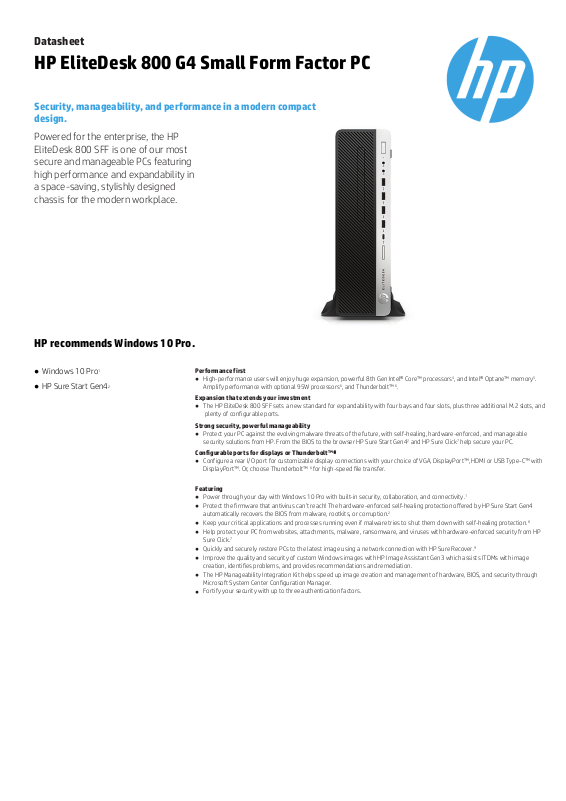

Page 1
Datasheet
HP EliteDesk 800 G4 Small Form Factor PC
Security, manageability, and performance in a modern compact
design.
Powered for the enterprise, the HP
EliteDesk 800 SFF is one of our most
secure and manageable PCs featuring
high performance and expandability in
a space-saving, stylishly designed
chassis for the modern workplace.
HP recommends Windows 10 Pro.
Windows 10 Pro
●
HP Sure Start Gen4
●
1
2
Performance first
High-performance users will enjoy huge expansion, powerful 8th Gen Intel® Core™ processors4, and Intel® Optane™ memory5.
●
Amplify performance with optional 95W processors6, and Thunderbolt™6.
Expansion that extends yourinvestment
The HP EliteDesk 800 SFF sets a new standard for expandability with four bays and four slots, plus three additional M.2 slots, and
●
plenty of configurable ports.
Strong security, powerful manageability
Protect your PC against the evolving malware threats of the future, with self-healing, hardware-enforced, and manageable
●
security solutions from HP. From the BIOS to the browser HP Sure Start Gen42and HP Sure Click7help secure your PC.
Configurable ports for displays or Thunderbolt™
Configure a rear I/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or USB Type-C™ with
●
DisplayPort™. Or, choose Thunderbolt™6for high-speed file transfer.
Featuring
Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.
●
Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4
●
automatically recovers the BIOS from malware, rootkits, or corruption.
Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection.
●
Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP
●
●
●
●
●
7
Sure Click.
Quickly and securely restore PCs to the latest image using a network connection with HP Sure Recover.
Improve the quality and security of custom Windows images with HP Image Assistant Gen3 which assists ITDMs with image
creation, identifies problems, and provides recommendations and remediation.
The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through
Microsoft System Center Configuration Manager.
Fortify your security with up to three authentication factors.
6
1
2
9
8
Page 2
Datasheet
HP EliteDesk 800 G4 Small Form Factor PC
Specifications Table
HP recommends Windows 10 Pro.
Form Factor
Available Operating System
Available Processors
3
Chipset
Maximum Memory
Memory slots
Internal Storage
Additional Storage
Optical Storage
Available Graphics
Audio
Communications
Expansion Slots
Ports and Connectors
Internal Drive Bays
Input Device
Available Software
Security Management
Management Features
Power
Dimensions
Weight
Environmental
Energy Efficiency Compliance
Small form factor
Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Home 64
Windows 10 Home Single Language 64
FreeDOS 2.0
Intel® Core™ i7-8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Core™ i3-8100 with
Intel® UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores); Intel® Celeron® G4900 with Intel® UHD Graphics 610 (3.1 GHz, 2 MB cache, 2 cores); Intel® Core™ i7-8700K with Intel® UHD
Graphics 630 (3.7 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Core™ i5-8600K with Intel® UHD Graphics 630 (3.6 GHz base
frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i5-8500 with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with
Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Pentium® Gold G5400 with Intel® UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores); Intel® Core™ i7+ 8700 (3.2 GHz base
frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel® Core™ i5-8600 with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.3 GHz with
Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i5+ 8600 (3.1 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel®
Core™ i5+ 8500 (3 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i3-8300 with Intel® UHD Graphics 630 (3.7 GHz, 8 MB
cache, 4 cores); Intel® Pentium® Gold G5600 with Intel® UHD Graphics 630 (3.9 GHz, 4 MB cache, 2 cores); Intel® Core™ i5+ 8600K (3.6 GHz base frequency, up to 4.3 GHz with Intel®
Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Core™ i7+ 8700K (3.7 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores); Intel®
Pentium® Gold G5500 with Intel® UHD Graphics 630 (3.8 GHz, 4 MB cache, 2 cores)
Intel® Q370
Up to 64 GB DDR4-2666 SDRAM
Standard memory note: Transfer rates up to 2666 MT/s.
4 DIMM
500 GB up to 2 TB 7200 rpm SATA HDD
up to 2 TB 5400 rpm SATA HDD
up to 500 GB SATA SED Opal 2 HDD
5
5400 rpm SATA SSHD
256 GB up to 512 GB SATASED Opal 2 TLC SSD
5
128 GB up to 512 GB PCIe® NVMe™ M.2 SSD5128 GB up to 1 TB PCIe® NVMe™ TLC M.2 SSD5256 GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD
5-in-1 SD card reader
HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM
Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics 610
Discrete: AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated)
Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
LAN: Integrated Intel® I219LM GbE LOM; Intel® I210-T1 PCIe® GbE
WLAN: Intel® Dual Band Wireless-AC9260 802.11ac (2x2) and Bluetooth® 5 M.2, vPro™; Intel® Dual Band Wireless-AC 9260 802.11ac (2x2) and Bluetooth® 5 M.2, non-vPro™
1 M.2 2230; 1 PCIe 3 x16; 1 PCIe 3 x16 (wired as x4); 2 M.2 2230/2280; 2 PCIe 3 x1
(1 M.2 slot for WLAN and 2 M.2 2230/2280 slot for storage.)
Front: 1 headphone; 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 1 USB Type-C™ (charging); 2 USB 3.1 Gen 2
Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 1 serial; 2 USB 2.0; 2 DisplayPort™ 1.2; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2; 1 configurable video port
Optional: 1 serial; 1 serial and PS/2 ports combination
One 2.5" HDD; One 5.25" HDD; Two 3.5" HDD
HP PS/2 Business Slim Keyboard; HP USB Conferencing Keyboard; HP USB Business Slim Keyboard; HP USB Business Slim Smart Card (CCID) Keyboard
HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP USB Premium Mouse
Absolute Persistence module; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Jumpstart; HP Noise Cancellation Software; HP PhoneWise; HP Support Assistant; HP Velocity;
Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP WorkWise; HP Sure Recover
DriveLock; HP BIOSphere; HP Password Manager; HP Power On Authentication; Intel® Identity Protection Technology (Intel® IPT); Power-on password (via BIOS); RAID configurations;
Removable media write/boot control; SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS);
Solenoid lock and hood sensor; HP Client Security Suite Gen 4; HP Sure Start Gen 4; HP Sure Run; Parallel enable/disable (via BIOS); Serial enable/disable (via BIOS); Trusted Platform
Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified)
HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); Ivanti Management Suite; HP Management
Integration Kit for Microsoft System Center Configuration Management Gen 2
250 W internal power supply, up to 92% efficiency, active PFC
10 x 33.8 x 30.8 cm
6.71 kg (Exact weight depends on configuration.)
Low halogen
ENERGY STAR® certified; EPEAT® Gold
1
5
15
1
4,13
5
5
5
12
1
5
16
9,17,21,22,23,24
11,27,28,29,30,31,32,33,34
10,25,26
5
7
18
14
8
Page 3
Datasheet
HP EliteDesk 800 G4 Small Form Factor PC
Accessories and services (not included)
HP Wireless Slim Business
Keyboard
Enjoy easy data entry and wireless connectivity with the HP Wireless Business Slim Keyboard, designed to complement
the 2015 class of HP Business PCs.
Product number: N3R88AA
HP recommends Windows 10 Pro.
HP 5 year Next Business Day
Onsite Hardware Support for
Desktops
Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the
issue cannot be solved remotely
Product number: U7899E
Page 4
Datasheet
HP recommends Windows 10 Pro.
HP EliteDesk 800 G4 Small Form Factor PC
Messaging Footnotes
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
2
HP Sure Start Gen4 is available on HP Elite and HP Pro 600 products equipped with 8th generation Intel® or AMD processors.
4
Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on applicationworkload and your
hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
5
Intel® Optane™ memory system acceleration does not replace or increase the DRAM inyour system and requires configuration with an optional Intel® Core™ i(5 or 7)+ processor.
6
Sold separately or as anoptional feature.
7
HP Sure Click isavailable on select HP platforms and supports Microsoft® Internet Explorer, Google Chrome, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDFfiles in read only mode. Check
http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENWfor all compatible platforms as theybecome available.
8
HP Sure Run isavailable on HP Elite products equipped with 8th generation Intel® or AMD processors.
9
HP Sure Recover is available on HP Elite PCs with8th generation Intel® or AMD processors and requires an open, wired network connection. Not available on platforms with multiple internal storage drives or Intel® Optane™. You must back upimportant files, data,
photos, videos, etc. before using HP Sure Recover to avoid loss of data.
10
HP Multi Factor Authenticate Gen2 requires Windows, 7th or 8th generation Intel® Core™ processor,Intel® integrated graphics, and Intel® WLAN. Microsoft System Center Configuration Manager is required for deployment. Three authentication factors require
Intel® vPro™.
Technical specifications disclaimers
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.
3
Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary dependingon application workload and your
hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
4
For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GBrequires a 64-bit operating system. Memory modules support data
transfer rates up to 2133MT/s; actual data rate is determined by the system'sconfigured processor. See processor specifications for supported memory datarate. All memory slots are customer accessible / upgradeable.
5
For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) and36 GB (for Windows 8.1/10) of system disk is reserved for the system recovery software.
6
(1) Configurable video port: Choice of DisplayPort™ 1.2 , HDMI™ 2.0, or VGA, Type-C Card with Display Output, Type-C Card with Display Output and Power Delivery.
7
Wireless access point and internet service required. The specifications for the 802.11ac WLANare draft specifications and are not final. Ifthe final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with
other 802.11ac WLAN devices.
8
Antimicrobial USB Mouse and HP USB Hardened Mouse, HP PS/2 Mouse, HP USB andPS/2 Washable Mouse: are not available in all regions.
9
Miracast is a wireless technology your PC canuse to project your screen to T Vs, projectors, and streaming.
10
HP Driver Packs: Not preinstalled, however available for download at http://www.hp.com/go/clientmanagement
11
HP BIOSphere Gen4: Requires Intel® or AMD 8th Gen processors. Features may vary depending on the platform and configurations.
12
EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. See HP’s 3rd party option store for solar energy accessory www.hp.com/go/options.
13
All memory slots are customer accessible / upgradeable.
14
HP USB and PS/2 Washable Keyboard, HP PS/2 Business Slim Keyboard, HP PS/2 Keyboard: PS/2 port not available on EliteOne 800 G4 AiOs.
15
External power supplies, power cords, cables and peripheralsare not Low Halogen. Ser vice parts obtained after purchase may not be Low Halogen.
16
Intel® I210-T1 PCIe® GbE: Sold separately or as an optional feature.
18
(2) USB 3.1 Gen 1 (5Gbit/s): allows for wake from S4/S5 with keyboard/mouse when connected and enabled in BIOS.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows, Skype, and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries. Intel, the
Intel logo, Intel Core, Thunderbolt, and Core Inside are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other
countries. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. Adobe PDF is a trademark of Adobe Systems Incorporated. DisplayPort™
and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. AMD and
Radeon are trademarks of Advanced Micro Devices, Inc.
4AA7-3124EEE, June 2018
