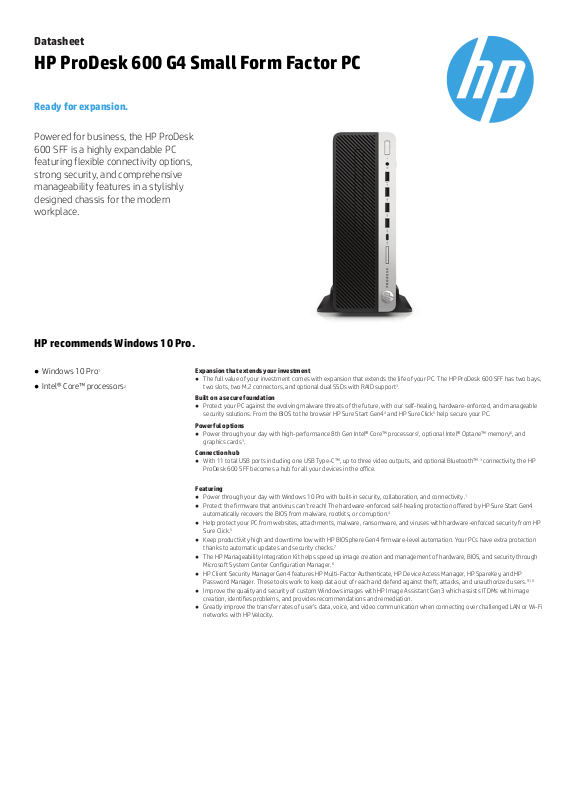

Datasheet

HP ProDesk 600 G4 Small Form Factor PC

Ready for expansion.

Powered for business, the HP ProDesk 600 SFF is a highly expandable PC featuring flexible connectivity options, strong security, and comprehensive manageability features in a stylishly designed chassis for the modern workplace.

HP recommends Windows 10 Pro.

Windows 10 Pro

●

Intel® Core™ processors

●

Expansion thatextends your investment

The full value of your investment comes with expansion that extends the life of your PC. The HP ProDesk 600 SFF has two bays,

●

two slots,two M.2 connectors, and optional dual SSDs with RAID support3.

Built on a secure foundation

Protect your PC against the evolving malware threats of the future, with our self-healing, hardware-enforced, and manageable

●

security solutions. From the BIOS to the browser HP Sure Start Gen44and HP Sure Click5help secure your PC.

Powerful options

Power through your day with high-performance 8th Gen Intel® Core™ processors2, optional Intel® Optane™ memory6, and

●

graphics cards3.

Connection hub

With 11 total USB ports including one USB Type-C™, up to three video outputs, and optional Bluetooth™3connectivity, the HP

●

ProDesk 600 SFF becomes a hub for all your devices in the office.

Featuring

Power through your day with Windows 10 Pro with built-in security, collaboration, and connectivity.

●

Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4

●

automatically recovers the BIOS from malware, rootkits, or corruption. Help protect your PC from websites, attachments, malware, ransomware, and viruses with hardware-enforced security from HP

●

Sure Click. Keep productivity high and downtime low with HP BIOSphere Gen4 firmware-level automation. Your PCs have extra protection

thanks to automatic updates and security checks. The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through

Microsoft System Center Configuration Manager. HP Client Security Manager Gen4 features HP Multi-Factor Authenticate, HP Device Access Manager, HP SpareKey, and HP

Password Manager. These tools work to keep data out of reach and defend against theft, attacks, and unauthorized users. Improve the quality and security of custom Windows images with HP Image Assistant Gen3 which assists ITDMs with image

creation, identifies problems, and provides recommendations and remediation. Greatly improve the transfer rates of user’s data, voice, and video communication when connecting over challenged LAN or Wi-Fi

networks with HP Velocity.

9,10

Page 2

Datasheet

HP ProDesk 600 G4 Small Form Factor PC Specifications Table

HP recommends Windows 10 Pro.

Form Factor

Available Operating System

Maximum Memory

Memory slots

Internal Storage

Optical Storage

Available Graphics

Audio

Communications

Expansion Slots

Ports and Connectors

Internal Drive Bays

Input Device

Available Software

Security Management

Management Features

Power

Dimensions

Weight

Environmental

Energy Efficiency Compliance

Warranty

Small form factor

Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 Windows 10 Home Single Language 64 FreeDOS 2.0

Up to 64 GB DDR4-2666 SDRAM Standard memory note: Transfer rates up to 2666 MT/s.

3,4

4 DIMM

500 GB up to 1 TB 7200 rpm SATA HDD up to 500 GB SATA SED Opal 2 HDD 256 GB up to 512 GB SATA SSD 256 GB up to 512 GB SATA SED Opal 2 TLC SSD 128 GB up to 512 GB PCIe® NVMe™ M.2 SSD2128 GB up to 512 GB PCIe® NVMe™ TLC M.2 SSD2500 GB up to 2 TB 7200 rpm SATA

HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM

Discrete: AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated)

Conexant CX20632 codec, 2 W internal speaker, universal audio jack, headset and headphone front ports (3.5 mm), multi-streamingcapable

LAN: Intel® I210-T1PCIe® GbE; Intel® I219LM GbE WLAN: Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) and Bluetooth® 5 M.2, non-vPro™

1 M.2 2230; One 5-in-1 media card reader; 1 M.2 2230/2280; 1 PCIe 3 x4; 1 PCIe 3 x16 (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)

Front: 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 2 USB 3.1 Gen 2; 1 USB 3.1 Type-C™ Gen 2 Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 2 USB 2.0; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2; 1 configurablevideo port Optional: 1 serial and 1 serial and PS/2 ports combination

One 3.5" HDD; Two 2.5" HDD

HP PS/2 Business Slim Keyboard; HP USB Conferencing Keyboard; USB Business Slim Wired Keyboard; HP USB Business Slim Smart Card (CCID) Keyboard HP USB 1000 dpi Laser Mouse; HP USB Optical Mouse; HP PS/2 Mouse

Absolute Persistence module; HP Device Access Manager; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HP Jumpstart; HP Noise Cancellation Software; HP PhoneWise; HP Recovery Manager; HP Secure Erase; HP Support Assistant; HP Sure Click; HP Velocity; Microsoft Defender; Native Miracast Support; HP Wireless Wakeup; Buy Office (sold separately); HP WorkWise

DriveLock; Hood sensor; HP BIOSphere;HP Credential Manager; HP Password Manager; HP PowerOn Authentication; HP Spare Key; Intel® Identity ProtectionTechnology (Intel® IPT); Power-on password (via BIOS); RAID configurations; Removablemedia write/boot control;SATA port disablement (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; USB enable/disable (via BIOS); Master Boot RecordSecurity; HP Client Security Suite Gen 4; HP Sure Start Gen 4; Pre-boot Authentication; Serial enable/disable (via BIOS); Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified)

HP BIOS Config Utility (download);HP Client Catalog (download);HP Driver Packs (download);HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS feature); Ivanti Management Suite; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 2

180 W internal power supply, up to 92% efficienc y, active PFC

9.5 x 27 x 29.6 cm

4.54 kg (Exact weight depends on configuration.)

Low halogen

ENERGY STAR® certified; EPEAT® Gold; CECP; SEPA; CCC

3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Page 3

Datasheet

HP ProDesk 600 G4 Small Form Factor PC

Accessories and services (not included)

HP 9.5mm G3 8/6/4 SFF G4 400 SFF/MT DVD Writer

Affordably add an optical storage writer to your HP Desktop PC1with the HP 9.5mm Desktop G3 ODD, which connects through SATA and supports writing—up to 8.5 GB of data or four hours of DVD-quality video—to all DVD formats.

Product number: 1CA53AA

HP recommends Windows 10 Pro.

HP Wireless Slim Business Keyboard

Enjoy easy data entry and wireless connectivity with the HP Wireless Business Slim Keyboard, designed to complement the 2015 class of HP Business PCs.

Product number: N3R88AA

HP TLC 256 GB SATA SSD Expand the storage capabilities of your desktop with the HP TLC 256 GB SATA SSD1, which includes TLC flash and the

same reliability you already get from current from SSD drives.

Product number: P1N68AA

HP 5 year Next business day Onsite Desktop Only Hardware Support

Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the issue cannot be solved remotely.

Product number: U7899E

Page 4

Datasheet

HP recommends Windows 10 Pro.

HP ProDesk 600 G4 Small Form Factor PC

Messaging Footnotes

Not all features are available in all editions or versions of Windows. Systems may require upgraded and/orseparately purchased hardware, drivers, softwareor BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,

which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.

Multi-Core is designed to improveperformance of certain software products. Not all customersor softwareapplications will necessarily benefit from use ofthis technology. Performance and clock frequency willvary depending on application workload and your

hardware and software configurations. Intel’s numbering branding and/or naming is not a measurement of higher performance.

Sold separately or as anoptional feature.

HP Sure Start Gen4 is available on HP Eliteand HP Pro 600 products equippedwith 8th generation Intel® or AMD processors.

HP Sure Click is available on select HP platforms and supports Microsoft® Internet Explorer and Chromium™. Check http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENW for all compatible platforms as they become available.

Intel® Optane™ memory systemacceleration does not replace or increase the DR AM in your system and requires configuration with an optionalIntel® Core™i(5 or 7)+ processor.

Available on HP Elite andPro platforms with 8th Gen Intel®orAMD processors.Features may vary by platform and configuration.

HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement

HP Client Security Manager Gen4 requires Windows and Intel® or AMD 8th Gen processors.

HP Multi Factor Authenticate Gen2 requiresWindows, 7th or 8th generation Intel® Core™ processor, Intel® integrated graphics, and Intel® WLAN. Microsoft System Center Configuration Manager is required for deployment. Three authentication factors require

Intel® vPro™.

Technical specifications disclaimers

which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com

For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formattedcapacity is less. Up to 16 GB (for Windows 7) and36 GB (for Windows 8.1/10) ofsystem disk is reserved for the system recovery software.

For systems configured with morethan 3 GB of memory and a 32-bit operating system, all memory may notbe availabledue to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system. Memory modules support data

transfer rates up to 2133MT/s; actual data rateis determined by the system's configured processor. See processorspecifications forsupported memory data rate.

All memory slots are customeraccessible / upgradeable.

Wireless access point and internet service required. The specifications for the 802.11ac WLAN are draft specifications and are not final.If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with

other 802.11ac WLAN devices.

Availability may vary by country.

Intel® Identity Protection Technology (Intel® IPT): Models configured with Intel® Core™ processors have the ability to utilize advancedsecurity protectionfor online transactions. Intel® Identity ProtectionTechnology (Intel® IPT) used in conjunction with participating web sites, provides double identity authentication by adding a hardwarecomponent in addition to the usual user name and password.Intel® Identity Protection Technology(Intel® IPT)is initialized through an HP Client Security module. HP BIOSphere Gen4: features may vary depending on the PC platform and configurations requires 8th Gen Intel® processors;HP Client Security Suite Gen 4: requires Windows and Intel® or AMD 8th generation processors; HPPassword Manager: requires Internet Explorer or Chrome™ or FireFox. Some websites and applicationsmay not be supported. User may need to enable or allowthe add-on / extension in the internet browser. HP Sure StartGen 4: is available on HP ProDesk & ProOne products equippedwith Intel® 8th generation processors; RAID configuration: sold separately or as an optional feature, multiple data drivessetup in a RAID arrayis optional and requires product to be configured with vPro™ at purchase;Trusted PlatformModule TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified): Insome scenarios, machines pre-configured with Windows OS might ship with TPM turned off.

(1) configurable video port: Choice of DisplayPort™ 1.2, HDMI™ 2.0, VGA, or USB Type-C™with display output; (2) USB 2.0: supporting wakening from S4/S5 with keyboard/mouse connected; (2) USB 3.1 Gen 2: 10 GBit/sdata speed; (2) USB 3.1 Gen 1: 5 GBit/s data speed.

Absolute Persistence module: is shipped turned off,and will be activated when customers activatea purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditionsapply. Forfull details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customersmust first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software;Native MiracastSupport: is a wireless technology your PC can use to project your screen toT Vs, projectors, and streaming; HP ePrint Driver + JetAdvantage: requires anInternet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Print times andconnection speeds may vary; HP Support Assistant: requires Windows and Internetaccess; HP PhoneWise: HP PhoneWise Client may not be available with HP Workwise. For supported platforms and HP PhoneWise systemrequirements see www.hp.com/go/HPPhoneWise; HP WorkWise: HP WorkWise smartphone app is availableas a free download on the Google Play. As of September 2017, HP WorkWise will no longer support iOS or iPhone® devices; Microsoft Defender: Microsoft DefenderOpt in and internet connection requiredfor updates;HP Sure Click: is available on select HP platforms and supports Microsoft® Internet Explorer and Chromium™. Check http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENWfor all compatible platforms as they become available;HP SecureErase: for the methods outlined in the National Institute of Standardsand Technology Special Publication 800-88. Supported on Elite platforms with BIOS version F.03 orhigher; HP Velocity: Availability may vary by country.

HP Driver Packs: not preinstalled,however available for downloadat http://www.hp.com/go/clientmanagement;HP Management Integration Kit for Microsoft System Center ConfigurationManagement Gen 2: can be downloaded from

http://www8.hp.com/us/en/ads/clientmanagement/overview.html; Ivanti Management Suite: subscription required.

EPEAT® registeredwhere applicable.EPEAT registration varies by country. See www.epeat.net forregistration status by country. See HP’s 3rdparty option store for solar energy accessoryat www.hp.com/go/options.

External power supplies, power cords,cables and peripherals are not Low Halogen.Service parts obtained after purchase may not be Low Halogen.

NOTE: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows® 8 orWindows 7 operating system on productsconfigured withIntel® and AMD 7th generation and forward

processors or provide any Windows®8 or Windows 7 drivers on http://www.support.hp.com

Sold separately or as anoptional feature.

Intel® I210-T1 PCIe® GbE: Sold separatelyor as an optional feature, which is subject to change and availability.

SFF can be configuredwith either (1) 3.5” or (2) 2.5” internal storage drive(2.5 inch drive needs adapter).

(2) USB 3.1 Gen 2: 10 GBit/s data speed; (1) USB 3.1 Type-C™Gen 2: 10 GBit/s data speed.

www.hp.com/go/getupdated

© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. Microsoft, Windows, and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries. Intel, Optane, vPro, the Intel logo, Intel Core, and Core Inside are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. Adobe PDF is a trademark of Adobe Systems Incorporated. ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency. All Rights Reserved. All other trademarks are the property of their respective owners.

4AA7-2967EEE, May 2018
