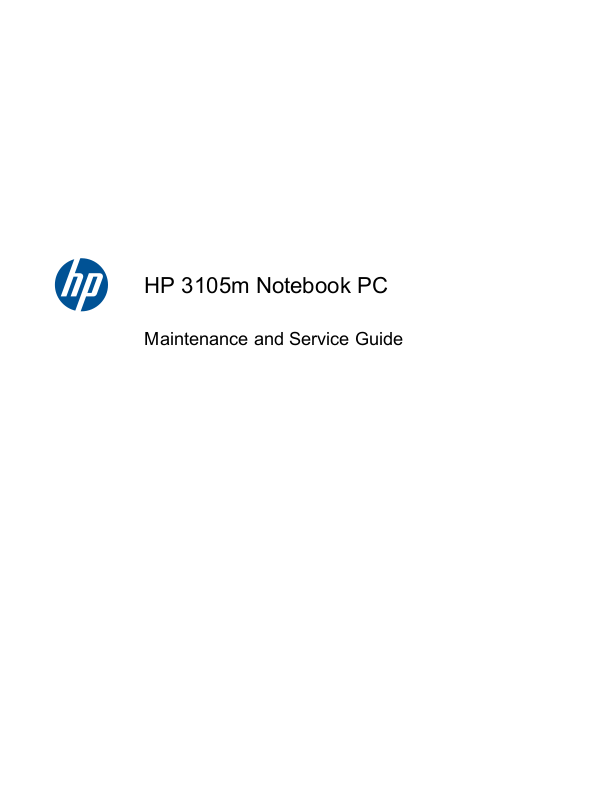

HP 3105m Notebook PC

Maintenance and Service Guide

© Copyright 2011 Hewlett-Packard
Development Company, L.P.

AMD Turion and ATI Mobile Radeon are
trademarks of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

First Edition: April 2011

Document Part Number: 655134–001

Safety Warning Notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the air vents. Use the computer only on a hard, flat
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface,
such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the
skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC
adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).

ENWW iii

iv Safety Warning Notice ENWW

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 5

Top components ................................................................................................................................... 5

ClickPad TouchPad ............................................................................................................. 5

Lights ................................................................................................................................... 6

Buttons ................................................................................................................................. 7

Keys ..................................................................................................................................... 8

Front components ................................................................................................................................ 9

Right-side components ......................................................................................................................... 9

Left-side components ......................................................................................................................... 10

Display components ........................................................................................................................... 11

Bottom components ........................................................................................................................... 12

Wireless antennas .............................................................................................................................. 13

Additional hardware components ....................................................................................................... 14

3 Illustrated parts catalog ............................................................................................................................... 15

Service tag ......................................................................................................................................... 15

Computer major components ............................................................................................................. 16

Display assembly subcomponents ..................................................................................................... 19

Mass storage devices ......................................................................................................................... 20

Miscellaneous parts ............................................................................................................................ 21

Sequential part number listing ............................................................................................................ 22

4 Removal and replacement procedures ....................................................................................................... 25

Preliminary replacement requirements ............................................................................................... 25

Tools required .................................................................................................................... 25

Service considerations ....................................................................................................... 25

Plastic parts ....................................................................................................... 25

Cables and connectors ..................................................................................... 25

Drive handling ................................................................................................... 26

ENWW v

Grounding guidelines ......................................................................................................... 27

Electrostatic discharge damage ........................................................................ 27

Packaging and transporting guidelines ............................................. 28

Workstation guidelines ..................................................................... 28

Equipment guidelines ....................................................................... 29

Component replacement procedures ................................................................................................. 30

Service tag ......................................................................................................................... 30

Computer feet .................................................................................................................... 31

Battery ............................................................................................................................... 32

SIM Card ............................................................................................................................ 33

Hard drive .......................................................................................................................... 33

WWAN module .................................................................................................................. 37

WLAN module .................................................................................................................... 39

Memory modules ............................................................................................................... 41

Keyboard ........................................................................................................................... 43

Top cover ........................................................................................................................... 45

Power button board ........................................................................................................... 46

ClickPad TouchPad button board ...................................................................................... 47

Speaker assembly ............................................................................................................. 49

Display assembly ............................................................................................................... 51

System board ..................................................................................................................... 55

RTC battery ....................................................................................................................... 57

Heat sink assembly ............................................................................................................ 58

Power connector ................................................................................................................ 60

RJ-45 connector cover ....................................................................................................... 61

RJ-45 connector ................................................................................................................ 62

Fan ..................................................................................................................................... 63

5 Computer Setup ............................................................................................................................................ 65

Computer Setup in Windows 7 ........................................................................................................... 65

Starting Setup Utility .......................................................................................................... 65

Using Setup Utility ............................................................................................................. 65

Changing the language of Setup Utility ............................................................. 65

Navigating and selecting in Setup Utility ........................................................... 66

Displaying system information .......................................................................... 66

Restoring default settings in Setup Utility .......................................................... 66

Exiting Setup Utility ........................................................................................... 67

Setup Utility menus ............................................................................................................ 67

Main menu ........................................................................................................ 67

Security menu ................................................................................................... 67

System Configuration menu .............................................................................. 67

vi ENWW

Diagnostics menu .............................................................................................. 68

6 Specifications ................................................................................................................................................ 69

Computer specifications ..................................................................................................................... 69

29.5-cm (11.6-in) (1366 x 768) HD BrightView LED display specifications ........................................ 70

Hard drive specifications .................................................................................................................... 71

7 Backup and recovery .................................................................................................................................... 73

Restore ............................................................................................................................................... 74

Creating restore media ....................................................................................................................... 74

Performing a system restore .............................................................................................................. 75

Restoring using the dedicated recovery partition (select models only) .............................. 75

Restoring using the restore media ..................................................................................... 76

Changing the computer boot order .................................................................................... 77

Backing up and recovering your information ...................................................................................... 77

Using Windows Backup and Restore ................................................................................ 78

Using Windows system restore points ............................................................................... 79

When to create restore points ........................................................................... 79

Create a system restore point ........................................................................... 79

Restore to a previous date and time ................................................................. 79

8 Connector pin assignments ......................................................................................................................... 81

Audio-out (headphone)/Audio-in (microphone) jack ........................................................................... 81

External monitor ................................................................................................................................. 82

RJ-45 (network) .................................................................................................................................. 83

Universal Serial Bus ........................................................................................................................... 84

9 Power cord set requirements ...................................................................................................................... 85

Requirements for all countries and regions ........................................................................................ 85

Requirements for specific countries and regions ............................................................................... 86

10 Recycling ..................................................................................................................................................... 87

Battery ................................................................................................................................................ 87

Display ................................................................................................................................................ 87

Index ................................................................................................................................................................... 93

ENWW vii

viii ENWW

1 Product description

Category Description

Product name HP 3105m

Processor AMD E350 1.6-GHz, 1MB L2 cache,1333-MHz front-side bus (FSB), Dual Core

18W

Chipset AMD A50M Fusion Controller Hub

Graphics Universal Memory Architecture (UMA) graphics integrated with shared video

Panel 29.5-cm (11.6-in) (1366 x 768) HD BrightView LED display assembly

Memory 2 customer-accessible/upgradable memory module slots

Hard drives Supports 9.50-mm,7mm, 6.35-cm (2.50-in) hard drives

memory:

up to 948MB for >=2048MB system RAM (2G)

●

up to 1972MB for >=4096MB system RAM (2G+2G)

●

Supports up to 4GB memory

NOTE: For the Microsoft® Windows® Starter operating system, do not install

more than 2 GB of memory.

Supports the following DDR3 configurations at 1066 MHz:

● 2048MB total system memory (2048MB x 1)

4096MB total system memory (2048MB x 2)

●

Supports HP ProtectSmart Hard Drive Protection

Customer-accessible

Serial ATA (SATA)

Supports the following hard drives:

NOTE: For the Windows Starter operating system, do not use a hard drive with a

capacity more than 320 GB.

320 GB, 7200 rpm

●

320 GB, 5400 rpm

●

● 250 GB, 7200 rpm

ENWW 1

Category Description

Diskette drive Supports external USB drive only

Supports boot from USB device

Microphone Single digital microphone

Audio 2 integrated HD stereo speakers

Audio-out (headphone) jack / Audio-in (microphone) jack

Webcam Integrated standard VGA camera with fixed focus

Ethernet Integrated 10/100/1000 network interface card (NIC)

Ethernet cable not included

Wireless Integrated wireless local-area network (WLAN) via Half-Mini Card:

802.11 bgn WLAN + Bluetooth® Combo card

●

802.11 bgn Bluetooth® Combo card with 2 antennas

●

● 802.11 a/b/g/n 2 x 2

Integrated wireless wide-area network (WWAN) and GPS function (FMC)

● Qualcomm Gobi2/Birlion with 2 antennas

6 band antenna support: 2100/1800/1900/800/900 with additional GPS band

●

2.4 GHz and 5 GHz antennas in display enclosure

●

External media cards Digital Media Slot supporting the following optional digital card formats:

● MultiMediaCard (MMC)

● Secure Digital (SD) Memory Card

● Secure Digital High Capacity (SDHC) Memory Card

Secure Digital eXtended Capacity (SDXC) Memory Card

●

Ports Audio-in (stereo microphone)/Audio-out (stereo headphone) combo jack

HDMI v.1.3

AC power

RJ-45 (Ethernet, includes link and activity lights)

USB v. 2.0 (3)

VGA (Dsub 15-pin) supporting:

1920 x 1200 external resolution at 60 GHz

●

1600 × 1200 external resolution at 75 GHz

●

Keyboard/pointing device ClickPad TouchPad with ClickPad TouchPad buttons

Touch-sensitive controls

Supports 2-way scroll with legend

Taps enabled by default

2 Chapter 1 Product description ENWW

Category Description

Power requirements 65-W AC adapter

6-cell, 2.55-Ah (55-Wh) Li-ion battery

Security Security cable slot

Operating system Preinstalled:

● Windows 7 Premium, 64-bit

● Windows® 7 Professional, 32- and 64-bit

● Windows 7 Starter, 32-bit

Serviceability End-user replaceable parts:

AC adapter

●

Battery (system)

●

● Hard drive

Keyboard

●

Memory modules

●

● SIM card (for WWAN)

● WLAN module

WWAN module

●

ENWW 3

4 Chapter 1 Product description ENWW

2 External component identification

Components that are included with the computer may vary by region and model. The illustrations in
this chapter identify the standard features on most computer models.

Top components

ClickPad TouchPad

Component Description

(1)

(2) ClickPad TouchPad zone Moves the pointer and selects or activates items on

(3) Left ClickPad TouchPad button Functions like the left button on an external mouse

(4) Right ClickPad TouchPad button Functions like the right button on an external mouse

This table describes factory settings. To view or change pointing device preferences, select Start > Devices and Printers.

ENWW Top components 5

ClickPad TouchPad off indicator Turns the ClickPad TouchPad on and off. Quickly

double-tap the Clickpad TouchPad off indicator to turn
the ClickPad TouchPad on and off.

the screen

Lights

Component Description

(1)

(2) Caps lock light

(3)

(4)

ClickPad TouchPad off indicator

Mute light

Wireless light

Amber: The ClickPad TouchPad is off.

●

● Off: The ClickPad TouchPad is on.

White: Caps lock is on.

●

● Off: Caps lock is off.

Amber: Computer sound is off

●

● Off: Computer sound is on

White: An integrated wireless device, such as

●

a wireless local area network (WLAN) device
and/or a Bluetooth

Off: All wireless devices are off

●

NOTE: On some models, the wireless light is

amber when all wireless devices are off.

®

device, is on.

6 Chapter 2 External component identification ENWW

Buttons

Component Description

*This table describes factory settings.

Power button*

When the computer is off, press the button to turn on

●

the computer.

● When the computer is on, press the button briefly to

initiate Sleep.

When the computer is in Sleep mode, press the

●

button briefly to exit Sleep.

When the computer is in Hibernation mode, press

●

the button briefly to exit Hibernation.

If the computer has stopped responding and Windows
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the
computer.

To learn more about your power settings, select Start >
Control Panel > System and Security> Power Options,
or refer to the HP Notebook Reference Guide.

®

ENWW Top components 7

Keys

Component Description

(1) esc key Displays system information when pressed in

combination with the fn key

(2) fn key Executes frequently used system functions when

pressed in combination with a function key, the

num lk key, or the esc key

(3)

(4)

(5) Function keys Execute frequently used system functions when

Windows logo key Displays the Windows Start menu

Windows applications key Displays a shortcut menu for items beneath the

pointer

pressed in combination with the fn key

8 Chapter 2 External component identification ENWW

Front components

Component Description

Speakers (2) Produce sound

Right-side components

Component Description

(1) Digital Media Slot Supports the following optional digital card formats:

● MultiMediaCard (MMC)

Secure Digital (SD) Memory Card

●

(2)

(3)

(4)

(5)

Audio-out (headphone) jack/Audio-in (microphone)
jack

USB ports (2) Connect optional USB devices

External monitor port Connects an external VGA monitor or projector

RJ-45 (network) jack (under the cover) Connects a network cable

Connects optional powered stereo speakers,
headphones, earbuds, a headset, or television audio;
also connects an optional headset microphone.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety
information, refer to the Regulatory, Safety and
Environmental Notices.

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

NOTE: A 4-conductor audio jack plug headphone

with microphone is needed in order to use the
microphone function.

ENWW Front components 9

Left-side components

Component Description

(1)

(2)

(3) Vent Enables airflow to cool internal components

(4)

(5)

Power connector Connects an AC adapter

Security cable slot Attaches an optional security cable to the computer

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from
being mishandled or stolen.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off
during routine operation.

Hard drive light

Power light

Blinking white: The hard drive is being

●

accessed.

Amber: HP ProtectSmart Hard Drive Protection

●

has temporarily parked the hard drive.

NOTE: For information on HP ProtectSmart Hard

Drive Protection, refer to the HP Notebook
Reference Guide.

Solid white: The computer is on.

●

● Blinking white: The computer is in the Sleep

state.

Off: The computer is off or in Hibernation.

●

(6)

(7)

HDMI port Connects an optional video or audio device, such as

a high-definition television, or any compatible digital
or audio component

USB port Connects an optional USB device

10 Chapter 2 External component identification ENWW

Display components

Component Description

(1) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with

wireless wide-area networks (WWANs)

(2) WLAN antennas (2)* Send and receive wireless signals to communicate with

wireless local area networks (WLANs)

(3) Webcam light On: The webcam is in use.

(4) Webcam Captures still photographs and videos

To use the webcam, select Start > All Programs > HP
> HP MediaSmart > HP MediaSmart Webcam

(5) Internal microphone Records sound

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety
and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

ENWW Display components 11

Bottom components

Component Description

(1) Battery Removable battery

(2)

(3) SIM card slot Supports a wireless subscriber identity module (SIM).

(4) Service cover Remove to access the hard drive and memory

Battery release latch Releases the battery so you can remove it.

The SIM slot is located inside of the battery bay.

components

12 Chapter 2 External component identification ENWW

Wireless antennas

Component Description

(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

local area networks (WLANs)

(2) WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless

wide-area networks (WWANs)

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.

ENWW Wireless antennas 13

Additional hardware components

Component Description

(1) Power cord* Connects an AC adapter to an AC outlet

(2) AC adapter Converts AC power to DC power

(3) Battery* Powers the computer when the computer is not plugged into

*Batteries and power cords vary in appearance by country or region.

external power

14 Chapter 2 External component identification ENWW

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag:

Component Description

(1) Product name The product name that is affixed to the front of the

computer

(2) Serial number (s/n) An alphanumeric number that is unique to each product

(3) Part number/Product number (p/n) The number that provides specific information about the

(4) Warranty period The duration of the warranty period for the computer.

(5) Model description The alphanumeric identifier that is necessary to locate

product's hardware components. The part number
helps a service technician to determine what
components and parts are needed.

documents, drivers, and support for the computer.

ENWW Service tag 15

Computer major components

16 Chapter 3 Illustrated parts catalog ENWW

Item Description Spare part number

(1) Raw panel 629775-001

646754-001

29.5-cm (11.6-in) (1366 × 768) HD BrightView LED display assembly (includes
webcam, microphone, nameplate, and logo)

NOTE: See

spare part information.

(2) Keyboard (includes keyboard cable):

● For use in Latin America 635318-161

(3) Top cover (includes ClickPad TouchPad board and cable) 635316-001

Top cover (includes ClickPad TouchPad board and cable) 636449-001

(4) Power button board 636448-001

(5) Speaker assembly 635313-001

(6) Power connector (includes power connector cable and security cable bracket) 636452-001

(7) System board:

● E350 system board 639297-001

For use in Brazil 635318-201

●

For use in French Canada 635318-121

●

For use in the United States 635318-001

●

E350 system board with WWAN 635314-001

●

Display assembly subcomponents on page 19 for internal component

(8) Webcam 635317-001

(9) RJ-45 connector (includes cable) 636452-001

(10) Fan (includes cable) 636453-001

(11) Heat sink assembly (includes replacement thermal material) 635306-001

(12) Base enclosure 635303-001

(13) RTC battery 635310-001

(14) 6-cell, 2.55-Ah (55-Wh) Li-ion battery 628419-001

(15) Hard drive (includes hard drive bracket):

● 320-GB, 7200-rpm 649908-001

Hard Drive Mounting Kit (not illustrated; includes mounting bracket and screws) 637177-001

External optical drive (not illustrated; select models only)

● SPS-ADAPTER PWR USB 5V 2A 619240-001

(16) Memory module:

320-GB, 5400-rpm 649908-001

●

250-GB, 7200-rpm 649904-001

●

SPS-DRV DVD RW DL LS EXTERNAL 602041-001

●

ENWW Computer major components 17

Item Description Spare part number

(17) WLAN module

● Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter

(18) WWAN module

● SPS-WWAN UNDP HSPA EVDO Birlion MINICARD 531993-001

(19) Service cover (included in the Plastics Kit, part number 635309-001)

2-GB memory module (1333-MHz, DDR3) 621565-001

●

(BT3.0+HS ready)

Broadcom a/b/g/n 2x2 module

●

600370-001

18 Chapter 3 Illustrated parts catalog ENWW

Display assembly subcomponents

Item Description Spare part number

(1) Display bezel 652556-001

(2) Display panel hinges 635307-001

Display panel hinge covers 636450-001

(3) 29.5-cm (11.6-in) (1366 × 768) HD BrightView LED display panel 629775-001

29.5-cm (11.6 in)(1366 x 768) HD BrightView WWAN display panel 646754-001

(4) Webcam 635317-001

ENWW Display assembly subcomponents 19

Item Description Spare part number

(5)

WWAN antennas (includes cables)

(6)

WLAN antennas (includes cables)

(7) Display enclosure 635302-001

Mass storage devices

Item Description Spare part number

635301-001

(1) Hard drive (includes hard drive bracket):

● 320-GB, 7200-rpm 649904-001

320-GB, 5400 rpm 649908-001

●

250-GB, 7200-rpm 649908-001

●

20 Chapter 3 Illustrated parts catalog ENWW

Miscellaneous parts

Description Spare part number

Speakers (includes cables) 635313-001

65-W AC adapter 609939-001

Power cords, 3-pin, 1.83m

For use in Brazil 490371-202

●

● For use in North America 490371-001

ClickPad TouchPad button board (includes bracket and cable) 636449-001

WLAN antennas (includes cables) 611252-801

WWAN antennas (includes cables) 606493-801

Plastics Kit (includes service cover) 635309-001

Rubber Kit (includes two rear rubber feet) 635311-001

Screw Kit 635312-001

630706-801

ENWW Miscellaneous parts 21

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in the United States

490371-202 Power cord for use in Brazil

531993-001 WWAN module

584383-001 DVD±RW and CD-RW SuperMulti Double-Layer Drive with LightScribe external USB optical drive

584384-001 Blu-ray ROM DVD±R/RW and CD-RW SuperMulti Double-Layer Drive with LightScribe external

602041-001 SPS-DRV DVD RW DL LS EXTERNAL

600370-001 Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS

609939-001 65-W RC/V AC adapter

619240-001 SPS-ADAPTER PWR USB 5V 2A

621565-001 2-GB memory module (1333-MHz, DDR3)

628419-001 6 cell, 2.55 Ah (55-Wh) Li-ion battery

629775-001 29.5-cm (11.6-in) (1366 x 768) HD BrightView LED display panel

635301-001 Antennas (includes WLAN and WWAN antennas

635302-001 Display back cover

635303-001 Base enclosure

635305-001 Display cable

635306-001 Heat sink assembly

635307-001 Display hinge kit

635308-001 29.5 cm (11.6) (1366 x 768) HD BrightView LED display assembly

USB optical drive

ready)

635309-001 Plastics kit (includes service cover)

635310-001 RTC battery (includes cable)

635311-001 Rubber kit

635312-001 Screw kit

635313-001 Speaker kit

635314-001 E350 system board with WWAN

635316-001 Top cover

635317-001 Webcam

635318-001 Keyboard for use in the United States

635318-121 Keyboard for use in French Canada

635318-161 Keyboard for use in Latin America

635318-201 Keyboard for use in Brazil

22 Chapter 3 Illustrated parts catalog ENWW

636449-001 ClickPad TouchPad with bracket and cable

636450-001 Hinge covers (upper and lower)

636451-001 DC-IN connector

636452-001 RJ-45 connector (includes RJ-45 connector cable)

636453-001 Fan (includes cable)

637177-001 Hard drive mounting kit (includes mounting bracket and screws)

639297-001 E350 system board without WWAN

646754-001 Raw panel with WWAN

649904-001 Hard drive, 250 GB, 7200 rpm

649908-001 Hard drive, 320 GB, 7200 rpm and 5400 rpm

652556-001 Display bezel

ENWW Sequential part number listing 23

24 Chapter 3 Illustrated parts catalog ENWW

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

● Flat-bladed screwdriver

● Phillips P0 screwdriver

Phillips P1 screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.

Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.

ENWW Preliminary replacement requirements 25

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation mode, turn on the computer, and then shut it down using the
operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.

Handle drives on surfaces that are covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

26 Chapter 4 Removal and replacement procedures ENWW

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use non-magnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as infrequently as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels that are generated by
different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

ENWW Preliminary replacement requirements 27

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or non-conductive

●

foam.

Use transporters and conveyors made of anti-static belts and roller bushings. Be sure that

●

mechanized equipment that is used for moving materials is wired to ground and that proper
materials are selected to avoid static charging. When grounding is not possible, use an ionizer to
dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

● Cover the workstation with approved static-shielding material.

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

● Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

● Keep the work area free of non-conductive materials, such as ordinary plastic assembly aids and

Styrofoam.

● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

● Turn off power and input signals before inserting or removing connectors or test equipment.

28 Chapter 4 Removal and replacement procedures ENWW

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

● Conductive tabletop workstations with ground cords of one megohm resistance

● Static-dissipative tables or floor mats with hard ties to the ground

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

● Metal tote boxes

● Electrostatic voltage levels and protective materials

The following table lists the shielding protection that is provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

ENWW Preliminary replacement requirements 29

Component replacement procedures

This chapter provides removal and replacement procedures.

Service tag

When ordering parts or requesting information, provide the computer serial number and model
description that is provided on the service tag.

(1) Product name: This is the product name that is affixed to the front of the computer.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components
and parts are needed.

(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and
support for the computer.

(5) Warranty period: This number describes the duration of the warranty period for the computer.

30 Chapter 4 Removal and replacement procedures ENWW

Computer feet

The computer feet are adhesive-backed rubber pads that are attached to the base enclosure.

Description Spare part number

Rubber Kit (includes computer feet – two rear) 635311–001

ENWW Component replacement procedures 31

Battery

Description Spare part number

6-cell, 2.55-Ah (55-Wh) Li-ion battery 628419–001

Before removing the battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery:

To remove the battery, follow these steps:

1. Position the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery (2) from the computer.

Reverse this procedure to install the battery.

CAUTION: Removing a battery that is the sole power source for the computer can cause loss of

information. To prevent loss of information, save your work and initiate Hibernation mode or shut
down the computer using the operating system before removing the battery.

32 Chapter 4 Removal and replacement procedures ENWW

SIM Card

NOTE: The SIM card is provided by the end user as a security measure for the WWAN module. The

SIM card should be removed, placed into a static-dissipative container, and then replaced when the
computer is reassembled.

Before removing the SIM card, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

turn the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

Removing the SIM card:

To remove the SIM card, follow these steps:

1. Position the computer upside down on a flat surface, with the battery bay toward you.

2. Press in on the SIM card (1) to release it from the SIM card slot.

3. Remove the SIM card (2) from the computer.

Reverse this procedure to install the SIM card.

Hard drive

NOTE: The hard drive spare part kit spare part kit include a bracket.

Description Spare part number

Hard drive (includes hard drive bracket):

320-GB, 7200-rpm

●

● 320-GB, 5400 rpm

ENWW Component replacement procedures 33

649908-001

649908-001

Description Spare part number

250-GB, 7200-rpm 649904-001

●

Hard Drive Mounting Kit (includes mounting bracket and screws) 637177-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

Remove the hard drive:

To remove the hard drive, follow these steps:

1. Save your work and shut down the computer.

2. Disconnect all of the external devices that are connected to the computer.

3. Unplug the power cord from the AC outlet, if necessary.

4. Turn the computer upside down on a flat surface and remove the battery.

5. Lift up at the two indentations (1) to remove the service cover (2).

34 Chapter 4 Removal and replacement procedures ENWW

6. Disconnect the hard drive connector from the system board (1), and then remove the four

screws (2) that secure the hard drive to the base enclosure.

7. Lift the hard drive out of the hard drive bay.

8. If it is necessary to replace the hard drive bracket or connector, follow these steps:

a. Remove the 4 screws (1) that secure the hard drive bracket to the hard drive.

ENWW Component replacement procedures 35

b. Lift the hard drive (3) straight up to remove it from the hard drive bracket.

Reverse this procedure to install the hard drive.

36 Chapter 4 Removal and replacement procedures ENWW

WWAN module

Description Spare part number

WWAN module 531993-001

Before removing the WWAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 32).

Hard drive on page 33).

Remove the WWAN module:

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore computer functionality, and then contact technical support.

To remove the WWAN module, follow these steps:

1. Position the computer upside down on a flat surface, with the front toward you.

2. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The

blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.

3. Remove the 2 screws (2) that secure the WWAN module to the system board. (The WWAN

module tilts up.)

ENWW Component replacement procedures 37

4. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion of the

WWAN module into the WWAN module slot.

Reverse this procedure to install the WWAN module.

38 Chapter 4 Removal and replacement procedures ENWW

WLAN module

Description Spare part number

WLAN module:

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS
ready)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo adapter (BT3.0+HS
ready)

600370-001

630705–001

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 32).

Hard drive on page 33).

Remove the WLAN module:

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore computer functionality, and then contact technical support through Help
and Support.

To remove the WLAN module, follow these steps:

1. Position the computer upside down on a flat surface, with the front toward you.

2. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal.

The gray WLAN antenna cable is connected to the WLAN module “Aux” terminal.

3. Remove the two screws (2) that secure the WLAN module to the system board. (The WLAN

module tilts up.)

ENWW Component replacement procedures 39

4. Remove the WLAN module (3) by pulling it away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion of the

WLAN module into the WLAN module slot.

Reverse this procedure to install the WLAN module.

40 Chapter 4 Removal and replacement procedures ENWW

Memory modules

Description Spare part number

2-GB memory module (1333-MHz, DDR3) 598856-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 32).

Hard drive on page 33).

Remove the memory module:

NOTE: 1024-MB primary memory is included on the system board. Memory is both customer-

accessible and upgradable. It is located in the accessory compartment.

To remove the memory module, follow these steps:

1. Save your work and shut down the computer.

2. Disconnect all of the external devices that are connected to the computer.

CAUTION: To prevent damage to the memory module, hold it by the edges only. Do not touch

the components on the memory module.

3. Unplug the power cord from the AC outlet.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

4. Turn the computer upside down on a flat surface and remove the battery.

ENWW Component replacement procedures 41

5. Lift up the regulatory label to access the memory modules.

6. If you are replacing a memory module, remove the existing memory module:

a. Pull away the retention clips (1) on each side of the memory module.

The memory module tilts up.

b. Grasp the edge of the memory module (2), and then gently pull the memory module out of

the memory module slot.

CAUTION: To prevent damage to the memory module, hold the memory module by the

edges only. Do not touch the components on the memory module.

To protect a memory module after removal, place it in an electrostatic-safe container.

Reverse this procedure to install a memory module.

42 Chapter 4 Removal and replacement procedures ENWW

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.

Description Spare part number

For use in Brazil 635318-201

For use in French Canada 635318-121

For use in Latin America 635318-161

For use in the United States 635318-001

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

turn on the computer, and then shut it down using the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the hard drive (see

Battery on page 32).

Hard drive on page 33).

Hard drive on page 33).

Removing the keyboard:

To remove the keyboard, follow these steps:

1. Position the computer upside down on a flat surface, with the rear toward you.

2. Remove the 3 screws that secure the keyboard to the computer.

3. Position the computer display-side up, with the front toward you.

4. Open the computer as far as possible.

ENWW Component replacement procedures 43

5. Use a flat-bladed screwdriver to pry the rear edge of the keyboard (1) loose from the three

retaining tabs.

6. Lift the keyboard (2) and turn it upside down, resting it on the top cover.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2) from the system board.

8. Remove the keyboard.

Reverse this procedure to install the keyboard.

44 Chapter 4 Removal and replacement procedures ENWW

Top cover

Description Spare part number

Top cover 635316-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

turn on the computer, and then shut it down using the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover

6. Remove the hard drive (see

7. Remove the keyboard (see

Battery on page 32).

Hard drive on page 33.

Hard drive on page 33).

Keyboard on page 43).

Remove the top cover:

To remove the top cover, follow these steps:

1. Position the computer upside down on a flat surface, with the front toward you.

2. Use a thin, flat tool to release the 2 rubber feet, and then remove the two screws that are located

under the rubber feet (1).

3. Remove the remaining 8 screws that secure the keyboard to the computer.

4. Position the computer right-side up, with the front toward you and the display open as far as

possible.

5. Lift the rear edge (1) of the top cover until it detaches from the base enclosure.

ENWW Component replacement procedures 45

6. Remove the top cover (2) by lifting it straight up.

Reverse this procedure to install the top cover.

Power button board

Description Spare part number

Power button board (includes cable) 636448-001

Before removing the power button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the keyboard (see

7. Remove the top cover (see

Battery on page 32).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Before removing the power button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

46 Chapter 4 Removal and replacement procedures ENWW

5. Remove the service cover (see WLAN module on page 39).

6. Remove the hard drive (see

7. Remove the keyboard (see

8. Remove the top cover (see

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Remove the power button board:

To remove the power button board, follow these steps:

1. Position the top cover upside down, with the front toward you.

2. Remove the screw (1) that secures the power button board to the top cover.

3. Lift up and remove the power button board (2).

Reverse this procedure to install the power button board.

ClickPad TouchPad button board

Description Spare part number

ClickPad TouchPad button board (includes bracket and cable) 636449-001

Before removing the ClickPad TouchPad button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

ENWW Component replacement procedures 47

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the hard drive (see

7. Remove the keyboard (see

8. Remove the top cover (see

Battery on page 32).

WLAN module on page 39).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

NOTE: Before removing the ClickPad TouchPad, it is necessary to remove the ClickPad TouchPad

button board bracket.

Remove the ClickPad TouchPad button board bracket:

To remove the ClickPad TouchPad button board bracket, follow these steps:

1. Position the top cover upside down, with the front toward you.

2. Remove the four screws that secure the ClickPad TouchPad button board bracket to the top

cover (1).

3. Lift up and remove the ClickPad TouchPad button board bracket (2).

Reverse this procedure to install the ClickPad TouchPad button board bracket.

Remove the ClickPad TouchPad button board:

48 Chapter 4 Removal and replacement procedures ENWW

To remove the ClickPad TouchPad button board, follow these steps:

1. Remove the 2 screws that secure the ClickPad TouchPad button board to the top cover (1).

2. Lift up and remove the ClickPad TouchPad button board (2).

Reverse this procedure to install the ClickPad TouchPad button board.

Speaker assembly

Description Spare part number

Speakers (include cables) 635313-001

Before removing the speaker assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the hard drive (see

7. Remove the keyboard (see

8. Remove the top cover (see

Battery on page 32).

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Remove the speaker assembly:

ENWW Component replacement procedures 49

To remove the speaker assembly, follow these steps:

1. Position the top cover upside down with the front toward you.

2. Remove the 2 screws that secure the speaker assembly to the top cover (1).

3. Lift up and remove the speaker assembly(2).

Reverse this procedure to install the speaker assembly.

50 Chapter 4 Removal and replacement procedures ENWW

Display assembly

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the hard drive (see

7. Disconnect the wireless antenna cables from the WLAN module (see

on page 39) and WWAN module (see WWAN module on page 37).

8. Remove the keyboard (see

9. Remove the top cover (see

Remove the display assembly:

1. Position the computer display-side up, with the front toward you.

2. Open the computer as far as possible.

3. Disconnect the display panel cable (1) from the system board.

4. Remove the wireless antenna cables from the clips (2) and routing channel built into the base

enclosure.

Battery on page 32).

Hard drive on page 33).

Hard drive on page 33).

WLAN module

Keyboard on page 43).

Top cover on page 45).

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other computer
components.

5. Remove the 4 screws (1) that secure the display assembly to the base enclosure.

ENWW Component replacement procedures 51

6. Slide the display panel cable (2) back toward the display assembly while lifting the display

assembly (3) straight up to remove it.

7. Lift the display assembly (3) straight up and remove it.

8. If it is necessary to replace the display bezel or any of the display assembly internal

components:

a. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge

(3) of the display bezel until the bezel disengages from the display enclosure.

b. Lift up and remove the display bezel (4).

Reverse this procedure to install the display bezel.

9. If it is necessary to replace the webcam module:

a. Lift the webcam module straight up (1) to release the adhesive material from the display

enclosure.

52 Chapter 4 Removal and replacement procedures ENWW

b. Disconnect the webcam cable (2) from the webcam module.

Reverse this procedure to install the webcam module.

10. If it is necessary to replace the display panel:

a. Remove the 4 screws (1) that secure the display hinge brackets to the display panel.

b. Lift up and remove the display hinge brackets (2) from the display panel.

c. Lift the display panel up at a 45-degree angle (1), and then lift straight up (2) to remove it.

ENWW Component replacement procedures 53

d. Remove the display panel (2).

Reverse this procedure to install the display panel.

11. If it is necessary to replace the wireless antenna transceivers and cables:

a. Release the wireless antenna cables (1) from the clips and routing channels built into the

base enclosure.

b. Slide the antenna cables through the hole near the display assembly (2).

Reverse this procedure to reassemble and install the display assembly.

NOTE: When reconnecting the antenna cables, be sure that they are routed in the proper channels

so that they cannot be caught, snagged, or interfere with other parts.

54 Chapter 4 Removal and replacement procedures ENWW

System board

Description Spare part number

System board:

E350 system board with WWAN 635314-001

●

E350 system board 639297-001

●

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

5. Remove the following components:

a. Service cover (see

b. Hard drive (see

c. Keyboard (see

d. Top cover (see

e. Display assembly (see

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Display assembly on page 51).

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

RTC battery (see

●

Heat sink (see

●

RTC battery on page 57).

Heat sink assembly on page 58).

Remove the system board:

To remove the system board, follow these steps:

1. Disconnect the fan cable (1) from the system board.

ENWW Component replacement procedures 55

2. Disconnect the RJ-45 cable (2) from the system board.

3. Remove the 2 screws (1) that secure the system board to the base enclosure.

4. Lift the left side of the system board (2) until it rests at an angle.

5. Remove the system board (3) by sliding it away from the base enclosure at a 45-degree angle.

Reverse the procedure to install the system board.

56 Chapter 4 Removal and replacement procedures ENWW

RTC battery

Description Spare part number

RTC battery 635310-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the system board (see

Battery on page 32).

Hard drive on page 33.

System board on page 55)

Remove the RTC battery:

To remove the RTC battery, follow these steps:

1. Position the computer upside down on a flat surface, with the front toward you.

2. Disconnect the RTC battery cable (1) from the system board.

3. Lift the RTC battery up to remove it (2) from the system board.

Reverse this procedure to install the RTC battery.

ENWW Component replacement procedures 57

Heat sink assembly

NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side

of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a
temperature sensor and is designed to turn on automatically when high temperature conditions exist.
These conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software requirements.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Description Spare part number

Heat sink assembly (includes replacement thermal material) 608629-001

Before removing the heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

5. Remove the following components:

a. Service cover (see

b. Hard drive (see

c. Keyboard (see

d. Top cover (see

e. System board (see

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

System board on page 55).

Remove the heat sink assembly:

To remove the heat sink assembly, follow these steps:

1. Following the 1, 2, 3, 4 sequence stamped into the heat sink assembly, loosen the 4 captive

screws (1) that secure the heat sink assembly to the system board.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink

assembly and system board components, it may be necessary to move the heat sink assembly
from side to side to detach the assembly.

58 Chapter 4 Removal and replacement procedures ENWW

2. Remove the heat sink assembly (2).

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink

assembly and the system board each time the heat sink assembly is removed:

Thermal pads are located on the heat sink (1) and on the base enclosure (2) underneath the
heat sink.

Reverse this procedure to install the heat sink assembly.

ENWW Component replacement procedures 59

Power connector

Description Spare part number

Power connector (includes power connector cable and security cable bracket) 591851-001

Before removing the power connector, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

5. Remove the following components:

a. Service cover (see

b. Hard drive (see

c. Keyboard (see

d. Top cover (see

e. Display assembly (see

f. System board (see

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Display assembly on page 51).

System board on page 55).

Remove the power connector:

To remove the power connector, follow these steps:

1. Remove the 2 screws (1) that secure the power connector to the base enclosure.

2. Disconnect the power connector cable (2) from the system board.

60 Chapter 4 Removal and replacement procedures ENWW

3. Lift up and remove the power connector (3).

Reverse this procedure to install the power connector.

RJ-45 connector cover

To remove the RJ-45 connector cover, follow these steps:

1. Slide the RJ-45 cover to the right (grasping the cover at the indentation on the left side) (1) in

order to release the cover.

2. Gently press the hinged bottom of the rubber tail (on the left side) to open the RJ-45 cover (2).

ENWW Component replacement procedures 61

Reverse this procedure to install the RJ-45 connector cover.

RJ-45 connector

Description Spare part number

RJ-45 connector (includes cable) 636452-001

Before removing the RJ-45 connector, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

5. Remove the following components:

a. Service cover (see

b. Hard drive (see

c. Keyboard (see

d. Top cover (see

e. Display assembly (see

f. System board (see

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

Display assembly on page 51).

System board on page 55).

Remove the RJ-45 connector:

To remove the RJ-45 connector, follow these steps:

1. Remove the 2 screws that secure the RJ-45 connector to the base enclosure (1).

2. Lift up and remove the RJ-45 connector (2).

62 Chapter 4 Removal and replacement procedures ENWW

Fan

Reverse this procedure to install the RJ-45 connector.

Description Spare part number

Fan (includes cable) 611688-001

Before removing the fan, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation mode,

turn on the computer, and then shut it down using the operating system.

2. Disconnect all of the external devices that are connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 32).

5. Remove the following components:

a. Service cover (see

b. Hard drive (see

c. Keyboard (see

d. Top cover (see

e. System board (see

f. Heat sink (see

Hard drive on page 33).

Hard drive on page 33).

Keyboard on page 43).

Top cover on page 45).

System board on page 55).

Heat sink assembly on page 58).

Remove the fan:

ENWW Component replacement procedures 63

To remove the fan, follow these steps:

1. Disconnect the fan cable (1) from the system board.

2. Remove the 3 screws (1) that secure the fan to the base enclosure.

3. Lift up and remove the fan (2).

Reverse this procedure to install the fan.

64 Chapter 4 Removal and replacement procedures ENWW

5 Computer Setup

Computer Setup in Windows 7

Starting Setup Utility

Setup Utility is a ROM-based information and customization utility that can be used even when the
Windows operating system is not working.

The utility reports information about the device and provides settings for startup, security, and other
preferences.

To start Setup Utility:

Open Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10 =

▲

BIOS Setup Options” message is displayed in the lower-left corner of the screen.

Using Setup Utility

Changing the language of Setup Utility

The following procedure explains how to change the language of the Setup Utility. If Setup Utility is
not already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10 =

BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change goes into effect immediately.

ENWW Computer Setup in Windows 7 65

Navigating and selecting in Setup Utility

Because Setup Utility is not Windows based, it does not support the ClickPad TouchPad. Navigation
and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press

●

f1.

Displaying system information

The following procedure explains how to display system information in Setup Utility. If Setup Utility is
not open, begin at step 1. If Setup Utility is open, begin at step 2.

1. Open Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10 =

BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Select the Main menu. System information such as the system time and date, and identification

information about the device displays.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Restoring default settings in Setup Utility

The following procedure explains how to restore Setup Utility default settings. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10 =

BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation displays, press enter.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility default settings go into effect when the device restarts.

NOTE: Your password, security, and language settings are not changed when you restore the

factory default settings.

66 Chapter 5 Computer Setup ENWW

Exiting Setup Utility

You can exit Setup Utility with or without saving changes.

To exit Setup Utility and save your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.

To exit Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After either choice, the device restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items that are listed in this section may not be supported by

your computer.

Main menu

Select To do this

System information ● View and change the system time and date

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password

Power-On Password Enter, change, or delete a power-on password

System Configuration menu

Select To do this

Language Support Change the Setup Utility language

View identification information about the device

●

View specification information about the processor, memory size,

●

and system BIOS

ENWW Computer Setup in Windows 7 67

Select To do this

Processor C4 State Enable/disable the processor C4 sleep state

Boot Options Set the following boot options:

● f10 and f12 Delay (sec.)―set the delay for the f10 and f12

functions of the Setup Utility in intervals of 5 seconds each (0, 5,
10, 15, 20)

Internal Network Adapter boot―enable/disable boot from the

●

internal network adapter.

Boot Order―set the boot order for the following:

●

Internal hard drive (select models only)

◦

USB floppy drive

◦

USB CD/DVD ROM drive

◦

◦ USB flash drive

◦ USB hard drive

◦ USB card reader

Network adapter

◦

NOTE: Only the devices that are available on the system

appear in the boot order menu.

Diagnostics menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive

Memory Test Run a diagnostic test on the system memory

68 Chapter 5 Computer Setup ENWW

6 Specifications

Computer specifications

Metric U.S.

Dimensions

Depth 29.16 cm 11.48 in

Width 21.48 cm 8.46 in

Height 2.1 / 3.07 cm 0.83 / 1.21 in

Weight

Equipped with a hard drive 1597 g 3.52 lb

Input power

Operating voltage 19 V dc @ 1.58 A – 30 W

Operating current 1.58 A

Temperature

Operating 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 65°C -4°F to 149°F

Relative humidity (noncondensing)

Operating 10% to 90%

Nonoperating 0% to 95%

Maximum altitude (unpressurized)

Operating -15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within

this range of temperatures.

ENWW Computer specifications 69

29.5-cm (11.6-in) (1366 x 768) HD BrightView LED display specifications

Dimensions Metric U.S.

Height 12.53 cm 4.93 in

Width 22.27 cm 8.77 in

Diagonal 25.55 cm 10.06 in

Number of colors 262,144

Contrast ratio 400:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.2175 × 0.2175 mm

Format 1024 × 600

Configuration RGB vertical stripe

Backlight Edge lit

Character display 80 × 25

Total power consumption 3.0 W

Viewing angle ±40° horizontal, +20/-40° vertical (typical)

70 Chapter 6 Specifications ENWW

Hard drive specifications

250-GB* 320-GB*

Dimensions

Height 7mm / 9.5 mm 7mm / 9.5 mm

Width 63.5 mm 63.5 mm

Weight 101 g 101 g

Interface type SATA SATA

Transfer rate 100 MB/sec 100 MB/sec

Security ATA security ATA security

Seek times (typical read, including setting)

Single track 3 ms 3 ms

Average 13 ms 13 ms

Maximum 24 ms 24 ms

Logical blocks 117,210,240 117,210,240

Disc rotational speed 7200 rpm 7200 rpm, 5400 rpm

Operating temperature 5°C to 55°C (41°F to

131°F)

* 1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

5°C to 55°C (41°F to

131°F)

ENWW Hard drive specifications 71

72 Chapter 6 Specifications ENWW

7 Backup and recovery

● Restore

Creating restore media

●

Performing a system restore

●

Backing up and recovering your information

●

Your computer includes tools provided by the operating system and HP to help you safeguard your
information and restore it if ever needed.

This chapter provides information on the following topics:

Creating a set of recovery discs or a recovery flash drive (Recovery Manager software feature)

●

Performing a system restore (from the partition, recovery discs, or a recovery flash drive)

●

● Backing up your information

● Recovering a program or driver

ENWW 73

Restore

In the event of hard drive failure, to restore your system to its factory image you will need a set of
recovery discs or a recovery flash drive that you can create using HP Recovery Manager. HP
recommends that you use this software to create either a set of recovery discs or a recovery flash
drive immediately after software setup.

If for some other reason you need to restore your system, this can be achieved using the HP
Recovery partition (select models only), without the need for recovery discs or a recovery flash drive.
To check for the presence of a recovery partition, click Start, right-click Computer, click Manage,
and then click Disk Management. If the recovery partition is present, a Recovery drive is listed in the
window.

CAUTION: HP Recovery Manager (partition, or discs/flash drive) restores only software that was

preinstalled at the factory. Software not provided with this computer must be reinstalled manually.

NOTE: Recovery discs have been included if your computer does not have a recovery partition.

Creating restore media

HP recommends that you create either a set of recovery discs or a recovery flash drive to be sure that
you can restore your computer to its original factory state if the hard drive fails, or if for any reason
you cannot restore using the recovery partition tools. Create these discs or the flash drive after setting
up the computer for the first time.

NOTE: HP Recovery Manager allows the creation of only one set of recovery discs or one recovery

flash drive. Handle these discs or flash drive carefully and keep them in a safe place.

NOTE: If your computer does not include an integrated optical drive, you can use an optional

external optical drive (purchased separately) to create recovery discs, or you can purchase recovery
discs for your computer from the HP Web site. If you use an external optical drive, it must be
connected directly to a USB port on the computer, not to a USB port on an external device, such as a
USB hub.

Guidelines:

Purchase high-quality DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs.

●

NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE

(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.

The computer must be connected to AC power during this process.

●

Only one set of recovery discs or one recovery flash drive can be created per computer.

●

NOTE: If you are creating recovery discs, number each disc before inserting into the optical

drive.

If necessary, you can exit the program before you have finished creating the recovery discs or

●

recovery flash drive. The next time you open Recovery Manager, you will be prompted to
continue the backup creation process.

To create a set of recovery discs or a recovery flash drive:

1. Select Start > All Programs > Recovery Manager > Recovery Media Creation.

2. Follow the on-screen instructions.

74 Chapter 7 Backup and recovery ENWW

Performing a system restore

Recovery Manager software allows you to repair or restore the computer to its original factory state.
Recovery Manager works from recovery discs, a recovery flash drive, or from a dedicated recovery
partition (select models only) on the hard drive.

NOTE: A system restore needs to be performed if the computer hard drive has failed or if all

attempts to correct any functional computer issues fail. A system restore should be used as a final
attempt to correct computer issues.

Note the following when performing a system restore:

You can restore only the system that you have previously backed up. HP recommends that you

●

use HP Recovery Manager to create either a set of recovery discs or a recovery flash drive as
soon as you set up the computer.

Windows has its own built-in repair features, such as System Restore. If you have not already

●

tried these features, try them before using Recovery Manager.

Recovery Manager restores only software that was preinstalled at the factory. Software not

●

provided with this computer must be downloaded from the manufacturer's Web site or reinstalled
from the disc provided by the manufacturer.

Restoring using the dedicated recovery partition (select models only)

When using the dedicated recovery partition, there is an option to back up pictures, music and other
audio, videos and movies, recorded TV shows, documents, spreadsheets and presentations, e-mails,
Internet favorites and settings during this process.

To restore the computer from the recovery partition, follow these steps:

1. Access Recovery Manager in either of the following ways:

Select Start > All Programs > Recovery Manager > Recovery Manager.

●

– or –

Turn on or restart the computer, and then press esc while the “Press the ESC key for

●

Startup Menu” message is displayed at the bottom of the screen. Then, press f11 while the
“F11 (System Recovery)” message is displayed on the screen.

2. Click System Recovery in the Recovery Manager window.

3. Follow the on-screen instructions.

ENWW Performing a system restore 75

Restoring using the restore media

1. If possible, back up all personal files.

2. Insert the first recovery disc into the optical drive on your computer or an optional external

optical drive, and then restart the computer.

– or –

Insert the recovery flash drive into a USB port on your computer, and then restart the computer.

NOTE: If the computer does not automatically restart in the Recovery Manager, the computer

boot order needs to be changed.

3. Press f9 at system bootup.

4. Select the optical drive or the flash drive.

5. Follow the on-screen instructions.

76 Chapter 7 Backup and recovery ENWW

Changing the computer boot order

To change the boot order for recovery discs:

1. Restart the computer.

2. Press esc while the computer is restarting, and then press f9 for boot options.

3. Select Internal CD/DVD ROM Drive from the boot options window.

To change the boot order for recovery flash drive:

1. Insert the flash drive into a USB port.

2. Restart the computer.

3. Press esc while the computer is restarting, and then press f9 for boot options.

4. Select the flash drive from the boot options window.

Backing up and recovering your information

It is very important to back up your files and keep any new software in a safe place. As you add new
software and data files, continue to create backups on a regular basis.

How completely you are able to recover your system depends on how recent your backup is.

NOTE: A recovery from your most recent backup needs to be performed if the computer has a virus

attack or if any major system components fail. In order to correct computer issues, a recovery should
first be attempted before a system restore is attempted.

You can back up your information to an optional external hard drive, a network drive, or discs. Back
up your system at the following times:

At regularly scheduled times

●

TIP: Set reminders to back up your information periodically.

Before the computer is repaired or restored

●

Before you add or modify hardware or software

●

Guidelines:

Create system restore points using the Windows® System Restore feature, and periodically

●

copy them to an optical disc or an external hard drive. For more information on using system
restore points, refer to

Store personal files in the Documents library and back up this folder periodically.

●

Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your

●

settings. The screen shot can be a time-saver if you have to re-enter your preferences.

Using Windows system restore points on page 79.

ENWW Backing up and recovering your information 77

To create a screen shot:

1. Display the screen you want to save.

2. Copy the screen image:

To copy only the active window, press alt+fn+prt sc.

To copy the entire screen, press fn+prt sc.

3. Open a word-processing document, and then select Edit > Paste. The screen image is added to

the document.

4. Save and print the document.

Using Windows Backup and Restore

Guidelines:

Be sure that the computer is connected to AC power before you start the backup process.

●

Allow enough time to complete the backup process. Depending on file sizes, it may take over an

●

hour.

To create a backup:

1. Select Start > Control Panel > System and Security > Backup and Restore.

2. Follow the on-screen instructions to schedule and create a backup.

NOTE: Windows® includes the User Account Control feature to improve the security of the

computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.

78 Chapter 7 Backup and recovery ENWW

Using Windows system restore points

A system restore point allows you to save and name a snapshot of your hard drive at a specific point
in time. You can then recover back to that point if you want to reverse subsequent changes.

NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created

since the last restore point.

You also can create additional restore points to provide increased protection for your files and
settings.

When to create restore points

Before you add or modify software or hardware

●

Periodically, whenever the computer is functioning optimally

●

NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.

Create a system restore point

1. Select Start > Control Panel > System and Security > System.

2. In the left pane, click System Protection.

3. Click the System Protection tab.

4. Follow the on-screen instructions.

Restore to a previous date and time

To revert to a restore point (created at a previous date and time), when the computer was functioning
optimally, follow these steps:

1. Select Start > Control Panel > System and Security > System.

2. In the left pane, click System protection.

3. Click the System Protection tab.

4. Click System Restore.

5. Follow the on-screen instructions.

ENWW Backing up and recovering your information 79

80 Chapter 7 Backup and recovery ENWW

8 Connector pin assignments

Audio-out (headphone)/Audio-in (microphone) jack

Pin Signal

1 Left audio signal in

2 Right audio signal in

3 Ground

4 Microphone

ENWW Audio-out (headphone)/Audio-in (microphone) jack 81

External monitor

Pin Signal

1 Red analog

2 Green analog

3 Blue analog

4 Not connected

5 Ground

6 Ground analog

7 Ground analog

8 Ground analog

9+5 VDC

10 Ground

11 Monitor detect

12 DDC 2B data

13 Horizontal sync

14 Vertical sync

15 DDC 2B clock

82 Chapter 8 Connector pin assignments ENWW

RJ-45 (network)

Pin Signal

1Transmit +

2Transmit -

3 Receive +

4 Unused

5 Unused

6 Receive -

7 Unused

8 Unused

ENWW RJ-45 (network) 83

Universal Serial Bus

Pin Signal

1+5 VDC

2 Data -

3 Data +

4 Ground

84 Chapter 8 Connector pin assignments ENWW

9 Power cord set requirements

The wide range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC or from 220 to 240 volts AC.

The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or
region where the computer is used.

Requirements for all countries and regions

The requirements listed below are applicable to all countries and regions:

The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).

●

All power cord sets must be approved by an acceptable accredited agency responsible for

●

evaluation in the country or region where the power cord set will be used.

The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage

●

rating of 125 or 250 V AC, as required by the power system of each country or region.

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320

●

Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.

ENWW Requirements for all countries and regions 85

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number

Australia EANSW 1

Austria OVE 1

Belgium CEBC 1

Canada CSA 2

Denmark DEMKO 1

Finland FIMKO 1

France UTE 1

Germany VDE 1

Italy IMQ 1

Japan METI 3

The Netherlands KEMA 1

Norway NEMKO 1

The People's Republic of China CCC 5

South Korea EK 4

Sweden SEMKO 1

Switzerland SEV 1

Taiwan BSMI 4

The United Kingdom BSI 1

The United States UL 2

1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance

coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region
where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole

grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.

5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.

86 Chapter 9 Power cord set requirements ENWW

10 Recycling

Battery

When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for computer battery disposal.

Display

WARNING! The backlight contains mercury. Exercise caution when removing and handling the

backlight to avoid damaging this component and causing exposure to the mercury.

CAUTION: The procedures in this chapter can result in damage to display components. The only

components intended for recycling purposes are the liquid crystal display (LCD) panel and the
backlight. When you remove these components, handle them carefully.

NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display

assembly that might require special handling at end-of-life. Disposal of mercury may be regulated
because of environmental considerations. For disposal or recycling information, contact your local
authorities, or see the Electronic Industries Alliance (EIA) Web site at

This section provides disassembly instructions for the display assembly. The display assembly must
be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).

NOTE: The procedures provided in this chapter are general disassembly instructions. Specific

details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary
from one computer model to another.

http://www.eiae.org.

ENWW Battery 87

Perform the following steps to disassemble the display assembly:

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display

assembly.

2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of

the display bezel until the bezel disengages from the display assembly.

3. Remove the display bezel (3).

88 Chapter 10 Recycling ENWW

4. Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).

5. Remove all screws (1) that secure the display panel assembly to the display enclosure.

6. Remove the display panel assembly (2) from the display enclosure.

7. Turn the display panel assembly upside down.

8. Remove all screws that secure the display panel frame to the display panel.

9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the

display panel frame.

ENWW Display 89

10. Remove the display panel frame (2) from the display panel.

11. Remove the screws (1) that secure the backlight cover to the display panel.

12. Lift the top edge of the backlight cover (2) and swing it outward.

13. Remove the backlight cover.

14. Turn the display panel right-side up.

90 Chapter 10 Recycling ENWW

15. Remove the backlight cables (1) from the clip (2) in the display panel.

16. Turn the display panel upside down.

WARNING! The backlight contains mercury. Exercise caution when removing and handling the

backlight to avoid damaging this component and causing exposure to the mercury.

17. Remove the backlight frame from the display panel.

ENWW Display 91

18. Remove the backlight from the backlight frame.

19. Disconnect the display panel cable (1) from the LCD panel.

20. Remove the screws (2) that secure the LCD panel to the display rear panel.

21. Release the LCD panel (3) from the display rear panel.

22. Release the tape (4) that secures the LCD panel to the display rear panel.

23. Remove the LCD panel.

24. Recycle the LCD panel and backlight.

92 Chapter 10 Recycling ENWW
