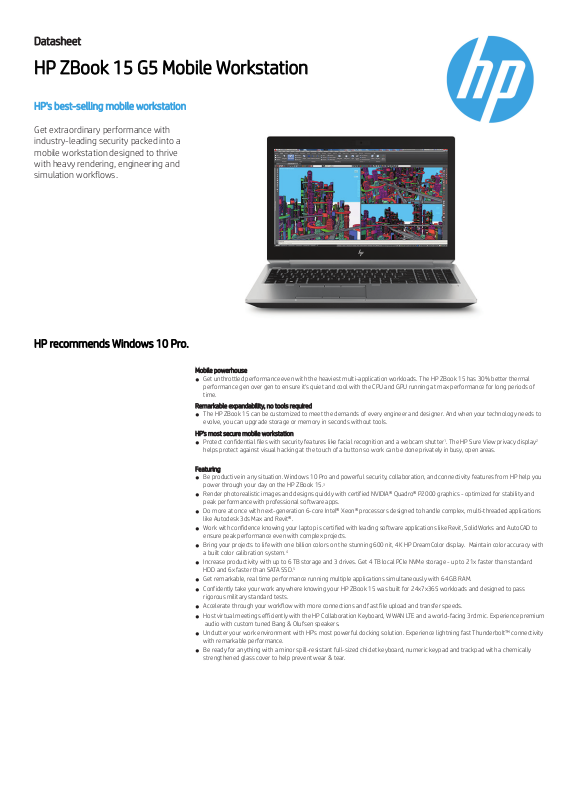

Datasheet

HP ZBook 15 G5 Mobile Workstation

HP's best-selling mobile workstation

Get extraordinary performance with industry-leading security packed into a mobile workstation designed to thrive with heavy rendering, engineering and simulation workflows.

HP recommends Windows 10 Pro.

Mobile powerhouse

Get unthrottled performance even with the heaviest multi-application workloads. The HP ZBook 15 has 30% better thermal

●

performance gen over gen to ensure it's quiet and cool with the CPU andGPU running at max performance for long periods of time.

Remarkable expandability, no tools required

The HP ZBook 15 can be customized to meet the demands of every engineer and designer. And when your technology needs to

●

evolve, you can upgrade storage or memory in seconds without tools.

HP's most secure mobile workstation

Protect confidential files with security features like facial recognition and a webcam shutter1. The HP Sure View privacy display

●

helps protect against visual hacking at the touch of a button so work can be done privately in busy, open areas.

Featuring

Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you

●

power through yourday on the HP ZBook 15. Render photorealistic images and designs quickly with certified NVIDIA® Quadro®P2000 graphics - optimized for stability and

●

peak performance with professional software apps. Do more at once with next-generation 6-core Intel® Xeon® processors designed to handle complex, multi-threaded applications

●

like Autodesk 3ds Max and Revit®. Work with confidence knowing your laptop is certified with leading software applications like Revit, SolidWorks and AutoCAD to

●

ensure peak performanceeven with complex projects. Bring your projects to life with one billion colors on the stunning 600 nit, 4K HP DreamColor display. Maintain color accuracy with

●

a built color calibration system. Increase productivity with up to 6 TB storage and 3 drives. Get 4 TB local PCIe NVMestorage - up to 21x fasterthan standard

●

HDD and 6x faster than SATA SSD. Get remarkable, real time performance running multiple applications simultaneously with 64 GB RAM.

●

Confidently take your work anywhere knowing your HP ZBook 15 was built for 24x7x365 workloads and designed to pass

●

rigorous military standard tests. Accelerate through your workflow with more connections and fast file upload and transfer speeds.

●

Host virtual meetings efficiently with the HP CollaborationKeyboard, WWAN LTE and a world-facing 3rd mic. Experience premium

●

audio with custom tuned Bang & Olufsen speakers.

Unclutter your work environment with HP's mostpowerful docking solution. Experience lightning fast Thunderbolt™ connectivity

●

with remarkable performance. Be ready for anything with a minor spill-resistant full-sized chiclet keyboard, numerickeypad and trackpad with a chemically

●

strengthened glass cover to helpprevent wear & tear.

Page 2

Datasheet

HP ZBook 15 G5 Mobile Workstation Specifications Table

HP recommends Windows 10 Pro.

Operating System

Processor Family

Maximum Memory

Memory Slots

Internal Storage

Display

Available Graphics

Expansion Slots

Ports and Connectors

Communications

Audio

Camera

Power

Input Device

Security

Software

Dimensions

Weight

Energy Efficiency Compliance

Environmental Certification

Warranty

Windows 10Pro 64 – HPrecommends Windows 10 Pro. Windows 10Home 64 Windows 10Pro for Workstations 64

FreeDOS 2.0 Red Hat®Enterprise Linux® 7 Ubuntu 16.04.3LTS

8th GenerationIntel® Core™ i7 processor (i7-8750H, i7-8850H); 8th GenerationIntel® Core™i5 processor (i5-8300H,i5-8400H); 8th Generation Intel®Core™ i7+ processor (Core™ i7and Intel® Optane™memory); 8th Generation Intel® Core™i5+ processor (Core™ i5 and Intel® Optane™ memory)

Up to64 GB DDR4-2667ECC SDRAM; 64 GBDDR4-2667 non-ECC SDRAM Standard memory note: Transferrates up to 2667 MT/s.

4 SODIMM

5400 rpmSATA 500 GBup to 1TB 7200 rpmSATA up to500 GB 7200rpm SATA SED up to500 GB 7200rpm SATA FIPS140-2 SED 500 GBup to 2TB 5400 rpmSATA SSHD 256 GBup to 1TB SATA SSD up to256 GB M.2SATA SED SSD

39.62 cm(15.6") diagonal FHDIPS eDP anti-glare LED-backlit,220 cd/m² (1920 x1080); 39.62 cm (15.6")diagonal FHD IPSeDP anti-glare LED-backlit with ambientlight sensor, 400cd/m² (1920 x 1080);39.62 cm (15.6") diagonal 4KIPS eDP LED-backlittouch screen with Corning® Gorilla® Glass 4 andambient light sensor,400 cd/m² (3840 x2160); 39.62 cm(15.6") diagonal 4KIPS eDP anti-glare LED-backlit and ambientlight sensor, 400 cd/m² (3840 x 2160);HP DreamColor39.62 cm (15.6")diagonal 4K IPSanti-glare LED-backlit, 600 cd/m², 100%sRGB (3840 x2160); HP Sure ViewIntegrated Privacy Screen 39.62 cm (15.6") diagonal FHDeDP LED-backlit

touch screen withCorning® Gorilla® Glass 4, 650 cd/m²(1920 x 1080)

Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics P630 Discrete: AMD Radeon™Pro WX 4150 Graphics (4 GB GDDR5 dedicated); NVIDIA®Quadro® P1000 (4GB GDDR5 dedicated);NVIDIA® Quadro® P2000 (4GB GDDR5 dedicated)

Intel® UHDGraphics 630 integrated onCore™ i7 and Core™ i5processors. Intel® UHD Graphics P630integrated on Xeon® processors.

1 UHS-IISD card reader; 1smart card reader SD supportsnext generation secure digital andis backward compatible to SDHC, SDXC

Left side:1 RJ-45; 1USB 3.0; 1USB 3.0 (charging) Right side:1 HDMI 2.0;1 headphone/microphonecombo; 1 powerconnector; 1 USB 3.0; 2USB 3.1 Type-C™ Thunderbolt™3 (DisplayPort™ 1.3)

LAN: Integrated Intel®I219-LM GbE WLAN: Intel®Dual Band Wireless-AC 9560 802.11ac(2x2) Wi-Fi® andBluetooth® 5.0 Combo; Intel® Dual Band Wireless-AC 9560 802.11ac(2x2) Wi-Fi® andBluetooth® 5.0 Combo,non-vPro™ WWAN: HPlt4132 LTE/HSPA+ 4GMobile Broadband Module; Intel® XMM™ 7360 LTE Advanced

Optional NearField Communication (NFC) module

Bang &Olufsen, custom tuning, dualstereo speakers,dual array digital microphone, functionskeys for volume up anddown, combo microphone/headphone jack, world facing microphone, HD audio, HP Clear SoundAmp

HP PrivacyHD Camera 720p;HP Privacy HDIR Camera 720p, faceauthentication with WindowsHello

150 WSlim Smart externalAC power adapter

HP Collaboration Keyboard, full-size,spill-resistant, backlit,with drain and DuraKeys, clickpadwith image sensorand glass surface, multi-touchgestures and taps enabled Image sensortouchpad with on/offbutton, two-way scroll, gestures, three buttons; Pointstick with three additional pointstick buttons

Absolute persistence module; Common Criteria EAL4+ Augmented CertifiedDiscrete TPM 2.0Embedded Security Chip;DriveLock and Automatic DriveLock; HP Device Access Manager; HP FingerPrint Sensor;HP Password Manager; HPPower On Authentication; HPSecurity Manager; Pre-boot authentication;Microsoft Security Defender; HP Sure Click; Measured Boot; HP BIOS ConfigUtility (BCU); HPClient Catalog; HPDriver Packs; HP System

Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere withSure Start Gen4;HP Secure Disk Erase;HP Host Based MacAddress

Bing search forIE11; Buy Office;HP ePrint Driver+ JetAdvantage; HP Hotkey Support;HP Noise Cancellation Software;HP Performance Advisor; HP Recovery Manager;HP Remote Graphics Software; HPSupport Assistant; HP Velocity; HP WorkWise (requiresBluetooth); Skype for Business Certified; HP LAN-WLAN Protection;HP JumpStart; HPClient Security Suite Gen4

37.6 x26.4 x 2.6cm

Starting at5.79 lb Starting at2.6 kg Weight varies by configuration and components.

ENERGY STAR®certified and EPEAT® registered configurations available

Low halogen

1 year(1-1-0) limited warranty and serviceoffering includes 1 year of parts andlabor. Termsand conditions vary by country.

2,3

9,33

9,10

8,14

9,12,14,30

19,20,21,22,23,26,27,28,29

15,16,17,18

Page 3

Datasheet

HP ZBook 15 G5 Mobile Workstation

Accessories and services (not included)

HP lt4132 LTE/HSPA+ 4G WWAN

Check e-mail, browse the Internet, and connect to your corporate network with dedicated broadband from the HP lt4132 LTE/HSPA+ 4G WWAN1for select HP Business Notebooks.

Product number: 1HC91AA

HP recommends Windows 10 Pro.

HP External USB DVDRW Drive

HP 500GB 7200rpm SATA Hard Drive

3Dconnexion CadMouse

HP 3 year Next Business Day Onsite Hardware Support for Notebooks

Connect the HP External USB DVD/RW to any available USB port on your PC1to get immediate read/write access to your optical media.

Product number: F2B56AA

The HP 500 GB17200 rpm Primary SATA Hard Drive is a convenient and affordable high-capacity storage solution for users who require additional storage or a faster dedicated second hard drive.

Product number: F3B97AA

Simplify scroll, click, and zoom functions and comfortably drive your CAD projects with the 3Dconnexion CADMouse.

Product number: M5C35AA

Receive 3 yearsof next business day onsite HW support from anHP-qualified technician foryour computing device, if the issue cannot be solved remotely. Product number: U4414E

Page 4

Datasheet

HP recommends Windows 10 Pro.

HP ZBook 15 G5 Mobile Workstation

Messaging Footnotes:

Facial recognition and webcam shutter are optional features thatmust be configured atpurchase.

HP Sure Viewintegrated privacy screen isan optional feature that must be configured at purchase.

Not all features are available in all editions orversions of Windows. Systemsmay require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality.

Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additionalrequirements may apply over timefor updates.See http://www.windows.com.

DreamColor display required for 1billion colors and isan optional or add on feature.

For hard drives,GB = 1billion bytes. TB =1 trillion bytes. Actualformatted capacity is less. Up to 30GB (for Windows10) of system diskis reserved for systemrecovery software.

MIL-STD-810G testing is pending . Testing is notintended to demonstrate fitness of U.S. Department ofDefense (DoD) contract requirements orfor military use.Test results are nota guarantee of futureperformance

under thesetest conditions. Accidental damage requires an optional HP Accidental DamageProtection Care Pack.

WWAN module is optional, must beconfigured at the factory and requires separately purchased service contract. Check with service provider forcoverage and availability in your area. Connection speeds willvary due to

location, environment, networkconditions, and other factors.4G LTE not available on all products, in all regions.

ZBook dockwith Thunderbolt™ sold separately.

Screen images courtesy ofLarson & Darby

Technical Specifications Footnotes:

Not all features are available in all editions orversions of Windows. Systemsmay require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows

functionality. Windows10 is automatically updated, whichis always enabled. ISPfees may apply andadditional requirements may apply over time for updates. See http://www.windows.com.

Multicore is designed to improve performance of certain softwareproducts. Not all customers or software applications will necessarily benefitfrom use of this technology. Performance and clock frequency will vary

depending onapplication workload and your hardware andsoftware configurations. Intel’s numbering, brandingand/or naming is not ameasurement of higher performance.

In accordance with Microsoft’ssupport policy, HP doesnot support the Windows® 8 or Windows 7 operating system on products configured with Inteland AMD 7thgeneration and forward processors orprovide any

Windows®8 or Windows 7 drivers on http://www.support.hp.com

vPro. Some functionality of this technology, such as Intel Active management technology and IntelVirtualization technology, requires additional 3rd party software in order torun. Availability of future"virtual

appliances" applications forIntel vPro technology is dependent on 3rd party software providers.Compatibility future "virtualappliances" isyetto be determined.

Only 2 DIMM configurations run at 2400 MHz and 4 DIMM configurations runat 2133 MHz.

For storage drives GB = 1 billionbytes. TB = 1 trillion bytes. Actual formattedcapacity is less. Upto 30 GB (forWindows 10) is reserved for system recovery software.

Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited.The specifications for the 802.11ac WLAN

are draft specificationsand are not final. If the final specifications differ from the draft specifications, itmay affect the ability of the notebookto communicate with other 802.11ac WLAN devices.

WWAN is an optional feature. WWAN userequires separately purchased service contract. Checkwith service provider forcoverage and availability in yourarea. Connection speeds will vary due to location, environment,

network conditions, and other factors. 4G LTE not available onall products, and in all regions.

HD content required toview HD images.

Intel® HD graphics 630 is configurable as a standalone graphics option;Intel® HD graphics P630 only used whenNVIDIA® Optimus™ Technology is enabled.

NVIDIA® Quadro® mobileprofessional graphics support up tofour independent displays when using a HP ZBook Dock with Thunderbolt 3 (sold separately) or DP 1.2 hubs with MST.

Privacy cameranot available on touchscreen.

Dual-microphone array when equipped with optional webcam and optional world facing microphone.

Optional or add-on feature

HP ePrintDriver requires an internet connection to HP web-enabled printer and HP ePrint account registration (fora list of eligibleprinters, supported documents and image types and other HP ePrintdetails, see

www.hp.com/go/businessmobileprinting.

HP Remote Graphics Softwarerequires a Windows, Linux®,or Mac®OS X 10.10 and newer operatingsystem and network access.

HP Workwise smartphone app is available asa free download onthe App Store and Google Play. See requirements at www.hp.com/go/workwise

HP ClientSecurity Suite Gen 4 requires Windows and Intel® or AMD 8th generation processors.

BIOS Absolute Persistence module is shipped turned off, and willbe activated when customers purchaseand activate a subscription.Service may belimited. Check with Absolutefor availability outside the U.S. The

optional subscription service of Absolute Recovery Guarantee is a limited warranty. Certainconditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement.

Finger Sensoris optional

HP Manageability IntegrationKit can bedownloaded from http://www.hp.com/go/clientmanagement.

HP Password manager requires Windows.

HP BIOSphere Gen4requires Intel® or AMD8th generation processors. HP SureStart Gen4 isavailable on HP ZWorkstations products equipped with 8th generation Intel® orAMD processors.

EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net forregistration status by country.

External power supplies,power cords, cables and peripherals are not low halogen. Serviceparts obtained after purchasemay not be lowhalogen.

Battery is internal and not replaceable by customer. Serviceable by warranty. Batteries have a default one year limited warranty except for Long Life batteries which will have same1-year or 3-year.

HP Secure Disk Erase is for the methods outlined in the National Instituteof Standards and Technology Special Publication 800-88.

HP Sure Click is available on selectHP platforms and supports Microsoft® Internet Explorer, Google Chrome, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in

read only mode.Check http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENWfor all compatible platforms asthey become available.

Microsoft Security Defender requires Windows 10

Windows Hello optional

hp.com

hp.com/go/getupdated

Copyright © 2018 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel, Xeon, Core, Thunderbolt, and Intel vPro are trademarks ofIntel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark ofits proprietor and used by HP Inc. under license. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. The NVIDIA logo and Quadro are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries.

4AA7-2969EEE, July 2018
