Datasheet

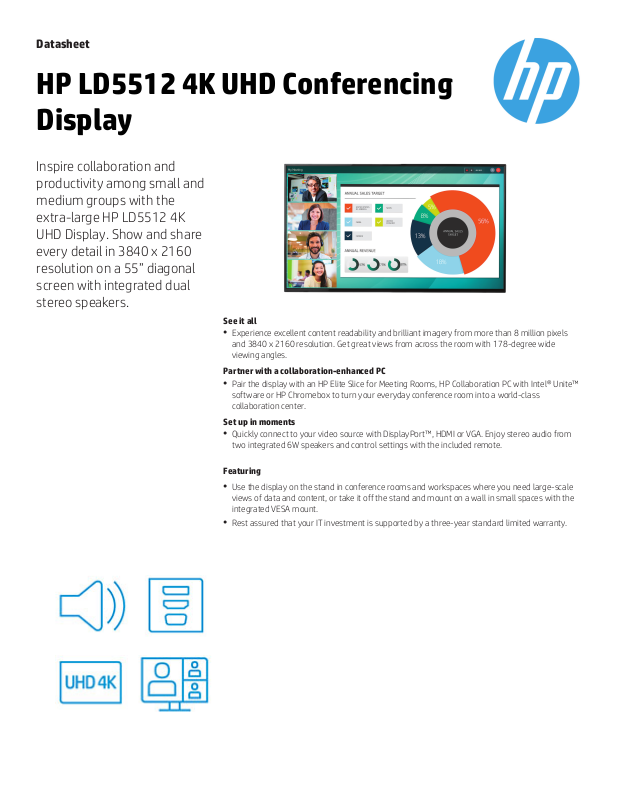

HP LD5512 4K UHD Conferencing
Display
Inspire collaboration and
productivity among small and
medium groups with the
extra-large HP LD5512 4K
UHD Display. Show and share
every detail in 3840 x 2160
resolution on a 55” diagonal
screen with integrated dual
stereo speakers.
See it all
●
Experience excellent content readability and brilliant imagery from more than 8 million pixels
and 3840 x 2160 resolution. Get great views from across the room with 178-degree wide
viewing angles.
Partner with a collaboration-enhanced PC
●
Pair the display with an HP Elite Slice for Meeting Rooms, HP Collaboration PC with Intel® Unite™
software or HP Chromebox to turn your everyday conference room into a world-class
collaboration center.
Set up in moments
●
Quickly connect to your video source with DisplayPort™, HDMI or VGA. Enjoy stereo audio from
two integrated 6W speakers and control settings with the included remote.
Featuring
●
Use the display on the stand in conference rooms and workspaces where you need large-scale
views of data and content, or take it off the stand and mount on a wall in small spaces with the
integrated VESA mount.
●
Rest assured that your IT investment is supported by a three-year standard limited warranty.
Page 2
Datasheet | HP LD5512 4K UHD Conferencing Display
HP LD5512 4K UHD Conferencing Display Specifications Table
Product Number
Display Size (diagonal)
Display Type
Panel Active Area
Viewing Angle
Brightness
Contrast Ratio
Response Time
Aspect Ratio
Native Resolution
Resolutions Supported
Display Features
User Controls
Input Signal
Ports and Connectors
Input Power
Power Consumption
Dimensions with Stand
(W x D x H)
Dimensions without
Stand (W x D x H)
Weight
Multimedia
Environmental
Energy Efficiency
2YD85AA
139.7 cm (55")
ADS w/LED backlight
47.62 x 26.78 in; 120.96 x 68.04 cm
178° horizontal; 178° vertical
350 cd/m²
1200:1 static
8 ms gray to gray
16:09
4K UHD (3840 x 2160 @ 60 Hz)
3840 x 2160; 2560 x 1600; 2560 x 1440; 1920 x 1080; 1600 x 1200; 1680 x 1050; 1440 x 900; 1280 x 1024; 1280 x 768; 1280 x 720; 1024 x 768; 800 x
600; 720 x 400; 640 x 480
Anti-glare; Language selection; LED Backlights; On-screen controls; Plug and Play; User programmable; Asset Control; Anti-static
Auto; Input Control; Menu; Minus ("-"); OK; Plus ("+"); Power
1 VGA; 1 HDMI 2.0; 2 HDMI 1.4; 1 DisplayPort™ 1.2;
(with HDCP support on DisplayPort™ and HDMI)
1 USB 2.0
Input voltage: 100 to 240 VAC
130 W (maximum), 90 W (typical), 0.5 W (standby)
48.89 x 30.7 x 9.35 in
124.16 x 77.97 x 23.74 cm
48.89 x 28.40 x 2.75 in
124.16 x 72.12 x 69.9mm
31.74 lb
14.4 kg
With stand
Two 6 W integrated speakers
Mercury-free display backlights
ENERGY STAR® certified
Compliance
AC
What's in the box
Warranty
See important legal disclaimers on the last page
power cord; DisplayPort™ 1.2 cable; Documentation; HDMI cable
(Stand not included)
Protected by HP, including a 3-year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection
beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on
date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc.
1
1
1
2
Page 3
Datasheet | HP LD5512 4K UHD Conferencing Display
HP Recommended Ecosystem, Accessories and services
HP Slice 2.0 for
Meeting Rooms
HP Chromebox for
Meeting Rooms
HP Elite Presenter Mouse
HP Thunderbolt Dock 120W
G2
Product number Coming Soon
Invite colleagues, customers or partners and get teams together from across town or from all over the world for real time
video collaboration using HP Chromebox for Meetings.
Product number Coming Soon
Run presentations and guide onscreen content with a virtual laser from the palm of your hand, anywhere in the room, or
navigate your PC’s applications at your desk, with the sophisticated HP Elite Presenter Mouse. It’s an ultra-modern,
multi-functional accessory that’s a pointer and mouse in one.
Product number: 2CE30AA
Reinvent docking and boost productivity with the sophisticated and small HP Thunderbolt Dock G2. Designed for
workspace flexibility and network manageability, its single USB-C™ cable delivers device connectivity and optional
integrated audio1to Thunderbolt™- and USB-C™2-enabled notebooks.
Product number: 2UK37AA
1,3
3
HP Wireless Collaboration
Keyboard
HP 4 year Next business day
Exchange Extra-Large
Monitor Service
Make your Skype for Business® voice and video calls1 easier than ever and declutter your workspace with the
elegant, restyled HP Wireless Collaboration Keyboard.
Product number: Z9N39AA
When you can’t afford to wait for your device to be exchanged, let HP Hardware Next Business Day Advance Exchange get
you back up and running as quickly as possible. You’ll get remote technical assistance to help you resolve problems. Then,
if needed, we’ll ship you a replacement unit within the next business day1– along with a prepaid waybill to ship back your
defective unit.
Product number: U0J14E
3
Page 4
Datasheet | HP LD5512 4K UHD Conferencing Display
Messaging Footnotes
1
Wall mounting hardware sold separately.
Technical Specifications Footnotes
1
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
Sign up for updates
hp.com/go/getupdated
© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR® and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are
trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. USB Type-C™ is a trademark of USB
Implementers Forum.
4AA7-1178ENUC, January 2nd 2018
