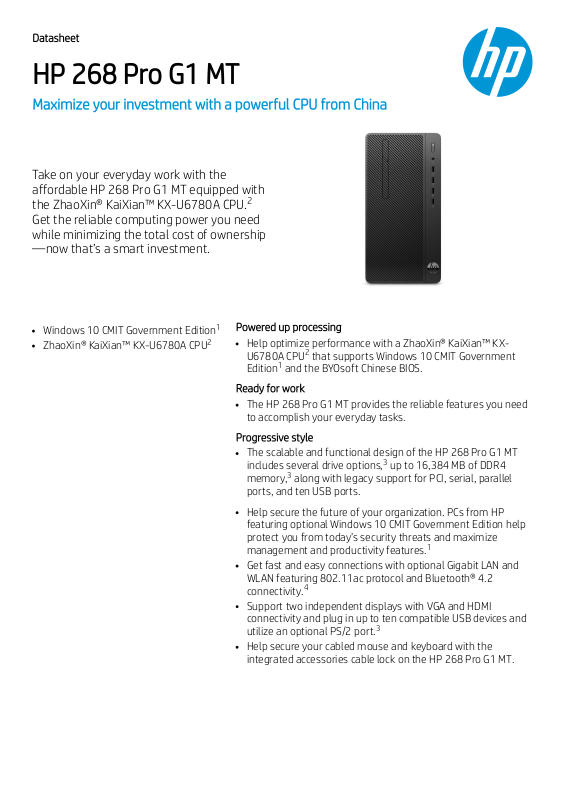

Page 1
Datasheet
HP 268 Pro G1 MT
Maximize your investment with a powerful CPU from China
Take on your everyday work with the
affordable HP 268 Pro G1 MT equipped with
the ZhaoXin® KaiXian™ KX-U6780A CPU.
Get the reliable computing power you need
while minimizing the total cost of ownership
—now that’s a smart investment.
Windows 10 CMIT Government Edition
ZhaoXin® KaiXian™ KX-U6780A CPU
Powered up processing
Help optimize performance with a ZhaoXin® KaiXian™ KXU6780A CPU that supports Windows 10 CMIT Government
Edition and the BYOsoft Chinese BIOS.
Ready for work
The HP 268 Pro G1 MT provides the reliable features you need
to accomplish your everyday tasks.
Progressive style
The scalable and functional design of the HP 268 Pro G1 MT
includes several drive options, up to 16,384 MB of DDR4
memory, along with legacy support for PCI, serial, parallel
ports, and ten USB ports.
Help secure the future of your organization. PCs from HP
featuring optional Windows 10 CMIT Government Edition help
protect you from today’s security threats and maximize
management and productivity features.
Get fast and easy connections with optional Gigabit LAN and
WLAN featuring 802.11ac protocol and Bluetooth® 4.2
connectivity.
Support two independent displays with VGA and HDMI
connectivity and plug in up to ten compatible USB devices and
utilize an optional PS/2 port.
Help secure your cabled mouse and keyboard with the
integrated accessories cable lock on the HP 268 Pro G1 MT.
2
1
2
2
1
3
3
1
4
3
Page 2
Data sheet | HP 268 Pro G1 MT
HP 268 Pro G1 MT Specifications Table
Available Operating Systems
Windows 10 CMIT Government Edition
NeoKylin Linux 64
FreeDOS
Processor family ZhaoXin® KaiXian™ processor
Available Processors
ZhaoXin® KaiXian™ KX-U6780A with ZhaoXin® C960 UHD Graphics (2.7 GHz base frequency, 8 MB cache, 8
cores)
Chipset ZhaoXin® SoC
Form factor Microtower
Maximum memory
16 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s.
Memory slots 2 DIMM
Internal storage
500 GB up to 2 TB 7200 rpm SATA HDD
128 GB up to 256 GB SATA SSD
128 GB up to 512 GB PCIe® M.2 SSD
Optical drive HP 9.5 mm Slim DVD-ROM; HP 9.5 mm Slim DVD-Writer
Available Graphics
Integrated: ZhaoXin® C960 UHD Graphics
Discrete: AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated)
Audio
Realtek ALC269 audio codec, combo microphone/headphone jack, line-in, line-out and microphonerear ports
(3.5 mm), HD audio
Expansion slots 1 PCI; 1 PCIe x1; 1 PCIe x16
Ports and Connectors
Front: 1 headphone connector; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2
Rear: 1 HDMI 1.4; 1 line in; 1 line out; 1 microphone; 1 power connector; 1 RJ-45; 1 serial; 1 VGA; 2 USB 3.1
Gen 1; 4 USB 2.0
Optional: 1 parallel; 2 PS/2; 4 serial
Input devices
PS/2 Business Slim Standalone Keyboard; USB Business Slim Standalone Wired Keyboard; USB Wired Business
Slim Antimicrobial Keyboard; Wired Standalone Keyboard; HP PS/2 Mouse; HP USB Optical Mouse; Universal
USB wired optical mouse; USB Antimicrobial Mouse
Communications
LAN: Integrated Realtek RTL8111HSH-CG GbE WLAN: Realtek RTL8821CE-CG 802.11a/b/g/n/ac (1x1) with
Bluetooth® M.2 PCIe® ;
Drive Bays One 3.5" (2.5") HDD; One 3.5" HDD; One 9 mm slim ODD
Environmental Operating temperature: 10 to 35°C; Operating humidity: 15 to 90% RH
Security management Padlock loop; Standard lock slot
Power 180 W internal power supply, up to 90% efficiency; 310 W internal power supply, up to 90% efficiency
Dimensions 17 x 27.38 x 34.08 cm (With bezel.)
Weight 5.23 kg (Exact weight depends on configuration.)
Energy efficiency compliance EPEAT® 2019 Silver in China
7
8
1
2
2
2
3
5
4
6
9

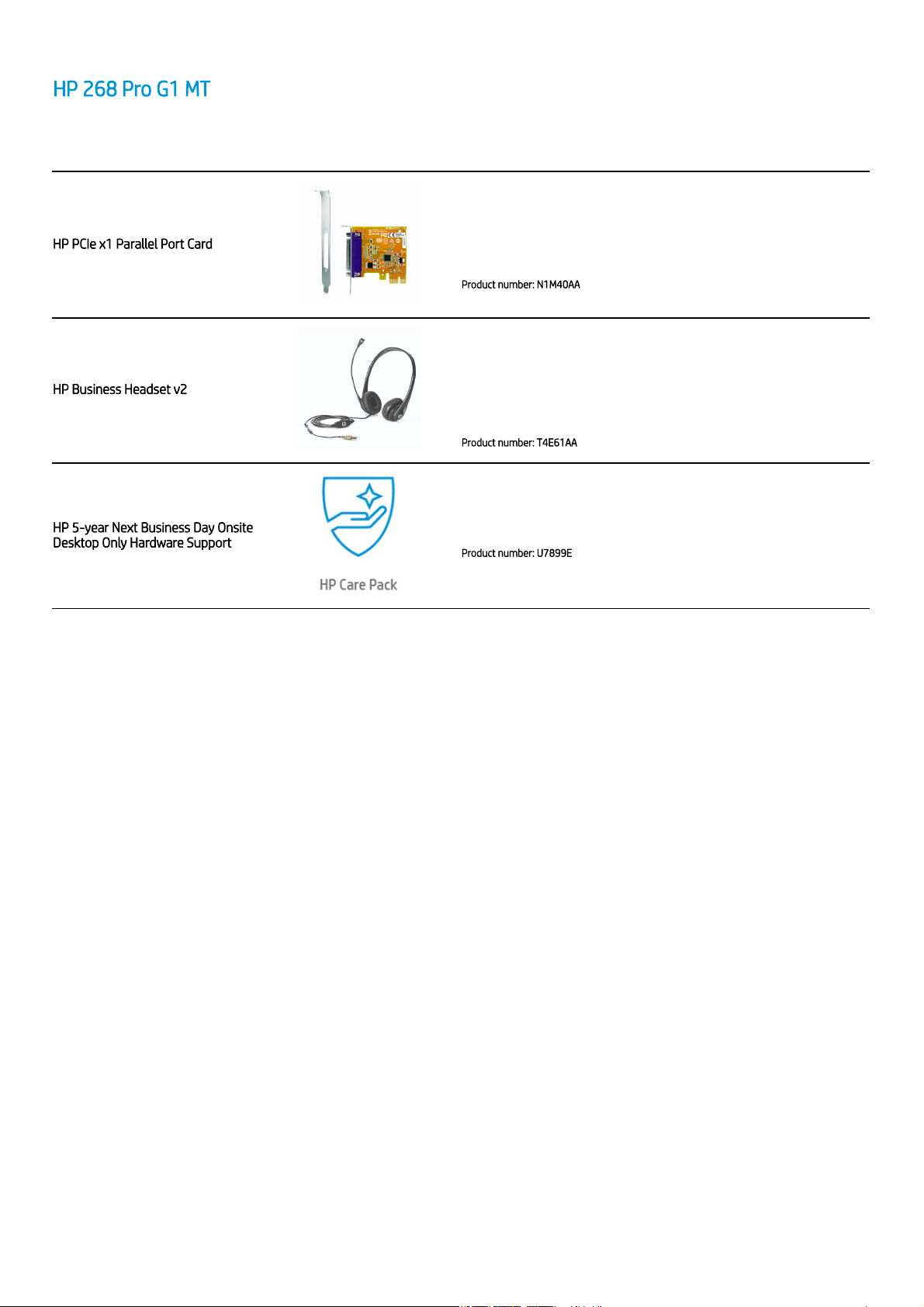

Page 3
Data sheet | HP 268 Pro G1 MT
HP 268 Pro G1 MT
Accessories and services (not included)
HP PCIe x1 Parallel Port Card
Enable connectivity to your legacy peripheral devices with the HP Parallel Port PCIe x1 Card.
Proven performance and reliability to deliver maximum investment protection. Offering the
perfect combination of performance, reliability and investment protection to any IT
environment. For businesses that require superior stability and manageability with low
lifecycle costs, or desktops with proven technology, superior price/performance and a wide
choice of features, or even entry-level PCs that balance price and essential computing
capabilities – the HP Desktop family holds the solution.
Product number: N1M40AA
HP Business Headset v2
Quickly and easily collaborate, chat online or listen to personal media with the crystal-clear
sound and noise cancelling features of the sleek, lightweight HP Business Headset v2,
designed to complement your professional workspace. , Proven performance and reliability
to deliver maximum investment protection. Offering the perfect combination of performance,
reliability and investment protection to any IT environment. For businesses that require
superior stability and manageability with low lifecycle costs, or desktops with proven
technology, superior price/performance and a wide choice of features, or even entry-level PCs
that balance price and essential computing capabilities – the HP Desktop family holds the
solution.
Product number: T4E61AA
HP 5-year Next Business Day Onsite
Desktop Only Hardware Support
Receive 5 years of Next Business Day Onsite repair from an HP-qualified technician for your
computing device, if the issue cannot be solved remotely. For more information on Care Pack
services, please visit www.hp.com/go/cpc.
Product number: U7899E
1 2
Page 4
Data sheet | HP 268 Pro G1 MT
HP 268 Pro G1 MT
Messaging Footnotes
Windows 10 CMIT Government Edition systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Please refer to inbox documentation for details.
ZhaoXin® KaiXian™ KX-U6780A CPU Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock
frequency will vary depending on application workload and your hardware and software configurations. ZhaoXin’s numbering, branding and/or naming is not a measurement of clock speed.
Sold separately or as an optional feature.
Sold separately or as an optional feature. Wireless access point and internet service required. Availability of public wireless access points limited.
Technical Specifications Footnotes
Memory modules support data transfer rates up to 2666 MT/s. Actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate.
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) of disk is reserved for system recovery software.
Optical drives are optional or add on features. HD-DVD disks cannot be played on this drive. No support for DVD-RAM. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single
layer discs. Discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.
Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited.
Sold separately or as an optional feature.
Locks sold separately.
Windows 10 CMIT Government Edition systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Please refer to inbox documentation for details.
ZhaoXin® KaiXian™ KX-U6780A CPU Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock
frequency will vary depending on application workload and your hardware and software configurations. ZhaoXin’s numbering, branding and/or naming is not a measurement of clock speed.
Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.
Sign up for updates hp.com/go/getupdated
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by HP Inc. under license. AMD, Radeon and the AMD logo are trademarks of Advanced Micro Devices, Inc. All other trademarks are the property of
their respective owners.
4AA7-6605EEAP, December 2019
