HP 255 G6 Notebook PC Maintenance and Service Guide

HP 255 G6 Notebook PC
Maintenance and Service Guide
© Copyright 2017 HP Development Company, L.P.
AMD is a trademark of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Intel, Celeron, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of the Microsoft group of companies.
In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products congured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on
http://www.support.hp.com.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Product notice
This guide describes features that are common to most models. Some features may not be available on your computer.
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. Go to http://www.microsoft.com for details.
To access the latest user guides or manuals for your product, go to http://www.hp.com/
support, and select your country. Select Find
your product, and then follow the on-screen instructions.
Software terms
By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your seller.
For any further information or to request a full refund of the price of the computer, please contact your seller.
First Edition: April 2017
Document Part Number: 926814-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits dened by the International Standard for Safety of Information Technology Equipment (IEC 60950-1).
iii
iv Safety warning notice
Table of contents
1 Product description ....................................................................................................................................... 1
2 Components .................................................................................................................................................. 5
Right ....................................................................................................................................................................... 5
Left ......................................................................................................................................................................... 6
Display .................................................................................................................................................................... 8
Keyboard area ........................................................................................................................................................ 9
TouchPad ............................................................................................................................................. 9
Lights ................................................................................................................................................. 10
Button ................................................................................................................................................ 11
Special keys ....................................................................................................................................... 12
Action keys ........................................................................................................................................ 13
Bottom ................................................................................................................................................................. 14
Labels ................................................................................................................................................................... 15
3 Illustrated parts catalog .............................................................................................................................. 17
Computer major components .............................................................................................................................. 17
Display assembly subcomponents ...................................................................................................................... 20
Cables ................................................................................................................................................................... 21
Mass storage devices ........................................................................................................................................... 22
Miscellaneous parts ............................................................................................................................................. 23
4 Removal and replacement procedures preliminary requirements .................................................................... 25
Tools required ...................................................................................................................................................... 25
Service considerations ......................................................................................................................................... 25
Plastic parts ....................................................................................................................................... 25
Cables and connectors ...................................................................................................................... 25
Drive handling ................................................................................................................................... 26
Grounding guidelines ........................................................................................................................................... 26
Electrostatic discharge damage ........................................................................................................ 26
Packaging and transporting guidelines .......................................................................... 27
Workstation guidelines ................................................................................ 27
5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 29
Component replacement procedures .................................................................................................................. 29
Battery ............................................................................................................................................... 30
v

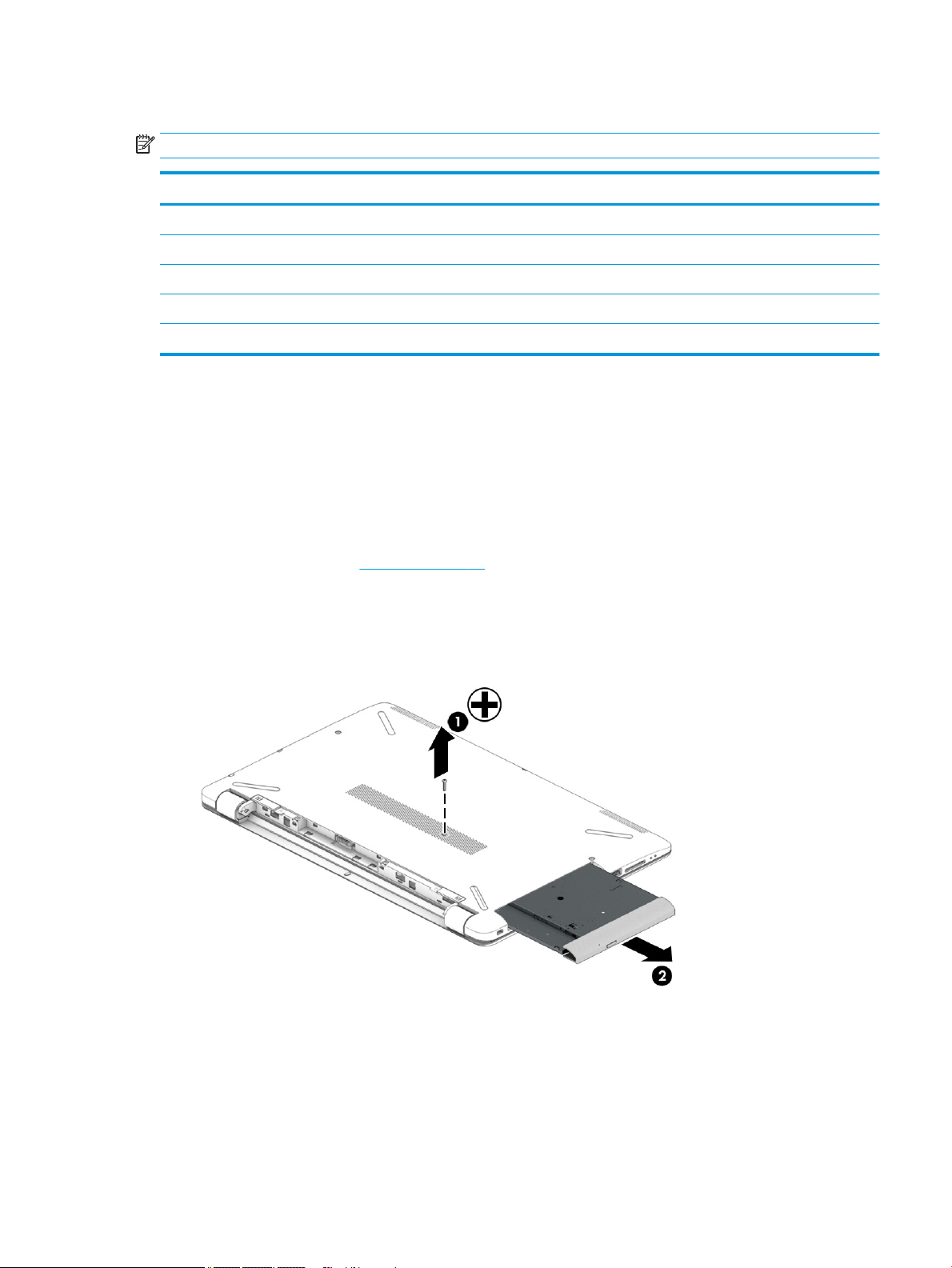

Optical drive ....................................................................................................................................... 31
6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 33
Component replacement procedures .................................................................................................................. 33
Display subcomponents (bezel, panel, camera) ............................................................................... 33
Rubber feet ........................................................................................................................................ 37
Bottom cover ..................................................................................................................................... 38
WLAN module .................................................................................................................................... 41
Memory module ................................................................................................................................ 43

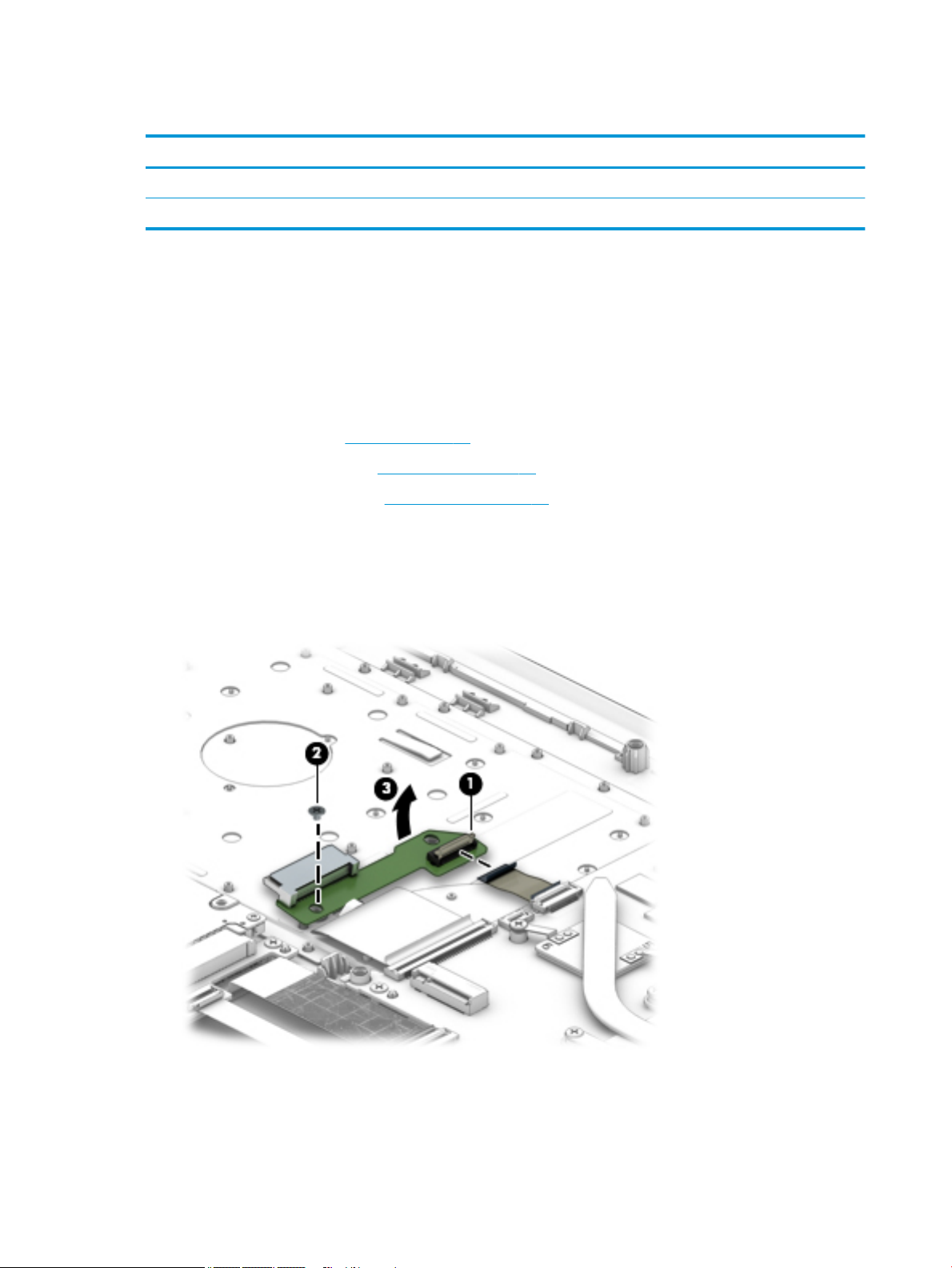

Optical drive connector board ........................................................................................................... 44
Hard drive and hard drive connector board ...................................................................................... 45
M.2 solid-state drive adapter bracket and connector board ............................................................ 48
Solid-state drive (SSD) ...................................................................................................................... 50
RTC battery ........................................................................................................................................ 51
Speakers ............................................................................................................................................ 52
USB board .......................................................................................................................................... 53
Fan ..................................................................................................................................................... 54
Heat sink assembly ........................................................................................................................... 56
TouchPad button board ..................................................................................................................... 60
System board .................................................................................................................................... 61
Display assembly ............................................................................................................................... 63
Power connector cable ...................................................................................................................... 73
Power button board .......................................................................................................................... 74
Cable locations .................................................................................................................................. 75
Top cover/keyboard ........................................................................................................................... 76
7 Using Setup Utility (BIOS) ............................................................................................................................. 77
Starting Setup Utility (BIOS) ................................................................................................................................ 77
Updating Setup Utility (BIOS) .............................................................................................................................. 77
Determining the BIOS version ........................................................................................................... 77
Downloading a BIOS update .............................................................................................................. 78
8 Backing up, restoring, and recovering ........................................................................................................... 79
Creating recovery media and backups ................................................................................................................ 79
Creating HP Recovery media (select products only) ......................................................................... 79
Using Windows tools ........................................................................................................................................... 80
Restore and recovery ........................................................................................................................................... 81
Recovering using HP Recovery Manager ........................................................................................... 81
What you need to know before you get started ............................................................. 81
Using the HP Recovery partition (select products only) ................................................. 82
vi
Using HP Recovery media to recover .............................................................................. 82
Changing the computer boot order ................................................................................ 83
Removing the HP Recovery partition (select products only) ......................................... 84
9 Using HP PC Hardware Diagnostics (UEFI) ....................................................................................................... 85
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................... 85
10 Specications ............................................................................................................................................ 87
Computer specications ...................................................................................................................................... 87
39.6-cm (15.6-in) display specications ............................................................................................................. 88
Hard drive specications ..................................................................................................................................... 89
M.2 solid-state drive specications .................................................................................................................... 90
DVD±RW SuperMulti DL Drive specications ....................................................................................................... 91
11 Statement of memory volatility .................................................................................................................. 93
Nonvolatile memory usage ................................................................................................................................. 95
Questions and answers ....................................................................................................................................... 97
Using HP Sure Start (select models only) ............................................................................................................ 98
12 Power cord set requirements ...................................................................................................................... 99
Requirements for all countries ............................................................................................................................ 99
Requirements for specic countries and regions ............................................................................................. 100
13 Recycling ................................................................................................................................................ 103
Index ........................................................................................................................................................... 105
vii
viii

1 Product description

Category Description
Product name HP HP 255 G6 Notebook PC
Processor AMD Dual-Core processor
A6-9220 (2.5-GHz, turbo up to 2.9 GHz, 2133-MHz/1-MB L2 cache)
E2-9000e (1.5-GHz, turbo up to 2.0 GHz, 1866-MHz/1-MB L2 cache)
Graphics Internal graphics
AMD Radeon™ R4 Graphics
AMD Radeon R2 Graphics
Support HD Decode, DX12, and HDMI
Panel 39.6-cm (15.6-in), high-denition (HD), white light-emitting diode (WLED), SVA, anti glare (1366×768)
display, slim 3.2 mm, eDP; typical brightness: 220 nits
39.6-cm (15.6-in), full high-denition (FHD), white light-emitting diode (WLED), SVA, anti glare (1920×1080) display, slim 3.2 mm, eDP; typical brightness: 220 nits
Memory Two non-customer-accessible/upgradable memory module slots (Intel Core processors)
DDR4-1866 dual channel support (DDR4-2400 bridge to DDR4-1866)
Supports up to 8 GB of system RAM in the following congurations:
8192-MB total system memory (8192×1)
6144-MB total system memory (4096×1) + (2048×1)
4096-MB total system memory (4096×1)
Hard drives Supports 6.35-cm (2.5-in) SATA hard drives in 9.5-mm (.37-in) and 7.2-mm (.28-in) thicknesses
Support for m.2 SATA SSD
Single hard drive congurations:
1-TB, 5400 rpm, 9.5 mm or 7.2 mm
500-GB, 5400 rpm, 7.0-mm
eMMC congurations:
128 GB
M.2 SATA-3 congurations (Value):
256 GB
128 GB
M.2 SATA-3 congurations (TLC):
256 GB
128 GB
Optical drive Fixed, serial ATA, 9.0-mm tray load
DVD+/-RW Double-Layer writer
1
Category Description
Supports zero power optical drive
Supports M-disc
Supports conguration without optical drive
Camera
Mic
Audio Dual speakers
Ethernet Integrated 10/100/1000 network interface card (NIC)
Wireless Network Integrated wireless options with dual antennas (M.2/PCIe):
External media card HP Multi-Format Digital Media Reader
Internal Card One M.2 slot for SSD
Ports VGA (Dsub 15 pin) supporting 1920 ×1200 @ 60Hz
HP TrueVision HD camera - activity LED, USB 2.0, HD BSI sensor, f2.0, 720p by 30 frames per second
HP Camera – VGA camera, indicator LED, USB 2.0, f2.4, 480p by 30 frames per second
Single digital microphone
HP Audio Control
Compatible with Miracast-certied devices
Support for the following WLAN format:
Intel Dual Band Wireless-AC 3168 802.11 ac 1x1 WiFi + BT 4.2 Combo (non-vPro)
Support SD/SDHC/SDXC
Push-pull insertion/removal
One M.2 slot for WLAN
Hot Plug/unplug and auto detect for correct output to wide-aspect vs. standard aspect video
HDMI version 1.4b supporting 1920 ×1080 @ 60Hz
RJ-45 (Ethernet)
USB 3.0 (2 ports; left side)
USB 2.0 (1 right side)
AC Smart Pin adapter plug
Headphone/line out and microphone/line in combo jack
Keyboard/pointing devices
Power AC adapters
2 Chapter 1 Product description
Full-size textured, island style keyboard with numeric keypad
TouchPad with multi-touch gestures enabled
TouchPad taps enabled by default
TouchPad supports Modern Trackpad Gestures
65-W
45-W
1 meter power cord
Batteries
4-cell, 41-Whr Li-ion battery
Category Description
3-cell, 31-Whr Li-ion battery
Security fTPM 2.0
Kensington Security Lock
Operating system Preinstalled
Windows 10
Windows 10 Professional
For Developed Market (ML):
Windows 10 Home ML
Windows 10 Home Plus ML
Windows 10 Pro StF MSNA Standard
For Emerging Market (EM/SL):
Windows 10 Home EM/SL
Windows 10 Home Plus EM/SL
Windows 10 Pro StF MSNA Value (EM)
For China Market:
FreeDOS 2.0
Service End-user replaceable parts
AC adapter
Battery
Optical drive
3
4 Chapter 1 Product description

2 Components

Right

Component Description
(1) Power light
(2) Drive light
(3) Memory card reader Reads optional memory cards that store, manage, share, or
(4) USB 2.0 port Connects a USB device, such as a cell phone, camera, activity
On: The computer is on.
Blinking: The computer is in the Sleep state, a power­saving state. The computer shuts o power to the display and other unneeded components.
O: The computer is o or in Hibernation. Hibernation is a power-saving state that uses the least amount of power.
Blinking white: The hard drive is being accessed.
access information.
To insert a card:
1. Hold the card label-side up, with the connectors facing the
computer.
2. Insert the card into the memory card reader, and then
press in on the card until it is rmly seated.
To remove a card:
Pull the card out of the memory card reader.
tracker, or smartwatch, and provides data transfer.
(5) Optical drive (select products only) Depending on your computer model, reads an optical disc or
reads and writes to an optical disc.
(6) Optical drive eject button (select products only) Releases the optical drive disc tray.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
Right 5

Left

Component Description
(1) Power connector Connects an AC adapter.
(2) Battery light When AC power is connected:
White: The battery charge is greater than 90 percent.
Amber: The battery charge is from 0 to 90 percent.
O: The battery is not charging.
When AC power is disconnected (battery not charging):
Blinking amber: The battery has reached a low battery level. When the battery has reached a critical battery level, the battery light begins blinking rapidly.
O: The battery is not charging.
(3) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and o during routine operation.
(4) External monitor port Connects an external VGA monitor or projector.
(5) RJ-45 (network) jack/status lights Connects a network cable.
White (left): The network is connected.
Amber (right): Activity is occurring on the network.
(6) HDMI port Connects an optional video or audio device, such as a high-
denition television, any compatible digital or audio
component, or a high-speed High Denition Multimedia Interface (HDMI) device.
(7) USB 3.x SuperSpeed ports (2) Connect a USB device, such as a cell phone, camera, activity
tracker, or smartwatch, and provides high-speed data transfer.
(8) Audio-out (headphone)/Audio-in (microphone)
combo jack
Connects optional powered stereo speakers, headphones, earbuds, a headset, or a television audio cable. Also connects an optional headset microphone. This jack does not support optional standalone microphones.
6 Chapter 2 Components
Component Description
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety, and Environmental Notices.
To access this guide:
1. Type support in the taskbar search box, and then select
the HP Support Assistant app.
or –
Click the question mark icon in the taskbar.
2. Select My PC, select the Specications tab, and then
select User Guides.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
Left 7

Display

Component Description
(1) WLAN antennas* Send and receive wireless signals to communicate with wireless
local area networks (WLANs).
(2) Camera light On: The camera is in use.
(3) Camera Records video and captures photographs. Some models allow
you to video conference and chat online using streaming video.
To use the camera:
Type camera in the taskbar search box, and then select
Camera.
(4) Internal microphone Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region.
To access this guide:
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
or –
Click the question mark icon in the taskbar.
2. Select My PC, select the Specications tab, and then select User Guides.
8 Chapter 2 Components

Keyboard area

TouchPad

Component Description
(1) TouchPad zone Reads your nger gestures to move the pointer or activate
items on the screen.
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
Keyboard area 9

Lights

Component Description
(1) Caps lock light On: Caps lock is on, which switches the key input to all capital
letters.
(2) Mute light
Amber: Computer sound is o.
O: Computer sound is on.
10 Chapter 2 Components

Button

Component Description
Power button
When the computer is o, press the button to turn on the computer.
When the computer is on, press the button briey to initiate Sleep.
When the computer is in the Sleep state, press the button briey to exit Sleep.
When the computer is in Hibernation, press the button briey to exit Hibernation.
CAUTION: Pressing and holding down the power button results in the
loss of unsaved information.
If the computer has stopped responding and shutdown procedures are ineective, press and hold the power button for at least 5 seconds to turn o the computer.
To learn more about your power settings, see your power options.
Type power options in the taskbar search box, and then
select Power Options.
or –
Right-click the Power meter icon and then select Power
Options.
Keyboard area 11

Special keys

Component Description
(1) esc key Displays system information when pressed in combination with
(2) fn key Executes frequently used system functions when pressed in
the fn key.
combination with another key. Such key combinations are called hot keys.
(3) Windows key Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start
menu.
(4) Action keys Execute frequently used system functions.
See Action keys on page 13.
(5) num lk key Turns the embedded numeric keypad on and o.
(6) Integrated numeric keypad A separate keypad to the right of the alphabet keyboard. When
num lk is pressed, the integrated keypad can be used like an
external numeric keypad.
NOTE: If the keypad function is active when the computer is
turned o, that function is reinstated when the computer is turned back on.
12 Chapter 2 Components

Action keys

An action key performs the function indicated by the icon on the key. To determine which keys are on your product, see Special keys on page 12.
Icon Description
To use an action key, press and hold the key.
Opens Help and Support, which provides tutorials, information about the Windows operating system and your computer, answers to questions, and updates to your computer.
Help and Support also provides automated troubleshooting tools and access to support.
Decreases the screen brightness incrementally as long as you hold down the key.
Increases the screen brightness incrementally as long as you hold down the key.
Switches the screen image among display devices connected to the system. For example, if a monitor is connected to the computer, repeatedly pressing the key alternates the screen image from computer display to monitor display to simultaneous display on both the computer and monitor.
Turns the keyboard backlight o or on.
NOTE: To conserve battery power, turn o this feature.
Mutes or restores speaker sound.
Decreases speaker volume incrementally while you hold down the key.
Increases speaker volume incrementally while you hold down the key.
Plays the previous track of an audio CD or the previous section of a DVD or a Blu-ray Disc (BD).
Starts, pauses, or resumes playback of an audio CD, a DVD, or a BD.
Plays the next track of an audio CD or the next section of a DVD or a BD.
Turns the airplane mode and wireless feature on or o.
NOTE: The airplane mode key is also referred to as the wireless button.
NOTE: A wireless network must be set up before a wireless connection is possible.
NOTE: The action key feature is enabled at the factory. You can disable this feature by pressing and holding
the fn key and the left shift key. The fn lock light will turn on. After you have disabled the action key feature, you can still perform each function by pressing the fn key in combination with the appropriate action key.
Keyboard area 13

Bottom

Component Description
(1) Battery lock Locks the battery in the battery bay.
(2) Battery bay Holds the battery.
(3) Battery release latch Releases the battery.
(4) Speakers (2) Produce sound.
(5) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and o during routine operation.
14 Chapter 2 Components

Labels

The labels axed to the computer provide information you may need when you troubleshoot system problems or travel internationally with the computer.
IMPORTANT: Check the following locations for the labels described in this section: the bottom of the
computer, inside the battery bay, under the service door, or on the back of the display.
Service label—Provides important information to identify your computer. When contacting support, you will probably be asked for the serial number, and possibly for the product number or the model number. Locate these numbers before you contact support.
Your service label will resemble one of the examples shown below. Refer to the illustration that most closely matches the service label on your computer.
Component
(1) Serial number
(2) Product number
(3) Warranty period
(4) Model number (select products only)
Component
(1) Model name (select products only)
(2) Product number
(3) Serial number
(4) Warranty period
Regulatory label(s)—Provide(s) regulatory information about the computer.
Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval markings for the countries or regions in which the devices have been approved for use.
Labels 15
16 Chapter 2 Components

3 Illustrated parts catalog

Computer major components

NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.
Computer major components 17
Item Component Spare part
number
(1) Display assembly
NOTE: For display assembly spare part information, see Display assembly subcomponents
on page 20.
(2) Top cover/keyboard
NOTE: For a detailed list of keyboard country codes, see Top cover/keyboard on page 76.
Asteroid silver models with no backlight 929904-xxx
Dark ash silver models with no backlight 929906-xxx
(3) RTC battery 922847-001
(4) TouchPad button board 924993-001
(5) Power button board 924994-001
(6) Solid-state drive, M.2
256 GB 926271-001
128 GB 926270-001
(7) Power connector cable 931613-001
(8) USB board 924991-001
Heat sink assembly (includes replacement thermal materials)
(9) For use in models with UMA graphics and AMD dual core, 6 W processors 925019-001
not spared
(10) For use in models with UMA graphics and AMD dual core, 15 W processors 925020-001
(11) For use in models with UMA graphics memory and AMD quad core processors 925017-001
(11) For use in models with discrete graphics memory and AMD dual core processors 925021-001
For use in models with discrete graphics memory and AMD quad core processors 925018-001
(12) Fan 925012-001
(13) Memory module (DDR4-2400)
8-GB 862398-855
4 GB 862397-855
2 GB 864271-855
(14) WLAN module
Intel Dual Band Wireless-AC 3168 802.11 ac 1x1 WiFi + BT 4.2 Combo Adapter 863934-855
(15) Hard drive connector board 924995-001
(16) Optical drive connector board 924990-001
(17) Optical drive (DVD+/-RW Double-Layer SuperMulti) 920420-004
(18) Hard drive bracket 924980-001
(19) Hard drive, 2.5 inch (does not include bracket, connector board, or cable)
1-TB, 5400-rpm 778192-005
18 Chapter 3 Illustrated parts catalog
Item Component Spare part
number
(20) Solid-state drive board 924992-001
(21) Solid-state drive bracket 924981-001
(22) System board (includes replacement thermal materials)
AMD A6-9220P processor 926268-xx1
AMD E2-9000e processor 926269-xx1
(23) Speakers (includes left and right speakers and cable) 925306-001
(24) Battery
4-cell, 41-Whr, 2.8-Ah Li-ion battery 919701-850
3-cell, 31-Whr, 2.8-Ah Li-ion battery 919700-850
(25) Rubber Kit (includes upper feet)
Asteroid silver 931599-001
500-GB, 7200-rpm 703267-005
500-GB, 5400-rpm 778186-005
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating systems
xxxxxx-601: Windows 10 operating system
Dark ash silver 931600-001
(26) Rubber Kit (includes lower feet)
Asteroid silver 931601-001
Dark ash silver 931602-001
(27) Bottom cover
For use in models with an optical drive:
For use in models without an optical drive:
Asteroid silver 929894-001
Dark ash silver 929895-001
Dark ash silver 929897-001
Computer major components 19

Display assembly subcomponents

Item Component Spare part number
(1) Display bezel 924925-001
(2) Camera/microphone module
HD 919475-003
VGA 919476-003
(3) Raw display panel (39.6-cm [15.6-in])
FHD 850475-004
HD 850477-004

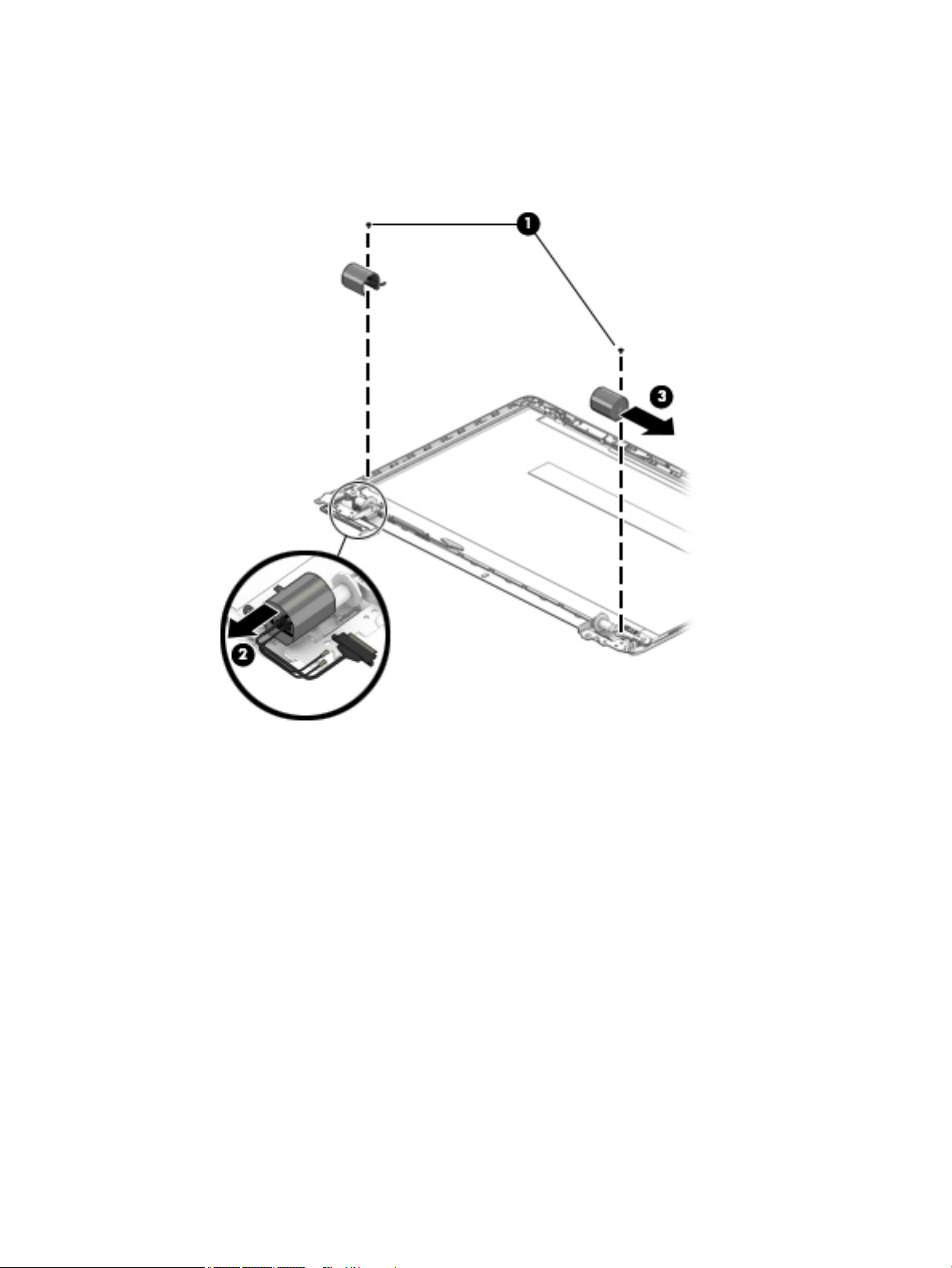

(4) Hinge cover
Left, asteroid silver 929900-001
Right, asteroid silver 929901-001
Left, dark ash silver 929902-001
20 Chapter 3 Illustrated parts catalog

Cables

Item Component Spare part number
Right, dark ash silver 929903-001
(5) Hinge Kit (left and right) 925297-001

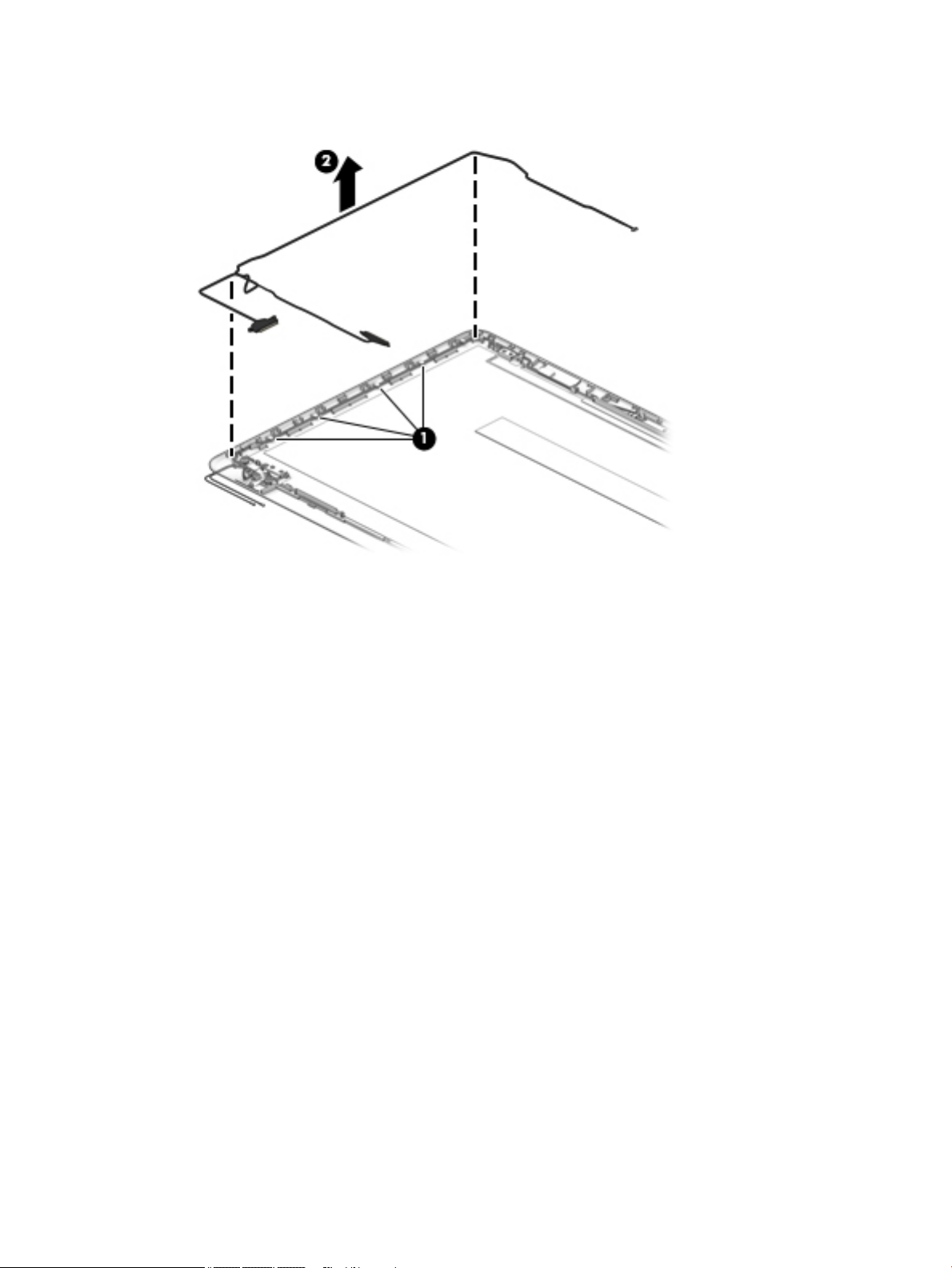

(6) Antenna (includes wireless antenna cable and transceiver) 925032-001
(7) Display cable (includes display panel cable and camera/microphone cable) 924930-001
(8) Display enclosure:
Asteroid silver 929892-001
Dark ash silver 929893-001
Item Component Spare part number
(1) Hard drive connector board cable 924927-001
(2) TouchPad button board cable 924934-001
(3) TouchPad cable 924928-001
(4) USB board cable 924929-001
(5) Power button board cable 924933-001
(6) Optical drive connector board cable 924926-001
Cables 21

Mass storage devices

Item Component Spare part number
(1) Optical drive (DVD+/-RW Double-Layer SuperMulti) 920420-004
Optical drive bezel
Asteroid silver 929898-001
Dark ash silver 929899-001
(2) Optical drive bracket 924979-001
(3) Solid-state drive, M.2
256 GB 926271-001
128 GB 926270-001
(4) Hard drive, SATA; does not include brackets, connector board, or cable):
1-TB, 5400-rpm 778192-005
500-GB, 7200-rpm 703267-005
500-GB, 5400-rpm 778186-005
(5) Hard drive bracket 924980-001
22 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Component Spare part number
HP Smart AC adapter (4.5 mm, non-PFC)
45-W 741727-001
Power cord (3-pin, black, 1.0-m; Longwell):
For use in Denmark 920688-007
For use in Europe 920688-005
For use in India 920688-016
For use in Israel 920688-008
For use in Japan 920688-017
For use in North America 920688-001
For use in South Africa 920688-010
For use in South Korea 920688-013
For use in Switzerland 920688-009
For use in the United Kingdom and Singapore 920688-006
Essential top load case 679921-001
Miscellaneous parts 23
24 Chapter 3 Illustrated parts catalog
4 Removal and replacement procedures
preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:
Flat-bladed screwdriver
Magnetic screwdriver
Phillips P0 and P1 screwdrivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the
reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear easily.
Tools required 25

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by dierent activities.
CAUTION: A product can be degraded by as little as 700 V.
26 Chapter 4 Removal and replacement procedures preliminary requirements
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
Typical electrostatic voltage levels
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a component or assembly.
Store reusable ESD-sensitive parts from assemblies in protective packaging or non-conductive foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
Use conductive eld service tools, such as cutters, screwdrivers, and vacuums.
When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn o power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines 27
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
Antistatic smocks, aprons, and sleeve protectors
Conductive bins and other assembly or soldering aids
Nonconductive foam
Conductive tabletop workstations with ground cords of one megohm resistance
Static-dissipative tables or oor mats with hard ties to the ground
Field service kits
eective, the conductive must be worn in contact with the skin.
Static awareness labels
Material-handling packages
Nonconductive plastic bags, tubes, or boxes
Metal tote boxes
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
28 Chapter 4 Removal and replacement procedures preliminary requirements
5 Removal and replacement procedures for
Customer Self-Repair parts
CAUTION: The Customer Self-Repair program is not available in all locations. Installing a part not supported
by the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer Self-Repair is supported in your location.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.

Component replacement procedures

NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair
parts successfully.
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Labels on page 15 for details.
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
There are as many as 3 screws that must be removed, replaced, or loosened when servicing Customer Self­Repair parts. Make special note of each screw size and location during removal and replacement.
Component replacement procedures 29

Battery

Description Spare part number
4-cell, 41-Whr, 2.8-Ah Li-ion battery 919701-850
3-cell, 31-Whr, 2.8-Ah Li-ion battery 919700-850
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
To remove the battery:
1. Position the computer upside down on a at surface.
2. Slide the battery lock latch (1) to unlock the battery, and then slide the battery release latch (2) to
release the battery.
NOTE: The battery release latch automatically returns to its original position.
3. Remove the battery (3) from the computer.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Optical drive

NOTE: Optical drive spare part kits include bracket and bezel.
Description Spare part number
DVD+/-RW Double-Layer SuperMulti Drive 920420-004
Optical drive bracket 924979-001
Optical drive bezel
Asteroid silver 929898-001
Dark ash silver 929899-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
To remove the optical drive:
1. Remove the Phillips PM2.5×11.0 screw (1) that secures the optical drive to the computer.
2. Remove the optical drive (2) by sliding it out of the optical drive bay.
Component replacement procedures 31
3. If it is necessary to remove the optical drive bezel, insert a paper clip into the release hole (1) to
disengage the bezel. Press the tab (2) to release the bezel from the drive. Rotate the side of the bezel (3), and the remove it (4).
4. If it is necessary to replace the bracket on the rear of the optical drive, remove the Phillips PM2.0×2.5
screw (1) that secures the bracket to the drive, and then remove the bracket (2).
Reverse this procedure to reassemble and install the optical drive.
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
6 Removal and replacement procedures for
Authorized Service Provider parts
CAUTION: Components described in this chapter should only be accessed by an authorized service provider.
Accessing these parts can damage the computer or void the warranty.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Labels on page 15 for details.
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
There are as many as 54 screws that must be removed, replaced, or loosened when servicing Authorized Service Provider only parts. Make special note of each screw size and location during removal and replacement.

Display subcomponents (bezel, panel, camera)

NOTE: Display assemblies are spared at the subcomponent level only.
This section illustrates how to remove the display bezel, display panel, and camera module without removing the display from the computer. The Display assembly on page 63 section illustrates removing all display subcomponents.
To remove the display assembly subcomponents, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
Remove the display assembly subcomponents:
1. Open the computer as far as it will open.
2. To remove the display bezel:
a. Flex the inside of the top edge (1), the left and right edges (2), and the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
NOTE: When removing the bezel from the bottom of the display (3), be careful not to peel the
Mylar from the bottom of the display panel.
Component replacement procedures 33
b. Remove the display bezel (4).
3. To remove the camera/microphone module:
a. Position the display assembly with the top edge toward you.
b. Pry up to disengage the camera/microphone module from the adhesive that secures it to the
display (1).
c. Disconnect the cable (2) from the module.
d. Remove the tape from the enclosure (3). Replacement cameras come with tape already installed.
34 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the top of the
enclosure.
b. Remove the two Phillips PM2.0×3.0 screws (2) that secure the display panel to the bottom of the
enclosure.
c. Lift the hinges up and move aside enough to be able to rotate the panel up and over (3).
d. Rotate the display panel onto the keyboard (4) to gain access to the display cable connection on
the back of the panel.
e. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
Component replacement procedures 35
f. Remove the display panel from the computer (2).
Reverse this procedure to reassemble and install the display assembly components.
36 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Rubber feet

Description Spare part number
Rubber feet, upper
Asteroid silver 931599-001
Dark ash silver 931600-001
Rubber feet, lower
Asteroid silver 931601-001
Dark ash silver 931602-001
Before removing the rubber feet, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
To remove the rubber feet:
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
Peel the lower rubber feet (1) and upper rubber feet (2) from the bottom of the computer.
NOTE: The lower feet and upper feet are dierent sizes.
Reverse this procedure to install the rubber feet.
Component replacement procedures 37

Bottom cover

Description Spare part number
Bottom cover for use in models with an optical drive:
Asteroid silver 929894-001
Dark ash silver 929895-001
Bottom cover for use in models without an optical drive:
Dark ash silver 929897-001
Before removing the bottom cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
To remove the bottom cover:
1. Position the computer upside down with the front toward you.
2. Peel back the rubber feet enough to access the screws underneath (1)
38 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
3. Remove the 9 Phillips PM2.5×11.0 screws (2) that secure the bottom cover to the computer.
Component replacement procedures 39
4. Start prying at the front of the computer and work around to the back to separate the bottom cover
from computer (1), and then remove the bottom cover (2).
Reverse this procedure to install the bottom cover.
40 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

WLAN module

Description Spare part number
Intel Dual Band Wireless-AC 3168 802.11 ac 1x1 WiFi + BT 4.2 Combo Adapter 863934-855
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact support.
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.
The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2” (if applicable).
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board. (The
WLAN module tilts up.)
Component replacement procedures 41
3. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
42 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Memory module

Description Spare part number
Memory module (PC4-2400)
8-GB 862398-855
4-GB 862397-855
2-GB 864271-855
Before removing a memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove a memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The memory module tilts up.)
2. Remove the memory module (2) by pulling it away from the slot at an angle.
Reverse this procedure to install a memory module.
Component replacement procedures 43

Optical drive connector board

Description Spare part number
Optical drive connector board 924990-001
Optical drive cable 924926-001
Before removing the optical drive connector board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the optical drive connector board:
1. Disconnect the cable from the optical drive connector board (1).
2. Remove the Phillips PM2.0×2.0 screw (2) that secures the optical drive connector board to the computer.
3. Rotate the connector side of the board upward, and then pull the board up and out of the computer (3).
Reverse this procedure to install the optical drive board connector.
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Hard drive and hard drive connector board

NOTE: The hard drive spare part kit does not include the hard drive bracket, cable, or connector board.
Description Spare part number
Hard drives:
1-TB, 5400-rpm 778192-005
500-GB, 7200-rpm 703267-005
500-GB, 5400-rpm 778186-005
Hard drive bracket 924980-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the hard drive:
1. Remove the Phillips PM2.0×3.0 screw (1) that secures the hard drive assembly to the computer.
2. Lift the rear of the hard drive upward (2).
Component replacement procedures 45
3. Pull the hard drive assembly away from connector to remove it (3).
4. To remove the hard drive bracket, remove the two Phillips PM3.0×3.0 screws (1) that secure the bracket
to the hard drive.
5. Remove the hard drive bracket from the hard drive (2).
6. To remove the hard drive connector board, disconnect the cable from the board (1).
7. Remove the two Phillips PM2.0×3.0 screws (2) that secure the hard drive board to the computer.
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
8. Remove the hard drive board from the computer (3).
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 47

M.2 solid-state drive adapter bracket and connector board

NOTE: You can install an M.2 solid-state drive into the hard drive bay using an adapter bracket and
connector board.
Description Spare part number
Solid-state drive board 924992-001
Solid-state drive bracket 924981-001
Before removing the solid-state drive adapter bracket and connector board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the solid-state drive adapter bracket and connector board:
1. Disconnect the cable from the connector board (1).
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the connector board to the computer.
3. Lift the connector board out of the computer (3).
4. Remove the Phillips PM2.0×3.0 screw (4) that secures the adapter bracket to the computer.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
5. Lift the adapter bracket out of the computer (5)
Reverse this procedure to reassemble and install the solid-state drive adapter bracket and connector board.
Component replacement procedures 49

Solid-state drive (SSD)

Description Spare part number
256 GB 926271-001
128 GB 926270-001
Before removing the solid-state drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
Remove the solid-state drive:
1. Remove the Phillips PM2.0×2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to reassemble and install the solid-state drive.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

RTC battery

Description Spare part number
RTC battery 922847-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the RTC battery:
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
Using a thin tool or screwdriver, disengage the battery from the socket (1), and then remove the battery (2).
Reverse this procedure to install the RTC battery.
Component replacement procedures 51

Speakers

Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the cable from its routing path along the bottom of the computer (2), and then lift up and
Description Spare part number
Speakers (includes left and right speakers and cable) 925306-001
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
remove the speakers from the computer (3).
NOTE: The speakers are not secured with screws. Note the rubber gaskets (4) that help secure the
speakers to the computer. When installing the speakers, make sure the gaskets are installed correctly.
Reverse this procedure to install the speakers.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

USB board

Description Spare part number
USB board 924991-001
USB board cable 924929-001
Before removing the USB board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
7. Remove the speakers (see Speakers on page 52).
To remove the USB board:
computer on, and then shut it down through the operating system.
unplugging the AC adapter from the computer.
1. Disconnect the USB board cable from the USB board (1).
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the USB board to the computer.
3. Remove the USB board (3).
Reverse this procedure to install the USB board.
Component replacement procedures 53
Fan
Description Spare part number
Fan 925012-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3.0 in) of clearance on the left side of the
computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are aected by high external temperatures, system power consumption, power management/battery conservation congurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the fan/heat sink assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the fan:
1. Lift the cables (antenna, display, power connector) from atop the screw (1).
2. Disconnect the fan cable (2) from the system board.
3. Remove the Phillips PM2.5×6.5 screw (3) that secures the fan to the computer.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
4. Remove the fan from the computer (4).
Reverse this procedure to install the fan.
Component replacement procedures 55

Heat sink assembly

NOTE: The heat sink assembly spare part kit includes replacement thermal materials.
Description Spare part number
Heat sink for use in models with UMA graphics and AMD dual core, 6 W processors 925019-001
Heat sink for use in models with UMA graphics and AMD dual core, 15 W processors 925020-001
Heat sink for use in models with UMA graphics memory and AMD quad core processors 925017-001
Heat sink for use in models with discrete graphics memory and AMD dual core processors 925021-001
Heat sink for use in models with discrete graphics memory and AMD quad core processors 925018-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3.0 in) of clearance on the left side of the
computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are aected by high external temperatures, system power consumption, power management/battery conservation congurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the heat sink assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the heat sink assembly:
1. Refer to the following heat sink removal image that matches your computer.
2. In the order indicated on the heat sink, remove the screws that secure the heat sink assembly to the
system board.
3. Remove the heat sink assembly from the system board.
NOTE: Heat sink appearance may vary.
Discrete graphics
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Discrete graphics Thermal paste is used on the processor and associated heat sink area (1)(2), as well as the graphics chip and associated heat sink area (3)(4).
4. UMA graphics
Component replacement procedures 57
UMA graphics Thermal paste is used on the heat sink (1) and the processor (2).
5. UMA graphics (fanless)
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
UMA graphics (fanless) Thermal paste is used on the heat sink (1) and the processor (2).
Reverse this procedure to reassemble and install the heat sink assembly.
Component replacement procedures 59

TouchPad button board

Description Spare part number
TouchPad button board 924993-001
TouchPad button board cable 924934-001
TouchPad cable 924928-001
Before removing the TouchPad button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
To remove the TouchPad button board:
1. Disconnect the system board cable (1) and the TouchPad cable from the TouchPad button board (2).
2. Remove the two Phillips PM2.0×3.0 screws (3) that secure the TouchPad button board to the computer.
3. Pull the TouchPad button board toward the bottom of the computer, and then remove the TouchPad
button board (4).
Reverse this procedure to install the TouchPad button board.
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

System board

NOTE: The system board spare part kit includes replacement thermal materials.
Description Spare part number
System board (includes replacement thermal materials):
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating systems
xxxxxx-601: Windows 10 operating system
AMD A6-9220P processor 926268-xx1
AMD E2-9000e processor 926269-xx1
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
7. Remove the WLAN module (see WLAN module on page 41).
8. Remove the memory module (see Memory module on page 43).
9. Remove the solid-state drive (see Solid-state drive (SSD) on page 50).
To remove the system board:
1. Position the computer upright, and then disconnect the following cables from the system board:
(1): Power connector cable
(2): Display cable
(3): Power button board cable
(4): Speaker cable
(5): TouchPad cable
(6): Hard drive connector cable
(7): USB board cable
(8): Keyboard cable
(9): Optical drive board cable
Component replacement procedures 61
2. Remove the six Phillips PM2.0×3.0 screws (1) that secure the system board to the computer.
3. Rotate the side of the board upward (2), and then lift the system board out of the computer (3).
Reverse this procedure to install the system board.
62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly

This section describes removing the display assembly and disassembling display subcomponents. You must remove the display from the computer to disassemble display subcomponents.
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
7. Remove the fan (see Fan on page 54).
To remove the display assembly:
1. Disconnect the display panel cable from the system board (1).
2. Disconnect the wireless antennas from the WLAN module (2).
3. Remove the four Phillips PM2.5×6.0 screws (3) (two from each hinge) and one broadhead Phillips
PM2.0×2.0 screw (4) (on the left hinge) that secures the display assembly to the computer.
4. Lift the display to bend the hinges upward (5).
Component replacement procedures 63
5. Separate the display from the computer (6).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel:
a. Flex the inside of the top edge (1), the left and right edges (2), and the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
NOTE: When removing the bezel from the bottom of the display (3), be careful not to peel the
Mylar from the bottom of the display panel.
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
b. Remove the display bezel (4).
NOTE: The display will not be connected to the computer as shown in the following image.
2. To remove the camera/microphone module:
a. Position the display assembly with the top edge toward you.
b. Pry up to disengage the camera/microphone module from the adhesive that secures it to the
display (1).
c. Disconnect the cable (2) from the module.
Component replacement procedures 65
d. Remove the tape from the enclosure (3). Replacement cameras come with tape already installed.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the top of the
enclosure.
b. Remove the two Phillips PM2.0×3.0 screws (2) that secure the display panel to the bottom of the
enclosure.
c. Lift the hinges up and move aside enough to be able to rotate the panel up and over (3).
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
d. Rotate the display panel onto the keyboard (4) to gain access to the display cable connection on
the back of the panel.
NOTE: The display will not be connected to the computer as shown in the following image.
e. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
f. Remove the display panel from the computer (2).
NOTE: The display will not be connected to the computer as shown in the following image.
4. To remove the display hinges:
Component replacement procedures 67
a. Remove the Phillips PM2.0×3.0 screw (1) that secures each hinge cover to the display enclosure.
b. Slide the left hinge cover toward the left and remove while threading the cable through the hinge
cover (2).
c. Slide the right hinge cover toward the right to remove (3).
d. Remove the two broadhead Phillips PM2.5×2.5 screws (1) and the broadhead PM2.5×3.0 screw (2)
that secure each hinge to the bottom of the display enclosure.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
e. Remove the display hinges (3).
Component replacement procedures 69
5. To remove the wireless antennas an cables, release the cables from the clips built into the side of the
display enclosure (1), and then remove the antennas and cables (2).
When installing the antennas, use the following image to determine correct installation locations at the top of the display enclosure.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
6. To remove the display/camera cable, remove the cable from the clips built into the side of the display
enclosure (1), and then remove the cable from the display enclosure (2).
Component replacement procedures 71
7. Use the following image to determine proper cable routing around the left hinge for the camera/display
cable and the wireless antenna cables.
(1): Camera cable routing path
(2): Display/camera cable routing path
(3): Antenna cable routing path
8. If replacing the display enclosure, be sure that the subcomponents (including the camera/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new enclosure.
Reverse this procedure to reassemble and install the display assembly.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power connector cable

Description Spare part number
Power connector cable 931613-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
7. Remove the display (see Display assembly on page 63).
To remove the power connector cable:
1. Disconnect the power connector cable from the system board (1).
2. Remove the cable from its routing path in the computer (2).
3. Use a tool to pry the connector out of the computer (3), and then remove the power connector cable (4).
Reverse this procedure to install the power connector cable.
Component replacement procedures 73

Power button board

Description Spare part number
Power button board 924994-001
Power button board cable 924933-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 30).
5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 38).
7. Remove the display (see Display assembly on page 63).
To remove the power button board:
1. Disconnect the cable from the power button board (1).
2. Remove the Phillips PM2.0×2.0 screw (2) that secures the power button board to the computer.
3. Remove the power button board from the computer (3).
Reverse this procedure to install the power button board and cable.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Cable locations

Description Spare part number
TouchPad cable 924928-001
Hard drive cable 924927-001
USB board cable 924929-001
Optical drive connector board cable 924926-001
Power button board cable 924933-001
Use the following image to determine properly cable location and routing.
(1) TouchPad cable
(2) Hard drive cable
(3) USB board cable
(4) Optical drive connector board cable
(5) Power button board cable
Component replacement procedures 75

Top cover/keyboard

The top cover/keyboard spare part remains after all other spare parts have been removed.
The top cover/keyboard spare part kit includes the keyboard, keyboard cable and the keyboard backlight cable (if equipped).
In this section, the rst table provides the main spare part number for the keyboard. The second table provides the country codes.
NOTE: All top cover/keyboard spare part kits include TouchPad.
Description Spare part number
Asteroid silver models with no backlight 929904-xxx
Dark ash silver models with no backlight 929906-xxx
For use in country or region
Belgium -A41 India -002 Slovenia -BA1
Bulgaria -261 Italy -061 South Korea -AD1
Canada -DB1 Latin America -161 Spain -071
Czech Republic and Slovakia
Denmark, Finland, and Norway
France -051 Portugal -131 Thailand -281
Germany -041 Romania -271 Turkey -141
Greece -151 Russia -251 United Kingdom -031
Hungary -211 Saudi Arabia -171 United States -001
Spare part number
-FL1 Japan -291 Switzerland -BG1
-DH1 The Netherlands -B31 Taiwan -AB1
For use in country
or region
Spare part number
For use in country
or region
Spare part number
76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

7 Using Setup Utility (BIOS)

Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility (BIOS) includes settings for the types of devices installed, the startup sequence of the computer, and the amount of system and extended memory.
NOTE: To start Setup Utility on convertible computers, your computer must be in notebook mode and you
must use the keyboard attached to your notebook.

Starting Setup Utility (BIOS)

CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the computer
from operating properly.
Turn on or restart the computer, quickly press esc, and then press f10.

Updating Setup Utility (BIOS)

Updated versions of Setup Utility (BIOS) may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.
Some download packages contain a le named Readme.txt, which contains information regarding installing and troubleshooting the le.

Determining the BIOS version

To decide whether you need to update Setup Utility (BIOS), rst determine the BIOS version on your computer.
To reveal the BIOS version information (also known as ROM date and System BIOS), use one of these options.
HP Support Assistant
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2. Select My PC, and then select Specications.
Setup Utility (BIOS)
1. Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 77).
2. Select Main, select System Information, and then make note of the BIOS version.
3. Select Exit, select No, and then follow the on-screen instructions.
To check for later BIOS versions, see Downloading a BIOS update on page 78.
Starting Setup Utility (BIOS) 77

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and
install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do not download or install a BIOS update while the computer is running on battery power, docked in an optional docking device, or connected to an optional power source. During the download and installation, follow these instructions:
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
NOTE: If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Click the question mark icon in the taskbar.
2. Click Updates, and then click Check for updates and messages.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your
computer. If the update is more recent than your BIOS version, make a note of the date, name, or other identier. You may need this information to locate the update later, after it has been downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update is downloaded. You will need to access this path when you are ready to install the update.
BIOS installation procedures vary. Follow any instructions that appear on the screen after the download is complete. If no instructions appear, follow these steps:
1. Type file in the taskbar search box, and then select File Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder that contains the update.
4. Double-click the le that has an .exe extension (for example, lename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le
from your hard drive.
78 Chapter 7 Using Setup Utility (BIOS)

8 Backing up, restoring, and recovering

This chapter provides information about the following processes. The information in the chapter is standard procedure for most products.

Creating recovery media and backups

Restoring and recovering your system
For additional information, refer to the HP Support Assistant app.
Type support in the taskbar search box, and then select the HP Support Assistant app.
or –
Select the question mark icon in the taskbar.
IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least
70% charged before you start the recovery process.
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning any recovery process.
Creating recovery media and backups
The following methods of creating recovery media and backups are available on select products only. Choose the available method according to your computer model.
Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall the original operating system in cases where the hard drive is corrupted or has been replaced. For information on creating recovery media, see Creating HP Recovery media (select products only)
on page 79. For information on the recovery options that are available using the recovery media, see Using Windows tools on page 80.
Use Windows tools to create system restore points and create backups of personal information.
For more information, see Recovering using HP Recovery Manager on page 81.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.

Creating HP Recovery media (select products only)

If possible, check for the presence of the Recovery partition and the Windows partition. From the Start menu, select File Explorer, and then select This PC.
If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery media for your system from support. See the Worldwide Telephone Numbers booklet included with the computer. You can also nd contact information on the HP website. Go to http://www.hp.com/support, select your country or region, and follow the on-screen instructions.
Creating recovery media and backups 79
You can use Windows tools to create system restore points and create backups of personal information, see Using Windows tools on page 80.
If your computer does list the Recovery partition and the Windows partition, you can use HP Recovery Manager to create recovery media after you successfully set up the computer. HP Recovery media can be used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls the original operating system and software programs that were installed at the factory and then congures the settings for the programs. HP Recovery media can also be used to customize the system or restore the factory image if you replace the hard drive.
Only one set of recovery media can be created. Handle these recovery tools carefully, and keep them in a safe place.
HP Recovery Manager examines the computer and determines the required storage capacity for the media that will be required.
To create recovery discs, your computer must have an optical drive with DVD writer capability, and you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray) discs; they are not compatible with HP Recovery Manager software. Or, instead, you can use a high­quality blank USB ash drive.
If your computer does not include an integrated optical drive with DVD writer capability, but you would like to create DVD recovery media, you can use an external optical drive (purchased separately) to create recovery discs. If you use an external optical drive, it must be connected directly to a USB port on the computer; the drive cannot be connected to a USB port on an external device, such as a USB hub. If you cannot create DVD media yourself, you can obtain recovery discs for your computer from HP. See the Worldwide Telephone Numbers booklet included with the computer. You can also nd contact information on the HP website. Go to http://www.hp.com/
support, select your country or region, and follow the on-screen instructions.
Be sure that the computer is connected to AC power before you begin creating the recovery media.
The creation process can take an hour or more. Do not interrupt the creation process.
If necessary, you can exit the program before you have nished creating all of the recovery DVDs. HP Recovery Manager will nish burning the current DVD. The next time you start HP Recovery Manager, you will be prompted to continue.
To create HP Recovery media:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps.
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Create recovery media, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 81.

Using Windows tools

You can create recovery media, system restore points, and backups of personal information using Windows tools.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
For more information and steps, see the Get started app.
Select the Start button, and then select the Get started app.
80 Chapter 8 Backing up, restoring, and recovering

Restore and recovery

There are several options for recovering your system. Choose the method that best matches your situation and level of expertise:
IMPORTANT: Not all methods are available on all products.
Windows oers several options for restoring from backup, refreshing the computer, and resetting the computer to its original state. For more information see the Get started app.
Select the Start button, and then select the Get started app.
If you need to correct a problem with a preinstalled application or driver, use the Reinstall drivers and/or applications option (select products only) of HP Recovery Manager to reinstall the individual application or driver.
Type recovery in the taskbar search box, select HP Recovery Manager, select Reinstall drivers
and/or applications
If you want to recover the Windows partition to original factory content, you can choose the System Recovery option from the HP Recovery partition (select products only) or use the HP Recovery media. For more information, see Recovering using HP Recovery Manager on page 81. If you have not already created recovery media, see Creating HP Recovery media (select products only) on page 79.
On select products, if you want to recover the computer's original factory partition and content, or if you have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more information, see Recovering using HP Recovery Manager on page 81.
, and then follow the on-screen instructions.
On select products, if you want to remove the Recovery partition to reclaim hard drive space, HP Recovery Manager oers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition (select products only) on page 84.

Recovering using HP Recovery Manager

HP Recovery Manager software allows you to recover the computer to its original factory state by using the HP Recovery media that you either created or that you obtained from HP, or by using the HP Recovery partition (select products only). If you have not already created recovery media, see Creating HP Recovery
media (select products only) on page 79.
What you need to know before you get started
HP Recovery Manager recovers only software that was installed at the factory. For software not provided with this computer, you must either download the software from the manufacturer's website or reinstall the software from the media provided by the manufacturer.
IMPORTANT: Recovery through HP Recovery Manager should be used as a nal attempt to correct
computer issues.
HP Recovery media must be used if the computer hard drive fails. If you have not already created recovery media, see Creating HP Recovery media (select products only) on page 79.
To use the Factory Reset option (select products only), you must use HP Recovery media. If you have not already created recovery media, see Creating HP Recovery media (select products only) on page 79.
If your computer does not allow the creation of HP Recovery media or if the HP Recovery media does not work, you can obtain recovery media for your system from support. See the Worldwide Telephone Numbers booklet included with the computer. You can also nd contact information from the HP
Restore and recovery 81
website. Go to http://www.hp.com/support, select your country or region, and follow the on-screen instructions.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data. Before
beginning recovery, back up any personal data you want to retain.
Using HP Recovery media, you can choose from one of the following recovery options:
NOTE: Only the options available for your computer display when you start the recovery process.
System Recovery—Reinstalls the original operating system, and then congures the settings for the programs that were installed at the factory.
Factory Reset—Restores the computer to its original factory state by deleting all information from the hard drive and re-creating the partitions. Then it reinstalls the operating system and the software that was installed at the factory.
The HP Recovery partition (select products only) allows System Recovery only.
Using the HP Recovery partition (select products only)
The HP Recovery partition allows you to perform a system recovery without the need for recovery discs or a recovery USB ash drive. This type of recovery can be used only if the hard drive is still working.
To start HP Recovery Manager from the HP Recovery partition:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps (select products only).
1. Type recovery in the taskbar search box, select Recovery Manager, and then select HP Recovery
Environment
or –
For computers or tablets with keyboards attached, press f11 while the computer boots, or press and hold f11 as you press the power button.
For tablets without keyboards:
Turn on or restart the tablet, and then quickly hold down the volume up button; then select f11.
or –
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f11.
2. Select Troubleshoot from the boot options menu.
3. Select Recovery Manager, and then follow the on-screen instructions.
.
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your system does not have an HP Recovery partition or if the hard drive is not working properly.
1. If possible, back up all personal les.
2. Insert the HP Recovery media, and then restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer
boot order. See Changing the computer boot order on page 83.
3. Follow the on-screen instructions.
82 Chapter 8 Backing up, restoring, and recovering
Changing the computer boot order
If your computer does not restart in HP Recovery Manager, you can change the computer boot order, which is the order of devices listed in BIOS where the computer looks for startup information. You can change the selection to an optical drive or a USB ash drive.
To change the boot order:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps.
1. Insert the HP Recovery media.
2. Access the system Startup menu.
For computers or tablets with keyboards attached:
Turn on or restart the computer or tablet, quickly press esc, and then press f9 for boot options.
For tablets without keyboards:
Turn on or restart the tablet, and then quickly hold down the volume up button; then select f9.
or –
Turn on or restart the tablet, and then quickly hold down the volume down button; then select f9.
3. Select the optical drive or USB ash drive from which you want to boot.
4. Follow the on-screen instructions.
Restore and recovery 83
Removing the HP Recovery partition (select products only)
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive space.
IMPORTANT: After you remove the HP Recovery partition, you will not be able to perform System Recovery
or create HP Recovery media from the HP Recovery partition. So before you remove the Recovery partition, create HP Recovery media; see Creating HP Recovery media (select products only) on page 79.
NOTE: The Remove Recovery Partition option is only available on products that support this function.
Follow these steps to remove the HP Recovery partition:
1. Type recovery in the taskbar search box, and then select HP Recovery Manager.
2. Select Remove Recovery Partition, and then follow the on-screen instructions.
84 Chapter 8 Backing up, restoring, and recovering

9 Using HP PC Hardware Diagnostics (UEFI)

HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.
When HP PC Hardware Diagnostics (UEFI) detects a failure that requires hardware replacement, a 24-digit Failure ID code is generated. This ID code can then be provided to support to help determine how to correct the problem.
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode and you
must use the keyboard attached.
To start HP PC Hardware Diagnostics (UEFI), follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading
HP PC Hardware Diagnostics (UEFI) to a USB device on page 85.
b. Hard drive
c. BIOS
3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the
on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device

NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe les are oered.
There are two options to download HP PC Hardware Diagnostics to a USB device.
Download the latest UEFI version
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. In the HP PC Hardware Diagnostics section, select the Download link, and then select Run.
Download any version of UEFI for a specic product
1. Go to http://www.hp.com/support.
2. Select Get software and drivers.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device 85
3. Enter the product name or number.
– or –
Select Identify now to let HP automatically detect your product.
4. Select your computer, and then select your operating system.
5. In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version
you want.
Additional BIOS crisis recovery tool
HP provides a BIOS crisis recovery tool through the HP PC Hardware Diagnostics 3-in-1 USB key. This tool can be used by HP authorized service providers to recover systems that have failed due to a corrupted BIOS. For more information about using the 3-in-1 USB key for BIOS crisis recovery, go to http://www.hp.com/go/
techcenter/pcdiags. Additional information is included in the web-based training oered by HP University. See
the modules that cover HP PC Hardware Diagnostics (UEFI).
86 Chapter 9 Using HP PC Hardware Diagnostics (UEFI)
10 Specications
Computer specications
Metric U.S.
Dimensions
Depth 253.8 mm 9.99 in
Width 380.0 mm 14.9 in
Height 23.8 mm 0.94 in
Weight (includes only SSD)
3 cell battery
4 cell battery
Input power
Operating voltage and current 19.5 V dc @ 3.33 A – 65 W
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating 20°C to 60°C 4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating 15 m to 3,048 m 50 ft to 10,000 ft
Nonoperating 15 m to 12,192 m 50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of
temperatures.
1.86 kg
1.91 kg
19.5 V dc @ 2.31 A – 45 W
4.1 lb
4.21 lb
Computer specications 87
39.6-cm (15.6-in) display specications
Metric U.S.
Active diagonal size 39.6-cm 15.6-in
Resolution 1366x768 (HD)
1920x1080 (FHD)
Surface treatment Anit glare
Brightness 220 nits
Viewing angle SVA
Backlight WLED
Graphics adapter eDP
Thickness 3.2 mm
88 Chapter 10 Specications
Hard drive specications
1-TB* 500-GB*
Dimensions
Height 9.5 mm or 7.2 mm 7.0 mm
Length 100.4 mm 100.6 mm
Width 69.9 mm 70.1 mm
Weight 107.0 g 92.0 g
Interface type SATA SATA
Transfer rate
Synchronous (maximum) 300 MB/sec 300 MB/sec
Security ATA security ATA security
Seek times (typical read, including setting)
Single track 2.0 ms 3 ms
Average (read/write) 12 ms 13 ms
Maximum 22 ms 24 ms
Logical blocks 1,953,525,168 1,048,576,000
Disk rotational speed 5400 rpm 5400 rpm or 7200 rpm
Operating temperature
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
Hard drive specications 89
M.2 solid-state drive specications
128-GB* 256-GB*
Dimensions
Height 1 mm 1 mm
Length 50.8 mm 50.8 mm
Width 28.9 mm 28.9 mm
Weight < 10 g < 10 g
Interface type ATA-7 ATA-7
Transfer rate
Sequential Read
Random Read
Sequential Write
Random Write
Ready time, Maximum (to not busy) 1.0 s 1.0 s
Access times
Logical 0.1 ms 0.1
Total logical sectors 250,069,680 500,118,192
Operating temperature
Operating
Non-operating
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
Up to 520 MB/s
Up to 60K IOPs
Up to 160 MB/s
Up to 34K IOPs
0° to 70°C (32°F to 158°F)
-40° to 95°C (-40°F to 203°F)
Up to 540 MB/s
Up to 85K IOPs
Up to 280 MB/s
Up to 67K IOPs
0° to 70°C (32°F to 158°F)
-55° to 90°C (-67°F to 194°F)
90 Chapter 10 Specications
DVD±RW SuperMulti DL Drive specications
Component Value
Applicable disc Read:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD­ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo­CD, Video CD), Multisession CD (Photo-CD, CD­EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD­R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
Center hole diameter 1.5 cm (0.59 in)
Disc diameter
Standard disc 12 cm (4.72 in)
Mini disc 8 cm (3.15 in)
Disc thickness 1.2 mm (0.047 in)
Track pitch 0.74 µm
Access time CD DVD
Random < 175 ms < 230 ms
Full stroke < 285 ms < 335 ms
Audio output level Line-out, 0.7 Vrms
Cache buer 2 MB
Data transfer rate
Write:
CD-R and CD-RW
DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
24X CD-ROM 3,600 KB/sec
8X DVD-ROM 10,800 KB/sec
24X CD-R 3,600 KB/sec
16X CD-RW 2,400 KB/sec
8X DVD+R 10,800 KB/sec
4X DVD+RW 5,400 KB/sec
8X DVD-R 10,800 KB/sec
4X DVD-RW 5,400 KB/sec
2.4X DVD+R(9) 2,700 KB/sec
5X DVD-RAM 6,750 KB/sec
Transfer mode Multiword DMA Mode
Startup time < 15 seconds
Stop time < 6 seconds
DVD±RW SuperMulti DL Drive specications 91
92 Chapter 10 Specications
Loading...
