Hp 2530-48G-2SFP+ User Manual

HP 2530-24G-2SFP+ Switch (J9856A) HP 2530-48G-2SFP+ Switch (J9855A) HP 2530-24G-PoE+-2SFP+ Switch (J9854A) HP 2530-48G-PoE+-2SFP+ Switch (J9853A)
Power over Ethernet
HP 2530 Switch Series
HP 2530 Switch Series
Installation and Getting Started Guide

© Copyright 2014 Hewlett-Packard Development Company, L.P.

Publication Number
5998-5297 August 2014
Applicable Products
HP 2530-24G-2SFP+ Switch (J9856A) HP 2530-48G-2SFP+ Switch (J9855A) HP 2530-24G-PoE+-2SFP+ Switch (J9854A) HP 2530-48G-PoE+-2SFP+ Switch (J9853A)
Disclaimer
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.
Warranty
For the latest license and warranty information, visit
www.hp.com/networking/support.
A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer.
Hewlett-Packard Company 8000 Foothills Boulevard, m/s 5551 Roseville, California 95747-5551
www.hp.com/networking
Safety
Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the
Switch”, and the safety statements in the General Safety and
Regulatory Information booklet included with the product.

Contents

Contents
1 Introducing the Switch
Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . 1-8
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Save Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
2 Installing the Switch
Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Rack Mounting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Wall or Under-Table Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12
4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-12
5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
iii
Contents
6. Installing or Removing SFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Installing the SFPs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Removing the SFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Connecting Cables to SFPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
7. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-15
Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
As a Desktop Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-19
As a Segment Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . 2-20
Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
3 Configuring the Switch
Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5
Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
4 Troubleshooting
Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
LED patterns for General Switch Troubleshooting . . . . . . . . . . . . . . . 4-4
LED Patterns for PoE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Testing Switch-to-Device Network Communications . . . . . . . . . . . . 4-11
Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 4-11
Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 4-12
Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
iv
HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
A Specifications
Switch Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Cabling and Technology Information Specifications . . . . . . . . . . . . . . . . A-4
Technology Distance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Straight-through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . A-11
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . A-12
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-13
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-13
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-13
Contents
B Safety and EMC Regulatory Statements
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
v
Contents
Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7
EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Index
vi

Introducing the Switch

HP 2530-24G-PoE+-2SFP+ Switch (J9854A)
HP 2530-48G-PoE+-2SFP+ Switch (J9853A)
HP 2530-24G-2SFP+ Switch (J9856A)
HP 2530-48G-2SFP+ Switch (J9855A)
The HP 2530 Switch Series are multiport switches that can be used to build high-performance switched workgroup networks. These switches are store­and-forward devices that offer low latency for high-speed networking. These switches also support the IEEE 802.3at standard for providing PoE+ power to connected devices.
1
Throughout this manual, these switches will be referred to as the 2530-24G­2SFP+, 2530-48G-2SFP+, 2530-24G-PoE+-2SFP+, 2530-48G-PoE+-2SFP+.
The 2530-24G-2SFP+ and 2530-24G-PoE+-2SFP+ switches have 24 auto-
sensing 10/100/1000BASE-T RJ-45 ports, and two SFP+ slots for supported HP SFP and SFP+ transceivers (ports 25-26).
1-1
Introducing the Switch
The HP 2530-48G-2SFP+ and HP 2530-48G-PoE+-2SFP+ switches have 48
auto-sensing 10/100/1000BASE-T RJ-45 ports, and two SFP+ slots for supported HP SFP and SFP+ transceivers (ports 49-50).
Power-over-Ethernet or PoE power - The HP 2530-24G-PoE+-2SFP+
and HP 2530-48G-PoE+-2SFP+ switches support the IEEE 802.3 at standard, which allows IP telephones, wireless LAN Access Points, and other appliances to receive power as well as data over existing LAN cabling, without needing to modify the existing Ethernet infrastructure.
The HP 2530-24G-PoE+-2SFP+ and 2530-48G-PoE+-2SFP+ switches are
designed with an internal PoE power supply capable of providing 370 watts of PoE power (HP 2530-48G-PoE+-2SFP+), 190 watts (HP 2530­24G-PoE+-2SFP+), each switch port can provide up to 30 watts (7.5 watts if all ports are used) of PoE power to connected devices. For further information regarding PoE power, see the HP Power over Ethernet (PoE/ PoE+) Planning and Implementation Guide, which is on the HP Web site at www.hp.com/networking/support.
These switches can be directly connected to computers, printers, and servers to provide dedicated bandwidth to those devices, and you can build a switched network infrastructure by connecting the switch to hubs, other switches, or routers. In addition, these switches can be fully managed by HP SNMP-based and browser-based network management tools.
1-2
Using HP SFPs, these products support optional network connectivity with the following speeds and technologies:
Table 1-1. Optional Network Connectivity, Speeds and Technologies
Transceiver Form-
Factor and
Connector
Introducing the Switch
1
Speed Technology
10-Gig Direct Attach
10-Gig SR Fiber (multimode)
10 Gbps
1 Gbps
1
For supported transceivers, visit www.hp.com/networking/support.
10-Gig LRM Fiber (multimode)
10-Gig LR Fiber (single mode)
10-Gig ER Fiber (single mode)
1000-T Copper (twisted-pair) RJ-45
1000-SX Fiber (multimode) LC
1000-LX Fiber (multimode or single mode) LC
1000-LH Fiber (single mode) LC
1000-BX Fiber (single mode) LC
Copper (twinaxial) Not
Cabling
SFP Connector SFP+ Connector
– In the first textbox, type J8436 (for 10-Gigabit information). – Select any of the products that display in the dropdown list. Then click Display
selected.
– Select Product support information. Then click Manuals and find the Transceiver
Support Matrix.
For technical details of cabling and technologies see “Cabling and Technology Information
Specifications” in the appendix A.
Applicable
LC
LC
LC
LC
1-3
Introducing the Switch
HP 2530-24G-PoE+-2SFP+ Switch (J9854A)
1
All 10/100/1000BASE-T RJ-45 ports have the Auto-MDIX feature.
HP 2530-48G-PoE+-2SFP+ Switch (J9853A)
1
All 10/100/1000BASE-T RJ-45 ports have the Auto-MDIX feature.

Front of the Switch

Front of the Switch
The following images represent the characteristics of the HP 2530 24-port and 48-port Gigabit switches with SFP+ uplink ports.
1-4
The following table explains the characteristics of the HP 2530 24-port and 48­port Gigabit switches with SFP+ uplink ports:
Introducing the Switch
Front of the Switch
Table 1-2. HP 2530 24-port and 48-port switches with SFP+ uplink ports
Labels and Description
Label Description
1 Power, Fault, and Locator LEDs
2 Test and Status LEDs
3 Switch port LEDs
4 SFP+ slots
5 10/100/1000BASE-T RJ-45 ports
6 LED Mode select button and indi-
7 Reset and Clear buttons
8 Console Port
cator LEDs

Network Ports

24 or 48 auto-sensing 10/100/1000BASE-T ports.
All these ports have the “Auto-MDIX” feature, which means that you can use either straight-through or crossover twisted-pair cables to connect any network devices to the switch.
Two SFP+ slots for fiber or copper uplinks (24-port and 48-port Gigabit
Ethernet switches).

LEDs

On these Switches, there are three groupings of LEDs:
switch status LEDs (Table 1-3)
port LEDs (Table 1-4)
Port LED Mode indicator LEDs (near the selector button) (Table 1-5)
1-5
Introducing the Switch
Front of the Switch
Switch LEDs State Meaning
Table 1-3. Switch Status LEDs
Power (green)
Fault (orange)
Locator (blue)
PoE (green/orange)
On The internal power supply is working properly.
Off No power connection. The switch is NOT receiving power.
Off The normal state; indicates there are no fault conditions on the switch.
Flashing2A fault has occurred with a component on the switch. The Status LED for
the component with the fault will flash simultaneously.
On On briefly after the switch is powered on or reset, at the beginning of
switch self test. If this LED is on for a prolonged time, the switch has encountered a fatal hardware failure, or has failed its self test. See
On Flashing Off
chapter 4,
The Locator LED is used to locate a specific switch in an area full of switches. The LED can be set to be on solid or flash for a specified number of minutes (1-1440). The default is 30 minutes. Use the command
“Troubleshooting” for more information.
“chassislocate”.
On green
Flashing orange
Normal operation. The switch is ready to supply PoE power.
One or more ports has experienced a fault condition for PoE delivery. The
2
Fault LED will be flashing simultaneously. If it is a self test failure, the Test LED will be flashing simultaneously. When the switch is put in PoE LED Mode, the Mode LED for the port with the problem will also be flashing simultaneously.
Flashing orange
One or more ports has an alert condition for PoE delivery, for example, an
1
oversubscription condition (not enough PoE power available). Only this LED will be flashing, the Fault LED is off. When the switch is put in PoE LED Mode, the Mode LEDs for the ports with the alert condition will also be flashing.
1-6
Fan (green/orange)
Te st
On green The cooling fan is operating normally.
Flashing orange
The cooling fan has failed. The switch Fault LED will be flashing
2
simultaneously.
Off The normal operational state; the switch is not undergoing self test.
(green/orange)
On green The switch self test and initialization are in progress after the switch has
been power cycled or reset. The switch is not operational until this LED goes off. The Test LED also comes on briefly when you “hot swap” an SFP into the switch; the SFP is tested when it is hot swapped.
Flashing orange
1
The flashing behavior is an on/off cycle once every 0.8 seconds approximately, a fast flash.
2
The flashing behavior is an on/off cycle once every 1.6 seconds approximately, a slow flash.
A component of the switch has failed its self test. The switch Fault LED,
2
Test LED, and the failed component LED will flash simultaneously.
Port LEDs
The port LEDs provide information about the individual switch ports.
Table 1-4. Port LEDs
Switch LEDs State Meaning
Port LEDs
2
Link (green)
Mode (green)
On The port is enabled and receiving a link indication from the connected
device. In PoE mode, indicates that the port is configured to enable PoE power delivery to the connected device.
Off One of these condition exists:
• no active network cable is connected to the port
• the port is not receiving link beat or sufficient light
• the port has been disabled through the switch console, the Web browser interface, HP PCM, or other network management tool.
• In PoE mode, indicates that the port is configured such that PoE power delivery is disabled.
• Save power mode is enabled.
1
Flashing
The port has failed self test. The switch Fault, and Self Test LEDs will flash simultaneously.
2
Depending on the mode selected, displays the following:
• network activity information
• connection duplex mode
• connection speed information
• PoE power delivery status See “LED Mode Select Button and Indicator LEDs:” below for more information.
Introducing the Switch
Front of the Switch
SFP LEDs
2
Link
Flashing
green
One of the following conditions exist:
• the SFP is not supported by the current switch software
• the SFP is not a genuine HP SFP and is not supported
• the SFP is an “A” version in a switch that requires a “B” version or later.
Link and Mode (green)
1
The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.
2
These LEDs are turned off when Save Power mode is enabled. If Save Power mode is enabled and the
2
On for 2 seconds
Both the Link and Mode LED turn on solid for 2 seconds and then go to normal operation. This indicates the SFP has been recognized by the switch.
LEDs are turned off, they can be turned on temporarily through the LED Mode button.
1-7
Introducing the Switch
Mode LED
Link LED
LED Mode select button
and indicator LEDs
These Switches have two LEDs per port. The Link LED shows the port link status in all modes except PoE mode. In PoE mode, it shows whether the port is configured to provide PoE pow­er. The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next. The default view is Activity (Act).
Front of the Switch
LED Mode Select Button and Indicator LEDs
To optimize the amount of information that can be displayed for each of the switch ports in the limited space available, these Switches use multiple­display LEDs for each port.
Table 1-5. Multiple-Display Port LEDs
Switch LEDs Mode Meaning
Port Mode indicator LEDs (4 green LEDs)
When Save Power mode is enabled and all port LEDs are off, press the LED Mode select button to turn the port LEDs on. Press the LED Mode select button again to step through each view mode. Press the LED Mode select button after the PoE view mode to turn LEDs off.
If the port LEDs are left on when Save Power mode is enabled, they turn off automatically after 10 minutes.
1-8
Act Indicates the Port LEDs are displaying network activity information.
FDx Indicates the Port LEDs are lit for ports that are in full-duplex mode.
Spd Indicates the Port LEDs are displaying the connection speed at which each
port is operating:
• if the Port LED is off, the port is operating at 10 Mbps.
• if the Port LED is flashing, the port is operating at 100 Mbps.
• if the Port LED is on continuously, the port is operating at 1000 Mbps.
PoE Indicates the Port LEDs are lit for ports that are providing PoE power to the
connected device.
Introducing the Switch
Front of the Switch

Reset Button

This button is for:
Resetting the switch - When the switch is powered on. This action clears
any temporary error conditions that may have occurred and executes the switch self test.
Restoring Factory Default Configuration - When pressed with the
Clear button in a specific pattern, any configuration changes you may have made through the switch console, the Web browser interface, and SNMP management are removed, and the factory default configuration is restored to the switch. For the specific method to restore the factory default configuration, see “Restoring the Factory Default Configuration”
on page 4-12 of this manual.

Clear Button

This button is used for:
Deleting Passwords - When pressed by itself for at least one second, the
button deletes any switch console access passwords that you may have configured. Use this feature if you have misplaced the password and need console access. This button is provided as a convenience, however if you are concerned with the security of the switch configuration and operation, you should make sure the switch is installed in a secure location. This button can be disabled by a CLI command.
Restoring Factory Default Configuration - See Reset Button above.

Console Port

This port is used to connect a console to the switch by using the RJ-45 to DB9 cable, supplied with the switch. This connection is described under “7.
(Optional) Connect a Console to the Switch” on page 2-15 in chapter 2,
“Installing the Switch.” The console can be a PC or workstation running a VT­100 terminal emulator, or a VT-100 terminal.
You can also connect a console to the switch using the Micro USB console port (cable not provided). Use a USB 2.0 high-speed cable with male type A (4-pin) to male micro-B (5-pin) connectors. The maximum allowable length is 5 meters.
1-9
Introducing the Switch
AC power connector
HP 2530-24G-2SFP+ Switch (J9856A)
HP 2530-48G-2SFP+ Switch (J9855A)
HP 2530-24G-PoE+-2SFP+ Switch (J9854A)
AC power connector
HP 2530-48G-PoE+-2SFP+ Switch (J9853A)

Back of the Switch

Back of the Switch
1-10

Power Connector

These 24-port and 48-port switches do not have a power switch; they are powered on when connected to an active AC power source. The switches automatically adjust to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz. There are no voltage range settings required.
Introducing the Switch

Switch Features

Switch Features
The following are the features of the Switches:
24 or 48 auto-sensing 10/100/1000BASE-T RJ-45 ports with Auto-MDIX.
Two SFP+ uplink slots supporting HP SFP and SFP+ transceivers.
PoE+ operation—the switches are IEEE 802.3 at compliant and provide
up to 30W per port to power IP phones, wireless access points, Web cameras, and more. For more information, see the HP Power over Ethernet (PoE/PoE+) Planning and Implementation Guide, which is on the HP Web site at www.hp.com/networking/support.
The switches support some pre-standard PoE devices. However, the use
of a cross-over cable may be required.
Plug-and-play networking—all ports are enabled—just connect the
network cables to active network devices and your switched network is operational.
Auto-MDIX on all twisted-pair ports, meaning that all twisted-pair
connections can be made using straight-through cables. Cross-over cables are not required, although they will also work.
Automatic learning of the hardware addresses in each switch’s 16000-
address forwarding table, (with configurable address aging value).
Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45
ports when connected to other auto-negotiating devices.
A “Save Power” mode option that keeps port LEDs turned off except for
when the LED Mode select button is pressed.
An automatic low-power mode for ports when a link is not present.
Easy management of the switches through several available interfaces:
Console interface — a full featured, easy to use, VT-100 terminal interface that is especially good for out-of-band switch management or for Telnet access to the switch.
Web browser interface — an easy to use built-in graphical interface that can be accessed from common Web browsers.
SNMP-based network management:
HP PCM/PCM+ — a graphical network management tool that
you can use to manage your entire small to medium-sized network.
1-11
Introducing the Switch
Switch Features
Intelligent Management Center (IMC) — the HP graphics
network management tool intended to manage any sized network. IMC support for these switches is planned for early
2013. Go to www.hp.com/networking to check on support avail­ability.
Support for the Spanning Tree Protocol to eliminate network loops.
Support for up to 512 IEEE 802.1Q-compliant VLANs so you can divide
the attached end nodes into logical groupings that fit your business needs.
Download of new switch software for product enhancements or bug fixes.
Variable speed fans ensure quiet operation.
Support for many advanced features to enhance network performance.
For a description, see the Management and Configuration Guide, which is on the HP Web site at www.hp.com/networking/support. (You may want to bookmark this Web page for easy access in the future.)

Save Power Mode

A Save Power mode feature can be configured through the console. Save Power mode can be used to turn off port LEDs unless the LED Mode button is pressed. In addition, it can configure the LAN ports to operate at low power if a link is not detected.
1-12

Installing the Switch

This chapter provides installation information for the Switches.

Included Parts

These Switches have the following components:
Documentation kit
• Switch Quick Setup Guide
• Safety and Regulatory information1
• Software License, Warranty, and Support information
Console port serial cable (DB-9 to RJ-45)
Accessory kits:
2
HP 2530-24G-PoE+-2SFP+ Switch HP 2530-48G-PoE+-2SFP+ Switch
Kit number 5066-2231
Contains:
• two rack mounting brackets
• two wall/table mounting brackets
• eight 8-mm M4 screws to attach the mounting brackets to the switch
• four 5/8-inch number 12-24 screws to attach the switch to a rack
• four rubber feet
HP 2530-24G-2SFP+ Switch HP 2530-48G-2SFP+ Switch
Kit number 5069-6535
Contains:
• two wall/table mounting brackets
• eight 8-mm M4 screws to attach the mounting brackets to the switch
• four 5/8-inch number 12-24 screws to attach the switch to a rack
• four rubber feet
2-1
Installing the Switch
Included Parts
24- and 48-port switch AC power cords, one of the following:
Switch Model
HP 2530-24G-2SFP+,
HP 2530-24G-PoE+-
HP 2530-48G-PoE+-
2SFP+, and
HP 2530-48G-2SFP+
Country/Region
Argentina Australia/New Zealand Brazil Chile China Continental Europe Denmark India Israel Japan Malaysia Switzerland South Africa South Korea Taiwan Thailand United Kingdom/Hong Kong/Singapore United States/Canada/Mexico
Switches
8120-6869 8121-0834 8121-1069 8120-6980 8120-8377 8120-6802 8120-6806 8121-0780 8121-1035 8120-6804 8120-6809 8120-6807 8121-0919 8120-6811 8121-0964 8121-0673 8120-6809 8120-6805
2SFP+
Switch
8120-8375 8121-0857 8121-1132 8120-8389 8121-1034 8120-5336 8120-5340 8120-5341 8121-1009 8120-5342 8120-5334 8120-5339 8120-5341 8120-5336 8121-0967 8121-0671 8120-5334 8121-0973
1
Japan Power Cord Warning
2-2
1
The power cord for the HP 2530-48G-PoE+-2SFP+Switch supports a higher amperage
and uses a C15 connector.
Optional accessory for 24-port and 48-port switches:
HP X410 Switch Rail Kit (J9583A).
Installing the Switch
Included Parts

Installation Precautions

WARNING The rack or cabinet should be adequately secured to prevent it
from becoming unstable and/or falling over.
Devices installed in a rack or cabinet should be mounted as low as possible, with the heaviest devices at the bottom and progres­sively lighter devices installed above.
Wall-mount the switches with network ports facing up or down.
Do not mount the switches with the ventilation or fan ducts facing up or down.
Cautions When installing the switch, the AC outlet should be near the switch and
should be easily accessible in case the switch must be powered off.
Ensure the power source circuits are properly grounded.
Use only the AC/DC power adapter and power cord (if applicable),
supplied with the switch. Use of other adapters or power cords, including those that came with other HP Networking products, may result in damage to the equipment.
For those switches that use a power cord, if your installation requires a different power cord than the one supplied with the switch, be sure to use a power cord displaying the mark of the safety agency the defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch.
Ensure the switch does not overload the power circuits, wiring, and
over-current protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of all devices installed on the same circuit as the switch and compare the total with the rating limit for the circuit. Maximum ampere ratings are usually printed on the devices near the AC power connectors.
Do not install the switch in an environment where the operating ambient
temperature might exceed 45C (113F). This includes a fully-enclosed rack. Ensure the air flow around the sides and back of the switch is not restricted. Leave at least 7.6 cm (3 inches) for cooling.
Ensure all port covers are installed when the port is not in use.
2-3
Installing the Switch

Installation Procedures

Installation Procedures
These steps summarize your switch installation. The rest of this chapter provides details on these steps.
1. Prepare the installation site (page 2-5). Make sure the physical environment into which you will be installing the switch is properly prepared, including having the correct network cabling ready to connect to the switch and having an appropriate location for the switch. See page
2-3 for some installation precautions.
2. Verify the switch passes self test (page 2-6). Plug the switch into a power source and observe that the LEDs on the switch’s front panel indicate correct switch operation.
3. Mount the switch (page 2-8). The switch can be mounted in a 19-inch telco rack, in an equipment cabinet, on a wall, under a table, or on a horizontal surface.
4. Connect power to the switch (page 2-12). Once the switch is mounted, plug it into the main power source.
5. Connect the network devices (page 2-13). Using the appropriate network cables, connect the network devices to the switch ports.
6. (Optional) Install SFP and SFP+ transceivers (page 2-14). The switch has two slots for installing transceivers. Depending on where you install the switch, it may be easier to install the transceivers first. Trans­ceivers can be hot swapped—they can be installed or removed while the switch is powered on.
7. (Optional) Connect a console to the switch (page 2-15). You may wish to modify the switch’s configuration, for example, to configure an IP address so it can be managed using a Web browser, from an SNMP network management station, or through a Telnet session. Configuration changes can be made by using the included console cable to connect a PC to the switch’s console port.
At this point, your switch is fully installed. See the rest of this chapter if you need more detailed information on any of these installation steps.
2-4
Installing the Switch
Installation Procedures

1. Prepare the Installation Site

Cabling Infrastructure - Ensure the cabling infrastructure meets the
necessary network specifications. See appendix A, “Cabling and
Technology Information Specifications” for more information:
Installation Location - Before installing the switch, plan its location and
orientation relative to other devices and equipment:
In the front of the switch, leave at least 7.6 cm (3 inches) of space for
the twisted-pair and fiber-optic cabling.
In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space
for the power cord.
On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling.
2-5
Installing the Switch
Connect power cord to the
power connector
Installation Procedures

2. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify it is working properly by plugging it into a power source and verifying it passes its self test.
1. For the 24-port and 48-port switches, connect the power cord supplied with the switch to the power connector on the back of the switch, and then into a properly grounded electrical outlet.
Figure 2-1. Connecting the power cord
Note The 24-port and 48-port do not have a power switch. They are powered on
when the power cord is connected to the switch and to a power source. For safety, the power outlet should be located near the switch installation.
The switch automatically adjusts to any voltage between 100-127 or 200-240 volts and either 50 or 60 Hz. There are no voltage range settings required.
2-6
Installing the Switch
Self Test LED
Switch port LEDs
Power, Fault, and
Locator LEDs
Installation Procedures
2. Check the LEDs on the switch as described below.
Figure 2-2. Checking the LEDs
When the switch is powered on, it performs its diagnostic self test. Self test takes approximately 50 seconds to complete.
LED Behavior
During the self test:
Initially, all the switch and port LEDs are on. Most of the LEDs go off
and then come on again during phases of the self test.
For the duration of the self test, the Tes t LED stays on.
When the self test completes successfully:
•The Power, PoE and Fan LEDs remain on.
•The Fault, Locator and Tes t LEDs stay off.
•The Act LED remains on indicating the default port LED mode.
The port LEDs on the front of the switch go into their normal opera-
tional mode: – If the ports are connected to active network devices, the Link
LEDs stay on and the Mode LEDs behave according to the mode selected. In the default mode (Act), the Mode LEDs should be blinking indicating port activity.
If the ports are not connected to active network devices, the Link
and Mode LEDs will stay off.
If the LED display is different than what is described above, especially if the Fault and Te st LEDs stay on for more than 60 seconds or they start flashing, the self test has not completed correctly. Refer to chapter 4,
2-7
Installing the Switch
Installation Procedures
“Troubleshooting” for diagnostic help.

3. Mount the Switch

After the switch passes self test, it is ready to be mounted in a stable location. The switch can be mounted in these ways:
in a rack or cabinet
on a horizontal surface
under a table
on a wall

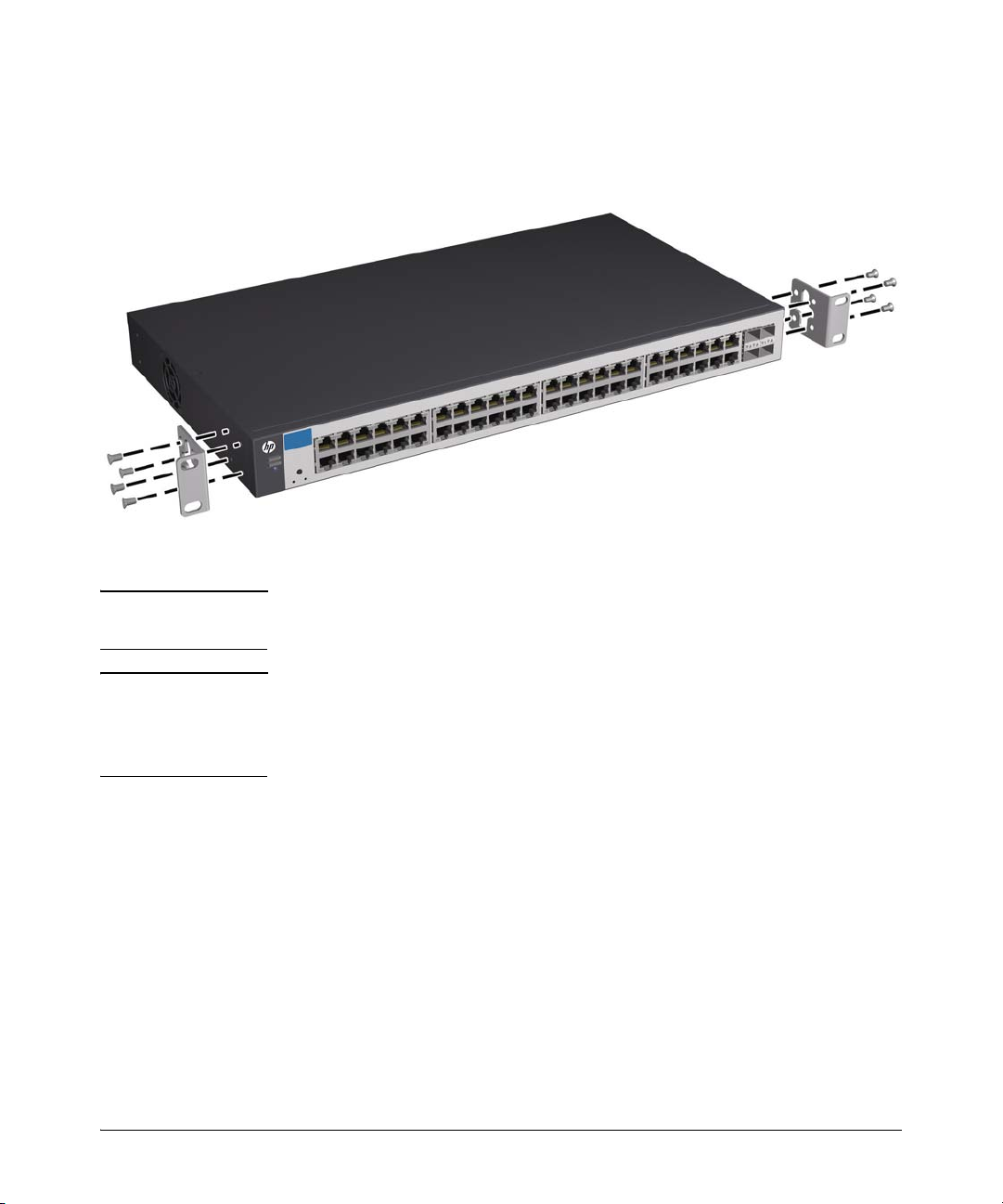

Rack or Cabinet Mounting
The switch is designed to be mounted in any EIA-standard 19-inch telco rack or communication equipment cabinet.
The 24-port and 48-port switches can also be mounted in 4-post racks and cabinets by using the HP X410 Switch Rail Kit (J9583A). For instructions on using the kit, see the documentation that is included with the kit.
Note that some mounting brackets have multiple mounting holes and can be rotated allowing for a wide variety of mounting options. Secure the rack in accordance with the manufacture’s safety guidelines.
WARNING For safe operation, please read the mounting precautions on
page 2-3, before mounting a switch.
Equipment Cabinet Note
2-8
The 12-24 screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch racks. If installing the switch in an equipment cabinet such as a server cabinet, use the clips and screws that came with the cabinet in place of the 12-24 screws that are supplied with the switch.
Loading...
+ 65 hidden pages
