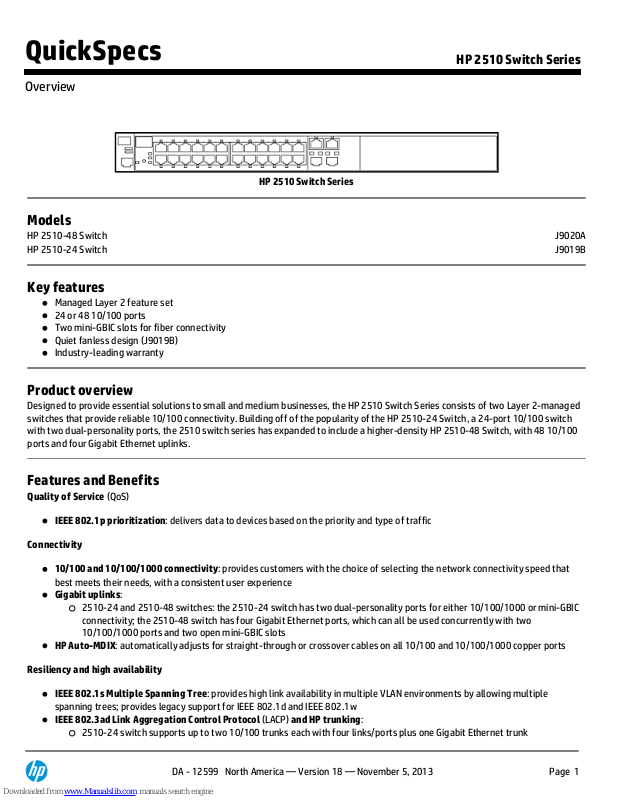

HP 2510-48, 2510-24 Specification

HP 2510 Switch Series

Models

HP 2510-48 Switch

J9020A

HP 2510-24 Switch

J9019B

Key features

Managed Layer 2 feature set
24 or 48 10/100 ports
Two mini-GBIC slots for fiber connectivity
Quiet fanless design (J9019B)
Industry-leading warranty

Product overview

Designed to provide essential solutions to small and medium businesses, the HP 2510 Switch Series consists of two Layer 2-managed
switches that provide reliable 10/100 connectivity. Building off of the popularity of the HP 2510-24 Switch, a 24-port 10/100 switch
with two dual-personality ports, the 2510 switch series has expanded to include a higher-density HP 2510-48 Switch, with 48 10/100
ports and four Gigabit Ethernet uplinks.

Features and Benefits

Quality of Service

(QoS)

IEEE 802.1p prioritization

: delivers data to devices based on the priority and type of traffic

Connectivity

10/100 and 10/100/1000 connectivity

: provides customers with the choice of selecting the network connectivity speed that

best meets their needs, with a consistent user experience

Gigabit uplinks

:
2510-24 and 2510-48 switches: the 2510-24 switch has two dual-personality ports for either 10/100/1000 or mini-GBIC
connectivity; the 2510-48 switch has four Gigabit Ethernet ports, which can all be used concurrently with two
10/100/1000 ports and two open mini-GBIC slots

HP Auto-MDIX

: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 copper ports

Resiliency and high availability

IEEE 802.1s Multiple Spanning Tree

: provides high link availability in multiple VLAN environments by allowing multiple

spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w

IEEE 802.3ad Link Aggregation Control Protocol

(LACP)

and HP trunking

:

2510-24 switch supports up to two 10/100 trunks each with four links/ports plus one Gigabit Ethernet trunk

QuickSpecs

HP 2510 Switch Series

Overview

DA - 12599 North America — Version 18 — November 5, 2013

Page 1

2510-48 switch supports up to 24 trunks with eight links/ports per trunk

Manageability

IEEE 802.1AB Link Layer Discovery Protocol

(LLDP): provides automated device discovery protocol for easy mapping by

network management applications

RMON

: provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Full-featured console

: provides complete control of the switch with a familiar command-line interface (CLI)

Web interface

: allows configuration of the switch from any Web browser on the network

Single IP Address Management

: provides single IP address management for a virtual stack of up to 16 switches

Find-Fix-Inform

: finds and fixes common network problems automatically, then informs administrator

Dual flash images

: provides independent primary and secondary operating system files for backup while upgrading

Software updates

: free downloads from the Web

Friendly port names

: allow assignment of descriptive names to ports

Layer 2 switching

VLAN support and tagging

: support up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging,

providing security between workgroups

GARP VLAN Registration Protocol

: allows automatic learning and dynamic assignment of VLANs

Jumbo packet support

: supports up to 9216-byte frame size to improve the performance of large data transfers (2510G

models only)

Security

Protected ports

: provides increased security by allowing specified ports to be isolated from all other ports on the switch; the

protected port or ports can communicate only with the uplinks or shared resources

Multiple user authentication methods

:
IEEE 802.1X: is an industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in
conjunction with a RADIUS server
Web-based authentication: similar to IEEE 802.1X, it provides a browser-based environment to authenticate clients that
do not support the IEEE 802.1X supplicant
MAC-based authentication: client is authenticated with the RADIUS server based on the client's MAC address

Guest VLAN

: isolates guest and unauthorized user traffic to a separate VLAN

Port security

: allows access only to specified MAC addresses, which can be learned or specified by the administrator

MAC address lockout

: prevents particular configured MAC addresses from connecting to the network

Multiple IEEE 802.1X users per port

: provides authentication of up to two IEEE 802.1X users per port; prevents user

"piggybacking" on another user's IEEE 802.1X authentication

STP BPDU port protection

: blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged

BPDU attacks

Secure management access

: securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3

TACACS+

: eases switch management security administration by using a password authentication server

Convergence

IP multicast snooping

: automatically prevents flooding of IP multicast traffic

Flexibility

Fanless design

: reduces noise and distractions when deployed in open spaces (2510-24 switch only)

Multiple port density and connectivity speed options

: provide choice and flexibility with a consistent user experience

QuickSpecs

HP 2510 Switch Series

Overview

DA - 12599 North America — Version 18 — November 5, 2013

Page 2

Warranty and support

Lifetime warranty

: for as long as you own the product with advance replacement and next-business-day delivery (available in

most countries)

*

Electronic and telephone support

: limited electronic and telephone support is available from HP; refer to:

www.hp.com/networking/warranty

for details on the support provided and the period during which support is available

Software releases

: refer to:

www.hp.com/networking/warranty

for details on the software releases provided and the period

during which software releases are available for your product(s)

* Hardware warranty replacement for as long as you own the product, with next business day advance replacement (available in most
countries) with a five-year hardware warranty replacement for the disk drive included with HP AllianceONE Services zl Module, HP
Threat Management Services zl Module, HP PCM+ Agent with AllianceONE Services zl Module, and HP MSM765 zl Mobility Controller.
For details, refer to the HP Software License, Warranty, and Support booklet at:

www.hp.com/networking/warranty

.

QuickSpecs

HP 2510 Switch Series

Overview

DA - 12599 North America — Version 18 — November 5, 2013

Page 3

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HP 2510-24 Switch

J9019B

24 autosensing 10/100 ports
2 RJ-45 10/100/1000 port or an open mini-GBIC slot
min=0 \ max=2 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

HP 2510-48 Switch

J9020A

48 autosensing 10/100 ports
2 SFP 100/1000 Mbps ports
min=0 \ max=2 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

HP 2510-48G Switch

J9280A

44 autosensing 10/100 ports
4 SFP 100/1000 Mbps ports
min=0 \ max=4 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

Configuration Rules:

Note 1

The following Transceivers install into this switch:
HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X111 100M SFP LC FX Transceiver

J9054C

HP X122 1G SFP LC BX-D Transceiver

J8177C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X121 1G SFP LC LH Transceiver

J4860C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143A

Note 2

Localization required. (See Localization Menu for list.)

Factory Racked Models

HP 2510-24 Switch

J9019B

24 autosensing 10/100 ports
2 RJ-45 10/100/1000 port or an open mini-GBIC slot
min=0 \ max=2 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

HP 2510-24 Factory Integrated Switch

J9019BZ

QuickSpecs

HP 2510 Switch Series

Configuration

DA - 12599 North America — Version 18 — November 5, 2013

Page 4

See Configuration

Note:1, 2

HP 2510-48 Switch

J9020A

48 autosensing 10/100 ports
2 SFP 100/1000 Mbps ports
min=0 \ max=2 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

HP 2510-48 Factory Integrated Switch

J9020AZ

See Configuration

Note:1, 2

HP 2510-48G Switch

J9280A

44 autosensing 10/100 ports
4 SFP 100/1000 Mbps ports
min=0 \ max=4 SFP Transceivers
1U - Height

See Configuration

Note:1, 2

HP E2510-48G Rack Shippable Switch

J9280AZ

See Configuration

Note:1, 2

Configuration Rules:

Note 1

The following Transceivers install into this switch:
HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X111 100M SFP LC FX Transceiver

J9054C

HP X122 1G SFP LC BX-D Transceiver

J8177C

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X121 1G SFP LC LH Transceiver

J4860C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143A

Note 3

If this switch is factory installed in HP Universal Racks, Then the J9583A, J9583A#0D1 or J9583AZ is required.
AMS then J9583AZ is required.
EMEA then J9583A is required.
APD, Japan and China then J9583A#0D1 is required.

CLIC Only - Allow the J9583AZ in all regions.

Enter the following menu selections as integrated to the CTO Model X server above if order is factory built.

Transceivers

QuickSpecs

HP 2510 Switch Series

Configuration

DA - 12599 North America — Version 18 — November 5, 2013

Page 5

SFP Transceivers

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X111 100M SFP LC FX Transceiver

J9054C

HP X121 1G SFP LC LH Transceiver

J4860C

HP X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

Internal Power Supplies

No Power supplies

Cables

Multi-Mode Cables

HP .5m Multi-mode OM3 LC/LC FC Cable

AJ833A

HP 1m Multi-mode OM3 LC/LC FC Cable

AJ834A

HP 2 m Multimode OM3 LC/LC FC Cable

AJ835A

HP 5 m Multimode OM3 LC/LC FC Cable

AJ836A

HP 15 m Multimode OM3 LC/LC FC Cable

AJ837A

HP 30 m Multimode OM3 LC/LC FC Cable

AJ838A

HP 50 m Multimode OM3 LC/LC FC Cable

AJ839A

HP Premier Flex LC/LC OM4 2f 1m Cbl

QK732A

HP Premier Flex LC/LC OM4 2f 2m Cbl

QK733A

HP Premier Flex LC/LC OM4 2f 5m Cbl

QK734A

HP Premier Flex LC/LC OM4 2f 15m Cbl

QK735A

HP Premier Flex LC/LC OM4 2f 30m Cbl

QK736A

HP Premier Flex LC/LC OM4 2f 50m Cbl

QK737A

Switch Enclosure Options

Rack Mount Kit

HP X410 1U Univ 4-post Rack Mnt Kit

J9583A

See Configuration

Note:1, 2

HP X410 1U Integ Univ 4-post Rck Mnt Kit

J9583AZ

QuickSpecs

HP 2510 Switch Series

Configuration

DA - 12599 North America — Version 18 — November 5, 2013

Page 6

See Configuration

Note:1

Cofiguration Rules:

Note 1

If this Mounting Kit is order with #0D1 or Z then it integrates to the HP Universal Rack. (not the switch)

Note 2

If the J9583A is ordered in EMEA fire the following UNBUILDABLE error:
"The J9583A cannot be ordered with option integrated to the Rack in the EMEA region. The Rack Mount kit must be
ordered as BTO using supplier 8OCZ."

QuickSpecs

HP 2510 Switch Series

Configuration

DA - 12599 North America — Version 18 — November 5, 2013

Page 7

HP 2510-48 Switch

(J9020A)

Ports

48 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full

2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type:
Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 open mini-GBIC (SFP) slots
1 RJ-45 serial console port

Physical characteristics

Dimensions

9.3(d) x 17.42(w) x 1.73(h) in. (23.62 x 44.25 x

4.39 cm) (1U height)

Weight

6.05 lb. (2.74 kg), Fully loaded

Memory and processor

Processor

MIPS 32 @ 300 MHz, 16 MB flash, 128 MB SDRAM;
packet buffer size: 512 KB

Mounting

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware
included); horizontal surface mounting only

Performance

100 Mb Latency

< 4.9 µs (64-byte packets)

1000 MB latency

< 2.9 µs (64-byte packets)

Throughput

up to 13 million pps (64-byte packets)

Switching capacity

17.6 Gbps

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative
humidity

15% to 95% @ 104°F (40°C), noncondensing

Nonoperating/ Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/ Storage
relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

up to 15,000 ft. (4.6 km)

Acoustic

Power: 43.6 dB; DIN 45635T.19 per ISO 7779

Electrical characteristics

Maximum heat
dissipation

92 BTU/hr (97 kJ/hr)

Voltage

100-127/200-240 VAC

Current

1.2/0.7 A

Maximum power rating

27 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped),
100% traffic, all ports plugged in, and all modules
populated.

Safety

cUL (CSA 22.2 No. 60950); UL 60950-1; IEC 60950; EN 60950

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 8

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2;
IEC/EN 61000-3-3

Immunity

Generic

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency
magnetic field

IEC 61000-4-8

Voltage dips and
interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HP PCM+; HP PCM; command-line interface; Web browser; out-of-band
management

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later
(product number ending with the letter "B" or later, e.g., J4858B, J4859C) are
required.

Services

3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support
and SW updates (U6321E)
3-year, 24x7 SW phone support, software updates (UF792E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR849E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR850E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7
software phone support (HR851E)
Installation with minimum configuration, system-based pricing (U4826E)
Installation with HP-provided configuration, system-based pricing (U4830E)
3 Yr 6 hr Call-to-Repair Onsite (UW368E)
4 Yr 6 hr Call-to-Repair Onsite (UW369E)
5 Yr 6 hr Call-to-Repair Onsite (UW370E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR853E)
1-year, 24x7 software phone support, software updates (HR852E)
1-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS554E)
1-year, 24x7 software phone support, software updates + 4 hour hardware
exchange (HS555E)
3-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS556E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS557E)
4-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS558E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS559E)

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 9

5-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS560E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS561E)

Refer to the HP website at:

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP 2510-24 Switch

(J9019B)

Ports

24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u
Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full

2 dual-personality ports; each port can be used as either an RJ-45
10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC
transceivers)

Physical characteristics

Dimensions

9.3(d) x 17.42(w) x 1.73(h) in. (23.62 x 44.25 x

4.39 cm) (1U height)

Weight

4.89 lb. (2.22 kg), Fully loaded

Memory and processor

Processor

MIPS 32 @ 264 MHz, 8 MB flash, 64 MB SDRAM;
packet buffer size: 384 KB

Mounting

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware
included); horizontal surface mounting only

Performance

100 Mb Latency

< 4.9 µs (64-byte packets)

1000 MB latency

< 2.6 µs (64-byte packets)

Throughput

up to 6.5 million pps (64-byte packets)

Switching capcity

8.8 Gbps

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative
humidity

15% to 95% @ 104°F (40°C), noncondensing

Nonoperating/ Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft. (3 km)

Acoustic

Power: 0 dB no fan

Electrical characteristics

Maximum heat
dissipation

68 BTU/hr (71.74 kJ/hr)

Voltage

100-127/200-240 VAC

Current

0.7/0.4 A

Maximum power rating

20 W

Frequency

50/60 Hz

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 10

Notes

Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped),
100% traffic, all ports plugged in, and all modules
populated.

Safety

cUL (CSA 22.2 No. 60950); UL 60950-1; IEC 60950; EN 60950

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2;
IEC/EN 61000-3-3

Immunity

Generic

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency
magnetic field

IEC 61000-4-8

Voltage dips and
interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HP PCM+; HP PCM; command-line interface; Web browser; out-of-band
management

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later
(product number ending with the letter "B" or later, e.g., J4858B, J4859C) are
required.

Services

3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support
and SW updates (U6321E)
3-year, 24x7 SW phone support, software updates (UF792E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR849E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR850E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7
software phone support (HR851E)
Installation with minimum configuration, system-based pricing (U4826E)
Installation with HP-provided configuration, system-based pricing (U4830E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UR948E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UR949E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UR950E)
4-year, 24x7 SW phone support, software updates (UR951E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UR952E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UR953E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone
(UR954E)

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 11

5-year, 24x7 SW phone support, software updates (UR955E)
3 Yr 6 hr Call-to-Repair Onsite (UW368E)
4 Yr 6 hr Call-to-Repair Onsite (UW369E)
5 Yr 6 hr Call-to-Repair Onsite (UW370E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR853E)
1-year, 24x7 software phone support, software updates (HR852E)
1-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS554E)
1-year, 24x7 software phone support, software updates + 4 hour hardware
exchange (HS555E)
3-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS556E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS557E)
4-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS558E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS559E)
5-year, 24x7 software phone support, software updates + Next Business Day
Hardware Exchange (HS560E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware
Exchange (HS561E)

Refer to the HP website at:

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

Standards and protocols

(applies to all products in
series)

Device management

HTML and telnet management

General protocols

IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 951 BOOTP
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP) v4

IP multicast

RFC 3376 IGMPv3

MIBs

RFC 1213 MIB II

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 12

RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 2021 RMONv2 MIB
RFC 2096 IP Forwarding Table MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB
RFC 3418 MIB for SNMPv3

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
SNMPv1/v2c/v3

Security

IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv1/SSHv2 Secure Shell

QuickSpecs

HP 2510 Switch Series

Technical Specifications

DA - 12599 North America — Version 18 — November 5, 2013

Page 13

HP 2510 Switch Series accessories

Transceivers

HP X111 100M SFP LC FX Transceiver

J9054B

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X121 1G SFP LC LH Transceiver

J4860C

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X121 1G SFP RJ45 T Transceiver

J8177C

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

Cables

HP 0.5 m Multimode OM3 LC/LC Optical Cable

AJ833A

HP 1 m Multimode OM3 LC/LC Optical Cable

AJ834A

HP 2 m Multimode OM3 LC/LC Optical Cable

AJ835A

HP 5 m Multimode OM3 LC/LC Optical Cable

AJ836A

HP 15 m Multimode OM3 LC/LC Optical Cable

AJ837A

HP 30 m Multimode OM3 LC/LC Optical Cable

AJ838A

HP 50 m Multimode OM3 LC/LC Optical Cable

AJ839A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

NEW HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Mounting Kit

HP X410 1U Universal 4-Post Rack Mounting Kit

J9583A

HP 2510-48 Switch

(J9020A)

HP X121 1G SFP RJ45 T Transceiver

J8177C

QuickSpecs

HP 2510 Switch Series

Accessories

DA - 12599 North America — Version 18 — November 5, 2013

Page 14

NOTE:

Details are not available for all accessories. The following specifications were available at the time of publication.

HP X111 100M SFP LC FX
Transceiver

(J9054C)

HP X111 100M SFP LC FX
Transceiver: An SFP format
100-megabit transceiver
with LC connectors using
FX technology.

Ports

1 LC 100BASE-FX port (IEEE 802.3u Type 100BASE-FX); Duplex: half or full

Physical characteristics

Dimensions: 2.7(d) x 0.54(w) x 0.48(h) in. (6.86 x 1.38 x 1.22 cm)
Weight: 0.06 lb. (0.03 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 95%
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Nonoperating/Storage relative humidity: 5% to 85%
Altitude: up to 10,000 ft. (3 km)

Cabling

Cable type:

62.5/125 ìm or 50/125 ìm (core/cladding) diameter, graded-index, low metal
content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2
Type A1b or A1a, respectively; Maximum distance:

• 2 km (full duplex) or 412 m (half duplex)

Notes

Transmitter wavelength: 1310nm
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the J9054B 100-FX SFP-LC
Transceiver" on the "ProCurve Mini-GBICs and SFPs" Manuals Web page.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X112 100M SFP LC BX-D
Transceiver

(J9099B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi-directional)
"downstream" transceiver
that provides 100 Mbps
full-duplex connectivity up
to 10 km on one strand of
singlemode fiber. The
J9099B connects to the
J9100B "upstream"
transceiver, or to any IEEE­standard 100BASE-BX10-U
("upstream") device.

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-D); Duplex: full
only

Physical characteristics

Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.04 lb. (0.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1550 nm. Receive wavelength: 1310 nm.
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support this

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 15

product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9099B connects to the J9100B "upstream" transceiver, or to any IEEE­standard 100BASE-BX10-U ("upstream") device. (A 100-BX-D transceiver can
only connect to a 100-BX-U product. You cannot connect two 100-BX-D
transceivers together.)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP X112 100M SFP LC BX-U
Transceiver

(J9100B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi-directional)
"upstream" transceiver
that provides 100 Mbps
full-duplex connectivity up
to 10 km on one strand of
singlemode fiber. The
J9100B connects to the
J9099B "downstream"
transceiver, or to any IEEE­standard 100BASE-BX10-D
("downstream")
device.

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-U); Duplex: full
only

Physical characteristics

Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.07 lb. (.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9100B connects to the J9099B "downstream" transceiver, or to any IEEE­standard 100BASE-BX10- D ("downstream") device. (A 100-BX-U transceiver
can only connect to a 100-BX-D product. You cannot connect two 100-BX-U
transceivers together.)
Transmit wavelength: 1310 nm. Receive wavelength: 1550 nm.
Power consumption is 1.1 watts maximum.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 16

HP X121 1G SFP LC LH
Transceiver

(J4860C)

A small form-factor
pluggable (SFP) Gigabit LH
transceiver that provides a
full-duplex Gigabit solution
up to 70 km on single­mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics); Duplex:
full only

Physical characteristics

Dimensions: 2.17(d) x 0.60(w) x 0.46(h) in. (5.5 x 1.53 x 1.18 cm)
Weight: 0.04 lb. (0.02 kg)

Environment

Operating temperature: -40°F to 185°F (-40°C to 85°C)
Operating relative humidity: 0% to 95% @ 77°F (25°C), noncondensing
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)

Cabling

Cable type:

Low metal content, single-mode fiber-optic, complying with ITU-T
G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

10-70,000 m (single-mode fiber)

Notes

Power consumption is 0.8 watts typical with 1 watt maximum at 100%
utilization.
For distances less than 20 km, a 10 dB attenuator must be used.
For distances between 20 km and 40 km, a 5 dB attenuator must be used.
Attenuators can be purchased from most cable vendors.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X121 1G SFP LC SX
Transceiver

(J4858C)

A small form-factor
pluggable (SFP) Gigabit SX
transceiver that provides a
full-duplex Gigabit solution
up to 550 m on multimode
fiber.

Ports

1 LC 1000BASE-SX port; Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption typical: 0.4 W
Power consumption maximum: 0.7 W

Cabling

Type:

62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low
metal content, multimode fiber optic, complying with ITU-T G.651 and
ISO/IEC 793-2 Type A1b or A1a, respectively;

Maximum distance:

2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
2-500 m (50 µm core diameter, 400 MHz*km bandwidth)

2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
Cable length: 2-550m
Fiber type: Multi Mode

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 17

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X121 1G SFP LC LX
Transceiver

(J4859C)

HP X121 1G SFP LC LX
Transceiver: An SFP format
gigabit transceiver with LC
connectors using LX
technology.

Ports

1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 0% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)
Altitude: up to 10,000 ft. (3 km)

Cabling

Type:

Either single mode or multimode; 62.5/125 µm or 50/125 µm
(core/cladding) diameter, graded-index, low metal content, multimode
fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or
A1a, respectively; Low metal content, single-mode fiber-optic,
complying with ITU-T G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

2-550 m (multimode 62.5 µm core diameter, 500 MHz*km bandwidth)
2-550 m (multimode 50 µm core diameter, 400 MHz*km bandwidth)
2-550 m (multimode 50 µm core diameter, 500 MHz*km bandwidth)
2-10,000 m (single-mode fiber)

Notes

A mode conditioning patch cord may be needed in some multimode fiber
installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 18

HP X121 1G SFP RJ45 T
Transceiver

(J8177C)

HP X121 1G SFP RJ45 T
Transceiver: An SFP format
gigabit transceiver with
RJ45 connectors using
1000BaseT technology.

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T); Duplex: full only

Physical characteristics

Dimensions: 2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)
Weight: 0.06 lb. (0.03 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C); with 100 LFM airflow over
the SFP module)

Operating relative humidity: 0% to 95% @ 75°F (25°C), noncondensing
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Nonoperating/Storage relative humidity: 0% to 95% @ 77°F (25°C),

noncondensing
Altitude: up to 10,000 ft. (3000 km)

Cabling

Cable type:
1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair
unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced,
complying with IEEE 802.3ab 1000BASE-T;
Maximum distance:

• 100 m

Notes

Power consumption is nominally 1 watt.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the J8177C 1000Base-T Mini­GBIC" on the "ProCurve Mini-GBICs and SFPs" Manuals Web page.
The J8177C Gigabit copper mini-GBIC is not supported on dual-personality
ports.
The J8177C is capable of 100 Mb operation. This is supported on only the HP
ProCurve Switch 8200zl, 5400zl, and 6200yl Series using software version
K.12.21 or later. Use the "auto-100" port setting to enable 100 Mb operation.
Important: The earlier J8177B does not support 100 Mb operation.
When used in the ProCurve Switch gl 20-Port 10/100/1000 Module (J4908A),
the J8177C mini-GBIC can be installed in either the upper or lower mini-GBIC
port, but will block access to the other port.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 19

HP X122 1G SFP LC BX-D
Transceiver

(J9142B)

A small form-factor
pluggable (SFP) Gigabit-BX
(bi-directional)
"downstream" transceiver
that provides a full-duplex
Gigabit solution up to 10
km on one strand of
single-mode fiber. The
J9142B connects to the
J9143B "upstream"
transceiver, or to any IEEE­standard 1000BASE-BX10­U ("upstream") device.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:
full only

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x 1.18
cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:
Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1490 nm. Receive wavelength: 1310 nm.
Power consumption is 1 watt maximum.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9142B connects to the J9143B "upstream" transceiver, or to any IEEE­standard 1000BASE-BX10-U ("upstream") device. (A 1000-BX-D transceiver
can only connect to a 1000-BX-U product. You cannot connect two 1000-BX-D
transceivers together.)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP X122 1G SFP LC BX-U
Transceiver

(J9143B)

A small form-factor
pluggable (SFP) Gigabit-BX
(bi-directional) "upstream"
transceiver that provides a
full-duplex Gigabit solution
up to 10 km on one strand
of single-mode fiber. The
J9143B connects to the
J9142B "downstream"
transceiver, or to any IEEE­standard 1000BASE-BX10­D ("downstream")
device.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex:
full only

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x 1.18
cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:
Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1310 nm. Receive wavelength: 1490 nm.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 20

For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9143B connects to the J9142B "downstream" transceiver, or to any IEEE­standard 1000BASE-BX10-D ("downstream") device. (A 1000-BX-U
transceiver can only connect to a 1000-BX-D product. You cannot connect two
1000-BX-U transceivers together.)
Power consumption is 1 watt maximum.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP 0.5 m Multimode OM3
LC/LC Optical Cable

(AJ833A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km
@850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm
for Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber and designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 21

HP 1 m Multimode OM3
LC/LC Optical Cable

(AJ834A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 22

HP 2 m Multimode OM3
LC/LC Optical Cable

(AJ835A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m;

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 23

HP 5 m Multimode OM3
LC/LC Optical Cable

(AJ836A)

Cabling

Cable type

:
50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m;

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: This specification defines the detail requirements for a tight
buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and
Ethernet assembly with LC duplex connectors on one end and LC duplex
connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 24

HP 15 m Multimode OM3
LC/LC Optical Cable

(AJ837A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m;

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 25

HP 30 m Multimode OM3
LC/LC Optical Cable

(AJ838A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m;

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 26

HP 50 m Multimode OM3
LC/LC Optical Cable

(AJ839A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m;

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm.
VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for
Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber. The cable is designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 27

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
1m Cable (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
2m Cable (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 28

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
5m Cable (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
15m Cable

(QK735A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 29

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
30m Cable

(QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
50m Cable

(QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 30

HP X410 1U Universal 4­post Rack Mounting Kit

(J9583A)

Notes

The rack mounting kit supports the 1U, full width switches in the following
switch series and the power supply: V1810 Series, E2510 Series, E2520 Series,
E2610 Series, E2810 Series, E2910 Series, E3500 Series, and the E620 Power
Supply
This universal rack mounting kit is design to fit the following racks: HP 10K
10642, HP 10K 10842, Panduit CN, Panduit CS, Wrightline Vantage S2, APC
Netshelter 600mm, and APC Netshelter 800mm. It may well fit many other
brands and models too.

Services

Refer to the HP website at:

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

To learn more, visit:

www.hp.com/networking

© Copyright 2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

QuickSpecs

HP 2510 Switch Series

Accessory Product Details

DA - 12599 North America — Version 18 — November 5, 2013

Page 31
