HP 2000CSE User Manual

DeskJet 2000Cse
© 2004 Hewlett-Packard 1
HP Parts Reference Guide™
www.hp.com/go/hpparts
2000C Electronics
Cable
1
C4530-60044 Main logic PC board power cable
2
C4530-60057 Cable assembly - Has 3 pin (F) connectors - 7.0cm (2.8 inches) long
3
C4530-60091 Trailing cable assembly - Two ribbon cables attached to a plastic mounting bracket - 55.9cm (22 inches) long
4
C4530-60146 Main cable harness assembly with ferrites - Has many connectors: a large 10 pin (F), three 2 pin (F), four 3 pin (F), a 5
pin (F), a 6 pin (F), a 7 pin (F), a 9 pin (F), a 12 pin (F), and two 30 pin (F) - Overall length is 88.3cm (34.8 inches)
Cable Kit
5
C5875-60001 JetDirect print server cable set - Includes power cable and parallel interface cable (Cables connect between the printer
and the JetDirect module)
Fan
6
C4530-60096 Fan and mount assembly
Keypad
7
C4530-60033 Keypad assembly - Includes cover
PC Board
8
C4530-60038 Power supply PC board
9
C4530-69308 Main logic PC board
REQUIRES RETURN OF DEFECTIVE PART
C4530-60303 New Part for C4530-69308
10
C4530-69320 Main logic PC board
REQUIRES RETURN OF DEFECTIVE PART
C4530-60320 New Part for C4530-69320
Power Cord
11
8120-8416 Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 240V in the
UK)
12
8120-8417 Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in Europe and
Russia)
13
8120-8419 Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 120V in the USA and
Canada)
14
8120-8420 Power cord (Flint Gray) - 18 AWG, two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in
Korea)
15
8120-8421 Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 240V in India and
South Africa)
16
8120-8451 Power cord (Flint Gray) - Two conductor, 1.8m (6.0ft) long - Has 90 degree (F) C7 receptacle (For 220V in Argentina,
Australia, New Zealand, Papua, New Guinea, Uruguay, and China)
17
8120-8452 AC Power cord (Black) - Two conductor, 1.8m (6.0ft) long - Has straight (F) C7 receptacle (For 220V in Chile)
Sensor
18
1990-2081 Media sensor - Used to detect transparencies
19
C4530-60130 Carriage access door sensor assembly - Includes cable

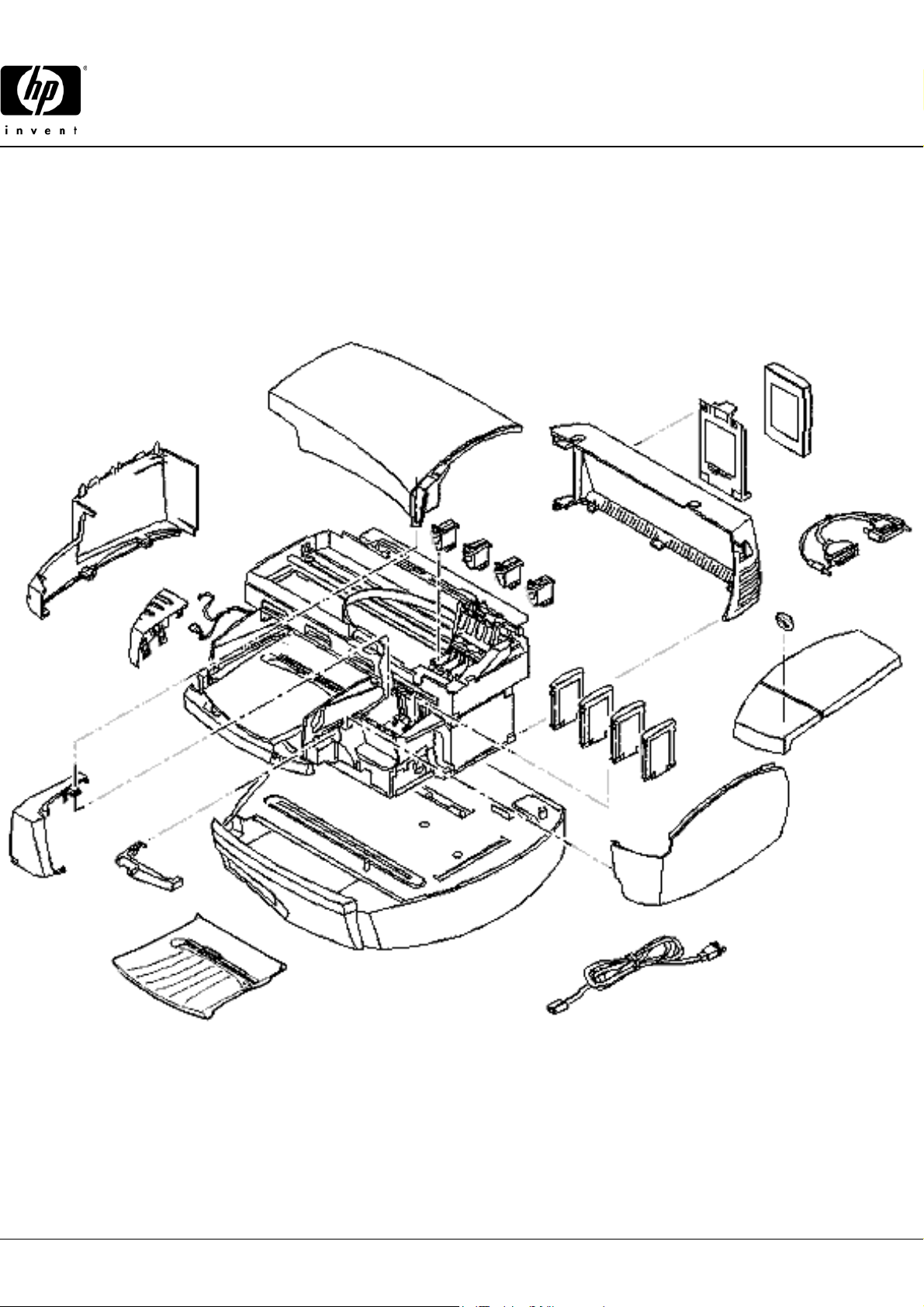

Chassis Parts
Base
20
C4530-60093 Base assembly - Large metal item that serves as the base for the printer
Bracket
21
J3263-40003 Mounting bracket (plastic clip) - Holds the JetDirect print server module on the rear panel of the printer - Comes
Standard with the HP 2000CN (C5901A)
Cover
22
C4530-40142 Top door assembly - Provides access to the ink delivery system
23
C4530-40145 Left side cover
24
C4530-40146 Right cheek - Side cover for paper tray
DeskJet 2000Cse
© 2004 Hewlett-Packard 2
HP Parts Reference Guide™
www.hp.com/go/hpparts
Chassis Parts
Cover
25
C4530-40148 Rear cover
26
C4530-40254 IDS skirt
Door
27
C4530-40149 Service station access door
28
C4530-60314 Access door assembly - Includes the ink cartridge door, print head door, and hinge spring - Mounts on the right top side
of the printer
Foot
C4530-40279 Rubber bumper foot
Label
30
C4530-80071 Indicator label (Shows which cartridges and printheads to use)
NO LONGER SUPPLIED
C4530-60314 New Part for C4530-80071
Tray
31
C4530-60253 Input/output tray assembly - Includes extended paper output tray assembly and the structure that the tray rests on
32
C4530-60259 Extended paper output tray assembly (output deck) - Includes extended tray with width adjuster - Slides in the retainer
slots on the front top of the printer - Replaces the standard tray
33
C4601-69002 Accessory paper tray/feeder assembly - Holds 250 sheets of paper
REQUIRES RETURN OF DEFECTIVE PART
C4601-67002 New Part for C4601-69002
Electronic Accessories
Cable (Interface)
5063-1256 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2950A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256 New Part for C2950A
C2951A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
Cable Kit
40
C5875-60001 JetDirect print server cable set - Includes power cable and parallel interface cable (Cables connect between the printer
and the JetDirect module)
Tray
41
C4601-69002 Accessory paper tray/feeder assembly - Holds 250 sheets of paper
REQUIRES RETURN OF DEFECTIVE PART
C4601-67002 New Part for C4601-69002
42
C4601A HP 2000C Accessory paper input tray - Holds 250 sheets of paper
NO LONGER SUPPLIED
Optional Interfaces
Interface (Module)
43
J3263-69001 External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and
LAN network - Does NOT include power module - Comes Standard with the C5901A HP 2000CN REQUIRES RETURN OF DEFECTIVE PART
J3263-61001 New Part for J3263-69001
DeskJet 2000Cse
© 2004 Hewlett-Packard 3
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Interfaces
Interface (Module)
J4101-61011 External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and
LAN network - Does NOT include power module - (J4101A, J4101B)
Interface (Product)
J2591A External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2)
connectors NO LONGER SUPPLIED
Module
J2591-69001 External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors J3264-69001 External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and 3 parallel (DB-25) output
connectors REQUIRES RETURN OF DEFECTIVE PART
J3264-61001 New Part for J3264-69001
J3265-69001 External JetDirect LAN interface module with EtherTwist (10Base-T and ThinLAN) (10BASE-2) input connectors and 3
parallel (DB-25) output connectors REQUIRES RETURN OF DEFECTIVE PART
J3265-61001 New Part for J3265-69001
J4102-69011 External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J4102A, J4102B)
REQUIRES RETURN OF DEFECTIVE PART
J4102-61011 New Part for J4102-69011
Module (Product)
J4101B External JetDirect LAN interface module with EtherTwist (10Base-T/Base-TX) connector J4102B External JetDirect LAN interface module with EtherTwist (10Base-T) connector
Power Module
0950-3348 Wall mount power supply module (MEI-AH ED12006) - 110-127VAC input, 57-63Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United States and Canada) - For models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3349 Wall mount power supply module (MEI-AH ED12007) - 230VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (for
use in Europe and Israel)
0950-3350 Wall mount power supply module (MEI-AH ED12008) - 220-240VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United Kingdom) - For JetDirect/infrared interfaces J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3351 Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in South Korea) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3352 Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in Japan) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3354 Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in South Africa) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
9100-5176 Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA
(Hong Kong) - For JetDirect Modules and Infrared Interface Models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3350 New Part for 9100-5176
Other Accessories
Bracket
59
J3263-40003 Mounting bracket (plastic clip) - Holds the JetDirect print server module on the rear panel of the printer - Comes
Standard with the HP 2000CN (C5901A)
DeskJet 2000Cse
© 2004 Hewlett-Packard 4
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Cartridge
60
C4840A No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for USA) NO LONGER SUPPLIED
C4844A New Part for C4840A
61
C4840AA No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Asia/Pacific) NO LONGER SUPPLIED
62
C4840AE No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Europe) NO LONGER SUPPLIED
63
C4840AL No.10 standard capacity black ink cartridge (Holds 27ml of ink) - Prints approximately 500 pages at 5% printing density
(for Latin America) NO LONGER SUPPLIED
64
C4844A No. 10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density
(USA)
65
C4844AA No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Asia/Pacific)
66
C4844AE No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Europe)
67
C4844AL No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for
Latin America)
68
C4841A No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for USA)
69
C4841AA No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Asia/Pacific)
70
C4841AE No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Europe)
71
C4841AL No.10 standard capacity cyan ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Latin America)
72
C4843A No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for USA)
73
C4843AA No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Asia/Pacific)
74
C4843AE No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Europe)
75
C4843AL No.10 standard capacity magenta ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed
color printing density (for Latin America)
76
C4842A No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for USA)
77
C4842AA No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Asia/Pacific)
78
C4842AE No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Europe)
79
C4842AL No.10 standard capacity yellow ink cartridge (Holds 29ml of ink) - Prints approximately 1240 pages at 15% mixed color
printing density (for Latin America)
Cleaning Supplies
C4530-67910 Paper pick-up roller cleaning kit
Manual
C4530-60274 HP 2000C family service manual on CD-ROM (Version 1.1, English, HP Internal version) C4530-60275 HP 2000C family service manual on CD-ROM (Version 1.1, English)
DeskJet 2000Cse
© 2004 Hewlett-Packard 5
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Manual/Software
C5900-60004 HP 2000Cse printer user's manual/software kit (English) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers
C5901-60037 HP 2000CN printer user's manual/software kit (English) - Includes the user's manual, Network Configuration guide, HP
JetDirect Print Server Software, 'Printing Essentials' CD-ROM, and printer drivers
C5901-60038 HP 2000CN printer user's manual/software kit (French) - Includes the user's manual, 'Printing Essentials' CD-ROM, and
printer drivers
C5901-60039 HP 2000CN printer user's manual/software kit (Portuguese) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers
C5901-60040 HP 2000CN printer user's manual/software kit (Spanish) - Includes the user's manual, 'Printing Essentials' CD-ROM,
and printer drivers

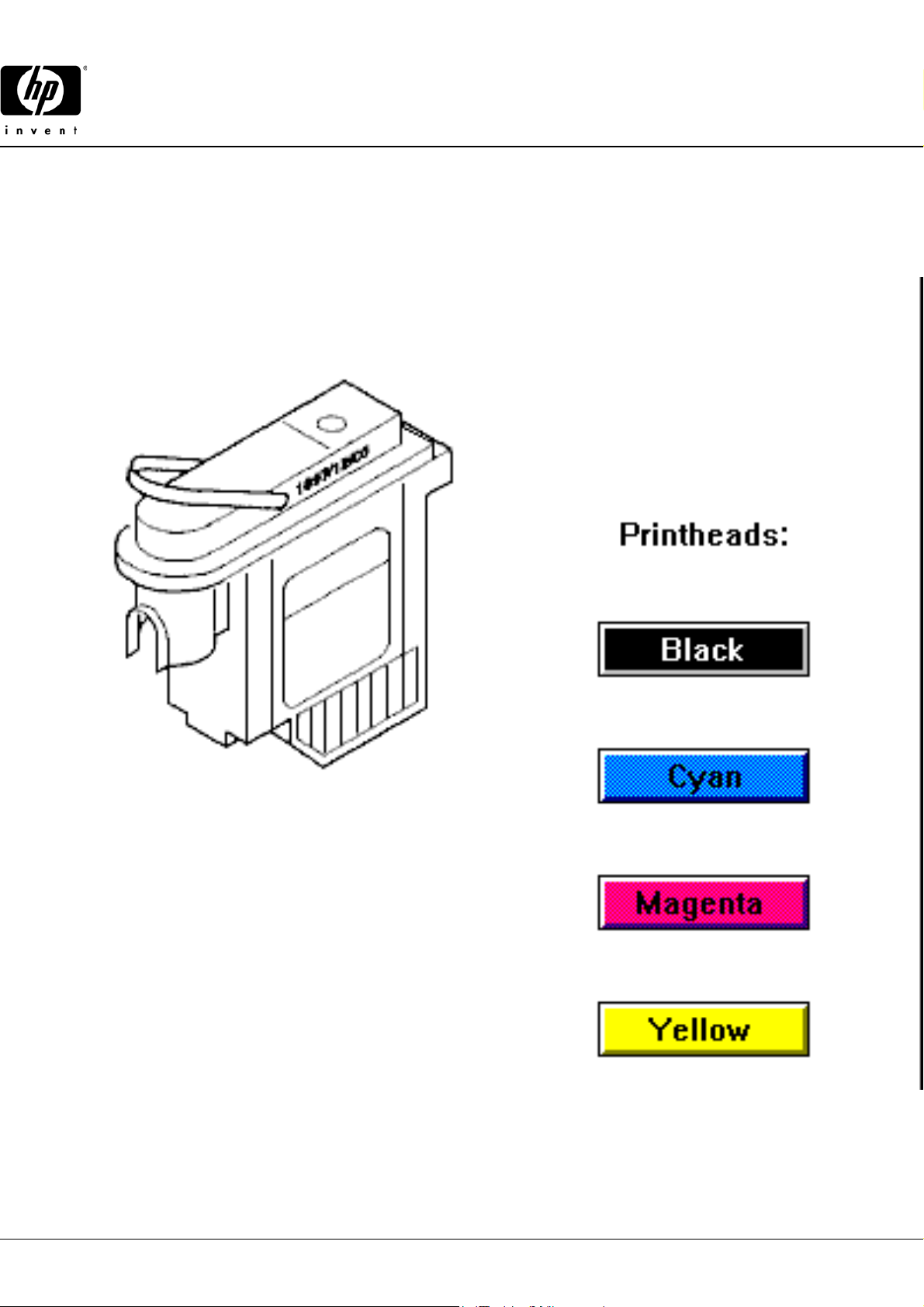

Printhead
88
C4800A No.10 black ink printhead assembly - Approximate life expectancy is 12,000 pages minimum at 5% printing density
89
C4801A No.10 cyan ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color printing
density
90
C4802A No.10 magenta ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color
printing density
91
C4803A No.10 yellow ink printhead assembly - Approximate life expectancy is 15,000 pages minimum at 15% mixed color
printing density
Return Kit
5183-5269 Return kit with box and instructions - For returning defective TIJ 3.0 printheads covered under the CREW program
Other Internal Parts
Absorber
93
C4530-80070 Absorber
94
C4530-80078 Absorber (Wick)
95
C4530-80100 Absorber
Bracket
96
C4530-00117 Bracket (curtain) - Metal support installed near center of base
Cover
97
C4530-00018 PC board cover/ground bracket
98
C4530-20075 Power supply PC board cover
Fan
99
C4530-60096 Fan and mount assembly
Filter
100
C4530-80037 Air filter
Guide
101
C4530-40352 Guide - Installed under the service station
Ink Delivery System
102
C4530-67812 Ink Delivery System - Carries ink from ink supply station to ink cartridges
Ink Supply Station
103
C4530-67817 Ink supply station assembly

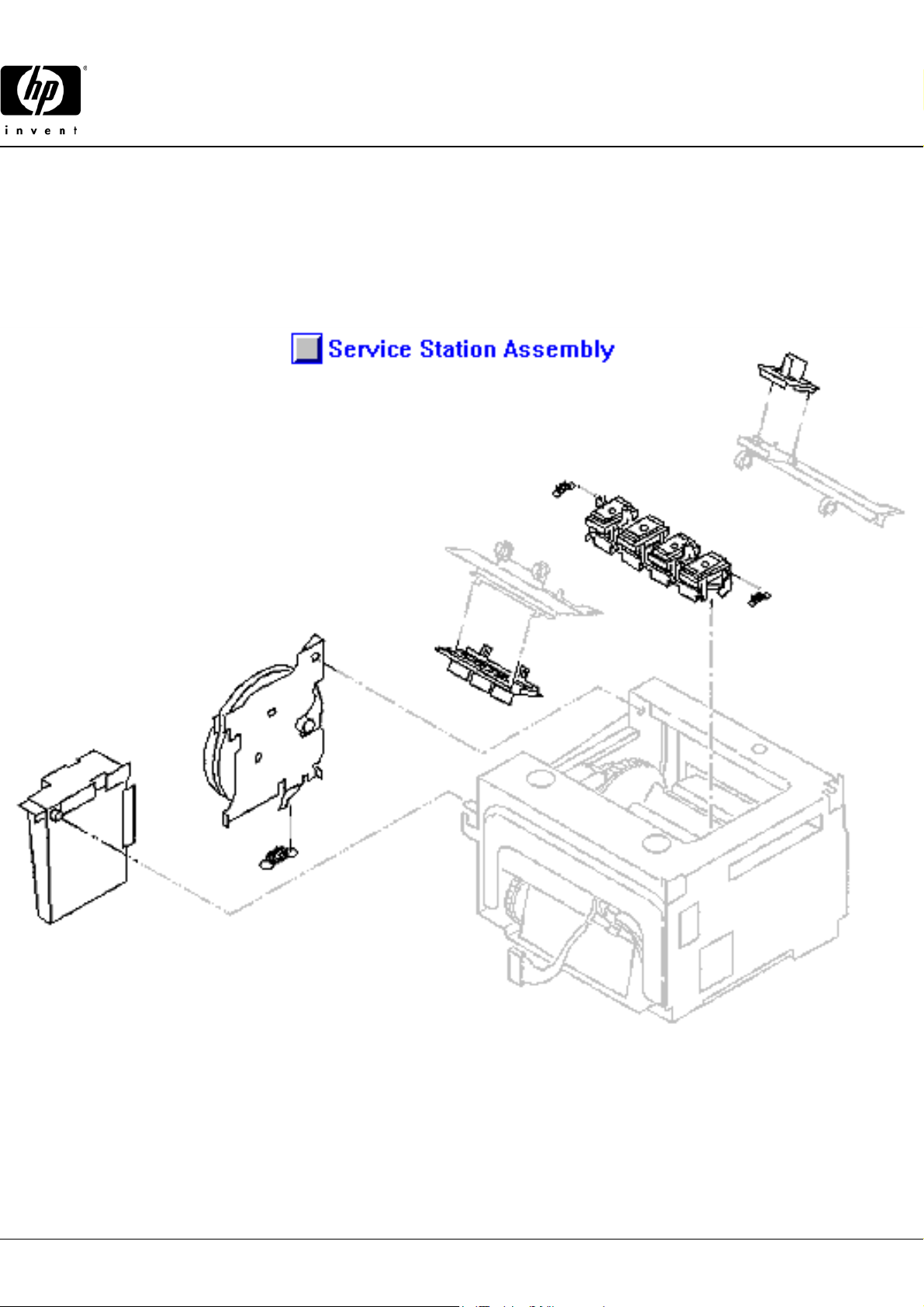

Service Station
104
C4530-67803 Print cartridge service station assembly - Includes motor, cap assembly, and wipers
Paper and Other Media
DeskJet 2000Cse
© 2004 Hewlett-Packard 6
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Film (Transparency)
C3832A Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 20 sheets per package C3835A Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per package C6053A Premium InkJet rapid-dry tranparencies - A4 size (21.0cm x 29.7cm) - 50 sheets per package
NO LONGER SUPPLIED C3828A Premium InkJet transparency film - A size (8.5 x 11-inches) - 20 sheets per package C3834A Premium InkJet transparency film - A size (8.5 x 11-inches) - 50 sheets per package C6051A Premium InkJet rapid-dry tranparencies - A size (8.5 x 11-inches) - 50 sheets per package
NO LONGER SUPPLIED
Greeting Card Kit
C6587AN Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original
pieces of art
NO LONGER SUPPLIED
Iron-On Transfers
C6050A Iron-on T-shirt transfers - A4 size (21.0cm x 29.7cm) - 10 sheets per package C6049A Iron-on T-shirt transfers - A size (8.5 x 11-inches) - 10 sheets per package
Paper
C6828A Greeting card paper pack (White) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes C6042A Greeting card paper pack (White) - A4 size (21.0cm x 29.7cm) - Includes 20 sheets and 20 envelopes - Not
Recommended for Use in the 250 Sheet Accessory Paper Tray C1812A Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes - Not recommended
for use in the 250 sheet accessory paper tray
Paper (Banner)
C1820A Banner paper - A size (8.5 x 11-inches) - 24 lb - Perforated for easy separation - 100 sheets per pack
Paper (Glossy)
C3833A Premium glossy InkJet paper - A size (8.5 x 11-inches) - 10 sheets per package C6044A Glossy greeting cards - A size (8.5 x 11-inches) - 10 scored glossy cards and envelopes C7020A Scored tri-fold glossy brochure paper - B size (11 x 17-inches) C6817A Professional glossy InkJet brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches) - 50 sheets per box
Paper (InkJet Photo)
C6983A Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package C7007A Photo quality InkJet paper - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets per package
Paper (InkJet)
51634Z InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package C1825A Bright white InkJet paper - A4 size (21.0cm x 29.7cm) - 500 sheets per package C1853A Premium InkJet heavyweight paper - A4 size (21.0cm x 29.7cm) - Coated on both sides - 100 sheets per package 51634Y InkJet non-glossy LX paper - A size (8.5 x 11-inches) - 200 sheets per package C1824A Bright white InkJet paper - A size (8.5 x 11-inches) - 500 sheets per package C5976A Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package C5976B Bright white InkJet paper - A size (8.5 x 11-inches) - 250 sheets per package
Paper (Matte)
C7018A Matte greeting cards (White) - Half fold - A size (8.5 x 11-inches) C6955A Professional and flyer paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
Paper (Photo)
C1846A Photo paper - A size (8.5 x 11-inches) - 20 sheets per package C6831A Premium plus glossy InkJet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package
DeskJet 2000Cse
© 2004 Hewlett-Packard 7
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Paper (Photo)
C6944A Premium plus glossy InkJet photographic paper - 10.2cm (4in) x 15.2cm (6in) - 20 sheets per package C6950A Premium Plus matte inkjet photographic paper - A size (8.5 x 11-inches) - 20 sheets per package C6979A Premium glossy photo paper (fast dry time) - A size (8.5 x 11-inches) - 50 sheets per package C7013A Colorfast photo paper - A size (8.5 x 11-inches) - 20 sheets per package C6040A Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 15 sheets per package (Europe, Brazil, and Argentina) C6057A Premium glossy photo paper - A4 size (21.0cm x 29.7cm) - 20 sheets per package
NO LONGER SUPPLIED C6039A Premium glossy photo paper (Fast dry time) - A size (8.5 x 11-inches) - 15 sheets per package C6055A Deluxe glossy photo paper - A size (8.5 x 11-inches) - 20 sheets per pack - For use with DeskJet KIE-logo printers
C6039A New Part for C6055A
Paper (Textured)
C7019A Textured greeting card - White half fold - A size (8.5 inches x 11 inches)
Stickers
C6822A Round re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) round stickers with 3M 'Post-it' adhesive - A size (8.5
x 11-inches) - 10 sheets per package with nine stickers per sheet C6823A Square re-stickable InkJet stickers - HP bright white 6.35cm (2.5in) square stickers with 3M 'Post-it' adhesive - A size
(8.5 x 11-inches) - 10 sheets per package with nine stickers per sheet

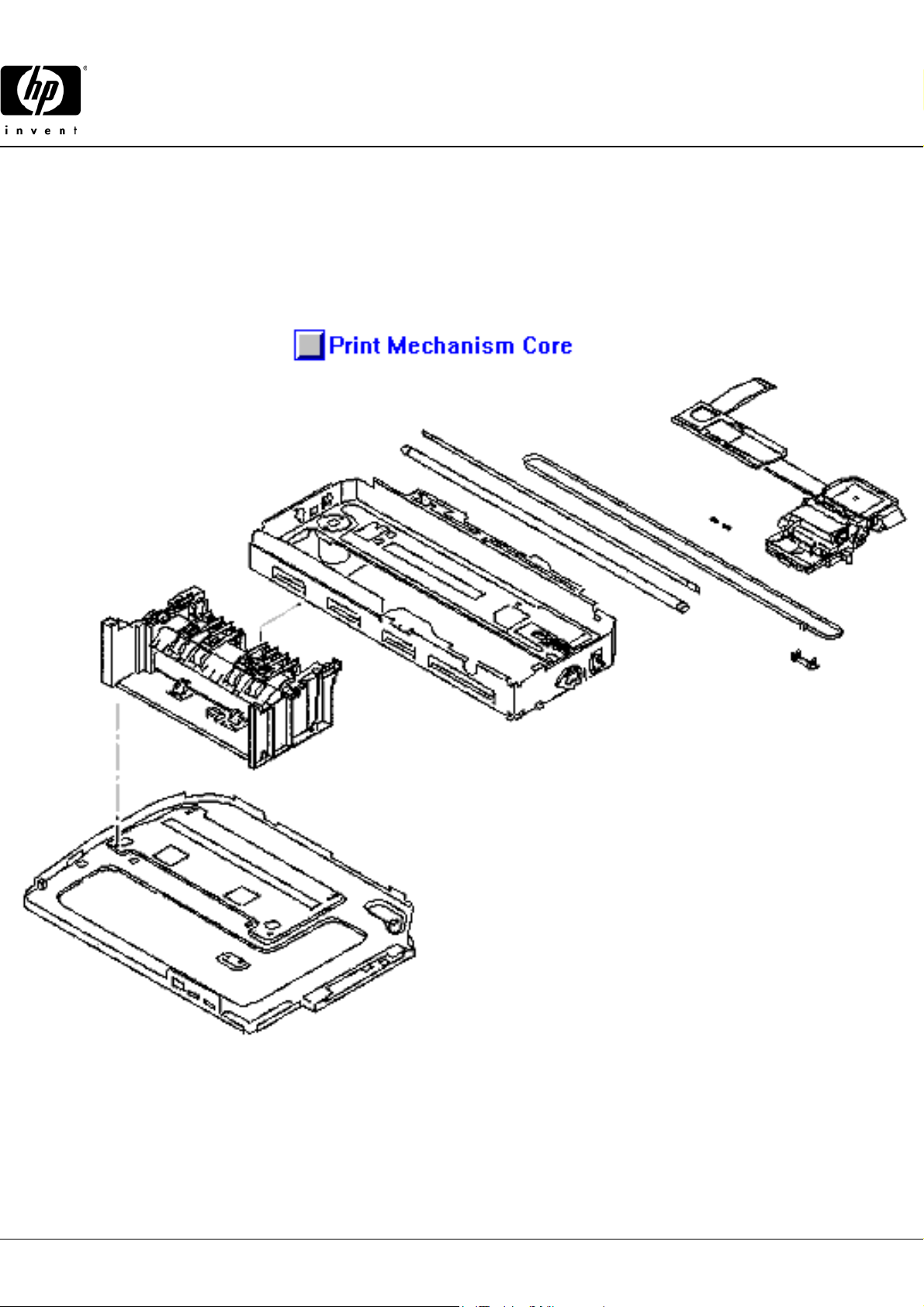

Print Mechanism Parts
Arm
146
C4530-40261 Carriage access door sensor arm
Belt
147
C4530-40238 Carriage belt
Bracket
148
C4530-40260 Carriage access door sensor housing / bracket
Cable
149
C4530-60057 Cable assembly - Has 3 pin (F) connectors - 7.0cm (2.8 inches) long
150
C4530-60091 Trailing cable assembly - Two ribbon cables attached to a plastic mounting bracket - 55.9cm (22 inches) long
Carriage
151
C4530-60086 Carriage assembly - Includes trailing cable assembly
Gear
152
C4530-40206 LFA gear cluster (Dual gear)
Gear Assembly
153

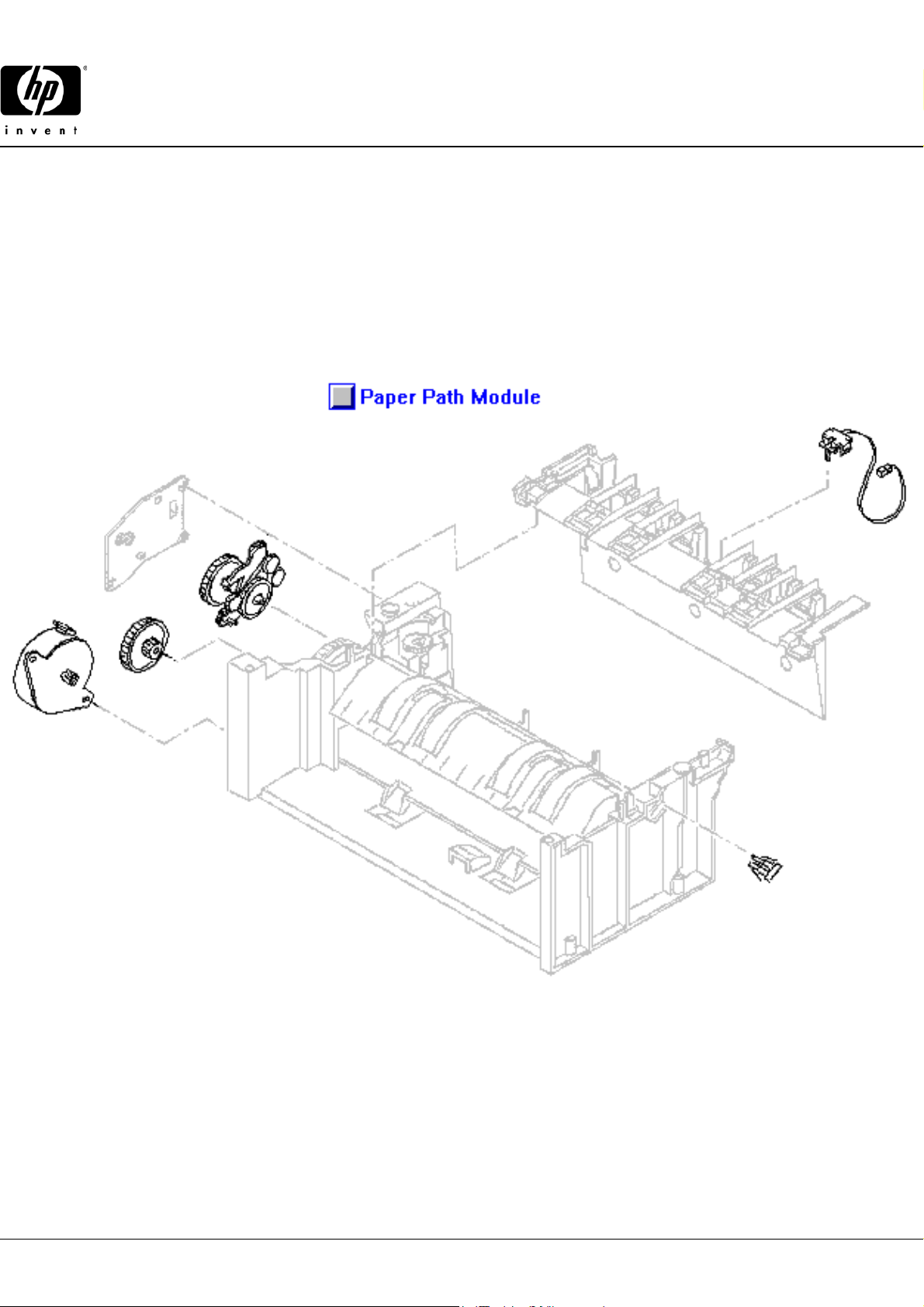

C4530-60287 Gear assembly - Numerous gears in a single assembly - Installed on side of paper path module
Idler Assembly
154
C4530-60136 Idler pulley assembly - Holds right end of carriage belt
Ink Supply Station
155
C4530-67817 Ink supply station assembly
Latch
156
C4530-67807 Cartridge latch assembly - Holds cartridges in the carriage
Motor
157
C4530-60002 Carriage motor assembly
158
C4530-60004 Paper advance motor
Loading...
+ 14 hidden pages
