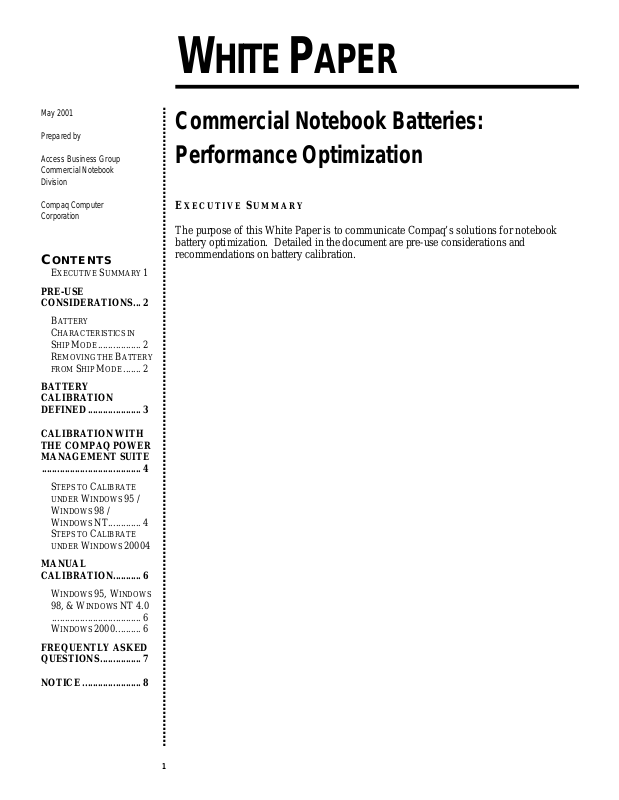

WHITE PAPER
.
May 2001
Prepared by
Access Business Group
Commercial Notebook
Division
Compaq Computer
Corporation
CONTENTS
EXECUTIVE SUMMARY1
PRE-USE
CONSIDERATIONS...2
BATTERY
CHARACTERISTICS IN
SHIP MODE.................2
REMOVING THE BATTERY
SHIP MODE....... 2
FROM
BATTERY
CALIBRATION
DEFINED..................... 3
CALIBRATION WITH
THE COMPAQ POWER
MANAGEMENT SUITE
....................................... 4
STEPS TO CALIBRATE
WINDOWS 95 /
UNDER
W
INDOWS 98 /
W
INDOWS NT.............4
STEPS TO CALIBRATE
WINDOWS 20004
UNDER
MANUAL
CALIBRATION...........6
WINDOWS 95, WINDOWS
98, & WINDOWS NT 4.0
................................... 6
WINDOWS 2000.......... 6
FREQUENTLY ASKED
QUESTIONS................ 7
NOTICE....................... 8
1
.
.
.
.
Commercial Notebook Batteries:
.
.
.
.
.
.
.
.
.
Performance Optimization
.
.
.
.
.
.
.
.
.
.
.
EXECUTIVE SUMMARY
.
.
.
.
.
.
The purpose of this White Paper is to communicate Compaq’s solutions for notebook
.
.
.
battery optimization. Detailed in the document are pre-use considerations and
.
.
.
recommendations on battery calibration.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
PRE-USE CONSIDERATIONS
Notebook batteries are shipped from the factory at approximately 30%-60% charge capacity in a low
power state known as ship mode to minimize energy loss during shipment. Although the battery is not in
use during shipment and storage, the control circuitry in the battery continues to draws power from the
cells. Ship mode allows for a storage life of up to 1 year at room temperature ensuring that the battery is
charged when it reaches the end user.
ATTERY CHARACTERISTICS IN SHIP MODE
B
The charge capacity status LED’s on the battery will not indicate a charge.
In “Power Options Properties” in control panel of windows initially indicates 0% charge when
initially plugged into A/C power.
If A/C power is not applied the battery will not power the notebook. The customer should not
mistake this for a defective battery.
R
EMOVING THE BATTERY FROM SHIP MODE
Insert/attach the battery pack.
Connect the computer to A/C power
Compaq recommends leaving the computer connected to A/C power until the battery light turns off,
which indicates that the battery pack is fully charged.
NOTE: You can charge the battery pack while the computer is powered on or off.
After the battery pack has been fully charged, you can operate the computer; however, the battery gauge
may not accurately report the amount of charge until the battery pack has been calibrated. It is, therefore,
recommended that a new battery pack be calibrated soon after purchase. For more information on
calibration please refer to the information provided below.
2
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
BATTERY CALIBRATION DEFINED
With the advancement in technology, the battery industry continues to provide solutions aimed at
improving methods of accurately measuring a battery’s charge capacity. Inherent in today’s battery
chemistry, the ability to store energy diminishes with each charge cycle. The Fuel Gauge that measures
charge capacity is not able to account for the gradual diminishment in capacity. As a result, over time
the gauge’s measurement becomes inaccurate. To maintain the measurement accuracy, Compaq
recommends periodic calibration about every 90 days to reassess the energy storing capacity of the cells.
To complete the calibration of a battery, a full charge of the battery must be followed by a full uninterrupted discharge. Unless these two steps are completed together, proper calibration is not achieved
and continued accuracy of the battery’s Fuel Gauge cannot be assumed. The more frequently the battery
is subjected to partial charges and discharges, the more frequently the battery should be calibrated.
IMPORTANT!
Although the Battery Calibration tab displays all batteries installed in the system including those in the
ArmadaStation, only those batteries installed in the computer battery bay or MultiBay can be calibrated
The battery can be calibrated using one of the following methods:
Compaq Power Management Suite (PowerCon32)
Unattended Battery Calibration Utility
Manual Calibration
3
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
CALIBRATION WITH THE COMPAQ POWER MANAGEMENT SUITE
To meet the need for battery run time accuracy, Compaq is now pre-installing a Battery Calibration
utility with the Compaq Power Management Suite (PowerCon32) on all Armada notebooks. The
Compaq Power Management Suite is available for download at
www.compaq.com/support/files/notebooks/us/index.html
The Calibration utility simplifies the process by running all necessary actions (charge, discharge and
recharge) in the background, allowing the computer to be used freely throughout the entire Calibration
process. It includes a Graphical User Interface (GUI) that clearly identifies when the battery needs
calibration, eliminating guesswork for the user.
The battery Calibration utility is incorporated in the Compaq Power Management suite (commonly
referred to as PowerCon32) for Windows 95, Windows 98, Windows NT 4.0, and Windows 2000. To use
the Battery Calibration utility, follow the instructions below for the appropriate OS.
TEPS TO CALIBRATE UNDER WINDOWS 95 / WINDOWS 98 / WINDOWS NT
S
(Using the Compaq Power Management Suite version 3.x and prior)
Attach AC Power Cord and do not remove until Calibration is complete. If removed, Calibration must be
started over.
Go to:
• Start / Settings / Control Panel / Power Management / Battery Calibration tab (or use Fn-F7 if
Hotkeys is installed)
• Under the Battery Calibration tab is located the battery status box
• Status of all batteries in the notebook is reported as either " Needs Calibration" or "OK"
Calibration process:
• Highlight the battery you desire to Calibrate
• Click on Start Calibration button - Status box reports "Calibrating"
• Allow system to run the Calibration process completely. The Calibration process may take up to 2-3
hours for a complete cycle depending on current battery state
• When complete, the Status box will indicate show "OK"
• Calibration is now complete
Notes about Calibration:
• Calibration runs in the background and system can be fully utilized during this process
• Calibration can be stopped with the same button that activates it
• System will offer to re-Calibrate about every 2-3 months, depending on usage
• The battery may be Calibrated overnight, unattended, if mobility is required during the day
• As noted in the Pre-Use Considerations section of this document, Compaq recommends calibrating
each new battery, so that fuel level communication is accurate between the battery and the Operating
System.
S
TEPS TO CALIBRATE UNDER WINDOWS 2000
Attach the AC Power Cord and do not remove until Calibration is complete. If removed, Calibration
must be started over.
4
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
Go to:
• Start / Settings / Control Panel / Power Options / Compaq Power (or use Fn-F7 if hotkeys is
installed)
• Under the Compaq Power tab is located the battery status boxes.
• Status of all batteries in the notebook is reported by percentage of charge and if Calibration is
required, a Calibrate button is visible for each battery that requires Calibration
Calibration process:
• Go to Power Schemes tab and set Standby settings to never
• Go back to Compaq Power tab
• Highlight the battery you desire to Calibrate
• Click on Calibration button
• A Calibrate box opens and asks “Start Calibration” - click "Yes"
• Allow system to run the Calibration process completely. The Calibration process may take up to 2-3
hours for a complete cycle depending on current battery state
• When complete, Status box will show only percentage of charge. The calibration button is not
visible until the battery requires Calibration again
• The user may return to Power Schemes and activate the type of power management setting they
desire
Notes about Calibration:
• Calibration runs in the background and system can be fully utilized during this process
• Calibration can be stopped with the same button that activates it
• System will offer to re-Calibrate about every 2-3 months, depending on usage
• The battery may be Calibrated overnight, unattended, if mobility is required during the day
• As noted in the Pre-Use Considerations section of this document, Compaq recommends calibrating
each new battery, so that fuel level communication is accurate between the battery and the Operating
System.
5
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
MANUAL CALIBRATION
To calibrate a battery on computers without a battery calibration utility, complete the following steps:
INDOWS 95, WINDOWS 98, & WINDOWS NT 4.0
W
1. Remove the second battery, if present, so that only the battery needing calibration remains in the
computer.
2. Dock the computer, or connect to AC power.
3. Turn on the computer.
4. Check the current battery capacity level by positioning the cursor over the battery icon in the
system tray.
5. Allow the battery to charge to 100%. You may use the computer, but the recharging process will
require more time.
W
INDOWS 2000
1. Set the system to “drain” mode on the battery conservation settings by pressing Fn+F7, or select
Start > Settings > Control Panel > Power (or Compaq Power in Windows NT).
2. Undock the computer or disconnect the computer from AC power.
3. Restart the computer in MS-DOS mode by clicking Start > Shut Down > Restart the
Computer in MS-DOS Mode > OK.
4. Allow the computer to discharge until it shuts off.
5. Dock the computer or reconnect AC power.
6. Allow the computer to charge again to 100% as in Step 5.
7. You have now successfully calibrated the battery.
6
COMMERCIAL NOTEBOOK BATTERIES: PERFORMANCE OPTIMIZATION (cont.)
FREQUENTLY ASKED QUESTIONS
Q: Why do I need to calibrate my battery?
A: Proper battery calibration will allow the computer to accurately report the amount of charge
remaining. Improper reporting of charge may lead to false low-battery warnings, and result in a perceived
short battery life
Q: How often should I recalibrate my battery?
A: The need for Battery Calibration is completely dependent on the individual usage of the battery and
the frequency of subjected partial charges/discharges. Primarily users should gauge the need for
Calibration on battery behavior. However, as a general rule the battery should be calibrated a minimum
of once every 3 months for optimal reporting accuracy
Q: I am only getting one hour of battery life. Will calibrating improve this performance?
A: Battery life will vary based on configuration. Power settings, storage media intensive operations, or
options that run off of the battery, such as PC Cards, MultiBay devices, or MultiBay Expansion Units
and other factors can decrease battery life. Calibration can improve the accuracy of power reporting,
which may result in improved perceived performance.
Q: What do you mean by "perceived performance"?
A: Although the battery can store a specific amount of power, certain power management events such as
suspend and hibernation are triggered by the amount of remaining life reported by the battery.
Misreported information can engage these power management states before it is necessary. For example,
a computer is set to enter standby when the battery has 15% of life remaining. If an uncalibrated battery
in the computer reports 15% when there is actually more battery life remaining, poor battery performance
could be interpreted. Proper calibration would prevent premature triggering of power management
events.
Q: Is there any other way to increase my battery performance?
A: Several battery conservation options are available through the Windows Control Panel. For more
information about power management and batteries, refer to the online reference guide.
7
