aquaforce
1000, 2500 & 4000
INTRODUCTION
The pump is electrically operated and is designed to pump
solid particles up to 6mm in diameter with minimal pre-
strainer maintenance.
These types of pumps are particularly suitable for pumping
water to external filters or for use in high flow waterfalls
or watercourse applications where low maintenance is
important. The pump does not use oil or grease for
lubrication and can be used safely in ponds containing fish
or plants. The motor consists of a sealed stator and water-
cooled rotor. All electrical components are isolated from
the water.
ATTENTION
AUTOMATIC CUT-OUT
To help ensure your pump’s long life and to prevent
damage, it is fitted with automatic thermal overload
protection. This switches off the pump if it overheats. If
this occurs, switch off the power at the mains supply to
the pump. Check for the cause. Usually it will be debris
blocking the inlets of the pump or obstructing the
impeller. Remove the obstruction and wait for the pump
to cool down. Then switch on the pump again.
NOTE (AQUAFORCE 2500 & 4000): YOU MUST SWITCH
OFF THE MAINS SUPPLY BEFORE THE PUMP WILL RESET.
GENERAL SAFETY GUIDELINES
Failure to observe the following notices may result in
injury, product damage or loss of fish.
1. This pump has been designed for the use with ponds
only. Only use this pump for the operation of pond
filter systems, water displays, waterfalls etc. Do not use
this pump for any other use (i.e. do not use this pump
in swimming pools, bathrooms, central heating systems
etc). Using the product for any other application may
result in injury or product damage.
2. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person

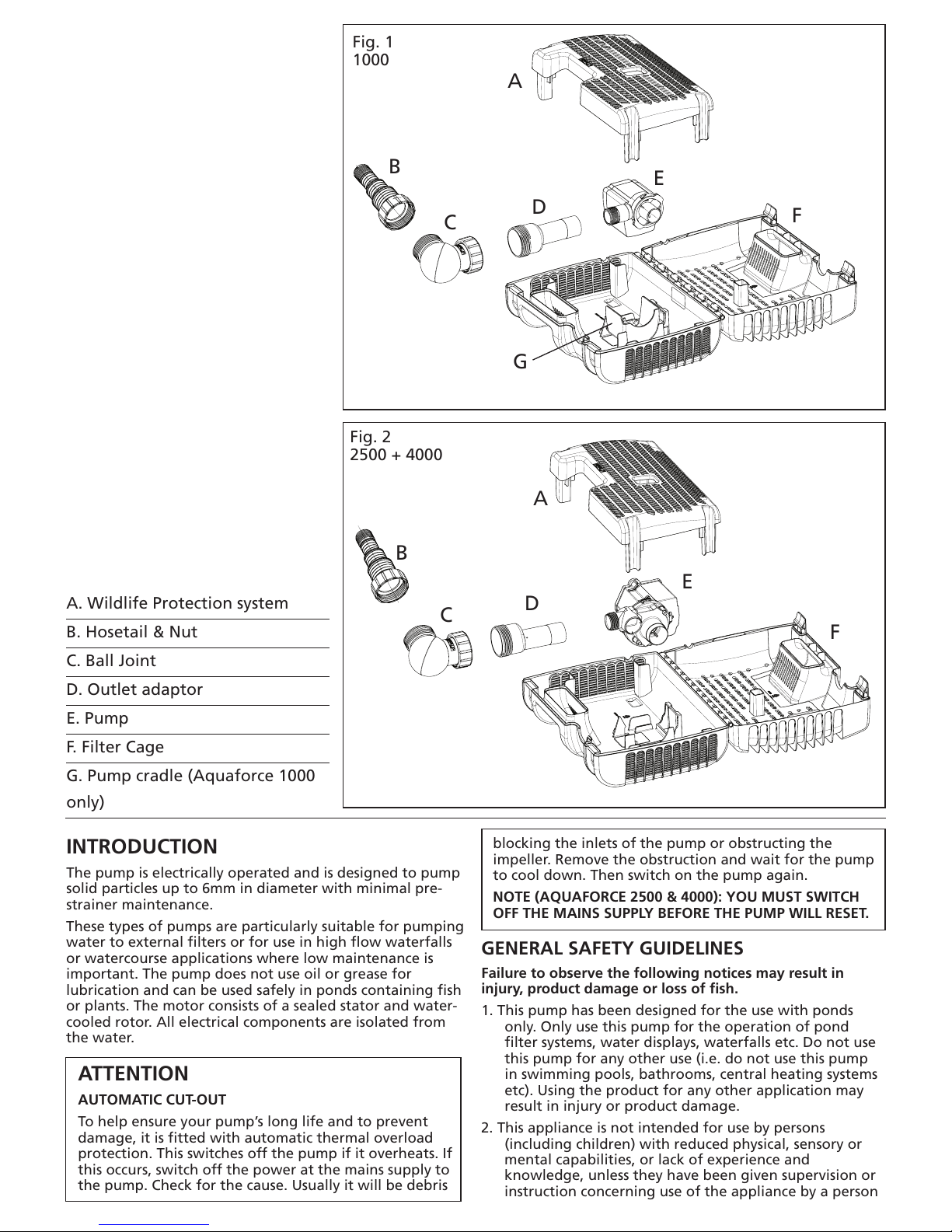

A. Wildlife Protection system
B. Hosetail & Nut
C. Ball Joint
D. Outlet adaptor
E. Pump
F. Filter Cage
G. Pump cradle (Aquaforce 1000
only)
Fig. 1
1000
Fig. 2
2500 + 4000
A
B
D
C
E
F
G
A
B
D
C
E
F
responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance. (Australia & NZ only) This appliance is not
intended for use by young children or infirm persons
unless they have been adequately supervised by a
responsible person to ensure that they can use the
appliance safely. Young children should be supervised
to ensure that they do not play with the appliance.
3. WARNING: Always unplug or disconnect all appliances
in the pond from the electricity supply before putting
your hands in the water whilst equipment is being
installed, repaired, maintained or handled.
4. Never use the mains supply cable to lift the pump, as
this may cause damage. We recommend fitting a lifting
cord to the handle on the strainer cage when the pump
is installed in deep water.
5. Do not operate or leave the pump in freezing
conditions.
6. Protect the pump from direct sunlight. Direct sunlight
may overheat the motor.
7. Never allow the pump to run dry.
8. Do not operate this pump without the strainer cage
properly attached. Using the pump without the strainer
cage may invalidate your warranty.
9. ATTENTION: This product is not suitable for water
temperatures above 35ºC.
10. ATTENTION: Do not operate this product if the mains
supply cable or the motor has become damaged in any
way. The supply cable cannot be replaced as it is
permanently encased in the motor housing and should
therefore be disposed of according to local regulations.
11. If you live in a hard water area (water with high
calcium or limescale content), the pump, rotor assembly
and inside of motor should be cleaned at regular
intervals (See MAINTENANCE).
12. Only use accessories which have been designed for use
with this product. The use of any other accessories may
invalidate your guarantee.
UK ONLY: Installing this product in the garden is classed as
'notifiable' in the revised Building Regulations for
England and Wales. The Regulations require you to tell
your local authority building control department that
you intend to install this product before installation.
Your local authority will let you know how you can get
your installation approved.
ELECTRICAL CONNECTIONS – UK VERSION
1. WARNING: Always unplug or disconnect all appliances
in the pond from the electricity supply before putting
your hands in the water whilst equipment is being
installed, repaired, maintained or handled.
2. Check that the voltage marked on the unit corresponds
to the mains supply.
3. The pump is supplied with 10m of 3 core electric cable
which is permanently connected and sealed to the
motor.
The supply cable cannot be replaced. If the cable is
damaged, the pump should be discarded.
This product is designed to be permanently wired to the
mains supply in a dry weatherproof enclosure through a
Double-Pole Switched Fused Spur - (Disconnector) to BS
3676 – with a minimum contact gap of 3mm in each
pole. Fitted with a 3 or 5 Amp fuse. The installation
must conform to the National and Local wiring
regulations which could include the use of plastic or
metal conduit to protect the cable.
4. A 10mA or 30mA Residual Current Device (RCD) Must
b
e fitted to the mains supply.
5
. WARNING: This appliance must be earthed and it is
essential that the connections are made using the
following code;
Brown – Live
Blue – Neutral
Green/Yellow – Earth
The BROWN lead should be connected to the LIVE
terminal which may be marked with an ‘L’ or coloured
brown or red.
The BLUE lead should be connected to the NEUTRAL
terminal which may be marked with an ‘N’ or coloured
blue or black.
The GREEN/YELLOW lead should be connected to the
EARTH terminal which may be marked with an ‘E’ ( ) or
coloured green or green/yellow.
6. If an extension cable is required, this should be
connected to the end of the pump cable using a
weatherproof cable connector.
The joint must be positioned in a suitable dry housing.
The extension cable should be of 3 core 0.75mm2
Polychloroprene rubber insulated cable (ref: HO5 RN-F)
and permanently wired to the mains supply with a 3 or
5 Amp fuse.
7. The pump cable (and extension cable) should be
positioned and adequately protected against damage
especially where contact with gardening equipment,
(lawn mowers, forks etc..) children and domestic
animals may occur.
8. Consult a qualified electrician or local authority if in any
doubt about wiring to the mains supply.
